Product Type	Outdoor Dome Security Camera
Brand	ACTi
Model	E71A
Resolution	1 Megapixel (720p)
Lens Type	Fixed lens
Day/Night Function	Yes, with IR cut filter and IR LEDs
Wide Dynamic Range	Basic WDR
Power Supply	Power over Ethernet (PoE) IEEE 802.3af
Power Consumption	Less than 10W (typical)
Weight	Approximately 500 g (1.1 lbs)
Dimensions (Diameter x Height)	Approximately 140 mm x 100 mm (5.51 in x 3.94 in)
Environmental Rating	IP66 (Weatherproof, outdoor use)
Storage	microSD/SDHC/SDXC card slot (up to 256GB)
Audio	Audio input and output via terminal block
Alarm I/O	1 digital input, 1 digital output (TTL levels)
Network Interface	10/100 Base-T Ethernet (RJ-45)
Reset	Hardware reset button (hold 5 seconds for factory defaults)
Mounting Options	Surface, flush, pendant, wall, pole, corner (accessories sold separately)
Software Compatibility	ACTi IP Utility, Web Configurator, Internet Explorer (ActiveX)
Regulatory Approvals	FCC Class B, CE
Maintenance	Disconnect power before cleaning; use dry cloth

Frequently Asked Questions - E71A ACTi

How do I reset the ACTi E71A camera to factory defaults?

Press and hold the reset button (located near the Ethernet port) for 5 seconds. This restores factory settings including the administrator password (Admin / 123456).

What is the default IP address of the E71A camera?

If no DHCP server is detected, the camera defaults to 192.168.0.100. Ensure your PC is on the same subnet (e.g., 192.168.0.x) to access it.

How do I install the camera on a ceiling or wall?

Drill holes for screws and cables using the provided drill template. Open the dome cover, prepare waterproof glands, mount the camera with the three screws, connect Ethernet and optional cables, adjust the viewing angle, then close the dome cover.

Can I use the camera without a PoE switch?

Yes, you can use a PoE injector (sold separately) to provide power and data over a single Ethernet cable. The camera supports IEEE 802.3af.

How do I connect external devices like alarms or microphones?

Use the provided terminal block. For DI/DO, connect to pins 1-4 (see manual for wiring). For audio, connect microphones to A_IN/AI_GND and speakers to A_OUT/AO_GND.

What memory cards are supported and how do I install one?

The E71A supports microSDHC and microSDXC cards (up to 256GB). Insert the card with metal contacts facing down into the slot inside the dome, pushing until it clicks.

How do I adjust the viewing angle?

Loosen the tilt, pan, and rotation screws. For models with varifocal lens, also adjust zoom/focus. Use the live view to set the desired angle, then tighten all screws.

Can I replace the dome cover with a vandal-proof version?

Yes, the bundled dome cover can be replaced with optional smoke or vandal-proof covers. Follow the dome replacement procedure in the manual to detach the cover bracket and shroud.

How do I make the cable connection waterproof?

Use the included cable gland for exterior-grade Ethernet cables or the conduit gland for flexible conduit. Follow the step-by-step waterproof installation instructions in the manual.

What browsers can I use to access the camera?

Full functionality is available in Internet Explorer (ActiveX). Other browsers (Chrome, Firefox, Safari) require third-party plugins like VLC or QuickTime for live video, but lack some features.

USER MANUAL E71A ACTi

Abstract geometric design with a red square and a gray star-like shape (no text or symbols)

4" Outdoor Dome Series Hardware Manual

D71A, D72A, D81A, D82A

Safety Instructions 6

Introduction......7

The List of Models 7

Package Contents......9

Physical Description .... 10

Mounting Options....12

Other Mounting Accessories 14

Installing the Camera on a Surface 15

Step 1: Drill the Holes.... 15

Step 2: Open the Dome Cover .... 16

Step 3: Prepare for Waterproof Installation.... 18

Waterproof Solution with Naked Cable 19

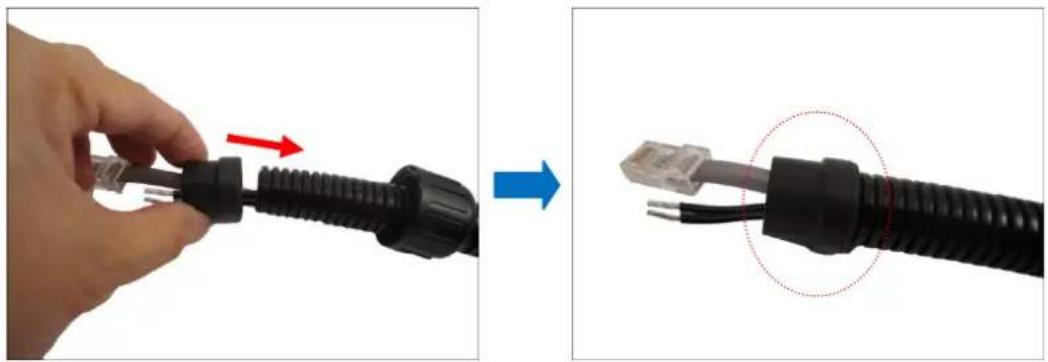

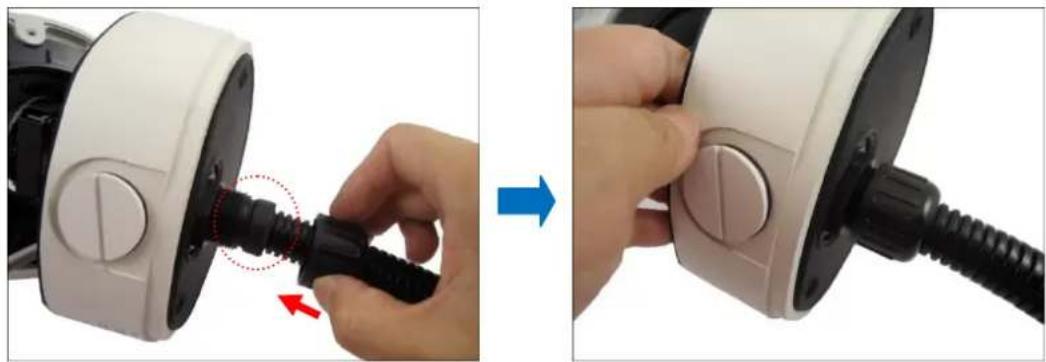

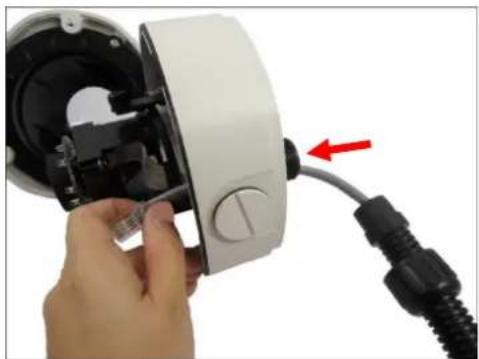

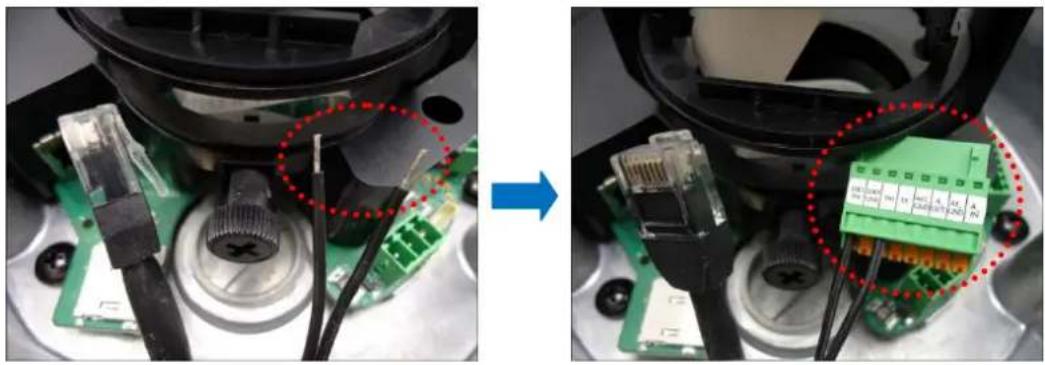

Waterproof Solution with Conduit....21

Step 4: Install the Camera to the Surface....25

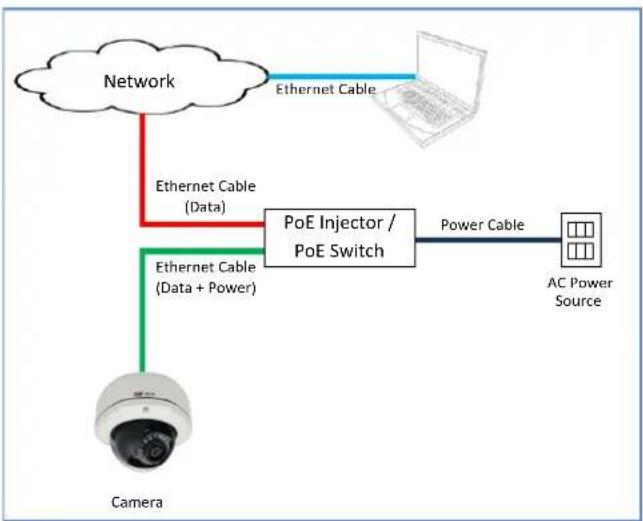

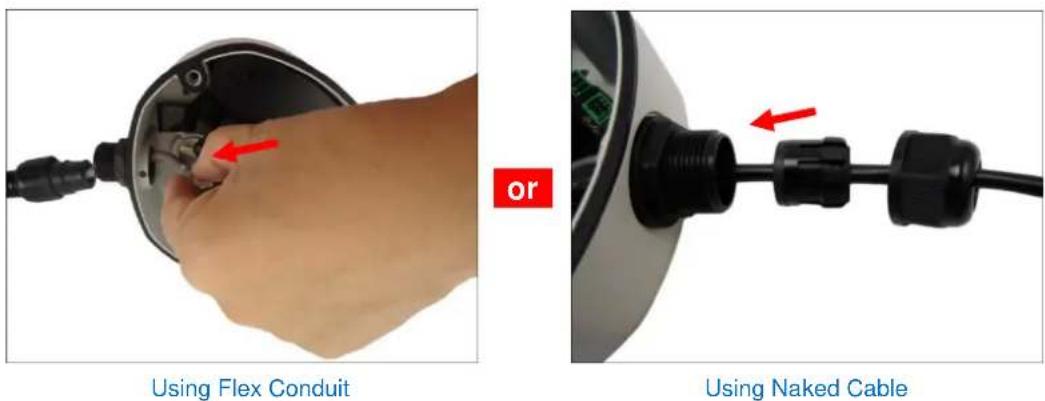

Step 5: Connect the Cable(s)....26

Step 6: Access the Camera Live View....27

Step 7: Adjust the Viewing Angle ...... 27

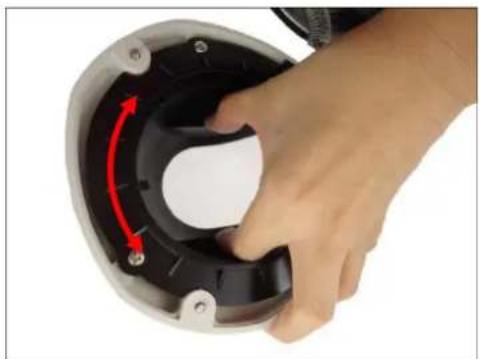

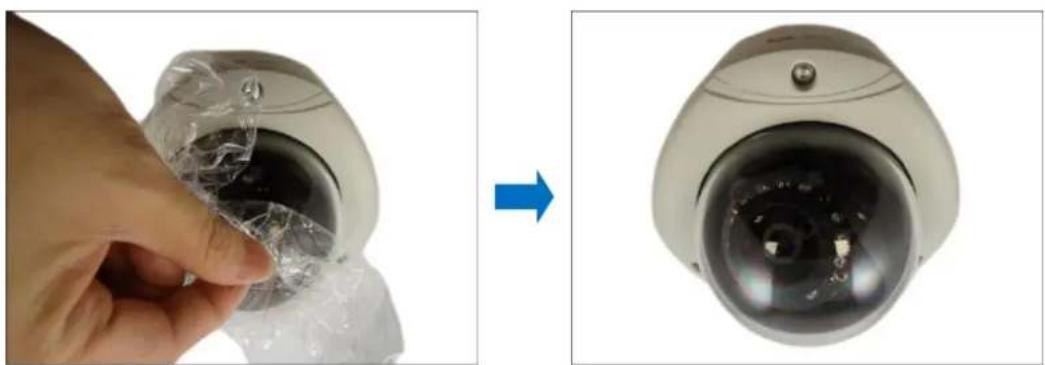

Step 8: Close the Dome Cover....28

Other Connections......29

Connecting DI/DO and Audio Devices (Optional) 29

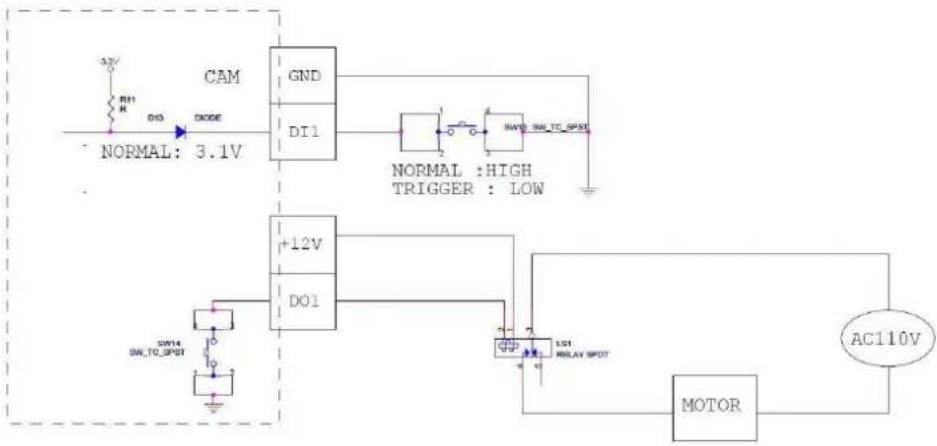

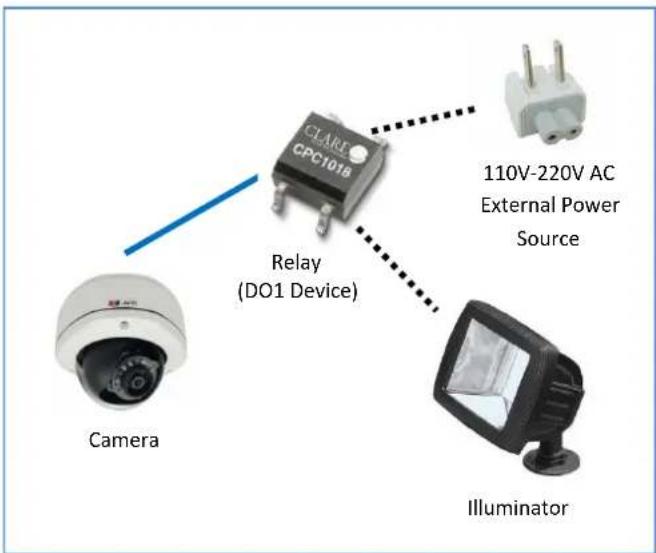

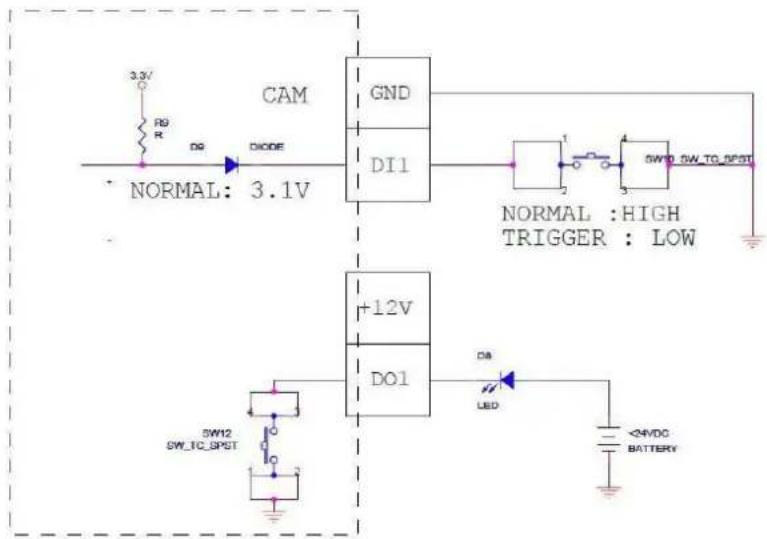

How to Connect DI/DO Devices.... 29

How to Connect Audio Devices.... 33

Other Adjustments and Accessories .... 34

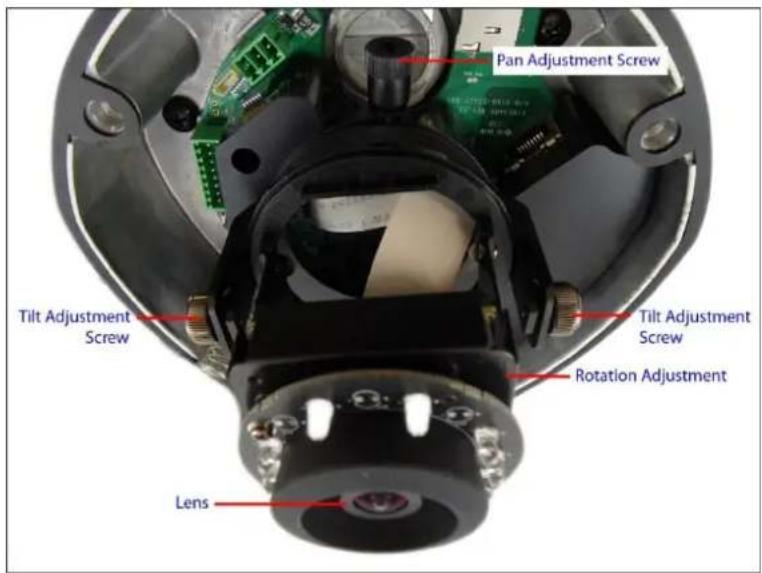

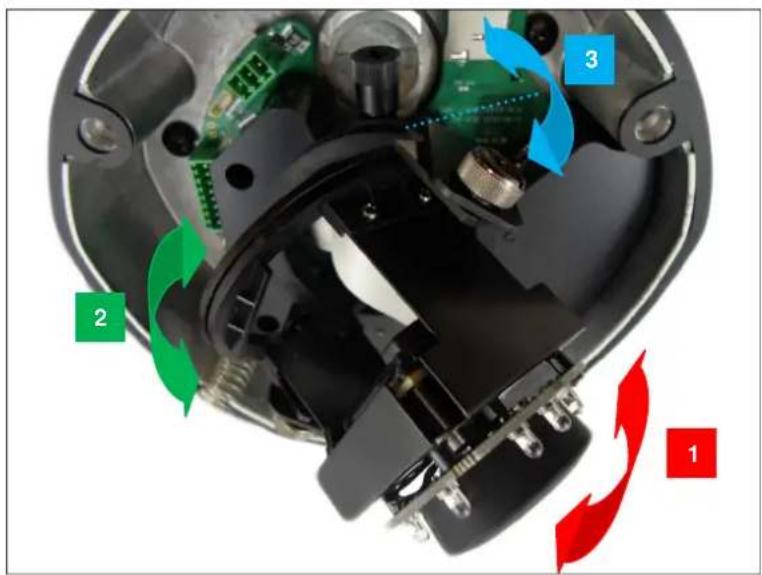

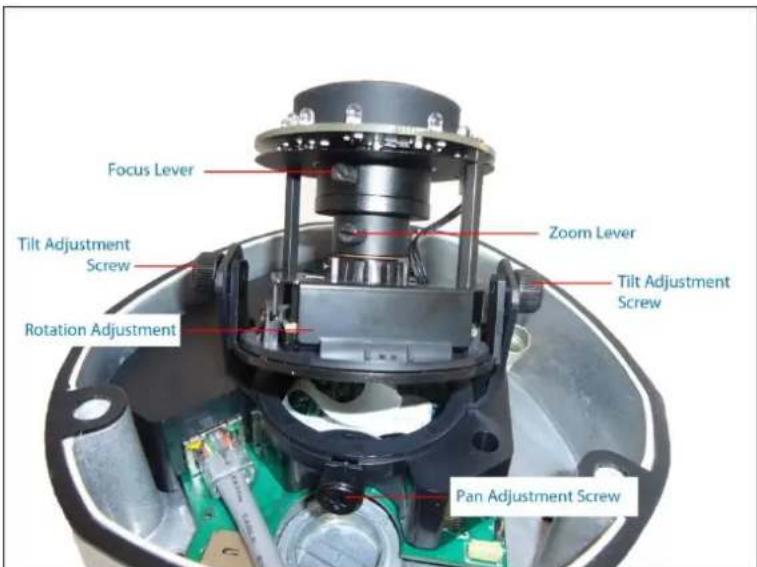

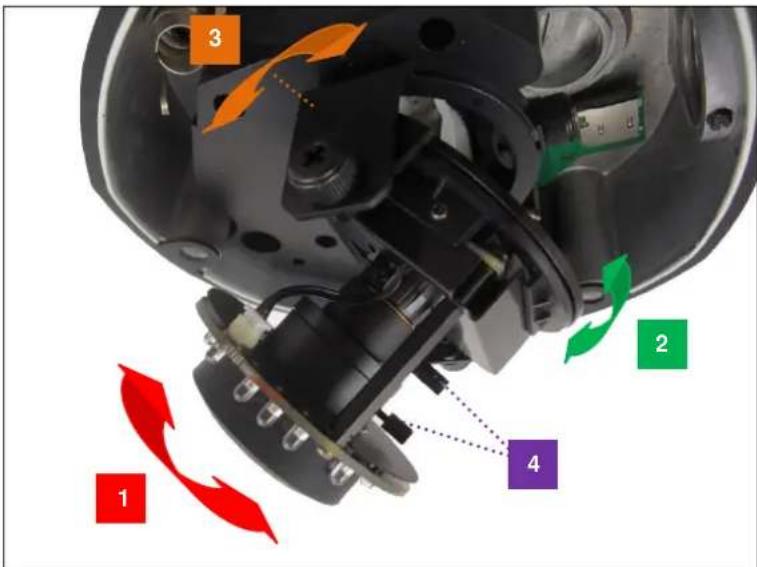

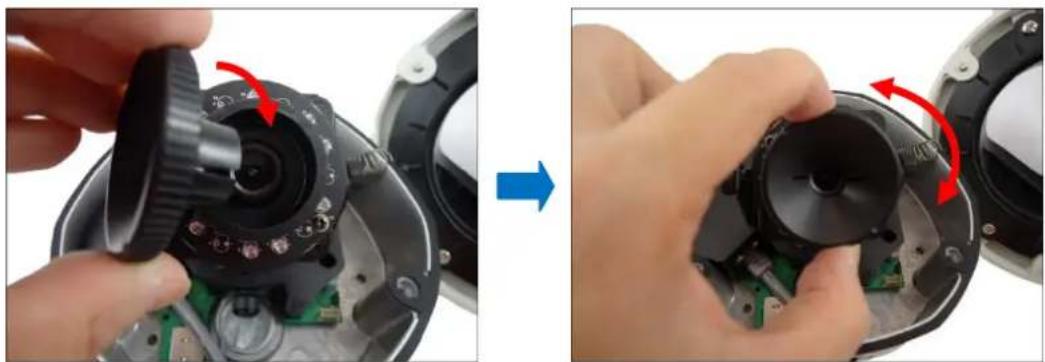

How to Adjust the Viewing Angle 34

D7xA / E7x / E7xA Series 34

D8xA / E8xA Series 36

How to Install / Remove the Memory Card 37

How to Insert the Memory Card 37

How to Remove the Memory Card.... 37

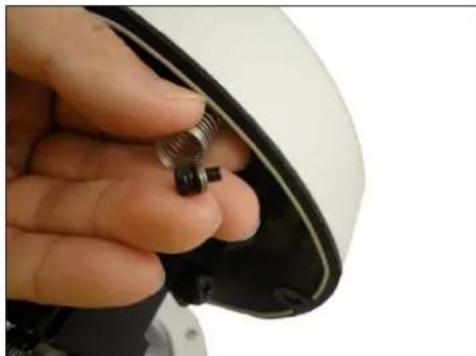

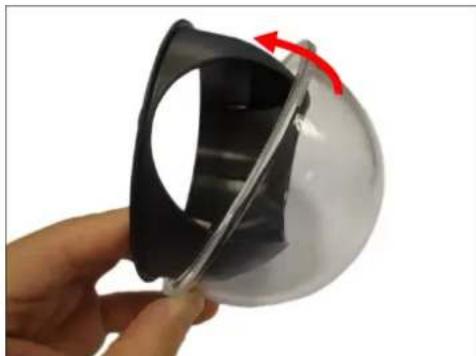

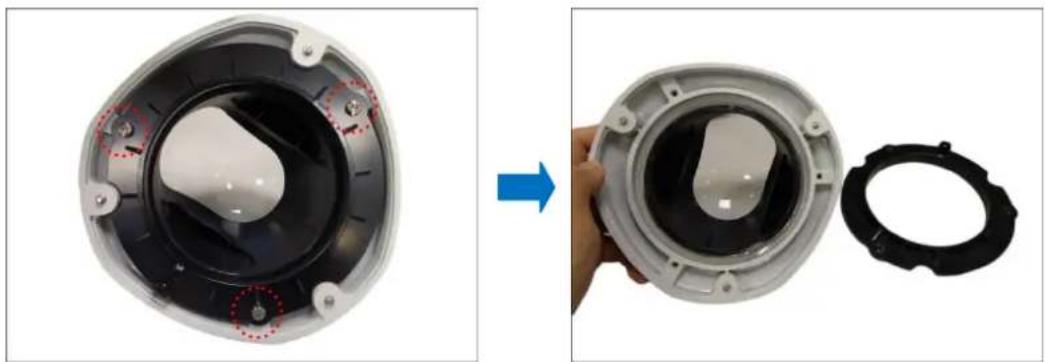

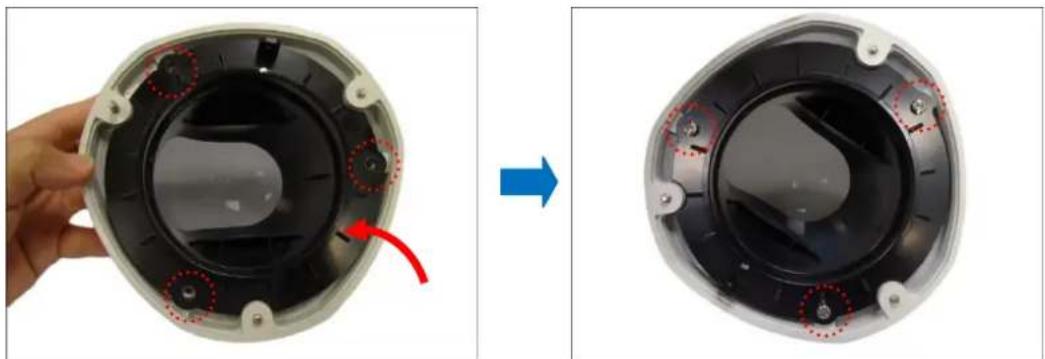

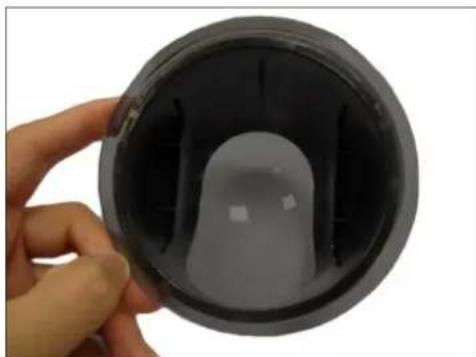

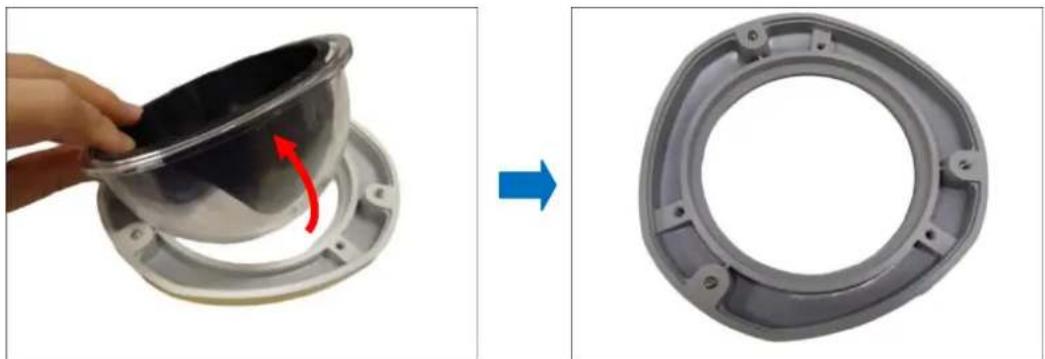

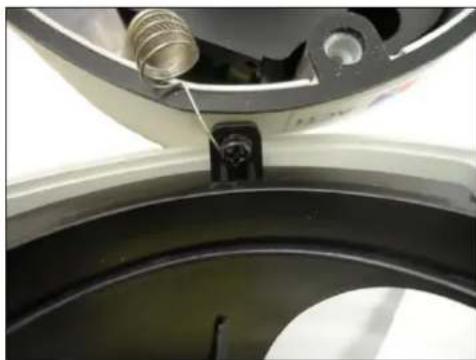

How to Replace the Dome Cover.... 38

Accessing the Camera 41

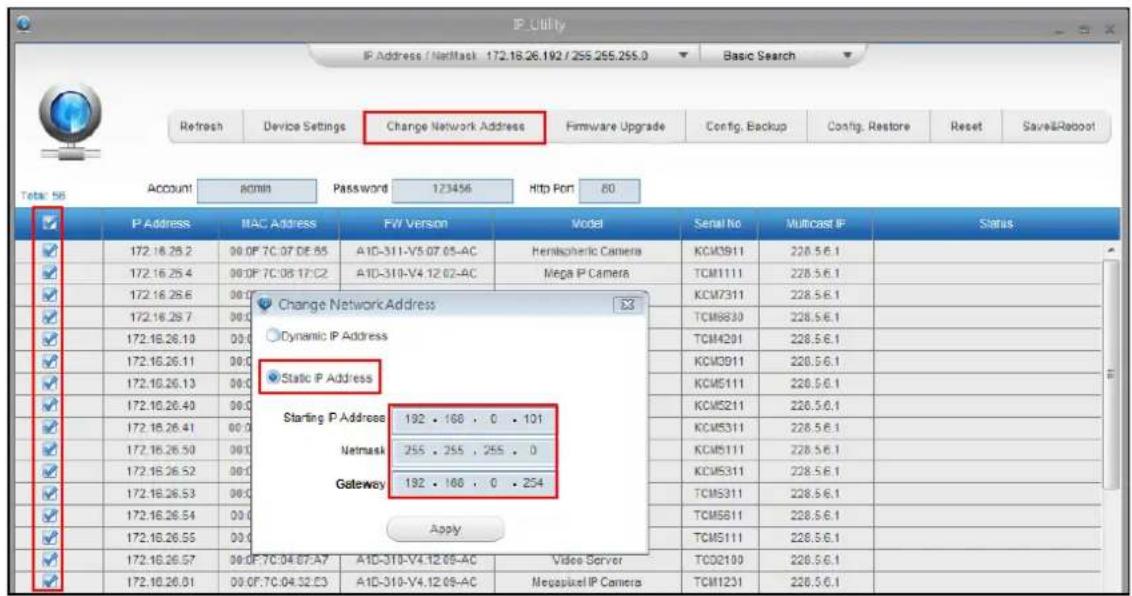

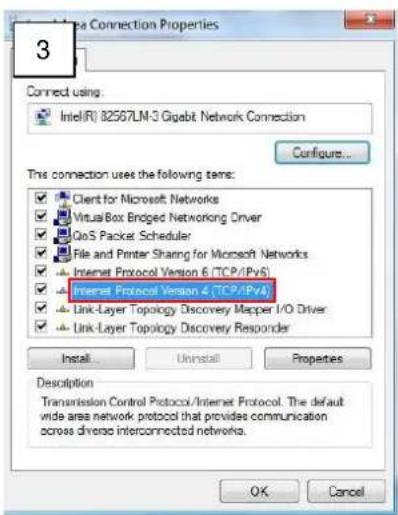

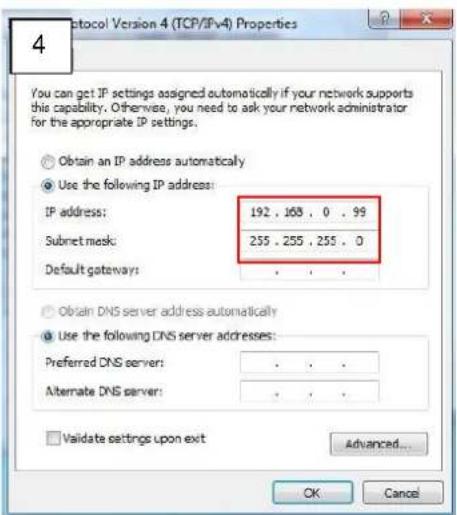

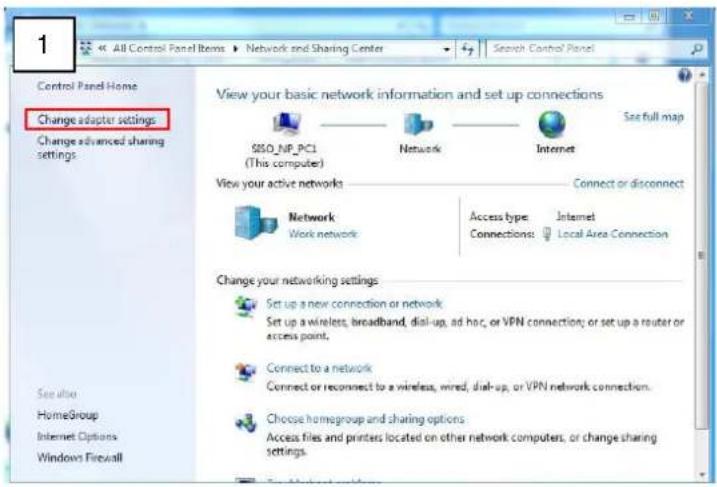

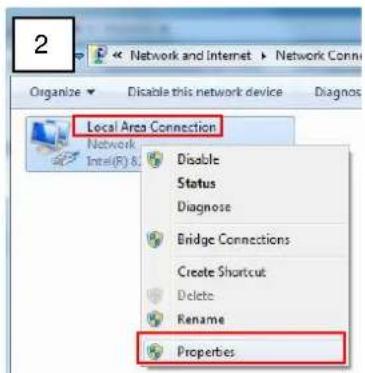

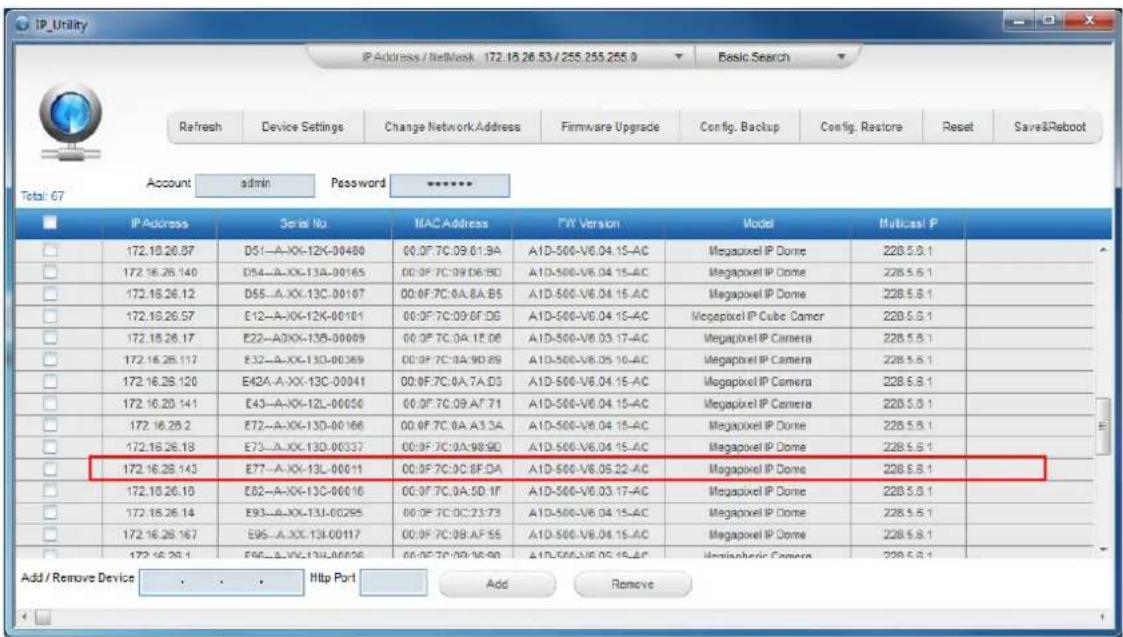

Configure the IP Addresses.... 41

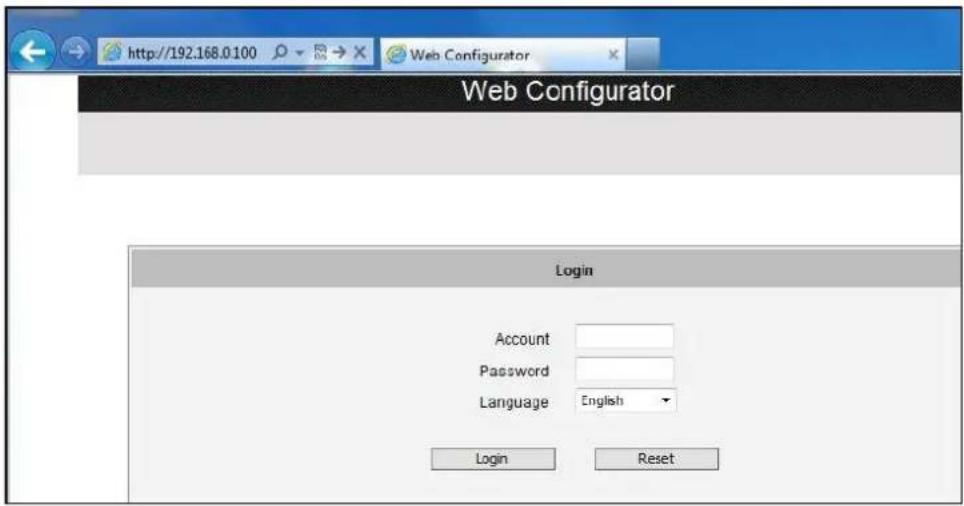

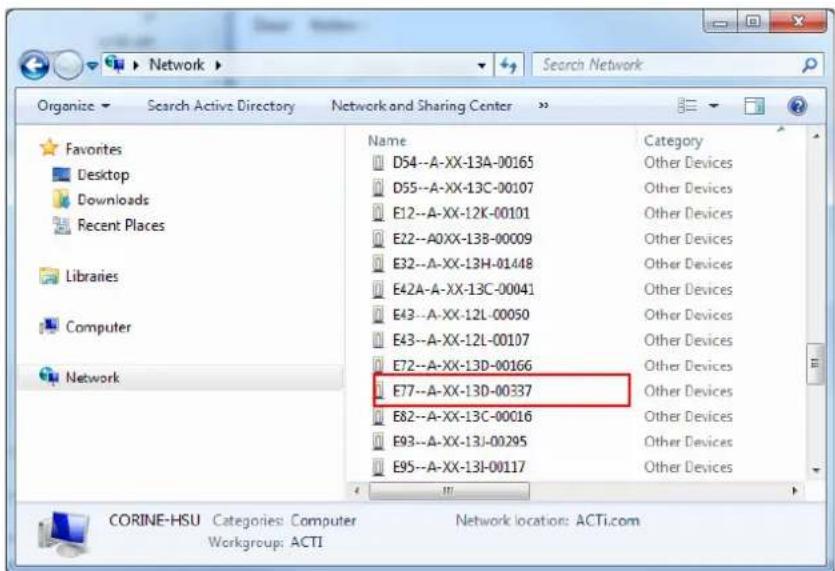

Access the Camera.... 45

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice.

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the responsible party for compliance could void the user's authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures.

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

Do not use accessories not recommended by the manufacturer

Install the PoE switch or injector and other devices that will be used with the camera in a dry place protected from weather.

Servicing

Do not attempt to service this video product yourself. Refer all servicing to qualified service personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the inner parts of video product have been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition.

Introduction

The List of Models

This hardware manual contains the following models:

D71A		1MP Outdoor Dome with D/N, IR, Fixed lens
D72A		3MP Outdoor Dome with D/N, IR, Fixed lens
D81A		1MP Outdoor Dome with D/N, IR, Vari-focal lens
D82A		3MP Outdoor Dome with D/N, IR, Vari-focal lens
E71A		1MP Outdoor Dome with D/N, IR, Basic WDR, Fixed lens
E72A		3MP Outdoor Dome with D/N, IR, Basic WDR, Fixed lens
E73A		5MP Outdoor Dome with D/N, IR, Basic WDR, Fixed lens
E74A		3MP Outdoor Dome with D/N, IR, Superior WDR, Fixed lens
E75		1.3MP Outdoor Dome with D/N, IR, Basic WDR, SLLS, Fixed lens
E76		2MP Outdoor Dome with D/N, IR, Basic WDR, SLLS, Fixed lens
E77		10MP Outdoor Dome with D/N, IR, Basic WDR, Fixed lens
E81A		1MP Outdoor Dome with D/N, IR, Basic WDR, Vari-focal lens
E82A		3MP Outdoor Dome with D/N, IR, Basic WDR, Vari-focal lens
E83A		5MP Outdoor Dome with D/N, IR, Basic WDR, Vari-focal lens
E84A		2MP Outdoor Dome with D/N, IR, Basic WDR, SLLS, Vari-focal lens
E85A		1MP Outdoor Dome with D/N, IR, Superior WDR, Vari-focal lens
E86A		3MP Outdoor Dome with D/N, IR, Superior WDR, Vari-focal lens
E88		1.3MP Outdoor Dome with D/N, IR, Basic WDR, SLLS, Vari-focal lens

From the installation perspective, these models are similar; therefore, one manual is used for all of them.

Package Contents

Camera	Mounting Screw Kit	Hexagon Screwdriver
Drill Template	Conduit Gland	Cable Gland
Lens Focus Tuner (for D7xA / E7xA / E75 / E76 only)	Terminal Block (for Audio and DI/DO)	Quick Installation Guide
Warranty Card

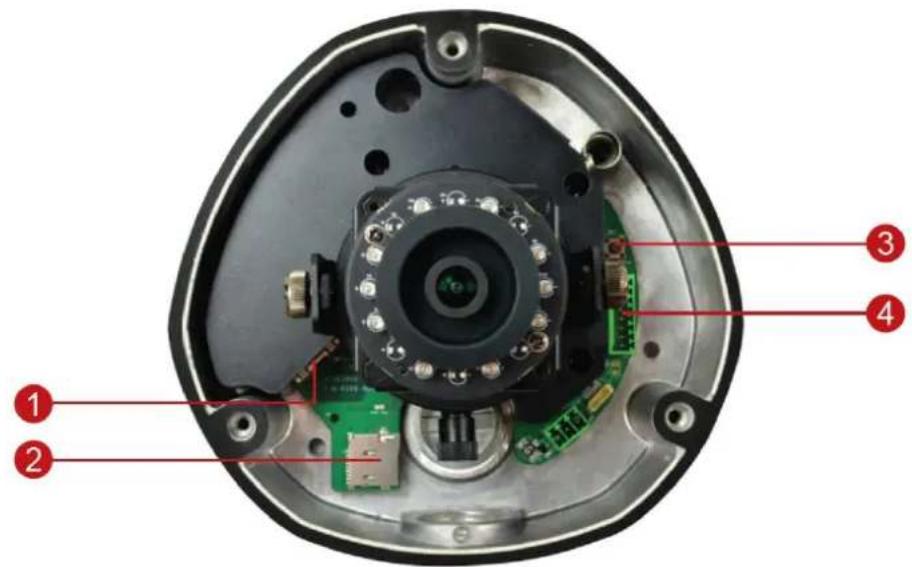

Physical Description

NOTE: The camera picture above is for reference only. Actual camera may slightly differ.

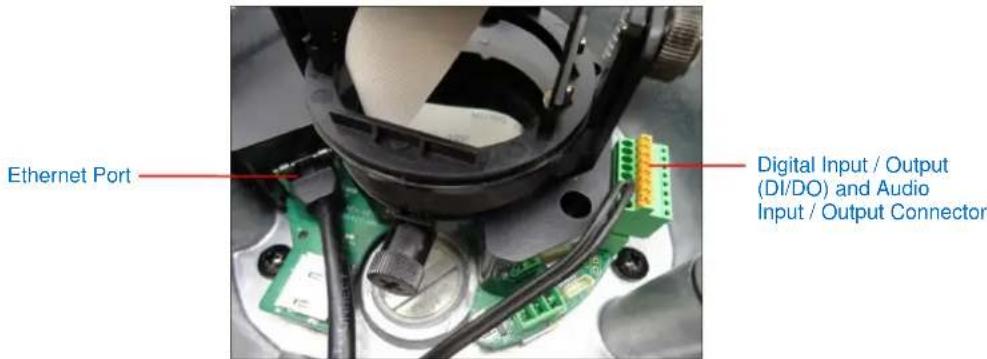

1) Ethernet Port

Connects to a network using an Ethernet cable.

2) Memory Card Slot

Insert a memory card (not included) into this slot for local recording purposes. See How to Install / Remove the Memory Card on page 37 for more information.

NOTE: Supports microSDHC and microSDXC cards.

3) Reset Button

The purpose of the reset button is to restore the factory default settings of the camera, including the administrator's password.

When to use the reset button?

1. The administrator's password has been forgotten and therefore the camera cannot be accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to modify these settings.
3. In case of connectivity issues or abnormal video quality.

How to do the reset?

Press and hold the reset button for 5 seconds.

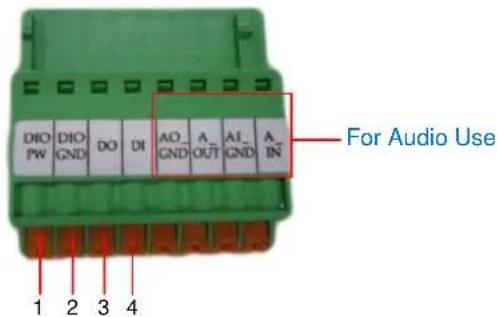

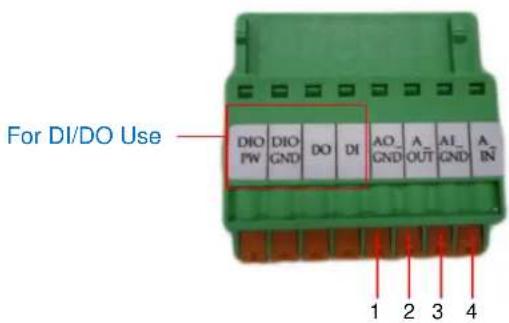

4) Digital Input / Output (DI/DO) and Audio Input / Output

This connector connects to digital input or output devices, such as an alarm trigger, panic button, etc., as well as audio input and output devices, such as microphones and speakers. Digital Input (DI) and Digital Output (DO) devices are used in applications like motion detection, event triggering, alarm notifications, etc. See Connecting DI/DO and Audio Devices (Optional) on page 29 for more information.

Mounting Options

There are several mounting options that you can use to install the camera. Select the most suitable solution for your installation environment.

Mount Types	Accessories
Surface Mount	Suitable when mounting the camera directly walls or ceilings without extra accessories. SeeInstalling the Camera on a Surfaceon page 15 for mounting instructions.
Flush Mount	Suitable when mounting the camera discretely above dropped ceilings wherein only the dome cover will be visible underneath the ceiling.
	PMAX-1003
Pendant Mount	Suitable when mounting the camera on hard and high ceilings.
	PMAX-0101	PMAX-0103 (Straight Tube with Bracket)[56DZ]
	PMAX-0101	PMAX-0102 (Straight Tube)
Straight Wall Mount	Suitable when mounting the camera on straight walls.
	PMAX-0314 (Heavy Duty Wall Mount)
Vertical Pole Mount	Suitable when mounting the camera on vertical poles.
	PMAX-0314	PMAX-0503
Horizontal Pole Mount	Suitable when mounting the camera on horizontal poles.
	PMAX-0101	PMAX-0102
Corner Mount	Suitable when mounting the camera on a corner wall.
	PMAX-0314	PMAX-0402

Other Mounting Accessories

Accessories

PMAX-0104 (Extension Tube)

PMAX- 0702 (Junction Box)

NOTE:

• For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).
• The above mounting accessories are not included in the package. Contact your sales agents to purchase.

Installing the Camera on a Surface

This section describes the procedures in installing the camera on a flat surface such as a hard or dropped ceiling and straight or tilted walls. Before installation, make sure the wall or ceiling can bear more than the weight of the camera.

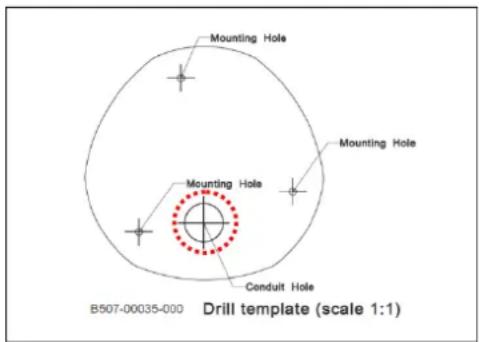

Step 1: Drill the Holes

Before drilling the holes, note the direction of the connectors side of the camera, which is also the opposite side of the camera logo. This influences the camera placement and where you should drill the hole where the cables will pass through or how the cables will go along the ceiling or wall.

1. According to the preferred camera orientation, mark the screw holes location on the surface.
2. Determine how the cables will be routed: pass through the surface or along the surface.

- If the cables will pass through the surface, drill the cable hole and the three (3) screw holes on the surface.

- If the cables will be routed along the surface, just drill the three (3) screw holes on the surface.

1. Insert the plastic plugs into the screw holes, if necessary.

Step 2: Open the Dome Cover

NOTE: To avoid scratches or leaving fingerprints on the dome cover, it is recommended to retain the plastic covering the dome cover until the camera is completely installed. However, the plastic has been removed on the pictures in this documentation to show clarity of the procedures being described.

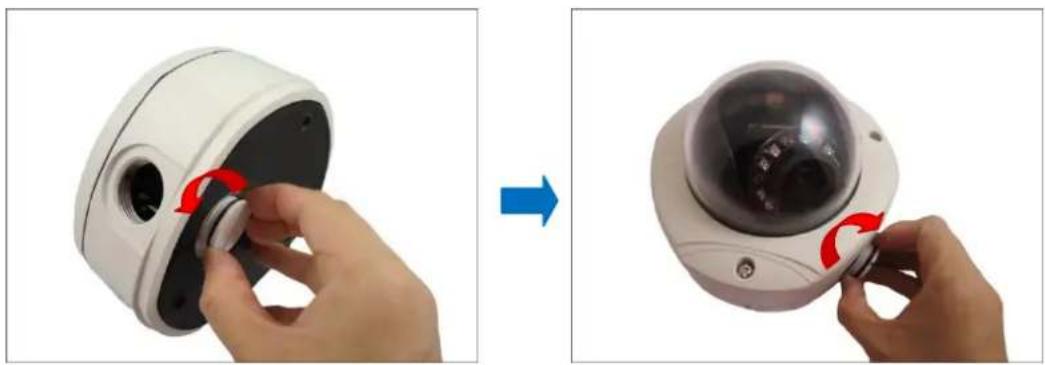

1. If the cables will pass through the surface, remove the metal cap covering the bottom conduit hole of the camera, and attach the cap to the side hole to close it. The cable(s) will be routed to pass this hole from the surface.

Two-step photo showing a hand holding a camera module being adjusted, with no visible text or symbols.

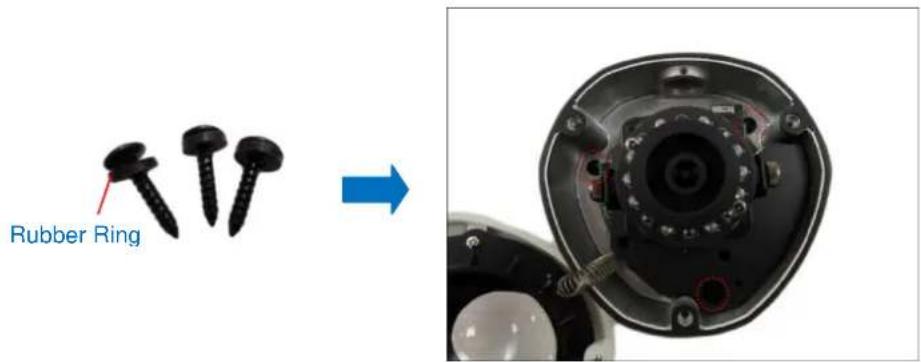

1. Loosen the three (3) screws securing the dome cover.

Close-up of a camera lens with a screwdriver inserted, showing the dome and three circular red annotations (no text or symbols present)

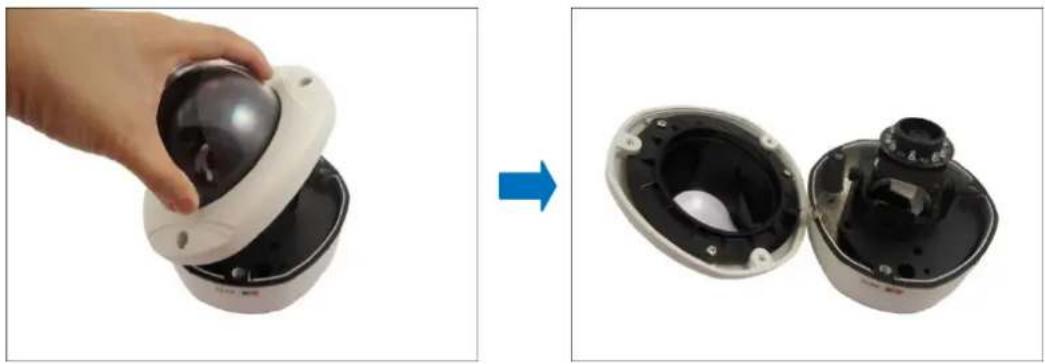

1. Carefully lift to open the dome cover and place it on the side of the camera.

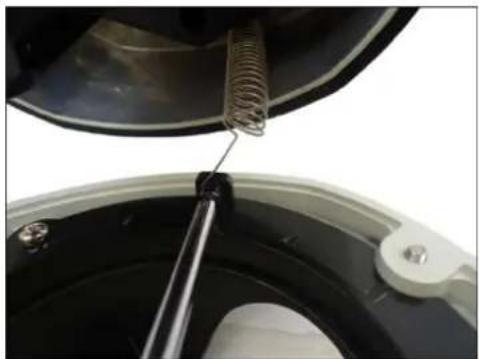

NOTE: Do not abruptly lift the dome cover; it is attached to the camera with a spring wire.

Two views of a smart security camera module: one open showing the lid, the other closed showing the lens (no text or symbols visible)

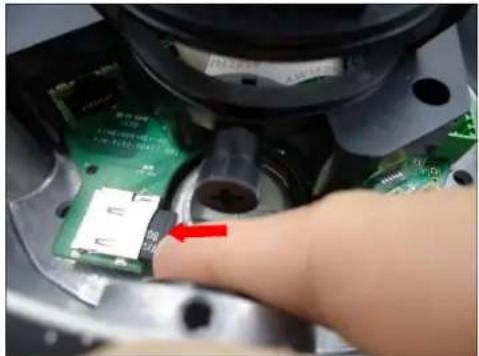

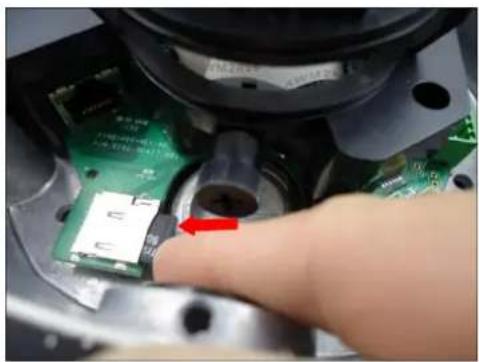

1. If necessary, insert a memory card with the metallic contacts facing down into the card slot of the camera.

Close-up of a hand inserting a green circuit board into a mechanical device (no visible text or symbols)

Step 3: Prepare for Waterproof Installation

The camera comes with two (2) glands used for waterproof installation:

• Cable Gland: For use with an Exterior-grade Ethernet cable. Exterior-grade Ethernet cables are already waterproof. See Waterproof Solution with Naked Cable on page 19.
• Conduit Gland: For use with a flexible conduit. This solution is recommended when an exterior-grade Ethernet cable is not available or when other cable connections, like audio input, DC 12V power, etc. will be connected to the camera. See Waterproof Solution with Conduit on page 21.

Determine the type of waterproof solution that is applicable to your installation requirements and prepare the necessary accessories or purchase extra materials.

Cable Gland	Conduit Gland
For use with an Exterior-grade Ethernet cable (not included in the package).	For use with 1/2” flexible conduit (not included in the package)

Waterproof Solution with Naked Cable

This section describes the procedures in using the bundled cable gland and an exterior-grade Ethernet cable.

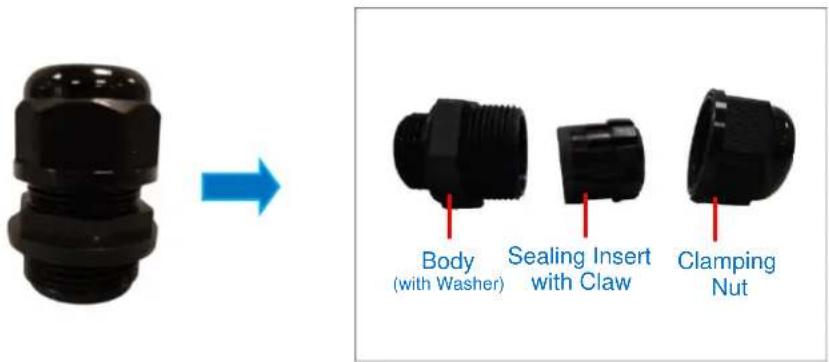

1. Disassemble the cable gland as shown below:

1. Insert the clamping nut into the Ethernet cable.

Close-up of a black cable with a red arrow pointing to its end, against a white background (no text or symbols)

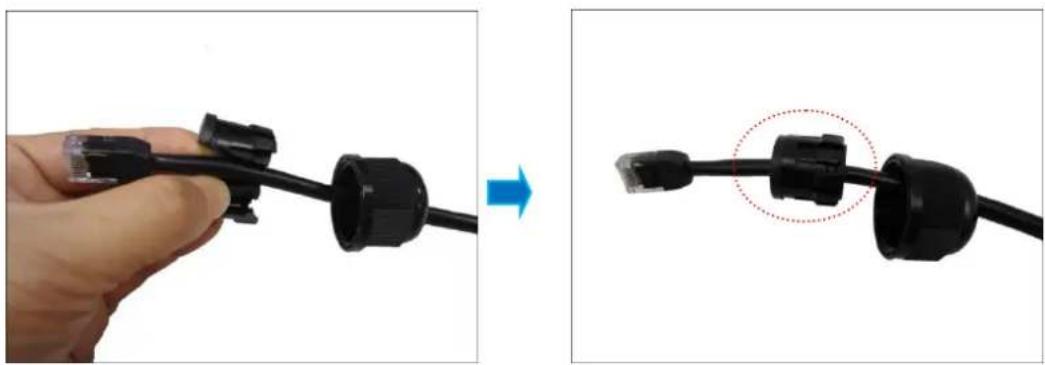

1. Insert the sealing insert with claw.

Close-up of a hand holding a black cable with connectors, showing a change from left to right (no text or symbols visible)

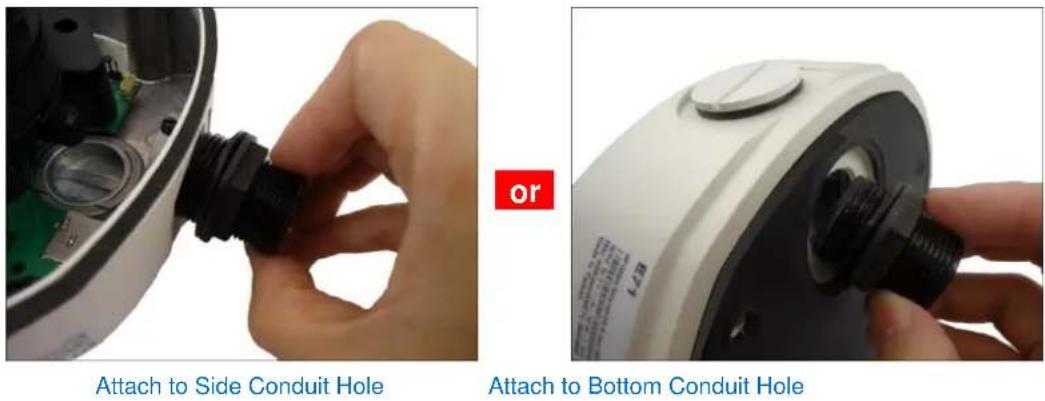

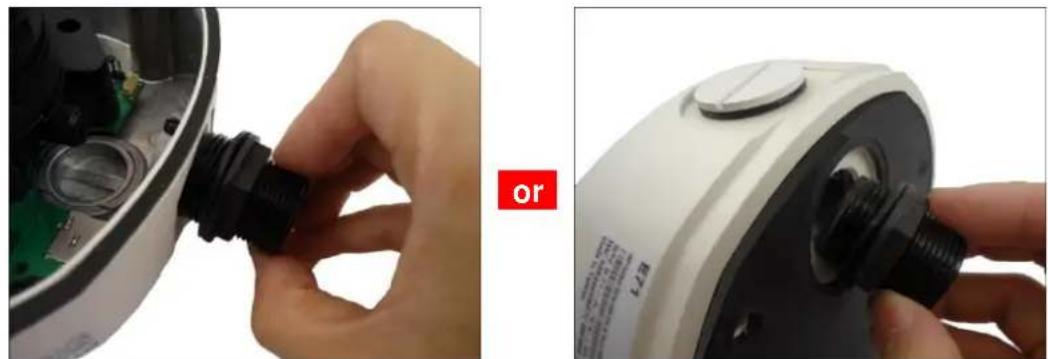

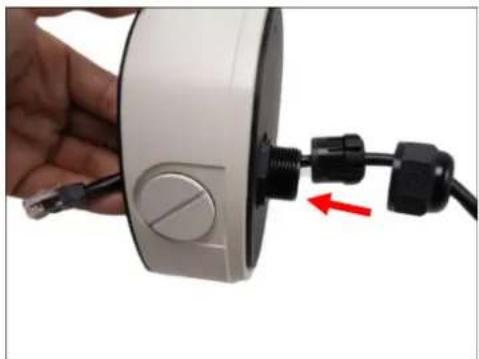

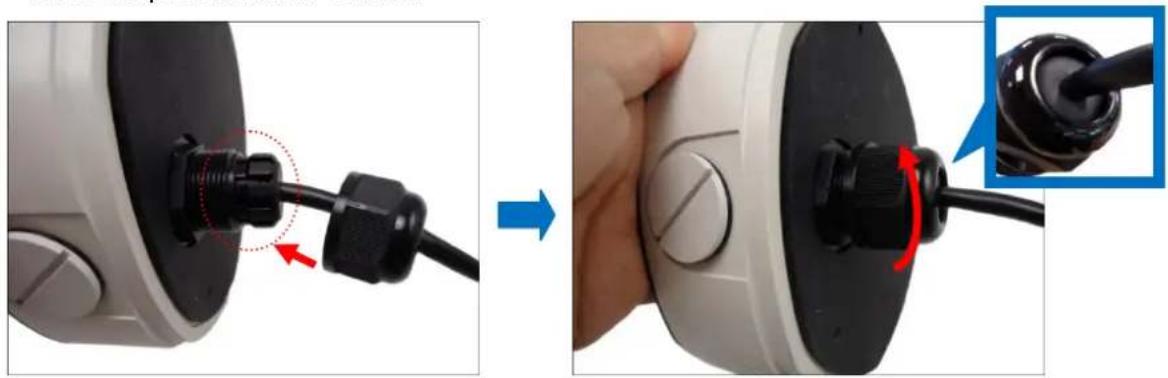

1. Attach the cable gland body to the hole of the camera.

Close-up of hands installing a black plastic component into a white electronic device, showing the installation and assembly (no text or symbols visible)

Attach to Camera Side Hole
Attach to Camera Bottom Hole

1. If the cable will be routed along the surface, skip this step.

If the cable will pass through the surface, do the following:

a. Pull the network cable through the bottom conduit hole.

Close-up of a hand holding a white cylindrical device with a black connector and red arrow indicating a cable or cable connection (no text or symbols visible)

b. Insert the sealing insert with claw into the cable gland body and then attach the clamping nut to complete the cable solution.

Close-up of a black cable connector being inserted into a device, showing the cable being inserted with red arrows (no text or symbols visible)

NOTE: Make sure the clamping nut is tightly attached to the cable gland body and the sealing insert is squeezed tightly.

1. Proceed with Step 4: Install the Camera to the Surface on page 25.

Waterproof Solution with Conduit

This section describes the procedures to waterproof the cabling connections using the bundled conduit gland and flexible conduit. This is the recommended if other input/output devices or an external power adapter will be connected to the camera or when an exterior-grade Ethernet cable is not available.

1. Prepare the following materials for waterproof installation:

Conduit Gland(included in the camera package)	Flexible Conduit1/2" Trade size(not included in the package)	Network CableCAT 5 or CAT 6(not included in the package)

1. Disassemble the bundled conduit gland as shown below:

Lock Nut

Sealing Insert

NOTE: In this installation, the conduit gland body can be securely attached to the mount kit; therefore the use of lock nut is not necessary. Please set the lock nut aside.

1. Pull the network cable through the flex conduit. If connecting other input/output devices or an external power adapter, pull the cables through the flex conduit without connectors. The terminal blocks will be attached once the cables pass through the camera hole later.

Close-up of a black cable with a connector and a red arrow indicating direction (no text or symbols)

1. Insert the clamping nut through the flex conduit.

Close-up of a black cable with a red arrow pointing to its connector (no text or symbols visible)

1. Insert the sealing insert and attach it at the end of the flex conduit.

Close-up of a hand holding a black cable with red and blue arrows indicating connection (no text or symbols)

1. Screw the conduit gland body to the conduit hole of the camera.

1. If the cables will be routed along the surface, skip this step.

If the cables will pass through the surface, do the following:

a. Pull the network cable and other cables (if any) through the bottom conduit hole.

Close-up of a hand inserting a device into a white housing with a black cable, showing a red arrow pointing to the cable (no text or symbols visible)

b. Insert the sealing nut into the conduit gland body and then attach the clamping nut to complete the cable solution.

Two-step photo showing a hand inserting a black cable to a white device, with no visible text or symbols.

1. If connecting other cables, attach the terminal blocks to the cables. See Other Connections on page 29.

Close-up of a mechanical assembly showing a green circuit board connected to a black component, with no visible text or symbols.

1. Proceed with Step 4: Install the Camera to the Surface on page 25.

Step 4: Install the Camera to the Surface

Align the camera screw holes and the conduit hole (if necessary) to the holes on the surface and attach the three (3) supplied screws with rubber rings to secure the camera.

CAUTION: When using electric screwdrivers, be careful not to touch the internal camera components while attaching the screws. Since electric screwdrivers vary in sizes, speed, and force, they may bruise and damage the internal camera components.

DISCLAIMER: ACTi will not be responsible for camera damage caused by improper installations or the misuse of equipment for installation.

Step 5: Connect the Cable(s)

1. If the cables will be routed along the surface, pull the network cable and other cables (if any) through the side conduit hole and attach the sealing insert and the clamping nut to the gland body. If the cable passes through the surface, skip to step 2.

1. Connect the network cable to the Ethernet port and the other cables (if any) to their corresponding connectors on the camera.

1. Connect the other end of the network cable to a switch or injector. Then, connect the switch or injector to a network or PC and a power source. See Power-over-Ethernet (PoE) example connection diagram below.

Step 6: Access the Camera Live View

See Accessing the Camera on page 41 for more information on how to access the Live View of the camera.

Step 7: Adjust the Viewing Angle

Based on the live view, adjust the viewing angle and orientation of the camera. Adjustments vary per model. For detailed information, please refer to How to Adjust the Viewing Angle on page 34.

Step 8: Close the Dome Cover

1. Align the position of the dome cover shroud to the direction of the lens.

Hand holding a black circular device with red arrows indicating rotation or movement (no text or symbols visible)

1. Tighten the three (3) screws to attach the dome cover to the camera body.

Close-up of a hand holding a screwdriver inserted into a camera lens (no text or symbols visible)

1. Remove the plastic covering the dome cover. Final installation will look like the illustration below.

Close-up of a hand holding a plastic-covered security camera, showing a blue arrow pointing to its side view (no text or symbols visible)

Other Connections

This section describes the procedures in preparing the Digital Input and Output (DI/DO) and Audio Input and Output devices that you can connect to the camera using the bundled terminal blocks. The use of these devices, however, is optional.

Connecting DI/DO and Audio Devices (Optional)

Depending on your surveillance needs, you may connect digital input / output or audio input / output devices to your camera. The camera comes with one (1) terminal block for both digital and audio input/output devices.

How to Connect DI/DO Devices

Digital Input (DI) devices can be used to notify the camera about an activity in the camera site. DI can be triggers of events. For example, you can connect a “panic button” to the camera; as such when the panic button is pressed, the alarm signal will be sent through the camera. Other common DI device applications are emergency button, smoke detector, passive infrared sensor, etc.

Digital Output (DO) devices are external devices that are activated by the camera upon an event inside the camera. For example, you can connect an “alarm horn” to the camera; as such when an event occurs inside the camera (e.g. detected intruder), the alarm horn will sound. Other common DO device applications are motion-triggered lights, electric fence, magnetic door locks, etc.

Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire.

To connect digital input / output devices (DI/DO), map the pins to one of the pin combinations below:

Device	Pin		Mapping Instructions
Digital Output (DO)	1	DIO PW	Connect the wires of the output device to DIO PW (Pin 1) and DO (Pin 3).
	3	DO
Digital Input (DI)	2	DIO GND	Connect the wires of the input device to DIO GND (Pin 2) and DI (Pin 4).
	4	DI

The table below shows the DI/DO connection specifications:

Device
DI	Connection design		TTL - compatible logic levels
	Voltage	To trigger (low)	Logic level 0: 0V ~ 0.4V
		Normal (high)	Logic level 1: 3.1V ~ 30V
	Current		10mA ~ 100mA
DO	Connection design		Transistor (Open Collector)
	Voltage & Current		< 24V DC, < 50mA

Typical Connection

Based on these specifications, if the DI device has a voltage of 0V \~ 30V or the DO device has a voltage of < 24V (< 50mA), then the camera can supply internal power to these devices and there is no need to connect the DI/DO device to an external power source.

In this case, wire connection to Pins 1 to 4. Use the DIO GND and DI pins to connect a DI device and use the DIO PW and DO pins to connect a DO device. See wiring scheme below:

High Voltage DO Device Connection

Even though the camera provides 12V power, this may not be enough for some high voltage DO devices, such as a ceiling light or a motor that opens or closes a gate. In this case, there is a need to connect an external relay. See wiring scheme below:

Note that when choosing an appropriate relay, please refer to its specifications and make sure they match the above design. The triggering circuit voltage has to be around 12V DC and the switch-controlled circuit voltage has to match the external power supply (e.g. 110V AC or 220V AC).

The illustration below is a graphic example of connecting a relay to a high voltage DO device.

NOTE: For more information on DI/DO connections, please refer to the Knowledge Base article All about Digital Input and Digital Output downloadable from the link below (http://www.acti.com/kb/detail.asp?KB_ID=KB20091230001).

How to Connect Audio Devices

Audio input / output devices, such as an active microphone or speaker can be connected to the camera using the supplied terminal block.

Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire.

To connect audio devices, map the pins to one of the pin combinations below:

Device	Pin		Mapping Instructions
Audio Output (AO)	1	AO_GND	Connect the wires of the audio output device to AO_GND (Pin 1) and A_OUT (Pin 2).
	2	A_OUT
Audio Input (A1)	3	AI_GND	Connect the wires of the audio input device to AI_GND (Pin 3) and A_IN (Pin 4).
	4	A_IN

NOTE: For more information about AUDIO in connections, please refer to the Knowledge Base article How to Use Audio-in of ACTi Cameras, downloadable from the link below (http://www.acti.com/support/KnowledgeBase/outside/detail.asp?KB_ID=KB20100114003).

Other Adjustments and Accessories

How to Adjust the Viewing Angle

This section describes the procedures in adjusting the viewing angle and pan direction of the camera.

D7xA / E7x / E7xA Series

Camera Parts Overview

Adjustment Procedures

1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix the tilt position.
2. Move the rotation adjustment to rotate the viewing orientation.
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position.
4. Except for E77 camera, attach the bundled lens focus tuner unto the lens and turn left or right to adjust the focus.

Close-up of a robotic device's internal components being adjusted, showing a rotary knob and green circuit board (no text or symbols visible)

NOTE: E77 camera lens come with the focus and viewing angle already fixed, therefore focus and viewing angle adjustments are not applicable.

D8xA / E8xA Series

Camera Parts Overview

Adjustment Procedures

1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix the tilt position.
2. Move the rotation adjustment to rotate the viewing orientation.
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position.
4. If necessary, loosen the zoom and focus lever screws, then move the zoom and focus levers left or right to adjust the focus and the viewing angle.
5. Tighten back the zoom and focus lever screws to fix the focus and viewing angle position.

How to Install / Remove the Memory Card

The camera supports local video recording or saving of snapshots to a memory card.

NOTE: Supports microSDHC and microSDXC cards.

How to Insert the Memory Card

Insert a memory card into the card slot with the metallic contacts facing down the camera. Push the card until it clicks into place.

Close-up of a hand pressing a green circuit board with a red arrow indicating a component (no visible text or symbols)

How to Remove the Memory Card

In case there is a need to remove the card, make sure to access the camera Web Configurator to safely "unmount" the card first (see the camera Firmware manual for more information). Once unmounted from the firmware, push the card to eject it from the slot.

How to Replace the Dome Cover

For more discrete surveillance needs, the bundled dome cover can be replaced with a smoke, vandal proof cover available for purchase. To replace the dome cover, do the following:

1. Loosen the three (3) screws to open the dome cover.

Close-up of a hand holding a screwdriver inserted into a camera lens (no text or symbols visible)

1. Using a screwdriver, remove the screw securing the spring wire to the dome cover.

Close-up of a mechanical component with a spring attached to a black lid, showing internal structure (no text or symbols visible)

NOTE: Hold the spring wire as the screw is being removed to avoid the sudden release of the screw and cause it to fly in the air.

1. Remove the three (3) screws to detach the cover bracket.

Two views of a mechanical component before and after assembly, showing internal components and a close-up view (no text or symbols visible)

1. Remove dome cover from the cover housing.

Two-step diagram showing a hand holding a metallic bowl and a circular mechanical component with red arrow indicating rotation (no text or symbols)

1. Remove the shroud from the dome cover.

Close-up of a hand holding a transparent dome-shaped object with a red arrow indicating rotation (no text or symbols visible)

1. Insert the shroud into the replacement dome cover.

Hand holding a black circular object with internal structure, no visible text or symbols

1. Insert the replacement dome cover into the cover housing.

Hand holding a white dome-shaped object with a red arrow indicating rotation (no text or symbols)

1. Align and attach the three (3) screws to secure the bracket to the cover housing.

Two views of a device showing internal components before and after assembly, with no visible text or symbols.

1. Fit the screw into the spring wire that is attached to the camera.

Close-up of a hand holding a small electronic component, possibly a connector or sensor, with no visible text or symbols.

1. Attach the screw to the dome cover using a screwdriver. Final installation should look like the illustration below.

Close-up of a car wheel rim with a spring attached, showing mechanical components and mounting brackets (no text or symbols visible)

Accessing the Camera

Configure the IP Addresses

In order to be able to communicate with the camera from your PC, both the camera and the PC have to be within the same network segment. In most cases, it means that they both should have very similar IP addresses, where only the last number of the IP address is different from each other. There are 2 different approaches to IP Address management in Local Area Networks – by DHCP Server or Manually.

Using DHCP server to assign IP addresses:

If you have connected the computer and the camera into the network that has a DHCP server running, then you do not need to configure the IP addresses at all – both the camera and the PC would request a unique IP address from DHCP server automatically. In such case, the camera will immediately be ready for the access from the PC. The user, however, might not know the IP address of the camera yet. It is necessary to know the IP address of the camera in other to be able to access it by using a Web browser.

The quickest way to discover the cameras in the network is to use the simplest network search, built in the Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras.

In the example below, we successfully found the camera model that had just connected to the network.

Double-click the mouse button on the camera model name, the default browser of the PC is automatically launched and the IP address of the target camera is already filled in the address bar of the browser.

If you work with our cameras regularly, then there is even a better way to discover the cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not only discover the cameras, but also list lots of valuable information, such as IP and MAC addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple devices at the same time.

The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility

When you launch IP Utility, the list of connected cameras in the network will be shown. See sample illustration below:

You can quickly notice the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.

Use the default IP address of a camera:

If there is no DHCP server in the given network, the user may have to assign the IP addresses to both PC and camera manually to make sure they are in the same network segment.

When the camera is plugged into network and it does not detect any DHCP services, it will automatically assign itself a default IP:

192.168.0.100

Whereas the default port number would be 80. In order to access that camera, the IP address of the PC has to be configured to match the network segment of the camera.

Manually adjust the IP address of the PC:

In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below:

Manually adjust the IP addresses of multiple cameras:

If there are more than 1 camera to be used in the same local area network and there is no DHCP server to assign unique IP addresses to each of them, all of the cameras would then have the initial IP address of 192.168.0.100, which is not a proper situation for network devices – all the IP addresses have to be different from each other. The easiest way to assign cameras the IP addresses is by using IP Utility:

With the procedure shown above, all the cameras will have unique IP addresses, starting from 192.168.0.101. In case there are 20 cameras selected, the last one of the cameras would have the IP 192.168.0.120.

Later, by pressing the "Refresh" button of the IP Utility, you will be able to see the list of cameras with their new IP addresses.

Please note that it is also possible to change the IP addresses manually by using the Web browser. In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time.

Access the Camera

Now that the camera and the PC are both having their unique IP addresses and are under the same network segment, it is possible to use the Web browser of the PC to access the camera.

You can use any of the browsers to access the camera, however, the full functionality is provided only for Microsoft Internet Explorer.

The browser functionality comparison:

Functionality	Internet Explorer	Other browsers
Live Video	Yes	Yes*
Live Video Area Resizable	Yes	No
PTZ Control	Yes	Yes
Capture the snapshot	Yes	Yes
Video overlay based configuration (Motion Detection regions, Privacy Mask regions)	Yes	No
All the other configurations	Yes	Yes

* When using non-Internet Explorer browsers, free third-party software plug-ins must be installed to the PC first to be able to get the live video feed from the camera:

Browser	Required Plug-In
Safari	QuickTime (http://www.apple.com/quicktime/download/)
Other non-Internet Explorer browsers	Basic VLC Media Player (http://www.videolan.org)

Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its cameras with VLC player or QuickTime – since these are third party softwares. The third party has the right to modify their utility any time which might affect the compatibility. In such cases, please use Internet Explorer browser instead.

When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case.

The examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera.

Assuming that the camera's IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser's address bar:

http://192.168.0.100

Upon successful connection to the camera, the user interface called Web Configurator would appear together with the login page. The HTTP port number was not added behind the IP address since the default HTTP port of the camera is 80, which can be omitted from the address for convenience.

Before logging in, you need to know the factory default Account and Password of the camera.

Account: Admin

Password: 123456

For further operations, please refer to the Firmware User Manual.

ACTi

Connecting Vision

Copyright © 2015, ACTi Corporation All Rights Reserved

7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C.

TEL: [phone] FAX: [phone]

Email: [e-mail]
