E222 - Security Camera ACTi - Free user manual and instructions

Product Type	Box Security Camera
Model	E222 (ACTi)
Resolution	2 Megapixels (1920 x 1080)
Image Sensor	1/2.8" Progressive CMOS (typical)
Day/Night	Yes (with IR cut filter)
Wide Dynamic Range	Extreme WDR
SLLS	Yes (Smart Light Level Sensitivity)
Lens Type	Vari-focal, DC iris, manual focus
Lens Mount	CS mount
Minimum Illumination	0.1 lux (typical)
Video Compression	H.264, MJPEG (assumed)
Network Interface	10/100 Base-T Ethernet (RJ-45)
Power Supply	PoE (IEEE 802.3af) or DC 12V
Power Consumption	Approx. 5W (typical)
Dimensions	Approx. 130 x 70 x 70 mm (without bracket)
Weight	Approx. 400 g (without lens)
Storage	microSDHC/SDXC slot (max 64GB)
Digital Input/Output	1 DI, 1 DO (open collector)
Audio	1 audio input, 1 audio output (line level)
Serial Interface	RS-485/422 (via terminal block)
Reset Button	Yes (factory reset)
Mounting	Indoor (ceiling/wall) via bracket
Operating Temperature	0°C to 50°C (typical)
Certifications	FCC Class B, CE
Warranty	2 years (assumed)
Included Accessories	Lens, mounting block, terminal blocks, quick guide, warranty card
Manufacturer	ACTi Corporation

Frequently Asked Questions - E222 ACTi

How do I reset the camera to factory defaults?

Press and hold the reset button with a paper clip for at least 5 seconds until the Power LED turns off.

How can I connect digital input/output devices?

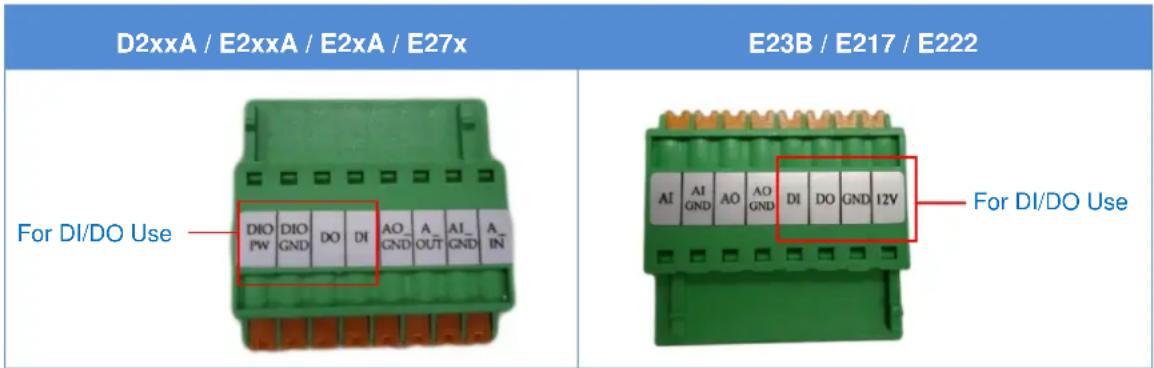

Use the supplied terminal block. Connect DI device to DIO GND and DI pins, DO device to DIO PW and DO pins. See manual for wiring details.

What is the default IP address and login credentials?

Default IP: 192.168.0.100, username: Admin, password: 123456.

How do I access the camera live view?

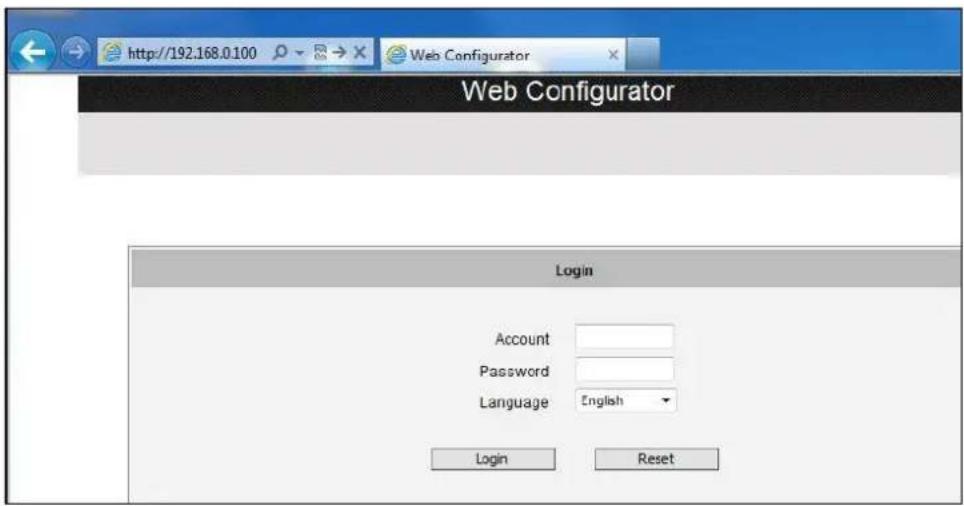

Connect the camera to network, use Internet Explorer to browse to its IP address, and accept the ActiveX control when prompted.

How do I adjust the viewing angle and focus?

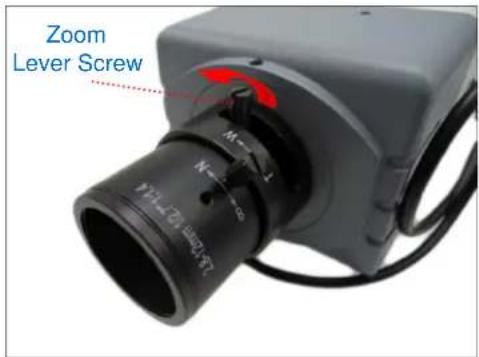

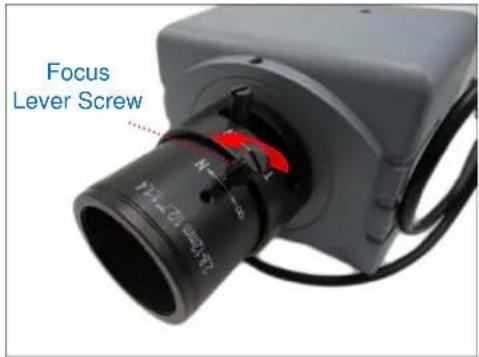

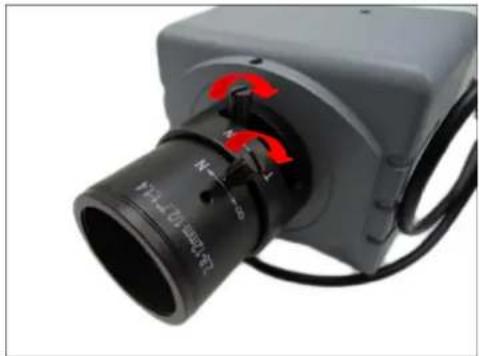

Loosen the zoom lever screw to adjust angle, and the focus lever screw to adjust focus. Tighten screws after adjustment.

How do I install a memory card?

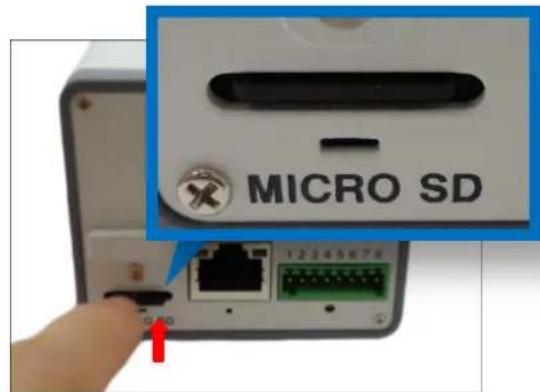

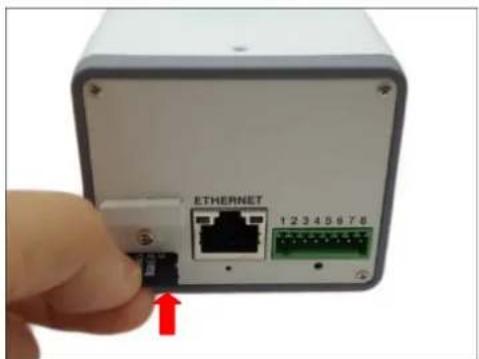

Insert a microSDHC/SDXC card into the slot with metal contacts facing down until it clicks into place.

Can I replace the lens?

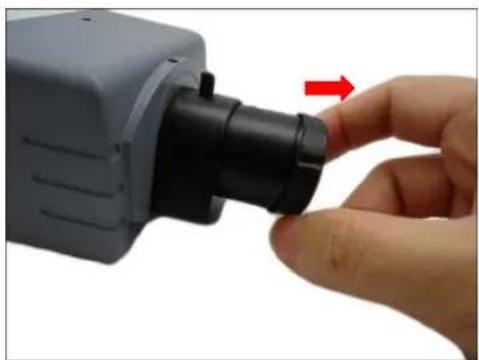

Yes, rotate the lens counter-clockwise to remove, then attach a new CS-mount lens. For DC-iris lenses, connect the lens cable to the DC-iris port.

How do I connect external power?

Use the supplied power terminal block. Connect the wire with white stripe to 12V pin and the other to GND, then plug into the camera's power connector.

How do I connect a PT scanner?

Use the serial port terminal block. Map wires according to RS-485 or RS-422 connection tables in the manual.

How can I find all cameras on my network?

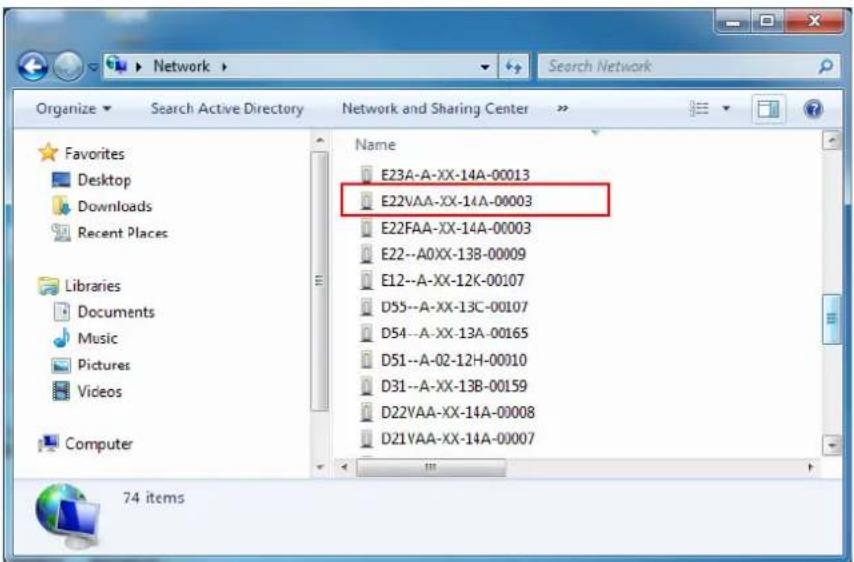

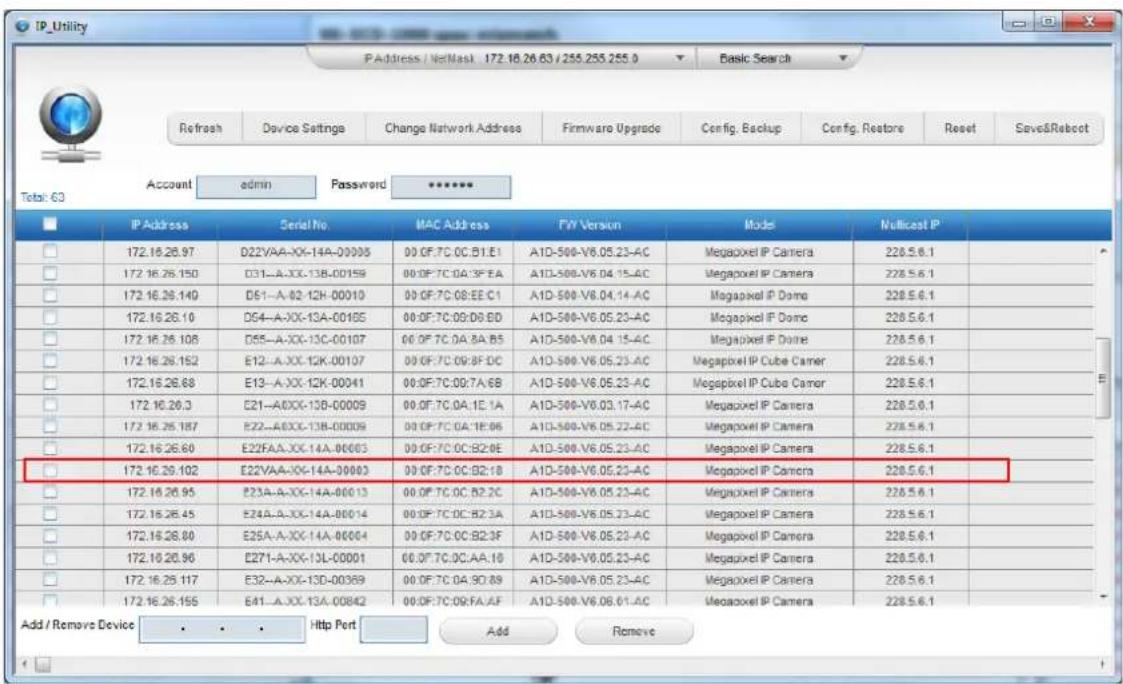

Use ACTi IP Utility (free download from acti.com) to discover and configure multiple cameras on the same network.

USER MANUAL E222 ACTi

Box Camera Series Hardware Manual

D21FA, D21VA, D22FA, D22VA

E21FA, E21VA, E22FA, E22VA

E23A, E23B, E24A, E25A

E217, E222, E270, E271

2015/10/05

Table of Contents

Precautions 4

Safety Instructions 6

Introduction......7

The List of Models 7

Package Contents......9

Physical Description 10

D2xFA / E2xFA / E270.... 10

D2xVA / E2xVA / E23A / E24A / E25A / E271 10

E23B 12

E217 14

E222 14

Mounting Options....16

Indoor Installation Procedures 17

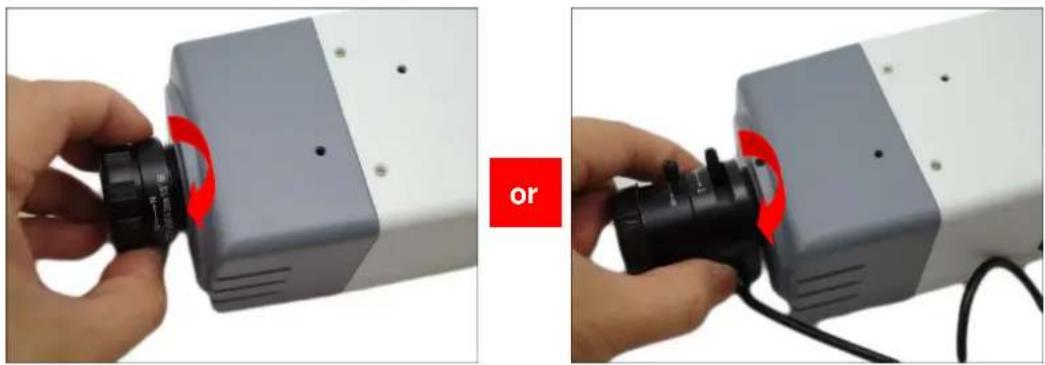

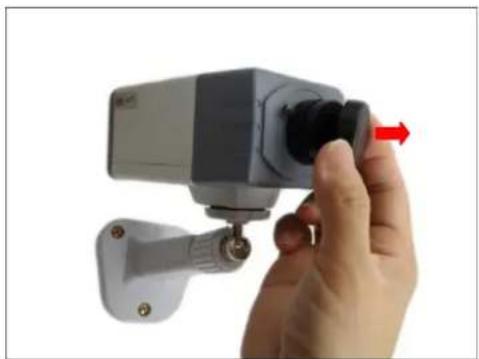

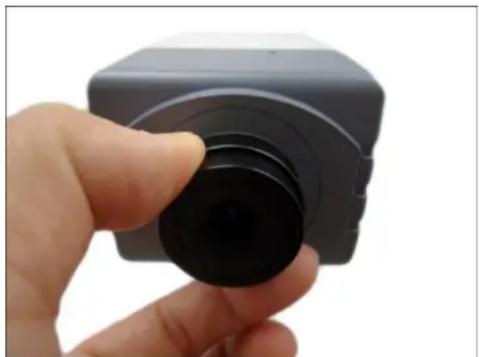

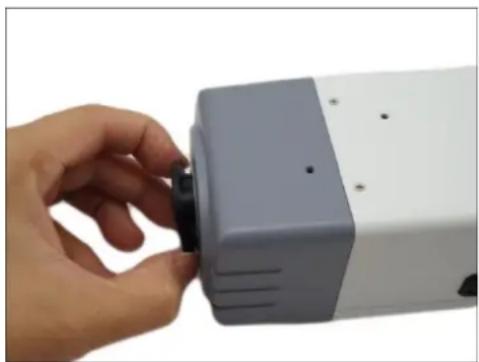

Step 1: Attach the Camera Lens.... 17

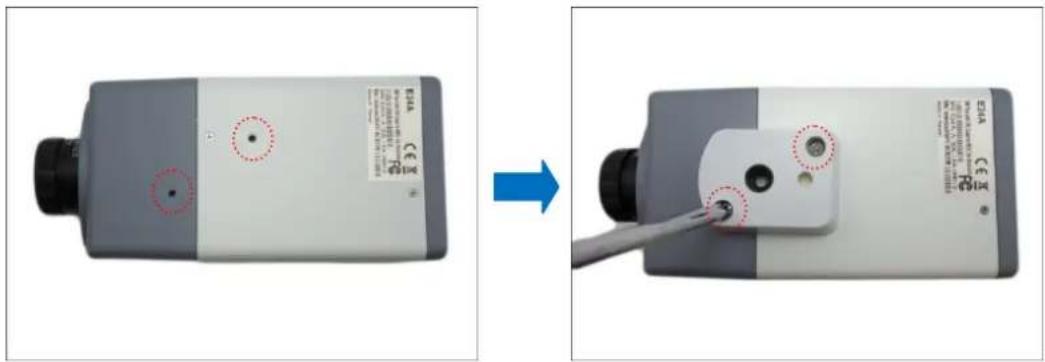

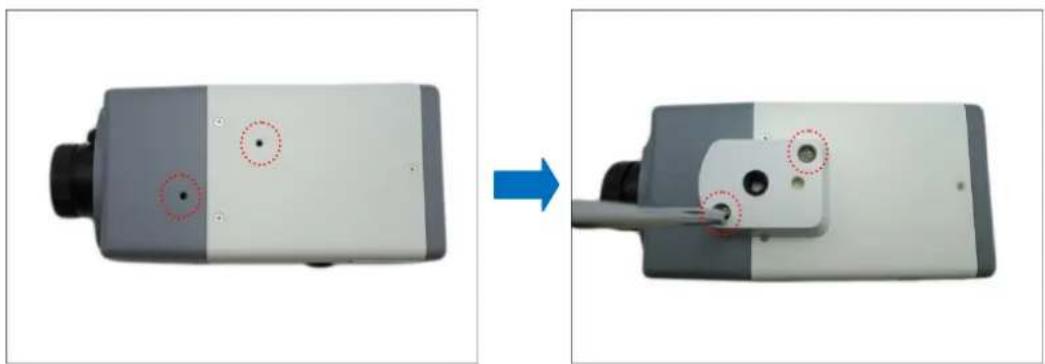

Step 2: Attach the Mounting Block....19

Step 3: Mount the Indoor Bracket .... 20

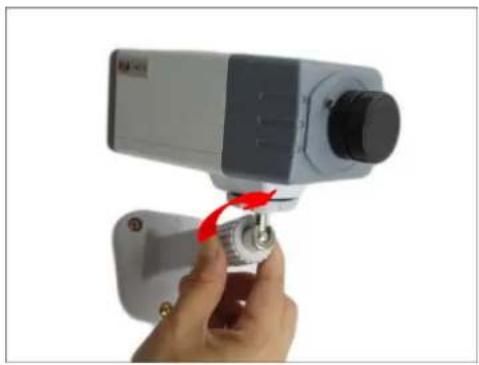

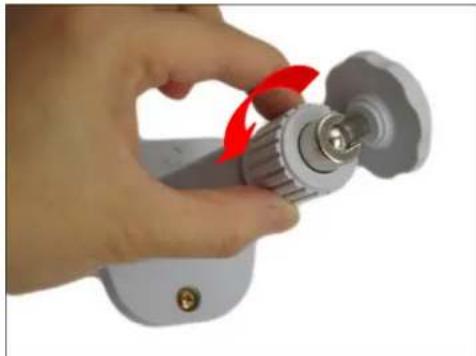

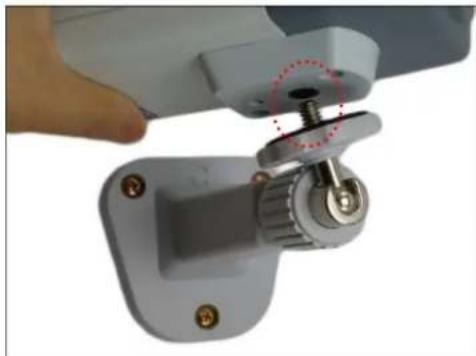

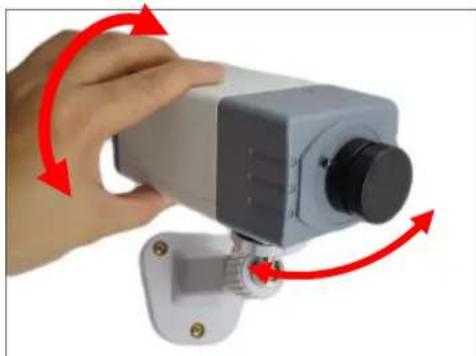

Step 4: Attach the Camera to the Bracket .... 20

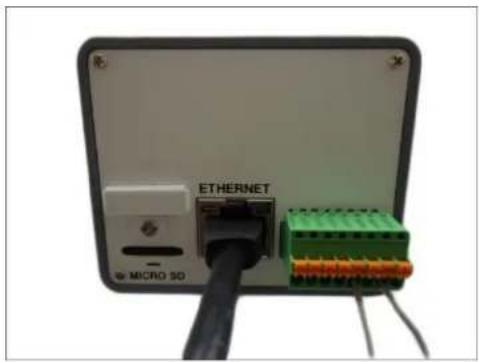

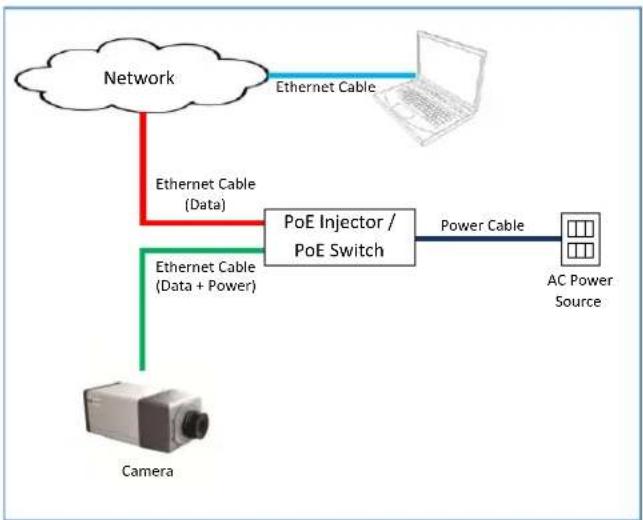

Step 5: Connect the Cable(s)....23

Step 6: Access the Camera Live View....24

Step 7: Adjust the Viewing Angle and Focus ...... 24

Other Connections (Optional)...... 25

How to Connect DI/DO and Audio Devices.... 25

How to Connect DI/DO Devices 25

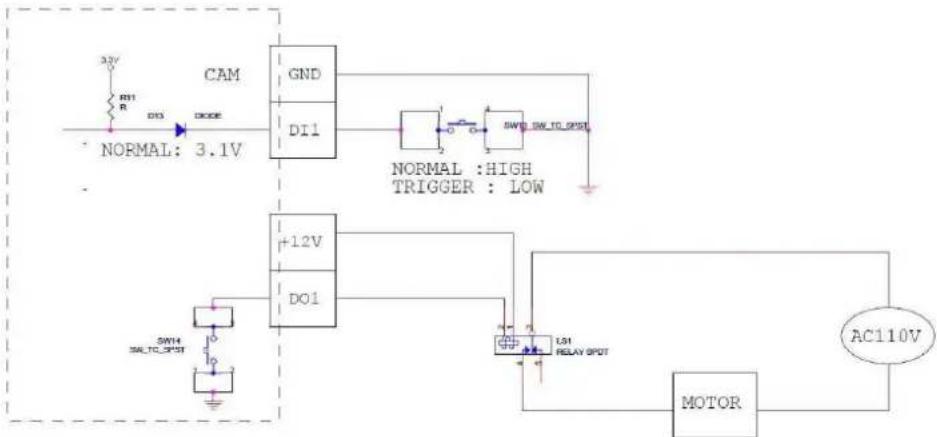

DI/DO Connection Specifications 26

How to Connect Audio Devices.... 29

How to Connect a Power Adapter (for E217, E222 only) 30

How to Connect a Serial Device (for E23B, E217, E222 only) ...... 32

Other Adjustments and Accessories 34

How to Adjust the Viewing Angle and Focus 34

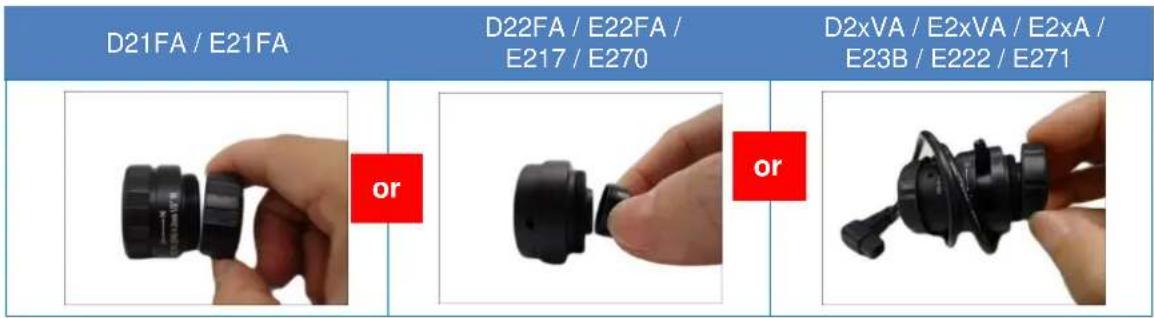

D21FA / E21FA 34

D22FA / E22FA / E217 / E270 34

D2xVA / E2xVA / E23A / E23B / E24A / E25A / E222 / E271 35

How to Install / Remove the Memory Card 36

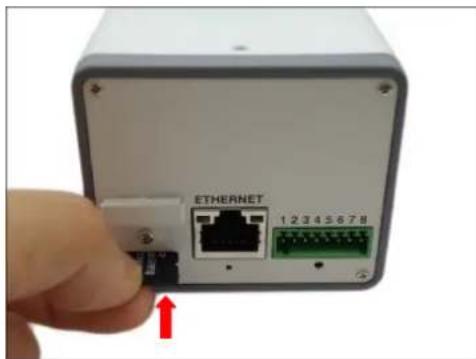

How to Insert the Memory Card 36

How to Remove the Memory Card.... 36

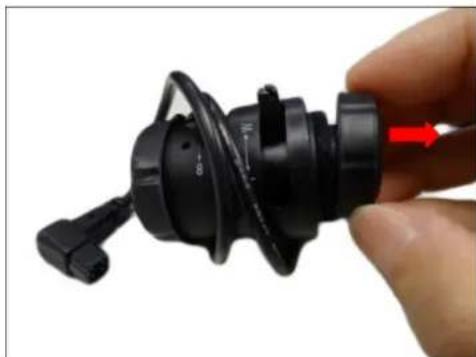

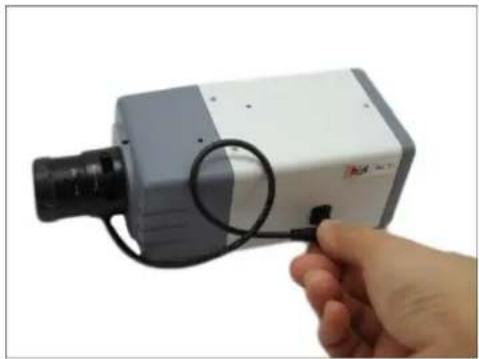

How to Replace the Lens 37

Accessing the Camera 39

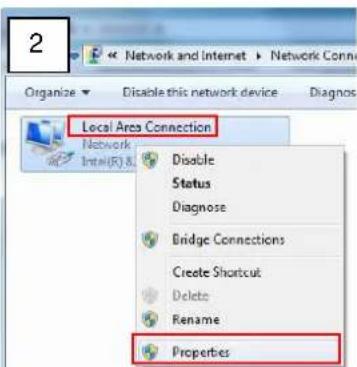

Configure the IP Addresses.... 39

Access the Camera.... 43

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice.

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the responsible party for compliance could void the user's authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures.

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

Installation

Install this device as well as other devices (such as PoE injector, alarm, etc.) in a dry place protected from weather.

Servicing

Do not attempt to service this video product yourself. Refer all servicing to qualified service personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the inner parts of video product have been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition.

Introduction

The List of Models

This hardware manual contains the following models:

D21FA		1MP Box with D/N, Fixed lens
D21VA		1MP Box with D/N, Vari-focal lens
D22FA		5MP Box with D/N, Fixed lens
D22VA		5MP Box with D/N, Vari-focal lens
E21FA		1MP Box with D/N, Basic WDR, Fixed lens
E21VA		1MP Box with D/N, Basic WDR, Vari-focal lens
E22FA		5MP Box with D/N, Basic WDR, Fixed lens
E22VA		5MP Box with D/N, Basic WDR, Vari-focal lens
E23A		2MP Box with D/N, Basic WDR, SLLS, Vari-focal lens
E23B		2MP Box with D/N, Basic WDR, SLLS, Vari-focal lens
E24A		3MP Box with D/N, Superior WDR, Vari-focal lens
E25A		1.3MP Box with D/N, Basic WDR, SLLS, Vari-focal lens
E217		2MP Video Analytics Box with D/N, Extreme WDR, SLLS, Fixed lens
E222		2MP Box with D/N, Extreme WDR, SLLS, Vari-focal lens
E270		10MP Box with D/N, Basic WDR, Fixed lens
E271		10MP Box with D/N, Basic WDR, Vari-focal lens

From the installation perspective, these models are very similar; therefore one manual is used for all of them.

Package Contents

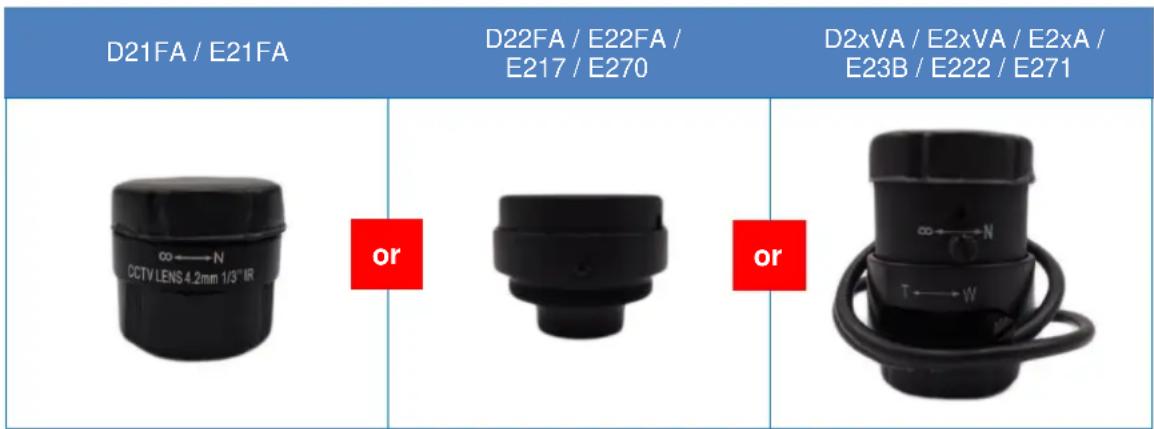

Camera	Lens(D2xFA / E2xFA / E217 / E270)	Lens(D2xVA / E2xVA / E2xA / E23B / E222 / E271)
	Fixed focal lens with manual focus and fixed iris	Vari-focal lens with manual focus and DC iris
Mounting Block with Screws	Audio and DI/DO Terminal Block	Serial Port Terminal Block (for E23B only)
Power Terminal Block (for E217 & E222 only)	Quick Installation Guide	Warranty Card

NOTE: The pictures are for reference only, actual items may slightly vary in appearance.

Physical Description

D2xFA / E2xFA / E270

D2xVA / E2xVA / E23A / E24A / E25A / E271

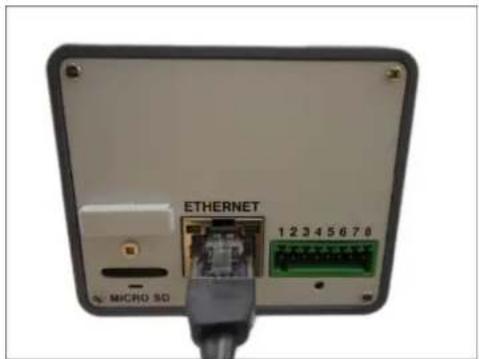

1) Ethernet Port

Connects to a network using an Ethernet cable.

2) Memory Card Slot

Insert a memory card into this slot for local recording purposes. See How to Install /

Remove the Memory Card on page 36 for more information.

NOTE: Supports microSDHC and microSDXC cards.

3) Reset Button

The purpose of reset button is to restore the factory default settings of the camera, including administrator's password.

The reset button can be used for following purposes:

1. The administrator's password has been forgotten and therefore the camera cannot be accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to modify these settings.
3. In case of connectivity issues or abnormal video quality.

How to do the reset?

Using a pointed object, such as a paper clip, press and hold the reset button for at least 5 seconds or until the Power LED goes off.

4) Power LED

The Power LED turns on when the camera is powered on and the system is running.

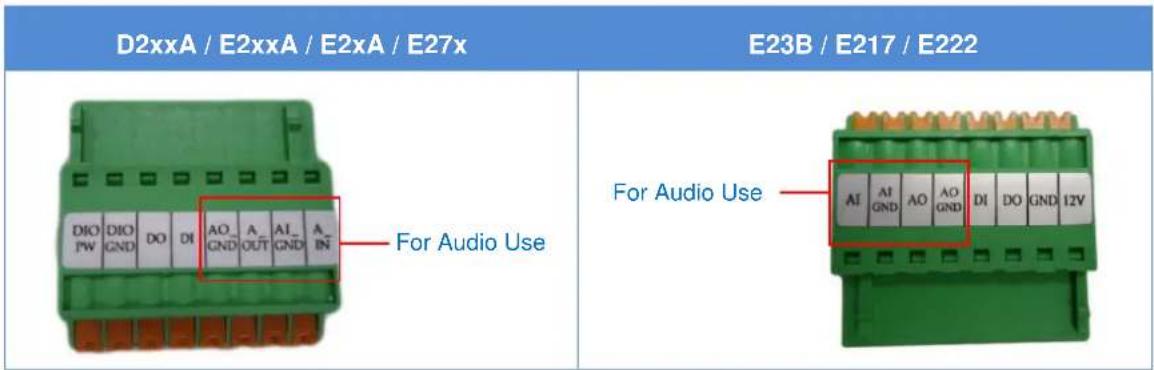

5) Digital Input / Output (DI/DO) and Audio Input / Output

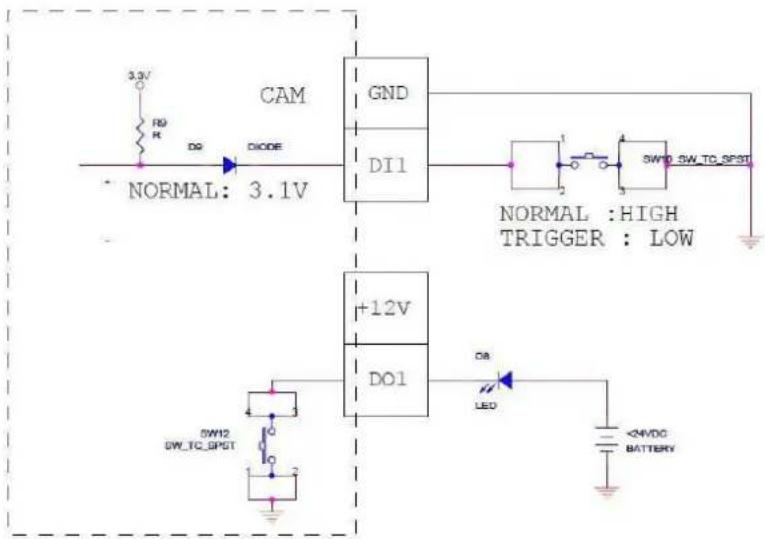

This connector connects to digital input or output devices, such as an alarm trigger, panic button, etc., as well as audio input and output devices, such as microphones and speakers.

Digital Input (DI) and Digital Output (DO) devices are used in applications like motion detection, event triggering, alarm notifications, etc. See How to Connect DI/DO and Audio Devices on page 25 for more information.

6) DC Iris Port

When a DC iris lens is used, connect the lens cable to this port.

E23B

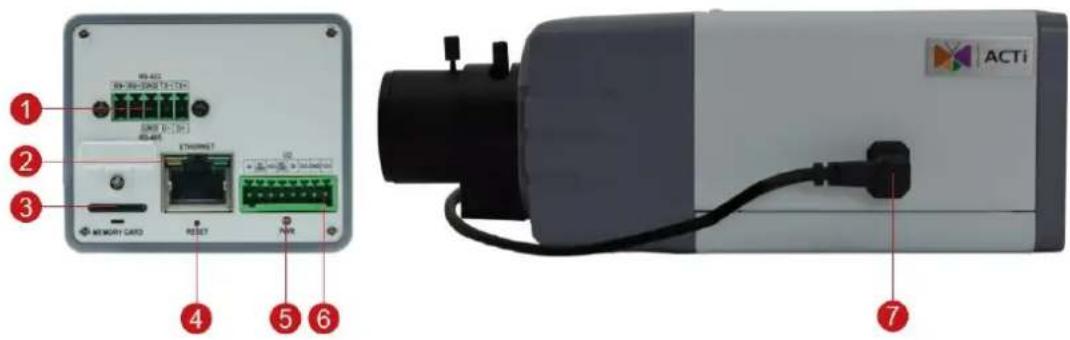

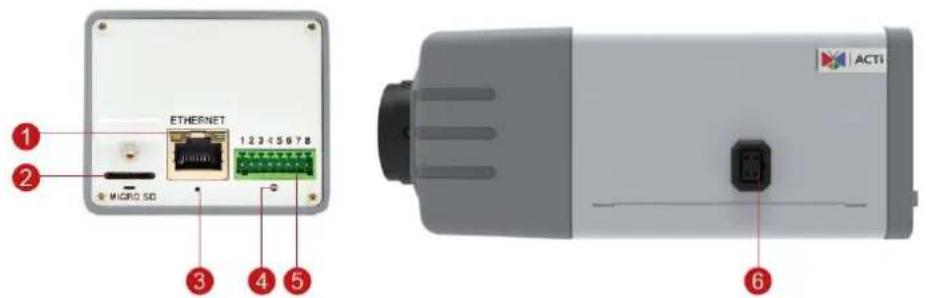

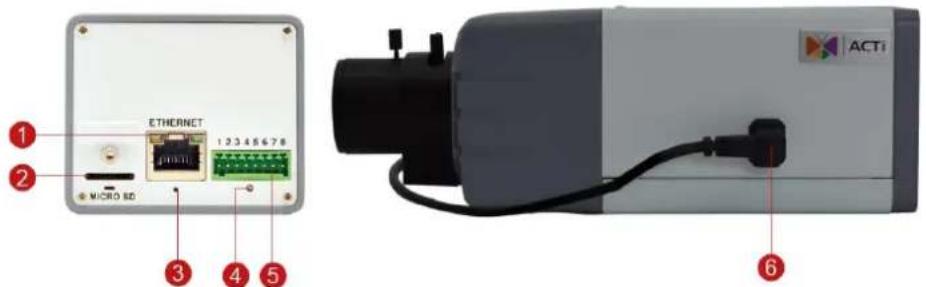

1) Serial Port

This port connects to serial devices via RS-485 or RS-422 protocols. Use the supplied serial port terminal block to connect the wires from the serial device to the camera.

See How to Connect a Serial Device (for E23B, E217, E222 only) on page 32 for connection details.

2) Ethernet Port

Connects to a network using an Ethernet cable.

3) Memory Card Slot

Insert a memory card into this slot for local recording purposes. See How to Install /

Remove the Memory Card on page 36 for more information.

NOTE: Supports microSDHC and microSDXC cards.

4) Reset Button

The purpose of reset button is to restore the factory default settings of the camera, including administrator's password.

The reset button can be used for following purposes:

1. The administrator's password has been forgotten and therefore the camera cannot be accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to modify these settings.
3. In case of connectivity issues or abnormal video quality.

How to do the reset?

Using a pointed object, such as a paper clip, press and hold the reset button for at least 5 seconds or until the Power LED goes off.

5) Power LED

The Power LED turns on when the camera is powered on and the system is running.

6) Digital Input / Output (DI/DO) and Audio Input / Output

This connector connects to digital input or output devices, such as an alarm trigger, panic button, etc., as well as audio input and output devices, such as microphones and speakers.

Digital Input (DI) and Digital Output (DO) devices are used in applications like motion detection, event triggering, alarm notifications, etc. See How to Connect DI/DO and Audio Devices on page 25 for more information.

7) DC Iris Port

When a DC iris lens is used, connect the lens cable to this port.

E217

3D rendering of a gray cylindrical device with a black connector and red circular marker labeled '8' (no text or symbols on the device itself)

E222

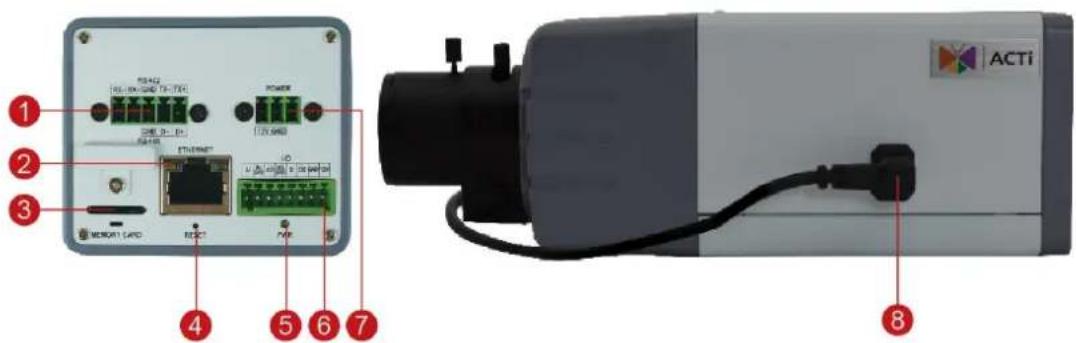

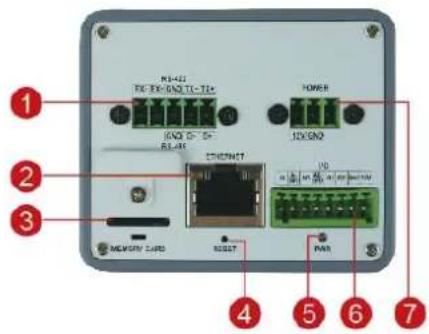

1) Serial Port

This port connects to serial devices via RS-485 or RS-422 protocols. Use the supplied serial port terminal block to connect the wires from the serial device to the camera.

See How to Connect a Serial Device (for E23B, E217, E222 only) on page 32 for connection details.

2) Ethernet Port

Connects to a network using an Ethernet cable.

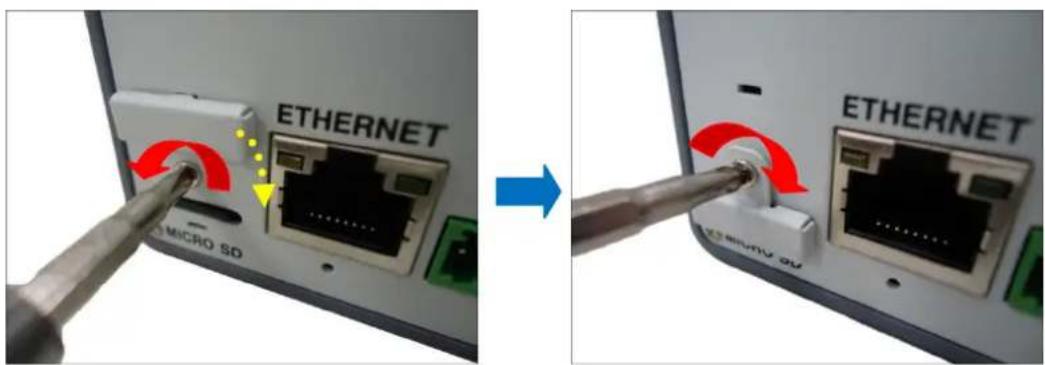

3) Memory Card Slot

Insert a memory card into this slot for local recording purposes. See How to Install /

Remove the Memory Card on page 36 for more information.

NOTE: Supports microSDHC and microSDXC cards.

4) Reset Button

The purpose of reset button is to restore the factory default settings of the camera, including administrator's password.

The reset button can be used for following purposes:

1. The administrator's password has been forgotten and therefore the camera cannot be accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to modify these settings.
3. In case of connectivity issues or abnormal video quality.

How to do the reset?

Using a pointed object, such as a paper clip, press and hold the reset button for at least 5 seconds or until the Power LED goes off.

5) Power LED

The Power LED turns on when the camera is powered on and the system is running.

6) Digital Input / Output (DI/DO) and Audio Input / Output

This connector connects to digital input or output devices, such as an alarm trigger, panic button, etc., as well as audio input and output devices, such as microphones and speakers. Digital Input (DI) and Digital Output (DO) devices are used in applications like motion detection, event triggering, alarm notifications, etc. See How to Connect DI/DO and Audio Devices on page 25 for more information.

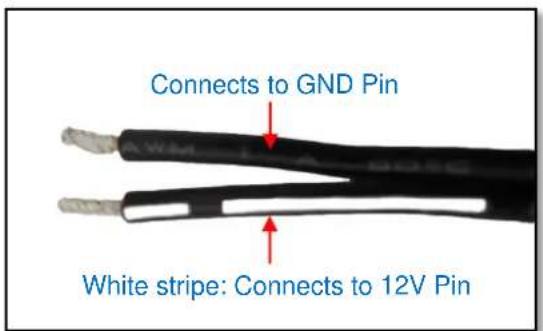

7) DC 12V Power Input

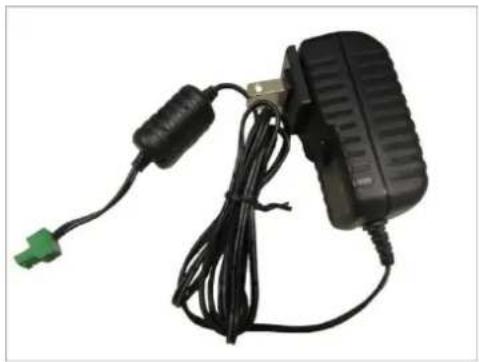

In case the camera is connected to a non-PoE (Power over Ethernet) switch, use this connector to connect the camera to an external power adapter (not included). See How to Connect a Power Adapter (for E217, E222 only) on page 30 for more information.

8) DC Iris Port

When a DC iris lens is used, connect the lens cable to this port.

Mounting Options

The camera can be installed both indoors and outdoors. For outdoor installation, additional waterproof housing is required. Below are several mounting options that you can use to install the camera. Select the most suitable solution for your installation environment.

Mount Types	Accessories
Ceiling or Wall(Indoor)	The camera comes with a mounting block which is used to mount an additional bracket to complete the installation. The additional bracket is not included in the camera package. You may use the bracket from a local supplier or purchase ACTi's indoor bracket.See Indoor Installation Procedures on page 17 for more information.
	PMAX-1104
Wall(Outdoor)	A waterproof housing is required when installing the camera outdoors.
Pole Mount	Suitable when mounting the camera on vertical poles. The camera must be enclosed inside the waterproof housing.
Corner Mount	Suitable when mounting the camera on a corner wall. The camera must be enclosed inside the waterproof housing.

NOTE:

• For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).
• The above mounting accessories are not included in the package. Contact your sales agents to purchase.

Indoor Installation Procedures

This section describes the procedures in installing the camera indoors using PMAX-1104 indoor bracket (purchased separately).

When using brackets from other manufacturers, check the installation guide included in the bracket to install the camera. Similar procedures apply when using brackets from other camera manufacturers.

NOTE: Some pictures in this documentation only show one type of camera lens; this means that the procedures are applicable to other types of lens, unless specified otherwise.

Step 1: Attach the Camera Lens

NOTE: To avoid scratches or leaving fingerprints on the lens, it is recommended to retain the protective cap covering the lens until the camera is completely installed.

1. Unpack the camera and check the bundled camera lens. The camera comes with one of the following lens.

1. Pull to remove the cap covering the camera lens holder.

Close-up of a hand inserting a small black object into a white cylindrical device (no text or symbols visible)

1. Twist and pull to remove the cap covering the threaded end of the lens.

1. Attach the lens to the camera.

Two-step photo showing a hand inserting a camera lens into a device, with no visible text or symbols.

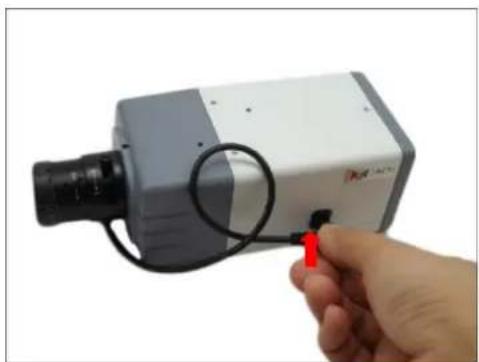

1. For cameras models D2xVA, E2xVA, E2xA, E23B, E222, and E271, connect the lens cable to the DC-iris port.

Hand holding a camera lens connected to a small red object, no visible text or symbols

Step 2: Attach the Mounting Block

Determine where you want to install the camera: on the ceiling or on the wall.

- If the camera will be installed on the ceiling, attach the mounting block on the top side of the camera.

Two views of a device showing a close-up before and after modification, with no visible text or symbols.

- If the camera will be installed on the wall, attach the mounting block on the bottom side of the camera. Secure the mounting block to the camera using the two (2) screws included in the mounting block package.

Step 3: Mount the Indoor Bracket

NOTE:

• The indoor bracket is not included in the camera package and must be purchased separately.
• The pictures on the succeeding pages are for reference only, camera labels and appearance may vary depending on camera model.

Before installing the bracket, make sure the ceiling or wall can bear more than the weight of the camera and its accessories.

Install the indoor bracket to the ceiling or wall using the three (3) screws included in the bracket package.

Close-up of a mechanical component with mounting holes and a central hub (no text or symbols visible)

Step 4: Attach the Camera to the Bracket

NOTE: The following images show the mounting bracket attached on the bottom side of the camera. Same procedures apply when attaching the mounting bracket on the top side.

1. If necessary, insert a memory card into the memory card slot of the camera with the metal contacts facing down. Push until the card clicks into place. See How to Install / Remove the Memory Card on page 36 for more information.

Close-up of a Ethernet device showing port, socket, and cable (no text or symbols visible)

1. Slightly loosen the knurled knob.

Close-up of a hand using a handheld tool to adjust a mechanical component (no text or symbols visible)

1. Screw the camera to the bracket by its mounting block.

Close-up of a hand adjusting a mechanical clamp or bracket component (no visible text or symbols)

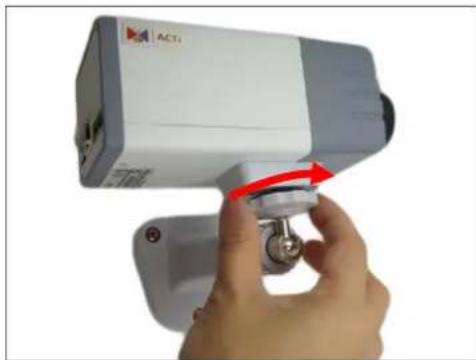

1. Tighten the hand knob until the camera is secured to the bracket.

Hand holding a camera module with a red arrow indicating rotation (no text or symbols visible)

1. Adjust the camera angle.

Hand holding a camera module with red arrows indicating rotation or adjustment (no text or symbols visible)

1. Tighten the knurled knob to fix the camera position.

Hand holding a camera module with red arrows indicating rotation (no text or symbols visible)

1. Remove the protective cap from the lens (if any).

Hand holding a security camera with a red arrow pointing to the button (no text or symbols visible)

Step 5: Connect the Cable(s)

1. Connect the network cable to the Ethernet port of the camera.

1. If necessary, connect audio input/output or DI/DO devices to the camera. See How to Connect DI/DO and Audio Devices on page 25 for more information.

Front view of a micro network device showing Ethernet port, connected to a green terminal block (no text or symbols visible)

1. Connect the other end of the network cable to a switch or injector. Then, connect the switch or injector to a network, PC and a power source. See Power-over-Ethernet (PoE) connection example below.

Step 6: Access the Camera Live View

See Accessing the Camera on page 39 for more information on how to access the Live View of the camera.

Step 7: Adjust the Viewing Angle and Focus

Based on the live view, adjust the focus and the viewing angle of the camera. Adjustments vary depending on model, for detailed information, see:

• D21FA / E21FA on page 34
• D22FA / E22FA / E217 / E270 on page 34
• D2xVA / E2xVA / E23A / E23B / E24A / E25A / E222 / E271 on page 35

Other Connections (Optional)

This section describes the procedures in preparing the external devices that you can connect to the camera. The camera supports Digital Input and Output (DI/DO), Audio Input and Output devices, and DC12V power input (for E222 only) that can be connected to the camera using the bundled terminal blocks. The use of these devices, however, is optional.

How to Connect DI/DO and Audio Devices

Depending on your surveillance needs, you may connect digital input / output or audio input / output devices to your camera. The camera comes with one (1) terminal block for both digital and audio input/output devices.

How to Connect DI/DO Devices

Digital Input (DI) devices can be used to notify the camera about an activity in the camera site. DI can be triggers of events. For example, you can connect a "panic button" to the camera; as such when the panic button is pressed, the alarm signal will be sent through the camera. Other common DI device applications are emergency button, smoke detector, passive infrared sensor, etc.

Digital Output (DO) devices are external devices that are activated by the camera upon an event inside the camera. For example, you can connect an “alarm horn” to the camera; as such when an event occurs inside the camera (e.g. detected intruder), the alarm horn will sound. Other common DO device applications are motion-triggered lights, electric fence, magnetic door locks, etc.

1. Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire. The terminal block label varies depending on camera model.

1. To connect digital input / output devices (DI/DO), map the pins to one of the pin combinations below:

Device	Pin	Mapping Instructions
Digital Output (DO)	DIO PW / 12V	Connect the wires of the output device to DIO PW or 12V and DO.
	DO
Digital Input (DI)	DIO GND or GND	Connect the wires of the input device to DIO GND or GND and DI.
	DI

1. After mapping the pins, connect the terminal block to the I/O connector of the camera.

DI/DO Connection Specifications

The table below shows the DI/DO connection specifications:

Device
DI	Connection design		TTL - compatible logic levels
	Voltage	To trigger (low)	Logic level 0: 0V ~ 0.4V
		Normal (high)	Logic level 1: 3.1V ~ 30V
	Current		10mA ~ 100mA
DO	Connection design		Transistor (Open Collector)
	Voltage & Current		< 24V DC, < 50mA

Typical Connection

Based on these specifications, if the DI device has a voltage of 0V \~ 30V or the DO device has a voltage of < 24V (< 50mA), then the camera can supply internal power to these devices and there is no need to connect the DI/DO device to an external power source.

Use the DIO GND and DI pins to connect a DI device and use the DIO PW and DO pins to connect a DO device. See wiring scheme below:

High Voltage DO Device Connection

Even though the camera provides 12V power, this may not be enough for some high voltage DO devices, such as a ceiling light or a motor that opens or closes a gate. In this case, there is a need to connect an external relay. See wiring scheme below:

Note that when choosing an appropriate relay, please refer to its specifications and make sure they match the above design. The triggering circuit voltage has to be around 12V DC and the switch-controlled circuit voltage has to match the external power supply (e.g. 110V AC or 220V AC).

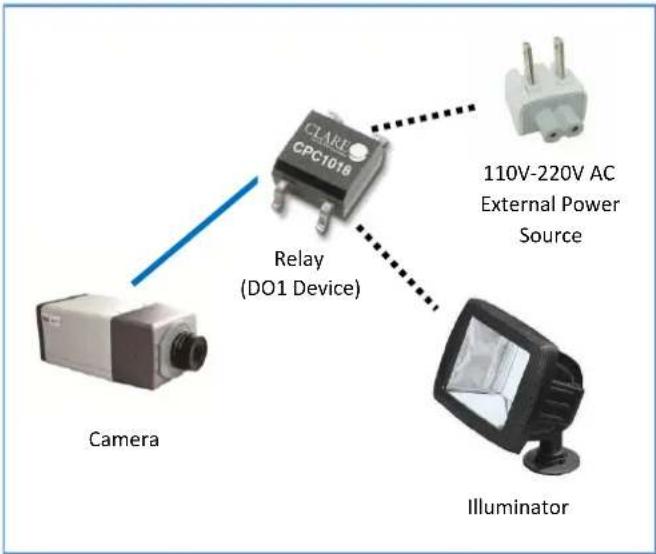

The illustration below is a graphic example of connecting a relay to a high voltage DO device.

NOTE: For more information on DI/DO connections, please refer to the Knowledge Base article All About Digital Input and Digital Output downloadable from the link below (http://Download.acti.com?id=516).

How to Connect Audio Devices

Audio input / output devices, such as an active microphone or speaker can be connected to the camera using the supplied terminal block.

1. Press and hold the orange tab as you insert the wire through the pin slot, then release the orange tab to secure the wire.

1. To connect audio devices, map the pins to one of the pin combinations below:

Device	Pin	Mapping Instructions
Audio Output (AO)	AO GND	Connect the wires of the audio output device to AO GND and A_OUT or AO.
	A_OUT or AO
Audio Input (A1)	AI GND	Connect the wires of the audio input device to AI GND and A_IN or AI.
	A_IN or AI

NOTE: For more information about AUDIO in connections, please refer to the Knowledge Base article How to Use Audio-in of ACTi Cameras, downloadable from the link below (http://Download.acti.com?id=534).

1. When ready, connect the terminal block to the I/O connector of the camera.

How to Connect a Power Adapter (for E217, E222 only)

In case of using a non-PoE switch or your PoE switch has limited power supply, you can purchase a power adapter and directly connect the camera to a power outlet. The power adapter must be connected to the supplied terminal block before use.

To do this, follow the procedures below:

1. Loosen the screws of the 12V and GND pins of the power terminal block.

Close-up of a green electrical connector being inserted with a black tool, no visible text or symbols

1. Take note that a standard power adapter cable has two (2) different wires:

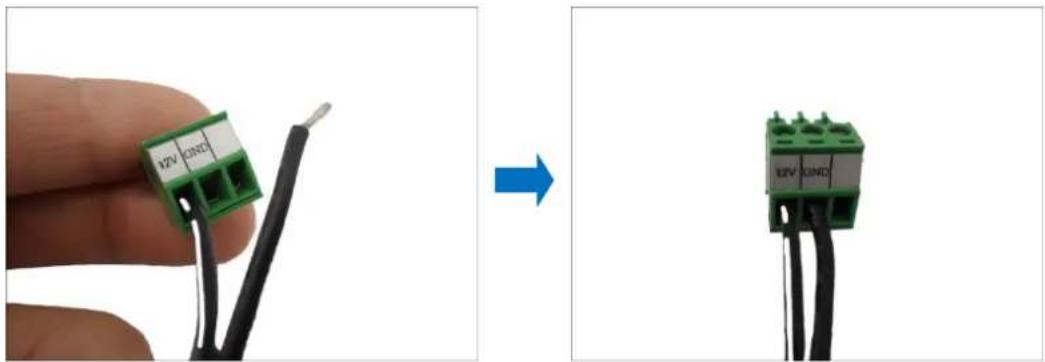

1. Connect the wire with the white stripe to the 12V pin and the other to the GND pin.

Close-up of a green printed circuit breaker with black wires, showing a change from the left to right view (no text or symbols visible)

NOTE: The terminal block pictures are for reference only, note that actual label placement may vary per model.

1. Tighten the screws of the 12V pin and the GND pins to secure the wire connection.

Close-up of a green electrical connector with red dashed lines and labels, connected to black wires (no readable text or symbols)

1. When ready, connect the prepared power adapter to the POWER connector of the camera. Below is an example of a power adapter with an attached terminal block.

Black electric vehicle charging plug with attached cable and connector (no visible text or symbols)

NOTE: The power adapter is not bundled in the package.

How to Connect a Serial Device (for E23B, E217, E222 only)

The camera can be connected to a Pan-Tilt (PT) Scanner (Pan-Tilt Head) using the serial port connector. This allows the zoom camera to do pan and tilt using the Pelco-D protocol. Most PT scanners accept Pelco-D and Pelco-P protocol commands via RS-485 or RS-422 connection, which are both supported by your camera.

Check the connection available on the PT scanner and connect it to your camera following the procedures below.

1. Map the wires from the PT scanner to your camera using the supplied terminal block according to one of the tables below.

Via RS-485 Connection

Terminal Block Label	Wire Mapping
	Camera Pin	PT Scanner Pin
RX-	-
RX+	-
GND	GROUND PIN
TX-(D-)	TX-(D-)	DATA-
TX+(D+)	TX+(D+)	DATA+

Via RS-422 Connection

Terminal Block Label	Wire Mapping
	Camera Pin	PT Scanner Pin
RX-	RX -	TX -
RX+	RX +	TX +
GND	GROUND PIN
TX- (D-)	TX -	RX -
TX+ (D+)	TX +	RX +

NOTE: The pins of the PT Scanner may be labeled differently depending on the location or country where the scanner is purchased. For example, some PT devices may have RS-485 DATA+ pins labeled as "TX+", "RX+", "A" or "485+", etc. Refer to the scanner documentation or contact the manufacturer to verify the corresponding pin labels and ensure proper wiring connection.

CAUTION: Incorrect wiring may cause damage to the connected devices.

DISCLAIMER: ACTi will not be responsible for any damage caused by improper wiring.

1. Connect a ground wire to one of the GND terminal pin to complete the connection.
2. After mapping the pins, connect the terminal block to the Serial Port connector of the camera.

Other Adjustments and Accessories

How to Adjust the Viewing Angle and Focus

This section describes the procedures in adjusting the viewing angle and focus of the camera. The camera already comes pre-focused when you take it out the box. In case there is a need to modify the default focus and viewing angle, do the procedures below to make the necessary adjustments.

D21FA / E21FA

1. Turn the lens knob left or right to adjust the focus.

Hand holding a black camera module with red directional arrows indicating rotation (no text or symbols visible)

1. If necessary, tighten the lever screw to fix its position to avoid moving the lens.

D22FA / E22FA / E217 / E270

Turn the lens knob left or right to adjust the focus.

Hand holding a black camera module, no visible text or symbols

D2xVA / E2xVA / E23A / E23B / E24A / E25A / E222 / E271

The camera comes with the focus and viewing angle already fixed. If necessary, do the following to modify the focus and viewing angle.

1. Loosen the zoom lever screw, then turn left or right to adjust the viewing angle.

1. Loosen the focus lever screw, then turn left or right to adjust the focus.

1. When done, tighten the lever screws to fix their position.

Close-up of a black cylindrical device with red control knob and orange buttons, no visible text or symbols

How to Install / Remove the Memory Card

The camera supports local video recording or saving of snapshots to a memory card.

NOTE: Supports microSDHC and microSDXC cards.

How to Insert the Memory Card

1. Insert a memory card into the card slot with the metallic contacts facing down the camera.

Push the card until it clicks into place.

Close-up of a Ethernet device showing port, socket, and cable (no text or symbols visible)

1. To avoid unauthorized removal of the card, cover the memory card slot. To do this, loosen the screw and turn the tab to cover the memory card slot. Once the tab is in place, tighten the screw.

How to Remove the Memory Card

In case there is a need to remove the card, make sure to access the camera Web Configurator to safely "unmount" the card first (see the camera Firmware manual for more information). Once unmounted from the firmware, push the card to eject it from the slot.

How to Replace the Lens

Depending on your surveillance needs, the bundled lens can be replaced with a vari-focal lens with wider viewing angle or change to a DC-iris, etc. Contact your sales agent to purchase.

To replace the bundled lens, do the following:

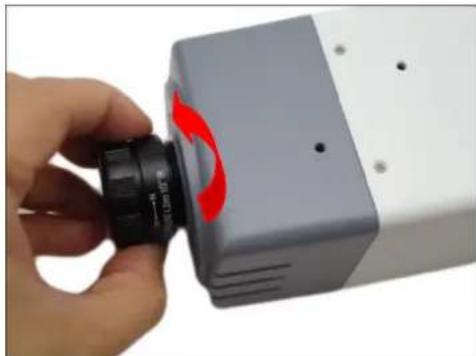

1. Rotate the lens counter-clockwise until the lens is detached from the camera.

Close-up of a hand holding a camera lens component with red motion arrows (no text or symbols visible)

1. Twist and pull to remove the cap from the threaded end of the replacement lens.

Close-up of a black mechanical component being held by a hand, with a red arrow pointing to the part (no visible text or symbols)

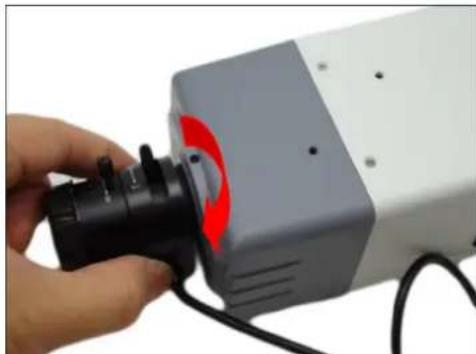

1. Screw the replacement lens to the camera.

Close-up of a hand inserting a black connector into a gray industrial device with red circular component (no visible text or symbols)

1. For lens with DC-iris, connect the lens cable to the DC-iris port of the camera.

Hand holding a camera lens with a black ring, no visible text or symbols

1. Pull to remove the protective cap from the replacement lens.

Close-up of a hand holding a black cylindrical device with a red arrow pointing to the tip (no text or symbols visible)

Accessing the Camera

Configure the IP Addresses

In order to be able to communicate with the camera from your PC, both the camera and the PC have to be within the same network segment. In most cases, it means that they both should have very similar IP addresses, where only the last number of the IP address is different from each other. There are 2 different approaches to IP Address management in Local Area Networks – by DHCP Server or Manually.

Using DHCP server to assign IP addresses:

If you have connected the computer and the camera into the network that has a DHCP server running, then you do not need to configure the IP addresses at all – both the camera and the PC would request a unique IP address from DHCP server automatically. In such case, the camera will immediately be ready for the access from the PC. The user, however, might not know the IP address of the camera yet. It is necessary to know the IP address of the camera in other to be able to access it by using a Web browser.

The quickest way to discover the cameras in the network is to use the simplest network search, built in the Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras.

In the example below, we successfully the camera model that we had just connected to the network.

Double-click the mouse button on the camera model, the default browser of the PC is automatically launched and the IP address of the target camera is already filled in the address bar of the browser.

If you work with our cameras regularly, then there is even a better way to discover the cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not only discover the cameras, but also list lots of valuable information, such as IP and MAC addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple devices at the same time.

Search and download IP Utility for free from http://www.acti.com/DownloadCenter.

With just one click, you can launch the IP Utility and there will be an instant report as follows:

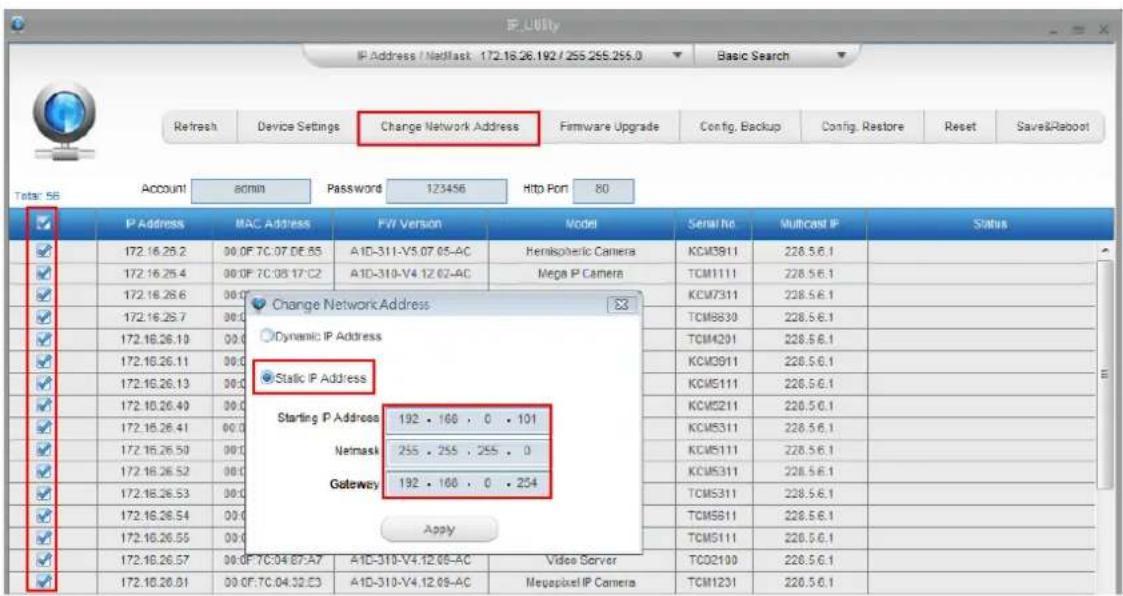

You can quickly notice the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.

Use the default IP address of a camera:

If there is no DHCP server in the given network, the user may have to assign the IP addresses to both PC and camera manually to make sure they are in the same network segment.

When the camera is plugged into network and it does not detect any DHCP services, it will automatically assign itself a default IP:

192.168.0.100

Whereas the default port number would be 80. In order to access that camera, the IP address of the PC has to be configured to match the network segment of the camera.

Manually adjust the IP address of the PC:

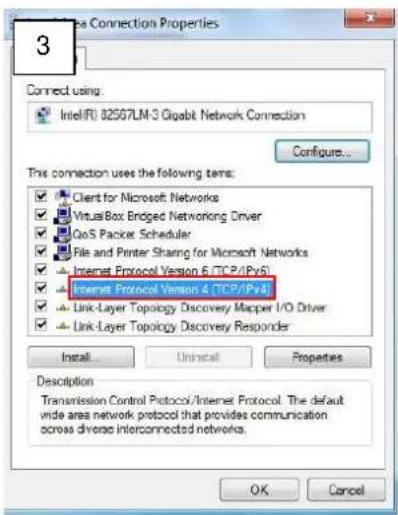

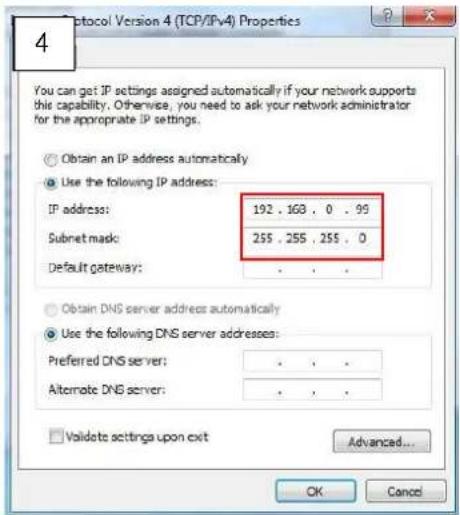

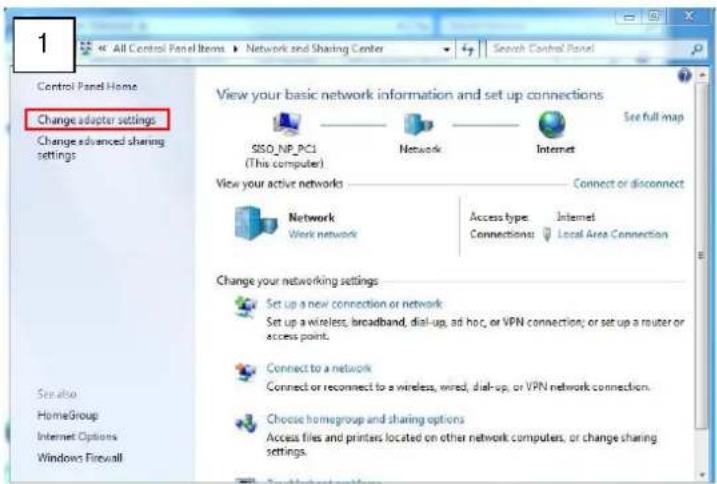

In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below:

Manually adjust the IP addresses of multiple cameras:

If there are more than 1 camera to be used in the same local area network and there is no DHCP server to assign unique IP addresses to each of them, all of the cameras would then have the initial IP address of 192.168.0.100, which is not a proper situation for network devices – all the IP addresses have to be different from each other. The easiest way to assign cameras the IP addresses is by using IP Utility:

With the procedure shown above, all the cameras will have unique IP addresses, starting from 192.168.0.101. In case there are 20 cameras selected, the last one of the cameras would have the IP 192.168.0.120.

Later, by pressing the "Refresh" button of the IP Utility, you will be able to see the list of cameras with their new IP addresses.

Please note that it is also possible to change the IP addresses manually by using the Web browser. In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time.

Access the Camera

Now that the camera and the PC are both having their unique IP addresses and are under the same network segment, it is possible to use the Web browser of the PC to access the camera.

You can use any of the browsers to access the camera, however, the full functionality is provided only for Microsoft Internet Explorer.

The browser functionality comparison:

Functionality	Internet Explorer	Other browsers
Live Video	Yes	Yes*
Live Video Area Resizable	Yes	No
PTZ Control	Yes	Yes
Capture the snapshot	Yes	Yes
Video overlay based configuration (Motion Detection regions, Privacy Mask regions)	Yes	No
All the other configurations	Yes	Yes

* When using non-Internet Explorer browsers, free third-party software plug-ins must be installed to the PC first to be able to get the live video feed from the camera:

Browser	Required Plug-In
Safari	QuickTime (http://www.apple.com/quicktime/download/)
Other non-Internet Explorer browsers	Basic VLC Media Player (http://www.videolan.org)

Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its cameras with VLC player or QuickTime – since these are third party softwares. The third party has the right to modify their utility any time which might affect the compatibility. In such cases, please use Internet Explorer browser instead.

When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case.

The following examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera.

Assuming that the camera's IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser's address bar:

http://192.168.0.100

Upon successful connection to the camera, the user interface called Web Configurator would appear together with the login page. The HTTP port number was not added behind the IP address since the default HTTP port of the camera is 80, which can be omitted from the address for convenience.

Before logging in, you need to know the factory default Account and Password of the camera.

Account: Admin

Password: 123456

For further operations, please refer to the Firmware User Manual.

ACTi

Connecting Vision

Copyright © 2015, ACTi Corporation All Rights Reserved

7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C.

TEL: [phone] FAX: [phone]

Email: [e-mail]
