USER MANUAL FSM-2337 Gabor

FSM-2337 / FULL SWING

WALL MOUNT

for 23"-37" Monitors

User Manual

Thank you for choosing Gabor.

The Gabor Full Swing Mount is a heavy-duty wall mount that provides sturdy, long-lasting support for your 23"-37" monitor. This mount offers adjustable viewing angles with maximized pan-and-tilt positioning. The design of the Full Swing Mount saves space and collapses for an ultralow profile, providing you with a clean and spacious look for your room or office.

A couple relaxing on a sofa watching a wall-mounted TV mounted on a black wall-mounted device, with a photo of a man in the background (no visible text or symbols)

3Welcome

Product Specifications

• Monitor display size: 23"-37" (58.4-94 cm)
• Maximum load capacity: 80 lb. (36 kg)
• VESA mounting patterns: 75 × 75, 100 × 100, 100 × 200, 200 × 200 mm
- Tilt: -20^ / + 20^
- Swivel: 180^
- Arm extended: 18.5" (47 cm)

Product Contents

Supplied Parts & Hardware K (4) M4×12

A (1) Mounting bracket L (4) M4×30
B (1) Wall mount template M (4) M6×12
C (1) Leveler N (4) M6×20
D (6) M6×50 lag screw O (4) M6×30
E (6) Concrete lag anchor P (4) M6×35
F (1) Hex key (5 mm) Q (4) M8×12
G (4) M4 spacer R (4) M8×16
H (4) M6/M8 spacer S (4) M8×20
I (4) M4 washer T (4) M8×35
J (4) M6/8 washer

				M4 ScrewsMounting bracket M6 Screws M8 Screws
			Monitor swivel adjustment hex screw(s)Monitor bracketMonitor angle adjustment nut
Wall mount template	Lag screw	Hex key (5 mm) Spacers
B	D x6	F	G x4 H x4	Q x4	S x4
Leveler	Concrete Lag anchor		Washers	P x4	T x4
C	E x6		I x4 J x4	∅	∅

IMPORTANT: The Full Swing Mount for 23"-37" Monitor contains the proper installation hardware and parts. Make sure that none of the items are missing or damaged before you begin installation. If there are any missing or damaged parts, stop the installation and contact your retailer or Gabor customer service.

Safety Warnings

Do not use this product for any flat-panel monitor device other than what it is intended for; the exact specification, size parameters, and weight limits are found both on the product box and in the instruction manual.
2. It is strongly recommended that this product be installed by a qualified professional or installation contractor; Gabor takes no responsibility for any product damage or personal injury resulting from mishandling, incorrect mounting, faulty assembly, or improper use of this product.
3 This product has been designed specifically for mounting directly on wooden studs or concrete walls; depending on wall type and material, the use of additional appropriate mounting hardware and/or accessories such as heavy-duty anchors may be required.

4 The supplied mounting hardware is not intended for use on metal studs or cinderblock walls, and may not be appropriate for old or weak walls; it is best to consult with a qualified professional to determine whether your walls are capable of supporting this bracket.
5 The product must always be mounted directly to the center of wooden wall studs or on a solid concrete wall to properly support the weight of the device; the wall may require reinforcement prior to mounting (e.g., metal studs, plaster on lath, or irregular spacing of studs), which should be determined by a qualified professional.
6. Do not mount the device on structures that may be affected by vibrations or noticeable impacts; do not install near a heater, fireplace, or any other source of direct heat energy.

7 It is recommended that at least 2 people should perform the installation process to prevent injury from mishandling or dropping of the product and/or flat-screen device; proper safety gear and tools must be utilized at all times when installing the product.
8 When installing this product, be sure to refer to the mounting instructions detailed in this manual; failure to abide by the mounting instructions may void the product's warranty.
9 This product may contain small parts which can possibly pose a choking hazard; keep out of reach of children and pets.
10 Excessive exposure to liquids may damage the finish of this product; when cleaning this product, use only a mild detergent solution, and quickly wipe dry with a soft cloth.

Installation Instructions

Before You Begin

1 Make sure your monitor does not weigh more than 80 lb. (36 kg) including accessories.
2 Double-check the surface for attachment. This swing mount is designed for attachment to drywall with wooden studs, solid concrete, or concrete blocks.

3 You will need these tools for installation:

Power drill
\ Wood bit, 3/32" (3 mm)
\ Concrete bit, 5/16" (8 mm)
Phillips screwdriver
Tape measure
Hammer
Wrench, 1/2" (13 mm)
Wall stud finder
\ Pencil

4 Please read through these instructions completely to become familiar with this installation process. Check your monitor's manual for any special requirements needed to mount your monitor.

Positioning Your Monitor

The optimal height to position a monitor is at the viewer's eye level.

• Determine the location and wall material where you will be mounting the monitor.
• Measure the distance from the seating area to viewing area to determine proper placement. Ideal position should place the center of the monitor as close as possible to eye level.

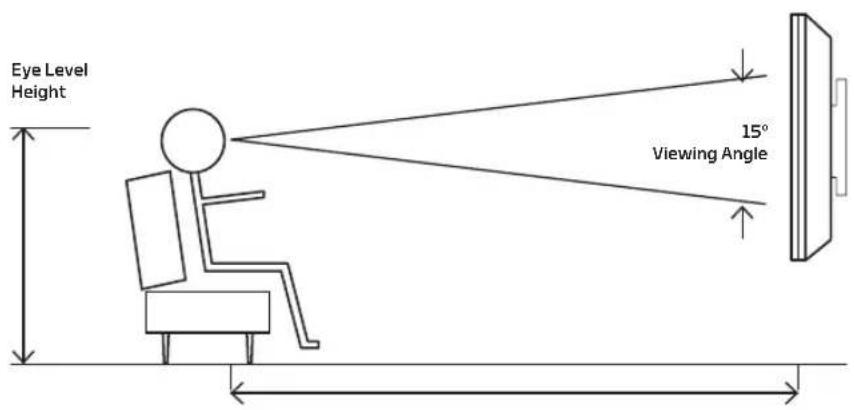

Eye Level Height 15° Viewing Angle

TIP: Use a cardboard cutout that matches your monitor's dimensions. Tape it to the wall to visualize the placement of your monitor.
- If you are mounting your monitor to a concrete wall, skip to Applying the Wall Mount Template on page 10. If you are mounting your monitor onto a wall with wood studs, follow the next step:

Locating Wood Studs

Wall studs run vertically inside the wall, behind the drywall or plaster. The wall plate must be mounted to a wood stud, or the bracket could fall out and damage your monitor.

1 Use a stud finder to locate the edges of the wooden stud.
2 Mark the centerline of the stud.

The wall mount template is a guide for the mounting screws that secure the wall mount. Once you've determined the location for your monitor, place the center of the wall mount template onto the wall at the center of your installation. If you're mounting this to a wooden stud, place the template at the stud's center.

Place the wall mount template on the wall, and use the included leveler to make sure the template is level.

Wall mount template

• For installation into drywall with wooden studs, mark the three center guard holes of the wall mount.
• For installation into a concrete wall, mark the two guard holes on each side and the two support holes at the bottom of the wall mount.

To double-check your wall mount placement, hold and align the mounting bracket against your marks on the wall.

Selecting the Right VESA Mounting Hardware for Your Monitor

A variety of screws are included to fit VESA standards on the back of most monitors. Select the appropriate M4, M6, or M8 screws and washers. Hand-thread the screws to determine the correct diameter.

CAUTION! If the screw is too short, it may not hold the monitor. If it's too long, it may damage the monitor.

Using Spacers

Your monitor type will determine which hardware configuration is needed.

A If your monitor has a flat back, install it without spacers.

Bracket TV

Too short TV Too long TV

B If you monitor has a curved back or recessed mountings, use the included spacer between the bracket and monitor device.

Bracket TV

Attaching the Monitor Bracket

Place the monitor bracket over your monitor's VESA mounting pattern. Secure it using the screw, washer, and spacer (if needed) combination you selected.

Technical line drawing of a mechanical assembly with mounting brackets and a central shaft (no text or symbols)

Tightening the Mounting Bracket

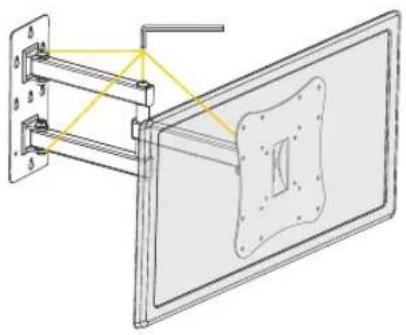

Use the included hex key and a wrench to tighten the swivel joints.

Technical line drawing of a wall-mounted device with mounting brackets and a central panel (no text or symbols)

Wall Mount Installation

Wall with Wood Studs

1 Use a 3/32" (3 mm) wood drill bit to predrill holes according to your markings from the wall mount template. Be sure the predrilled holes are at least .75" (20 mm) deep.

2 Screw in the lag screws, and leave a 1/8" (3 mm) space.

Concrete Wall

1 Use an 5/16" (8 mm) masonry drill bit to predrill holes according to your markings on the wall. Be sure the predrilled holes are at least 2" (50 mm) deep.

2 Insert the concrete lag anchor into each hole, and then use a hammer to tap each anchor flush with the wall.

3 Screw in the lag screws into the 4 guard holes, and leave a 1/8" (3 mm) space.

Attaching the Mounting Bracket to the Wall

Hold the monitor and mount assembly, and seat the wall mount's guard holes onto the lag screw heads. Tighten the lag screws until secure. If you are mounting onto a concrete wall, insert lag screws into the bottom two support holes of the wall mount.

Pure mechanical assembly diagram showing two parallel plates with mounting holes and yellow alignment markers (no text or symbols)

±20° 180° 3.25" to 18.5" (8.2 to 47 cm)

Positioning the Installed Monitor Mount

Upon completing the installation, secure the monitor's power cord, and position your monitor in the ideal viewing angle. The Gabor Full Swing Mount can be fully extended, partially extended, or fully folded. It swivels 180° left-to-right and tilts -20° down or 20 up°.

Customer Support

For more information or to arrange service, visit www.madebygabor.com or call Customer Service at 212-594-2353.

GABOR™ A Gradus Group Brand

Product warranty is provided by the Gradus Group. www.gradusgroup.com

Gabor is a registered trademark of the Gradus Group.

© 2016 Gradus Group LLC. All Rights Reserved.

GG3

ONE-YEAR LIMITED WARRANTY:

This Gabor product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Gabor Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Gabor along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.
