Product Type	Full-Swing Wall Mount for Flat-Panel Displays
Brand	Gabor
Model	FSM-S
Recommended Screen Sizes	20 to 45 inches (50.8 to 114.3 cm)
Max Weight Capacity	77 lb (34.9 kg)
Material	Steel
Product Weight	7.1 lb (3.24 kg)
Mounting Depth	1.8 to 20 inches (4.6 to 50.8 cm)
VESA Mounting Patterns	75x75, 100x100, 200x100, 200x200 mm
Tilt Adjustment	+10° to -15°
Swivel / Pivot	180° pivot
Horizontal Level Adjustment	+3° to -3°
Cable Management	Yes, with removable cable covers
Installation Wall Types	Wooden studs or concrete walls
Included Hardware	Screws, washers, concrete anchors, wall template, bubble level, hex wrench
Warranty	5-Year Limited Warranty
Professional Installation Recommended	Yes, for safety and proper mounting
Safety Warning	Contains small parts; choking hazard. Avoid excessive liquid exposure.

Frequently Asked Questions - FSM-S Gabor

What is the maximum TV size for the Gabor FSM-S wall mount?

The Gabor FSM-S supports flat-panel displays with screen sizes from 20 to 45 inches (50.8 to 114.3 cm).

Can the Gabor FSM-S be mounted on concrete walls?

Yes, it is designed for concrete walls at least 8 inches (20 cm) thick. Use the included concrete anchors and a 3/8-inch drill bit for installation.

How do I adjust the tilt angle after installation?

Loosen the top and bottom tension screws, then tilt the display to the desired angle between +10° (up) and -15° (down). Tighten the screws to secure.

What screws are included for attaching the display?

The mount includes various screws: M4 x 14mm, M5 x 14mm, M6 x 20mm, and M8 x 20mm, plus spacers for recessed mounting. Choose the ones that fit your display's VESA threads.

Is professional installation required for this mount?

While not mandatory, professional installation is strongly recommended to ensure safety and correct mounting. Improper installation may void the warranty.

What is the warranty period for Gabor FSM-S?

The Gabor FSM-S comes with a 5-Year Limited Warranty covering defects in materials and workmanship under normal use.

Does the mount come with a bubble level?

Yes, a bubble level is included in the package to help ensure the wall bracket is installed level.

Can I mount a TV with VESA 400x400 mm pattern?

No, the FSM-S supports VESA patterns up to 200x200 mm. Larger patterns like 400x400 are not compatible.

How far from the wall can the display be positioned?

The mount has a depth adjustment range from 1.8 to 20 inches (4.6 to 50.8 cm) from the wall.

How do I manage cables with this mount?

Cables can be routed through the removable cable covers on the top or bottom of the extension arms. Widen the openings to slide covers over the arms.

USER MANUAL FSM-S Gabor

for Small Flat-Panel Displays

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

User Manual

Thank you for choosing Gabor.

This Cabor Full-Swing Wall Mount offers flexible mounting and customizable viewing angles for wall-mounted TVs and monitors. It accommodates flat-panel displays with screen sizes measuring 20 to 45 inches. The sturdy steel construction supports a maximum weight of 77 pounds. The mount offers post installation adjustments for tilt, swivel, pan, screen depth, and horizontal level—so you can easily set up and comfortably view your display.

If you have safety concerns about installing this product, contact a qualified professional or installation contractor. If this product is missing hardware or there are defective parts, visit www.madebygabor.com or call Customer Service at 212-594-2353.

Safety Warnings

• When installing this product, be sure to refer to the mounting instructions detailed in this manual; failure to abide by the mounting instructions may void the product's warranty.
• Do not use this product for any flat-panel display other than what it is intended for; the exact specification, size parameters, and weight limits are found both on the product box and in the instruction manual.
• It is strongly recommended that this product be installed by a qualified professional or installation contractor; Gabor takes no responsibility for any product damage or personal injury resulting from mishandling, incorrect mounting, faulty assembly, or improper use of this product.
• This product has been designed specifically for mounting directly on wooden studs or concrete walls; depending on wall type and material, the use of additional appropriate mounting hardware and/or accessories such as heavy-duty anchors may be required.

• The supplied mounting hardware is not intended for use on metal studs or cinder block walls, and may not be appropriate for old or weak walls; it is best to consult with a qualified professional to determine whether your wall is capable of supporting this bracket.

• Do not mount the device on structures that may be affected by vibrations or noticeable impacts; do not install near a heater, fireplace, or any other source of direct heat energy.

• It is recommended that at least 2 people perform the installation process to prevent injury from mishandling or dropping the product and/or flat-screen device.
• This product may contain small parts which can possibly pose a choking hazard; keep out of reach of children and pets.
• Excessive exposure to liquids may damage the finish of this product; when cleaning this product, use only a mild detergent solution, and quickly wipe dry with a soft cloth.
• All images are for illustrative purposes only.

Product Specifications

Depth from Mounting Source

1.8 to 20 in. (4.6 to 50.8 cm)

Recommended Screen Sizes

20 to 45 in. (50.8 to 114.3 cm)

VESA Mounting Patterns

75×75 mm

100×100 mm

200×100 mm

200×200 mm

Max Weight Capacity

77 lb. (34.9 kg)

Material

Steel

Weight

7.1 lb. [3.24 kg]

Overview

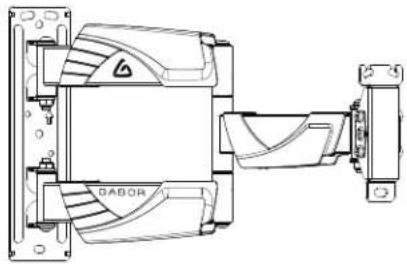

Wall bracket

Technical line drawing of a mechanical assembly with no visible text or symbols

Display mounting plate

Pure mechanical part diagram with no text, numbers, or symbols

ABCD	X5 x 14 mm screws ML x 14 mm screwsM4 x 14 mnsch46x 20 mm screws	4 X4X4 X 4 X 4 X	E	F4X	G8X	H4X
IConcrete anchors	J4 X4Anchor screw washers Roll brocket template	K1x	LEnd cover	M2x1N1xHex wrench	Double box endhex wrench	O1xBubble level

Required Tools

GABOR

Display/TV Placement

Before installing the Gabor Full Swing Mount, you will need to determine the placement of your display and identify surrounding support structures for attachment.

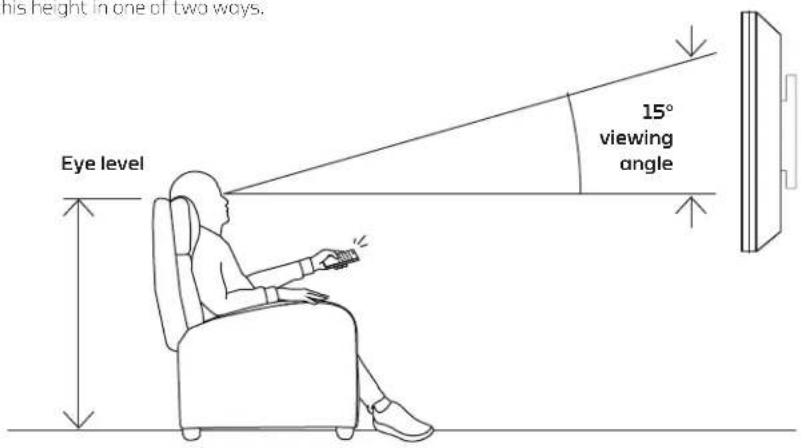

The best height for a display is at the viewer's eye level. You can find this height in one of two ways.

1. Measure the distance from the seating area to the viewing area. The ideal position is when the center of the display (where the diagonals meet) is as close as possible to eye level.
   OR
2. Cut a piece of sturdy cardboard that's approximately the same size as your display. Use the cardboard to find a comfortable height, and mark the mounting location with a pencil.

Preparing the Wall Bracket VESA Patterns

Remove the Center Cover

Remove the Display Mounting Plate

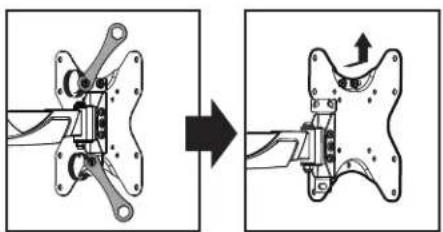

Loosen the top nuts slightly, then remove the bottom nut as shown. Slide the plate out from the wall bracket.

Mechanical assembly diagram showing a left-hand tool transforming into a right-hand tool (no text or symbols present)

Attaching the Display Mounting Plate

Selecting the Right VESA Mounting Hardware for Your Display

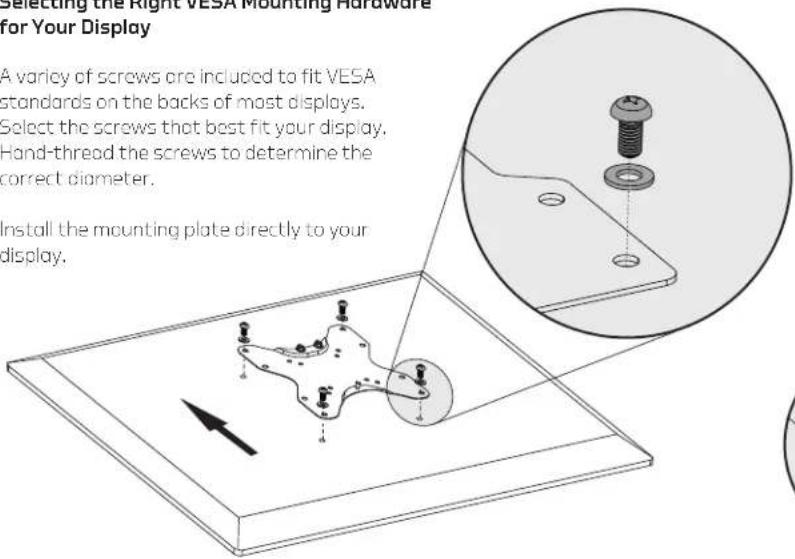

A variety of screws are included to fit VESA standards on the backs of most displays. Select the screws that best fit your display. Hand-thread the screws to determine the correct diameter.

Install the mounting plate directly to your display.

If Your Display Has Recessed Mounting or a Curved Back:

Install the spacers between the bracket and your display. You can combine spacers to best fit your display. Then fasten with the screws and washers until secure.

Mechanical assembly diagram showing a bracket with mounting holes and a bolt, enclosed in a circular frame (no text or symbols)

Attaching the Wall Bracket to Wooden Studs

Wooden studs run vertically inside the wall, 16 inches apart, behind the drywall or plaster. The wall bracket must be mounted to a wooden stud, or the bracket could fall out and damage your display or cause personal harm.

1. Use a stud finder to locate the edges of the wooden stud, and mark the center.

Technical line drawing of a mechanical lever assembly with no visible text or symbols

1. Place the wall bracket template up to the marked locations and tape it to the wall. Use the included bubble level to make sure the template is level before drilling. Use a pencil to mark the three drilling holes for the anchor screws and then apply a piece of tape over the marks.

1. Use a 3/16-inch (4.5 mm) wood drill bit to predrill the marked spots 2.2 inches (55 mm) deep, and then clean out the debris from the holes. Remove the template from the wall.

Attaching the Wall Bracket to Wooden Studs (cont.)

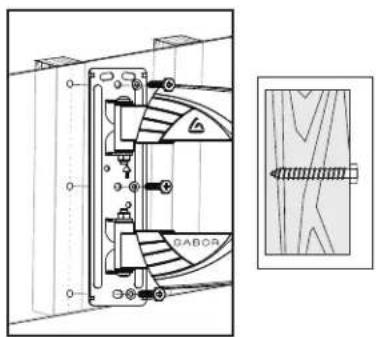

1. Attach the bracket to the wall by inserting the three anchor screws through the washers and the wall bracket's mounting holes, and screw them into the predrilled support holes until secure. Use the box-end wrench to further tighten the anchor screws, but do not overtighten.

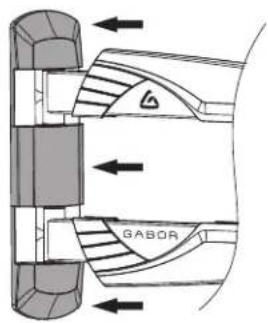

1. Attach the center cover and two end covers.

Technical line drawing of a mechanical assembly with no visible text or symbols

Wall bracket mounted to wooden stud, with correct screw placement.

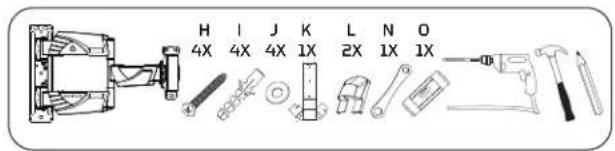

Attaching the Wall Bracket to Concrete

Warning! Make sure the concrete wall is solid and at least 8 inches (20 cm) thick. If the concrete exhibits cracks or other defects, this may result in failure of the concrete anchors and cause serious personal injury or damage to your display.

3D diagram of a mechanical component with labeled X and XX axes, no text or symbols present

1. Place the wall bracket template up to the marked locations and tape it to the wall. Use the included bubble level to make sure the template is level before drilling. Use a pencil to mark the four drilling holes for the anchor screws and then apply a piece of tape over the marks.

1. Use a 3/8-inch (10 mm) concrete drill bit to predrill the marked spots 2.4 inches (60 mm) deep, and then clean out the debris from the holes.

3D diagram of a mechanical assembly with three vertical components and circular features, no text or symbols present

1. Remove the template, insert the concrete anchors into the predrilled holes, and use a hammer to tap the anchors into the concrete.

Attaching the Wall Bracket to Concrete (cont.)

1. Attach the bracket to the wall by inserting the anchor screws through the washers and the wall bracket's mounting holes, and screw them into the anchors until secure. Use the box-end wrench to further tighten the screws, but do not overtighten.

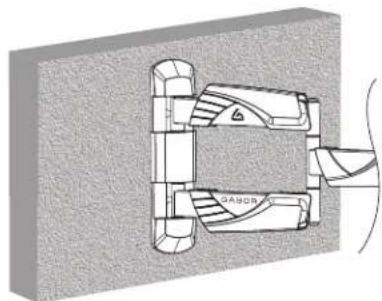

1. Attach the center cover and two end covers.

Technical diagram of a mechanical assembly with labeled parts (no readable text or symbols)

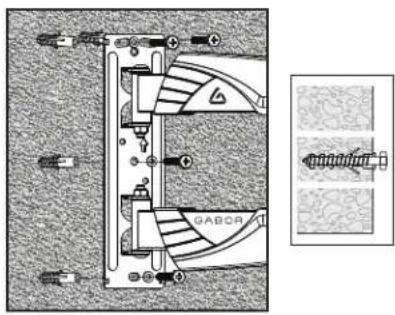

Wall bracket mounted to concrete, with correct screw placement.

Mounting the Display on the Wall Bracket

Important! We recommend that two people perform this step.

Technical diagram of a mechanical assembly with an inset close-up showing a component detail (no text or symbols present)

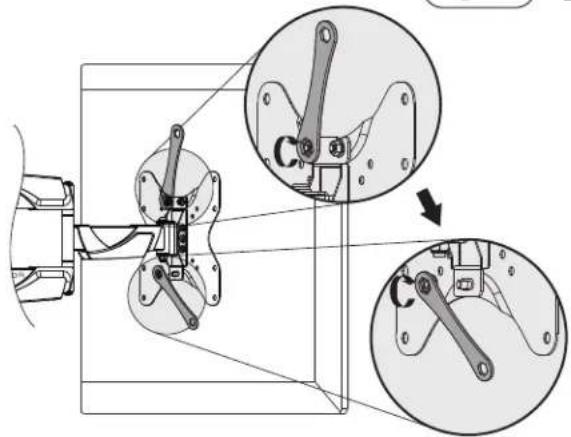

1. Make sure the two top nuts are attached and slightly loose. Lift your display up to the wall bracket, and seat the display into the mounting holes so that it hangs.

1. Replace the bottom hex nut and then tighten all three hex nuts using the box end wrench.

Post-Installation Adjustment

Once your display is mounted on the wall bracket, you can fine-tune adjustments to the horizontal level +3° to -3°, depth from the wall 1.8 to 20 inches, tilt +10° to -15° and pivot 180°.

Horizontal Level

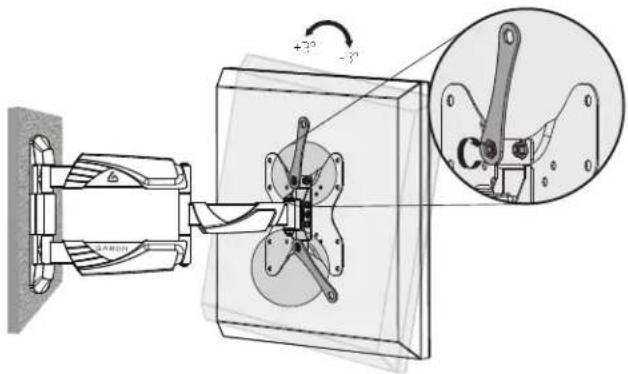

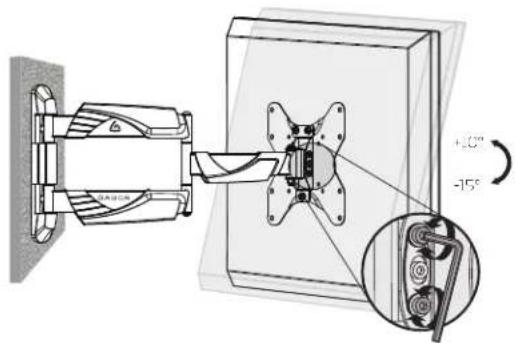

Loosen the three hex nuts with the included box-end wrench, and adjust the horizontal level +3° to -3°. Use the bubble level to make sure your display is level, then tighten the screws until secure.

Tilt Angle

Adjust the top and bottom tension screws to the desired friction and tilt the display up or down +10° to -15°.

Post-Installation Adjustment (cont.)

Display Pivot

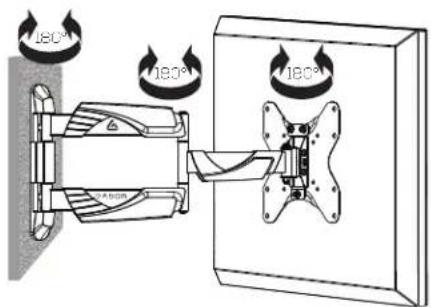

Pivot your display up to 180° for flexible mounting in the corner of a room or around an object.

Display Depth

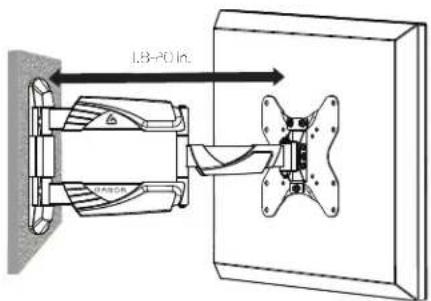

You can collapse or extend the mount so your display is 1.8 to 20 inches from the wall.

Cable Management

Diagram of a mechanical assembly with a central shaft and adjacent panel, showing no text or symbols.

Run the power and A/V cables through cable covers on the top or bottom of the wall bracket extension arms.

Widen the cover openings to remove and slide the covers over the arms as shown.

Five-Year Limited Warranty

This Gabor product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of five (5) years from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that foils during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Gabor Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Gabor along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.madebygabor.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.grodusgroup.com

Gabor is a registered trademark of the Gradus Group. © 2020 Gradus Group LLC. All Rights Reserved.

GABOR® A Gradus Group Brand
