Product Type	Tilting Wall Mount for Flat-Panel Displays
Brand	Gabor
Model	TM-SS2
Recommended Screen Sizes	15 to 40 inches (38 to 101.6 cm)
VESA Mounting Patterns	75×75 mm, 100×100 mm, 200×100 mm, 200×200 mm
Maximum Weight Capacity	110 lb (50 kg)
Depth from Mounting Surface	2.2 inches (5.6 cm)
Material	Steel
Weight (Mount Only)	2.71 lb (1.23 kg)
Tilt Range	-10° to 5°
Anti-Theft Feature	Integrated anti-theft screws
Installation Wall Types	Wood studs or concrete (≥8 in thick); not for metal studs or cinderblock
Included Hardware	Screws (M4, M5, M6, M8), washers, spacers, concrete anchors, anchor screws, bubble level
Required Tools	Phillips screwdriver, adjustable crescent wrench, hammer, stud finder, tape measure, concrete drill bit (3/8 in), pencil
Cleaning Instructions	Use mild detergent solution; wipe dry with soft cloth
Warranty	One-year limited warranty from original purchase date
Safety Certifications	Designed for indoor use; keep away from children and pets (small parts)

Frequently Asked Questions - TM-SS2 Gabor

What is the maximum TV size and weight this mount can hold?

The Gabor TM-SS2 mount supports flat-panel displays from 15 to 40 inches with a maximum weight of 110 lb (50 kg).

What VESA patterns are compatible?

This mount is compatible with VESA patterns: 75x75 mm, 100x100 mm, 200x100 mm, and 200x200 mm.

Can I install this mount on a concrete wall?

Yes, the mount includes concrete anchors and screws for concrete walls. Ensure the concrete is at least 8 inches (20 cm) thick and free of cracks.

What tools are needed for installation?

You will need a Phillips screwdriver, adjustable crescent wrench, hammer, stud finder, tape measure, 3/8 in concrete drill bit, and a pencil.

Does the mount tilt? What is the tilt range?

Yes, the mount tilts from -10° to 5° to adjust the viewing angle. Tilt tension knobs allow you to secure the desired angle.

Is the mount compatible with displays that have curved backs or recessed mounting holes?

Yes, spacers are included to accommodate curved backs or recessed mounting areas. Install the spacers between the bracket and TV before fastening.

What is the depth of the mount from the wall?

The mount has a low profile of just 2.2 inches (5.6 cm), keeping the display close to the wall.

Does the mount include security features?

Yes, the mount features integrated anti-theft screws to secure the display, making it suitable for public places.

How do I clean the mount?

Use a mild detergent solution and quickly wipe dry with a soft cloth. Avoid excessive exposure to liquids.

What is the warranty period for this product?

The Gabor TM-SS2 comes with a one-year limited warranty from the original purchase date, covering defects in materials and workmanship.

USER MANUAL TM-SS2 Gabor

for Small Flat-Panel Displays

User Manual

Thank you for choosing Gabor.

The Gabor TM-SS2 Tilting Wall Mount offers durable and discreet support for small flat-panel displays measuring 15 to 40 inches and weighing up to 110 pounds. This mount's low 2.2-inch profile assures that your screen will hang practically flush against the wall. Anti-theft screws are integrated and secure the display, making the mount ideal for public places.

If you have safety concerns about installing this product, contact a qualified professional or installation contractor.

If this product is missing hardware or there are defective parts, visit www.madebygabor.com or call Customer Service at 212-594-2353.

Safety Warnings

• When installing this product, be sure to refer to the mounting instructions detailed in this manual; failure to abide by the mounting instructions may void the product's warranty.
• Do not use this product for any flat-panel display other than what it is intended for; the exact specification, size parameters, and weight limits are found both on the product box and in the instruction manual.
• It is strongly recommended that this product be installed by a qualified professional or installation contractor; Gabor takes no responsibility for any product damage or personal injury resulting from mishandling, incorrect mounting, faulty assembly, or improper use of this product.
• This product has been designed specifically for mounting directly on wooden studs or concrete walls; depending on wall type and material, the use of additional appropriate mounting hardware and/or accessories such as heavy-duty anchors may be required.

• The supplied mounting hardware is not intended for use on metal studs or cinderblock walls, and may not be appropriate for old or weak walls; it is best to consult with a qualified professional to determine whether your wall is capable of supporting this bracket.

• Do not mount the device on structures that may be affected by vibrations or noticeable impacts; do not install near a heater, fireplace, or any other source of direct heat energy.

• It is recommended that at least 2 people perform the installation process to prevent injury from mishandling or dropping of the product and/or flat-screen device.
• This product may contain small parts which can possibly pose a choking hazard; keep out of reach of children and pets.
• Excessive exposure to liquids may damage the finish of this product; when cleaning this product, use only a mild detergent solution, and quickly wipe dry with a soft cloth.
• All images are for illustrative purposes only.

Product Specifications

Depth from Mounting Source

2.2 in. (5.6 cm)

Recommended Screen Sizes

15 to 40 in. (38 to 101.6 cm)

VESA Mounting Patterns

75×75 mm

100×100 mm

200×100 mm

200×200 mm

Max Weight Capacity

110 lb. (50 kg)

Material

Steel

Weight

2.71 lb. (1.23 kg)

Overview

Wall Bracket

Technical line drawing of a rectangular panel with recessed slots and a GABOR® label (no readable text or symbols beyond branding)

Display Brackets

Technical line drawing of a mechanical component with multiple slots and mounting brackets (no text or symbols)

Required Tools

Phillips screwdriver

Adjustable crescent
wrench

Hammer

Stud finder

I cpe measure

3/8 in. (10 mm)
Concrete drill bit

Pencil

M-AM-B[2X40]	M-C M74X4	M-E 4X	4X4X
	[0624]	[AC04]	[HZOT]
	M5×14 mm screw M5×14 mm screw M4×14 mm screw M0×20 mm screw			27×20×2 mmrel angle washers
8X	W-A W/B W-CM-F		4X
Spare	516.5mmon a n screw	1275 mmcon helix anchor	15×6.5×16 mmon a n screw washer	Rubber level

Display/TV Placement

Before installing the Gabor Tilting Wall Mount, you will need to determine the placement of your display and identify surrounding support structures for attachment.

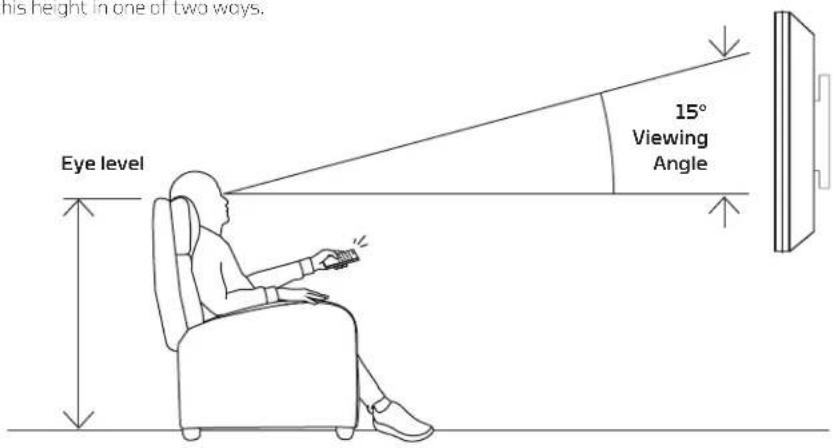

The best height for a display is at the viewer's eye level. You can find this height in one of two ways.

1. Measure the distance from the seating area to viewing area. Ideally, the center of the display (where the diagonals meet) should be as close as possible to eye level.

OR

1. Cut a piece of sturdy cardboard that's approximately the same size as your display. Use the cardboard to determine a comfortable level for the display, and mark the location with a pencil.

Attaching the Display/TV Brackets

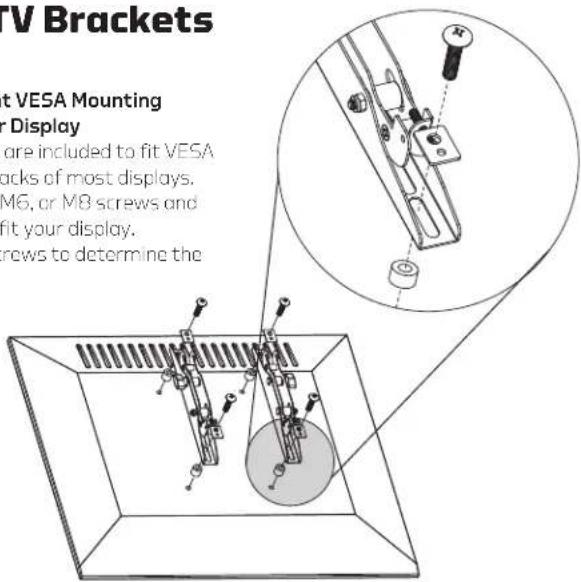

Selecting the Right VESA Mounting Hardware for Your Display

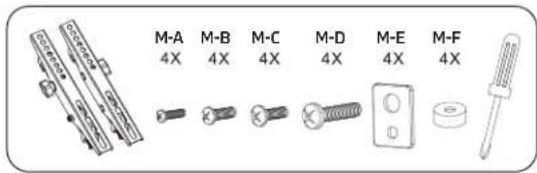

A variety of screws are included to fit VESA standards on the backs of most displays. Select the M4, M5, M6, or M8 screws and washers that best fit your display. Hand-thread the screws to determine the correct diameter.

If the screw is too short, it may not hold the display. If it's too long, it may damage the display.

If Your TV Has a Flat Back:

Install the bracket directly to your TV, using only the screws and washers provided.

If Your TV Has a Curved Back or Recessed Mounting:

Install the spacers between the bracket and your TV. Then fasten with the screws and washers until secure.

Attaching the Wall Bracket to Concrete

Note: Mounting hardware for attaching the bracket to concrete and masonry walls is included. Consult a professional for attaching the bracket to other wall surfaces.

Warning! Make sure the concrete wall is solid and at least 8 inches (20 cm) thick. If the concrete exhibits cracks or other defects, this may result in failure of the concrete anchors and cause serious personal injury or damage your display.

1. Place the wall bracket up to the location marked for your display, and use a pencil to mark the four drilling holes needed for the concrete anchors. Use the included bubble level to make sure the bracket is level before drilling.
2. Use a 3/8 inch (10 mm) concrete drill bit to predrill the marked spots 2.4 inches (60 mm) deep, and then clean out the debris from the holes.
3. Insert the concrete anchors into the precrilled holes, and use a hammer to tap the anchors into the concrete.
4. Attach the bracket to the wall by inserting the anchor screws through the washers and the wall brackets' mounting holes, and screw them into the anchors until secure. Use the wrench to further tighten the anchor screws, but do not overtighten. Use the included bubble level to make sure the bracket is level.

Attaching the Wall Bracket (cont.)

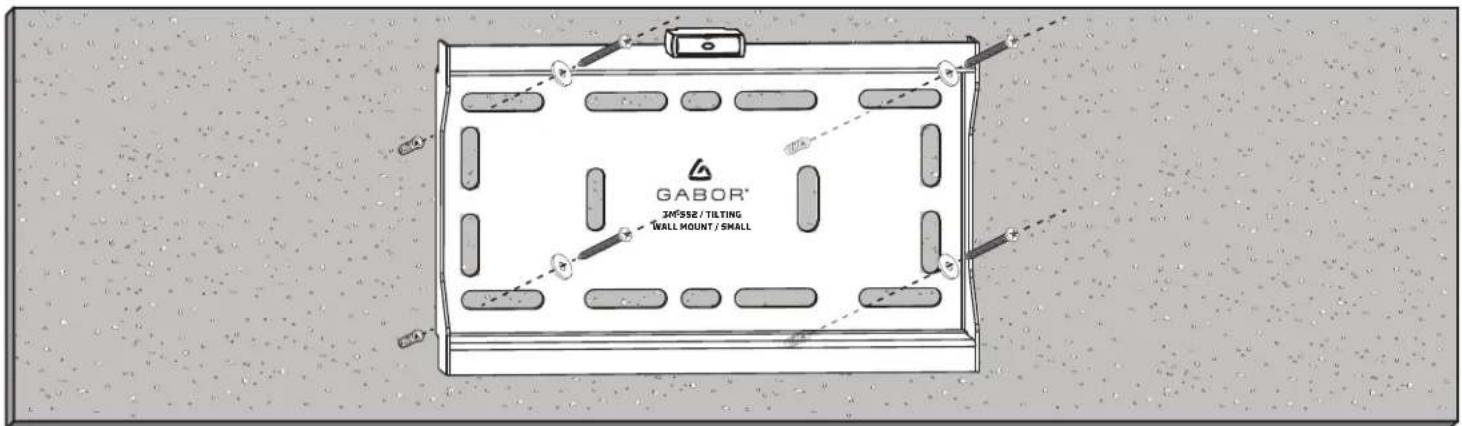

Wall bracket mounted to concrete, with correct screw placement.

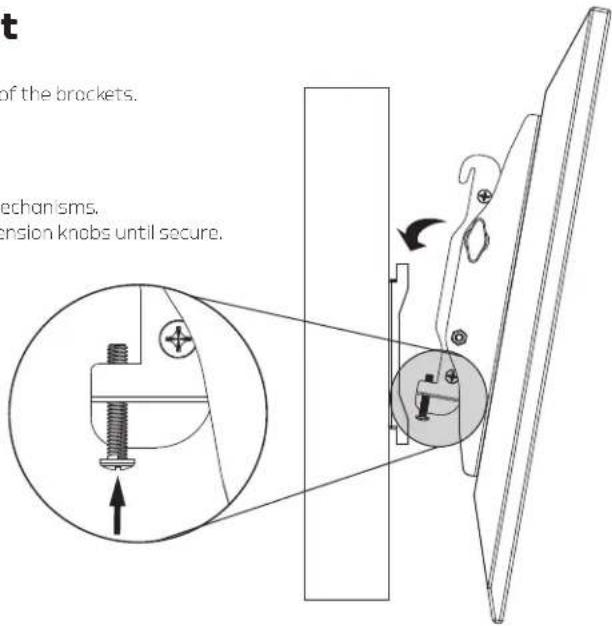

Mounting the Display on the Wall Bracket

1. Lift your display up to the wall bracket, and hang the display from the top hooks of the brackets.
2. Tighten the display bracket's screws, using a screwdriver.
3. Use the tilt tension knobs on both brackets to adjust the tension for the tilting mechanisms. Tilt the display into the ideal viewing angle from -10^ to 5^ , and tighten the tilt tension knobs until secure.

One-Year Limited Warranty

This Gabor product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Gabor Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Gabor along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.madebygabor.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.grodusgroup.com

Gabor is a registered trademark of the Gradus Group. © 2024 Gradus Group LLC. All Rights Reserved.
