| Product type | Built-in plate warmer |
| Brand | De Dietrich |
| Model | DWD1114X |
| Dimensions (H x W x D) | 135 x 560 x 592 mm (variant DWD1114/94) |
| Net weight | Approximately 20 kg |
| Power supply | 220-240 V ~ 50/60 Hz, 10 A, wire section 1 mm² |
| Power | 700 W (estimated) |
| Main functions | Heating by hot air with fan, temperature selector (30-70 °C), timer with beep, power-on indicator, non-slip bottom, protective grid |
| Load capacity | 20 kg maximum |
| Installation | Built-in, minimum niche dimensions: H 130 x W 550 x D 590 mm (for DWD1114/94) |
| Maintenance and cleaning | Clean with sponge and soapy water, dry with soft cloth. Do not use abrasive products, alcohol, solvent, or steam cleaner. Removable non-slip bottom for cleaning |
| Safety | Do not use for food or drinks, do not step on the drawer, do not store plastics or flammable items. Use oven mitts for hot dishes. Unplug in case of anomaly |
| Spare parts and repairability | Use exclusively certified original spare parts. Contact De Dietrich after-sales service |
| General information | Manual available in several languages. Product registration at www.de-dietrich.com. Consumer service: 0892 02 88 04 |
Frequently Asked Questions - DWD1114X DE DIETRICH
User questions about DWD1114X DE DIETRICH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Food Warmers in PDF format for free! Find your manual DWD1114X - DE DIETRICH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DWD1114X by DE DIETRICH.
USER MANUAL DWD1114X DE DIETRICH
FR GUIDE D'UTILISATION
EN GUIDE TO INSTALLATION
Pure electrical circuit lines without any symbolsDear valued customer,

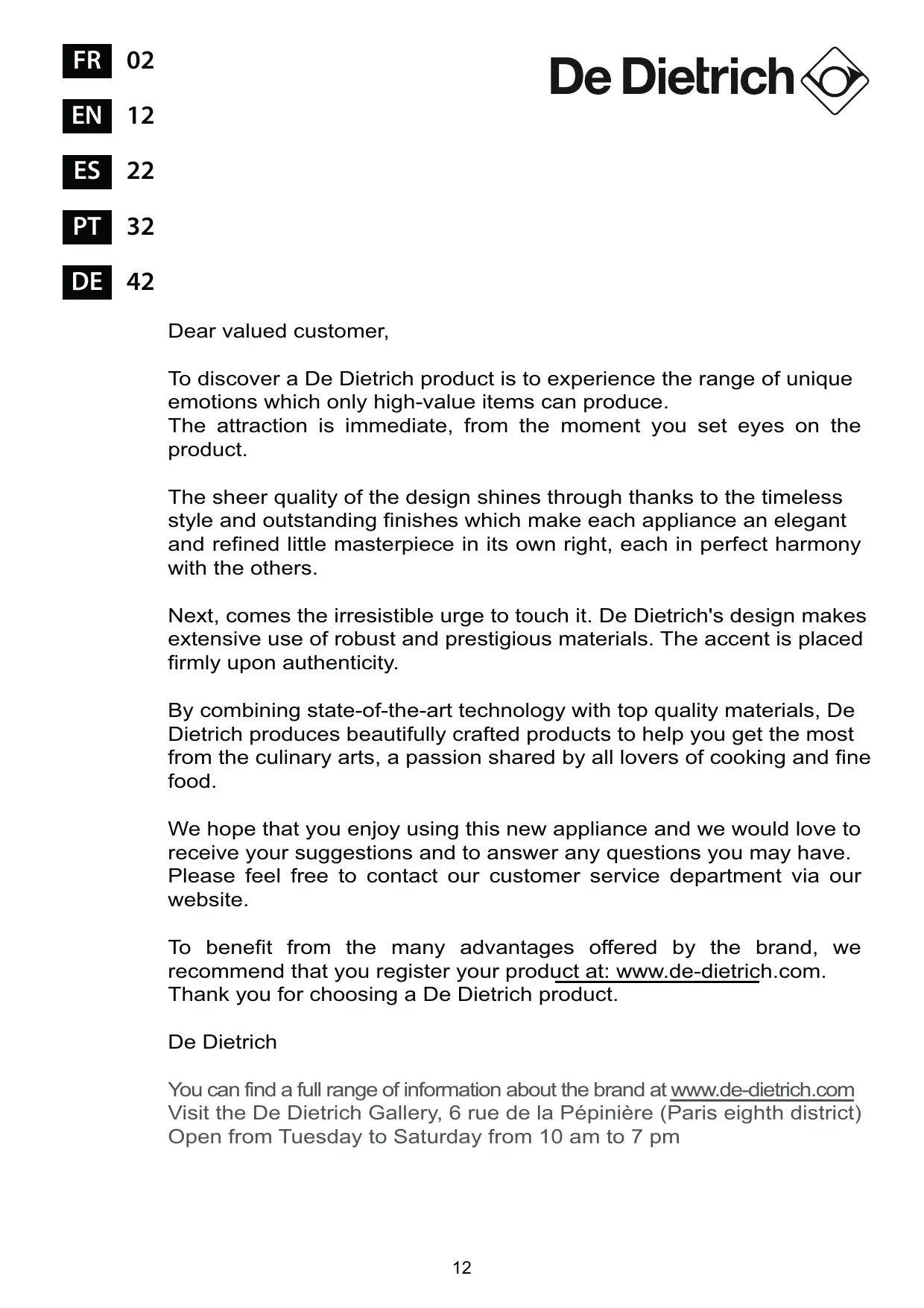

To discover a De Dietrich product is to experience the range of unique emotions which only high-value items can produce.
The attraction is immediate, from the moment you set eyes on the product.
The sheer quality of the design shines through thanks to the timeless style and outstanding finishes which make each appliance an elegant and refined little masterpiece in its own right, each in perfect harmony with the others.
Next, comes the irresistible urge to touch it. De Dietrich's design makes extensive use of robust and prestigious materials. The accent is placed firmly upon authenticity.
By combining state-of-the-art technology with top quality materials, De Dietrich produces beautifully crafted products to help you get the most from the culinary arts, a passion shared by all lovers of cooking and fine food.
We hope that you enjoy using this new appliance and we would love to receive your suggestions and to answer any questions you may have. Please feel free to contact our customer service department via our website.
To benefit from the many advantages offered by the brand, we recommend that you register your product at: www.de-dietrich.com. Thank you for choosing a De Dietrich product.
De Dietrich
You can find a full range of information about the brand at www.de-dietrich.com Visit the De Dietrich Gallery, 6 rue de la Pépinière (Paris eighth district) Open from Tuesday to Saturday from 10 am to 7 pm
INDEX
EN
1 / PROTECTION OF THE ENVIRONMENT 13
2 / DESCRIPTION OF WARMING DRAWER 14
3 / SAFETY TIPS 15
4 / INSTALLATION 16
5 / ENCASEMENT 17
6 / USING YOUR WARMING DRAWER 18
7 / CLEANING AND MAINTENANCE 21
8 / AFTER SALES SERVICE 21
1 / PROTECTION OF THE ENVIRONNEMENT
The packaging materials used for this appliance can be recycled. Take part in recycling and help protect the environment by discarding them in the appropriate waste bins provided by the municipal authorities.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.


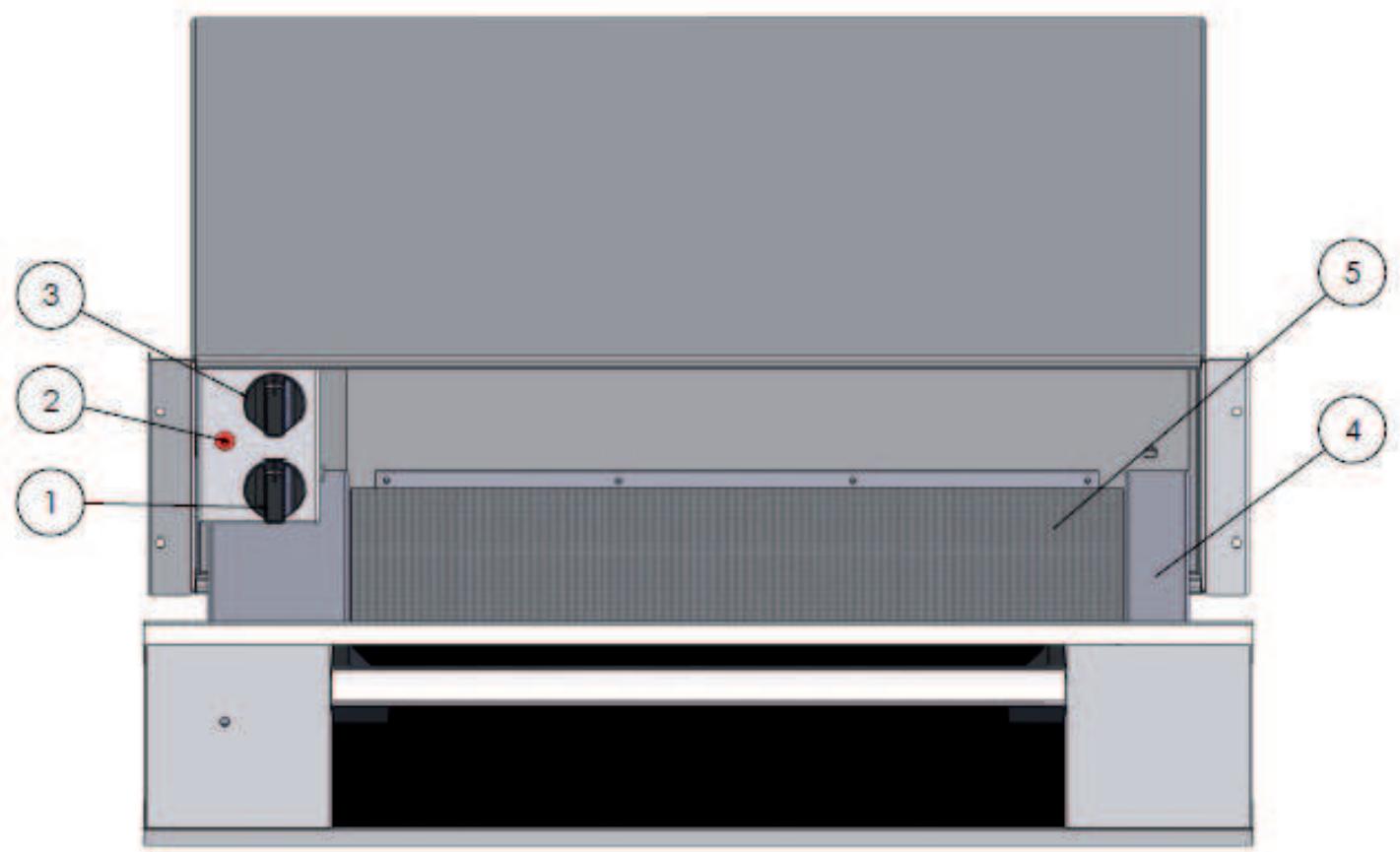

Technical diagram of a device with numbered components, likely an enclosure or rack assembly.- Timer, stop/start switch
- Signal light on the front showing that power is on
- Temperature control
- Drawer for dishes
- Antiskid mat
Keep these instructions with your appliance. If the appliance should be sold or given to another person, be sure that these instructions are supplied with it.
Please read these recommendations before installing and using the warming drawer. They have been drafted for your safety and that of others.
This warming drawer has been designed for use by private persons in their homes. It is intended exclusively for warming dishes. Any other use is prohibited and could be dangerous. The manufacturer cannot be held liable in the event of non-complying use.
Do not use this appliance until it has been installed in the cabinet. Only full installation of the drawer prevents any risk of contact with powered components.
Never open the body of the appliance.
The inside of the drawer can heat up 70^ C depending on the temperature chosen and the duration of use. Use oven gloves or hot-pan holders to remove the hot dishes from the warming drawer.
Do not use the warming drawer to keep food or drinks hot or to reheat or cook food or drinks. The moisture in the food or drinks could cause corrosion of the appliance.
We do not advise standing or sitting on the open drawer; this would cause damage to the telescopic rails. The maximum load of the drawer is 20 kg.
We do not advise the use or storage of any plastic goods or inflammable objects in the appliance. They could melt or catch fire when the warming drawer is switched on.
The appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Before connecting the appliance to the power supply, check that the wires of your electric installation have sufficient diameter to supply power to the appliance normally. The fuse for the installation should be 10 amps.
It is necessary to provide a bipolar cut-off device in the power supply circuit, where the opening of the contacts is more than 3 mm.
The electric connection should be done before the appliance is set in the cabinet.
The drawer should be connected by a (standard) power cord with three 1 mm ^2 couplers (1 single phase + 1 N + ground) to the 220-240 V single phase power supply via an electric circuit corresponding to the standard CEI 60083 or complying with the installation rules. The protective wire (green/yellow) corresponds to ground 🏠 on the appliance and should be connected to the ground of the installation.
In the case of a connection via an electric outlet, the outlet should be accessible after the installation of the appliance.
The neutral on the heating drawer (blue wire) should be connected to neutral on the power supply.
Set the appliance into the niche in the cabinet. Make certain that the body of the appliance is positioned correctly.
Open the drawer and fasten the appliance to the sides of the cabinet with 2 screws and the 2 spacers delivered with the appliance.

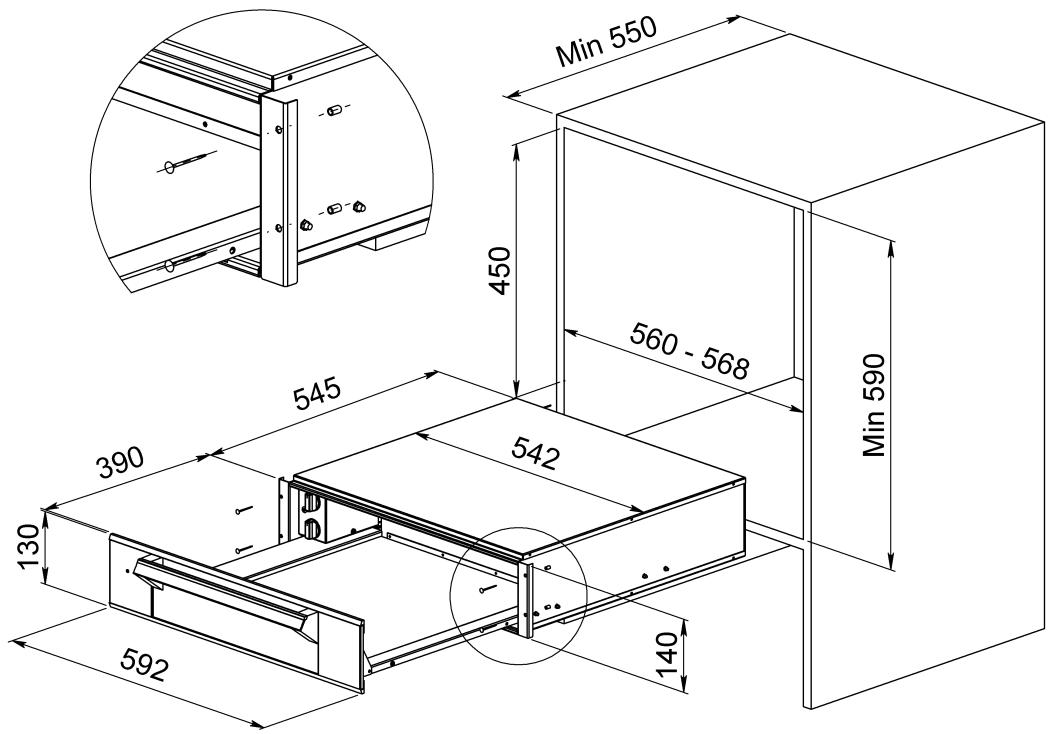

DWD1114/94


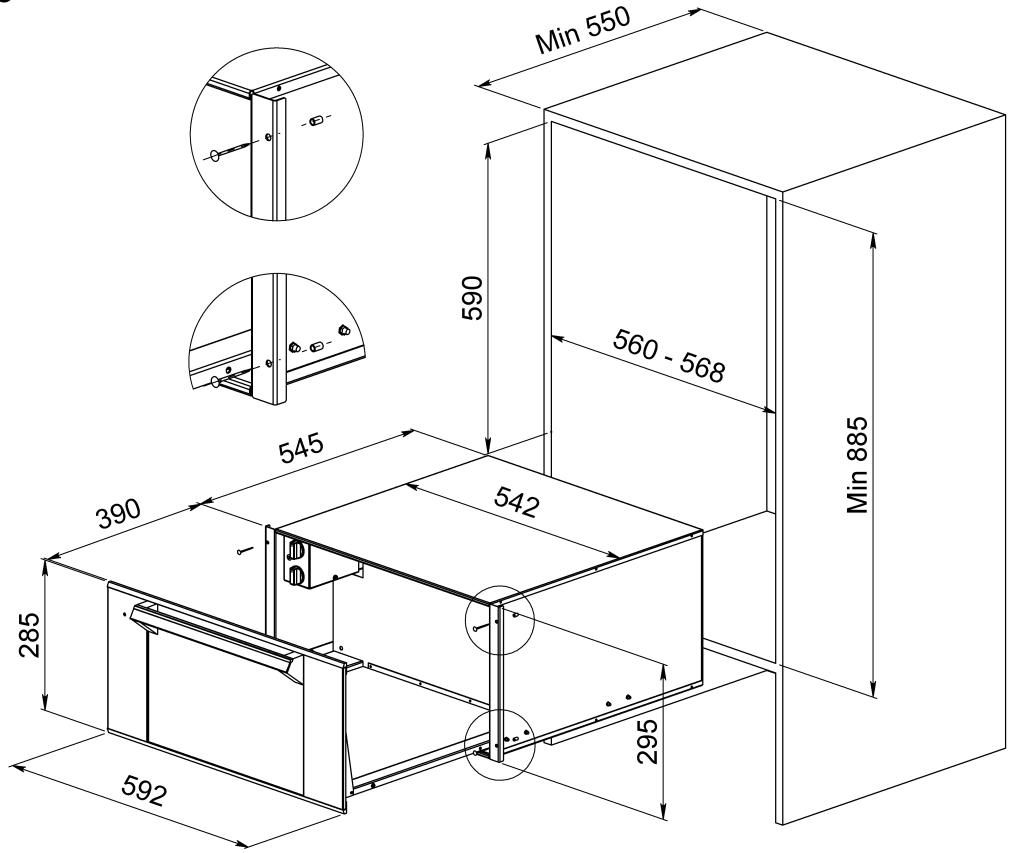

Min 550 450 560 - 568 Min 590 545 390 542 130 140 592DWD1129
The appliance should be used exclusively to preheat crockery.
The appliance uses a hot air system to heat the dishes. A fan distributes the heat from the resistor in the drawer. The dishes are heated rapidly and uniformly by circulation of hot air.
A protective grid prevents the dishes from coming into contact with the resistor or the fan.
The floor of the drawer is covered with an antiskid mat that prevents the dishes from sliding when the drawer is opened.
For model DWD1194GX: the drawer can be opened and closed by pressing lightly in the middle of the drawer front.
CONTROLS
The controls include a temperature knob and a Start/Stop switch. These are only visible when the drawer is open.
When the drawer is closed, the signal light on the front of the drawer comes on when the appliance is running.
SETTING THE CONTROLS
- Put the dishes in the drawer.
- Select the temperature.
- Set the timer (minimum 10 minutes).
The signal light shows that the power is on.
- Close the drawer.
When the timer runs out, the hot air heating system stops and a bell rings.
To turn the bell off, turn the knob to 0.
SELECTING THE TEMPERATURE
The temperature knob adjusts the temperature between 30 and 70 °C.
The most appropriate temperatures for the types of dishes used are as follows :
- 40 °C: for cups or glasses. Hot drinks generally stay hotter for longer when poured into cups or glasses preheated to this temperature, without danger of burns when people drink from.
- 60 °C: for plates and dishes. Food served on preheated plates or dishes generally maintain their heat for longer and the dishes can be touched without burning the hands.
PREHEATING TIME
Preheating time depends on several factors :
- the thickness of the dishes and the material they are made from
- the load
- disposal of the load
• temperature selection
Therefore, we cannot give heating times that will correspond systematically.
However, as a guideline, here are a few hints :
For a temperature setting of 60 °C , heated evenly :
- dishes for a meal for six take approximately 30 min.
- dishes for a meal for twelve take approximately 40 min.
After using the drawer a few times, you will know for yourself how long it takes to heat your dishes.
CAPACITY
This model comes in two heights.
• DWD1114/94 : height 135 mm.
• DWD1129 : height 295 mm.
Capacity depends on the height of the model, and the weight and size of your dishes.
The two models have maximum capacity of 20 kg.
The following examples are given as an indication only :
| DWD1114/94 | DWD1129 | ||
| Quantities are determined by volume | Quantities are determined by weight | ||
| Dishes for 6: | Dishes for 12: | ||
| 6 dinner plates | ∅ 28 cm | 12 dinner plates | ∅ 28 cm |
| 6 soup plates | ∅ 22 cm | 12 soup plates | ∅ 22 cm |
| 1 serving bowl | ∅ 22 cm | 2 serving bowl | ∅ 22 cm |
| 1 serving bowl | ∅ 20 cm | 2 serving bowl | ∅ 20 cm |
| 1 serving bowl | ∅ 18 cm | 2 serving bowl | ∅ 18 cm |
| 2 serving platters | 36 cm | 2 serving platters | 36 cm |
| or 16 large plates | ∅ 28 cm | or 32 large plates(± 600 g each) | ∅ 28 cm |
| + 8 bowls | ∅ 10 cm | ||
| or 24 soup plates | ∅ 22 cm | or 50 soup plates(± 400 g each) | ∅ 22 cm |
| or 40 bowls | ∅ 10 cm | ||
| or 60 cups | ∅ 8 cm | or 60 bowls (± 330 g each) | ∅ 10 cm |
| or ... | or 132 cups (± 150 g each) | ∅ 8 cm | |
| or ... | |||
Before any maintenance, turn off the appliance and let it cool.
Clean all surfaces with a sponge, dish washing soap and warm water. Then dry it off with a soft cloth.
Do not steam clean the appliance.
The use of scouring powders, alcohol or grease-cutting products is not recommended – they could damage the appliance.
The stainless front can be scratched. Use a special non-abrasive cleanser for stainless steel.
The antiskid mat can be removed to clean the bottom of the drawer.
The antiskid mat can be washed with warm water and detergent. Then dry it off and put it back in the drawer when it is completely dry.
Note: The antiskid mat can be cleaned in a washing machine on a synthetic cycle at 40 degrees.
8 / AFTER SALES SERVICE
Any maintenance on your equipment should be undertaken by:
- either your dealer,
- or another qualified mechanic who is an authorized agent for the brand appliances.
When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's name-plate attached to your equipment.
For UK after sales service information please contact:
www.dedietrich.co.uk
De Dietrich UK office – tel: 01256 308000
