USER MANUAL R300 NAVMAN

Solid black equilateral triangle shape on white background (no text or symbols)

R300

USER GUIDE

English

Welcome

Navman's GPS Sport. Tool 300 series provides an affordable and reliable way to track and store a variety of personal performance indicators.

Please read this guide carefully and familiarize yourself with the interface and functions, as well as the intended use and limitations of the Navman R300 GPS Sport. Tool.

This product complies with CE, FCC, Canada 210, and C-Tick regulations.

Operation is subject to the following two conditions:

(1) this device may not cause interference
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

WARNING: Entering information or handling the Navman Sport. Tool while moving is unsafe and may cause you to be distracted or fail to observe safe practices necessary to avoid death, serious injury, collisions or accidents to you or others. Use the memory functions to review data when you are not moving.

CAUTION: The Navman R300 GPS Sport. Tool is intended for recreational use only. Do not use this product for obtaining measurements that require professional or industrial precision. Consult your physician before starting or changing any exercise programs.

Content

1.0 General information 1-6

1.1 Checklist 1-6
1.2 Care and maintenance 1-6
1.3 Water resistance 1-6
1.4 Altitude measurement 1-6
1.5 Changing the battery 1-7

2.0 Navman R300 interface 1-8

2.1 Button functions 1-8

2.2 Display screen 1-8

3.0 Getting started 1-9

3.1 Be outdoors 1-9
3.2 Fit the R300 1-9
3.3 Startup 1-9
3.3.1 Enter setup 1-10
3.3.2 Start normal operation 1-10

4.0 Setup 1-11

4.1 Setting options 1-11

4.1.1 Set time format 1-12
4.1.2 Set date format 1-12
4.1.3 Set button beep status 1-13
4.1.4 Set weight units 1-13
4.1.5 Edit user weight 1-14
4.1.6 Set energy units 1-14
4.1.7 Set speed units 1-15
4.1.8 Set offset (set local time) 1-16
4.1.9 Editing settings (overview) 1-17

5.0 Normal operation 1-18

5.1 Modes 1-18
5.1.1 Speed mode 1-19
5.1.2 Speed (Average) mode 1-19
5.1.3 Speed (Maximum) mode 1-20
5.1.4 Odometer/Altitude mode 1-20
5.1.5 Calories mode 1-21
5.1.6 Zone mode 1-21
5.1.6.1 Zone (Minimum) 1-22
5.1.6.2 Zone (Maximum) 1-22
5.1.7 Clock mode 1-23
5.1.8 Timer mode 1-24
5.1.9 Timer recall mode 1-24
5.1.10 Mode operation (overview) 1-25

6.0 Restoring default settings 1-26

7.0 Glossary 1-27

8.0 Copyright 1-27

9.0 Additional warnings, disclaimers, and limitations on liability 1-28

1.0 General information

1.1 Checklist

The R300 package should contain the following items:

• Navman R300 GPS Sport.Tool
- armband
- quick guide
- user guide
- 1 x AA battery
- registration card

1.2 Care and maintenance

Do not attempt to disassemble the R300; there are no user serviceable components in this product.

The R300 is of robust design. However, care should be taken to protect from shocks or extreme heat.

Clean using only a soft cloth with mild soap and warm water. Do not use abrasive cleaning materials or products. We recommend rinsing the R300 with fresh water after any exposure to salt water.

CAUTION: Please ensure battery cover is in place during cleaning.

Store the R300 away from direct sunlight or extreme heat sources. (Remove battery before storing for an extended period.)

1.3 Water resistance

The Navman R300 GPS Sport. Tool is water resistant.

1.4 Altitude measurement

Due to the nature of GPS, inaccurate altitude measurements can sometimes be observed. Altitude readings should be viewed as indicative measurements only.

1.5 Changing the battery

Always shut down the R300 before changing the battery.

Note: All system settings, and the calculated data that was stored at the last controlled shutdown*, are retained when the battery is removed. This information persists indefinitely until updated or reset.

Two circular diagrams showing car interior and engine compartment with mechanical components (no text or symbols)

1. Turn D-ring anti-clockwise and slide enclosure cover down to open battery enclosure.

2. Insert battery with « +» end as indicated inside enclosure.

3. Replace enclosure cover (ensuring lugs at the bottom of the cover are aligned with slots in the enclosure surround), turn D-ring clockwise to seal.

For best performance: General use = Alkaline Below 5°C = NiMH

If battery power becomes low during operation the battery icon is displayed.

battery icon → 3:24 PM 51 31 - 12

constant = low power

flashing = approx. 5 min before automatic shutdown**

* Press and hold Ⓞ to perform a controlled shutdown.

** When battery power becomes too low to continue operation, a controlled shutdown is automatically executed (current data is saved).

2.0 Navman R300 interface

2.1 Button functions

There are two control buttons, ⬙ and ▶. These buttons are pressed separately or together to turn the unit on and off, cycle through modes, and select mode options.

Throughout this guide the button icons are used as follows:

● = press this button

▶ = press this button

●▶ = press both buttons together

Note: where it is required to press and HOLD buttons, a countdown begins. To perform the required action continue to hold until the counter reaches zero; if you release the button sooner the action will not be performed.

2.2 Display screen

LARMINMAX PACE 8:00:00 18:00 kmmi PM km/hmph kJkcalkglbmft RCL MAX 2 Cal ZONE SYSTEM AVG 873 SET SET

The illustration above shows the complete display capability of the R300. Only a sub-set of these elements appear at any time during operation.

The upper screen section displays the antenna and battery icons, as well as all values and units. The lower screen section displays the mode icons and the setup icon (SYSTEM SET).

Mode Icons

Clock

Speed (Maximum)

Timer

Odometer/Altitude

Timer recall

Calories

Cal

Speed

Zone settings

ZONE SET

Speed (Average)

3.0 Getting started

3.1 Be outdoors

The R300 is not intended for operation indoors or under water as it uses Global Positioning System (GPS) satellites to get time and date information, and to calculate distance and speed. For best results, always use the R300 outdoors with an unobstructed view of the sky.

Simple black circular diagram with dashed lines and a curved arrow, no text or symbols present.

Simple black-and-white icon of a house inside a circle with an arrow and cross symbol below (no text or labels)

3.2 Fit the R300

The R300 is designed to be worn on the left upper arm. The easiest way to fit the unit is to feed the strap through the fastener to create a loose enclosure. Then slide your left arm through the enclosure and tighten the strap after the unit is in a comfortable position.

L

3.3 Startup

Press and hold ⬙ to turn the power on and enter setup, OR press ⬙ to turn the power on and start normal operation. First start may take up to 80 seconds to get all the satellite data

▶ Flashing = seeking GPS data
Constant = GPS data obtained

Always enter setup first if you wish to change settings. To enter setup after starting normal operation, you will need to shut down and re-start the unit.

3.3.1 Enter setup

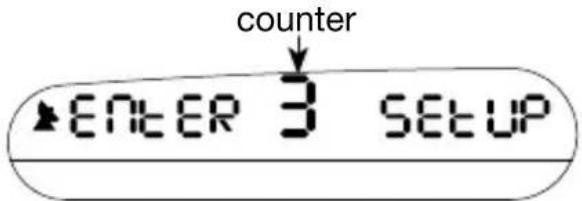

To enter setup

Press and hold Ⓞ to turn the power on and enter setup.

counter ENTER 3 SETUP

When the counter reaches zero, the R300 will enter setup. If you release ● before the counter reaches zero the R300 will immediately start normal operation.

Note: To enter setup after starting normal operation you will need to restart the R300. For details about changing settings see Section 4.0.

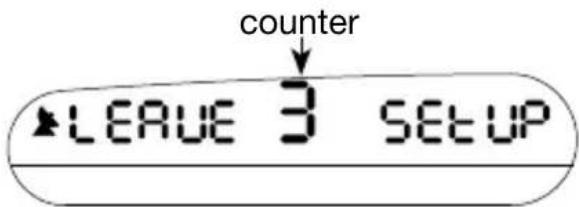

To leave setup

Press and hold Ⓞ to leave setup and start normal operation.

counter LEAVE 3 SETUP

When the counter reaches zero, the R300 will leave setup and start normal operation in Speed mode. If you release ● before the counter reaches zero the R300 will remain in setup.

Note: you must leave setup first if you want to turn the power off.

3.3.2 Start normal operation

To start normal operation

Press ⬙ to turn the power on and start normal operation.

When starting directly into normal operation, the R300 will start in the mode it was in at last shutdown. (Speed mode is always displayed first when starting normal operation after leaving setup.) For details about normal operating modes see Section 5.0.

4.0 Setup

4.1 Setting options

Press and hold ⬤ to turn the power on and enter setup. Press ▶ repeatedly to step through the setting options.

Setting options are accessed in the order shown below. See subsequent sections for details about editing settings.

Set (12hr)

lets you set 12hr or 24hr time format

Set (31-12)

lets you set dd-mm or mm-dd date format

Beep

When beep is ON a beep will sound when the buttons are pushed.

Set units (kg)

lets you set weight units to kg or lb

User (weight)

lets you enter a value for your weight

This value will be used to calculate calories burned.

Set units (kcal)

lets you set energy units to kcal or kJ

These units are used to display energy burned in Cal mode.

Set units (km/h)

lets you set the speed units to km/h or mph

Set offset

lets you adjust the R300 to display local time

Press and hold Ⓞ to leave setup and start normal operation.

4.1.1 Set time format

Set 12hr or 24hr time display format.

time format SET 12hr SYSTEM SET

To access this option

If necessary, press and hold ⬤ to turn the power on and enter setup. Press ▶ repeatedly until the screen appears as shown above.

To set time format

1) Press ⬤▶ to start editing (time format option flashes).
2) Press ● or ▶ to select 12hr or 24hr.
3) Press ⬤▶ to stop editing.
4) Press ▶ to go to the next option, or hold ● to leave setup.

4.1.2 Set date format

Set 'dd-mm' or 'mm-dd' date display format.

date format SET 31 - 12 SYSTEM SET

To access this option

If necessary, press and hold ⬤ to turn the power on and enter setup. Press ▶ repeatedly until the screen appears as shown above.

To set the date format

1) Press ⬤▶ to start editing (date format example flashes).
2) Press ● or ▶ to select dd-mm or mm-dd.
3) Press ⬤▶ to stop editing.
4) Press ▶ to go to the next option, or hold ● to leave setup.

4.1.3 Set button beep status

Set beep ON or beep OFF. When beep is ON, an audible 'beep' will sound when buttons are pressed.

status BEEP ON SYSTEM SET

Access this option

If necessary, press and hold ⬤ to turn the power on and enter setup. Press ▶ repeatedly until the screen appears as shown above.

To set button beep status

1) Press ⬤▶ to start editing (setting status flashes).
2) Press ● or ▶ to select On or OFF.
3) Press ⬤▶ to stop editing.
4) Press ▶ to go to the next option, or hold ● to leave setup.

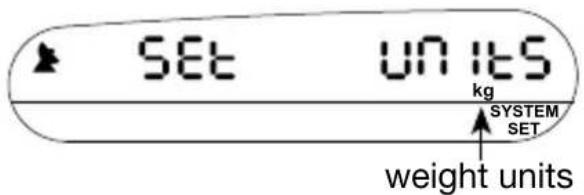

4.1.4 Set weight units

Set the weight units (kg or lb) for entering user weight value.

SET UNITS kg SYSTEM SET weight units

Access this option

If necessary, press and hold ⬤ to turn the power on and enter setup. Press ▶ repeatedly until the screen appears as shown above.

To set weight units

1) Press ⬤▶ to start editing (weight units flash).
2) Press ⬙ or ▶ to select kg or lb.
3) Press ⬤▶ to stop editing.
4) Press ▶ to go to the next option, or hold ● to leave setup.

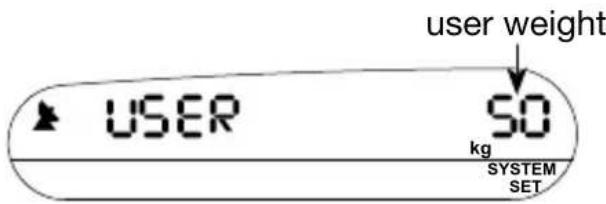

4.1.5 Edit user weight

Edit the user weight value (used for calculating calories burned).

user weight USER SO kg SYSTEM SET

Access this option

If necessary, press and hold ⬤ to turn the power on and enter setup. Press ▶ repeatedly until the screen appears as shown above.

To edit user weight

1) Press ⬤▶ to start editing (weight value flashes).
2) Press ▶ repeatedly to increase value by 1 (hold ▶ to increase values quickly), or press ● repeatedly to decrease value by 1 (hold ● to decrease values quickly).
3) Press ⬤▶ to stop editing.
4) Press ▶ to go to the next option, or hold ● to leave setup.

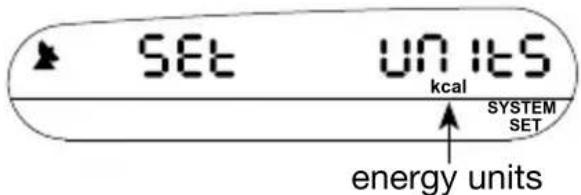

4.1.6 Set energy units

Set energy units (kcal or kJ) for displaying energy (calories) burned when using Cal mode (see Section 5.1.5).

SET UN ITS kcal SYSTEM SET energy units

Access this option

If necessary, press and hold ⬤ to turn the power on and enter setup. Press ▶ repeatedly until the screen appears as shown above.

To set energy units

1) Press ⬤▶ to start editing (energy units flash).
2) Press ⬙ or ▶ to select kcal or kJ.
3) Press ⬤▶ to stop editing.
4) Press ▶ to go to the next option, or hold ● to leave setup.

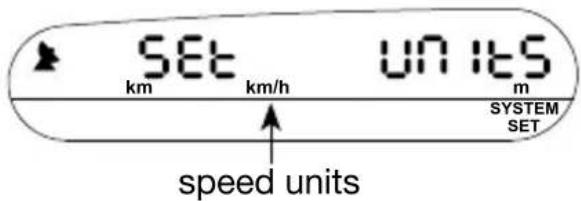

4.1.7 Set speed units

Set units for speed (km/h or mph).

SET km km/h UN ITS m SYSTEM SET speed units

Access this option

If necessary, press and hold ⬤ to turn the power on and enter setup. Press ▶ repeatedly until the screen appears as shown above.

To set speed units

1) Press ⬇▶ to start editing (speed units flash).
2) Press ⬙ or ▶ to select km/h or mph.
3) Press ⬤▶ to stop editing.
4) Press ▶ to go to the next option, or hold ● to leave setup.

Note: Distance and altitude are displayed in units that correspond to user selected speed units. For example, if you select speed units 'km/h', then distance is displayed in 'km' and altitude in 'm'.

4.1.8 Set offset (set local time)

This option lets you adjust the R300 to display local time*. You only need to do this once, unless operating the unit in a new time zone.

(* By default the R300 displays GPS time. The R300 will perform all functions accurately without adjusting the offset to display your local time.)

Note: If you attempt to change the time offset before all GPS data are obtained, the screen displays ‘no GPS’ and the antenna icon flashes until all GPS data are received.

SET OFFSET SYSTEM SET

Access this option

If necessary, press and hold ⬤ to turn the power on and enter setup. Press ▶ repeatedly until the screen appears as shown above.

To set local time

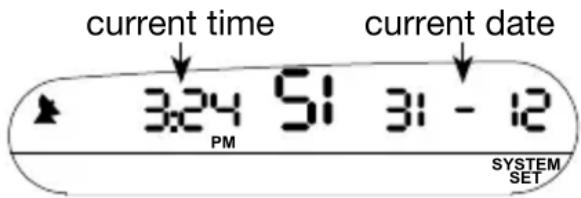

1) Press ⬤▶ to start editing (the screen now appears as shown below). The current time value flashes. The date is displayed to ensure that adjustments are made in the correct direction.

current time current date 3:24 51 31 - 12 PM SYSTEM SET

2) Press ▶ repeatedly to set time display forward (press and hold ▶ to set time display forward quickly), or press ● repeatedly to set time display backward (press and hold ● to set time display backward quickly).
3) Press ◎▶ to stop editing.
4) Press ▶ to go to the next option, or hold ● to exit setup.

4.1.9 Editing settings (overview)

settings editing details

5.0 Normal operation

5.1 Modes

Press to turn the power on start normal operation.

Press ▶ repeatedly to step through the modes (press and hold

▶ to cycle through the modes quickly).

Modes are accessed in the order shown below. See subsequent sections for details about using different modes.

Speed

shows distance, speed and pace*

Speed (AVG)

shows distance, average speed and pace

Speed (MAX)

shows distance, maximum speed and pace

Odometer/Altitude

shows total distance and current altitude

Calories

shows calories burned

Zones

lets you turn zones ON or OFF

When Zone is ON you can set minimum and maximum target speeds (Zone

MIN and Zone MAX).

Clock

shows current time and date

GPS time is displayed unless you set local time, see Section 4.1.8.

Timer

shows session* and lap* times

Timer recall

recalls stored session and lap times

(*See glossary.)

5.1.1 Speed mode

This mode lets you monitor session distance, current speed and pace.

session distance current speed pace 100.54 22 km km/h PACE 243°

To access this mode

If necessary, press ⬤ to turn the power on and start normal operation. Press ▶ repeatedly until the screen appears as shown above.

While in Speed mode

• Press Ⓞ to store current lap data (the screen briefly shows the lap distance, lap number, and lap time that is being stored).
• Press and hold ⬙▶ to clear all* session data. (*Does not clear odometer.)
• Press ▶ to go to the next mode.

5.1.2 Speed (Average) mode

This mode lets you monitor session distance, average speed and pace.

session distance average speed pace 100.54 25 2'24" km km/h PACE AVG

To access this mode

If necessary, press ⬤ to turn the power on and start normal operation. Press ▶ repeatedly until the screen appears as shown above.

While in Speed (Average) mode

• Press to Ⓞ store current lap data (the screen briefly shows the lap distance, lap number, and lap time that is being stored).
• Press and hold ⬙▶ to clear all* session data. (*Does not clear odometer.)
• Press ▶ to go to the next mode.

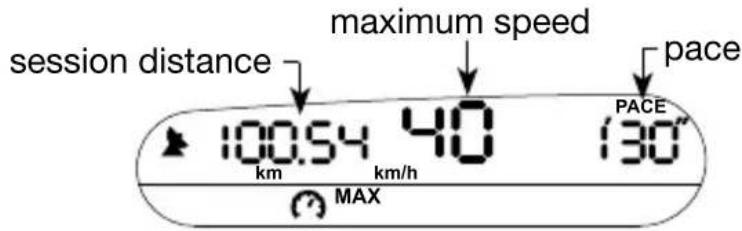

5.1.3 Speed (Maximum) mode

This mode lets you monitor session distance, maximum speed and pace.

session distance maximum speed pace 100.54 40 130° km km/h MAX

Access this mode

If necessary, press ⬤ to turn the power on and start normal operation. Press ▶ repeatedly until the screen appears as shown above.

While in Speed (Maximum) mode

- Press ⬙ to store current lap data (the screen briefly shows the lap distance, lap number, and lap time that is being stored).

- Press and hold ⬙▶ to clear maximum speed only.

- Press ▶ to go to the next mode.

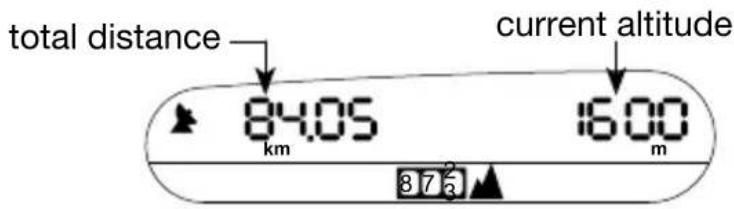

5.1.4 Odometer/Altitude mode

This mode lets you monitor total distance and current altitude.

total distance 84.05 km current altitude 1600 m 87 3

Access this mode

If necessary, press ⬤ to turn the power on and start normal operation. Press ▶ repeatedly until the screen appears as shown above.

While in Odometer/Altitude mode

- Press ⬙ to store current lap data (the screen briefly shows the lap distance, lap number, and lap time that is being stored).

- Press and hold ⬤ to clear odometer only.

- Press ▶ to go to the next mode.

Note: The R300 displays distance and altitude in units corresponding to speed units (see section 4.1.7).

5.1.5 Calories mode

This mode shows total energy burned for the session, or since last calories reset.

total calories 703 kcal Cal

Access this mode

If necessary, press ⬤ to turn the power on and start normal operation. Press ▶ repeatedly until the screen appears as shown above.

While in Calories mode

• Press Ⓞ to store current lap data (the screen briefly shows the lap distance, lap number, and lap time that is being stored).
• Press and hold ⬤▶ to clear calories only.
• Press ▶ to go to the next mode.

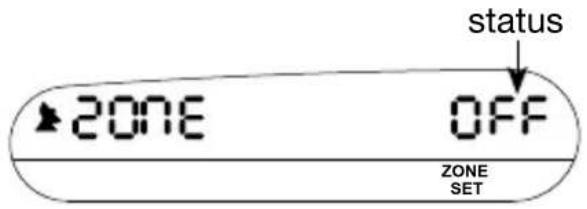

5.1.6 Zone mode

When Zone is OFF, the Zone (MIN) and Zone (MAX) options are skipped and zone alerts do not sound.

status ZONE OFF ZONE SET

Access this mode

If necessary, press ⬤ to turn the power on and start normal operation. Press ▶ repeatedly until the screen appears as shown above.

To set Zone status

1) Press ⬤▶ to start editing (zone status flashes).
2) Press ● or ▶ to select ON or OFF.
3) Press ⬤▶ to stop editing.
4) Press ▶ to go to the next mode.

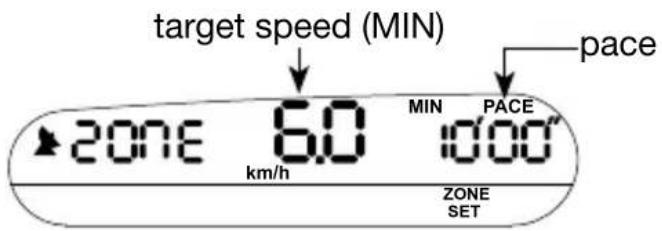

5.1.6.1 Zone (Minimum)

This option lets you set the minimum target speed.

target speed (MIN) pace ZONE 6.0 MIN PACE km/h 1000" ZONE SET

Access this mode

See section 5.1.6 for access to this mode.

To set Zone minimum

1) Press ⬤▶ to start editing (target speed and pace flash).
2) Press ▶ repeatedly to increase value by 0.5 (hold ▶ to increase values quickly), or press ● repeatedly to decrease value by 0.5 (hold ● to decrease values quickly).
3) Press ⬤▶ to stop editing.
4) Press ▶ to go to the next mode.

5.1.6.2 Zone (Maximum)

This option lets you set the maximum target speed.

target speed (MAX) pace ZONE 16 MAXPACE km/h 3.45" ZONE SET

Access this mode

See section 5.1.6 for access to this mode.

To set Zone maximum

1) Press ⬤▶ to start editing (target speed and pace flash).
2) Press ▶ repeatedly to increase value by 0.5 (hold ▶ to increase values quickly), or press ● repeatedly to decrease value by 0.5 (hold ● to decrease values quickly).
3) Press ⬤▶ to stop editing.
4) Press ▶ to go to the next mode.

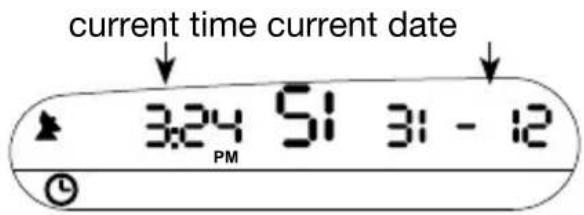

5.1.7 Clock mode

Clock mode shows the current time and date.

(Time is only displayed while GPS satellite signals are available. By default, GPS time is displayed. See section 4.1.8 for instructions on setting local time.)

current time current date 3:24 51 31 - 12 PM

Access this mode

If necessary, press ⬤ to turn the power on and start normal operation. Press ▶ repeatedly until the screen appears as shown above.

While in Clock mode

• Press Ⓞ to store current lap data (the screen briefly shows the lap distance, lap number, and lap time that is being stored).
• Press and hold ⬙▶ to clear all* session data. (*Does not clear odometer).
• Press ▶ to go to the next mode.

NO GPS

Note: If GPS signals are not yet obtained a 'no GPS' alert is displayed. The antenna icon flashes until GPS signals are received.

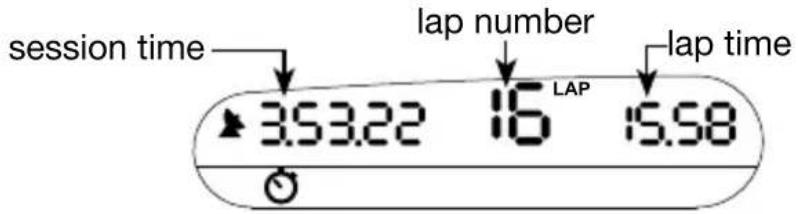

5.1.8 Timer mode

Timer mode lets you monitor session time, lap number and current lap time. Up to 50 laps may be stored during each session. Each lap entry resets the current lap time to zero.

session time lap number lap time 3.53.22 16 LAP 15.58

Access this mode

If necessary, press ⬤ to turn the power on and start normal operation. Press ▶ repeatedly until the screen appears as shown above.

While in Timer mode

• Press Ⓞ to store current lap data (the screen briefly shows the lap distance, lap number, and lap time that is being stored).
• Press and hold ⬤▶ to clear all* session data. (*Does not clear odometer.)
• Press ▶ to go to the next mode.

Note: The timer starts automatically whenever you start moving and stops whenever you stop moving.

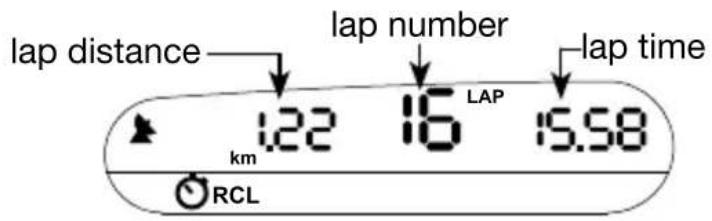

5.1.9 Timer recall mode

This mode lets you recall stored lap data.

lap distance lap number lap time 122 16 LAP 15.58 km RCL

Access this mode

If necessary, press ⬤ to turn the power on and start normal operation. Press ▶ repeatedly until the screen appears as shown above.

While in Timer recall mode

• Press repeatedly to step through lap data.
• Press ⬤ to start recall again from lap 1.
• Press ▶ to go to the next mode.

5.1.10 Mode operation (overview)

    subgraph Operating Details
        J["store current lap data\nclear all session data*"]
        K["store current lap data\nclear all session data*"]
        L["store current lap data\nclear max speed only"]
        M["store current lap data\nclear odometer only"]
        N["store current lap data\nclear calories only"]
    end

    subgraph Zone Sets
        O["accept"]
        P["accept"]
        Q["accept"]
        R["accept"]
        S["accept"]
        T["accept"]
        U["accept"]
        V["accept"]
        W["accept"]
        X["accept"]
        Y["accept"]
        Z["accept"]
        AA["accept"]
        AB["accept"]
        AC["accept"]
        AD["accept"]
        AE["accept"]
        AF["accept"]
        AG["accept"]
        AH["accept"]
        AI["accept"]
        AJ["accept"]
        AK["accept"]
        AL["accept"]
        AM["accept"]
        AN["accept"]
        AO["accept"]
        AP["accept"]
        AQ["accept"]
        AR["accept"]
        AS["accept"]
        AT["accept"]
        AU["accept"]
        AV["accept"]
        AW["accept"]
        AX["accept"]
        AY["accept"]
        AZ["accept"]
    end

    style Operating Details fill:#f9f9f9,stroke:#333
    style Zone Sets fill:#f9f9f9,stroke:#333

6.0 Restoring default settings

! WARNING: Restoring factory default settings clears all stored data and all user selected settings!

To restore all default factory settings

1) make sure the unit is off
2) press and hold Ⓞ to turn the unit on - DO NOT RELEASE Ⓞ
3) while holding Ⓞ, press ⬇ five times

-RESET ALL 2

When restoring default settings

The screen displays the message ‘reset all’ and a counter. If you stop any time down to 1 on the counter, default settings will not be restored and all current settings and data will not be cleared. After pressing the fifth time, the ‘reset done’ message appears and all settings are restored to factory defaults. A controlled shutdown is executed automatically after defaults are restored.

After factory default settings have been restored, when the R300 is next turned on you will need to enter setup if you want to display local time or adjust other setting preferences.

7.0 Glossary

Global Positioning System (GPS)

A satellite tracking system.

Lap

A lap is the distance travelled in the time between the current lap entry and the previous lap entry.

Pace

The current pace value shows how long it would take to run one distance unit (1 km or 1 mile) at your current speed. The distance unit depends on the speed units currently being used. For example, if you are using speed units ‘km/h’, then the pace displayed is the time it would take you to run 1 km if you maintained your current speed.

Session

A session includes all time that the Sport.Tool has been actively operating since first start-up, or since the session data was last cleared. Clearing the session data removes all stored data from the previous session except the odometer value, which must be cleared separately.

8.0 Copyright

This publication and its contents are proprietary to Navman and are intended solely for the use of its clients to obtain information about the operation of Navman Sport. Tool products, it should not be used or distributed for any other purpose. Proprietary information and specifications relating to this document or the Navman Sport. Tool products are subject to change without notice.

9.0 Additional warnings, disclaimers, and limitations on liability

It is the user's sole responsibility to set-up and use the Navman GPS Sport. Tool (the Product) in a manner that will not cause accidents, personal injury or property damage to you or others. Entering information or handling the Product while moving is unsafe and may cause you to be distracted or fail to observe safe practices necessary to avoid death, serious injury, collisions or accidents to you or others. The user of this Product is solely responsible for observing safe practices and for following the instructions including, but not limited to, those instructions relating to the care and use of the Product in the User's Guide (this document). Failure to follow instructions provided in this document relating to the care and use of the product may cause the product not to perform in its designed potential or specifications, or may result in voiding of the warranty. Navman NZ Limited (Navman) neither owns nor maintains the Global Positioning Service (GPS). Navman assumes no responsibility for the quality or continuity of the GPS service. Navman will not accept the return of products where dissatisfaction results from any changes to the GPS service.

EXCEPT AS SPECIFICALLY STATED IN ANY LIMITED WARRANTY ACCOMPANYING THIS PRODUCT, (A) NAVMAN PROVIDES THE PRODUCT WITH ALL FAULTS, (B) THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY, AND EFFORT IS WITH THE PURCHASER AND USER, (C) NAVMAN MAKES NO WARRANTY AGAINST INTERFERENCE WITH ANY PURCHASER'S OR USER'S ENJOYMENT OF THE PRODUCT OR AGAINST INFRINGEMENT, AND (D) NAVMAN DOES NOT WARRANT THAT THE OPERATION OF THE PRODUCT WILL BE CONTINUOUS OR ERROR-FREE. IN NO CASE WILL NAVMAN HAVE ANY LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR OTHER DAMAGES EVEN IF IT IS AWARE OF THE POSSIBILITY OF SUCH DAMAGES. SOME STATES AND COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. NAVMAN WILL NOT BE LIABLE FOR ANY LOSS OF DATA. ANY IMPLIED WARRANTIES WILL ONLY LAST FOR THE PERIOD STATED IN THE ACCOMPANYING LIMITED WARRANTY. SOME STATES AND COUNTRIES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE WARRANTY PERIOD MAY NOT APPLY TO YOU.

Each of these disclaimers is in addition to, and does not reduce the effect of, any other disclaimer. No dealer has the authority to change this warranty. No event that voids any warranty of the Product will have any effect on these disclaimers or limitations of liability. This disclaimer will be construed under the laws of New Zealand without regard for any conflict of law rules. Navman has taken care to ensure the information in this document is accurate. However, Navman assumes no responsibility for errors or omissions in the content of this document and no warranty of accuracy is expressed or implied. As Navman is continuously improving this Product, Navman may make changes to the Product at any time which may not be reflected in this document. Please contact your nearest Navman office if you require any further assistance. Navman' is a registered trade mark of Navman NZ Limited.
