USER MANUAL FMA-C600 Vello

Close-up of a DSLR camera with a transparent screen displaying a blurred image, against a black background (no text or symbols visible)

THANK YOU FOR CHOOSING VELLO

The Vello Flash Multiplier is the ideal tool to focus and concentrate your on-camera flash so you can extend the light over long distance when using lenses of 300 mm or greater. This helps when you're out shooting wildlife, like birds in tree tops, and need proper illumination without getting too close. Enjoy a portable, easy-to-set-up flash accessory that helps extend battery life and works with TTL metering to deliver up to three extra f-stops.

WARNING!

This is a magnifying lens!

Looking at direct sunlight through the fresnel lens, or pointing the flash multiplier directly into your subject's eyes at close distance, may result in damage to the eyes.

Always remove or cover this lens when not in use.

All images are for illustrative purposes only.

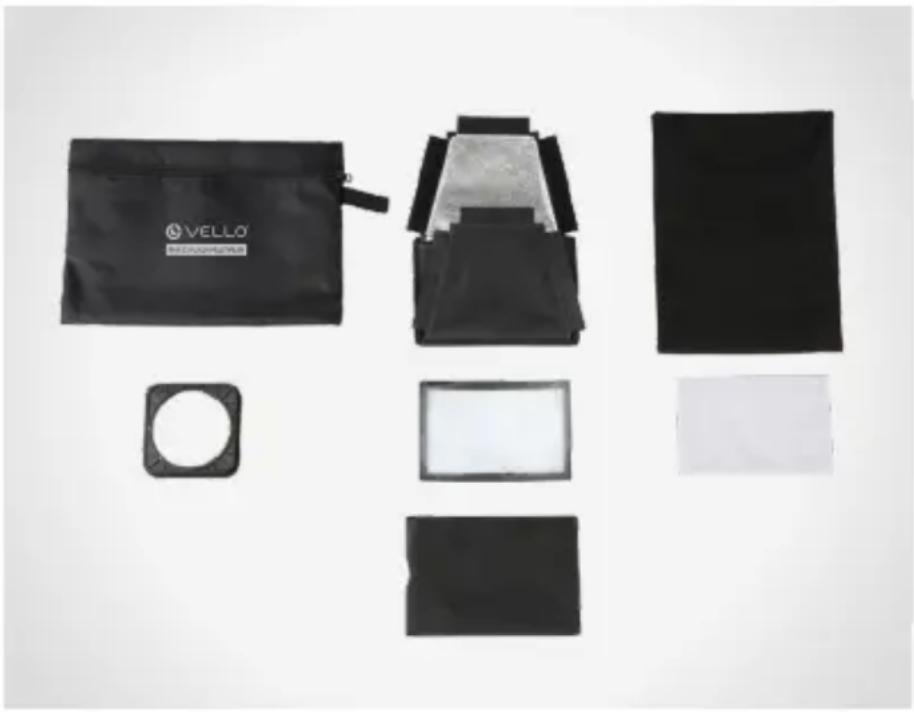

BOX CONTENTS

• Flash Multiplier
• Flash Multiplier sleeve
  • Universal flash ring holder
• Fresnel lens
• Lens sleeve
• Diffuser
• Zippered carrying case
• User manual

Product display of VELLO brand accessories including a bag, tray, and cover (no text or symbols visible)

Flash Adapter Rings (sold separately)

- FMA-N910

for Nikon SB900 series

- FMA-C600

for Canon 600 series

- FMA-C580

for Canon 580 series

• FMA-LG

for large flashes (49 × 78 mm)

Canon 540EZ
- Pentax AF-540
· Nissin Di622
- Sony HVL-F58AM

• FMA-SM

for small flashes (38 × 78 mm)

Canon 340EX
Canon 420EX
Canon 430EX
- Sony HVL-F42AM
- Metz 47 AF-1
Metz 52 AF-1

SPECIFICATIONS

Dimensions (H × W × D)

Weight

7.8 × 6.65 in. (13.9 × 19.9 × 16.9 cm) assembled

ash adapter ring

USER INSTRUCTIONS

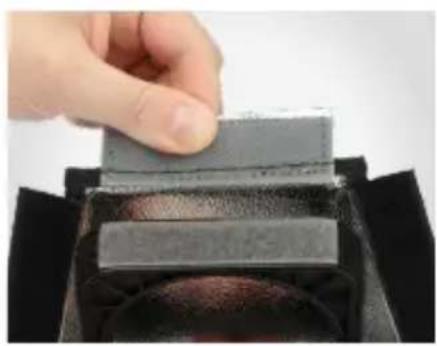

1. Align both gray touch-fastener strips on the Flash Multiplier and the universal flash ring holder. Make sure the ring holder's white dots are facing you. The gray side will be on top when mounted on your flash.

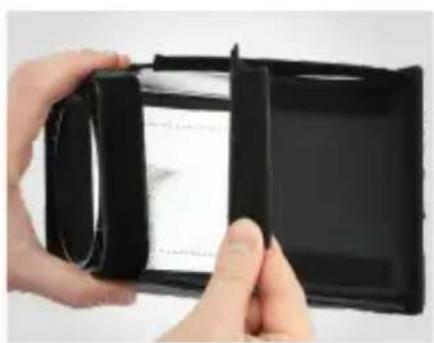

2. Pull the opposite end to the holder, followed by the two sides, and press their touch-fastener strips together

3. Fold over the touch-fastener flaps, and press to secure.

Close-up of a hand pressing down on a textured surface next to a dark container (no text or symbols visible)

Close-up of hands holding a black plastic device with a white lid (no visible text or symbols)

Hand holding a black rectangular device with a circular lens, no visible text or symbols

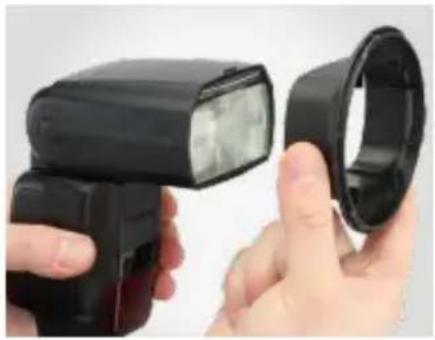

1. Slide the flash adapter ring onto your flash head, with the arrow to the left. For the FMA-LG and FMA-SM adapters, make sure the edge of the head is flush with inside pads of the adapter.

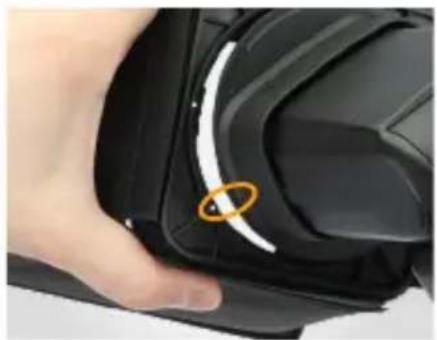

2. Align the arrow of the adapter ring with the first white dot on the holder as shown.

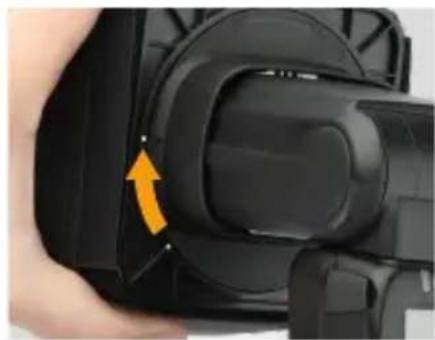

3. Seat the adapter ring into the holder, and rotate clockwise until the arrow aligns with the second white dot and locks in place.

Close-up of a hand holding a black compact headlight and ring, no visible text or symbols

Close-up of a hand holding a black camera lens with a white handle and orange circular mark on the lens (no text or symbols visible)

Close-up of a black camera module with a yellow arrow indicating rotation (no text or symbols visible)

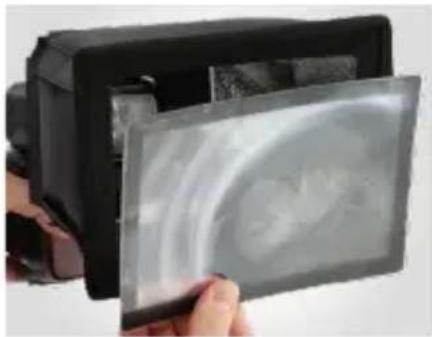

1. Remove the Fresnel lens from its sleeve, and line up the lens's touch-fastener strips with the strips on the front of the Flash Multiplier. Press in place.

Note: For best results, set the flash-head distance to 50 mm or greater.

To use the Flash Multiplier as a softbox, remove the Fresnel lens and attach the diffuser.

Close-up of a hand holding a reflective disc with a circular pattern, next to an open camera module (no visible text or symbols)

Hand holding a white rectangular object with a black camera module in the background (no visible text or symbols)

ONE-YEAR LIMITED WARRANTY

This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.vellogear.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

VELLO is a registered trademark of the Gradus Group.

© 2018 Gradus Group LLC. All Rights Reserved.
