Powerbank 96 - Flash Genaray - Free user manual and instructions

Product Type	Bi-color LED Light Panel
Brand	Genaray
Model	Powerbank 96
LED Count	96 SMD LEDs
Color Temperature	3200K – 5600K (adjustable in 100K increments)
Brightness Range	10% – 100% (adjustable in 1% increments)
Booster Mode	130% brightness for up to 1 minute
CRI	>96
TLCI	>96
Beam Angle	120°
Power Input	USB Type-C
Internal Battery	Lithium-ion, 3000mAh
Battery Charging Indicator	Red (charging), Green (fully charged)
External Device Charging	Yes (via USB output, light must be off)
Display	LCD
Mount Type	1/4-20 receiver
Housing Material	Metal
Dimensions (H × W × D)	4.6 × 2.6 × 0.75 in (11.7 × 6.6 × 1.9 cm)
Weight	8.3 oz (235 g)
Included Accessories	Mounting clamp, mini tripod, ball head, USB cable, carry pouch
Cleaning	Use a soft, dry cloth only
Safety Precautions	Keep away from water and flammable gases; do not disassemble; avoid direct eye exposure

Frequently Asked Questions - Powerbank 96 Genaray

How do I adjust the brightness on the Powerbank 96?

Slide the adjustment dial to either side. The brightness level appears on the LCD screen and can be set from 10% to 100% in 1% increments. Slide and hold to change rapidly.

How do I change the color temperature?

Press down on the adjustment dial until the color temperature (with a 'K') appears on the LCD. Then slide the dial to adjust from 3200K to 5600K in 100K increments.

What is Booster mode and how do I use it?

Booster mode increases brightness to 130% for one minute. Press the Booster button to activate. After one minute, the light returns to its original brightness unless the button is pressed again.

How do I check the remaining battery level?

Press and hold the Booster button. The battery percentage will appear on the LCD screen. When you release the button, the display returns to brightness after five seconds.

Can I charge my phone or other devices using the Powerbank 96?

Yes, the PB-96 model has a USB power output port. Turn off the light, then connect your mobile device's charging cable to that port to charge it.

How do I charge the Powerbank 96 itself?

Use the included USB-C cable to connect the light to a powered USB port or a USB power adapter. The charging indicator will glow red while charging and turn green when fully charged.

How should I clean and maintain the Powerbank 96?

Clean the unit only with a soft, dry cloth. Do not use water or any liquids. Keep the device away from water, flammable gases, and liquids.

Is the Powerbank 96 safe to use?

Yes, but follow precautions: do not stare directly at the light when powered on, do not disassemble or repair (voids warranty), and keep away from water and flammable materials.

What is the warranty period for the Genaray Powerbank 96?

Genaray offers a one-year limited warranty from the original purchase date against defects in materials and workmanship under normal consumer use.

What are the dimensions and weight of the Powerbank 96?

The dimensions are 4.6 × 2.6 × 0.75 inches (11.7 × 6.6 × 1.9 cm) and it weighs 8.3 oz (235 g).

USER MANUAL Powerbank 96 Genaray

Yellow stylized logo resembling a stylized 'G' inside a golden circle on black background (no text or symbols)

Powerbank Series

USER MANUAL

Powerbank LED INTRODUCTION

THANK YOU FOR CHOOSING GENARAY

Genaray's Powerbank LED lights are pocket-sized and lightweight LED fixtures that are surprisingly bright and color-accurate for their size. They're true bi-color lights that have a color temperature range of 3200 to 5600 K. The dimming range of 10% to 100% can be adjusted in 1% increments for precise brightness control. Booster mode adds an additional 30% brightness for moments when you need to push a little extra output.

PRECAUTIONS

• Please read and follow these instructions, and keep this manual in a safe place.
• Keep this unit away from water and any flammable gases or liquids.
• Handle the unit with care.

• Do not attempt to disassemble or repair the equipment. Doing so will void the warranty, and Genaray will not be responsible for any damage.

• Do not stare directly at the lights when they are powered on.

• Clean the unit with only a soft, dry cloth.
• Images are for illustrative purposes only.

PB-64

PB-96

Also Included

• Mounting clamp
• Mini tripod
• Ball head
• USB cable
• Carry pouch

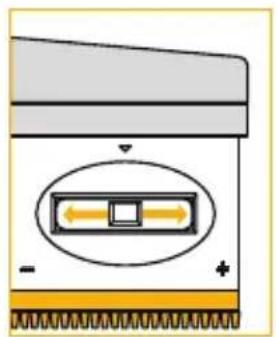

BRIGHTNESS

The brightness level appears on the LCD screen.

Sliding the adjustment dial to either side adjusts the brightness in 1% increments. Slide and hold to rapidly adjust the value.

Diagram of a device with a central rectangular component and surrounding components (no text or symbols)

BOOSTER

Press the booster button to increase the brightness to 130% for one minute. If the button is not pressed again after one minute, the Powerbank returns to the original brightness.

COLOR TEMPERATURE

Press down on the adjustment dial. The color temperature, along with the letter K, will appear on the LCD screen.

Sliding the adjustment dial to either side adjusts the color temperature in 100 K increments. Slide and hold to rapidly adjust the value.

CHARGING

Use the included USB cable to connect the Powerbank to a powered USB port. Or connect a USB power adapter, and plug it into an available outlet.

The charging indicator will glow red while the Powerbank is charging. The Powerbank is fully charged when the indicator turns green.

CHECKING THE BATTERY LEVEL

Press and hold the Booster button. The percentage of remaining battery power will appear on the LCD screen.

When the button is released, the screen will return to displaying the brightness in five seconds.

CHARGING A MOBILE DEVICE (PB-96 ONLY)

Connect a mobile device's USB charging cable to the Powerbank's USB power output port.

The PB-96 must be turned off to charge an external device.

MOUNTING THE POWERBANK

Diagram showing three electronic devices with labeled ports and a central connector, illustrating assembly or installation (no text or symbols present)

PRODUCT SPECIFICATIONS

Light Fixture

LED Chip Type: SMD

LED Count:PB-64: 64PB-96: 96

Beam Angle:120°

Color Temperature: 3200 to 5600 K in100 K increments

CRI: >96

TLCI: >96

Dimming: 10% to 100% in 1% increments

Display: LCD

Housing Material: Metal

Light Intensity @ 3 ft.: PB-64: 200 lx

PB-96:250 lx

Connectors

Power Input Connector: USB Type-C

Mount Type: 1/4-20 receiver

Dimensions (H × W × D): PB-64: 2.6 × 2.6 × 0.75 in.

(6.6×6.6×1.9cm)

PB-96:4.6×2.6×0.75in.

(11.7×6.6×1.9cm)

Weight: PB-64: 5.4 oz. (153 g)

PB-96: 8.3 oz. (235 g)

Integrated BatteryPhysical

Capacity (mAh): PB-64: 1400mAh

PB-96: 3000mAh

Battery Chemistry: Lithium-ion

Operating Voltage: 5V

ONE-YEAR LIMITED WARRANTY

This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by Genaray. If the product has been discontinued, Genaray reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Genaray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information, or to arrange service, visit www.genaray.com or contact us at [e-mail].

© 2019 Genaray. All Rights Reserved.

6 genaray.
