USER MANUAL LED-5300 Genaray

Close-up of a black rectangular device with a grid-patterned screen, placed on a golden background (no visible text or symbols)

genaray™

LED-5300 INTRODUCTION

Thank you for choosing the Genaray LED-5300 On-Camera Light. This product will provide you with powerful, portable and dependable illumination that can be used in a variety of settings. Featuring a super-bright 120 LED lamp count, flicker-free dimmable features and compatibility with multiple battery types, the Genaray LED-5300 On-Camera Light proves to be the perfect choice for photographers and videographers alike.

KEY FEATURES

• Lightweight Design With Powerful 120 Lamp Count
- Compact Profile & Case For Easy Transport
- Removable Diffuser & 4300K Warming Filter
• Integrated 1/4 20 Threaded & Shoe Mounts

PRODUCT CONTENTS

· 120 LED Light
- Slide-In Diffuser
- Slide-In 4300K Warming Filter
- NP-F550 Battery
- Battery Charger
- AC Adapter
- Sony AIS Adapter Mount
- Manual

SAFETY WARNINGS

• Do not attempt to disassemble, repair or perform any unauthorized modifications on this device
• Do not handle with wet hands, immerse in liquids or expose to water and rain; electric shock or fire may result
  • Device contains small parts which may pose a choking hazard; keep out of reach of children

• Do not operate device in presence of flammable gas or vapors

• Do not use product if it emits smoke or a strange odor and disconnect power source immediately to avoid personal injury and contact place of purchase

• Observe caution when handling batteries; only use batteries approved by the manufacturer of this product

• Batteries are prone to leakage when fully discharged; to avoid damaging product be sure to remove batteries when leaving product unattended

• Do not intentionally stare or gaze at LED light panel for prolonged periods while device is on

• Do not cover the ventilation grille found at the rear of device when in operation and ensure light is cool before storing
• Do not use or leave device in conditions of extreme heat, severe cold or high humidity
• Unit will display a decrease in

brightness when the battery runs low; be sure to replace battery when necessary to avoid affecting recording quality

• When cleaning the device, use only a mild detergent solution and quickly wipe dry with a soft cloth
• Please dispose of used batteries, packaging and old devices in accordance with appropriate environmental regulations

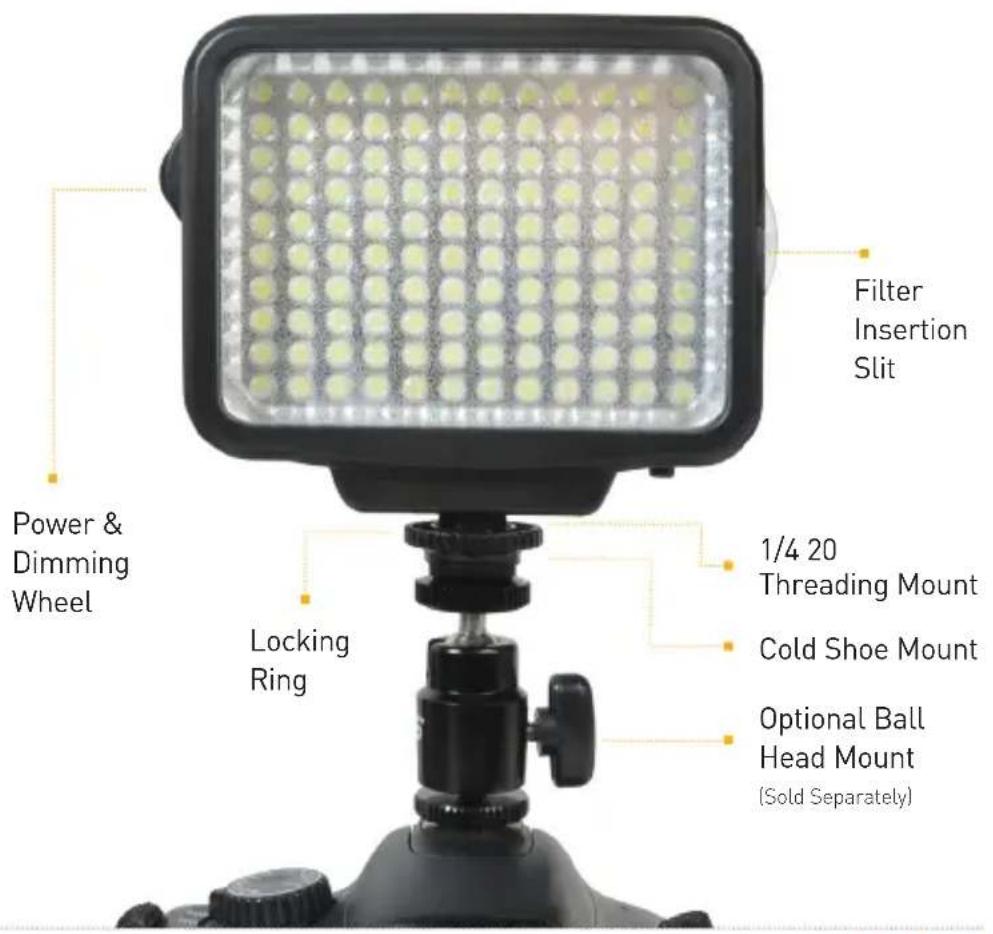

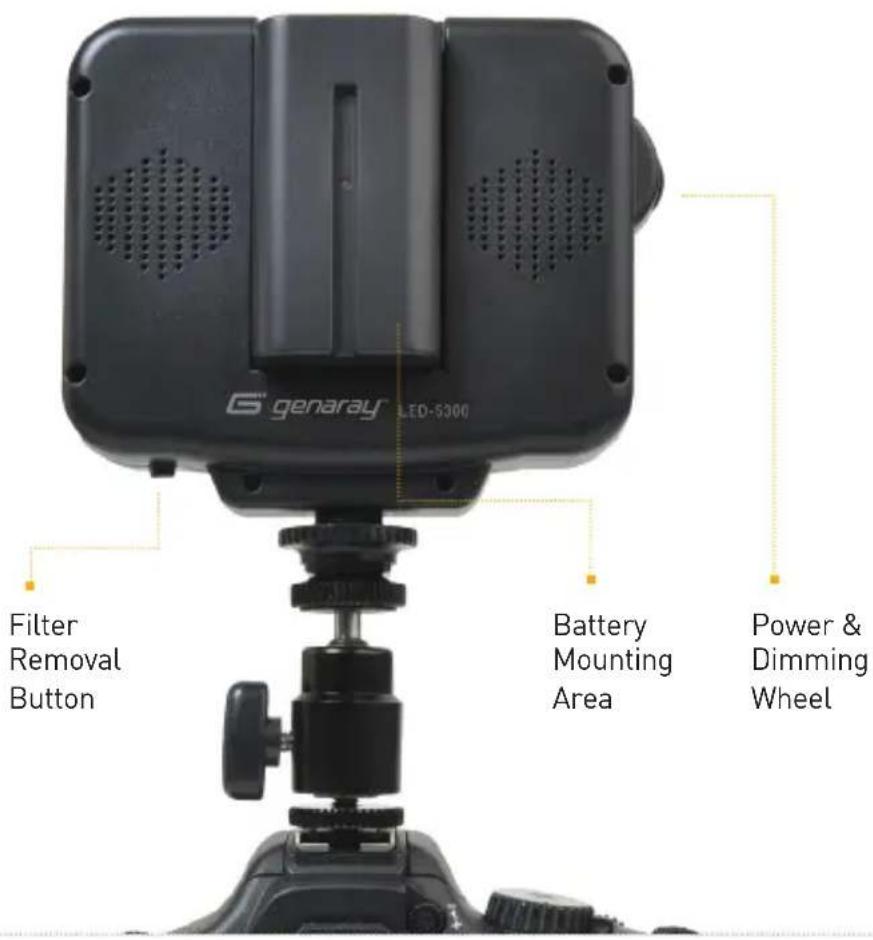

PRODUCT OVERVIEW

MOUNTING LIGHT UNIT DIRECTLY ON CAMERA OR TRIPOD

• Begin by positioning light directly over the camera or tripod
• For cold shoe mounting, ensure that shoe found on bottom of LED light unit is of adequate height by adjusting locking ring above shoe. Then slide entire shoe into cold shoe of camera. Verify that locking ring above shoe is properly tightened to lock in place securely
• For tripod installation, simply insert 1/4 20 screw found on tripod head into the 1/4 20 threading mount found on bottom of unit, then tighten securely

POWERING DEVICE USING BATTERY

• Begin by holding a fully-charged battery in position over mounting area, leaving only a small gap between conductor contacts found on battery and metal prongs found on unit
• Push battery down and lock into place by sliding it inward along grooves until an audible click is heard
• Rotate power & dimming wheel upwards into ON position to turn LED light on; adjust wheel to achieve desired light intensity
• Battery can be removed by sliding it away from metal conductor prongs found on unit and lifting it upward

POWERING DEVICE USING AC ADAPTER

• Begin by holding the battery-shaped end of the AC adapter in position over mounting area, leaving only a small gap between conductor contacts found on holder and metal prongs found on unit
• Push the AC adapter down and lock it into place by sliding it inward along grooves until an audible click is heard. Press firmly to verify it is securely attached

• Plug the other end of the AC adapter into a power outlet

• When finished, remove AC cord from power outlet

• Battery adapter can be removed by sliding it away from metal conductor prongs found on unit and lifting it upward

POWERING DEVICE

• To adjust the flicker-free dimmable feature, simply rotate the power & dimming wheel until desired effect is achieved
• To install the diffusion or warming filters, slide a filter into filter insertion slit found on side of LED light. Ensure that filter tab is facing outward and push filter along groove until it snaps into place
• To remove filter, push filter removal button found on bottom of LED light unit and pull filter tab outward to remove

CUSTOMER SUPPORT

- For more information about this product or to contact the Genaray Customer Support Center with any questions, please send your email correspondence to: [e-mail]

PRODUCT SPECIFICATIONS

Bulb Type: 120 Daylight LEDs

Brightness: 640 lux @ 3'

Color Temperature: 5600K

Voltage: DC 6.0-9.0v

Weight: 5.2oz

Dimension: 5"x4.5"x1.25"

ONE-YEAR LIMITED WARRANTY

Genaray provides a limited warranty that this product is free from defects in materials and workmanship to the original purchaser under normal use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later (the “Warranty Period”). Our responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at its option, of any product which fails during normal consumer use. To obtain warranty coverage during the Warranty Period, contact your place of purchase (“Seller”) to obtain a return merchandise authorization (“RMA”) number, and return to Seller the defective product along with proof of purchase and the RMA number. This warranty does not extend to damage or failure which results from misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights which vary from state to state. © Copyright 2013 Genaray
