Product Type	Studio Flash
Model	Powerbank 64
Brand	Genaray
Watt-Seconds	64 Ws
Guide Number	Approx. 30 (ISO 100, meters)
Recycle Time	0.5 - 2 seconds
Flash Duration	1/2000 - 1/800 second
Color Temperature	5600 K
Modeling Light	Yes, 50W LED
Wireless Control	Built-in 2.4 GHz receiver
Power Supply	AC 100-240V, 50-60Hz
Dimensions	200 x 150 x 100 mm
Weight	1.5 kg
Mount Type	Bowens S-type
Fan Cooling	Active cooling fan
Sync Modes	Sync cord, optical slave, wireless
Flash Tube	Replaceable, glass tube
Maintenance	Clean with soft, dry cloth
Safety	Do not cover ventilation slots; avoid moisture
Accessories	Sync cable, modeling lamp, protective cap

Frequently Asked Questions - Powerbank 64 Genaray

What is the watt-second rating of the Genaray Powerbank 64?

The Genaray Powerbank 64 has a power output of 64 watt-seconds, suitable for portrait and product photography.

Can I use this flash wirelessly?

Yes, it features a built-in 2.4 GHz wireless receiver for remote triggering with compatible transmitters.

Does it have a modeling light?

Yes, it includes a 50W LED modeling light to help visualize the lighting effect.

What type of flash tube does it use?

It uses a replaceable glass flash tube with a Bowens mount for easy replacement.

How do I clean and maintain the flash?

Clean the exterior with a soft, dry cloth. Avoid using liquids or abrasive cleaners. Ensure the fan vents are free from dust.

What is the recycle time?

The recycle time ranges from 0.5 to 2 seconds depending on the power setting.

Is the flash compatible with softboxes and reflectors?

Yes, it uses the Bowens S-type mount, compatible with most Bowens-mount modifiers.

What safety precautions should I take?

Do not cover the fan vents, avoid operating in wet conditions, and disconnect power when not in use. Use only with grounded outlets.

Can the flash tube and modeling lamp be replaced?

Yes, both the flash tube and modeling lamp are user-replaceable. Order spare parts from Genaray.

What is the color temperature of the flash?

The color temperature is 5600 K, consistent with daylight, for accurate color reproduction.

USER MANUAL Powerbank 64 Genaray

Powerbank Series

USER MANUAL

Powerbank LED INTRODUCTION

THANK YOU FOR CHOOSING GENARAY

Genaray's Powerbank LED lights are pocket-sized and lightweight LED fixtures that are surprisingly bright and color-accurate for their size. They're true bi-color lights that have a color temperature range of 3200 to 5600 K. The dimming range of 10% to 100% can be adjusted in 1% increments for precise brightness control. Booster mode adds an additional 30% brightness for moments when you need to push a little extra output.

PRECAUTIONS

• Please read and follow these instructions, and keep this manual in a safe place.
• Keep this unit away from water and any flammable gases or liquids.
• Handle the unit with care.

• Do not attempt to disassemble or repair the equipment. Doing so will void the warranty, and Genaray will not be responsible for any damage.

• Do not stare directly at the lights when they are powered on.

• Clean the unit with only a soft, dry cloth.
• Images are for illustrative purposes only.

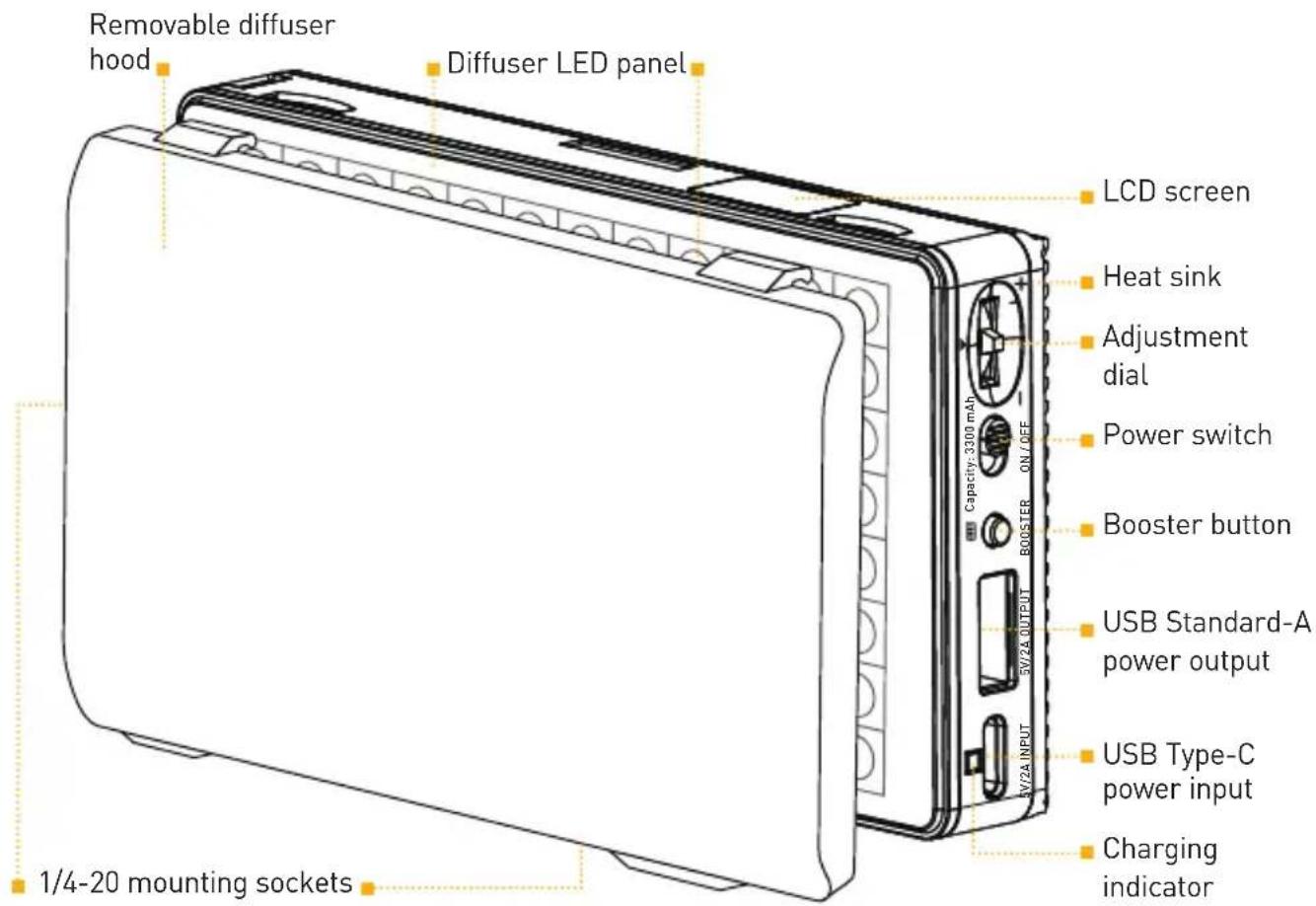

PB-64

PB-96

Also Included

• Mounting clamp
• Mini tripod
• Ball head
• USB cable
• Carry pouch

BRIGHTNESS

The brightness level appears on the LCD screen.

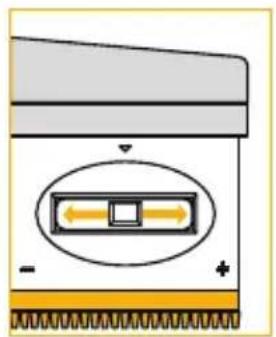

Sliding the adjustment dial to either side adjusts the brightness in 1% increments. Slide and hold to rapidly adjust the value.

BOOSTER

Press the booster button to increase the brightness to 130% for one minute. If the button is not pressed again after one minute, the Powerbank returns to the original brightness.

COLOR TEMPERATURE

Press down on the adjustment dial. The color temperature, along with the letter K, will appear on the LCD screen.

Sliding the adjustment dial to either side adjusts the color temperature in 100 K increments. Slide and hold to rapidly adjust the value.

CHARGING

Use the included USB cable to connect the Powerbank to a powered USB port. Or connect a USB power adapter, and plug it into an available outlet.

The charging indicator will glow red while the Powerbank is charging. The Powerbank is fully charged when the indicator turns green.

CHECKING THE BATTERY LEVEL

Press and hold the Booster button. The percentage of remaining battery power will appear on the LCD screen.

When the button is released, the screen will return to displaying the brightness in five seconds.

CHARGING A MOBILE DEVICE (PB-96 ONLY)

Connect a mobile device's USB charging cable to the Powerbank's USB power output port.

The PB-96 must be turned off to charge an external device.

MOUNTING THE POWERBANK

PRODUCT SPECIFICATIONS

Light Fixture

LED Chip Type: SMD

LED Count:PB-64: 64PB-96: 96

Beam Angle:120°

Color Temperature: 3200 to 5600 K in100 K increments

CRI: >96

TLCI: >96

Dimming: 10% to 100% in 1% increments

Display: LCD

Housing Material: Metal

Light Intensity @ 3 ft.: PB-64: 200 lx

PB-96:250 lx

Connectors

Power Input Connector: USB Type-C

Mount Type: 1/4-20 receiver

Dimensions (H × W × D): PB-64: 2.6 × 2.6 × 0.75 in.

(6.6×6.6×1.9cm)

PB-96:4.6×2.6×0.75in.

(11.7×6.6×1.9cm)

Weight: PB-64: 5.4 oz. (153 g)

PB-96: 8.3 oz. (235 g)

Integrated BatteryPhysical

Capacity (mAh): PB-64: 1400mAh

PB-96: 3000mAh

Battery Chemistry: Lithium-ion

Operating Voltage: 5V

ONE-YEAR LIMITED WARRANTY

This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by Genaray. If the product has been discontinued, Genaray reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Genaray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information, or to arrange service, visit www.genaray.com or contact us at [e-mail].

© 2019 Genaray. All Rights Reserved.
