Product Type	Desk Lamp
Brand	REVO
Model	VL-MINI
Dimensions (L x W x H)	15 x 10 x 30 cm
Weight	0.5 kg
Power Source	USB-C (5V, 1A)
Light Source	5W LED (non-replaceable)
Color Temperature	3000K - 6000K adjustable
Brightness Levels	5 levels (step-less dimming)
Adjustable Arm	Yes, 360° flexible neck
Base Material	ABS plastic with non-slip pad
Cleaning	Wipe with a dry, soft cloth; avoid liquids
Safety	Do not look directly at the LED; keep away from water
Spare Parts	USB cable available; LED unit not user-serviceable
Repairability	Low; contact REVO support for issues
Warranty	2 years limited warranty

Frequently Asked Questions - VL-MINI REVO

How do I adjust the brightness?

Touch and hold the touch sensor on the base to cycle through 5 brightness levels. Release at the desired level.

Can I change the color temperature?

Yes, tap the sensor twice to switch between warm (3000K), neutral (4500K), and cool (6000K) modes.

What power supply is needed?

The lamp uses a USB-C cable (included). Use a standard 5V/1A USB adapter or a computer USB port.

Is the LED bulb replaceable?

No, the LED is integrated and not user-replaceable. If it fails, contact REVO for support.

How do I clean the lamp?

Unplug the lamp and wipe the surfaces with a soft, dry cloth. Do not use any liquids or abrasive cleaners.

Can I use the lamp while charging?

Yes, the lamp can be used plugged in. It does not have a battery.

The lamp flickers. What should I do?

Ensure the USB cable is securely connected. Try a different USB port or adapter. If flickering persists, contact support.

Does the lamp have a memory function?

Yes, the lamp remembers the last brightness and color temperature setting when powered off and on.

Is the lamp suitable for reading?

Absolutely. With adjustable brightness and color temperature, it provides flicker-free light ideal for reading.

What is the warranty period?

The REVO VL-MINI comes with a 2-year limited warranty covering manufacturing defects. Register your product online.

USER MANUAL VL-MINI REVO

Close-up of a white REVO-branded mechanical component with a circular head and central slot (no text or symbols visible)

Clip-On

Vlog Light

for Smartphones and Tablets

REVO®

Thank you for choosing Revo.

The Revo VL-MINI clip-on vlog light clips onto a smartphone or tablet and provides bright, natural light for vlogs, selfies, and video chats, even in dark rooms or at night. It's powered by a rechargeable lithium-ion battery and recharges in just 1 12 hours with the included USB cable. The light features a 36-LED array and has three-step dimming that provides the brightness you need, whether your phone is up close or at arm's length.

Precautions

• Please read and follow these instructions, and keep this manual in a safe place.
• Keep this unit away from water and any flammable gases or liquids.
• Use only the correct, recommended voltage.
• Do not stare directly at the lights when they are powered on.
• Clean the unit with a soft, dry cloth.
• Make sure the item is intact and that there are no missing parts.
• All images are for illustrative purposes only.

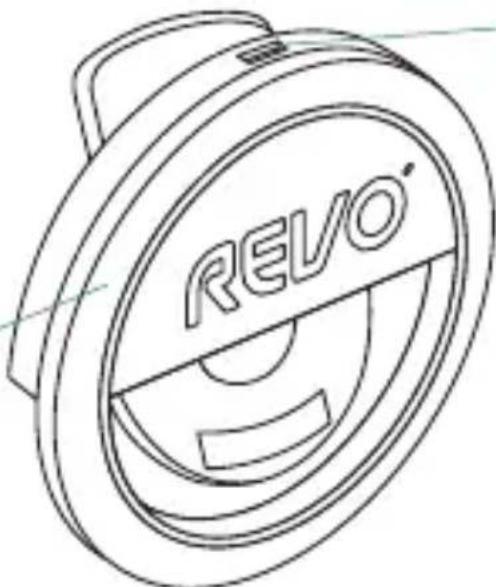

Overview

LED array

REVO

USB charging port

- Use the included USB cable to connect the light to a computer's USB port, or use a USB adapter to plug into a wall outlet. Charging time is approx 1½ hours.

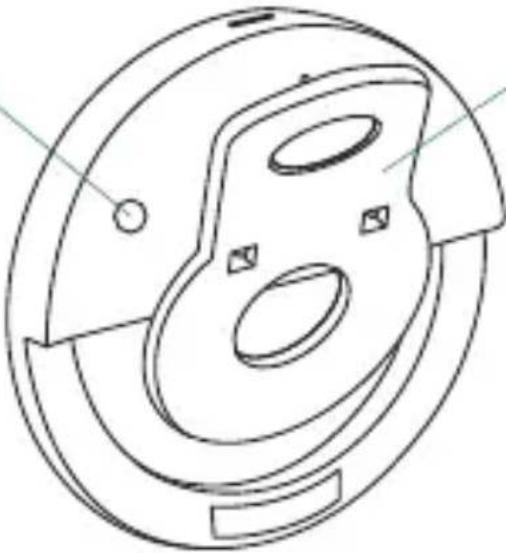

Power / Dimming button

- Press to turn on. Press repeatedly to cycle through the brightness levels and to turn off.

Technical line drawing of a mechanical component with circular features and mounting holes (no text or symbols)

Smartphone clip

- Open the jaws and slide the light over the front of your phone. - Make sure the light doesn't block the camera.

Specifications

LED Count: 36

Max Power Consumption: 3 W

Dimming: 3-step (low, medium, high)

Battery chemistry: Lithium-ion

Battery power: 250 mAh-3.7 V

USB Input Power: DC 5 V

Maximum clamp range: 0.6 in. (1.5 cm)

Diameter: 3.3 in. (8.5 cm)

Weight: 1.3 oz. (36 g)

One-Year Limited Warranty

This Revo product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Revo Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Revo along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.revocinegear.com or call Customer Service at 212-594-2353.
