USER MANUAL Stadium MB8030AM JBL

JBL Stadium 6, Stadium 8, and Stadium 10 marine speaker - Owner's Manual

Your JBL product has been designed to provide you with the performance and ease of operation you would expect from JBL.

ABOUT THE MANUAL

This manual describes general installation guidelines. However, please note that proper installation of marine audio components requires qualified experience. If you do not have the knowledge and tools to successfully perform this installation, we strongly recommend consulting an authorized JBL dealer about your installation options. Keep all instructions and sales receipts for reference.

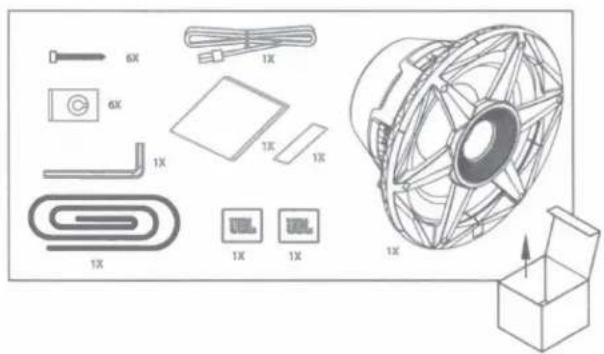

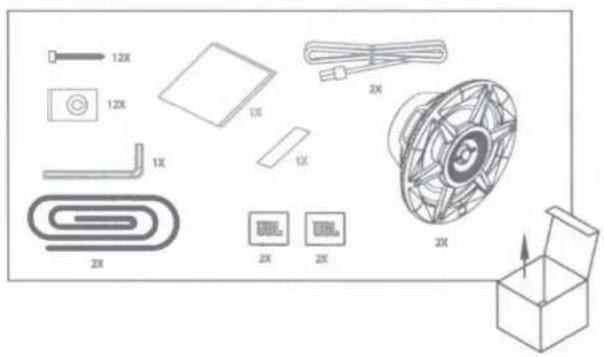

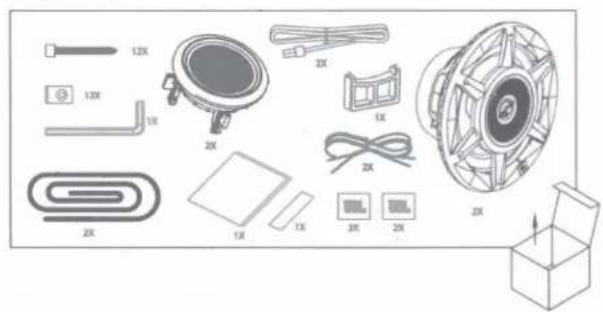

WHAT'S IN THE BOX

Stadium 6

Stadium 8

Stadium 10

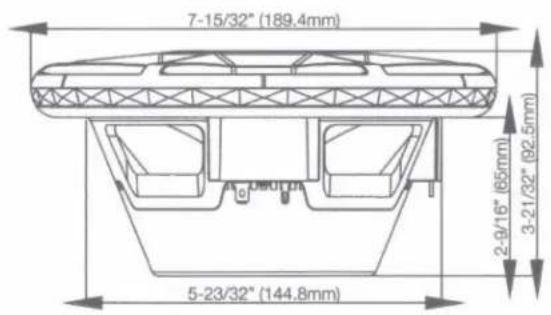

DIMENSIONS

Stadium 6

Stadium 8

Stadium 10

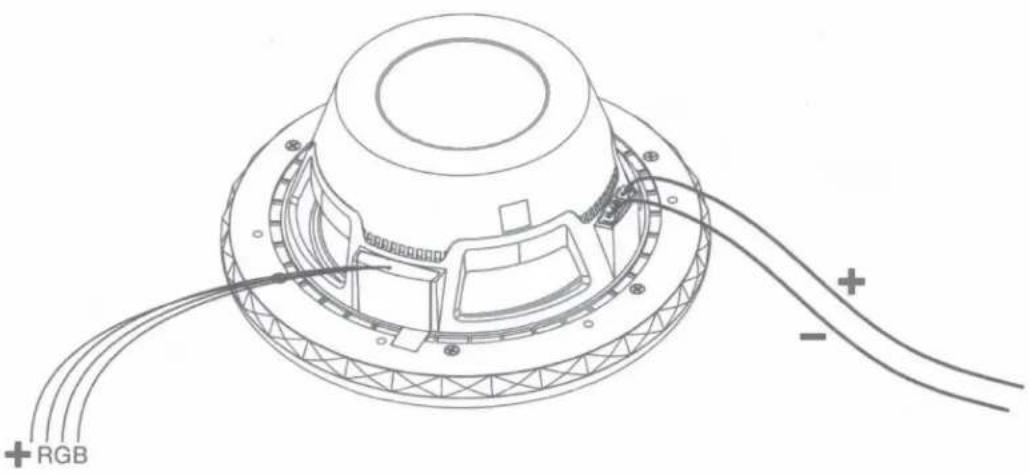

SPEAKER SIGNAL WIRING

To send signal to the JBL marine speaker, connect the positive (+) and negative (-) speaker wires to the appropriate speaker outputs of your source unit or amplifier. Be sure to observe proper polarity.

Technical line drawing of a mechanical component with labeled RGB and plus signs, no readable text or symbols beyond labels

SPEAKER LED WIRING

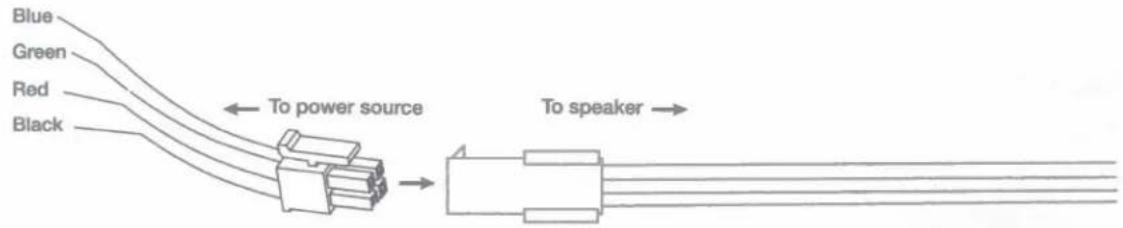

To provide power for the LEDs, plug the 24-gauge black (+), blue, green, and red LED wires from the speaker into the included female connector, then run the wires from the female connector to your compatible 12-volt power source or light controller (sold separately). If using a separate controller, be sure to connect each wire to the proper output.

If hardwiring the LEDs directly to your power source, you can choose the color of the LEDs by connecting the black wire to the positive (+) terminal, and the appropriate R, G, and/or B single wire or combination of wires to the negative (-) terminal.

There are 7 possible colors, depending on the wiring configuration you choose:

Wire connected to positive (+12V) terminal	Wire connected to negative (-) terminal	Color produced
Black	Red	Red
	Green	Green
	Blue	Blue
	Red + Green	Yellow
	Red + Blue	Purple
	Blue + Green	Aquamarine
	Red + Blue + Green	White

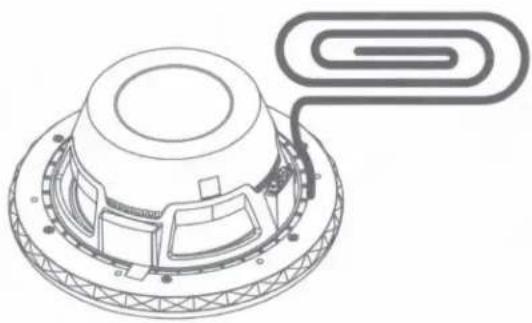

APPLYING FOAM SEAL

To help seal your installation against water, and to provide an airtight acoustic seal, apply the self-adhesive foam seal to the speaker frame.

Technical line drawing of a mechanical component with a coiled spring and flange (no text or symbols)

MOUNTING THE SPEAKER

Use the included screws to mount the speaker to the location. Use the included speed clips if necessary to provide a secure mount.

NOTE: Use caution when cutting and using screws with fiberglass to prevent scratches and cracks.

Stadium 6 and Stadium 8

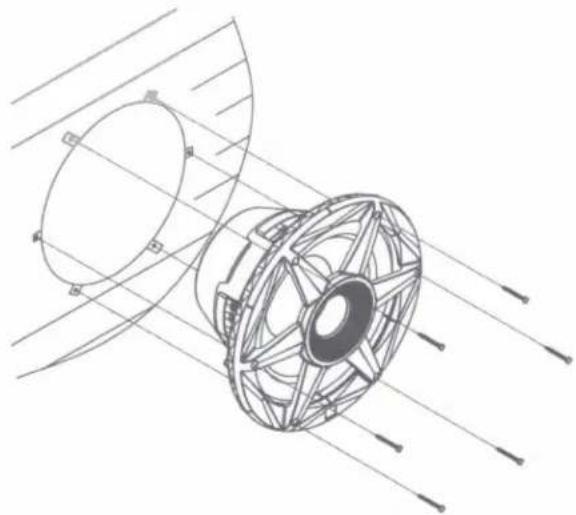

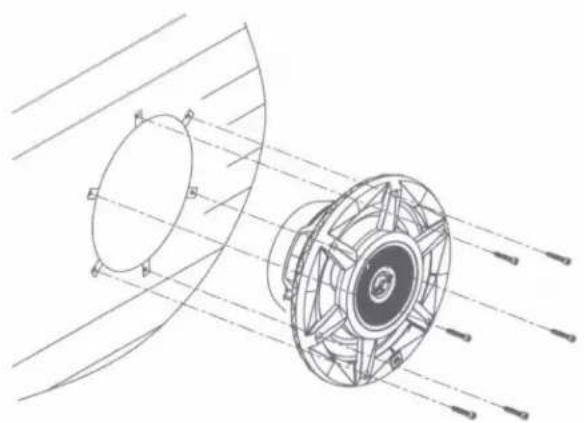

Technical line drawing of a mechanical component with concentric circular features and radial lines (no text or symbols)

Stadium 10

Technical line drawing of a mechanical component with intersecting lines and circular features (no text or symbols)

REMOVING THE TWEETER FOR SEPARATE MOUNTING (STADIUM 8 ONLY)

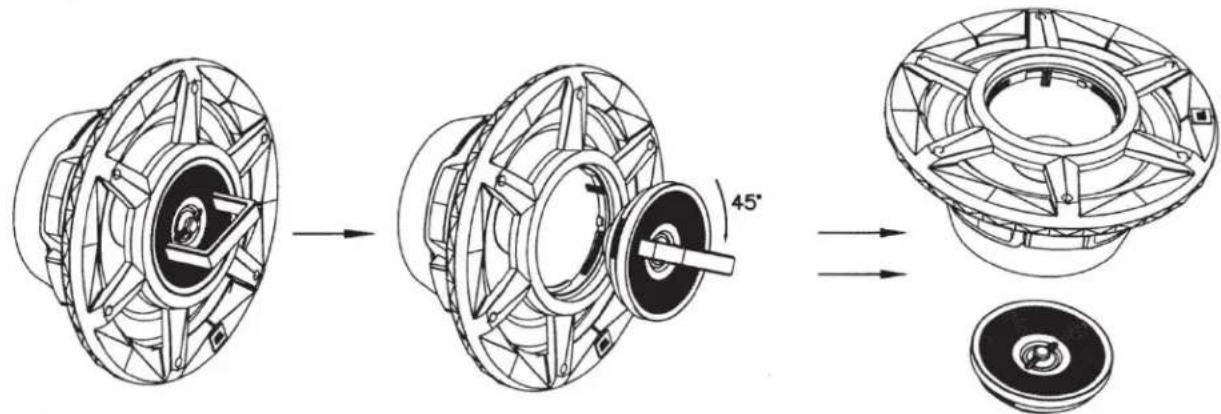

Use the included 2-pin tool to remove the tweeter from the woofer housing. Place the pins of the tool in the holes of the tweeter grille and rotate 45 degrees clockwise to loosen and remove.

Technical line drawing of a mechanical component showing three sequential steps: disassembly, assembly, and final assembly (no text or symbols present)

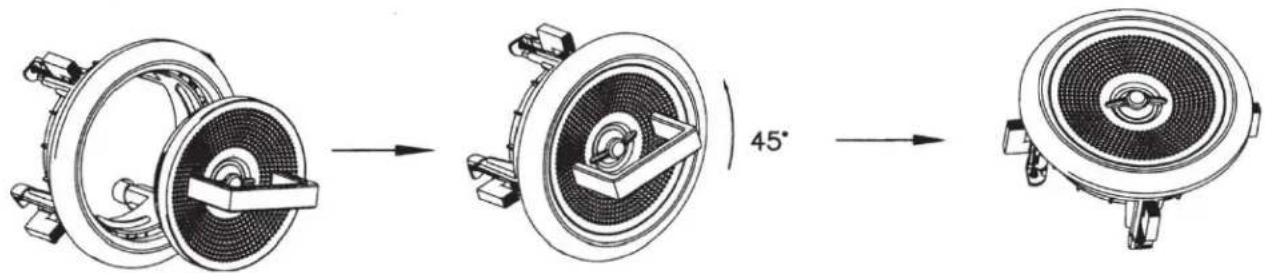

FLUSH-MOUNTING THE TWEETER

Place the tweeter in the mounting bracket and use the tool to secure by turning 45 degrees counter-clockwise.

Three technical diagrams showing a mechanical component before and after 45° rotation, with no visible text or symbols.

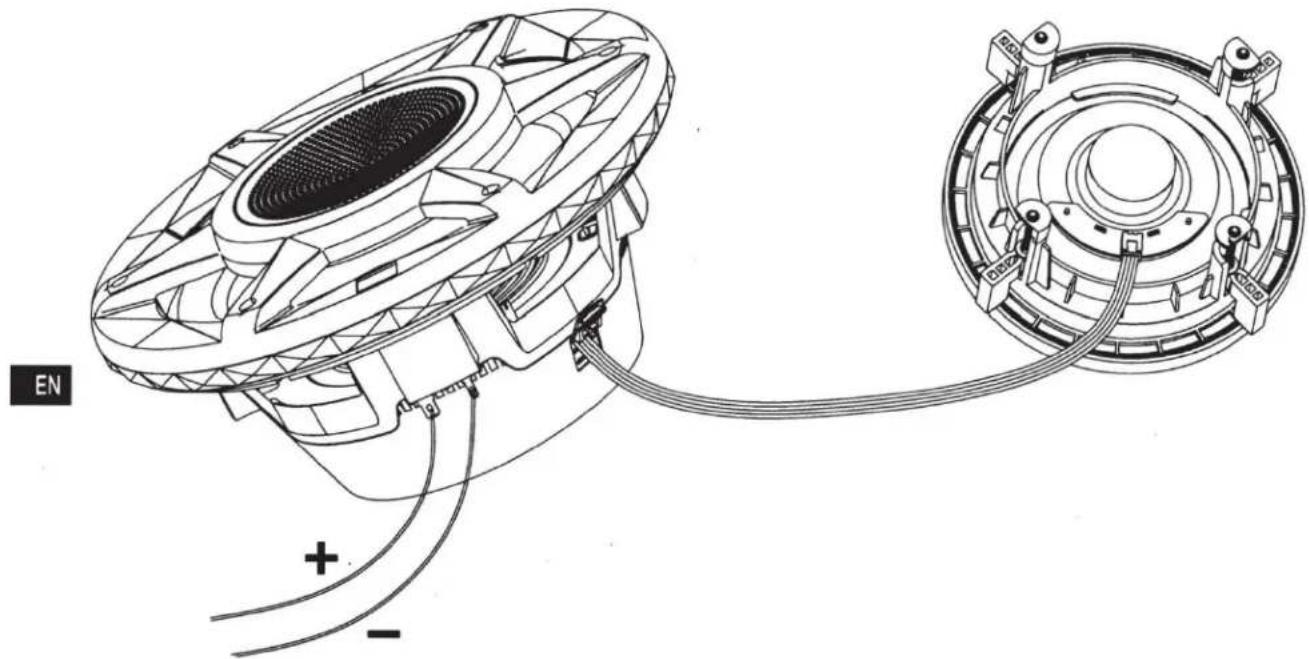

To transmit audio signal to the tweeter, make sure the woofer and tweeter are connected with the included cable.

Technical line drawing of a speaker with attached circuit board and power cord (no text or symbols)

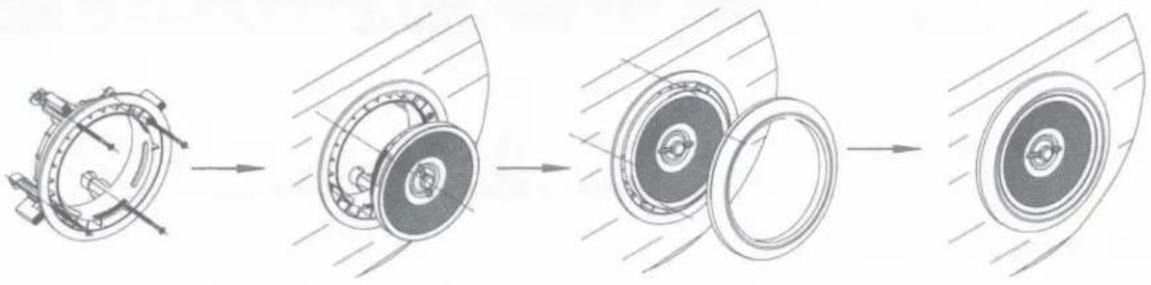

Place the tweeter in the mounting location, then turn each setscrew clockwise to tighten mounting brackets. Use caution so as not to overtighten. Snap the included outer ring over the mounting bracket to hide the setscrews.

Mechanical assembly diagram showing progressive assembly of a bearing housing with no visible text or symbols

Specifications	Stadium 6	Stadium 8	Stadium 10
Continuous power handling	100W	200W	300W
Peak power handling	300W	500W	900W
Frequency response	40Hz – 25kHz	30Hz – 22kHz	20Hz – 2kHz
Nominal impedance	3 Ohms*	3 Ohms*	2 or 4 Ohms (use switch to select)
Sensitivity	92dB	92dB	89dB

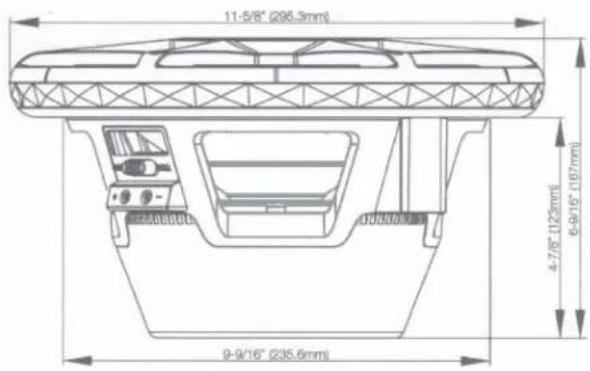

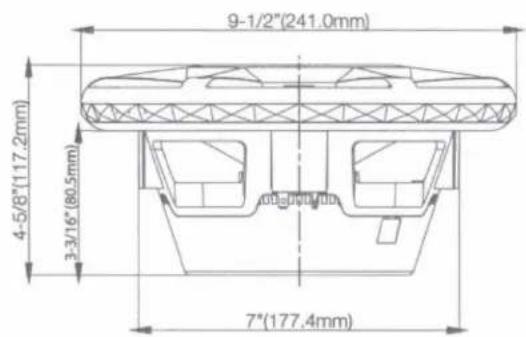

External diameter	7-15/32" (189.4mm)	9-1/2" (241mm)	11-5/8" (295.3mm)
Mounting cutout diameter	5-23/32" (144.8mm)	Woofer: 7" (177.4mm)Tweeter bracket: 4-9/16"(115.9mm)	9-9/16" (235.6mm)
Total depth	3-21/32" (92.5mm)	4-5/8" (117.2mm)	6-9/16" (167mm)
Mounting depth	2-9/16" (65mm)	3-3/16" (80.5mm)	4-7/8" (123mm)

*NOTE: Because of the woofer's low impedance, do not wire two or more in parallel to an amplifier; doing so can result in overheating and damage to the amplifier.
