USER MANUAL SVMH3621I SVAN

PT ELECTRICO MIDI FORNO MANUAL DE INSTRUÇÕES

GB ELECTRIC MIDI OVEN USER'S MANUAL

ES MANUAL DE USUARIO DEL MINI HORNO ELÉCTRICO

SVMH3621I, SVMH3630N, SVMH40N, SVMH40X.

PT MANUAL DE INSTRUÇÕES FORNO ELÉCTRICO.... 2

GB ELECTRIC MIDI OVEN USER'S MANUAL.... 13

ES MANUAL DE USUARIO DEL MINI HORNO ELÉCTRICO 23

Prezado Cliente

Figura 1

3D diagram of a square electronic device with a labeled dimension (10) and no visible text or symbols

Diagram of a grid-like structure with a labeled point '11' pointing to its edge (no text or symbols beyond the number)

40 LT OPÇ. 2

35 LT OPÇ. 1

35 LT OPÇ. 2

35 LT OPÇ. 3

Tabela de Cozimento

Hand holding a knob with an arrow indicating rotation (no text or symbols visible)

Close-up of a door with a circular vent and decorative panel, no visible text or symbols

Line drawing of a hand holding a circular component with an arrow indicating rotation (no text or symbols)

Figura 1 Figura 1.1 Desliga o forno da tomada.

Simple line drawing of a device with an oval and plug, no text or symbols present

- 220-240 V, AC

- 15-25 W

Symbol of a trash bin crossed with a diagonal line, no text or labels present

We thank you for the confide ce that you have placed in us. Our aim is to ensure you to use this product with great efficiency that is manufactured in our modern facilities, in a rigorous work environment without harming the nature according to the total quality approach.

We recommend you to read the operation manual carefully before use your midi oven to serve in a most efficient way and keep the features as new as the first day for a long time.

NOTE:

This operation manual is prepared for several models. Some features may not be included in your device.

Product images are schematic.

This product is manufactured in eco-friendly modern facilities without harming the nature.

"Complies with the WEEE Regulations."

CONTENTS

WARNINGS 14

ELECTRICAL CONNECTION AND SAFETY 17

DESCRIPTION OF OVEN AND CONTROL PANEL.... 17

TECHNICAL SPECIFICATIONS.... 18

USE OF THE HOTPLATE FEATURE USE OF THE GRILL FEATURE

35/40 LT HOTPLATE OPTION(*)....18

COOKING TABLE....19

USING THE OVEN 19

OVEN LAMP (*) 20

IF THE OVEN DOES NOT WORK 20

MAINTENANCE AND CLEANING.... 21

COMPLIANCE WITH WEEE REGULATION AND DISPOSING THE WASTE PRODUCT PACKAGING INFORMATION......22

(*) optional

WARNINGS

This product is manufactured in accordance with the safety regulations. Inappropriate use can lead to personal injury and damage to the device.

Do not place anything that can be inflammable, ignitable, meltable or perishable by heat even the device is not operating to prevent potential risks.

The device cannot be operated with external settings or remote control system.

Door surface may be overheated while the device is operating.

Do not pour could water on the tray or in the oven while the device surface is still hot. Device surface may get damaged as a result of rapid heat changes and lead to personal injuries.

An additional ventilation may be required as a result of heavy use of the device for an extended period, for example; opening a window or more effective ventilation or increasing the mechanic ventilation system if exist. Before use the device keep away the inflammable materials such as

curtain, tulle or paper from the device. Do not place inflammable or ignitable materials on or in the device.

Keep children away from the device.

This device is not intended for use by the persons who have lack of experience or knowledge or physical, sensory and mental disability (including children) without supervision and management of a person who is responsible for the device safety.

The device can be used by children over age of 8 and adults whose physical, sensory and mental skills are decreased or persons who have lack of experience or knowledge under supervision or instructed about safety use of the device and against danger of burning.

Children should not play with the device.

Cleaning and maintenance cannot be performed by the children without supervision.

Device will get overheated during operation or in a short period of time after operated; do not touch and do not let children touch the heating surfaces.

Keep away the device and the cable from children under age of 8. Children must be kept under supervision to prevent them play with the device.

Device is intended to be used in house or similar places.

Do not press the door with heavy materials, do not lean or place heavy materials on the door while the oven door is open or do not carry by holding the oven door.

Use your device for cooking or heating food only. Please do not use your device other than intended use (warming the environment, commercial purpose, etc.)

Please ensure the device is unplugged before replacing the device lamp to prevent to be exposed to a possible high voltage.

Life time of this product is ten (10) years.

ATTENTION!

Labeled areas have hot surfaces. Do not touch.

ELECTRICAL CONNECTION AND SAFETY

Device needs 16 Amperage current. If necessary, get skilled people for installing the device.

Your device is set suitable for 230 V, 50Hz power source. If your mains values are different than the mentioned values, please contact with experts.

Electrical connection of your device must be done with grounded wall sockets only installed according to the instructions. If there is no grounded wall socket in the place that you will use your device, please contact to authorized service. Producer company cannot be held liable for the damages caused by ungrounded wall sockets. If the feeding cord is damaged, this cord should be replaced by the manufacturer or their authorized service or an expert with expertise at same level to prevent risks.

Device cable should not touch the hot parts of the device.

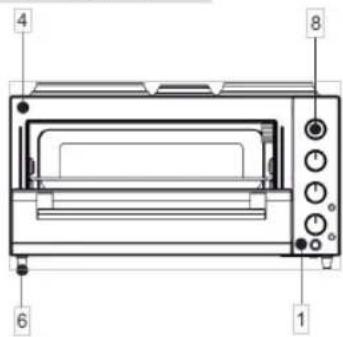

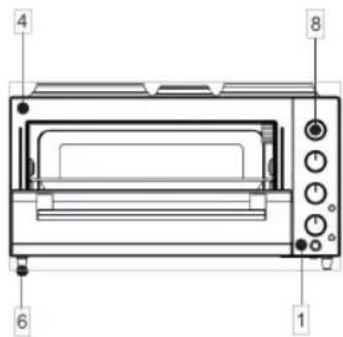

DESCRIPTION OF OVEN AND CONTROL PANEL

Figure 1

3D rendering of a circular metallic bowl with a small black dot and a label '9' pointing to the top center (no text or symbols on the bowl itself)

3D diagram of a square plate with a labeled dimension '10' (no text or symbols beyond the label)

Simple line drawing of a rectangular grid with a small black dot at the top center (no text or symbols)

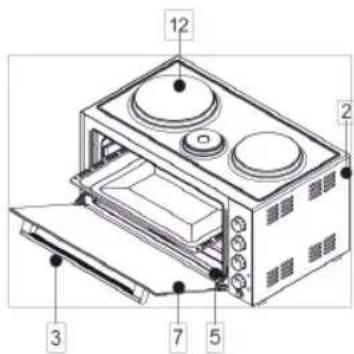

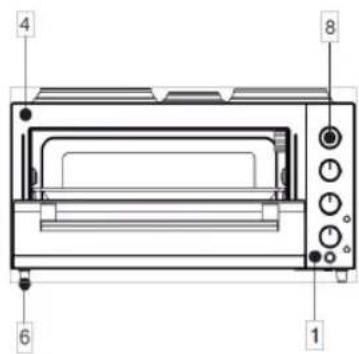

1- Control panel
2- Oven frame
3- Handle
4- Vessel
5- Heaters
6- Oven feet

7- Glass oven door
8- Control buttons
9- Round tray (Optional)
10- Square tray
11- Rack grill
12- *Hotplate (35/40 It optional)

°C Thermostat

P Programmer

Top Heater

Bottom Heater

Bottom and Top Heater

Bottom Heater and Turbo Fan

Bottom and Top Heater and Turbo Fan

*Hotplate

Timer: Set the timer according to the recommended cooking time at the desired thermostat value. When the set time is ended, timer cuts the power of heaters and warns with a buzzer sound. To turn off the device, bring the timer, program and thermostat buttons to zero position. When the timer is 🔊 positioned on its position it will work continuously.

Thermostat: Thermostat provides 40 -240 °C heat range in the oven.

TECHNICAL SPECIFICATIONS

Specifications M35 Series M40 Series

Outer width 480 mm 520 mm

Outer depth 356 mm 440 mm

Outer height 330 mm 330 mm

Inner width 364 mm 397 mm

Inner depth 315 mm 385 mm

Inner height 240 mm 240 mm

Thermostat 40 - 240 °C 40 - 240 °C

Top heater 600 W 600 W

Grill heater (*) 900 W 900 W

Supply voltage 220-240V, \~ 50/60Hz.

(*): Included in some models.

Use of the hotplate feature:

If the models for the electric hotplate are operated

Timer-timer should be turned on with large / small hotplate oven heaters

Cofe hotplate can be operated in conjunction with oven heaters.

When the oven is closed, the hotplates work at the same speed.

Use of the Grill feature:

The switch for controlling the oven portion is brought to the upper resistance position and

The grill button under the panel is printed.

When the grill resiztans are working

Chick turning is an actor on the motor.

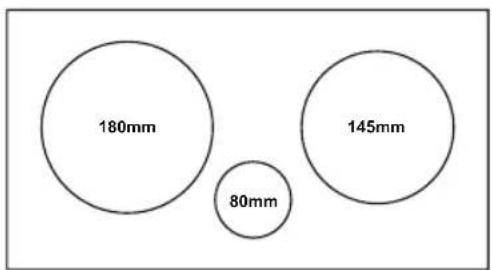

35/40 LT HOTPLATE OPTION

40 LT OPT. 1

40 LT OPT. 2

35 LT OPT. 1 35 LT OPT. 2

35 LT OPT. 3

COOKING TABLE

You can find information for the food ranges that we tested in our laboratories to determine the cooking values in the below table. Cooking times may differ depending on the mains voltage, nature of the food to be cooked, quantity and the temperature. The foods that you cook by using these values may not be suitable for your taste. You can try different values to have results suitable to your taste.

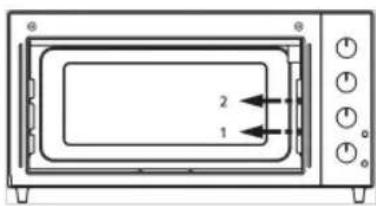

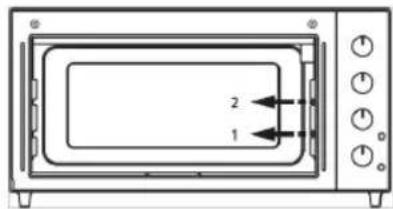

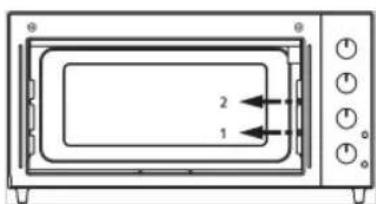

*You can find the shelf order of the oven on Page 17, Figure 1

Foods Thermostat value Cooking Time Shelf order
Cookie 170-180	25-30 1st Shelf
Cake 170-190	40-50 1st Shelf
Pie 180-200	40-50 1st Shelf
Tray Cake 170-180	20-30 1st Shelf
Cup Cake 170-180	35-40 1st Shelf
Pasta Bake 180-190	25-30 1st Shelf
Fish 220-MAX 30-40	1st Shelf
Lamb 220-MAX 90-120	1st Shelf
Sheep	220-MAX 90-120	1st Shelf
Beef	220-MAX 90-120	1st Shelf
Turkey	220-MAX 45-55	1st Shelf
Chicken Piece	220-MAX 75-100	1st Shelf
Defrosting	60-120	55-60	2nd Shelf

"Please pre-heat your oven before cooking.

You can use the time as the pre-heating period until the heating lamp first turns off."

USING THE OVEN

Insert the plug in a grounded wall socket. Bring the timer to manual or automatic cooking position. Set the thermostat to appropriate temperature according to the cooking table. If you set the timer to manual position you will hear a warning sound when cooking time is up.

New ovens can give off a slight fume and smell on first use due to hardening of protection materials on the heaters. This is normal, not a manufacturing defect.

Defrosting: Remove the material to be defrosted from its container and place on the grill. Place the square tray under the grill to keep the defrosted water. In this way, defrosted products will not stay in their defrosted water. Never use the defrosted water (for health) and dispose it.

You can use the defrosting feature as described in the cooking table.

During defrosting, it is recommended to use top and bottom heater and turbo fan (☐) As the defrosting period differs depending on the weight of product, check the process from time to time.

Do not cook with square and round trays at the same time in the oven.

Before cooking, we recommend to pre-heat the oven for 8-10 minutes.

This oven is intended for use in house cooking. Please do not use it for other purposes.

IF THE OVEN DOES NOT WORK

Please check the device cable inserted in the wall socket correctly. Check the electrical mains.

Check the fuse.

Check if there is any damage on the power cable. If the problem continues, contact to authorized service.

OVEN LAMP (\*)

Hand holding a knob with an arrow indicating rotation (no text or symbols)

Illustration of a door with a circular vent and decorative panel, no text or symbols present

WARNING: Please ensure the device circuit is open before replacing the lamp to prevent to be exposed to a high voltage. (Open circuit means electrical power is off.)

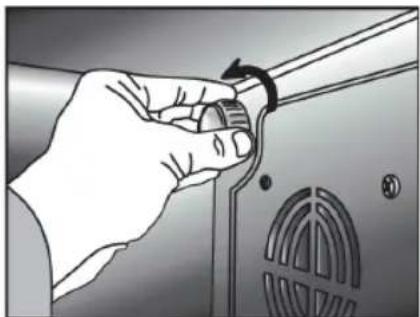

First disconnect the device from power and ensure the device is cooled.

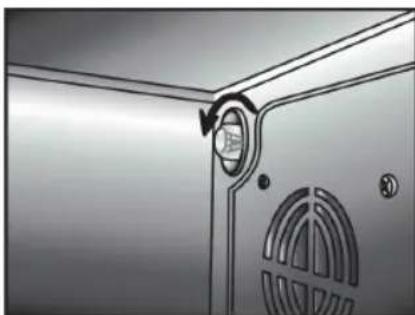

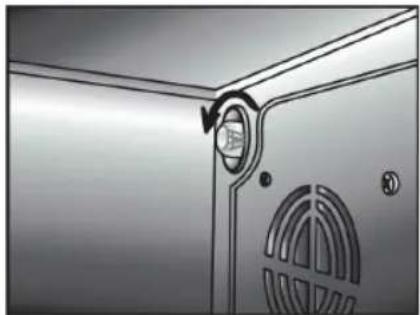

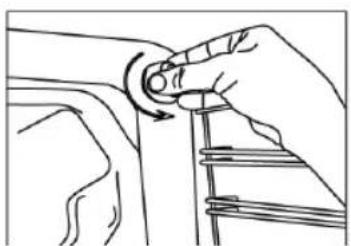

Remove the glass protection by turning as seen in the side figure

Then remove the lamp by turning, insert the new lamp with same specifications. Lamp specifications should be as follows

230 V, AC

15 W

Type E14

Finally insert the glass protection in place.

Line drawing of a hand adjusting a circular component with an arrow, no text or symbols present

Pure diagram of a mechanical component with arrows indicating direction, no text or symbols present

MAINTENANCE AND CLEANING

Unplug the device.

Device will get overheated during operation or in a short period of time after operated. Do not touch the heated parts when operating.

Do not clean the inner parts, door and tray of the oven and the other parts with bristle brush, scrubber or knife, etc. Do not use abrasive detergents.

COMPLIANCE WITH WEEE REGULATION AND DISPOSING THE WASTE PRODUCT

Symbol of a trash bin crossed with a diagonal line, no text or labels present

1- This product does not contain hazardous and banned substances set forth in the Control of Waste Electrical and Electronic Equipment Regulation issued by the Republic of Turkey Ministry of Environment and Urban Planning. Complies with the WEEE Regulations.
2- This product is manufactured with recyclable and re-usable high quality parts and materials. Therefore please do not dispose your products with domestic or other waste at the end of its lifetime. Take it to a collection point for recycling of electrical

and electronic equipment. Ask these collection points to your local government. Help to protect the environment and natural sources by recycling the used products. Before disposing the product please cut the electrical cable to make it unfunctional for the safety of children.

PACKAGING INFORMATION

Packaging of the product is manufactured with recyclable materials in accordance with our National Legislation. Please do not dispose the packaging with domestic or other waste, dispose it in a collection point for packaging stated by the local authority.

Labeled areas have hot surfaces. Do not touch.

Imagen-1

3D diagram of a square electronic device with a labeled component (no text or symbols beyond the number 10)

Isometric view of a slatted metal sheet with a small black dot labeled '11' pointing to its edge (no text or symbols beyond the number)

Series M35 Series M40

Largura externo 480 mm 520 mm

Profundidade externa 356 mm 440 mm

Altura exterior 330 mm 330 mm

Largura Interior 364 mm 397 mm

40 LT PLA. 2

35 LT PLA. 1 35 LT PLA. 2

35 LT PLA. 3

TABLA DE COCCIÓN

Hand holding a knob with an arrow indicating rotation (no text or symbols visible)

Interior view of a door with a circular vent and decorative panel (no text or symbols visible)

Line drawing of a hand turning a circular component into a vehicle (no text or symbols)

Pure diagram of a mechanical component with directional arrows, no text or symbols present

- 220-240 V, AC

- 15-25 W

Imagen 1 Imagen 1.1

MANTENIMIENTO Y LIMPIEZA

Symbol of a trash bin crossed with a diagonal line, no text or labels present
