USER MANUAL GASHQ4 Infiniton

"G"="Z"or"E","Z"means cast iron pot support,"E"means steel pot

"I"="X", "X" means flame out protection

“K”=“A”or“D”，“A”means alternating current（AC:110-240V,50/60Hz）“D”means direct current(1.5V).

JZT-HQ4B67AAZXA=JP4GI008930

Warning

This appliance can be used by children aged from 8 years and aboce and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer. its service agent or similarly qualified persons in order to avoid a hazard.

The disconnection may be achieved by hacing the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

Contents

◆ Cooker Description
◆ Important Information
◆ Operation
◆ Maintenance and Cleaning
Troubleshooting
◆ Instructions for the Installer
◆ Important safety requirements
◆ Installation

This appliance shall be installed in accordance with the regulations in force and only used in a well ventilated space.

Read the instructions before installing or using this appliance.

These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country

Cooker Description

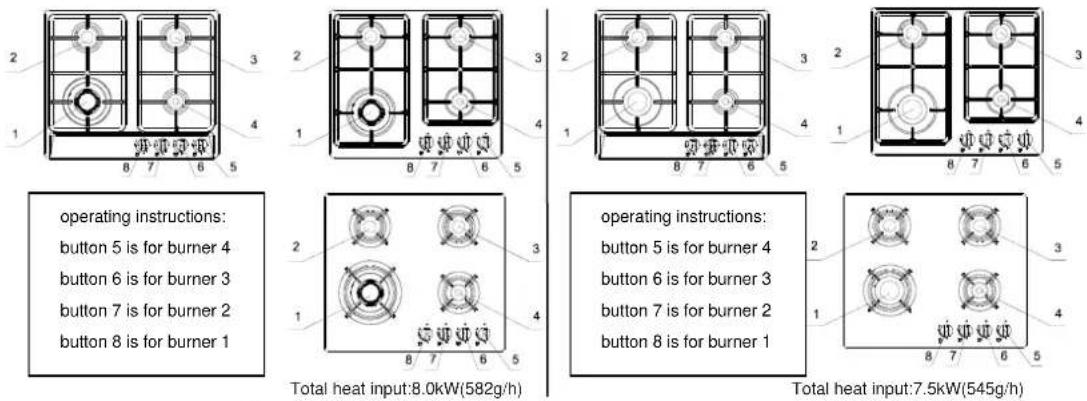

operating instructions: button 5 is for burner 4 button 6 is for burner 3 button 7 is for burner 2 button 8 is for burner 1
,JZT-HQ4B60AAGIK, ,JZT-HQ4B60BAGIK, (Q),JZT-HQ4B60BAGIK(Q), ,JZT-HQ4B60CAGIK, ,JZT-HQ4L60AAGIK

Figure 1 Figure 2

1. The bottom right burner—3.5kW(255g/h) in 132 mm

2.The upper right burner—1.75kW(127g/h) in 65 mm

3.The upper left burner—1.75kW(127g/h) in 65 mm

4.The bottom left burner—1.0kW(73g/h) in 45 mm

JZY-HQ4B60ABGIK, JZT-HQ4B60ABGIK, JZY-HQ4B60BBGIK, JZT-HQ4B60BBGIK, JZY-HQ4B60BBGIK(Q), JZT-HQ4B60BBGIK(Q) JZY-HQ4B60CBGIK, JZT-HQ4B60CBGIK, JZY-HQ4L60ABGIK, JZT-HQ4L60ABGIK

1. The bottom right burner—3.0kW(218g/h) in 95 mm

2. The upper right burner—1.75kW(127g/h) in 65 mm

3.The upper left burner—1.75kW(127g/h) in 65 mm

4.The bottom left burner—1.0kW(73g/h) in 45 mm

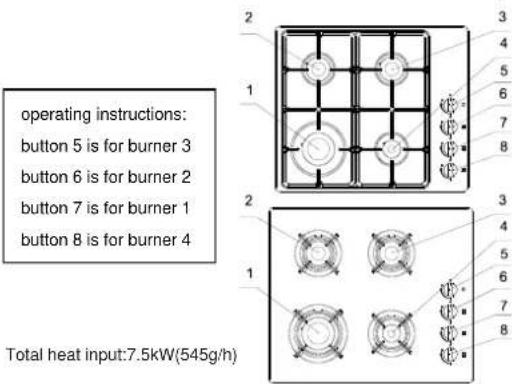

operating instructions: button 5 is for burner 3 button 6 is for burner 2 button 7 is for burner 1 button 8 is for burner 4 Total heat input:8.0kW(582g/h)

operating instructions: button 5 is for burner 3 button 6 is for burner 2 button 7 is for burner 1 button 8 is for burner 4 Total heat input:7.5kW(545g/h)

Figure 3 Figure 4
JZY-HQ4B64ACGIK, JZT-HQ4B64ACGIK, JZY-HQ4B64ACGIK(Q), JZT-HQ4B64ACGIK(Q). JZY-HQ4L64ACGIK, JZT-HQ4L64ACGIK

1. The bottom right burner—3.5kW(255g/h) in 132 mm

2.The upper right burner—1.75kW(127g/h) in 65 mm

3.The upper left burner—1.75kW(127g/h) in 65 mm

4.The bottom left burner—1.0kW(73g/h) in 45 mm

JZY-HQ4B64ADGIK, JZT-HQ4B64ADGIK, JZY-HQ4B64ADGIK(Q), JZT-HQ4B64ADGIK(Q) JZY-HQ4L64ADGIK, JZT-HQ4L64ADGIK

1. The bottom right burner—3.0kW(218g/h) in 95 mm

2. The upper right burner—1.75kW(127g/h) in 65 mm

3.The upper left burner—1.75kW(127g/h) in 65 mm

4.The bottom left burner—1.0kW(73g/h) in 45 mm

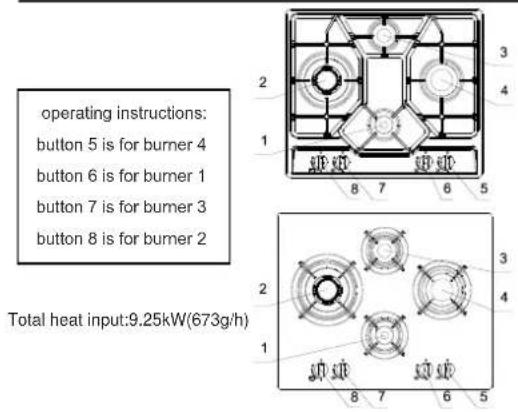

operating instructions: button 5 is for burner 4 button 6 is for burner 1 button 7 is for burner 3 button 8 is for burner 2 Total heat input:9.25kW(673g/h)

operating instructions:

button 5 is for burner 4

button 6 is for burner 1

button 7 is for burner 3

button 8 is for burner 2

2 3 4 1 8 7 6 5

Total heat input:7.5kW(545g/h)

Figure 5 Figure 6

JZY-HQ4B67AAGIK,JZT-HQ4B67AAGIK, JZY-HQ4L67AAGIK,JZT-HQ4L67AAGIK

1. The bottom burner—1.0kW(73g/h) in 45 mm
   2.The upper burner—3.5kW(255g/h) in 132 mm
   3.The right burner—1.75kW(127g/h) in 65 mm
   4.The left burner—3.0kW(218g/h) in 95 mm

JZY-HQ4L67ABGIK,JZT-HQ4L67ABGIK,

1. The bottom burner—1.0kW(73g/h) in 45 mm
   2.The upper burner—3.0kW(218g/h) in 95 mm
2. The right burner—1.75kW(127g/h) in 65 mm
   4.The left burner—1.75kW(127g/h) in 65 mm

operating instructions: button 4 is for burner 3 button 5 is for burner 2 button 6 is for burner 1

Total heat input:6.25kW(455g/h)

1 2 3 6 5 4 5kW(455g/h)

operating instructions: button 4 is for burner 2 button 5 is for burner 1 button 6 is for burner 3

1 2 3 4 5 6

Total heat input:6.25kW(455g/h)

Figure 7 Figure 8

JZY-HQ3L60AAGIK,JZT-HQ3L60AAGIK,

1. The bottom right burner—3.5kW(255g/h) in 132 mm
   2.The upper right burner—1.75kW(127g/h) in 65 mm
   3.The left burner—1.0kW(73g/h) in 45 mm

JZY-HQ3L64ACGIK, JZT-HQ3L64ACGIK,

1. The bottom right burner—3.5kW(255g/h) in 132 mm
   2.The upper right burner—1.75kW(127g/h) in 65 mm
2. The left burner—1.0kW(73g/h) in 45 mm

operating instructions:

button 1 is for burner 10

button 2 is for burner 6

button 3 is for burner 8

button 4 is for burner 7

button 5 is for burner 9

operating instructions:

button 1 is for burner 10

button 2 is for burner 6

button 3 is for burner 8

button 4 is for burner 7

button 5 is for burner 9

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

Figure 9 Figure 10

JZY-HQ5B90AAGIK,JZT-HQ5B90AAGIK,

1.burner 6—1.75kW(127g/h) in 65 mm
2.burner 7—3.0kW(218g/h) in 95 mm
3.burner 8—3.5kW(255g/h) in 132 mm
4.burner 9—1.75kW(127g/h) in 65 mm
5.Burner 10—1.0kW(73g/h) in 45 mm

JZY-HQ5L90AAGIK,JZT-HQ5L90AAGIK,

1.burner 6—1.75kW(127g/h) in 65 mm
2.burner 7—3.0kW(218g/h) in 95 mm
3.burner 8—3.5kW(255g/h) in 132 mm
4.burner 9—1.75kW(127g/h) in 65 mm
5.Burner 10—1.0kW(73g/h) in 45 mm

operating instructions:

button 1 is for burner 10

button 2 is for burner 6

button 3 is for burner 8

button 4 is for burner 7

button 5 is for burner 9

7 8 9 10 11 12 13 14 15 16

Figure 11

operating instructions:

button 1 is for burner 10

button 2 is for burner 6

button 3 is for burner 8

button 4 is for burner 7

button 5 is for burner 9

7 8 9 10 11 12 13 14 15 16 17 18

Figure 12

JZY-HQ5B90BAGIK,JZT-HQ5B90BAGIK,

1.burner 6—1.75kW(127g/h) in 65 mm
2.burner 7—3.0kW(218g/h) in 95 mm
3.burner 8—3.5kW(255g/h) in 132 mm
4.burner 9—1.75kW(127g/h) in 65 mm
5.Burner 10—1.0kW(73g/h) in 45 mm

JZY-HQ5L90BAGIK,JZT-HQ5L90BAGIK,

1.burner 6—1.75kW(127g/h) in 65 mm
2.burner 7—3.0kW(218g/h) in 95 mm
3.burner 8—3.5kW(255g/h) in 132 mm
4.burner 9—1.75kW(127g/h) in 65 mm
5.Burner 10—1.0kW(73g/h) in 45 mm

operating instructions:

button 1 is for burner 10

button 2 is for burner 6

button 3 is for burner 8

button 4 is for burner 7

button 5 is for burner 9

Technical diagram showing a grid layout with labeled circular components and annotations like 'L1', 'L2', 'M', 'M', 'M', 'M', 'M', 'M'.

operating instructions:

button 1 is for burner 10

button 2 is for burner 6

button 3 is for burner 8

button 4 is for burner 7

button 5 is for burner 9

Technical diagram of a multi-pin connector with labeled pins and circular components

Figure 13 Figure 14

JZY-HQ5B90BAGIK,JZT-HQ5B90CAGIK.

1.burner 6—1.75kW(127g/h) in 65 mm
2.burner 7—1.0kW(73g/h) in 45 mm
3.burner 8—3.0kW(218g/h) in 95 mm
4.burner 9—1.75kW(127g/h) in 65 mm
5.Burner 10—3.5kW(255g/h) in 132 mm

JZY-HQ5L90CAGIK.JZT-HQ5L90CAGIK.

1.burner 6—1.75kW(127g/h) in 65 mm
2.burner 7—1.0kW(73g/h) in 45 mm
3.burner 8—3.0kW(218g/h) in 95 mm
4.burner 9—1.75kW(127g/h) in 65 mm
5.Burner 10—3.5kW(255g/h) in 132 mm

Important Information

Read the instructions before installing or using this appliance.

Children should be supervised to ensure that they do not play with the appliance.

These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country.

Installation

Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
The adjustment conditions for this appliance are stated on the label (or data plate).
This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation. Read the instructions before installing or using this appliance.
For LPG gases: Always use a pressure regulator exclusive for your gas cooker. The lack of pressure regulator might cause excess of pressure and leak of gas.
➢ Always check for the validity of the pressure regulator. Hose and regulator should be replaced every 5 years. Technical specification of the pressure regulator:

i. Pressure: Refer to TECHNICAL DATA in this manual.

ii. Max. consumption: 2kg/h.

iii. Should be certified according to EN12864 and comply with local code.

The appliance shall be supplied with an approved hose which is certified to applicable EN standards and in conformity with the National standards and

➢ Regulations. The length of the hose shall not exceed 1.5m. For Finland not exceeding 1.2m

This appliance must be installed and serviced by a competent person

This appliance shall be installed in accordance with the regulations in force and only used in a well ventilated space.

Remove all packaging before using the gas cooker

➢ Ensure that the gas and complies with the type stated on the rating label

Do not attempt to modify the gas cooker in any way

Caution: This appliance is for cooking purposed only. It must not be used for other purposes, for example room heating.

For your Safety

This gas cooker is designed to be operated by adults. Do not allow children to play near or with the gas cooker.

The gas cooker gets hot when it is in use.

Children should be kept away until it has cooled.

Children can also injure themselves by pulling pans or pots off the gas cooker.

➢ CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

- This gas cooker is designed to be operated by adults. Do not allow children to play near or with the gas cooker. - The gas cooker gets hot when it is in use. - Children should be kept away until it has cooled. - Children can also injure themselves by pulling pans or pots off the gas cooker. - CAUTION:This appliance is for cooking purposes only.It must not be used for other purposes,for example room heating.

When Use

This gas cooker is intended for domestic cooking only. It is not designed for commercial or industrial purposes.

When in use a gas cooking appliance will produce heat and moisture in the room in which it has been installed. Ensure there is a continuous air supply, keeping air vents in good condition or installing a cooker hood with a venting hose.

This gas cooker is intended for domestic cooking only. It is not designed for commercial or industrial purposes. When in use a gas cooking appliance will produce heat and moisture in the room in which it has been installed. Ensure there is a continuous air supply, keeping air vents in good condition or installing a cooker hood with a venting hose.

When using the gas cooker for a long period of time, the ventilation should be improved, by opening a window or increasing the extractor speed.
Do not use gas cooker if it is in contact with water. Do not operate the gas cooker with wet hands.
➢ Ensure the control knobs are in the closed position when not in use.
In the event of the burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least 1 min.

Service

The gas cooker should only be repaired or serviced by an authorized Service person and only genuine approved spare parts should be used.

Environmental Information

➢ After installation, please dispose of the packaging with due regard to safety and the environment.
When disposing of an old appliance, make it unusable, by cutting off the cable.
The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Operation

Lighting

◆ Simply press the knob in, turn anticlockwise to maximum
◆ Press the ignition device and hold the knob till the burner is ignited
◆ Before releasing knob, ensure a flame is established,
◆ If the burner fails to ignite, put into off position and try again.

If in case of a power failure or failure of the ignition, a match or lighting devise can be used. Care must be taken when using this method.

The device shall not be operated for more than 15s. If after 15s the burner has not lit, stop operating the device and open the compartment door and/or wait at least 1 min before attempting a further ignition of the burner.

In the event of the burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least 1 min.

"CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away"

If you cannot light the flame even after several attempts, check the "cap" and "crown" (see diagram – figure 1) are in the correct position. To put the flame out, turn the knob to the symbol "O"

Description:

1. Burner Cap
2. Burner crown
3. Burner plate
4. Ignition electrode
5. Thermocouple (See Figure 9)

Figure 15

WARNING:

All burner caps can't be dislocated installation, otherwise it will lead to flash back on the upper aluminum seats and cause the upper aluminum seats to melt and deform, see below figures for correctly placing the burner caps

Circular diagram with a black 'X' symbol inside concentric circles, resembling a stylized device or emblem (no text or labels)

Simple circular diagram with a black checkmark inside, likely indicating selection or confirmation.

When switching on the mains, after installation or a power cut, it is quite normal for the spark generator to be activated automatically.

To ensure maximum burner efficiency, you had better use pots and pans with a flat bottom fitting the size of the burner used (see table).

Do not use rim based or convex-based cessels on the hotplate burners.

Burner	Minimum Pan Diameter	Maximum Pan Diameter
Wok in 132mm	180mm	260mm
Large (rapid) in 95mm	180mm	260mm
Medium (semi-rapid) in 65mm	120mm	220mm
Small (auxiliary) in 45mm	80mm	160mm

Warning: As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid simmering. If the control knobs become difficult to turn, please contact your local service centre.

Warning: Users could not use the cooking vessels on the hotplate that overlap its edges.

Re-ignition:

If the flame is out for certain reasons, the safety device will cut off the gas power automatically. Turn the switch to " largest flame " position, then ignite again, you should wait for 30 seconds when you do that; Due to the air in the tong, there may be unsmooth ignition, revolve the switch to " largest flame " position and ignite again.

Maintenance and Cleaning

Before any maintenance or cleaning can be carried out, you must DISCONNECT the gas cooker from the electricity supply. The gas cooker is best cleaned whilst it is still warm; as spillage can be removed more easily than if it is left to cool.

Control Panel

Sign ● = gas valve is shut off

Simple line drawing of a circle with internal vertical lines and a star, no text or symbols present

The Burners

The burner caps and crowns can be removed for cleaning. Wash the burner caps and crowns using hot soapy water, and remove marks with a mild paste cleaner. A well moistened soap impregnated steel wool pad can be used with caution, if the marks are particularly difficult to remove.

After cleaning, be sure to wipe dry with a soft cloth.

Ignition electrode

The electric ignition is obtained through a ceramic "electrode" and a metal electrode. Keep these components very clean, to avoid lighting difficulties, and check that the burner crown holes are not obstructed.

Thermocouple

The thermocouple is very crucial for cutting gas supply in case of flame out during cooking, be sure to keep them in very clean condition.

Troubleshooting

Problem• There is no spark when lighting the gas	Corrective action• Check that the unit is plugged in and the electrical supply is switched on• Check that the RCCB has not tripped (if fitted)• Check the mains fuse has not blown• Check the burner cap and crown have been replaced correctly, e.g. after cleaning.
• The gas ring burns unevenly	• Check the main jet is not blocked and the burner crown is clear of food particles.• Check the burner cap and crown have been replaced correctly, e.g. after cleaning.

Instructions for the Installer

Overall dimensions

Width: 590mm Depth: 510mm (for model:HQ4B60A*GIK,HQ4B67A*GIK)

Width: 580mm Depth: 500mm (for model: HQ4B60B*GIK, HQ4B60B*GIK(Q), HQ4B60C*GIK, HQ4B64A*GIK, HQ4B64A*GIK(Q))

Width: 645mm Depth: 525mm (for model:HQ4L67AAGIK)

Width: 610mm Depth: 525mm (for model: HQ4L60A*GIK, HQ4L64A*GIK, HQ4L67ABGIK, HQ3L60A*GIK, HQ3L64A*GIK)

Width: 860mm Depth: 500mm (for model:HQ5B90AAGIK,HQ5B90BAGIK,HQ5B90CAGIK,HQ5L90AAGIK,HQ5L90BAGIK,HQ5L90CAGIK,)

Cut out dimensions

Width: 555mm Depth: 475mm

Width: 835mm Depth: 475mm

Technical Data

Burner configuration

	NG		LPG
	Injector Dia. (mm)	kW	Injector Dia. (mm)	kW
Gas category	I2H(20)	I2H(20)	I3B/P(30)/ I3+	I3B/P(30)/ I3+
Wok burner(double rings burner)	1.33	3.5	0.93	3.5 (255g/h)
Rapid burner	1.28	3.0	0.85	3.0 (218g/h)
Semi rapid burner	0.97	1.75	0.65	1.75 (127g/h)
Auxiliary burner	0.72	1.0	0.5	1.0 (73g/h)

Different models have different total heat input, please refer to page 1 & page 2

Gas category

I Category

I_3+ (28~30/37)	BE, FR, IT, LU, LV, IE, GB, GR, PT, ES, CY, CZ, LT, SK, CH, SI
I_3B/P(30)	LU, NL, DK, FI, SE, CY, CZ, EE, LT, LV, MT, SK, SI, BG, IS, NO, TR, HR, RO, IT, HU
I_2H(20)	FR, IT, BE, NL, DK, IE, GB, GR, ES, PT, AT, FI, SE CZ, EE, HU, LV, LT, SK, SI, IS, NO, CH, TR, BG, HR and RO.

Note: when injectors are changed, the new one should be marked by the gas technician.
Injectors should always be changed by the authorized person.

Gas Type and working pressure:

I2H(20):G20 at 20 mbar.

I3B/P(30):G30,G31 or their mixtures at (28-30)mbar.

I3+(28-30/37):G30 at (28-30) mbar,G31 at 37mbar.

Important safety requirements

Location

The hobs may be located in a kitchen, a kitchen/diner or bed sitting room, but not in a bathroom, shower room or garage. Before making the cut out in the worktop ensure that there is a minimum distance of 55 mm between the rear edge of the hobs and the wall. A minimum distance of 100 mm must be left between the side edges of the hobs and any adjacent cabinets or walls. The minimum distance combustible material can be fitted above the hobs in line with the edges of the hobs is 400 mm. If it is fitted below 400 mm a space of 50 mm must be allowed from the edges of the hobs. The minimum distance combustible material can be fitted directly above the hobs is 700 mm. (see Figure 16)

Notice that a horizontal separation below the base of the hotplate is needed.

The minimum distance between this separation shall not exceed 150mm.

WHEN FITTING THE HOB WITHACKDER HOOD ABOVE 600mm 700mm 400mm 50mm 55mm 400mm 100mm 50mm

Figure 16

Warning: The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use. Keep natural centilation holes open or install a mechanical centilation device.

Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.

Warming: The base of the appliance should be protected from contact by a horizontal partition or plate.

Installation

IMPORTANT: The gas cooker must be installed by a competent person to the relevant Gas Standards.

Please, ensure that, once the gas cooker is installed, it is easily accessible for the engineer in the event of a breakdown.

WHEN THE GAS COOKER IS FIRST INSTALLED

Once the gas cooker has been installed, it is important to remove any protective materials, which were put on in the factory.

Any gas installation must be carried out by a competent person.

Important: When installing the gas cooker above a built-in oven, the oven should be placed on two wooden strips; in the case of a joining cabinet surface, remember to leave a space of at least 45 x 560 mm at the back.

When installing on a built-in oven without forced ventilation, ensure that there are air inlets and outlets for ventilating the interior of the cabinet adequately.

Gas Connection

A: End of shaft with 1/2 BSP male thread

B: Washer

C: Connector nut

D: Barb connector for hose (See Figure 17)

Figure 17

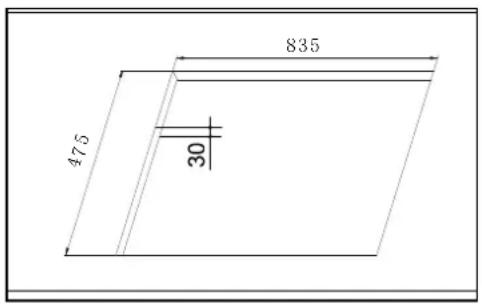

Cut Out dimensions

The dimensions of the cut-out are given in the diagram. (Dimensions are given in mm.)

555 475 30

Figure 18 Figure 19

475 835 30

Electrical connections

Any electrical work required to install this gas cooker should be carried out by a qualified electrician or competent person.

Check the last letter of your model to know the electrical supply type:A is for AC,D is for DC.

See PAGE 1 to check the electrical supply of your model

If the hobs to be connected to a 110\~240 V 50/60 Hz AC electrical supply.

Before switching on, make sure the electricity supply voltage is the same as that indicated on the hobs rating label.

Ensure that the hobs supply cable does not come into contact with surfaces with temperatures higher than 50 deg. C.

circuit diagram


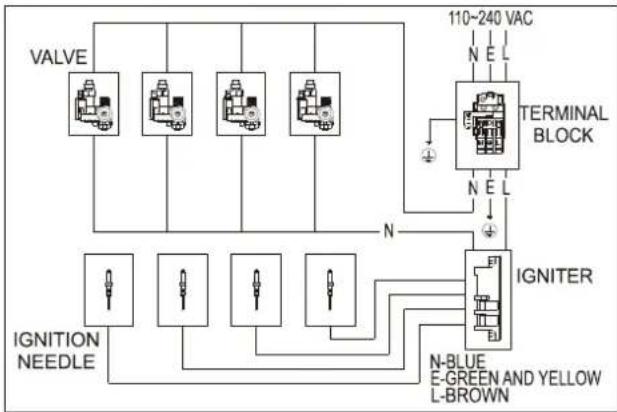

Figure 20 (for the appliance with four burners)


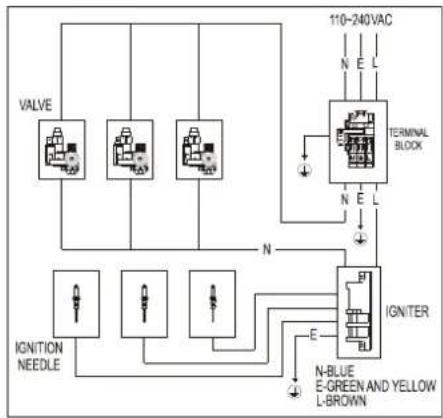

Figure 21 (for the appliance with three burners)

Figure 22 (for the appliance with five burners)

Use with D.C baterry

When your cooker is the one fitted with D.C supply device only, you are suggested to use one 1.5V battery.

Be sure that the battey is well fixed then you can follow the "Lighting" procedure.

Take off the battery if you won't use the cooker for a long time. Check the working performance every time before cooking.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

- Metallic objects such as knives, forks, spoons and lids should not be placed on the surface since they can get hot

- A steam cleaner is not to be used.

- Do not use a steam cleaner to clean your cooktop.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INFINITON

Pure architectural floor plan lines without any text, numbers, or symbols

JZY-HQ3L64ACGIK, JZT-HQ3L64ACGIK,

Technical diagram of a grid-based mechanical or electrical component with labeled circular features and section indicators.

Technical diagram of a mechanical component with labeled parts and cross-sectional views

Figura 13 Figura 14

JZY-HQ5B90BAGIK,JZT-HQ5B90CAGIK,

1.Quemador 6—1.75kW(127g/h) en 65 mm
2.Quemador 7—1.0kW(73g/h) en 45 mm
3.Quemador 8—3.0kW(218g/h) en 95 mm
4.Quemador 9—1.75kW(127g/h) en 65 mm
5.Quemador 10—3.5kW(255g/h) en 132 mm

JZY-HQ5L90CAGIK, JZT-HQ5L90CAGIK,

1.Quemador 6—1.75kW(127g/h)en 65 mm
2.Quemador 7—1.0kW(73g/h) en 45 mm
3.Quemador 8—3.0kW(218g/h) en 95 mm
4.Quemador 9—1.75kW(127g/h) en 65 mm
5.Quemador 10—3.5kW(255g/h) en 132 mm

Circular diagram with a black 'X' symbol inside concentric circles, resembling a stylized device or emblem (no text or labels)

Simple diagram with a checkmark inside a circle, enclosed in concentric rings

Simple line drawing of a circle with vertical lines and a star, no text or symbols present

Los quemadores

WHEN FITTING THE HOB WITHACKDER HOOD ABOVE 600mm 700mm 400mm 50mm 55mm 400mm 100mm 50mm

Empty white square with black border (no text or symbols)

Pure electrical circuit lines without any symbols

Entrada total de calor: 6,25 kW (455 g/h) Entrada total de calor: 6,25 kW (455 g/h)

Technical diagram of a grid-based mechanical or electrical component with labeled circular features and section indicators.

Technical diagram of a mechanical component with labeled parts and cross-sectional views

Figura 13 Figura 14

JZY-HQ5B90BAGIK,JZT-HQ5B90CAGIK,

Circular diagram with a black 'X' symbol inside concentric circles, resembling a stylized clock face (no text or labels)

Simple circular diagram with a black checkmark inside, likely indicating selection or confirmation.

Simple line drawing of a circle with internal vertical lines and a star, no text or symbols present

Os queimadores

WHEN FITTING THE HOB WITHACKDER HOOD ABOVE 600mm 700mm 400mm 50mm 55mm 400mm 100mm 50mm
