USER MANUAL HDBT250 Projecta

Tray Fitting Instructions to suit Auxiliary battery for Mazda BT50 B3000 Manual/Ford Ranger PJ-PK Manual

Years: Jan 2007 – Oct 2011

Models: WLT – 2.5 Litre Turbo Diesel & 3.0 Litre Diesel

Metallic metal bracket with attached clamps and bolts, no visible text or symbols

Silver pickup truck driving on grass with trees in background (no visible text or symbols)

Silver pickup truck parked outdoors on a paved surface, no visible text or symbols

IMPORTANT SAFETY INFORMATION

Please read this instruction thoroughly before fitting the tray.

This product is recommend to be fitted by a workshop or qualified mechanical person.

WARNINGS

• Before installation, make sure that the vehicle is stationary and the wheels chocked.
• Be careful when laying wires, not to cause any electrical shorts or wire breakage.
• After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.

SPECIFICATIONS

Max Battery Size (mm) L265 x W174 x H220

Max Battery Weight 18Kg

Recommended batteries Exide LCS 24-86 & Century NS70T

Approximate fitting time 1 hour

Special tools None required

Recommended Dual IDC25, DBC100, DBC150, VSR100 or VSR200Battery System

Tray Location Engine Bay, Passenger Side near radiator support

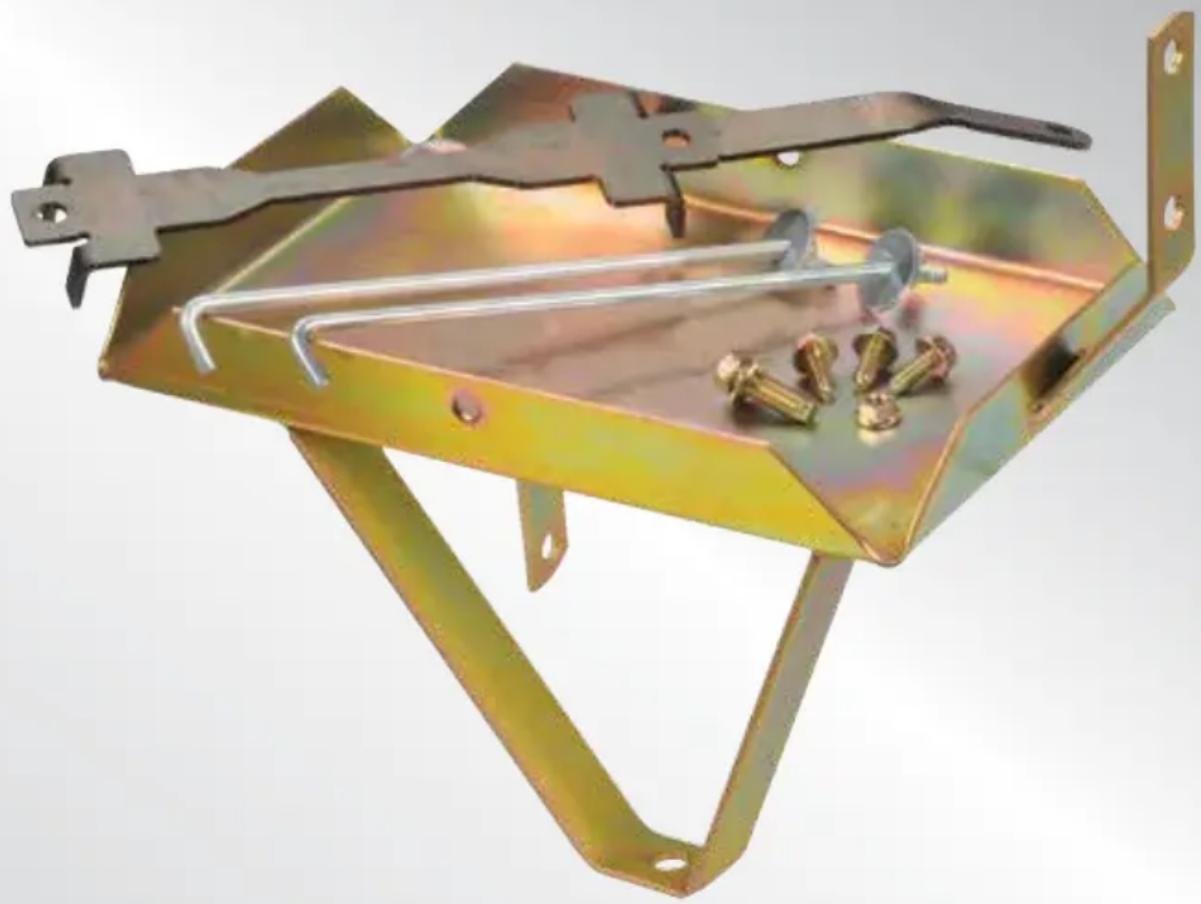

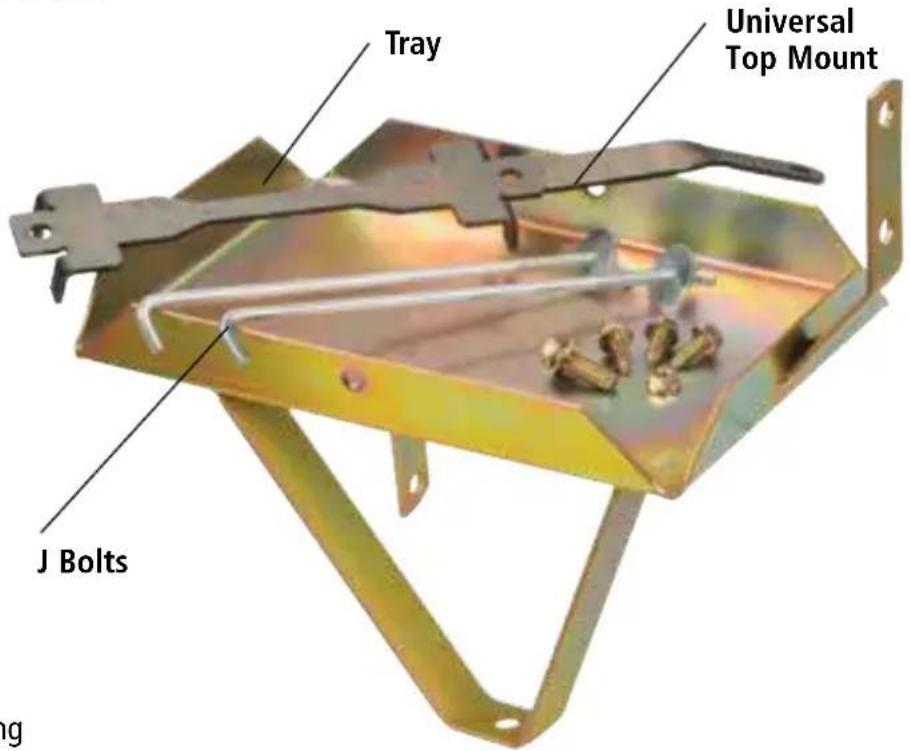

KIT INCLUDES

Hardware

1 x M8 Bolt Long
3 x M6 Bolt Hex
1 x M6 Nut

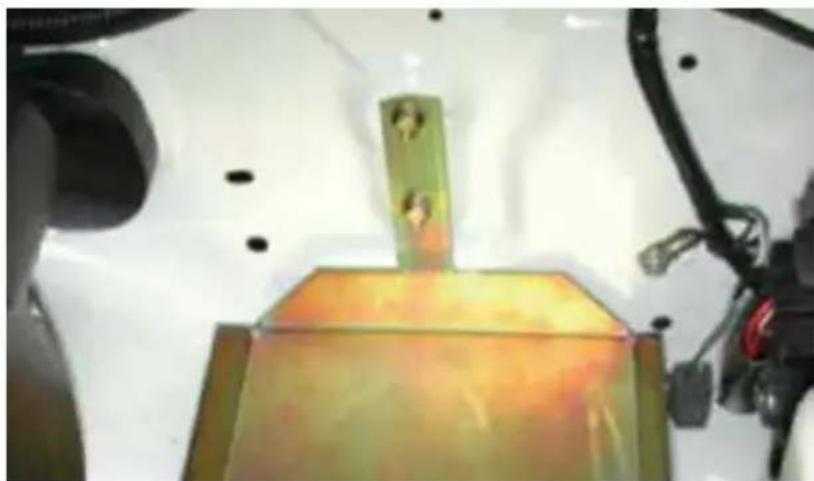

FITTING INSTRUCTIONS

1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminals from the main battery.

2. Your Auxiliary tray will be located between the passenger side headlight and air cleaner. Remove the rear M8 bolt with large flange located on inner guard where you will locate tray, in between the headlight and air cleaner and retain.

3. Move wiring loom from the same position.

4. Place tray in position. Air conditioning pipe may need to be manipulated.

Close-up of a metallic industrial component with wiring and mechanical parts (no visible text or symbols)

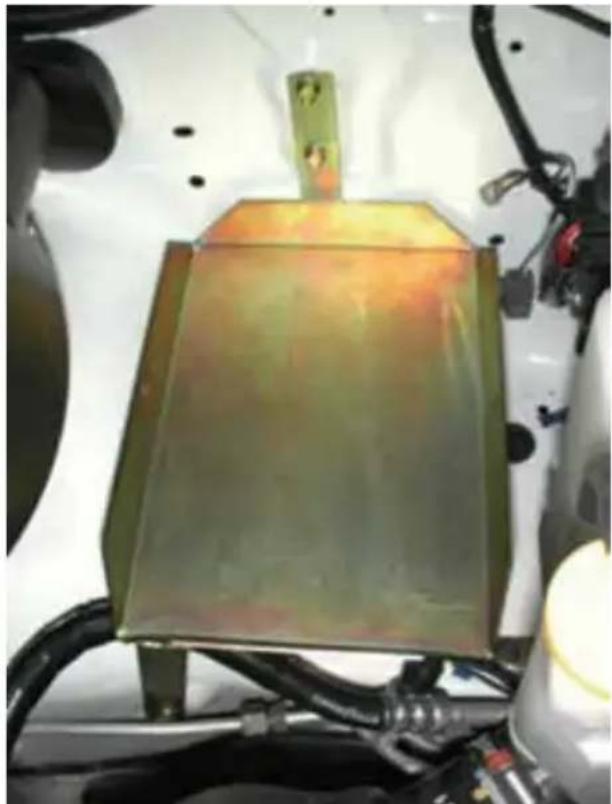

1. Place M8 bolt into captive nut below air-conditioning pipe.

2. Replace M8 bolt from step 2 through bottom bracket into guard.

3. Place two M6 Hex bolts in upper bracket into the exiting captive nuts.

Interior view of a vehicle's front suspension system showing a yellow box, green bracket, and mechanical components (no visible text or symbols)

1. Place Battery in tray.

Interior view of a vehicle battery pack with visible circuit breakers and control buttons (no text or symbols)

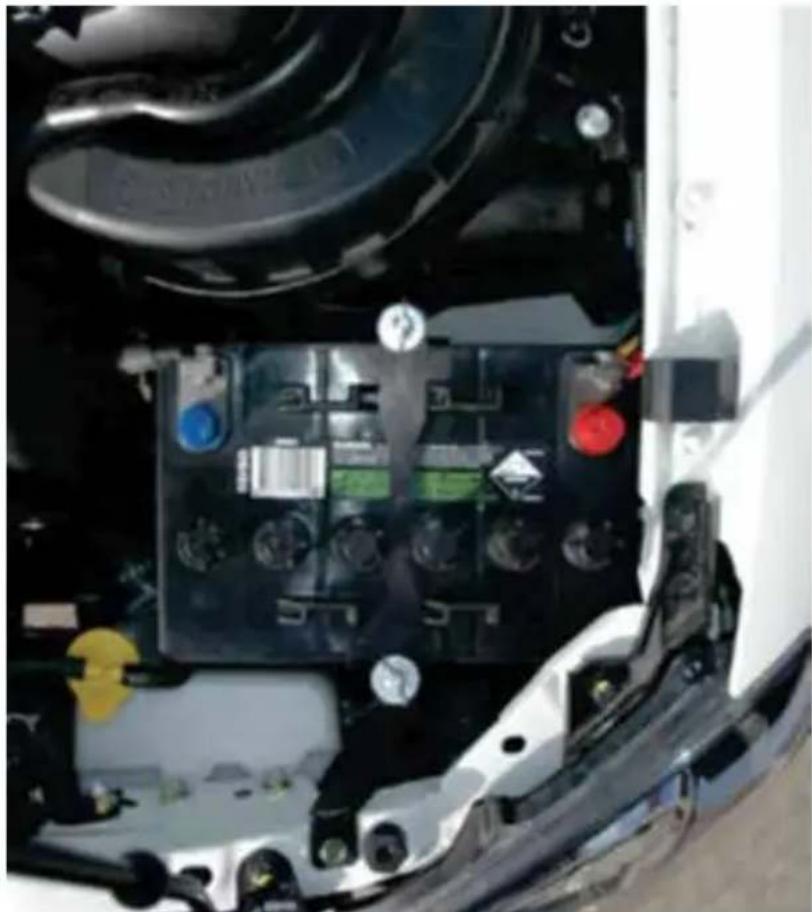

1. Fit the J bolts and place the special top mount on the battery and J bolts.
2. Line up the top mount and drill 6mm hole in radiator support.
3. Fit the M6 Hex bolt through the hole and tighten the M6 nut on the underside.
4. Tighten the nuts on the J bolts.
5. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery, tray and J bolts do not hit the bonnet.

For assistance throughout the installation procedure please call our customer service representatives on 1800 113 443.
