USER MANUAL DDJ-SB PIONEER

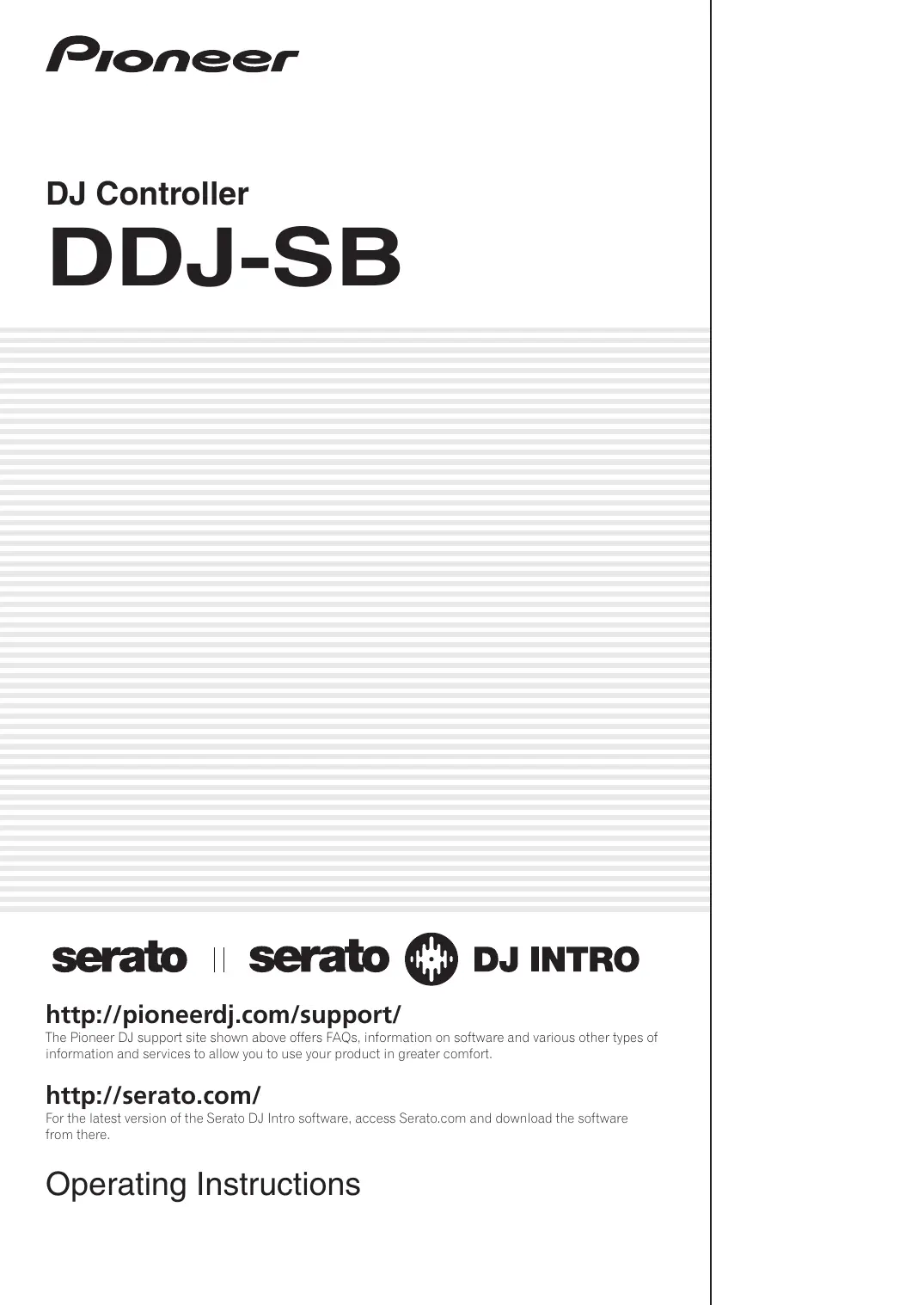

Proneer DJ Controller DDJ-SB serato | serato (D Dy INTRO http://pioneerdj.com/support/ The Pioneer DJ support si an above offers FAQs, information on software and various other types of nformation and services to allow you to use your product in greater comfort http://serato.com/ For the latest version of the Serato DJ Intro software, access Serato.com and download the software from there. Operating Instructions

Contents How to read this manual + Thank you for buying this Pioneer product Be sure to read both this leaflet and Read Before Use (Important)/ Quick Start Guidel Both documents include important information that you must understand before using this product For instructions on obtaining the Serato DJ Intro software's manual, see Acquiring the manual (p.20). + In this manual, names of screens and menus displayed on the prod uct and on the computer screen, as well as names of buttons and terminals, etc., are indicated within brackets. (e.g.: [CUE] button, [Files] panel, [MIC] terminal) + Please note that the screens and specifications of the software described in this manual as well as the external appearance and specifications of the hardware are currently under development and may differ from the final specifications. + Please note that depending on the operating system version, web browser settings, etc., operation may differ from the procedures described in this manual This manual consists mainly of explanations of functions of this unit as hardware. For detailed instructions on operating the Serato DJ Intro software, see the Serato DJ Intro software manual + The Serato DJ Intro software manual can be downloaded from “Serato.com'". For details, see Downloading the Serato DJ intro software manual (p. 20) + The latest version of these operating instructions can be down: loaded from the Pioneer support site. For details, see Downloading the latest version of these operating instructions (p.20) ® Before start Features 3 What's in the box 3 Installing the software 3 About the driver software and setting utility software. 5 [02] Connections and part names Connections 7 Part names and functions 7 ® Basic Operation Connections 10 Starting the system 11 Quitting the system 13 Using the performance pads 14 Using effects 15 Using the filter fade function 16 Mixing the sound of the microphone. 17 Analyzing tracks: 17 Launching utiities mode 18 Changing the settings 18 ® Additional information Troubleshooting 10 Acquiring the manual 20 Using as a controller for other DJ software. 21 About trademarks and registered trademarks 22 Cautions on copyrights 22

Before start Features This unit is an all-in-one DJ system combining Pioneer DJ units that have earned a high reputation among professional DJs for their high operability with the “Serato DJ Intro” DJ software from Serato. This unit is equipped with a large body and “Big Jog" dials optimum for scratching as well as performance pads allowing tracks to be arranged with such dynamic actions as tapping and rolling, so that the various functions of Serato DJ Intro can be operated intuitively and accurately. There is also a builtin sound card (audio interface), eliminating the need for complex wiring and settings so that users can start making DJ perfor mances immediately. This unit is equipped with large jog dials for smooth operability, so users can scratch with the feel of an analog player. “PERFORMANCE PADS" This unit is equipped with large performance pads allowing the various functions provided with Serato DJ Intro, including the hot cue, loop and sampler functions, as well as the basic functions of the [CUE (IH@)] and DH] buttons, to be operated with such dynamic actions as tapping and rolling. Furthermore, rubber is used as the pad material to allow operation with out tring, even during long performances. Design The operating interfaces required for DJs are arranged with room to spare on the large frame. Aluminum is used for the jog plates, and the plastic panel top plates have a hairline surface finish resulting in a design with a high-class look. “FILTER FADE" This unit is equipped with a “Filter Fade" function that combines the crossfader and high pass filter so that any two tracks can be mixed naturally. “Serato DJ Intro” This unit supports the Serato DJ Intro DJ software providing the basic functions required for DJ performances. All of the buttons and controls are preset to work together with the software, so DJ performances can be held immediately, simply by connecting this unit to a computer. Users can also upgrade to Serato DJ which provides a variety of func: tions, including a “Slip Mode”, iZotope effects and a recording function: iZotope is a US. developer and manufacturer of audio technology terface) This unit is equipped with a built-in high quality sound card (audio inter face), eliminating the need for complex wiring and settings so that users can start making DJ performances immediately.

This product supports USB bus power. It can be used simply by connect: ing it to a computer with a USB cable. Heys °10j0g |

This product inherits the sound quality technology developed over the years for Pioneer DJ hardware to achieve the top level of sound quality in its class. What's in the box + CD-ROM Installation Disc) + USB cable + Warranty (for some regions) +__ Read Before Use (Important}/Quick Start Guide [M] The included warranty is for the European region — For the North American region, the corresponding information is provided on the last page of both the English and French versions ofthe “Read Before Use (Important}/Quick Start Guide — For the Japanese region, the corresponding information is: provided on the last page of the Japanese version of the “Read Before Use (Important)/Quick Start Guide Installing the software Before i stalling the software For the latest version of the Serato DJ Intro software, access Serato com and download the software from there. À software download link is also provided on the included CD-ROM. + For details, refer to Installation Procedure (Windows) or Install procedure (Mac OS X) + The users responsible for preparing the computer, network devices and other elements of the Internet usage environment required for a connection to the Internet About the driver software (Windows) This driver software is an exclusive ASIO driver for outputting audio Signals from the computer. + There is no need to install the driver software when using Mac OS X. Checking the latest information on the driver software For detailed information on this unit's designated driver software, see the Pioneer DJ support site below. http//pioneerdj.com/support/ En (3)

About the Serato DJ Intro software Serato DJ Intro is a DJ software application by Serato. DJ performances are possible by connecting the computer on which this software is installed to this unit imum operating environment Supported operating CPU and req systems red memory Mac OS X: 10.8, 10.7 and re Duo 1.6 GHz or better 106 GB or more of RAM 5 & Windows: Windows 7 (pt) _Intel? processor, Corer# GHz or better and Windows Vista (SP1) GB or more of RAM rive on which the ROM can be

Optical drive Optical disc ‘AUS 2.0 port is required to connect the computer with this unit USB port Resolution of 1 024 x Display resolution or greater An Internet connection is required for registering Internet connection the “Serato.com" user account and downloading the software. + Forthe latest information on the required operating environment and compat: ibility as well as to acquire the latest operating system, refer to “Software Info under “DDJ-SB" on the Pioneer DJ support site below http}/pioneerdj.com/support + Operating System support assumes you are using the latest point release for that version + Operation is not guaranteed on all computers, even if all the required operating environment conditions indicated here are fulfilled! + Depending on the computer s power-saving settings, ete. the CPU and hard disk may not provide sufficient processing capabilties. For notebook comput: ers in particular, make sure the computer is in the proper conditions to provide constant high performance (for example by keeping the AC power connected) when using Serato DJ Intro: + Use ofthe Internet requires a separate contract with a provider offering Internet services and payment of provider fees. About the installation procedure The installation procedure depends on the operating system (OS) on the computer you are using. For Windows After installing the driver software, install the Serato DJ Intro software. For Mac OS X Only install the Serato DJ Intro software. Installation Procedure (Windows) [Po not connect his unit andthe computerunti installation is completed + Log on as the user which was set as the computer's administrator before installing + Ifanyother programs are running on the computer, quit them. 1_ Insert the CD-ROM into the computer’s optical drive. The CD-ROM menu is displayed +__lfthe CD-ROM menu does not appear when the CD-ROM is inserted. open the optical drive from [Computer (or My Computer)] in the [Start] menu, then double-click the [CD_menu.exe] icon

2. When the CD-ROM menu appears, select [Install

Driver Software (Pioneer DDJ_SB_Driver.x.xox.exe)], then click [Start]. + To close the CD-ROM menu, click [Exit} 3 Proceed with installa: on the screen. If [Windows Security] appears on the screen while the installation is in progre: k [Install this driver software anyway] and continue with the installation When the installation program is completed, a completion message appears. After installing the driver software, install the Serato DJ Intro software. n according to the instructions C4) & 4 Select [Download Serato DJ Intro Software] from the CD-ROM's menu, then click [Start]. 5 “An internet environment is required to access the site. Connected to the internet?" is displayed. Click [Yes]. The web browser is launched and the Pioneer DJ support site is displayed. 6 Click [Software Info] under [DDJ-SB] on the Pioneer DJ support site. 7 Click the link to the Serato DJ Intro download page. The Serato DJ Intro download page is displayed. 8 Login to your “Serato.com” user account. + Ifyou have already registered a user account on ‘Serato.com", pro ceed to step 10. + Ifyou have not completed registering your user account, do so fol lowing the procedure below. — Following the instructions on the screen, input your e-mail address and the password you want to set, then select the region in which you live f you check [E-mail me Serato newsletters], newsletters pro- viding the latest information on Serato products will be sent from Serato. — Once user account registration is completed, you will receive an e-mail at the e-mail address you have input. Check the contents of the e-mail sent from "Serc + Be careful not to forget the e-mail address and password specified when you performed user registration. They will be required for updating the software. + The personal information input when registering a new user account may be collected, processed and used based on the privacy policy on 9 Click the link in the e-mail message sent from “Serato. com”. This takes you to the Serato DJ Intro download page. Proceed to step 11 10 Login. Input the e-mail address and password you have registered to log in to Serato.com' 11 Download the Serato DJ Intro software from the download page. Unzip the downloaded file, then double-click the unzipped file to launch the installer. 12 Read the terms of the license agreement carefully, and if you agree, select [I accept the agreement], then ick [Next]. CEE EE) License Agreement A Feng e lourg porn rater be corrure as ec eur nee Ag came tous ac a Lee conne ve de rnn BSERATO USER LICENSE AGREEMENT License Agreement

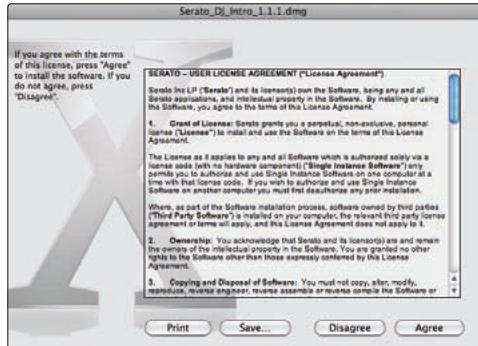

era LP Carto ant ces) out Sata, bem Ény and a Sora aphatons a male proper Do Éhnas. Bynsalrg or gb Soin vas ape te ie Pin du franco Liconse: So gants you a popatual non exclusie, persona icense License”) o sta and se = CRETE Last CHE Li you do not agree to the contents of the license agreement, click (Cancel) to cancel installation. Installation begins. The message of successful installation appears once installation is completed

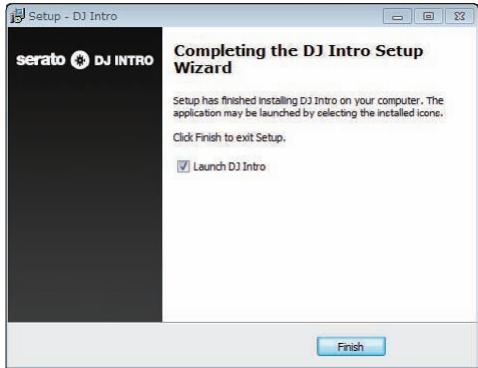

13 Click [Finish] to quit the Serato DJ Intro installer. Cie CERTES Completing the DJ Intro Setup Wizard Sens rang D21m nur coque Te Sr era mai Garabesstn trek te Installation procedure (Mac OS X) Do not connect this uni completed d'the computer until installation is + Ifany other programs are running on the computer, quit them 1_ insert the CD-ROM into the computer's optical drive. The CD-ROM menu is displayed + lfthe CD-ROM menu does not appear on the screen when the CD-ROM is inserted, open the optical driver from Finder, then dou ble-click the [CD_menu.app] icon. 2 Select [Download Serato DJ Intro Software] from the CD-ROM's menu, then click [Start]. 3 “Aninternet environment is required to access the e. Connected to the internet?" is displayed. Click [Yes]. The web browser is launched and the Pioneer DJ support site is displayed. 4 Click [Software Info] under [DDJ-SB] on the Pioneer DJ support site. 5 Click the link to the Serato DJ Intro download page. The Serato DJ Intro download page is displayed 6 Log in to your “Serato.com” user account. + Ifyou have already registered a user account on “Serato.com", pro- ceed to step 8. + Ifyou have not completed registering your user account, do so fol lowing the procedure below — Following the instructions on the screen, input your e-mail address and the password you want to set, then select the region in which you live. — Ifyou check [E-mail me Serato newsletters], newsletters pro. viding the latest information on Serato products will be sent from Serato. — Once user account registration is completed, you will receive an e-mail at the e-mail address you have input. Check the contents ofthe e-mail sent from “Serato.com: + Be careful not to forget the e-mail address and password specified when you performed user registration. They will be required for updating the software + The personal information input when registering a new user account may be collected, processed and used based on the privacy policy on the Serato website. 7 k the link in the e-mail message sent from “Serato. com This takes you to the Serato DJ Intro download page. Proceed to step 9. 8 Login. Input the e-mail address and password you have registered to log in to Serato.com' 9 Download the Serato DJ Intro software from the download page. Unzip the downloaded the installer. then double-click the unzipped file to launch 10 Read the terms of the license agreement carefully, and if you agree, click [Agree]. gree lo the contents of the usage agreement, click ncel installation + _lfyoudonot (Disagree] to 11 fthe following screen appears, drag and drop the [Serato DJ Intro] icon on the [Applications] folder icon. About the driver software and setting utility software ice conforming to th

This unit functions as an audio devi standards. Using the settings utility software This function can only be used by those using a Windows operating system. + Launching the settings utility software Click the Windows [Start] menu>[AIl Programs]>[Pioneer]>[DDJ_SB]>[DDJ_SB ASIO Settings Utility]. + Adjusting the buffer size In the same way as the buffer size setting in the Serato DJ Intro software, decreasing the value of he [Kernel Buffers] setting lowers the transfer delay (latency) of the audio data, while increasing the value reduces the tendency for dropouts in the audio data (breaks in the sound). The setting at [USB BUFFER SIZE (LATENCY)] in the Serato DJ Intro soft ware's [SETUP] menu has priority for the buffer size. (The default setting s 512 samples/10 ms.) + For details on making the settings on the DJ software, see the Serato DJ Intro software manual + _Ifthe [Buffer Size] or [Kernel Buffers] number is made large, drops in the data (breaks in the sound), etc., occur less easily, but the time lag due to transmission delays in the audio data (latency) increases. En (5 jeJs 210J9g

+ If breaks in the sound occur with the default setting 1 Launch [DDJ_SB ASIO Settings Utility] and change [Kernel Buffers] to [4]. 2 Set [USB BUFFER SIZE (LATENCY)] in the Serato DJ Intro software to the minimum buffer size at which no breaks in the sound occur. + If no breaks in the sound occur with the default setting 1 Set [USB BUFFER SIZE (LATENCY)] in the Serato DJ Intro software to the minimum buffer size at which no breaks in the sound occur. 2 Launch [DDJ_SB ASIO Settings Utility], change [Kernel Buffers] to [2], and check that no breaks in the sound occur. 3 Ifno breaks in the sound occur, set [USB BUFFER SIZE (LATENCY) the Serato DJ Intro software to the minimum buffer size at which no breaks in the sound oceur. If breaks in the sound do occur, change [Kernel Buffers] in the [DDJ_SB ASIO Settings Utility] to [3]. Checking the ver: software n of the driver Click the Windows [Start] menu>lAII Programs]>[Pioneerl>[DDJ_SB]>[DD)_SB Version Display heck the firmware version of this unit on the screen. +__ The firmware version is not displayed when this unit is not connected ta the computer or when this unit and computer are not property communicating,

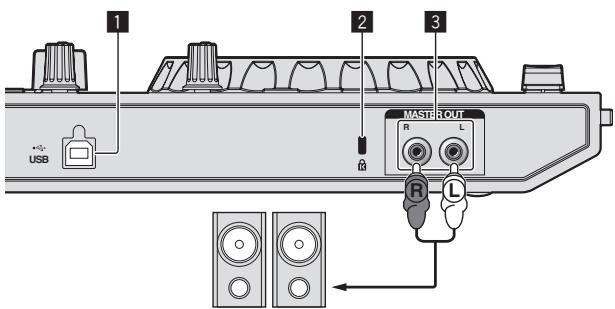

Connections and part names Connections Always disconnect the USB cable before making or changing equipment connections. Be sure to use the USB cable included with this product Refer to the operating instructions for the component to be connected With this unit, the power is supplied by USB bus power. The unit can be used simply by connecting it to a computer using the USB cable. + Connect the computer to which this unit is to be connected to an AC power suppl. + AUSB hub cannot be used + In cases like the ones below, the power may be insufficient and this unit may not operate on USB bus power. — When the computer s USB power supply capacity is insufficient. — When other USB devices are connected to the computer — When headphones with an impedance of less than 32 Q are connected — When headphones are simultaneously connected to the stereo phone jack and the stereo mini-phone jack — When à monaural jack is connected to the [(HEADPHONES] terminal. Rear panel AR lrere : B7

(e) Power amplifier, powered speakers, etc. = USB terminal Connect to a computer. + Connect this unit and the computer directly usi USB cable. + AUSB hub cannot be used. the included E Kensington security slot El MASTER OUT terminals Connect a power amplifier, powered speakers, etc. here: + Compatible with RCA pin-jack type unbalanced outputs. _pammn pt ln Frenser 0 } EL |

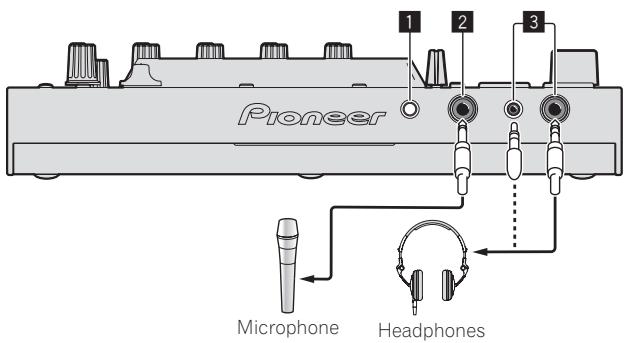

Headphones Microphone I MIC LEVEL control Adjusts the audio level input to the [MIC] terminal BE MIC jack Connects a microphone here. El HEADPHONES jacks Connect headphones here. Both stereo phone plugs (8 6.3 mm) and stereo mini phone plugs (2

3.5 mm) can be used.

+ There are two input jacks, both a stereo phones jack and a mini phones jack, but do not use both simultaneously. If both are used simultaneously, when one is disconnected and/or connected, the volume of the other may increase or decrease suddenly. seureu pied pue suor2euuoy Part names and functions The functions of the par Serato DJ Intro. ntroduced here are based on the functions of Descriptions of functions that can be used after upgrading to Serato DJ are indicated For details of the functions, see the Pioneer DJ support site below httpy/pioneerdj.com/support/ [1] Browser section [2] Deck section [3] Mixer section [4] Effect section Browser section EX LOAD button Press: The selected tracks are loaded to the respective decks. + When the [LOAD] button is pressed twice, the tracks loaded in the selected deck on the opposite side are loaded into the deck whose [LOAD)] button was pressed. When this is done while atrack is playing, the track is played from the same position. {instant Double) En (7)

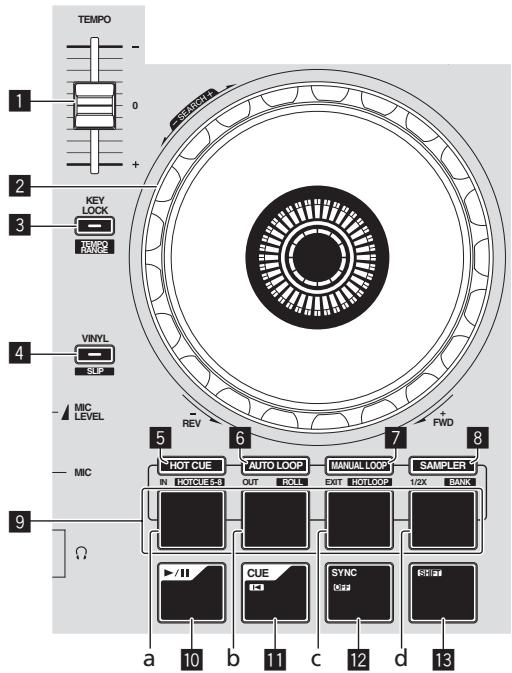

Rotary selector El KEY LOCK (TEMPO RANGE) button Turn Press: The cursor in the library, crates panel, etc., moves up or down. Turns the key lock function on and off. When the key lock function is on, the key does not change even when Press: the playing speed is changed with the (TEMPO) slider. When the cursor is positioned in the crates panel, moves the cursor + The sound is digitally processed, so the sound quality decreases. to the library. The cursor moves between the crates panel and library each time the ISHIFT] + press: rotary selector is pressed. The [TEMPO] slider's range of variation switches each time the but- The cursor on the [Files] panel moves to a lower layer. ton is pressed El BACK (PANEL) button 8%) 116%) (450%) Press: When the cursor is positioned in the crates panel, either opens or EX VINYL (SLIP) button closes the sub crates. When the cursor is positioned in the library, moves the cursor to the crates panel. The cursor on the [Files] panel moves to a higher layer. This switches the vinyl mode on/off. [SHIFT] + press: [SHIFTI + press: Turns the slip mode on and off. El HOT CUE mode button The panel display switches in the order below each time the button Press: is pressed. Sets the hot cue mode. Panel display off æ+ [REC] panel =+ [FX] panel + (SP-6] panel + Panel display off ISHIFT) + Deck section Sets the hot cue 5-8 mode. The deck section is used to control the two decks. There are controls and H AUTO LOOP mode button buttons for operating deck 1 on the left side of the controller, controls Press and buttons for operating deck 2 on the right side of the controller. Sets the auto loop mode. [SHIFT] + press: Sets the roll mode. H MANUAL LOOP mode button Press: Sets the manual loop mode. [SHIFT] + press: Sets the hot loop mode. El SAMPLER mode button Press: Sets the sampler mode. [SHIFT] + press: Sets the bank mode. Performance pads rmance pad 1

d_ Performance pad 4 Various performances can be achieved using the pads Using the performance pads (p.14) TEMPO slider Use this to adjust the track playing speed »/Il button Jog dial m Press: Turn top: Use this to play/pause tracks. When the vinyl mode is on, the scratch operation is possible. When the vinyl mode is off, the pitch bend operation (adjustment of I CUE (+) button the playing speed) is possible Press This is used to set, play and call out temporary cue points. Turn outer section: + When the [CUE (H@] button is pressed while pausing, the tempo The pitch bend operation (adjustment of the playing speed) is rary cue point is set possible. + When the [CUE (H@] button is pressed during playback, the track returns to the temporary cue point and pauses. (Back Cue) ISHIFTI + Turn top + When the ÎCUE (H@] button is pressed and held after the track When the jog dial is spun while pressing [SHIFT] button during returns to the temporary cue point, playback continues as long playback, the track is fast-fonwarded/fast-reversed. as the button is pressed in. (Cue Sampler)

+ When the De/I] button is pressed during cue sampling, play back continues from that point ISHIFT] + press: Loads the previous track in the library. (Previous Track) + Ifthe current playback position is not the beginning of a track, the track returns to the beginning SYNC (OFF) button Press The tempo (pitch) of tracks on adjacent decks can be synchronized automatically ISHIFT] + press: Cancels the sync mode IE SHIFT button When another button is pressed while pressing the [SHIFT] button, à different function is called out. Mixer section IX EQ (HI, MID, LOW) controls Boosts or cuts frequencies for the different channels. B FILTER control Applies the filter effect for the respective channel. The original sound is output when the control is at the center position. Turn counterclockwise: Gradually decreases the low-pass filter s cutoff frequency. Turn clockwise: Gradually increases the high-pass filter's cutoff frequency. El Headphones CUE button Press: The sound of channels for which the headphones [CUE] button is pressed is output to the headphones. + When the headphones [CUE] button is pressed again, monitoring is canceled. Channel fader Move: Adjusts the level of audio signals output in each channel. ISHIFT] + move: Use the channel fader start function. FILTER FADE button Turns the filter fade function on and off. 2 Using the filter fade function (p.16) Crossfader Switches between the audio output of the left and right decks. MASTER LEVEL control Adjusts the master sound level output: El HEADPHONES MIX control Adjusts the balance of the monitor volume between the sound of the channels for which the headphones [CUE] button is pressed and the sound of the master channel. HEADPHONES LEVEL control Adjusts the sound level output from the headphones. Effect section This section is used to control the two effect units (FX1 and FX2) Controls and buttons to operate the FX1 unit are located on the left side ofthe controller, those to operate the FX2 unit are located on the right side of the controller. Lie I Effect 1 button Turns the effect on/off. ISHIFT] + press: Switches the effect type. B Effect 2 button Turns the effect on/off. ISHIFT] + press: Switches the effect type. El Effect 3 button Turns the effect on/off. ISHIFT] + press: Switches the effect type. Effect level controls These adjust the effects’ parameters. 2 Using effects (p.15) ISHIFT] + press: Adjusts the effect time. seureu pied pue suor2euuoy | En (9)

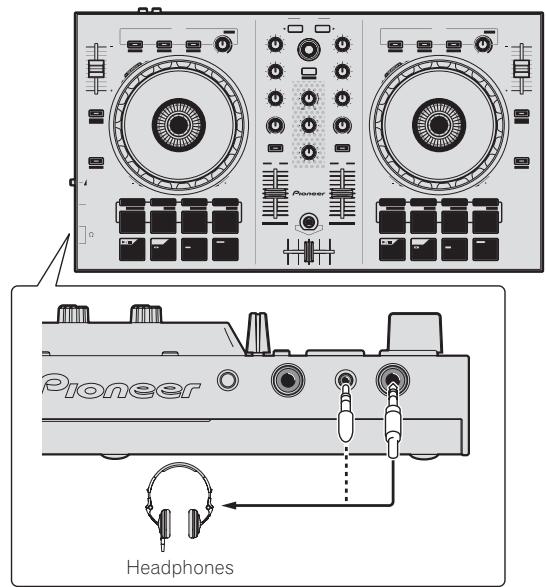

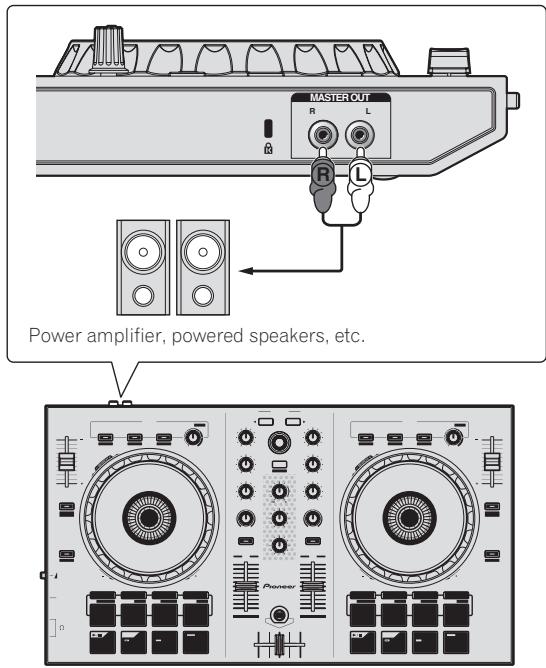

Basic Operation Connections 1 Connect headphones to one of the [HEADPHONES] terminals. mere 87e G}— Ur. 2 Connect such devices as a power amplifier, powered speakers, etc. to the [MASTER OUT] terminals.

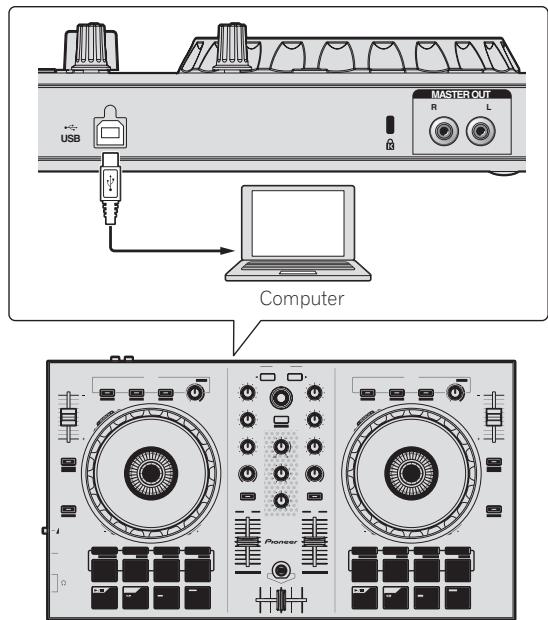

(e}| Ke} Power amplifier, powered speakers, etc. + For details on the connections of the input/output termins Coni (p.7) 3_ Turn on the computer's power. 4 Connect this unit to your computer via a USB cable. Computer

+ For Windows users The message tnstalling device driver software] may appear when this unit is first connected to the computer or when it is connected to a different USB porto the computer. Wait a while until the message [Your devices are ready for use] appears. 5 Turn on the power of the devices connected to the output terminals (power amplifier, powered speakers, etc). + When a microphone is connected to input terminals, the power of the microphone al urns on.

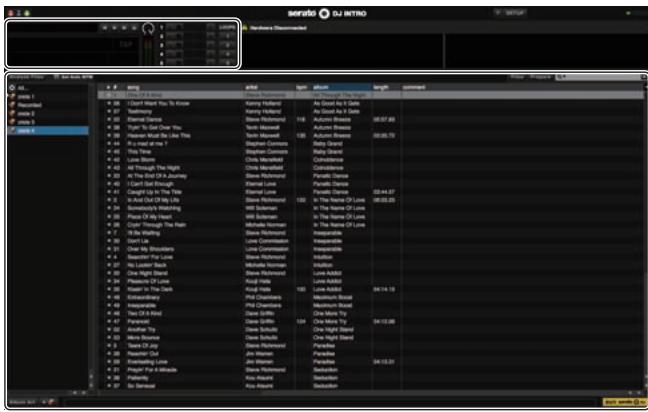

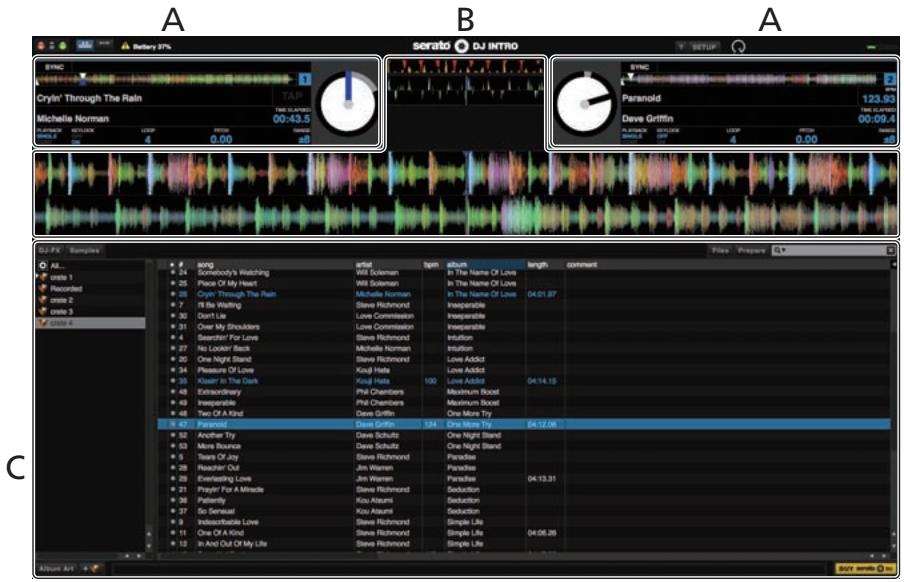

Starting the system Launching Serato DJ Intro For Windows he Windo All Programs > [Serato) > [DJ Intro] s [Start] menu, click the [Serato DJ Intro] icon uni For Mac OS X In Finder, open the [Applications] folder, then click the [Serato DJ Intro] icon. Computer screen directly after the Serato DJ Intro software is launched Computer screen when a track is loaded in the Serato DJ Intro software A Deck section The track int mation is at d'track, artist name, BPM, etc B Waveform display The lo d track's waveform is d € Browser section h tracks in the library sists mainly of explanatioi tware manua of multiple tracks are stored are s of functions of this unit as hardwar to DJ Intro software

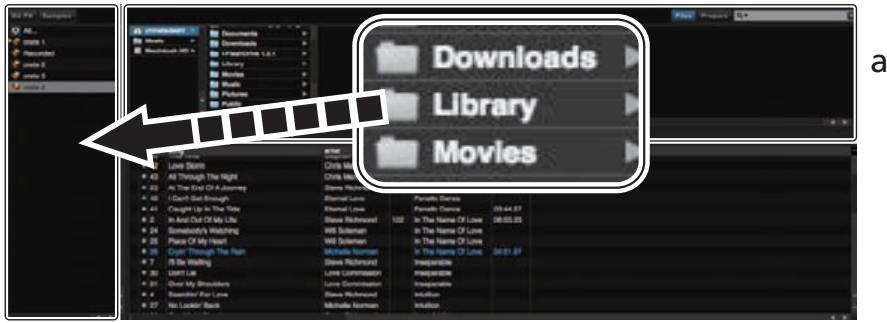

Importing tracks ing describes the typical procedure for importing tracks. rato DJ Intro soft ratch Live, ITCI import tracks with th erato DJ si war can be used as suci 1 Click the [Files] key on the Serato DJ Intro software screen to open the [Files] panel. played in the [Files] panel The contents of your computer or the peripheral connected to the computer ar 2 Click the folder on the [Files] panel containing the tracks you want to add to the library to select it. 3 On the Serato DJ Intro software screen, drag and drop the selected folder to the crates panel. A crate is created and the tracks are added to the library à [Files] panel b. Crates panel Loading tracks and playing them The fo ing describes the procedure for loading tracks into deck [1] as 2 Pressthe rotary selector, move the cursor to the an exempl library on the computer's screen, then turn the rotary selector and select the track.

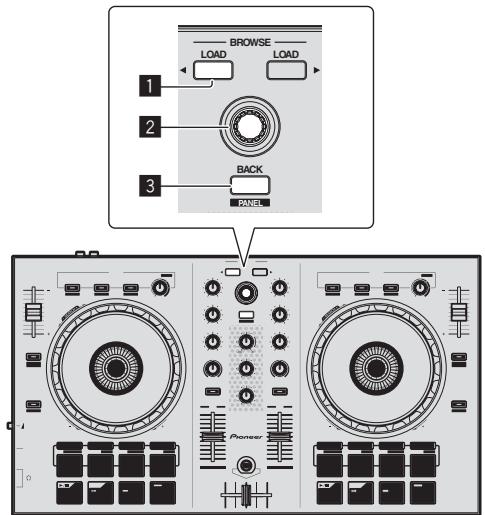

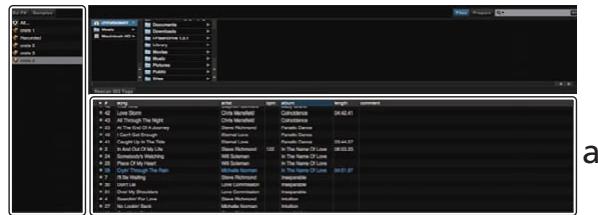

à Library b Crates panel 3 Press the [LOAD] button to load the selected track onto the deck. LOAD button Rotary selector BACK (PANEL) button 1 Press this units [BACK (PANEL)] button, move the cursor to the crates panel on the computer's screen, then turn the rotary selector to select the crate, etc.

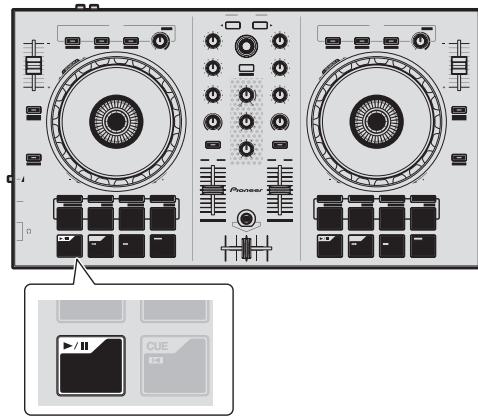

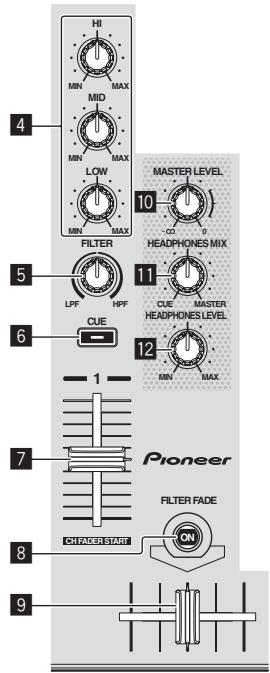

Playing tracks and | outputting the sound e for outputting the channel 1 e following describe: sound as an example. + Set the volume of the device conni minals (power amplifier, powered el. Note that the output sound the [MASTER OUT] er ) to an appropriate may be loud if the volume is set too Mixer section

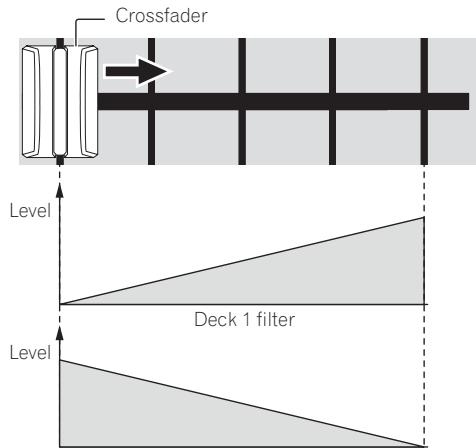

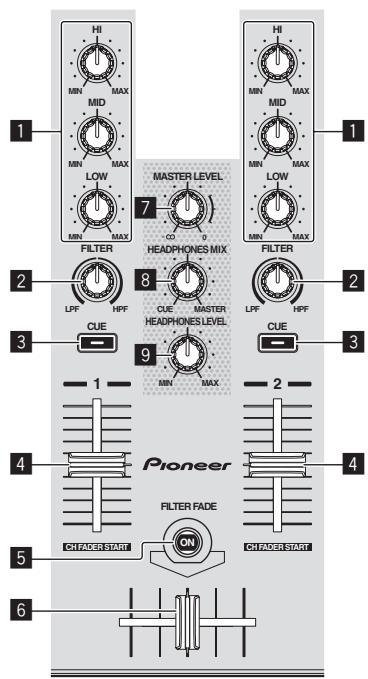

EQ (HI, MID, LOW) controls FILTER control Headphones CUE button Channel fader E FILTER FADE button Crossfader I MASTER LEVEL control HEADPHONES MIX control HEADPHONES LEVEL control 1 Set the positions of the controls, etc., as shown below. Names of controls, etc. EQ (HI, MID, LOW controls FILTER conti Channel fader Moved fon MASTER LEVEL control Turned fully counterclochwise button to play the track.

3 Move the channel fader away from you. 4 Turn the [MASTER LEVEL] control to adjust the audio level of the speakers. Adjust the audio level output from the [MASTER OUT] terminals to an appropriate level. Monitoring sound with headphones Set th Names of controls, et HEADPHONES MIX control positions of the controls, etc. own below HEADPHONES LEVEL control Tumed fully counterclochwise

1. Press the headphones [CUE] button for the channel 1.

2 Turn the [HEADPHONES LEVEL] control. Adjust the sound level output from the headphones to an appropriate level Note This unit and the Serato DJ Intro software include a variety of functions enabling individualistic DJ performances. For details on the resp functions, see the operating instructions and the Serato DJ Intro soft ware mani This unit Serato.com. For details, see Downloa: manual (p. 20) Quitting the system 1 Quit Serato DJ Intro. When the software is closed close it appears on the computer's screen. Click [Yes] to message for confrming that vou want to close. 2 Disconnect the USB cable from your computer. uore1edO 21seg (18)

Applied Operation The descriptions from this point on are for functions not described in the Serato DJ Intro software manual that are specifically for when this unit and Serato DJ Intro are used in combination Using the performance pads There are four modes for the DDJ-SB's performance pads. Pad mode These control the hot cue, auto loop, manual loop and sampler functions. These functions are switched using the respective pad mode buttons {the [HOT CUE] mode button, [AUTO LOOP] mode button, [MANUAL LOOP] mode button and [SAMPLER] mode button) Using hot cues With this function, playback can be started instantaneously from the position at which à hot cue is set + Up to four hot cue points can be set and saved per track.

1. Press the [HOT CUE] mode button.

The [HOT CUE] mode button lights and the hot cue mode is set. 2 Inthe play or pause mode, press a performance pad to set the hot cue point. The hot cue points are assigned to the respective performance pads as shown below Hot cue1| |Hotcue2| |Hotcue3| |Hotcue4 3 Press the performance pad at which the hot cue point was set. Playback starts from the hot cue point. + Set hot cue points can be cleared by pressing a performance pad while pressing the [SHIFT] button. Using auto loops ops of 1, 2, 4 or 8 beats based on the track's Use this procedure ta set lo BPM

1. Press the [AUTO LOOP] mode button.

The [AUTO LOOP] mode button lights, and the unit switches to the auto loop mode. 2 Press a performance pad during playback to turn the auto loop on. The auto loop beats are assigned to the respective pads as shown below. 1 beat 2 beats Abeats | | 8 beats 3 Press the performance pad again to turn the auto loop off. (14) En Using manual loops Use this procedure to set loops manually 1 Press the [MANUAL LOOP] mode button. The IMANUAL LOOP] mode button lights, and the unit switches to the manual loop mode 2 During playback, press performance pad 1 to set the loop in point. Loop Loop Cancel past in out loop length 3 During playback, press performance pad 2 to set the loop out point. Manual looping between the loop in point and the loop out point si 4 Press performance pad 3 during manual loop playback to cancel manual looping. + When performance pad 3is pressed during playback after canceling manual loop playback, playback returns to the previously set loop in point and manual loop playback resumes. + Switching the length of manual loops When performance pad 4 is pressed during manual loop playback the manual loop playback length is cut in half each time the pad is pressed. When performance pad 4 is pressed while pressing the [SHIFT] but ton during manual loop playback, the manual loop playback length is doubled each time the pad is pressedi + Fine-adjusting the length of manual loops + When performance pad 1 is pressed during manual loop playback the jog dial can be used to fine-adjust the loop in point — When performance pad 1 is pressed again, the fine-adjustment mode is canceled and manual loop playback resumes. When performance pad 2 is pressed during manual loop playback the jog dial can be used to fine-adjust the loop out point. — When performance pad 2 is pressed again, the fine-adjustment mode is canceled and manual loop playback resumes. Using the sampler function This procedure can be used to play tracks loaded in the sampler's sam pler slots using the performance pads. 1 Click [Samples] on the computer screen to open the [Samples] panel on the computer screen. 2 Press the [SAMPLER] mode button. The [SAMPLER] mode button lights and the mode switches to the sam: pler mode. 3 Operating the mouse on the computer's screen, drag and drop tracks to load them into the [Samples] panel's slots. The sampler settings and loaded tracks are saved. 4 Press a performance pad. The sound for the slot assigned to the pad that was pre Slot1 Slot2 Slot3 Slota + When a performance pad is pressed while pressing the [SHIFT] but ton, the sound of the slot that is currently playing stops.

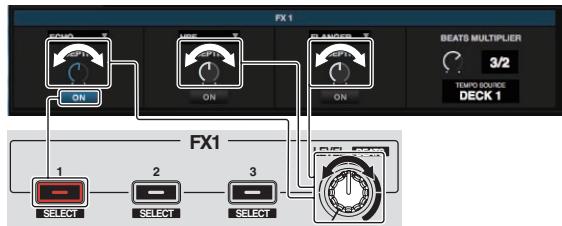

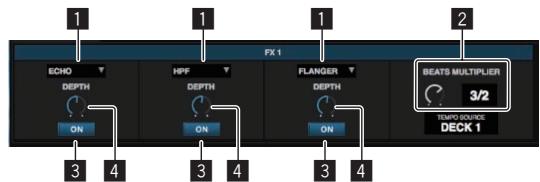

Using effects Serato DJ Intro includes two effect units, FX1 and FX2, Three effects per effect unit can be selected for the respective units. fect unit FX1 is applied to deck 1, effect unit FX2 i to deck 2. Serato DJ Intro effects unit screen display /hen [DJ-FX] on the computer si S yed on the computer scre ts simultaneously e used to control up to three efle simultaneously Operating effects The explanation below describes operation of the first effect for effect unit FX1 as an example Note that the procedure described in this manual is just one example: operation is also possible using other procedure

1. Press the effect 1 button while pressing the [SHIFT]

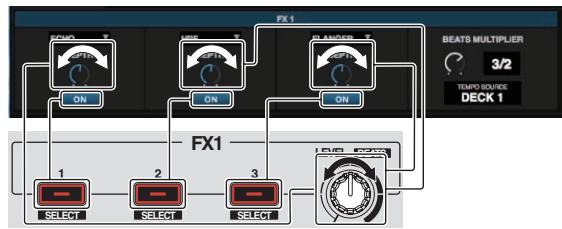

button to select the type of the first effect. ect type is displayed on the Serato DJ Intro screen. 2 Operate an effect level control to adjust the effect level. positions of all three effect level controls on the Serato DJ Intro + The positions of the effect level controls cannot be moved individually 3 Operate the effect level control while pressing the ISHIFT] button to adjust the effect time. + To adjust the effect level and the effect time alternately, the posi: tion of the effect level control on the Serato DJ Intro screen must be matched to the position of the effect level control on this unit ct level 4 Press the effect 1 button to turn the first effect on. The first effect's [ON] button on the Serato DJ Intro screen is highlighte + After tuning the effect on, you can repe effect level and effect time. 2 and 3 to adjust the 5 Press the effect 1 button to turn the first effect off. Operating the three effects simultaneously The explanation below describes operation of three e ously as an example. Note that the procedure described in this manual is just one example: operation is also possible using other procedures Example of operation M Set the effect level to 0 % (control tued all the way counterclockwise) Turn the first effect on While gradually raising the effect level, turn the second effect on While further raising the effect level, turn the third effect on raise the effect level to 100 % (control turned all the clockwis Finally, turn all three effects off. ects simultane: uore1edo parddy 1 Select the effect type. button while pressing the [SHIFT] button to select the first effect. button while pressing the [SHIFT] button to select the cond effect. 3 button while pressing the [SHIFT] button to select the e third effect.

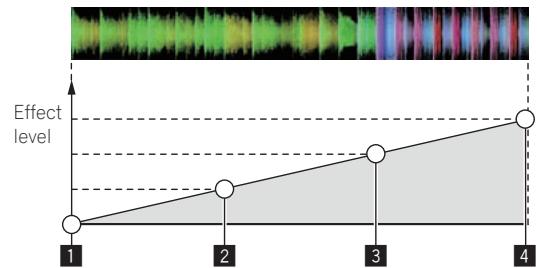

type of th 2 Operate an effect level control to adjust the effect level. In this example of operation, the effect level control is counterclockwise (0 %) position. fully 3 Press the effect 1 button to turn the first effect on. The first effect turns on 4 Operate an effect level control to adjust the effect level. Turn th evel control gradually clockwise to rais: th this operation, only the first effect is active. effect the effect level 5 Press the effect 2 button to turn the second effect on. TI Id second effects are now on simultaneously rss 6 Operate an effect level control to adjust the effect level. Turn the effect level control a little more clockwise to raise the effect With is operation, both the first and second effects are active. 7 Press the effect 3 button to turn the third effect on. The three effects are now on si nultaneously

8 Operate an effect level control to adjust the effect level. Turn the effect level control a little more clockwise to raise the effect level. With this operation, all three effects are active. 9 Turn the effects off. Press the effect 1 button to turn the first effect off, Press the effect 2 button to turn the second effect off, Press the effect 3 button to turn the third effect off. en multiple effects are on, their respective effect levels are the same. The effect levels of the respective eff ndividually cannot be adjusted Performing the operations for adjusting the effect level and adjusting the effect time alternately The explanation below describes performing the operations for adjusting the effect level and adjusting the effect time alternately as an example. Note that the procedure described in this manual is just one example: operation is also possible using other procedures. Example of operation M Adjust the effect level from 0 % (control turned fully countercloc wise) to 100 % (control turned fully clockwise) B Adiust the effect time from [1/1] to [1/2]. B Adiust the effect level from 100 % (control turned fully clockwise) to 50 % (control set to the center position) 1 Operate an effect level control to adjust the effect level. Adjust the effect level from 0 % (control turned fully counterclockwise) to 100 % (control turned fully clockwise) + Effect level: 0 % (control turned fully counterclockwise) e = = 0 2 Operate the effect level control while pressing the ISHIFT] button to adjust the effect time. Adjust the effect time from [1/1] to [1/2]. The position of the effect level controls on the Serato DJ Intro screen must be matched to the position of the effect level controls on this unit DECK S---6QkE : When the position of the effect level controls on the Serato DJ Intro screen matches the position of the effect level controls on this unit, the effect time can be ad) + Effecttime: [1/2] M: 2:56 3 Operate an effect level control to adjust the effect level. Adjust the effect level from 100 % (control turned fully clockwise) to 50 % (control set to the center position). The position of the effect level controls on the Serato DJ Intro screen must be matched to the position of the effect level controls on this unit (16) En ne) When the position of the effect level controls on the Serato DJ Intro screen matches the position of the effect level controls on this unit, the effect time can be adjusted + Effect level: 50 % (control set to the center position) Using the filter fade function When the filter fade function is set to on, the filter effect is applied to both decks when the crossfader is operated. The filter (HP) effect changes as the tracks on the two decks are mixed so the tracks blend together smoothly and you can mix them easily without worrying about their genres and tempos. The explanation below describes the operation of moving the crossfader from the left edge to the right edge to mixthe deck 1 track with the deck 2 track as an example Cross! H Deck 1 filter Deck 2 filter When the crossfader is moved from the left edge towards the right the filter (HPF) effect on the deck 1 track changes from the mini mum, increasing as the fader approaches the right edge, until the filter (HPF) effect is maximum when the right edge is reached. + When the crossfader is moved from the left edge towards the right the filter (HPF) effect on the deck 2 track changes from the maxi mum, decreasing as the fader approaches the right edge, until the filter (HPF) effect is minimum when the right edge is reached. 1 Play tracks on decks 1 and 2. 2 Press the [FILTER FADE] button. The button fl: s and the filter fade function is set to on When the filter fade function is set to on, operation of the filter control is disabled. 3 Move the crossfader from the left edge to the right edge, or from the right edge to the left edge. To mix from the deck 1 track to the deck 2 track, move the crossfader from the left edge to the right edge. To mix from the deck 2 track to the deck 1 track, move the crossfader from the right edge to the left edge. 4 Press the [FILTER FADE] button again. The button lights and the filter fade function is set to off When the filter control is operated while the filter fade function on, the filter control position at the time the filter fade function was set tto to off ï

Mixing the sound of the microphone When a wireless microphone or other device with a high output level is connected, the sound of the microphone may be distorted. Ifthe output level can be switched or the gain can be adjusted, adjust the signal level input to this unit's microphone jack to the lowest level possible. For details, see the operating instructions of the connected device you are using. 1 Connect the microphone to the [MIC] terminal. 2 Start up the system. S Slarting the system (p.11) 3 Turn the [MIC LEVEL] control. This adjusts the output audio level Pay attention that rotating to the extreme right position outputs a very loud sound Analyzing tracks When one of this unit's [LOAD] buttons is pressed and tracks are loaded onto the decks, the tracks are analyzed, but some time may be required until analysis is completed and the BPM and waveform are displayed When the Serato DJ Intro software is used as an offline player, tracks can be analyzed ahead of time. For tracks whose analysis has been completed, the BPM and wavetorm are displayed immediately when the tracks are loaded onto the decks. For details on using the Serato DJ Intro software as an offline player and instructions on analyzing tracks, see the Serato DJ Intro software manual + Depending on the number of tracks, some time may be required for analysis. uoreiedo parddy | En (17)

Utilities modes The following settings can be changed: + Channel fader start setting + Demo mode setting + Jog dial MIDI message sending inte: setting Launching utilities mode the utilities mode is launched while the DJ application is running, the set status may not be displayed properiy. 1 Quit the DJ application on the computer. 2 Disconnect the USB cable from the main unit. Turn off the power of this unit + Do not disconnect the USB cable from the computer. 3 While pressing both performance pad 1 and performance pad 4 on the left deck, connect the USB cable to the main unit. Utilities mode is launched. 4 After setting utilities mode, operate the controller for the items whose settings you want to change. See the explanations below for the settings that can be changed 5 Disconnect the USB cable connecting this unit to the computer and save the settings. To save the settings, this unit's power must be turned off. Changing the settings Changing the channel fader start setting The channel fader star function's setting can be cha + By default, he channel fader st mode set. ged. mode functions without the sync Launch utilities mode, then press one of the left deck's effect buttons. — Effect 1 button lit: Channel fader start with the sync mode set {The sync function is activated simultaneously when channel fader starting starts.) — Effect 2 button lit: Channel fader start without the sync mode set {The sync function is not activated when channel fader starting starts.) — Effect 3 button lit: Channel fader star unction disabled Disabling the demo mode On this unit, the demo mode is set if no operation is performed for 10 minutes under normal usage conditions. This demo mode can be turned off. + By default, the demo mode is on. + When any control or button on this unit is operated while in the derno mode, the demo mode is canceled Launch the utilities mode and press the [VINYL (SLIP)] button on the left side. — MINYL (SLIP)] button lit: Demo mode enabled — [MINYL (SLIP)] button off: Demo mode disabled (18) En sending interval This unit is equipped with a mode for adjusting the jog dial's MIDI mes- sage sending interval. Depending on your computer's operating system and specifications, the iog dial may not operate properly ifthe sending interval of MIDI mes sage for JOG dial is too short. In this case, follow the procedure below to adjust the MIDI message sending interval. + From a short MIDI sending interval, increase the interval to a length atwhich no problems occur. «The default is3 ms. Launch utilities mode, then press the left deck's ISAMPLER] mode button. The MIDI sending interval setting changes each time the button is pressed. The currently set value is indicated by how the performance pads, the [be button, the [CUE (H@)] button, the [SYNC (OFF)] button and the [SHIFT] button light.

Additional information Troubleshooting + incorrect operation is often mistaken for trouble or malfunction. If you think that there is somethin below and the [FAQ] for the [DDJ-SB] on the Pioneer DJ support site: Sometimes the problem may lie in another component. Inspect the other components and electrical appliances being used. Ifthe problem cannot be rectified, ask your nearest Pioneer authorized service center or your dealer to carry out repair work + This unit may not operate properly due to static electricity or other external influences. In this case, proper operation may be restored by turning the power off, waitin Problem The power is not turned on 1 minute, then turning the power back on. Check Is the included USB cable properly connected? wrong with this component, check the points Remedy Connect the included USB cable propery. Is the supply of power from the connected com. puter's USB port insu Connect to a USB port providing sufficient power l devices not being used for the DJ performance are connected to other USB ports, also disconnect them to provide sufficient power connected com Try running the outer with the power supplied from an AC power source rather running it on the battery This unitis not recognized. Is the included USB cable properly connected? Connect the included USB cable proper. Are you using a USB hub? d. Connect the computer and this unit directly using Is the driver software properly set? (Windows) Set the driver software properiy. (With Mac OS X, no driver software is neces- sary) (pa uoljeuHoquI |eUOI}IPPyY Are you using the latest version of the Serato DJ are? Update the software to the latest version. Tracks are not displayed in the library Have music files been imported? import the music files propery For details on importing music files, see the Serato DJ intra software manual Is a crate or subcrate that does not contain any Either select a crate or subcrate that contains any tracks or add tracks to the tracks selec crate or suberate. iTunes tracks are not displayed in Is [Show iTunes Library] on the [SETUP] menu Check [Show iTunes Library) the library checked? For details on importing music files, see the Serato DJ Intro software manual Is a crate or subcrate that does not contain any tracks selected? Either select a crate or suberate that contains any tracks or add tracks to the crate or suberate. No sound or small sound. Are the channel fad ssfader and IMASTER LEVEL) control set to the positions? he channel faders, crossfader and [MASTER LEVEL] control to the proper positions. Is the connecte power amplifier, powered speak properly set? Properiy set the external input selection, volume, ete, on the power amplifier powered speakers, etc Are the connection cables properly connected? Connect the connection cables proper Are the terminals and plugs dirty? Is the driver software properly set? (Windows) Clean the terminals and plugs before making connections. he driver software properiy. (With Mac OS X, no driver software is neces sary) (page Distorted sound. Is the [MASTER LEVEL] control set to the proper position? “Adjust the IMASTER LEVEL] control according to the devices to be connected Is the sound level input to the [MIC] term

aan appropriate le io level input to the terminals to a suitable level forte connected

Is a device with a high output level (such as a wire- less microphone) connected? When a wireless microphone or other device with a high output level is con: nected, the sound of the microphone may be distorted. If the output level c switched or the gain can be adjusted, adjust the signal level input to this level possible. For details, see the operating instructions of the connected device you are using. microphone jack ta the lowe Sound being played is interrupted when using DJ software. Is the driver software"s latency value suitable? Set the driver software" latency Lo a suitable value: Set the DJ software”s latency to a suitable value: Sound is interrupted when the ASIO driver is set he AS D driver been set with Serato DJ Intro running? he ASIO driver before launching Serato DJ Intro. (pat The indicator flashes and operation ssible to restore normal operation b nnecting th le waiting at least 1 minute, then reconnecting the US Lis sometim included USB the same pro lem persists, disconnect the USB cable then request repairs. Tone does not change when the [FILTER] control is operated. Is the filter fade function en? When the filter fa not change when the [FILTER] control is operatedl. unction is on, the tone does Turn the fiter fade function off En (19)

Problem Check Remedy erato D Intro operation is unstable. Are you of Serato DJ Intro can b t version. (page 4) Are you using softwares other than Serato DJ Intro atthe same time? Is another USB device connected tothe computer? Disconnect other USB devices from the comp When ano! nnected to the computer at the same time, it may not operate or be recognized normal Are you using a USB hub? Anot be used. C omputer and this unit directly using led USB cable There is a problem with the USB port to which this If your computer has multiple USB ports, try connecting this unit to a different unit is connected. port: Is this unit con 0 a notebook computer ppiy power ta the notebook computer from an running on its batte (Depending on the notebook computer s settings, the low power mode may be s attery, automatically reducing the The USB buffer size is too small The BPM is not displayed Has the track been analyzed? Analyze the track. The syne and auto loop functions do” Iset Auto BPM) checked in he offline player Re-analyze Îhe track with [Set Auto BPM] c network settings? For detailed instructions on analyzing tracks, see th BPM is not displayed properhy Is the BPM ana ge set appropriately in the the BPM ana then re-analy offline player settings?

roblem, set the BPM manually Acquiring the manual The operating instructions may be in a file in PDF format. Adobe® Reader® must be installed to read files in PDF format. lf you do not have Adobe Reader, please install it from the download link on the CD-ROM's menu screen. Downloading the latest version of these operating instructions 1_ Insert the CD-ROM into the computer's optical drive. The CD-ROM menu is displayed Ifthe CD-ROM'S menu does not appear when the CD-ROM is inserted perform the operations below + For Windows Open the optical drive from [Computer (or My Computer)] in the [Start] menu, then double-click the [CD_menu.exe] icon + For Mac OSX In Finder, double-click the (CD_menu.app] icon directly 2 When the CD-ROM's menu is displayed, select [DDJ- $B: Download the Operating Instructions (PDF file)], then click [Start]. 3 “Aninternet environment is required to access the site. Connected to the internet?" is displayed. Click [Yes]. The web browser is launched and the Pioneer DJ support site is displayed. 4 On the Pioneer DJ support site, click “Manuals” under “DDJ-SB". 5 Click on the required language on the download page. Downloading of the operating instructions begins. (20) En Downloading the Serato DJ Intro software manual 1 Insert the CD-ROM into the computer's optical drive. The CD-ROM menu is displayed. Ifthe CD-ROM's menu does not apps perform the operations below when the CD-ROM is inserted. Open the optical drive from [Computer (or My Computer)] in the [Start] menu, then double-click the [CD_menu.exe] icon. + For MacOSX In Finder, double-click the [CD_menu.app] icon directly 2 When the CD-ROM's menu is displayed, select [Serato DJ Intro: Download the Software Manual (PDF file)], then click [Start]. 3 “Aninternet environment is required to access the site. Connected to the internet?" is displayed. Click [Yes]. The web browser is launched and the Pioneer DJ support site is displayed. se the CD-ROM menu, cl K [Exit 4 Click [Software Info] under [DDJ-SB] on the Pioneer DJ support site. 5 Click the link to the Serato DJ Intro download page. The Serato DJ Intro download page is displayed. 6 Login to your “Serato.com” user account. Input the e-mail address and password you have registered to log in to Serato.com' 7° From “More Downloads" on the right side of the download page, click “Serato DJ Intro x.x User Manual”. Downloading of the Serato DJ Intro software manual starts.

Using as a controller for other DJ software This unit also outputs the operating data for the buttons and controls in MIDI format. I you connect a computer with à built-in MIDI-compatible DJ software via a USB cable, you can operate the DJ software on this unit, The sound of music files being played on the computer can also be output from the DDI-SB. To use as a controller for operating DJ software other than the Serato DJ Intro software, also make the DJ software's audio and MIDI-related settings. + For details, see your DJ software's operating instructions. About MIDI messages For details on this unit's MIDI messages, see “List of MIDI Messages" + “List of MIDI Messages” can be acquired from the following URL: http//pioneerdi.com/support/ About the driver software (Windows) This driver software is an exclusive ASIO driver for outputting audio Signals from the computer. + There is no need to install the driver software when using Mac OS X. + First read the Software end user license agreement on page 21 carefully Operating environment Supported operating system e E 32bitversien Windows® 8 Windows® 8 Pro F Gtbit version 7 e 32bitversien Windows® 7 Home Premium/Professional/Ultimate F Gébitersion 7 Windows Vista® Home Basic/Home Premium/Business/ _32-bit version 7 Ultimate G4-bit version 7! (] When using a 64-bit version of Windows, the driver software can only be used for 82-bit appli Checking the latest information on the driver software For detailed information on this units designated driver software, see the Pioneer DJ support site below. httpy/pioneerdj.com/support/ About the installation procedure + Forthe operating procedure, see Installation Procedure (Windows) + Software end user license agreement This Software End User License Agreement (‘Agreement") is between you (both the individual installing the Program and any single legal entity for which the individual is acting) (-You” or “Your") and PIONEER CORPORATION (“Pioneer") TAKING ANY STEP TO SET UP OR INSTALL THE PROGRAM MEANS THAT YOU ACCEPT ALL OF THE TERMS OF THIS LICENSE AGREEMENT. PERMISSION TO DOWNLOAD AND/OR USE THE PROGRAM IS EXPRESSLY CONDITIONED ON YOUR FOLLOWING THESE TERMS. WRITTEN OR ELECTRONIC APPROVAL IS NOT REQUIRED TO MAKE THIS AGREEMENT VALID AND ENFORCEABLE. IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS AGREEMENT, YOU ARE NOT AUTHORIZED TO USE THE PROGRAM AND MUST STOP INSTALLING IT OR UNINSTALL IT, AS APPLICABLE. 1 DEFINITIONS Documentation" means written documentation, specifications and help content made generally available by Pioneer to aid in installing and using the Program: M ‘Program means all or any part of Pioneer's software licensed to You by Pioneer under this Agreement 2 PROGRAM LICENSE M Limited License. Subject to this Agreement’ restrictions, Pioneer grants to You a limited, non-exclusive, non-transferable, license (without the right to sublicense): a Toinstall a single copy of the Program in Your computer or mobile device, to use the Program only for Your personal pur pose complying with this Agreement and the Documentation (Authorized Use”); b To use the Documentation in support of Your Authorized Use; and ©. To make one copy of the Program solely for backup pur- poses, provided that all titles and trademark, copyright and restricted rights notices are reproduced on the copy. Æ Restrictions. You will not copy or use the Program or Documentation except as expressiy permitted by this Agreement You will not transfer, sublicense, rent, lease or lend the Program, or use it for third-party training, commercial time-sharing or service bureau use. You will not Yourself or through any third party modify, reverse engineer, disassemble or decompile the Program, except to the extent expressiy permitted by applicable law, and then only after You have notified Pioneer in writing of Your intended activities: Æ Ownership. Pioneer or its licensor retains al right, title and interest in and to all patent, copyright, trademark, trade secret and other intellectual property rights in the Program and Documentation, and any derivative works thereof. You do not acquire any other rights, express or implied, beyond the limited license set forth in this Agreement. No Support. Pioneer has no obligation to provide support maintenance, upgrades, modifications or new releases for the Program or Documentation under this Agreement. 3 WARRANTY DISCLAIMER THE PROGRAM AND DOCUMENTATION ARE PROVIDED “AS IS" WITHOUT ANY REPRESENTATIONS OR WARRANTIES, AND YOU AGREE TO USE THEM AT YOUR SOLE RISK. TO THE FULLEST EXTENT PERMISSIBLE BY LAW, PIONEER EXPRESSLY DISCLAIMS ALL WARRANTIES OF ANY KIND WITH RESPECT TO THE PROGRAM AND DOCUMENTATION, WHETHER EXPRESS, IMPLIED, STATUTORY, OR ARISING OUT OF COURSE OF PERFORMANCE, COURSE OF DEALING OR USAGE OF TRADE, INCLUDING ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, ACCURACY, TITLE OR NON-INFRINGEMENT.

4 EXPORT CONTROL AND COMPLIANCE WITH LAWS

AND REGULATIONS You may not use or otherwise export or re-export the Program except as authorized by United States law and the lawes of the jurisdiction in which the Program was obtained. In particular, but without limitation, the Program may not be exported or re-exported (a) into any U.S.-embargoed countries or (b) to anyone on the ULS, Treasury Department's Specially Designated Nationals List or the U.S. Department of Commerce Denied Persons List or Entity List. By using the Program, you represent and war rant that you are not located in any such country or on any such list, You also agree that you will not use the Program for any purposes prohibited by United States law, including, without limitation, the development, design, manufacture, or production of nuclear, missile, or chemical or biological weapons

5 U.S. GOVERNMENT RESTRICTED RIGHTS

The Program and Documentations are “commercial computer software" and “commercial computer software documentation" as those terms are defined in 48 C.F.R. $252.227-7014 (a) (1) (2007) and 252.227-7014 a) (6) (2007). The U.S. Government's rights with respect to the Program and Documentations are limited by this license pursuant to 48 C.F.R. $

12.212 (Computer software) (1995) and 48 C.F.R. $12.211 (Technical data)

(1995) and/or 48 C.F.R. $227.7202-3, as applicable. As such, the Program and Documentations are being licensed to the U.S. Government end users: (a) only as “commercial items” as that term is defined in 48 C.F.R

82.101 generally and as incorporated in DFAR 212.102: and (b) with only

those limited rights as are granted to the public pursuant to this license. Under no circumstance will the U.S. Government or its end users be granted any greater rights than we grant to other users, as provided for in this license. Manufacturer is Pioneer Corporation, 1-1 Shin-Ogura, Saiwai-ku, Kawasaki-shi, Kanagawa-Ken, 212-0081 Japan uoHeuuoquI jeUOIPPY En (21)

You agree that any breach of this Agreement's restrictions would cause Pioneer irreparable harm for which money damages alone would be inadequate. In addition to damages and any other remedies to which Pioneer may be entitled, You agree that Pioneer may seek injunctive relief to prevent the actual, threatened or continued breach of this Agreement 7 TERMINATION Pioneer may terminate this Agreement at any time upon Your breach of any provision. this Agreement is terminated, You will Stop using the Program, permanently delete it from your computer or mobile device where it resides, and destroy all copies of the Program and Documentation in Your possession, confirming to Pioneer in writing that You have done so. Sections 2.2, 2.3, 2.4, 3, 4,5, 6, 7 and 8 will continue in effect after this Agreement's termination. 8 GENERAL TERMS I Limitation of Liability. In no event will Pioneer or its subsidiaries be liable in connection with this Agreement or its subject matter, under any theory of liability, for any indirect, incidental, special consequential or punitive damages, or damages for lost profits, revenue, business, savings, data, use, or cost of substitute pro- curement, even if advised of the possibility of such damages or if such damages are foreseeable. In no event will Pioneer's liability for all damages exceed the amounts actually paid by You to Pioneer or its subsidiaries for the Program. The parties acknowl edge that the liability limits and risk allocation in this Agreement are reflected in the Program price and are essential elements of the bargain between the parties, without which Pioneer would not have provided the Program or entered into this Agreement. Æ The limitations or exclusions of warranties and liability contained in this Agreement do not affect or prejudice Your statutory rights as consumer and shall apply to You only to the extent such limita: tions or exclusions are permitted under the laws of the jurisdic tion where You are located. Æ Severability and Waiver. If any provision of this Agreement is held to be illegal, invalid or otherwise unenforceable, that provision will be enforced to the extent possible or, if incapable of enforce. ment, deemed to be severed and deleted from this Agreement, and the remainder will continue in full force and effect. The waiver by either party of any default or breach of this Agreement will not waive any other or subsequent default or breach Æ No Assignment. You may not assign, sell, transfer, delegate or otherwise dispose of this Agreement or any rights or obligations under it, whether voluntarily or involuntarily, by operation of law or otherwise, without Pioneer's prior written consent. Any pur- ported assignment, transfer or delegation by You will be null and void. Subject to the foregoing, this Agreement will be binding upon and will inure to the benefit of the parties and their respec tive successors and assigns. Æ Entire Agreement, This Agreement constitutes the entire agree- ment between the parties and supersedes all prior or contem: poraneous agreements or representations, whether written or oral, concerning its subject matter, This Agreement may not be modified or amended without Pioneer's prior and express written consent, and no other act, document, usage or custom will be deemed to amend or modify this Agreement. You agree that this Agreement shall be governed and construed by and under the laws of Japan: About trademarks and registered trademarks + Pioneer is a registered trademark of PIONEER CORPORATION. + Microsoft, Windows and Windows Vista are either registered trade marks or trademarks of Microsoft Corporation in the United States and/or other countries. + Mac OS, iTunes, and Finder are trademarks of Apple Inc. registered in the US. and other countries. + Intel and Intel Core are trademarks of Intel Corporation in the US. and/or other countries. + ASIO is a trademark of Steinberg Media Technologies GmbH + Serato DJ Intro, Scratch Live, ITCH and Serato DJ are registered trademarks of Serato. The names of companies and products mentioned herein are the trade- marks of their respective owners. This product has been licensed for nonprofit use. This product has not been licensed for commercial purposes (for profit-making use), such as broadcasting (terrestrial, satellite, cable or other types of broadcast: ing), streaming on the Internet, Intranet (a corporate network) or other types of networks or distributing of electronic information (online digi- tal music distribution service). You need to acquire the corresponding licenses for such uses. For details, see http:/mww.mpälicensing.com. Cautions on copyrights Recordings you have made are for your personal enjoyment and accord- ing to copyright laws may not be used without the consent of the copy- right holder. + Music recorded from CDs, etc. is protected by the copyright laws of individual countries and by international treaties. I is the full respon- sibility of the person who has recorded the music to ensure that it is used legally + When handling music downloaded from the Internet, etc. it is the full responsibility of the person who has downloaded the music to ensure that it is used in accordance with the contract concluded with the download site. — For improvement purposes, specifications and design of this unit and the included software are subject to change without notice. © 2013 PIONEER CORPORATION. All rights reserved. PIONEER CORPORATION 1-1, Shin-ogura, Saiwaï-ku, Kawasaki-shi, Kanagawa 212-0031, Japan <DR11200-A>
