USER MANUAL XW-SMA4-K PIONEER

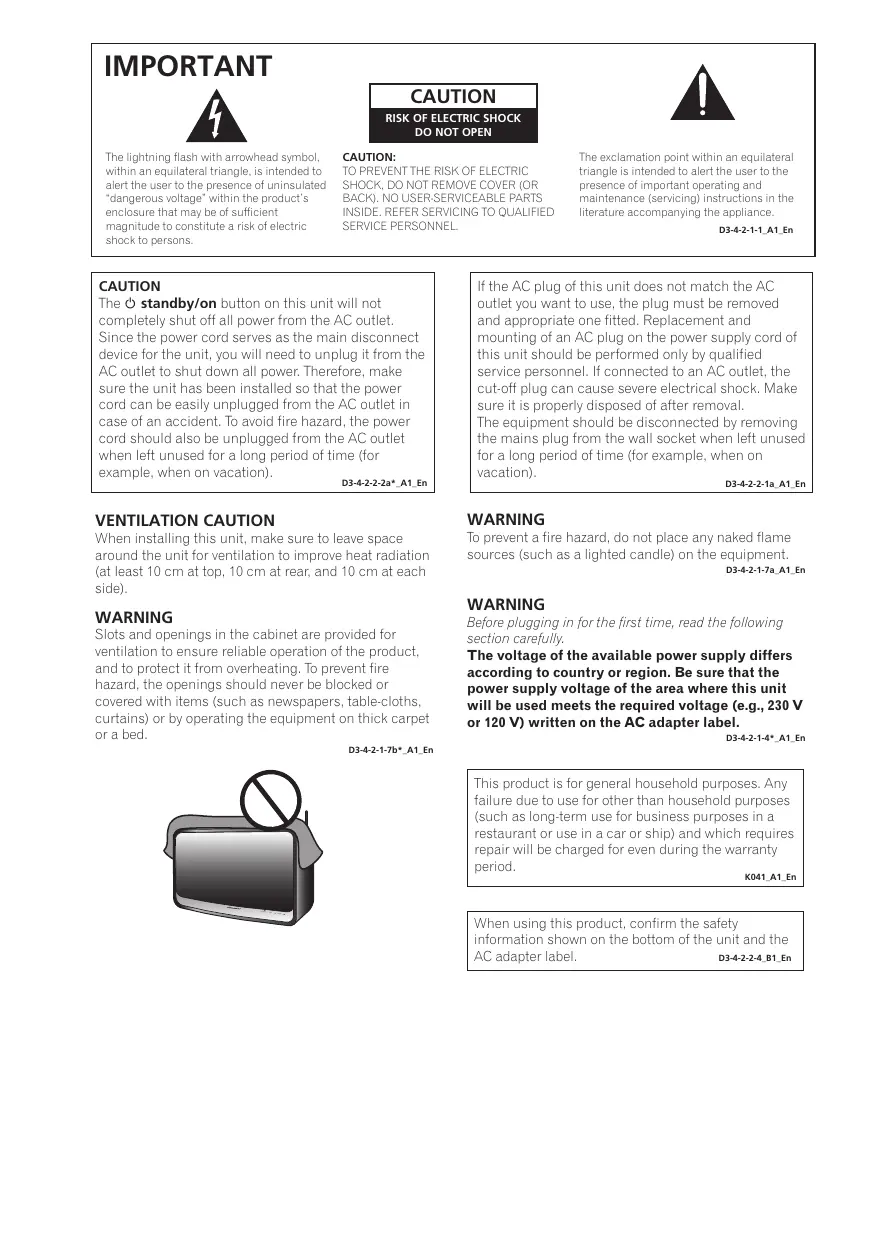

IMPORTANT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The ightning flash with arrowhead symbol.

within an equilateral triangle, is intended to

alert the user to the presence of uninsulat

‘dangerous voltage” within the products

enclosure that may be o sufficien!

magnitude to consttute a risk of electric to persons.

T0 PREVENT THE RISK OF ELECTRIC: 4 SHOCK, DO NOT REMOVE

he exclamation paint within an equilateral triangle is intended to alert {he user to the presence of important operating and maintenance (servicing) instructions in the literature accompan)ing the appliance.

COVER (OR ABLE PARTS T0 QUALIFIED CAUTION The © standby/on button on this unit will not completely shut off all power from the AC outlet Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for

example, when on vacation) sas

Hthe AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate ane fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. connected to an AC outlet, the cutoff plug can cause severe electrical shock. Make sure it is properly disposed of after removal

The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

VENTILATION CAUTION When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation {at least 10 cm at top, 10 cm at rear, and 10 cm at each side)

WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed

WARNING To prevent a fire hazard, do not place any naked flame

sources (such as a lighted candle) on the equipment.

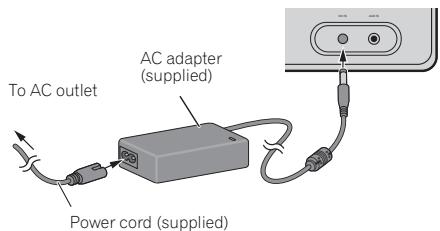

WARNING Before plugging in forthe first time, read the following section carefulÿ.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit

will be used meets the required voltage (e.g., 230 V or 120 V) written on the AC adapter label.

This product is for general householdl purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty

When using this product, confirm the safety information shown on the bottom of the unit and the

AC adapter label 034224 81En

WARNING Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater This can cause batteries to leak, overheat, explode or catch fire It can also reduce the life or performance of batteries.

When disposing of used batteries, please comply with govemmental regulations or environmental public institution's rules that apply in your country/area.

CAUTION Danger of explosion if battery is incorrectiy replaced Replace only with the same or equivalent type recommended by the manufacturer.

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

“Perchlorate Material —special handling may apply.

See wun.dtsc.ca.gov/hazardouswaste/perchlorate. (pplicable to California, U.S.A.)"

WARNING Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

Store the AC adapter out of the reach of children and infants.

The AC adapter cord may accidentally wind around the neck and it may cause suffocation.

+ Make sure to grasp the body ofthe AC adapter when removing it from the power outlet. you pull the power cord, it may become damaged which caulcl lead to fire and/or electrocution.

Do not attempt to plug in or remove the AC adapter with wet hands. This may result in electrocution.

Do not insert the power cord of AC adapter into a power outlet where the connection remains loose despite inserting the prongs all the way into the outlet. Heat may be generated which could lead to fire. Consult with the retailer or an electrician regarding replacement of the power outlet

POWER-CORD CAUTION Handie the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause à short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. À damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized

service center or your dealer for a replacement.

This unit uses a 2.4 GHz radio wave frequency, which is

a band used by other wireless systems (Microwave

ovens and Cordless phones, etc). In this event noise

appears in your television image, there is the possibility this unit (including products supported by this unit) is causing signal interference with the antenna input connector of your television, video, satellite tuner, etc.

In this event, increase the distance between the

antenna input connector and this unit (including

products supported by this unit.

+ Pioneer is not responsible for any malfunction of the compatible Pioneer product due to communication errot/malfunctions associated with your network connection and/or your connected equipment Please contact our Internet service provider or network device manufacturer.

+ A separate contract with/payment to an Internet service provider is required to use the Internet

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

WARNING This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container flled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

[For American Users]

IMPORTANT NOTICE THE MODEL NUMBER AND SERIAL NUMBER OF THIS EQUIPMENT ARE ON THE REAR OR BOTTOM RECORD THESE NUMBERS ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE DS6APS-1 AN En

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 ofthe FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, i not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. I this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on.

the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected — Consult the dealer or an experienced radio/TV technician for help.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation Product Name: Wireless Sound System Model Number:

Responsible Party Name:

1925 E. DOMINGUEZ ST. LONG BEACH, CA 9080-1003, U.S.A.

http;/imwwpioneerelectronics.com

The Safety of Your Ears is in Your Hands Get the most out of your equipment by playing it at a safe level a level that lets the sound come through clearly without annoying blaring or distortion and, most importantiy, without affecting your sensitive hearing, Sound can be deceiving, Over time, your hearing “comfort level" adapts to higher volumes of saund, so vihat sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

ESTABLISH A SAFE LEVEL:

+ Set your volume control at a low setting

+ Slowly increase the sound until you can hear it comfortably and cleariy, without distortion

+ Once you have established a comfortable sound level, set the dial and leave it there.

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

+ Do not tu up the volume so high that you can't hear what's around you:

+ Use caution or temporarily discontinue use in potentially hazardous situations.

+ Do not use headphones while operating a motorized vehicle: the use of headphones may create a trafic hazard and is illegal in many areas.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

Information to User Alterations or modifications carried out without appropriate autharization may invalidate the user's right to operate the equipment.

WARNING: Handling the cord on this product or cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm.

Wash hands after handling.

[For European Users]

Information for users on collection and disposal of old equipment and used batteries

Symbol for ) ‘These symbols on the products, packaging, and/or accompanying documents mean equipment that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

== By disposing of these products and batteries correct, you will help to save valuable

‘Symbol samples) resources and prevent any potential negative effects on human health and the for batteries environment which could otherwise arise from inappropriate waste handling

For more information about collection and recycling of old products and batteries, please contact your local municipalty, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

ÿ For countries outside the European Union: Pb

you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal

[For Canadian Users] IC Radiation Exposure Statement: — This equipment complies with IC RSS-102 radiation his Class B digital apparatus complies with exposure limits set forth for an uncontrolled

Canadian ICES-008. environment. This equipment should be installed and operated with à minimum distance of 20 cm

between the radiator and your body.

an Users and Canadian Users]

Operating environment temperature and huridity

+5 °C to +25 C (+41 °F to +77 °F); less than 85 %RH (cooling vents not blocked)

Do not install this unit in a pooriy ventilated area, or in locations exposed to high humidity or direct sunlight or strong artificial light)

[Except American Users and Canadian Users]

Operating Environment

Operating environment temperature and huridity

+5 °C to +35 C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked)

Do not install his unit in a pooriy ventilated area, or in locations exposed to high humidity or direct sunlight or strong artificial light)

Before Use (Important)

DANGER About the Device

Please follow the instructions noted. Failure to do so may cause the built-in lithium-ion battery to

leak, overheat, ignite, or rupture.

+Do not dispose of the device in fire or expose it to heat.

+Do not attempt to disassemble the battery or alter it in any way.

+Do not throw the device, strike it with a hammer or other object, or drive nails into it

+Do not use or leave the device in places where it will be exposed to high temperatures, such as near a stove, inside a closed automobile or in direct sunlight.

*In the event that the built-in lithium-ion battery leaks fluid and the fluid contacts your eyes, do not rub them, but rinse with copious amounts of clean water and seek immediate medical treatment. Your eyes may be seriously harmed by exposure to such battery fluid.

+Do not allow the battery to be immersed in fresh or sea water, or become otherwise wet.

+Do not recharge the battery near a fire or in direct sunlight.

+Do not recharge the battery using any method other than as instructecl

The battery used in this device may present a risk of fire, explosion or chemical burn if

+ Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substance.

+ Always keep the battery out of the reach of infants and small children

WARNING About the Device

+Do not use the device if it emits an unusual odor, heats up, changes color or shape, or if any other abnormalities occur during use, while recharging or while placed in storage.

+Ifthe battery does not recharge completely, even after exceeding the specified time, stop recharging. Failure to do so could cause the device to heat up, rupture, or ignite.

+Recharge the battery in an environment with a temperature between 5 <C (41 °F) and 35 °C (95 °F) Recharging the battery under different temperatures could cause the device to heat up, rupture, or ignite, and may also deteriorate the performance and the life of the built-in lithium-ion battery.

+Do not place the device in à microwave oven or expose it to high pressure, since the device may overheat, rupture, or ignite.

+Do not place a leaking rechargeable lithium-ion battery near a source of heat or fire, sincethe battery could overheat, rupture, or ignite

CAUTION About the Device

+Do not dispose ofthe device in fire or water, since the rechargeable lithium-ion battery could rupture or leak battery fluid, resulting in fire or personal injury.

*1ffluid leaking from a rechargeable lithium-ion battery contacts your skin or clothes, wash immediately with copious amounts of clean water. If left unattended, a skin rash could result.

About water-resistant (XW-SMA3 only)

CAUTION Observe the following precautions in regard to the device’s water-resistant.

+ Do not place the unit in water.

+ Do not expose the unit to a large amount of water.

+ Do not splash the unit with water.

+ Do not expose to rain.

+ Do not pour or place in warm water or water containing soap or detergent.

+ Do not use in a humid environment such as a bathroom.

+ Do not use near or on the beach. This could cause rust. lfexposed to seawater, thoroughly wipe offthe moisture immediately with a dry cloth

+ Ensure that the terminal cover is closed during use. The rubber packing on the cover make the device water-resistant. Make sure this packing does not get soiled or damagedi Ifthe rubber packing does become soiled, wipe it clean with a dry, clean cloth.

+ Do not open the terminal cover in humid environments in which the device could get exposed to water.

+ Ifthe device is exposed to a large amount of water or moisture, immediately wipe it down with a dry cloth. Only open or close the terminal cover after having completely wiped off any moisture around them, with dry hands and in an environment where the unit would not get exposed to water again.

+ Make sure to install the unit on a flat and stable surface. Do not use the unit upside down or in a tilted position. Since water may reach the interior of the unit, install the unit in a proper position.

+ Do not turn the unit upside down or hold it tilted when it has been exposed to water or water droplets. Since the water might run into the interior parts of the unit, do not tilt the unit if it is wet.

+ Ifthe device does get exposed to water, thoroughly dry all of the crevices on the units body into which water might have reached. The water might have reached the interior of the device. Do not carry the unit if it is still wet.

+ Do not use the remote control, AC adapter when in proximity to water. Only the device itself is water-resistant.

This unit has been designed with water-resistance equivalent to standards IPX2(*) as defined by the

International Electrotechnical Commission (IEC)

Malfunctions due to water damage caused by improper use are not covered by product warranty, even ifthey

occur within the warranty period.

+ Depending on conditions of use, the water-resistant features are not necessarily guaranteed even during the warranty period.

*IPX2: The unit must be protected from water drops that fall vertically onto it when the unit is at an angle of

Use in a wet environment (XW-SMA1 and XW-SMA4 only)

+XW-SMAT and XW-SMA4 are not drip-proof, When using, prevent exposure to water. Do not use in the following environments.

+ Places where the product is easily exposed to water

+ Near the beach or on the beach This could cause rust.

Internal Rechargeable Lithium-ion Battery (XW-SMA3 only)

This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you suspect your battery may be dead, try charging it several times. Ifthe battery does not recharge, please contact us for repair information.

WARNING/DISPOSAL OF UNIT [For American Users, Canadian Users]

Please do NOT attempt to change the battery yourself. Ifthe battery has died and you do not want

us to replace your battery, you should follow the disposal instructions below:

-Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances

+ Always dispose of used batteries/electronics in accordance with the prevailing community regulations that apply to the disposal of batteries/electronics. If there are no local regulations concerning battery/electronics disposal, please dispose of the device in a waste bin for electronic devices

«Many electronics retailers now recycle batteries and other electronic devices at no charge. Check to see which ones in your area do so.

«When installing this unit, make sure to put it on a level and stable surface: Don't install it on the following places: - on à color TV (the screen may distort) - near à cassette deck (or close to a device that gives off a magnetic field). This may interfere with the sound - in direct sunlight - in extremely hot or cold areas - in places where there is vibration or other movement - in places that are very dusty - in places that have hot fumes or oils (such as near a kitchen stove)

+When in use, do not stand the device up, prop it up against anything or hang it from anything

+Do not sit or stand on top of the device.

+When carrying the device, hold the entire device firmly. Do not swing the device around by the frame. +Do not attach this unit to the wall or ceiling. It may fall off and cause injury

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

o1 Before you start What's in the box. Belore using the remote control - Replace the battery Using the remote control.

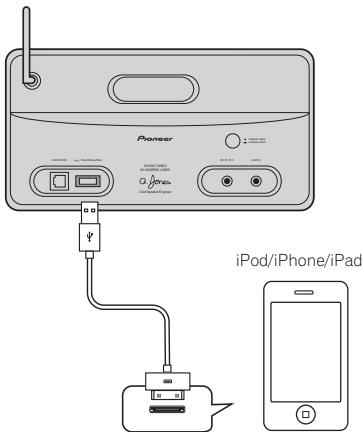

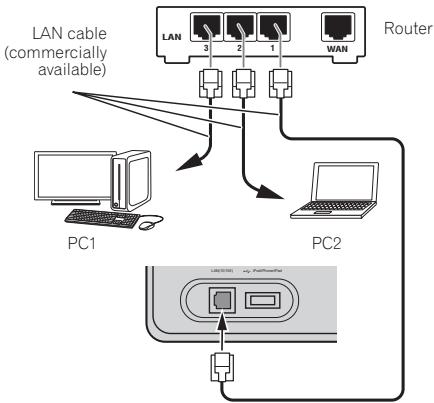

02 Connections Connecting iPod/iPhone/iPad . Connecting to the network through the wired or wireless LAN . Connecting using LAN cable Connecting using wireless LAN Plugging in .… Wen turning on this unit for the first time +

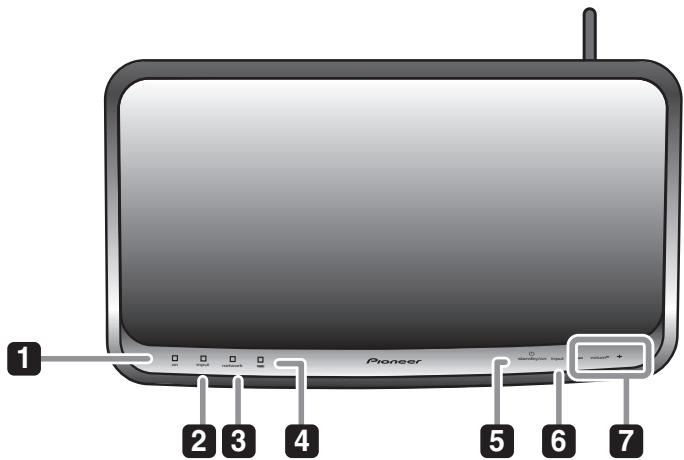

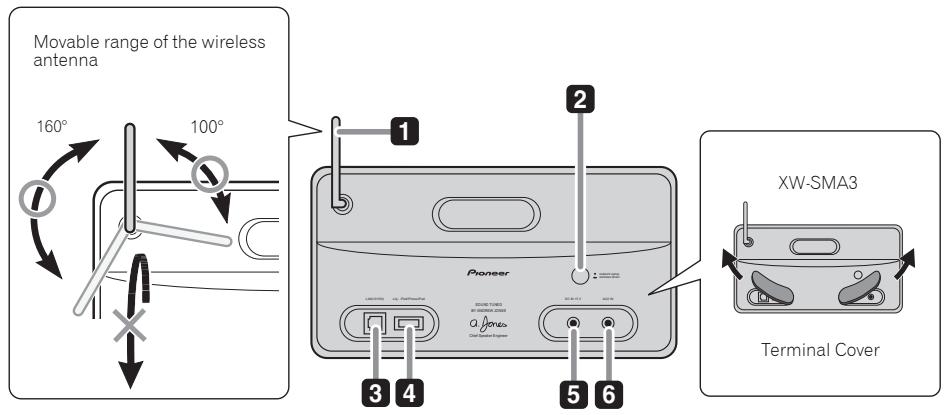

03 Part names and functions Remote Control . Front panel . Rear panel

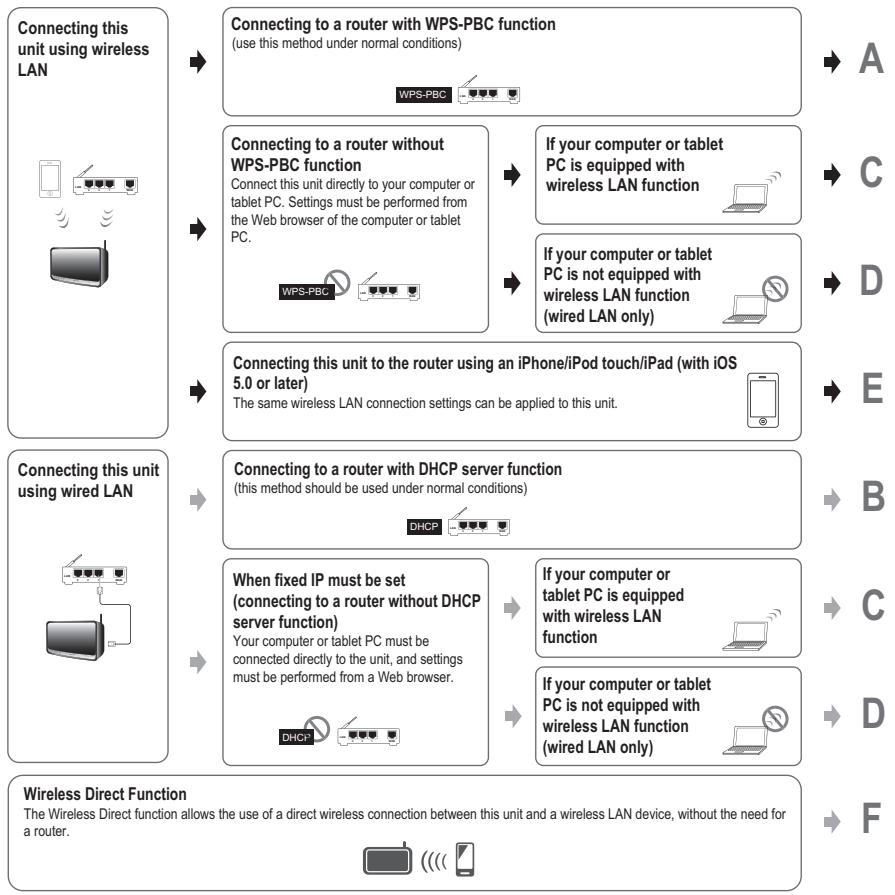

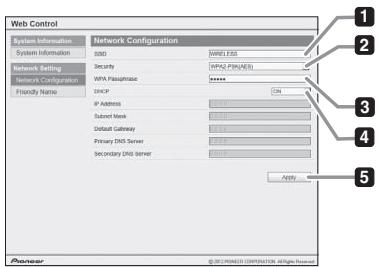

04 Connect to network Network setting. After completing the network settings Web Control . Initial menu (System Information) Network Configuration

Friendly Nami 05 iPod/iPhone/iPad playback Confirming what iPod/iPhone/iPad models are

supported . Hoi to confirm the version of the IPod/iPhonaiPad software.

Connecting your iPod/iPhone/iPad +

Playing your iPod/iPhone/iPad . .

Introduction... - About playable DLNA network devices -

Using AirPlay on iPod touch, iPhone, IPad

and iTunes. -31 About the DI :31 Playing audio iles stored on PCS or other devices. : 32 Connecting to the LAN network. -32 Playback with DLNA … -32 Using AirPlay to enjoy music. -32

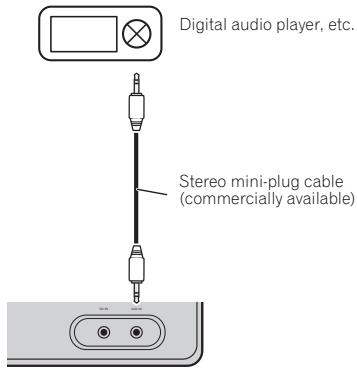

07 Other connections Connecting auxiliary devices … Listening to auxiliary devices …

08 Changing the settings Setting Quick Start Mode . Setting Quick Start Mode. Canceling Quick Start Mode Resetting the system Firmware Update.

Troubleshooting. Playable file formats. Cautions on use. When moving this unit Place of installation Cleaning the product . About nebwork playback Windows Media Player Playing Windows Media Audio (WMA) files . Windows Media DRM . DLNA Content playable over a network Disclaimer for Third Party Content . About playback behavior over a network aacPlus . FLAC. About iPod/iPhone/iPad About Wi-Fi@ Audio Artistry. Specifications . 45 +_ Illustrations featured in ne Operating Instructions may have been modified or simplified for ease of explanation and may therefore differ from the actual product appearance.

What's in the box Please confirm that the following accessories are in the box when ou open it + Remote Control + Lithium Battery (CR2025)* + Power Cord + AC Adapter Quick Start Guide Warranty Card The lithium battery has been factory installed in the remote contre unit

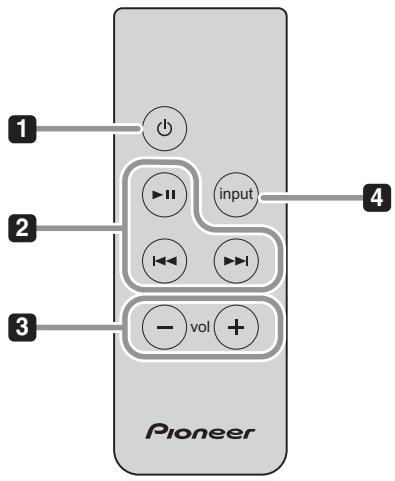

Before using the remote control

The battery supplied with this unit is stored in the battery casing. Remove the protective seal from the battery casing.

+ When you notice a decrease in the operating range, replace the battery.

Inen replacing the battery, use a commercially available Lithium CR2025 battery.

1 Flip the remote control and pull out the battery holder by pushing the tab to the right. 2 Place a new battery in the casing.

Make sure the + side of the battery is facing up when you place it in the space provided.

3 Push back the battery holder.

The battery included with the unit is to check initial operations; it may not last over a long period.

About lithium battery + Danger of explosion if battery is incorrectiy replaced Replace only with the same or equivalent type recommended by the manufacturer.

Dispose of used battery cells immediately after replacement. Keep away from children. f swallowed! please contact a doctor immediately

Lithium batteries may present a fire or chemical burn hazard if misused. Do not disassemble, heat above 100 °C, or incinerate.

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater, This can cause batteries to leak, overheat explode or catch fire. It can also reduce the life or performance of batteries.

Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:

+_ Remove the battery ifthe unit isn't going to be used for a month or more, in the event of battery fluid leakage, wipe up any fluid inside the case and install a new battery When disposing of used batteries, please comply with govemmental regulations or environmental public institutions rules that apply in your country or area “Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. (applicable to California, U.S.A.) *

DL Using the remote control The remote has a range of about 7 m (23 ft) at an angle of about 30° from the remote sensor.

Keep in mind the following when using the remote control + Make sure that there are no obstacles between the

remote and the remote sensor on the unit

Remote operation may become unreliable if strong

sunlight or fluorescent light is shining on the units

Remote controllers for different devices can interfere

with each other. Avoid using remotes for other

equipment located close to this unit

Replace the batteries when you notice a fall off in the

operating range of the remote.

Connections À caution

+_ Be suretotum offthe power and unplug the power cord from the power outlet whenever making or changing connections.

+ Connect the power cord after all the connections between devices have been completed

Connecting iPod/iPhone/iPad

is possible to listen to audio when iPod/iPhone/iPad is connected to this unit. Open the terminal cover (XW-SMA3 only) (page 16).

Switch the unit into standby then connect your iPod/iPhone/ iPad to the USB terminal on the rear panel of this unit.

/hen the unit's power is turned ON, the iPod/iPhone/iPad connected to the unit will be charged.

When this unit is running by the built-in battery, iPod/iPhone/ iPad is not charged (XW-SMA3 only).

Connecting to the network through the

wired or wireless LAN By connecting this unit to the network via the wired or wireless LAN, you can play back audio files stored on devices on the network!

Open the Connect the LAN connector on this unit to the LAN connector on your router (with or without the built-in DHCP server function) with a straight LAN cable (CAT 5 or higher). Also wireless connection to the network is possible.

«erminal cover (KW-SMA3 only)

Turn on the DHCP server function of your router

H your router does not have a built-in DHCP server function, you have to set up the network manually See Connect to network on page 18.

Connecting using LAN cable

LAN cable {commercially available)

Connecting using wireless LAN F2 Note

+ Photo or video files cannot be played back

+ With Windows Media Player 11 or 12, you can even play back copyrighted audio files on this unit.

Plugging in After you've finished making all connections, plug the unit into an AC outlet.

+_ Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet

AC adapter (supplied) To AC outlet

Power cord (supplied)

When turning on this unit for the first time 1 Open the terminal cover (XW-SMA3 only).

2 Plug the supplied AC adapter into the DC IN socket on the rear of the unit.

3 Plug the supplied power cord into the AC adapter then plug the other end into an AC outlet.

4 Press © standby/on button.

5 The onindicator will flash for about 30 to 40 seconds. After about 30 to 40 seconds, the on indicator will light blue.

About startup time About 30 seconds are required between after the power turns On until the unit is actually ready to use. The time required far startup can be reduced by setting the Quick Start Mode to On (page 35)

When using the built-in battery (XW-SMA3 only) Be sure to charge XW-SMAS before using for the first time.

Approximately 3 hours are required toully recharge the battery.

Afully charged battery provides approximately 4 hours of use at maximum volume and approximately 6 hours at 50 % volume.

Playing time with a fully charged battery changes depending on functions used, frequency of use, ambient temperature, speaker volume and other factors.

The fumished battery can be recharged about 300 times, although it may be less depending on conditions of use and storage.

When the AC adapter is not connected, the battery will slowiy drain even when the unit is in the standby mode. As a result, ifthe unit is not used for an extended period oftime, recharging may be necessary before the unit can be used again

Do not use any AC adapter other than the supplied unit, since fire or shock may occur.

The supplied AC adapter is designed exclusively for use with this unit, Never attempt to use it with any device for which it was not expressly designed, since fires or shocks may occur.

Do not use any power cord other than the one supplied with this unit.

Do not use the supplied power cord for any purpose other than this unit.

Ambient temperature when recharging the battery should be between 5 °C and 35 °C. Outside this range of temperatures, the battery protection circuit may operate, preventing recharging,

_ 03) (Part names and functions

Part names and functions

1. © (standby/on) button Switches the unit between Standby and On. 2 Playback control buttons

Use when operating an iPod or AirPlay with this remote control

3 vol-/+ (volume -/+) button Use to adjust the listening volume.

Q) @) we 4 input button (E)

Press to select the input source.

(Part names and functions

1 on (power on) indicator When the power is on, this indicatar lights.

2 input indicator When the input source changes, this indicator lights. The indicator s color changes as noted below.

Light OFF - AUX IN Lights blue - AirPlay

3 network indicator When the network status changes, this indicator lights. The indicator s color changes as noted below.

Lights blue - good connection

Flashes blue - weak signal

Flashes red - connection failure

“In the event er colors appear, see Metwork

4 Battery indicator (XW-SMA3 only)

Displays the butin battery charge status, or lights when the butin battery is being charged. The indicator changes as noted below.

+ When the unit is connected to AC adapter Lights blue - Battery charging is completed. *When battery charging is completed on the standby mode, the indicator lights off. Lights purple - Battery is being charged. *Ifthe battery indicator intermittently lights purple, see Additional information on page 37.

+ When this unit is not connected to AC adapter Lights blue - Battery charge is usable. Lights red - Battery has less than one-half charge. Flashes red - Battery charge is low. *A fully charged battery provides approximately 4 hours of use at maximum volume and approximatelÿ 6 hours at 50 % volume. The battery indicator is not designed to function as an accurate measure of remaining battery charging. Ifthe battery indicator intermittently lights purple, see Additional information on page 37.

5 © standby/on button Switches the unit between Standby and On.

_03] (Part names and functions

Select the input source. iPod — AUX IN — iPod (return to the beginning) *When AirPlay or DMR play begins, the unit's input function automatically switches respectively to AirPlay or DMR. Hthe power is then turned OFF and later turned ON again, the unit will return to the input function last selected before AirPlay or DMR began.

7 volume -/+ button Use to adjust the listening volume.

The listening volume has a range from 0 to 50 (however, the unit is not equipped with a display to visually indicate the volume level).

When pressing the input button for 3 seconds while this unit is power on, this unit switches to the Quick Start Mode. In the Quick Start Mode, when AirPlay or DMR is played, this unit automatically tums on (page 85). When using the XW-SMA3, the Quick Start Mode can be set only when the AC adapter is connected

Open the terminal cover before connecting other various devices to the unit (XW-SMA3 only). Before making or changing the connections, switch of the power and disconnect the power cord from the AC outlet.

Movable range of the wireless antenna

1 reless antenna Receives signals from wireless devices.

2 network setup/wireless direct button Use to set the wireless network (page 18).

3 LAN (10/100) connector Connectthis unit to other network devices using a LAN cable.

4 _iPod/iPhone/iPad connector

Use to connect iPod/iPhane/iPad as an audio source. This unit does not support any USB device other than iPod/ iPhone/iPad.

5 DCIN terminal Connect to AC adapter.

Use to connect an auxiliary playback device (page 34)

+_ The terminal cover may be detached if pulled strongly away from the unit (XW-SMA3 only). the terminal cover becomes detached, press the covers protruding pins into the connector apenings on the unit, then use a narrow nan-pointed stick or other implement to push through from above. Take care not to injure your eyes or fingers when doing this.

(Part names and functions

+ Do not lift this device by holding the wireless antenna, since damage or personal injury may result.

+ When using XW-SMA6, do not lift this device by holding the recessed portion of the rear panel, since damage or personal injury may result

_ 04] Ç Connect to network )

Network setting By connecting the unit to your home LAN, you can enjoy AirPlay and playback of music stored on your computer or other device. +_ For information regarding the format of files supported by this unit, see Playable file formats on page 41

+ Methods of connection may vary depending on the device used. Confirm the type of unit, and follow the appropriate instructions.

I you select method À, Cor E, cantirm the LAN cable is not connected to this unit |

Connecting this “Connecting to a router with WPS-PBC function unit using wireless {ue is meod under normal condtions) LAN L SA Le ma eee» “Connecting to a router without I your computer or tablet WPS-PEC function D | PS eauippes vin .| + C Connect ut rech to Li cran or wireless LAN function Ka PC Sema promet tar ‘he Web browser of the computer or tablet né LAPS If your computer or tablet PC is not equipped with né) “ee + | vioess LAN fun © | » D

Connecting this unit to the router using an iPhonefPod touchhiPad (with 10S

} 5.0 or later) = | EN E

he same wireless LAN connection saings can be applet this und

Connecting to a router with DHCP server function {hi method should bo used under normal conditions) L > + B eee © When fixed IP must be set h Free or : ing to a router without DHCP ablet PC is equippe {connecting to a router without à [arc ui + C

Your compuer rate PC must be

m | connected érecty tte uni, and setings rmusbe performed from a Web browser.

Hf your computer or tablet PC is not equipped with

destin © | + D {wired LAN oniy) æ

Wireless Direct Function

The icles Dre uncon alons te use af a direct irelessconnacion bete is ri and airs LAN device wioutthe need | 0) F L «2

Precautions when connecting this unit to a wireless LAN router The SSID only Supports use of single-byte alphanumeric characters, together with the underbar and certain other symbol. using 8) another character coding, the SSID must be updated before making network settings. For more details regarding SSID, consul your router's operating instructions.

1 Confirm that the AC adapter and LAN cable are not connected to the unit.

X*. 2 Connect the AC adapter, and press © standby/on button.

The on indicator will flash blue. Wait for about 30 to 40 seconds.

3 When the on indicator stops flashing, press the rear-panel network setup/wireless direct button.

The network indicator will cl flashing purple.

4. Within 2 minutes, press the router's WPS button.

For information regan router's Operating In

ing router operation, consult the ructions.

5 The network connection settings will be performed automatically, and when the connection is complete, the unit's indicator will briefly change to flashing red, then light steadily blue.

dicator will flash blue when the signal is weak

B: Wired connection to a router with DHCP server

1 Disconnect the power cord from AC power before performing the connection between router and this unit.

Use a LAN cable to connect this unit and your router.

2. Connect the AC adapter, and press © standby/on button.

The on indicator will flash blue. Wait for about 30 to 40 seconds

3 The on indicator's flashing will stop, and when the power is fully turned on, the network indicator will light blue.

_ 04) Ç Connect to network

C: Connection settings from a Web browser using a computer, iPhone, tablet PC or other device supporting wireless LAN

1 Confirm that the AC adapter and LAN cable are not connected to the unit.

2. Connect the AC adapter, and press © standby/on button. The on indicator will flash blue. Wait for about 30 to 40

3 When the on indicator stops flashing, press and hold volume “-" button on the front panel, and then press and hold network setup/wireless direct button on the rear panel for 3 seconds.

The unit will begin rebootin tor will flash blue):

4 When the network indicator lights red, connect to the network called “Pioneer Setup0000%" from Wi-Fi network setting on the computer, iPhone, tablet PC or other device. The “00” is the device's unique identifier number. racters may be displayed, depending on the device

uit the appropriate Operating Instructions for formation regarding operation of the computer, iPhone, tablet PC or other device used.

+ Since this kind of connection is not encoded, a minor ity risk may be involved

5 When the connection is established, boot your Web browser and access the URL noted below to make settings for this unit.

The Web Control menu will appear.

For Safari Press Bookmark icon (CI) at th Click Bonjour list (Friendly Name”) (b) in Bookmark

Ç Connect to network

6 From the menu on the left, select “Network Configuration".

H you wish to change the Friendly Name, select “Friendly Name” from the menu and change the name before selecting “Network Configuratior

7 When the Auto/Manual selection screen appears, select “Auto.”

Hyou are manually inputting the SSID or setting a fixed IP with a wired connection, select "Manual." For details, see Network Configuration on page 27.

8 Select your router's SSID. Hthe SSID does not appear, either repeat step (6). or use step {) to select Manual and input the SSID manually.

9 If you are asked to input a password, input

Also, if input of a fixed IP is required, set DHCP to OFF here

and make the setting.

10 When settings are completed, click on Apply.

The unit will automatically power down. Confirm that the router s power is ON. you intend to use the unit in a wired configuration, use a LAN cable to connect the unit to the router.

11 Press © standby/on button. The on indicator will flash blue. When the connection is

completed, the network indicator will change from lashing

red to steadily lighted blue. The indicator will flash blue when the signal is weak. The settings are completed

D: Using a Web browser on a computer supporting wired LAN to make connecting settings for the unit

1 Use a LAN cable to connect the unit to the

Wait for about 30 to 40

3 Wait for the network indicator to change from flashing to steadily lighted red. This may re up to 90 {s or so.

4 When the network indicator lights red, start your computer's Web browser, and access the URL noted below to make settings for this unit. The Web Control menu will appear.

For Safari Press Bookmark icon (CI) at th Click Bonjour l nid then sek (Friendly Name”) (b) in Bookmark

5 From the menu on the left, select “Network

ish to change the Friendly Name, select “Friendly the menu and change the name before selecting

6 Ifusing a wireless LAN connection, input the router's SSID, then select the “Security” item set on the router.

Also, if input of a fixed IP is required, set DHCP to OFF here and make the setting. For details, see Network Configuration on page 27

7. (fa password is requested, input it here.

8 When settings are completed, click on Apply.

unit will automatically power down.

9 Disconnect the LAN cable from the unit and confirm that the routers power is ON.

H you intend to use the unit in a wired configuration, use a LAN cable to connect the unit to the router.

10 Press 6 standby/on button.

The on indicatorwill flash blue. Whenthe power is completely on (on indicator lights steadily blue), the network indicator will light blue, indicating that settings are completed.

E: Connection settings using an iOS device

H yau use an iPhone/iPod touch/Pad (IOS device with 1OS 5.0 ar later) with wireless LAN connection, apply the iOS device's connecting settings to this unit

1 Confirm that the AC adapter and LAN cable are not connected to the unit.

X*. 2 Connect the AC adapter, and press

© standby/on button. The on indicator will flash blue. Wait for about 30 to 40 ds

3 When the on indicator stops flashing, use the Dock Connector to USB Cable to connect this unit to the iPod touch/iPhone/iPad (i0S device with iOS 5.0 or later).

+ Confirm that the 1OS device has a wireless connection to your router. + Confirm that the 1OS device's screen lock is disabled.

4 Press and hold input button on the front panel, and then press and hold network setup/ wireless direct button on the rear panel for 3 seconds.

A screen like the following should appear on the iOS device.

6 When the network indicator changes from flashing red to steadily lighted blue, the connection is completed.

FE: Wireless Direct Function

Wireless Direct should be used only as a temporary connection under conditions where a normal router cannot be used. This connection is not encoded, so the music stream and music metadata will not be encrypted. Wireless Direct is intended for use with smartphones in their originally manufactured condition that receive regular updates. f a smartphone has been modified such as ‘jailbreaking" or “unlocking” a phone), its security is compromised, and the wireless connection could result in unautharized access or other intrusion. Do not use a modified phone with Wireless Direct.

+ Only one wireless device can be connected at the same time.

Wireless Direct doesn't have internet connection. When you are using Wireless Direct, you will not be able to use any kind of internet service.

When power to this unit is turned OFF, the Wireless Direct function is canceled, and the unit returns to the network setting in effect prior to using the Wireless Direct function.

1 Confirm that the AC adapter and LAN cable are not connected to the unit.

3. Confirm that the unit's on indicator stops flashing. Hold the unit's rear-panel network setup/wireless direct button depressed for 3 seconds.

The unit will begin rebooting (the on indicator will flash blue); wait for about 30 to 40 seconds.

4 When the network indicator lights purple, connect to the network called “Wireless Direct00001" from Wi-Fi network setting on the computer, iPhone, tablet PC or other device. The “x000x" is the device’s unique identifier number. Not all characters may be displayed, depending on the device

X. 2 Connect the AC adapter, and press © standby/on button.

The on indicator will flash blue. Wait for about 30 to 40 seconds.

Consuit the appropriate Operating Instructions for information regarding operation ofthe computer, iPhone tablet PC or other device used.

This complets the connection. The network indicator remains lighted purple.

You may now operate your iPod/iPhone/iPad to perform AirPlay, etc.

After completing the network settings

When you have completed the network settings, see Music semer on page 31 and enjoy playing music.

Web Control For method C or D in Network set Control menu to make the settir

g on page 18, usethe Web

9 Also, you can access the Web Control menu after making the network connection

Access Web Control using a Safari Browser

1 Be sure this unit and your computer are connected to the same wired or wireless network.

2 Launch Safari on your computer.

3 Press Bookmark icon ([J)) at the upper left of the screen.

4 k Bonjour list (a), and then select this unit's name (Friendly Name) (b) in Bookmark.

Using UPnP function to obtain access:

This unit supports UPnP, so you can access the Web Control menu from a UPnP-supported device connected to the same network, For details, consult the Operating Instructions for the respective system:

When using Windows 7/Windows Vista 1 Click on Start — Documents.

2 From the Explorer menu on the left side of the screen, select Network.

This unit will appear as an icon connected to the same network

3 Right-click on the icon and select “View device

When using Windows XP 1 Click on Start — My Network.

2 Click on “Display icons for UPnP devices connected to the network”.

The icon for this unit will appear as connected to the same network.

3 When the icon is double-clicked.

The Web Control menu can be accessed.

Initial menu (System Information) When Web Control is accessed, the following menu will appear. This menu can be used to confirm detailed information about the unit.

1 Network Configuration Select this when using methods C or D in Network setting on page 18 to make initial connection settings.

2 Friendly Name Select this to change the “Friendly Name."

Network Configuration

When using procedure C in Network setting on page 18. select AUTO or MANUAL before using this menu.

AUTO SSID will be searched automatically, and can be selected from the next pull-down menu. This is the normal method to be used.

MANUAL SSID and Security items must be input manually. Use this method ifthe SSID is not displayed when using AUTO.

1 SSID Using AUTO Displays the recognized wireless access point. Select the access point you wish to connect to.

Using MANUAL The input must be no longer than 42 characters.

When using AUTO, this will be set automatically when selecting SSID.

Select the encryption method depending on SSID.

3 WEP Key/WPA Passphrase

HWEP is selected in step 2 Security, the WEP Key will be displayed

Alternately, if WPA-PSK(TKIP), WPA-PSK(AES), WPA2- PSKITKIP), or WPA2-PSK(AES) is selected in Security, "WPA Passphrase” will be displayed.

H you select None in the Security menu, no character string will be displayed

Displays the WEP key in the blank type.

Displays the WPA Passphrase in the blank type. Te WPA Passphrase can be changed between 6 and 63 characters.

4 DHCP Switches the DHCP setting between ON and OFF. Under normal conditions, leave ON. If you wish to input a

fixed IP, set this to OFF and the following input item will be requested

Primary DNS Sewer_|[Setihe Primary DNS Server Secondary DNS Setthe Secondary DNS Server. Sener

Press once settings have been completed. The unit will automatically power doun

To use a wired connection thereafter, connect a LAN cable to the router.

Men using wireless connections, confirm that the LAN cable is disconnected!

_ 04) Ç Connect to network

This menu can be used to change the name ofthis unit as seen on the network

Ç Pod/iPhone/iPad playback ) Œ

iPod/iPhone/iPad playback

Merely by connecting your iPod/iPhone/iPad to this unit, you How to confirm the version of the il

can enjoy high-quality sound from your iPod/iPhone/iPad Playback setting for iPod/iPhone/iPad music can be iPhoneliPad software

performed from this unit or the iPod/iPhone/iPad itsel.

1 Fromthe top menu, select Settings.

From an iPod/iPhone/iPad, select Settings — General.

Confirming what iPod/iPhone/iPad 2 Select About. models are supported The software version will be displayed The iPod/iPhone/iPad playable on this unit are shown below. "od/iPhone Control iPod nano 3/4/5/6G / iPod touch 1/2/3/4G 7 iPhone 7 iPhone 36/365 7 iPhone 4/45 7 iPad/iPad 2 7

+_ This system has been developed and tested forthe software version of iPod/iPhone/iPad indicated on the website of Pioneer: North America http}/pioneer.jp/homeav/support/ios/na/ Europe http}/pioneer jp/homeav/support Asia and Oceania http}/pioneer jp

\omeav/support/ios/ao/

software versions other than those indicated ite of Pioneer to your iPad/iPhone/iPad may result in incompatibility with this system.

Nhen using an iPod/iPhone/iPad not supported by t unit, connect a commercial} available cable with stereo mini-plug to the uni

E Note + Pioneer does not guarantee that this uni plays iPod/Phone/iPad models other than the ones specified me functions may be restricted depending on the r software versior + iPod/iPhone/iPad is licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reprodut + Features such as the equalizer cannot be controlled using this system, and we recammend switching the equalizer off betare necting + Pioneer cannot uni mstances accept responsibility for any direct or indirect loss arising from any inconvenience or recorded material resulting from iPod/iPhone/iPad failure. + For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/iPhione/iPac.

_ 05) Ç Pod/iPhone/iPad playback

Connecting your iPod/iPhone/iPad

When connecting iPod/iPhone/iPad units, always use the Dock Connector to USB Cable provided with iPod/ Phone/iPad units, or a commercially available Dock Connector to USB cable designed to support iPod/ Phone/iPad

This unit does not provide the Dock Connector to USB cable

1 Open the terminal cover (XW-SMA3 only).

2 Connect your iPod/iPhone/iPad.

Playing your iPod/iPhone/iPad

+_ When your iPod/iPhone/iPad is connected to this unit and you wish to operate the iPod/iPhone/iPad directly, be sure to hold the iPod/iPhone/iPad steady with the other hand to prevent malfunctions due to faulty contacts.

1 Connect your iPod/iPhone/iPad.

2 Press input to select iPod as the input source. The input indicator of the unit lights red.

The following operations are possible for iPod/iPhone/iPad.

wi (play/ Press to start playback. During playback

pause) pause/unpause playback

Ha (prev) Press to return io lhe beginning oflhe currently playing track or le. Press ice to move back to ie beginning of tne previous track or fl.

Ppitnext) Press during playback lo skpahead tothe beginning of the next track or fil.

input Switches to the previous input

+_Hthis unit cannot play your iPod/iPhone/iPad, perform

the following troubleshooting checks:

+ Check whether the iPod/iPhone/iPad is supported by this unit

+ Reconnect the iPod/iPhone/iPad to the unit. I this doesn't seem to work, try resetting your iPod/iPhone/ iPad

+ Checkthe iPod/iPhane/iPad software is supported by this unit

H the iPod/iPhone/iPad cannot be operated, check the

+ Isthe iPod/iPhone/iPad connected correctly? Reconnect the iPod/iPhone/iPad to the unit

+ Isthe iPod/iPhone/iPad experiencing a hangup? Try resettingthe iPod/iPhone/iPad, and reconnect it to the unit

lea When the unit's power is turned ON, the iPod/iPhone/ Pad connected to the unit will be charged

When this unit is running by the buil-in battery, Pod/ Phone/Pad is not charged (XW.SMA3 only)

When input is switched from iPod to another function the iPod/iPhone/iPad's power wi be turned off automatically.

Hthe unit is set to standby when an iPod/Phone/iPad is connected, ne iPod/iPhone/iPad will be turned off automatically.

When no device is connected to the iPod/iPhone/iPad connector, the unit is not operated for 20 minutes or more, the unit's power will automatically turn O

his unit can play audio files stored on PCs or other devices on a Local Area Network (LAN).

This unit allows you to listen to audi files on a computer or other device connected ta the unit via LAN interface. This chapter describes the setup and playback procedures required to enjoy these features. It is advisory that you also refer to the operation manual supplied with your network device. + Photo or video files cannot be played back +_ With Windows Media Player 11 or Windows Media Player 12, you can even play back copyrighted audio iles on this unit

About playable DLNA network devices This unit allows you to play music on media servers connected an an identical Local Area Network (LAN) as the unit This unit allows you to play files stored on the following devices:

+_ PCs running Microsoft Windows Vista or XP Service Pack 3 with Windows Media Player 11 installed PCs running Microsoft Windows 7 with Windows Media Player 12 installed DLNA 1.0 or 1.5-comp: PCs or other devices) Files stored in à PC or DMS (Digital Media Server) as described above can be played via command from an external Digital Media Controller (DMC). Devices controlled by this DMC to play files are called DMRS (Digital Media Renderers). This unit supports this DMR function. When in the DMR mode, such operations as playing and stopping files can be performed from the external controller. Volume adjustment and the muting control are also possible.

le digital media servers (on

+_ connection is made to a Digital Media Controller or Digital Media Server that has not received DLNA certification, the unit may not operate properh. Depending on the external controller being used, playback may be interrupted when the volume is adjusted from the controller. In this case, adjust the volume from the unit or remote control

AirPlay works with IPhone 45, iPhone 4, iPhone 365, iPod touch {4th, 3rd and 2nd generations), Pad 2, iPad with iOS 4.2 or later, and iTunes 10.1 (Mac and PC) or later.

To use AirPlay, select your unit on your iPod touch, iPhone, iPad or in iTunes and start playback. !

Input to the unit will switch automatically when AirPlay is in use. The following operations can be performed when in AirPlay mode:

+_Adjustment of the unit's volume from iPod touch, iPhone, iPad or iTunes.

shows up in the AirPlaÿ I on iPod jouch, iPhone, iPad and iTunes can be changed by Friendly Name on Web Control (page 28)

AirPlay provided on this unit has been developed and tested based on the software versions forthe iPod touch, iPhone, iPad and the software versions for iTunes that are indicated on the Pioneer website.

http://pioneer jp/homeay/support/ios/na/

httpi//pioneer jp/homeay/support/ios/eu/

httpi//pioneer jp/homeay/support/ios/ao/

AirPlay may not be compatible with iPod touch, iPhone. iPad or Tunes software versions other than those indicated on the Pioneer website.

About the DHCP server function

To play back audio files stored on devices on the network, you must turn on the DHCP server function of your router.

In case your router does not have the builtin DHCP server function, i is necessary to set upthe network manuall. Otherwise, you cannot play back audio files stored on devices network or listen to Internet radio stations. See Network setting on page 18 for more on this.

_ 06) Ç Music server )

Operating AirPlay from an iPod/iPhone/iPad

Playing audio files stored on PCs or other devices 1 Tap Music icon and start playing music. Playback starts.

Connecting to the LAN network ls on the connections, see page Connecting to the ork through the wired or wireless LAN on page 12

Playback with DLNA Perform the playback operation on the DMR device:

1 Confirm that this unit is connected on the same network to a DMC device and a DMS device (computer, etc.) in which music files are

2 Select this unit's name (“Friendly Name”)

from the available device list. When playback starts, the input indicator lights green

For details regarding operation of the DMC device, consult the operating instructions accompanying that device.

You can perform the following operations. Note that some buttons are not available for operation depending on the 3 Select SMA. category currently being played back

2 Tap AirPlay icon (m1).

The ‘000 is the device's unique identifier number. ET What it does

input Returns to the previous function.

vol + Use to set Ine listening volume. {volume -/+)

sit si ns Using AirPlay to enjoy music

1 Confirm that the iPod touch, iPhone, iPad, iTunes and this unit are connected to the same wired or wireless network.

2 Play music on iPod touch, iPhone, iPad or iTunes.

3 During playback, tap the AirPlay icon (1) displayed on the iPod touch, iPhone, iPad or iTunes.

4 Select this unit's name (“Friendly Name") from the available device list.

Operations using this unit's remote control

You can perform the following operations. Note that some buttons are not available for operation depending on the category currently being played back

For unes, when the “Allow iTi speakers” function buttons

control from remote et to ON, you can use following

D (play/ Press lo start playback. During pla}

ack, pause! pause) unpause playback

Ha (prev) Press 10 return to Ihe beginning of ne currenthy playing track or file. Press mice to mo ihe beginning of th

je back to revious track or fil

wvi(next) Press during playback lo skip ahead to the beginning of the next track or ile.

input Retums tolé penousluncler voie Usstosetthelistring voue (volume -/+) Br + During use of AirPlay or DMR input, ifno music is played

orthis units controls are not operated more, the unit's OFF.

r 20 minutes or ower will automatically be switched

_ 07] (Other connections

Other connections À caution

re making or changing the connections, switch off the power and disconnect the power cord from the power outlet

+ Open the terminal cover (XW-SMA3 onl;)

Hthe AUX IN mini-plug jack is connected to auxiliary phones jack, the volume of the unit will be adjusted by the volume on the playback device. If the sound is distorted after you lower the volume of the unit, try lowering the volume on the auxliary playback device +_ This unit's AUX IN jack is designed for 1 Vms inputs. Some component CD/DVD players, however, are designed for 2 Vms output: if one of these components ss connected to the unit, noise may be produced.

Connecting auxiliary devices

Connect the rear panel AUX IN mini-plug jack to your auxiliary playback device.

Digital audio player, etc.

‘This unit's rear panel

+_IfyouriPod/iPhone/iPad is not supparted by this units Pod/iPhone/iPad jacks (page 2), use the method noted above to connect your iPod/iPhane/iPad.

Listening to auxiliary devices

1 Press input to select AUX IN as the input source. The input indicator does not light

2 Start playback of the auxiliary device.

+ When using the AUX input, if no cord with mini-plug is connected to the AUX IN jacks, and this unit is not operated for 20 minutes or more, the unit's power wil automatically be switched off.

(Changing the settings

Changing the settings

Setting Quick Start Mode

Quick Start Mode significantly reduces the time required for startup. also allows the unit to power on automatically using AirPlay and DLNA. Follow the steps below to turn on Quick Start Mode.

Setting Quick Start Mode 1 Open the terminal cover (XW-SMA3 only).

2 Connect the AC adapter.

3 Press the O standby/on button.

After the power turns on, it takes approximately 30 seconds for the unit to be ready to use. on indicator will go from flashing to solid blue.

4 Hold the input button depressed for 3 seconds.

The on indicator, input indicator and network indicator will flash 4 times to signal Quick Start Mode has been turned on.

Canceling Quick Start Mode

1 Hold the input button depressed for 3 seconds when the unit is in the Quick Start Mode.

The on indicator, input indicator and network indicator each flashes twice.

rt Mode will be canceled:

Resetting the system Use this procedure to reset all system settings to the factory default.

+ Disconnect all devices conn operation

ted to this unit before the

1 Press standby/on. The unit turns on.

2 Press and hold input and © standby/on on the unit for 3 seconds.

After all the indicators on the front panel of the main unit light, the unit turns off (standby mo Allthe settings will be reset to the factory default nexttimethe unit turns on

en using the XW-SMAS, after returing settings to their factory defaults, remember to connect the AC adapter. the AC adapter is not connected, power

cannot be tumed ON D)

0) (Changing the settings

You can update this unit's firmware via Se Internet Explorer 8/9. Download the latest firmware for your computer from the Pioneer website. The downloaded file will be compressed in the ZIP format, and must be decompressed before it can be used.

EA Note *_ Connect the AC adapter when using the XW-SMA3 (this operation cannot be periormed using battery power) the firmware, iis necessary to connect Lo a network by following the procedure (except

method F). See Network setting on page 18. 1 Access the Web Control. See eb Ce

The Firmware Update Prepare screen is displayed. Hthe screen does not switch automatically, click Click here.

4 Confirmthe location of the newest firmware (), then press the Upload button (b).

The confirmation screen is displayed. I you continue the firmware update, press Yes. Once the firmware update process starts, you can't stop it

5 _ The firmware upload status screen is displayed.

Inen the update is completed, unplug the power cord from its AC outlet as instructed in the display

+ Never disconnect the AC power while updating is undenway

Ç Additional information

Additional information

Being used Fine trouble © service center ar your dealer

be rectified even at arry out repair work. normally due to um to normal

rating General problem

Was the power cord unplut forcibly while this units power was

or trouble and mañfunctions. you think th

lemal effects sut dition

there is something wrong with this ck gate the other devices and electrical appliances low, ask your neare: hor

as static electricity discannect the power plug from the

Be sure to press © standby/on on this unit or p © (standby/an) on the remote control and wa indicator on the front panel display to turn of befo

Difference in volume between MP3, WMA, iPod)

Phone/iPad, AUX This is not à problem with this unit

The volume may sound differently and recording format

lepending on the input source

This unit cannot be operated Are you operating from far a rom within a distance of Operate within F,30" of sith the remote control the remote sensor on the front panel (page 11)

Is the remote control sensor exposed | The remote control signals may not be received properly ifthe

Lo direct sunlight or strong artificial remote control sensor is exposed to direct sunlight or strong

light from a fluorescent bulb, etc? artificial light from a fluorescent bulb, etc

Are the batteries dead? Replace the batteries (page 10) The terminal cover has en using the XW-SMA3, the terminal cover may be detached if

pulled strongly away from the unit. the termina detached, press the cower's protruding pins into the connector on the unit, then use à narrow non-pointed stick or other ssh through from above, Take care not ta injure er fingers when doing this.

When an iPod/iPhone/iPad is connected

Problem Check Can iPhone,

Remedy Make sure the iPod/iPhone/iPad is connected correctiy (page 30). Check whether the iPod/iPhone/iPad is supported by {his ur

(page 29) Also, tr disconnecting the iPod/iPhone/iPad then reconnecting {the iPod/iPhone/iPad has frozen, try resetting the iPod/iPhone/ iPad, and reconnect it to the uni

TheiPod/Phone/iPad be recharged

‘The iPod/iPhone/iPad can be recharged only when this units power is tumed ON.

ren using the XIW-SMA3, the internal batter recharged while the unit is operating on battery power

Confirm that he iPod/iPhone/iPad is connected properiy. Try disconnecting and reconnecting the iPod/iPhone/iPad ‘There is a possibility of damage to {he Dock connectors: Tiy replacing the USB

09) (Addï ional information

Cannot access to the

‘The LAN cable is not firmiy

ÿ connect the LAN cable (page 12).

The routeris not swiched on.

Switch on the router

Playback does not stat from this unit or the pow

The device is currently disconneck

Check whether Ine device Is properiy connected 19 his unit orthe power supply.

The audio files stored on devices on the network, such as a PC, cannot be played

ndows Meclia Player Windows Media Player

currently installed on you

Contirm that ne computer has the following software installed Windows Media Player version 11 or 12, and server software confarming to DLNA 1.0 or 1.5. Also be sure to set the server for media sharing’ and device selection.

Procedures for operating Windows Media Player differs depending on the camputer's OS and version of Windows Media Player. For details consult the Microsoft website.

For details regarding operation of server soflware conforming to DLNA 1,0 or 1.5, consult the instructions that came with your software.

Contirm the fie formats of ne files you are lrying to play Win this unit. Even though a file maÿ have an extension otherwise playable on this unit it may not be playable or displayable due to individual characteristics.

Audio files recorded in MPEG-4 AAC

Windows Media Player 12

Audio files recorded in MPEG-4 AAC or FLAC cannot be playe back on Windows Media Player 11 or Windows Media Player 12. Try using another server. Refer to the operation manual supplied with

The device connected to is not properly aperated.

Check whether Ine device is alfected by special circumstances or is in the sleep mode, Try rebooting the device if necessary

does not permit file sharing!

Try changing the settings for the device connected to Ine network

‘The folder stored on 1he device connected to {he network has been

Check the folder stored on he device connected to the network.

Network connections coulé be

restricted due Lo the com nelwork settings, se etc.

Checkthe computer s network settings, security settings, etc:

The LAN cable is current] disconnected.

Connect the LAN cable properiy (p

Audio playback s undesirably stopped or disturbed

The audio fe current D back was not recorded in layable on this unit

Check wnelner Ine audio fe was recorded in à format supponed by this unit

Check whether the folder has been damaged or corrupted

Even audio files listed as playable on this unit be played back or displayed (page 41)

There is heavy traffic on

with {he Internet being accessed on

Use 100BASETX lo access {he devices on the network.

There is a connection rout a wireless LAN on the

may be a shortage of bandwidth on the 2.4 GHz band used by the wireless LAN, Make wired LAN connections not routed through a wireless LAN.

Install away from any devices emitling electromagnetic waves on the 2.4 GHz band (microwave ovens, game consoles, etc}. this does not solve the problem, stop using other devices that emit

(Additional information ) Œ

Wireless LAN Probl Check Remedy

Network cannot be accessed ‘The computer may determine the presence/absence of a wireless: via wireless LAN LAN in accordance with the presence/absence of the cable at 1ne

time the units power is turned on. When using a wireless LAN. disconnect the LAN cable from this unit and then turn the unit OFF and ON again!

This unit and base unit (wireless LAN Improve the wireless LAN environment by moving the unit and router, etc.) are too far apart or there base unit closer together, etc. is an dbstacle between them.

There is a microwave oven or ofner Use ne system in à pla device generating electromagnetic device generating electromne waves near the wireless LAN ervironment.

away from microwave ovens or others:

Avoïd using devices generating electromagnetic waves as much as possible when using the system with the wireless LAN.

Wireless LAN connections cannot be The unit must be set In order lo establish wireless LAN established between the unit and connections. See Connecting using wireless LAN on page 12. base unit (wireless LAN router

The IP address settings of tne unit Check Ihe IP address settings of the uni (including the DHCP does not mateh the settings of the setting) wireless LAN router, etc. fthe units DHCP setting is on, turn the units power off, then turn the power back on. Check that the IP addresses of the unit match the wireless LAN router, etc. f'the unit s DHCP setting is off, set an IP adress matching the nebwork of the base unit (wireless LAN router, etc.) For example, i the wireless LAN router s IP address is ress Lo "192,168.1.XXX° (*1), the 5.0", the gateway and DNS to

The access pointis sel to conceallne In inis case, te SSID may not be displayed on the screen. Ifnot, set the SSID, etc. by making the wireless LAN settings on the unit manually

The SSID only supports use of single-byte alphanumeric characters, together with the underbar and certain other symbols. I using another charact fore making nebnork settings. For more details regarding SSID, consult your router operating instructions.

‘The access point's security settings The unit does not s use WEP 182-bit length code keÿ or key authentication. shared key authentication:

ort WEP 182-bit length code key or shared

may be that the router has frozen. Press the router reset button and try making the settings again:

Dossn't play properiy when ‘The Wireless Direct function may not operate properly depending

using the Wireless Direct on the condition of signal reception and the wireless LAN device

function. connected. n such cases, bring the wireless devices closer together and in other ways improwe the conditions for wireless LAN" receptior

09) (Additional information

Battery (XW-SMA3 only)

keck the battery's remaining chat adapter and charge the battery

Can't charge the battery Battery indicator flashes

purple intermittentiy (lashing purple light or regular flashing of purple and other color light}

Is the accessory AC adapter connected properiÿ? Try disconnecting the AC adapter then recannecting it

Is the ambient temperature correct for charging? Charge the battery only when the amb and 35

ent temperature is between 5

Operating time is very short

Is the ambient temperature too low? In cold environments, the battery will previde shorter playing time.

Has the bat ul fe? 1time

playing time becomes extremely short even after fu 9. the battery pack has likely

ordinarily be recharged about 300 times, but this may be shorter depending on surrounding conditions uring play and storage

I you wish to have your units battery replaced, consul

(Additional information ) Œ

= Category Playable file formats

This unit supports the following file formats. Note that the fil rmats listed below may not be play: Also, the compatibility of file formats varies depending on the server

(OMS) and controller (OMC) used. Check with your server and bitrate controller to ensure the compatibilty of file formats = supported by your server and controller C_ Channel

+_lfan attempt is made to play files with unsupported ETES

uch cases, confirm that the

h this unit VERCER Supported

Supported Category Extension Stream

Semplng — 324Hzto 48H ER Quantization 16 bi o

When moving this unit, be sure to first disconnect the iPod/ iPhone/iPad, LAN cable ar any other equipment connected to the unit, Then press Ô standby/on on this unit

(or © (standby/on) on the remote control), wait for the on indicator on the front panel to turn off, then unplug the power cord. Damage may accur the unit is transported or moved when another device is connected to iPod/iPhone/iPad, LAN {10/100) terminal, or AUX IN mini-plug jacks

Place of installation

+ Choose a stable place nearthe TV orstereo system being used with this unit + Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces. Avoid the following locations: + Places exposed to direct sunlight Humid or poorly ventilated places Places where the product is easily exposed to water Extremely hot places Places exposed to vibrations Places in which there is much dust or cigarette smoke Places exposed to soot, steam or heat (Hitchens, etc.) Do not place objects on this unit Da not place any objects on top of this unit. Do not obstruct the ventilation holes Do not use this unit on shaggy rugs, beds, sofas, etc. or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage Do not expose to heat Do not place this unit on top of an amplifier or other device that generates heat. When rack mounting it to avoid the heat given off by the amplifier or other audio device, place it on a shelf below the amplifier. + Tum offthe unit's power when not using it + Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the units power is on. If this happens, turn the unit's power off.

Cleaning the product

+ Clean this unit using a soft cloth, For tough dir, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wäpe of the dirt, then wipe again with a soft, dry cloth. Alcahal, thinner, benzene, insecticides, etc. coul cause the print or paint to peel off, Also, leaving rubber or vinyl products in contact with this unit for long periods oftime could mar the cabinet When using chemicalimpregnated wipes, etc. readthe cautions included with the wipes carefull.

+ Unplug the power cord from the power outlet when cleaning this unit

About network playback

The network playback function such as Music Server of this unit uses the following technologies:

Windows Media Player See Windows Media Player 11/Windows Media Player 12 on page 31 for more on this

Pla; Windows Media Audio (WMA) files +_WMAis an audio compression technology developed by

Microsoft Corporation USA.

These files can be encoded using Windows Media Player

Ver. 7, Ver. 7.1, Windows Media Player for Windows XP.

or Windows Media Player 9 Series.

Windows Media is either a registered trademark or

trademark of Microsoft Corporation in the United States

and/or other countries,

When encoding your files, use only applications

approved by Microsoft Corporation. if a nan-approwed

application is used, i may not operate properiy

Windows Media DRM Microsoft Windows Media Digital Rights Management GMDRV) is a platform to protect and securely deliver content for playback an computers, portable devices and network devices. Music Server functions as a WMDRM 10 for networked devices. WMDRM protected content can only be played on media servers supporting WMDRM.

Content owners use WMDRM technology to protect their intellectual property, including copyrights. This device uses WMDRM software to access WMDRM protected content. IFthe WMDRM software fails to protect the content, content owners ray ask Microsoft to revoke the saftware's ability to use WMDRM to play or copy protected content. Revocation does not affect unprotected content. When you download licenses for protected content, you agree that Microsoft may include à revocation list with the licenses. Content owners may require you to upgrade WMDRM fo access their content. | you decline ‘an upgrade, you wil not be able to access content that requires the upgrade.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Ç Additional information

DLNA CERTIFIED® Audio Player

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through a wired or wireless network in the home.

The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information

DENA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Content playable over a network

+_ Even when encoded in a compatible format, some files may not play correcty. Movie or Phto files cannot be played back. Some functions maÿ not be supparted depending on the server type or version used. Supported file formats vary by server. As such, files not supported by your server are not displayed on this unit For more information check with the manufacturer of your server.

Disclaimer for Third Party Content ACCESS TO THIRD PARTY CONTENT SERVICES, INCLUDING ALL ASSOCIATED FEATURES AND FUNCTIONALITIES, IS; PROVIDED "AS IS, "AS AVAILABLE" AND AT THE USER'S OWN RISK, WITHOUT WARRANTY OF ANY KIND. PIONEER DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, IN CONNECTION WITH ACCESS TO AND USE OF CONTENT SERVICES THROUGH THIS DEVICE, INCLUDING WITHOUT LIMITATION WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR À PARTICULAR PURPOSE, AND NON-INFRINGEMENT, PIONEER DOES NOT GUARANTEE, REPRESENT, OR WARRANT THAT CONTENT SERVICES WiLL BE FREE FROM ERRORS, INTERRUPTION,

LOSS, CORRUPTION, ATTACK, VIRUSES, INTERFERENCE HACKING, OR OTHER SECURITY INTRUSION, AND PIONEER DISCLAIMS ANY LIABILITY IN CONNECTION W/ITH THE FOREGOING. PIONEER IS NOT LIABLE OR RESPONSIBLE FOR ANY LOSS OR DAMAGE ARISING FROM ACCESS TO OR USE OF CONTENT, NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY PIONEER OR ITS CUSTOMER SERVICES REPRESENTATIVES WILL CREATE ANY SUCH WARRANTY.

IN NO EVENT WILL PIONEER, ITS AFFILIATES, OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES BE LIABLE IN CONNECTION WITH YOUR USE OF THIRD PARTY CONTENT SERVICES THROUGH THIS DEVICE FOR PERSONAL INJURY OR SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, INCLUDING WITHOUT LIMITATION DAMAGES FOR ATTORNEV'S FEES, LOST DATA OR LOST PROFITS, REGARDLESS OF THE THEORY OF LIABILITY AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL PIONEER'S TOTAL LIABILITY TO YOU FOR ALL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIRD PARTY CONTENT SERVICES (OTHER THAN AS MAY BE REQUIRED BY LAW IN CASES INVOLVING PERSONAL INJURY) EXCEED $10.00. THE FOREGOING LIMITATIONS. WILL APPLY EVEN IF THE ABOVE REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IF ANY APPLICABLE AUTHORITY HOLDS ANY PORTION OF THIS SECTION TO BE UNENFORCEABLE, THEN LIABILITY WILL BE LIMITED TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW!

About playback behavior over a network

+ Playback may stall when the PC is switched off or any

mediafiles stored on it are deleted while playing content.

+_ there are problems within the network environment heavy networktraffi, etc.) content may not be displayed or played properly (playback may be interrupted or stalled). For best performance, a 100BASE-TX connection between player and PC is recommended I several clients are playing simultaneousy, as the case may be, playback is interrupted or stalled Depending on the security software installed on a connected PC and the setting of such software, nebwork connection may be blocked. Pioneer is not responsible for any malfunction of the player and/or the Music Server features due to communication error/malfunctions associated with your network connection and/or your PC, or other connected equipment. Please contact your PC manufacturer or Internet service provider. Windows Media is elther a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries, This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. Microsoft®, Windows ®7, Windows "Vista, Windows ®XP, Windows #2000, Windows Millennium Edition, Windows ®98, and WindowsNT® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/ or other countries.

09] Ç Additional information

aacPlus me dY feu) coding technologies

The AAC decoder uses aacPlus developed by Coding Technologies

Copyright c 2000, 2001, 2002, 2008, 2004, 2008, 2006, 2007 Josh Coalson

Redistribution and use in source and binary forms, with or withaut modification, are permitted provided that the following conditions are met:

+ Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution

Neither the name of the Xiphorg

Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ‘AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR À PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

About iPod/iPhone/iPad

“Made for iPod" “Made for iPhone” and “Made for iPad” mean that an electronic accessory has been designed to connect specificallyto iPod, iPhone, or iPad, respectively, and has been certiied by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards, Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

Apple, AirPlay, iPad, iPhone, iPod, iPod shuttle, iPod nano, iPod touch, Tunes, Mac and Safari are trademarks of Apple Inc., registered in the U.S. and other countries,

The AirPlaÿ loga is a trademark of Apple Inc.

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

Wi-Fi CERTIFIEDIM, WMMTM, WPATM and WPA2TM are certification marks of the Wi-Fi Alliance.

Created by morld-renowned speaker engineer Andrew Jones, this speaker offers high performance and exceptional quality to deliver a stunning music listening experience.

“Chief Speaker Engineer

Ç Additional information

Specifications + Speaker section (XW-SMA1 and XW-SMA3)

Enclosure Bass-refiex type System 2away 8 speaker system Speakers: Woofer 1.7 cm (8 1/16 in.) cone x 2 Tester 2.6 cm (1 1/16 in.) semi-dome x 1

Frequency range. 50 Hz to 20 kHz

+ Speaker section (XW-SMA4)

Enclosure Bass-refiex type System Sway Sspeaker system Speakers: Subwoofer 10 cm (8 18/16 in) cone x 1 Woofer 7.7 cm (8 1/16 in.) cone x 2 Tester 2.6 cm (1 1/16 in.) semi-dome x 2

Frequency range 45 Hz to 20 kHz

+ Miscellaneous Power consumption

XW-SMA3 4W XW-SMA4 21W In standby mode. 05W In standby mode (Quick Start Mode) 35W Dimensions (without antenna) XW-SMAT and XW-SMA3 0 mm (MW) x 180 mm (H) x 145 mm (D) 12 8/8 in. (W) x 7 1/8 in. (H) x5 3/4 in. (D) 360 mm (W) x 210 mm (H) x 169 mm (D) 14 3/16 in. (W) x 8 5/16 in. (H) x6 11/16 in. (D) Weight (without package): XW-SMA XW-SMA3 XW-SMA4

+ AC adapter Power requirements. Rated output: XW-SMAT and XW-SMA3 XW-SMA4.

+ Wireless LAN Wireless LAN standard Frequency band Security

2.3 kg (6.1 lbs) 2.5 kg (5.5 lbs) 8.8 kg (B.4 Ibs)

DC 15 V,4A DC 15 V, 4.95 À

+ Accessories Remote Control

Lithium Battery (CR2025)* 1

Power Cord AC Adapter Quick Start Guide Warranty Card

“The lithium battery has been factory installed in the remote control unit

+ Specifications and the design are subject to possible modifications without notice, due to improvements. «This product is not designed for use in Japan

English: Hereby, Pioneer, declares that this [°] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

purchase replacement parts, operating instructions, or accessories, please go to one of following URLS :

In the USA/Aux Etats-Unis http:/www.pioneerelectronics.com

In Canada/Aux Canada http:/www.pioneerelectro:

Discover the benefits of registering your product online at À http://www.pioneer.co.uk (or http:/www.pioneer.eu)

© 2012 PIONEER CORPORATION. All rights reserved.

1-4, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC.

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
