Product Type	Cylinder Vacuum Cleaner
Brand	Bush
Model	BVC1805
Dimensions (L x W x H)	400 x 270 x 320 mm
Weight	4.8 kg
Power Consumption	1600 W
Power Cord Length	5 m
Dust Capacity	1.5 L
Dust Container Type	Bagless
Filtration System	HEPA 13 washable filter
Suction Control	Electronic slider on handle
Floor Nozzle	Combination carpet/hard floor
Accessories Included	Crevice tool, dusting brush, upholstery nozzle
Hose Length	1.5 m
Telescopic Tube	Yes, aluminum
Wheels	4 swivel wheels
Noise Level	78 dB
Motor Protection	Thermal cut-out
Certifications	CE, UKCA
Repairability Index	7.5/10

Frequently Asked Questions - BVC1805 BUSH

How do I change the filter on my Bush BVC1805?

To change the filter, first unplug the vacuum. Open the top cover of the dust container. Remove the old HEPA filter and replace it with a new one. Ensure the filter is seated properly before closing the cover. Washable filters should be cleaned every 3 months.

What does the 'BVC1805' model number mean?

BVC likely stands for Bush Vacuum Cleaner, and 1805 is the model identifying number, possibly indicating a 1800W motor or series.

Is the Bush BVC1805 bagless or bagged?

The Bush BVC1805 is a bagless vacuum cleaner with a 1.5L transparent dust container that is easy to empty and clean.

How do I clean the HEPA filter?

Remove the HEPA filter and tap it gently to remove loose dust. For deeper cleaning, wash it under running water (use no detergents) and let it dry completely for 24 hours before reinserting.

What accessories are included with the BVC1805?

The vacuum comes with a combination floor nozzle, crevice tool, dusting brush, and an upholstery nozzle. These can be stored on the machine using the built-in clip.

How do I fix reduced suction?

Check for blockages in the hose, tube, or nozzle. Empty the dust container if full. Clean or replace the filter. Ensure the dust container is properly sealed.

What is the cord length?

The power cord is 5 meters long, allowing a cleaning radius of approximately 8 meters with the hose and tube.

Can I use the vacuum on hardwood floors?

Yes, the floor nozzle has a brush setting suitable for hardwood. You can also use the included dusting brush for delicate surfaces.

Where is the serial number?

The serial number is located on the rating plate at the back or bottom of the vacuum cleaner. It may also be inside the dust container compartment.

How do I store the vacuum?

The hose can be detached and stored on the side clips. The tube and nozzles can be assembled onto the machine using the parking slot. Keep in a dry place.

USER MANUAL BVC1805 BUSH

Black and white photo of a vacuum cleaner with coiled tubing (no visible text or symbols)

Cylinder Bagless Vacuum Cleaner

Warranty Helpline: 1800 509 394 (Australia)

0800 450 259 (New Zealand)

The Gold Technical Support Line: 1902 215 259

Personal Product Support

(Charges will apply at \$2.95 per minute)

Introduction

Thank you for purchasing this Bush product which has been designed and manufactured to give you many years of trouble free service.

You may already be familiar with using a similar product, but do take time to read these instructions - they have been written to ensure you get the very best from your purchase.

Safety is important

To ensure your safety and the safety of others, please ensure you read the Safety Instructions before you operate this vacuum cleaner.

Keep this information in a safe place for future reference.

Contents

Introduction...... 2

Safety is important 2

Specification.... 5

Model Number....5

Power Supply 5

Filtration....5

Features...... 5

Safety Instructions 6

Power Source 6

Using the Vacuum Cleaner....6

Transporting your vacuum....7

Servicing 7

Parts Identification.... 8

Extension Tube....9

Crevice tool/brush....9

Upholstery tool 9

Floor brush.... 10

BodyGuard 11

Using Your Vacuum Cleaner 13

Preparing for use.... 13

Assembly.... 13

Switching on.... 13

Suction control 14

Cord rewind.... 15

Storage 15

Emptying the dust container.... 16

Clearing blockages 17

Service and Maintenance 18

Cleaning the Dust Container Filter 18

Cleaning the Pre-motor Filter 18

Cleaning the Exhaust Filter 19

Troubleshooting.... 20

Thermal cut-out....20

Disposal.... 20

Guarantee 21

Specification

Model Number

• BVC1805

Power Supply

• Power supply 240V AC 50Hz
• 1600W nominal, 1800W maximum power output

Filtration

- 4 Stage filtration

Features

• 1800 watt cylinder bagless vacuum cleaner
• Metal telescopic tube
- Floor brush
- Crevice tool/brush
- Variable speed
• Automatic cord rewind
• 1.6L capacity

Safety Instructions

This product should never be left unattended when connected to the mains supply.

Power Source

Your vacuum cleaner requires a 240V 50Hz supply. Do not use any other supply.

Using the Vacuum Cleaner

• Do not vacuum wet surfaces, pick up wet objects or use in wet conditions.
• Do not use the vacuum cleaner to pick-up burning objects as this is a fire risk.
• Do not use the vacuum cleaner to pick up hot objects such as coal and ash.
• Do not use the vacuum cleaner to pick-up large objects that are likely to cause blockage and damage to the vacuum cleaner.
• Do not stand the cleaner on its rear face while cleaning.
• Do not run over the mains cable with your vacuum cleaner.
• This vacuum clean is for domestic use only. Industrial or commercial use invalidates the warranty.
• Most new carpets have a running in period in which only light vacuuming is recommended.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not operate the cleaner without the container and filters installed.

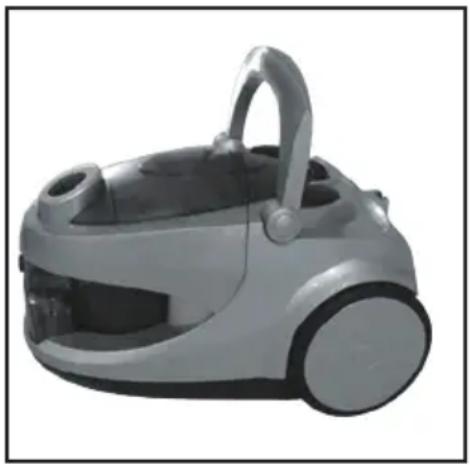

Transporting your vacuum

• To move your vacuum cleaner from room to room, unplug the unit and carry using the carry handle.
• Never pull the vacuum cleaner by its mains power cord when moving.

Exterior view of a modern vacuum cleaner (no text or symbols visible)

Servicing

• With the exception of filters and the dust container, there are no user-serviceable parts in the vacuum cleaner.
• Contact the BUSH helpline on 1800 509 394 in Australia or 0800 450 259 in New Zealand if you are in any doubt about the installation, operation or safety of your vacuum cleaner.
• Ensure you replace the filters when necessary.
• Always empty the dust container when indicated on the vacuum cleaner.
• The plug of the power cord must be removed from the wall socket before emptying the dust container, cleaning the appliance or undertaking any maintenance operations.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

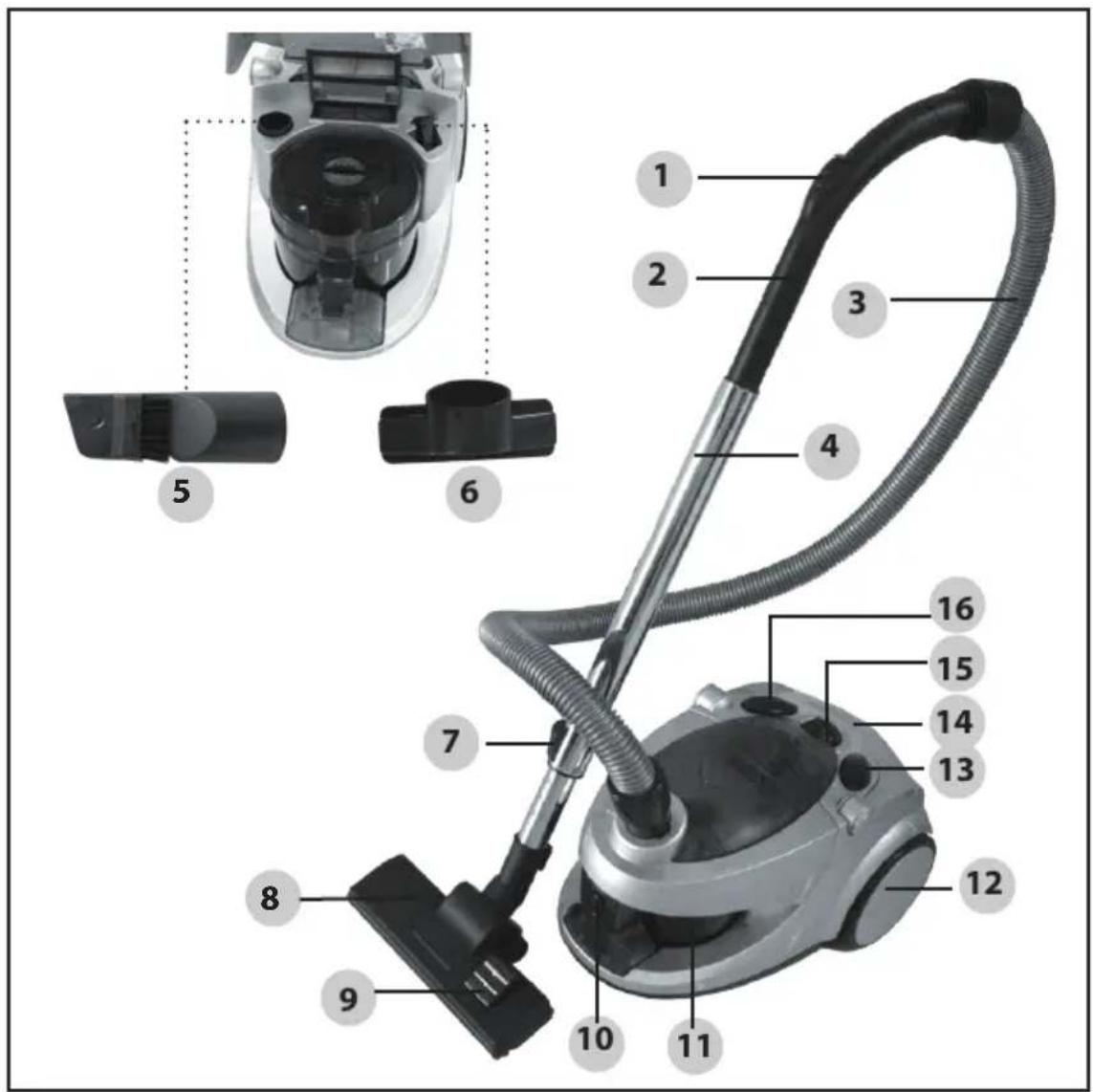

Parts Identification

1 Suction control
2 Hose handle
3 Flexible hose
4 Metal telescopic tube
5 Crevice tool/brush
6 Upholstery tool
7 Extension locking catch
8 Floor brush

9 Floor type selector
10 Hose connector release button
11 Dust container
12 Transportation wheel
13 Power On/Off button
14 Carry handle
15 Variable speed button
16 Cable rewind button

Extension Tube

This vacuum cleaner incorporates an adjustable extension tube.

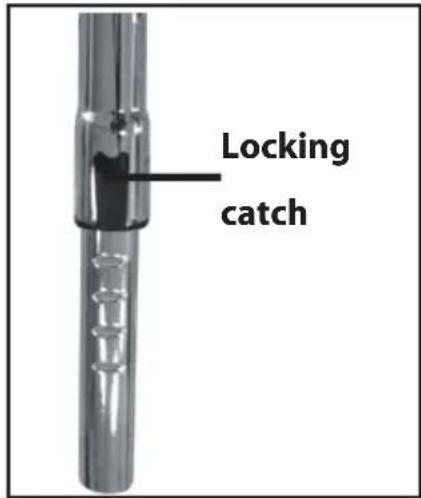

To extend the tube, push the locking catch forward and pull the tube to the desired length. Release the locking catch to lock the tube into position.

Crevice tool/brush

The crevice tool can be used to clean hard to reach places.

Attach it directly to the handle for greater control, alternatively, attach to the extension tube for greater reach.

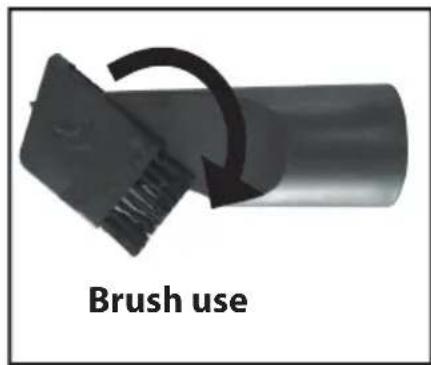

The crevice tool is fitted with a small brush that rotates forwards and clocks into position for use.

The brush can be removed by rotating the brush back until it clicks into the storage position.

Close-up of a Crevice tool component (no visible text or symbols on the tool itself)

Upholstery tool

The upholstery tool can be used to clean carpets, upholstery and stairs etc. Attach it directly to the handle or the tube for extra use.

Black plastic T-shaped object with a cylindrical top (no text or symbols visible)

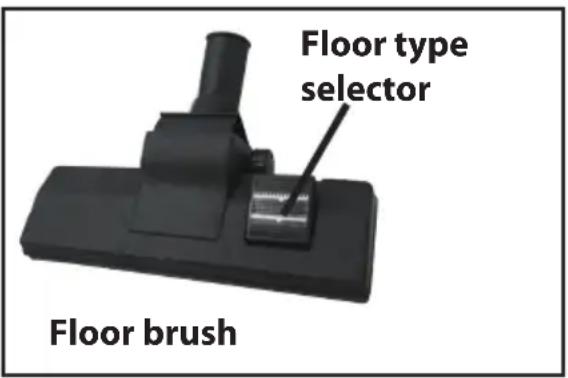

Floor brush

Push the extension tube onto the hose handle, then fit the floor brush to the extension tube. Alternatively, the floor brush can be attached directly to the handle if preferred.

Fit the floor brush to the end of the extension tube.

The selector on the floor brush allows you to choose the most appropriate setting for the type of floor covering.

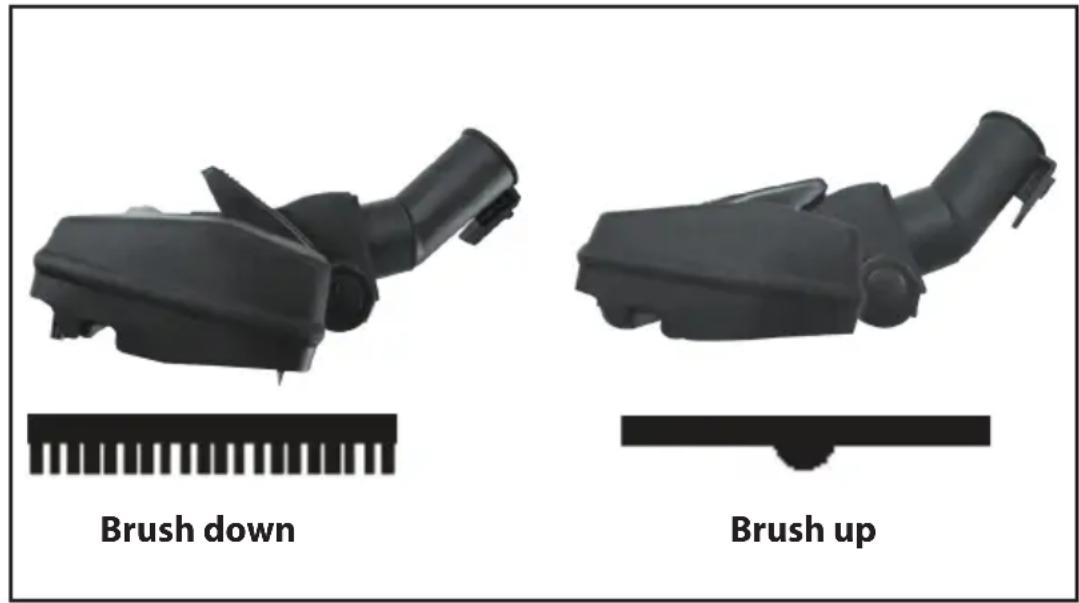

Height adjustable settings

The brush can be raised or lowered depending on the surface to be cleaned.

• The brush down position is intended for use on non-carpeted floors or short bristled carpets.
• The brush up position is intended for general use on all types of carpet.

NOTE:

The brush down position can be used on carpets with a longer pile to increase the amount of 'pick-up' for ground in dirt, but it also increases the amount of force required to move the brush head over the carpet.

More hygienic cleaning

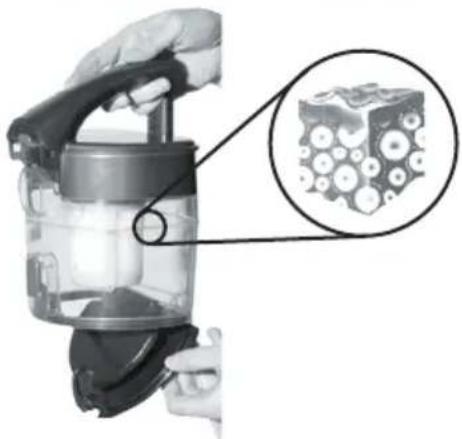

BodyGuard

Close-up of a hand holding a transparent cylindrical device with an inset showing circular components (no text or symbols visible)

The dust canister of this bagless cleaner has been treated to provide anti-bacterial protection

ANTI-BACTERIAL PROTECTION

Up to 99.9% effective against common household bacteria

Through independent testing, our formula has been designed to protect against the most likely bacterial household intruders.

+ more hygienic storage

+ more hygienic dust disposal

Filter treated with

antibacterial protection

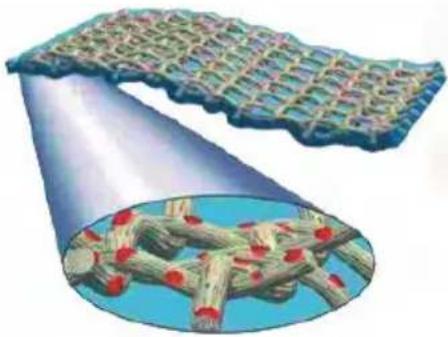

Illustration of a nanoscale structure with layered material and a magnified view of internal components (no text or symbols)

Filtration treated with BodyGuard to provide antibacterial protection

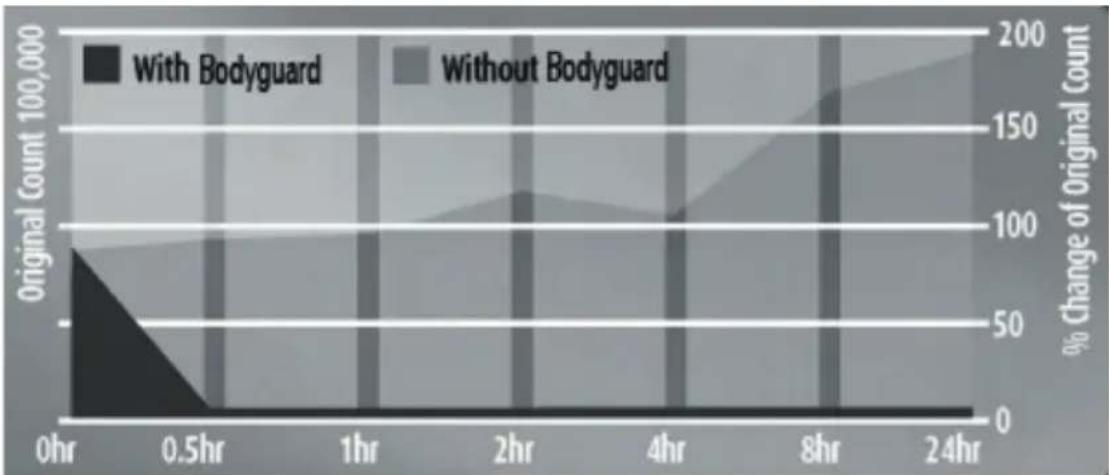

Anti-bacterial performance demonstration - bacteria introduced to white fabric in a water solution.

Circular petri dish with a single square white cell, showing microbial colonies (no text or symbols visible)

Fabric without BodyGuard shows substantial growth on and around the sample

Circular petri dish with a white square on blue agar medium (no text or symbols visible)

BodyGuard sample protected against bacteria on and around the fabric

= a more hygienic home

Using Your Vacuum Cleaner

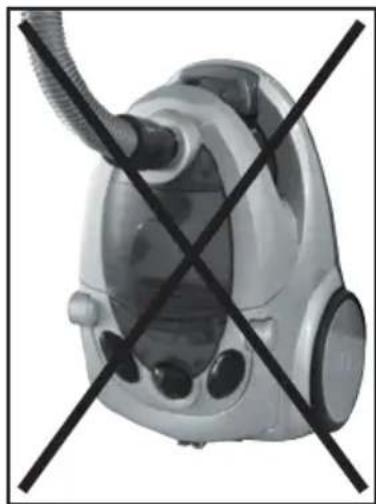

This vacuum cleaner has been designed to operate horizontally. Do not operate in a vertical position as this will block the exhaust and cause overheating.

Exterior view of a vacuum cleaner with crossed black lines indicating prohibition (no text or symbols)

Preparing for use

Carefully remove your vacuum cleaner from the box. You may wish to store the packaging for future use. This unit is supplied with the dust container fitted. Once assembled, it is ready for use.

Assembly

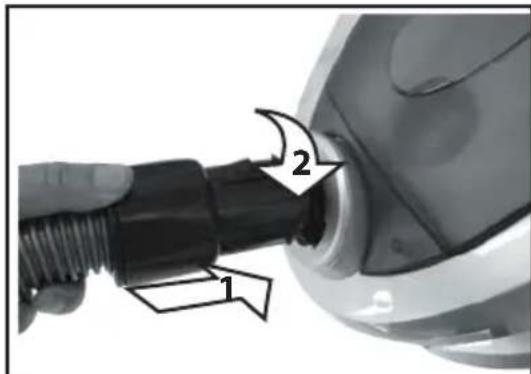

Push the hose connector into the hose inlet socket (1). Then rotate the connector 90° clockwise (2) to lock the hose to position.

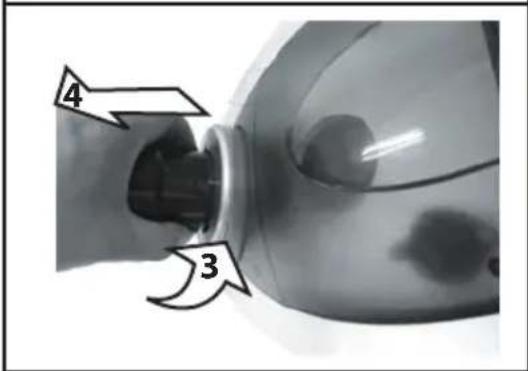

To release the hose connector, press and hold the latches (3) on the side of the hose connector and rotate the connector 90° anti-clockwise to remove the hose from the unit.

Switching on

1. Pull the power cable to the desired length. When you are nearing at the maximum, a yellow marker will be visible on the cable. A red marker indicates that you have reached the maximum cable length.

1. Insert the mains plug into a mains power socket and switch the socket on.

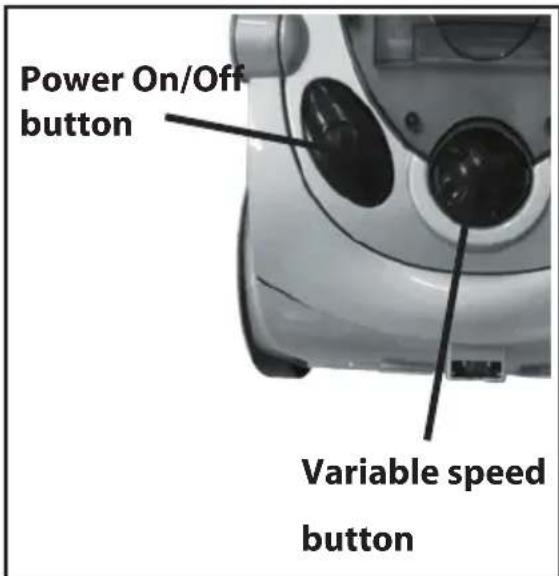

2. Press the Power On/Off button to switch the unit On.
3. The power can be adjusted using the variable speed button.
4. After use, press the Power On/Off button to switch your vacuum cleaner Off, then unplug from the mains supply.

ALWAYS UNPLUG YOUR VACUUM CLEANER WHEN NOT IN USE.

Suction control

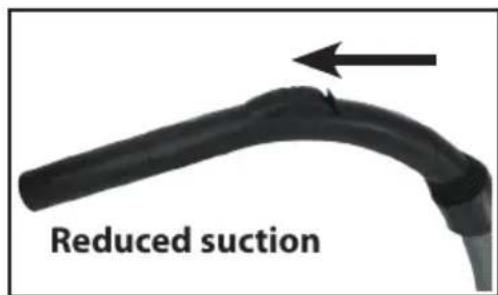

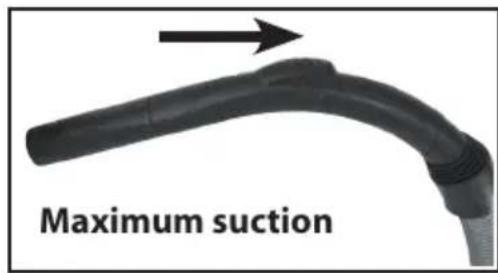

A thumb operated suction control is located on the hose handle. This allows you to reduce or increase the amount of suction to suit the vacuuming task.

Maximum suction gives the best results during normal vacuuming, however, reduced suction may be more appropriate if you are vacuuming fabrics or upholstery.

Cord rewind

WARNING

TAKE GREAT CARE WHEN USING THE CORD REWIND BUTTON, PARTICULARLY WHEN CHILDREN OR PETS ARE NEARBY, AS THE REWIND ACTION MAY CAUSE THE CORD TO'WHIP'.

Caution

Always ensure that your vacuum cleaner is unplugged from the mains supply before using the cord rewind button.

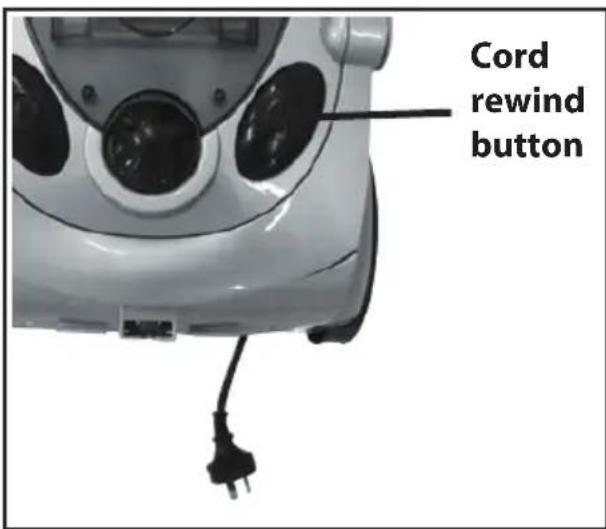

Holding the power cord in one hand, press the cord rewind button and carefully feed the cableback into the cleaner.

Storage

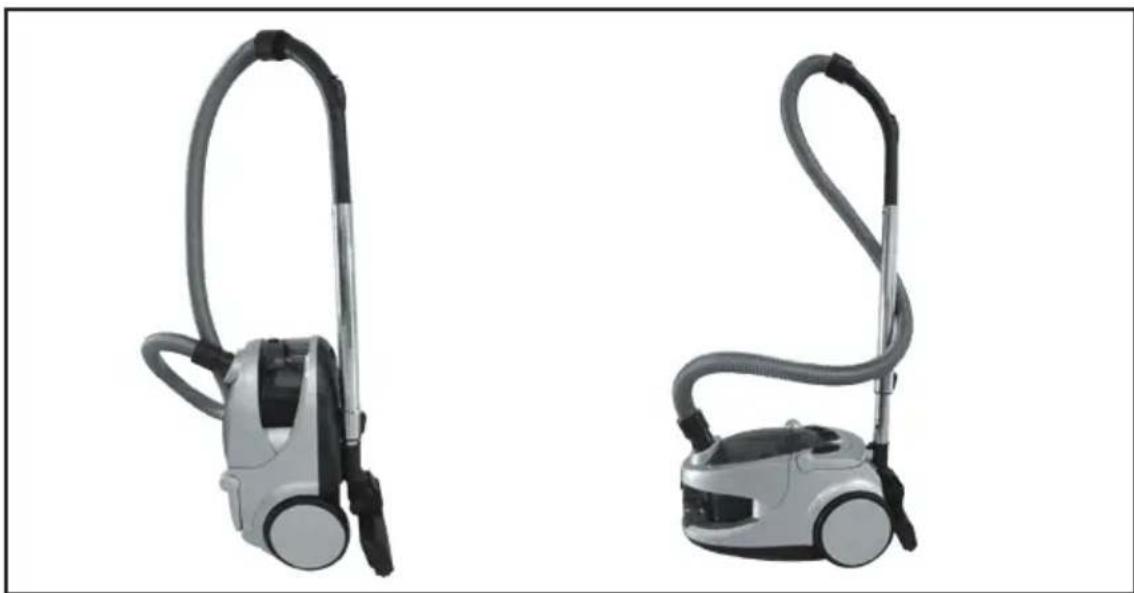

To aid storage, there are two brush holders on the vacuum cleaner. One is located on the underside of the vacuum cleaner, and the other is at the rear.

Two identical vacuum cleaner units shown in side profile, no text or symbols visible

Emptying the dust container

When the dust container looks full or the cleaner loses suction, the dust container will need to be emptied as follows:

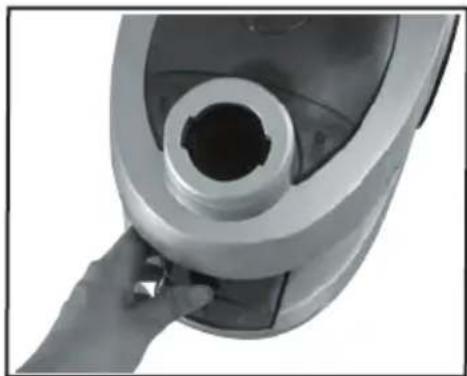

1. Unplug the cleaner and open the dust container cover by pushing in the release button.

Close-up of a mechanical component with a central bore and handle, no visible text or symbols

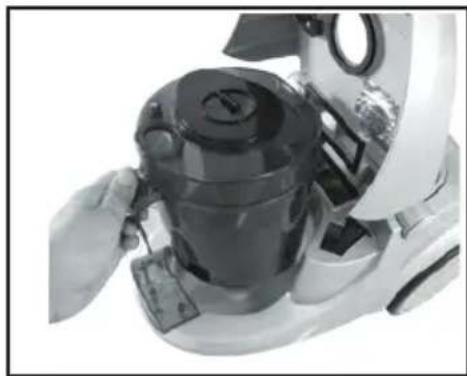

1. Lift out the dust container by the handle.

Close-up of a white robotic vacuum cleaner with a black lid and mechanical components (no visible text or symbols)

1. Take the dust container over to a rubbish bin and empty the container by pressing the release catch. Take care not to breathe in the dust when emptying.

1. To maintain cleaning performance remove and clean the main filter each time the bin is emptied. (See instructions on page 18).

2. When empty, lift the base back until it clicks into position at the bottom of the dust container.

3. Slide the dust container back into the vacuum cleaner.

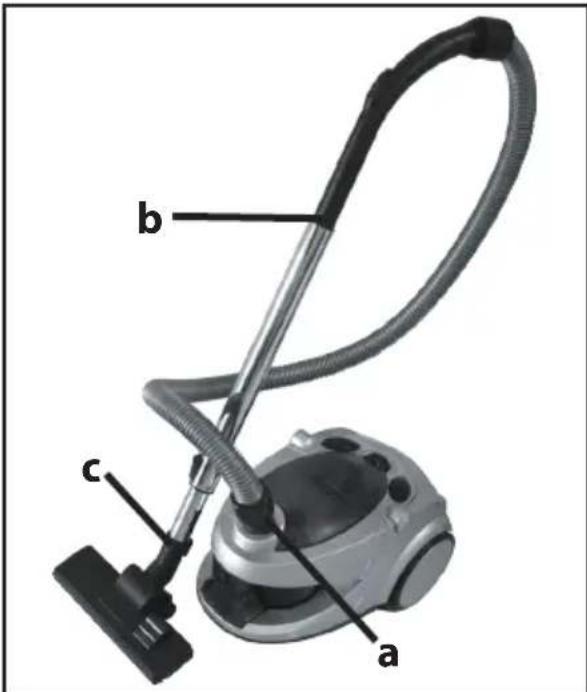

Clearing blockages

If the suction still seems to be lower than expected after the dust container bag has been emptied, there may be a blockage in one of the tubes or attachments. Unplug the cleaner and check the following areas for blockages:

• The hose inlet socket (a).
- The joint where the flexible hose connects to the attachments (b).

• The inlet to the floor brush (c).

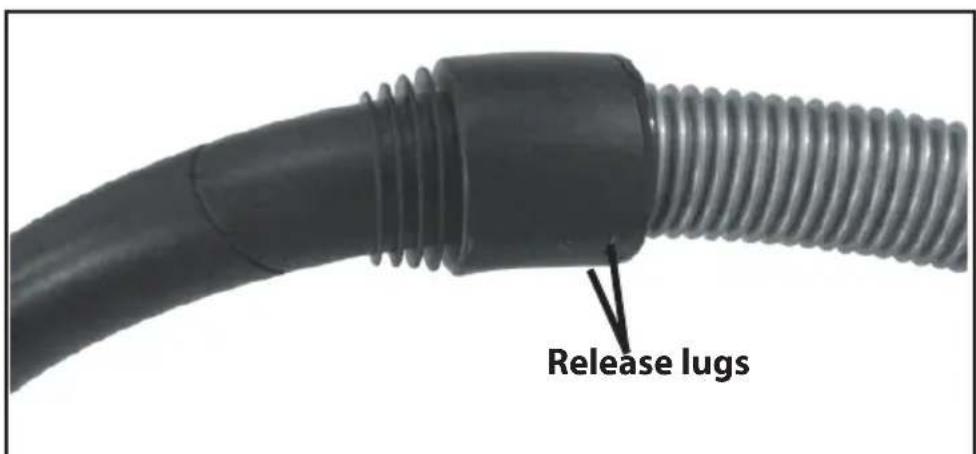

If you cannot see the blockage, it may be in one of the knee-joints situated at the end of the plastic hose. To undo these joints, use a flat-bladed screwdriver (or similar tool) to carefully press in the release lugs, then pull the joint apart. Remove any blockage, then push the joint together again until the lugs latch into place.

Service and Maintenance

Depending on usage you will need to periodically clean the filters. Refer to the instructions in the following sections.

Caution

The dust container and filters must be fitted before the vacuum cleaner is used, to avoid damaging the motor.

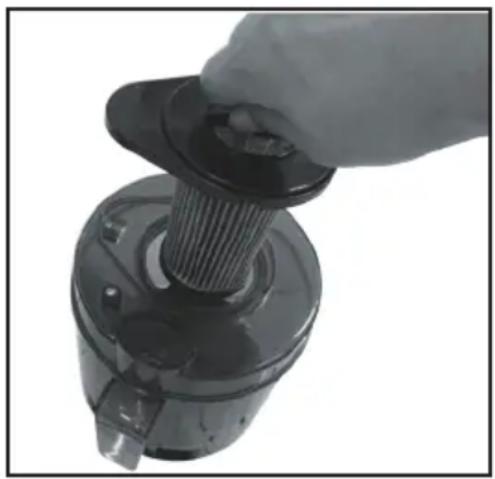

Cleaning the Dust Container Filter

The dust container filter should be cleaned regularly and replaced every 6 months or when required.

1. Follow the instructions on page 16 and empty the dust container.

2. Lift the dust container filter and gently tap the filter against the side of a rubbish bin to remove excess dust.

3. Hand-wash the container in cool soapy water.

4. Rinse thoroughly under running water to remove all particles and soap.

5. Allow to dry naturally.

Hand holding a cylindrical mechanical component with a knob, no visible text or symbols

NOTE:

Do not machine wash the dust container and do not attempt to dry using any kind of heated appliance.

1. Refit the container when dry.

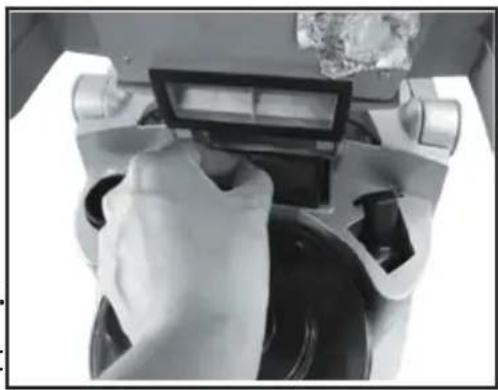

Cleaning the Pre-motor Filter

The pre-motor filter should be cleaned regularly and replaced every six to nine months depending on usage.

1. Open the dust container cover as described on page 16.

2. Remove the filter element, take outside and shake vigorously to clean.

- Wash the filter in warm soapy water, rinse thoroughly and allow to dry naturally. DO NOT force dry.

1. Replace the filter and refit the dust container.

- If your cleaner is still not functioning correctly, please contact the BUSH helpline on 1800 509 394 in Australia or 0800 450 259 in New Zealand.

Person in lab coat operating a microscope with a digital display (no visible text or symbols)

Cleaning the Exhaust Filter

The exhaust filter should be cleaned regularly and replaced every six to nine months depending on usage.

1. Press the catches on the back of the filter housing to remove the exhaust filter cover.

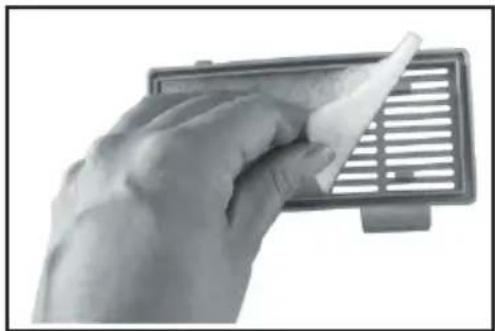

1. Lift out the filter from the back of the exhaust filter cover.

- Wash the cloth filter in warm soapy water, rinse thoroughly and allow to dry naturally. DO NOT force dry.

Close-up of a hand holding a white tool next to a black rectangular device with a grid-patterned panel (no visible text or symbols)

1. Replace the filter and refit.

Ensure that the filter housing is locked securely in place before use.

Troubleshooting

Thermal cut-out

This vacuum cleaner is fitted with a thermal cut out that protects the cleaner if the motor overheats. If the cleaner stops suddenly of its own accord, follow this procedure:

1 Switch off the vacuum cleaner and unplug from the mains supply.
2 Check for the source of the overheating problem (blocked hose, clogged filter etc.).
3 Unblock the hose, empty the dust container and clean the filters if required.
4 Wait for approximately 30-40 minutes to allow the motor to cool.
5 After 30-40 minutes, plug in the vacuum cleaner and switch it on. The vacuum cleaner should now work.
6 If it still does not work, wait another 20 minutes and try again.

If your cleaner is still not functioning correctly, please contact the BUSH helpline on 1800 509 394 in Australia or 0800 450 259 in New Zealand.

Disposal

At the end of its useful life, please dispose of this vacuum cleaner in an environmentally friendly manner.

Guarantee

Please keep your receipt as proof of purchase. This product is warranted for any defect in materials or workmanship for one year after the original date of purchase. This product is for normal domestic and office use only. This warranty does not cover damage from misuse or neglect, accidental damage, vermin infestation, excessive voltages such as lightning or power surges or any alteration that affects the performance or reliability of the product.

If guarantee is required please contact the BUSH helpline on

1800 509 394 in Australia or 0800 450 259 in New Zealand.

Have your receipt of purchase on hand.

This guarantee is subject to the following provisions

• It is only valid within the boundaries of the country of purchase.
• The vacuum cleaner must be correctly assembled and operated in accordance with the instructions contained in this manual.
• The vacuum cleaner must be used solely for domestic purposes.
• The guarantee will be rendered invalid if the vacuum cleaner is resold or damaged by inexpert repair.
• The guarantee does not cover accidental damage, misuse, cabinet parts or consumable items.
• The manufacturer disclaims any liability for incidental or consequential damages.

This guarantee is in addition to, and does not diminish, your statutory or legal rights.

BUSH Helpline: 1800 509 394 Australia BUSH Helpline: 0800 450 259 New Zealand PO BOX 6287, SILVERWATER NSW1811 www.bushaustralia.com.au
