Product Type	Cylinder Bagless Vacuum Cleaner
Model Number	BVC1401
Power Supply	240V AC 50Hz
Maximum Power Output	1400W
Filtration	5 Stage Filtration
Dust Container Capacity	2L
Suction Control	Thumb-operated on hose handle
Telescopic Tube	Aluminum, adjustable length
Floor Brush	Height adjustable settings for carpet and hard floor
Crevice Tool	Integrated brush, attaches to handle or tube, storage on hose
Cord Rewind	Automatic, with safety caution
Cord Length Markers	Yellow marker near maximum, red at full length
Thermal Cut-out	Automatic motor protection, cool-down period
Filter Types	Dust container filter, pre-motor filter, exhaust cloth filter
Filter Maintenance	Clean regularly; replace every 6-9 months
Intended Use	Domestic only
Safety Features	Do not use on wet surfaces, hot objects, or without filters
Helpline (Australia)	1800 509 394
Helpline (New Zealand)	0800 450 259

Frequently Asked Questions - BVC1401 BUSH

How do I assemble the vacuum cleaner?

Push the hose connector into the hose inlet socket until it clicks. Attach the extension tube to the hose handle, then fit the floor brush to the tube. For detailed steps, refer to the Assembly section in the manual.

How do I empty the dust container?

Unplug the vacuum cleaner. Press the release button on the dust container to remove it. Hold over a trash bin, remove the filter, empty contents, then clean or replace the filter as needed. Reattach the container securely.

How do I clean the filters?

**Dust container filter**: Wash in warm soapy water, rinse, and dry naturally. Replace every 6 months. **Pre-motor filter**: Remove, shake outside, wash if dirty, dry naturally. Replace every 6-9 months. **Exhaust filter**: Remove cover, wash cloth filter, dry, replace. Do not force dry.

What should I do if the vacuum cleaner loses suction?

First, empty the dust container. If suction remains low, check for blockages in the hose, extension tube, floor brush inlet, or hose inlet socket. Clear any obstructions. Also ensure filters are clean.

How does the cord rewind work?

Always unplug the vacuum cleaner before using the cord rewind. Hold the power cord, press the carry handle/cord rewind button, and carefully guide the cord back into the cleaner. Warning: Keep children and pets away as the cord may whip.

What is the thermal cut-out and how do I reset it?

If the motor overheats, the thermal cut-out switches off the vacuum cleaner. Turn off and unplug. Check for blockages or clogged filters. Wait 30-40 minutes for the motor to cool, then plug in and switch on. If it still doesn't work, wait another 20 minutes.

How do I adjust the floor brush for different surfaces?

Use the selector on the floor brush. Brush down position is for non-carpeted floors or short carpets; brush up position is for all carpet types. For longer pile carpets, brush down increases pickup but requires more force.

Can I use this vacuum cleaner on wet surfaces?

No. This vacuum cleaner is for dry use only. Do not vacuum wet surfaces, pick up wet objects, or use in wet conditions. Doing so may damage the appliance and pose a safety risk.

How do I store the vacuum cleaner?

Use the storage position on the floor brush. Unplug the vacuum cleaner, rewind the cord, and place the floor brush in the storage catch. Store in a dry place. Refer to the Storage section in the manual for details.

What do I do if the vacuum cleaner stops working suddenly?

Check if the thermal cut-out has activated (see related FAQ). Also ensure the power cord is plugged in and the socket is switched on. If it still doesn't work, contact the Bush helpline: 1800 509 394 (Australia) or 0800 450 259 (New Zealand).

USER MANUAL BVC1401 BUSH

Black and white photo of a vacuum cleaner with coiled tubing (no visible text or symbols)

Cylinder Bagless Vacuum Cleaner

BUSH Helpline: 1800 509 394 Australia

BUSH Helpline: 0800 450 259 New Zealand

Introduction

Thank you for purchasing this Bush product which has been designed and manufactured to give you many years of trouble-free service.

You may already be familiar with using a similar product, but do please take time to read these instructions - they have been written to ensure you get the very best from your purchase.

Safety is important

To ensure your safety and the safety of others, please ensure you read the Safety Instructions before you operate this vacuum cleaner.

Keep this information in a safe place for future reference.

Contents

Introduction...... 2

Support.... 2

Safety is important 2

Contents.... 3

Specification.... 5

Model Number....5

Power Supply 5

Filtration....5

Features...... 5

Safety Instructions 6

Power Source 6

Using the Vacuum Cleaner....6

Transporting your vacuum....7

Servicing 7

Parts Identification.... 8

Extension Tube....9

Crevice tool /brush....9

Crevice tool storage fixings 9

Floor brush.... 10

Using Your Vacuum Cleaner 11

Preparing for use.... 11

Assembly.... 11

Switching on.... 11

Suction control 12

Cord rewind.... 13

Storage 13

Emptying the dust container.... 14

Clearing blockages.... 15

Service and Maintenance 16

Dust Container Filter Replacement.... 16

Pre motor Filter Replacement.... 16

Cleaning the Exhaust Filter 17

Troubleshooting.... 18

Thermal cut-out.... 18

Disposal.... 18

Guarantee 19

Specification

Model Number

- BVC1401

Power Supply

• Power supply 240V AC 50Hz
• 1400W maximum power output

Filtration

- 5 Stage filtration

Features

• 1400 watt cylinder bagless vacuum cleaner
• Aluminum telescopic tube
- Floor brush
- Crevice tool/brush
• Automatic cord rewind
- 2L capacity

Safety Instructions

This product should never be left unattended when connected to the mains supply.

Power Source

Your vacuum cleaner requires a 240V 50Hz supply. Do not use any other supply.

Using the Vacuum Cleaner

• Do not vacuum wet surfaces, pick up wet objects or use in wet conditions.
• Do not use the vacuum cleaner to pick-up burning objects as this is a fire risk!
• Do not pick up hot objects such as coal and ash.
• Do not use the vacuum cleaner to pick-up large objects that are likely to cause blockage and damage to the vacuum cleaner.
• Do not stand the cleaner on its rear face while cleaning.
• Do not run over the mains cable with your vacuum cleaner.
• For domestic use only. Industrial or commercial use invalidates the warranty.
• Most new carpets have a running in period in which only light vacuuming is recommended.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not operate the cleaner without the container and filters installed.

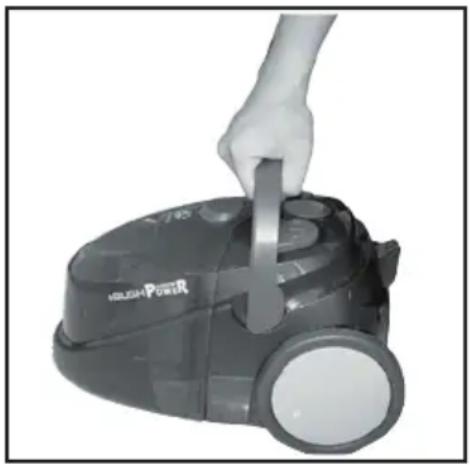

Transporting your vacuum

• To move your vacuum cleaner from room to room, unplug the unit and carry using the carry handle.
• Never pull the vacuum cleaner by it's mains power cord when moving.

Hand holding a black vacuum cleaner with a handle, no visible text or symbols on the device itself

Servicing

• With the exception of filters and the dust container, there are no user-serviceable parts in the vacuum cleaner.
• Contact the BUSH helpline on 1800 509 394 in Australia or 0800 450 259 in New Zealand if you are in any doubt about the installation, operation or safety of your vacuum cleaner.
• Ensure you replace the filters when necessary.
• Always empty the dust container when indicated on the vacuum cleaner.
• The plug of the power cord must be removed from the wall socket before emptying the dust container, cleaning the appliance or undertaking any maintenance operations.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

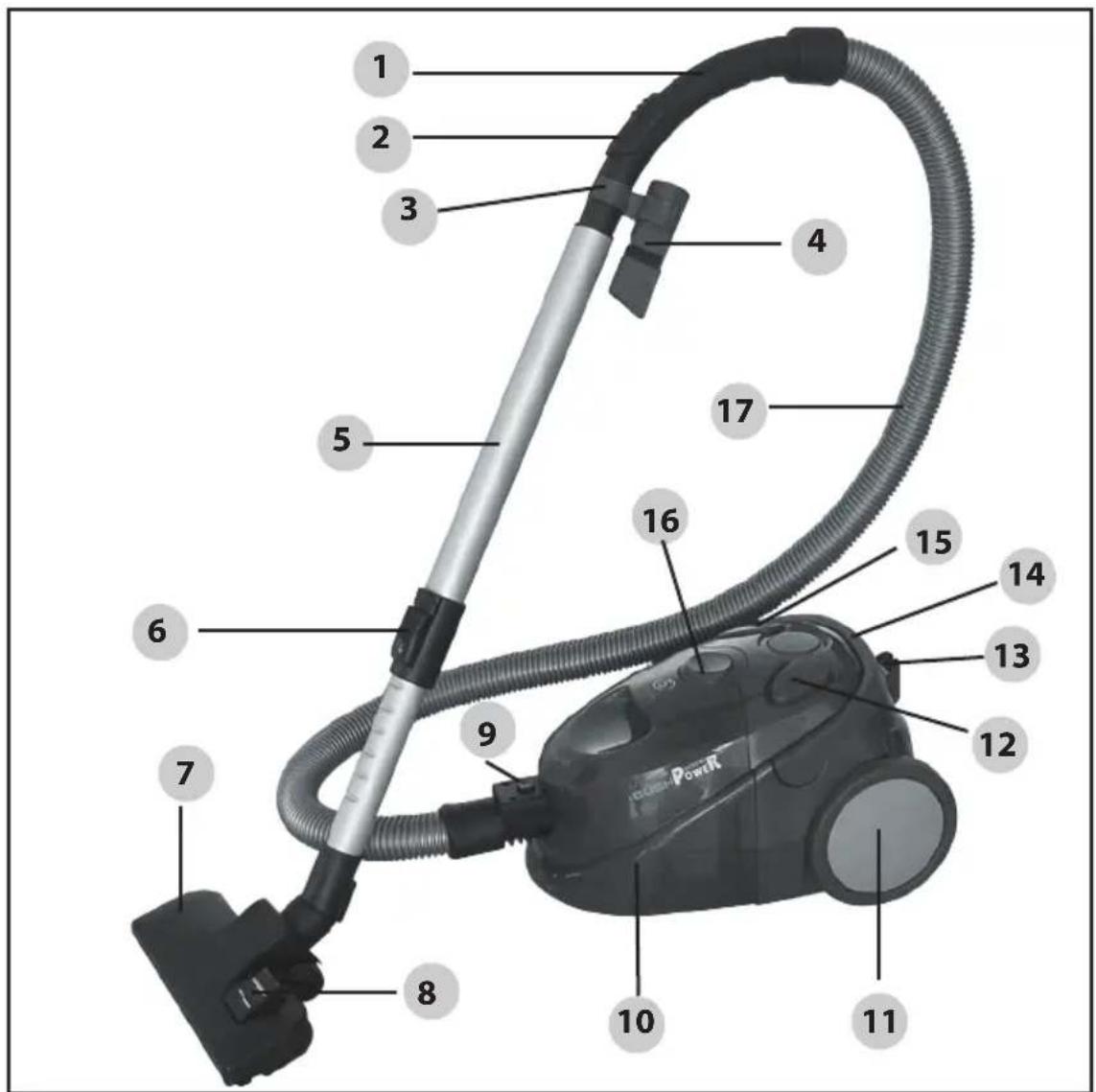

Parts Identification

1 Hose handle 9 Hose connector release button
2 Suction control 10 Dust container
3 Crevice tool storage fixings 11 Transportation wheel
4 Crevice tool/brush 12 Power On/Off button
5 Aluminum telescopic tube 13 Floor brush storage catch
6 Extension locking catch 14 Carry handle
7 Floor brush 15 Cable rewind button
8 Floor type selector 16 Dust container release button
17 Hose

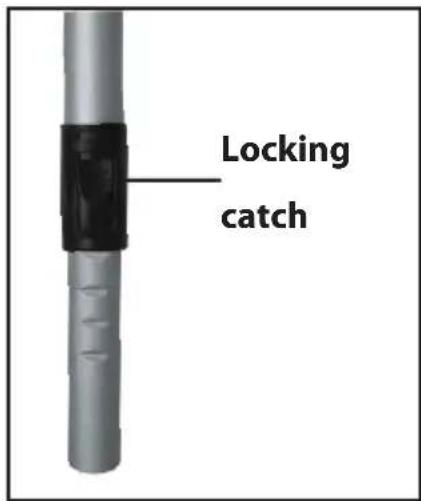

Extension Tube

This vacuum cleaner incorporates an adjustable extension tube.

To extend the tube, push the locking catch forward and pull the tube to the desired length. Release the locking catch to lock the tube into position.

Crevice tool/brush

The crevice tool can be used to clean hard to reach places.

Attach it directly to the handle for greater control, alternatively, attach to the extension tube for greater reach.

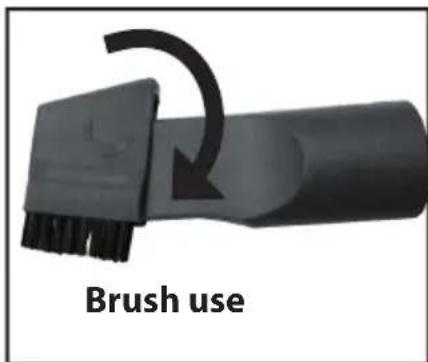

The crevice tool is fitted with a small brush that rotates forwards and clocks into position for use.

The brush can be removed by rotating the brush back until it clicks into the storage position.

Close-up of a Crevice tool component (no visible text or symbols on the tool itself)

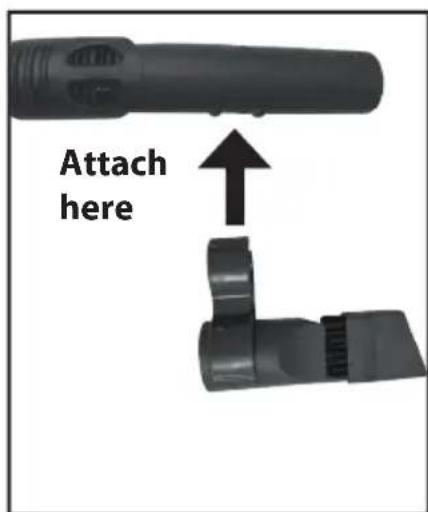

Crevice tool storage fixings

A storage fixings is provided to attach the crevice tool to the hose handle.

Refer to the crevice tool storage picture on page 8.

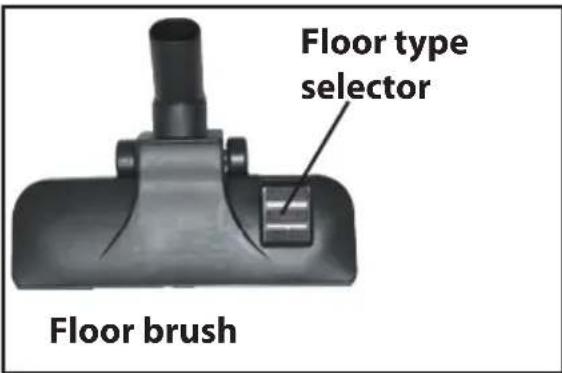

Floor brush

Push the extension tube onto the hose handle, then fit the floor brush to the extension tube. Alternatively, the floor brush can be attached directly to the handle if preferred.

Fit the floor brush to the end of the extension tube.

The selector on the floor brush allows you to choose the most appropriate setting for the type of floor covering.

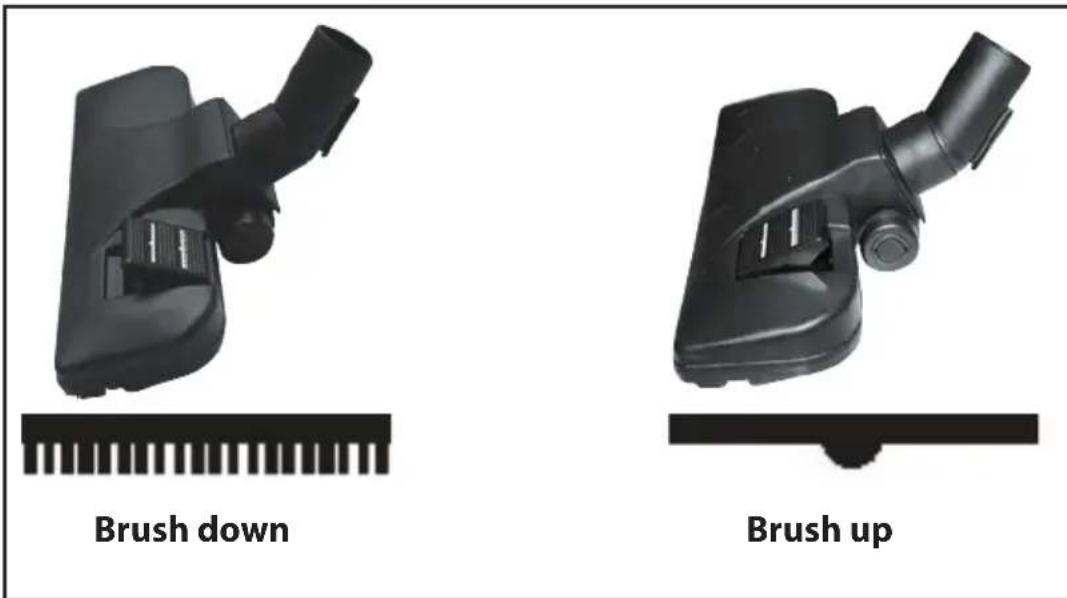

Height adjustable settings

The brush can be raised or lowered depending on the surface to be cleaned.

• The brush down position is intended for use on non-carpeted floors or short bristled carpets.
• The brush up position is intended for general use on all types of carpet.

NOTE:

The brush down position can be used on carpets with a longer pile to increase the amount of 'pick-up' for ground in dirt, but it also increases the amount of force required to move the brush head over the carpet.

Using Your Vacuum Cleaner

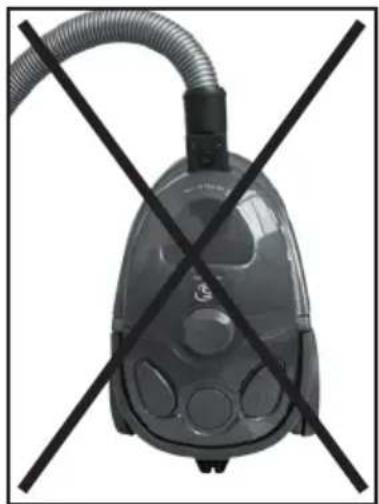

This vacuum cleaner has been designed to operate horizontally. Do not operate in a vertical position as this will block the exhaust and cause overheating.

Black and white photo of a vacuum cleaner with crossed lines indicating prohibition (no text or symbols)

Preparing for use

Carefully remove your vacuum cleaner from the box. You may wish to store the packaging for future use. This unit is supplied with the dust container fitted. Once assembled, it is ready for use.

Assembly

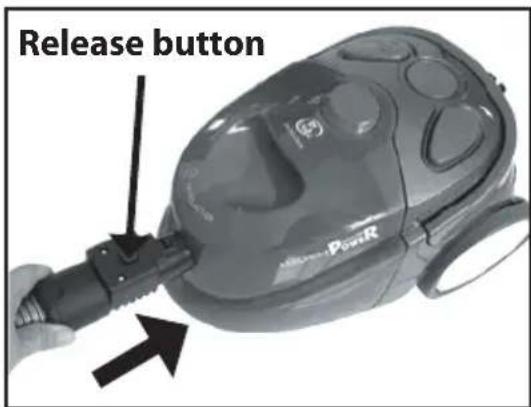

Push the hose connector into the hose inlet socket until it clicks into place.

To release the hose connector, press the release buttons on top of the connector and pull it out of the hose inlet socket.

Switching on

1. Pull the power cable to the desired length. When you are nearing at the maximum, a yellow marker will be visible on the cable. A red marker indicates that you have reached the maximum cable length.

1. Insert the mains plug into a mains power socket and switch the socket on.

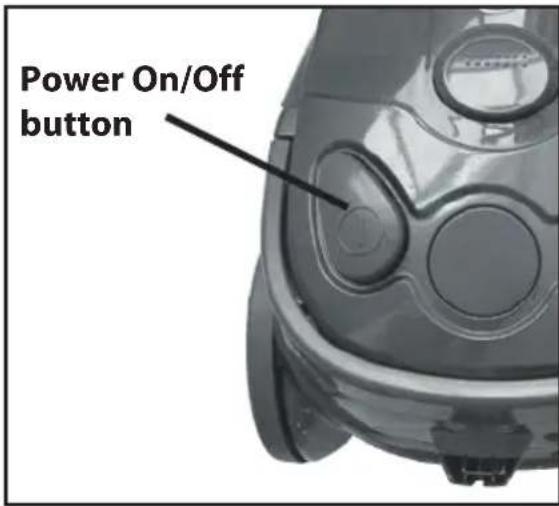

2. Press the Power On/Off button to switch the unit On.
3. After use, press the Power On/Off button to switch your vacuum cleaner Off, then unplug from the mains supply.

ALWAYS UNPLUG YOUR VACUUM CLEANER WHEN NOT IN USE.

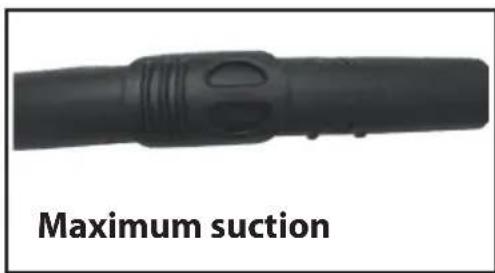

Suction control

A thumb operated suction control is located on the hose handle. This allows you to reduce or increase the amount of suction to suit the vacuuming task. Maximum suction gives the best results during normal vacuuming, however, reduced suction may be more appropriate if you are vacuuming fabrics or upholstery.

Cord rewind

WARNING

TAKE GREAT CARE WHEN USING THE CORD REWIND BUTTON, PARTICULARLY WHEN CHILDREN OR PETS ARE NEARBY, AS THE REWIND ACTION MAY CAUSE THE CORD TO'WHIP'.

Caution

Always ensure that your vacuum cleaner is unplugged from the mains supply before using the cord rewind button.

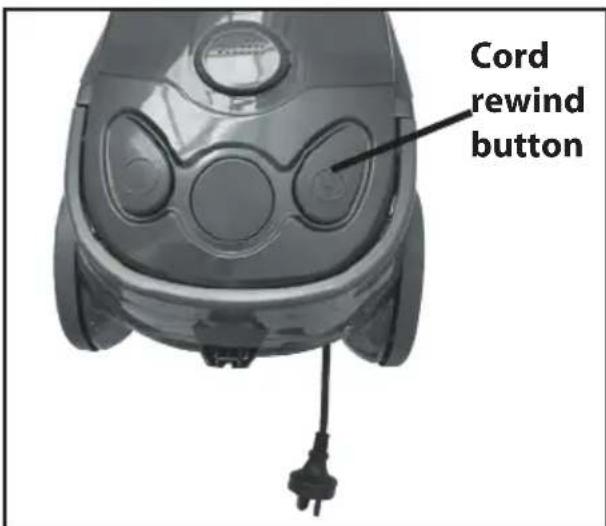

Holding the power cord in one hand, press the carry handle/cord rewind button and carefully feed the cable back into the cleaner.

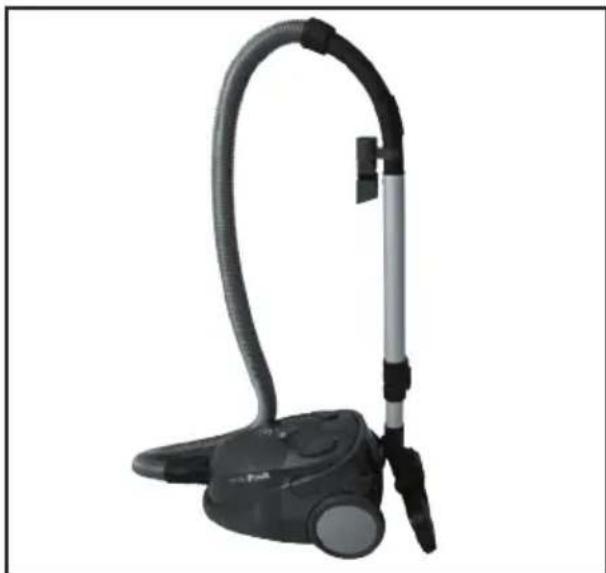

Storage

There is a storage position for the floor brush which can be utilised when storing the vacuum cleaner.

Black vacuum cleaner with curved handle and black body (no text or symbols visible)

Emptying the dust container

When the dust container look full or the cleaner loses suction, the dust container will need to be emptied as follows:

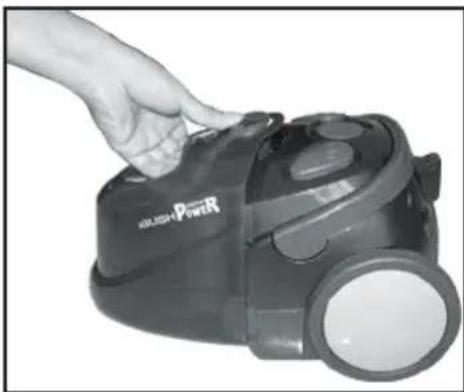

1. Unplug the cleaner and open the dust container by pushing in the release button.

Hand holding a black vacuum cleaner with a circular button, no visible text or symbols on the device itself.

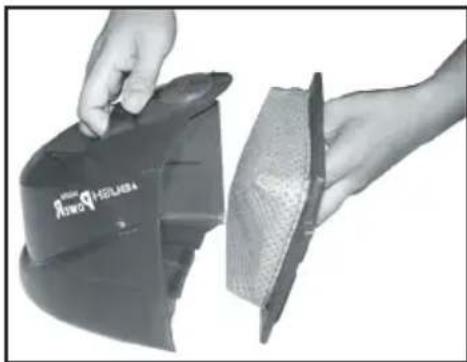

1. Pull the dust container away from the cleaner, then hold the container over a refuse container and remove the filter.

Close-up of hands holding a black hard hat with 'HONKOSI FELIMIRA' branding, next to a metallic mesh component (no text or symbols on the main subject)

1. Empty the contents of the dust container, then shake the filter well taking care not to breathe in the dust. If the filter is blocked with fine dust, it may be washed in warm soapy water. Rinse well and allow to dry naturally. DO NOT force dry.

2. Replace the dust container filter, ensuring that it is latched securely in place. The filter will only fit one way around.

3. Finally, replace the cover - replacement is the opposite of removal.

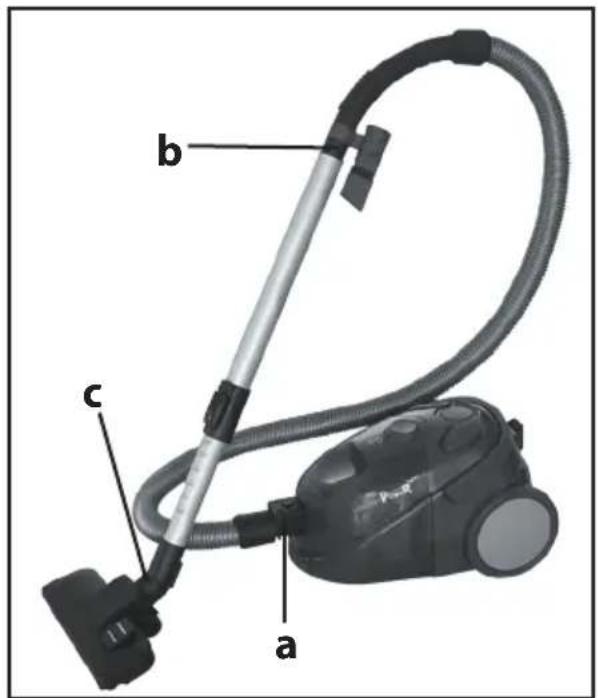

Clearing blockages

If the suction still seems to be lower than expected after the dust container bag has been emptied, there may be a blockage in one of the tubes or attachments. Unplug the cleaner and check the following areas for blockages:

• The hose inlet socket (a).
- The joint where the flexible hose connects to the attachments (b).

• The inlet to the floor brush (c).

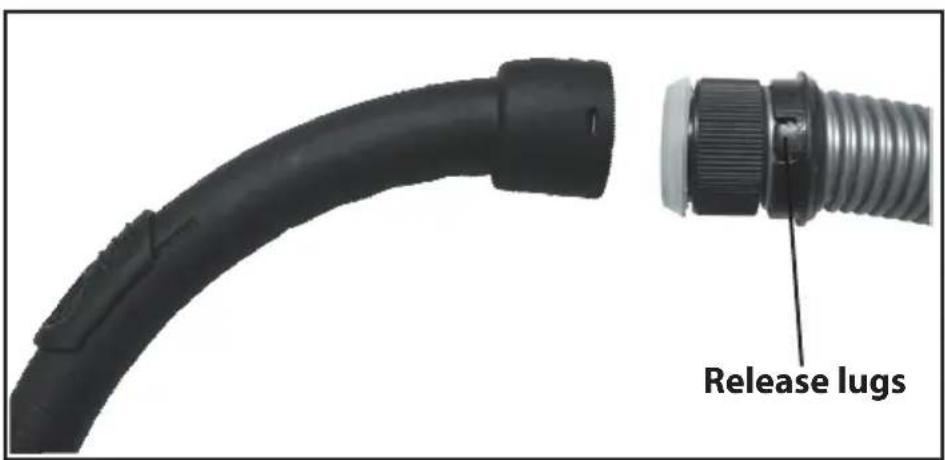

If you cannot see the blockage, it may be in one of the knee-joints situated at the end of the plastic hose. To undo these joints, use a flat-bladed screwdriver (or similar tool) to carefully press in the release lugs, then pull the joint apart. Remove any blockage, then push the joint together again until the lugs latch into place.

Service and Maintenance

Depending on usage you will need to periodically clean the filters. Refer to the instructions in the following sections.

Caution

The dust container and filters must be fitted before the vacuum cleaner is used, to avoid damaging the motor.

Dust Container Filter Replacement

The dust container filter should be cleaned regular and replaced every 6 months or when required.

1. Follow the instructions on page 14 and empty the dust container.
2. Hand-wash the container in cool soapy water.
3. Rinse thoroughly under running water to remove all particles and soap.
4. Allow to dry naturally.

NOTE: Do not machine wash the dust container and do not attempt to dry using any kind of heated appliance.

1. Refit the container when dry.

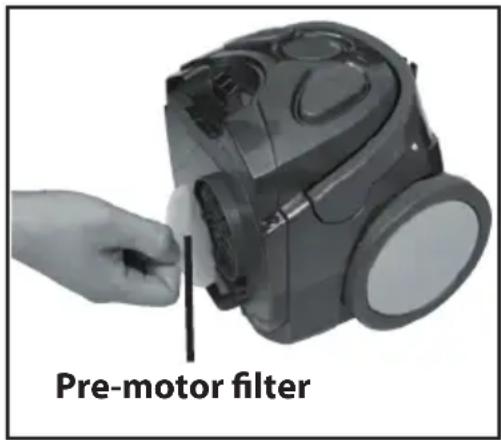

Pre-motor Filter Replacement

The pre-motor filter should be cleaned regularly and replaced every six to nine months depending on usage.

1. Remove the dust container as described on page 14.
2. Remove the filter element, take outside and shake vigorously to clean.

• Wash the filter in warm soapy water, rinse thoroughly and allow to dry naturally. DO NOT force dry.
• Replace the filter and dust container.
• If your cleaner is still not functioning correctly, please contact the BUSH helpline on 1800 509 394 in Australia or 0800 450 259 in New Zealand.

Cleaning the Exhaust Filter

The exhaust filter should be cleaned regularly and replaced every six to nine months depending on usage.

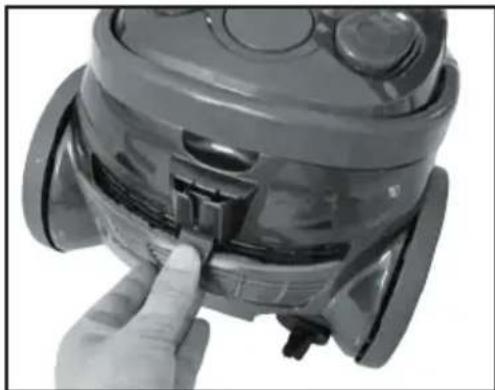

1. Press the catch on the back of the filter housing to remove the exhaust filter cover.

Close-up of a hand adjusting a vacuum cleaner's cover panel (no visible text or symbols)

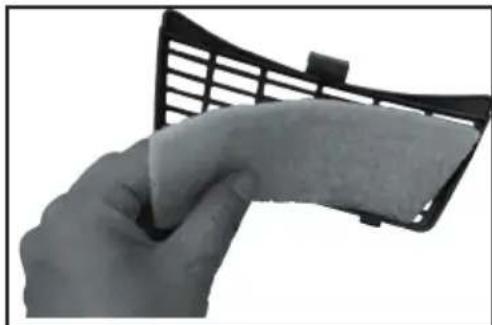

1. Lift out the filter from the back of the exhaust filter cover.

- Wash the cloth filter in warm soapy water, rinse thoroughly and allow to dry naturally. DO NOT force dry.

Close-up of a hand holding a textured surface next to a black grid-like object (no text or symbols visible)

1. Replace the filter and refit. Ensure that the filter housing is locked securely in place before use.

Troubleshooting

Thermal cut-out

This vacuum cleaner is fitted with a thermal cut out that protects the cleaner if the motor overheats. If the cleaner stops suddenly of its own accord, follow this procedure:

1 Switch off the vacuum cleaner and unplug from the mains supply.
2 Check for the source of the overheating problem (blocked hose, clogged filter etc.).
3 Unblock the hose, empty the dust container and clean the filters if required.
4 Wait for approximately 30-40 minutes to allow the motor to cool.
5 After 30-40 minutes, plug in the vacuum cleaner and switch it on. The vacuum cleaner should now work.
6 If it still does not work, wait another 20 minutes and try again.

If your cleaner is still not functioning correctly, please contact the BUSH helpline on 1800 509 394 in Australia or 0800 450 259 in New Zealand.

Disposal

At the end of its useful life, please dispose of this vacuum cleaner in an environmentally friendly manner.

Guarantee

Please keep your receipt as proof of purchase. This product is warranted for any defect in materials or workmanship for one year after the original date of purchase. This product is for normal domestic and office use only. This warranty does not cover damage from misuse or neglect, accidental damage, vermin infestation, excessive voltages such as lightning or power surges or any alteration that affects the performance or reliability of the product.

If guarantee is required please contact the BUSH helpline on

1800 509 394 in Australia or 0800 450 259 in New Zealand.

Have your receipt of purchase on hand.

This guarantee is subject to the following provisions

• It is only valid within the boundaries of the country of purchase.
• The vacuum cleaner must be correctly assembled and operated in accordance with the instructions contained in this manual.
• The vacuum cleaner must be used solely for domestic purposes.
• The guarantee will be rendered invalid if the vacuum cleaner is resold or damaged by inexpert repair.
• The guarantee does not cover accidental damage, misuse, cabinet parts or consumable items.
• The manufacturer disclaims any liability for incidental or consequential damages.

This guarantee is in addition to, and does not diminish, your statutory or legal rights.

BUSH Helpline: 1800 509 394 Australia BUSH Helpline: 0800 450 259 New Zealand PO BOX 6287, SILVERWATER NSW1811 www.bushaustralia.com.au
