USER MANUAL HTP-FS510 PIONEER

IMPORTANT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_A1_En

WARNING Before plugging in for the first time, read the following section carefully. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3-4-2-1-4*_A1_En

WARNING To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A1_En

VENTILATION CAUTION When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side).

WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b*_A1_En

Operating Environment Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c*_A1_En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation). D3-4-2-2-1a_A1_En

CAUTION The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2-2a*_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_A1_En

HTP-710_VYXCN_En.book 3 ページ

Information for users on collection and disposal of old equipment and used batteries Symbol for equipment

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

Symbol examples for batteries

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. These symbols are only valid in the European Union. For countries outside the European Union: If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT: THE MOULDED PLUG This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark

on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer. If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket. If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician. IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Blue : Neutral Brown : Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows; The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse. D3-4-2-1-2-2*_A1_En

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

HTP-710_VYXCN_En.book 4 ページ

1 Setup Guide (HTP-710) What’s in the box Please confirm that the following items are all supplied. Receiver subwoofer (SX-SWR2) box

Microphone (for Auto MCACC setup) x1 Optical digital cable x1

Receiver subwoofer x1 FM wire antenna x1

VOL DIMMER SIGNAL SEL BD MENU Video cable x1

ENTER MUTE DISPLAY CH CH Dry cell batteries (AAA size IEC R03) x2

Large non-skid pads (for receiver subwoofer) x4

Warranty card Operating instructions (This document)

ENTER SURROUND SYSTEM Remote control x1

Speakers (S-DV595T) box

A B D E C Center speaker x1

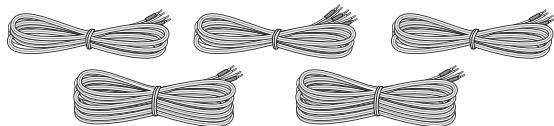

Speaker cables (for front speaker x2, for center speaker x1, for surround speaker x2) Front/surround speakers x4

Speaker stand bases x4

Small non-skid pads (for speaker stand bases) x16

Commercially available

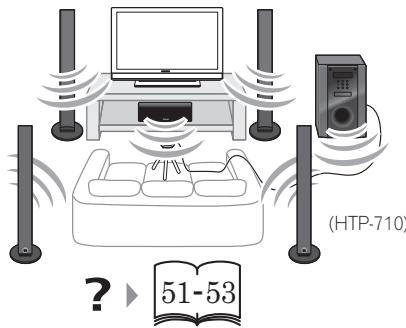

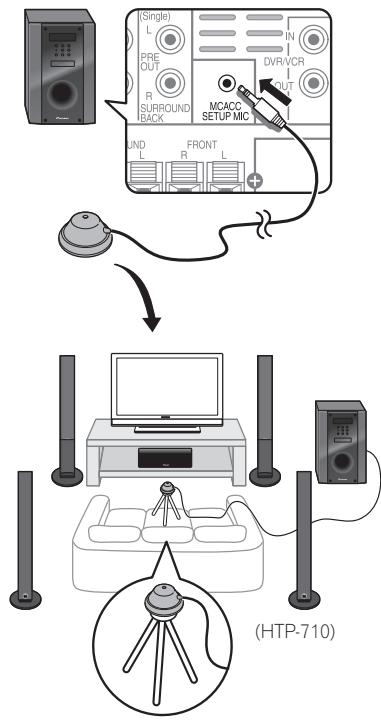

B D E For enjoying your self (MCACC) 5 En

1 Setup Guide (HTP-610) What’s in the box Please confirm that the following items are all supplied. Receiver subwoofer (SX-SWR2) box

Microphone (for Auto MCACC setup) x1 Optical digital cable x1

Receiver subwoofer x1 FM wire antenna x1

VOL DIMMER SIGNAL SEL BD MENU Video cable x1

ENTER MUTE DISPLAY CH CH Dry cell batteries (AAA size IEC R03) x2

Large non-skid pads (for receiver subwoofer) x4

Warranty card Operating instructions (This document)

ENTER SURROUND SYSTEM Remote control x1

Speakers (S-SWR600) box

C C Speaker cables (for front speaker x2, for center speaker x1, for surround speaker x2)

D E Surround speakers x2

Small non-skid pads (for speaker stand bases) x18

Mounting brackets x6

Commercially available

C D E C C A B For enjoying your self (MCACC) 7 En

1 Setup Guide (HTP-FS510) What’s in the box Please confirm that the following items are all supplied. Receiver subwoofer (SX-SWR2) box

Microphone (for Auto MCACC setup) x1 Optical digital cable x1

Receiver subwoofer x1 FM wire antenna x1

VOL DIMMER SIGNAL SEL BD MENU Video cable x1

Large non-skid pads (for receiver subwoofer) x4

Screws (long) x4 Speaker stand bases x2

Commercially available

B For enjoying your self (MCACC) 9 En

1 Setup Guide (HTP-SB510) What’s in the box Please confirm that the following items are all supplied. Receiver subwoofer (SX-SWR2) box

Microphone (for Auto MCACC setup) x1 Optical digital cable x1

Receiver subwoofer x1 FM wire antenna x1

VOL DIMMER SIGNAL SEL BD MENU Video cable x1

Large non-skid pads (for receiver subwoofer) x4

Screws x2 Speaker stands x2

Small non-skid pads (for speaker stands/for speaker) x10

Commercially available

For enjoying your self (MCACC) 11 En

2 For enjoying your self (MCACC)

Thank you for buying this Pioneer product. Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

04 Getting started 51 53 54 54

09 Controlling the rest of your system

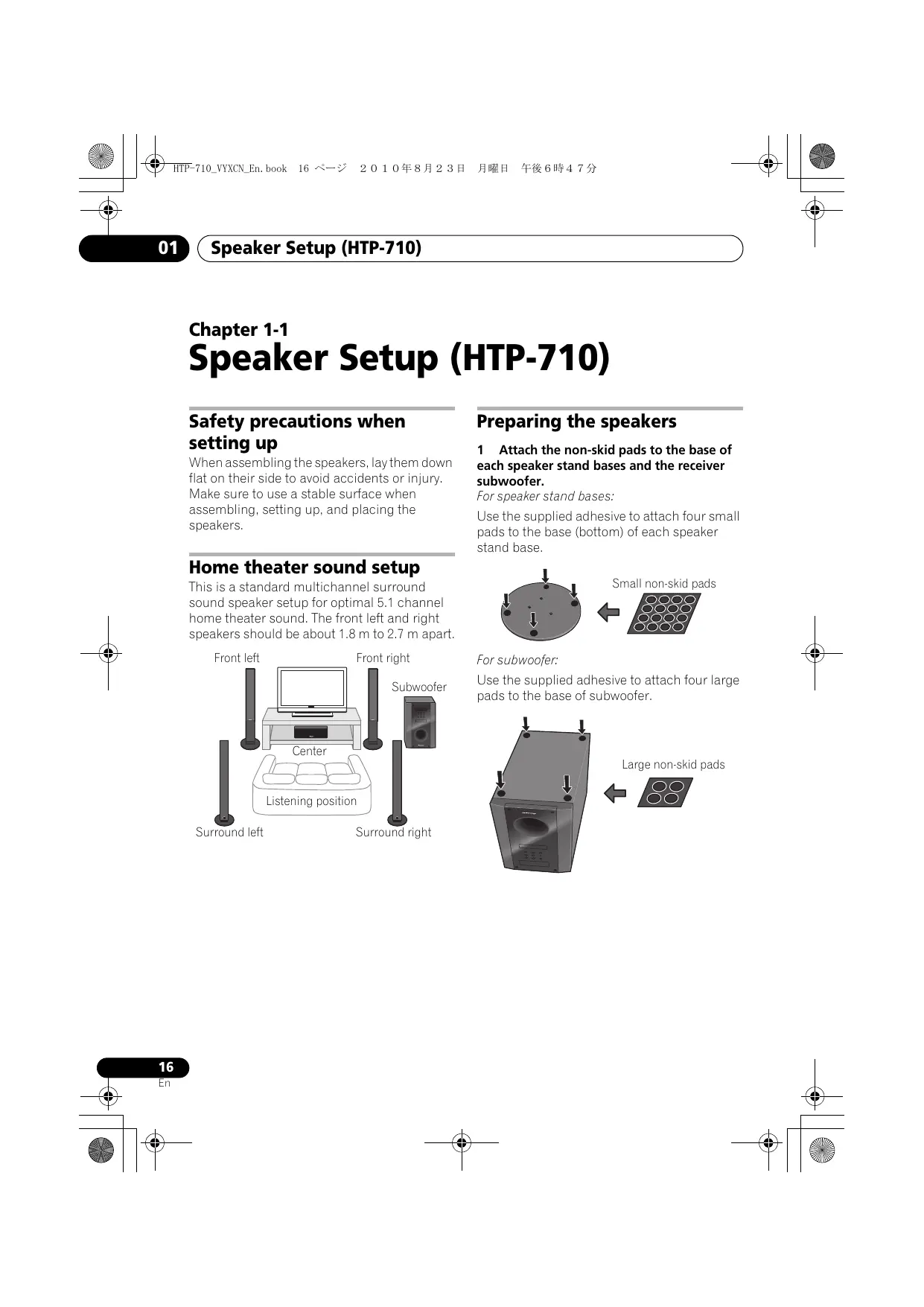

Speaker Setup (HTP-710) Safety precautions when setting up When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

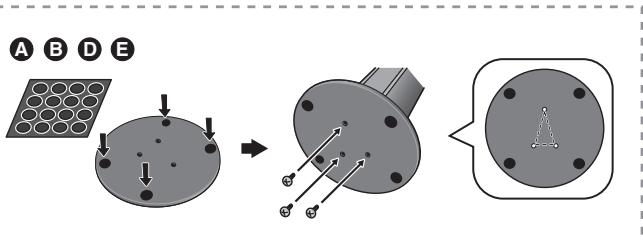

Preparing the speakers 1 Attach the non-skid pads to the base of each speaker stand bases and the receiver subwoofer. For speaker stand bases: Use the supplied adhesive to attach four small pads to the base (bottom) of each speaker stand base.

Home theater sound setup Small non-skid pads

This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound. The front left and right speakers should be about 1.8 m to 2.7 m apart. Front left

Front right Subwoofer

For subwoofer: Use the supplied adhesive to attach four large pads to the base of subwoofer.

• Do not use power screwdrivers or oversized screwdrivers that may exert excessive force on the screws and nuts. • Confirm that no foreign matter is stuck to the stand base or the tall speaker during assembly.

• If excessive force is used to tighten screws, the threads of screw and/or nut may be damaged. Use a middle-sized manual screwdriver during assembly.

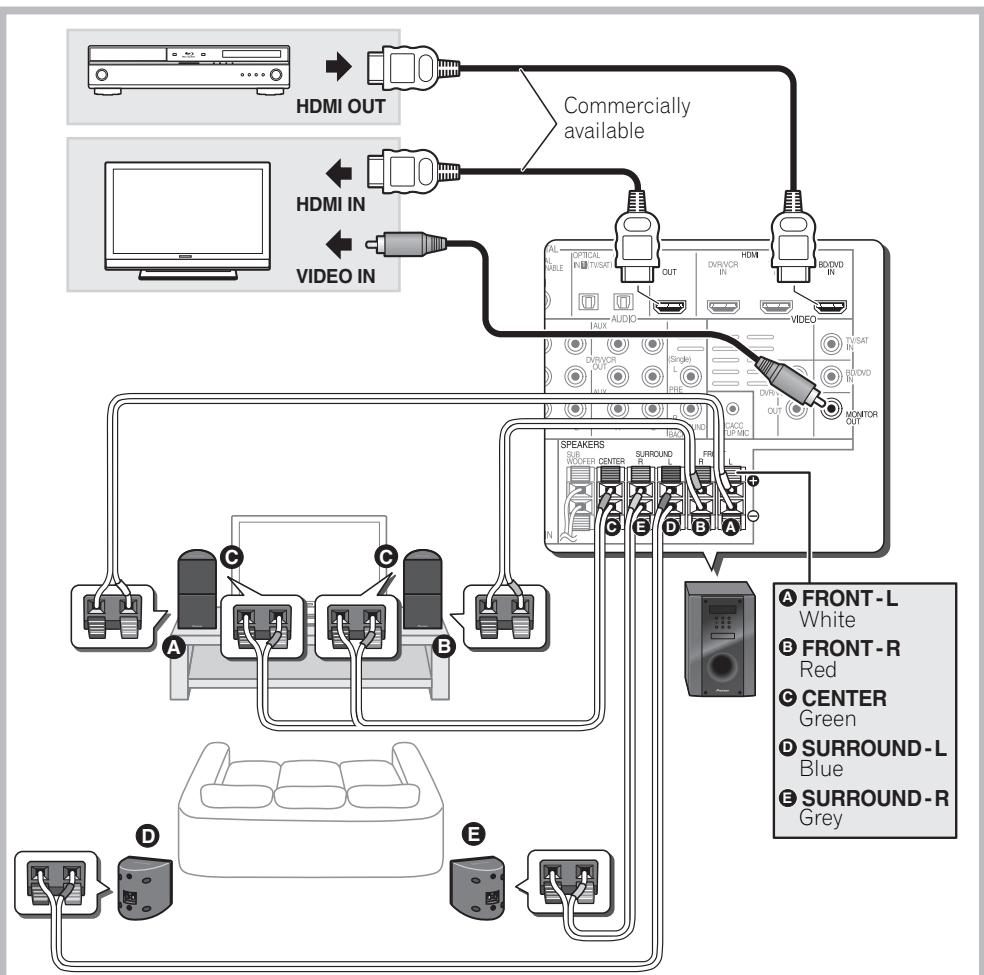

Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer.

CAUTION • Be careful not to tighten screws excessively.

Front left: White Front right: Red Center: Green Surround left: Blue Surround right: Gray Match the color-coded wire with the color indicator on the label, then insert the colorcoded wire into the red (+) side and the other wire into the black (–) side.

3 Connect each speaker. Connect the wires to the speaker. Each speaker in the illustration can be identified by means of the color-coded indicator provided on the rear-surface label.

2 Attach the speaker stand bases to the stems using the screws provided. Once you have aligned the stem and base, secure with the small screws at the points shown below. Note that the speaker should face in the direction of the base of the isosceles triangle.

• If the unit is assembled with foreign matter stuck between the stand base and the tall speaker the unit may not be assembled securely, resulting in tipping or falling. • Do not stand on the speaker stand base of the tall speaker to push or swing the speaker. The speaker may fall and break, or someone may be injured. Pay special attention to children.

Speaker Setup (HTP-710)

CAUTION • These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts. • Do not connect any speakers other than those supplied to this system. • Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire. • After connecting the plugs, pull lightly on the cables to make sure that the ends of the cables are securely connected to the terminals. Poor connections can create noise and interruptions on the sound. • If the cable’s wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the amp. This may cause the amp to stop functioning, and may even damage the amp.

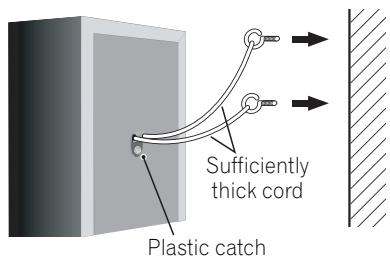

Securing your front and surround speakers • Secure each of the front and surround speakers using the plastic catch provided. Screw two supporting hooks into the wall behind the speaker. Pass a thick cord around the hooks and through the plastic catch so that the speaker is stabilized (make sure to test that it supports the weight of the speaker). After installing, make sure the speaker is securely fixed.

Sufficiently thick cord Plastic catch

CAUTION • The plastic catch is not a mounting fixture, and the speaker should not be hung directly from the wall using this catch. Always use a cord when stabilizing the speaker. • Pioneer disclaims all responsibility for any losses or damage resulting from improper assembly, installation, insufficient strength of the installation materials, misuse, or natural disasters. • When placing this unit, ensure that it is firmly secured and avoid areas where it may be likely to fall and cause injury in the event of a natural disaster (such as an earthquake).

Wall mounting the center speaker The center speaker have a mounting hole which can be used to mount the speaker on the wall.

Before mounting • Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls.

HTP-710_VYXCN_En.book 19 ページ

• Install the main front left and right speakers at an equal distance from the TV. • Install the surround speakers slightly above ear level for optimum effect. • Televisions supporting 3D display transmit signals to the 3D glasses worn by the viewer. In order to view 3D images, consult the television’s Operating Instructions and install the center speaker so that it does not block the television’s 3D signal transmitter.

• Do not attach the front/surround speakers and subwoofer to a wall or ceiling. They may fall off and cause injury.

Additional notes on speaker placement

• The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the subwoofer.

• The front, center and surround speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min. to 30 min. If the problem persists, place the speaker system away from the television set.

Mounting screw (not supplied)

• Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.

• Pioneer is not responsible for any accidents or damage that result from improper installation.

• When installing the center speaker on top of the TV, be sure to secure it with tape or some other suitable means. Otherwise, the speaker may fall from the TV due to external shocks such as earthquakes, endangering those nearby or damaging the speaker.

• If you are unsure of the qualities and strength of the wall, consult a professional for advice.

• Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

• Do not stand on the speaker stand base of the tall speaker to push or swing the speaker. The speaker may fall and break, or someone may be injured. Pay special attention to children.

Speaker Setup (HTP-610) Safety precautions when setting up When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

Preparing the speakers 1 Attach the non-skid pads to the base of each speakers and the receiver subwoofer. For front, center and surround speakers: Use the supplied adhesive to attach three pads to the base (bottom) of each speaker.

If the speakers are to be used in a stacked configuration, always use the provided brackets to secure them together (page 21).

Home theater sound setup This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound. The front left and right speakers should be about 1.8 m to 2.7 m apart. Center

*When center speakers are placed in the center. Front left

Use the supplied adhesive to attach four large pads to the base of subwoofer.

Bracket Center speaker

• When connecting the center speakers, connect the Y-cable dual end to the two center speakers in the same way.

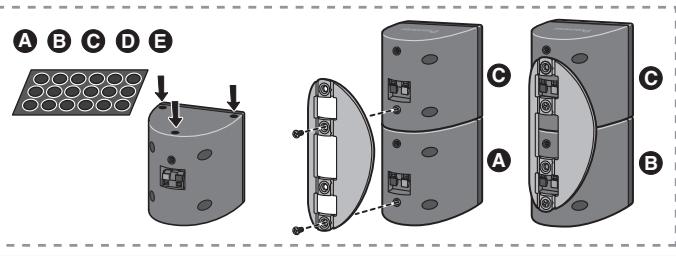

As shown in the illustration, stack the speakers. Align the bracket with the respective upper and lower screw holes as shown in each figure below and fasten the screws securely.

3 Connect each speaker. Connect the wires to the speaker. Each speaker in the illustration can be identified by means of the color-coded indicator provided on the rear-surface label.

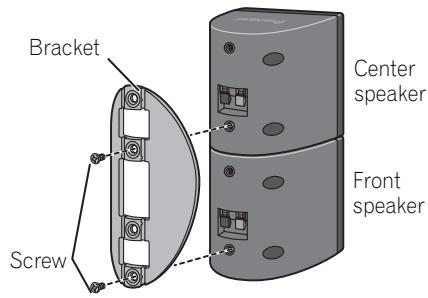

2 (When mounting center speakers to right and left) Stack the speakers and fix with the bracket. Each speaker is provided with a color-coded indicator on the model label on the rear side to assist identification. Refer to the color indicators and install the speakers correctly.

CAUTION • Do not attempt to carry the speakers when they are connected with the bracket. Doing so may cause damage to the bracket or worsen damage to the bracket and speakers in the event they are dropped.

Y-cable To receiver subwoofer

Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer. Color-coded tab (+) Color-coded wire

Wall mounting the speakers All the speakers (except the subwoofer, which should be placed on the ground) have holes for mounting brackets, and depending on the speaker setup you choose, you can wall-mount the front, center and surround speakers. • Make sure to tighten the supplied screw as securely as possible when attaching the bracket to the back of the speaker.

• Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls. • Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker. CAUTION • If you are unsure of the qualities and strength of the wall, consult a professional for advice. • Pioneer is not responsible for any accidents or damage that result from improper installation.

Additional notes on speaker placement • Install the main front left and right speakers at an equal distance from the TV.

Mounting screw (not supplied)

• Televisions supporting 3D display transmit signals to the 3D glasses worn by the viewer. In order to view 3D images, consult the television’s Operating Instructions and install the center speaker so that it does not block the television’s 3D signal transmitter.

• Install the surround speakers slightly above ear level for optimum effect.

Mounting bracket (supplied)

Speaker Setup (HTP-FS510) Safety precautions when setting up

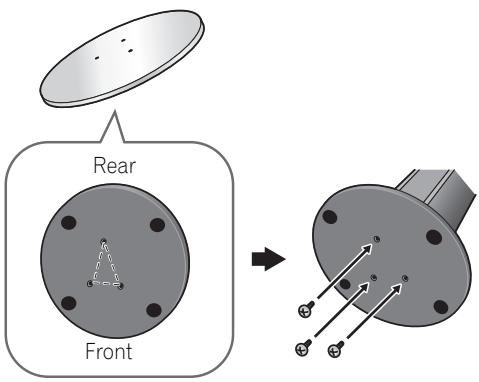

2 Insert the pole from the holes behind the base and secure with the 4 screws.

When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

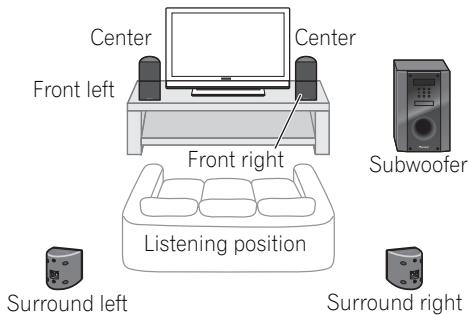

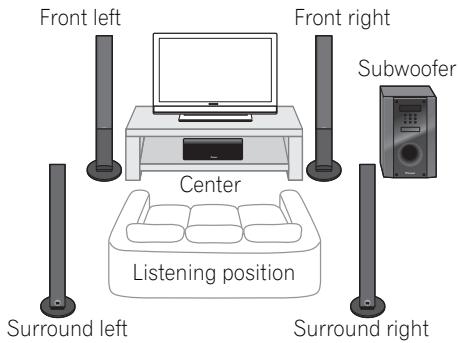

Home theater sound setup This is a standard speaker setup. The front left and right speakers should be about 1.8 m to 2.7 m apart. Front left

Front right Subwoofer

CAUTION • Be careful not to tighten screws excessively. • If excessive force is used to tighten screws, the threads of screw and/or nut may be damaged. Use a middle-sized manual screwdriver during assembly. • Do not use power screwdrivers or oversized screwdrivers that may exert excessive force on the screws and nuts.

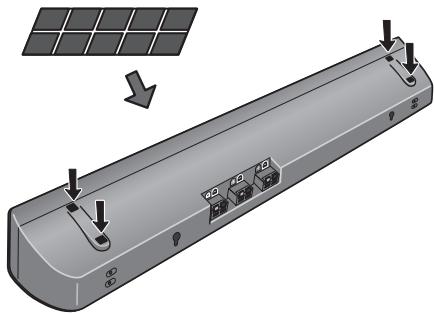

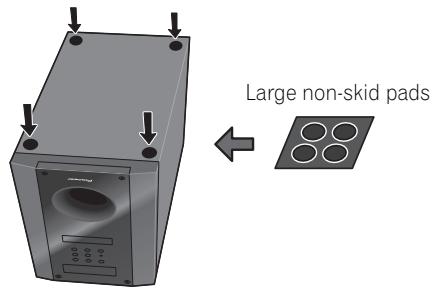

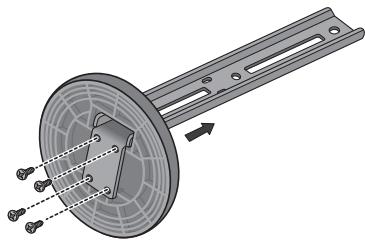

Preparing the speakers 1 Attach the non-skid pads to the base of receiver subwoofer. Use the supplied adhesive to attach four pads to the base of subwoofer.

• Confirm that no foreign matter is stuck to the stand base or the tall speaker during assembly. • If the unit is assembled with foreign matter stuck between the stand base and the tall speaker the unit may not be assembled securely, resulting in tipping or falling. 3 Affix the gasket to the pole. Affix the gasket to the surface of the pole where the speaker will be mounted.

• When connections are completed, secure the speaker cables. Fix the cables to the groove in the speakers.

4 Insert the speaker cable from the hole behind the base through to the pole.

• Only those speakers supplied, or purchased as an officially supported option, should be connected to this system. • Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.

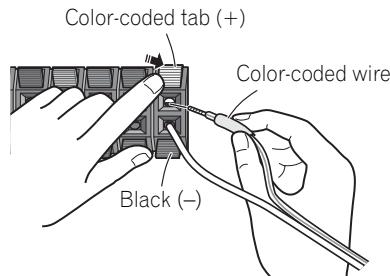

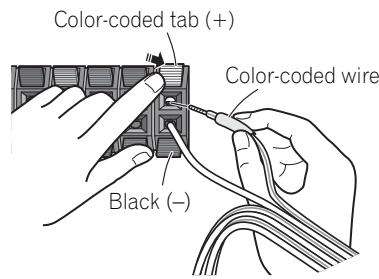

Color-coded tab (+) Color-coded wire

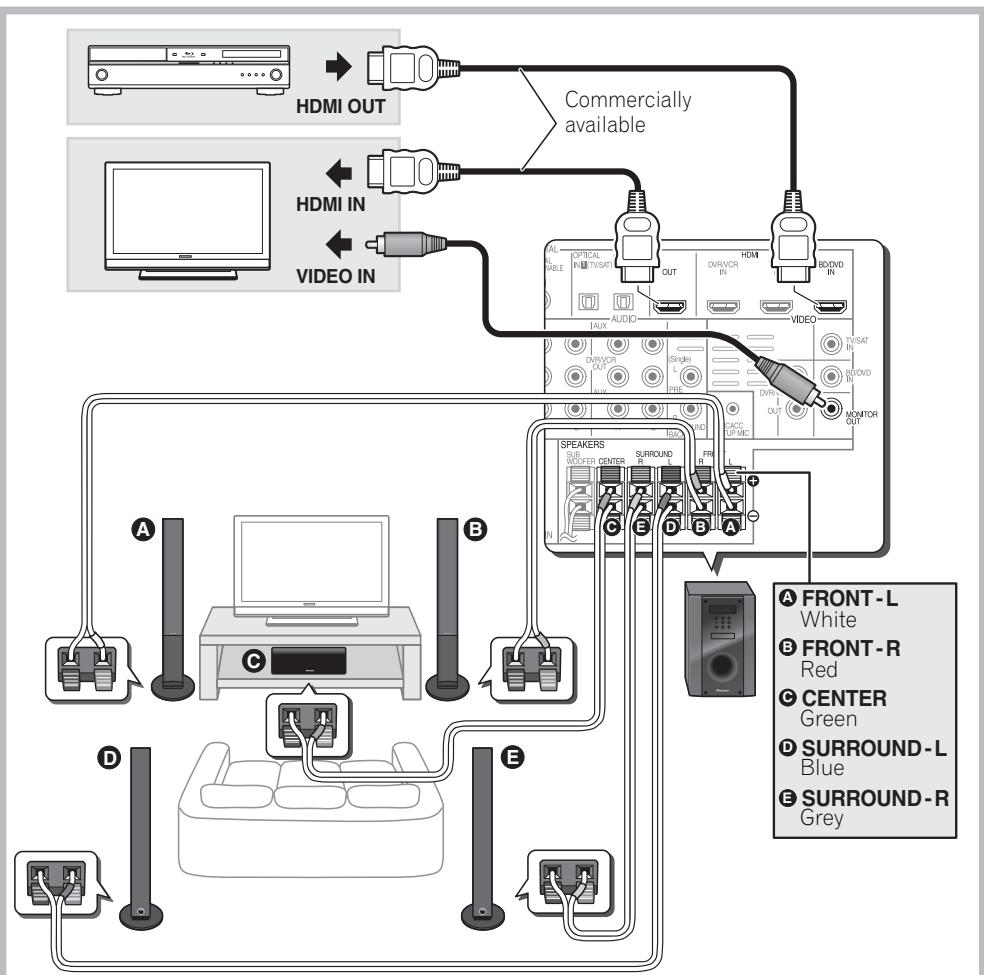

Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer.

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

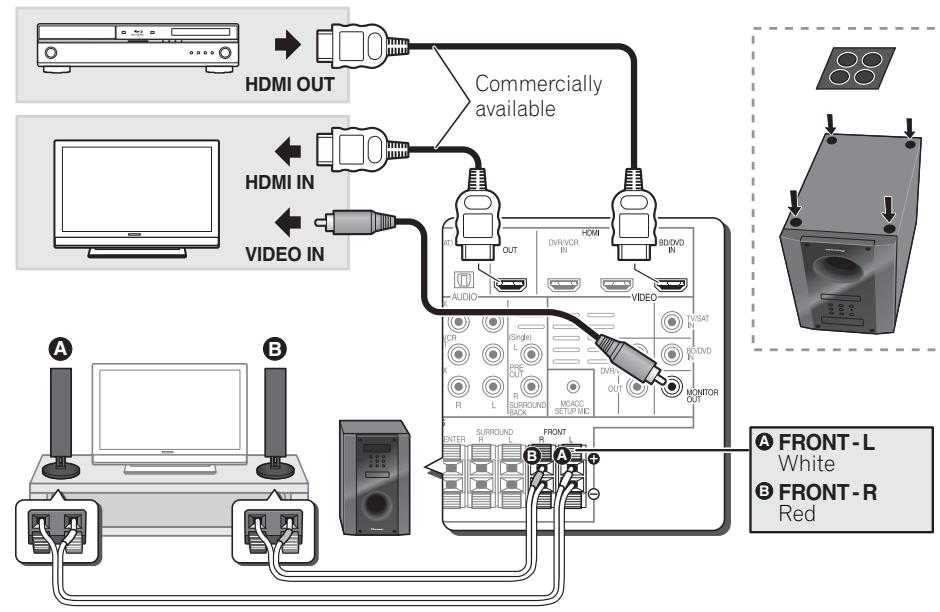

Front left: White Front right: Red Match the color-coded wire with the color indicator on the label, then insert the colorcoded wire into the red (+) side and the other wire into the black (–) side.

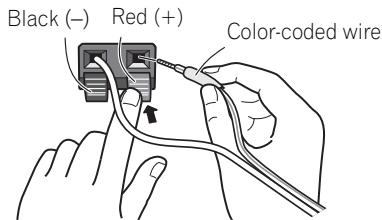

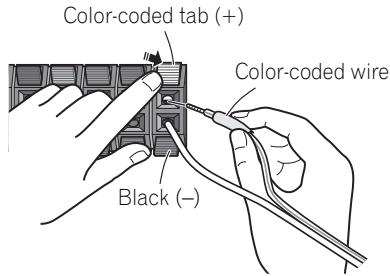

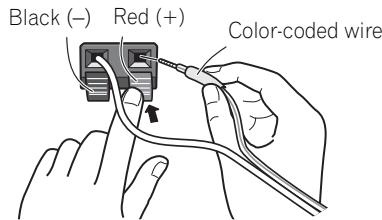

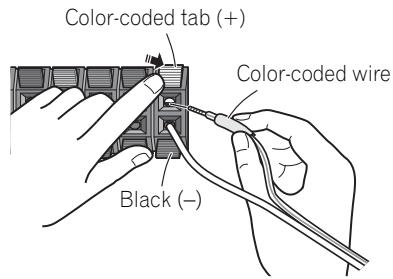

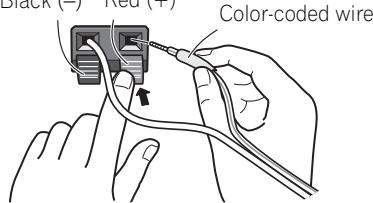

5 Connect each speaker. Connect the wires to the speaker. Each speaker in the illustration can be identified by means of the color-coded indicator provided on the rear-surface label.

• If the cable’s wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the amp. This may cause the amp to stop functioning, and may even damage the amp.

Speaker Setup (HTP-FS510)

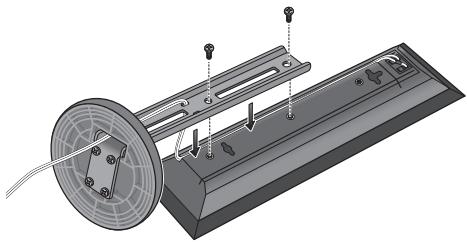

6 Secure the speaker and the pole with 2 screws. • Confirm that the speaker cable does not become pinched between the pole and the speaker.

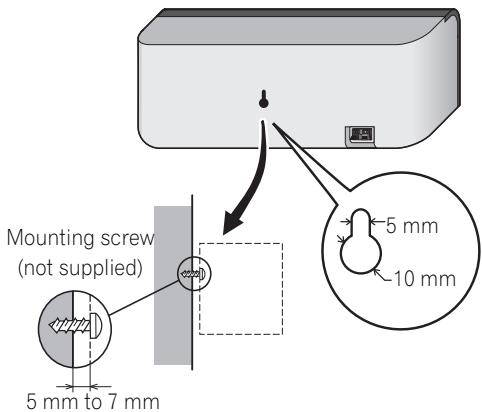

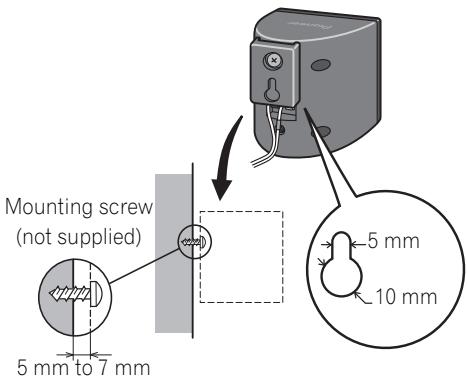

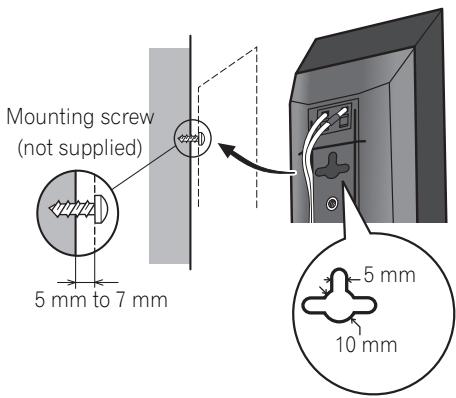

Wall mounting the front speakers The front speakers have a mounting hole which can be used to mount the speaker on the wall.

• Put the speaker cable in the back of the base of the stand.

Mounting screw (not supplied)

5 mm 5 mm to 7 mm 10 mm

The front speaker can be hung vertically or horizontally on the wall. Use one hole to hang it vertically and two holes to hang it horizontally.

• Install the front left and right speakers at an equal distance from the TV.

• The front speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min. to 30 min. If the problem persists, place the speaker system away from the television set.

• When the contents of these Operating Instructions from chapter 2 on describe a specific model, use those portions dealing with the HTP-610. • For information regarding the installation and connection of optional speaker systems, consult the information provided with the optional speaker systems, together Speaker Setup (HTP-610) on page 20 portion of these Operating Instructions. • See Automatically setting up for surround sound (MCACC) on page 51 to set up your system again using MCACC.

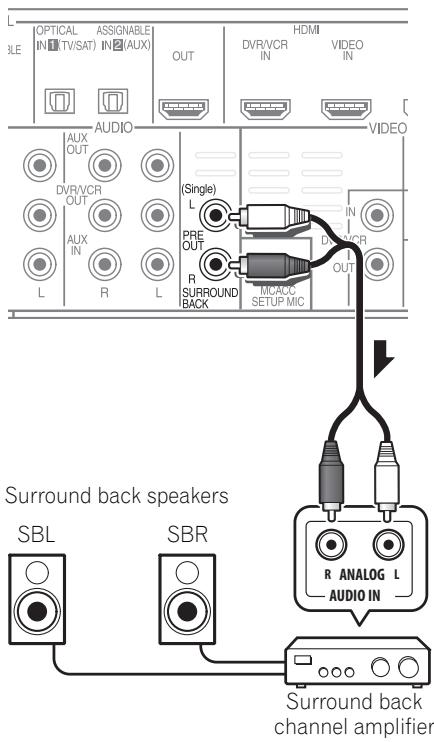

Take the following points into account when connecting the optional speaker systems:

A home theater system can be easily constructed using just the front (right/left) speakers and the subwoofer of this set, but by adding optional S-SWR5CR speaker systems, you can enjoy genuine 5.1 channel surround sound.

Additional notes on speaker placement

For Enhanced Sound Quality

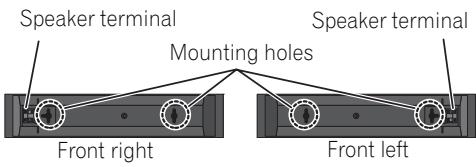

Speaker terminal Mounting holes

• Do not attach the subwoofer to a wall or ceiling. They may fall off and cause injury.

When installing the speaker horizontally, set it up so that the speaker terminal on the back side of the speaker is on the outside on the end of the surface, farthest away from the other speaker.

Attaching the speakers

Speaker Setup (HTP-SB510) Safety precautions when setting up When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

Preparing the speakers 1 Attach the non-skid pads to the base of each speaker stands and the receiver subwoofer. For speaker stands: Use the supplied adhesive to attach three small pads to the base (bottom) of each speaker stand.

Home theater sound setup The speaker should be installed below (in front of) the TV. The height of the speaker stands can be adjusted, or the speaker can be installed without using the stands at all. • The speaker and subwoofer are not magnetically shielded and so should not be used with CRT TV. Speaker

For subwoofer: Use the supplied adhesive to attach four large pads to the base of subwoofer.

• If the unit is assembled with foreign matter stuck between the stand and the speaker the unit may not be assembled securely, resulting in tipping or falling.

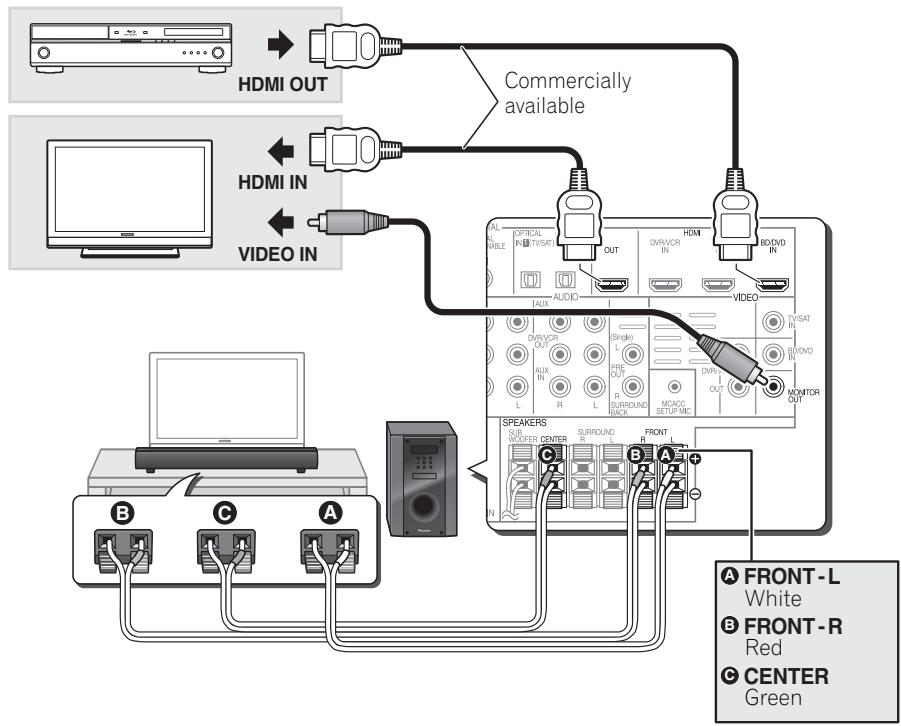

Front left: White Front right: Red Center: Green Match the color-coded wire with the color indicator on the label, then insert the colorcoded wire into the red (+) side and the other wire into the black (–) side.

Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer.

2 Attach the speaker stand bases to the speaker. Attach both right and left speaker stands to the rear of the speaker. The height of the speaker stands can be adjusted in two levels; select the height you prefer, and fix in position.

The rear of the speaker has channel terminals (Right/Center/Left), together with color-coded labels.

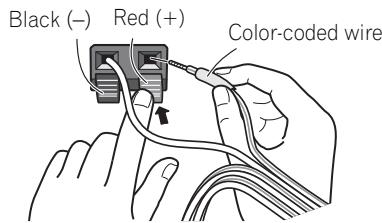

3 Connect each speaker. Connect the wires to the speaker.

If you decide not to use the speaker stands, use the supplied adhesive to attach four small pads to the base of the speaker.

CAUTION • Be careful not to tighten screws excessively. • If excessive force is used to tighten screws, the threads of screw may be damaged. Use a middle-sized manual screwdriver during assembly.

• Do not use power screwdrivers or oversized screwdrivers that may exert excessive force on the screws. • Confirm that no foreign matter is stuck to the stand or the speaker during assembly.

• If you are unsure of the qualities and strength of the wall, consult a professional for advice.

• Do not connect any speakers other than those supplied to this system.

• When mounting the speaker on a wall, install it so that it is parallel to the floor.

• Do not connect the supplied speaker to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.

• When mounting the speaker on a wall, do not attach the accessory speaker stands.

• Pioneer is not responsible for any accidents or damage that result from improper installation.

• After connecting the plugs, pull lightly on the cables to make sure that the ends of the cables are securely connected to the terminals. Poor connections can create noise and interruptions on the sound. • If the cable’s wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the amp. This may cause the amp to stop functioning, and may even damage the amp.

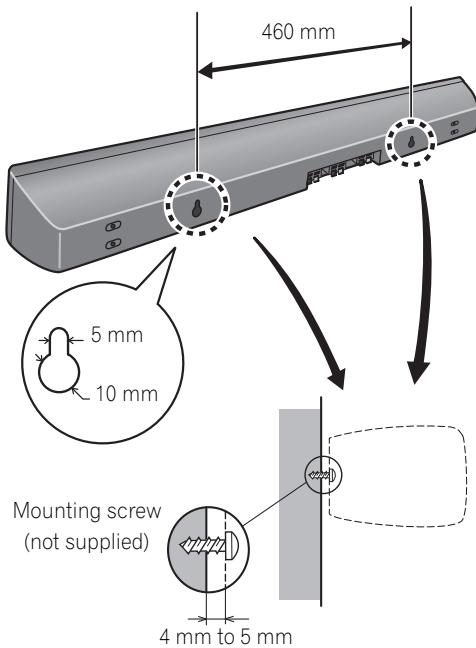

Wall mounting the speaker The speaker have the mounting holes which can be used to mount the speaker on the wall.

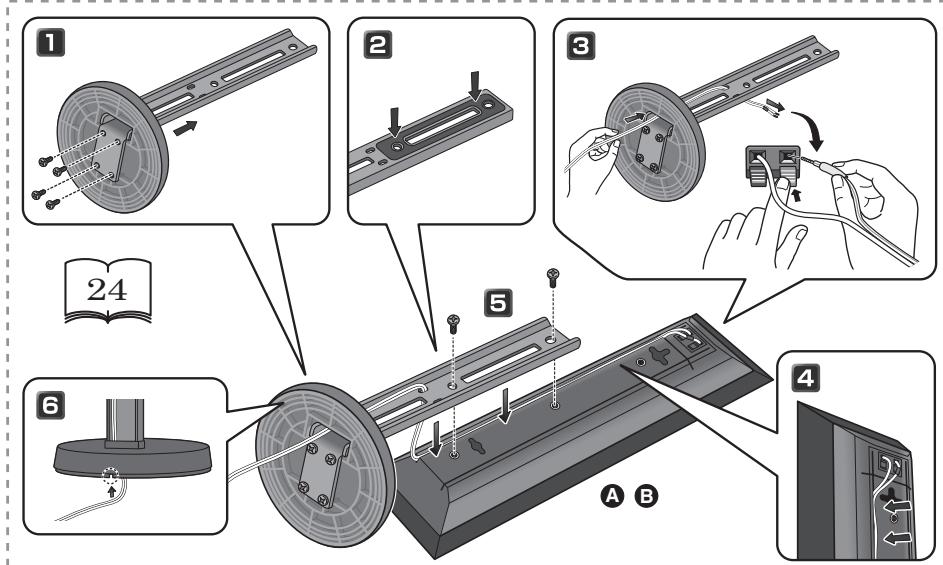

Before mounting • Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speaker on is strong enough to support them. Do not mount on plywood or soft surface walls. • Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

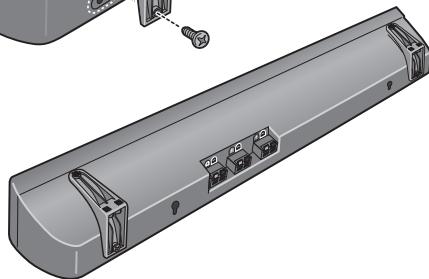

Mounting screw (not supplied)

Speaker Setup (HTP-SB510)

• Install the speaker below the TV, in the center position.

• Do not rest the speaker on the TV itself.

• Do not attach the subwoofer to a wall or ceiling. They may fall off and cause injury.

• For information regarding the installation and connection of optional speaker systems, consult the information provided with the optional speaker systems, together Speaker Setup (HTP-610) on page 20 portion of these Operating Instructions. • See Automatically setting up for surround sound (MCACC) on page 51 to set up your system again using MCACC.

• The speaker and subwoofer are not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the speaker and subwoofer.

• When the contents of these Operating Instructions from chapter 2 on describe a specific model, use those portions dealing with the HTP-610.

Take the following points into account when connecting the optional speaker systems:

A home theater system can be easily constructed using just the speaker and the subwoofer of this set, but by adding optional SSB5R speaker systems, you can enjoy genuine 5.1 channel surround sound.

• Televisions supporting 3D display transmit signals to the 3D glasses worn by the viewer. In order to view 3D images, consult the television’s Operating Instructions and install the speaker so that it does not block the television’s 3D signal transmitter.

For Enhanced Sound Quality

Additional notes on speaker placement

Connecting up Rear panel 1

8 1 Coaxial/Optical digital audio inputs (x3) Use the supplied optical digital cable to connect the DIGITAL OPTICAL IN 1 (TV/SAT) input to the television’s optical digital output terminal. Use for digital audio sources, including DVD players/recorders, digital satellite receivers, CD players, etc. 2 HDMI inputs (x3)/output (x1) Multiple inputs and one output for high-quality audio/video connection to compatible HDMI devices. 3

4 Stereo analog audio inputs/outputs Use for connection to audio sources such as CD players, tape decks, turntables, etc.

5 Surround back pre-amplifier outputs Use to connect separate amplifiers for surround back channels. 6 MCACC SETUP MIC jack Use to connect the supplied microphone for the Auto MCACC setup (page 51). 7 Video inputs/outputs Use the supplied video cable to connect the MONITOR OUT terminal to the television’s video input terminal. Use for connection to video sources, such as DVD players/recorders, VCRs, etc. 8

9 SPEAKERS terminals Match the colors of the speaker cables to their respective connectors.

Make sure not to bend the cables over the top of this unit. If this happens, the magnetic field produced by the transformers in this unit may cause a humming noise from the speakers.

About video outputs connection

This system is also compatible with the DeepColor and x.v.Color feature (x.v.Color is trademarks of Sony Corporation). HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

The HDMI cables transfers uncompressed digital video, as well as almost every kind of digital audio that the connected component is compatible with, including DVD-video, DVDAudio, Dolby Digital Plus, Dolby TrueHD, DTSHD Master Audio (see below for limitations), Video CD/Super VCD, CD, SACD (DSD 2 ch only) and 192 kHz/8 ch (Max. number of channel inputs) PCM.1

HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.

This system is not loaded with a video converter. When you use HDMI cable for connecting to the input device, the same cables should be used for connecting to the TV.

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players, DTV, set-top boxes, and other AV devices. HDMI was developed to provide the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI) in one specification. HDCP is used to protect digital content transmitted and received by DVI-compliant displays.

• When connecting this system or changing connections, be sure to switch power off and disconnect the power cord from the wall socket. After completing all connections, connect the power cords to the wall socket.

CAUTION Be careful to connect the terminal in the proper direction.

Making cable connections

Note 1 • Set the HDMI parameter in Setting the Audio options on page 69 to THRU (THROUGH) and set the input signal in Choosing the input signal on page 54 to HDMI, if you want to hear HDMI audio output from your TV (no sound will be heard from this system). • If the video signal does not appear on your TV, try adjusting the resolution settings on your component or display. Note that some components (such as video game units) have resolutions that may not be displayed. In this case, use a (analog) composite connection. • The signals input from the (analog) composite video inputs of this unit will not be output from the HDMI OUT. • When the video signal from the HDMI is 480i, 480p, 576i or 576p, Multi Ch PCM sound and HD sound cannot be received.

Important • Compared to existing digital audio transmission formats (optical and coaxial), HDMI format digital audio transmissions requires a longer time to be recognized. Due to this, interruption in the audio may occur when switching between formats or beginning playback. Additionally, turning on/off the component connected to this unit’s HDMI OUT terminal or disconnecting/connecting the HDMI cable may cause noise or interrupted audio.

Analog audio cables Use stereo RCA phono cables to connect analog audio components. These cables are typically red and white, and you should connect the red plugs to R (right) terminals and white plugs to L (left) terminals.

Digital audio cables Commercially available coaxial digital audio cables or optical cables should be used to connect digital components to this system.1 Coaxial digital audio cable

• A cap has been factory-attached to the connector on the accessory optical digital cable. Be sure to remove the cap before connecting the cable.

Standard RCA video cables These cables are the most common type of video connection and are used to connect to the composite video terminals. The yellow plugs distinguish them from cables for audio.

Note 1 • When connecting optical cables, be careful when inserting the plug not to damage the shutter protecting the optical socket. • When storing optical cable, coil loosely. The cable may be damaged if bent around sharp corners. • You can also use a standard RCA video cable for coaxial digital connections.

This will allow you to play the sound from the TV’s built-in tuner.

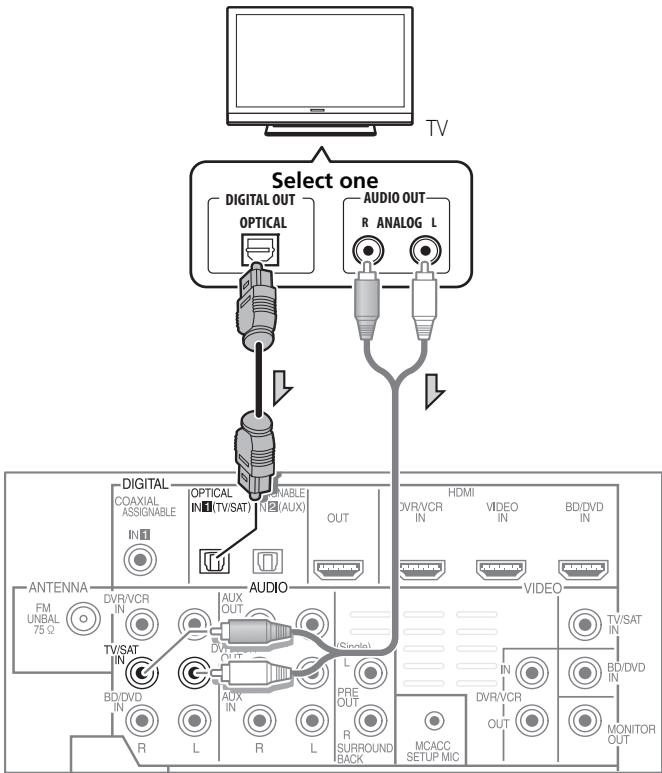

Connect your TV (For TV audio)

• Connect the digital audio output from your TV to the DIGITAL OPTICAL IN 1 (TV/ SAT) input on this system. Use the supplied optical digital cable. • If your TV has no optical digital audio output, you can connect an analog audio outputs from your TV to the AUDIO TV/ SAT inputs on this system. Use an analog audio cables for the connection.

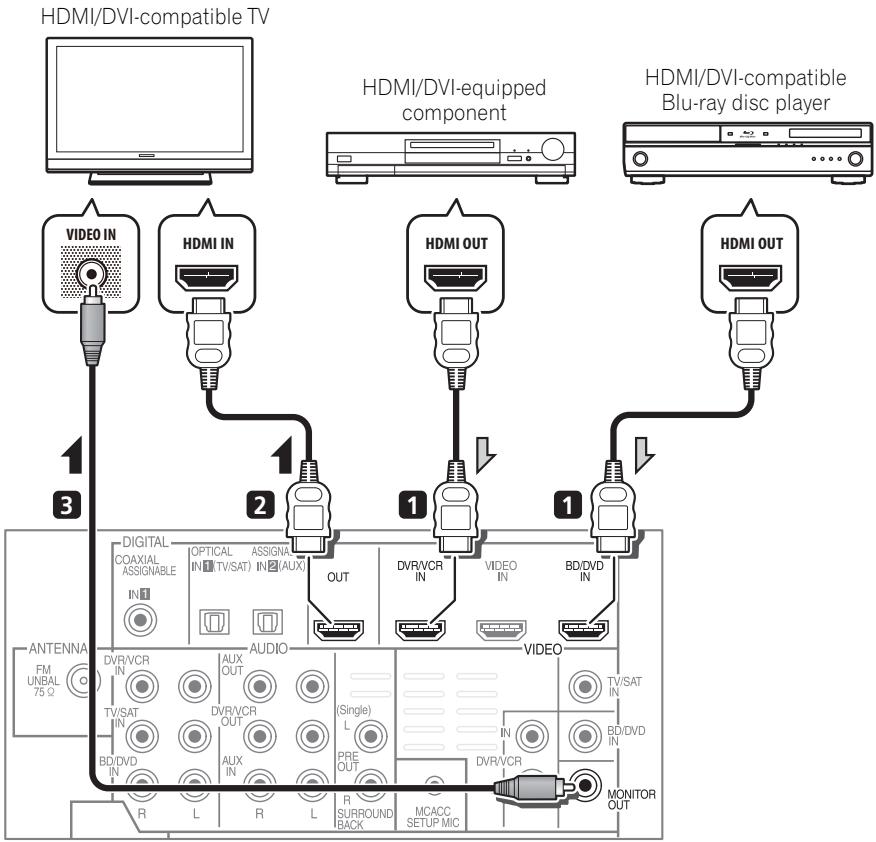

Connecting your TV and playback components Connecting using HDMI If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray disc player, etc.), you can connect it to this system using a commercially available HDMI cable. HDMI/DVI-compatible TV HDMI/DVI-compatible Blu-ray disc player

1 Connect the HDMI output on your BD/ DVD player to the HDMI BD/DVD IN input on this system. Use an HDMI cable for the connection. 2 Connect the HDMI OUT on this system to an HDMI input on your TV.

3 Connect the MONITOR OUT on this system to the composite video input on your TV. The OSD will not appear if you have connected using the HDMI output to your TV. Use composite connections for system setup. Use the supplied video cable.

This diagram shows connections of a TV and DVD player (or other playback component) with no HDMI terminal to the system.

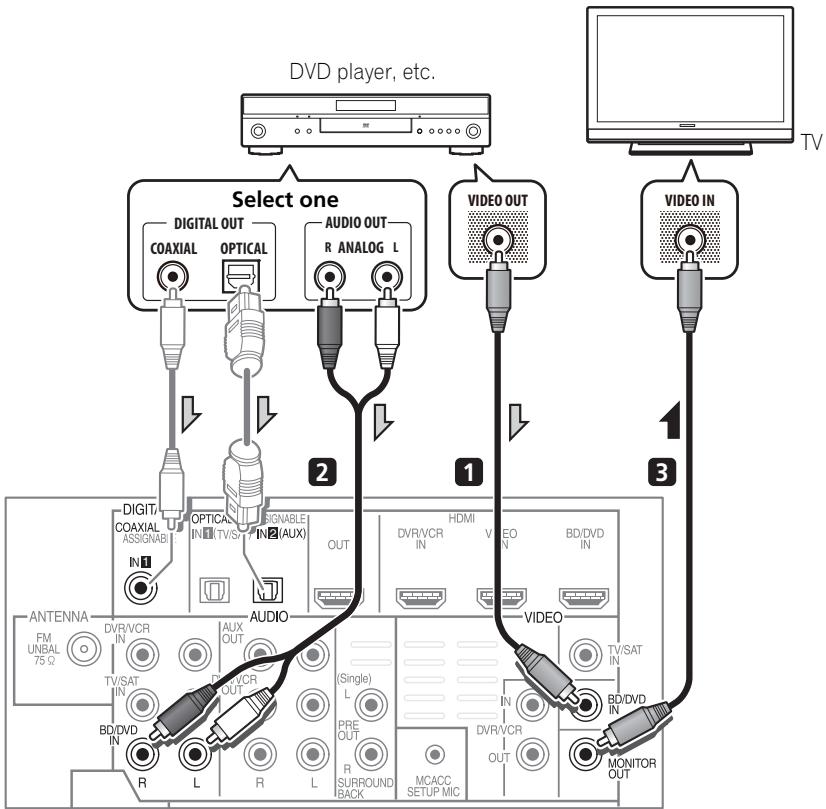

Connecting your component with no HDMI terminal

1 Connect the composite video output on your DVD player to the VIDEO BD/DVD input on this system. Use a standard RCA video cable.

3 Connect the MONITOR OUT on this system to the composite video input on your TV. Use the supplied video cable.

2 Connect the audio output on your DVD player to the AUDIO BD/DVD IN inputs on this system. Use a stereo RCA phono cable. If your component has a digital output, you can also use an optical cable or coaxial cable for the connection.1 Note 1 In this case, you’ll need to tell the system which digital input you connected the component to (see Choosing the input signal on page 54).

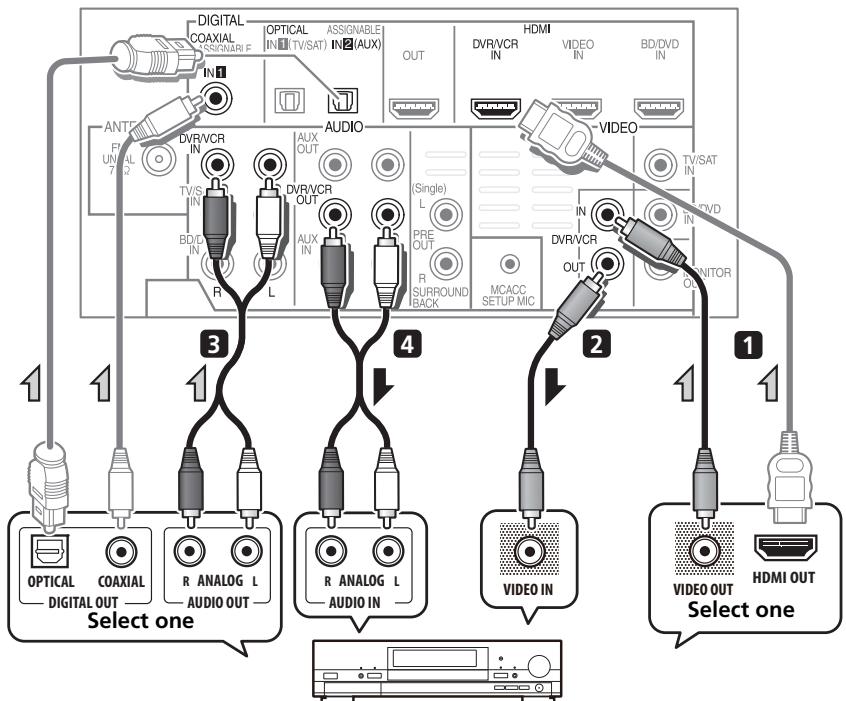

Connecting an HDD/DVD recorder, VCR and other video sources This system has audio/video inputs and outputs suitable for connecting analog or digital video recorders, including VCRs and HDD/DVD recorders. 1

OPTICAL COAXIAL DIGITAL OUT R ANALOG L AUDIO OUT Select one

VIDEO OUT HDMI OUT Select one

DVR, VCR, LD player, etc.

1 Connect the composite video output on your video component to the VIDEO DVR/VCR input on this system. Use a standard RCA video cable. • If the video component connected is equipped with an HDMI output, an HDMI cable may also be used for connection. In this case, use an HDMI cable to connect the TV as well. 2 Connect the VIDEO DVR/VCR OUT on this system to the composite video input on your video component.

3 Connect the audio output on your video component to the AUDIO DVR/VCR IN inputs on this system. Use a stereo RCA phono cable. If your component has a digital output, you can also use an optical cable or coaxial cable for the connection.1 4 Connect a video inputs on the recorder to the VIDEO DVR/VCR output on this system. Use a standard RCA video cable.

Note 1 In this case, you’ll need to tell the system which digital input you connected the component to (see Choosing the input signal on page 54).

Satellite and cable receivers, and terrestrial digital TV tuners are all examples of so-called ‘set-top boxes’. 2

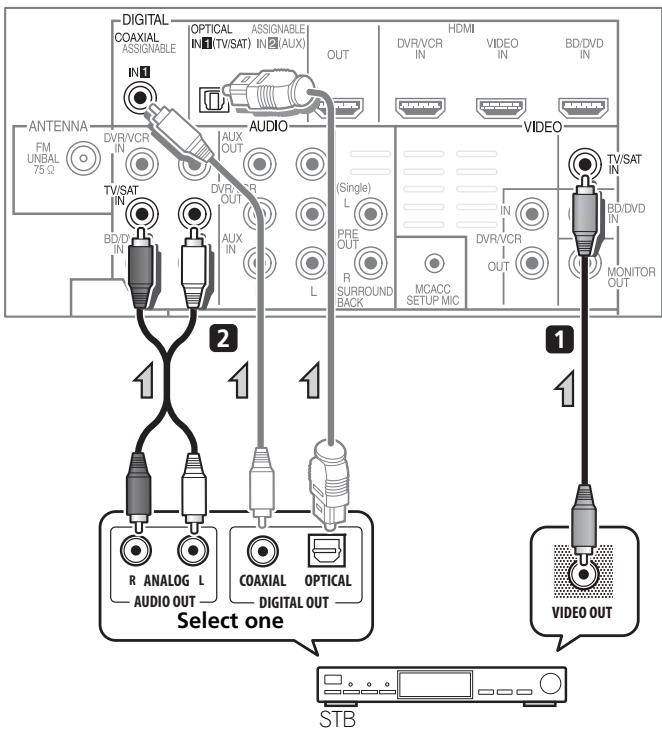

Connecting a satellite receiver or other digital set-top box

AUDIO OUT COAXIAL OPTICAL DIGITAL OUT VIDEO OUT Select one

1 Connect the composite video output on your set-top box to the VIDEO TV/SAT input on this system. Use a standard RCA video cable.

2 Connect the audio output on your set-top box to the AUDIO TV/SAT IN inputs on this system. Use a stereo RCA phono cable. If your component has a digital output, you can also use an optical cable or coaxial cable for the connection.1

R ANALOG L Note 1 In this case, you’ll need to tell the system which digital input you connected the TV to (see Choosing the input signal on page 54).

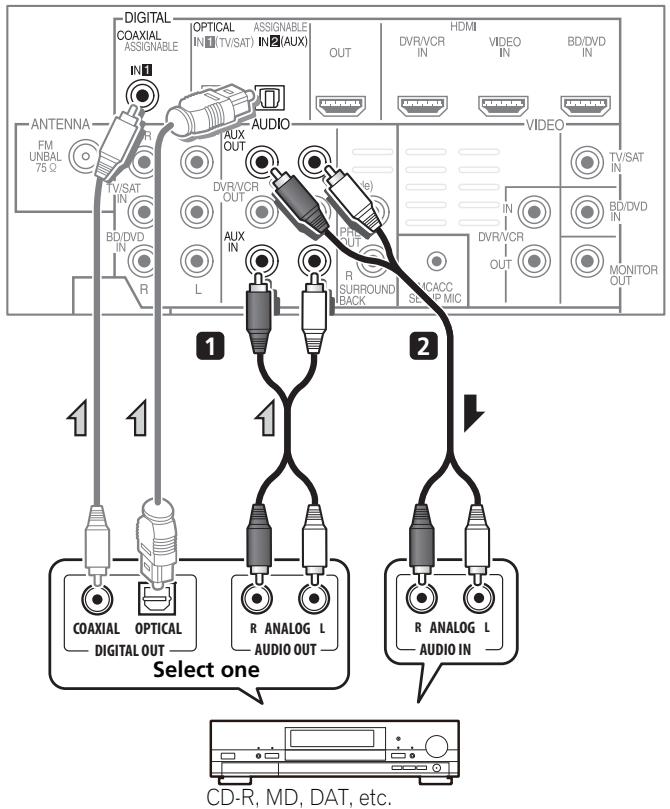

Connecting other audio components The number and kind of connections depends on the kind of component you’re connecting.1 Follow the steps below to connect a CD-R, MD, DAT, tape recorder or other audio component. 2

R ANALOG L R ANALOG L AUDIO IN AUDIO OUT Select one

1 Connect the analog audio outputs of the component to a set of spare audio inputs on this system. Use a stereo RCA phono cable. If your component has a digital output, connect this to a digital input on the system as shown.

2 If you’re connecting a recorder, connect the analog audio outputs to the analog audio inputs on the recorder. The example shows an analog connection to the AUX OUT analog output jack using a stereo RCA phono cable.

Note 1 Note that you must connect digital components to analog audio jacks if you want to record to/from digital components (like an MD) to/from analog components.

• Remove the panel cover when making connections to the front panel.

0.5 A VIDEO L AUDIO R

• Switch the system into standby then use the supplied iPod cable to connect your iPod to the iPod/iPhone terminal on the front panel of this system. • Remove the panel cover when making connections to the front panel. • For the cable connection, refer to also the operating instructions for iPod. • For instructions on playing the iPod, see Playing an iPod on page 55.

This system has a dedicated iPod/iPhone terminal that will allow you to control playback of audio content from your iPod/iPhone using the controls of this system.

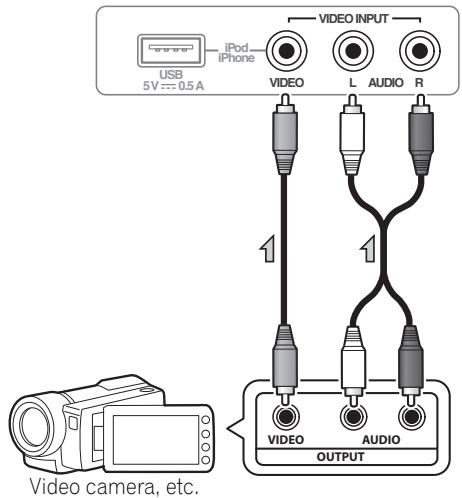

Front video connections are accessed via the front panel using the VIDEO button on the remote control.1 There are standard audio/ video jacks. Hook them up the same way you made the rear panel connections.

Connecting an iPod/iPhone

Connecting to the front panel video terminal

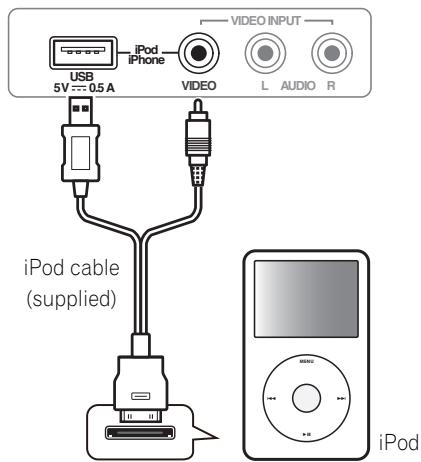

iPod cable (supplied)

Note 1 If you connected the video components and there is still no sound, press to select A (ANALOG).

then press SIGNAL SEL repeatedly

Connecting a USB device

Connecting the FM antenna

It is possible to playback files using the USB interface on the front of this system.

Connect the FM wire antenna as shown below. To improve reception and sound quality, connect external antennas (see Connecting external antennas below).

• Switch the system into standby then connect your USB device to the USB terminal on the front panel of this system. • Remove the panel cover when making connections to the front panel. • For instructions on playing the USB device, see Playing a USB device on page 58. VIDEO INPUT iPod iPhone

0.5 A VIDEO L AUDIO R

• Push the FM antenna plug onto the center pin of the FM antenna socket.

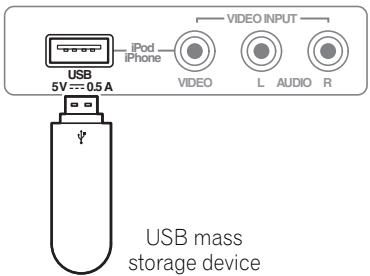

USB mass storage device

For best results, extend the FM antenna fully and fix to a wall or door frame. Don’t drape loosely or leave coiled up.

Connecting external antennas To improve FM reception connect an external FM antenna to the FM UNBAL 75 Ω.

Only plug in after you have connected all your components to this system including the speakers. 1 Plug the supplied power cord into the AC IN socket on the back of the system. 2

Plug the other end into a power outlet.

Connect the PRE OUT outputs of the system and additional amplifier to add a surround back speaker.

Plugging in the system

Use the PRE OUT outputs to connect the surround back speakers

• Do not use any power cord other than the one supplied with this unit.

• Do not use the supplied power cord for any purpose other than that described above. Surround back channel amplifier

• You can use the additional amplifier on the surround back channel pre-outs for a single speaker as well. In this case plug the amplifier into the left (L (Single)) terminal only.

Surround back speakers

• Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the power cord when your hands are wet, as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, or other object on the power cord or pinch the cord in any other way. Never make a knot in the cord or tie it with other cables. The power cords should be routed so that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your nearest Pioneer authorized independent service company for a replacement.

• The system should be disconnected by removing the mains plug from the wall socket when not in regular use, e.g., when on vacation.

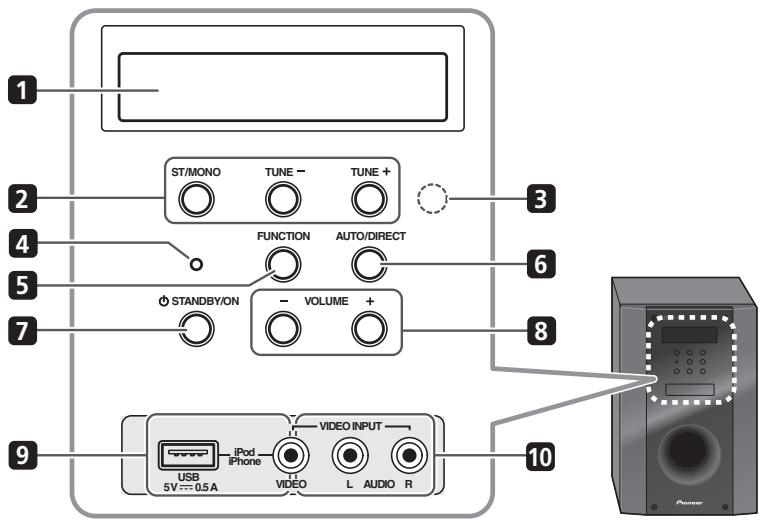

Controls and displays Front panel

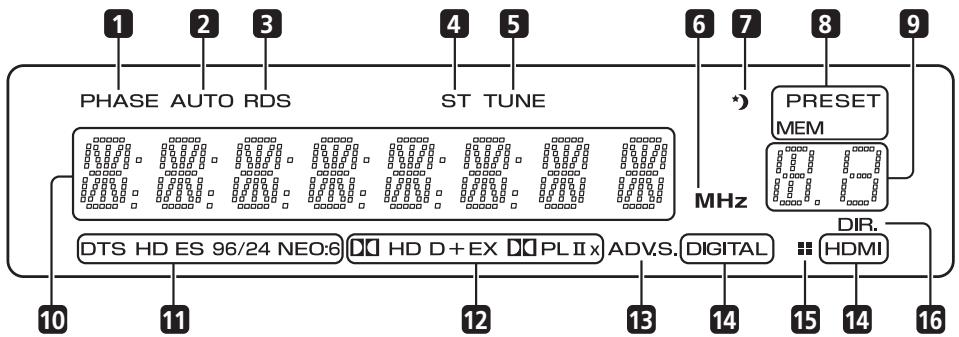

1 Front panel display See Display on page 45 for details. 2

Tuner control buttons

6 AUTO/DIRECT Switches between Auto surround mode (Auto playback on page 63) and Stream Direct playback.

ST/MONO Switches between auto stereo mode and mono reception mode (page 60).

7  STANDBY/ON Switches the system on or into standby.

TUNE +/– Used to find radio frequencies (page 60).

9 iPod/USB terminal Use to connect your Apple iPod or USB mass storage device as an audio source (page 55 and 58).

1 PHASE Lights when the Phase Control is switched on (page 66).

4 ST Lights when a stereo FM broadcast is being received in auto stereo mode.

6 MHz Lights when the character display is showing the currently received broadcast frequency. 7 Sleep timer indicator Lights when the system is in sleep mode (page 49). 8

Tuner preset indicators PRESET Shows when a preset radio station is registered or called.

9 PRESET Information or Input signal indicator Shows the preset number of the tuner or the input signal type, etc. 10 Character display Displays various system information. 11 DTS indicators DTS Lights when a source with DTS encoded audio signals is detected. HD Lights when a source with DTS-EXPRESS or DTS-HD encoded audio signals is detected. ES Lights when a source with DTS-ES encoded audio signals is detected.

5 TUNE Lights when a normal broadcast channel is being received.

3 RDS Lights when an RDS broadcast is received (page 62).

2 AUTO Lights when the Auto Surround feature is switched on (see Auto playback on page 63).

96/24 Lights when a source with DTS 96/24 encoded audio signals is detected. NEO:6 When one of the NEO:6 modes of the system is on, this lights to indicate NEO:6 processing (page 63).

MEM Blinks when a radio station is registered.

12 Dolby Digital indicators 2D Lights when a Dolby Digital encoded signal is detected. 2D+ Lights when a source with Dolby Digital Plus encoded audio signals is detected. 2HD Lights when a source with Dolby TrueHD encoded audio signals is detected. EX Lights when a source with Dolby Digital EX encoded audio signals is detected. 2PLll(x) Lights to indicate 2 Pro Logic II / 2 Pro Logic IIx decoding (see Listening in surround sound on page 63 for more on this). 13 ADV.S. Lights when one of the Advanced Surround modes has been selected (see Using the Advanced surround effects on page 64 for more on this). 14 SIGNAL SELECT indicators DIGITAL Lights when a digital audio signal is selected. Blinks when a digital audio signal is not selected. HDMI Lights when an HDMI signal is selected. Blinks when an HDMI signal is selected and selected HDMI input is not provided. 15 UP MIX indicator Lights when the UP MIX function is set to ON (page 68). Also, lights when DIMMER is set to off. 16 DIR. Lights when the DIRECT or PURE DIRECT mode is switched on (page 65).

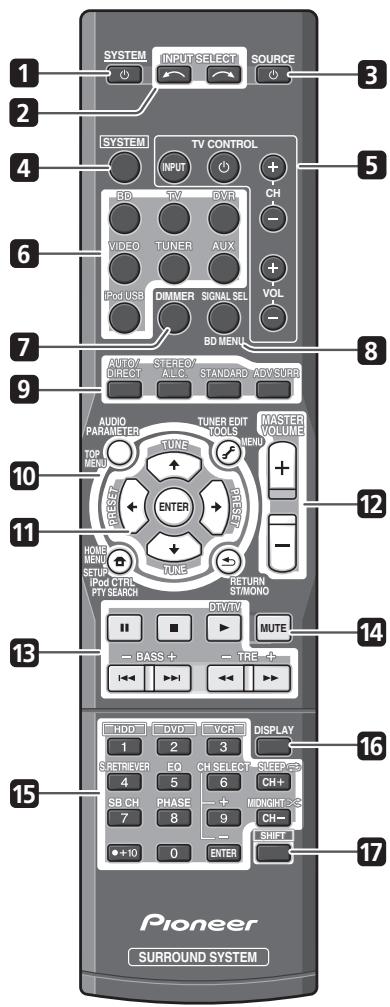

 Use to turn on/off the power of the TV.

CH +/– Use to select channels.

6 MULTI CONTROL buttons Press to select control of other components (see Controlling the rest of your system on page 75).

7 DIMMER Dims or brightens the display. The brightness can be controlled in four steps.

VOL +/– Use to adjust the volume on your TV.

5 TV CONTROL buttons These buttons are dedicated to control the TV assigned to the TV button. Thus if you only have one TV to hook up to this system assign it to the TV button (see page 76 for more on this).

3 SOURCE Press to turn on/off other components connected to the system (see page 77 for more on this).

1  SYSTEM Switches the system between standby and on.

Listening mode buttons AUTO/DIRECT Switches between Auto surround mode (Auto playback on page 63) and Stream Direct playback. Stream Direct playback bypasses the tone controls for the most accurate reproduction of a source (page 65). STEREO/A.L.C. Switches between stereo playback, Auto level control stereo mode (page 64) and Front Stage Surround Advance modes (page 65). STANDARD Press for Standard decoding and to switch between 2 Pro Logic II options (page 63). ADV SURR Switches between the various surround modes (page 64).

10 System Setup and Component control buttons The following button controls can be accessed after you have selected the corresponding MULTI CONTROL button (BD, TV, etc.). Press

MENU Displays the TOOLS menu screen of Blu-ray Disc player. Press TUNER first to access: TUNER EDIT Memorizes/names stations for recall (page 60 and 61). ST/MONO Switches between auto stereo mode and mono reception mode (page 60). PTY SEARCH Use to search for RDS program types (page 62). Press iPod USB first to access: iPod CTRL Switches between the iPod controls and the system controls (page 57). 11  (TUNE /, PRESET /), ENTER Use the arrow buttons when setting up your surround sound system (page 72). Also used to control BD/DVD menus/options. Use the TUNE / buttons can be used to find radio frequencies (page 60) and the PRESET / buttons can be used to select preset radio stations (page 61). 12 MASTER VOLUME +/– Use to set the listening volume. 13 Component control buttons The main buttons (, , etc.) are used to control a component after you have selected it using the input source buttons. The controls above these buttons can be accessed after you have selected the corresponding input source button (for example BD, DVR or TV). These buttons also function as described below.

Press TV first to access: DTV/TV Switches between the DTV and analog TV input modes for Pioneer TVs.

16 DISPLAY Switches the display of this unit. The input name, listening mode or sound volume can be checked by selecting an input source. 17 SHIFT Press to access the ‘boxed’ commands (above the buttons) on the remote. These buttons are marked with an asterisk (* ) in this section.

EQ Press to switch on/off Acoustic Calibration EQ setting (page 66).

S.RETRIEVER Press to restore CD quality sound to compressed audio sources (page 65).

HDD*, DVD*, VCR* These buttons switch between the hard disk, DVD and VCR controls for HDD/DVD/ VCR recorders.

15 Number buttons and other component controls Use the number buttons to directly select a radio frequency (page 60) or the tracks on a CD, DVD, etc. There are other buttons that can be accessed after the button is pressed. (For example MIDNIGHT, etc.)

SLEEP Press to change the amount of time before the system switches into standby (30 min – 60 min – 90 min – Off). You can check the remaining sleep time at any time by pressing SLEEP once.

14 MUTE Mutes/unmutes the sound.

BASS –/+ Use to adjust the channel level of the subwoofer.1

CH SELECT Press repeatedly to select a channel, then use +/– to adjust the level (page 74). CH SELECT +/– Use to adjust the channel level. SB CH Use to select the surround back channel mode (page 68).

Note 1 The tone controls are disabled when the listening mode is set to DIRECT or PURE DIRECT.

Controls and displays

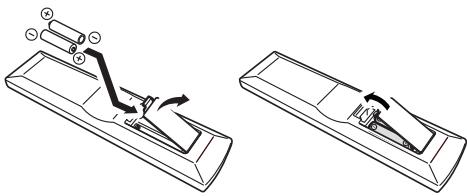

Putting the batteries in the remote control

Using the remote control

CAUTION Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following: • Don’t mix new and old batteries together. • Don’t use different kinds of battery together — although they may look similar, different batteries may have different voltages. • Make sure that the plus and minus ends of each battery match the indications in the battery compartment. • Remove batteries from equipment that isn’t going to be used for a month or more. • When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country/area. • Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Please keep in mind the following when using the remote control: • Make sure that there are no obstacles between the remote and the remote sensor on the unit. • Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor. • Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit. • Replace the batteries when you notice a fall off in the operating range of the remote. • Use within the operating range in front of the remote control sensor on the unit, as shown.

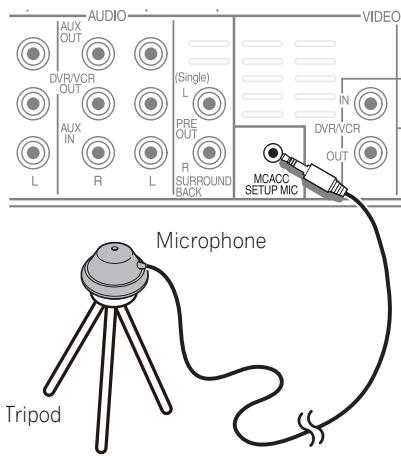

1 Connect the microphone to the MCACC SETUP MIC jack on the rear panel. Make sure there are no obstacles between the speakers and the microphone. If you have a tripod, use it to place the microphone so that it’s about ear level at your normal listening position. Otherwise, place the microphone at ear level using a table or a chair.

• The OSD will not appear if you have connected using the HDMI output to your TV. Use composite connections for system setup. • The Auto MCACC Setup will overwrite any existing speaker settings you’ve made.

• When using HTP-FS510 and HTP-SB510 models, always use the Auto MCACC setup function. If this setup is not performed, various problems may occur, including an inability to hear screen dialogue, or to hear sound from the surround channel. In the event the Auto MCACC setup is not used, perform the manual Speaker Setting instead.

• The test tones used in the Auto MCACC Setup are output at high volume.

MENU INPUT SELECT TOP MENU Italiano

CAUTION TUNER EDIT MASTER VOLUME TOOLS AUDIO PARAMETER SYSTEM Deutsch

The Auto Multi-Channel Acoustic Calibration (MCACC) setup measures the acoustic characteristics of your listening area, taking into account ambient noise, speaker size and distance, and tests for both channel delay and channel level. After you have set up the microphone provided with your system, the system uses the information from a series of test tones to optimize the speaker settings and equalization for your particular room.

• Before using the Auto MCACC Setup, the iPod USB function should not be selected as an input source.

Automatically setting up for surround sound (MCACC)

2 Switch on the system and your TV. Switch the TV input so that it connects to the system in analog.

3 Press on the remote control, then press the SETUP button. An on-screen display (OSD) appears on your TV. Use /// and ENTER on the remote control to navigate through the screens and select menu items. Press RETURN to exit the current menu. • Press SETUP at any time to exit the System Setup menu.1 4 Select ‘Auto MCACC’ from the System Setup menu then press ENTER.2

Wait for the test tones to finish. • A progress report is displayed on-screen while the system outputs test tones to determine the speakers present in your setup. Try to be as quiet as possible while it’s doing this. 1.Auto MCACC Now Analyzing Environment Check Ambient Noise

Speaker YES/NO Return System Setup 1.Auto MCACC 2.Manual SP Setup

• For correct speaker settings, do not adjust the volume during the test tones.

Try to be as quiet as possible after pressing ENTER. The system outputs a series of test tones to establish the ambient noise level. 5

Follow the instructions on-screen. • Make sure the microphone is connected. • See below for notes regarding background noise and other possible interference. • When using surround back speakers, turn on the power to the amplifier to which the surround back speakers are connected, and adjust the sound level to the desired level.

7 Confirm the speaker configuration. The configuration shown on-screen should reflect the actual speakers you have. • With error messages (such as Too much ambient noise) select RETRY after checking for ambient noise (see Other problems when using the Auto MCACC Setup on page 53). 1.Auto MCACC Check! Front Center Surr Surr. Back Subwoofer

If the speaker configuration displayed isn’t correct, use / to select the speaker and / to change the setting. When you’re finished, go to the next step. If you see an error message (ERR) in the right side column, there may be a problem with the speaker connection. If selecting RETRY doesn’t fix the problem, turn off the power and check the speaker connections. Note 1 The screensaver automatically starts after three minutes of inactivity. If you cancel the Auto MCACC Setup at any time, the system automatically exits and no settings will be made. 2 MIC IN blinks when the microphone is not connected to MCACC SETUP MIC.

• Some older TVs may interfere with the operation of the microphone. If this seems to be happening, switch off the TV when doing the Auto MCACC Setup.

Now Analyzing Surround Analyzing Speaker System Speaker Distance Channel Level

Acoustic Cal EQ Deutsch

1.Auto MCACC If the room environment is not optimal for the Auto MCACC Setup (too much background noise, echo off the walls, obstacles blocking the speakers from the microphone) the final settings may be incorrect. Check for household appliances (air conditioner, fridge, fan, etc.), that may be affecting the environment and switch them off if necessary. If there are any instructions showing in the front panel display, please follow them.

A progress report is displayed on-screen while the system outputs more test tones to determine the optimum system settings for channel level, speaker distance, and Acoustic Calibration EQ.

Other problems when using the Auto MCACC Setup

8 Make sure ‘OK’ is selected, then press ENTER. If the screen in step 7 is left untouched for 10 seconds and the ENTER button is not pressed in step 8, the Auto MCACC setup will start automatically as shown below.

Again, try to be as quiet as possible while this is happening. It may take 1 to 3 minutes.

9 The Auto MCACC Setup has finished! You return to the System Setup menu. • Be sure to disconnect the microphone from this unit upon completion of the Auto MCACC setup.

The settings made in the Auto MCACC Setup should give you excellent surround sound from your system, but it is also possible to adjust these settings manually using the System Setup menu (starting on page 72).1

Note 1 The subwoofer distance setting may be farther than the actual distance from the listening position. This setting should be accurate (taking delay and room characteristics into account) and generally does not need to be changed.

Choosing the input signal

Basic operation Procedures for listening to audio from a radio or connected other component.

On this system, it is possible to switch the input signals for the different inputs as described below.1

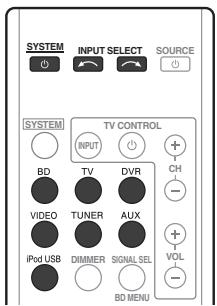

SYSTEM TV CONTROL INPUT SYSTEM INPUT SELECT SOURCE CH TUNER EDIT MASTER VOLUME TOOLS AUDIO PARAMETER MENU TOP MENU SYSTEM TV CONTROL INPUT ENTER DIMMER SIGNAL SEL VOL CH HOME MENU SETUP BD MENU

iPod CTRL PTY SEARCH RETURN ST/MONO DTV/TV DIMMER SIGNAL SEL MUTE VOL BASS TRE BD MENU

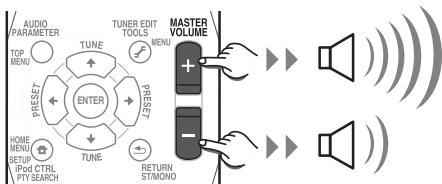

1 Turn on the power of the playback component. 2 Press  SYSTEM to turn on the power of this system. 3 Select the source you want to playback. Use the MULTI CONTROL (or INPUT SELECTOR) buttons. • Select the type of audio input signal if required (see below). 4 Start playback of the component you selected in step 1. 5 Select the listening mode. Use the listening mode buttons. 6 Press MASTER VOLUME +/– to adjust the volume.

on the remote control.

2 Press SIGNAL SEL to select the input signal corresponding to the source component. When DIGITAL (C1/O1/O2) or HDMI (H) is selected and the selected audio input is not provided, A (analog) is automatically selected. Each press cycles through the following: • A – Selects the analog inputs. • DIGITAL – Selects the digital input. The coaxial 1 input is selected for C1, and the optical 1 or 2 audio input is selected for O1 or O2. • HDMI – Selects an HDMI signal. H can be selected for BD/DVD, VIDEO or DVR/VCR input. For other inputs, HDMI cannot be selected.2 When set to DIGITAL or HDMI, 2 lights when a Dolby Digital signal is input, and DTS lights when a DTS signal is input. When the HDMI is selected, the A and DIGITAL indicators are off (see page 44).

Note 1 • This system can only play back Dolby Digital, PCM (32 kHz to 96 kHz) and DTS (including DTS 96 kHz / 24 bit) digital signal formats. The compatible signals via the HDMI terminals are: Dolby Digital, DTS, SACD (DSD 2 ch), PCM (32 kHz to 192 kHz sampling frequencies), Dolby TrueHD, Dolby Digital Plus, DTS-EXPRESS, DTS-HD Master Audio and DVD Audio (including 192 kHz). With other digital signal formats, set to A (analog). • You may get digital noise when a LD or CD player compatible with DTS is playing an analog signal. To prevent noise, make the proper digital connections (page 33) and set the signal input to C1/O1/O2 (DIGITAL). • Some DVD players don’t output DTS signals. For more details, refer to the instruction manual supplied with your DVD player. 2 When the HDMI option in Setting the Audio options on page 69 is set to THRU, the sound will be heard through your TV, not from this system.

iPod/USB playback This system has a dedicated iPod terminal that will allow you to control playback of audio content from your iPod using the controls of this system.1

1 Switch on the system and your TV. See Connecting an iPod/iPhone on page 41.

iPod Top [ [ [ [ [ [ [ [ [

Playlists Artists Albums Songs Podcasts Genres Composers Audiobooks Shuffle Songs E NT E R

1 Use the / buttons to select a category then press ENTER to browse that category. • To return to the previous level any time, press RETURN.

• If after pressing iPod the display shows NO DEVICE, try switching off the system and reconnecting the iPod to the system.

3 Use the TOP MENU button to display iPod Top menu. When the display shows Top Menu you’re ready to play music from the iPod.2

When your iPod is connected to this system, you can browse songs stored on your iPod by playlist, artist, album name, song name, genre or composer, similar to using your iPod directly.

2 Press the iPod USB button to switch the system to the iPod/USB. The front panel display shows Loading while the system verifies the connection and retrieves data from the iPod.

Finding what you want to play

• When connected to a television using HDMI output alone, the iPod Top menu will not be displayed. In this case, use composite connection instead.

To navigate songs on your iPod, you can take advantage of the OSD of your TV connected to this system.3 You can also control all operations for music in the front panel display of this system.

Note 1 • This system is compatible with the audio and the video of the iPod nano, iPod fifth generation, iPod classic, iPod touch and iPhone (iPod shuffle not supported). However, that some of the functions may be restricted for some models. Note, however, compatibility may vary depending on the software version of your iPod and iPhone. Please be sure to use the latest available software version. • iPod and iPhone are licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce. • Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting. • Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from the iPod failure. 2 The controls of your iPod (excluding iPod touch or iPhone) will be inoperable when connected to this system (Pioneer shows in the iPod display). 3 • Note that non-roman characters in the title are displayed as . • This feature is not available for photos or video clips on your iPod.

2 Use the / buttons to browse the selected category (e.g., albums). • Use / to move to previous/next levels. 3 Continue browsing until you arrive at what you want to play, then press  to start playback.1 Navigation through categories on your iPod looks like this: Playlists  Songs Artists  Albums  Songs Albums  Songs Songs Podcasts Genres  Artists  Albums  Songs Composers  Albums  Songs Audiobooks Shuffle Songs

Basic playback controls The following table shows the basic playback controls for your iPod. Press iPod USB to switch the remote control to the iPod operation mode. Button

Press to start playback. If you start playback when something other than a song is selected, all the songs that fall into that category will play.

ENTER Press to set the play and pause modes.

Pauses playback, or restarts playback when paused.

Press and hold during playback to start scanning.

/ Press to skip to previous/next track.

• You can play all of the songs in a particular category by selecting the All item at the top of each category list. For example, you can play all the songs by a particular artist.

Press repeatedly to switch between Repeat One, Repeat All and Repeat Off. Press repeatedly to switch between Shuffle Songs, Shuffle Albums and Shuffle Off. DISPLAY Press repeatedly to change the song playback information displayed in the front panel display. /

When browsing, press to move to previous/next levels.

During Audiobook playback, press to switch the playback speed: Faster  Normal  Slower

TOP MENU Press to return to the iPod Top menu screen.

RETURN Press to return to the previous level.

Note 1 If you’re in the song category, you can also press ENTER to start playback.

To view photos or video on your iPod, since video control is not possible using this system, you must use the main controls of your iPod instead.1

2 Press iPod CTRL again to switch back to the system controls when you’re done.

iPod and iPhone are a trademarks of Apple Inc., registered in the U.S. and other countries.

1 Press iPod CTRL to switch to the iPod controls for photo and video playback. The system controls will be unavailable while you are watching iPod videos or browsing photos.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Important • To play photos or video on your iPod, you must connect the composite MONITOR OUT jack and TV. The photos and video content will not appear if you have connected using the HDMI output to your TV.

Watching photos and video content

Español Nederlands Note 1 • iPod photos and video content can be viewed only when the iPod is connected to the iPod VIDEO input on the front panel. · • This feature can only be used with an iPod having video output.

Basic playback controls

Playing a USB device It is possible to listen to two-channel audio1 using the USB interface on the front of this system. Important • When connected to a television using HDMI output alone, the USB playback window of the on-screen display (OSD) will not be displayed. In this case, use composite connection instead. 1

The following table shows the basic controls on the remote for USB playback. Press iPod USB to switch the remote control to the iPod USB operation mode. Button

Starts normal playback.

Pauses/unpauses playback.

Press to skip to previous/next track.

Press and hold during playback to start scanning. Press repeatedly to switch between Repeat Folder, Repeat One and Repeat All.

Switch on the system and your TV.

2 Press iPod USB on the remote control to switch the system to the iPod/USB. No Device appears in the OSD.

Press repeatedly to switch between Shuffle On and Shuffle Off.

3 Connect your USB device.2 See Connecting a USB device on page 42.

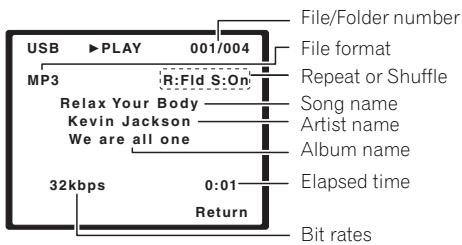

DISPLAY Loading appears in the OSD as this system starts recognizing the USB device connected. After the recognition, a playback screen appears in the OSD and playback starts automatically.3

Press repeatedly to change the song playback information displayed in the front panel display.

During playback, press to skip to previous/next track.

TOP MENU Press to return to the menu screen.

RETURN Press to return to the previous level.

Bit rates Note 1 This includes playback of WMA/MP3/MPEG-4 AAC files (except files with copy-protection or restricted playback). 2 • Make sure the system is in standby when disconnecting the USB device. • Compatible USB devices include external magnetic hard drives, portable flash memory (particularly keydrives) and digital audio players (MP3 players) of format FAT16/32. It is not possible to connect this system to a personal computer for USB playback. • Pioneer cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this system. • With large amounts of data, it may take longer for the system to read the contents of a USB device. 3 • If the file selected cannot be played back, this system automatically skips to the next file playable. • When the file currently being played back has no title assigned to it, the file name is displayed in the OSD instead; when neither the album name nor the artist name is present, the row is displayed as a blank space. • Note that non-roman characters in the playlist are displayed as .

If a USB Error message lights in the display, try following the points below: • Switch the system off, then on again.

• Select another input source (like BD), then switch back to iPod USB.

For more information on error messages, see USB messages on page 88. If this doesn’t remedy the problem, it is likely your USB device is incompatible.

• WMA (Windows Media Audio) – Sampling rates: 32 kHz / 44.1 kHz; Bit rates: 32 kbps to 192 kbps (128 kbps or higher recommended); File extension: .wma; WMA9 Pro and WMA lossless encoding: No • AAC (MPEG-4 Advanced Audio Coding) – Sampling rates: 11.025 kHz to 48 kHz; Bit rates: 16 kbps to 320 kbps (128 kbps or higher recommended); File extension: .m4a; Apple lossless encoding: No

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

About WMA The Windows Media logo printed on the box indicates that this system can playback Windows Media Audio content. WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. This system plays back WMA files encoded using Windows Media® Player bearing the extension ‘.wma’. Note that DRM-protected files will not play, and files encoded with some versions of Windows Media® Player may not play.

• MP3 (MPEG-1/2/2.5 Audio Layer 3) – Sampling rates: 8 kHz to 48 kHz; Bit rates: 8 kbps to 320 kbps (128 kbps or higher recommended); File extension: .mp3

Advanced Audio Coding (AAC) is at the core of the MPEG-4 AAC standard, which incorporates MPEG-2 AAC, forming the basis of the MPEG-4 audio compression technology. The file format and extension used depend on the application used to encode the AAC file. This system plays back AAC files encoded by iTunes bearing the extension ‘.m4a’. DRM-protected files will not play, and files encoded with some versions of iTunes may not play.

Note that although most standard bit/ sampling rate combinations for compressed audio are compatible, some irregularly encoded files may not play back. The list below shows compatible formats for compressed audio files:

About MPEG-4 AAC Italiano

Compressed audio compatibility

• DRM (Digital Rights Management) protection compatible: Yes (DRM-protected audio files will not play in this system).

• Use a dedicated AC adapter (supplied with the device) for USB power.

• VBR (variable bit rate) MP3/WMA/MPEG-4 AAC playback: Yes1

• Reconnect the USB device with the system switched off.

Windows Media, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Note 1 Note that in some cases playback time will not be displayed correctly.

Using the tuner Improving FM stereo sound

Listening to the radio The following steps show you how to tune in to FM broadcasts using the automatic (search) and manual (step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later—see Saving station presets below for more on how to do this.

CH TUNER EDIT TOOLS AUDIO PARAMETER MASTER VOLUME MENU TOP MENU DIMMER SIGNAL SEL BD MENU ENTER VOL HOME MENU SETUP

iPod CTRL PTY SEARCH

If the TUNE or ST indicators don’t light when tuning to an FM station because the signal is weak, press the ST/MONO button to select FM MONO and set the system to the mono reception mode. This should improve the sound quality and allow you to enjoy the broadcast.

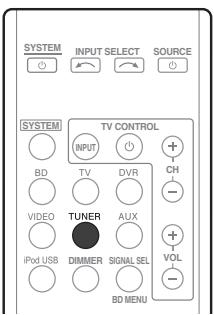

RETURN ST/MONO Press TUNER to select the tuner.

Saving station presets If you often listen to a particular radio station, it’s convenient to have the system store the frequency for easy recall whenever you want to listen to that station. This saves the effort of manually tuning in each time. This unit can memorize up to 30 stations.1

2 Tune to a station. There are three ways to do this: Automatic tuning To search for stations in the currently selected band, press and hold TUNE / (remote control or front panel) for about a second. The system will start searching for the next station, stopping when it has found one. Repeat to search for other stations. Manual tuning To change the frequency one step at a time, press TUNE /. High speed tuning Press and hold TUNE / for high speed tuning. Release the button at the frequency you want.

TUNER EDIT MASTER VOLUME TOOLS MENU AUDIO PARAMETER SYSTEM INPUT SELECT SOURCE TOP MENU ENTER SYSTEM TV CONTROL HOME MENU SETUP INPUT CH RETURN ST/MONO DTV/TV

iPod CTRL PTY SEARCH MUTE BASS DIMMER SIGNAL SEL TRE VOL HDD DVD VCR DISPLAY BD MENU

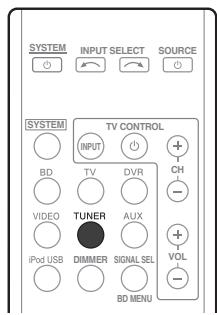

1 Tune to a station you want to memorize. See Listening to the radio above for more on this. 2 Press TUNER EDIT. The display shows PRESET, then a blinking MEM and station preset.

Note 1 If the system is left disconnected from the AC power outlet for over a month, the station memories will be lost and will have to be reprogrammed.

Listening to station presets You will need to have some presets stored to do this. See Saving station presets on page 60 if you haven’t done this already.

For easier identification, you can name all of your preset stations.

3 Input the name you want. Choose a name up to eight characters long. • Use the PRESET / buttons to select character position. • Use the TUNE / buttons to select characters. • The name is stored when ENTER is pressed. Tip • To erase a station name, follow steps 1 and 2, and press ENTER while the display is blank. Press TUNER EDIT while the display is blank, to keep the previous name.

NEWS – News AFFAIRS – Current Affairs INFO – General Information SPORT – Sport EDUCATE – Educational DRAMA – Radio plays, etc. CULTURE – National or regional culture, theater, etc. SCIENCE – Science and technology VARIED – Usually talkbased material, such as quiz shows or interviews. POP M – Pop music ROCK M – Rock music EASY M – Easy listening LIGHT M – ‘Light’ classical music CLASSICS – ‘Serious’ classical music OTHER M – Music not fitting above categories WEATHER – Weather reports

FINANCE – Stock market reports, commerce, trading, etc. CHILDREN – Programs for children SOCIAL – Social affairs RELIGION – Programs concerning religion PHONE IN – Public expressing their views by phone TRAVEL – Holiday-type travel rather than traffic announcements LEISURE – Leisure interests and hobbies JAZZ – Jazz COUNTRY – Country music NATION M – Popular music in a language other than English OLDIES – Popular music from the ’50s and ’60s FOLK M – Folk music DOCUMENT – Documentary

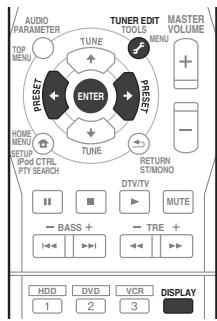

2 Press TUNER EDIT twice. The cursor at the first character position is blinking on the display.

You can search the following program types:1

1 Choose the station preset you want to name. See Listening to station presets above for how to do this.

One feature of RDS is that you can search by type of program. For example, you can search for a station that’s broadcasting a show with the program type, JAZZ.

Naming preset stations

Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they’re broadcasting, for example.

• Press PRESET / to select the station preset you want. • You can also use the number buttons on the remote control to recall the station preset.

An introduction to RDS Français

4 Press ENTER. After pressing ENTER, the preset number stop blinking and the system stores the station.

• Once you have named a station preset, press DISPLAY to show the name. When you want to return to the frequency display, press DISPLAY several times to show the frequency.

3 Press PRESET / to select the station preset you want. You can also use the number buttons.

Note 1 In addition, there are three other program types, ALARMTST, ALARM, and NO TYPE. ALARM and ALARMTST are used for emergency announcements. NO TYPE appears when a program type cannot be found.

iPod CTRL PTY SEARCH DTV/TV MUTE BASS DIMMER SIGNAL SEL TRE VOL HDD DVD VCR DISPLAY BD MENU Searching for RDS programs You can search for a program type listed above. 1

2 Press PTY SEARCH. SEARCH shows in the display.

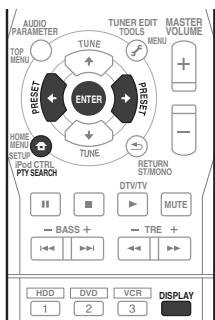

• Press DISPLAY for RDS information. Each press changes the display as follows: • Listening mode • Master volume • Radio Text (RT) – Messages sent by the radio station. For example, a talk radio station may provide a phone number as RT. • Program Service Name (PS) – The name of the radio station. • Program Type (PTY) – This indicates the kind of program currently being broadcast. • Current tuner frequency (FREQ)

3 Press PRESET / to select the program type you want to hear. 4 Press ENTER to search for the program type. The system starts searching through the station presets for a match, stopping when it was found one. Repeat to search for other stations. If NO PTY is displayed it means the tuner couldn’t find that program type at the time of the search.1

Note 1 RDS searches station presets only. If no stations have been preset, or if the program type could not be found among the station presets NO PTY is displayed. FINISH means the search is complete. 2 • If any noise is picked up while displaying the RT scroll, some characters may be displayed incorrectly. • If you see NO TEXT in the RT display, it means no RT data is sent from the broadcast station. The display will automatically switch to the PS data display (if no PS data, NO NAME is displayed). • In the PTY display, NO PTY may be shown.

Listening to your system

Listening to your system • The listening modes and many features described in this section may not be available depending on the current source, settings and status of the system.

The best listening mode may vary, depending on the model. In order to ascertain the best settings for your listening conditions, use of the Auto MCACC function is recommended.

• When optional speakers are connected, select one listening mode from the surround sound mode. See Listening in surround sound below.

For HTP-710/HTP-610/HTP-SB510: Using this system, you can listen to any source in surround sound. However, the options available will depend on your speaker setup and the type of source you’re listening to. The following modes provide basic surround sound for stereo and multichannel sources.

• HTP-FS510 model Select one listening mode from the Front Stage Surround Advance mode. See Using Front Stage Surround Advance on page 65.

Listening in surround sound

• HTP-710/HTP-610/HTP-SB510 model Select one listening mode from the surround sound mode. See Listening in surround sound below.

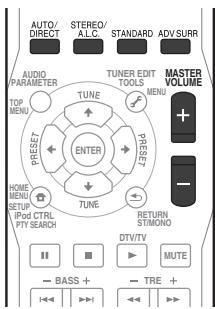

• While listening to a source, press AUTO/ DIRECT2 for auto playback of a source. Press repeatedly until AUTO SURROUND shows briefly in the display (it will then show the decoding or playback format). Check the digital format indicators in the display to see how the source is being processed.

Various listening modes are available for enjoyment of diverse sound effects and for sound field correction according to your preference.

The simplest, most direct listening option is the Auto Surround feature. With this, the system automatically detects what kind of source you’re playing and selects multichannel or stereo playback as necessary.1

Note 1 Stereo surround (matrix) formats are decoded accordingly using NEO:6 CINEMA or DOLBY PLII MOVIE (see Listening in surround sound above for more on these decoding formats). 2 For more options using this button, see Using Stream Direct on page 65.

Listening to your system

• While listening to a source, press STANDARD. If the source is Dolby Digital, DTS, or Dolby Surround encoded, the proper decoding format will automatically be selected and shows in the display. With two channel sources, you can select from: • DOLBY PLII MOVIE – Up to 5.1 channel sound, especially suited to movie sources • DOLBY PLII MUSIC1 – Up to 5.1 channel sound, especially suited to music sources • DOLBY PLII GAME – Up to 5.1 channel sound, especially suited for video games • NEO:6 CINEMA – Up to 5.1 channel sound, especially suited to movie sources • NEO:6 MUSIC – Up to 5.1 channel sound, especially suited to music sources2 • DOLBY PRO LOGIC – 4.1 channel surround sound

Using the Advanced surround effects

• CLASSICAL – Gives a large concert halltype sound. • ROCK/POP – Creates a live concert sound for rock and/or pop music. • UNPLUGGED – Suitable for acoustic music sources. • EXT.STEREO – Gives multichannel sound to a stereo source, using all of your speakers.

Listening in stereo When you select STEREO you will hear the source through just the front left and right speakers (and possibly your subwoofer depending on your speaker settings). Dolby Digital and DTS multichannel sources are downmixed to stereo. In the Auto level control stereo mode (A.L.C.), this unit equalizes playback sound levels if each sound level varies with the music source recorded in a portable audio player.

The Advanced surround feature creates a variety of surround effects. Try different modes with various soundtracks to see which you like. • While listening to a source, press STEREO/A.L.C. for stereo playback. Press repeatedly to switch between: • Press ADV SURR repeatedly to select a listening mode. • ACTION – Designed for action movies with dynamic soundtracks.

• STEREO – The audio is heard with your surround settings and you can still use the Midnight, Phase Control, Sound Retriever and Tone functions.

• DRAMA – Designed for movies with lots of dialog.

• A.L.C. – Listening in Auto level control stereo mode.

• ENT.SHOW – Suitable for musical sources. • ADVANCED GAME – Suitable for video games.

• F.S.S.ADVANCE – See Using Front Stage Surround Advance on page 65 for more on this.

• SPORTS – Suitable for sports programs. Note 1 When listening to 2-channel sources in DOLBY PLII MUSIC mode, there are three further parameters you can adjust: C.WIDTH, DIMEN., and PNRM.. See Setting the Audio options on page 69 to adjust them. 2 When listening to 2-channel sources in NEO:6 CINEMA or NEO:6 MUSIC mode, you can also adjust the C.IMG effect (see Setting the Audio options on page 69).

Listening to your system

• F.S.S.ADVANCE – Use to provide a rich surround sound effect directed to the center of where the front left and right speakers sound projection area converges. Front left speaker

• PURE DIRECT – Analog and PCM sources are heard without any digital processing.2

Using the Sound Retriever

SYSTEM TV CONTROL INPUT HDD DVD S.RETRIEVER EQ SB CH PHASE CH VCR Nederlands

When audio data is removed during the compression process, sound quality often suffers from an uneven sound image. The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed 2-channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression.3

F.S.S.ADVANCE position

• DIRECT – Sources are heard according to the settings made in the Surround Setup (speaker setting, channel level, speaker distance), as well as with dual mono settings.1 You will hear sources according to the number of channels in the signal.

• A.L.C. – See Listening in stereo on page 64 for more on this.

• While listening to a source, press AUTO/ DIRECT to select Stream Direct mode. • AUTO SURROUND – See Auto playback on page 63.

• While listening to a source, press STEREO/A.L.C. to select Front Stage Surround Advance modes. • STEREO – See Listening in stereo on page 64 for more on this.

Use the Stream Direct modes when you want to hear the truest possible reproduction of a source. All unnecessary signal processing is bypassed.

The Front Stage Surround Advance function allows you to create natural surround sound effects using just the front speakers and the subwoofer.

Using Front Stage Surround Advance

DISPLAY CH SELECT SLEEP CH MIDNGIHT CH SHIFT

• Press , then press S.RETRIEVER to switch the sound retriever on or off. Note 1 In the DIRECT mode, Phase Control, Acoustic Calibration EQ, Sound Delay, Auto Delay, LFE Attenuate and Center image functions are available. 2 There are cases where a brief noise is heard before playback of sources other than PCM. Please select AUTO SURROUND or DIRECT if this is a problem. 3 The Sound Retriever is only applicable to 2-channel sources.

Listening to your system

muffled by the conflict with other channels. With the Phase Control mode switched on, this system can reproduce powerful bass sound without deteriorating the quality of the original sound (see illustration below).

Listening with Acoustic Calibration EQ • Default setting: ON You can listen to sources using the Acoustic Calibration Equalization set in Automatically setting up for surround sound (MCACC) on page 51. Refer to these pages for more on Acoustic Calibration Equalization.

SYSTEM TV CONTROL INPUT HDD DVD S.RETRIEVER EQ SB CH PHASE CH VCR DISPLAY CH SELECT SLEEP CH MIDNGIHT CH SHIFT

While listening to a source, press , then press EQ to switch the Acoustic Calibration EQ on or off.1

Better sound using Phase Control This system’s Phase Control feature uses phase correction measures to make sure your sound source arrives at the listening position in phase, preventing unwanted distortion and/or coloring of the sound (see illustration below). During multichannel playback, LFE (LowFrequency Effects) signals as well as lowfrequency signals in each channel are assigned to the subwoofer or other the subwoofer and the most appropriate speaker. At least in theory, however, this type of processing involves a group delay that varies with frequency, resulting in phase distortion where the low-frequency sound is delayed or

P H A S E C O N T R O L O F F

P H A S E C O N T R O L Listening position

Phase Control technology provides coherent sound reproduction through the use of phase matching2 for an optimal sound image at your listening position. The default setting is on and we recommend leaving Phase Control switched on for all sound sources.

SYSTEM TV CONTROL INPUT S.RETRIEVER EQ SB CH PHASE CH SELECT SLEEP CH MIDNGIHT CH CH SHIFT ENTER

• Press , then press PHASE to switch on phase correction.

Note 1 You can’t use Acoustic Calibration EQ with Stream Direct mode. 2 • Phase matching is a very important factor in achieving proper sound reproduction. If two waveforms are ‘in phase’, they crest and trough together, resulting in increased amplitude, clarity and presence of the sound signal. If a crest of a wave meets a trough (as shown in the upper section of the diagram above) then the sound will be ‘out of phase’ and an unreliable sound image will be produced. • If your subwoofer has a phase control switch, set it to the plus (+) sign (or 0°). However, the effect you can actually feel when PHASE CONTROL is set to ON on this system depends on the type of your subwoofer. Set your subwoofer to maximize the effect. It is also recommended you try changing the orientation or the place of your subwoofer. • Set the built-in lowpass filter switch of your subwoofer to OFF. If this cannot be done on your subwoofer, set the cutoff frequency to a higher value. • If the speaker distance is not properly set, you may not have a maximized PHASE CONTROL effect. • When the PURE DIRECT mode is selected, the PHASE CONTROL mode cannot be set to ON.

Listening to your system

When surround back speakers are connected to a surround back amplifier, 7.1 ch surround sound is possible. In this case, it is possible to select a listening mode and make other settings supported by 7.1 ch playback.1

• DOLBY PLIIx MOVIE – See above (only available when you’re using two surround back speakers) • DOLBY PLIIx MUSIC – See above

• DTS-ES – Allows you to hear 6.1 channel playback with DTS-ES encoded sources

With two channel sources, you can select from:

• DTS NEO:6 – Allows you to hear 6.1 channel playback with DTS encoded sources

• DOLBY PLIIx MUSIC – Up to 7.1 channel sound, especially suited to music sources2

• NEO:6 CINEMA – 6.1 channel sound, especially suited to movie sources

• DOLBY PRO LOGIC – 4.1 channel surround sound (sound from the surround speakers is mono)

• NEO:6 MUSIC – 6.1 channel sound, especially suited to music sources3

• DOLBY PLIIx GAME – Up to 7.1 channel sound, especially suited to video games

• DOLBY PLIIx MOVIE – Up to 7.1 channel sound, especially suited to movie sources

See also Using surround back channel processing on page 68.

• DOLBY DIGITAL EX – Creates surround back channel sound for 5.1 channel sources and provides pure decoding for 6.1 channel sources (like Dolby Digital Surround EX)

For HTP-710/HTP-610 (In the case of the HTPFS510 and HTP-SB510, it may be necessary to connect the optional speaker systems as well.):

With multichannel sources, if you have connected surround back speaker(s) and have selected SB ON, you can select (according to format):

Functions when surround back speakers are connected

Note 1 • If surround back channel processing (page 68) is switched off, or the surround back speakers are set to NO, DOLBY PLIIx becomes DOLBY PLII (5.1 channel sound). • In modes that give 6.1 channel sound, the same signal is heard from both surround back speakers. 2 When listening to 2-channel sources in DOLBY PLIIx MUSIC mode, there are three further parameters you can adjust: C.WIDTH, DIMEN., and PNRM.. See Setting the Audio options on page 69 to adjust them. 3 When listening to 2-channel sources in NEO:6 CINEMA or NEO:6 MUSIC mode, you can also adjust the C.IMG effect (see Setting the Audio options on page 69).

Listening to your system

Using surround back channel processing

Setting the Up Mix function

• Default setting: SB ON You can have the system automatically use 6.1 or 7.1 decoding for 6.1 encoded sources (for example, Dolby Digital EX or DTS-ES), or you can choose to always use 6.1 or 7.1 decoding (for example, with 5.1 encoded material). With 5.1 encoded sources, a surround back channel will be generated, but the material may sound better in the 5.1 format for which it was originally encoded (in which case, you can simply switch surround back channel processing off). • With a 7.1-channel surround system, audio signals that have undergone matrix decoding processing through surround back channel processing to which the Up Mix function is added are output from the surround back speakers.

SYSTEM TV CONTROL INPUT S.RETRIEVER EQ SB CH PHASE In a 7.1-channel surround system with surround speakers placed directly at the sides of the listening position, the surround sound of 5.1-channel sources is heard from the side. The Up Mix function mixes the sound of the surround speakers with the surround back speakers so that the surround sound is heard from diagonally to the rear as it should be.1 • Using the Up Mix function is effective when the speakers in the 7.1-channel surround system are set up as recommended in the example below. • Depending on the positions of the speakers and the sound source, in some cases it may not be possible to achieve good results. In this case, set the setting to OFF.

Up Mix OFF CH SELECT SLEEP CH Up Mix ON FL SW C FR FL SW C FR SL SR SL SR MIDNGIHT CH CH SHIFT ENTER

• Press , then press SB CH repeatedly to cycle the surround back channel options. Each press cycles through the options as follows: • SB ON – Matrix decoding processing for generating the surround back component from the surround component is turned on.

• SB AUTO – Matrix decoding processing for generating the surround back component from the surround component is switched automatically. Matrix decoding processing is only performed when surround back channel signals are detected in the input signals.

SBR SBL SBR Switch the system into standby.

2 While holding down the PRESET + on the front panel, and hold the  STANDBY/ON for about two seconds. UP MIX: OFF appears and the Up Mix function turns off. If you want to turn this function on, perform steps 1 and 2 again. • When set to ON, the UP MIX indicator on the front panel lights.

• SB OFF – Matrix decoding processing for generating the surround back component from the surround component is turned off. Note 1 • Set to ON regardless of this setting when playing DTS-HD signals. • May automatically be set to OFF even when set to ON, depending on the input signal and listening mode.

Listening to your system

There are a number of additional sound settings you can make using the AUDIO PARAMETER menu. The defaults, if not stated, are listed in bold.

AUDIO PARAMETER TOOLS MASTER VOLUME

3 Use / to set it as necessary. See the table below for the options available for each setting. 4 Press RETURN to confirm and exit the menu.

MENU SYSTEM INPUT SELECT SOURCE TOP MENU Deutsch

• Note that if a setting doesn’t appear in the AUDIO PARAMETER menu, it is unavailable due to the current source, settings and status of the system.

2 Use / to select the setting you want to adjust. Depending on the current status/mode of the system, certain options may not be able to be selected. Check the table below for notes on this.

EQ (Acoustic Calibration EQ)

Switches on/off the effect of Acoustic Calibration EQ.

ON S.DELAY (Sound Delay)

Some monitors have a slight delay when showing video, so the soundtrack will be slightly out of sync with the picture. By adding a bit of delay, you can adjust the sound to match the presentation of the video.

Allows you to hear effective surround sound of movies MID OFF at low volumes.

MIDNIGHT S.RTVb (Sound Retriever)

When audio data is removed during the WMA/MP3c OFF compression process, sound quality often suffers from ON an uneven sound image. The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed 2-channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression.

OFF 0.0 to 9.0 (frames) 1 second = 25 frames (PAL) Default: 0.0

Listening to your system

Specifies how dual mono encoded Dolby Digital soundtracks should be played.

CH1 – Channel 1 is heard only CH2 – Channel 2 is heard only CH1 CH2 – Both channels heard from front speakers

DRC (Dynamic Range Control)

Adjusts the level of dynamic range for movie AUTOe soundtracks optimized for Dolby Digital, DTS, Dolby MAX Digital Plus, Dolby TrueHD, DTS-HD and DTS-HD Master Audio (you may need to use this feature when MID listening to surround sound at low volumes).

OFF LFE ATT (LFE Attenuate)

Some Dolby Digital and DTS audio sources include ultra-low bass tones. Set the LFE attenuator as necessary to prevent the ultra-low bass tones from distorting the sound from the speakers. The LFE is not limited when set to 0 dB, which is the recommended value. When set to –10 dB, the LFE is limited by the respective degree. When OFF is selected, no sound is output from the LFE channel.

Specifies the routing of the HDMI audio signal out of this system (amp) or through to a TV. When THRU is selected, no sound is output from this system.

AMP A.DLY (Auto Delay)

This feature automatically corrects the audio-to-video delay between components connected with an HDMI cable. The audio delay time is set depending on the operational status of the display connected with an HDMI cable. The video delay time is automatically adjusted according to the audio delay time.f

OFF LFEATT 10 (–10 dB)/ LFEATT ** (OFF)

THRU ON Spreads the center channel between the front right C.WIDTHg and left speakers, making it sound wider (higher (Center Width) settings) or narrower (lower settings). (Applicable only when using a center speaker)

Adjusts the surround sound balance from front to back, making the sound more distant (minus settings), or more forward (positive settings).

Listening to your system

Extends the front stereo image to include surround speakers for a ‘wraparound’ effect.

You can change the MIDNIGHT option at any time by using MIDNIGHT button. You can change the Sound Retriever feature at any time by using S.RETRIEVER button. WMA and MP3 playback available only via iPod/USB input. This setting works only with dual mono encoded Dolby Digital and DTS soundtracks. The initial set AUTO is only available for Dolby TrueHD signals. Select MAX or MID for signals other than Dolby TrueHD. f. This feature is only available when the connected display supports the automatic audio/video synchronizing capability (‘lip-sync’) for HDMI. If you find the automatically set delay time unsuitable, set A.DLY to OFF and adjust the delay time manually. For more details about the lip-sync feature of your display, contact the manufacturer directly. g. Only available with 2-channel sources in DOLBY PLII MUSIC mode. h. Only when listening to 2-channel sources in NEO:6 CINEMA and NEO:6 MUSIC mode.

Adjust the center image to create a wider stereo effect C.IMG with vocals. Adjust the effect from 0 (all center (Center image) channel sent to front right and left speakers) to 10 (Applicable only when using a center (center channel sent to the center speaker only). speaker) h

The System Setup menu Using the System Setup menu The following section shows you how to make detailed settings to specify how you’re using the system, and also explains how to fine-tune individual speaker system settings to your liking.

Select the setting you want to adjust. System Setup 1.Auto MCACC 2.Manual SP Setup

Important • The OSD will not appear if you have connected using the HDMI output to your TV. Use composite connections for system setup.

TUNER EDIT MASTER VOLUME TOOLS AUDIO PARAMETER MENU SYSTEM INPUT SELECT SOURCE TOP MENU

• Auto MCACC – This is a quick and effective automatic surround setup (see Automatically setting up for surround sound (MCACC) on page 51). • Manual SP Setup – Specify the number, distance and overall balance of the speakers you’ve connected (see Manual speaker setup below).

ENTER SYSTEM TV CONTROL HOME MENU SETUP INPUT CH

iPod CTRL PTY SEARCH Manual speaker setup RETURN ST/MONO

1 Switch on the system and your TV. Use the  SYSTEM button to switch on. Switch the TV input so that it connects to the system in analog. 2 Press on the remote control, then press the SETUP button.1 An on-screen display (OSD) appears on your TV. Use /// and ENTER on the remote control to navigate through the screens and select menu items. Press RETURN to confirm and exit the current menu.

These settings are designed to fine-tune your system, but if you’re satisfied with the settings made in Automatically setting up for surround sound (MCACC) on page 51, it isn’t necessary to make all of these settings. CAUTION • The test tones used in the System Setup are output at high volume.

Note 1 • You can’t use the System Setup menu when the iPod/USB input is selected. • Press SETUP at any time to exit the System Setup menu.

• Speaker Setting – Specify the number of speakers you’ve connected (see below). • Channel Level – Adjust the overall balance of your speaker system (see below).

• Subwoofer – This setting cannot be changed, since it is already optimized for this unit. 3 When you’re finished, press RETURN. You return to the Manual SP Setup menu. Tip For HTP-FS510: If optional speaker systems are not connected, set Center and Surr to NO. For HTP-SB510: If optional speaker systems are not connected, set Surr to NO.

Use this setting to specify your speaker configuration (number of speakers). It is a good idea to make sure that the settings made in Automatically setting up for surround sound (MCACC) on page 51 are correct.

• Surr. Back – Select the number of surround back speakers you have (one, two or none).1 If you didn’t connect surround back speakers choose NO.

3 Make the adjustments necessary for each setting, pressing RETURN to confirm after each screen.

• Surr – Select SMALL if you connect surround speakers. If you didn’t connect surround speakers choose NO (the sound of the surround channels is sent to the other speakers).

• Speaker Distance – Specify the distance of your speakers from the listening position (see page 74).

• Center – Select SMALL if you connect a center speaker. If you didn’t connect a center speaker, choose NO (the center channel is sent to the other speakers).

2 Select the setting you want to adjust. If you are doing this for the first time, you may want to adjust these settings in order:

• Front – This setting cannot be changed, since it is already optimized for this unit.

2 Choose the set of speakers that you want to set then select a speaker setting. Use / to select the number of each of the following speakers:

1 Select ‘Manual SP Setup’ then press ENTER.

Channel Level Using the channel level settings, you can adjust the overall balance of your speaker system, an important factor when setting up a home theater system.

Note 1 • If the surround speakers are set to NO, the surround back speakers will automatically be set to NO. • If you select one surround back speaker only, make sure that additional amplifier is hooked up to the PRE OUT SURROUND BACK L (Single) terminal.

5 When you’re finished, press RETURN. You return to the Manual SP Setup menu.

Select a setup option. • Manual – Move the test tone manually from speaker to speaker and adjust individual channel levels. • Auto – Adjust channel levels as the test tone moves from speaker to speaker automatically.

3 Confirm your selected setup option. The test tones will start after you press ENTER. After the volume increases to the reference level, test tones will be output.

Tip • You can change the channel levels at any time by press , then press CH SELECT and +/– on the remote control. You can also press CH SELECT and use / to select the channel, and then use / to adjust the channel levels.

Speaker Distance For good sound depth and separation from your system, you need to specify the distance of your speakers from the listening position. The system can then add the proper delay needed for effective surround sound. 1 Select ‘Speaker Distance’ from the Manual SP Setup menu. 2c.Speaker Distance

2.Manual SP Setup 2b.Channel Level Test Tone

4 Adjust the level of each channel using /. If you selected Manual, use / to switch speakers. The Auto setup will output test tones in the order shown on-screen:

2 Adjust the distance of each speaker using /. You can adjust the distance of each speaker in 0.1 m increments. 3 When you’re finished, press RETURN. You return to the Manual SP Setup menu.

2b.Channel Level Front L Center Front R Surround R Surr. Back R Surr. Back L Surround L Subwoofer

Adjust the level of each speaker as the test tone is emitted.1 Note 1 • If you are using a Sound Pressure Level (SPL) meter, take the readings from your main listening position and adjust the level of each speaker to 75 dB SPL (C-weighting/slow reading). • The subwoofer test tone is output at low volumes. You may need to adjust the level after testing with an actual soundtrack.

Controlling the rest of your system

Setting the remote to control other components

4 Repeat steps 2 through 3 to try a different code, or to enter a code for another component you want to control. 5

When you’re done, press

• You can cancel or exit any of the steps by pressing .

Clearing all the remote control settings

• After one minute of inactivity, the remote automatically exits the operation.

You can clear all presets and restore the factory default settings.

SYSTEM TV CONTROL HDD DVD S.RETRIEVER EQ SB CH PHASE VCR DISPLAY

• While pressing the button, press and hold the ‘0’ button for three seconds.

The power of the component being input will only turn on or off if that component is able to be turned on directly by remote control.

However, please note that there are cases where only certain functions may be controllable after assigning the proper preset code, or the codes for the manufacturer in the remote control will not work for the model that you are using.1

If the correct code has been input the power of the component being input will turn on or off.

Most components can be assigned to one of the MULTI CONTROL buttons using the component’s manufacturer preset code stored in the remote.

3 Use the number buttons to enter the preset code. You can find the preset codes on page 79.

Controlling the rest of your system

INPUT CH CH SELECT SLEEP CH MIDNGIHT CH SHIFT ENTER

1 While pressing the button, press and hold the ‘1’ button for three seconds. 2 Press the MULTI CONTROL button for the component you want to control. The component can be assigned to the BD, TV, DVR or VIDEO button.

Note 1 TV control codes (for example, codes for TV, CATV, Satellite TV or DTV) can only be assigned to the TV button.

Controlling the rest of your system

Controls for TVs This remote control can control components after entering the proper codes or teaching the system the commands (see Controlling the rest of your system on page 75 for more on this). Use the MULTI CONTROL buttons to select the component • The TV CONTROL buttons on the remote control are dedicated to control the TV assigned to the TV button. Button(s)

TV CONTROL  Switches the DTV on or off.

DTV Switches the TV or CATV between standby and on.

 SOURCE Press to switch the component assigned to the TV button on or off.

Cable TV/Satellite TV/TV/

DTV DTV/TV Switches between the DTV and analog TV input modes DTV/TV for Pioneer TVs.

TOP MENU Switches TEXT ON/OFF for TVs.

TV HOME MENU Use as the GUIDE button for navigating.

Cable TV/Satellite TV/TV/

DTV RETURN Use to select closed captioning with DTV.

Use to select a specific TV channel.

Cable TV/Satellite TV/TV/ DTV

Use to add a decimal points when selecting TV channels.

Cable TV/Satellite TV/TV

ENTER Press to select or adjust and navigate items on the menu screen.

Controlling the rest of your system

This remote control can control these components after entering the proper codes or teaching the system the commands (see Controlling the rest of your system on page 75 for more on this). Use the MULTI CONTROL buttons to select the component. Function

Press to return to the start of the current track. Repeated presses skips to the start of previous tracks.

BD/DVD player, DVR, VCR

Press to advance to the start of the next track. Repeated presses skips to the start of following tracks.

BD/DVD player, DVR, VCR

Pause playback or recording.

BD/DVD player, DVR, VCR

Hold down for fast forward playback.

BD/DVD player, DVR, VCR BD/DVD player, DVR, VCR Number buttons

Directly access tracks on a program source.

VCR Use to enter a title/chapter/track number.

+10 button Selects tracks higher than 10. (For example, press +10 then 3 to select track 13.)

BD/DVD player, DVR ENTER Use as the ENTER button.

Displays the DISC NAVI screen for DVD recorder.

DVR Press to display information.

BD/DVD player, DVR DISPLAY TOP MENU Displays the disc ‘top’ menu of a BD/DVD player.

BD/DVD player, DVR MENU Displays menus for the current BD/DVD player or DVD recorder you are using.

DVR, VCR Switches to the hard disk controls when using an HDD/ HDD (SHIFT + 1) DVD recorder.

BD/DVD player, DVR, VCR Español

Hold down for fast reverse playback. Stops playback (on some models, pressing this when the disc is already stopped will cause the disc tray to open).

BD/DVD player, DVR, VCR Français

 SOURCE Press to switch the component between standby and on.

Controls for other components

Controlling the rest of your system

DVD Switches to the DVD controls when using an HDD/DVD (SHIFT + 2) recorder.

HDD/DVD/VCR recorder

VCR Switches to the VCR controls when using an HDD/DVD/ (SHIFT + 3) VCR recorder.

Controlling the rest of your system

You should have no problem controlling a component if you find the manufacturer in this list, but please note that there are cases where codes for the manufacturer in the list will not work for the model that you are using. There are also cases where only certain functions may be controllable after assigning the proper preset code.

Controlling the rest of your system

Additional information

Additional information Troubleshooting Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Take a look at the other components and electrical appliances being used, because sometimes the problem may lie there. If the trouble isn’t sorted out even after going through the checks below, ask your nearest Pioneer authorized independent service company to carry out repair work. • If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions. Problem

The power does not turn on.

• Disconnect the power plug from the outlet, and insert again. • Make sure there are no loose strands of speaker wire touching the rear panel. This could cause the system to shut off automatically.

The system suddenly switches off.

• After about a minute (you won’t be able to switch the unit on during this time), switch the system back on. If the message persists, call a Pioneer authorized independent service company.

No sound is output when a • Make sure the component is connected correctly (refer to Connecting function is selected. up on page 32). • Press MUTE on the remote control to turn muting off. • Press SIGNAL SEL to select the proper input signal (see Choosing the input signal on page 54). No image is output when a • Make sure the component is connected correctly (refer to Connecting up function is selected. on page 32). • Select the correct component (use the MULTI CONTROL buttons). • The video input selected on the TV monitor is incorrect. Refer to the instruction manual supplied with the TV. No sound from subwoofer. • The Dolby Digital or DTS source you are listening to may not have an LFE channel. • Switch the LFE ATT (LFE Attenuate) on page 70 to LFEATT 0 or LFEATT 10. No sound from surround or • Connect the speakers properly (refer to page 16 or page 20). center speakers. • Refer to Speaker Setting on page 73 to check the speaker settings. *HTP-710/HTP-610 only • Refer to Channel Level on page 73 to check the speaker levels. No sound from center speaker. *HTP-SB510 only The PHASE CONTROL feature doesn’t seem to have an audible effect.

• Make sure the speaker distance setting is correct for all speakers (see Speaker Distance on page 74).

Additional information

Broadcast stations cannot • Connect an outdoor antenna (refer to page 42). be selected automatically. Noise during playback of a • Move the cassette deck away from your system, until the noise cassette deck. disappears.

• Set the digital volume level of the player to full, or to the neutral position. • Make sure the player’s settings are correct and/or the DTS signal out is on. Refer to the instruction manual supplied with the DVD player. • Set the input signal type to C1/O1/O2 (DIGITAL) (see Choosing the input signal on page 54).

There seems to be a time lag • See Automatically setting up for surround sound (MCACC) on page 51 to between the speakers and set up your system again using MCACC (this will automatically the output of the subwoofer. compensate for a delay in the subwoofer output). Can’t operate the remote control.

• Replace the batteries (refer to page 50). • Operate within 7 m, 30° of the remote sensor (refer to page 50). • Remove the obstacle or operate from another position. • Avoid exposing the remote sensor on the front panel to direct light.

The display is dark or off.

• Press DIMMER on the control repeatedly to return to the default.

Everything seems to be set • Check that the positive/negative speaker terminals on the system are matched with the corresponding terminals on the speakers (see page 16, up correctly, but the 20 or 24). playback sound is odd.

During a playback search, • This is not a malfunction, but be sure to turn the volume down to noise is output from a DTS prevent the output of loud noise from your speakers. compatible CD player.

No sound is output or a noise is output when software with DTS is played back.

• Set the SIGNAL SEL to HDMI, C1/O1/O2 (DIGITAL) or A (analog) Sound is produced from other components, but not according to the type of connections made (refer to page 54). from LD or DVD player. • Set the digital input settings correctly (refer to page 54). • Make digital connections (refer to page 33) and set the SIGNAL SEL to C1/O1/O2 (DIGITAL) (refer to page 54). • Refer to the instruction manual supplied with the DVD player.

Considerable noise in radio • Connect the antenna (page 42) and adjust the position for best reception. broadcasts. • Route any loose cables away from the antenna terminals and wires. • Fully extend the FM wire antenna, position for best reception, and secure to a wall (or connect an outdoor FM antenna). • Turn off equipment causing interference or move it away from the system (or move antennas farther away from equipment causing noise).

Additional information

No picture or sound.

• If the problem still persists when connecting your HDMI component directly to your monitor, please consult the component or monitor manual or contact the manufacturer for support.

• Video signals that are input from the analog video terminal will not output from the HDMI terminal. Signals that are input from the HDMI terminal will not output from the analog video terminal. Be consistent with the type of cable between input and output. • Depending in the output settings of the source component, it may be outputting a video format that can’t be displayed. Change the output settings of the source, or connect using the composite jack. • This system is HDCP-compatible. Check that the components you are connecting are also HDCP-compatible. If they are not, please connect them using the composite video jack. • Depending on the connected source component, it’s possible that it will not work with this system (even if it is HDCP-compatible). In this case, connect using the composite video jack between source and system. • If video images do not appear on your TV, try adjusting the resolution, DeepColor or other setting for your component. • To output signals in DeepColor, use an HDMI cable (High Speed HDMI® Cable) to connect this system to a component or TV with the DeepColor feature.

OSD does not appear.

• The OSD will not appear if you have connected using the HDMI output to your TV. Use composite connections when setting up the system.

No sound, or sound suddenly ceases.

• If you’ve made separate connections for audio, make sure you have assigned the analog/digital jack(s) to the corresponding HDMI input for the component. • Check the audio output settings of the source component. • Check that the Audio Parameter setting is set to HDMI AMP/THRU (refer to page 70). • If the component is a DVI device, use a separate connection for the audio. • HDMI format digital audio transmissions require a longer time to be recognized. Due to this, interruption in the audio may occur when switching between audio formats or beginning playback. • Turning on/off the device connected to this unit’s HDMI OUT terminal during playback, or disconnecting/connecting the HDMI cable during playback, may cause noise or interrupted audio.

HTP-710_VYXCN_En.book 87 ページ

Additional information

Configuration1 Connect your HDMI-equipped component directly to the display using an HDMI cable. Then use the most convenient connection (digital is recommended) for sending audio to the system. See the operating instructions for more on audio connections. Set the display volume to minimum when using this configuration.

iPod/USB Error 1 There is a problem with the signal path from the iPod to the system. (I/U ERR1)

Action Switch off the system and reconnect the iPod to the system. If this doesn’t seem to work, try resetting your iPod.

iPod/USB Error 3 When there is no response from the iPod. (I/U ERR3)

When there are no tracks in the category Select a different category. selected on the iPod.

Update the iPod software to the latest version. If this doesn’t seem to work, try resetting your iPod.

An iPod not supported by this system is Connect the iPod supported by this connected. system.

iPod/USB Error 2 The software version being used with the Update the software being used with the iPod needs to be updated. iPod (please use the latest iPod software (I/U ERR2) versions later than the iPod updater 200410-20).

There are cases where you may not be able to route HDMI signals through this system (this depends on the HDMI equipped component you are connecting-check with the manufacturer for HDMI compatibility information). If you aren’t receiving HDMI signals properly through this system (from your component), please try the following configuration when connecting up.

Important information regarding the HDMI connection

Note 1 • If your display only has one HDMI terminal, you can only receive HDMI video from the connected component. • Depending on the component, audio output may be limited to the number of channels available from the connected display unit (for example audio output is reduced to 2 channels for a monitor with stereo audio limitations). • If you want to switch the input source, you’ll have to switch functions on both the system and your display unit. • Since the sound is muted on the display when using the HDMI connection, you must adjust the volume on the display every time you switch input sources.

Additional information

iPod/USB Error 1 There is a problem with the signal path from the USB to the system. (I/U ERR1)

Switch off the system and reconnect the USB to the system.

iPod/USB Error 3 When there is no response from the USB. (I/U ERR3)

Switch off the system and reconnect the USB to the system.

iPod/USB Error 4 The power requirements of the USB device are too high for this system. (I/U ERR4)

Switch off the system and reconnect the USB to the system.

Resetting the main unit

Use this procedure to reset all the system’s settings to the factory default. Use the front panel controls to do this.

SX-SWR2 Receiver subwoofer

Switch the system into standby.

2 While holding down the ST/MONO button, press and hold the  STANDBY/ON button for about two seconds. 3 When you see RESET? appear in the display, press TUNE –. OK? shows in the display. 4 Press TUNE + to confirm. OK appears in the display to indicate that the system has been reset to the factory settings.

Additional information

Front/surround speakers

Speaker cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Speaker stands . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Small Non-skid pads (for speaker stand or speaker) . . . . . . . . . . . . . .10

Note • The specifications are applicable when the power supply is 230 V. • Specifications and the design are subject to possible modifications without notice, due to improvements.

Cleaning the unit • Use a polishing cloth or dry cloth to wipe off dust and dirt. • When the surface is dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and wrung out well, and then wipe again with a dry cloth. Do not use furniture wax or cleansers. • Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit, since these will corrode the surface.

Additional information

HTP-710_VYXCN_En.book 91 ページ

Additional information

AUDIO OUT R ANALOG L

R ANALOG L AUDIO OUT

Surround Analyzing Speaker System Speaker Distance Channel Level

Playlists Artists Albums Songs Podcasts Genres Composers Audiobooks Shuffle Songs E NT E R

ON S.DELAY (Sound Delay)

LFE ATT (LFE Attenuate)

AUDIO OUT DIGITAL OUT COAXIAL OPTICAL R ANALOG L

R ANALOG L AUDIO OUT

SBL SBR R ANALOG L AUDIO IN

Now Analyzing Surround Analyzing Speaker System Speaker Distance Channel Level

Playlists Artists Albums Songs Podcasts Genres Composers Audiobooks Shuffle Songs E NT E R
