Product Type	Parapet Mount
Brand	Vivotek
Model	AM-231
Part Number	900015000G
Compatible Cameras	Speed Dome SD8364E, SD8363E, SD8333E, SD83x4E, SD83x6E, SD8362E
Mounting Type	Parapet (inside wall)
Material	Metal
Included Hardware	Sleeve anchors 5/16" x3" (6), Hex bolts M8x25 (6), M8x70 (3), Hex lock nuts M8 (6), Washers M8 (15), Lock washers M8 (15), Alignment stickers, Hex wrench 3mm
Required Concrete Strength	4000 PSI or higher
Maximum Pull-Out Force per Anchor	800 kg
Clearance Required (top of wall to bracket)	65 mm
Minimum Space Below Bracket for Cabling	2 inches (approx. 50 mm)
Drill Hole Diameter	10 mm
Drill Hole Depth	5.5 cm
Minimum Cable Length for Pipe Arm	250 cm
Included Wrench Sizes	3 mm hex, T25 star driver (camera side)
Installation Guide Included	Yes, 24 pages
Corner Mount Option	Yes, with separate alignment sticker

Frequently Asked Questions - AM-231 Vivotek

Which cameras are compatible with the Vivotek AM-231 parapet mount?

The AM-231 is compatible with Vivotek Speed Dome models: SD8364E, SD8363E, SD8333E, SD83x4E, SD83x6E, and SD8362E. Always verify compatibility with your specific camera model before installation.

What is the recommended concrete strength for installing the AM-231?

The parapet wall should have a concrete strength of 4000 PSI or higher. Each sleeve anchor can withstand an 800 kg pull-out force.

How many holes need to be drilled for the parapet mount?

You need to drill 6 pilot holes, each 10 mm in diameter and 5.5 cm deep. Use the included alignment sticker to mark positions.

Can the AM-231 be installed on a corner parapet?

Yes, the AM-231 includes a separate corner mount bracket and alignment sticker for corner installations. Follow the corner mount instructions in the manual.

What is the minimum clearance required above the bracket?

There must be a 65 mm clearance between the upper edge of the parapet wall and the metal bracket. Use the alignment sticker's upper edge to align with the wall edge.

How much space is needed below the bracket for cables?

At least 2 inches (approx. 50 mm) of space should be available below the parapet bracket for routing cables.

What is the required cable length for routing through the pipe arm?

The cable length for passing through the pipe arm should be at least 250 cm. Use a rigid copper wire to pull cables through.

How do I secure the pipe arm to the brackets?

After inserting the pipe arm, swivel it to the desired position, then use M8x70 hex bolts to secure the pipe arm to the brackets. Also tighten the M8x25 bolts between inner and outer brackets.

What tools are needed for installation?

You will need a hammer drill with 10 mm bit, a crescent wrench, a 3 mm hex wrench (included), and a T25 star driver (for camera). A hammer and a rigid copper wire may also be required.

Where can I find the full installation guide?

The complete installation guide is included in the product packaging (24 pages) and can also be downloaded from the Vivotek website or notice-facile.com.

USER MANUAL AM-231 Vivotek

VIVOTEK SD83XXE Speed Dome Mounting Accessories

AM-116/117 Pendant Pipe

AM-118 Pendant Head

AM-221 Gooseneck

AM-231 Parapet Mount

AM-519 Pendant Adaptor

Installation Guide

Corresponding part numbers:

AM-116: 900014300G

AM-117: 900014400G

AM-118: 900014600G

AM-221: 900014800G

AM-231: 900015000G

AM-519: 900014900G

Rev. 1.1

Revision History:

Rev. 1.0: Initial release
Rev. 1.1: Adding corresponding ordering part numbers and supported speed dome models.

Compatible VIVOTEK Cameras

Speed Dome SD8364E, SD8363E, SD8333E, SD83x4E, SD83x6E, SD8362E

Mechanical Drawings

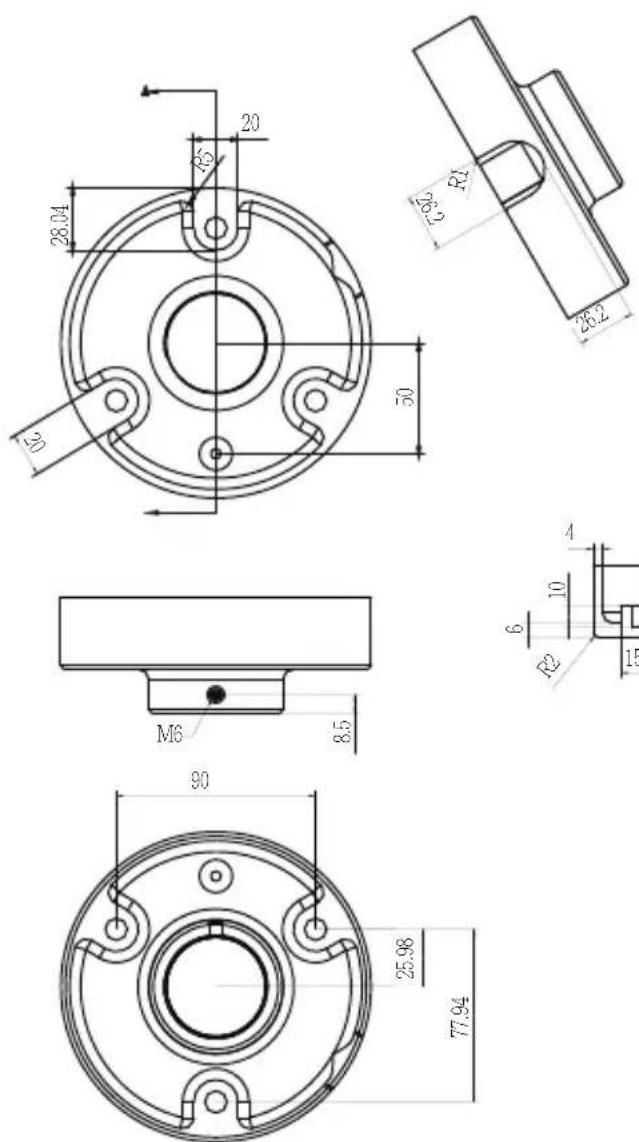

AM-118 Pendant Head

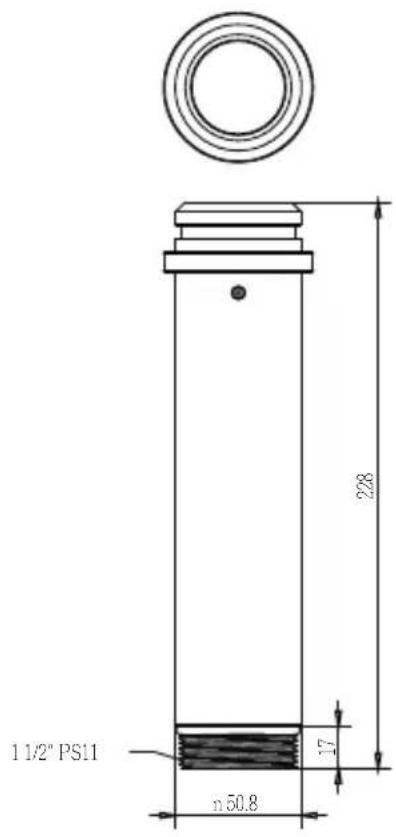

AM-116 20cm Pendant Pipe

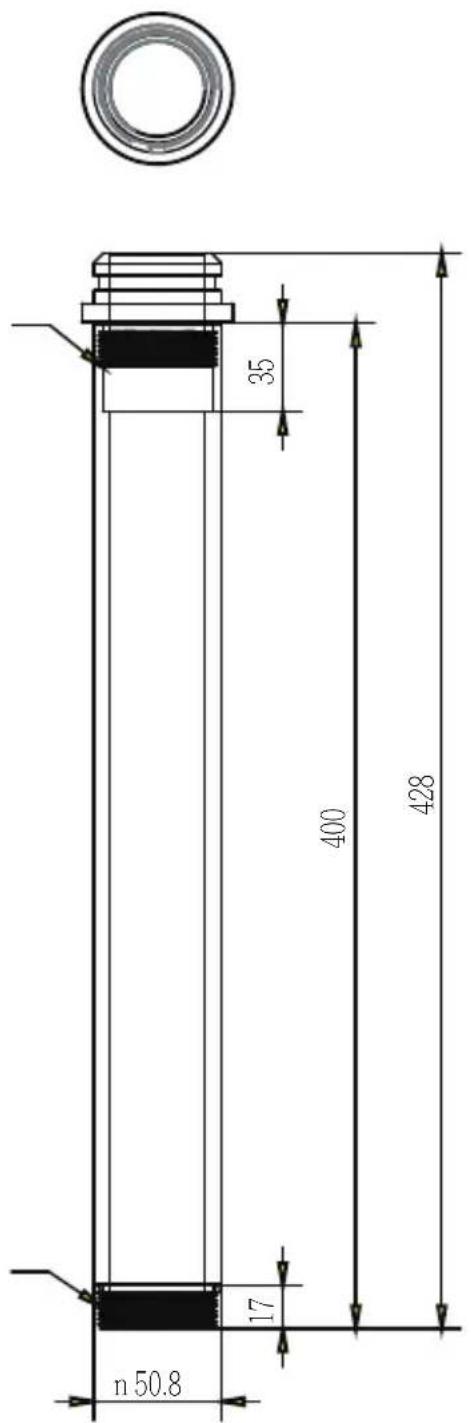

AM-117 40cm Pendant Pipe

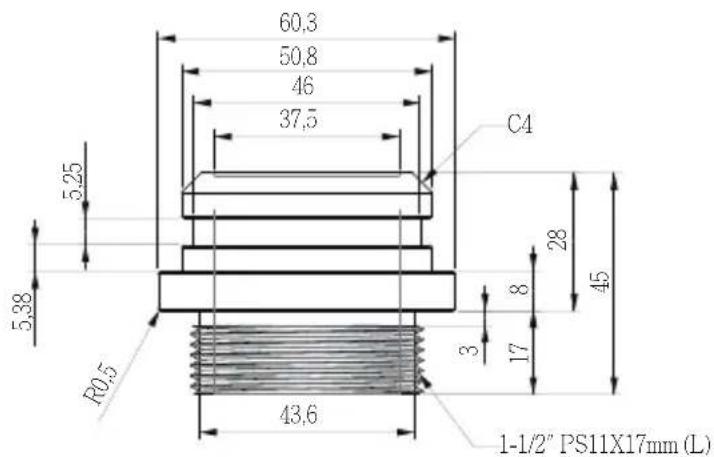

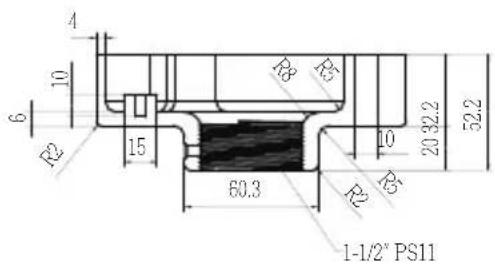

1 1/2" PS11

AM-519 Pendant Adapter (comes with the network camera)

AM-221 Gooseneck

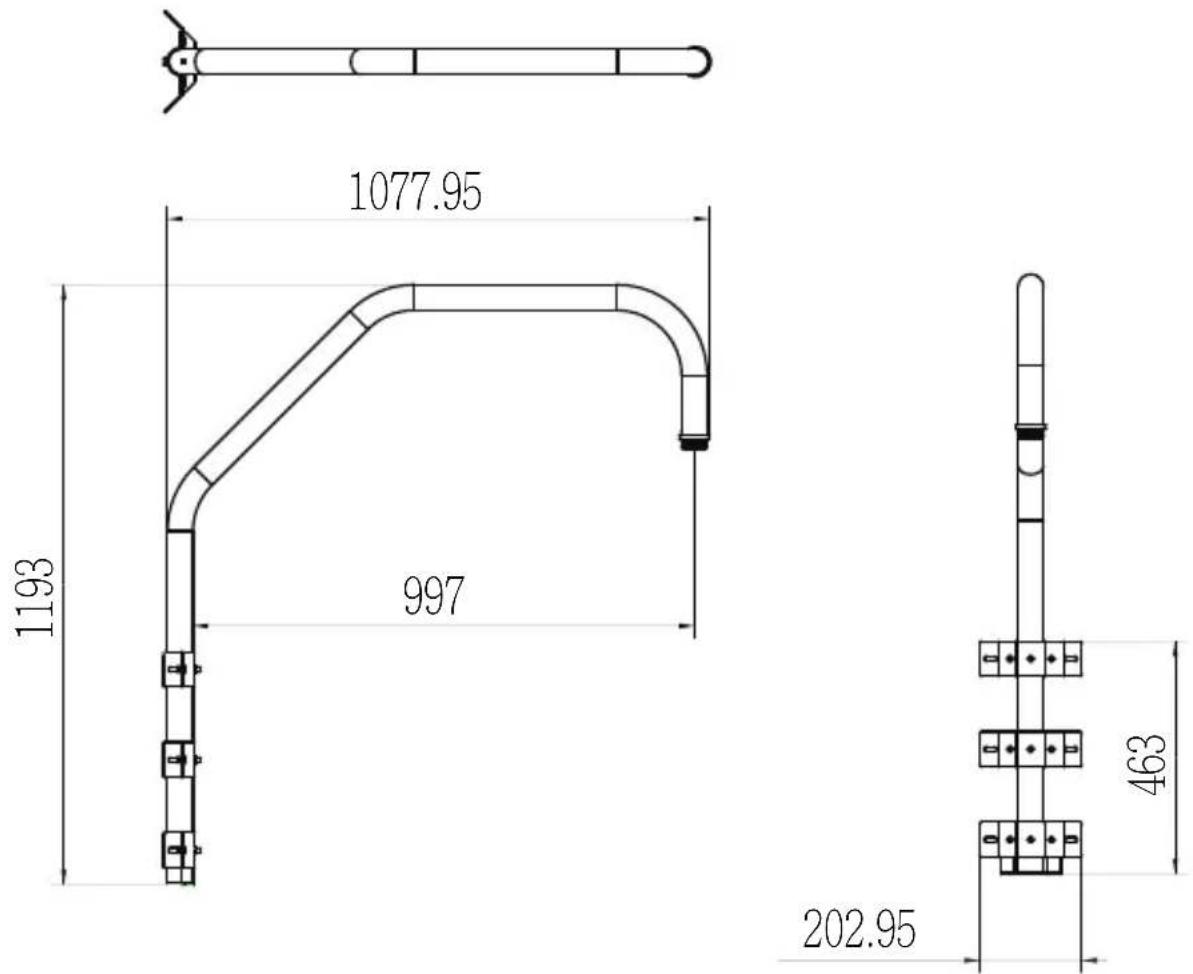

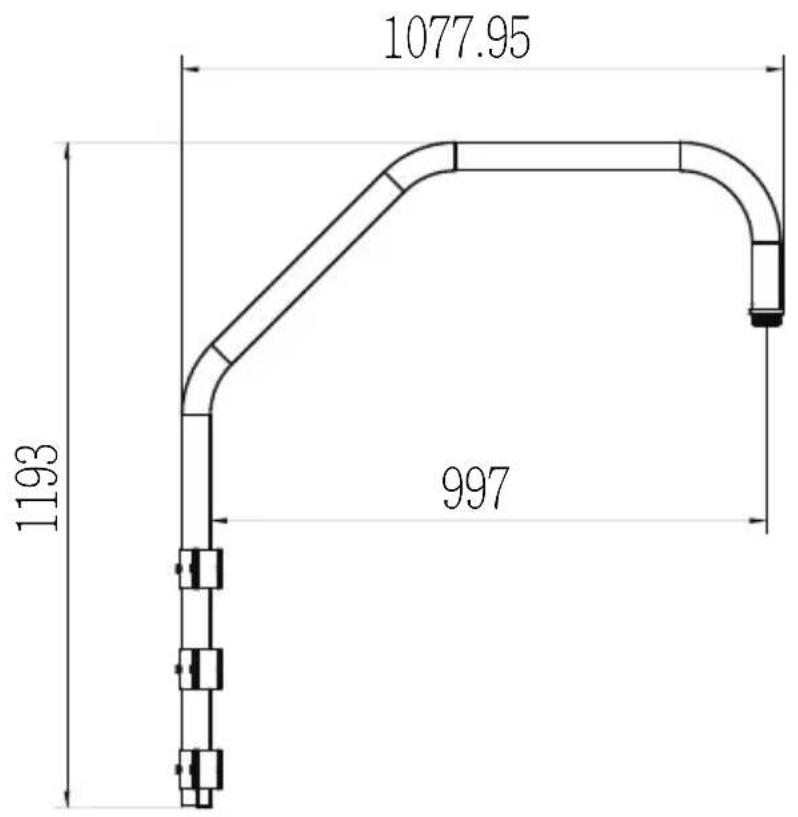

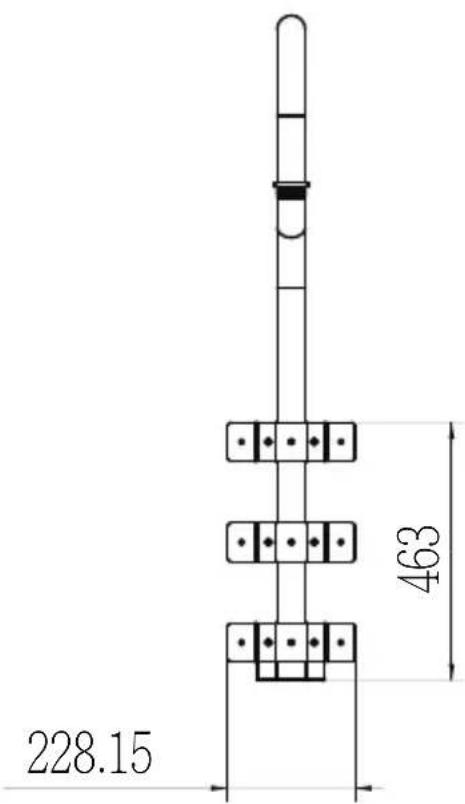

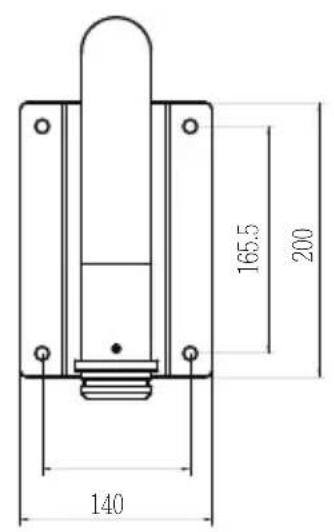

AM-231 Parapet Mount

AM-231 Parapet Corner Mount

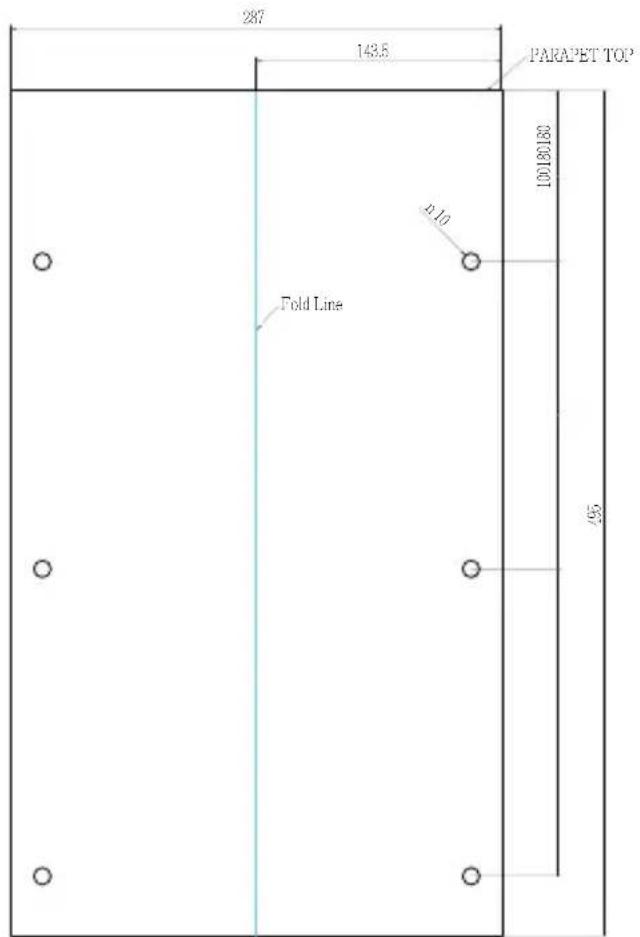

AM-231 Parapet Mount - Alignment Sticker

AM-231 Corner Mount - Alignment Sticker

Preparation before Installation

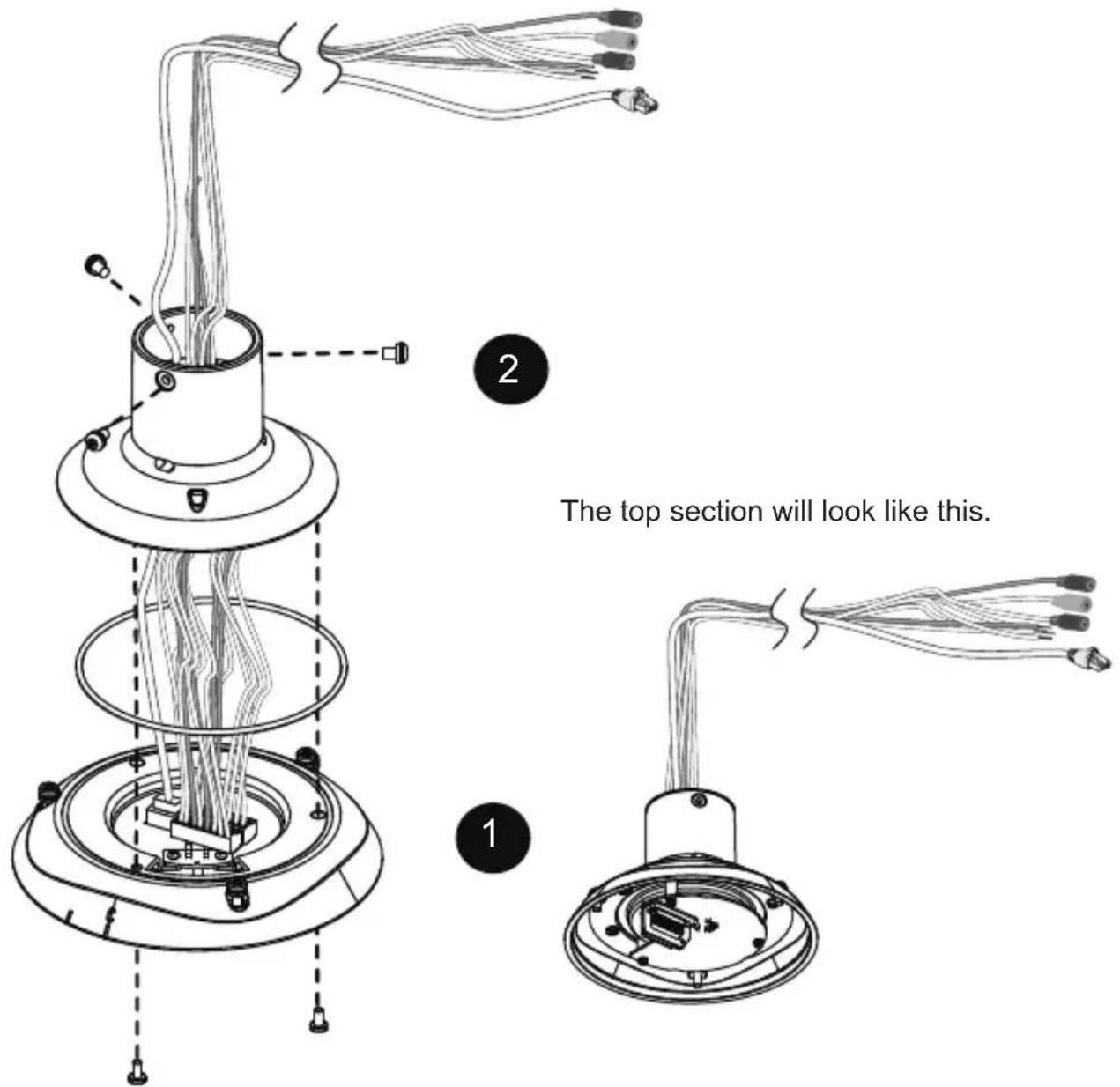

Connect Ethernet cable and IO wires (this may include the AC24V wires) to the interface section of the camera, and then combine the interface section with the dome cap. Note that you must route cables through the waterproof connector and the rubber seal plug, and install them to the dome cap. Please refer to the Quick Installation Guide for details.

Cabling should be done before mounting the camera.

IV-1. Pendant Pipe Mounting: AM-116/-117 & AM-118

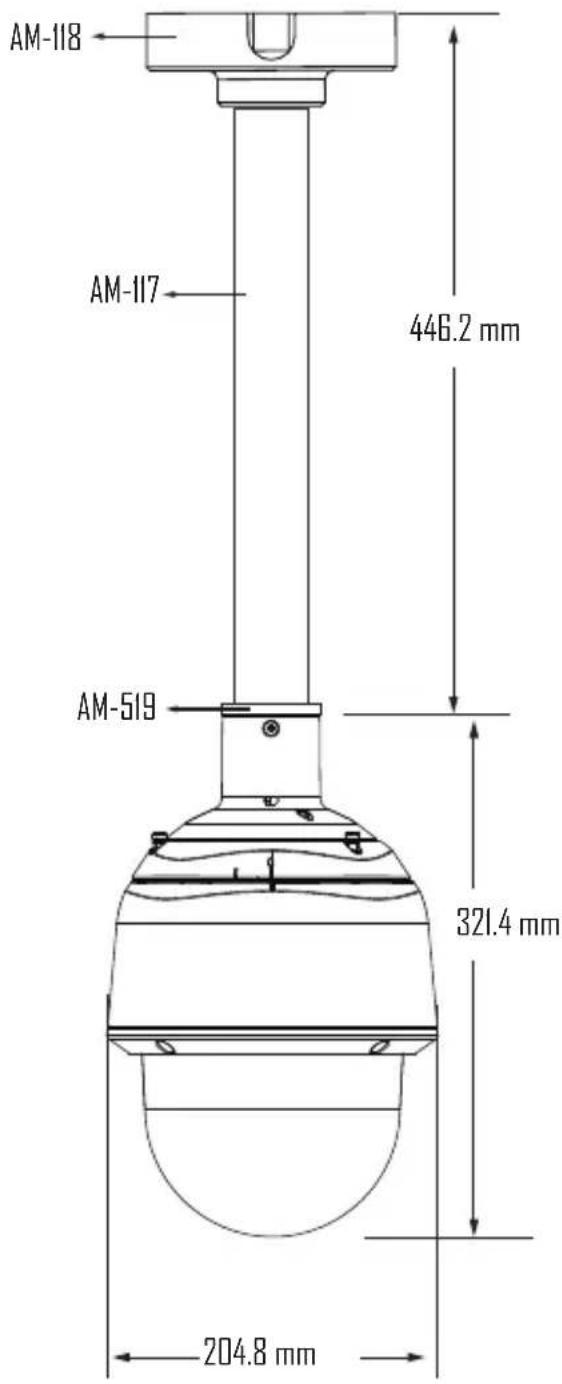

Shown below are the dimensions of a pendant mount configuration using the 40cm pendant pipe.

IV-1-1. Pendant Mount without Pendant Pipe: AM-118

Below are the sample procedures using a pendant head and pendant pipe:

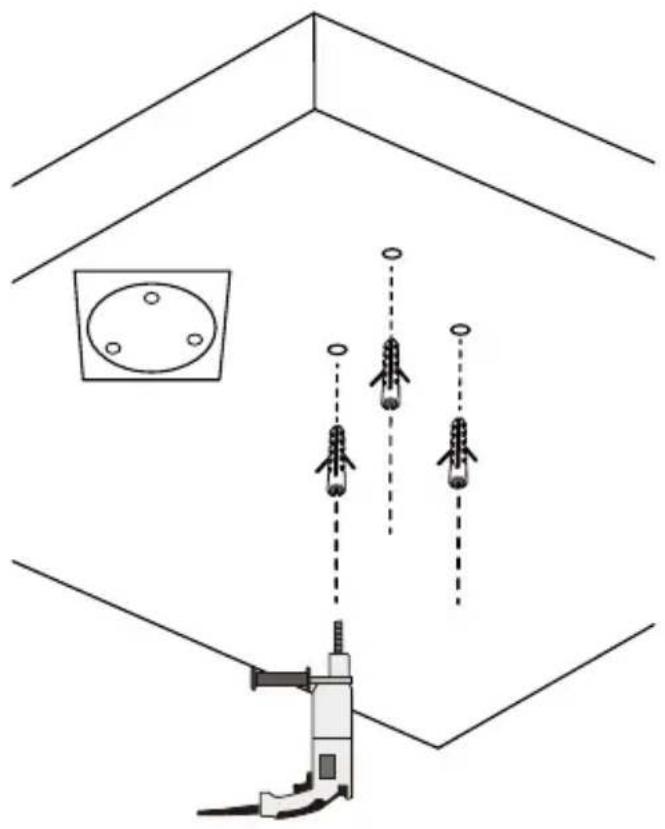

1. Determine a hard surface ceiling location, and use the alignment sticker to mark the positions where holes will be drilled to secure the pendant head. Hammer the anchors into the ceiling.

Note that mounting holes should be 10mm in diameter and 60mm deep. The included screws are M6.2 x75mm.

Diagram of a room interior with three hanging objects and a control unit, no text or symbols present

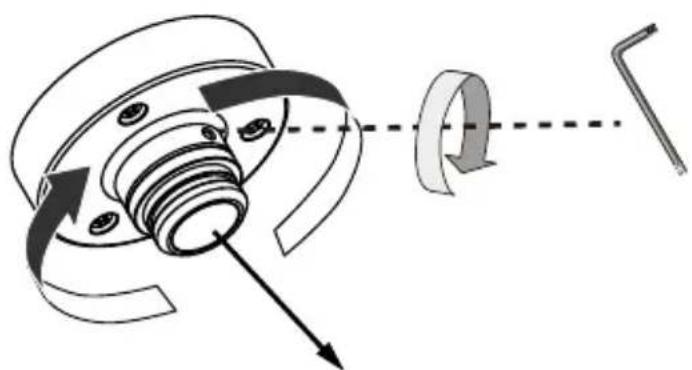

1. Install a pendant adapter (AM-519) by turning it clockwise to the pendant head, and secure the connection using an included 3mm hex wrench.

Mechanical assembly diagram showing a rotating component with directional arrows indicating motion (no text or labels)

AM-519

1. Route power lines and other wires through the pendant head. You may apply a 1 inch conduit.

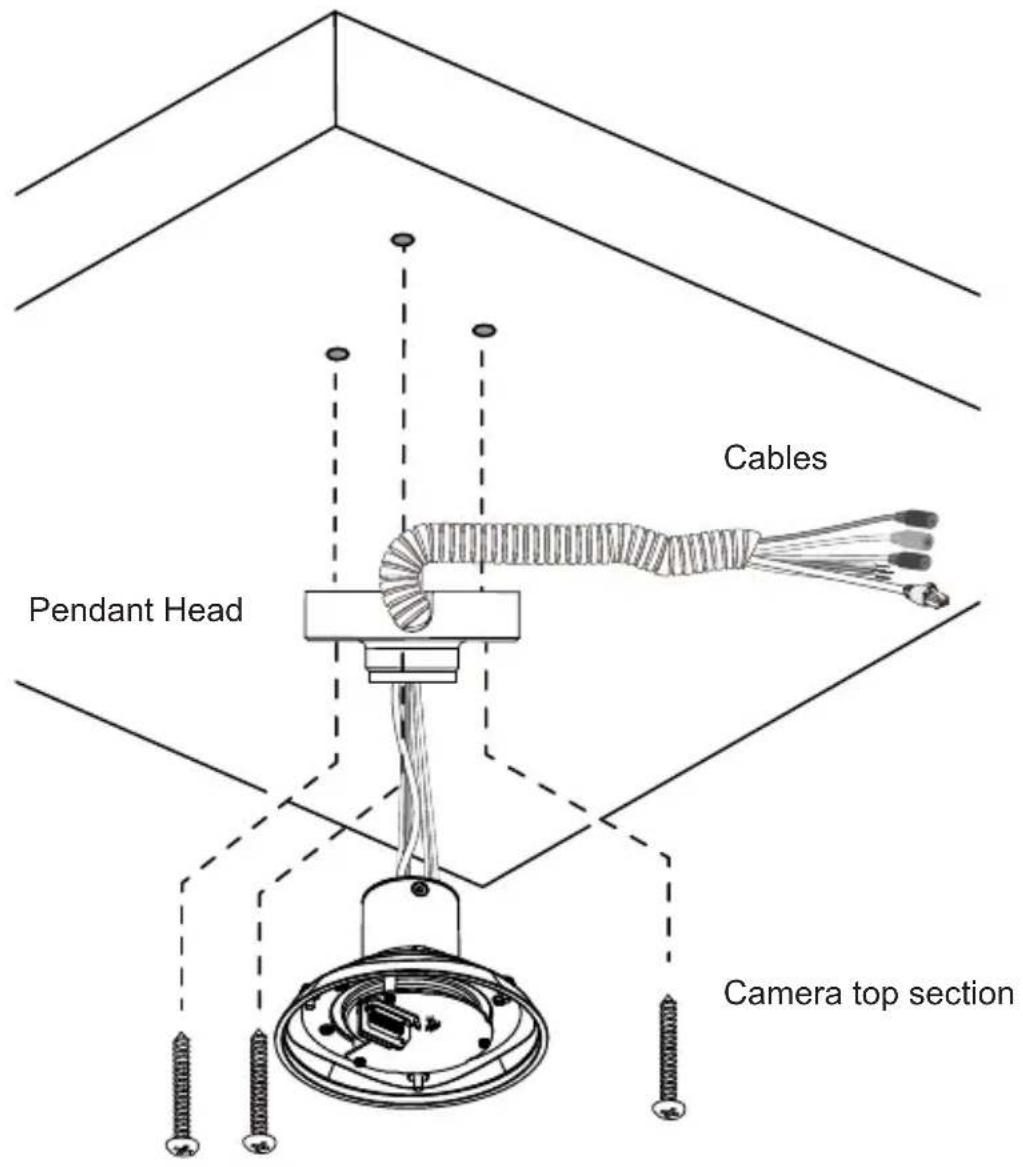

2. Secure the pendant head to ceiling by driving screws through its mounting holes. Depending on the length of your cables, you may need the help from your colleague for holding the camera top section.

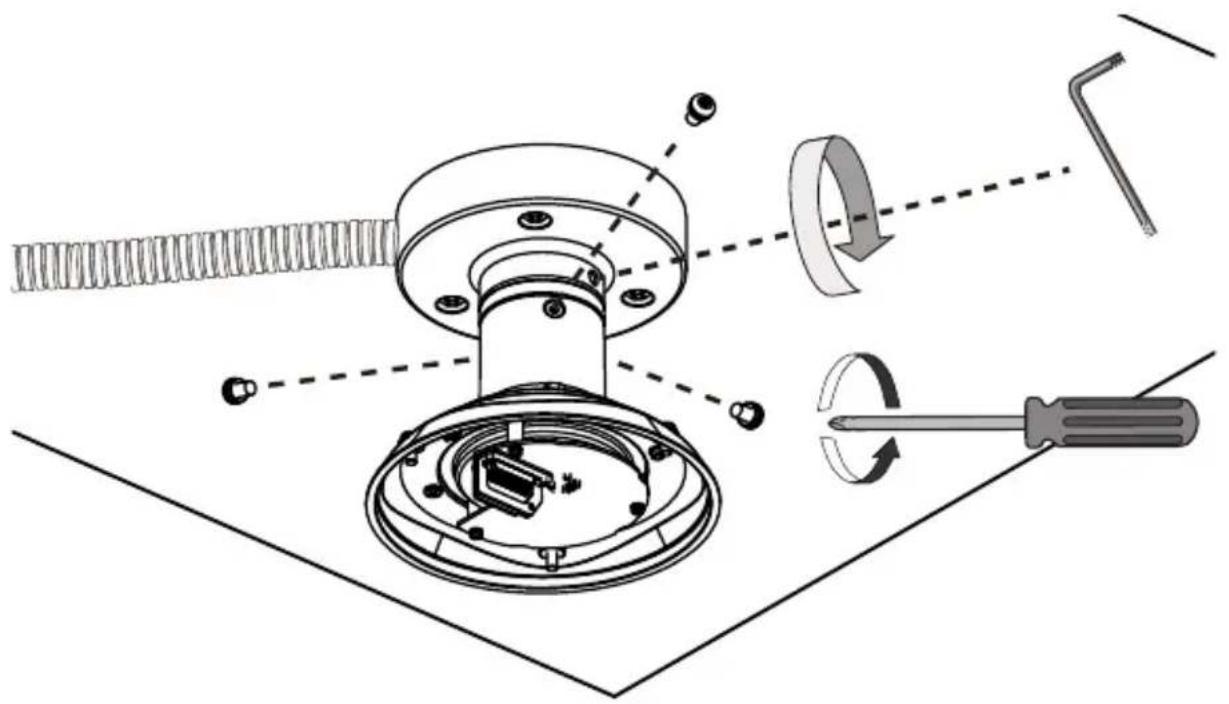

1. Secure the camera's top section to the pendant head by fastening 3 M5x8 screws. When done, secure the connection using an included 3mm hex wrench.

1. Install the camera to the top section. See your Quick Installation Guide or page 15 for details.

IV-1-2. Pendant Mount with Pendant Pipe: AM-116/AM-117 & AM-118

Below are the sample procedures using a pendant head and pendant pipe:

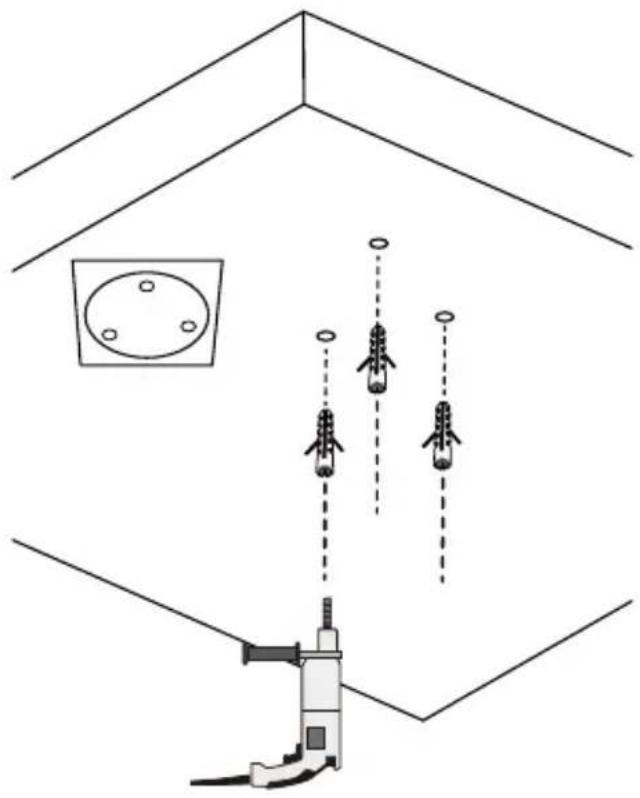

1. Determine a hard surface ceiling location, and use the alignment sticker to mark the positions where holes will be drilled to secure the pendant head. Hammer the anchors into the ceiling.

Note that mounting holes should be 10mm in diameter and 60mm deep. The included screws are M6.2 x75mm.

Diagram of a spray gun system with three hanging lights and a control panel, no text or symbols present

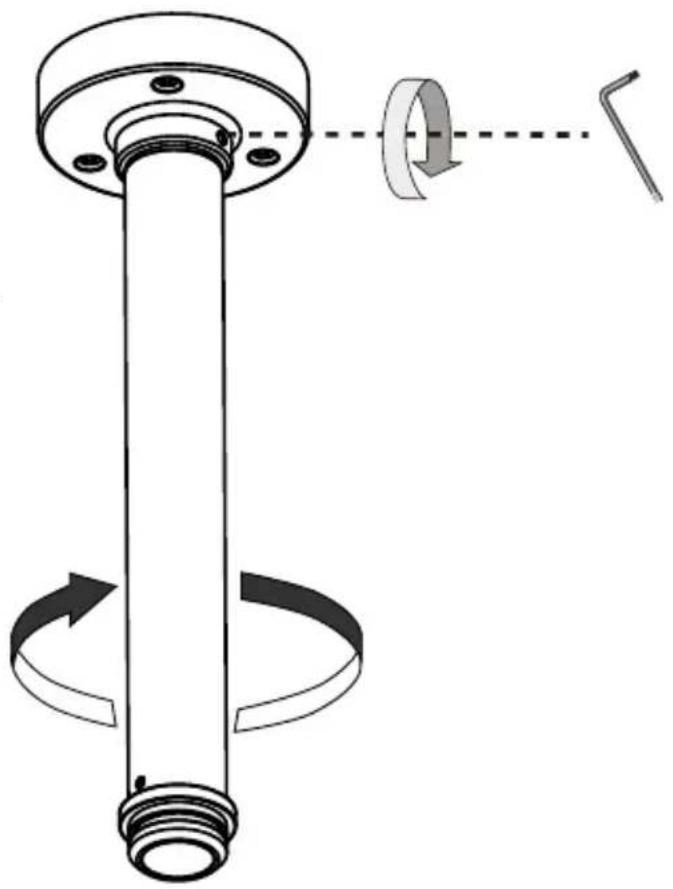

1. Install a 20cm or 40cm pendant pipe (AM-116 or AM-117) by turning it clockwise to the pendant head, and secure the connection using an included 3mm hex wrench.

Mechanical assembly diagram showing a rotating shaft with flange and rotating arms, no text or symbols present

1. Route power lines and other wires through the pendant head. You may apply a 1 inch conduit.

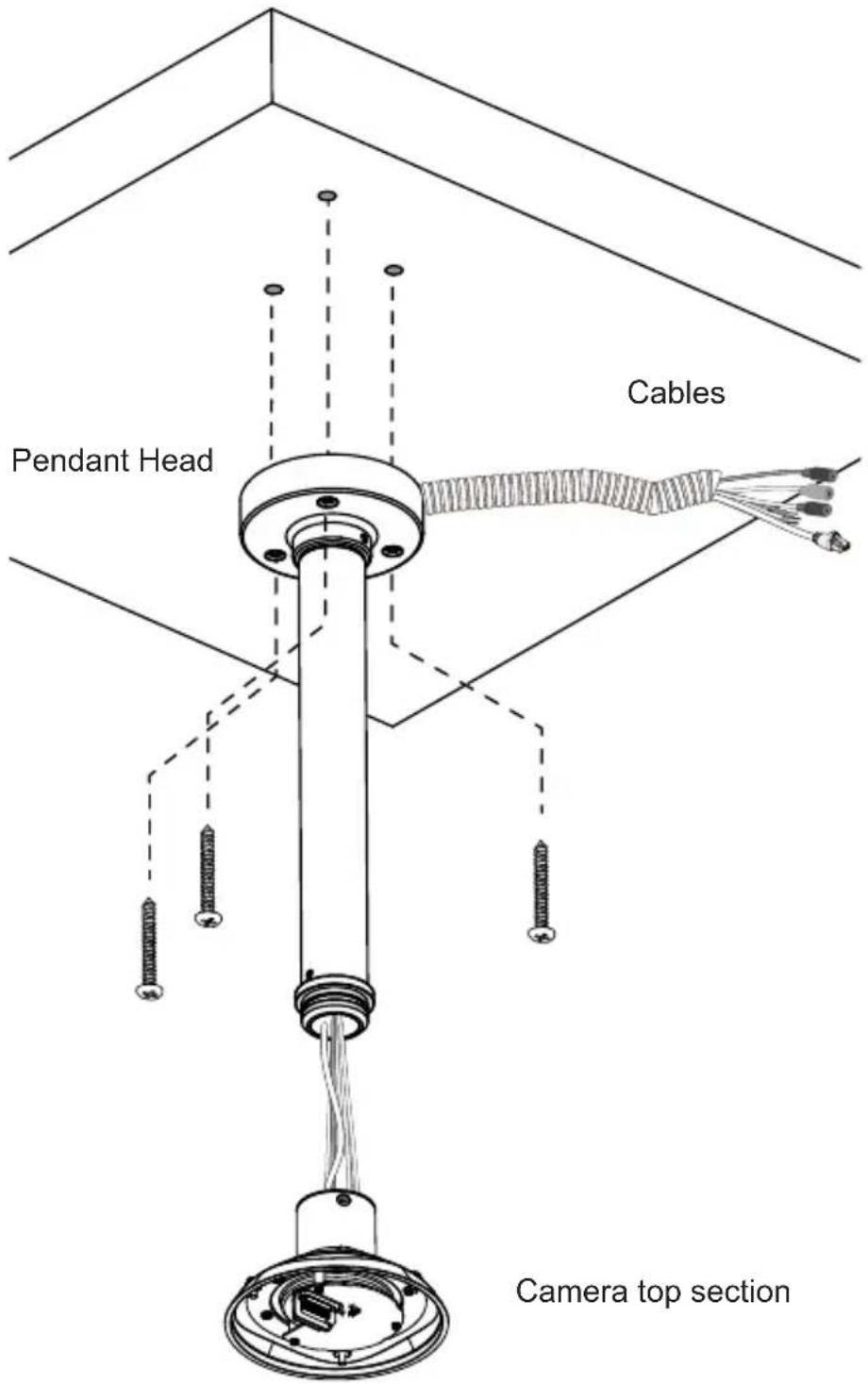

2. Secure the pendant head to ceiling by driving screws through its mounting holes. Depending on the length of your cables, you may need the help from your colleague for holding the camera top section.

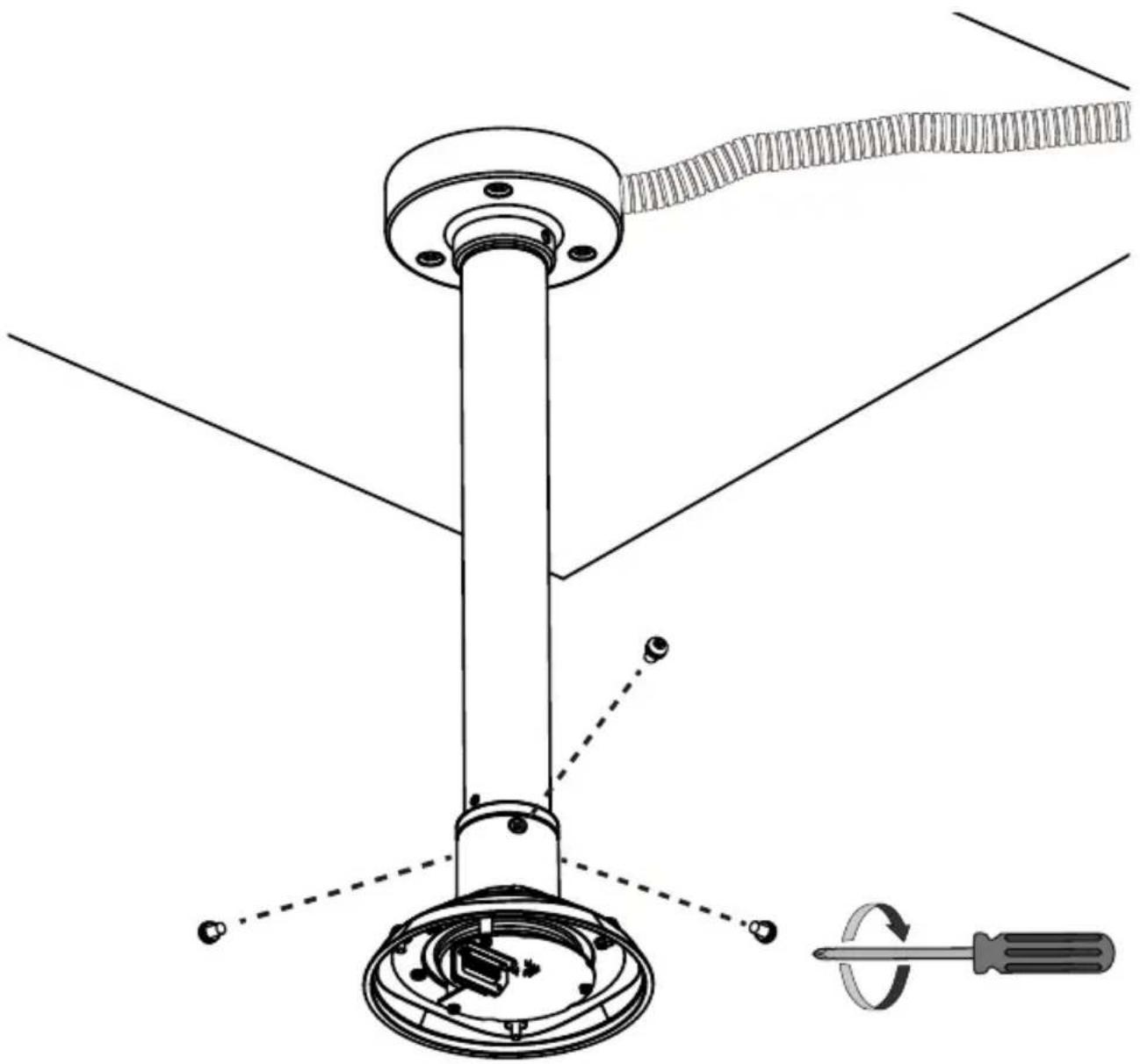

1. Secure the camera's top section to the pendant head by fastening 3 M5x8 screws.

Technical line drawing of a mechanical assembly with a screw and base mount (no text or symbols)

1. Install the camera to the top section. See your Quick Installation Guide or page 15 for details.

IV-2. Gooseneck Mounting: AM-221

Below is a sample procedure using a gooseneck bracket:

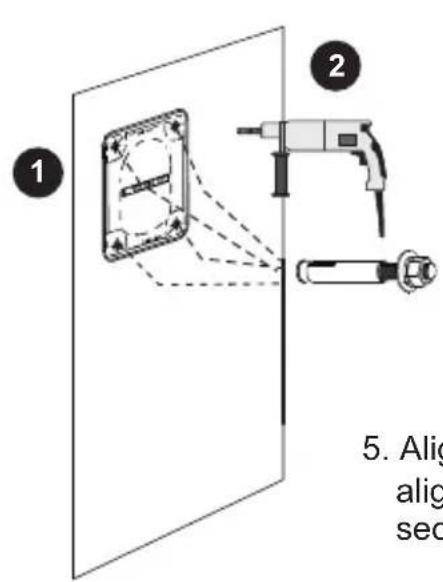

1. Determine a hard surface wall location. Use the alignment sticker to mark the positions where holes will be drilled for the gooseneck bracket.
2. Drill 4 pilot holes (10mm in diameter and 5.5cm deep) into the wall, and then hammer in threaded anchors. Note that you should hammer the anchors with hex nuts on them so that the threaded poles will not be deformed! If preferred, drill another hole for routing cables.

3. Secure the wall mount bracket to wall using 4 sets of lock washers and nuts.

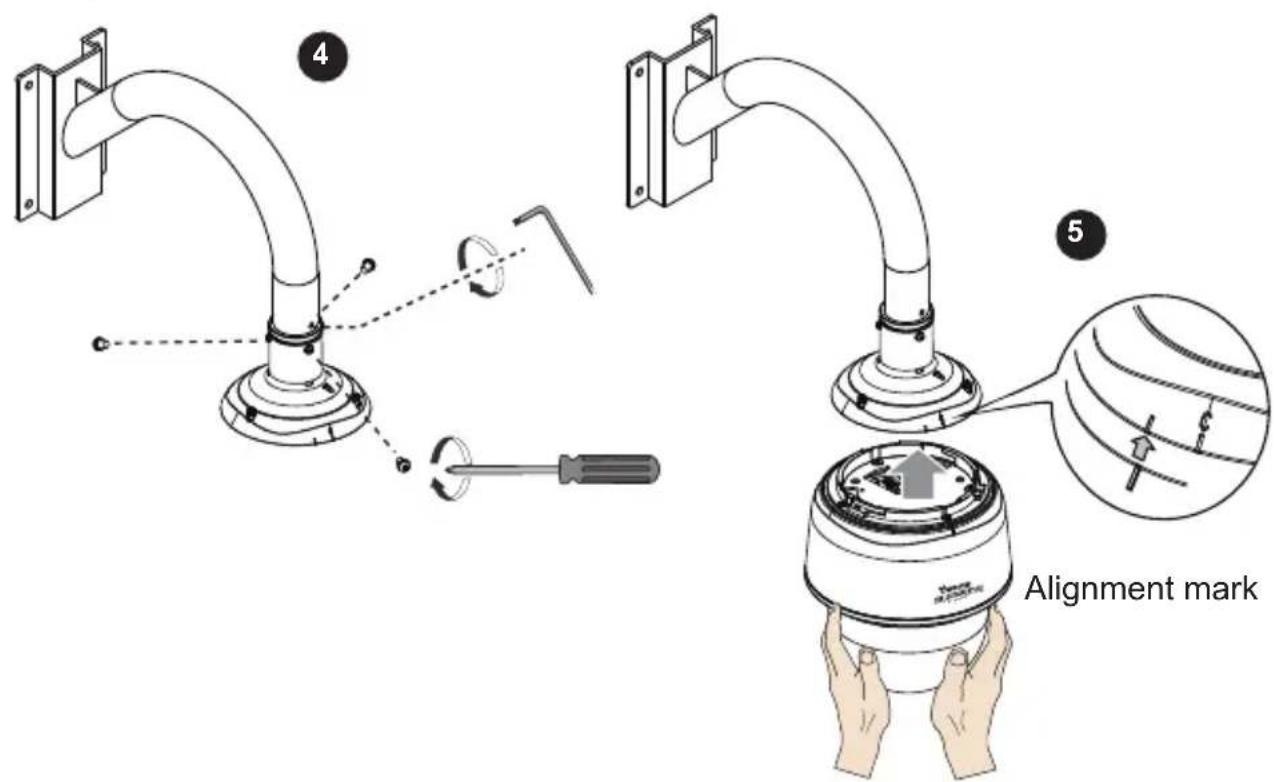

4. Attach the top section (dome cap and interface section) of the camera to the gooseneck bracket

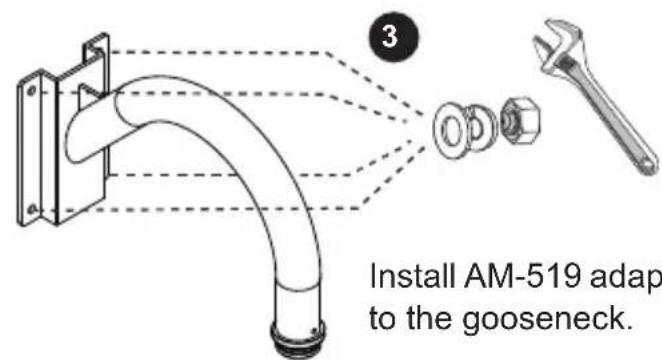

Install AM-519 adaptor to the gooseneck.

1. Align the camera body with the top section. Align the alignment mark on the camera with that on the interface section. Push the camera up to match the top section.

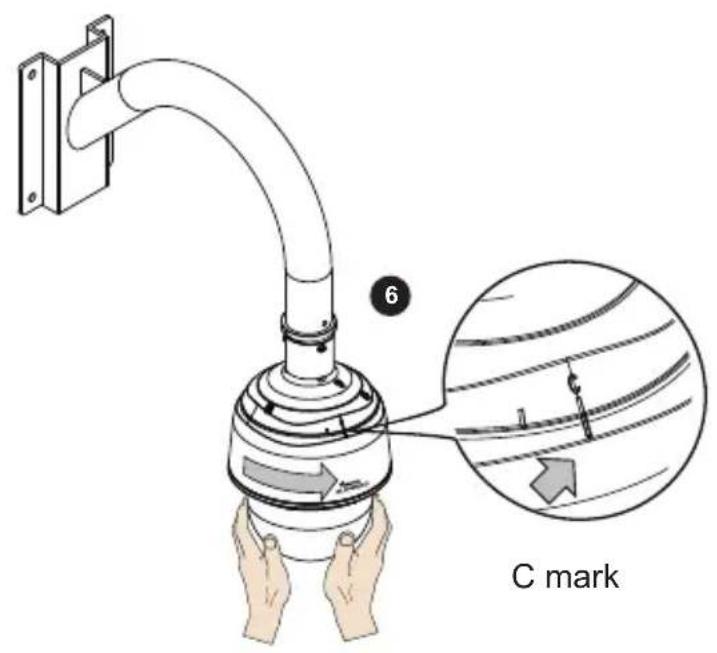

1. Rotate the camera clockwise until its alignment mark is aligned with the "C" mark.
2. Use the included T25 stardriver to tighten the 3 anti-tamper screws from the top. Make sure all parts have been securely tightened.

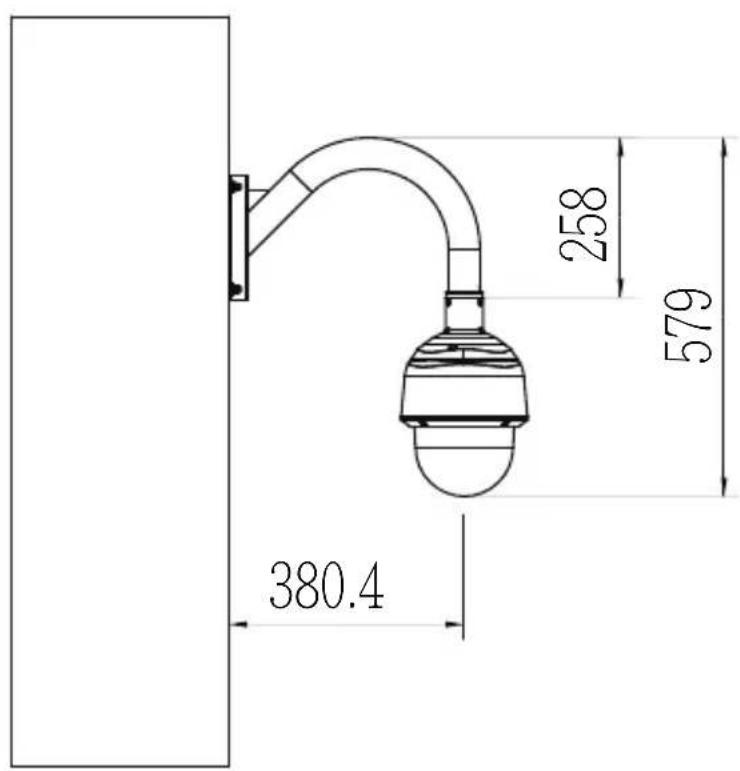

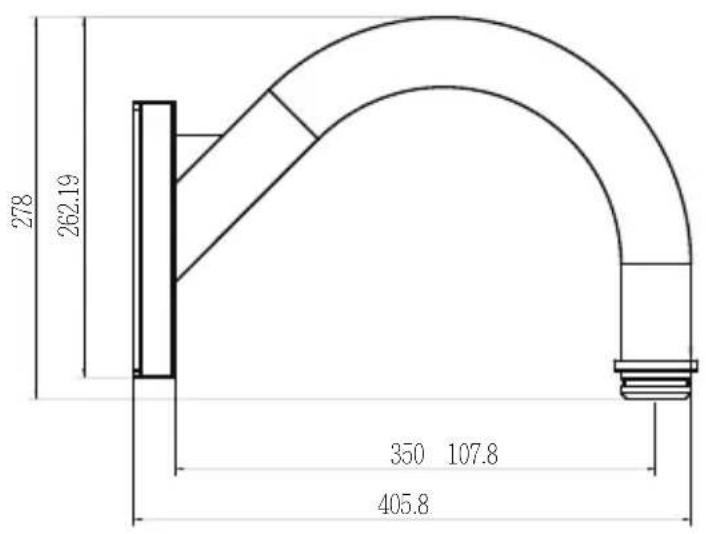

The dimensions of the gooseneck installation are shown below.

IV-3. Parapet Mounting: AM-231

The screws included in the parapet set are:
Sleeve anchors 5/16" x3" 6
Hex bolts M8x25 6
Hex bolts M8x70 3
Hex lock nuts M8 6
Washers M8 15
Lock washers M8 15

IMPORTANT:

The parapet wall should have a concrete strength of 4000 PSI or higher. Each sleeve anchor can withstand an 800kgs pull-out force.

The parapet bracket is designed for installation on the inside of a parapet. Note the following before you start to install:

1. There must be a clearance of 65mm between the upper edge of the parapet wall and the metal bracket fixed to the wall. You can flush align the upper edge of the alignment sticker with the edge of a parapet wall.
2. At least two inches of space should be available below the parapet bracket for routing cables.

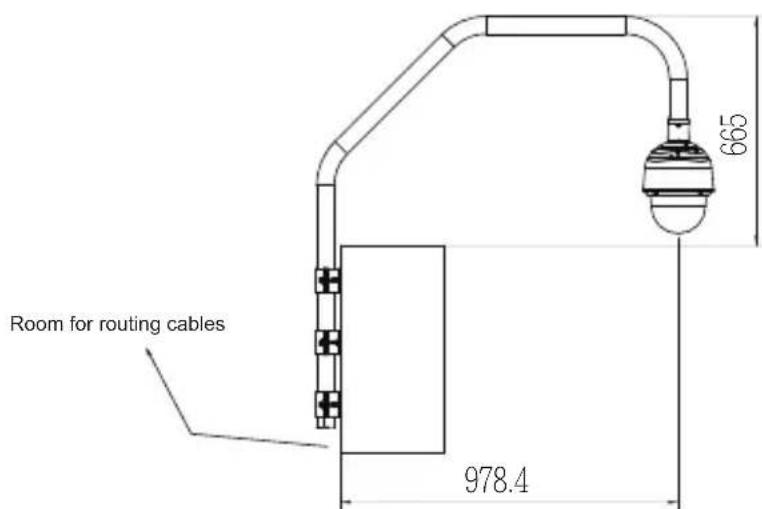

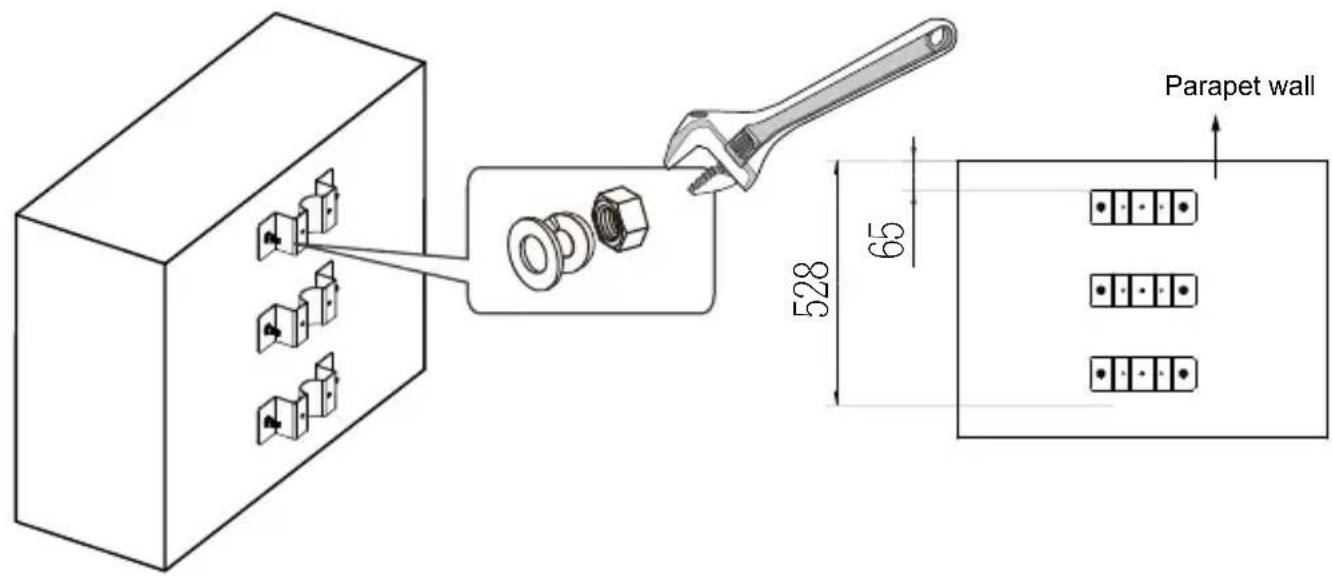

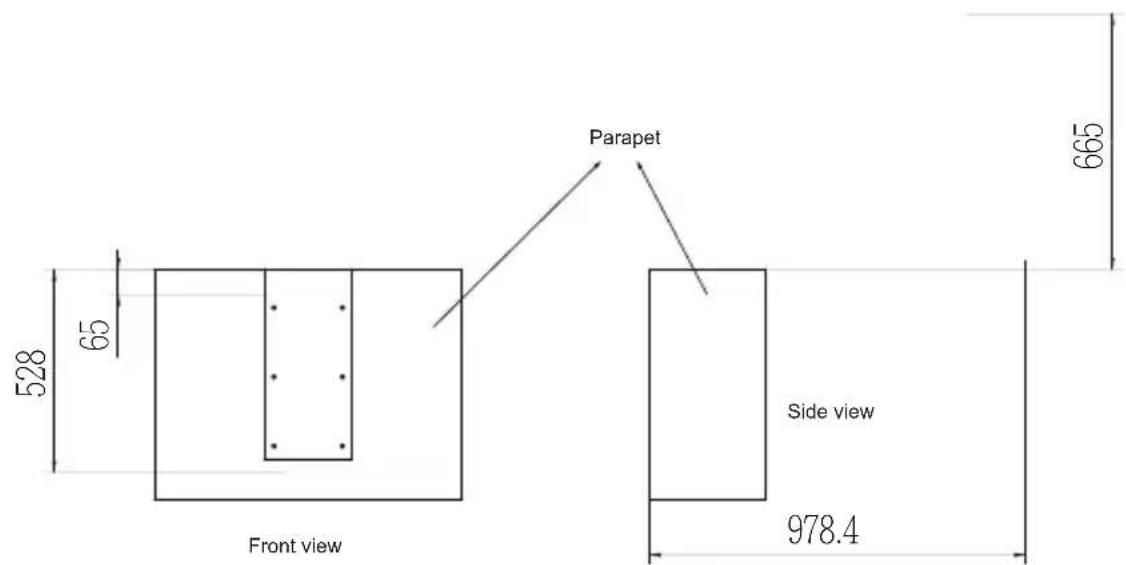

The space requirements for a parapet mount are shown below:

Below is a sample procedure using the parapet mount bracket:

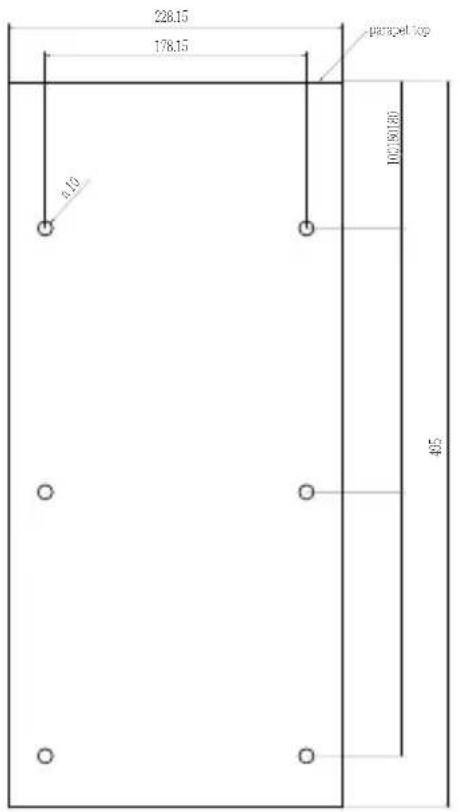

1. Determine a hard surface location. Use the alignment sticker to mark the positions where holes will be drilled for the bracket.

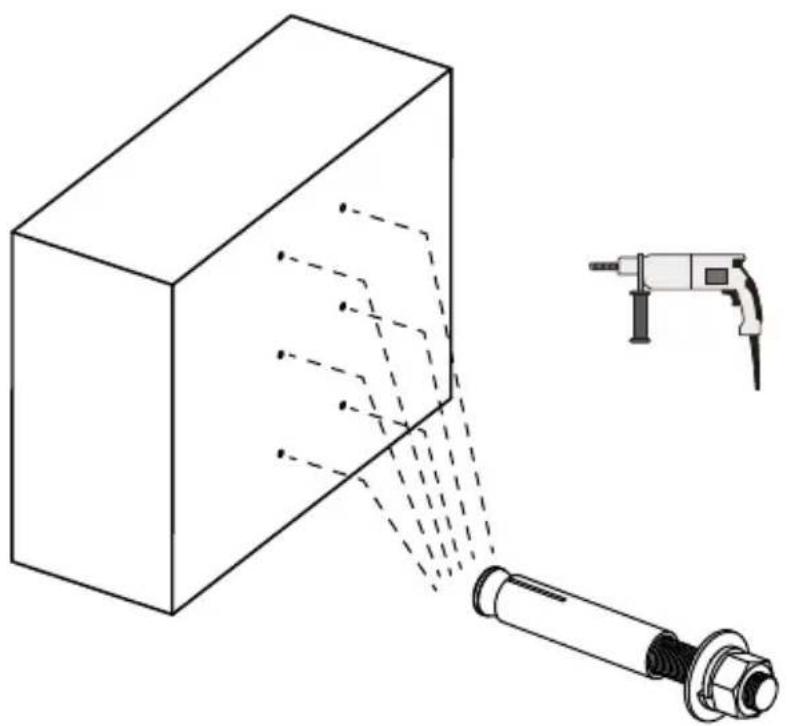

2. Drill 6 pilot holes (10mm in diameter and 5.5cm deep) into the wall, and then hammer in the sleeve anchors. Note that you should hammer the anchors with hex nuts and washers on them so that the threaded poles will not be deformed!

Diagram showing a 3D block with dashed lines indicating flow or direction, and a mechanical tool emitting a cylindrical component (no text or symbols present)

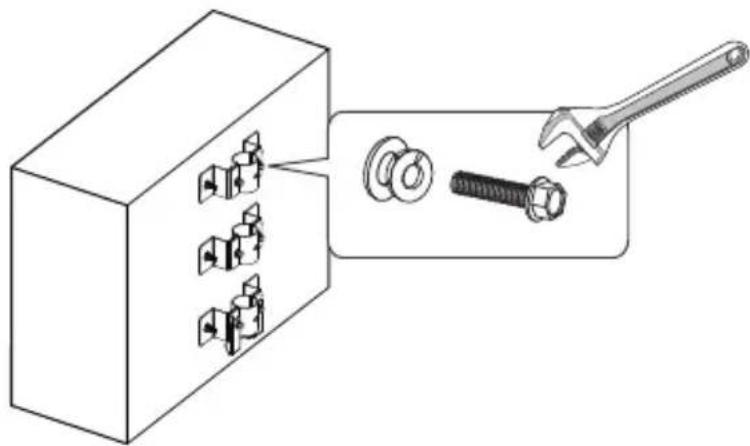

1. Install the brackets to wall using the hex nuts and washers from the sleeve anchors.

NOTE:

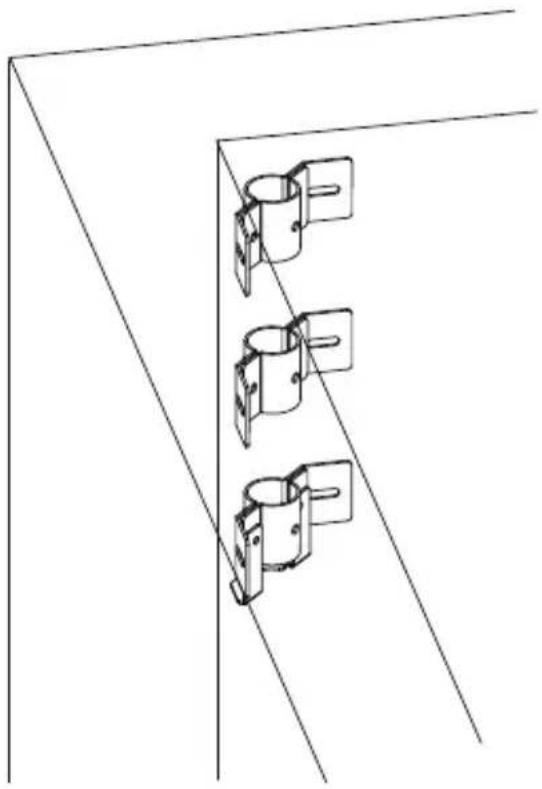

If you install the corner parapet bracket, use the included alignment sticker, and mark the drill holes through the mounting slots on the brackets.

Technical line drawing of three bracket clamps mounted on a vertical support structure (no text or symbols)

1. Use a crescent wrench to secure the outer brackets to the brackets on the wall using the M8x25 hex bolts and washers. Do not completely tighten the bolts yet! When the speed dome is installed to the mount pipe, it needs to be swiveled out to the desired position.

Illustration of a mechanical assembly with a wrench, a spring, and bolts (no text or symbols)

1. Install the AM-519 adapter to the parapet pipe.

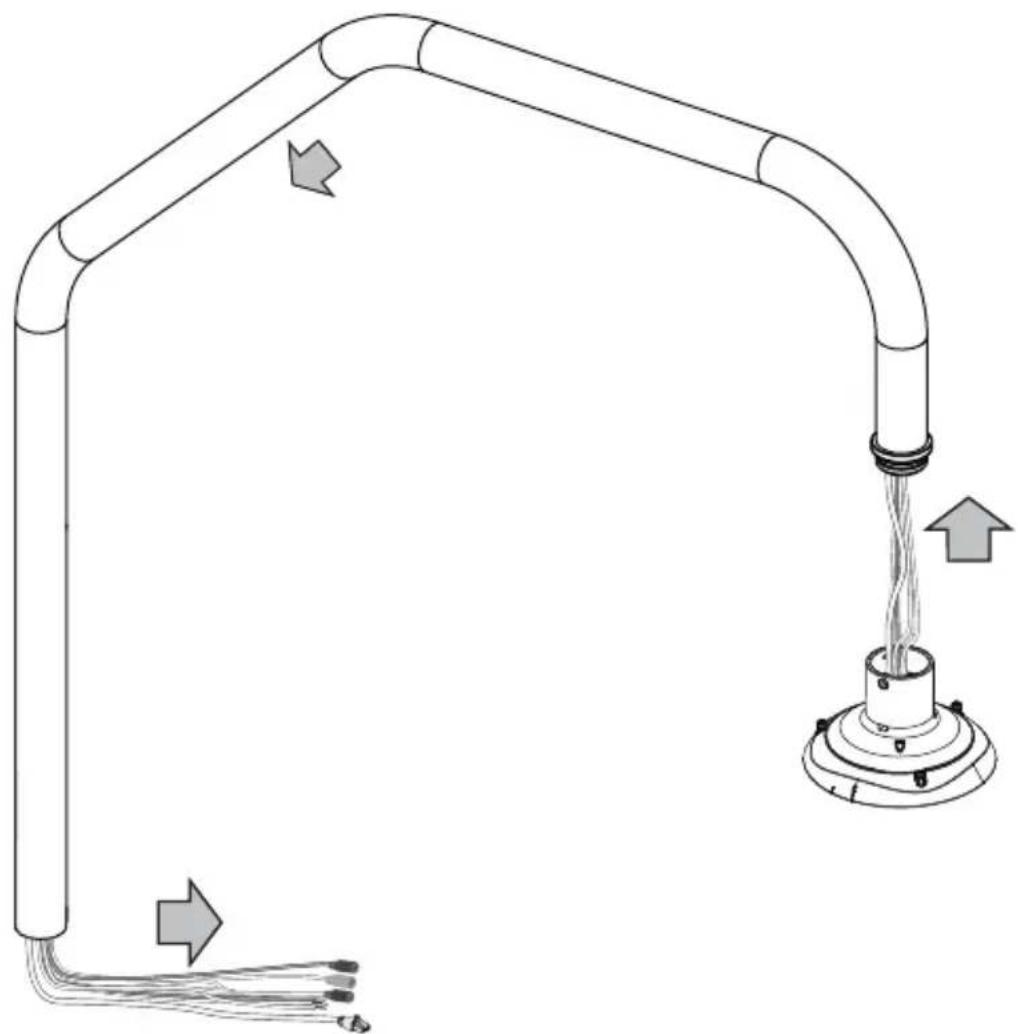

2. Feed cables through the pipe arm. The cable length for passing through the pipe arm is 250 ~cm at least. You can pass a rigid copper wire through the pipe arm first, and use it to pull other wires through the pipe.

Diagram of a curved pipe system with fluid flow and directional arrows, no text or symbols present

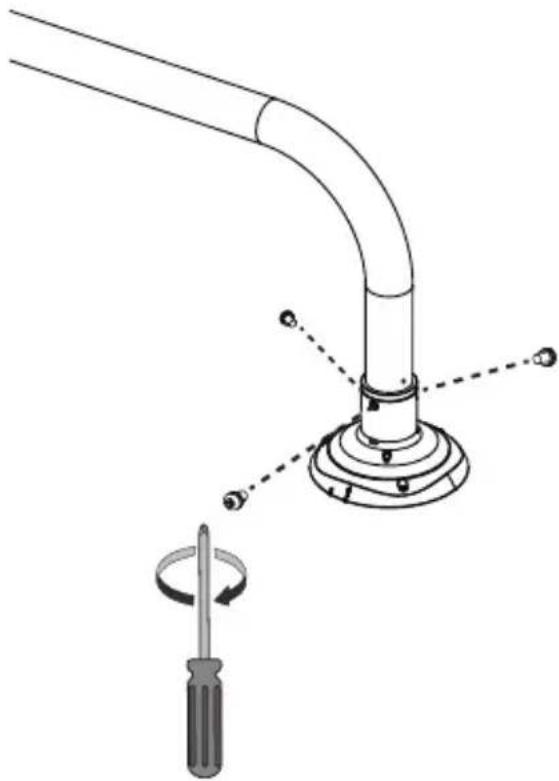

1. Install the top section of the camera to the pipe arm by driving 3 M5 x8 screws.

Diagram showing a pipe fitting with a screwdriver and a base mount, no text or symbols present

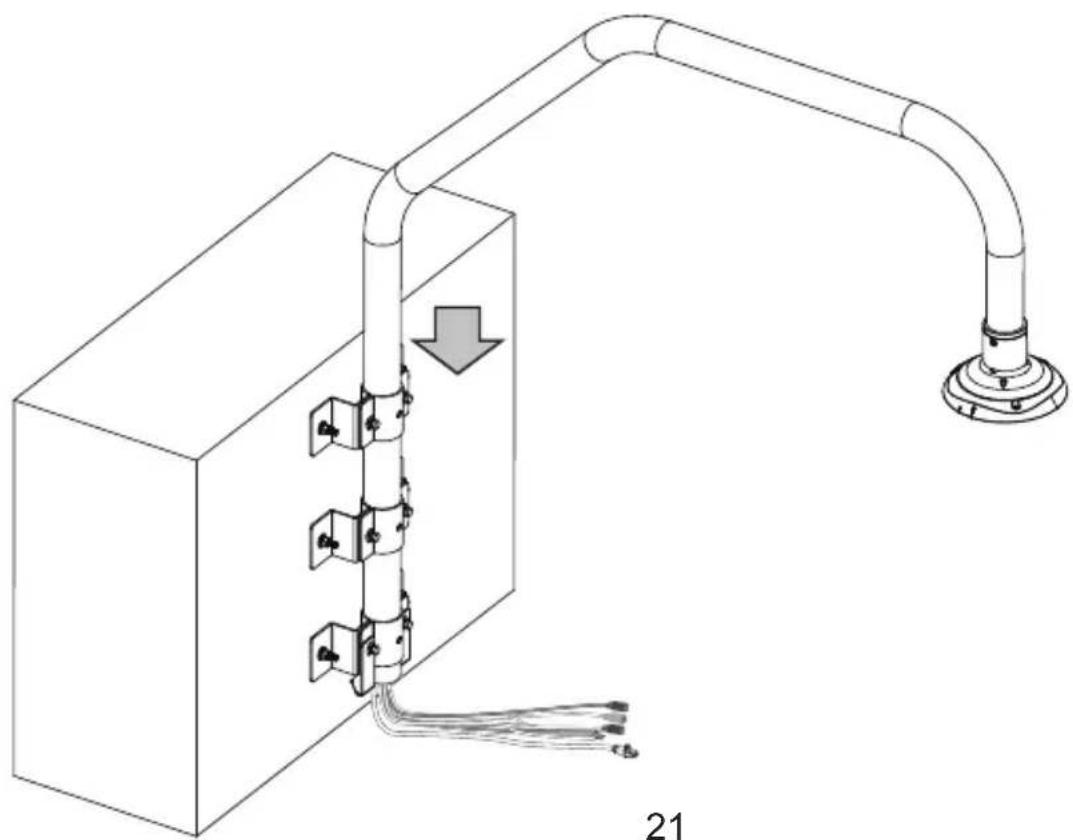

1. Insert the pipe arm into the round openings on the brackets until it is rested on the bottom bracket.

Technical line drawing of a mechanical or electrical assembly with pipes and connectors, no text or symbols present

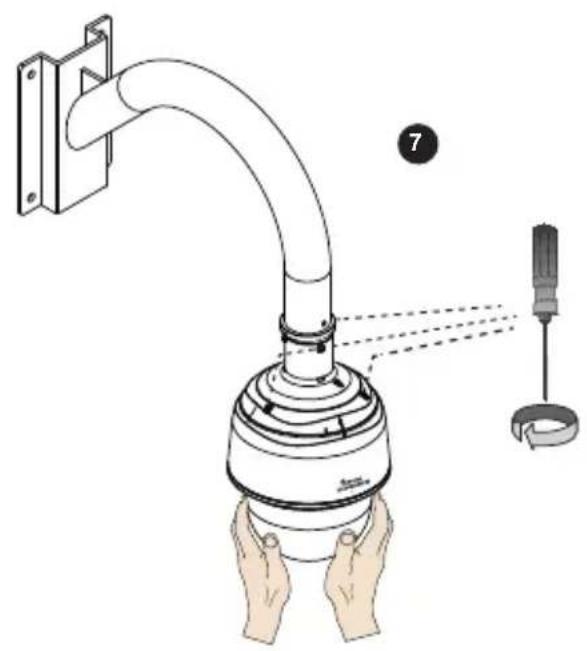

1. Install the camera to the top section. For installation details, refer to the Quick Installation Guide or page 15 in this document.

Technical line drawing of a mechanical or electrical assembly with pipes, connectors, and a spherical component (no text or symbols)

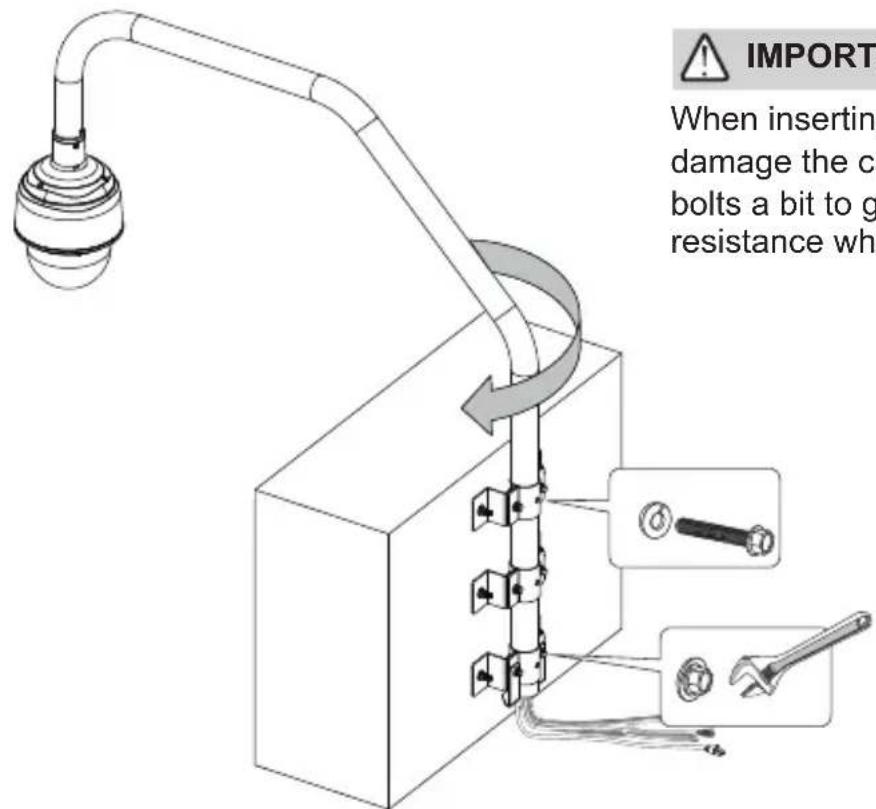

1. Swivel the pipe arm outwards to the opposite position. Use the M8 x70 bolts to secure the pipe arm to the brackets. You also need to tighten the M8 x25 bolts between the inner and outer brackets.

IMPORTANT:

When inserting the M8 bolts, you may damage the cables inside. Try twist the bolts a bit to get around cables if you feel resistance when inserting through the pipe.

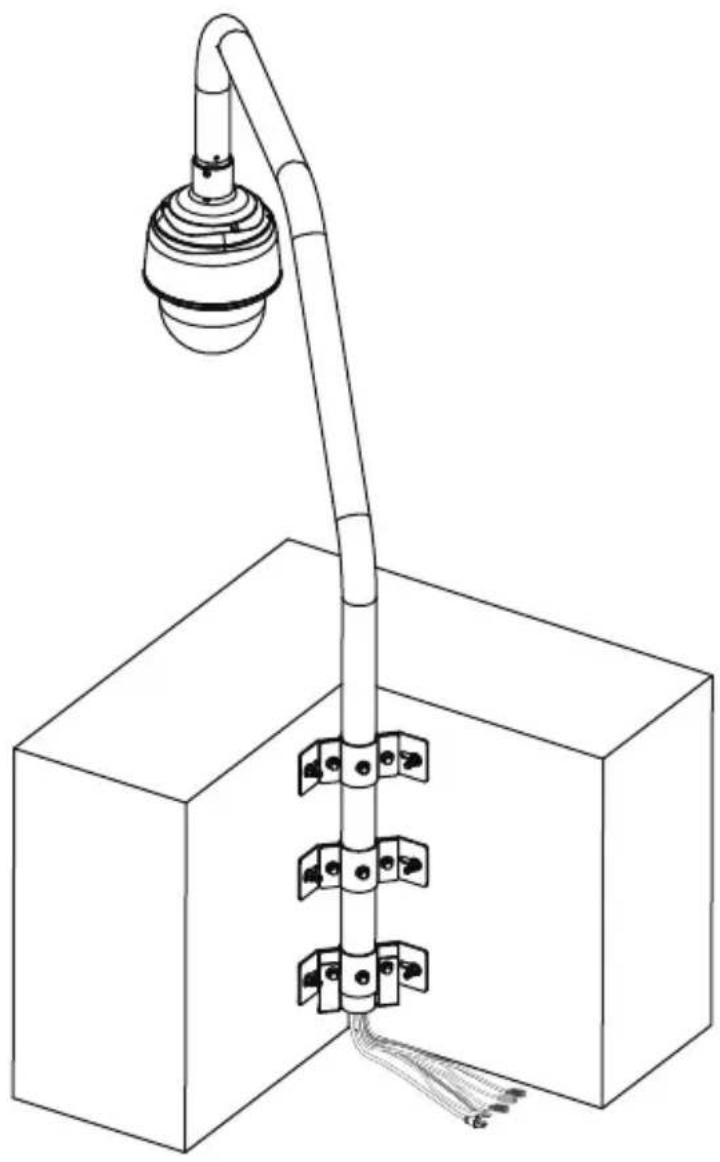

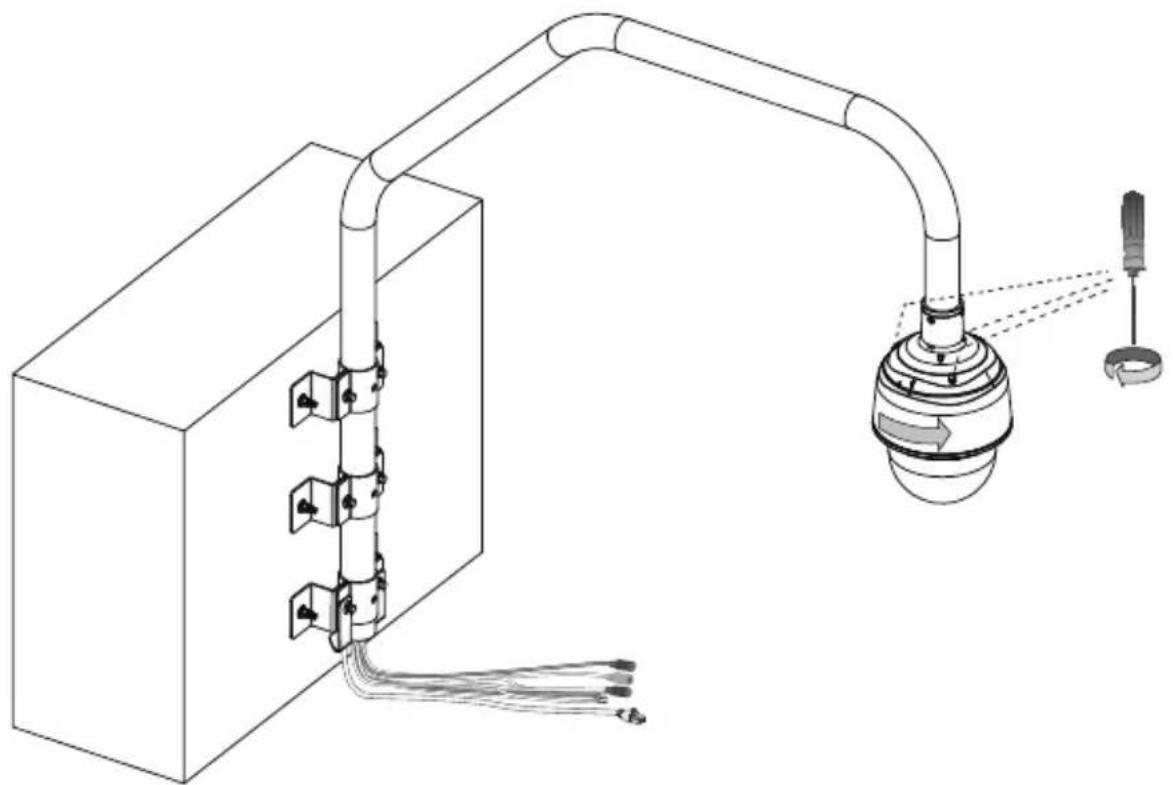

A corner parapet installation should look like this when its installation is completed.

Technical line drawing of a mechanical device with a bulb and connecting rod, mounted on a rectangular base (no text or symbols)
