USER MANUAL IQ Smart Piranha

Thanks for using Piranha IQ Smart smart phone. the quick start guide will help you better understand Piranha IQ Smart smart phone and how to use the important functions.

Power Key: Press and hold this key to turn on /off the mobile phone; in standby state, press this key to turn on /off the screen

Menu Key: press this key to open the actions list, so that you can execute the action in current interface or menu.

Home Key: press this key to return to the home page from any application or interface.

Back Key: press this to return to pervious interface, or close the dialog

Side Key: press this key to adjust volume

Installing SIM Card

Installation Method and Precautions of SIM Card

By setting pin (personal identification number) code of the SIM card, you can protect your sim card from illegal operation.

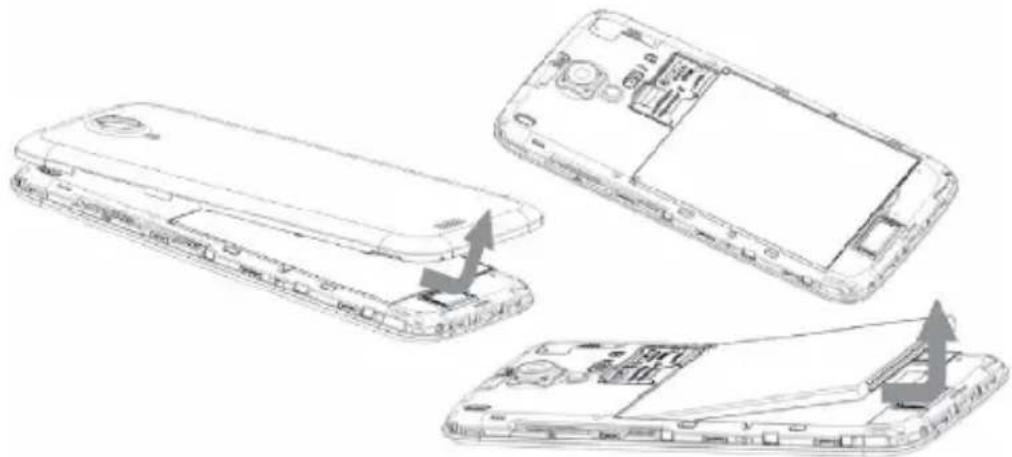

Installing SIM Card

This is a dual SIM mobile phone with two sim slots. Please turn off the mobile phone first, take out the battery, and insert the sim card into the slot as shown in the picture below; then, place the battery into the battery jar and install the battery cover.

Line drawings of a smartphone showing internal components and an open rear panel (no text or symbols)

Precautions of SIM Card - Connecting to Network

Precautions of SIM card

By setting PIN (personal identification number) code of the SIM card, you can protect your SIM card from illegal operation.

If the PIN code is enabled, you need to enter the valid PIN code when you turn on the mobile phone.

If you input wrong code for three times continuously, your SIM card will be locked and you need to input PUK code.

Note: Your network service provider will set a standard PIN code (4-8 digits) for your SIM card. Please change it with your private password as soon as you get the phone.

Connecting to Network

When the SIM card is decrypted, the mobile phone will search registered network or available local network automatically. Once connected, the logo of the network operator appears in the top of the screen, the mobile phone is in standby state, and you can make or answer calls.

Please contact your network operator if the SIM card has a failure.

Precautions of SIM Card

Precautions of SIM Card

• Put the SIM card out of children's reach.
• Please use, insert and remove the SIM card carefully because the SIM card and its contacts are prone to be scratched or damaged by bending.
• Do not expose the SIM card to electrostatic, dusty or moist environment.

Operation and Installation Methods of SD Card

SD card is a removable mobile memory card inside the mobile phone and used for extending the storage space of the mobile phone.

Battery and Charging Methods

1. Connect the charger to provided USB cable.
2. Connect the charger plug to the power outlet.
3. Connect the USB cable to the mobile phone; this icon indicates the charging status.
4. The battery is fully charge when the status icon changes to; please disconnect the charger from the power outlet.

Battery and Charging Methods

1. Disconnect the charger from the mobile phone.

Note: If the battery isn't used for a long time or the battery is used up, the mobile phone may be not turned on normally while charging. It is normal, Please charge for a while before turning on the mobile phone.

The battery can be charged repeatedly; however, it is consumable product, please change a new battery if the standby duration reduces significantly.

The data service consumes more power and will reduce the standby duration. The charging time changes according to temperature and battery usage. The mobile phone will show prompt if the battery is too low. The mobile phone will power off automatically if battery level drops too low.

Unlocking Mode

Unlocking Mode

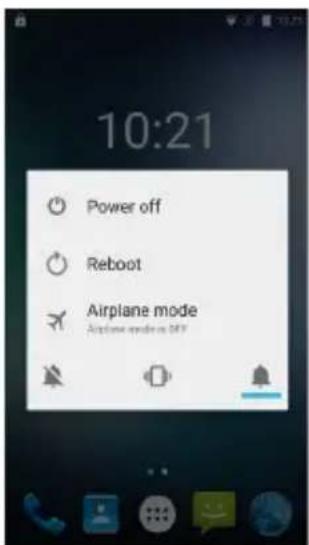

Mobile Phone Options List

In standby state, you can press the Power key to lock and turn off the screen, and press it again to turn on the screen. Press and hold the Power key to open the mobile phone option list.

Unlocking Mode

Unlocking Interface

In locked screen, tap the 📄 on in the bottom of the screen, slide to right to unlock the screen.

Main Menu

Main Menu

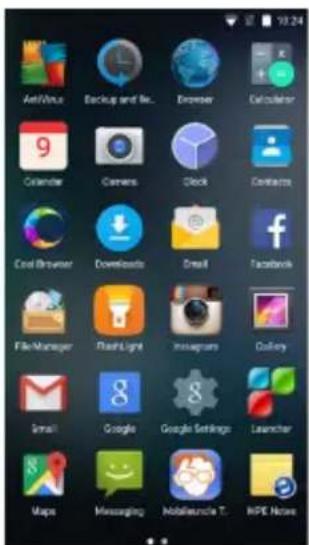

Main menu page

Slide to left/right on the screen to switch the main menu page, and tap the Menu Key to select Manage applications or Settings Drag and drop an icon to desktop to create a shortcut.

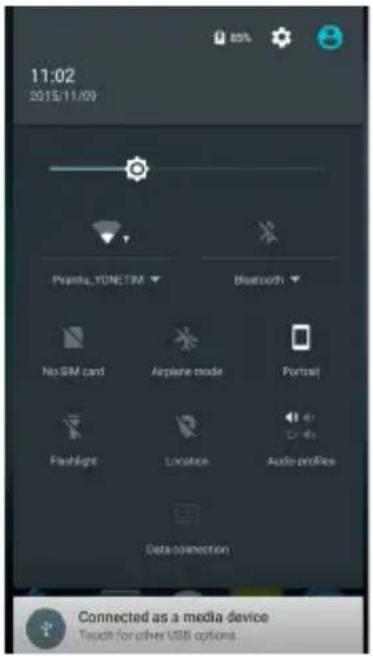

Status Bar

Status Bar

Pull down the status bar, to turn on/off WLAN, Bluetooth, Data connection, GPS, Flight mode and customize profiles, or view the notifications of the mobile phone.

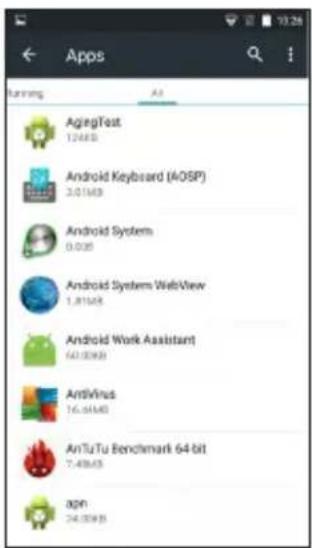

Manage Applications

Manage Applications

In Manage applications interface, you can manage the running applications to improve the running speeding of the mobile phone. You can view the information of downloaded applications, applications installed on SD card, running applications and all applications, restrict permissions or uninstall third party applications.

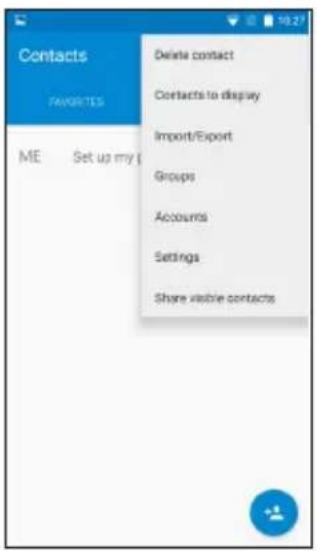

Contacts

Contacts

You can search contacts through English of others name and first stroke.

Press the Menu Key to select Delete contact, Contacts to be displayed, Import/Export, Accounts, or Share visible contacts.

Smart Dialing

Smart Dialing

In dial plate interface, the mobile phone will fuzzy match with local contact info and show in the result while you are typing. In call settings, you can set up voice call, video call, IP call and others.

During a call, you can access the dial plate or contacts through shortcuts.

After typing the number with keypad, press MENU and select Speed dial.

During the call, the backlight turns off when the phone is close to your ear for saving power and preventing misoperation

Messaging

Messaging

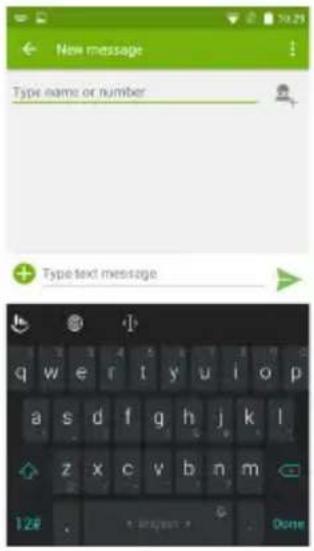

Messaging Interface

Support third party input method software. Tap set up the common functions. Tap Switch to switch among Turkish, English and stroke. If the language of spelling correction is set to English, tap the word in the input box while typing to get suggested results for choosing.

Browser

Browser

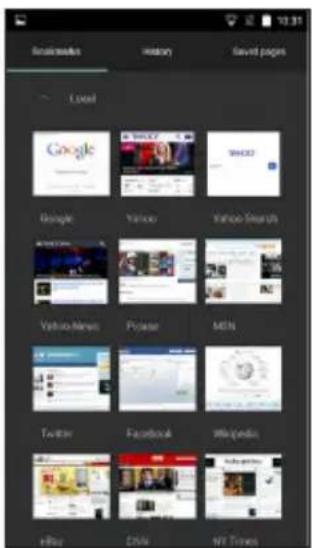

The navigation interface of the browser shows the thumbnails of commonly used web pages; you can tap to visit the web, or tap and hold the thumbnail to edit the web address information. In web browsing interface, press the Menu Key to set up the web page.

Music

Music

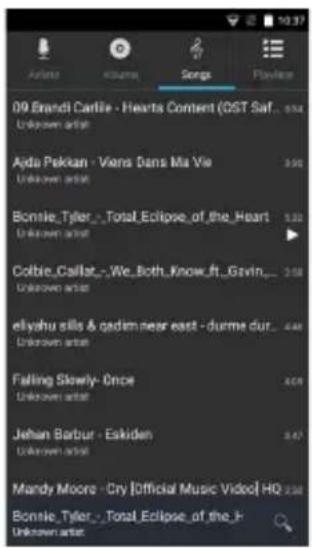

Music Interface

Support MP3, aac, aac+, eaac+ogg, midi and other formats; drag the progress bar while playing to move to any segment of the music, and tap play button to pause or play.

Tap and hold artist, album or music name to perform operations such as play, add to playing list, send to ring tone, delete, and search; select search to search music and play online.

Camera

Camera

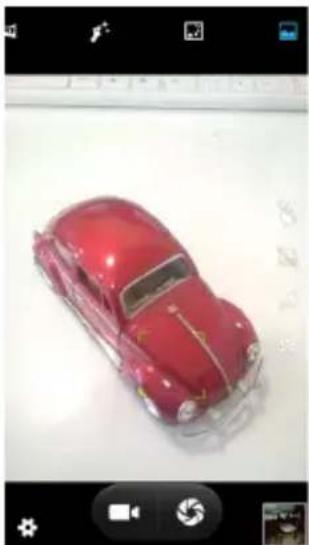

Camera Function

Tap on the screen to focus and follow the focus automatically, making the capture of moving object more convenient. You can set smile shutter, best capture, continuous shooting, common mode, automatic scene detection and other modes. The camera integrates various creative styles; you can tap to preview different effects.

Red classic car model on a white surface, no visible text or symbols

Dual Camera

Support front camera; tap and take self photo shoot.

switch to front camera

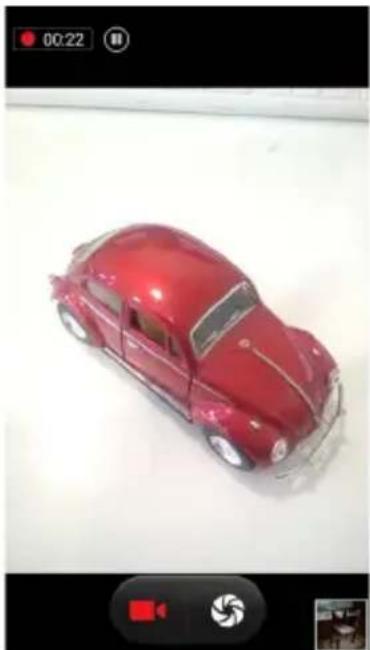

Video Recorder

Video Recorder

Support video recording, tap to switch to video recorder.

Red vintage car model on a white surface, captured in an overhead camera interface (no text or symbols on the car itself)

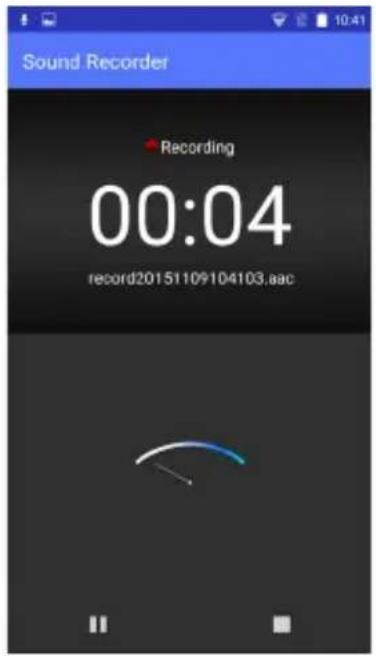

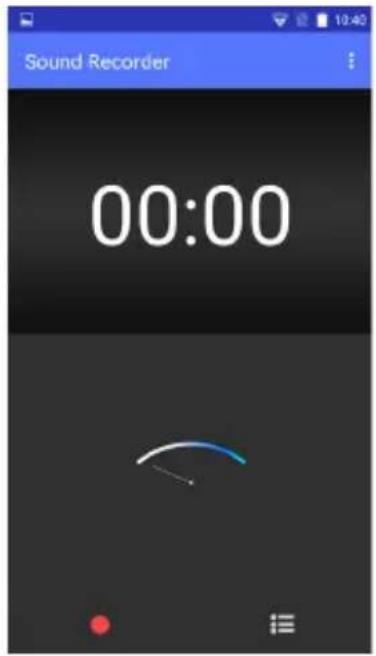

Sound Recorder

Sound Recorder

You can record the sound, and send though MMS or Bluetooth directly, or set as ring tone.

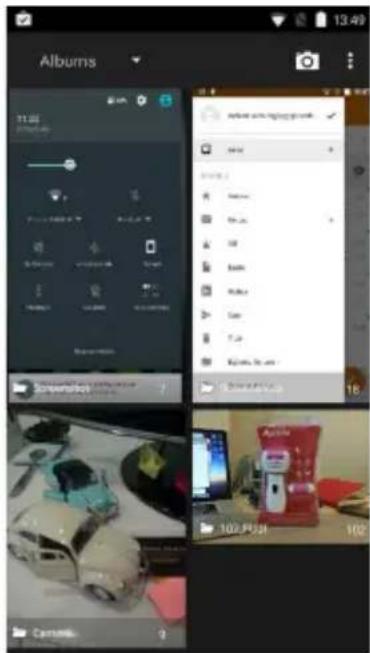

Gallery

Gallery

You can view the pictures and videos recorded by the camera in Gallery and or pictures and videos on SD card.

In gallery, you can perform operations to multimedia files such as share, edit and set as wallpaper, or contact icon.

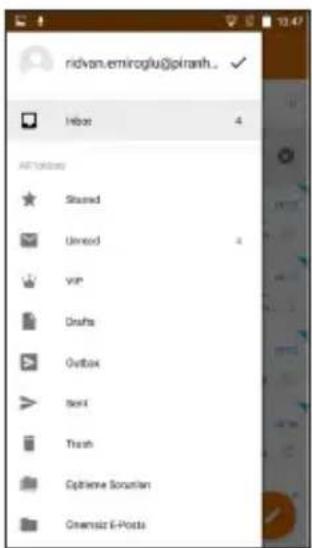

E-mail

E-mail

Support Gmail and E-mail; you can create an account and read e-mails at anytime and anywhere.

With this function, you can merge the e-mails of different e-mail boxes to the same interface.

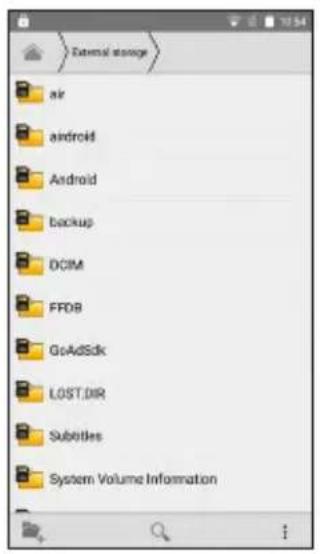

File Manager

File Manager

In File Manager interface, tap the Menu Key to select New folder, Cut, and view the files stored on SD card directly.

Tap and hold a file or folder and select Copy, Cut, Delete, Rename and other options.

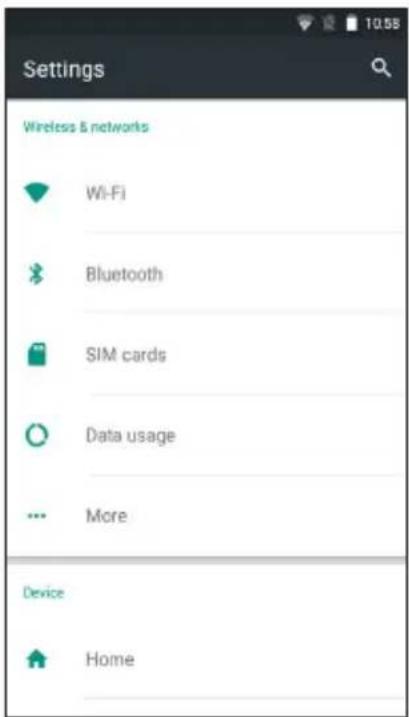

Settings

Settings

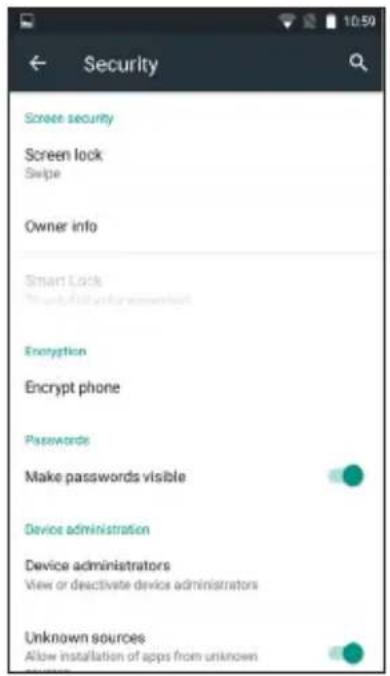

Security Function

Security Function

You can set up screen security, encryption, SIM lock, etc.

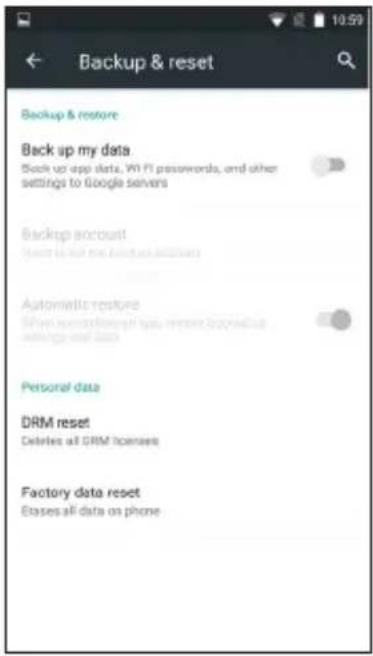

Backup and Reset

Backup and Reset

In this interface: you can back up the application data, WLAN password and other setting to Google server; and reset all data stored on the mobile phone.

Dual SIM Function

Dual SIM Function

SIM Card Management

You can insert two SIM cards into the mobile phone, turn on/off the SIM cards, edit SIM card name number, set up the background color, and set up data connection, voice call and video call.

Single SIM Interface

If only one SIM card is inserted, the interface and operation mode switch to single SIM state automatically.

Drop-Down Menu Bar

Drop-Down Menu Bar

Drop down USB connection in menu bar; as the mobile phone can be set as flash drive, the files on SD card can be copied to PC or from PC to mobile phone.

Troubleshooting

Troubleshooting

Please refer to the following list of problems and solutions if there is any abnormality when you use the mobile phone. Please contact the distributor or service provider if it still doesn't work.

Problem	Reason	Solution
Can't access Internet normally when using browser	The network operator doesn't provide this service or you hasn't applied this service	Please contact and consult your network operator for information of how to apply and use this service
	The setting is not correct	Please refer to specific introductions of the browser
SIM card error	SIM card is damaged	Please contact your network operator
	The SIM card isn't installed properly	Check the SIM card
	The metal surface of the SIM card is dirty	Clean it with clean cloth

Troubleshooting

Problem	Reason	Solution
Poor receiving	The mobile phone is used in bad signal receiving area, for example, near tall building or in basement, the radio waves can’t reach these area effectively	Please make or answer a call in places with strong signal
	The mobile phone is used when communication is busy and lined are congested.	Try to avoid using mobile phone when communication is busy
Can’t switch on	Battery is too low	Charge the battery
Can’t make a call	Call barring is active	Cancel call barring

Problem	Reason	Solution
Can't connect to network	SIM card is invalid	Please contact your network operator
	Beyond service area	Move to service area of your network operator
	Weak signal	Move to a place with strong signal and try again
Can't charge	The voltage is not within rated range of the charger	Use an allowed voltage within the rated range of charger
	Nonstandard charger is used	Used a charger specially designed for the mobile phone
	Poor contact	Check whether the plug is connected properly

Specifications

Specifications

4.5G (LTE) Yes
SIM Dual
Operating System Android 5.1 Lollipop (64 bits)
CPU 1.3 GHz Quad Core
GSM Band 850MHz/900MHz/1800MHz/1900MHz
WCDMA Band 2100MHz/900MHz/LTE FDD
Data Segment GPRS, EDGE, HSPA+ 42 Mbps
Flash Memory 16 GB
Ram 2 GB DDR3
Size (mm) 144.3x72.2x8.8mm
Bluetooth BT 4.0
Weight 123 gr

Specifications

External Memory Support up to 32 GB
Wi-Fi 802.11b, 802.11g, 802.11n
LCD 5.0 inch IPS HD 1280x720 px
Front Camera 5.0 MP
Back Camera 13.0 MP
Audio Jack 3.5 mm
A-GPS Yes
Dual Flash Yes
Microphone Yes
Battery 2300 mAh

Efficient Use of Energy Consumption

After full charge please remove your phone from charger!

Notes
