Before leaving the factory, this appliance was tested and regulated by expert and skilled personnel to give the best operating results. Any repair or regulation that may subsequently be necessary must be carried out with the greatest care and attention. For this reason, we recommend you always contact the Dealer you bought the appliance from or our nearest Service Centre, specifying the type of problem and the model of your appliance. Please remember as well that the original spare parts are available only from our Technical Service Centres. Do not leave the packaging unguarded, both for the safety of children and for the protection of the environment, but dispose of it in a centre for differentiated waste.

The symbol on the product or on the packaging means that the product must not be considered as normal household refuse, but must be taken to the appropriate collection point for the recycling of electric and electronic equipment. The appropriate disposal of this product helps avoid potential negative consequences on the environment and for health, which could be caused by inappropriate disposal of the product. For more detailed information on the recycling of this product, please contact your municipal offices, the local waste disposal service or the store where the product was purchased.

TABLE OF CONTENTS

GENERAL WARNINGS pag. 2-4

Instructions for use:

• Description of the main parts of the appliance pag. 5
• Gas burners (operation, lighting, advice) pag. 6-8
• Operation of electric hot plates pag. 9
- Maintenance and cleaning pag. 10-11

Instructions for installation:

• Positioning and gas connection pag. 12-13
  • Electrical connection pag. 14
• Adaptation to different types of gas pag. 15-17
• Instructions for building in the units pag. 18-19

General warnings

Dear Customer,

Thank you for having chosen one of our products. This appliance is easy to use, but you must read this booklet carefully before installing and using it. The booklet contains instructions that will help you to install, use and service the product in the best way.

WARNING: This appliance and its accessible parts become very hot during use. Take care and do not touch the heating elements. Unless they are supervised at all times, children younger than 8 years of age must be kept well away from the appliance.

WARNING: This appliance may be used by children from 8 years of age onwards and by persons with reduced physical, sensorial or mental capabilities, or who lack experience and knowledge so long as they are properly supervised or have been trained on how to use the appliance safely and are aware of the risks involved. Children must not play with the appliance. The appliance must not be cleaned or serviced by unsupervised children.

WARNING: Do not leave a hob unattended when fat or oil is being used. This could be dangerous and cause a fire.

WARNING: NEVER attempt to put out a fire/flames with water. Switch off the appliance

General warnings

and cover the flame with a lid or a blanket made of fire-retardant material for example.

WARNING: Fire risk. Do not leave objects on the surface of the hob.

WARNING: If the glass or glass-ceramic surface is cracked, switch off the appliance to prevent the risk of an electric shock.

The appliance cannot be switched on by an external timer or a separate remote control.

Do not use jets of steam to clean the appliance.

It is very important for this instruction booklet to be kept with the appliance if it changes hands.

These instructions are only applicable in countries whose pictograms appear on the cover and on the appliance itself.

This appliance has been designed for non-professional use by private individuals in their homes and its purpose is to cook and heat food. Do not use it for other purposes.

The appliance must be installed by a skilled and qualified installer who is familiar with the installation rules in force.

Before it is cleaned or serviced, the appliance must be disconnected from the electric power source and allowed to cool.

Before you switch on the appliance, make sure that it has been correctly regulated for the type of gas available in your area (consult the relative section).

When you turn on the burners, always make sure that the flame is regular.

If a burner goes out accidentally, turn off the control knob and wait at least one minute before turning it on again.

It is advisable to switch off the relative heating element before you remove the saucepans.

General warnings

The electric power cable of the appliance must not be replaced by the user. It must only be replaced by a qualified electrician.

When used, gas-fired appliances produce heat and humidity in the room where they are installed. Make sure that this room is properly ventilated by keeping the natural air vents open or by installing a extractor hood with exhaust duct.

Additional ventilation may be required (by opening a window or increasing the degree of forced ventilation) when gas-fired appliances are used for long periods of time.

Make sure that you do not place unstable or deformed saucepans on the burner or electric hotplates. They could overturn or overflow and cause accidents.

Always use saucepans with suitable diameters for the cooking zones. Never use pans with smaller diameters than the cooking zones and never switch on the cooking zones without pans on them.

Make sure that you do not place unstable or deformed saucepans on the heating surfaces. They could overturn or overflow and cause accidents. Do not switch on the cooking zones without saucepans on them.

Always call an authorized Technical Assistance Center and insist on original spare parts if repairs are required. Repairs made by incompetent persons could cause damage.

The appliance is switched off when all its knobs have been turned to position 0 / ●

This appliance conforms to the following Directives/Regulations:

• 2006/95/EC (low voltage appliances)
• 2004/108/EC (electromagnetic compatibility)
• 1935/2004 (parts designed to contact food substances)
• 2002/96/EC (WEEE)
• 2009/125/EC (EuP)
• 2011/65/EC (RoHS)
• 1907/2006 (REACH)
• 2009/142/EC (gas-fired appliances)

Instructions for use

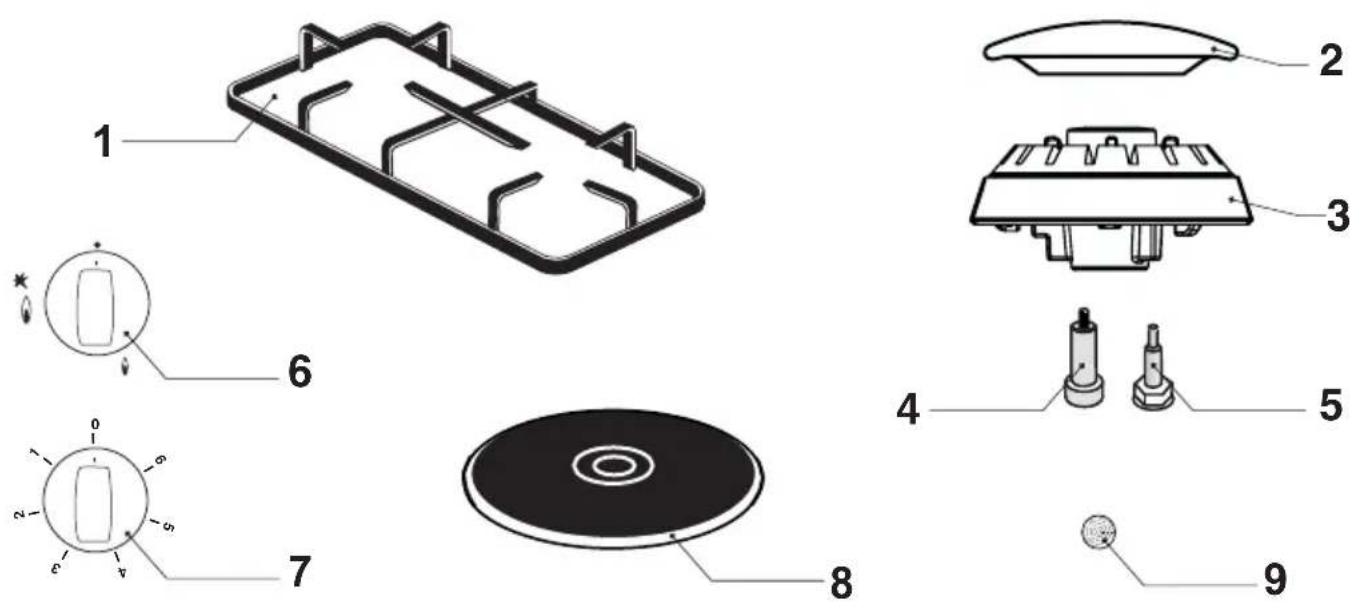

Description of the main parts of the appliance

Exploded view diagram of a refrigerator with labeled parts including tray, seat, and base components

1 = grid
2 = cover
3 = spreader
4 = spark plug (for versions with lighting)
5 = safety valve (for models equipped with a safety valve)
6 = knob for burner ignition and adjustment
7 = electric hot plate control knob (where there is one)
8 = electric hot plate (where there is one)
9 = electric hot plate operation pilot lamp (where there is one)

The hob control area houses the devices and knobs for operation of the gas burners.

In addition to the traditional quick, medium quick and auxiliary burners, the cooking plane may be equipped with a “Triple ring” or “Dual” burner.

The performance characteristics of such burners are:

- Triple ring:

optimisation of the heat distribution across the pot bottom.

- Dual:

possibility of adjusting the inner crown independently of the outer one (practically speaking, a double burner controlled by means of a single knob), wide flexibility of use thank to the possibility of operating the inner flame only or the whole burner (inner and outer flame at the same time).

Instructions for use

IGNITION AND OPERATION OF THE "DUAL" BURNER

Place the pot on the burner before igniting it.

The “Dual” burner, even if controlled by a single knob, has two different operating modes:

A)-operation with the small, inner flame only:

The burner must be ignited in this mode. In order to do so, it is necessary to depress the knob while rotating it anticlockwise, till the index is aligned with the position corresponding to the maximum gas delivery (i.e. the first, large flame symbol encountered anticlockwise).

Once the inner flame ignites, hold the knob depressed for about 3-4 seconds, till the device keeps the burner automatically lit.

At this moment it is possible to adjust the flame intensity by rotating the knob anticlockwise from such maximum position to the minimum one (i.e. the first symbol, showing a small flame).

In order to turn the burner off, rotate the knob clockwise bringing the index back to the position corresponding to the closure symbol ( ● ).

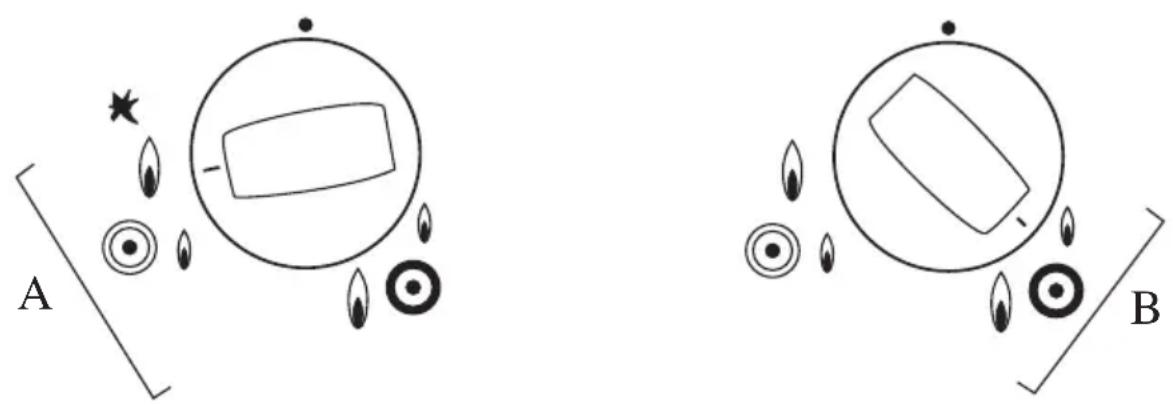

B)-Operation of the whole burner:

After igniting the small inner flame as described above, in order to switch to the "total" operation mode, depress and rotate the knob anticlockwise till over-passing a "CLICK" and reaching the desired adjustment position (maximum delivery corresponding to the large flame, minimum delivery corresponding to the small flame).

In order to turn the burner off, depress and rotate the knob clockwise bringing the index back to the position corresponding to the closure symbol ( ● ).

Once the “Dual” burner is operating in either of the two modes described here above, it is possible to switch from any one mode to the other simply depressing and rotating the knob till reaching the desired position.

Instructions for use

In order to ignite a burner, it is necessary to depress the knob while rotating it anticlockwise, till the index is aligned with the position corresponding to the maximum

gas delivery (i.e. the large flame symbol). As far as the models equipped with a safety valve are concerned, once the flame is lit hold the knob depressed for about 3-4 seconds, till the device keeps the burner automatically lit. At this moment it is possible to adjust the flame intensity by rotating the knob anticlockwise from such maximum position to the minimum one (i.e. the small flame symbol).

Simple line drawing of a circle with a rectangle inside, flanked by three small flame icons (no text or symbols)

In order to turn the burner off, rotate the knob clockwise bringing the index back to the position corresponding to the closure symbol ( ● ).

RECOMMENDATIONS

In case of electric power failure, it is necessary to carry out the above-described operations by putting a gas lighter or a flame near the burner (in such an event, pay the utmost attention not to burn yourself).

The safety valve (for models where such item is provided) intervenes in case of accidental flame failure, blocking the gas delivery (e.g.: air draughts, spillage of liquids, etc.).

In any case, the ignition device must not be actuated for longer than 15 seconds.

Should the ignition manoeuvre fail, or should the burner be accidentally turned off, immediately close the actuation knob and repeat the ignition after one minute at least.

Once the ignition has taken place, adjust the flame according to your needs.

Advice on the use of gas burners

For lower gas consumption and a better yield, use saucepans with diameter suitable for the burners, avoiding the flame coming up round the side of the saucepan (see the Container Table). Use only flat-bottomed pans.

As soon as a liquid starts to boil, turn the flame down to a level sufficient to maintain boiling.

During cooking, when using fats and oils, be very careful because if they overheat they could catch fire.

Take care that the containers don't escape from the edges of the plan and don't invade the control panel.

Container table (use flat-bottomed saucepans)

Burners (heights cover mm)	∅ min. Saucepan (mm)	∅ max. Saucepan (mm)
Auxiliary (∅ = 55)	90 160
Medium quick (∅ = 75)	130 180
Quick (∅ = 100)	150 260
Triple ring (∅ = 132)	210 270
DUAL total (∅ = 140)	220 270
DUAL central (∅ = 45)	80 160

Instructions for use

Some versions have one or more electric hot plates. These hot plates can be normal, quick or automatic. The last two types have a red dot in the centre (quick) and a circular plate in the centre (automatic).

The hot plates can be adjusted depending on cooking requirements, turning their knobs clockwise or anticlockwise to 6 positions as well as 0. The positions marked with the highest number correspond to the greatest supply of heat (see table). With the quick and automatic hot plates, once the temperature selected has been reached, a thermostat automatically reduces the power and the hot plate will operate intermittently so that the temperature remains constant throughout cooking.

The indicator lamp on the control panel signals that the electric hot plates are switched on.

Advice on use of the hot plates

So that the electric hot plates last longer and to save energy, only use flat-bottomed saucepans whose diameter is not smaller than that of the hot plates.

Avoid boiling liquids spilling out of the saucepan on to the hot plates.

Do not leave the hot plates on empty or with empty saucepans and do not use them to heat the room.

Switch the hot plates on after you have put the saucepans on them.

Do not forget that when the hot plates are switched off they remain hot for some time.

	Reheating		Cooking		Roasting-frying
Electric hot plates	1	2	3	4	5	6

Instructions for use

Maintenance and cleaning

Do not use jet of steam for cleaning.

Before any operation disconnect the appliance electrically. Wash the enamelled parts with lukewarm water and detergent. Do not use abrasive products.

Wash the burner spreader frequently with boiling water and detergent being sure to remove any deposits which could block the flame outlet. Rinse the stainless steel parts well with water and dry them with a soft cloth.

To clean the hob use slightly damp sponges and wiping cloths: if too much water is used it could penetrate the internal parts and damage electrical parts.

The grids of the hob can be washed in the dishwasher.

For persistent stains use normal non-abrasive detergents, specific products commonly available on the market or a little hot vinegar. Clean the glass hob with hot

water, avoiding the use of rough cloths.

Do not use stainless steel pads or acids for cleaning.

To prevent lighting difficulties, carefully clean the lighting spark plugs regularly (ceramic and electrode).

To clean the electric hot plates use damp wiping cloths and grease slightly with a little oil when the hot plate is still lukewarm.

Periodically, or if the knobs become difficult to turn, contact a qualified engineer to lubricate the taps.

Contact a qualified engineer to deal with any other problems which may arise during use.

Mechanical assembly diagram showing a shaft, housing, and mounting bracket (no text or symbols)

Important.

AFTER A POSSIBLE GRID REMOVAL FOR CLEANING AND/OR MAINTENANCE NEEDS, WE RECOMMEND TO VERIFY THE PRESENCE OF SUCH RUBBER PADS AND TO PUT THE GRIDS BACK IN THEIR STABLE AND CENTRED CORRECT POSITION.

NO

Simple geometric diagram with a central circle and four crosshairs, enclosed in a square frame (no text or symbols)

Simple geometric diagram with a central circle and four crosshairs, enclosed in a square frame (no text or symbols)

YES

Instructions for use

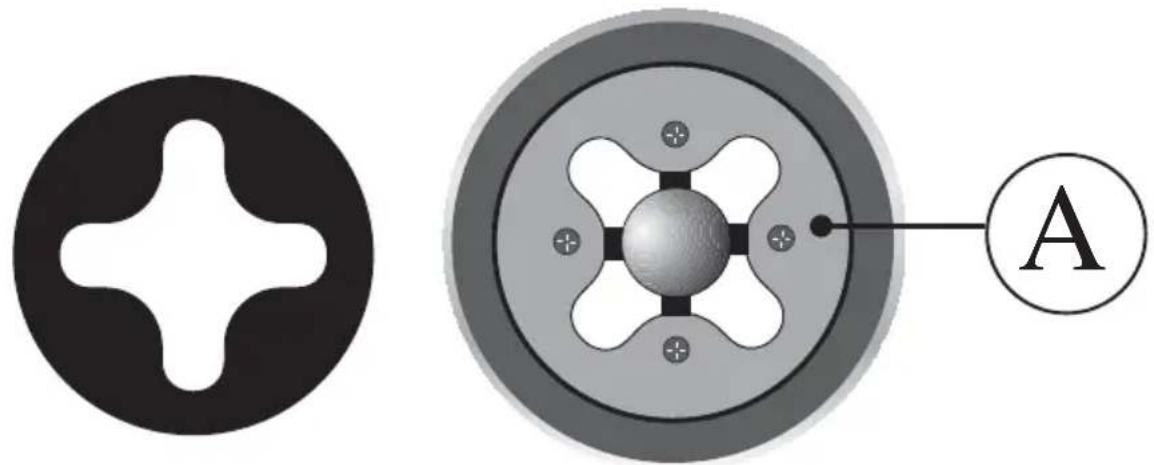

Important. In case of burners removal for cleaning purposes, we recommend to make sure that all parts are correctly positioned before igniting the burners again. In particular, as far as the “Dual” burner is concerned, never remove the central screwed disc located under the small lid for cleaning purposes (detail A). Qualified personnel shall exclusively carry out such operation, if necessary.

Diagram showing a cross-shaped symbol and a circular structure with a central sphere, labeled A (no text or symbols beyond labels)

Instructions for installation

Below we give the instructions for qualified installers so that the installation, setting and maintenance operations are performed correctly and according to the regulations in force.

Positioning

This appliance isn't connected to any scavenging devices of combustion products.

The appliance can only be installed and operate in permanently ventilated rooms according to the local regulations in force.

The natural flow of air must be direct through permanent holes made in the walls of the room to be ventilated leading to the outside, or through single or collective branched ventilation ducts.

The ventilation openings must have a effective cross-section of at least 100 cm ^2 and must be protected against accidental blocking (protection with metal grills or grids). For appliances without safety valve on the hob, the opening section is doubled with a minimum of 200 cm ^2 .

There may also be an indirect flow of air from rooms next to that where the appliance is installed, as long as these rooms have direct ventilation, there is no fire risk in these rooms and they are not bedrooms.

The flow of air between adjacent room and the room where it is installed must be free through permanent openings (which may be obtained by making the gap between door and floor larger).

In the room where it is installed there must be a system for leading the combustion fumes to the outside. This may be with a hood or an electric fan which switches on when the appliance is switched on.

Gas connection

The appliance must be connected to the gas supply or the cylinder according to the specifications of the standards in force and after checking that it is adjusted for the type of gas available.

The appliance is set up to operate with the gas specified on the calibration label placed both on the packaging and on the back of the appliance.

When the type of gas available does not correspond to that for which the appliance is set up, replace the corresponding injectors (provided), being careful to put on the new calibration label (provided) and remove the old one.

Instructions for installation

To perform these operations the qualified installer will follow the indications given in the "Adaptation to the various types of gas" section.

For safety operation make sure that the supply pressure respects the values given in the "Table of burner and injector characteristics".

If the appliance is supplied with liquid cylinder gas, make sure that the cylinder pressure regulator conforms to the local regulations in force.

The appliance must be connected to the gas system by a rigid metal pipe (copper or steel) or continuous wall stainless steel flexible hose in such a way that the appliance is not stressed in any way.

The appliance gas inlet tube has an end nut to which is connected the elbow union (supplied; 1/2 thread male gas). It can be turned depending on installation needs.

The rigid or flexible metal supply pipe (I max = 2mt) is connected to the part opposite the elbow union. Remember to put the gaskets supplied at the two ends of the elbow union.

When these parts are disassembled and reassembled, always replace the gaskets with new ones.

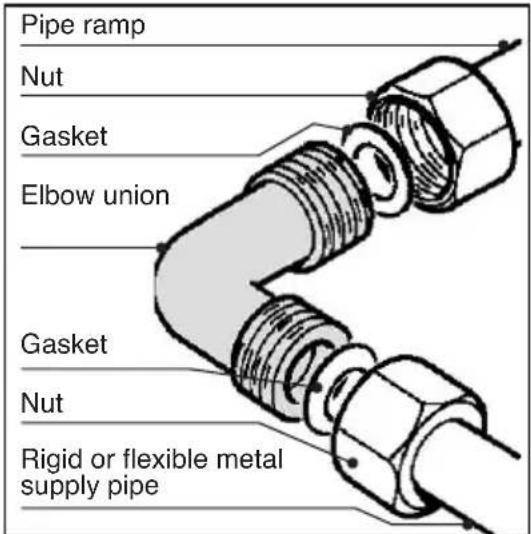

Pipe ramp Nut Gasket Elbow union Gasket Nut Rigid or flexible metal supply pipe

Once the appliance is installed, check that the gas pipe is not pinched or damaged by mobile parts.

Important: when installation is complete, check that all the gaskets are leaktight using a soap-based solution, never a flame.

Instructions for installation

ELECTRICAL CONNECTION

The appliances are provided with a three-pole feeding cable and work with alternate current and voltage indicated on the “rating plate of the product” report at the end of the instruction manual and on the product.

The grounding conductor of the cable is marked with the colours yellow/green.

CONNECTION OF THE FEEDING CABLE TO THE MAINS

Connect the feeding cable to a plug suitable for the load indicated on the rating plate of the product. In case of a direct connection to the mains (cable without plug), it is necessary to insert a suitable omnipolar switch before the appliance, with minimum opening between contacts of 3 mm (the grounding wire should not be interrupted by the switch).

Before connecting to the mains, make sure that:

- the electrical counter, the safety valve, the feeding line and the socket are adequate to withstand the maximum load required (see rating plate).

- the supply system is regularly grounded, according to the regulations in force.

- the socket or the omnipolar switch can easily be reached after the installation.

• after carrying out the connection to the mains, check that the supplying cable does not come into contact with parts subject to heating.

- never use reductions, shunts, adaptors which can cause overheating or burning.

Diagram of a satellite with solar panels and ground equipment (no text or symbols)

When the appliance is to be installed above a built-in oven, the two appliances must be connected separately, to make it easier to take the appliances out and for electrical safety.

The manufacturer is not liable for any direct or indirect damage caused by faulty installation or connection. It is therefore necessary that all installation and connection operations are carried out by qualified personnel complying with the local and general regulations in force.

Instructions for installation

Adaptation to different types of gas

To adapt the appliance to a gas different from that for which it was set up (see label on both the packaging and the bottom of the appliance) proceed as follows:

• remove the grids
• remove the covers and the spreaders
• with a 7 mm socket spanner unscrew and remove the injectors.
• replace the injectors with those supplied corresponding to the gas available (see burner and injector characteristics Table)
• replace the various parts proceeding in reverse. Remember to replace the old rating plate with the new one (supplied).

Hand holding a circular switch with a black arrow pointing to the switch (no text or symbols visible)

Hand holding a screwdriver above a circular base (no text or symbols visible)

Whenever the gas pressure used is different (or variable) from that used, install a pressure regulator which conforms to the local regulations in force on the input pipe.

Instructions for installation

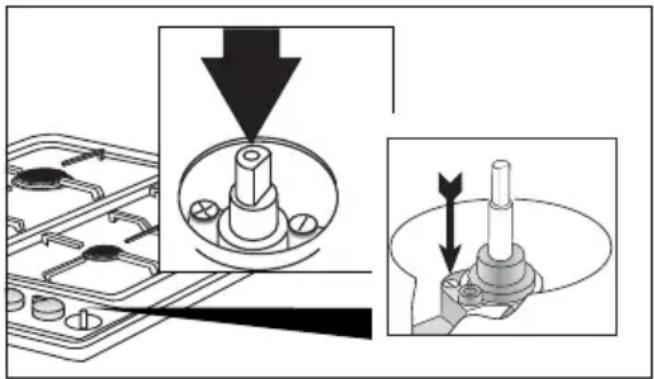

Setting the minima

The flame on the small output is regulated in the factory. When the injectors have been replaced or there are special mains pressure conditions, it may be necessary to regulate the minimum again. The operations necessary to perform this operation are the following:

• light the burner
• turn the knob to the minimum position
  • take out the knob (and gasket if there is one)

- using a suitably sized screwdriver turn the regulation screw inside or by the side of the tap shaft until a small regular flame is obtained

- put the knob back on and turn it quickly from the maximum position to the minimum position, checking that the flame does not go out

Technical diagram showing a mechanical assembly with a bolt and shaft, including a close-up of the shaft's internal structure.

- for burners with safety valve make sure that the regulation obtained is sufficient to maintain heating of the thermocouple. If it is not increase the minimum.

- As for a DUAL burner, the adjustment screw located inside the rod of the gas-cock regulates the inner flame, while the screw located on the gas-cock side regulates the outer flame.

Regulation of minimum for LPG

To regulate the minimum for LPG, completely tighten (clockwise) the screw inside or next to the gas tap pin.

The operations described above can easily be performed whatever the positioning or fastening of the hob to the cabinet.

THE BURNERS REQUIRE NO REGULATION OF THE PRIMARY AIR.

Instructions for installation

Burner and nozzle characteristic table

CAT. II 2H3 +

Burner (heights cover) mm	By pass 1/100 mm	Thermal power (*) (kW)		Liquid gas		Natural gas
				Output (g/h) G30 - G31	Injector 1/100mm	Output (l/h) G20	Injector 1/100mm
		Rated	Reduced
Quick ( = 100 )	44 3	0,9 218 - 214	85 286 128
Medium quick ( = 75 )	34 1,	75 0,6 127 - 1	25 65 167 97
Auxiliary ( = 55 )	29 1	0,45 73 - 71 50	95	72
Triple ring ( = 132 )	64 3,8	1,6 276 - 271		97 362	132
DUAL total ( = 140 )	27+60 (int+est)	4	1,8	290 - 286	66+43+66 (est+int+est)	381	98+66+98 (est+int+est)
DUAL central ( = 45 )	27 0,9 (int)	0,4	65 - 64	43	86 66 (int)		(int)
Rated supply pressure (mbar) (1 mbar ≈ 10,197mm H_2O )				G30 = 28 - 30 G31 = 37		G20 = 20

(^*) = With dry gas and with greater calorific power (H_S) at 15^ and 1013,25 mbar

Instructions for installation

Instructions for building in the units

The appliance is of class 3. It can be installed with just one side part (to right or left of the hob) higher than the cooking hob and placed at a minimum distance as shown in figure.

It can be built into all units whose walls withstand a temperature 65^ C higher than room temperature (UNI EN 30-1-1 e/o CEI EN 60335-2-6).

Avoid installing the appliance near inflammable materials (e.g. curtains, cloths, etc.).

Hobs series (cm)	L (mm)		P (mm)		H (mm)
	steel or enameled	glass	steel or enameled	glass	steel or enameled	glass
30	290 290	510 510 46	50
45	440 450	500 510 46	50
60	585 600	500 510 46	50
70	720 710	510 510 46	50
90	890 890	500 510 46	50

P L H

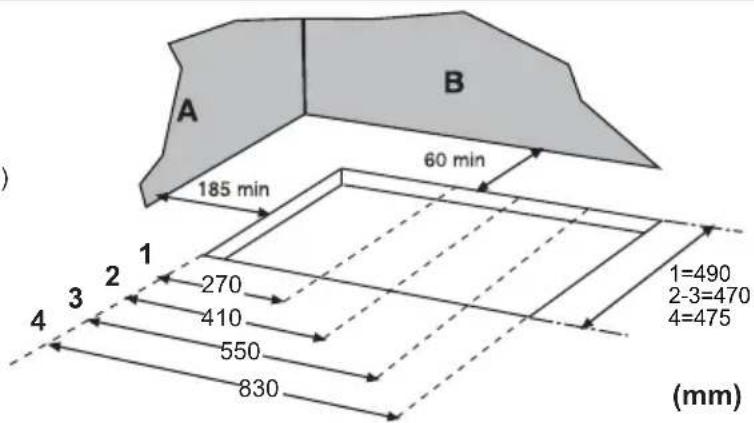

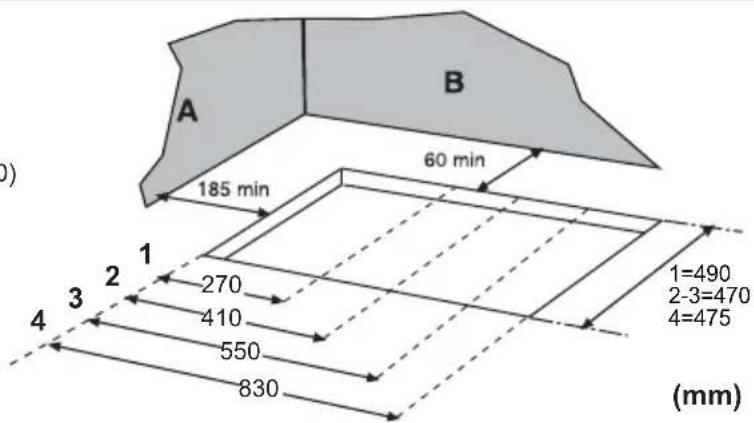

Hole dimensions

1 = hobs series 30 cm (270x490)
2 = hobs series 45 cm (410x470)
3 = hobs series 60 e 70 cm (550x470)
4 = hobs series 90 cm (830x475)

A = any side wall

B = any back wall

A B 60 min 185 min 1=490 2-3=470 4=475 270 410 550 830 (mm)

The dimensions of the openings for building in are given in the figure which also gives the minimum distances to be respected between the hole for building in and the side and back walls.

Instructions for installation

Steel or enamelled plate hobs

• Position the special sealed gasket (provided) on the edge of the hob making sure that the ends meet without one lying on top of the other.
• Put the hob in the unit opening making sure that it is centred.
• Fasten the hob to the unit with the fastening brackets. The traction of the screws will be enough to cut the sealing gasket so that the excess can easily be removed.

Glass hobs

• Position the special sealed gasket (supplied) on the edge of the hob making sure that the ends meet without one lying on top of the other.
• Put the hob in the unit opening making sure that it is centred.
• Fasten the hob to the unit with the fastening brackets.

30 40 20 8

Warnings

If there is a hanging unit over the cooking hob it must be at least 600 mm away from it.

In order to avoid excessive overheating, even if there is no oven below, it is necessary to provide a separating space having at least the size of the embedment hole.

85 mm SEPARATOR

Four identical line drawings of a cooking pot with crossed xenkets, one being heated by a stove, another in a bowl, and the third in a pot with a pile of food (no text or symbols)

Exploded view diagram of a battery pack with labeled components and internal parts

Two circular diagrams labeled A and B with scattered light elements and symbols, no readable text or numbers present.

Simple line drawing of a circle with a rectangle inside, and three small icons below (star, flame, and dot) — no text or symbols present.

Mechanical assembly diagram showing a shaft and housing component (no text or labels)

Diagram showing a cross-shaped symbol and a circular component with a labeled point A (no text or symbols beyond labels)

Diagram of a satellite with two motors and a solar panel, intersected by a diagonal line (no text or symbols)

Hand holding a circular switch with a black arrow pointing to the button (no text or symbols visible)

Hand holding a screwdriver above a circular base with a ring (no text or symbols visible)

Technical diagram showing mechanical assembly with a bolt and shaft, including a close-up of the shaft's base (no text or symbols present)

A = possible pared lateral

B = possible pared trasera

A B 185 min 60 min 1=490 2-3=470 4=475 270 410 550 830 (mm)

Label of ratings plate

Abstract gray rectangular shape with white horizontal lines and a small inset grid (no text or symbols)
