USER MANUAL JV635HBB GE

Operating/Care and Cleaning Instructions

Charcoal Filters 5

Grease Filters 4

Hood Lights 5

Hood Surfaces 5

Stainless Steel Surfaces ..... 5

Vent Controls 4

Installation Instructions...6-14

Troubleshooting Tips ..... 15

Consumer Support

Consumer Support 20

Warranty 19

Owner's Manual and Installation Instructions

JV535

JV536

JV565

JV566

JV635

JV636

JV665

JV666

Write the model and serial numbers here:

Model # ____

Serial # ____

Find these numbers on a label on the back wall of the hood.

49-80438-4 07-13 GE

LI139F

SAFETY PRECAUTIONS

⚠ WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
C. Do not use this unit with any solid-state speed control device.
D. This unit must be grounded.

CAUTION - FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.

WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

A. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN—You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels—a violent steam explosion will result.
D. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.

3. The fire department is being called.

4. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire Safety" published by NFPA.

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking on high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

⚠ WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities. When applicable, install any makeup (replacement) air system in accordance with local building code requirements. Visit GEAppliances.com for available makeup air solutions.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.

WARNING - TO REDUCE THE RISK OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE—DO NOT VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS, CRAWL SPACES OR GARAGES.

WARNING – TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

Do not attempt to repair or replace any part of your hood unless it is specifically recommended in this guide. All other servicing should be referred to a qualified technician.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

READ AND SAVE THESE INSTRUCTIONS

PRÉCAUTIONS EN MATIÈRE DE SÉCURITÉ

▲ AVERTISSEMENT – POUR RÉDUIRE LE RISQUE D'INCENDIE, DE SECOUSSE ÉLECTRIQUE OU DE BLESSURE CORPORELLE, OBSERVEZ LES PRÉCAUTIONS SUIVANTES :

Using the hood controls.

Throughout this manual, features and appearance may vary from your model.

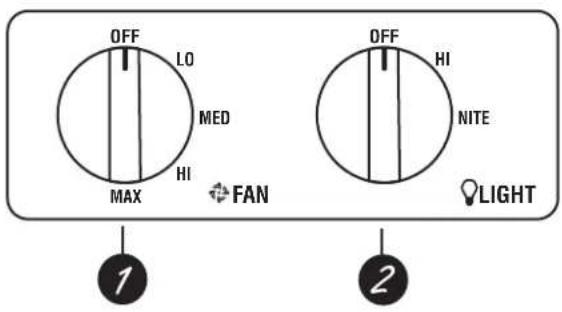

Control Knobs (on some models)

FAN Control

Turn to LO, MED, HI or MAX as needed.

Continuous use of the fan system while cooking helps keep the kitchen comfortable and less humid. It also reduces cooking odors and soiling moisture that create a frequent need for cleaning.

LIGHT Control

Turn to HI while cooking or to NITE for use as a night light.

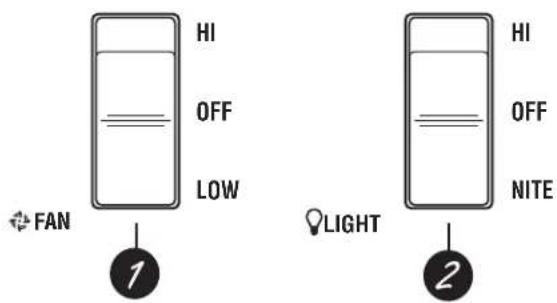

Rocker Switch Controls (on some models)

FAN Control

Press the rocker switch at the top to turn the fan on HI and at the bottom to turn it on LOW. The center position is OFF.

Continuous use of the fan system while cooking helps keep the kitchen comfortable and less humid. It also reduces cooking odors and soiling moisture that create a frequent need for cleaning.

LIGHT Control

Press the rocker switch at the top to turn the light ON while cooking. Press the rocker switch at the bottom for use as a night light. The center position is OFF.

Care and cleaning of the vent hood.

Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the vent hood.

If it ever becomes necessary to replace the metal grease filters, they may be ordered from your GE supplier.

Reusable Metal Grease Filters

The hood has 2 metal reusable grease filters.

The metal filters trap grease released by foods on the cooktop. They also help prevent flaming foods on the cooktop from damaging the inside of the hood.

For this reason, the filters must ALWAYS be in place when the hood is used. The grease filters should be cleaned once a month, or as needed.

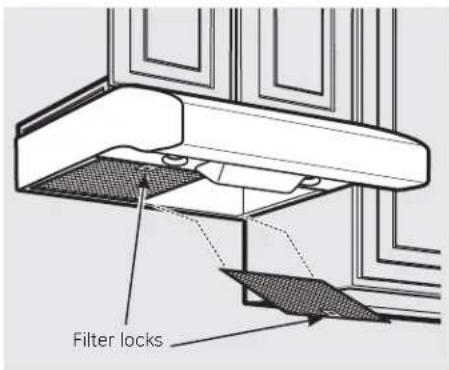

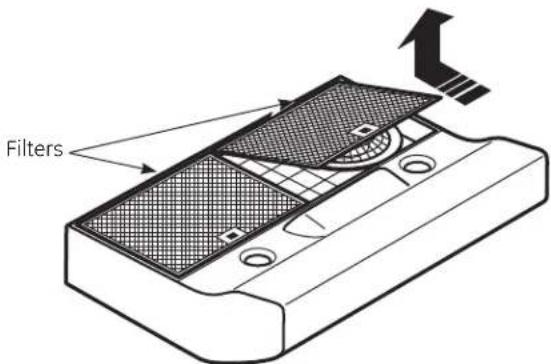

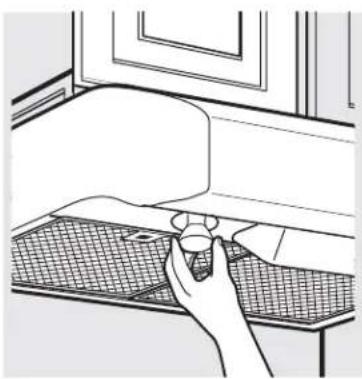

To remove, press the filter locks back and pull the filters down and out.

To replace, insert the rear filter tabs in the frame slots at the back of the opening. Push the filters up and lock them into place.

To clean the grease filters, soak them and then swish them around in hot water and detergent. Don't use ammonia or ammonia products because they will darken the metal. Do not use abrasives or oven cleaners. Light brushing can be used to remove embedded dirt. Rinse, shake and let them dry before replacing. They may also be cleaned in an automatic dishwasher.

NOTE: Before cleaning, make sure the charcoal filters, if present, are unclipped and removed. See the Charcoal Filters section.

Care and cleaning of the vent hood. GEAppliances.com

Technical line drawing of a mechanical component with no visible text or symbols

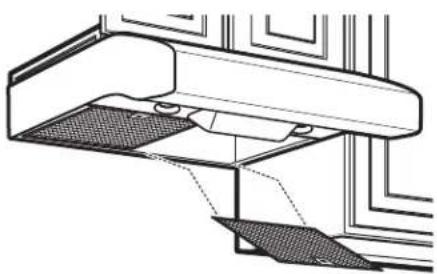

The charcoal filters are clipped inside of each reusable metal grease filter.

Charcoal Filters (on some models)

The charcoal filters cannot be cleaned. They must be replaced.

For 30 " hood models, order Kit no. WB02X10707.

For 36 " hood models, order Kit no. WB02X10708.

These kits can be ordered from your GE supplier.

NOTE: Charcoal filters are not included with the hood. They must be ordered from your GE supplier.

If the model is not vented to the outside, the air will be recirculated through disposable charcoal filters that help remove smoke and odors.

The charcoal filters should be replaced when they are noticeably dirty or discolored (usually after 6–12 months, depending on hood usage).

NOTE: DO NOT rinse, or put charcoal filters in an automatic dishwasher.

Painted Surfaces (on some models)

To clean the hood surface, use a hot, damp cloth with a mild detergent suitable for painted surfaces. Use a clean, hot, damp cloth to remove soap. Dry with a dry, clean cloth.

Do not use steel-wool pads or other abrasive cleaners. They will scratch the surface. Wipe with a clean, hot, damp cloth after using cleansers.

Stainless Steel Surfaces (on some models)

Do not use a steel wool pad; it will scratch the surface.

To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the grain. Follow the cleaner instructions for cleaning the stainless steel surface.

To inquire about purchasing stainless steel appliance cleaner or polish, or to find the location of a dealer nearest you, please call our toll-free number:

National Parts Center 800.626.2002

GEApplianceParts.com

Line drawing of a hand cleaning a kitchen sink with a cloth (no text or symbols)

Hood Lights

This hood requires two bulbs (not included), maximum 50 watts.

Purchase and install PAR20, 50 W Maximum halogen bulbs.

When replacing a bulb, let it cool first. Make sure that power to the light has been turned off. Never allow a hot bulb to come into contact with water.

⚠ WARNING: To reduce the risk of electric shock, do not connect electrical power to the hood without both bulbs in place.

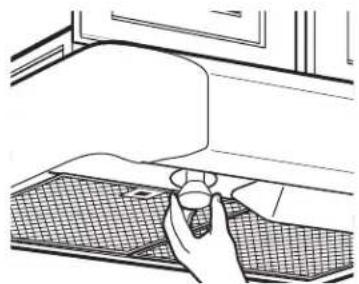

To change the light bulbs:

1 Grasp the bulb on the edges and unscrew it.

2 Replace with the same size bulb.

CAUTION:

Do not touch the hood light bulbs when they are on. They may be hot enough to cause injury.

The light bulbs operate at extremely high temperatures. If they shatter, the hot glass could cause personal injury.

Installation Instructions

Range

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical and electrical skills.
  • Completion time - 1-3 hours
  • Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
  • Use only with approved cord kit, JXHC1.

FOR YOUR SAFETY:

⚠ WARNING – Before beginning the installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

DUCTWORK REQUIREMENTS

NOTE: Read the ductwork sections only if you do not have existing ductwork. If you have existing ductwork, skip to the "Damage" section and proceed.

⚠ WARNING – TO REDUCE THE RISK OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE—DO NOT VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS, CRAWL SPACES OR GARAGES.

The venting system must exhaust to the outside.

This hood can be vented vertically through upper cabinets or horizontally through an outside wall. Ductwork is not included.

When applicable, install any makeup (replacement) air system in accordance with local building code requirements. Visit GEAppliances.com for available makeup air solutions.

Exhaust connection:

The hood exhaust has been designed to mate with standard 3 14 " x 10" rectangular ducting or 7" diameter round ducting.

If a 6" round duct is required, a rectangular-to-round transition adaptor must be used*. Do not use less than a 6" diameter duct.

Maximum duct length:

For satisfactory air movement, the total duct length of a 314 " x 10" rectangular, 7" diameter round duct should not exceed 65 equivalent feet.

NOTE: It's important that ducting be installed using the most direct route and with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. Also, make sure dampers swing freely and nothing is blocking the ducts.

Elbows, transitions, wall and roofcaps, etc., present additional resistance to airflow and are equivalent to a section of straight duct longer than their actual physical size. When calculating the total duct length, add the equivalent lengths of all transitions and adaptors plus the length of all straight duct sections. The charts on the following pages show you how to calculate total equivalent ductwork length using the approximate feet of equivalent length of some typical ducts.

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper. Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any hood.

WORKSHEET—CALCULATE TOTAL EQUIVALENT DUCTWORK LENGTH

DUCT PIECES		EQUIVALENT NUMBER LENGTH ×
	31⁄4"×10" Rect., straight	1 Ft. ×( ) =		Ft.
	7" Round, straight	1 Ft. ×( ) =		Ft.
	6" Round, straight	1 Ft. ×( ) =		Ft.
	31⁄4"×10" Rect. elbow	14 Ft. ×( ) =90°		Ft.
	31⁄4"×10" Rect. elbow	8 Ft. ×( ) =45°		Ft.
	31⁄4"×10" Rect. flat	33 Ft. ×( ) =90°elbow		Ft.
	31⁄4"×10" Rect. wall with damper	24 Ft. ×( ) = (18 ft. w/o damper) ×( ) == = = Ft.		Ft.
	31⁄4"×10" Rect. 6 transition	3 Ft. ×( ) =to" round		Ft.
	31⁄4"×10" Rect. to 6 transition 90°	9 Ft. ×( ) =" roundelbow		Ft.
	6" Round, 90°	25 Ft. ×( ) =elbow		Ft.
	6" Round, 45°	16 Ft. ×( ) =elbow		Ft.
Subtotal column 1 =				Ft.

MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of a 314 " × 10" rectangular, 7" diameter round duct should not exceed 65 equivalent feet.
NOTE: Any home ventilation system, such as a ventilation hood, may interrupt the proper flow of combustion air and exhaust required by fireplaces, gas furnaces, gas water heaters and other naturally vented systems. To minimize the chance of interruption of such naturally vented systems, follow the heating equipment manufacturer's guidelines and safety standards such as those published by NFPA and ASHRAE. When applicable, install any makeup (replacement) air system in accordance with local building code requirements. Visit GEAppliances.com for available makeup air solutions.

DUCTUSFACES = TOTAL		EQUIVALENT NUMBERLENGTH X USED =		TOTAL
	6" Round wall with damper	53 Ft. (39 ftcap/o damper)	×( ) = ×( ) =	Ft.Ft.
	6" Round roof	72 Ft.cap	×( ) =	Ft.
	6" Round to 31⁄4"x10" rect. transition	3 Ft.	×( ) =	Ft.
	6" Round to 31⁄4"x10" rect. transition 90°	9 Ft.elbow	×( ) =	Ft.
	7" Round, 90°	14 Ft.elbow	×( ) =	Ft.
	7" Round, 45°	9 Ft.elbow	×( ) =	Ft.
[SHY5]	7" Round wall with damper	28 Ft. 21 ftcap/o ( damper)	×( ) = ×( ) =	Ft.Ft.
	7" Round roof	39 Ft.cap	×( ) =	Ft.
	7" Round to 31⁄4"x10" rect. transition	1 Ft.	×( ) =	Ft.
	7" Round to 31⁄4"x10" rect. transition, 90°	5 Ft.elbow	×( ) =	Ft.
Subtotal column 2 = Subtotal column 1 = Total ductwork =				Ft.
				Ft.
				Ft.

DAMAGE—SHIPMENT/INSTALLATION

• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer.

NOTES:

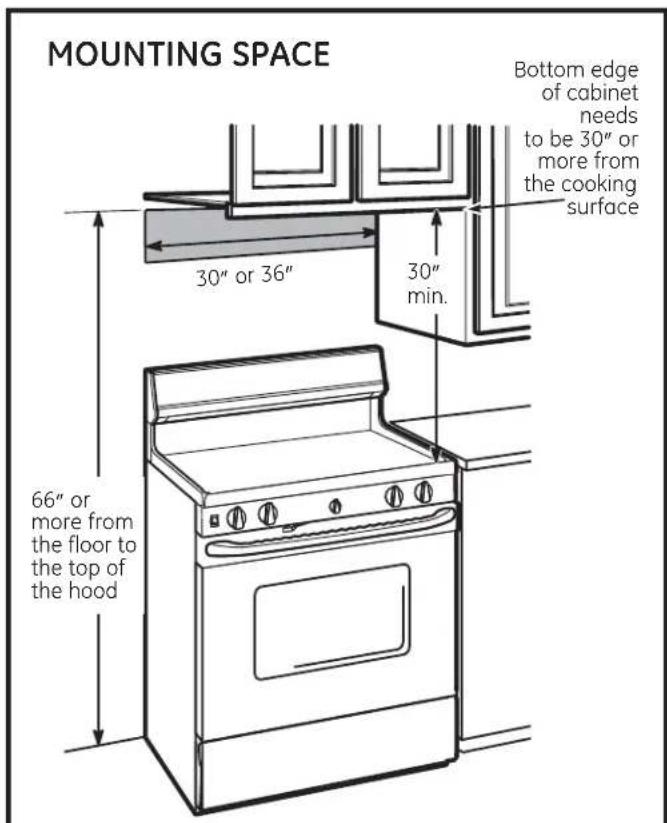

• This range hood is for installation over ranges up to 36" wide.
• If you are going to vent your range hood to the outside, see the "Ducting Requirements" section for exhaust duct preparation.

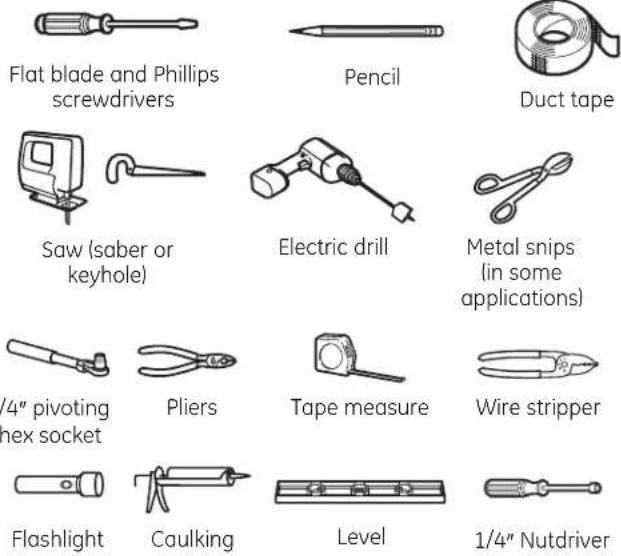

TOOLS YOU WILL NEED

Flat blade and Phillips screwdrivers
Pencil
Duct tape
Saw (saber or keyhole)
Electric drill
Metal snips (in some applications)
1/4" pivoting hex socket
Pliers
Tape measure
Wire stripper
Flashlight
Caulking
Level
1/4" Nutdriver

PARTS INCLUDED

PART
	Metal Grease Filters 2
Mounting Screws 4
	Exhaust Adaptor/Damper 1(for 31⁄4" x 10" rect. venting)
[CH8A]	Exhaust Adaptor Screws 1
	Exhaust Adaptor 1(for 7" round venting)

PARTS YOU MAY NEED

Damper for 7" RoundAdaptor (Obtain Locally)

OPTIONAL ACCESSORIES

These kits can be ordered from your GE supplier.
order Kit no.	Cord Kit—For both 30" and 36" models, JXHC1.
	Charcoal Filters—JV5 Series only, if recirculating For 30" hood models, order Kit no. WB02X10707. For 36" hood models, order Kit no. WB02X10708.

1 CHOOSE VENT OPTION

Determine the vent option that your installation will require from the following choices:

The outside vent exhaust option that your installation requires will determine the hood knockouts that you will use.

NOTE: Only JV5 Series models may be recirculated. The JV6 Series models cannot be recirculated.

IMPORTANT: If the hood is to be installed in a recirculating, non-vented ductless manner, do not knock out any vent openings in the hood. Only an electrical access hole will be knocked out of the hood.

Outside top exhaust
(Vertical duct—3 ^1/4 " × 10" Rectangular)

Technical line drawing of a mechanical component with two upward arrows indicating motion or force (no text or symbols)

Outside rear exhaust
(Horizontal duct—3 ^1/4 " x 10" Rectangular)

Simple line drawing of a rectangular electronic device with two upward arrows indicating motion or force (no text or symbols)

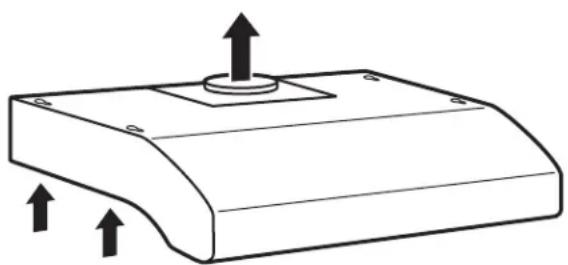

Outside top exhaust
(Vertical duct—7" Round)

Simple line drawing of a mechanical component with two upward arrows indicating force or movement (no text or symbols)

Recirculating
(Non-vented ductless—Optional for JV5 Series models only)

Simple line drawing of a rectangular object with three upward arrows indicating direction, no text or symbols present.

2 REMOVE EXHAUST ADAPTOR

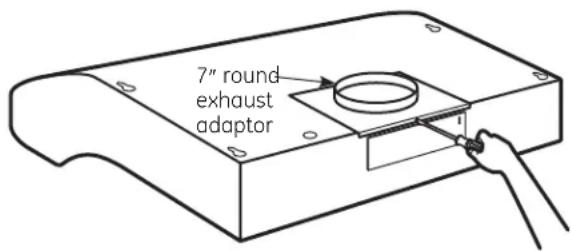

Remove the 7" round exhaust adaptor from the top of the hood. Set it aside along with its mounting screws.

NOTE: Save the screws for 3-1/4" × 10" rectangular ducted installation, if that is your chosen venting option.

4 REMOVE WIRING COVER FROM THE JUNCTION BOX

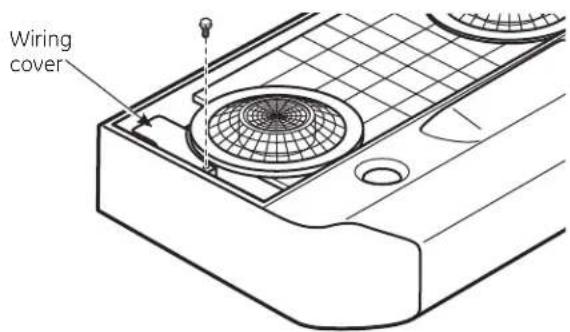

Remove the wiring cover from inside the hood. Set the cover and its mounting screw aside.

3 REMOVE FILTERS

Remove the protective shipping film from the edges of the metal grease filters. Press the filter locks back and lift the filters out. Set them aside.

5 REMOVE WIRING KNOCKOUT

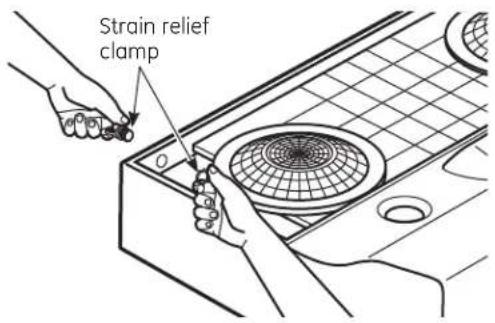

Remove either the top or the back wiring knockout as needed and install an approved strain relief clamp.

6 REMOVE DUCT KNOCKOUT(S)

If recirculating, non-vented ductless (optional for JV5 Series models only), see note below and skip to Step 9 D and proceed. The JV6 Series models cannot be recirculated.

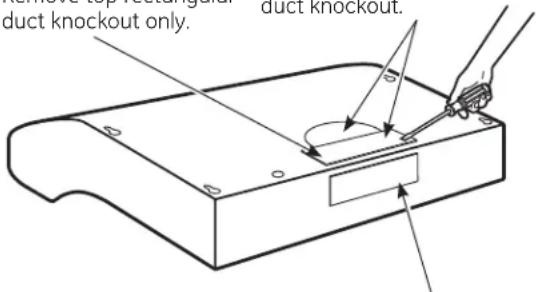

Using a flat blade screwdriver, remove the appropriate duct knockout(s) from the top or back of the hood.

3^1/4 x 10" Rectangular vertical discharge.

Remove top rectangular duct knockout only.

7" Round vertical discharge.

Remove semi-circular duct knockout and top rectangular duct knockout.

3¼" x 10" Rectangular horizontal discharge. Remove rear rectangular duct knockout only.

NOTE: If the hood is to be installed in a recirculating, non-vented ductless manner, order charcoal filters, kit number WB02X10707 for 30" hood models, or kit number WB02X10708 for 36" hood models. These kits can be ordered from your GE supplier. Skip to Step 9 D and proceed.

7 FOR 3½" x 10" RECTANGULAR DUCTED DISCHARGE INSTALLATIONS ONLY:

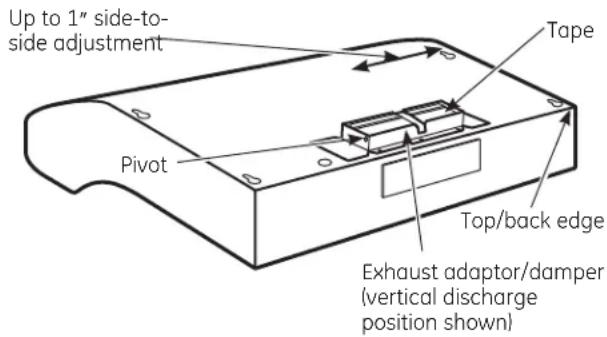

Attach exhaust adaptor/damper over knockout opening with two exhaust adaptor screws. Make sure damper pivot is nearest to top/back edge of hood. Remove tape from damper flap.

NOTE: The exhaust adaptor/damper can be installed up to 1 inch on either side of the hood center to accommodate off-center ductwork. In extreme off-center installations, one end of the duct connector may need to be trimmed to clear the electrical cable clamp.

8 FOR 7" ROUND VERTICAL DUCTED DISCHARGE INSTALLATIONS ONLY:

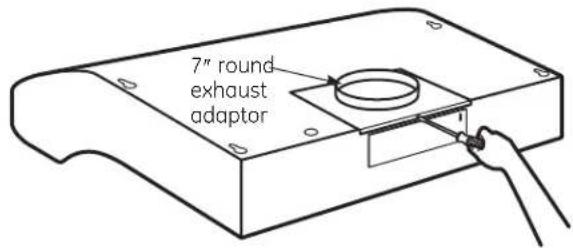

Re-install the 7" round exhaust adaptor with its screws, removed in Step 2 under the "Prepare the Hood" section.

NOTE: The 7" round exhaust adaptor can be installed up to 1 inch on either side of the hood center to accommodate off-center ductwork. In extreme off-center installations, one end of the duct connector may need to be trimmed to clear the electrical cable clamp.

NOTE: The 7" round damper is not included with this product. It can be purchased as a kit by calling 800.626.2002. Order kit number JXDA22.

9 MARK HOLES

Select the vent option that your installation will require and proceed to that section:

A. Outside top exhaust

(Vertical duct-3¼" × 10" Rectangular)

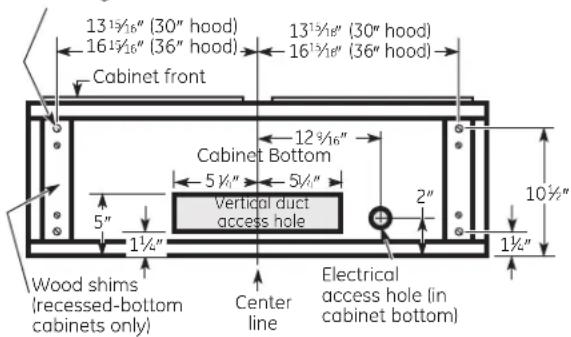

- Use the diagram or the hood as a template and mark the locations on the cabinet for ductwork, electrical wiring and keyhole screw slots.

Hood mounting screws (4)

B. Outside top exhaust (Vertical duct-7" Round)

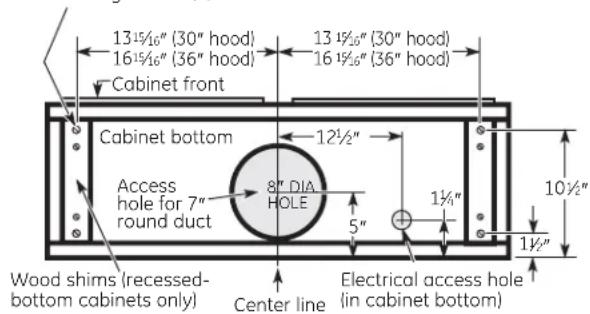

- Use the diagram or the hood as a template and mark the locations on the cabinet for ductwork, electrical wiring and keyhole screw slots.

Hood mounting screws (4)

C. Outside rear exhaust

(Horizontal duct-3 ^1/4 " × 10" Rectangular)

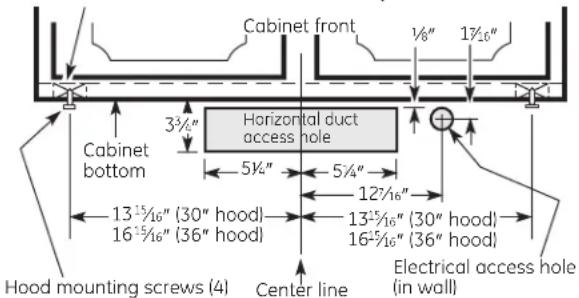

- Use the diagram or the hood as a template and mark the locations on the cabinet for ductwork, electrical wiring and keyhole screw slots.

Wood shims (recessed-bottom cabinets only)

D. Recirculating (non-vented ductless-Available on JV5 Series models only)

• Use the hood as a template and mark the locations on the cabinet for the electrical wiring and keyhole screw slots.
• Since the hood is to be recirculated (not to be vented outside), do not cut out any vent openings in the wall or cabinet bottom.

10 CHOOSE VENTING OPTION

(for JV5 Series models only)

The hood can be set to vent outside or to recirculate air back into the kitchen.

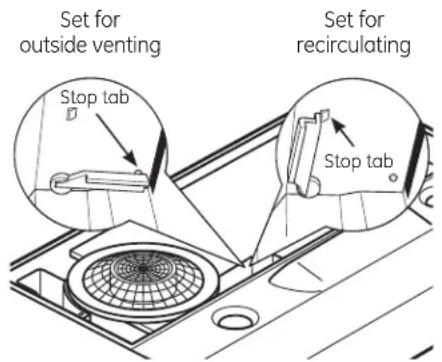

The plastic vent lever is located near the center of the hood opening.

• To vent to the outside, make sure the plastic vent lever is in the HORIZONTAL position (flat against the metal top of the hood).
• To recirculate air into the kitchen, make sure the plastic vent lever is in the VERTICAL position (flat against the plastic blower housing).

NOTE: In order to change the vent lever position, you will need to pull the lever out slightly to clear the plastic tabs.

Hood shown lying upside down

11 FOR RECESSED-BOTTOM CABINETS ONLY

- If the cabinets have front, side or back trim, make 2 wood shims the width of the trim and attach them to the cabinet bottom recess on both sides. See Step 9 for marking locations.

12 CUT HOLES

Cut holes at marked locations for duct and electrical wiring. For the vertical duct, cut out 3/4" extra toward the front of the cabinet so you can move the duct freely when installing the hood. It may also ease installation by cutting the hole 10½" instead of 10".

Line drawing of a hand holding a tool against a structural frame (no text or symbols)

13 RUN WIRES

Run the electrical wires through the wall or cabinet according to National Electrical Code and applicable local codes.

NOTE: DO NOT turn the power on until installation is complete.

14 SCREW IN PARTWAY

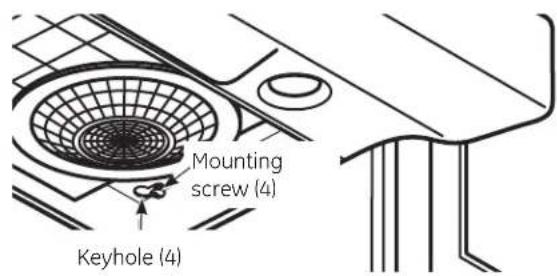

Drive a mounting screw (from the hardware packet) partway into each center of the narrow neck of the keyhole slots marked on the cabinet bottom.

15 FEED IN WIRES

Lift the hood into position and feed the house wiring through the wiring knockout.

16 SECURE HOOD

Slide the hood back against the wall. Tighten the mounting screws. Be sure the screw heads are in the narrow neck of the keyhole slot.

17 CONNECT DUCTWORK TO HOOD

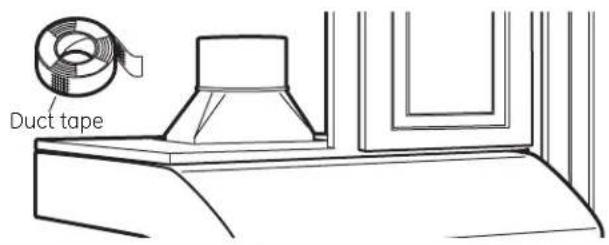

Use duct tape to make joints secure and air tight.

20 CONNECT WIRING

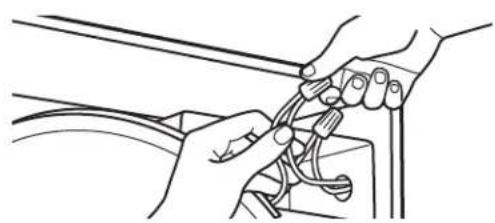

Connect house black to hood black wire, house white to hood white wire, and house ground to hood green/yellow wire. Securely tighten the strain relief clamp onto the house wiring.

Line drawing of hands holding a cable or wire, no text or symbols present

18 INSTALL LIGHT BULBS

Purchase and install two PAR20, 50 W maximum halogen bulbs. Light bulbs are not included with the hood.

⚠ WARNING: To reduce the risk of electric shock, do not connect electrical power to the hood without both bulbs in place.

Line drawing of a hand holding a small object over a textured surface, possibly a sink or drain (no text or symbols)

21 REPLACE WIRING COVER

Replace the wiring cover.

Technical line drawing of a mechanical component with grid and mounting holes (no text or symbols)

19 FOLLOW ELECTRICAL CODE

Complete the electrical wiring according to National Electrical Code and local codes.

NOTE: This hood must be permanently grounded.

Connect house wiring (120 VAC) to hood wiring.

22 REPLACE FILTERS

The installation is complete. Turn on power at service panel, and test for proper operation.

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

TROUBLESHOOTING CHECKLIST

If the hood seems to be operating at high speed when the control is not set on high, or if ventilation seems inadequate, check the following:

□ Knockouts not removed from hood.
☐ Damper blade not opening.
☐ Reduced airflow because the duct is too small or the duct length is too long.
☐ The duct is blocked.
□ Undersized or restrictive wall or roof cap.

Before you call for service...

Troubleshooting Tips

Save time and money! Review the following chart first

and you may not need to call for service.

Problem Possible Causes What To Do

Fan does not operate when the switch is on	A fuse may be blown or a circuit breaker may be tripped.	Replace fuse or reset circuit breaker.
Fan fails to circulate air or moves air more slowly than normalReplace the filter if it is too soiled to clean. If it is not soiled, or if replacing the filter does not solve the problem, call for service.	Excessively soiled filter.	Wash and replace the filters. See the Reusable Metal Grease Filters section.
Fan continually cycles off and onthe motor. Filter may be	The motor is probably overheating and turning itself off. This can be harmful to excessively soiled.	Replace the filter if it is soiled. If it is not soiled, or if replacing the filter does not solve the problem, call for service.
Air coming from the front vent (on some models) when it is ducted to the outside if the hood has been installed to recirculate.	Vent lever is in the VERTICAL position (flat against the plastic blower housing) for recirculating.	Move the lever back to the HORIZONTAL position (flat against the metal top of the hood) to vent to the outside. See Step 10 in the Installation Instructions for vent lever operation. This is normal

Notes.

Notes.

Notes.

GE Range Hood Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service on-line, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Replace:

One Year

From the date of the

Any part of the range hood which fails due to a defect in materials or workmanship.

During this limited one-year warranty, GE will also provide, free of charge, all labor and

original purchase in-home service to replace the defective part.

What GE Will Not Cover:

■ Service trips to your home to teach you how to use the product.
- Improper installation, delivery or maintenance.
- Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.

■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
■ Installation or service for a makeup (replacement) air system.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service Location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Consumer Support.

GE Appliances Website GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line.

Schedule Service GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept---products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories GEApplianceParts.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225

Register Your Appliance GEAppliances.com

Register your new appliance on-line---at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand cleaning a kitchen sink with a mesh net (no text or symbols)

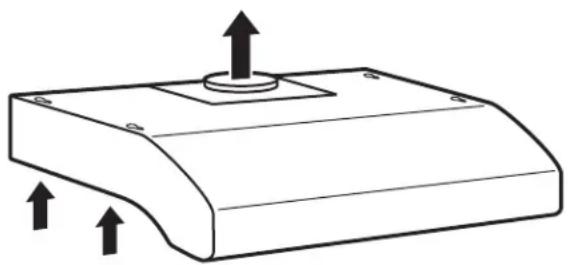

Luces de la campana

Technical line drawing of a mechanical component with two upward arrows indicating force or movement (no text or symbols)

Simple line drawing of a curved mechanical component with two upward arrows indicating motion (no text or symbols)

B Escape superior exterior (Ducto vertical—7" circular)

Simple line drawing of a mechanical component with two upward arrows indicating force or movement (no text or symbols)

Diagram of a curved rectangular object with three upward arrows indicating direction, no text or symbols present

2 RETIRE EL ADAPTADOR DEL ESCAPE

Line drawing of a hand holding a mechanical clamp or bracket (no text or symbols)

13 CORRA LOS CABLES

Line drawing of hands manipulating a cable or wire (no text or symbols)

18 INSTALE LAS BOMBILLAS

Line drawing of a hand cleaning a kitchen sink with a cloth (no text or symbols)

Technical line drawing of a mechanical component with grid and circular features (no text or symbols)

22 COLOQUE LOS FILTROS

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

19 SIGA EL CÓDIGO ELÉCTRICO

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com
