USER MANUAL ZX12DC30YSS GE

Before you begin—Read these instructions completely and carefully.

IMPORTANT: Save these instructions for local inspector's use.

IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES.

NOTE TO INSTALLER: Be sure to leave these instructions with the Consumer.

NOTE TO CONSUMER: Keep these instructions with your Use and Care Book for future reference.

WARNING This appliance must be properly grounded. See “Electrical Supply”, page 5.

If you have questions concerning the installation of this product, call the GE Answer

Center® Consumer Information Service at 800.626.2000, 24 hours a day, 7 days a week.

If you received a damaged vent hood, you should contact your dealer.

CAUTION!

Due to the weight and size of these vent hoods and to reduce the risk of personal injury or damage to the product, TWO PEOPLE ARE REQUIRED FOR PROPER INSTALLATION.

WARNING!

To reduce the risk of fire or electric shock, do not use this range hood with any external solid-state speed control device. Any such alteration from original factory wiring could result in damage to the unit and/or create an electrical safety hazard.

To reduce the risk of fire and to properly exhaust air, be sure to duct air outdoors. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.

B. Before servicing or cleaning unit, switch power off at service panel and lock service panel to prevent power from being switched on accidentally.

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

Installation work and electrical wiring must be done by qualified person(s). In accordance with all applicable codes and standards including fire-rated construction.

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

Contents

Design Information

Models available 3

Product Dimensions & Clearances 4

Advance Planning 5

Electrical Supply 5

Installation Preparation

Duct Fittings 6

Tools and Materials Required 7

Step 1: Remove the packaging and dis-assemble ....7

Installation

Step 2: Check Installation Hardware 8

Step 3: Construct Soffit Framing 8

Step 3A: Construct Wall Mount Framing 9

Step 4: Install Hood Below Soffit .... 10

Step 4A: Install Hood Onto Wall ....11

Step 5: Connect Electrical ....12

Step 6: Connect Ductwork....12

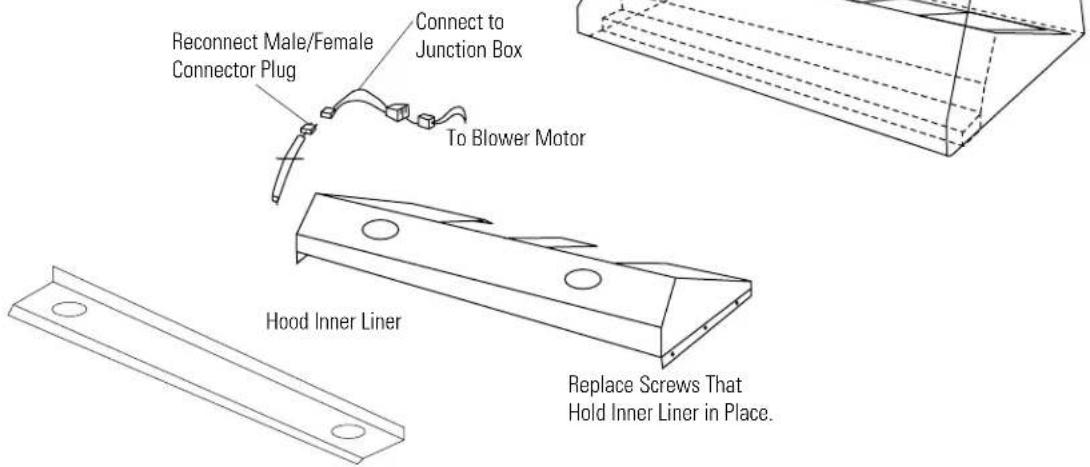

Step 7: Reassemble Hood....12

Step 8: Install Duct Cover ....13

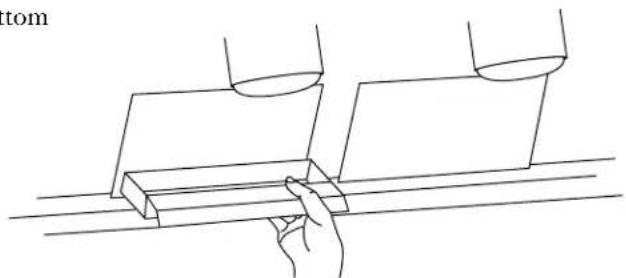

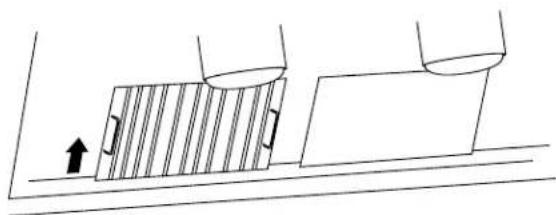

Step 9: Install Filters ....13

Design Information

Professional Vent Hoods
ModelsAvailable	These hoods can be installed into a soffit, or when there is no soffit, they can be installed directly onto a wall.48" and 36" wide models are available with different appearances. Model numbers with "YSS" have straight sides. Model numbers ending with "WSS" have sides which taper inwards from the bottom to the top.		48" Wide Models:ZV881WSS, ZV880WSS – with tapered sidesZV891YSS, ZV890YSS – with straight sides36" Wide Models:ZV671WSS, ZV670WSS – with tapered sidesZV681YSS, ZV680YSS – with straight sides30" Wide Models:ZV371YSS, ZV370YSS – with straight sides
DuctCoverAccessories	Before you begin:Decorative duct covers are available in 6" or 12" heights. The duct covers conceal the ductwork running from the top of the hood to the ceiling or soffit. Before you begin, you		should determine the installation height of the hood and order the correct size duct cover.Be sure to order the duct cover which corresponds to your model.
	Optional Accessory Duct Covers
	Style Hood Model 6" Duct Cover 12" Duct Cover
	A-Oval ZV881WSS, ZV880WSS	ZX6DC48WSS	6"Hx27-3/8"Wx10-1/4"D	ZX12DC48WSS	12"Hx27-3/8"Wx10-1/4"D
	A-Oval ZV671WSS, ZV670WSS	ZX6DC36WSS	6"Hx22-1/2"Wx9-3/16"D	ZX12DC36WSS	12"Hx22-1/2"Wx9-3/16"D
	B-Square ZV891YSS, ZV890YSS ZX6DC49YSS 6"Hx47-7/8"	WX12"D ZX12DC49YSS 12"	HX47-7/8"Wx12"D
	B-Square ZV681YSS, ZV680YSS ZX6DC38YSS 6"Hx35-7/8"	WX12"D ZX12DC38YSS 12"	HX35-7/8"Wx12"D
	B-Square ZV371YSS, ZV370YSS ZX6DC30YSS 6"Hx29-7/8"	WX12"D ZX12DC30YSS 12"	HX29-7/8"Wx12"D
	Style A-Oval Shape	Optional 6" or 12" Duct Cover	Style B-Square Shape	Optional 6" or 12" duct Cover
	Duct covers for models:ZV881WSS, ZV880WSS, ZV671WSS and ZV670WSS.		Duct covers for models:ZV891YSS, ZV890YSS, ZV681YSS, ZV680YSS, ZV371YSS and ZV370YSS.
Accessories(For 48" WideModels Only)	Transition duct pieces are available for 48" wide models. These pieces fit over the outlet on top of the hood. These transition pieces fit into a soffit or when there is no soffit, a 12" duct cover should be used.
			ZX48BY, transition to 10" round for horizontal exhaust.
	ZX48AY, transition to 10" round vertical exhaust.

Product

Dimensions

& Clearances

These vent hoods must be installed 30" Min. and 36" Max. above the cooking surface. Installation will be easier if the vent hood is installed before the range or cooktop installation.

The rating plate is located behind filter cutouts. To verify your model number, remove filters.

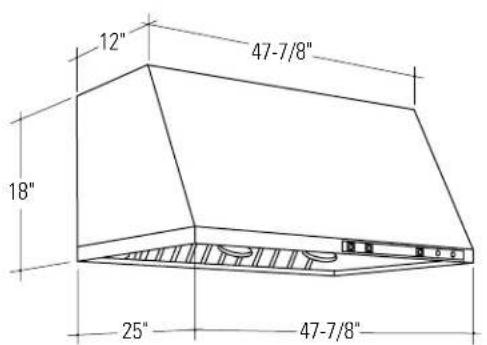

12" 47-7/8" 18" 25" 47-7/8"

ZV891YSS, ZV890YSS

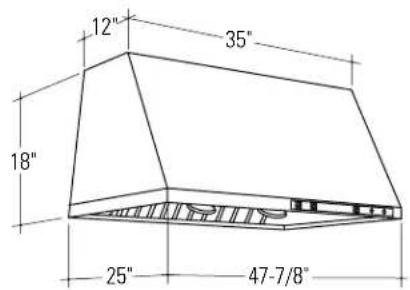

12" 35" 18" 25" 47-7/8"

ZV881WSS, ZV880WSS

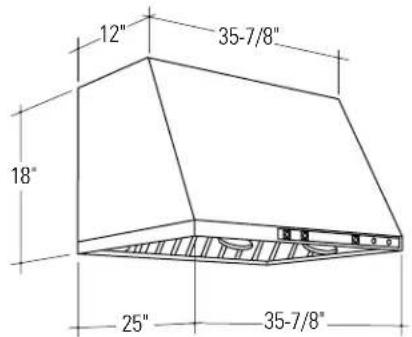

12" 35-7/8" 18" 25" 35-7/8"

ZV681YSS, ZV680YSS ZV671WSS, ZV670WSS

12" 23" 18" 25" 35-7/8"

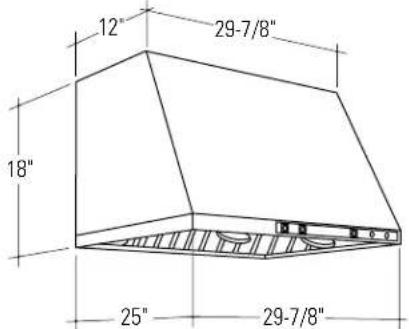

12" 29-7/8" 18" 25" 29-7/8"

ZV371YSS, ZV370YSS

SOFFIT INSTALLATION

SOFFIT 30° MIN

30" MIN. 36" MAX."

WALL MOUNT INSTALLATION

30" MIN

36" MAX."

Advance Planning

Ductwork planning

•Determine the exact location of the vent hood.
- Plan the route for venting exhaust to the outdoors.
- Use the shortest and straightest duct route possible. For satisfactory performance, duct run should not exceed 100 feet equivalent length for any duct configurations.
- Refer to “Duct Fittings” chart to compute the maximum permissible length for duct runs to the outdoors. See page 6.
- Use metal ductwork. For 48" models, 3-1/4" x 24" or 10" round. For 30" and 36" models, 7" to 10' round or 3-1/4" x 12" to 3-1/4" x 24".
- Install a wall cap with damper or roof cap at the exterior opening.

Determine the size of the wall or roof cap for your model and installation.

- Order the caps and any transitions needed in advance. See “Duct and Duct Fittings” listed in your local yellow pages. Be sure to include equivalent lengths of caps and transitions when calculating the total duct run. See “Duct Fittings”, page 6.

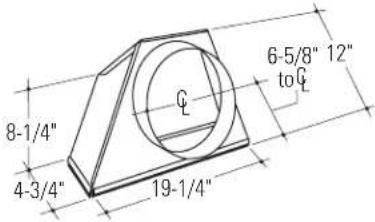

48" Wide Model Duct Transitions

- Transition duct pieces are available for 48" wide models. See illustrations of ZX48BY and ZX48AY transition pieces on page 3.

Installation Framing for adequate support

These vent hoods are heavy. Adequate structural support must be provided. Hoods must be secured to vertical studs or to studs in the soffit.

• Additional studs may be required for a soffit or wall mount installation. See Step 3, pages 8 and 9.
• We recommend that the vent hood and/or duct cover be on site before final framing and wall finishing. This will also help to accurately locate the ductwork and electrical service.
• Installation will be much easier if the vent hood is installed before the range or cooktop below.

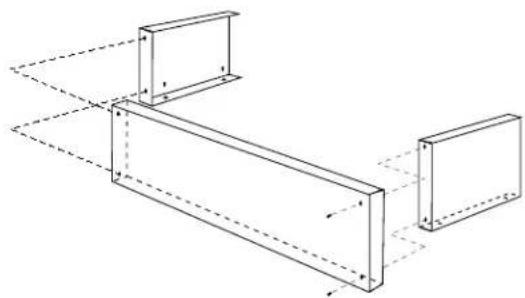

Decorative Duct Covers

Decorative duct covers are available for all models. The duct covers conceal the ductwork running from the top of the hood to the ceiling or soffit. Duct covers are available in 6" or 12" heights.

You should:

• Determine the installation height from the cooking surface.
• 36" max., 30" min.
  •Measure 18" hood height.
• Select 6" or 12" duct cover to meet ceiling or soffit height.

Electrical Supply

Warning, for Personal Safety:

Remove house fuse or open circuit breaker before beginning installation.

Do not use an extension cord or adapter plug with this appliance. Follow National electrical codes or prevailing local codes and ordinances.

Electrical supply

This vent hood must be supplied with 120V, 60Hz., and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse.

•Wiring must be 2 wire with ground.
- If the electrical supply does not meet the above requirements, call a licensed electrician before proceeding.

- Connect the wiring to the house wiring in accordance with local codes.

House wiring location

• The junction box is located on the top of the hood. See illustrations, page 10 to determine exact placement.
• Route house wiring through the ceiling, soffit or back wall as close to the installation location as possible.

Grounding Instruction

This hood must be connected to a ground metal, permanent wiring system, or an equipment-grounding terminal or lead on the hood.

Warning: The improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service

representative if you are in doubt whether the appliance is properly grounded.

Duct fittings

Use this chart to compute maximum permissible lengths for duct runs to outdoors.

Note: Do not exceed maximum permissible equivalent lengths!

Maximum duct length: 100 foot for range hoods.

Flexible ducting: If flexible metal ducting is used, all the equivalent feet values in the table should be doubled. The flexible metal duct should be straight and smooth and extended as much as possible.

Do NOT use flexible plastic ducting.

Note: Any home ventilation system, such as a ventilation hood, may interrupt the proper flow of combustion air and exhaust required by fireplaces, gas furnaces, gas water heaters and other naturally vented systems. To minimize the chance of interruption of such naturally vented systems, follow the heating equipment manufacturer's guidelines and safety standards such as those published by NFPA and ASHRAE.

48" Hoods Must Use 10" Round Duct or 3-1/4" x 24"

Note: Outlet on top of 48" hood is 4-1/2" x 18-1/2".

30" and 36" Hoods May Use 7" to 10" Round, or 3-1/4" x 12" to 3-1/4" x 24"

Duct Piece Dimensions Length* Used Length
	Round, 1 ft.straight (per foot length)
	3-1/4" x 12" or 1 ft.3-1/4" x 24" (per foot straight length)
	90° elbow 15 ft.
	45° elbow 9 ft.
	3-1/4" x 12" or3-1/4" x 24"90° elbow 15 ft.
	3-1/4" x 12" or3-1/4" x 24"45° elbow 9 ft.
	3-1/4" x 12" or3-1/4" x 24"90° flat elbow 20 ft.
	7" round to3-1/4" x 12" or 10" roundto 3-1/4" x 24" transition 1 ft.
	3-1/4" x 12" to 7" roundor 3-1/4" x 24" to 10"round transition 5 ft.
	7" round to3-1/4" x 12" or 10" roundto 3-1/4" x 24"transition 90° elbow 5 ft.
	3-1/4" x 12" to 7" roundor 3-1/4" x 24" to 10"round transition 90° elbow 15 ft.
	Roundwall capwith damper 30 ft.
	3-1/4" x 12" or3-1/4" x 24" wall capwith damper 30 ft.
	Roundroof cap 26 ft.
	Roundroof vent 24 ft.

Total Duct Run ____

* Actual length of straight duct plus duct fitting equivalent. Equivalent length of duct pieces are based on actual tests conducted by GE Evaluation Engineering and reflect requirements for good venting performance with any ventilation hood.

Installation

	Professional Vent Hoods
Tools & Materials Required (not supplied)	Tape measureSpirit levelWire CutterWire stripperElectric drill and appropriate bitsTorx screwdriver120V 60Hz 15 or 20 Amp, 2 wire with ground. Properly grounded branch circuit.Metal ductwork, 3-1/4" x 24" or 10" round for 48" wide model. 7" to 10" round or 3-1/4" x 12" to 3-1/4" x 24" for 30" and 36" models.	Wall Mount Installation:Six, 5/16" lag screws, 2" long with washers, all models (provided).Soffit Installation:Six, 5/16" lag screws, 2" long with washers, all models (provided).Optional for wall mount installations: (See page 9)48" x 18" plywood for 48" model, 36" x 18" plywood for 36" model, 30" x 18" plywood for 30" model.
StepRemove the Packaging and Disassemble	Cut and remove the plastic banding on the crate and one holding the parts box.Remove the top of the crate by backing out screws.Break-away crate sides.Remove the parts box and set aside.Remove plastic wrapping and padding.For easier handling during installation, the hood can be separated into 3 assemblies. The hood is laying on its back, bolted to the skid in 4 locations.Remove the assemblies shown for easier access to the hold-down bolts.Remove 8 screws located on the inside front. (30" models have fewer screws.) Lift off the halogen light assembly and disconnect the	male/female plug. Set aside.Remove 4 screws along inside front, 5 screws along the inside back and 3 screws on each side (30 and 36" models have fewer screws). Remove the inner liner, disconnect the male/female plugs, one to the heat lamp and one to the blower. Set aside.CAUTION: Control panel is held in place with set screws and may fall out when inner liner is removed.Remove the 4 bolts holding the hood to the skid.

Professional Vent Hoods

Step 2 Check Installation Hardware

3 Step Construct Soffit Framing

INSTALLATION UNDER A SOFFIT (SKIP THIS STEP IF SOFFIT IS NOT USED.)

Locate the hardware accessory box packed with range hood and check contents.

Two rectangular trays with horizontal slats and side handles, labeled 'Filter(s)' at the bottom (no other text or symbols)

We recommend that the vent hood and/or duct cover be on site before final framing and wall finishing to more accurately locate the ductwork and electrical service.

NOTE: If the top of the installation location does not meet the soffit, use a 6" or 12" duct cover accessory to conceal the duct run.

•The soffit should be constructed with 2x4's.
- Determine the installation location.

"A" "A" Hood Width B

	"A" "B" Centerline to Opening Depth Stud Inner Edge for Ductwork
48" Models 11-1/4" 10" Min.
36" Models 8-3/4" 7" Min.
30" Models 10-11/16" 7" Min.

• Refer to step 4 for mounting screw locations.
• Mark the centerline of the installation.
• Add additional 2 x 4 studs at the locations illustrated.
• For 48" models, allow 10" deep minimum opening below the soffit to accommodate ductwork. For 30" and 36" models, allow 7" deep minimum opening.

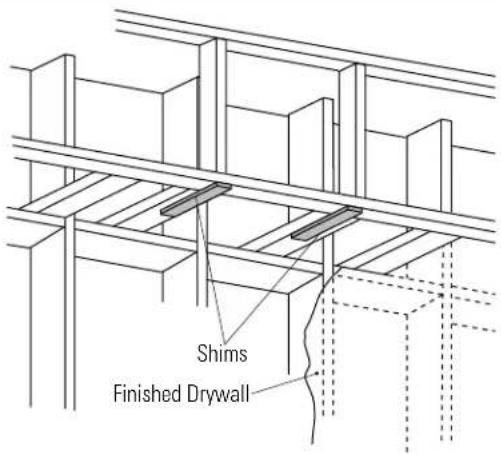

Shims Finished Drywall

- Cut 2 wood shims, 2" x 10" X (drywall thickness). Secure to the bottom of the horizontal studs, flush with the front, as illustrated. NOTE: If drywall is present, cutaway enough to expose studs.

Step 3A

Construct Wall Mount Framing

WALL MOUNT INSTALLATION (SKIP THESE STEPS IF SOFFIT IS USED.)

NOTE: A decorative duct cover is available for wall mount installations. The duct cover conceals the duct run from the top of the hood to the ceiling. Choose the 6" or 12" cover based upon installation height of the vent hood.

We recommend that the vent hood and decorative duct cover be on site before final framing and wall finishing in order to accurately locate the ductwork and electrical service.

• Determine the location for installation.
- Mark the centerline of the installation.

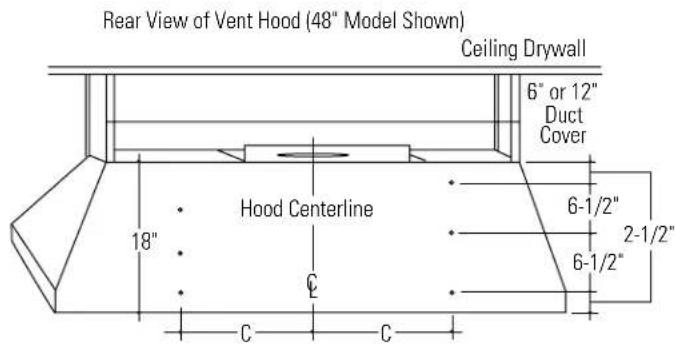

Rear View of Vent Hood (48" Model Shown) Ceiling Drywall 6" or 12" Duct Cover Hood Centerline 18" C C 6-1/2" 2-1/2" 6-1/2"

“C” - Hood Centerline
13" for 48" wide models 9" for 36" wide models 8-15/16" for 30" wide models

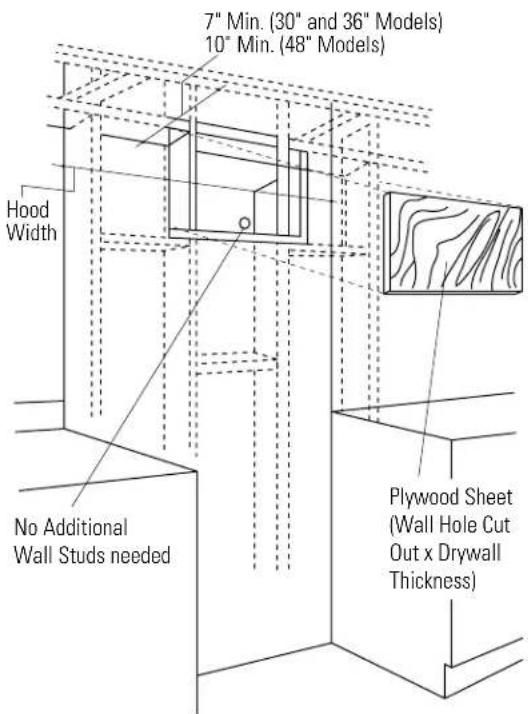

7" Min. (30" and 36" Models) 10" Min. (48" Models) Hood Width No Additional Wall Studs needed Plywood Sheet (Wall Hole Cut Out x Drywall Thickness)

Cut a sheet of plywood, 48" wide (or 36" wide) and 18" high. If drywall is installed, cut away enough to expose 2 vertical studs, 1 on each side of the cutout. Secure the plywood to the studs.
OR
If drywall is installed, cut away enough to expose 2 vertical studs.
• Install additional aligning wall studs as illustrated.

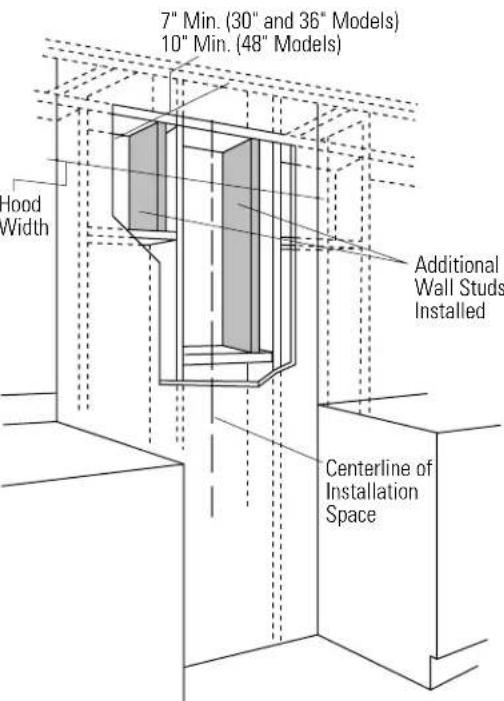

7" Min. (30" and 36" Models) 10" Min. (48" Models) Hood Width Additional Wall Studs Installed Centerline of Installation Space

INSTALLATION UNDER A SOFFIT (SKIP THIS STEP IF SOFFIT IS NOT USED.)

• Drill 3/16" pilot holes through the shims and into the soffit studs.
• Hold the hood against the soffit and secure with 6 lag screws with washers.
• For additional support and to minimize vibration during operation, we recommend that the hood be secured to the back wall.
• Drive lag screws through the rear panel of the hood and into the wall studs.

SOFFIT INSTALLATION

ZV671WSS, ZV670WSS

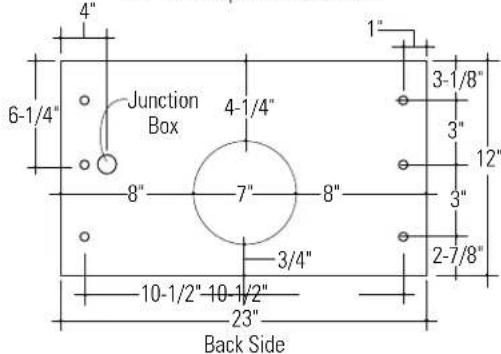

36" Hood Top View - Front Side

6-1/4" Junction Box 4-1/4" 8" 7" 8" 3/4" 10-1/2" 10 1/2" 23" Back Side 1" 3-1/8" 3" 12" 3" 2-7/8"

ZV881WSS, ZV880WSS

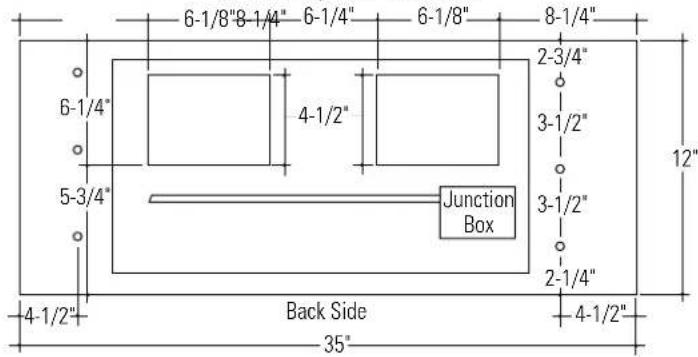

48" Hood Top View - Front Side

6-1/8"8-1/4" 6-1/4" 6-1/8" 8-1/4" 6-1/4" 4-1/2" Junction Box 3-1/2" 3-1/2" 2-1/4" 12" 4-1/2" Back Side 35" 4-1/2"

ZV681YSS, ZV680YSS
36" Hood Top View - Front Side

8-1/2" 5-1/2" Junction Box 4-1/4" 14-7/16" 7" 3/4" 12-7/16" 12-7/16" 35-7/8" Back Side 5-1/2" 3-1/8" 3" 12" 3" 2-7/8"

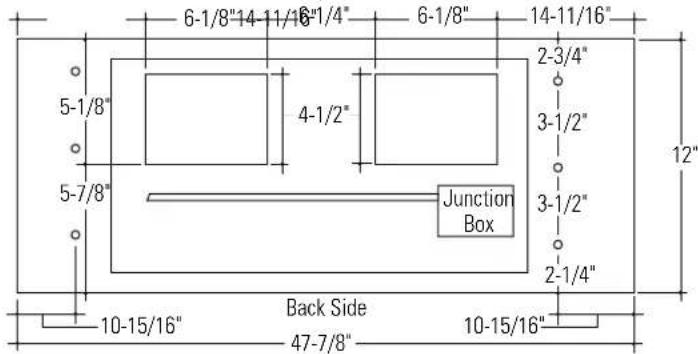

ZV891YSS, ZV890YSS
48" Hood Top View - Front Side

6-1/8"14-11/16"1/4" 6-1/8" 14-11/16" 5-1/8" 4-1/2" 2-3/4" 3-1/2" 3-1/2" Junction Box 2-1/4" 10-15/16" Back Side 47-7/8" 10-15/16"

ZV371YSS, ZV370YSS

30" Hood Top View - Front Side

5-1/2" 5-1/2" Junction Box 4-1/4" 11-7/16" 7" 3/4" 12-7/16" 12-7/16" 29-7/8" Back Side 2-1/2" 3-1/8" 3" 12" 3" 2-7/8"

Install Hood Onto Wall

WALL MOUNT INSTALLATION (SKIP THESE STEPS IF SOFFIT IS USED.)

- Drill 3/16" pilot holes, approximately 1-1/2" deep, in all mounting screw locations. - Hold the hood in position and drive lag screws in top left and right mounting holes.

NOTE: 5/16" hanger bolts can be used in the two top locations. Place the hood onto the hanger bolts and secure with nuts and washers.

• Install lag screws with washers in remaining mounting holes.

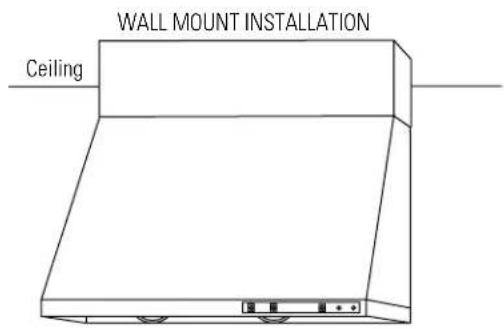

WALL MOUNT INSTALLATION Ceiling

ZV671WSS, ZV670WSS, ZV681YSS, ZV680YSS

36" Hood Rear View Ceiling Drywall 6" or 12" Duct Cover Mounting Screw Holes 18" 6-1/2" 2-1/2" 6-1/2" 8-15/16" 9" 9" 8-15/16" 35-7/8"

ZV881WSS, ZV880WSS, ZV891YSS, ZV890YSS

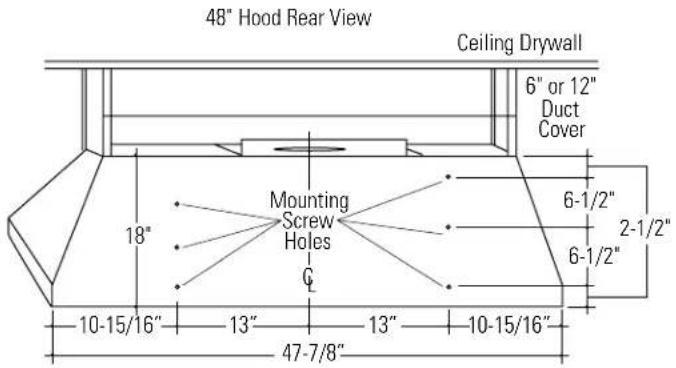

48" Hood Rear View Ceiling Drywall 6" or 12" Duct Cover Mounting Screw Holes 18" 6-1/2" 2-1/2" 6-1/2" 10-15/16" 13" 13" 10-15/16" 47-7/8"

ZV371YSS, ZV370YSS

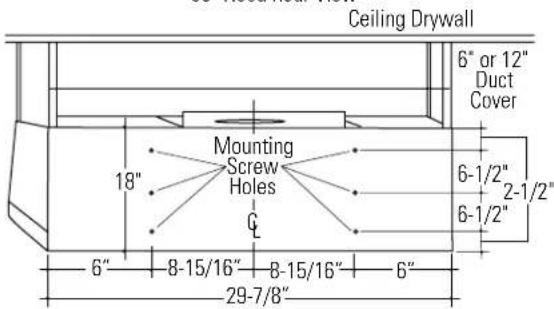

30" Hood Rear View

Ceiling Drywall 6" or 12" Duct Cover Mounting Screw Holes 18" 6-1/2" 2-1/2" 6-1/2" 6" 8-15/16" 8-15/16" 6" 29-7/8"

Installation

Professional Vent Hoods

Verify that power is turned off at the source.

If house wiring is not 2-wire with a ground wire, a ground must be provided by the installer. When house wiring is aluminum, be sure to use U.L. approved antioxidant compound and aluminum-to-copper connectors.

• Connect white lead to branch circuit white lead.
• Connect black lead to branch circuit black lead.
• Connect green lead to branch circuit green or bare ground lead.
• Secure all connections with wire nuts on each electrical connector.

Cut a length of duct to connect hood flange to the ductwork.

• Install ductwork, making connections in direction of airflow as illustrated.
- Secure joints in ductwork with sheetmetal screws.
- Wrap joints with duct tape for airtight seal.

Transition duct pieces are available for 48" wide models.

ZX48AY, 4-1/2" x 18-1/2" transition to 10" round straight up exhaust.

ZX48BY, 4-1/2" x 18-1/2" transition to 10" round direct to rear exhaust.

Call your GE Dealer to order.

Air Flow Duct Tape Over Seam and Screw Screw

Hold the liner below the installed hood.

• Reconnect the male/female connector plug to heat lamp and one to blower.
• Carefully, slide liner into installed hood.
• While holding in place, re-install the original screws. Make sure that all screws have been re-installed.
  •Re-install light assembly with original screws.

Reconnect Male/Female Connector Plug Connect to Junction Box To Blower Motor Hood Inner Liner Replace Screws That Hold Inner Liner in Place.

Installation

Professional Vent Hoods

Step 8 Install Duct Cover

"WSS" Duct Covers

- Fasten the duct cover to the top of the hood with 2 screws.

Secure with Screws

"YSS" Duct Covers

•Install one side piece to the top of the hood with 2 screws. Install opposite side piece.
- Secure front panel to the side panels with 2 torx screws on each side (provided).

Pure technical line drawing of a structural frame with no text, numbers, or symbols

Step 9 Install Filters

- Place the filter drip trays into the bottom of the opening.

Line drawing of a hand holding a rectangular object on a line, with two transparent containers above (no text or symbols)

- Grasp the filter by handles, tip the top portion into the opening, move upwards and drop into drip trays.

Diagram showing two containers with striped compartments and a directional arrow, no text or symbols present

Note: While performing installations described in this book, safety glasses or goggles should be worn.

To obtain specific information concerning any Monogram product or service, call GE Answer Center® consumer information service at 800.626.2000—any time, day or night.

For Monogram local service in your area, call 1-800-444-1845.

NOTE: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and specifications are subject to change without notice.

Pub. No. 19-8816-1 Dwg. No. 164D3333P060 © 1999 GE Appliances (N.D. 173) 5/99 10657-1
