USER MANUAL 23-157I-GW-3W-HBCDUP BLAUPUNKT

HD Ready LED TV with Freeview & USB Media Player

User Guide

Line drawing of a flat-screen computer monitor with no text or symbols on the screen

Model No

23/157I-GB-3B-HBCDUP
23/157I-GB-3B-HBCUP
23/157I-GB-3B-HBKDUP
23/157I-GB-3B-HBKUP
23/157I-GW-3W-HBCDUP
23/157I-GW-3W-HBKDUP
23/157J-GB-3B-HKDU

IMPORTANT SAFETY INSTRUCTIONS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Warnings

• To reduce the risk of fi re, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects fi lled with liquids on or near the television.
- Do not place the television in a confined space, ensure that nothing can obstruct the ventilation openings at the rear of the television.

To prevent spread of fi re, keep candles or other open fl ames away from this product at all times

- Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.

Safety

• For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.
• Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.
  • Always place the television on a fl at level surface avoiding anywhere which may be subject to strong vibration.
• Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.
• Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the television. If interference is apparent, move the device causing the interference away from the television.
• To disconnect the apparatus from the mains, please use the switch located on the underside/rear of the TV. The switch shall remain readily operable.
• When installing on a wall, ensure the TV is at least 5cm from the wall for ventilation

Maintenance

• To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.
• Never use alcohol, paint thinner or benzene to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.

Mild detergent

Packaging

• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays

The extended use of fixed image program material can cause a permanent "shadow image" on the LCD/LED panel.

This background image is viewable on normal programs in the form of a stationary fixed image. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum viewing level.
2. Do not display the fixed image for extended periods of time.
3. Turn the power off when not in actual use.

Examples of images that you need to watch out for are as follows (this is not an exhaustive list):

• TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.
• Time Displays
• Teletext: Do not view a stationary page for a long period of time
  • TV/DVD Menus: e.g. Listings of DVD disc content
• Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or videos.

Important - Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your Local Authority or retailer for recycling advice.

Batteries

• Do not expose batteries to high temperatures, excessive heat, prolonged sunshine or fire as this may cause leakage, explosion or ignition.
• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries. Please consult your local authority.

Cd

TV Models with built in DVD players

CAUTION:

This caution label is located on the rear panel of the unit

THIS UNIT IS A CLASS 1 LASER PRODUCT. THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE PLAYER CORRECTLY AS INSTRUCTED. WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CONTENTS

Manufacturers Guarantee Information....3

Important Safety Instructions....4-5

What is included in the box 8

Attaching/Detaching the stand and wall mounting....9-10

TV Buttons and Input Source Menu....11

Remote Control....12

Connections....13-14

TV Menu Operation 15-21

Channel Menu 15

Picture Menu 16

Sound Menu 17

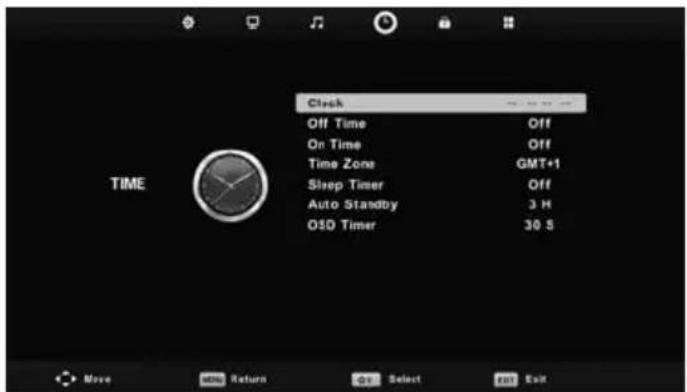

Time Menu 18

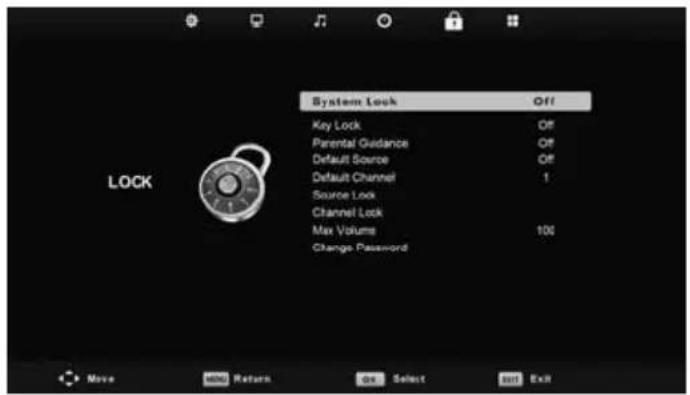

Lock Menu 19

Setup Menu 20-21

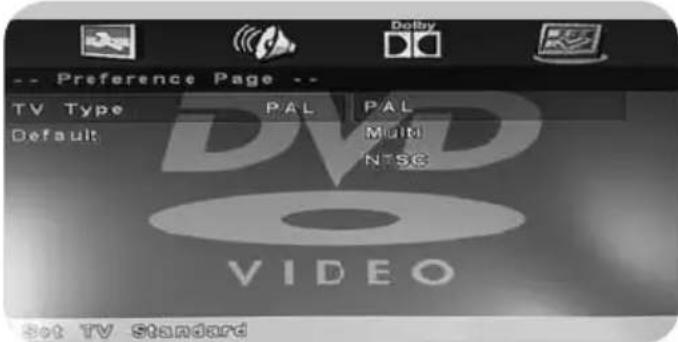

DVD Menu....22

7 Day TV Guide 23

USB Record - Digital / Freeview 24

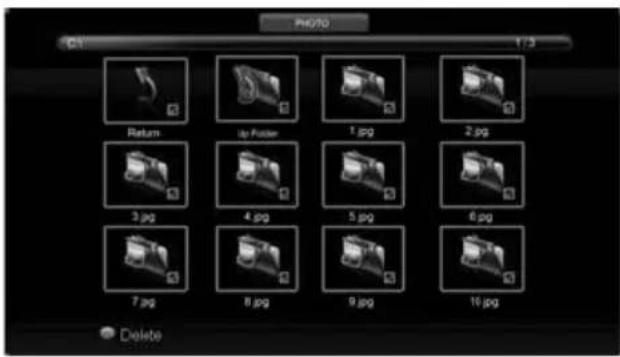

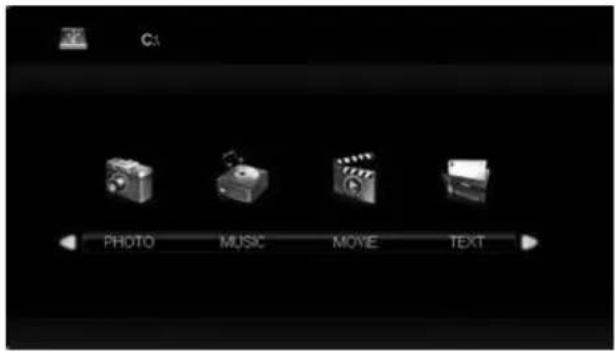

USB Mode / Media Player 25

General Information....26-28

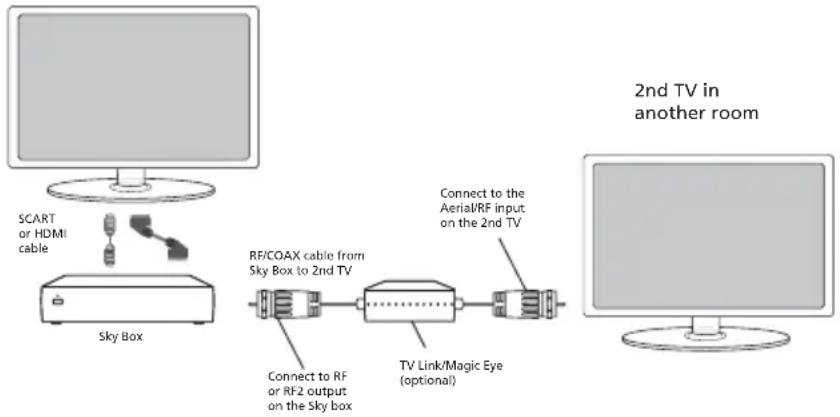

Using your TV with a Sky digital set top box....26

Frequently Asked Questions 27

Technical Specifications 28

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories

1 x User Guide

User Guide

1 x Quick Start Guide

Quick Start Guide

1 x TV

Illustration of a flat-screen computer monitor with no visible text or symbols on the screen or side.

1 x RF Cable

Coiled black cable with connectors, no visible text or symbols

1 x Remote Control

2 x AAA Batteries

1 x Mini Component / YPbPr

Close-up of a black USB cable with three connectors (no text or symbols visible)

1 x Mini Composite / Video

Close-up of a black USB cable with three connectors (no text or symbols visible)

1 x Stand plus screws

Please save your packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging.

ATTACHING/DETACHING THE STAND

Attaching the stand

To complete the stand installation you will require a cross head screw driver

Technical line drawing of a computer monitor with internal components and a base panel (no text or symbols)

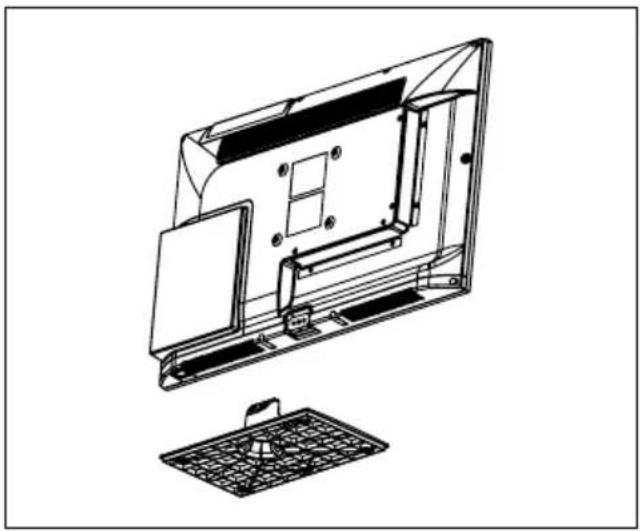

(fi g.1) Attach the stand neck to the rear of the TV set

Technical line drawing of a computer monitor internal structure (no text or symbols)

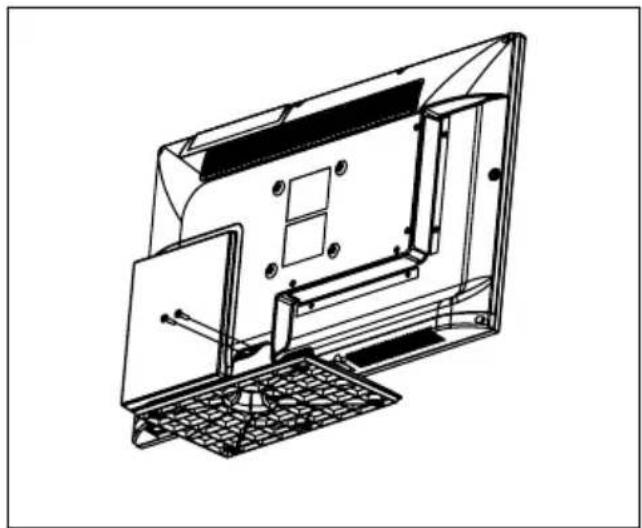

(fi g.2) Connect the stand neck and base to the TV by using the screws provided

Technical line drawing of an open electronic device with internal components and mounting holes (no text or symbols)

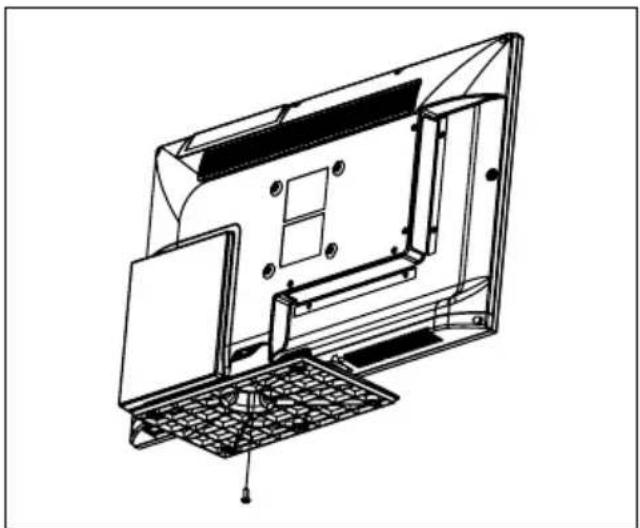

(fi g.3) Secure the base and neck to the TV by using the screws provided for underneath the stand base.

ATTACHING/DETACHING THE STAND

Detaching the stand

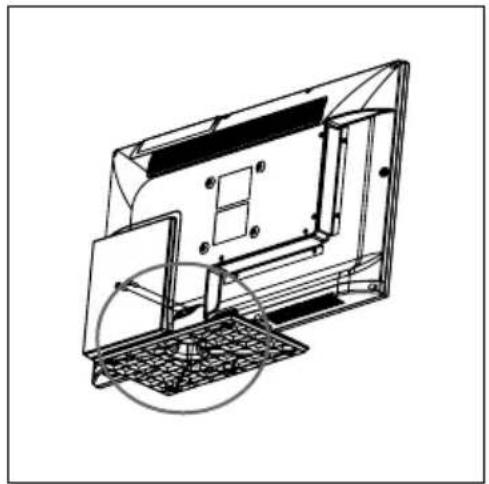

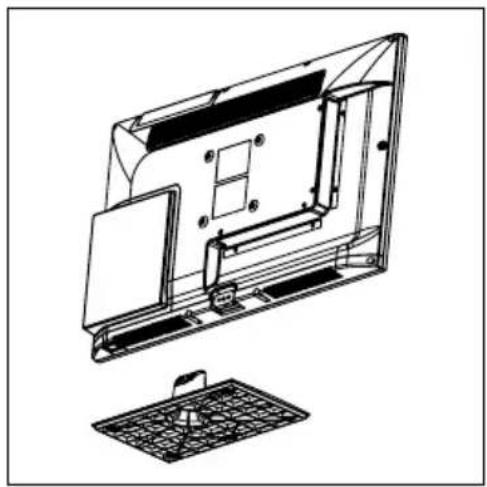

Remove the 2 screws highlighted then remove the stand base and neck from the rear of the TV set.

Technical line drawing of a computer monitor with internal components and a grid base (no text or symbols)

Technical line drawing of a computer monitor with internal components and a baseplate (no text or symbols)

Wall mounting the TV

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or gas pipes.

Front view of a black computer monitor with four circular buttons on the front panel (no visible text or symbols)

1) Remove the four screws highlighted that are supplied in the wall mounting holes.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV.

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2

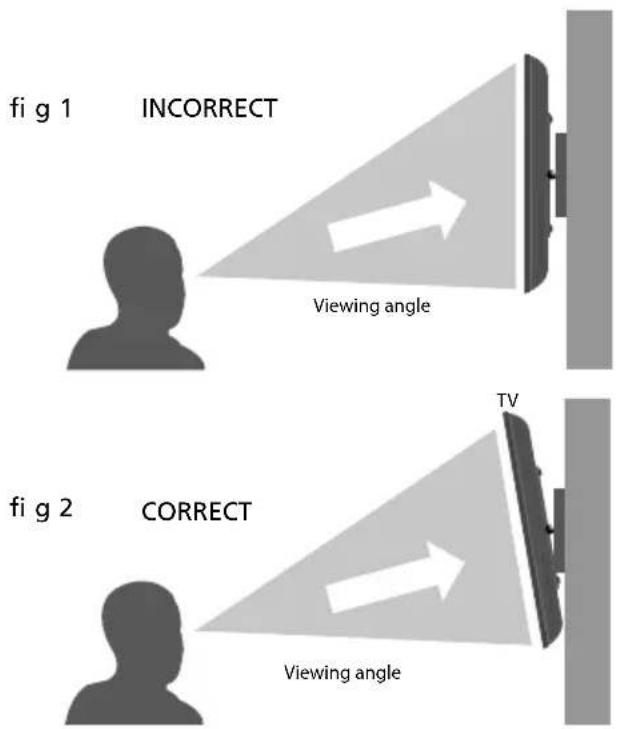

fi g 1 INCORRECT Viewing angle fi g 2 CORRECT Viewing angle TV

TV BUTTONS & SOURCE MENU

This information is for models without built in DVD players

1 2 3 4 5 6 7 VOL- VOL+ CH- CH+ MENU SOURCE STANDBY

① Volume down and menu left
2 Volume up and menu right
3 Programme/Channel down and menu down
4 Programme/Channel up and menu up
5 Displays Menu/OSD
6 Displays the input source menu
7 Standby Power On/Off

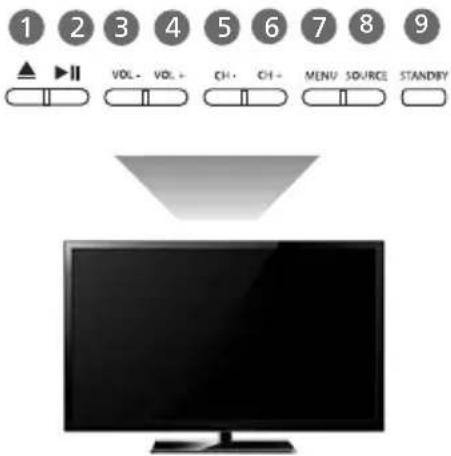

This information is for models with built in DVD players

1 2 3 4 5 6 7 8 9 ▲ ▶ II VOL - VOL + CH - CH + MENU SOURCE STANDBY

1 Stop/Eject Disc
2 Play/Pause Disc
3 Volume down and menu left
4 Volume up and menu right
5 Programme/Channel down and menu down
6 Programme/Channel up and menu up
7 Displays Menu/OSD
8 Displays the input source menu
9 Standby Power On/Off

Choosing Mode Input/Source

To switch between the different input/ connections.

A) Using the buttons on the remote control:

1) Press [SOURCE] - The source menu will appear

2) Press [V] or [A] to select the input you require.

3) Press [OK]

B) Using the buttons on the Television:

1) Press [SOURCE]

2) Scroll up / down using CH+/CH- buttons to the input/source you require

3) Press Vol+ to change input/source to the one selected.

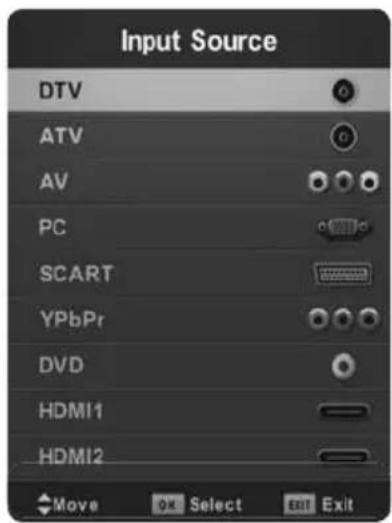

Input Source DTV ATV AV PC SCART YPbPr DVD HDMI1 HDMI2 Move OK Select Exit Exit

Example of Source menu depending on the TV model

REMOTE CONTROL

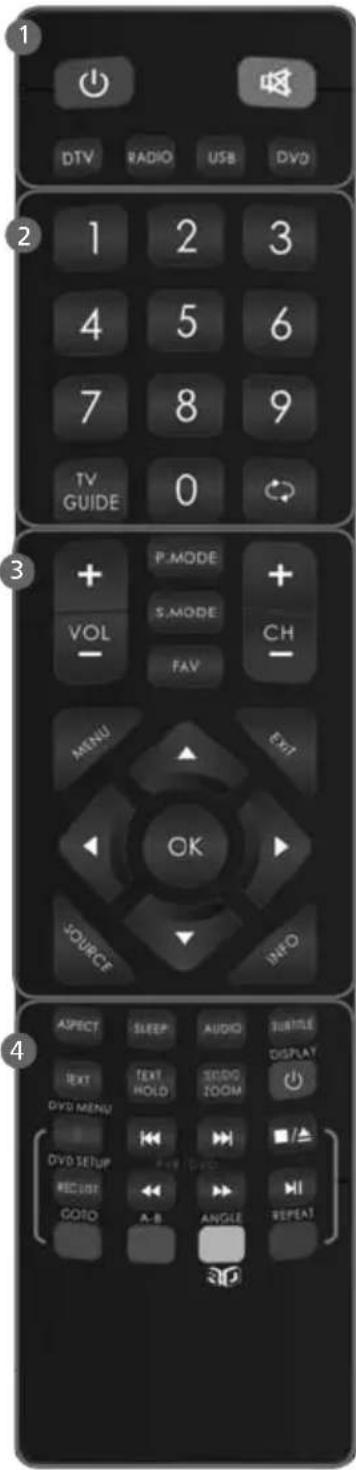

1 STANDBY - Switch on TV when in standby or vice versa MUTE - Mute the sound or vice versa
DTV - Switch to Freeview source
RADIO - Switch to radio whilst in Freeview source
USB - Switch to USB source
DVD - Switch to DVD source

2 NUMBER BUTTONS - 0 - 9 to select a TV channel directly. TV GUIDE - Opens the 7 Day TV Guide (Freeview mode) 📊 - To return to the previous channel viewed

3 VOL (+/-) - To increase / decrease the sound level P.MODE - Scrolls through picture mode options S.MODE - Scrolls through sound mode options FAV - To display favourites menu CH (+/-) - To increase or decrease the channel being watched MENU - To display OSD menu EXIT - To exit all menus (▲/▼/◄/►/ OK) - Allows you to navigate the on-screen menus and adjust the system settings to your preference SOURCE - To display the input/source menu INFO - Press once for now/next channel information Press twice for programme information about current programme

ASPECT - To switch the screen between the different picture formats SLEEP - Press repeatedly to cycle through the sleep options AUDIO - To change the audio language (if available) SUBTITLE - To switch the dialogue at the bottom of the screen (on/off) TEXT - To enter/exit Teletext (Analogue TV) TEXT HOLD - Teletext mode - Hold current page which is displayed (Analogue TV) DISPLAY - To switch off the screen when listening to radio TEXT/DVD ZOOM - Zoom function for Teletext and DVD DVD MENU/RECORD - Access the DVD root menu and USB record function

- To restart the current chapter - To advance forward to the next chapter - To stop the playback/Eject Disc (To EJECT the disc press/hold the ■/▲ button for 4 seconds) - To play in fast rewind mode - To play in fast forward mode - To play/pause

DVD SETUP/REC LIST - Opens up DVD Menu or Opens the list of what has been previously recorded

GOTO - To go to a specific chapter A-B - Press once to set point, press a second time to return to point

ANGLE - Select different angle of DVD

3D - Change to 3D mode

REPEAT - To repeat playback

For Models with Integrated DVD players
For Models with PVR Function
For Models with USB Playback
For Models with 3D Feature

1 DTV RADIO USB DVD 2 1 2 3 4 5 6 7 8 9 TV GUIDE 0 3 + P.MODE + VOL S.MODE CH - FAV MENU EXIT OK SOURCE INFO 4 ASPECT SLEEP AUDIO TURITLE TEXT TEXT SCDG DISPLAY DVD MENU HOLD ZOOM DVD SETUP FIVE DVD ■/▲ RECISE ← ← → ← COTO A-B ANGLE REPEAT RIP

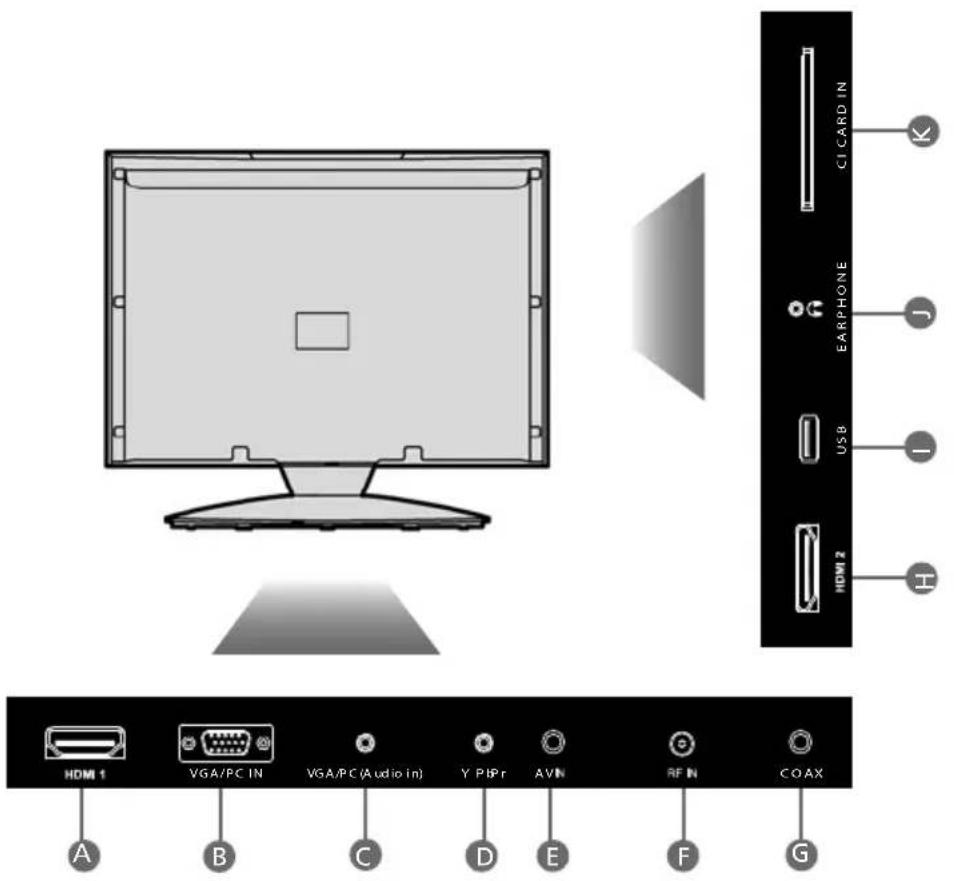

CONNECTIONS

HDMI input

VGA-PC input

Audio In 3.5mm PC audio input

D input (Ypbpr)

put for Composite/Video and

Audio for Composite / Video

and Component / Y Pb Pr

/ TV Aerial Input

Audio Out Digital Coax output

HDMI input

1	USB	USB	port
Earphones		Earphone Input
CI CARK IN		Common Interface module

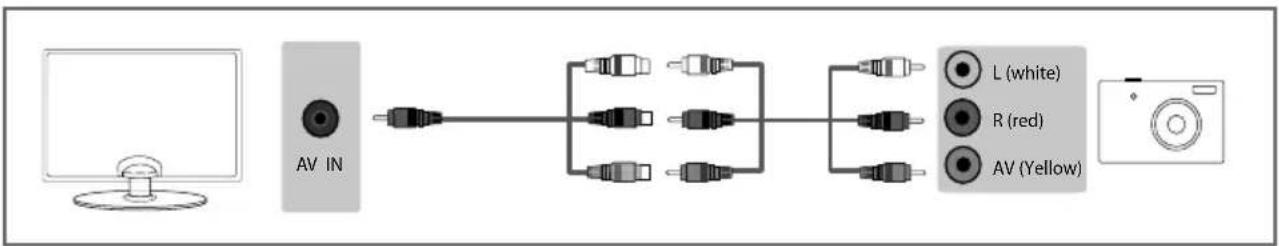

Connecting to a device with Composite AV/Video output TV Source should be set to Video

CONNECTIONS

Connecting to a device with SCART output (using SCART to AV cable)

TV Source should be set to Video

Pure electrical circuit lines without any symbols

(SCART to AV/RCA cable not included)

Connecting to a device with HDMI output

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

TV Source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)

Simple line drawing of a blank rectangular frame with a circular base (no text or symbols)

Pure diagram of two connected mechanical components without any text or symbols

Connecting to a device with Component/YPbPr output

If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component.

is not connected

Connecting to a device with VGA/PC output (Laptop or Desktop Computer)

TV Source should be set to VGA/PC

Simple line drawing of a computer monitor with a stand (no text or symbols)

Diagram of two types of cable connectors, one with a central connector and the other with a separate connector (no text or symbols)

Note: To use this model TV as a PC/laptop monitor it will need to be connected via the VGA input, it can not be used as a PC/laptop monitor via the HDMI input. The HDMI Input is provided to view digital content with compatible external devices

CHANNEL MENU

Auto Tuning ATV Manual Tuning DTV Manual Tuning Programme Edit Schedule List Signal Information Information

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons.

To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels

Analogue Manual Tuning - Allows you to manually tune your analogue signal

Freeview/DTV Manual Tuning - Allows you to manually tune your digital signal

Programme Edit - Allows you to delete, skip and add favourite channels

Schedule List - Lists your programme reminders

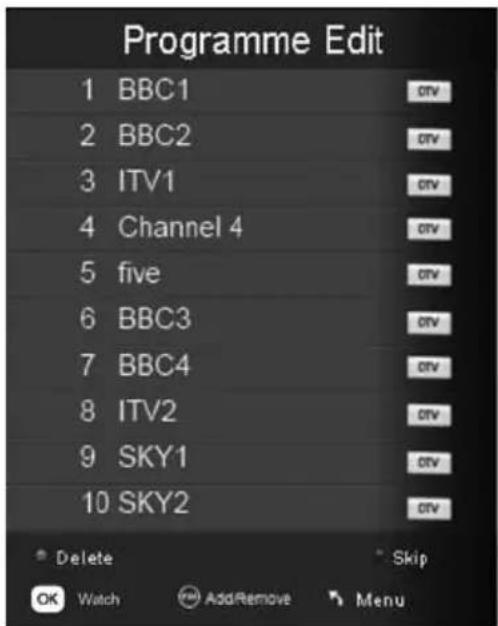

Programme Edit 1 BBC1 2 BBC2 3 ITV1 4 Channel 4 5 five 6 BBC3 7 BBC4 8 ITV2 9 SKY1 10 SKY2 Delete Skip OK Watch AddRemove Menu

Signal Information - Allows you to view signal frequency, signal quality and signal strength

CI Information - Pay per view services require a "smartcard" to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'Menu Duration' in the Setup Menu

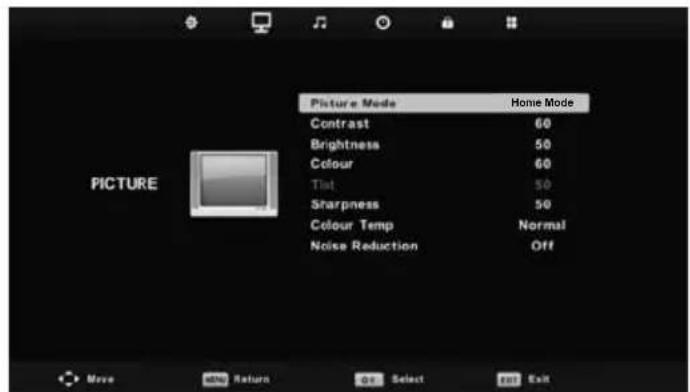

PICTURE MENU

Picture Mode Home Mode Contrast 60 Brightness 50 Colour 60 Tint 50 Sharpness 50 Colour Temp Normal Noise Reduction Off PICTURE

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons.

To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Picture Mode - Choose from the following presets:

Dynamic Recommended settings for fast moving pictures
Standard	Standard settings
Mild Set to be lighter in colour and less bright
Personal Lets you manually alter all the settings
Home Mode Power saving mode which reduces the energy used by up to 25% (by reducing the power to the LED/LCD panel).In Home Mode, the TV will switch itself to Standby mode after 3-5 hours in the event that the TV buttons or remote control buttons are not pressed (change the picture mode to another setting to de-activate this function)

You can make the following adjustments in Personal mode:

Contrast - Switch the balance between black and white.

Brightness - Increase or decrease the brightness of the picture.

Colour - Increases the colour from black and white.

Tint - Lets you increase or decrease the level of tint within the picture

(only available in VGA/PC source mode).

Sharpness - Increase or decrease the sharpness of the picture.

Colour Temperature Choose from the following presets:

Normal	Default	settings
Warm	Increases red within the picture
Cold Increases blue within the picture

Noise Reduction - Choose from the following presets:

Off Turns noise reduction off
Low Minor system adjustment
Middle Medium system adjustments
High Maximum system adjustments
Default	Default	settings

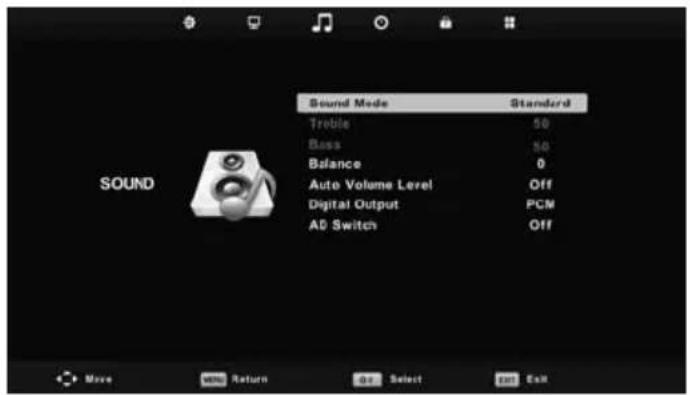

SOUND MENU

Sound Mode Standard Troble 50 Bass 50 Balance 0 Auto Volume Level Off Digital Output PCM A0 Switch Off SOUND Move Return Go Select Exit Exit

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons.

To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Sound Mode - Choose from the following presets

Standard	Default	settings
Music	Emphasises music over voices
Movie	Provides live and full sound for movies
Sports	Emphasises sound for sports
Personal	Selects your personal sound settings

Tip: Treble and bass levels can only be adjusted when the sound mode 'Personal' is selected.
Treble - To adjust the amount of high frequency within the sound
Bass - To adjust the amount of low frequency within the sound
Balance - To switch the sound between the left and right speakers

Auto Volume Level (AVL) - When 'on' is selected, the volume will attempt to stay at a constant level regardless of TV programme and advertisements
Digital Output - This is the digital COAX Audio output. Choose from the following options:

Off To turn off Digital Output

Auto Selects the best settings automatically

PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

AD Switch - This allows the user to turn AD (Audio Description) on or off (Audio Description is a service available on certain programmes. It provides a description of what is happening during the selected programme for a person who is visually impaired)

TIME MENU

Clock Off Time Off On Time Off Time Zone GMT+1 Sleep Timer Off Auto Standby 3 H OSD Timer 30 S

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons.

To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Clock - Shows the date and time

Off Time - Allows you to set a specific time for your TV to turn off

On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day (the TV must be in standby mode for this to be effective)

Time Zone - Change your current time zone

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min

Auto standby - Set Auto standby between 3 hours, 4 hours and 5 hours (to turn off this function you must exit Home Mode in the Picture Menu)

OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing

LOCK MENU

System Lock Off Key Lock Off Parental Guidance Off Default Source Off Default Channel 1 Source Lock Channel Lock Max Volume 100 Change Password Move Help Return OK Select sat Exit

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons.

To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

System Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password

Use the ◀ button to quit the password input or use the ▶ button to clear. Default password is 0000.

Key Lock - Allows you to lock the buttons on the side of the TV set

Parental Guidance - Allows you to set the rating to block certain content based on age information

Default Source - Allows the user to set the default source. The default source is the source the TV starts on when first switched on

Default Channel - Allows the user to set a channel as the default channel on the Digital source. The

default channel is the channel the TV starts on when first switched on

Source Lock - Allows you to lock the source menu

Channel Lock - Allows you to lock certain channels manually

Max Volume - Allows you to adjust and set the maximum volume

Change Password - Allows you to change the password

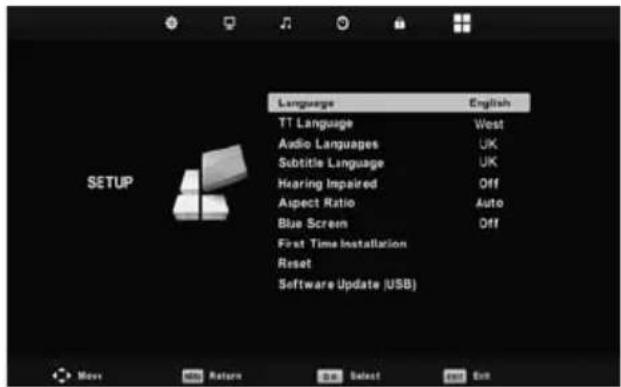

SETUP MENU

Language English TT Language West Audio Languages UK Subtitle Language UK Hearing Impaired Off Aspect Ratio Auto Blue Screen Off First Time Installation Reset Software Update (USB) SETUP Move Return Select Exit

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons.

To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Language - Allows you to change the language of the menu

TT Language - Encoding settings for the proper display of teletext characters

Audio Language - Shows the current audio language

Subtitle Language - Shows the current subtitle language

Hearing Impaired - This allows the user to turn on the Hearing Impaired function, this produces subtitles on the screen which provide a description of what is happening during the selected program.

Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs

Auto

Automatically displays the best picture format. So the picture is in the correct position. May have black lines at the top/bottom and/or sides.

4:3

Illustration of a computer monitor with a central screen and surrounding circles (no text or symbols)

Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen

Original

Will display the picture from the broadcaster without any change

16:9

Illustration of a computer monitor with five circular windows on the screen (no text or symbols)

Fills the screen with a regular 16:9 signal and 4:3 picture format will be stretched to fi ll the screen

Zoom

Illustration of a computer monitor with a central blank screen and surrounding circular design (no text or symbols)

The picture is the correct proportion but zoomed in to fill the screen

Stretch

Illustration of a computer monitor with a central screen and surrounding circular elements (no text or symbols)

Displays the 14:9 picture in the correct proportion. As a result side bars are shown on the screen

SETUP MENU

Language English TT Language West Audio Languages UK Subtitle Language UK Hearing Impaired Off Aspect Ratio Auto Blue Screen Off First Time Installation Reset Software Update (USB)

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons.

To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources)

First Time Installation - Allows you to access the First Time Installation menu and retune the TV set

Reset - This resets the menus to factory settings and clears all the TV channels from the television.

Software Update (USB) - From time to time we may release new firmware to improve the operation of the television (available to download). This menu lets you install the new software/fi rmware onto the television. Further details of how to do this will be issued with the firmware. Contact the helpline or refer to the 'product support' section of the website

HDMI CEC (Consumer Electronic Control) - Allows HDMI devices to control each other and allows the user to operate multiple devices with one remote control. (only available with compatible devices)

DVD SETUP

(Applies to models with built in DVD player)

-- Preference Page -- TV Type PAL PAL Default Multi NTSC VIDEO Set TV Standard

Tip: This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in another country that uses different region discs, please visit www.umc-uk.co.uk. Select 'Product Support', 'Changing Region'.

To enter this menu please ensure the TV is in DVD source & press [DVD SETUP]

If you wish to make changes to any of the default settings, use the scroll ▲▶▶ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [DVD SETUP] button.

TV Display - Choose from the following options

Normal / PS (Pan&Scan) Black edges left and right will be seen

Normal / LB (Letter Box) Traditional picture which has been adapted for widescreen

Wide 16:9 Widescreen picture format

OSD Language - Select the on screen display language, "English" is the default language

Last Memory ON/OFF - You may want the player to remember where you finished watching a DVD and then removed the DVD disc, the player will automatically remember the point it stopped playing. When the disc is re-inserted the player will continue from the same point.

Note: if you put in a different disc the memory will be cleared for the previous disc.

Downmix - Choose from the following options

Stereo Converts from multi-channel sound to stereo

TV Type - Select from PAL TV (UK Default). AUTO detects the TV system from the disc information. NTSC is the USA picture mode.

Audio - Select audio using the ▲/▼ buttons. The languages available will be shown in the right column. Select the required language using the ▶/▼ buttons. "English" is the default language. If the disc has English it will play the soundtrack in English.

Subtitles - Select Subtitle using the ▲/▼ buttons. The languages available will be shown in the right column. Select the required language using the ▶/▼ buttons. The default language is "English". If the disc has English available it will display the subtitles in English.

Disc Menu - Select Disc Menu using the ▲/▼ buttons. The languages available will be shown in the right column. Select the required language using the ▶/▼ buttons. The default language is "English". If the disc has English available it will display the menu in English.

Parental - Select Parental using the ▲/▼ buttons. Enter the list using the ▶ button. Set the level using the ▲/▼ buttons and press "OK". You will be asked for the password (0000). "the default is ADULT".

Password - Select password using the ▲/▼ buttons. Select Change using the ▶ button and "OK". Put in the old password then you will be prompted to put in the new password twice and press "OK". Default - Selecting Default will reset your personal settings to the factory settings for the DVD setup menu.

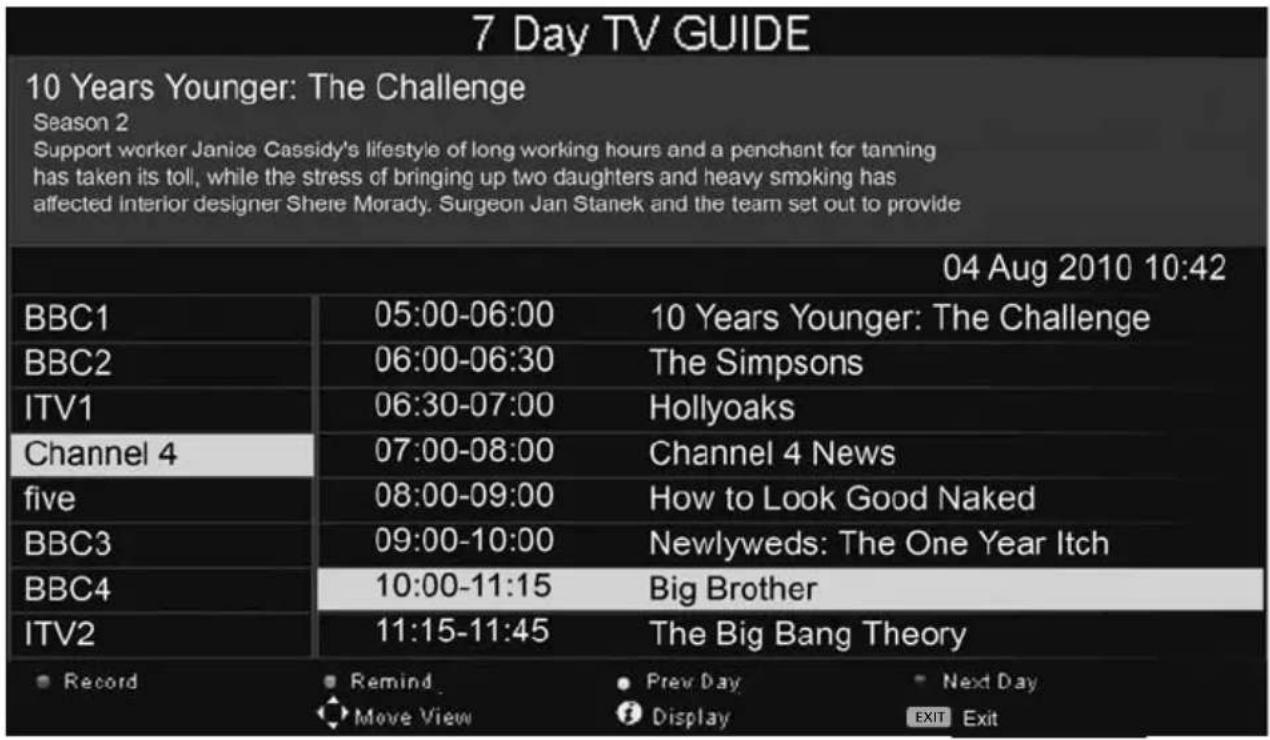

7 DAY TV GUIDE

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1) Press [TV GUIDE]. The following 7 Day TV Guide will appear.

7 Day TV GUIDE 10 Years Younger: The Challenge Season 2 Support worker Janice Cassidy's lifestyle of long working hours and a penchant for tanning has taken its toll, while the stress of bringing up two daughters and heavy smoking has affected Interior designer Shere Morady. Surgeon Jan Stanek and the team set out to provide 04 Aug 2010 10:42 BBC1 05:00-06:00 10 Years Younger: The Challenge BBC2 06:00-06:30 The Simpsons ITV1 06:30-07:00 Hollyoaks Channel 4 07:00-08:00 Channel 4 News five 08:00-09:00 How to Look Good Naked BBC3 09:00-10:00 Newlyweds: The One Year Itch BBC4 10:00-11:15 Big Brother ITV2 11:15-11:45 The Big Bang Theory Record Remind Prev Day Next Day Move View Display EXIT Exit

2) Navigate through the menu using

You can now:

Record a programme by pressing RED (USB device must be connected)

Set a reminder by pressing GREEN

View a previous day by pressing YELLOW

View the next day by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide.

USB RECORD - DIGITAL/FREEVIEW MODE

ONLY APPLIES TO MODELS WITH USB RECORD

USB RECORD – DIGITAL/FREEVIEW MODE

Built into this television is a USB record facility. This function is available in Digital/Freeview mode when used in conjunction with a compatible USB memory stick or USB Hard drive. The benefits of this are as follows:

• Pause live TV and then playback, fast forward and rewind (up to live TV)
  • One button record, if you decide you want to record the current programme
• Easy programmable recording from the 7 day TV Guide
• Record TV and watch/listen back on your computer/laptop

Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads from and writes to the memory stick at the same time, some memory sticks may not be suitable)

You can purchase high speed memory sticks from some computer stores, alternatively, we have a selection of tested and compatible memory sticks available to purchase directly from the helpline/web site.

Minimum Specification - USB Memory Stick

Read Speed 20 MB/s (Mega Byte Per Second)

Write Speed 6 MB/s (Mega Byte Per Second)

If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear of this user guide.

Pause Live TV (Time Shift)

Pausing Live TV is very simple.

• Press the play/pause button and the television will pause and the live content will be recorded. To resume watching press play/pause again.
• Press fast forward to go forward in a recording (i.e. to skip adverts)
• Press fast rewind to go back in a recording (i.e. if you fast forwarded too far)

Tip: When you switch the TV to standby or change channel the Time Shift memory is wiped. To restart time shift you must press play/pause button.

One Button Record

At any point in time you may decide to record the current channel that you are watching. To do this you need to press the red button highlighted below.

Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or record one channel while the television is in standby mode.

Note: USB record function is only available in Digital/Freeview TV mode. Due to copyright laws and illegal copying/recording it is not possible to record to/from any other input/output source.

USB MODE / MEDIA PLAYER

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.

On switching to USB source the above menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.

PHOTO MUSIC MOVIE TEXT

1) You can navigate through the menus using the scroll ▲▼▶◀ buttons. To confirm the item you wish to play/view press [OK] button.

PHOTO Return C

2) Select the drive you require. (If your drive only has 1 partition you will only see 1 item).

C1 1/3 Return By Faster 1.jpg 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg 7.jpg 8.jpg 9.jpg 10.jpg Delete

3) You can now access the item. Press OK to view. 4) While viewing you control the item using or by pressing (i) and using ▲ and (ON)

Black-and-white aerial view of a rugged landscape with trees and rocky terrain, displayed within an application window (no readable text or symbols on the scene itself)

Tip: If you experience a playback issue, please ensure the files being used are the correct format (example - the picture plays but no sound) See technical specification page for compatible file types

USING YOUR TV WITH A SKY DIGITAL SET TOP BOX

Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room)

Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately)

If connecting by SCART, select the 'Input source' on the TV as SCART.

If connecting by HDMI, select the 'Input source' on the TV as HDMI (if the TV has more than 1 HDMI port, ensure you select the input source to match the HDMI numbered port on the rear of the TV)

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. See bottom of this page.

SCART or HDMI cable Sky Box

Option 2) Connecting your TV to your Sky box (when your Sky box is located in a different room to the TV)

Please note, if you are adding a 'Magic Eye/TV Link' to your system so that you can use your Sky remote control to change the Sky channel in the room where the 2nd TV is located, please refer to the instructions included with the TV link/magic eye in order to ensure the RF or RF2 output on your Sky box is powered on. (The red LED light on the TV link/magic eye will light up if the RF / RF2 output is correctly set up) If you do not have the instructions that came with the TV link/magic eye, instructions on how to do it can be found on our web site.

1) To tune the TV to the Sky box, on the 2nd TV, select the 'Analogue' input source.
2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is the best option for you)
3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per point 2 above.
4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)
5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the Sky box/channel is found, press 'OK' to store it.

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. See below.

Using a Sky Remote or a Universal Remote to operate your TV

Sky Remote Control - If you wish to use your Sky remote to operate the basic functions of your TV, you need to programme a 4 digit code into it. Please note - you will need the latest Sky Revision 9 remote control as this is the only version that includes the latest software/firmware necessary to operate this model of TV.

The code required for this television is 2134. If you wish to upgrade/replace your existing Sky remote control to the latest version, you can do so on our web site.

Universal Remote Control - If you wish to use a Universal remote control to operate your TV, please refer to the website for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you have an alternative brand of Universal remote, please refer to the manufacturer for the code.)

FREQUENTLY ASKED QUESTIONS

General I would like to have louder sound by connecting additional speakers	1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifi er/surround sound system. Please note this will deactivate the TV's built in speakers.2) Connect a COAX cable from the TV's COAX output to your amplifi er/surround systems COAX input.
General Why are some options in the menu unavailable and greyed out	Some options are only available in certain sources, i.e. HDMI. They are unavailable in the other sources where they have no affect.
General Can I stop my TV automatically turning off after 4hrs?	Yes1) In the picture settings menu, de-select Home Mode.2) In the time settings menu, scroll down to Auto standby and select OFF.
TV I have tuned in Digital TV but I am not receiving any or all of the channels and/or the channels I receive are breaking up	1) Check you are in an area that can receive Freeview.Visit www.freeview.co.uk2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent digital coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/indoor type aerial.
TV I have re-tuned my television but when I switch it off it is not storing the channels	Complete a fi rst time installation, please refer to the set-up menu section of the manual of how to do this.
VCR/DVD Recorder I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording	In addition to connecting via SCART, you should connect the aerial cable from the wall socket to your VCR/DVD Recorder and another aerial cable from the VCR/DVD Recorder to the TV.
DVD I have inserted a disc but it is not playing	1) Ensure you have inserted the disc facing the correct way.2) Ensure the disc is clean and is not scratched.3) Some copied discs will not play.4) Check the DVD is a region 2 disc – to change the region of the DVD player, refer to www.umc-uk.co.uk select 'product support', 'changing region'.
DVD I have pressed the eject button but the disc is not coming out	To eject the disc hold the stop/eject button for 4 seconds.
Game Consoles I have connected my PS3 to the TV via HDMI, but I am not receiving any pictures or sound on my Television	1) Ensure the TVs source is on HDMI.2) Check your settings on your PS3 are as per the PS3 instruction manual.
Game Consoles I have connected my Xbox 360 to the TV via Component Cables (Red, Green & Blue) but I am not receiving any sound	Component cables only provide HD Pictures. For the sound you will need to connect the Red & White audio cables on the Xbox to the Red & White phono inputs on the rear of the TV. Please refer to the 'Connections' pages.
USB Mode I have inserted a USB Memory Key, but the TV does not recognise it	Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Using a USB portable hard drive / larger than 32GB	If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 fi le system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives. Please refer to the web site for more information.
System Lock I have changed the password on the television and now forgotten it	There is a master password of 4711, to gain access to the TV menu and reset the normal password.

TECHNICAL SPECIFICATION

Model	23/157I-GB-3B-HBCUP23/157I-GB-3B-HBKUP	23/157I-GB-3B-HBCDUP23/157I-GB-3B-HBKDUP23/157I-GW-3W-HBCDUP23/157I-GW-3W-HBKDUP23/157J-GB-3B-HKDU
Screen size (diagonal)	23"/58cm
Resolution	1366 x 768
RF	75 ohm Antenna / PAL-SECAM
Inputs	2 x HDMI, 1 x USB, 1 x VGA/PC Input, 1 x Composite/Video, 1 x Component/YPbPr, 1 x 3.5mm jack for PC audio input, 1 x pair R/L Audio input shared for Video and YPbPr (component)
Sound Outputs	1 x 3.5mm Headphone/Audio out, 1 x COAX out
Sound power, watts (RMS)	2 x 3
Voltage and power consumption	110 - 240V ~50/60Hz20/40W(home mode/max/)(<0,5W inStandBy) (0W in OFF mode)	110 - 240V ~ 50/60Hz20/50W(home mode/max)(<0,5W inStandBy) (0W in OFF mode)
Annual Energy Consumption	29 kWh	29 kWh
Energy Rating (EEI)	A	A
Dimensions including stand (mm)	567W x 382H x 183D	567W x 382H x 183D
Net weight (Kgs)	3.7	4.0
Wall Mounting	VESA 100 x 100

Compatible files in USB Mode

Media File Ext.	Codec
		Video Audio
Movie .mpg Mpeg-1, Mpeg-2			1920x1080MP3, WMA	Max Resolution: 1920x1080Max Data rate: 40Mbps
		.avi Xvid, MJPEG,MPEG-4 SP/ASP
		.ts Mpeg-2 Max Resolution: 1920x1080MP3, WMA		Max Data rate: 40Mbps
		.dat Mpeg-1
		.mp4 Mpeg-1, Mpeg-2 Max Resolution: 1024x768		Max Data rate: 40Mbps
Music .vob Mpeg-2
		.mp3 - MP3 Sample Rate 16K-48KHz		Bit rate: 32K - 442Kbps
		.wma - WMA
Picture	.jpg	Progressive JPEG Max Resolution: 1024x768
	.jpeg Baseline JPEG Max Resolution: 8192x8192
	.bmp	BMP		Max Resolution: 6500x6500

Universal Media Corporation /Slovakia/ s.r.o.

Mickiewiczova 7104/14,

811 07 Bratislava 1, Slovakia

Assembled in Europe
