BP580USG9200 - TV BLAUPUNKT - Free user manual and instructions

Product Type	LED Television
Brand	Blaupunkt
Model	BP580USG9200
Screen Size	58 inches (approx.)
Resolution	3840 x 2160 (4K Ultra HD)
Display Technology	LED with Direct LED Backlight
Refresh Rate	60 Hz
Smart TV Platform	Custom Linux-based (or Android TV)
Wi-Fi	Built-in 802.11ac (2.4/5 GHz)
Bluetooth	Yes, version 5.0
HDMI Inputs	3x HDMI 2.0 (with ARC support)
USB Ports	2x USB 2.0
Composite Input	1x AV (via adapter)
Ethernet	1x RJ45
Digital Audio Output	1x Optical S/PDIF
Headphone Jack	1x 3.5 mm
Tuner	DVB-T2/C/S2 (triple)
Power Consumption (Typical)	90 W
Standby Power	< 0.5 W
Dimensions (with stand)	129.5 x 81.2 x 25.4 cm
Weight (with stand)	19.5 kg
VESA Mount Pattern	400 x 300 mm
Remote Control Model	RC-BP580 (batteries included)
Energy Class	F (EU 2017/1369)

Frequently Asked Questions - BP580USG9200 BLAUPUNKT

How do I connect my Blaupunkt BP580USG9200 to Wi-Fi?

Press the Menu button on your remote, go to Settings > Network > Wi-Fi. Select your network, enter the password, and confirm.

Why is there no sound from the TV speakers?

Check if the volume is muted or set too low. Also verify that the audio output is set to TV Speaker in Settings > Audio. If using external devices, ensure the correct input is selected.

How can I reset the TV to factory settings?

Go to Settings > System > Reset and select Factory Reset. Confirm with your PIN (default 0000). All data will be erased.

What is the best way to clean the TV screen?

Turn off the TV and let it cool. Use a soft, dry microfiber cloth. If needed, slightly dampen the cloth with distilled water. Avoid using chemicals or paper towels.

Can I mount this TV on a wall?

Yes, the TV supports VESA mount pattern 400 x 300 mm. Use a compatible wall mount and ensure the wall can support the TV's weight (19.5 kg).

How do I update the firmware?

Connect the TV to the internet. Go to Settings > System > Software Update. Select Check for Updates and follow on-screen instructions.

The remote control is not working. What should I do?

First, replace the batteries with new ones. Make sure there are no obstructions between the remote and the TV sensor. If still not working, try resetting the remote by removing batteries and pressing all buttons for 3 seconds.

How do I enable subtitles?

Press the SUB button on the remote (or navigate to Settings > Subtitles). Select your preferred language and format.

Why is the picture blurry?

Check the input resolution and ensure it matches the TV's native resolution (4K). Adjust Picture Mode to Standard or Dynamic. Also try disabling Noise Reduction if enabled.

What should I do if the TV does not turn on?

Unplug the TV from the power outlet, wait 1 minute, then plug it back in. Try turning it on with the power button on the TV itself. If still no power, check the fuse or contact support.

USER MANUAL BP580USG9200 BLAUPUNKT

Search movies, TV, and more 12:45 Apps NETFLIX YouTube prime video Google Play Games Google Play Store Google Music Play Next NETFLIX LOST IN SPACE STRANGER THINGS CROWN NETFLIX Netflix

CONTENTS

General	Safety
Installation				8
	Wall	Mounting	Instructions
Controls	and	Connections
Remote	Control
Initial	Setup
Android	TV	-	Home	Screen

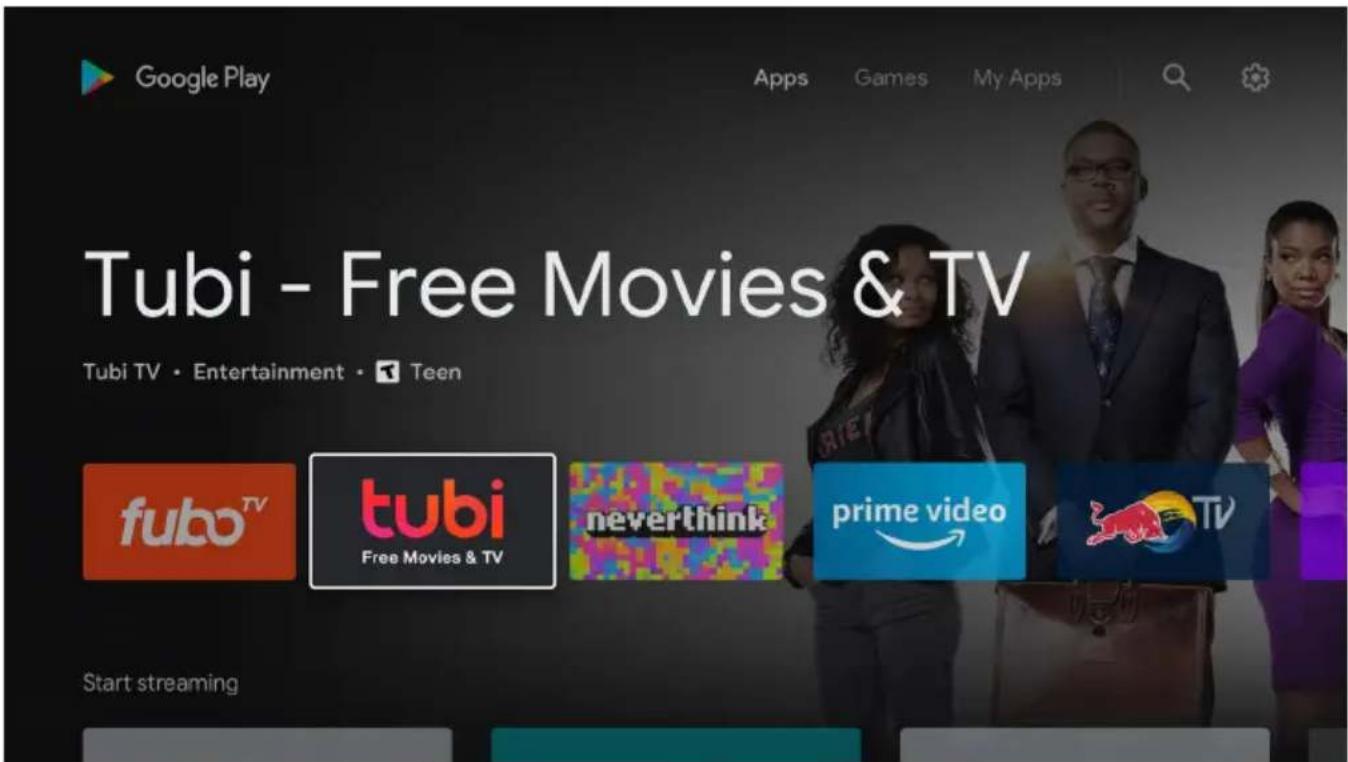

Google	Play	Store

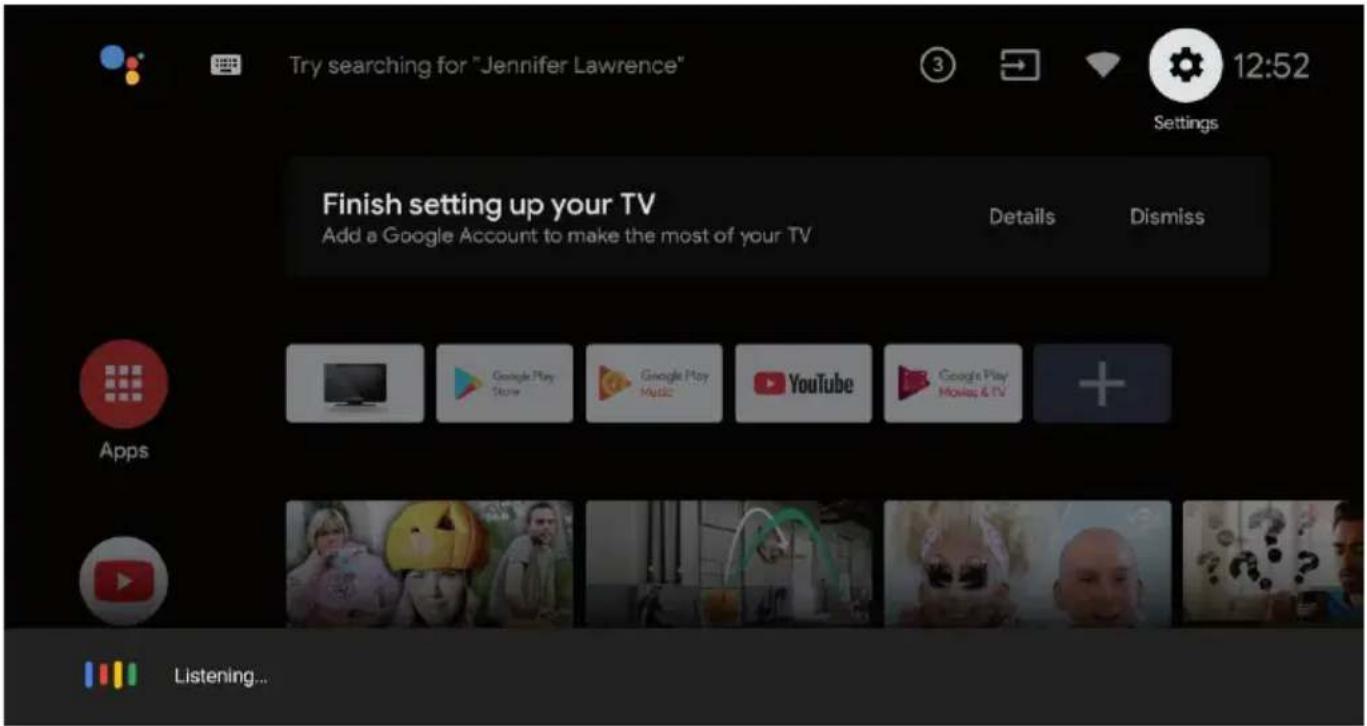

Google	Assistant
Inputs				23

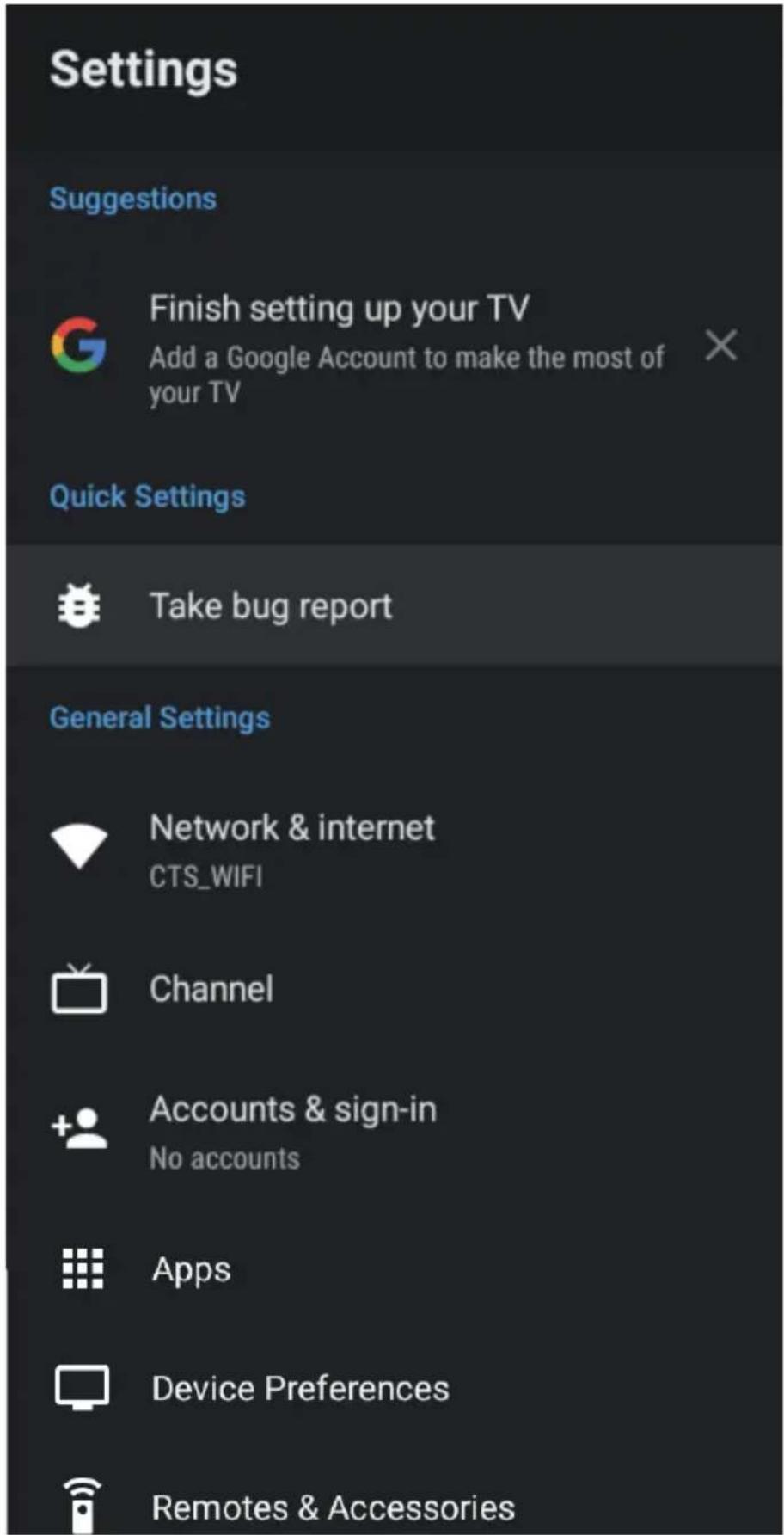

Settings				24
	Network
	Channel	Menu
Device Preferences
	About	&	Time	Settings

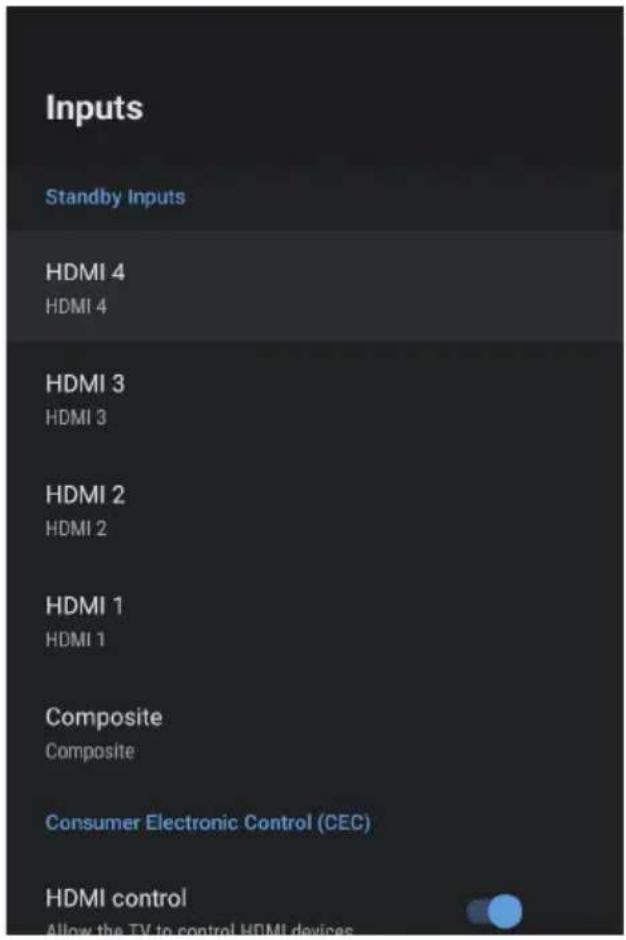

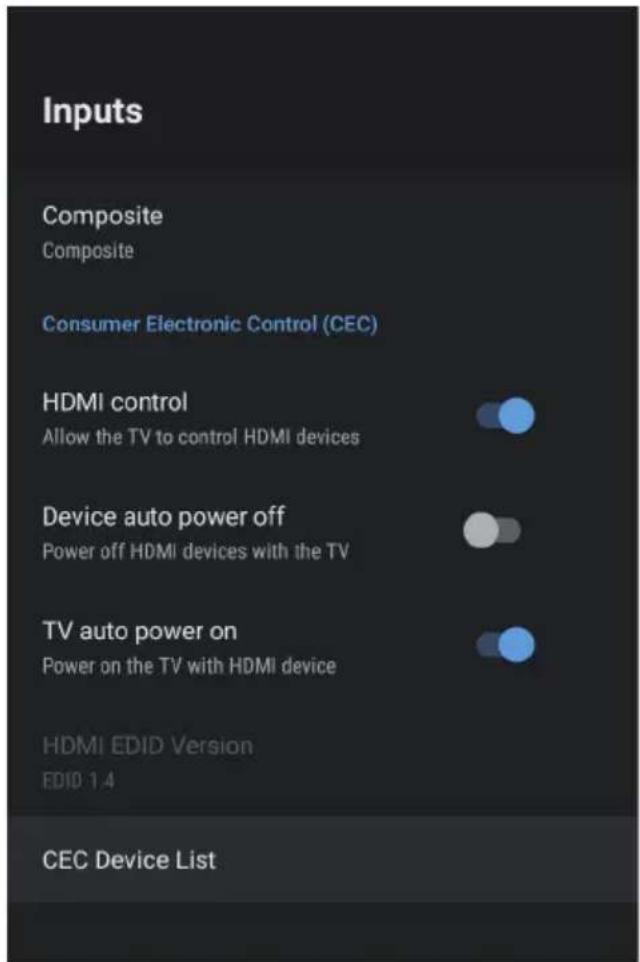

	Input	Settings
	Power	Settings

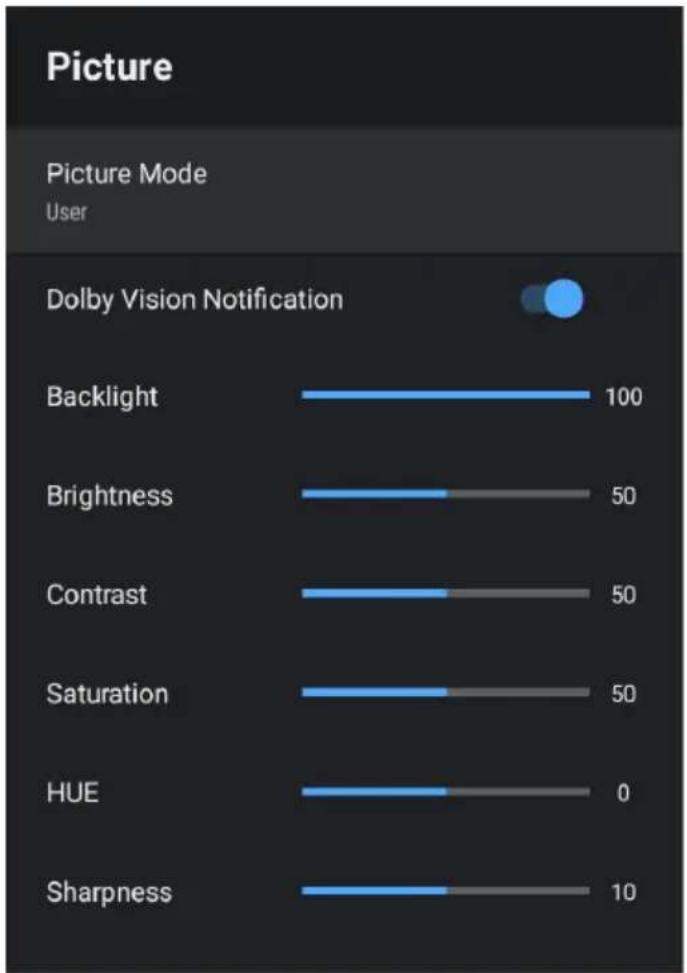

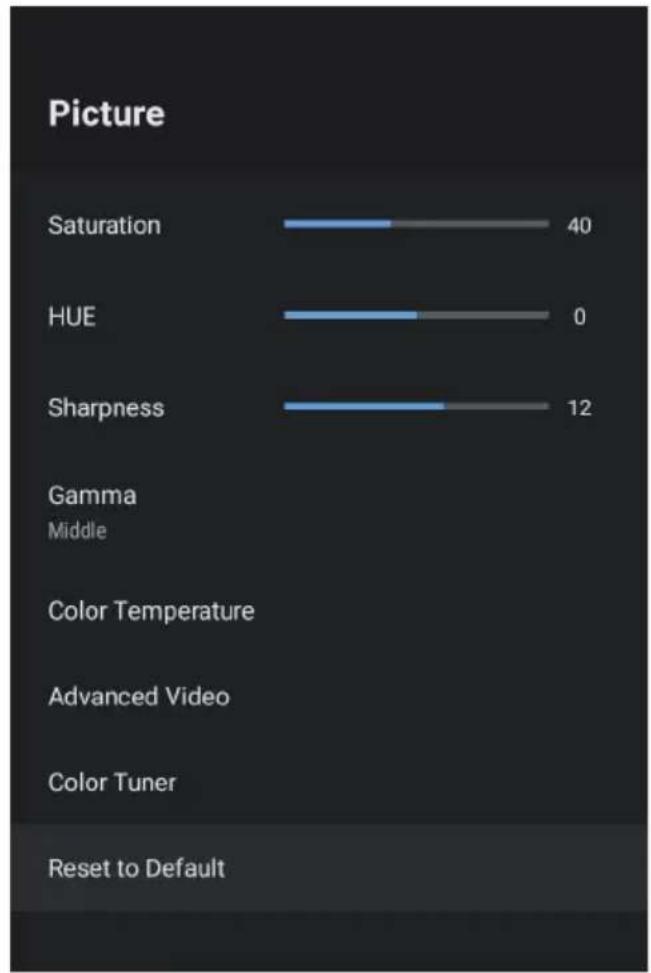

	Picture	Settings

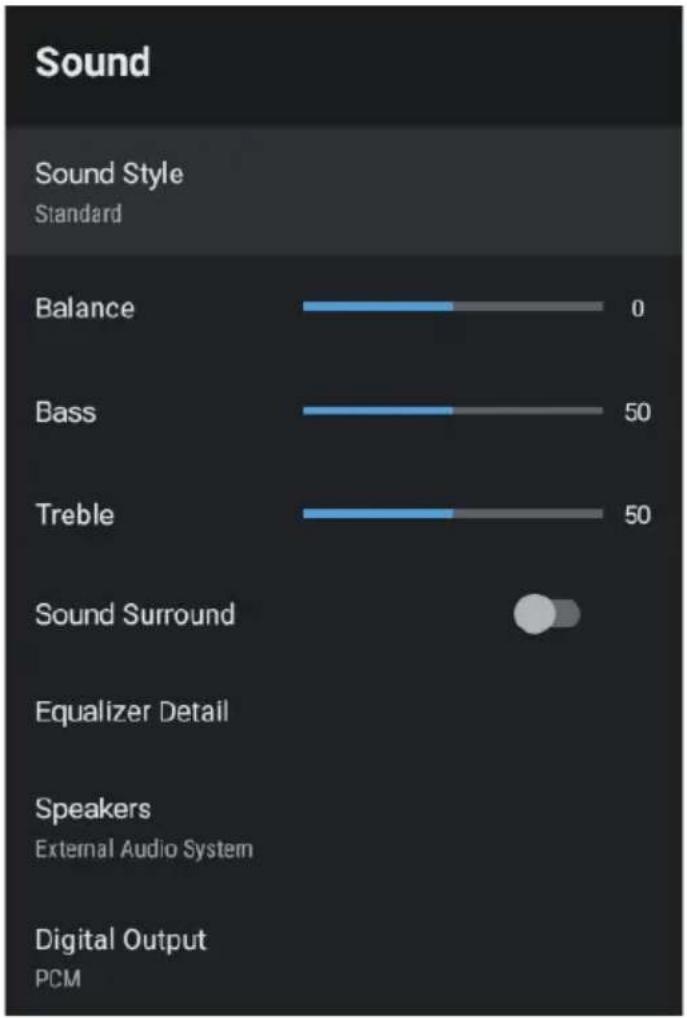

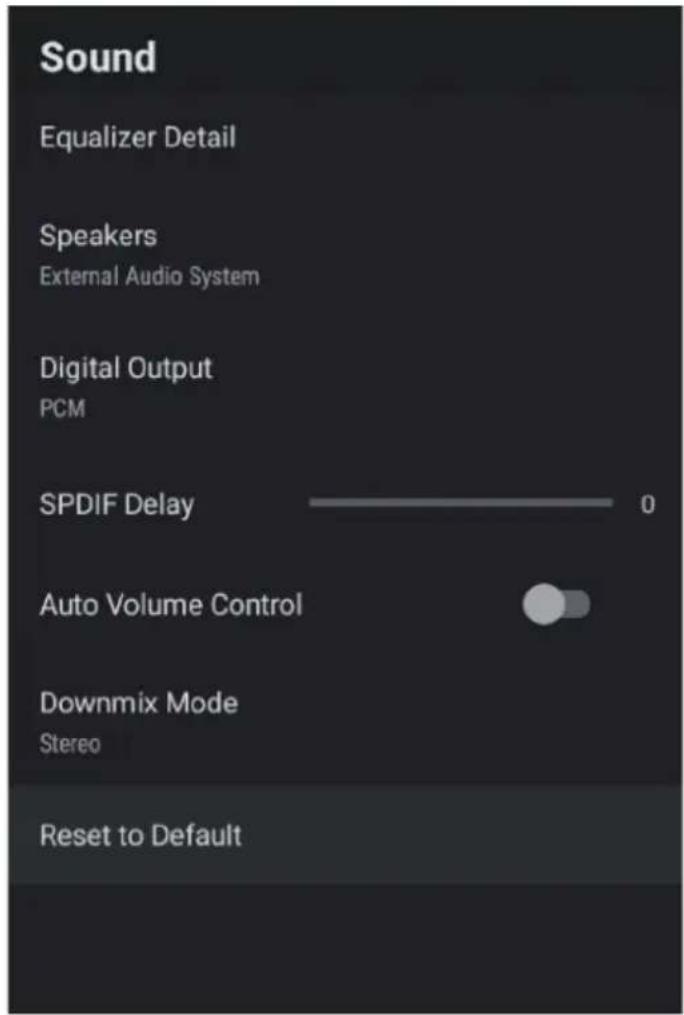

	Sound	Settings

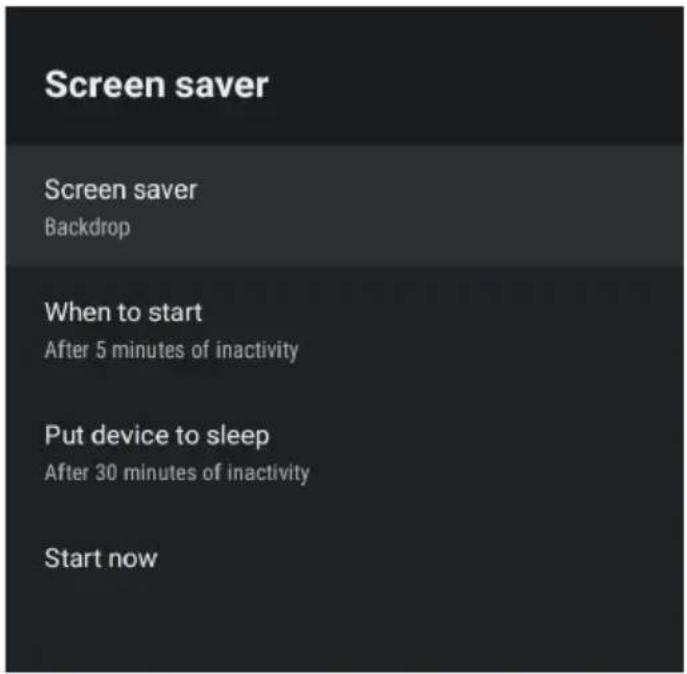

	Home Screen & Screen Saver			32
	Google	Assistant	Settings

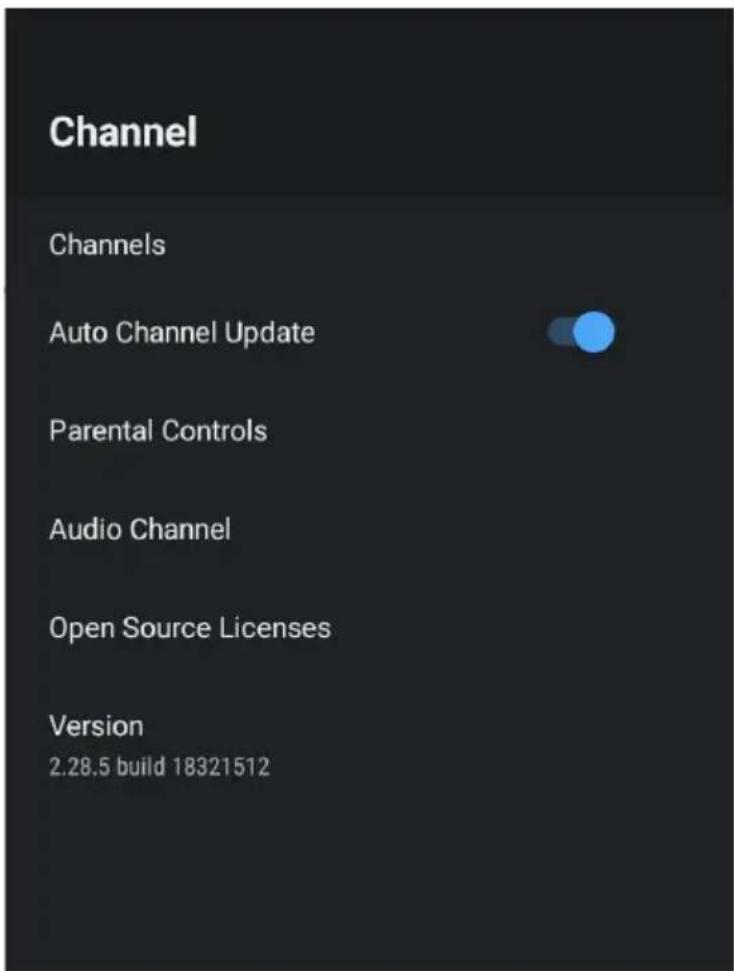

Parental	Control			34

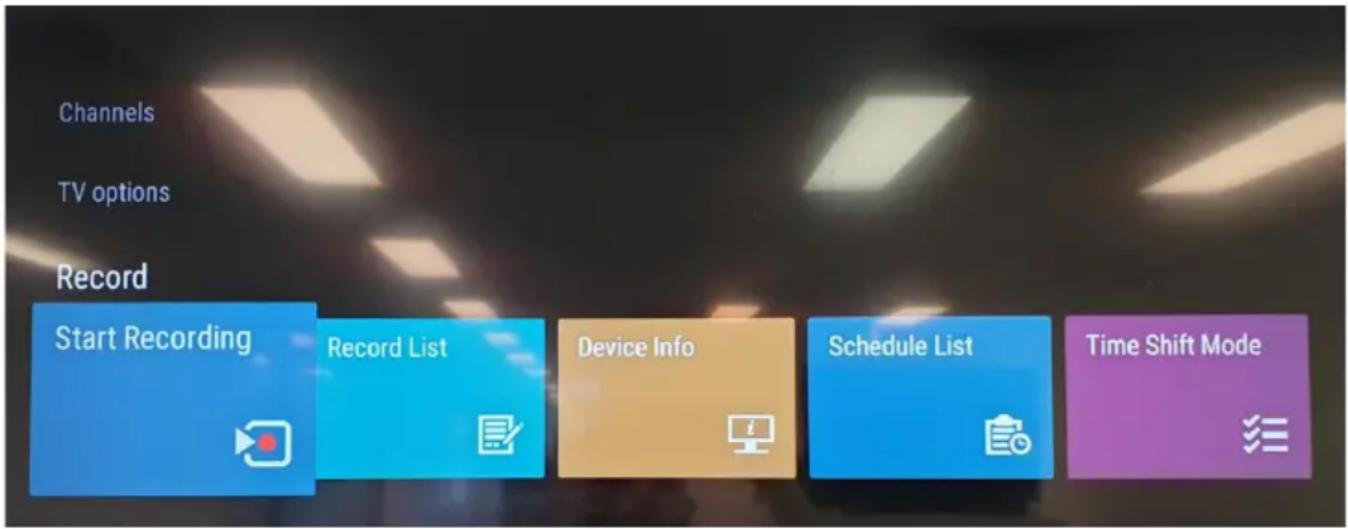

PVR	(Personal	Video	Recorder)
FAQs				36
Specifications				38
Customer	Helpline			La

4

12

15

2

Last

GENERAL SAFETY

Read this manual thoroughly before you start using the TV.

Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduce the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

The cover (or back) of the unit should not be removed to prevent risk of electric shock.

This unit must be serviced by a qualified service personnel only.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

The lightning flash with symbol within the triangle is intended to warn you of a non-insulated dangerous voltage in the product's enclosure that could be of sufficient magnitude to generate a risk of electric shock to persons.

The exclamation point within the triangle is intended to warn you to the presence of important operating and maintenance instructions in the documents included with the product.

IMPORTANT INFORMATION

The lightning flash symbol within the triangle is intended to warn you of non-insulated dangerous voltage the product's enclosure that could be of sufficient magnitude to generate a risk of electric shock to persons.

• Using Cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the Products.
• Ensure the Product is not overhanging the edge of the supporting furniture.
• Do not place the product on a high furniture without securing both the furniture and the product to a stable support.
• Do not place the product on cloth or other conductive materials.
• Warn children of the dangers of climbing on furniture to reach the television or its controls and to call for an adult to assist.

GENERAL SAFETY (CONT.)

IMPORTANT INFORMATION

• Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard
• Do not tamper or change or modify the product in any way.
• Only use Accessories outlined and recommended by the manufacturer.
• Please do not expose the product to splashing or water contact
• Please do not place any object on top of the product including objects filled with liquids such as vases.
• Danger of explosion if battery is incorrectly placed. Replace with same or equivalent type.

Installation

Please follow instruction when installing this product in accordance with the instruction manual. This product must be positioned in a sufficiently stable location, it can be potentially hazardous due to falling and can cause injury, particularly to children if it positioned incorrectly.

• Before installing this TV set, make sure your outlet voltage corresponds to the voltage stated on the product rating label
• Do not use a damaged power cord, plug or loose outlet. Doing so may cause an electric shock.

- Do not plug several devices into the same outlet. Doing so may cause the outlet to overheat and start a fire. Make sure the outlet is readily accessible during operation of the equipment.

- Do not bend, twist or kink the power cord excessively.

- Do not allow anything to rest on or roll over the power cord and antenna cable. Doing so may cause a fire or an electric shock.

- Do not run the power cord near heat-producing appliances such as radiators, stoves or irons. The excessive heat could melt the insulation and expose live wires, resulting in fire or electric shock.

- Unplug this TV during lightning storms or when unused for long periods of time. Not doing so may result in fire or electric shock.

- Do not cover the ventilation openings of the product with items such as newspapers, tablecloths, curtains etc or insert objects into the slots available on the products. As this could result in the product temperature rising and could cause a fire.

- If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock.

- When not using the unit for long periods of time or when you are moving the unit please ensure to disconnect the power cord from the wall socket.

GENERAL SAFETY (CONT.)

• Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire.
• The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
• Batteries from the remote control must be only removed by an adult, the adult must ensure to keep them out of reach of infants and children. Seek medical attention immediately if a child has swallowed a battery.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
• To maintain the product do not use any chemical or cleaning agent or wet cloth, please only ensure to utilize a dry cloth to wipe it down from marks or dust and only after unplugging the product from the power socket.
• Please ensure to contact our call center for any repair or service required for the products.
• Make sure to always carry TV from the sides, always be sure to have assistance by another person. Do not carry the TV from the middle.

WARNING!

It is STRONGLY RECOMMENDED that you ANCHOR this product.

Toppling furniture and TV's can cause serious injury or death.

TO HELP AVOID ANY SERIOUS OR FATAL INJURY, WE STRONGLY RECOMMEND THAT THIS PRODUCT BE PERMANENTLY FIXED TO THE WALL OR OTHER SUITABLE SURFACE. FIXING DEVICES ARE NOT INCLUDED SINCE DIFFERENT SURFACE MATERIALS REQUIRE DIFFERENT ATTACHMENTS. PLEASE SEEK PROFESSIONAL ADVICE IF YOU ARE IN DOUBT WHAT FIXING DEVICE TO USE.

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.
• Not standing the television on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its controls.

GENERAL SAFETY (CONT.)

Please make sure upon positioning this product, the place is:

• Not wet or damp and Well ventilated
• Away from direct sunlight or heaters.
• Away from splashes or food.
• Protected from excessive dust or grease.
• Do not install this equipment in a confined space such as a bookcase or similar unit.
• Do not install the TV set near heat sources such as radiators, stoves or other audio visual equipment that produce heat.
• Do not place containers with liquids, if liquid falls inside the products it may result in short-circuit, fire or electric shock.
• Do not place small metallic objects on top of the unit. Metal object falls inside the product it may result in short-circuit, fire or electric shock.
• Do not use or store flammable or combustible materials near the unit. Doing so may result in fire or explosion. Do not place any naked flame sources, such as lit candles, cigarettes or incense sticks on top of the TV set.
• The antenna must be installed away from high-voltage power line,
• Please contact an antenna professional installer to install the antenna to avoid incorrect installation which could result in fire, electric shock or serious injury.
  • Install the unit at a reasonable distance from the wall to ensure sufficient ventilation.
• If mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

This symbol indicates that the appliance has double insulation between the dangerous mains voltage and the parts accessible to the user. In the event of repairs use only identical spare parts.

HDMI®

HIGH-DEFINITION MULTIMEDIA INTERFACE

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

INSTALLATION

Install the stand as described below, or if you want to mount it to a wall, please contact a professional installer.

Please ensure the TV is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task.

Attaching the stand

Step 1

Place a soft cushioned material on top of a flat surface to prevent damaging the screen panel. Then place the TV screen flat on top, with the screen side facing down, as illustrated on the right.

Step 2

Align the stand leg to the installation point, as illustrated below.

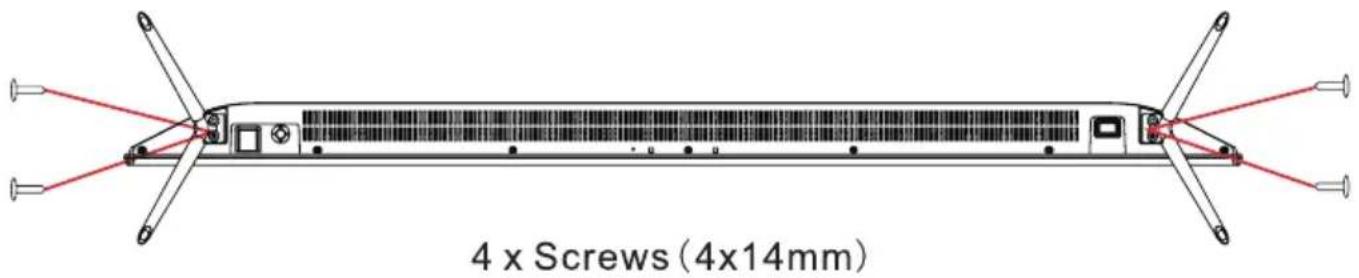

Step 3

Tighten the screws (supplied) with a screwdriver to affix the stand to the panel, as illustrated on the right.

4 x Screws (4x14mm)

CAUTION!

Do not apply excessive force as this may damage the screw holes.

INSTALLATION (CONT.)

Wall-Mounting Instructions

Please ensure the TV is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task.

• We recommend you use a professional installer as we assume no liability for any eventual damage to the product or injury to yourself if you mount the TV on your own.

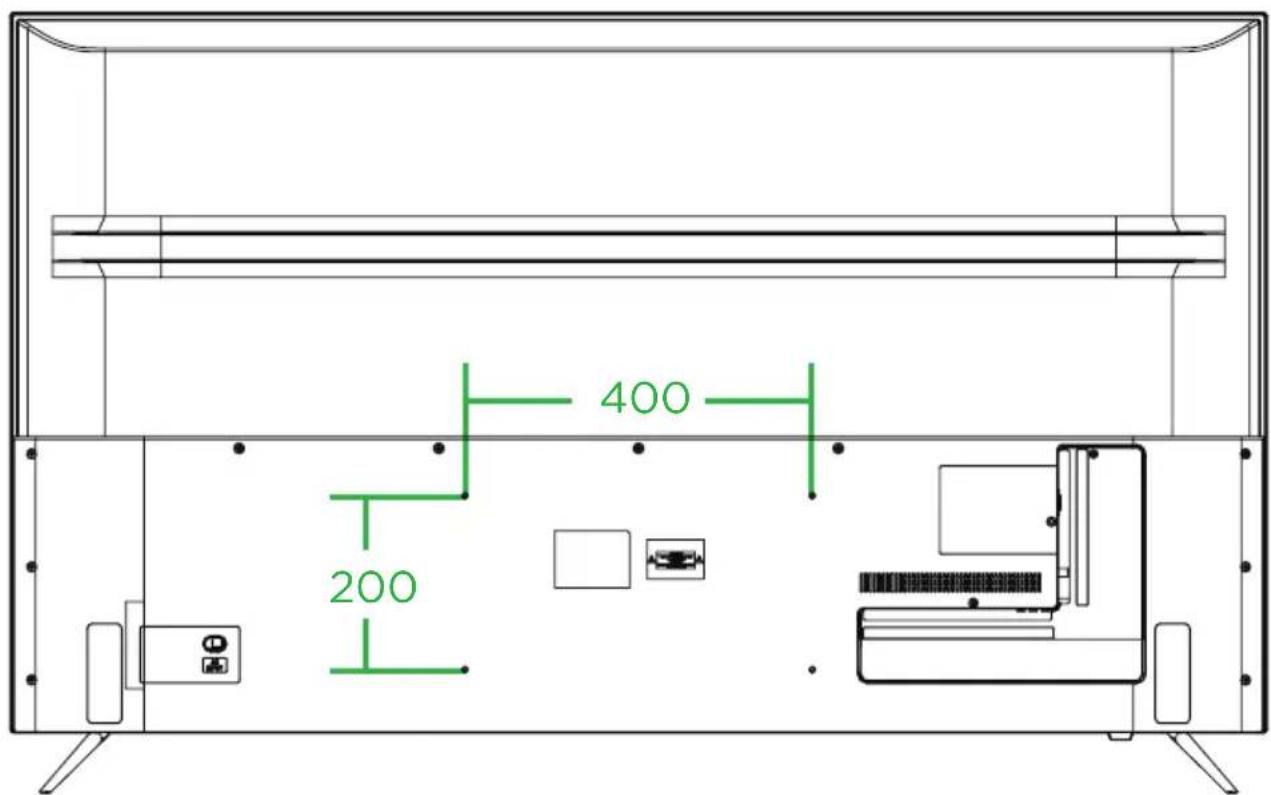

BACK OF TV

VESA PATTERN: 400(w) x 200(h) mm

400 200

NOTE: If you are wall-mounting the TV, this should be done by a qualified installer.

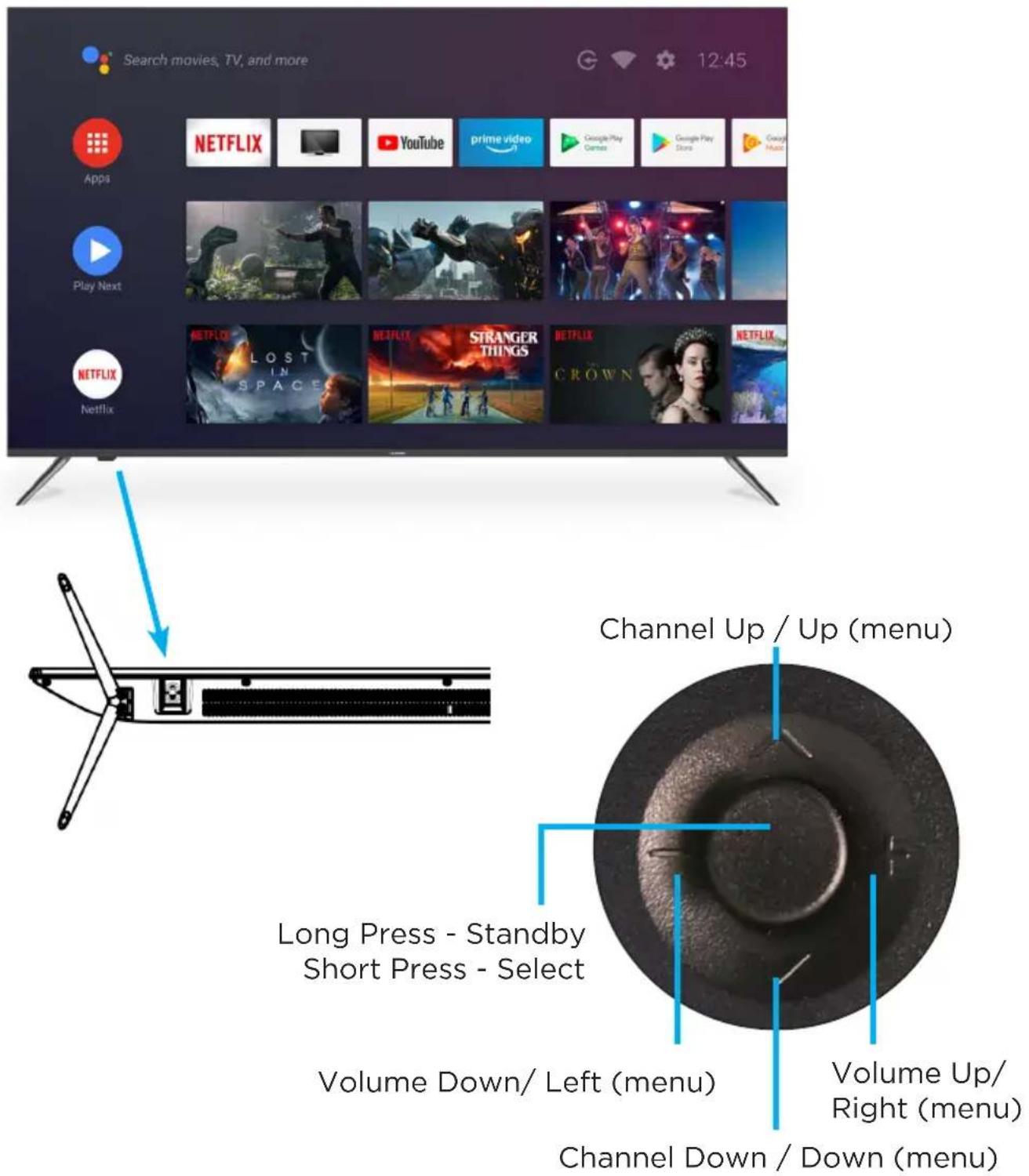

CONTROLS AND CONNECTIONS

Search movies, TV, and more 12:45 Apps NETFLIX YouTube prime video Google Play Google Play Music Play Next NETFLIX LOST IN SPACE NEUTFLIX STRANGER THINGS NETFLIX CROWN NETFLIX Channel Up / Up (menu) Long Press - Standby Short Press - Select Volume Down/ Left (menu) Volume Up/ Right (menu) Channel Down / Down (menu)

CONTROLS AND CONNECTIONS

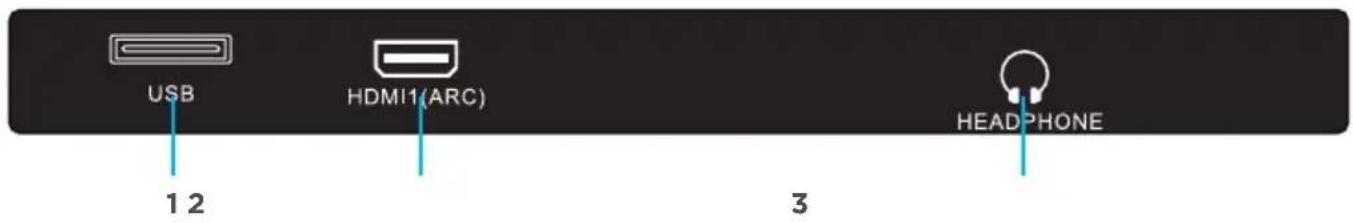

SIDE PORTS

USB HDMI1(ARC) HEADPHONE 1 2 3

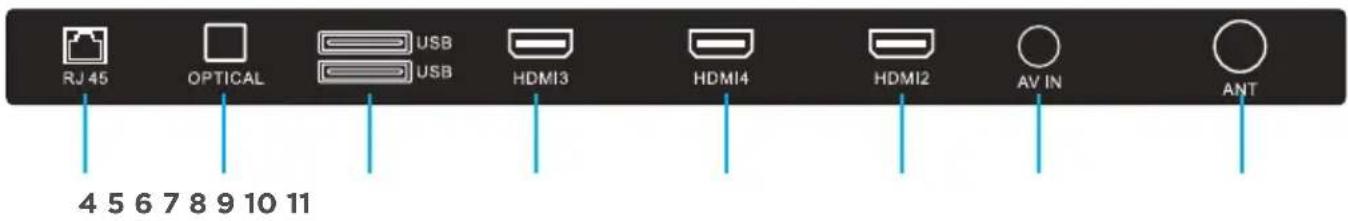

BOTTOM PORTS

RJ 45 OPTICAL USB USB HDMI3 HDMI4 HDMI2 AV IN ANT 4 5 6 7 8 9 10 11

1. USB INPUT
2. HDMI 1 / ARC
3. HEADPHONE PORT
4. RJ45 (ETHERNET)
5. OPTICAL
6. 2X USB INPUT
7. HDMI 3
8. HDMI 4
9. HDMI 2
10. MINI AV INPUT
11. ANTENNA (RF)

USB connection

Insert a USB storage device into the USB port to record, playback of video/music/photo.

REMOTE CONTROL

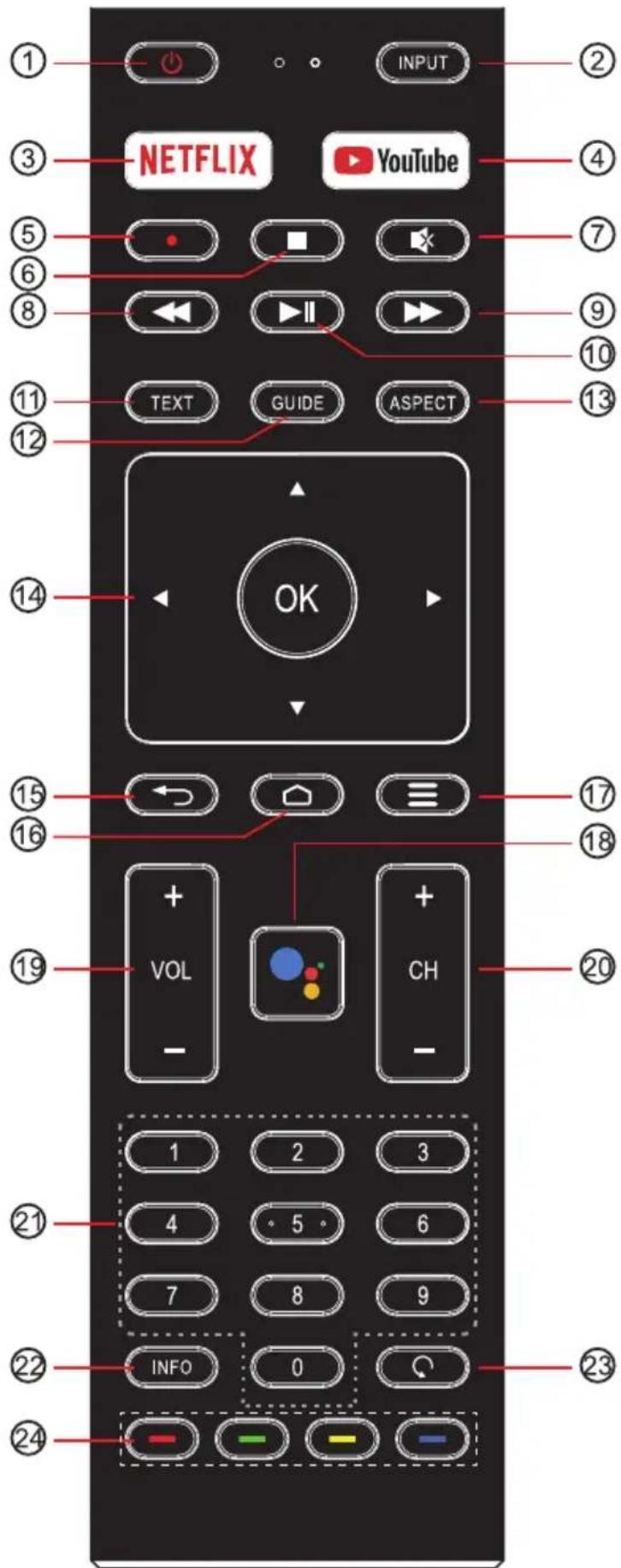

① ② ③ NETFLIX YouTube ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ TEXT GUIDE ASPECT ⑫ OK ⑬ VOL CH ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ 1 2 3 ㉒ 4 5 6 ㉓ 7 8 9 ㉔ INFO 0 ㉕ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

REMOTE CONTROL (CONT.)

1. POWER: Turn the TV on/off.
2. INPUT: Open Input menu (DTV, HDMI1, HDMI2, etc)
3. NETFLIX Open Netflix
4. YouTube Open YouTube

5. Start recording DTV Channel (must have USB drive inserted)

6. STOP: Stop multimedia playback, Recording and Timeshift mode

7. MUTE: Turn the sound on or off

8. REWIND: Rewind playback in multimedia/timeshift mode

9. FASTFORWARD: Fastforward playback in multimedia/timeshift mode

10. PLAY/PAUSE: Play/Pause playback in multimedia/timeshift mode

11. TEXT: Teletext Mode

12. GUIDE: Display electronic TV guide in DTV mode

13. ASPECT: Adjust Aspect ratio of the TV

14. ARROWS: Navigate on-screen menu, OK to confirm selection

15. RETURN: Return to previous menu

16. HOME: Open Android TV home page

17. MENU: Open or close on-screen menu

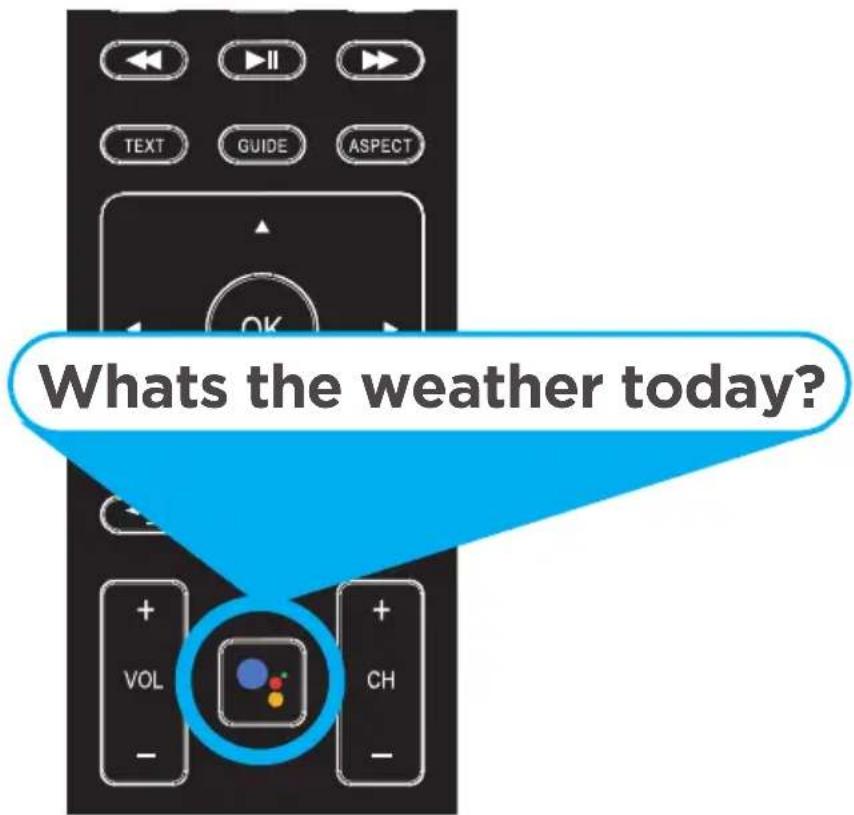

18. Start a voice search or speak to Google Assistant

19. VOLUME: Increase or decrease TV volume

20. CHANNEL: Next or previous TV channel

21. NUMBERS: Direct access to desired channels

22. INFO: Display channel information

23. Jumps to last viewed channel

24. Operations according to the prompt within menu or while watching TV.

REMOTE CONTROL (CONT.)

Using the Remote Control

• Do not mix old and new batteries in the remote
• Do not use different types of battery
• If you do not intend to use the unit for a long time, please remove batteries from the remote to avoid accident.
• Keep batteries away from children and pets.
• Never throw batteries into a fire.
• Do not drop, or impact the remote control as it void warranty immediately.
  • The remote control operate at a range of 5 to 6M effectively
• Do not expose the remote control sensor to a bright light.

How to open back of remote control to replace batteries

1. Look for the hole at the back side, bottom of the remote.

Use this hole to either place your nail (if long enough) to open or another thin object to pop open the cover.

1. Place/Replace the batteries making sure that the 2x AAA batteries (included) polarities (+/-) match the battery compartment polarities (+/-).
2. When closing the back cover, place the top side edge of the back cover in first, then the bottom side (where the opening hole is) when pushed in will click shut.

Close-up of a black rectangular object with a pink circle highlighting a small black feature, no text or symbols visible.

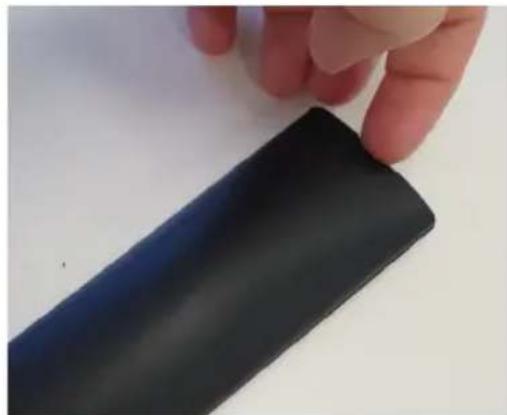

Hand holding a black flexible strip against a white background (no text or symbols visible)

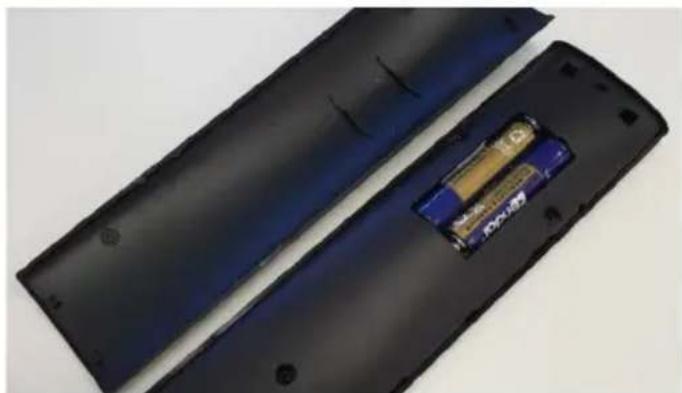

Two open black remote control panels with visible battery modules and circuit traces (no text or symbols)

INITIAL SETUP

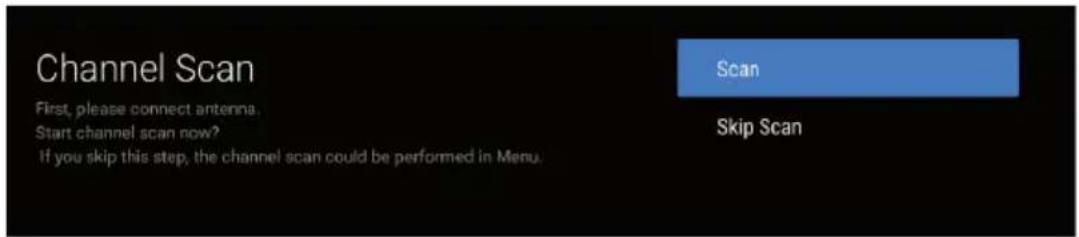

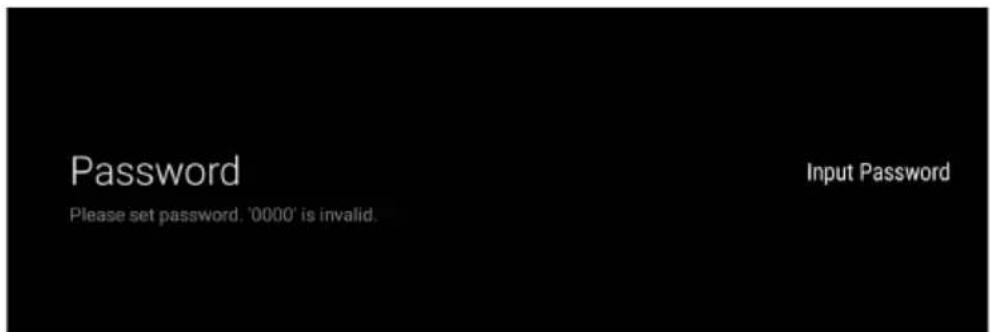

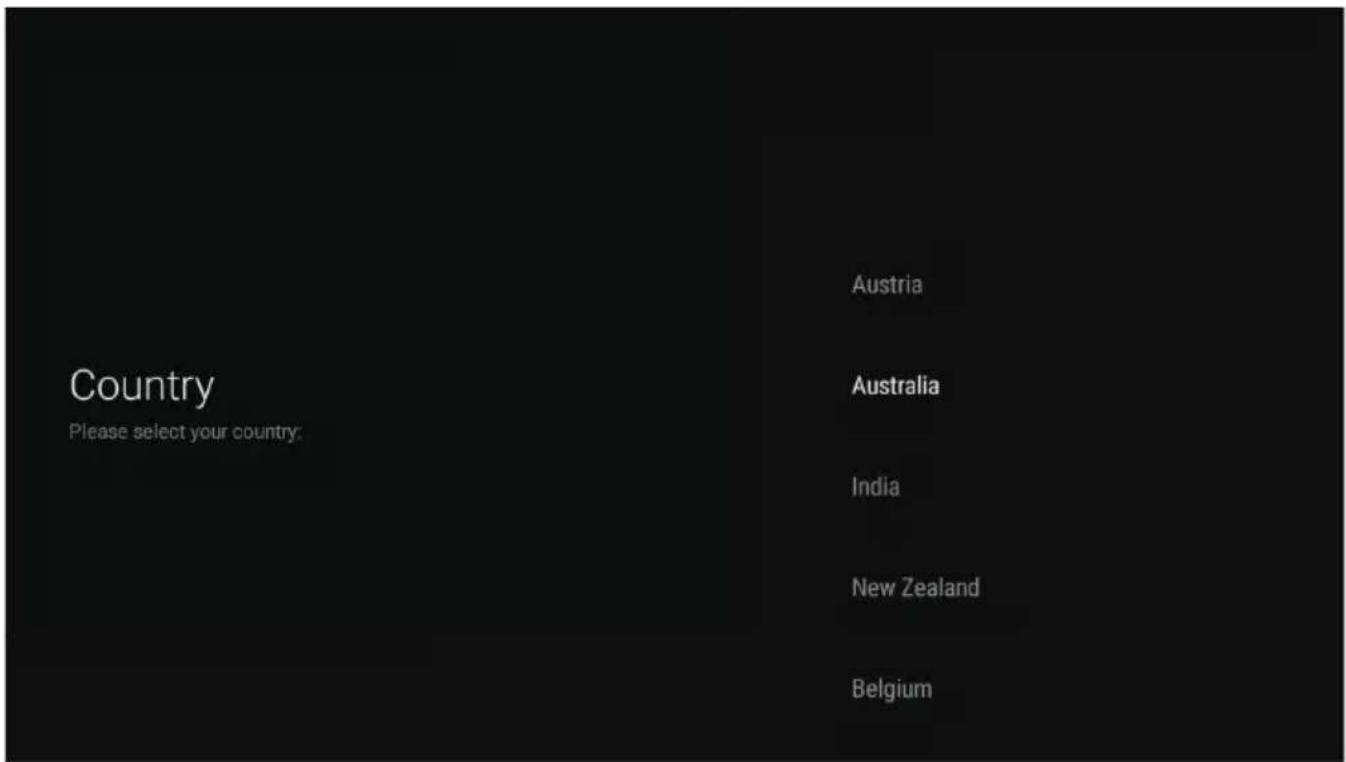

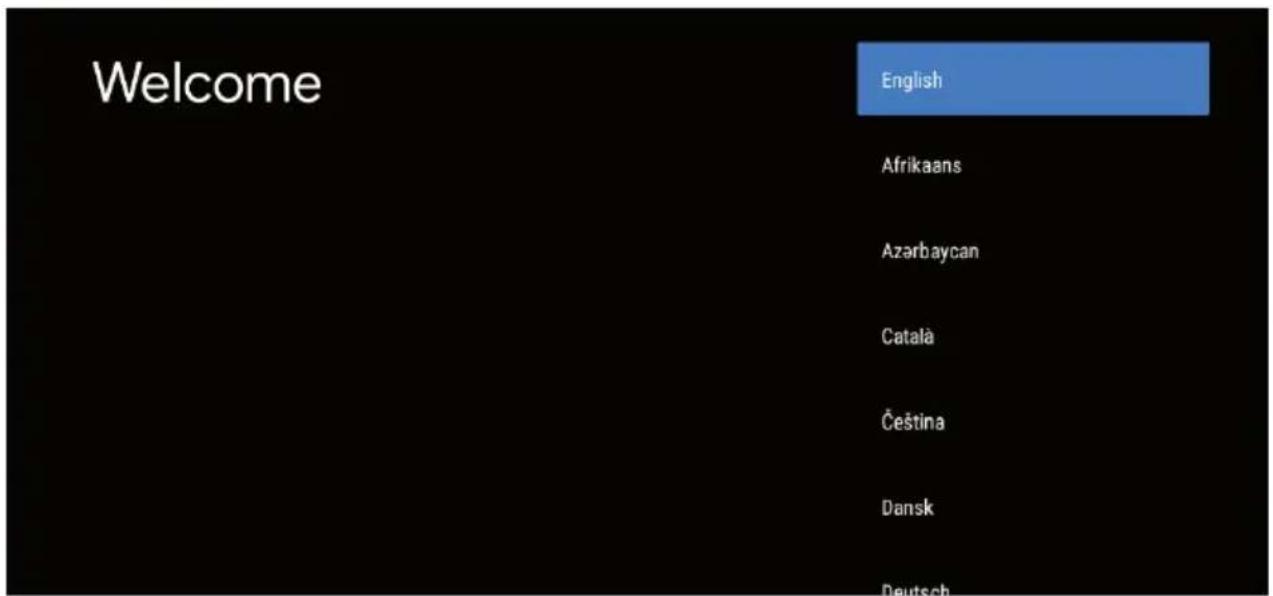

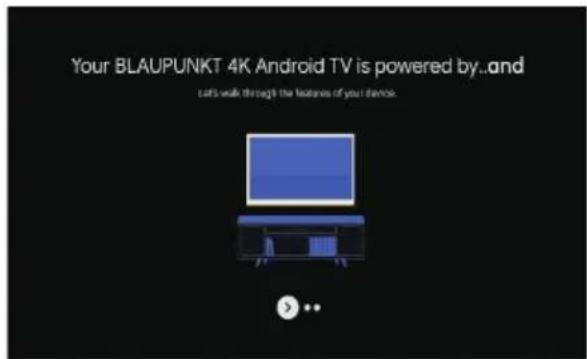

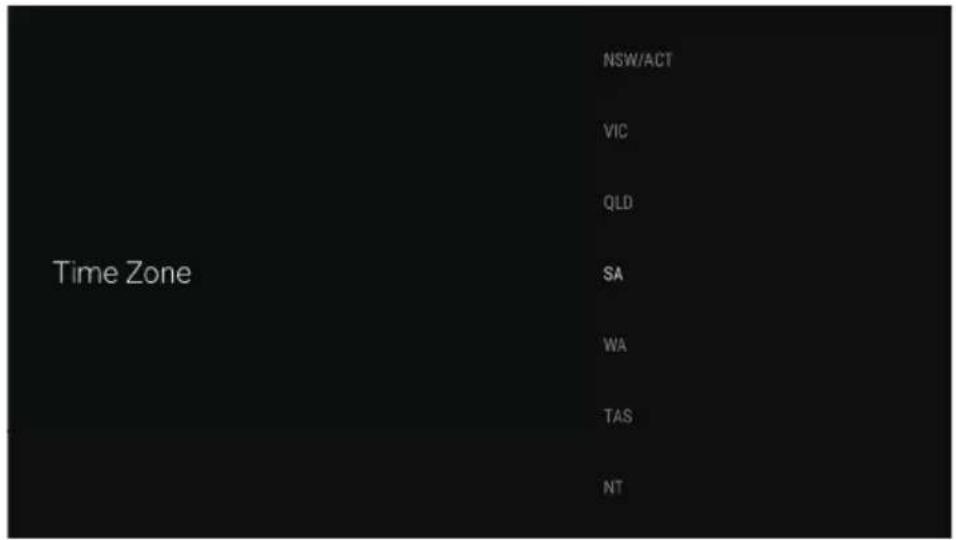

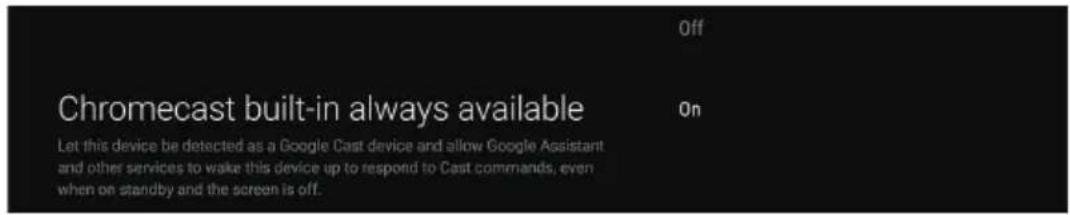

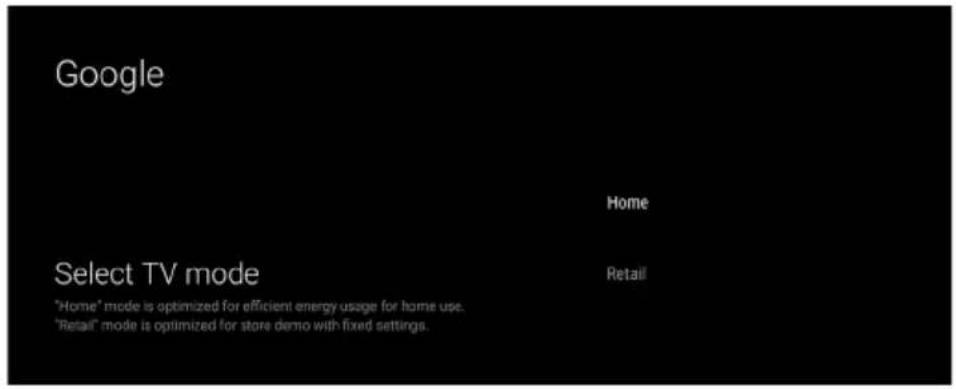

For the first initial setup, on screen setup wizard will guide you through setting up your TV.

Please follow according to onscreen guide to setup your TV correctly.

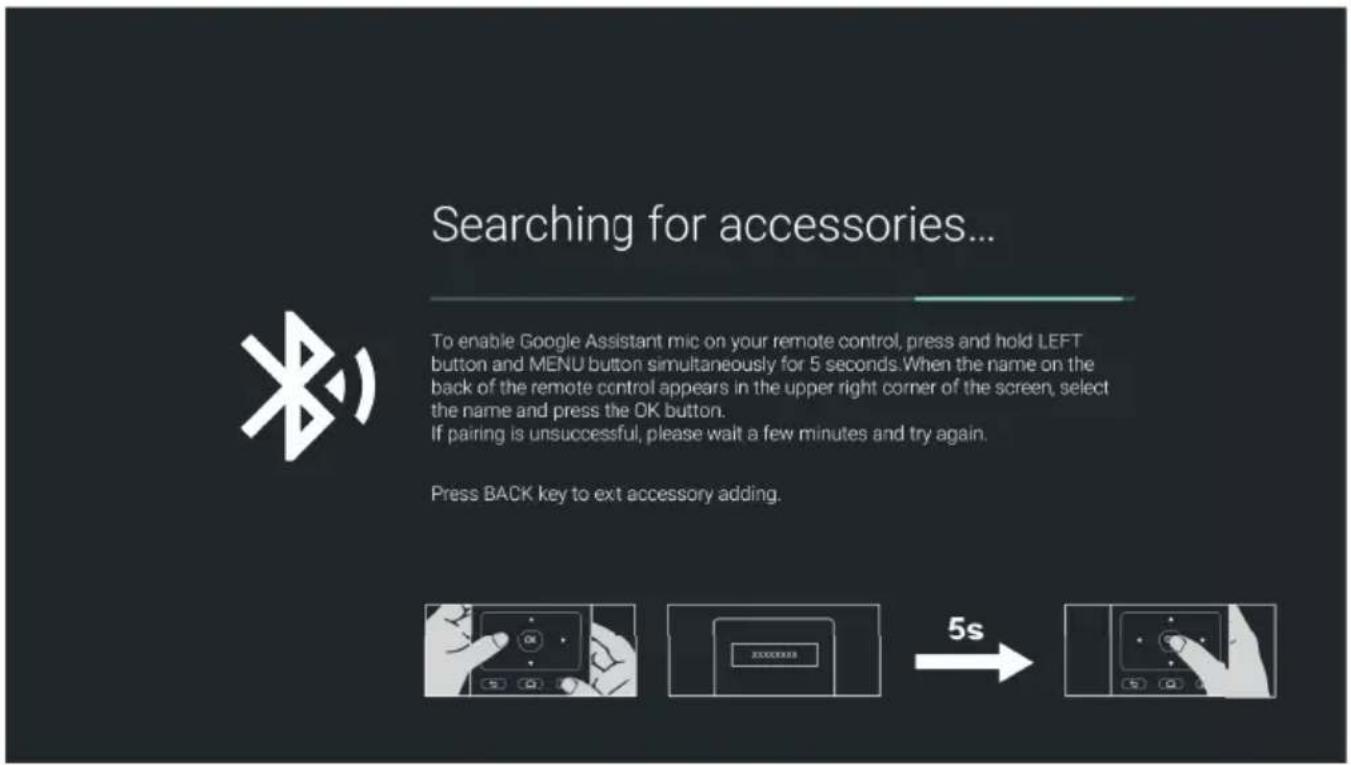

Be sure to follow the below prompts to pair your Bluetooth remote control. After the pairing is successful, you can now operate the TV.

Searching for accessories... To enable Google Assistant mic on your remote control, press and hold LEFT button and MENU button simultaneously for 5 seconds. When the name on the back of the remote control appears in the upper right corner of the screen, select the name and press the OK button. If pairing is unsuccessful, please wait a few minutes and try again. Press BACK key to ext accessory adding. 5s

Use the ▲/▼ buttons to select system language, then press OK/SELECT to confirm.

Welcome English Afrikaans Azərbaycan Catala Čeština Dansk Deutsch

INITIAL SETUP (CONT.)

If you just want to use your TV normally, please select "SKIP"

To connect your Android Smartphone to your TV, Select "Continue".

Quickly set up your TV with your Android phone?

You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV

Continue

Skip

Press ▲/▼ to select your Wi-Fi you wish to connect to, enter the password and then confirm to connect.

Select your Wi-Fi network

You can also connect an Ethernet cable to connect to the internet.

3686

ChinaNet-Wepx

lserver-netgear-5G

JRX-guest

By accepting the Google Terms of Service to improve the product experience, Select "ACCEPT" to proceed with this condition.

Google

Terms of Service

By continuing, you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service.

This device may also receive and install updates and apps from Google, your device's manufacturer, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings.

Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience.

Accept

Terms of Service

Privacy Policy

Play Terms of Service

INITIAL SETUP (CONT.)

Select "YES" if you want your location identified on your ANDROID TV. (Note: Select "YES" if you want google to inform you on weather more accurately based on location).

Google

Location

Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Yes

No

By Agreeing and selecting "YES", you agree to automatically send diagnostic information to Google to help improve your Google experience.

Google

Help improve Android

Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Yes

No

INITIAL SETUP (CONT.)

Informational screens will now appear, you can scroll through steps by press "RIGHT" directional button to continue.

Your BLAUPUNKT 4K Android TV is powered by...and cat's walk through the features of your devices.

Get apps from Google Play The Google Play Store offers apps you're sure to love. Watch shows, stream live sports, play games and more. Google Play

Cast to your TV With Chromecast built-in, you can quickly cast phones, videos, and music from your phone right to your TV.

Select the country you are using the device in with the ▲/▼ directional buttons.

Country Please select your country: Austria Australia India New Zealand Belgium

Used to set a password of your TV for security purposes.

NOTE: make sure to save the password, as you can then refer to password when required.

Password Please set password. '0000' is invalid. Input Password

INITIAL SETUP (CONT.)

Select the TimeZone you are using the device in with the ▲/▼ directional buttons.

Time Zone NSW/ACT VIC QLD SA WA TAS NT

Please be sure in this step, select "HOME" if you are using this TV for use at home. Make sure to confirm once you have selected "HOME".

Google Home Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Retail" mode is optimized for store demo with fixed settings.

Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off.

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off.

Make sure to select "SCAN" to auto tune your TV to search for local DTV channels.

Channel Scan First, please connect antenna. Start channel scan now? If you skip this step, the channel scan could be performed in Menu.

NOTE: Please make sure Antenna (RF) cable is plugged into the ANT IN port located on back of TV. (refer to page 11 TV ports - #10).

Once you have completed initial setup, you will now enter the ANDROID TV home screen.

1 Search movies, TV, and more 3 4 5 6 7 4 5:49 2 Apps NETFLIX Google Play Store Google Play Music YouTube Google Play Movies & TV + 8 NETFLIX Netflix NETFLIX BIRD BOX IN CREDIBLES 2 AVENGENS INNIMITE WAR NETFLIX The CHRIS CRO ALL THE BOMBS RIP 2017 - 2018 YouTube TLC

1. Open Google Assistant to start a voice search.
2. Selected the Multi-dot red circle to have access to all your applications.

Pre-installed applications are available for you in this row, select "Google Play Store" If you wish to search and download additional apps optimised for Android TV.

1. NOTIFICATION: here will display all notifications relating to anything on your ANDROID TV.
2. INPUTS: Select this if you want to adjust your TV Input, Example: DTV, HDMI 1, HDMI 2.
3. NETWORK: This will display what network connectivity, Wi-Fi or ETHERNET.
4. SETTINGS: Select this if you want to access TV settings.
5. TIME: Displaying current time.
6. Each row past this point will display recommended content from the apps you already have installed.

GOOGLE PLAY STORE

Google Play Store

To have access and to download applications from the Google Play Store, you must sign in with a Gmail account.

Once you open Google Play Store, you will be prompted to sign in or create a new account.

Google

Sign in

Use your Google Account

Email or phone

Forgot email?

Not your computer? Use Guest mode to sign in privately. Learn more

Create account

Next

Once you have signed in, you will be brought to the below page, scroll through the list of applications available for download OR go to the search button, and search via entering Text or speaking to Google Assistant via your remote control.

Google Play Apps Games My Apps Tubi - Free Movies & TV Tubi TV • Entertainment • Teen fuboTV tubi Free Movies & TV neverthink prime video TV Start streaming

GOOGLE ASSISTANT

You now have access to Google Assistant via the (#1 on page 20) or by pressing Assistant) button on your remote control to commence.

(Google

Try searching for "Jennifer Lawrence" Settings Finish setting up your TV Add a Google Account to make the most of your TV Details Dismiss Apps Google Play Store Google Play Music YouTube Google Play Movies & TV Listening...

Allow for the voice box to appear at the bottom of your TV screen, stating: "Listening" then speak clearly towards the top of your remote control for Google Assistant to hear you. Once Google Assistant understands, what you have requested will be actioned.

TEXT GUIDE ASPECT OK Whats the weather today? + + VOL CH - -

INPUT MENU

To access INPUT menu, either select INPUT (#4 on page 20) via the HOME screen or press the SOURCE button on your remote control to have quick access to INPUT menu.

The options that are AVAILABLE will be highlighted, PORTS that are not in use, you will not be able to access.

Inputs Channels HDMI 1 HDMI 2 HDMI 3 HDMI 4 Composite

SETTINGS

To access SETTINGS menu, select SETTINGS (#6 on page 20) via the HOME screen.

Settings Suggestions Finish setting up your TV Add a Google Account to make the most of your TV Quick Settings Take bug report General Settings Network & internet CTS_WIFI Channel + Accounts & sign-in No accounts Apps Device Preferences Remotes & Accessories

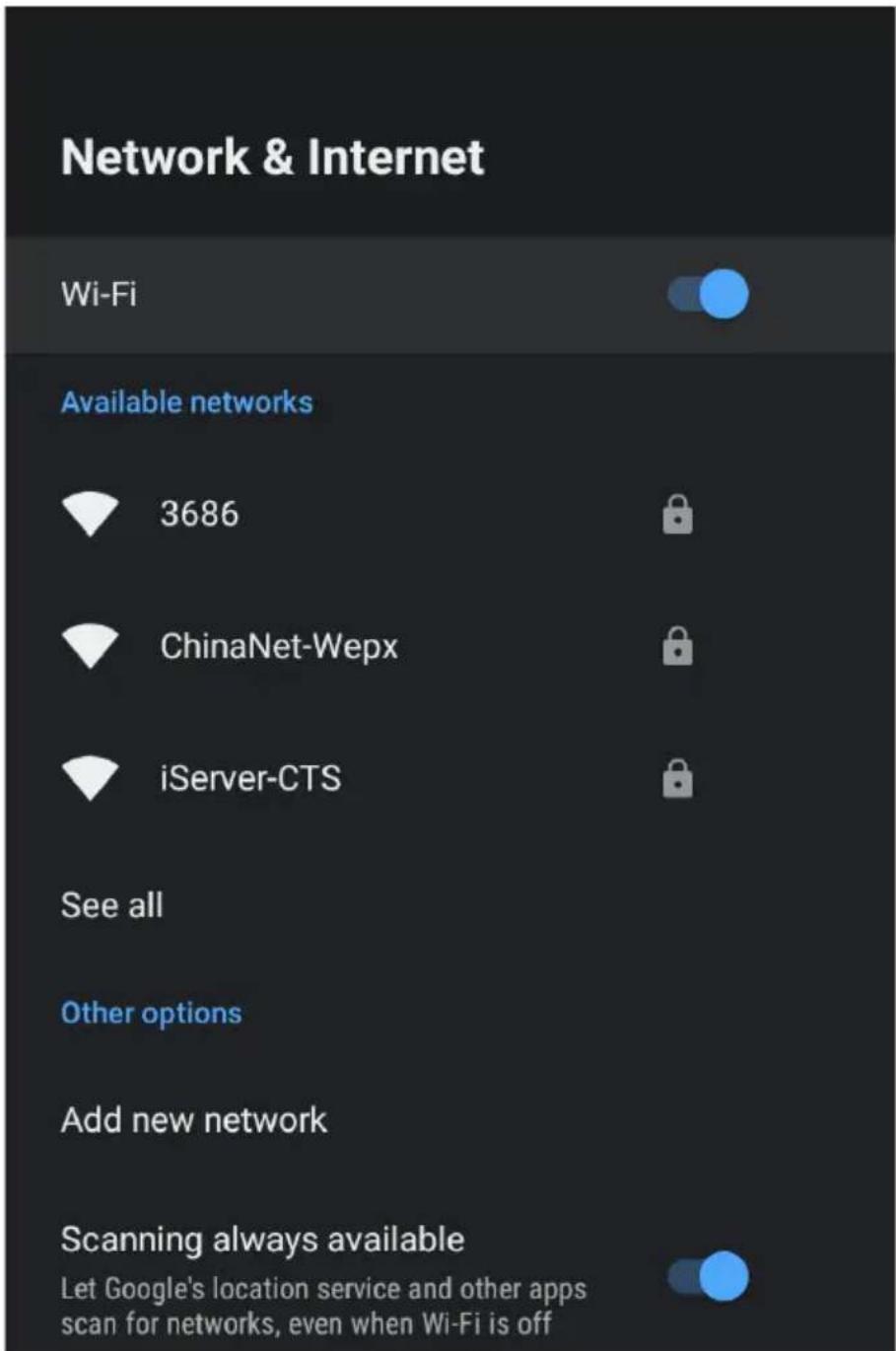

NETWORK & INTERNET

To access NETWORK menu, select WIFI icon (#5 on page 20) via the HOME screen or go into Settings (#6 on page 20) menu and go down and select Network & Internet.

Network & Internet Wi-Fi Available networks 3686 ChinaNet-Wepx iServer-CTS See all Other options Add new network Scanning always available Let Google's location service and other apps scan for networks, even when Wi-Fi is off

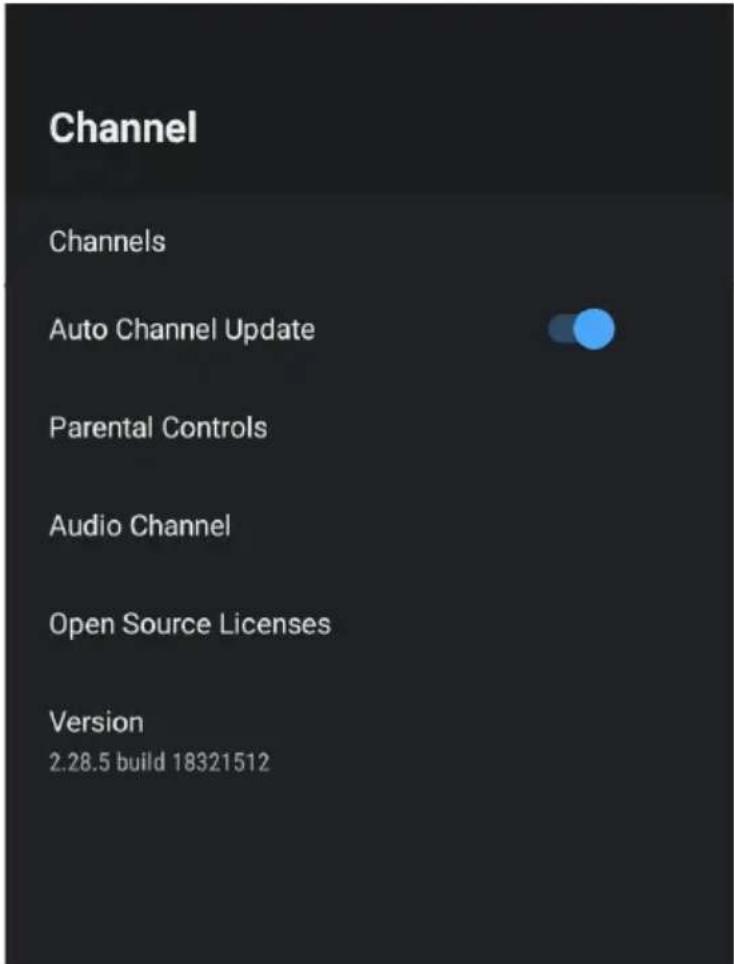

CHANNEL MENU

To access CHANNEL menu, select SETTING icon (#6 on page 20) via the HOME screen. Then go down and select "CHANNEL".

Channel Channels Auto Channel Update Parental Controls Audio Channel Open Source Licenses Version 2.28.5 build 18321512

Channels

Display the scan sub-menu based on different channel installatino modes.

Antenna - Set the signal type to antenna, when set to antenna the TV can now receive digital broadcasting signals.

Auto Update Channel - Enable or disable, allows your TV to automatically update if any changes made to scanned DTV channels.

DEVICE PREFERENCES - ABOUT

To access ABOUT menu, select

SETTING icon (#6 on page 20) via the HOME screen. Then go down and select "ABOUT".

About

System update

Device name

BLAUPUNKT 4K Android TV

Production Name

Restart

Status

Network, serial numbers and other information

Legal information

Model

BLAUPUNKT 4K Android TV

Version

9

TIME

To access DATE & TIME menu, select SETTING icon (#6 on page 20) via the HOME screen. Then go down and select "DATE & TIME".

Date & time

Automatic date & time

Use network-provided time

Set date

April 17, 2019

Set time

9:38 AM

Set time zone

GMT+02:00 Central European Summer Time

Use 24-hour format

1:00 PM

INPUT SETTINGS MENU

To access INPUT SETTINGS menu,

1. Select SETTING icon (#6 on page 20) via the HOME screen.
2. Select "Device Preferences"
3. Then go down and select "INPUTS".

Inputs Standby Inputs HDMI 4 HDMI 4 HDMI 3 HDMI 3 HDMI 2 HDMI 2 HDMI 1 HDMI 1 Composite Composite Consumer Electronic Control (CEC) HDMI control Allow the TV to control HDMI devices

Inputs Composite Composite Consumer Electronic Control (CEC) HDMI control Allow the TV to control HDMI devices Device auto power off Power off HDMI devices with the TV TV auto power on Power on the TV with HDMI device HDMI EDID Version EDID 1.4 CEC Device List

POWER SETTINGS MENU

To access POWER SETTINGS menu,

1. Select SETTING icon (6) via the HOME screen.
2. Select "Device Preferences"
3. Then go down and select "POWER".

Power

Sleep Timer

Off

Picture off

Switch off timer

Off

No Signal Auto Power Off

15 Minutes

Sleep Timer - Options of Off, 10 mins, 20 mins, 30 mins, 40 mins, 50 mins, 60 mins, 90 mins and 120 mins to auto turn off your TV.

Picture Off - Turn off your display (recommended not to select this option. No Signal Auto Power Off - Turns your TV off if no signal is detected.

PICTURE SETTINGS MENU

To access PICTURE SETTINGS menu,

1. Select SETTING icon (6) via the HOME screen.
2. Select "Device Preferences"
3. Then go down and select "PICTURE".

Picture Mode - Options to choose from - Standard, Vivid, Sport, Movie, Game, Energy Saving, User.

HDR - The default setting for HDR is ON this will allow you to enjoy the full effects of HDR (High Dynamic Range).

SOUND SETTINGS MENU

To access SOUND SETTINGS menu,

1. Select SETTING icon (6) via the HOME screen.
2. Select "Device Preferences"
3. Then go down and select "SOUND".

Sound Equalizer Detail Speakers External Audio System Digital Output PCM SPDIF Delay 0 Auto Volume Control Downmix Mode Stereo Reset to Default

Sound Style - Options to choose from - Standard, Vivid, Sports, Movie, Music, News, User.

Speakers - TV Speakers or External Speaker

(This will force the TV to output sound through the chosen option).

Digital Output - Auto, Bypass, PCM, Dolby Digital Plus, Dolby Digital.

(It is recommended to select AUTO, as this will automatically detect quality of sound being procued by content).

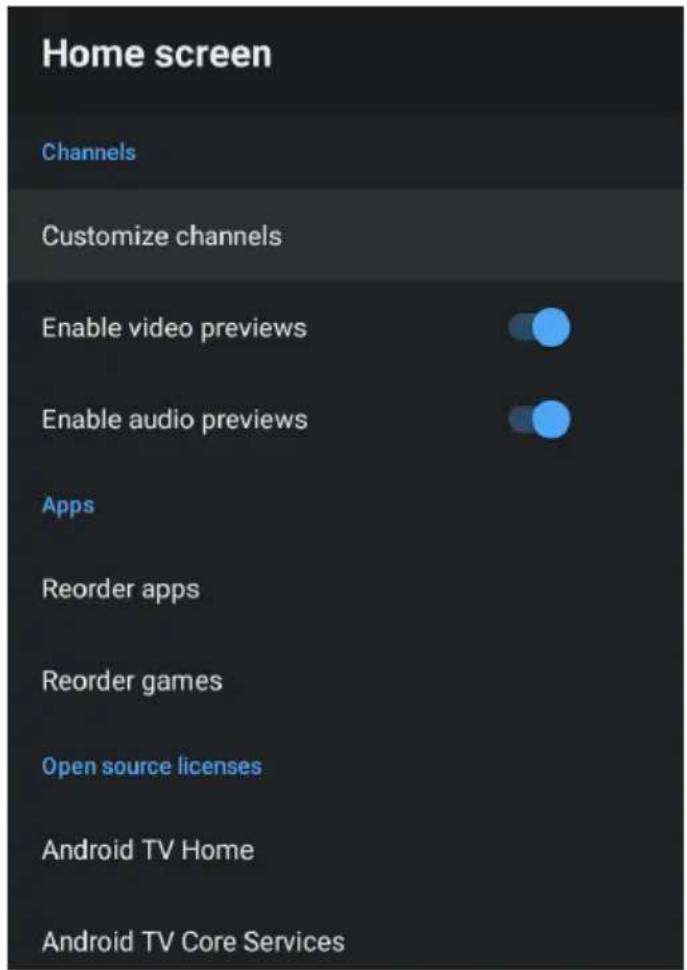

HOME SCREEN

To access HOME SCREEN menu,

1. select SETTING icon (#6 on page 20)

via the HOME screen.

1. Select "Device Preferences"

2. Then go down and select

"HOME SCREEN".

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

SCREEN SAVER

To access SCREEN SAVER menu,

1. select SETTING icon (#6 on page 20) via the HOME screen.

2. Select "Device Preferences"

3. Then go down and select "SCREENSAVER".

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Put device to sleep After 30 minutes of inactivity Start now

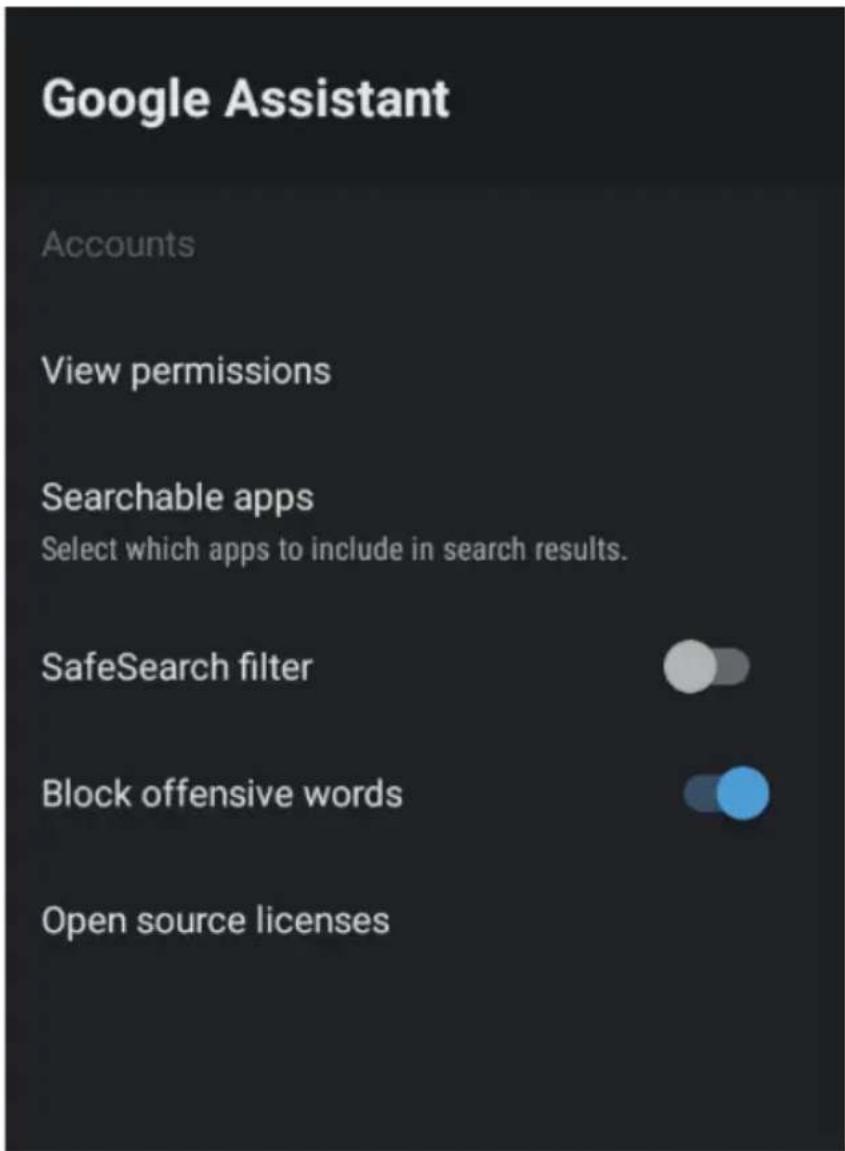

GOOGLE ASSISTANT

To access GOOGLE ASSISTANT menu,

1. Select SETTING icon (#6 on page 20) via the HOME screen.

2. Select "Device Preferences"

3. Then go down and select "GOOGLE ASSISTANT".

Accounts will only be accessible if you have connected a Gmail account via the "Google Play Store". A Gmail account is needed in order to download and install applications via the "Google Play Store".

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Block offensive words Open source licenses

PARENTAL CONTROL

To access PARENTAL CONTROL menu,

1. Select SETTING icon (#6 on page 20) via the HOME screen.
2. Select "Device Preferences"
3. Then go down and select "CHANNEL".
4. Select "Parental Control"

From here you have the option to select and create a new password to lock the channels you want to lock.

Note: please make sure to store/save password somewhere you can access at a later date. Forgetting password, you may need to factory reset TV to use again.

Channels Blocked - Block specific channels to restrict use.

Program Restrictions - You can restrict specific programs on a TV channel can be blocked Inputs Blocked - Block a TV port input to restrict use.

Change PIN - Change existing PIN selected when first entering this menu.

Channel Channels Auto Channel Update Parental Controls Audio Channel Open Source Licenses Version 2.28.5 build 18321512

1. While watching Live TV, press "MENU" on remote control.
2. "TV Options" will appears, Press "DOWN" arrow on remote control to go to "RECORD" menu (as image shown below)

IMPORTANT - You must have a USB Drive inserted into the USB Port of the TV to in order to use any of these “RECORD” functions. (Must be FAT32 format)

Start Recording - Select "Start Recording" to start recording the channel you are currently viewing on Live TV.

Record List - Select "Record List" to view all previous recordings.

Device Info - Select "Device Info" to view information about your storage device.

Schedule List - Select "Schedule List" to see future programs you have scheduled to record.

Time Shift Mode - Select "Time Shift Mode" and switch on to enable Pause/rewind/play of Live TV.

Channels TV options Record Start Recording Record List Device Info Schedule List Time Shift Mode

FAQS

GENERAL PROBLEMS WITH TV SET

Symptoms	Items to Check and Actions to Follow
"Ghost" or double image	This may be caused by obstruction to the antenna due to high rise buildings or hills. Using a highly directional antenna may improve the picture.
No power	Check if the TV's AC power cord is plugged into the outlet.Unplug the TV, wait for 60 seconds. Then reinsert plug into the outlet and turn on the TV again.
No picture	Check antenna connections at the rear of the TV to see if it is properly connected to the TV.Possible broadcast station trouble. Try another channel.Adjust the contrast and brightness settings.Check the Closed Captions control. Some TEXT modes could block the screen.
Good picture but no sound	Increase the volume level by pressing the VOL+ button on the remote control or on the TV side control panel.Press the MUTE button on the remote control to ensure mute is off.
Good sound but poor color	Adjust the contrast, color and brightness settings.
Poor picture	Poor picture quality may occur when an activated S-VHS camera or camcorder is connected to your TV and other peripherals at the same time. Switch off one of the peripherals.
Snowy picture and noise	Check the antenna connection.
Horizontal dotted line	This may be caused by electrical interference (e.g. hair dryer, nearby neon lights, etc.) Turn off the equipment.
Television not responding to remote control	Check whether the batteries are working. Replace if necessary.Clean the remote control sensor lens on the TV.You can still use the buttons on the side of your TV.
Pixels (dots) that are always dark or always lit	Your TV is precision-manufactured using an extremely high level of technology. However, sometimes pixels may not display correctly. These types of occurrences are inherent to this type of product and do not constitute a defective product.

FAQS

TURN OFF SUBTITLES ON LIVE TV?

To turn off subtitles on your Android TV, while watching Live TV:

1. Press "MENU" on your Remote Control
2. Go right and select ADVANCED SETTINGS
3. Go down and select SUBTITLE
4. Switch all choices of subtitles to OFF

Once all options for subtitle are switched off, then you can exit and continue watching Live TV!

If the Subtitle persists to appear, you may need a software update or for further assistance please contact our customer support centre at [e-mail]

MY REMOTE CONTROL ISN'T PAIRING WITH MY ANDROID TV?

If your remote control is not pairing or becomes disconnected, please make sure to go on the Smart home of your Android TV:

1. Press SETTINGS Icon
2. Select "REMOTES & ACCESSORIES"
3. Select "ADD ACCESSORY"
4. Follow the onscreen instructions to pair your remote. Once you detect your Bluetooth Remote control, Press OK on remote control to select it and pair.

If it doesnt connect, try the process again until it pairs, otherwise contact our call centre: [e-mail]

NOTE: You can still using your Remote control without pairing, only cannot use the "GOOGLE ASSISTANT" Feature until paired.

ANDROID TV REMOTE CONTROL - APP

If you want to control your TV via your Smart device. Search for:

"ANDROID TV REMOTE CONTROL" app and download. Once following prompts to connect your Smart device to your Android TV, you will then be able to have 100% control of your TV from your smartphone with the Google Assistant feature enabled.

SPECIFICATIONS

Operating System Android TV 9.0
HDR (High Dynamic Range) Yes
Resolution 3840 x 2160
Display Colours 1.07 Billion
Contrast ratio: 4000:1
Aspect Ratio 16 : 9
Refresh Rate 60Hz
ETHERNET / WiFi Yes/ 802.11 b/g/n/ac
Multimedia Playback Format under USB Mode	Movie: MPEG, TS, TRP, TP, MP4, MOV, 3GPP, 3GP, AVI, MKV, ASF, DIVX, FLV, SWF, RM, WEBM
	Music: MPEG1, MPEG2, VORBIS, LPCM, FLAC, DTS LBR, DTS XLL, DRA,
	Photo: JPEG, PNG, BMP, MPO, GIF
Power Source 100-240V 50/60Hz
Power Consumption 150W
USB 5V	—— max. 500mA
Dimensions	With stand: 1289 × 269 × 811 mm (w x d x h)
	Without stand: 1289 × 63 × 748 mm (w x d x h)
Weight	Net: 14.6 kg
	Gross: 19 kg
Accessories	1 x Instruction Manual 2 x AAA Batteries
	1 x Remote Control	2 x TV Stands with Screws
	1 x Warranty Card

THIS PAGE HAS

BEEN LEFT BLANK

ON PURPOSE.

BLAUPUNKT

CUSTOMER SUPPORT:

[e-mail]

DISTRIBUTED BY:

Ayonz Pty Ltd
