Product Type	5.1 Home Cinema Speaker System
Brand	PIONEER
Model	S-FCRW2500 (HTP-2500)
Speaker Configuration	2 front + 1 center + 2 surround + 1 subwoofer
Front Speaker Type	Bookshelf, magnetic shielding, 1-way, 7.7 cm cone speaker
Center Speaker Type	Bookshelf, magnetic shielding, 1-way, 7.7 cm cone speaker
Surround Speaker Type	Bookshelf, magnetic shielding, 1-way, 7.7 cm cone speaker
Subwoofer Type	Bass reflex, 1-way, 16 cm cone speaker
Nominal Impedance	6 Ω (all speakers)
Frequency Range (front/surround)	85 Hz - 20 kHz
Frequency Range (center)	75 Hz - 20 kHz
Frequency Range (subwoofer)	30 Hz - 2.5 kHz
Dimensions front/surround (W x H x D)	105 x 115 x 114 mm
Center Dimensions (W x H x D)	270 x 90 x 100 mm
Subwoofer Dimensions (W x H x D)	190 x 360 x 317 mm
Front Weight	0.6 kg
Surround Weight	0.66 kg
Center Weight	0.8 kg
Subwoofer Weight	4.2 kg
Included Accessories	Speaker cords, non-slip pads, speaker stands x4, screws x4, instruction manual
Care and Cleaning	Dry or soft cloth moistened with neutral cleaner diluted 1/5 or 1/6 in water
Safety	Do not connect to another amplifier; do not mount the center speaker or subwoofer on wall/ceiling

Frequently Asked Questions - S-FCRW2500 (HTP-2500) PIONEER

How to correctly connect the speakers?

Use the provided cords and respect polarities: the colored cord connects to the red (+) terminal and the other to the black (-). Make sure the amplifier is turned off before connecting.

What to do if there is no sound?

Check that the speaker cords are properly connected and not damaged, that the amplifier is powered on, and that the volume is not set to zero.

Why is the sound distorted?

This may be due to an excessive signal level. Reduce the volume or the tone settings (bass, treble) on the amplifier.

The front speakers suddenly stop producing sound, why?

The built-in protection circuit has activated due to prolonged excessive signal. Reduce the volume to restore normal operation.

Can I mount the speakers on the wall or ceiling?

Only the front and surround speakers can possibly be mounted (not specified), but the center speaker and subwoofer should not be mounted on the wall or ceiling to avoid any risk of falling and injury.

How to clean the speaker cabinets?

Use a dry cloth or a soft cloth moistened with a neutral cleaning solution diluted 5 to 6 times in water. Never use thinner, benzene, or insecticide.

Can I place the subwoofer near a television?

No, because the subwoofer is not magnetically shielded. Keep it at least a few meters away from the television and do not place magnetic media (floppy disks, cassettes) nearby.

What is the impedance of the speakers?

All speakers (front, center, surround, subwoofer) have a nominal impedance of 6 Ω.

What are the dimensions of the center speaker?

The center speaker measures 270 x 90 x 100 mm (W x H x D).

Do I need an amplifier to use these speakers?

Yes, this speaker system is passive and requires an amplifier or home cinema receiver (like the Pioneer SX-315) to operate.

USER MANUAL S-FCRW2500 (HTP-2500) PIONEER

- Front speakers x 2

• Center speaker x 1

- Surround speakers x 2

SUBWOOFER

- Speaker cord

Non-skid pads

- Brackets x 4

- Screws x 4

- Operating guide

IMPORTANT:

• The serial number for this equipment is located on the rear of the subwoofer. Please write this serial number on the warranty page and keep it in a secure area for future reference.

BEFORE USE

• Thank you for buying this Pioneer product.
• Please read through this operating guide before using your speaker system to optimize performance.

• In order to prevent damage to the speaker system resulting from input overload, please observe the following precautions:
• Do not supply signal to the speaker system in excess of the maximum permissible input.
• When connecting or disconnecting cables, be sure amplifier power is OFF.
• Do not use excessive amplifier volume if using a tone control to emphasize high or low frequencies.

INSTALLATION PRECAUTIONS

• Do not install these units near a stove or other heating appliance, or put them in a place exposed to the sun. Such locations may cause the cabinet to change color and the speaker system to break down.
• The front, center and surround speakers supplied with this system are magnetically shielded. However, placing them extremely close to a television may result in color distortion on the screen. If this happens, move the speakers a little further away and switch off the television for 15-30 minutes.

SUBWOOFER

• Do not place anything on top of the cabinet.
• Do not spill liquid on the cabinet.
• Place the subwoofer at least 8 inches from any wall or curtain in order to avoid heat build-up.
• The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the subwoofer.

CAUTION:

• Do not connect any of the supplied speakers to any other amplifier. This may result in malfunction or fire.
• Do not fix the subwoofer and center speaker to the wall or ceiling; they could cause injury if they fell.
• Pioneer will not be responsible for any accidents or damage that may result from improper installation.

WARNING:

Handling the cord on this product or cords associated with accessories sold with the product will expose you to lead, a chemical known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm.

WASH HANDS AFTER HANDLING.

CONNECTING YOUR SYSTEM

IMPORTANT:

Make sure all equipment is turned off before making any connections.

FRONT / CENTER / SURROUND / SUBWOOFER SPEAKERS

Correct wiring of your loudspeakers is essential for achieving the best sound quality. Be careful to ensure proper polarity of connection.

Twist and pull off the protective shields on each wire.

Connect to the speaker terminals on the rear of the receiver.

Match the colored wire with the color-coded label (above the tabs), then insert the colored wire into the red (+) tab and the other wire with the black (-) tab.

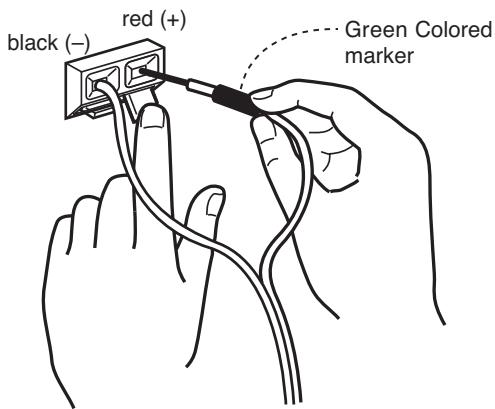

CENTER SPEAKER ONLY

Connect the speaker cords to the input terminals at the rear of center speaker.

Match the colored wire with the color-coded label (above the tabs), then insert the colored wire into the red (+) tab and the other wire with the black (-) tab.

PLACEMENT AND FIN TUNING

SUBWOOFER

Sound spreads in all directions in the very low frequency range. Human hearing cannot easily detect the source of very low frequencies. Be sure to provide a space of at least 8 inches (20cm) between the rear of the subwoofer and the nearest wall.

FRONT SPEAKERS

For best results the loudspeaker should be positioned near ear level and the loudspeakers separated a distance approximately equal to the listening distance. Angling the loudspeakers inward towards the listener will improve the image stability for non-central listeners. Close proximity to a side or rear wall will enhance the midbass performance, although too close (particularly a corner location) and the bass may be unnaturally high and image performance may be degraded.

CENTER SPEAKER

The loudspeaker should be positioned below the TV. For best results align the front of the loudspeaker with the front of the TV. If the loudspeaker is placed under the TV and very close to the floor, then tilting upwards may be beneficial.

SURROUND SPEAKERS

For best results the loudspeakers should be positioned at or above ear level. Depending upon your room layout and preferences, the left and right rear speakers should be positioned on the side walls just the rear of the listening position, or on the walls. Place the rear center speaker directly behind the listening position for best performance.

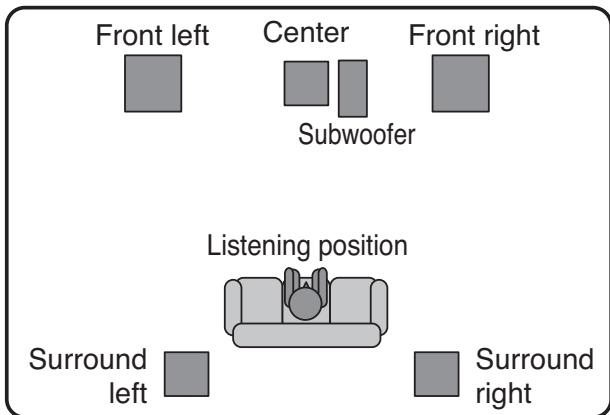

Standard surround setup

This is a standard multichannel surround soundspeaker setup for optimal 5.1 channel home theatre sound.

If you have connected to the SX-315 and the above speaker placement isn't possible, you can select the FRONT

SURROUND MODE on the receiver with the following speaker placement: Place the surround speakers to the side of the front speakers and turn them towards the closest wall (right or left).

NON-SKID PADS

If the front, center and surround speakers are placed on a hard surface, such as wood or tile place four non-skid pads (small) on the bottom flat surface of the speakers.

If the subwoofer is placed on a hard floor, such as wood or tile, place four non-skid pads (large) on the bottom surface of the subwoofer.

CABINET MAINTENANCE

Use a polishing cloth or dry cloth to wipe off dust and dirt.

When the cabinet is very dirty, clean with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and then wipe again with a dry cloth. Do not use furniture wax or cleaners.

Never use thinners, benzine, insecticide sprays and other chemicals on or near the cabinets, since these will corrode the surfaces.

CAUTION:

The front speakers are equipped with a protection device to protect the transducers from extreme conditions. Under these conditions the protection device will activate and stop the speaker from producing sound. If this happens turn the volume down to resume normal speaker output.

TROUBLESHOOTING

SYMPTOM	PROBABLE CAUSE	REMEDY
1. No sound	• Bad speaker wire or connection • Receiver is off • Volume control is at zero	• Connect correctly or replace wire • Turn on receiver • Slowly turn up volume
2. Sound is distorted	• Extreme signal condition	• Turn down the amplifier's output level (volume, bass control, bass boost) to lower the level.
3. Front speakers stop producing sound suddenly	• Extreme signal condition for extended period of time	• Turn the volume down to resume normal speaker output.

SPECIFICATIONS

Enclosure Closed-box bookshelf type

(magnetically shielded)

System 7.7 cm 1-way system

Speakers 7.7 cm cone type

Nominal impedance 6Ω

Frequency range 85 Hz to 20 kHz

Dimensions 105 (W) x 115 (H) x 114 (D) mm

4 1/8 (W) x 4 1/2 (H) x 4 1/2 (D) in.

Weight

FRONT SPEAKER 0.6 kg/1 lb.5 oz

SURROUND SPEAKER 0.66 kg/1 lb.7 oz

CENTER SPEAKER

Enclosure .. Closed-box bookshelf type

(magnetically shielded)

System 7.7 cm 1-way system

Speakers 7.7 cm cone type

Nominal impedance 6Ω

Frequency range 75 Hz to 20 kHz

Dimensions 270 (W) x 90 (H) x 100 (D) mm

10 5/8 (W) x 3 9/16 (H) x 3 15/16 (D) in.

Weight 0.8 kg/1 lb. 12 oz

SUBWOOFER

Enclosure . Bass-reflex floor type

System 16 cm 1-way system

Speaker 16 cm cone type

Nominal impedance 6Ω

Frequency range 30 Hz to 2.5 kHz

Dimensions 190 (W) x 360 (H) x 317 (D) mm

7 1/2 (W) x 14 3/16 (H) x 12 1/2 (D) in.

Weight 4.2 kg/9 lb.4 oz

Note: Specifications and design subject to possible modification without notice due to improvements.

Published by Pioneer Corporation.

Copyright © 2005 Pioneer Corporation.

All rights reserved.

Dear Customer:

Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for al lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Decibel

Level Example

30 Quiet library,soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet.

THE FOLLOWING NOISESCAN BEDANGEROUS UNDER CONSTANT EXPOSURE

90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet plane
180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

S-FCRW2500

CONTENU DE L'EMBALLAGE

PIONEER ELECTRONICS (USA) INC.

PIONEER ELECTRONICS OF CANADA, INC.

WARRANTY PERIOD

For the period specified below from date of original retail purchase (the warranty period) from an authorized Pioneer dealer, Pioneer Electronics (USA) Inc. (PUSA), and Pioneer Electronics of Canada, Inc. (POC) warrants that products distributed by PUSA in the U.S.A., and by POC in Canada that fail to function properly under normal use due to a manufacturing defect when installed and operated according to the operating instructions enclosed with the unit will be repaired or replaced with a unit of comparable value, at the option of PUSA or POC, without charge to you for parts or actual repair work. Parts supplied under this warranty may be new or rebuilt at the option of PUSA or POC.

PRODUCT	PARTS	LABOR
Loudspeakers / Subwoofer (amplifier section not included)	1 YEAR	1 YEAR
Amplifier Section (if applicable)	1 YEAR	1 YEAR

This warranty covers the product during the warranty period whether in the possession of the original owner or any subsequent owner. In the event service is required, the product must be delivered within the warranty period, transportation prepaid, from within the Country of purchase as explained in this document. You will be responsible for removal and installation of the product.

WHAT'S NOT COVERED

This warranty does not cover any product which is used in any trade or business, or in an industrial or commercial application. This warranty does not apply to any speaker that has been subjected to power in excess of its published power rating.

This warranty does not cover the cabinet or any appearance item, any damage to the product resulting from alterations or modifications not authorized in writing by PUSA or POC, accident, misuse or abuse, or damage due to lightning or to power surges. This warranty does not cover the cost of parts or labor which would be otherwise provided without charge under this warranty obtained from any source other than a PUSA OR POC Authorized Service Company or other designated location. This warranty does not cover defects or damage caused by the use of unauthorized parts or labor, or from improper maintenance.

ALtered, DEFACED OR REMOVED SERIAL NUMBERS Void THIS WARRANTY.

YOUR RIGHTS

PUSA and POC excludes any obligation on its part for incidental or consequential damages related to the failure of products to function properly under the conditions set forth above. IN THE U.S.A. - PUSA LIMITS ITS OBLIGATIONS UNDER ANY IMPLIED WARRANTYES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TO A PERIOD NOT TO EXCEED THE WARRANTY PERIOD. NO WARRANTYES SHALL APPLY AFTER THE WARRANTY PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, AND SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

IN CANADA - EXCEPT AS EXPRESSLY PROVIDED HEREIN, THERE ARE NO REPRESENTATIONS, WARRANTYES, OBLIGATIONS OR CONDITIONS, IMPLIED, STATUTORY OR OTHERWISE, APPLICABLE TO THIS PRODUCT.

TO OBTAIN SERVICE

PUSA and POC have appointed a number of Authorized Service Companies throughout the U.S.A., and Canada should your product ever require service. To receive warranty service you will need to present your sales receipt or, if rented, your rental contract showing place and date of original owner's transaction. Should it become necessary to ship your unit, you will need to package the product carefully and send it, transportation prepaid by a traceable, pre-insured method, to an Authorized Service Company. Carefully package the product using adequate padding material to prevent damage in transit. The original container is ideal for this purpose. Include in the package your name, address, telephone number where you can be reached during business hours, a copy of your sales receipt and a detailed description of the problem. PUSA or POC, as appropriate, will pay for the cost of returning the repaired or replacement product to you within the Country of purchase.

For additional information about this limited warranty or to locate the nearest PUSA or POC Authorized Service Company, please contact:

IN THE U.S.A.

CUSTOMER SERVICE DEPARTMENT
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1760

CUSTOMER SERVICE DEPARTMENT

PIONEER ELECTRONICS OF CANADA, INC.

300 ALLSTATE PARKWAY

MARKHAM, ON L3R OP2

Phone: [phone]

DO NOT RETURN ANY PRODUCT TO THE ABOVE ADDRESSES. THEY ARE NOT SERVICE LOCATIONS.

RECORD THE PLACE AND DATE OF PURCHASE FOR FUTURE REFERENCE

Model No.: Serial No.:

Purchase Date: Purchased From:

KEEP THIS INFORMATION AND YOUR SALES RECEIPT IN A SAFE PLACE
