Product Type	Twisted Pair AV Transmitter/Receiver
Brand	Extron
Model	MTP T AV
Category	Audiovisual Equipment
Dimensions (H x W x D)	1.7 x 3.0 x 1.0 inches (4.3 x 7.6 x 2.5 cm)
Weight	0.3 lbs (0.14 kg)
Power Supply	12V DC, 0.5A, external power supply included
Video Input Connector	1x BNC female (composite video)
Audio Input Connector	1x 3.5 mm mini stereo jack (unbalanced)
Output Connector	1x RJ-45 female (twisted pair)
Video Signal Support	NTSC, PAL, SECAM composite video
Audio Signal Support	Unbalanced stereo, line level
Maximum Distance	Up to 1000 ft (300 m) over CAT5/6 cable
LED Indicators	Power, Signal Present
Enclosure Type	Metal, black
Mounting	Free-standing or optional mounting kit
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-40 to 158°F (-40 to 70°C)
Humidity	10% to 90% non-condensing
Compliance	RoHS, CE, FCC Class A
Included Accessories	Power supply, user manual
Maintenance	Wipe with dry cloth; no user-serviceable parts inside
Safety	Use only supplied power adapter; disconnect before cleaning
Spare Parts and Repairability	Contact Extron for service; no field-replaceable parts

Frequently Asked Questions - MTP T AV Extron

What is the Extron MTP T AV used for?

The Extron MTP T AV is a twisted pair transmitter for composite video and unbalanced stereo audio signals. It extends AV signals over long distances using CAT5/6 cable.

What type of cable do I need to connect the MTP T AV?

You need a CAT5e or CAT6 unshielded twisted pair cable with RJ-45 connectors. Shielded cable is not required.

How far can I transmit video and audio with the MTP T AV?

The maximum transmission distance is up to 1000 feet (300 meters) for composite video and audio over CAT5/6 cable.

Does the MTP T AV require an external power supply?

Yes, it requires a 12V DC power supply (0.5A) which is included. Connect it to the power input on the transmitter.

What video formats does the MTP T AV support?

It supports composite video in NTSC, PAL, and SECAM formats via a BNC connector.

Can I transmit audio along with video?

Yes, the MTP T AV transmits unbalanced stereo audio via a 3.5 mm mini jack input. Audio and video are sent over the same twisted pair cable.

How do I know if the device is working?

The front panel has two LED indicators: a green power LED and an amber signal present LED. When a valid video signal is detected, the signal LED lights up.

Can I mount the MTP T AV on a wall or rack?

The unit is designed for free-standing use, but you can purchase an optional mounting kit for wall or furniture mounting. It is not rack-mountable.

What should I do if there is no video output?

Check the power supply, ensure the video source is connected securely to the BNC input, and verify the CAT5 cable is properly terminated. Also check the signal LED on the transmitter.

Is the MTP T AV compatible with other Extron MTP receivers?

Yes, it is designed to work with any Extron MTP receiver that supports composite video and unbalanced audio, such as the MTP R AV or similar models.

USER MANUAL MTP T AV Extron

Exterior view of multiple Extron network switches and audio equipment units (no visible text or labels)

Extron MTP AV Series are economical, compact twisted pair transmitters and receivers for extending S-video and composite video with audio 1,000 feet (300 meters) or more over a single CAT 5-type cable.

■ Transmit and receive A/V signals 1,000 feet (300 meters) or more over a single CAT 5-type cable
■ Models available for composite video or S-video, with audio
■ Transmits summed mono audio or stereo audio
■ Gain and sharpness adjustments on receivers for optimizing image quality over long cable runs
■ Compatible with MTP Series switchers, matrix switchers, and distribution amplifiers
■ Remote power capability
■ Rack-mountable, 1U, one-eighth rack width, metal enclosure or double space AAP models
■ Versatile mounting options
■ LED power indicators
■ External universal ENERGY STAR qualified power supply included

Extron MTP AV Series transmitters and receivers for S-video and composite video with audio can be used with any CAT 5, 5e, or 6 twisted pair cable or with Extron Enhanced Skew-Free™ A/V UTP cable for cable runs of 1,000 feet (300 meters) or more. With remote power capability, only the transmitter or the receiver has to be powered for point to point applications. The compact, 1U, one-eighth rack width design enables the MTP AV Series to maximize rack space. Up to eight units will fit on a single rack shelf. Transmitters are also available in a double space AAP - Architectural Adapter Plate size or the PowerCage™ modular board design. The AAP is ideal for mounting in various architectural mounting frames and products such as the Extron Cable Cubby or AVTrac.

Active Balanced Transmission

The MTP AV Series transmitters and receivers provide active, balanced transmissions for both video and audio signals, delivering superior image quality over long distances. The receiver units provide sharpness and gain controls for optimizing image quality. The sharpness adjustment provides variable high frequency video equalization for enhanced detail, while the gain adjustment compensates for overall signal level loss occurring in lengthy cable runs.

Mono or Stereo Audio

Incoming stereo audio signals are summed and sent as mono audio to the receiver, which provides a dual mono audio output. By default, the MTP AV Series is compatible with the entire Extron MTP Series of twisted pair products. Stereo audio transmission is supported via an internal jumper, enabling the units to be configured for point-to-point applications with stereo audio requirements.

Installation and Cost Advantage

Because MTP AV Series transmitters and receivers use twisted pair cable for distribution, they offer considerable advantages in cost, performance, and ease of installation over traditional coaxial cabling. Twisted pair cable is a fraction of the size of coaxial cable, and much lighter, more flexible, and less expensive, thus providing A/V system designers and installers with an economical, space-efficient solution for a variety of applications.

A Complete Twisted Pair Solution

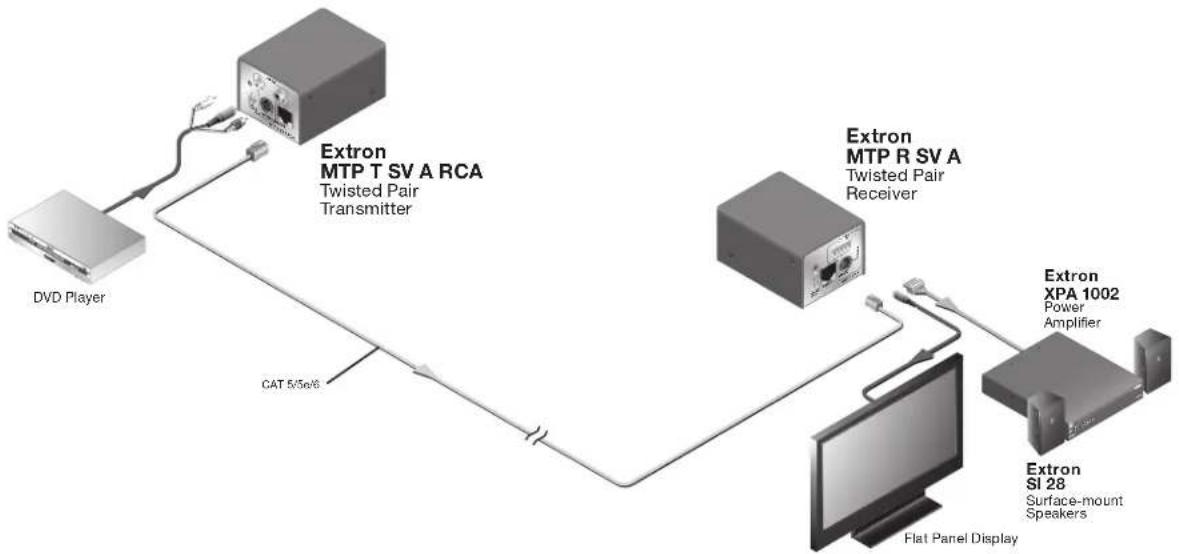

These transmitters and receivers are part of the larger, comprehensive MTP Series of twisted pair products, including switchers, distribution amplifiers, and matrix switchers, to create more complex A/V systems with multiple inputs and outputs. The Extron MTP Series provides integrators and system designers with the most complete twisted pair product offering in the industry.

■ Transmit and receive A/V signals 1,000 feet (300 meters) or more over a single CAT 5-type cable
■ Models available for composite video or S-video, with audio
■ Supports summed mono or stereo audio transmission
■ Gain and sharpness adjustments on receivers for optimizing image quality over long cable runs
■ Compatible with MTP Series switchers, matrix switchers, and distribution amplifiers
■ Remote power capability
■ Rack-mountable, 1U, one-eighth rack width, metal enclosure or double space AAP models
■ Ultra compact enclosures with versatile mounting options
■ LED power indicators on front and rear; front only on AAP
■ External universal ENERGY STAR® qualified power supply included

MOUNTING OPTIONS

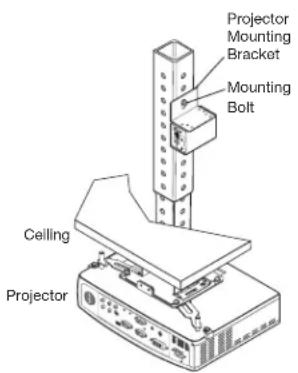

Projector Mount

Technical line drawing of a mechanical assembly with mounting holes and housing (no text or symbols)

Under-Desk Mount

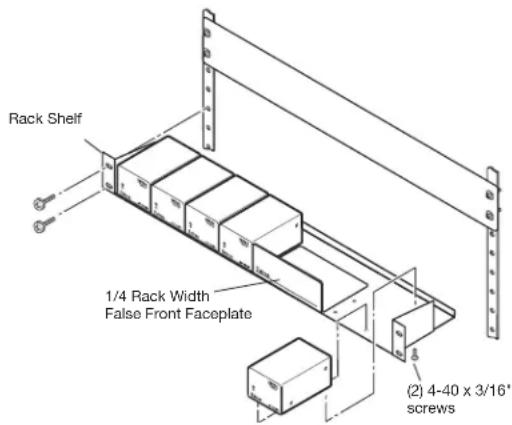

Rack Mount

The MTP AV transmitters and receivers provide active, balanced transmission of the composite video and audio signals over a single CAT 5, 5e, 6 cable and are capable of accommodating cable runs of a 1000 feet (300 meters) or more.

COMMON FEATURES:

• Supports summed mono or stereo audio transmission
- Versatile mounting options
- Remote power capability
• LED power indicator on front panel
- External universal ENERGY STAR® qualified power supply included

MTP T AV

MTP Twisted Pair Composite Video and Audio Transmitter

• Transmits composite video and audio to an MTP receiver
- Input on female BNC and captive screw connectors

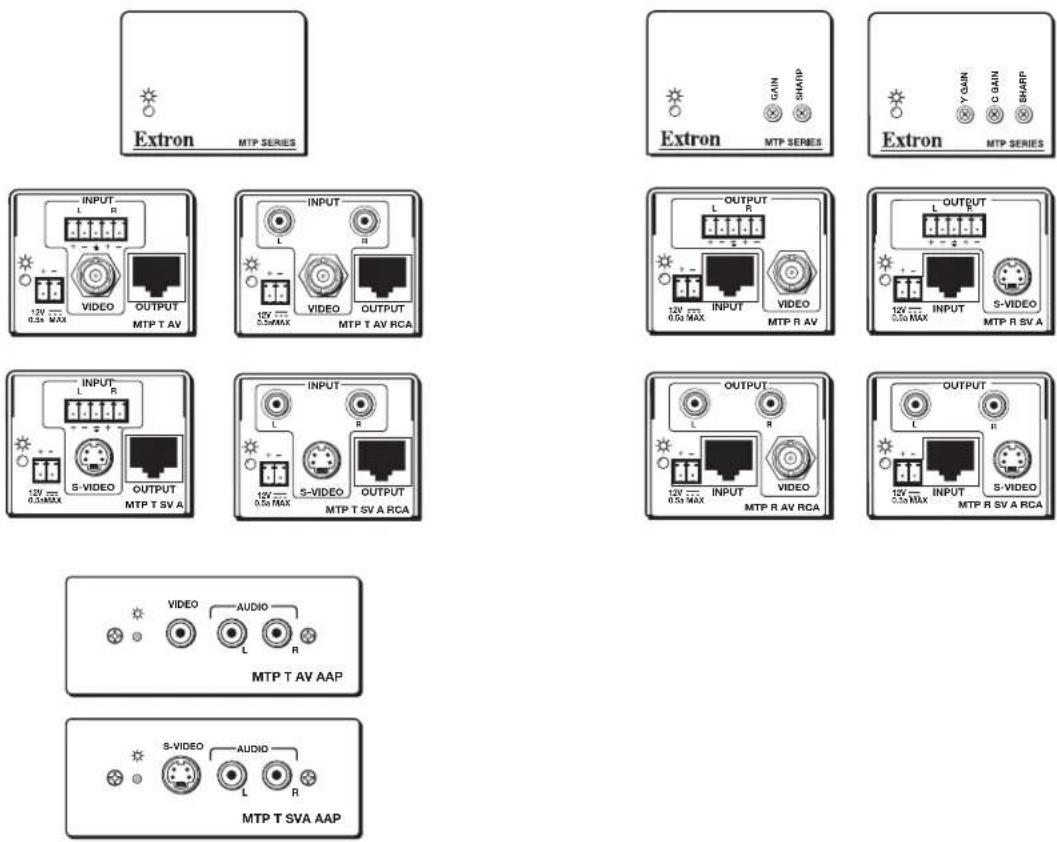

Model Version Description Part Number

MTP T AV Video & Audio Transmitter 60-540-51

MTP T AV RCA

MTP Twisted Pair Composite Video and Audio Transmitter

• Transmits composite video and audio to an MTP receiver
- Input on female BNC and female RCA connectors

Model Version Description Part Number

MTP T AV RCA Video & Audio Transmitter - RCA 60-540-61

MTP T AV AAP

MTP Twisted Pair Composite Video and Audio Transmitter - AAP Version

• Transmits composite video and audio to an MTP receiver
• Video and audio inputs are on female RCA connectors
• Fits in any double space AAP opening

Model Version Description Part Number

MTP T AV AAP AAP Module - Black 70-361-22

MTP R AV

MTP Twisted Pair Composite Video and Audio Receiver

• Receives composite video and audio from an MTP transmitter
  • Output on female BNC and captive screw connectors
  • Gain and sharpness adjustments

Model Version Description Part Number

MTP R AV Video & Audio Receiver 60-541-51

MTP R AV RCA

MTP Twisted Pair Composite Video and Audio Receiver

• Receives composite video and audio from an MTP transmitter
  • Output on female BNC and female RCA connectors
  • Gain and sharpness adjustments

Model Version Description Part Number

MTP R AV RCA Video & Audio Receiver - RCA 60-541-61

The MTP SV A transmitters and receivers provide active, balanced transmission of S-video and audio signals over a single CAT 5, 5e, or 6 cable and are capable of accommodating cable runs of a 1000 feet (300 meters) or more.

COMMON FEATURES:

• Supports summed mono or stereo audio transmission
- Versatile mounting options
- Remote power capability
• LED power indicator on front panel
- External universal ENERGY STAR® qualified power supply included

MTP T SV A

MTP Twisted Pair S-Video and Audio Transmitter

• Transmits S-video and audio to an MTP receiver
- Input on female 4-pin mini DIN and captive screw connectors

Model Version Description Part Number

MTP T SV A S-Video & Audio Transmitter 60-540-52

MTP T SV A RCA

MTP Twisted Pair S-Video and Audio Transmitter

• Transmits S-video and audio to an MTP receiver
• Input on female 4-pin mini DIN and female RCA connectors

Model Version Description Part Number

MTP T SV A RCA S-Video & Audio Transmitter - RCA ...... 60-540-62

MTP T SVA AAP

MTP Twisted Pair S-Video and Audio Transmitter - AAP Version

• Transmits S-video and audio to an MTP receiver
- Input on female 4-pin mini DIN and female RCA connectors
• Fits in any double space AAP opening

Model Version Description Part Number

MTP T SV A AAP AAP Module - Black 70-362-22

MTP T SV A AAP AAP Module - White 70-362-23

MTP R SV A

MTP Twisted Pair S-Video and Audio Receiver

• Receives S-video and audio from an MTP transmitter
- Output on female 4-pin mini DIN and captive screw connectors
- Gain and sharpness adjustments

Model Version Description Part Number

MTP R SV A S-Video & Audio Receiver 60-541-52

MTP R SV A RCA

MTP Twisted Pair S-Video and Audio Receiver

• Receives S-video and audio from an MTP transmitter
- Output on female 4-pin mini DIN and female RCA connectors
• Gain and sharpness adjustments

Model Version Description Part Number

MTP R SV A RCA S-Video & Audio Receiver - RCA 60-541-62

VIDEO

Gain Unity

Differential phase error .... <1.0° at 3.58 MHz and 4.43 MHz

Differential gain error .... <1.0% at 3.58 MHz and 4.43 MHz

VIDEO INPUT

Number/signal type

MTP T AV Series 1 composite video

MTP T SV Series 1 S-video

MTP R AV/SV Series 1 set of proprietary analog signals

Connectors

MTP T AV Series 1 female BNC

MTP T AV AAP 1 female RCA

MTP T SV Series 1 female 4-pin mini DIN

MTP R AV/SV Series 1 female RJ-45

Nominal level 1 Vp-p for Y of S-video and for composite video

0.3 Vp-p for C of S-video

Minimum/maximum levels 0.3 V to 1.5 Vp-p with no offset

Impedance.... 75 ohms

Return loss .... <-30 dB, DC @ 10 MHz

DC offset (max. allowable) 100 mV

VIDEO OUTPUT

Number/signal type

MTP T AV/SV Series,

MTP T AAP Series 1 set of proprietary analog signals

MTP R AV Series 1 composite video

MTP R SV Series 1 S-video

Connectors

MTP T AV/SV Series 1 female RJ-45

MTP T AAP Series 1 female RJ-45 on a 3Ó (7,6 cm) pigtail

MTP R AV Series 1 female BNC

MTP R SV Series 1 female 4-pin mini DIN

Nominal level 1 V p-p for Y of S-video and for composite video

0.3 V p-p for C of S-video

Minimum/maximum levels 0.3 V to 1.5 Vp-p

Impedance.... 75 ohms

Return loss .... <-35 dB @ 5 MHz

DC offset .... ±20mV with input at 0 offset

SYNC

Standards NTSC 3.58, NTSC 4.43, PAL, SECAM

AUDIO

Gain

RCA models .... Unbalanced output: 0 dB (unity)

All other models ...... Unbalanced output: 0 dB (unity); balanced output: +6 dB

Frequency response 20 Hz to 20 kHz, ±0.25 dB

THD + Noise 0.03% @ 1 kHz, 0.3% @ 20 kHz at nominal level

S/N

RCA models ....>90 dB, at maximum output (unweighted)

All other models w/audio .... >90 dB, balanced at maximum output (unweighted)

Crosstalk .... <-80 dB @ 1 kHz, fully loaded

Stereo channel separation .... >75 dB @ 1 kHz

CMRR >34 dB @ 20 Hz to 20 kHz

AUDIO INPUT

Number/signal type

MTP T AV, MTP T SV A 1 stereo, balanced/unbalanced

MTP T AV/SV A RCA, MTP T AAP,

MTP T 45 Series .... 1 stereo, unbalanced

MTP R Series 1 set of proprietary analog signals

Connectors

MTP T AV, MTP T SV A ...... (1) 3.5 mm captive screw connector, 5 pole

MTP T AV/SV A RCA, MTP T AAP ..... 1 pair of female RCA

MTP R Series 1 female RJ-45 (shielded)

Impedance....>5.6k ohms ±5% unbalanced, >10k ohms

±5% balanced

Nominal level -10 dBV (0.32 Vrms)

Maximum level ....> +2.4 dBu (balanced or unbalanced) at 1%THD+N

NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

AUDIO OUTPUT

Number/signal type

MTP T Series .... 1 set of proprietary analog signals (all MTP T models)

MTP R AV, MTP R SV A .... 1 stereo or dual mono, balanced/unbalanced

MTP R AV/SV A RCA 1 stereo or dual mono, unbalanced

Connectors

MTP T Series 1 female RJ-45 (shielded)

MTP T AAP Series 1 female RJ-45 on a 3" (7.6 cm) pigtail

MTP R AV, MTP R SV A ...... (1) 3.5 mm captive screw connector, 5 pole

MTP R AV/SV A RCA 1 pair of female RCA

Impedance

MTP R AV, MTP R SV A 50 ohms unbalanced, 100 ohms balanced

MTP R AV/SV A RCA 50 ohms unbalanced

Gain error ±0.1 dB channel to channel

Maximum level (Hi-Z) ....> +3.3 dBu, balanced or unbalanced at 1%THD+N

Maximum level (600 ohm) ....> +2.0 dBm, balanced or unbalanced at 1%THD+N

GENERAL

Recommended cable type .... CAT5/5e/6 (shielded or unshielded)

External power supply 100 VAC to 240 VAC, 50-Hz, external; to

12 VDC, 1.0 A, regulated

Power input requirements 12 VDC, 0.2 A

NOTE: If the distance between the transmitter and receiver is less than 500' (150 m) and if the internal jumper is in setting 2, you can connect a power supply to only one device in a transmitter/receiver pair. If the distance between transmitter and receiver is greater than 500' (150 m) or if the internal jumper is in setting 1 (default), connect a power supply to each device.

Temperature/humidity ...... Storage: -40 to +158 °F (-40 to +70 °C) /

10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) /

10% to 90%, noncondensing

Cooling ...... Convection, no vents

Mounting

Rack mount

MTP T AAP Series .... Yes, with optional rack panel

All other models ...... Yes, with optional 1U rack shelf

Furniture or wall mount

MTP T AAP Series ...... Yes, with optional AAP mounting plates

All other models .... Yes, with optional brackets.

Enclosure type ...... Metal

Enclosure dimensions.... (Depths exclude connectors and cables.)

MTP T AAP Series

Faceplate 1.4" H x 3.5" W x 0.1" D (3.6 cm H x 8.9 cm

W x 0.3 cm D) (double space AAP plate)

Transmitter 1.35" H x 2.7" W x 1.3" D (3.4 cm H x

All other models 1.7" H x 2.2" W x 3.0" D (1U high,

one-eighth rack wide)

(4.2 cm H x 5.6 cm W x 7.6 cm D)

Product weight 1.0 lbs (0.5 kg)

Shipping weight 3 lbs (2 kg)

Vibration ISTA 1A in carton (International Safe

Transit Association)

Regulatory compliance

Safety CE, c-UL, UL

EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI

MTBF 30,000 hours

Warranty 3 years parts and labor

NOTE: All nominal levels are at ±10%.

APPLICATION DIAGRAM

PANEL DRAWINGS

MTP AV Series Transmitters MTP AV Series Receivers

Extron USA - West Headquarters

+800.633.9876 Inside USA / Canada Only +1.714.491.1500 +1.714.491.1517 FA

Extron USA - East

+800.633.9876 Inside USA / Canada Only

+1.919.863.1794 +1.919.863.1797 FAX

Extron Europe

+800.3987.6673 Inside Europe Only

+31.33.453.4040 +31.33.453.4050 FAX

Extron Middle East

+971.4.2991800 +971.4.2991880 FAX

Extron Asia

+800.7339.8766 Inside Asia Only

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+400.883.1568 Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

07-2010 68-1341-01 REV. 01
