USER MANUAL DS-PAN-601 Havis

Owner's Manual Havis Docking Station For Panasonic Toughbook H2

DS-PAN-600 Series

DS-PAN-601

DS-PAN-602

DS-PAN-603

3D CAD model of a mechanical housing component with mounting holes and internal compartments (no text or symbols visible)

Havis is pleased to provide this Owner's Manual to aid in the proper installation and use of the DS-PAN-600 Series Docking Station for the Panasonic Toughbook H2.

For questions regarding the set-up of your DS-PAN-600 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

This Owner's Manual applies to the following Part Numbers:

EC DECLARATION OF CONFORMITY in accordance with EN 45014

Manufacturers Name: Havis, Inc.

Manufacturers Address: 47801 Anchor Court, Plymouth Twp, MI 48170 USA

Declares under our sole responsibility that the product:

Product name: Havis Docking Station For Panasonic Toughbook H2

Model: DS-PAN-60X, where 'X' may be any alphanumeric character and which describes product options.

May be followed by any alphanumeric characters which describe product options.

Product Options: This declaration covers all options of the above product which bear the CE Marking.

Is in conformity with the following standards or other normative documents:

EMC Directive 2004/108/EC: EN 55022:2010, Class B, Information technology equipment - Radio disturbance characteristics - Limits and methods of measurement

EN 55024:2010, Information technology equipment - Immunity characteristics - Limits and methods of measurement

Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)

Supplementary Information:

The product herewith complies with the requirements of the EMC Directive 2004/108/EC. This product requires the use of the provided e-Marked automotive power supply when used within vehicles.

Plymouth twp, MI, USA August 1, 2012 Bruce Jonik, Director of Engineering, Havis, Inc.

FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-PAN-60X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment.

Table of Contents

Specifications 3

Parts Included 4

Port Replication Capability 5

Installation....6

Cable Management 7

Operation - Docking 9

Operation - Undoing 10

Precautions

• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specified Power Supply (Part # LPS-102) with this Docking Station
• Do not store the Docking Station where water, moisture, steam, dust, etc. are present
• Do not connect cables into ports other than what they are specified for
• Do not leave the Docking Station in a high temperature environment (greater than 85^ C, 185^ F ) for a long period of time

Specifications

Power Supply Input 15.6V DC-In

Dimensions 11.3” (28.7 cm) W x 4.0” (10.1 cm) D x 11.8” (30.0 cm) H

Weight 4.6 lbs (2.1 kg)

Operating Environment -20°C to 60°C (-4°F to 140°F)

Storage Environment -40°C to 85°C (-40°F to 185°F)

Docking Station

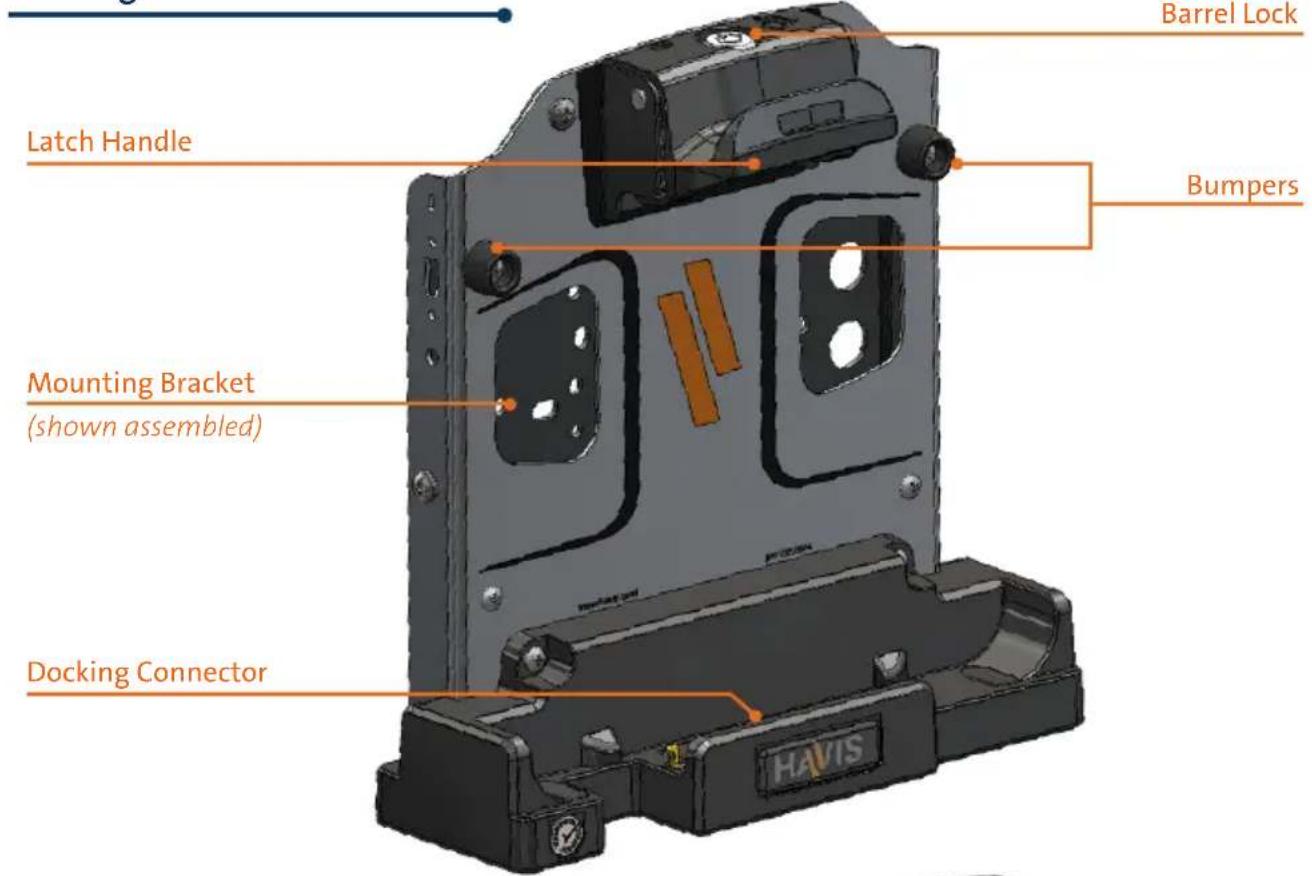

Barrel Lock Latch Handle Bumpers Mounting Bracket (shown assembled) Docking Connector HAVIS

Mounting Bracket

Hardware Kit

This Hardware Kit includes:

1. Zip Ties (6)
2. Keys (2)
3. 1/4"-20 x 5/8" long Button Head Screws (4)
4. 1/2"-20 X 3/8" Long Pan Head Screws (5)
5. Int. Zip Ties (2)

Metal bracket with multiple holes and mounting holes (no text or symbols visible)

Diagram showing five types of electrical connectors and components with numbered labels

Tools required for installation:

- 5/32" Hex Drive

- #3 Phillips

(For 1/4"-20 Button Head Screws)

(For 1/2"-20 Pan Head Screws)

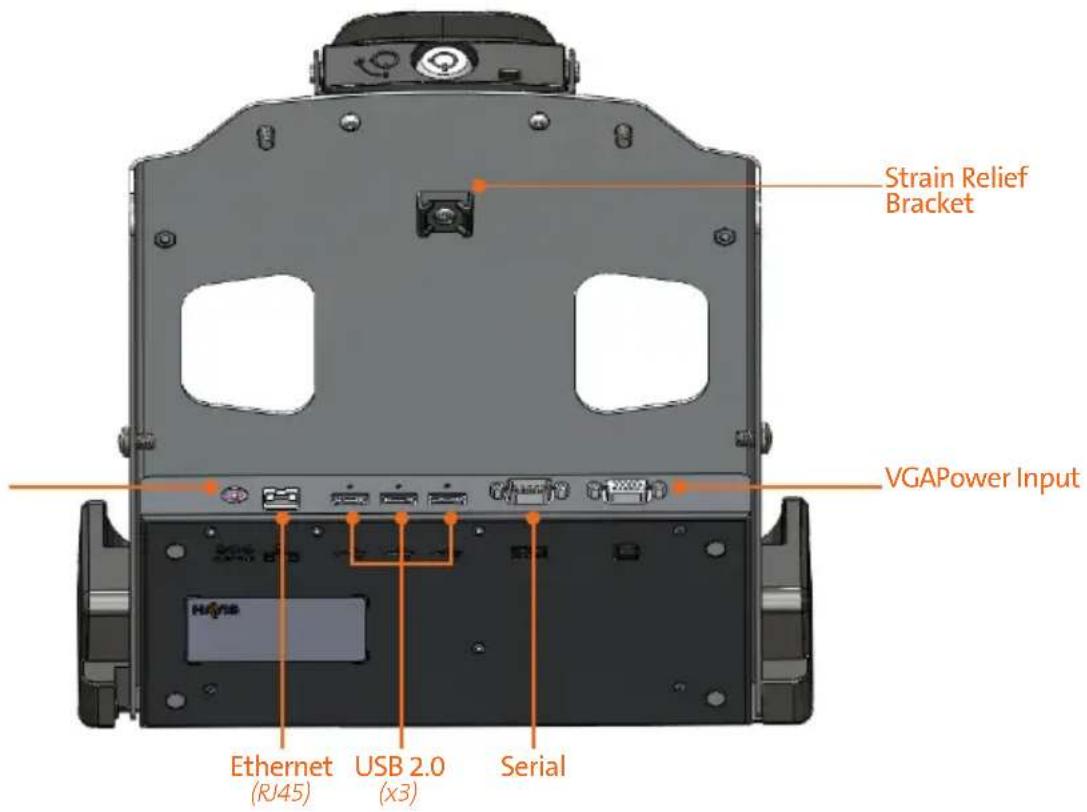

Strain Relief Bracket VGAPower Input Ethernet (RJ45) USB 2.0 (x3) Serial

Installation and Cable Management

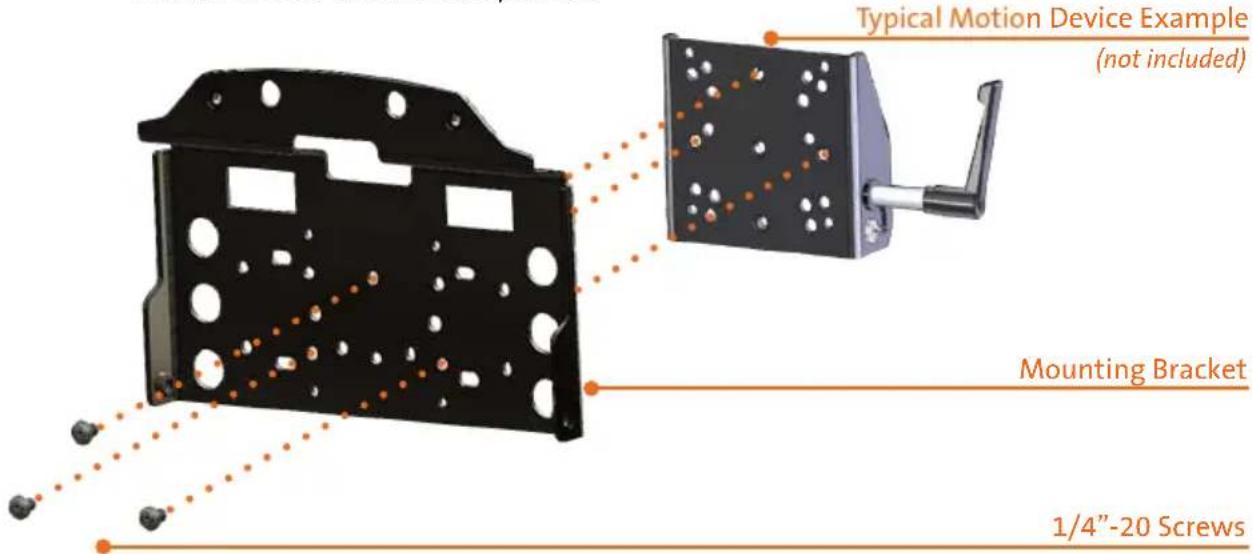

1) Remove the Mounting Bracket from the packaging. Install the Mounting Bracket to the Motion Device using (3) 1/4"-20 x 5/8" long screws (Hardware Kit Item 3). Torque screws to 80 in-lbs (9.0Nm) ± 10%.

NOTE: Numerous hole patterns present in Mounting Bracket will accommodate Havis Motion Devices as well as most competitors'

Typical Motion Device Example (not included) Mounting Bracket 1/4"-20 Screws

NOTE: We recommend applying a drop of medium strength (blue) thread locking adhesive to the threads of all fasteners.

2) Connect all needed peripheral cables to the Docking Station and bundle them to the Strain Relief Bracket using the provided Zip Ties (Hardware Kit Item 1).

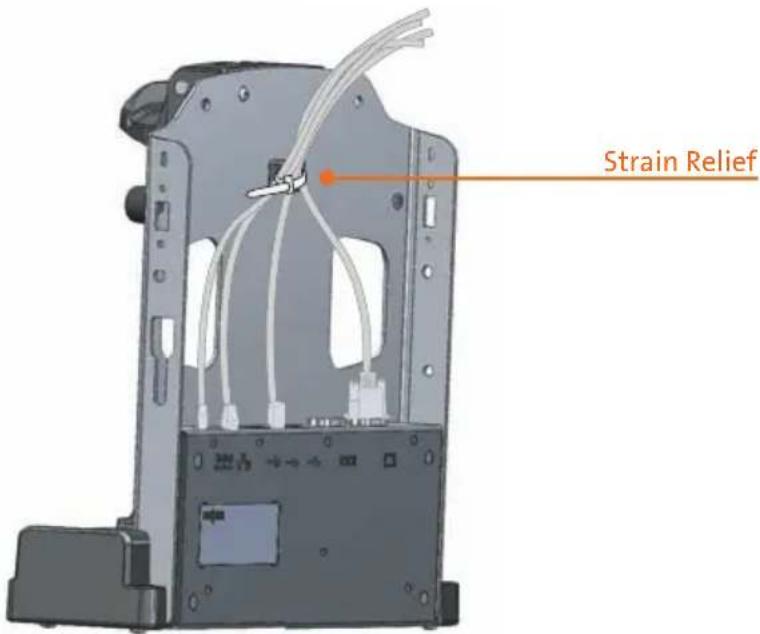

Strain Relief

NOTE: If you are mounting the optional Power Supply (Part # LPS-102) or Side Exiting USB Cable (Part # DS-DA-311), please refer to page 11 before continuing to Step 3.

3) Feed the cables through the center opening in the Mounting Bracket.

Diagram of a device with attached wiring and a black plastic panel, no visible text or symbols

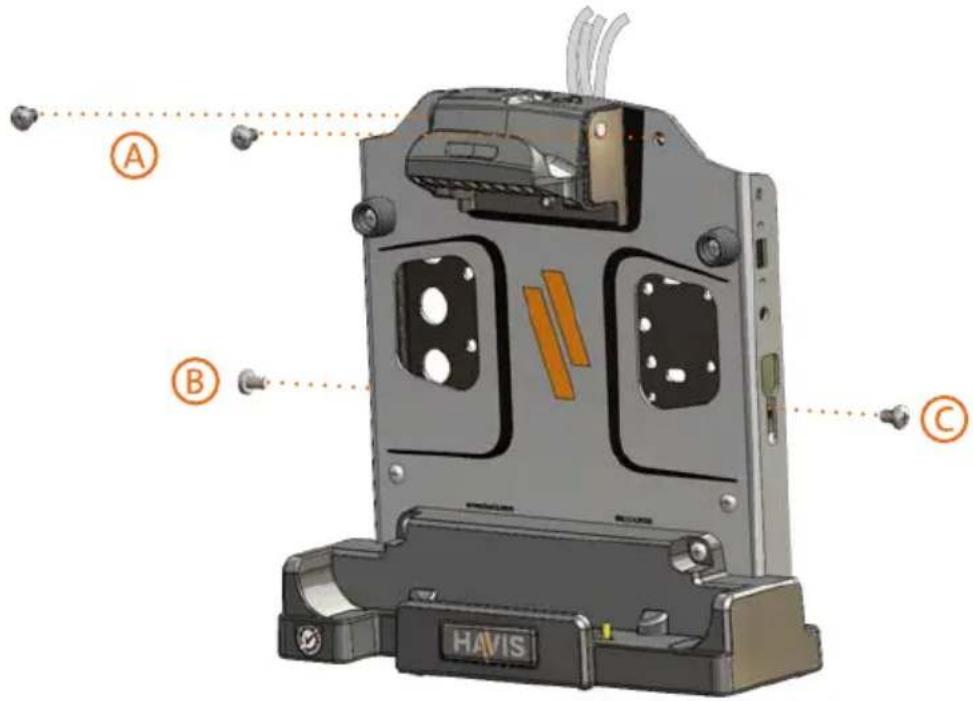

4) Lower the Docking Station to the Mounting Bracket as shown and secure with (4) 1/4"-20 x 3/8" long screws (Hardware Kit Item 4). Fasten the top 2 Screws first (A), then the left side Screw second (B), and the right side Screw last (C). Torque screws to 80 in-lbs (9.0 Nm) ± 10%.

A B C HAVIS

5) Gather all cables to one side and tie off to unused holes on back side of Docking Station.

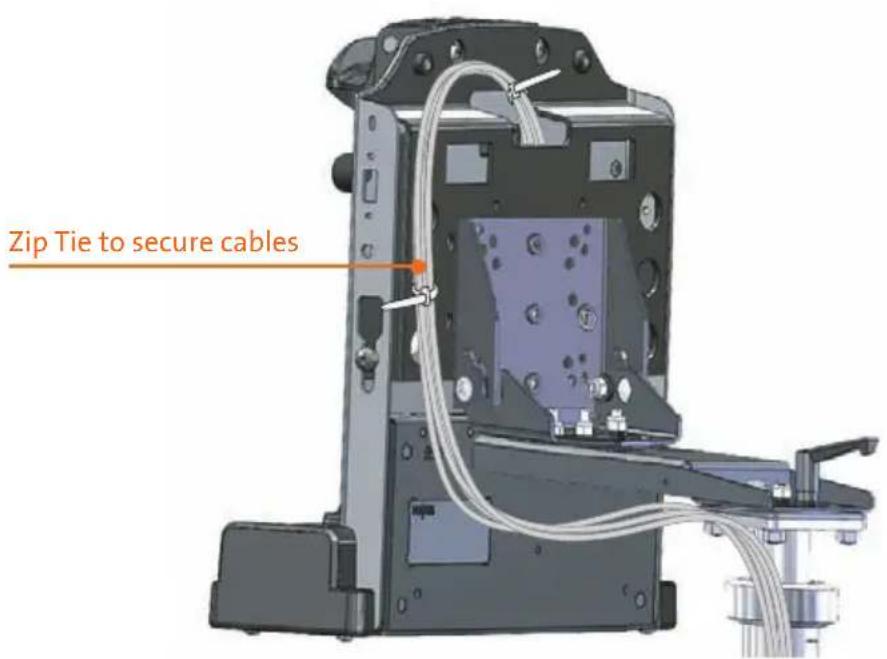

Zip Tie to secure cables

6) Create a service loop with cables to ensure that no tension is on the connectors and to enable intended motion. Tie off cables onto a stationary part of the mounting system.

This loop must be large enough to allow full range of expected rotation and extension without stressing connections. Collect cables and secure to the mounting system. (Note: Mounting system not included)

CAUTION

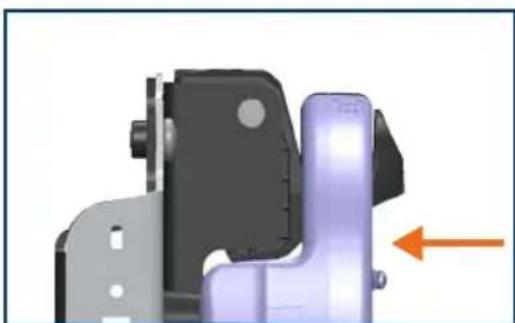

DO NOT FORCE LAPTOP ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF COMPUTER ON DOCKING STATION.

1) Hold computer with bottom angled toward Docking Station. Lower computer into the bottom of the Docking Station.

3D model of a purple mechanical device with black mounting base and orange arrow indicating rotation (no text or symbols)

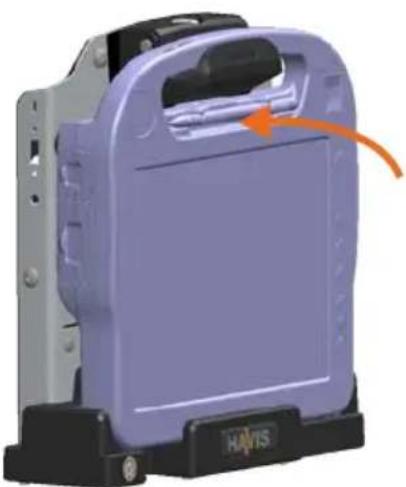

2) While keeping downward pressure on the computer, pivot it into Docking Station so the handle snaps into Latch Mechanism.

Purple and black electronic device casing with a scroll wheel, showing internal components and a directional arrow (no text or symbols)

Mechanical component with highlighted section and orange arrow indicating direction (no text or symbols)

3) For theft deterrence, secure computer by locking Docking Station with supplied key (Hardware Kit Item 2).

3D model of a purple mechanical component with a metallic screw inserted (no text or symbols visible)

1) If previously locked, unlock Docking Station using supplied key.

3D model of a purple plastic mechanical component with a metallic bracket and internal cavity (no text or symbols visible)

2) While holding computer with one hand, push down on Latch Mechanism with thumb.

3D model of a purple hard drive with a black handle and orange arrow pointing to the top part, labeled 'HATIS' at the base (no readable text beyond label)

Mechanical component with highlighted section and orange arrow indicating direction (no text or symbols)

3) While Latch Mechansim is pushed down, carefully rock the top of the computer forward and lift out of Docking Station

3D model of a purple Havis device with orange arrows indicating motion or transformation (no text or symbols on the device itself)

DS-DA-311 - Remote USB Extension Cable

(For further Installation Instructions, refer to the Instructions included with DS-DA-311)

1) Determine if USB will exit the left or right side of Docking Station.
2) Remove the Screws from USB Cable.
3) Align the female end of the USB Cable with mounting surface hole pattern. Insert Screws and Lock Washers and tighten Screws.
4) Plug male end of USB Cable into USB Port.
5) Strain Relief cable as needed.
6) If the connected peripheral has a cable requiring strain relief, use Int. Zip Tie (Hardware Kit Item #5) by snapping into hole just below port.
7) Continue on with Step 3 of Installation and Cable Management on Page 6.

CAUTION: DO NOT OVERTIGHTEN SCREWS

Labeled diagram of a mechanical device showing numbered components for assembly or maintenance reference.

LPS-102 - 90W Power Supply

(For further Installation Instructions, refer to the Instructions included with LPS-102)

1) Insert the Output Cable through slot on the side of Docking Station.
2) Plug the yellow tip of Output Cable into Power Input on Docking Station.
3) Route the Output Cable down and through the strain relief notch.
4) Secure Power Supply Brick to the bottom of Docking Station with the supplied hardware.
5) Plug the Output Cable into the Power Supply Brick. Strain relief cable as needed.
6) Continue on with Step 3 of Installation and Cable Management on Page 6.

Labeled diagram of a computer monitor rear panel showing numbered components and internal components

Related Products

Havis offers a wide variety of accessory products specifically for use with the DS-PAN-600 Series Docking Station. For more information or to order, please visit www.havis.com.

Metallic mechanical component with mounting holes and wiring (no visible text or symbols)

DS-DA-311

Side Exiting USB Cable

Allows for more convenient access for up to two (2) of the available USB 2.0 ports. Can be mounted to the right, left, or both sides on DS-PAN-600 Series Docking Stations.

Black electronic device with multiple cables and connectors (no visible text or symbols)

LPS-102

90W Power Supply

External in-vehicle power supply and cable for Panasonic Toughbook H2 with cigarette lighter adaptor.

Metal bracket with four holes, no text or symbols visible

DS-DA-218

Desktop Stand for Tablet Docking Stations

Durable stand for mounting tablet Docking Stations for use in the home or office.

Havis, Inc.

75 Jacksonville Road, PO Box 2099

Warminster, PA 18974

47801 Anchor Court

Plymouth, MI 48170

www.havis.com 1-800-524-9900
