USER MANUAL PS-2500 Cyber Acoustics

"IMPORTANT SAFETY INSTRUCTIONS"

When using the sewing machine, basic safety precautions should always be followed, including the following:

"Read all instructions before using."

DANGER — To reduce the risk of electric shock:

1. The sewing machine should never be left unattended when plugged in. Always unplug this sewing machine from the electrical outlet immediately after using and before cleaning.

2. Always unplug before relamping.

Replace bulb with same type rated 12 volts 5 watts (for Models PS-2500, PS-2400, PS-2300, STAR 140E, STAR 130E, STAR 120E).

Replace bulb with same type rated 15 watts (for Models PS-2200, STAR 110).

WARNING — To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Do not allow this machine to be used as a toy. Close attention is necessary when the sewing machine is used by or near children.
2. Use this sewing machine only for its intended use as described in this manual. Use only accessories recommended by the manufacturer as contained in this manual.
3. Never operate this sewing machine if it has a damaged cord or plug, is not working properly, has been dropped or damaged, or has been dropped into water. Return the sewing machine to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment.
4. Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8. To disconnect, turn the main switch to the symbol "O" position which represents off, then remove plug from outlet.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10. Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
11. Always use the proper needle plate. The wrong plate can cause the needle to break.
12. Do not use bent needles.
13. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
14. Switch the sewing machine to the OFF position, symbol "O" position when making any adjustments in the needle area, such as threading needle, changing needle, threading bobbin, or changing the presser foot, and the like.
15. Always unplug the sewing machine from the electrical outlet when removing covers, lubricating, or when making any of the user service adjustments mentioned in the instruction manual.
16. The sewing machine is not intended for use by young children or infirm persons without supervision.
17. Young children should be supervised to ensure that do not play with the sewing machine.

"SAVE THESE INSTRUCTIONS"

"This sewing machine is intended for household use."

"IMPORTANTES INSTRUCCIONES DE SEGURIDAD"

If your sewing machine is fitted with a 3 pin non-rewireable BS plug then please read the following.

IMPORTANT (in the United Kingdom)

Main supply (AC 230/240V\~, 50Hz)

DO NOT cut off the mains plug from equipment. If the plug fitted is not suitable for the power point in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted and to replace the fuse cover.

If none the less the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply.

IMPORTANT (in the other countries)

If the available socket outlet is not suitable for the plug supplied with this equipment, it should be cut off and an appropriate three pin plug fitted. With alternative plugs an approved fuse must be fitted in the plug.

NOTE: The plug severed from the main leads must be destroyed as a plug with bared flexible cords is hazardous if engaged in a live socket outlet. In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the ASA mark, rating as marked on plug.

Always replace the fuse cover. Never use plugs with the fuse cover removed.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER 'E', BY THE EARTH SYMBOL OR COLOURED GREEN OR YELLOW.

The wires in these main leads are coloured in accordance with the following code:

Blue Neutral

Brown Live

As the colours of the wiring in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or coloured black or blue.

The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L' or coloured red or brown.

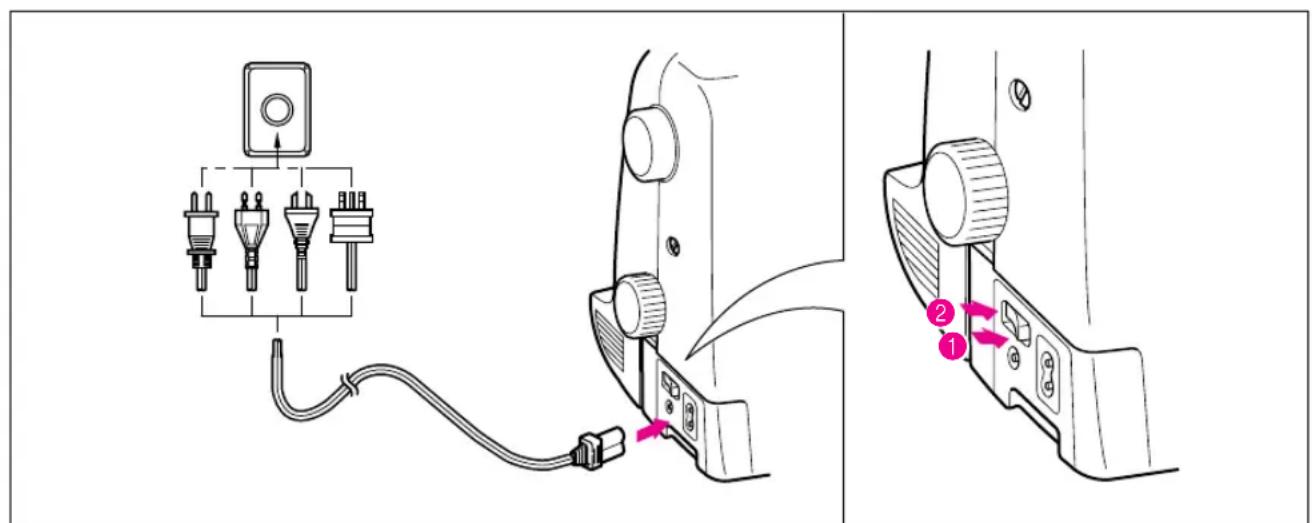

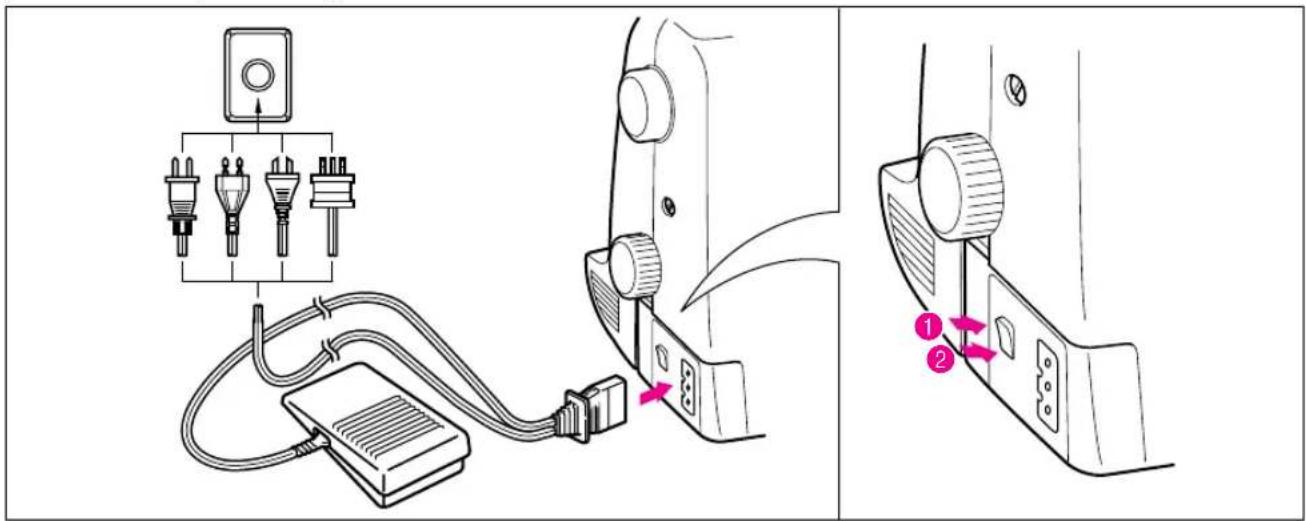

Connecting Plugs and Main Power / Sewing Light Switch

(Model PS-2500, PS-2400, PS-2300 STAR140E, STAR130E, STAR120E)

Diagram showing cable connection to a sewing machine with labeled parts and directional arrows

(Model PS-2200, STAR110)

Diagram showing a sewing machine with labeled parts and directional arrows indicating connection steps.

1. Connect the power cord or three-prong plug into the machine.

2. Connect the electrical supply plug into a wall outlet.

- When leaving the sewing machine unattended, the main switch of the machine must be switched off or the plug must be removed from the socket outlet.

Turn on or off the switch for the main power and sew-light.

①Turn on ②Turn off

- When servicing the sewing machine, or when removing covers or changing lamps, the machine or the electrical set must be disconnected from the supply by removing the plug from the socket outlet.

TABLE OF CONTENTS

KNOWING YOUR SEWING MACHINE

Principal parts ...... 1

Principal parts 3

Accessories 5

OPTIONAL ACCESSORIES 6

OPERATING YOUR SEWING MACHINE ..... 7

Connecting Plugs 7

Main Power and Sewing Light Switches ... 8

Foot Controller 8

Replacing the Needle 9

Checking the Needle 9

Changing the Presser Foot.... 10

Extension Table (Accessories) 10

VARIOUS CONTROLS 11

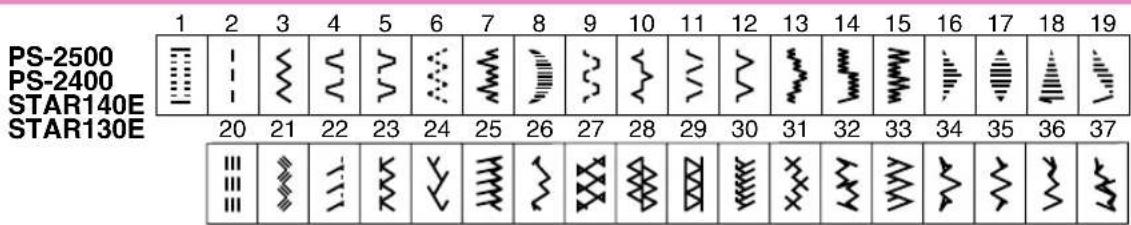

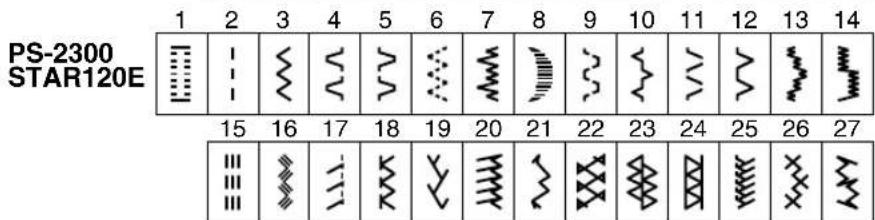

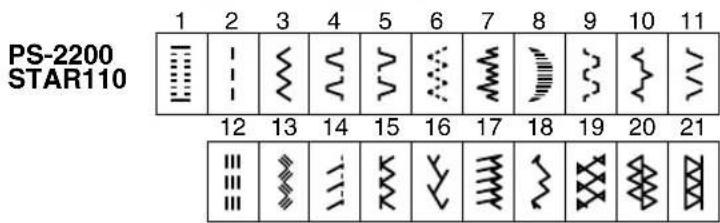

Pattern Selection Dial 11

RECOMMENDED WIDTHS AND

LENGTHS FOR STITCHES 12

Stitch Length Dial 14

Stitch Width Dial 15

Reverse Sewing Button 16

Drop Feed Lever.... 17

Start/stop Button 18

Speed Range Control Lever 19

Automatic Thread Cutter 20

Converting to Free-arm Style 21

THREADING THE MACHINE 22

Winding the Bobbin 22

Lower Threading.... 25

Upper Threading.... 26

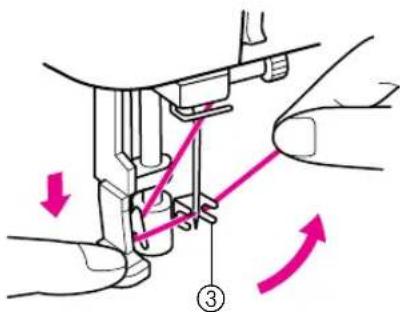

Using Needle Threader 28

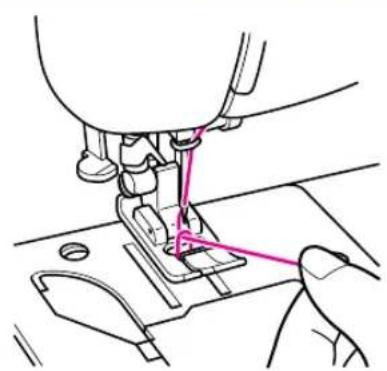

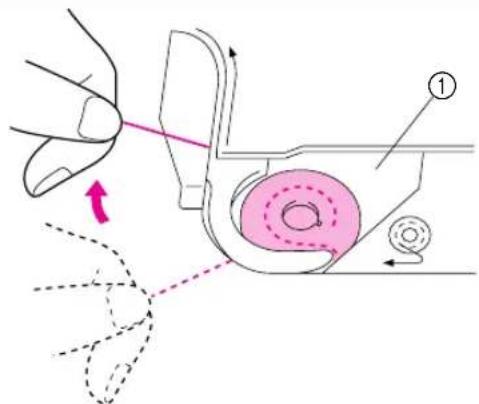

Manually Drawing Up Lower Thread ..... 29

Twin Needle Sewing 30

Thread Tension Control 31

Thread Tension 32

RELATIVE CHART OF SEWING FABRICS,

NEEDLES AND THREADS.... 34

STRAIGHT AND ZIGZAG STITCHING

Straight Stitching 36

Zigzag Stitching 40

BUILT-IN STITCHES

Blind Hem Stitching 41

Shell Tuck Stitching 42

Elastic Stitching 43

Double Action Stitching 44

Scallop Stitching 45

Decorative Stitching.... 46

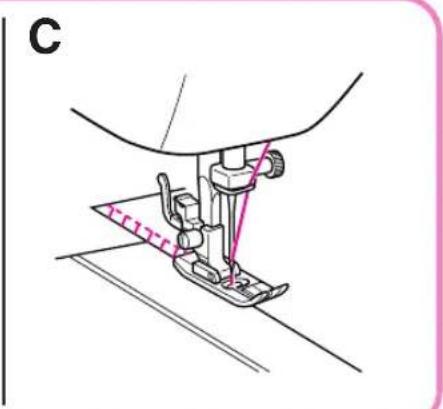

Patchwork 47

Overedge Stitching 48

Feather Stitching 49

Triple Zigzag Stretch Stitching.... 50

BUTTONHOLE AND BUTTON SEWING

Making a Buttonhole 51

Odd-shaped buttons that

do not fit into the button holder plate ..... 53

Buttonhole Fine Adjustment 54

Button Sewing 57

USING ATTACHMENTS AND APPLICATIONS

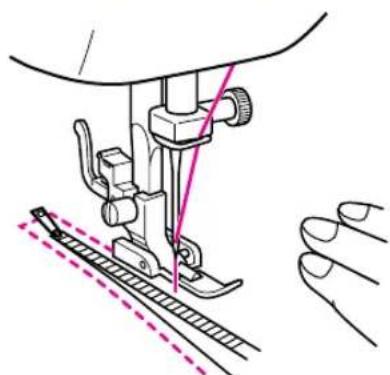

Zipper Insertion.... 58

Gathering 59

Darning 59

Appliques 60

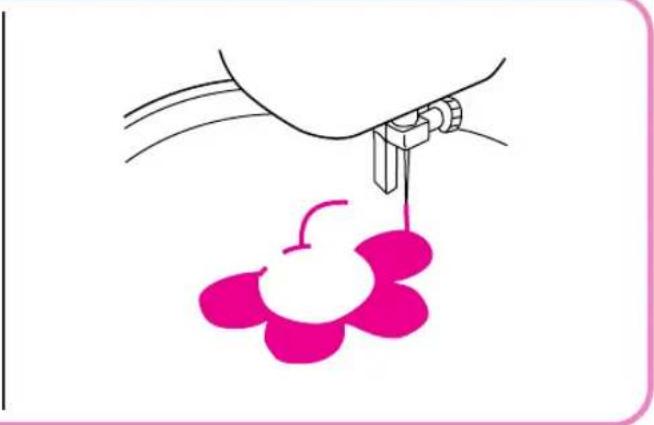

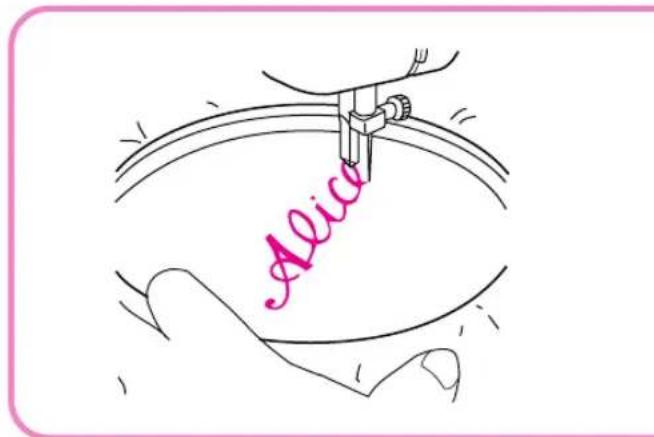

Monogramming and Embroidering ..... 61

OPTIONAL ACCESSORIES

Using the Walking Foot 63

Using the Spring-action Quilting Foot ..... 65

Using the 1/4" Seam Guide Foot ...... 67

MAINTENANCE

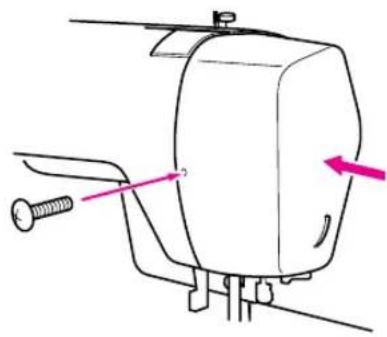

Changing the Bulb 68

Cleaning 70

Automatic Thread Cutting 72

Correcting a Problem with

the Automatic Thread Cutter 73

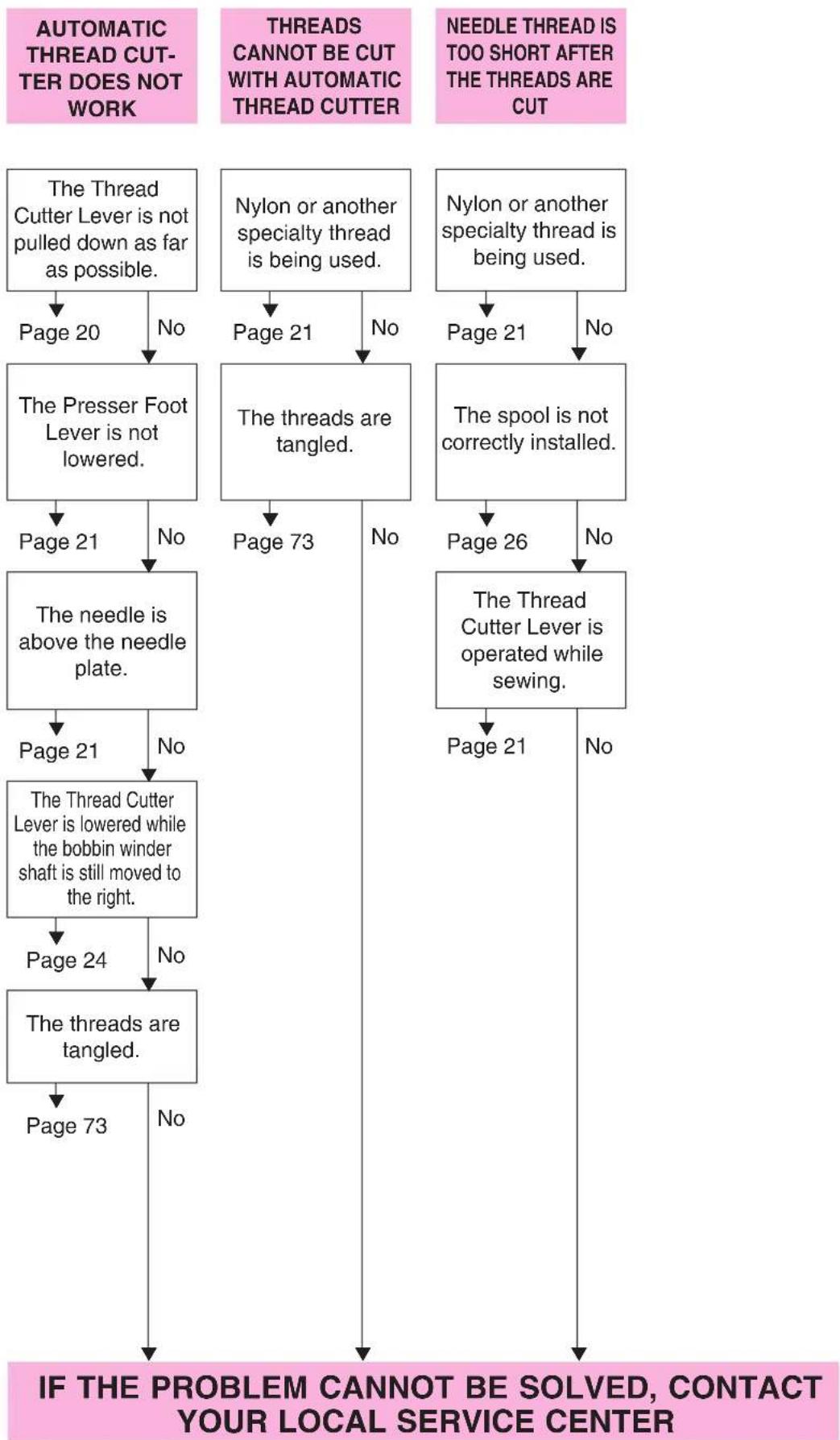

Performance Checklist 75

Repacking the Machine.... 82

INDEX

INDICE

CONOZCA SU MÁQUINA DE COSER

Elementos principales .... 1

Model PS-2500, PS-2400, PS-2300 STAR140E, STAR130E, STAR120E

Winds the thread onto the bobbin to be used for the lower thread.

②STITCH LENGTH DIAL

Controls the length of the stitches.

③SPOOL PIN AND SPOOL HOLDER

④STITCH WIDTH DIAL

Controls the stitch width.

⑤UPPER TENSION CONTROL DIAL

Controls the tension of the upper thread.

⑥NEEDLE THREADER

⑦ EXTENSION TABLE & ACCESSORIES COMPARTMENT

⑧START/STOP BUTTON

Touch to start or stop machine.

⑨REVERSE SEWING BUTTON

Push for stitching in the reverse direction.

Controls the speed range.

⑪PATTERN SELECTION DIAL

Turn any direction to select the stitch you need.

⑫MAIN SWITCH

Turn on/off the main power/sewing light switch.

⑬CONTROLLER JACK

Insert for foot controller operation.

⑭POWER CORD PLUG

Connect machine to power supply.

⑮BUTTONHOLE FINE ADJUSTMENT SCREW

⑯PATTERN INDICATION WINDOW

Shows the stitch number to be performed.

⑰HOLE FOR VERTICAL SPOOL PIN

Used to hold a second spool of thread for twin needle sewing.

⑱DROP FEED LEVER

⑲ZIGZAG PRESSER FOOT

⑳BUTTONHOLE LEVER

②1 PRESSER FOOT LEVER

②PULLEY/HAND WHEEL

②3“AUTOMATIC THREAD CUTTER” LEVER refer to page 20.

(Model PS-2500, STAR 140E)

⑳FOOT CONTROLLER

Used to control sewing speed/start and stop.

② RUEDA MANUAL/POLEA

②3 PALANCA "CORTAHILOS AUTOMÁTICO". VÉASE PÁG. 20 (MODELO PS-2500, STAR 140E)

Winds the thread onto the bobbin to be used for the lower thread.

②STITCH LENGTH DIAL

Controls the length of the stitches.

③SPOOL PIN AND SPOOL HOLDER

④STITCH WIDTH DIAL

Controls the stitch width.

⑤UPPER TENSION CONTROL DIAL

Controls the tension of the upper thread.

⑥NEEDLE THREADER

⑦ EXTENSION TABLE & ACCESSORIES COMPARTMENT

⑧REVERSE SEWING BUTTON

Push for stitching in the reverse direction.

⑨PATTERN SELECTION DIAL

Turn in either direction to select the desired stitch.

⑩ MAIN POWER/SEWING LIGHT SWITCH

Turn on/off the main power/sewing light switch.

⑪ FOOT CONTROLLER RECEPTACLE

Insert the foot controller plug for operation

⑫ BUTTONHOLE FINE ADJUSTMENT SCREW

⑬PATTERN INDICATION WINDOW

Shows the stitch number to be performed.

⑭HOLE FOR VERTICAL SPOOL PIN

Used to hold a second spool of thread for twin needle sewing.

⑮ FOOT CONTROLLER

Used to control sewing speed/start and stop.

⑯DROP FEED LEVER

⑰ZIGZAG PRESSER FOOT

⑱BUTTONHOLE LEVER

⑲PRESSER FOOT LEVER

⑳PULLEY/HAND WHEEL

⑳ RUEDA MANUAL/POLEA

Accessories

Accesorios

① X59370-051

② XA3811-051 XA3812-052

③ X57117-051 ④ X59296-001

⑤ XA4973-051

Pink 3D model of a mechanical component with no visible text or symbols

⑥ X59375-051

⑦ 130012-053

⑧ 130013-053

⑨ X59476-051

Illustration of a pink pen-like tool with black bands (no text or symbols)

⑩ 130920-051

⑪ X55467-051

⑫ X54243-001

Simple illustration of a pink cylindrical object with a pointed tip (no text or symbols)

①Zipper Foot (1 pc.)
②Bobbin (3 pcs.) XA3811-051 (For U.S.A)

XA3812-052 (For other countries)

Replacements (10-piece set)

③Needle Pack (Regular Single Needle No. 14) (3 pcs.)
④Twin Needle (1 pc.)
⑤Buttonhole Foot (1 pc.)
⑥Button Sewing Foot (1 pc.)
⑦Spool Holder (Large) (1 pc.)
⑧Spool Holder (Small) (1 pc.)
⑨Brush (1 pc.)
⑩Extra Spool Pin (1 pc.)
⑪ Screwdriver (1 pc.)
⑫Seam Ripper (1 pc.)

① Pata de cremalleras (1 pza)
② Canilla (3 pzas) XA 3811-051 (para EE UU)

Note (For U.S.A. only)

This foot controller can be used for sewing machine

Models PS-2500, PS-2400, PS-2300.

(Model PS-2200, STAR110)

Foot Controller: Model N

Parts Code: J00360051 (110/120V Area)

J00016051 (220/240V Area)

J00492051 (U.K.)

J00921051 (Australia, New Zealand)

J00478051 (110/220V Dual Ara)

Note (For U.S.A. only)

Foot Controller: Model N

Parts Code: J00360051 (110/120V Area)

This foot controller can be used for sewing machine Model PS-2200.

The above accessories are stored in the extension table. These accessories have been designed to help complete most sewing tasks.

OPTIONAL ACCESSORIES

J00016051 (220/240 V Area)

J00492051 (RU)

Technical line drawing of a mechanical component with multiple slots and a handle (no text or symbols)

①184987-001

②

③

①Walking foot

②Springaction Quilting foot

X81021-001 (For U.S.A)

X81021-002 (For other countries)

③1/4" Seam guide foot

X80980-001 (For U.S.A)

X80980-002 (For other countries)

NOTE:

The contents of accessories depend on models.

① Pie caminante

② Prensatelas enguatador

X81021-001 (para EEUU)

X80980-002 (For other countries)

NOTA:

1. Connect the power cord plug into the machine.
2. Connect the power supply plug into a wall outlet.

CAUTION

1. When changing the needle, bobbin or light bulb or when the sewing machine is not in use, it is recommended that the power supply plug be disconnected from the wall socket to avoid electrical hazards.
2. For U.S.A. only

This appliance has a polarized plug (one blade wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.

If it still does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in any way.

Diagram showing three connected devices with labeled connectors and cable connections, likely illustrating a medical or electrical setup.

Main Power and Sewing Light Switches

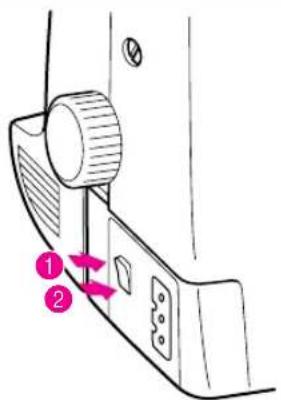

This switch turns the main power and sewing light on or off.

① Turn on (toward the "l" mark)
② Turn off (toward the "O" mark)

Diagram of a device handle with labeled parts and numbered annotations

Diagram of a sewing machine's clamping mechanism with labeled parts and directional arrows indicating motion

Foot Controller

When the foot controller is depressed lightly, the machine will run at a low speed. When the pressure on the foot controller is increased, the machine's speed will increase. When pressure on the foot controller is released, the machine will stop. Care should be taken that nothing is placed on the foot controller when the machine is not in use.

①Foot controller

Pedal

Diagram showing foot pressing a pink foot on a purple foot, with a pink arrow indicating the press direction and a numbered label.

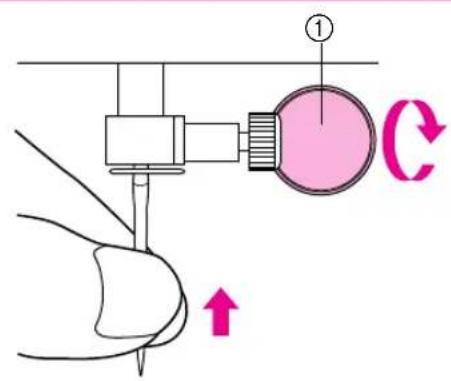

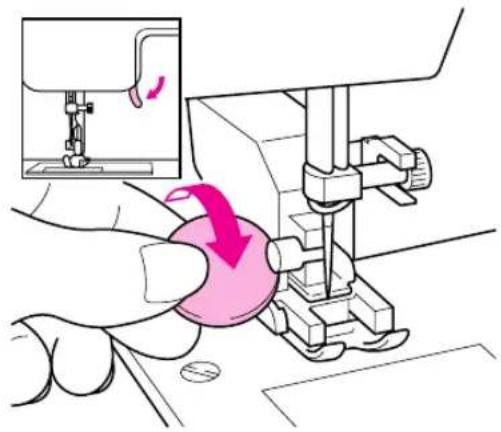

Replacing the Needle

1. Remove the power supply plug from the outlet.
2. Raise the needle bar to its highest position.
3. Lower the presser foot.
4. Remove the needle by loosening the needle clamp.
5. Insert a different needle as far as possible up against the needle stopper with its flat side facing the back.
6. Tighten the needle clamp.
   ①Use a coin or screw driver

Cambio de la aguja

Diagram illustrating a mechanical or fluidic device with labeled components and directional arrows indicating movement or force.

Diagram illustrating a medical procedure with labeled components and directional arrows, including a pink circular component and a curved arrow.

Checking the Needle

1. The sewing needle must always be straight and sharp for smooth sewing.
2. To check if the needle is bent, place the flat side of the needle down as shown in the illustration.
3. Replace the needle if it is bent or dull.

Three pink pen tips with circular and cross symbols, no text or labels present

Diagram showing three stages of a tool or tool operation: open, crossed, and closed, with corresponding X marks.

Changing the Presser Foot

It may be necessary to change the presser foot according to your sewing needs.

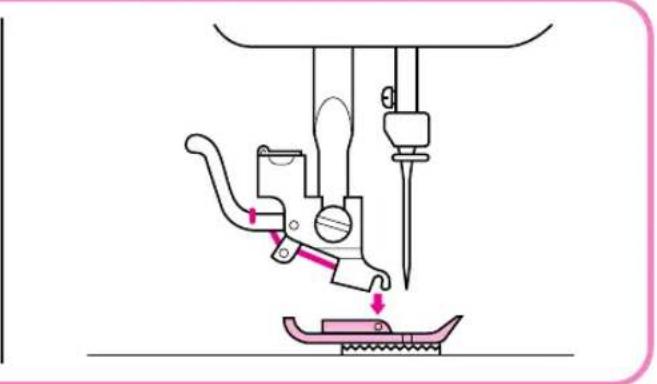

SNAP-ON TYPE

1. Raise the needle to its highest position by turning the balance wheel toward you (counter clockwise) and raise the presser foot lever.
2. Release the foot by raising the lever located at the back of the holder.
3. Place a different presser foot on the needle plate so that the bar on the presser foot is in line with the slot on the shank.
4. Lower the presser foot lever and fix the presser foot onto the shank. If the presser foot is in the correct location, the bar should snap in.

Illustration of a sewing machine needle stitching a fabric, with no text or symbols present.

Diagram of a sewing machine needle stitching fabric, showing mechanical components and tool path (no text or labels)

Extension Table (Accessories)

The accessories are stored in a compartment under the extension table cover, which can be opened by flipping it toward you.

Illustration of a sewing machine's internal components, showing a pink fabric cover and handle mechanism (no text or symbols)

VARIOUS CONTROLS

Pattern Selection Dial

To select a stitch, simply turn the Pattern Selection Dial, located on the right side of the machine. The Pattern Selection Dial may be turned in either direction. The following page shows the recommended range of stitch lengths and widths.

①Pattern selection dial
②Pattern number

The stitches that are available depend on the Stitch Length Dial setting. If the Stitch Length Dial is set between 0 and 4, any of the stitches in the top row can be selected. If the Stitch Length Dial is set to SS, any of the stitches in the bottom row can be selected.

③Stitch length dial

Distintos mandos

Diagram of a sewing machine handle with numbered parts and a highlighted knob indicating rotation

③ 3 2 1 a 0 ③ SS

PS-2500 PS-2400 STAR140E STAR130E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37

PS-2300 STAR120E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

PS-2200 STAR110 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

NOTE:

Since the Pattern Selection Dial is not a continuous dial, it cannot be turned directly from the last stitch to the first one or from the first stitch to the last one. To select the first stitch when the last one is displayed or to select the last stitch when the first one is displayed, turn the Pattern Selection Dial in the opposite direction until the desired stitch is displayed.

NOTA:

RECOMMENDED WIDTHS AND LENGTHS FOR STITCHES

PATTERN	STITCH NAME	RECOMMENDED WIDTH [mm(inch)]	RECOMMENDED LENGTH [mm(inch)]	INSTRUCTION MANUAL PAGE
	1-STEP AUTOMATIC 3-5 (Dial 4~6) F-1.5 BUTTONHOLE (1/8-13/64) (1/64-1/16)			46
	STRAIGHT STITCH	6 1-4(1/4) (3/64-5/32)		36
	ZIGZAG STITCH	0-5 F-4(0-13/64) (1/64-5/32)		40
	BLIND HEM STITCH	3-6 F-2(1/8-1/4) (1/64-5/64)		41
	SHELL TUCK STITCH	3-6 F-3(1/8-1/4) (1/64-1/8)		42
	ELASTIC STITCH	3-6 F-2.5(1/8-1/4) (1/64-3/32)		43
	STRETCH BLIND STITCH	3-6 F-1.5(1/8-1/4) (1/64-1/16)		41
	SCALLOP STITCH	3-6 F-1.5(1/8-1/4) (1/64-1/16)		45
	DOUBLE ACTION STITCH BRIDGING STITCH RAMPART STITCH	3-6 F-3(1/8-1/4) (1/64-1/8)		44
	ELASTIC SHELL TUCK STITCH	3-6 F-3(1/8-1/4) (1/64-1/8)		48
	LIGHTNING STITCH SQUARE STITCH DECORATIVE STITCH	6 F-1(1/4) (1/64-3/64)		46
	TRIANGLE STITCH BEAD STITCH 3-6 F-1 ARROW HEAD STITCH (1/8-1/4) (1/64-3/64)			46
	TRIPLE STRETCH STITCH	6(1/4) 2.5 (3/32)	SS Fixed	36
	TRIPLE ZIGZAG STRETCH 3-6 STITCH (1/8-1/4) 2.5 (3/32)		SS Fixed	50
	SLANT OVERLOCK STITCH	3-6(1/8-1/4) 2.5 (3/32)	SS Fixed	48
	ELASTIC OVERLOCK STITCH	3-6(1/8-1/4) 2.5 (3/32)	SS Fixed	48
	FEATHER STITCH	3-6(1/8-1/4) 2.5 (3/32)	SS Fixed	49
	COMB STITCH	3-6(1/8-1/4) 2.5 (3/32)	SS Fixed	48
	DECORATIVE STITCH	6(1/4) 2.5 (3/32)	SS Fixed	46
	FAGOTING STITCH	3-6(1/4) 2.5 (3/32)	SS Fixed	47
	DECORATIVE STITCH	6(1/8-1/4) 2.5 (3/32)	SS Fixed44	46
	LINK STITCH	3-6(1/8-1/4) 2.5 (3/32)	SS Fixed	47
	DECORATIVE STITCH	6(1/4) 2.5 (3/32)	SS Fixed	46

Depending on your selected stitch, you may need to adjust the stitch length for best results.

The numbers marked on the Stitch Length Dial represent the length of the stitch in millimeters (mm). THE HIGHER THE NUMBER, THE LONGER THE STITCH.

The "O" setting does not feed the material. This is used for sewing on a button.

The “F” area is used for making a Satin Stitch (a dense zigzag stitch) which can be used in making buttonholes and decorative stitches. The position needed for making the Satin Stitch varies according to the material and thread being used. To determine the exact dial position, you should first test the stitch and length settings on a scrap of fabric to observe the feeding of the material.

①Stitch length dial
②Length
③Fine → SS
④Coarse

Diagram of a car interior with labeled component and directional arrow indicating rotation or movement

② ③ ④ 3 2 7

4321-F-O SS

Turn the dial to the left past "O" for the SS position.

Depending on the stitch selected, you may need to adjust the stitch width.

The numbers marked on the dial represent the stitch width.

THE HIGHER THE NUMBER, THE WIDER THE STITCH.

Diagram of a washing machine interior with labeled parts and directional arrows indicating motion or movement.

When you choose the Straight Stitch or the Triple Stretch Stitch you can change the needle position from left to center.

NOTA:

To sew in reverse, push the Reverse Sewing Button in as far as possible and hold in that position while pressing lightly on the foot pedal. To sew forward, release the Reverse Sewing Button. The machine will then sew forward. Reverse sewing is used for back tacking and reinforcing seams.

Model PS-2500, PS-2400, PS-2300

STAR140E, STAR130E, STAR120E

When the foot controller is depressed, push this button and hold it. Then, the machine will sew at ordinary speed in reverse.

When the button is released, the machine will sew forward.

When the foot controller is not depressed, push this button and hold it, the machine will sew slowly in reverse sewing.

Diagram showing sewing process with labeled step and directional arrow, likely for garment or sewing instruction

Use the Drop Feed Lever to raise or lower the feed dogs according to the job that is being done. When monogramming, embroidering, darning or sewing on buttons, the feed dogs should be lowered. (The garment will not be fed.)

NOTE:

When raising or lowering the feed dogs, move the Drop Feed Lever as far as possible to the appropriate side. Since the feed dogs can not be lowered using the Drop Feed Lever immediately after they are raised, turn the balance wheel toward you once and after the feed dogs are raised, lower them using the Drop Feed Lever.

①Drop feed lever
②Down position
③Up position

Diagram of a sewing machine with labeled parts and directional arrows indicating movement or positioning.

START/STOP Button

Pressing the "START/STOP" Button once starts the sewing machine; pressing the button again stops the machine.

(Model PS-2500, STAR140E)

The button lights up in green when the sewing machine is ready to start sewing and while sewing. If the machine is not ready to start sewing, the button lights up in red. While the bobbin is being wound (the bobbin winder shaft is moved to the right), the button lights up in orange.

• The machine sews at a slow speed when sewing with the button held down.
• With automatic thread cutter model, the needle stops in its lowest position when sewing stops.
• Without automatic thread cutter model, the needle stops in its highest position when sewing stops.

①START/STOP button

Technical diagram of a sewing machine with labeled component ①

* The sewing machine will not start sewing if the Presser Foot Lever is raised. Be sure to lower the Presser Foot Lever before sewing.

STAR140E, STAR130E, STAR120E

Speed Range Control Lever

Controls the speed range.

In case the foot controller is used, you can control maximum speed by the speed range control lever. The control lever should be set at right (fastest) position for normal usage with foot controller.

①Speed range control lever

Modelos PS-2500, PS-2400, PS-2300,

STAR 140E, STAR 130E y STAR 120E

(Model PS-2500, STAR140E)

Automatic Thread Cutter

Use the Thread Cutter Lever to cut the threads.

1. After finishing sewing, move the needle to its lowest position, pull the Thread Cutter Lever down as far as possible, then release it.

NOTE:

Do not operate the Thread Cutter Lever while sewing or when there is no fabric in the sewing machine. Threads may become tangled or other problem may be incurred.

1. After the threads are cut, the needle moves up and the Thread Cutter Lever returns to its original position.

(Modelo PS-2500, STAR140E)

Technical diagram showing sewing process steps with Chinese labels and arrows indicating movement

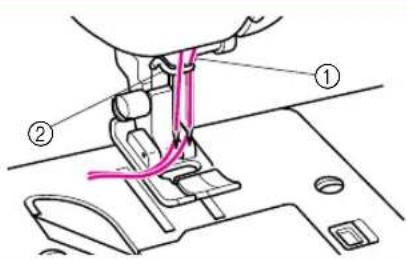

* During twin needle sewing and when sewing with thread thicker than #30 or with nylon, metallic and other specialty threads, cut the threads with the thread cutter on the left side of the machine.
* After the threads are cut using the Thread Cutter Lever, you can continue sewing without drawing up the lower thread.
* The automatic thread cutter cannot be used when the needle or presser foot are raised or the bobbin winder shaft is moved to the right.
* Refer to "Automatic Thread Cutting" on page 72 if the threads become tangled or cannot be cut or if any other problems occur while using the automatic thread cutter.

Line drawing of hands adjusting a mechanical component with a pink dashed line indicating the angle (no text or symbols)

Converting to Free-arm Style

Free-arm sewing is convenient for sewing tubular and hard-to-reach areas on a garment. To change your machine to the free-arm style, simply lift out the extension table.

① Slide the extension table to the left.

Diagram showing sewing process with labeled step and directional arrow indicating movement

THREADING THE MACHINE

Winding the Bobbin

1. Place the spool of thread on the spool pin. The thread end should come from the bottom front of the spool. The spool holder closest to the thread spool size should be used to hold the spool securely on the spool pin. The spool cap should be pushed on as far as it will go. Pass the thread through the thread guide as shown following the dotted line on the machine.

Hold the thread with both hands when passing it through the guide.

①Spool holder
②Spool
③Spool pin
④Thread

Diagram illustrating a sewing machine tool with numbered instructions for handling and adjusting the component.

1. Place the bobbin on the bobbin winder shaft. Push the bobbin winder shaft to the right.

①Spring on the shaft
②Groove of the bobbin

* Align the groove of the bobbin with the spring on the shaft.

1. Wind the thread clockwise around the bobbin four or five times, pass the end of the thread through the slit in the bobbin winder seat, and then pull the thread in the direction shown in the illustration. Use the cutter to cut the thread.

③Bobbin winder seat

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

Model PS-2500, PS-2400, PS-2300 STAR140E, STAR130E, STAR120E

1. Slide the speed range control lever to its maximum (as far to the right as possible).
2. Push the "START/STOP" button. The machine will stop automatically when the bobbin is full.
3. After the bobbin has stopped moving, push the "START/STOP" button to stop the machine.
4. Cut the thread, slide the bobbin winder shaft to the left and remove the bobbin.

(Model PS-2200, STAR110)

1. Step down on the foot controller to start sewing.
2. After the machine stops automatically when the bobbin is full, take your foot off of the foot controller.
3. Cut the thread, slide the bobbin winder shaft to the left and remove the bobbin.

NOTE:

Immediately after winding the bobbin, it is normal to hear the sound of the clutch engaging when beginning to sew or manually turning the balance wheel.

Modelos PS-2500, PS-2400, PS-2300, STAR 140E, STAR 130E y STAR 120E

Illustration of a foot pressing down on a pink foam roller with a downward arrow indicating compression (no text or symbols)

CAUTION

Be sure to use the specified bobbin.

Replacement part code

XA3811-051 (For U.S.A)

XA3812-052 (For other countries)

Using a different bobbin may result in injuries or damage.

PRECAUCIÓN

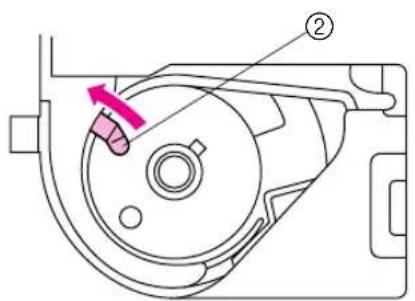

1. Raise the needle to its highest position by turning the balance wheel toward you (counterclockwise) and raise the presser foot lever.
2. Slide the button and open the cover.

Enhebrado inferior

Diagram showing a hand using a pink plastic device to adjust or install a component, with labeled parts ① and ②.

① Deslizar el botón

② Tapa

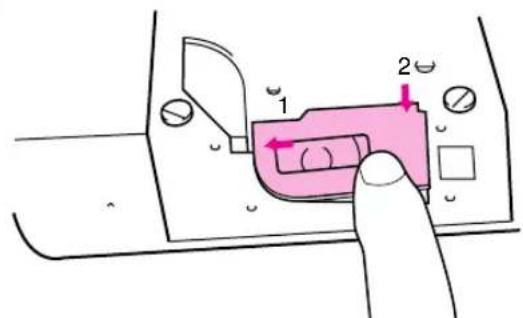

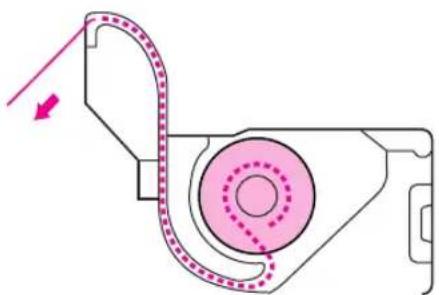

1. Insert bobbin and deliver thread end through the slit, then pull the thread to cut.

NOTE:

Check that the direction of winding follows the illustration.

Illustration of hands using a sewing machine to adjust a circular component with a pink arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a pink circular component and dotted line indicating motion or force direction (no text or symbols)

1. Install the needle plate cover onto the needle plate.

2. Instale la tapa en la placa de agujas.

Diagram of a sewing machine handle mechanism with labeled parts and directional arrows indicating movement

* You can begin sewing immediately without drawing up the bobbin thread.

1. Raise the presser foot using the Presser Foot Lever.
2. Raise the needle to its highest position by turning the balance wheel toward you (counterclockwise).

①Presser foot lever

Enhebrado superior

Technical diagram showing sewing machine stitching process with labeled parts and directional arrows

1. Place a spool of thread on the horizontal spool pin and press a spool holder onto the spool pin to hold the thread spool firmly in place.

The thread end should come from the bottom front of the spool.

NOTE:

Choose an appropriate spool holder according to the type and diameter of the spool being used. The diameter of the spool holder should be just larger than that of the spool itself.

Pure mechanical diagram showing a shaft and housing with a pink arrow indicating direction (no text or symbols)

Pure mechanical diagram showing a shaft and pin without any text, numbers, or symbols

1. Deliver the upper thread as shown in this diagram.

The upper thread shutter opens when the Presser Foot Lever is raised.

① Upper thread shutter

Technical diagram of a sewing machine with numbered parts and an inset showing the sewing process with highlighted steps.

1. Make sure to guide the thread through the thread take-up lever from the right to the left.

②Thread take-up lever

Diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

Technical line drawing of a sewing machine component (no text or symbols)

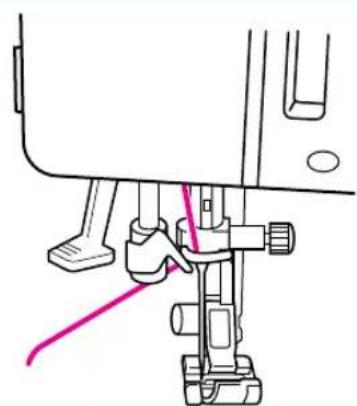

NOTE:

The upper thread shutter makes sure that the upper thread is fed correctly. The upper thread shutter does not operate if the thread take-up is lowered. Be sure to raise the Presser Foot Lever and the thread take-up before feeding the upper thread.

Incorrectly feeding the thread may cause sewing problems.

NOTA:

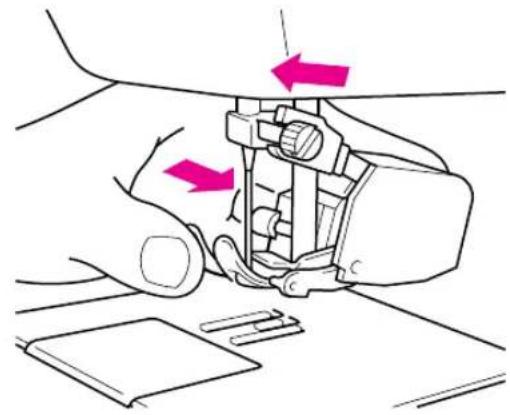

The needle threader can be used to thread the needle more easily.

1. Lower the presser foot lever.

Lower the threader slightly and position the thread under the guide.

①Needle threader
②Guide

1. Move the threader to its lowest position and guide the thread under the hook which passes through the eye of the needle.

③Hook

Uso del enhebrador

Diagram of sewing machine needle insertion with labeled parts and directional arrow

Diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or movement

1. Release the threader and the thread at the same time.
   This causes the threader to deliver the thread through the eye of the needle.
2. Pull out about 10 cm (4") of thread through the needle.

NOTE:

Some needle/thread combinations will not work with the needle threader. See page 34.

Diagram of a sewing machine needle stitching a cable, with an arrow indicating upward motion (no text or symbols)

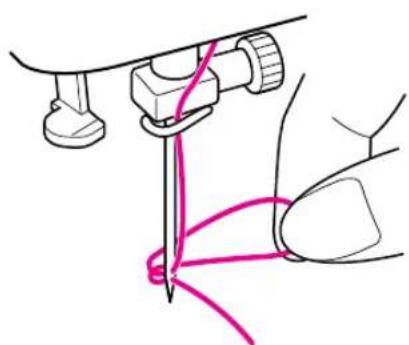

Illustration of a sewing machine needle stitching a knot, with no text or symbols present

Manually Drawing Up Lower Thread

When sewing gathers or darts, the lower thread can be manually drawn up so that it will have some excess.

1. Pass the thread along the groove in the direction of the arrow, and leave it there without cutting it. ①Shuttle
   • The bobbin cover should still be removed.
2. While lightly holding the end of the lower thread, slowly turn the balance wheel once by hand to raise the needle.

Technical diagram showing a hand operating a mechanical device with labeled components and directional arrows indicating motion or force.

1. Pull on the upper thread to draw up the lower thread.
2. Pull out about 10 cm (4") of both threads and place them toward the back of the machine under the presser foot.
   * If the threads are cut using the automatic thread cutter after installing the bobbin, you can start sewing without drawing up the lower thread.

②Upper thread
③Lower thread

Line drawing of a sewing machine needle stitching fabric, showing hands operating the component (no text or symbols)

Line drawing of a sewing machine with hands operating the base (no text or symbols present)

Technical diagram of a sewing machine with numbered parts and measurement lines

Twin Needle Sewing

Your sewing machine is designed for twin needle sewing, which allows you to sew with two top threads. You can use the same color or two different colors of thread for making decorative stitches. Any of the patterns, except the buttonhole pattern, can be sewn with the twin needle. When using the Straight Stitch, the Stitch Width Dial should be set so that the needle is in the center position (between 2 and 3). However, when other patterns are used, set the Stitch Width Dial between 0 and 3. See page 15 for details on adjusting the Stitch Width Dial.

CAUTION:

When sewing with the twin needle, be sure the Stitch Width Dial is not set above 3 since this may cause the needle to hit the needle plate and break.

INSERTING THE TWIN NEEDLE

Insert in the same way a single needle is inserted (refer to page 9). The flat side of the needle should face toward the back and the rounded side should face toward you.

PLACING THE EXTRA SPOOL PIN

Place the vertical spool pin in the hole found on top of the machine near the horizontal spool pin. Place the second spool of thread onto the vertical spool pin as shown in fig. A.

TWIN NEEDLE THREADING

Each needle should be threaded separately.

1. Threading the Right Needle Follow the same instructions for single needle threading using the thread from the spool on the extra spool pin. See page 26 for more details.

2. Threading the Left Needle Thread the left needle in the same manner that the right needle was threaded, but do not pass the thread through the thread guide above the needle before passing it through the eye of the left needle as shown below in fig. B.

① Right needle thread passes through this guide.
② Left needle thread passes in front of this guide.

Pure mechanical diagram of a cylindrical component with internal grooves and arrows indicating direction (no text or symbols)

NOTE: (Model PS-2500, STAR140E)

When sewing with the twin needle, do not use the automatic thread cutter.

B

Diagram of sewing machine stitching with labeled parts ① and ②

NOTA: (Modelo PS-2500, STAR140E)

Model PS-2500, PS-2400, PS-2300 STAR140E, STAR130E, STAR120E

Thread Tension Control

* Set the Upper Tension Control Dial within [3\~5] for the most appropriate tension for normal sewing.

Adjust the Upper Tension Control Dial to the correct tension for the type of thread and fabric being used.

When using a fine stitch length, for example to sew satin stitches or buttonholes, use a slightly loose upper thread tension to produce more beautiful stitches.

①Reverse ②Surface

Modelos PS-2500, PS-2400, PS-2300, STAR 140E, STAR 130E y STAR 120E

Diagram illustrating sewing process with numbered steps and fabric bands, including a spool and arc measurement device.

If you require tighter or looser upper thread tensions for special fabrics or sewing procedures such as gathering and shell tucks, adjust the tension by turning the upper tension dial.

To tighten the upper thread tension, adjust the dial to a higher number. Locks appear on the surface of the fabric.

To loosen the upper thread tension, adjust the dial to a lower number. Locks appear on the reverse side of the fabric.

①Reverse ②Surface

Diagram illustrating the step-by-step folding of a sewing machine, showing steps from base to cutting with numbered parts.

(Model PS-2200, STAR110)

Thread Tension

Thread tension will affect the quality of your stitches. It may need to be adjusted when you change fabric or thread type.

NOTE:

It is recommended that a test sample be made on a fabric scrap before sewing on your project.

Possible misadjustments and their results.

Upper tension is too tight.

Locks appear on the surface of the fabric.

Upper Tension Control Dial

Decrease the tension by turning the dial to a lower number.

(Modelo PS-2200, STAR110)

Diagram illustrating a sewing process with numbered steps and a corresponding scale reading.

Upper tension is too loose.

Locks appear on the reverse side of the fabric.

Upper Tension Control Dial

Increase the tension by turning the dial to a higher number.

①Reverse

②Surface

Diagram illustrating a sewing process with numbered steps and a curved measurement scale showing measurements 3, 4, 5.

Correct tension

Correct tension is important since too much or too little tension will weaken your seams or cause puckers on your fabric.

①Reverse
②Surface

Tensión correcta

Diagram illustrating the steps of fabric application, showing a sewing process with labeled parts and a spool.

RELATIVE CHART OF SEWING FABRICS, NEEDLES AND THREADS

SEWING FABRICS NEEDLE SIZE THREAD SIZES
VERY THIN	Fine Tricot, Fine Lace, Thin Linen, Silk, Organza, Chiffon	9 Synthetic	Cotton: 80Fine Mercerized Cotton
LIGHT WEIGHT	Voile, Taffeta, Synthetics, Silk, Batiste	11	Cotton: 60~80Silk: “A”SyntheticMercerized 50
MEDIUM WEIGHT	Cotton, Gingham, Poplin, Percale, Pique, Satin, Velvet, Lightweight Wool, Fine Corduroy, Suitings, Linen, Muslin	14(Supplied with your machine)	Cotton: 50~60Silk: “A”SyntheticMercerized 50~60
HEAVY WEIGHT	Denim, Gabardine, Tweed, Corduroy, Canvas, Duck	16	Cotton: 40~50Mercerized Heavy Duty
KNITS	Single Knit, Double Knit, Jersey, Tricot	Ball point 14 Cotton Wrapped Polyester

NOTE:

1. Select the correct needle and thread size from the above chart.
2. Use the same size thread for the upper and lower threads (spool and bobbin).

Pattern Stitch Length Stitch Width
(Straight Stitch) 1-4		6
(Triple Stretch Stitch) Fixed 2.5

Starting Sewing

1. Turn the Pattern Selection Dial to show your desired stitch in the Pattern Indication Window. Setting the Pattern Selection Dial to Straight Stitch or Triple Stretch Stitch is required.

2. Raise the needle to its highest position and lift the presser foot lever.

3. Pull the upper thread toward the back of the presser foot.

4. Place the fabric under the presser foot and position the needle 1 cm (3/8") from the edge of the fabric.

5. Lower the presser foot.

6. To backtrack, push down the Reverse Sewing Button as far as possible. Reverse sewing is used for locking the end of seams and where reinforcement is needed.

7. Release the Reverse Sewing Button and start sewing in the forward direction by applying pressure to the foot controller.

Puntadas rectas

Line drawing of a sewing machine needle stitching a fabric, with no text or symbols present

Changing Sewing Direction

1. Stop the machine at the point where you wish to change direction with the needle still in the fabric.
2. Raise the presser foot and turn the fabric to line up its new direction using the needle as a turning point.
3. Lower the presser foot and start sewing in the new direction.

Line drawing of a sewing machine needle and foot assembly (no text or symbols)

Finishing Sewing

Reverse stitching is used to lock the threads at the end of the seam or wherever reinforcement is needed.

1. Stitch to the end of the seam and stop.
2. Push the Reverse Sewing Button and stitch backwards for 1 cm (3/8") from the end of the fabric.

Line drawing of a sewing machine needle stitching fabric, showing measurement lines (no text or symbols)

Removing the Material from the Machine

1. Stop the machine.

2. Raise the needle to its highest position and make sure that the thread take-up lever is also in its highest position (Model PS-2200, STAR110).

3. Lift the presser foot and pull the fabric out gently to the left side.

4. Cut both threads with the thread cutter located on the left side of the machine.

①Thread cutter

1. To prepare the machine for the next seam, pull about 10 cm (4") of thread through the toes of the presser foot toward the back of the machine.

Technical diagram showing a hand operating a car's handle with a numbered annotation indicating step ①

(Model PS-2500, STAR140E)

1. Press the "START/STOP" Button again. The needle stops in its lowest position.

2. When you are finished sewing, pull the Thread Cutter Lever down until the needle starts to move. After the threads are cut, the needle moves up and the Thread Cutter Lever returns to its original position.

NOTE:

Do not operate the Thread Cutter Lever while sewing or when there is no fabric in the sewing machine. Threads may become tangled or some other problem may be incurred.

②Fabric

(Modelo PS-2500, STAR140E)

Technical diagram showing sewing process steps with numbered instructions and a pink tool interacting with the component.

* During twin needle sewing and when sewing with thread thicker than #30 or with nylon, metallic and other specialty threads, cut the threads with the thread cutter on the left side of the machine.
* After the threads are cut using the Thread Cutter Lever, you can continue sewing without drawing up the lower thread.
* The automatic thread cutter cannot be used when the needle or presser foot are raised or the bobbin winder shaft is moved to the right.
* Refer to “Automatic Thread Cutting” on page 72 if the threads become tangled or cannot be cut or if any other problems occur while using the automatic thread cutter.
3. After the needle has completely stopped moving, raise the Presser Foot Lever and remove the fabric.

Top Stitching and Stretch Materials

Straight Stitch is used for top stitching and sewing lightweight fabrics.

Triple Stretch Stitch is used for stretch fabrics.

Pattern Stitch Length Stitch Width
(Zigzag Stitch) F-4 0-5

ZIGZAG STITCH

Select the Zigzag Stitch using the Pattern Selection Dial. Then, select the Stitch Length and the Stitch Width.

It is recommended to sew using the Straight Stitch at the beginning and end of the Zigzag Stitches.

(This acts as a reinforcement stitch.)

SATIN STITCH

When the Zigzag Stitch length is set in the "F" range, it produces a Satin Stitch (a dense Zigzag Stitch). The Satin Stitch can be used for making buttonholes and decorative stitches. Select the Zigzag Stitch, then set the stitch length in the "F" range and set the desired stitch width.

When sewing a satin stitch, use a slightly loose upper thread tension to produce more beautiful stitches.

Puntadas zigzag

Modelo de puntada	Largo de puntada	Ancho de puntada
≤slant (Puntada zigzag) F-4 0-5

Puntadas zigzag

Illustration of a sewing machine needle and its corresponding spring scale (no text or symbols)

Blind Hem Stitching

Pattern Stitch Length Stitch Width
Blind Hem Stitch) F-2
Stretch Blind Stitch) F-1 5

The Blind Hem Stitch is used to finish the edge of a project like the hem of a pair of pants without the stitch showing. Use the Blind Hem Stitch for any non-stretch fabrics and the Stretch Blind Stitch for stretch fabrics.

Puntadas invisibles

Modelo de puntada	Largo de puntada	Ancho de puntada
(Puntada invisible) F-2		3-6
(Puntada invisible elástica)	F-1,5

Line drawing of a sewing machine needle stitching a hand, showing measurement and angle annotations (no text or symbols)

1. Both the threads should be the same color as the fabric.
2. Fold back the fabric to the desired location of the hem as shown in fig. A. Then, fold the edge of the fabric as in fig. B. Leave a 6 mm (1/4") overlap at the edge.
3. Set the Pattern Selection Dial to either 4 or 7 and set the stitch length and width.
4. Sew on the fold as in fig. C.
5. When the fabric is unfolded you will have a Blind Stitch hem as shown in fig. D.

NOTE:

The Stretch Blind Stitch is useful for stretch fabrics.

Simple line drawing of a folded paper or document (no text or symbols)

B

Simple line drawing of a closed rectangular object with a curled top edge (no text or symbols)

C

Simple line drawing of a closed book with a dashed vertical line and a wavy line on the right page (no text or symbols)

D

Simple line drawing of a rolled document or scroll with vertical dotted lines (no text or symbols)

Shell Tuck Stitching

Pattern Stitch Length Stitch Width
≥slant (Shell Tuck Stitch) F-3 3-6

The Shell Tuck Stitch can be used to sew a picot (lace like) edge on a lightweight fabric.

1. Set the Pattern Selection Dial to Shell Tuck Stitch.
2. Sew the fabric on the bias, placing it under the presser foot so that the straight stitches are sewn on the seamline and the zigzag stitches are sewn slightly over the folded edge.
3. This stitch requires a tighter thread tension than normal.
4. Sew at a slow speed.

Puntada ondas

Line drawing of a sewing machine needle stitching fabric, showing stitching pattern (no text or symbols)

Elastic Stitching

Pattern Stitch Length Stitch Width
(Elastic Stitch) F-2.5 3-6

The Elastic Stitch can be used for 3 functions: mending, sewing elastic or joining fabric. Each is explained below.

Set the Pattern Selection Dial to Elastic Stitch.

MENDING

1. Set the Stitch Length Dial between F and 2.5 and set the Stitch Width Dial between 3 and 6.
2. Place the reinforcement fabric under area to be mended.
3. Following the line of the tear, sew using the Elastic Stitch as illustrated in fig. A.

SEWING ELASTIC

1. Place the elastic on the fabric.
2. As you sew, stretch the elastic both in the front and behind the presser foot as shown in fig. B.

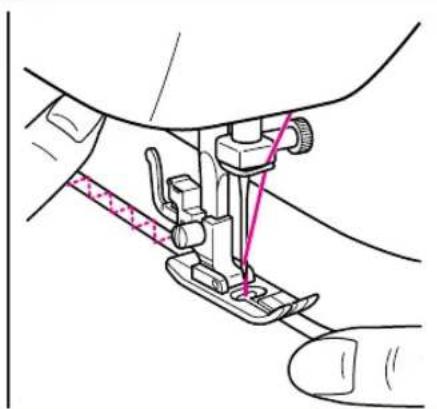

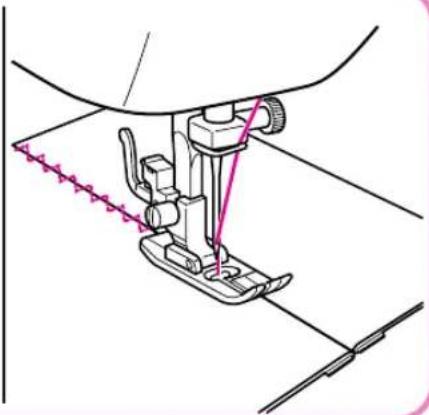

JOINING FABRIC

The Elastic Stitch can be used to join two pieces of fabric together and is very effective when sewing knitted fabrics. When nylon thread is used, the stitch will not be visible.

1. Place the edge of the two pieces of fabric together and center them under the presser foot.
2. Sew them together using the Elastic Stitch taking care to keep the two fabric edges close together as shown in fig. C.

Pure geometric diagram of two L-shaped structures with radiating lines and dots, no text or symbols present

Line drawing of a sewing machine needle stitching a finger, showing measurement setup (no text or symbols)

Technical line drawing of a sewing machine needle and foot (no text or symbols)

Puntada elástica

Double Action Stitching

Pattern Stitch Length Stitch Width
(Double Action Stitch) F-3 3-6
(Bridging Stitch) F-3 3-6
(Rampart Stitch) F-3 3-6
(Decorative Stitch) 6

This stitch is used for joining two pieces of fabric, for example, when making patchwork. Set the Pattern Selection Dial to Double Action Stitch.

Pattern Stitch Length	Stitch Width
(Scallop Stitch) F-1.5 3-6

This machine automatically produces a Scallop Stitch which may be used as a decorative edging.

1. Set the Pattern Selection Dial to Scallop Stitch.
2. Sew the Scallop Stitch along the edge of the material.
3. If desired, trim around the scallop with scissors to create a scalloped edge. Be careful not to cut the thread.

Ondas decorativas

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

Decorative Stitching

Pattern Stitch Length Stitch Width
(Lightning Stitch) 6
(Square Stitch) 6
(Decorative Stitch) 6
(Triangle Stitch) F-1 3-6
(Bead Stitch) 3-6
(Arrow Head Stitch) 3-6
(Parallelogram Stitch)
(Decorative Stitch)	3-6

These stitches can be used for making decorative top stitching and for smocking.

Set the Pattern Selection Dial to Lightning Stitch or Bead Stitch or etc.

Puntadas decorativas

Modelo de puntada	Largo de puntada	Ancho de puntada
(Puntada escalera) 6	3-6
(Puntada festón doble) 6
(Puntada decorativa) 6
(Puntada triángulo) F-1 6
(Puntada festón doble) 3-6
(Puntada flecha) 3-6
(Puntada paralelogramo)
(Puntada decorativa)	3-6	6

Two-step line drawing of a sewing machine needle stitching, showing thread pattern and stitching details (no text or symbols)

Patchwork

Pattern Stitch Length Stitch Width
×(Link Stitch)	[wCS7]	3-6
×(Fagoting Stitch)

These stitches are used to join two pieces of fabric while leaving a space between their edges.

1. Fold over the edges of the two pieces of fabric for the hem and baste the edges to a thin piece of paper leaving a small space between them.

2. Set the Pattern Selection Dial to Link Stitch or Fagoting Stitch.

3. Stitch along the edge, pulling both threads slightly when beginning to sew.

- Use thicker than normal threads for sewing.

1. After sewing, remove the basting and the paper. Finish by tying knots on the reverse side at the beginning and the end of the seams.

①First needle drop

Patchwork

Pattern Stitch Length Stitch Width
(Comb Stitch)
(Slant Overlock Stitch)
(Elastic Overlock Stitch)
(Elastic Shell Tuck Stitch)	F-3

These stitches are used to join together seams and finish them in one operation. The Elastic Overlock Stitche is useful when sewing stretch materials.

1. Set the Pattern Selection Dial to Comb Stitch, Elastic Overlock Stitch or Elastic Shell Tuck Stitch.
2. Position the fabric under the presser foot so that the seamline (or arrowhead point) is approximately 3 mm (1/8") to the left of the center of the presser foot. This stitch works best with a seam allowance of approximately 6 mm (1/4") as this allows the right (zigzag) side of the stitch to overlock the cut edge of the fabric as shown in fig. A.
3. If the seam allowance is wider than the stitch pattern, trim away any excess fabric after stitching.

A finished Elastic Overlock Stitch is shown in fig. B. When sewing the Slant Overlock Stitch, position the fabric so that its edge is on the left of the needle. (See fig. C)

Line drawing of a sewing machine needle and foot, labeled A (no text or symbols on the diagram itself)

Illustration of a sewing process with pink fabric and arrows indicating seam allowance (no text or symbols)

Line drawing of a sewing machine needle and foot, showing measurement setup (no text or symbols)

Feather Stitching

Pattern Stitch Length Stitch Width
(Feather Stitch) 3-6

Use the Feather Stitch as a decorative top stitch or when hemming blankets, tablecloths or draperies or when embroidering.

1. Set the Pattern Selection Dial to Feather Stitch.
2. Place the fabric right side up and sew 1 cm (3/8") from the edge of the fabric.
3. Trim close to the stitching.
   This stitch will prevent the fabric from unravelling.

Puntada pluma

Diagram showing a sewing process with scissors cutting fabric, no text or symbols present

Triple Zigzag Stretch Stitching

Pattern Stitch Length Stitch Width
( Triple Zigzag Stretch Stitch)		3-6

This stitch can be used to sew heavyweight stretch fabrics wherever a Zigzag Stitch could be used. The Triple Zigzag Stretch Stitch can also be used as a decorative top stitch.

Set the Pattern Selection Dial to Triple Zigzag Stretch Stitch.

Triple puntada zigzag elástica

Illustration of hands holding a pink fabric with dotted seam lines, no text or symbols present

Making a Buttonhole

Pattern Stitch Length Stitch Width Foot
	F-1.5 4-6	Buttonhole foot

NOTE:

1. It is recommended to practice making a button-hole on a scrap piece of fabric before attempting it on the actual garment.
2. When making buttonholes on soft fabrics, place a stabilizer material on the underside of the fabric.

One-step automatic buttonhole-making is a simple process that provides reliable results. MAKING A BUTTONHOLE

1. Using tailor's chalk, mark the position of the buttonhole on the fabric.
2. Set the Pattern Selection Dial to Buttonhole.

NOTE:

Set the Stitch Width Dial to "Max" for a buttonhole with an actual width of 5 mm or to "4" for a 3-mm-width buttonhole.

1. Attach the buttonhole foot, pull open the button holder and insert a button. (See fig. B)

* The size of the buttonhole is determined by the button inserted into the button holder.
4. Align the red line on the presser foot with the mark on the fabric, then lower the Presser Foot Lever. Be sure to pass the thread under the presser foot and pull it toward you. (See fig. C)

Para coser ojales

Do not lower the Presser Foot Lever while pushing in the area of the presser foot marked ⓐ in fig.C. Otherwise the buttonhole will not be sewn with the correct size.

①Do not close this gap.
②Align the lines on the presser foot.

NOTA:

1. Pull down the buttonhole lever to its lowest position, then lightly push it toward the back of the machine. (See fig. D)

①Button holder
②Mark on fabric
③Line on presser foot

Mechanical assembly diagram showing a sewing machine needle inserted into a foot (no text or labels)

Line drawing of a hand holding a tool near a vertical tube with a control panel (no text or symbols)

Odd-shaped buttons that do not fit into the button holder plate

Technical diagram of a mechanical device with numbered parts and dimension annotations

Add the button diameter to its thickness, then set the buttonhole presser foot scale to this measurement. The distance in the scale between two lines of the same length is 0.5 cm (13/64").

Example:

For a button with a diameter of 1.5 cm (19/32") and a thickness of 1 cm (3/8"), the scale should be set at 2.5 cm (1").

①Thickness [1 cm (3/8")]
②Diameter [1.5 cm (19/32")]
③ Button holder plate
4Scale
⑤ Diameter + thickness [2.5 cm (1")]
60.5 cm (13/64")

1. To secure the stitching, turn the material 90 degrees counterclockwise and sew Straight Stitches to the end of the front bar tack of the buttonhole.
2. Remove the material from the machine. It is recommended that pins be placed across both ends of the buttonhole as protection against cutting the stitches.
3. Cut an opening in the middle of the buttonhole with a seam ripper tool. Be careful not to cut through any stitches.

Hand holding a pen with a pink clip, no text or symbols visible

Buttonhole Fine Adjustment

If the stitching on the two sides of the buttonhole do not appear uniform, the following adjustments can be made.

1. Set the Stitch Length Dial at "F\~1" and stitch the right side of the buttonhole on a scrap of fabric while observing how the material is fed.
2. If the right side of the buttonhole is too coarse or fine, adjust the feeding of the material with the Stitch Length Dial.

①Right row
②STITCH LENGTH
③Shorter
④Longer
⑤Adjusted stitch

Diagram illustrating four stages of a mechanical or structural deformation process, labeled ① to ⑤, with arrows indicating direction and force application.

1. After obtaining a satisfactory feeding on the right side, stitch the left side of the buttonhole and observe the feeding.
2. If the left side is too coarse or fine compared to the right side, adjust the buttonhole fine adjustment screw as described below.

If the left side is too coarse, turn the screw with the enclosed large screwdriver in the - direction. If the left side is too fine, turn the screw with the enclosed large screwdriver in the + direction.

This adjustment allows both sides of the buttonhole to appear uniform.

⑥Stitch length dial
⑦Buttonhole fine adjusting screw
⑧Right row
⑨Adjusted stitch

Diagram showing mechanical components and their corresponding motor control icons with Chinese labels

When the buttonhole is not sewn correctly: There are two different procedures for correcting buttonhole sewing, depending on which part of the buttonhole is not sewn correctly.

Correction Procedure 1 (See fig. A)

1. Raise the Presser Foot Lever, then remove the fabric and all of the sewn thread.

2. Pull the buttonhole lever slightly toward you.

3. Sew about 10 stitches with no fabric in the machine.

4. Place the fabric under the presser foot again, then lightly push the buttonhole lever toward the back of the machine and sew the buttonhole from the beginning.

Correction Procedure 2 (See fig. B)

1. Raise the Presser Foot Lever, then remove the fabric and all of the sewn thread.

2. Place the fabric under the presser foot again, then lightly push the buttonhole lever toward the back of the machine and sew the buttonhole from the beginning.

Ojales mal cosidos:

If the buttonhole lever is pushed toward the back of the machine while sewing any stitch other than a buttonhole, the buttonhole feed will be used and the stitch will not be sewn correctly.

If the buttonhole lever is accidentally pushed toward the back of the machine, lightly pull the buttonhole lever slightly toward you, sew about 10 stitches with no fabric in the machine, then raise the buttonhole lever.

NOTA:

Pattern Stitch Length Stitch Width Foot
	F Less than 5	Button Sewing Foot

1. Measure the distance between the holes and set the appropriate stitch width using the Stitch Width Dial. For example, if the distance between the holes is 1.5 mm, set the stitch width to 1.5.
2. Change the foot to the button sewing foot.
3. Lower the feed dogs by setting the Drop Feed Lever to the Down Position as shown on page 17.
4. Place a button between the foot and the fabric and make sure that the needle enters the holes without hitting the button. If it hits see Step 1.
5. At a slow speed, sew approximately 10 stitches.
6. Remove the material from the machine. Cut the upper and lower threads and tie both threads at the back of the material.

Costura de botones

Four-panel diagram showing sewing machine tool arrangements: wire, brush, fabric, and target with Chinese labels.

Zipper Insertion

Pattern Stitch Length Stitch Width Foot
	2-3 0 Zipper Foot

The zipper foot is used to sew various types of zippers and can easily be positioned to the right or left side of the needle.

When sewing the right side of the zipper, attach the shank to the left pin of the zipper foot. When sewing the left side of the zipper, attach the shank to the right pin of the zipper foot. (See fig. A)

1. Set the Pattern Selection Dial to Straight Stitch. Set the Stitch Length between 2 and 3. Set the Stitch Width 0.

2. Lower the presser foot lever and fix either the left or right pin of the zipper foot onto the shank.

3. Fold the edge of the material 2 cm (3/4") and place the zipper under the folded portion.

4. Lower the needle into the notch located either on the left or right side of the zipper foot.

5. Sew from the bottom of the zipper toward the top on both sides. The needle should be positioned on the zipper side of the foot for best results. (See fig. B)

6. To sew the opposite side of the zipper, release the foot by pressing the button located at the back of the presser foot, install the zipper foot on the other side of the zipper and continue sewing using the other side notch.

①Zipper foot
②Right pin for sewing the left side of the zipper
③Left pin for sewing the right side of the zipper

Technical diagram of a mechanical device with numbered parts labeled ①, ②, and ③.

B

Line drawing of a sewing machine needle and foot, showing measurement setup (no text or symbols)

Gathering

Pattern Stitch Length
	2

1. Set the Pattern Selection Dial to Straight Stitch.
2. Loosen the tension of the upper thread so that the lower thread lies on the underside of the material.
3. Sew a single row or multiple rows of Straight Stitch(es).
4. Pull the lower thread(s) to gather the material.

Fruncido

Illustration of two hands holding a pink background with a dotted line crossing through the center (no text or symbols)

Darning

Pattern Stitch Length Feed Dog
	Any Down position

1. Lower the feed dogs by setting the Drop Feed Lever to the Down Position as shown on page 17.
2. Set the Pattern Selection Dial to Straight Stitch.
3. Place the portion to be darned under the presser foot together with a fabric on for reinforcement.
4. Lower the presser foot.
5. Begin sewing alternating between gently drawing the work away from you and pulling it toward you.

Zurcido

Illustration of a sewing machine needle stitching on a grid-patterned surface (no text or symbols)

Appliques

Pattern Stitch Length
≤slant	F-2

An applique is created by cutting a contrasting piece of fabric into a shape to be used as a decoration on a garment or project.

1. Baste the cut design to the fabric in the location where desired.
2. Carefully sew around the edge of the cutout design with a Zigzag Stitch in the fine stitch length.
3. Cut away the surplus fabric outside of the stitching.
4. Remove the basting, if necessary.

NOTE:

Make reinforcing Straight Stitches at the beginning and the end of the stitching to secure.

Aplicaciones

Two-step illustration: left shows a sewing machine needle stitching fabric, right shows a pink flower-like shape with patterned edges (no text or symbols)

Monogramming and Embroidering

Pattern Stitch Length Stitch Width Foot
	Any Any None

PREPARING FOR MONOGRAMMING AND EMBROIDERING

1. Lower the feed dogs by setting the Drop Feed Lever to the Down Position as shown on page 17.
2. Set the Pattern Selection Dial to the appropriate Zigzag Stitch setting.
3. Draw the lettering (for monogramming) or design (for embroidering) on the surface of the fabric.
4. Stretch the fabric between embroidery hoops as firmly as possible with the underside of the fabric on the bottom of the inside hoop.
5. Place the work under the needle and lower the presser bar with the foot removed.
6. Pull the lower thread up through the work at the starting position by turning the balance wheel and make a few holding stitches.
7. Grip the hoop with the thumb and forefingers of both hands while pressing the fabric with the middle and third fingers and supporting the outside of the hoop with your smaller fingers.

Technical diagram showing sewing process with pink annotation lines and Chinese characters indicating 'do' or 'do not'.

MONOGRAMMING

1. Sew, moving the hoop slowly along the lettering at a constant speed.
2. Secure with a few straight stitches at the end of the last letter.

Alice

Monogramas

1. Stitch the outline of the design by moving the embroidery hoop.
2. Fill in the design alternating from the outline of the design to the inside and from the inside to the edge of the outline until the design is completely filled in. Keep the stitching close together.

NOTE:

A long stitch is made by moving the embroidery hoop rapidly and a short stitch is made by moving it slowly.
3. Secure with a few Straight Stitches at the end of the design.

Bordado

Line drawing of hands operating a sewing machine with a pink circular mark on the seam (no text or symbols)

Illustration of a pink flower being inserted into a wire, no text or symbols present

OPTIONAL ACCESSORIES

Using the Walking Foot

Pattern Stitch Length Stitch Width
(Straight Stitch)	1-4	0
(Zigzag Stitch) 0-5

This foot is very useful for sewing materials such as vinyl cloth, synthetic leather, thin leather, etc. These materials are difficult to feed when sewing the walking foot prevents such materials from crumpling, slipping or sticking between presser foot and material due to even feeding of upper and lower materials.

Note:

You can not use this foot for sewing other patterns, (STRAIGHT and ZIGZAG STITCH)

1. Remove the power supply plug from the outlet.
2. Raise the needle and the presser foot.
3. Loosen the presser foot screw to remove the presser foot holder. (See fig. A)
4. Attach the forked section of the connecting lever to the needle clamp, install the walking foot to the presser bar. (See fig B)
5. Lower the presser foot lever and then tighten the accessory presser bar holder fixing screw. (See fig.C)

①Use a coin or screwdriver

Technical diagram showing sewing machine components with labeled parts A and B, including a close-up of the sewing needle mechanism.

Ⓐ Forked part of operation lever
⑧ Presser bar holder
Ⓐ Horquilla de la palanca de operaciones.
⑧ Soporte de la barra prensadora.

B

Line drawing of a sewing machine needle with pink arrows indicating motion direction (no text or symbols)

C

Illustration of a sewing machine needle stitching a pink circular component, with an inset showing the same setup (no text or symbols)

NOTE:

Please sew in slow to medium speed.

Nota:

Using the Spring-action Quilting Foot

Pattern Stitch Length Stitch Width Feed Dog
	Any 0 (center)	Down position

The Spring -action Quilting Foot is useful for darning and freemotion machine quilting.

1. Remove the power supply plug from the outlet.
2. Raise the needle and the presser foot.
3. Loosen the presser foot screw to remove the presser foot holder. (See fig.A)

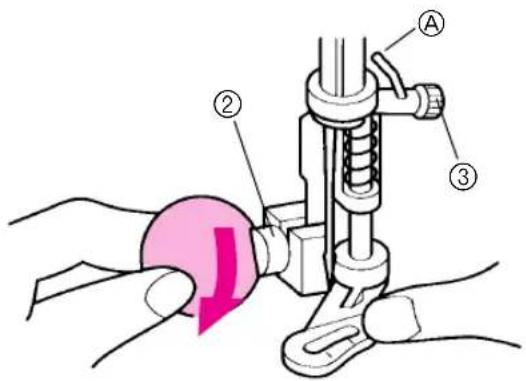

4. Attach the quilting foot, making sure that part indicated by Ⓐ in the illustration attaches onto the needle clamp screw, then lower the Presser Foot Lever and tighten the presser foot screw.
   * Be sure that the needle clamp screw is firmly tightened. (See fig.B)

①Use a coin screwdriver.

②Presser Foot Screw

③Needle clamp screw

①Use a coin screwdriver. ②Presser Foot Screw ③Needle clamp screw

Diagram illustrating sewing process with labeled parts and directional arrows indicating movement

B

Diagram illustrating a mechanical device with labeled parts (A, ①, ②) and a pink downward arrow indicating direction.

* Before starting to sew, draw the quilting design on the fabric.

1. Use both hands to keep the fabric firmly stretched and move the fabric to sew over the drawn design. (See fig. C)

ⒶQuilting design (Line)

1. The stitch length depends on how quickly the fabric is moved and on the machine's sewing speed. Sew slowly and move the fabric at a constant speed to sew uniform stitches. (See fig. D)

[Model PS-2500, PS-2400, PS-2300 STAR140E, STAR130E, STAR120E]

Diagram of a sewing machine needle with labeled parts and motion arrows indicating thread positioning

D

Simple line drawing of a finger pressing a button with arrow indicators (no text or symbols)

OPTIONAL ACCESSORIES

Using the 1/4" Seam Guide Foot

Pattern Stitch Length Stitch Width
(Straight Stitch) 2-2.5 0 (center)

The 1/4" Seam Guide Foot is used to sew fixed seam allowance 6.4 mm (1/4") when piecing together a quilt. (See fig.A)

1. Set the Pattern Selection Dial to Straight Stitch. Set the Stitch Length between 2 and 2.5. Set the Stitch Width 0.
2. Change the foot to the 1/4 Seam Guide foot. ①Seam allowance (1/4", 6.4mm)
3. Position the presser foot over the fabric and sew as shown in fig. B and C.

A

Technical diagram showing a mechanical or electrical component with labeled section 1 and directional arrow

B

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating process flow.

C

Technical diagram showing a structural component with labeled parts ⑥ and ⑦, likely from an engineering or mechanical drawing.

- Achieve leaving an accurate seam allowance. (See fig.B)

②Beginnig of stitching.
③Align this mark with edge of fabric.
④End of stitching
⑤Align this mark with edge of fabric.

- Quickly stitch together a quilt. (See fig.C)

⑥Top of fabric.
⑦Sean (1/8", 3.2mm)

1. Remove the power supply plug from the outlet.
2. Loosen the screw on the reverse side of sewing head as shown in fig. A.
3. Remove the face plate from the machine as illustrated in fig. A.

[Model PS-2500, PS-2400, PS-2300 STAR140E, STAR130E, STAR120E]

1. Replace the sewing light bulb. (See fig. B)

①Bulb
②Pull out
③Push in

1. Reattach the face plate and fasten the screw as shown in fig. C.

[Modelo PS-2500, PS-2400, PS-2300 STAR140E, STAR130E, STAR120E]

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

C

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

(Model PS-2200, STAR110)

1. Replace the sewing light bulb. (See fig. B)

①Bulb
②Loosen
③Tighten

1. Reattach the face plate and fasten the screw as shown in fig. C.

(Modelo PS-2200, STAR110E)

Technical diagram of a mechanical assembly with numbered components and a highlighted pink section

C

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Cleaning

1. Remove the power supply plug from the outlet.
2. Raise the needle and the presser foot.
3. Loosen the presser foot screw and the needle clamp screw to remove the presser foot holder and the needle. (See fig. A)

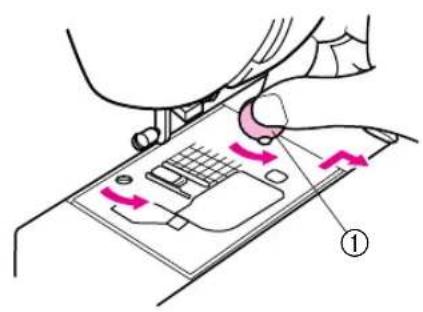

4. Slide the needle plate to the right to remove it. (See fig. B)
   ①Use a coin or screwdriver.

Limpieza

Diagram illustrating sewing process with labeled parts and directional arrows indicating movement

B

Diagram showing a hand operating a device with directional arrows indicating motion or movement, labeled with number ①.

1. Turn the balance wheel toward you until the notch on the shuttle race aligns with the hook of the shuttle hook as shown in the illustration.

②Notch on shuttle race
③Hook of shuttle hook

Technical diagram of a mechanical assembly with labeled parts ② and ③

1. Remove the shuttle hook. (See fig. C)

2. Clean out lint and dust.

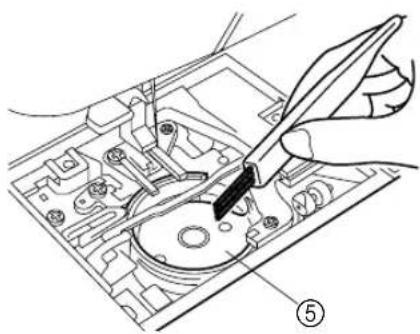

* Use soft fabric to clean the shuttle hook. DO NOT oil the shuttle hook or shuttle race. (See fig. D)

④Shuttle hook

⑤Shuttle race

* DO NOT OIL.

Illustration of a sewing machine needle stitching a component with a hand holding a small knob (no text or symbols visible)

D

Technical line drawing of a mechanical assembly with a tool interacting with a component (no text or symbols visible)

1. Assemble the shuttle hook first then the needle plate.

When installing the shuttle hook, be sure that the notch on the shuttle race is in the same position that it was when the shuttle hook was removed and that the projection on the shuttle hook aligns with the spring.

Install the needle plate by sliding it to the left (the reverse of its removal procedure).

⑥Notch on shuttle race

⑦Projection

⑧Spring

Technical diagram of a mechanical assembly with numbered components labeled 6, 7, and 8

Automatic Thread Cutting

(Model PS-2500, STAR140E)

NOTE:

Do not operate the Thread Cutter Lever while sewing or when there is no fabric in the sewing machine. Threads may become tangled or other problems may be incurred.

* When sewing with thread thicker than #30 or with nylon, metallic and other specialty threads, cut the threads with the thread cutter on the left side of the machine. Sewing without cutting the threads or with a needle thread that is too short may cause the threads to become tangled.
* Normally, the Thread Cutter Lever will move up and the sewing machine will stop operating after the threads are cut. However, the Thread Cutter Lever may stay down when certain threads and fabrics are used. If this occurs, slightly turning the balance wheel will allow the lever to move up. Starting to sew with the Thread Cutter Lever down will cause it to move up; and a problem may occur.
* Depending on the type of thread and fabric used, the needle may stay down near the needle plate after the threads are cut. This is not a malfunction. If this prevents the fabric from being removed from the machine, slightly turn the balance wheel away from you and raise the needle.
* Do not operate the Thread Cutter Lever when sewing with the twin needle. The threads may become tangled. During twin needle sewing, always cut the threads with the thread cutter on the left side of the machine.

If the Thread Cutter Lever stays down and the sewing machine cannot be used, raise the Thread Cutter Lever and check for the conditions mentioned on page 72. If the Thread Cutter Lever stays down, turn the balance wheel to raise the needle and raise the Thread Cutter Lever to its original position.

(Model PS-2500, STAR140E)

Correcting a Problem with the Automatic Thread Cutter

CAUTION:

Be sure to unplug the power supply cord in order to reduce the risk of injuries or electric shock.

1. Turn off the main power supply.
2. Raise the Presser Foot Lever and slightly turn the hand wheel either toward or away from you so that the tangled thread and the fabric can be removed.

①Hand wheel

1. Turn the hand wheel toward you to raise the thread take-up to its highest position. If the bobbin holder has moved over the bobbin, move it to the left.

②Bobbin holder

1. Remove the bobbin, then feed the lower thread again from the beginning.

(Modelo PS-2500, STAR140E)

Diagram showing a hand operating a device with a knob and dial, labeled with number ①

Technical diagram of a mechanical component with labeled parts and directional arrow indicating rotation or movement.

If the threads become tangled again or cannot be cut with the automatic thread cutter, even after performing the operation explained above, it may be possible that the threads are tangled under the needle plate. Clean the needle plate and shuttle as explained below.

1. Turn off the main power supply.

2. Raise the Presser Foot Lever and remove the fabric as explained in step 2 above. If the fabric cannot be removed, cut the thread on the back of the fabric with scissors and remove the fabric.

3. Remove the presser foot holder, needle and needle plate as explained in "Cleaning" on page 65.

4. Use tweezers to remove thread and dust from around the moving cutter.

* Sewing with thread and dust under the needle plate will prevent the moving cutter from operating properly and prevent the threads from being cut.

③Moving cutter

1. Turn the hand wheel toward you and move the moving cutter and bobbin holder to the left again.

* Starting to sew with the moving cutter at the right will cause the threads to become tangled again. ④Bobbin holder

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or flow.

Performance Checklist

Whenever sewing difficulties are encountered, review the section in this instruction manual that details the operation you are performing to make sure you are correctly using the machine. If the problem continues, the following check list may help you to improve the operation.

If you still have difficulties, contact your nearest authorized service center.

    I["LOWER THREAD BREAKS"] --> J["Lower thread is tangled."]
    J --> K["Bobbin is not threaded properly in the shuttle hook."]
    K --> L["Page 25"]
    L --> M["No"]

    N["SKIPPED STITCHES"] --> O["Needle is incorrectly inserted."]
    O --> P["Inferior needle is used."]
    P --> Q["Page 9"]
    Q --> R["No"]
    R --> S["The combination of needle size/ thread size/fabric is incorrect."]
    S --> T["Page 34"]

    U["LOOP IN SEAM"] --> V["Thread tension is incorrect."]
    V --> W["Page 31"]
    W --> X["No"]

    Y["FABRIC PUCKERS"] --> Z["Thread tension is too tight."]
    Z --> AA["Page 31"]
    AA --> AB["No"]
    AB --> AC["Threading is not correct."]
    AC --> AD["Page 65"]
    AD --> AE["No"]
    AE --> AF["Threading is not correct."]
    AF --> AG["Page 26"]

    style A fill:#f9f,stroke:#333
    style I fill:#f9f,stroke:#333
    style N fill:#f9f,stroke:#333
    style U fill:#f9f,stroke:#333
    style V fill:#f9f,stroke:#333
    style W fill:#f9f,stroke:#333
    style AC fill:#f9f,stroke:#333
    style AD fill:#f9f,stroke:#333
    style AE fill:#f9f,stroke:#333
    style AF fill:#f9f,stroke:#333

Pure vertical line on white background (no text or symbols)

Pure vertical line on white background (no text or symbols)

Pure vertical line on white background (no text or symbols)

Pure vertical line on white background (no text or symbols)

El prensatelas no está bajado. (PS-2500, PS-2400, PS-2300, STAR140E, STAR130E, STAR120E)

Simple black downward arrow on white background (no text or symbols)

Simple black downward arrow on white background (no text or symbols)

Pagina 16, 30 No

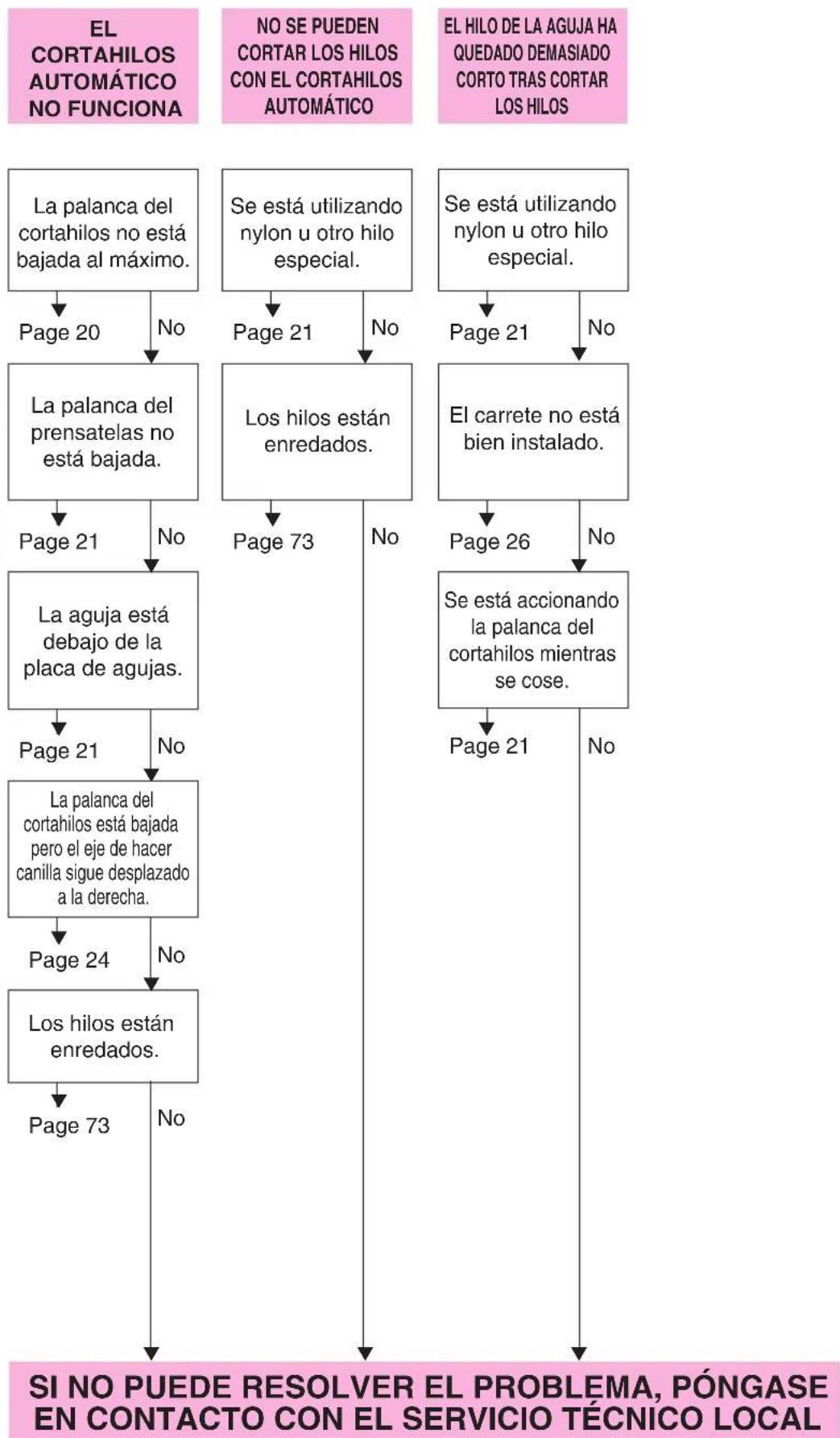

(Model PS-2500,STAR140E)

    M["THREADS CANNOT BE CUT WITH AUTOMATIC THREAD CUTTER"] --> N["Nylon or another specialty thread is being used."]
    N --> O["Page 21"]
    O --> P["The threads are tangled."]
    P --> Q["Page 73"]
    Q --> R["No"]

    S["NEEDLE THREAD IS TOO SHORT AFTER THE THREADS ARE CUT"] --> T["Nylon or another specialty thread is being used."]
    T --> U["Page 21"]
    U --> V["The spool is not correctly installed."]
    V --> W["Page 26"]
    W --> X["The Thread Cutter Lever is operated while sewing."]
    X --> Y["Page 21"]
    Y --> Z["No"]

(Modelo PS-2500,STAR140E)

MAINTENANCE MANTENIMIENTO

Repacking the Machine

Keep the carton and packing materials for future use. It may become necessary to reship the sewing machine. Improper packing or improper packing material could result in damage during shipping. Instructions for repacking the machine are illustrated below.

Line drawings of various electronic components including a box, case, and package (no text or symbols)

IMPORTANT

This packing material is designed to prevent damage in transit. Save this packing material in the event it is needed to transport this sewing machine.

IMPORTANTE

Arrow Head Stitch 46

B

Bead Stitch 46

Blind Hem Stitch.... 41

Bridging Stitch 44

Buttonhole 51

Buttonhole Fine Adjustment 54

Button Sewing 57

C

Changing Presser Foot 10

Changing the Bulb 68

Changing the Needle 9

Cleaning 70

Comb Stitch.... 48

Connecting Plugs 7

D

Darning....59

Decorative Stitch 44, 45, 46

Double Action Stitch 44

Drop Feed Lever 17

E

Elastic Shell Tuck Stitch 48

Elastic Stitch.... 43

Elastic Overlock Stitch 48

Embroidering 61

F

Fagoting Stitch 47

Feather Stitch 49

Foot Controller 8

Free-arm Style 21

G

Gathering 59

L

Lightning Stitch.... 46

Link Stitch 47

Lower Threading 25

M

Main Power Switch....8

Monogramming 61

N

Needle

Replacement 9

Inspection 9

Página

A

Accesorios.... 3

Aguja

Cambio 6

Verificación 6

Ajuste fino de los ojales 48

Aplicaciones 53

B

Interruptor principal 5

Page

O

Overedging.... 48

P

Parallelogram Stitch 46

Patchwork 47

Pattern Selection Dial 11

Performance Checklist 76

Principal Parts .... 1

R

Rampart Stitch 44

Relative Chart of Sewing Fabrics, Needles and

Threads 34

Repacking 82

Reverse Sewing Button.... 16

S

Scallop Stitch 45

Sewing Light Switch 8

Light Bulb Replacement 68

Shell Tuck Stitch 42

Shuttle Hook Removal 70

Shuttle Race Cleaning 70

Slant Overlock Stitch 48

Speed Range Control Lever 19

Square Stitch.... 46

Start/stop Button 18

Stitch Length Dial 14

Stitch Width Dial 15

Straight Stitch 36

Stretch Blind Stitch 41

T

Thread Tension Control 31

Triangle Stitch 46

Triple Stretch Stitch 36

Triple Zigzag Stretch Stitch 50

Troubleshooting 75

Twin Needle Sewing 30

U

Upper Threading 26

Using Needle Threader 28

W

Winding the Bobbin 22

Z

Zigzag Stitch 40

Zipper Insertion 58

Página

L

Limpieza 57

Pattern Selection Dial.... 11

Performance Checklist 76

Principal Parts 1

R

Rampart Stitch 44

Relative Chart of Sewing Fabrics, Needles and Threads 34

Repacking 82

Reverse Sewing Button.... 16

S

Scallop Stitch 45

Sewing Light Switch .... 8 Light Bulb Replacement .... 68

Shell Tuck Stitch 42

Shuttle Hook Removal 70

Shuttle Race Cleaning 70

Slant Overlock Stitch 48

Speed Range Control Lever 19

Square Stitch.... 46

Start/stop Button 18

Stitch Length Dial 14

Stitch Width Dial 15

Straight Stitch 36

Stretch Blind Stitch 41

T

Thread Tension Control 31

Triangle Stitch 46

Triple Stretch Stitch 36

Triple Zigzag Stretch Stitch 50

Troubleshooting 75

Twin Needle Sewing 30

U

Upper Threading 26

Using Needle Threader 28

W

Winding the Bobbin 22

Z

Zigzag Stitch 40

Zipper Insertion 58

Página

L

Limpieza 57
