USER MANUAL ZBX0HW68221 TURTLE BEACH

PS3™ Amplified Stereo Gaming Headset

User's Guide

About the P11 Headset

The Ear Force P11 amplified headset gives serious gamers competitive edge by combining chat and stereo game sound into an immersive audio experience.

The integrated design of the P11 overcomes the limitation of communicator headsets that block game sound from one ear and eliminates voice chat interference caused by the headset microphone picking up sound from external speakers.

Pump up the volume without disturbing friends, family or neighbors. Hear every nuance of the game – from an opponent sneaking up behind you to your teammate's voice right next to you. Trash talk online. Block out distractions. It's everything you need for an amazing gaming experience.

Product support and warranty information:

TurtleBeach.com/support

Table of Contents

PS3TM Setup (HDMI video) pg. 1

PS3 Setup (composite video) pg. 3

PS3 Audio Settings pg. 5

PS3 Chat Settings pg. 6

Using the Amplifier pg. 7

PC/Mac Setup pg. 9

Important Safety Information pg. 11

What's in the Box

Line drawing of a hardcover and audio headset with a small electronic device labeled 'PS1' (no text or symbols on the devices themselves)

Ear Force P11 Headset with In-line Amplifier

Stereo Audio Splitter Cable Turtle Beach Sticker

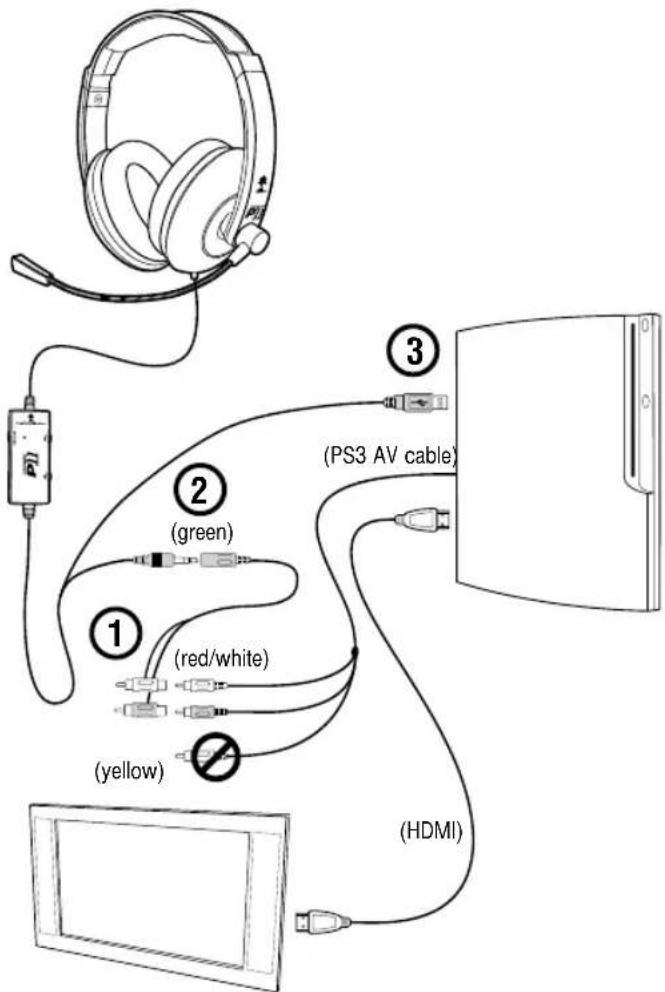

Connecting the P11 to a PS3 (HDMI Video)

1 (green) (red/white) (yellow) (HDMI) 2 (PS3 AV cable) 3

Step 1:

Connect the (red/white) audio cables from the PS3 AV cable to the P11 splitter cable (red/white).

Step 2:

Connect the P11 audio cable (green) to the splitter cable input (green).

Step 3:

Insert the P11 USB/Power connector to an open USB port on the PS3 console.

Step 4:

Configure PS3 Audio and Chat Settings (see page 5)

Note: The HDMI cable does not affect the setup or audio of the P11 headset. The HDMI cable should still be connected from the PS3 to your TV HDMI input.

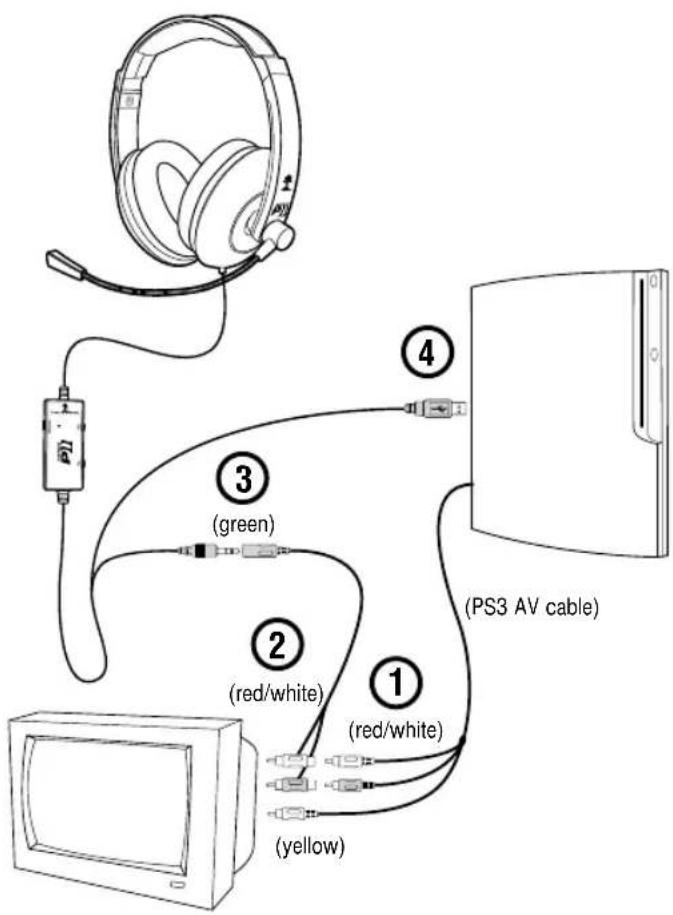

Connecting the P11 to a PS3 (Composite Video)

PS3 AV cable 1 (red/white) 2 (red/white) 3 (green) 4 (yellow)

Step 1:

Connect the (red/white) audio cables from the PS3 AV cable to the P11 splitter cable (red/white).

Step 2:

Connect the P11 audio splitter cable (red/white) to the stereo audio input (red/white) jacks on your TV. You will be able to hear the game audio on the TV as well as the P11.

(Optional) The connection to your TV is optional and only used if you want to hear sound on the TV and headset at the same time. If your TV only has a white RCA input, connect the white RCA cable to that input jack and leave the red and yellow RCA cables hanging.

Step 3:

Connect the PS3 audio cable (green) to the splitter cable input (green).

Step 4:

Insert the P11 USB/Power connector to an open USB port on the PS3 console.

Step 5:

Configure PS3 Audio and Chat Settings (see page 5)

Note: The yellow RCA (composite) video cable does not affect the setup or audio of the P11 headset. This cable should still be connected to the yellow RCA (composite) video input jack on your TV.

Configuring the PS3 Audio Settings

Analog

Step 1

After powering on the PS3, go to "Settings" > "Sound Settings" > "Audio Output Settings".

Step 2

Select "Audio Input Connector / SCART / AV Multi" to send the audio output to the P11.

Step 3

Press "X" to save this setting.

Audio Output Settings Select the connector on the TV or AV amplifier (received). OK Cyber Digital Audio Top Conductor / SMART / AV MAX Turn on the power of the connected devices. Cancel

HDMI or Digital (optical)

Step 1

After powering on the PS3, go to "Settings" > "Sound Settings" > "Audio Multi-Output". This will allow you to use the standard PS3 AV cable simultaneously with an HDMI or digital (optical) audio output.

0 12/14 12:16 PM Audio Output Settings Audio Multi-Output On Set to output touch through multiple connectors Unusually audio reject or connection bar an not selected. (i) Audio Output Settings is recommended to 2ch.

Configuring the PS3 Chat Settings

Step 1:

After powering on the PS3, go to "Settings" > "Accessory Settings" > "Audio Device Settings".

Step 2:

Click on "Input Device" and select "Turtle Beach USB Headset" from the options.

Step 3:

Click on "Output Device" and select "Turtle Beach USB Headset" from the options.

Step 4:

Click on "Microphone Level" and adjust the level of your chat output so that the bar graph barely reaches the red area when you speak loudly. Click "OK" to

0 12/14 12:15 PM Audio Device Settings Bus the audio tool and audio device to audio video that is the correct format.

Audio Device Settings Microphone Level 3 Input Device Turtle Reach USB Headset Output Device Turtle Reach USB Headset OK X Enter @ Back & Options

Audio Device Settings Microphone Level: 3 Input Device: Textile Search USB Headset Output Device: Textile Search USB Headset OK X Enter Back Options

Austic Device Settings Microphone Level: 3 Input Device Turtle Beach USB Headset Output Device Turtle Beach USB Headset OK X Enter Back Options

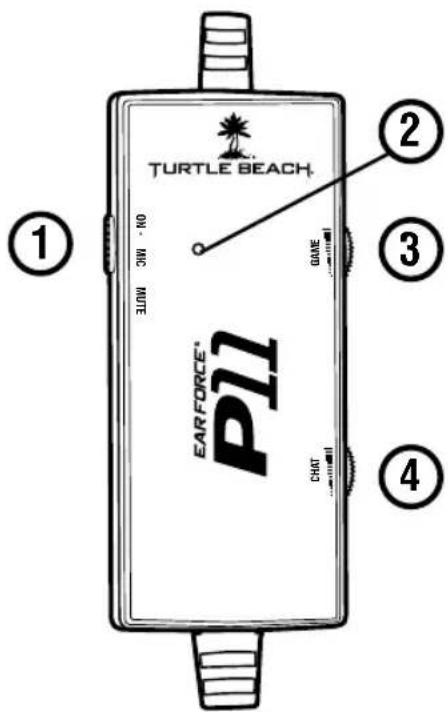

Using the Amplifier

TURTLE BEACH P11 GAME CHAT ① ② ③ ④

1 - Mic Mute Switch

Enables/disables the chat microphone.

2 - Mic Mute LED

LED turns green when mic is active and red when muted.

3 - Game Audio Volume

Sets the level of the stereo game audio.

4 - Chat Volume

Sets the level of chat audio from other players.

Mic Monitor Feature

The P11 "microphone monitor" feature lets you hear what you're saying as you speak into the microphone, so you won't have to talk as loud with the headset covering your ears. This feature is turned off when the microphone is muted.

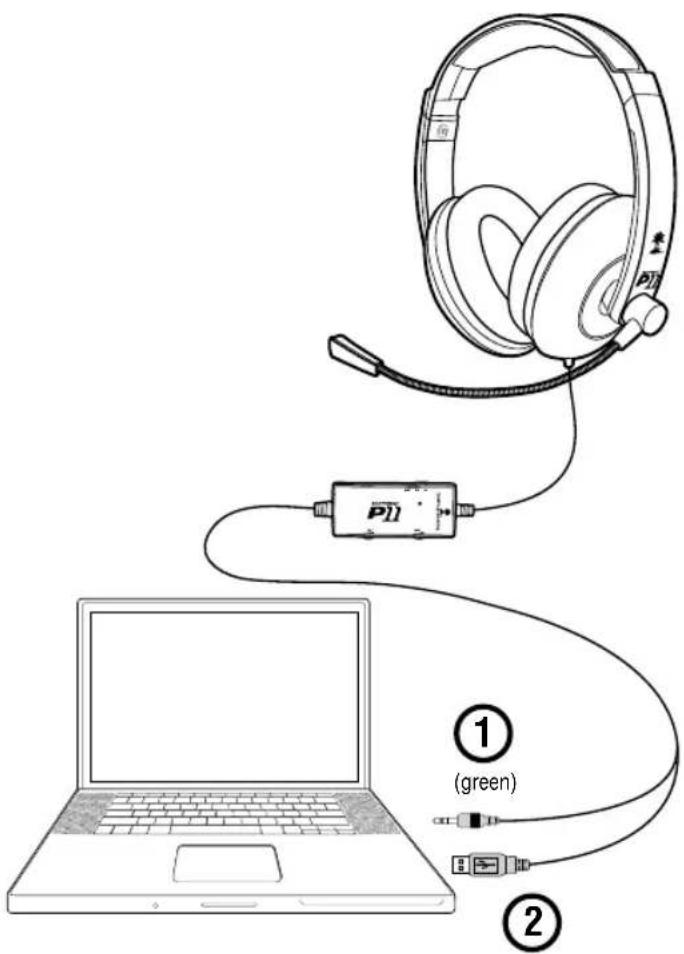

Connecting the P11 to a PC or Mac®

Diagram showing a laptop connected to an earphone with a power connector, labeled with parts ① (green) and ②.

Step 1:

Connect the P11's green 3.5mm audio plug to the speaker or headphone output of your PC/Mac sound card.

Step 2:

Insert the P11's USB/Power connector to an open USB port on your PC/Mac to power the headset/amplifier.

When used as a computer gaming headset, the P11 functions as two independent headsets in one package:

Amplified Stereo Headphones:

The green 3.5mm plug sends the stereo game signal from the computer sound card to the P11 headphone amplifier so you can hear game sounds, music and other sounds from your computer. The overall volume level is set by the game volume control on the P11 amplifier.

USB Stereo Headset:

The USB connection is used for mic and chat signals and appears as "Turtle Beach USB Headset" in Windows® and Mac operating systems. This lets you assign the P11 mic and chat in your game software as a USB audio device.

PC/Mac Operating System Setup

Please visit TurtleBeach.com/P11 and download the PC/Mac setup instructions for further details.

Safety Notice

To avoid potential damage to the device, always disconnect all cables before transporting it.

WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time, so it is important to keep the volume at a safe level. Over time, your ears adapt to loud volume levels, so a level that may not cause initial discomfort can still damage your hearing. If you experience ringing in your ears after listening with the headset, it means the volume is set too loud. The louder the volume, the less time it takes to affect your hearing. So, please take care to listen at moderate levels.

• Before placing a headset on your ears, turn the volume down completely, then slowly increase it to a comfortable level.
• Turn down the volume if you can't hear people speaking near you.
• Avoid turning up the volume to block out noisy surroundings.

IC Radiation Exposure Statement for Canada

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with IC RF exposure compliance requirements, Please avoid direct contact to the transmitting. End users must follow the specific operating instructions for satisfying RF Exposure compliance. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Caution: The device is incapable of transmitting in the band 5600-5650 MHz band in Canada.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC)

Grantee Code/Reg Number: XGB/GC229855

FCC Code: XGB-TB2135

Voyetra Turtle Beach, Inc.

TURTLE BEACH®

For more products, accessories and general product information, please visit TurtleBeach.com

For warranty information and product support, please visit Turtlebeach.com/support

Copyright © 2011 Voyetra Turtle Beach, Inc. (VTB, Inc.) All Rights Reserved. No part of this document may be reproduced without prior written consent from Voyetra Turtle Beach, Inc. Turtle Beach, the Turtle Beach logo, Voyetra and Ear Force are registered trademarks of VTB, Inc. PlayStation is a registered trademark and PS3 is a trademark of Sony Computer Entertainment, Inc. Mac is a registered trademark of Apple Inc. Windows is a registered trademark of Microsoft Corporation. All other trademarks are properties of their respective owners and are hereby acknowledged. Made in China. Part Number: TBS-2135-01 V1

Amplified Audio

Enhances game sounds for a more immersive experience.

PC Compatible

Also works with PC games and online chat.

USB Powered

No batteries required.

50mm Speakers with Enhanced Bass Boost

Adds more depth and realism to the game audio.

Mic Monitor

Lets you hear what you're saying while communicating with others.

Independent Volume Controls

Allows personalized balancing of game and chat sounds.
