USER MANUAL SUVTP20KH3B4S APC

"Compact, high-performance power protection with scalable runtime"

10 / 15 / 20 / 30 / 40 kVA – Three-phase

Exterior view of a black server rack unit with ventilation grilles and a digital display (no visible text or symbols)

Exterior view of a black server rack unit with ventilation grilles and mounting feet (no visible text or symbols)

Performance 3 Phase Power Protection in Optimized Footprint with Hot Scalable Runtime for Small Data Centers and Other Business Critical Applications

High Efficiency in Class (96%)
Small Footprint
Scalable runtime
Parallel Capable
Network Manageability

Smart VT Features

High Availability

The Smart-UPS VT includes dual-mains inputs, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries which are quick and easy to replace for increased availability.

Its compatibility with the market-leading remote management applications, coupled with intuitive LCD user interface and LED status indicators ensures the utmost availability for business critical applications.

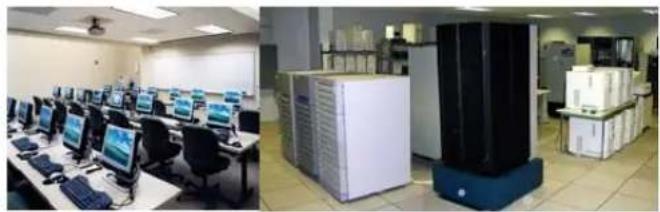

Interior view of a data center with rows of computer workstations and server racks (no visible text or labels)

Three black server rack units with ventilation fans and control panels, shown from different angles (no visible text or labels)

A versatile product

The Smart-UPS VT is available in a wide choice of configurations to best fit each specific installation need.

10 / 15 / 20 / 30 / 40kVA
3 different enclosures, from classic wide or narrow tower to small enclosure without batteries
Flexible runtime capacity :

• with hot-swappable batteries and extended run enclosures
• with up to 4 internal battery strings and external extended runtime enclosures

Compatibility with generators, transformers, etc..

Reduced Total Cost of Ownership

Smart-UPS VT intelligent design leads to a significant reduction of the TCO and makes it the ideal choice over time.

Best-in-class efficiency even at low load levels minimizes energy losses and operating costs
Compact, small footprint for floor space optimization
Input power factor correction reduces installation costs
Reduction of electrical infrastructure rating requirements (wire, transformers, generators...)

Front view of a server rack cabinet with multiple drive bays and ventilation fans (no visible text or labels)

Smart-UPS VT Features & Options

High performance

Up to 96% efficiency even at low load levels
Large input voltage tolerance for compatibility with low-quality power grids
Low input / output signal distortion

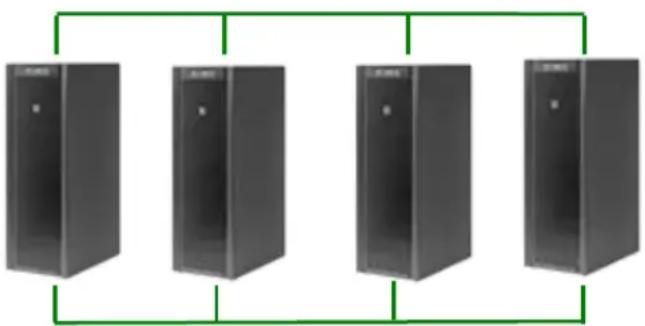

Parallel capability up to 4 units for redundant configurations or capacity extension

Four black server cabinets arranged in a row, each with a green border (no visible text or labels)

Comprehensive Services offering

The Smart-UPS VT product design backed up by APC by Schneider Electric world-class Services organization provides the serenity required by any business-critical application.

On-site audits
Maintenance contracts
Battery replacement
Remote monitoring for maximized up-time

Easy maintenance

The product design allows quick maintenance in case of failure, leading to higher availability for the load.

slide-in/out concept for the power module for a quick comeback to normal state
hot-swappable batteries for quick and easy replacement

Manageability

The built-in features of the Smart-UPS VT combined with APC's leading management solutions make it easy to manage and monitor, both proactively or upon failure.

This significantly improves control over the energy supply and ensures high availability for the loads.

Remote management of the UPS over network or telephone lines
Centralized management via InfraStruXure Manager

Options

Smart-UPS VT product offering provides a list of options

Service Bypass Panel Stand-alone
Service Bypass Panel with distribution
Circuit breaker panel
Power Availability
1 year repair or replace

Technical characteristics

UPS Rating kVA/KW (PF = 0.8) 10/8 15/12 20/16 30/24 40/32
AC power supply input
Input voltage (V) 400V (3 Phase)
Frequency (Hz) 47-70 Hz (auto-sensing)
Power Factor <0.99
Input current total harmonic distortion Less than 5% for full load
Output
Output voltage (V) 400V (3 Phase)
Frequency (Hz) 47 - 53 Hz (for 50 Hz nominal)
Power Factor 0.8
Overload 150% 1 minute, 125% 10 minutes
Output voltage total harmonic distortion Less than 3.5% for full load
Performance
Efficiency (at full load)	95,7%	95,7%	95,3%	96,4%	96,0%
Operating temperature 0-40°C
Paralleling	up to 4 units
Spec feature	For either redundancy or capacity
Dimensions (HxWxD) mm
Wide Tower	1500x523x854
Narrow Tower (10 / 15 / 20 kVA)	1500x352x854			N/A
Small enclosure ( no integrated batteries)	823x352x854			823x523x854
Environmental conditions and noise
Audible Noise (dBA)	64dB (57dB at 70% load)
Operating Temperature	0°C to 40°C (32 to 104 °F)
Operating Relative Humidity	0 to 95%

Exterior view of a black server cabinet with ventilation grilles (no visible text or labels)

Wide Tower (10/15/20/30/40 kVA)

Exterior view of a black server tower with ventilation grilles (no visible text or labels)

Narrow Tower (10/15/20 kVA)

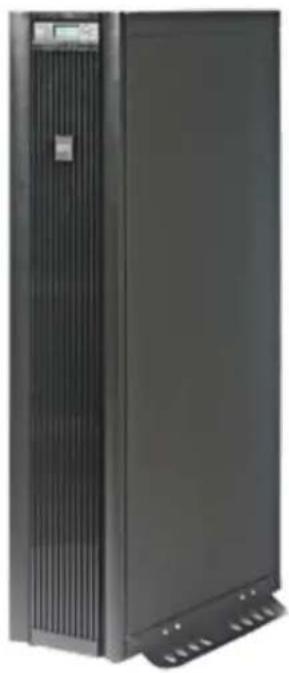

Exterior view of a black server rack unit with ventilation grilles and control panel (no visible text or symbols)

Small Enclosure (30/40 kVA)

Small Enclosure (10/15/20 kVA)
