Product Type	Tablet PC
Brand	Brigmton
Model	BTPC-907DC-N
Screen Size	9 inches
Processor	Dual core
Operating System	Android 4.2
Wireless Connectivity	Wi-Fi, external 3G dongle support
Cameras	Front and rear cameras
Storage Expansion	microSD (TF card) slot
Sensors	G-sensor (accelerometer)
Audio	Music player, volume control
Video Playback	HD Player for pictures and video
Power	Rechargeable battery (not specified capacity)
Ports	USB, headphone jack (inferred)
Additional Features	Sleep mode, Daydream, screen adaption, font size adjustment, language selection, backup and reset
Certifications	CE, EMC directives

Frequently Asked Questions - BTPC-907DC-N BRIGMTON

How do I connect to Wi-Fi on the Brigmton BTPC-907DC-N?

Go to Settings > Wireless & Networks > Wi-Fi settings. Turn on Wi-Fi, then select your network and enter the password if required.

How can I calibrate the G-sensor?

In Settings > Sound and Display, tap Calibrate G-sensor and follow the on-screen instructions.

How do I set the sleep timer?

Go to Settings > Sound and Display > Sleep and choose the inactivity time (e.g., after 10 minutes).

Can I use a 3G USB dongle with this tablet?

Yes, the tablet supports an external 3G dongle. Insert it into the USB port and configure the connection in Settings > Wireless & Networks.

How do I take a screenshot?

Press the Voice button (or the dedicated screenshot button if available) to capture the screen. Alternatively, check the Running Program under background icon.

How to change the language on the tablet?

Go to Settings > Language & Input and select your preferred language from the list.

How do I add shortcuts to the desktop?

Long press an application icon in the app list or a widget in the widgets view, then drag it to the desktop to create a shortcut.

Why does the tablet take time to load files from the TF card?

The first time you access files from a TF card (microSD), the tablet scans media files. This may take a while. Ensure Storage settings have Enable media scanning on extsd checked.

How to reset the tablet to factory settings?

Go to Settings > Backup & Reset and tap Factory data reset. Note that all user-installed apps and data will be erased.

Is the tablet compliant with safety standards?

Yes, the Brigmton BTPC-907DC-N complies with EMC directives and safety standards EN 60950-1 and EN 62479.

USER MANUAL BTPC-907DC-N BRIGMTON

BTPC-907DC

TABLET PC 9"-DUAL CORE-WIFI-ANDROID 4.2

Digital photo of a fragmented orange geometric shapes with floating effects, displayed within a mobile app interface (no readable text or symbols on the shapes themselves)

Volver

Inicio

En ejecución

Captura de pantalla

men +/-

Menú Opciones

CONFIGURACIÓN

CONEXIONES INALÁMBRICAS Y REDES

Seleccione pi Wi-Fi acceder al menú de WIFI:

After 10 minutes of inactivity

Función Sleep

Calibrate G-sensor

Calibración

Daydream

Used to adjust size of some games display screen

IDIOMA Y ENTRADA

Automatic date & time Use network-provided time

Automatic time zone Use network-provided time zone

Zona automática

Set date 5/9/2012

Select time zone GMT+00:00, GMT+00:00

Establecer la zona

Grid of nine video thumbnails showing different scenes: a frog, water, and people in various settings (no text or symbols visible)

CÁMARA

Seleccione el icono

Camera

Potted plant with green leaves and a red flower, displayed in a mobile app interface (no text or symbols on the plant itself)

Black-and-white photo of multiple tablet devices displaying app icons on a beach (no readable text or symbols)

BTPC-907DC

TABLET PC 9"-DUAL CORE-WIFI-ANDROID 4.2

Instruction Manual

OPERATING INSTRUCTIONS

• INTRODUCTION
• LIST OF APPLICATIONS

CONFIGURATION

• WIRELESS & NETWORKS
• SCREEN AND SOUND
• APPLICATIONS
• LANGUAGE AND ENTRY
• BACKUP AND RESET
• DATE AND TIME
• ON THE DEVICE

HD PLAYER

MUSIC

CAMERA

BROWSER

OPERATION INSTRUCTIONS

INTRODUCTION

Digital photo of a shopping app interface with orange geometric shapes and a play button (no readable text or symbols)

Return

Home

Running Program under background

Screenshot

Voice -

+

Fast enter system settings and Manage apps

Application Menu

USB Connected

Voice input

Time / WIFI / External 3G dongle signal / Battery

Abstract gradient background with orange and brown geometric shapes (no text or symbols)

Google search

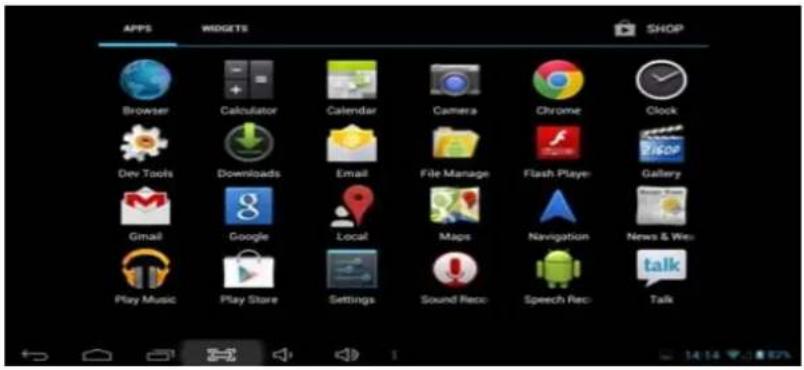

APPLICATION LIST

Click icon into applications menu:

Note: Long pressing an application icon can add shortcut to the desktop automatically

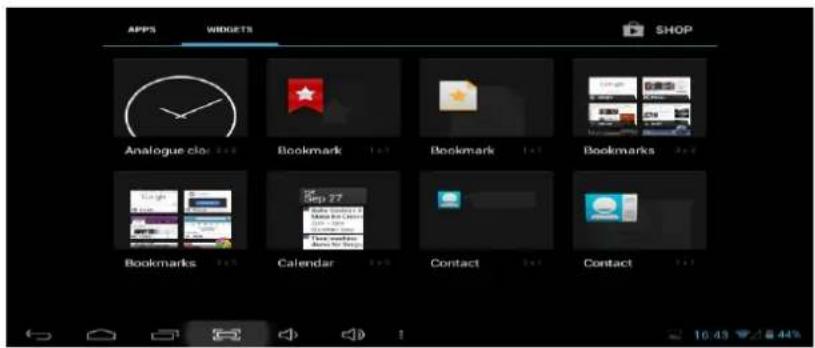

Click WIDGETS view widgets:

Note: Long pressing any widgets; you can create a shortcut on the desktop

SETTINGS

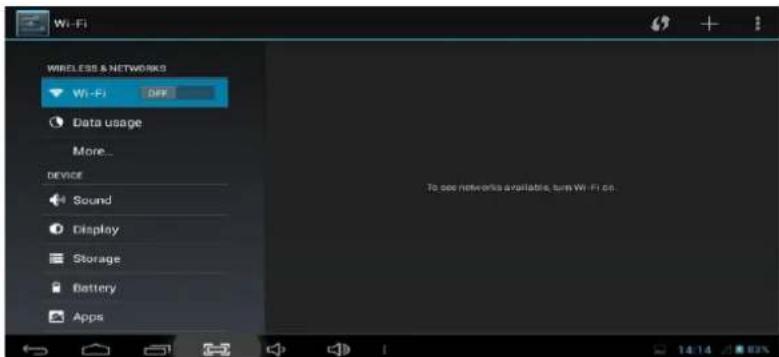

WIRELESS & NETWORKS

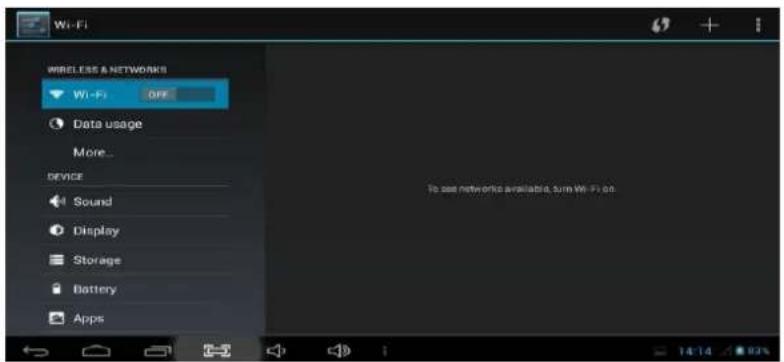

Click icon, then select wireless & network:

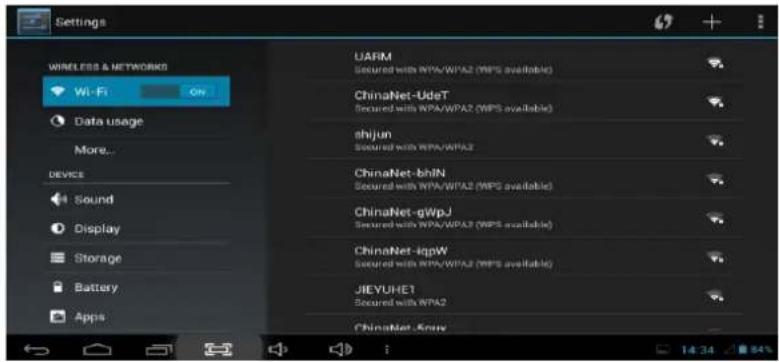

Wi-Fi settings

Turn on Wi-Fi, tablet can search for nearby Wi-Fi networks automatically and display related information. Choose WIFI router.

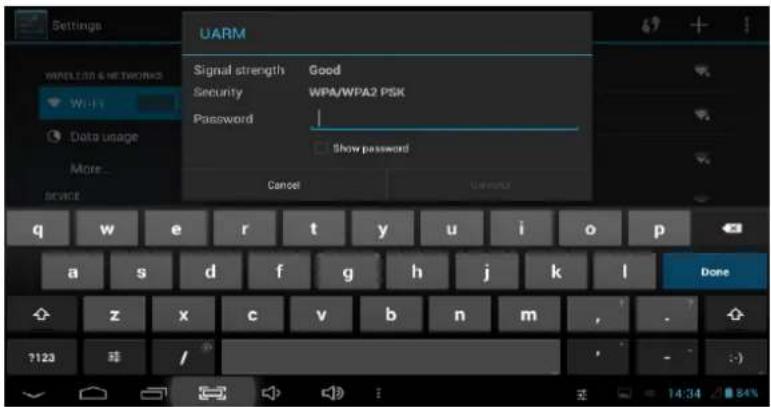

If it displays locked as, you need type password before connection:

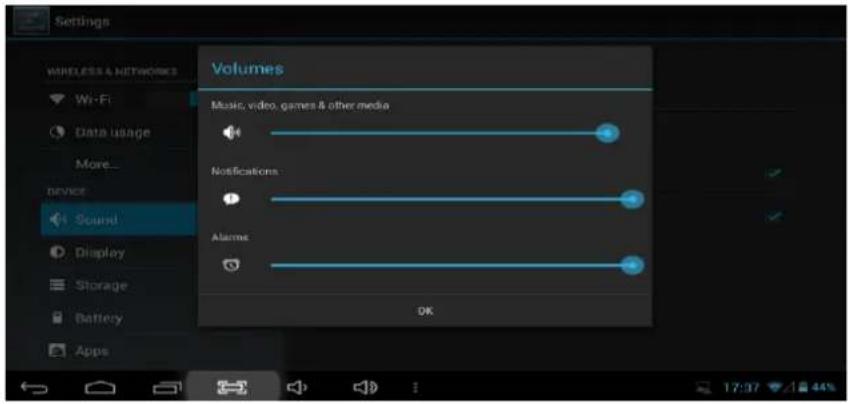

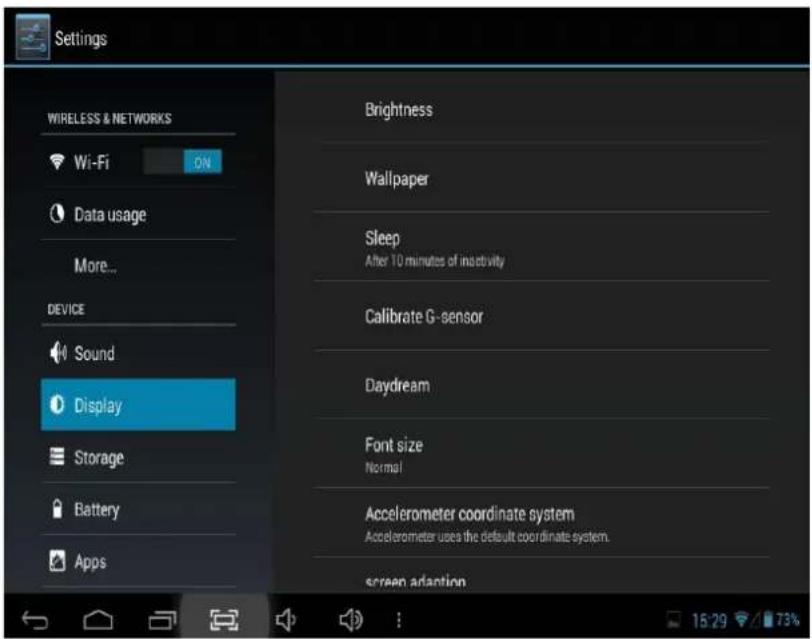

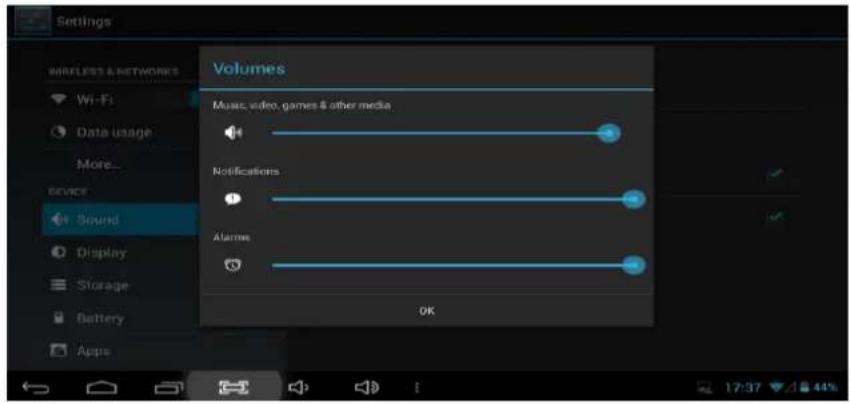

SOUND AND DISPLAY

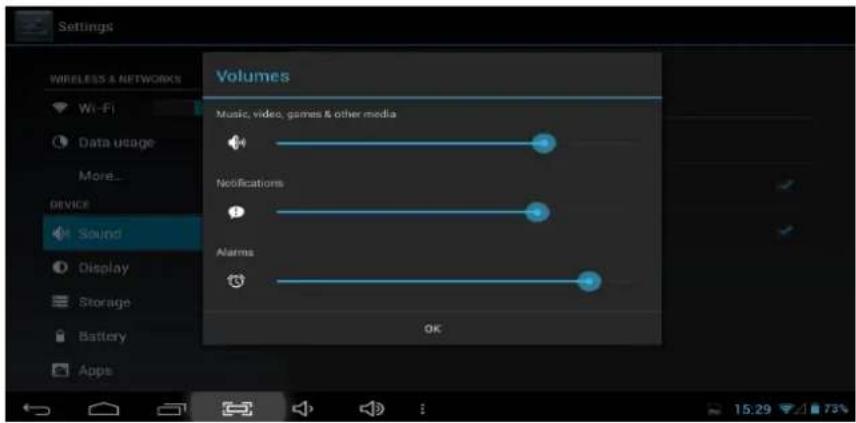

Click Sound lume

Click Icon to adjust the volume

Brightness

Wallpaper

Sleep

After 10 minutes of inactivity

Calibrate G-sensor

Daydream

Font size

Normal

Accelerometer coordinate system

Accelerometer uses the default coordinate system

screen adaption

Used to adjust size of some games display screen

LCD Brightness setting

Set wallpaper

Set sleep interval

Calibrate

Set screen protect

Adjust font size

Select an accelerometer coordinate system Adjust screen adaption

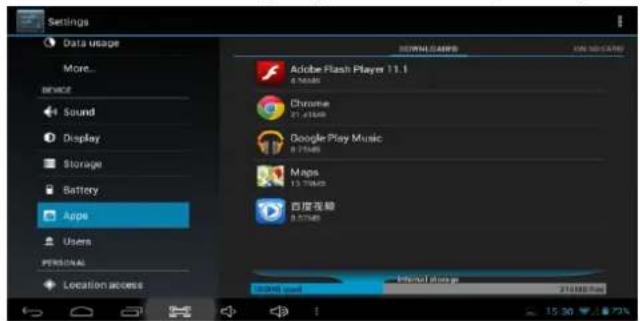

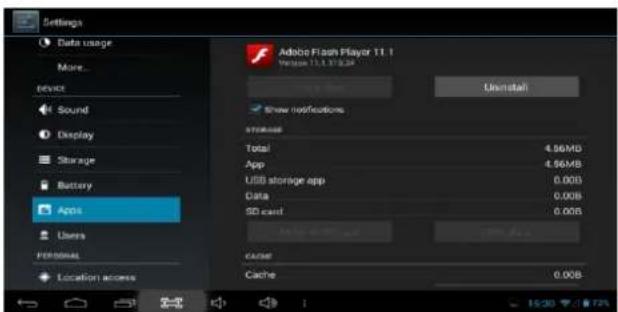

APPS

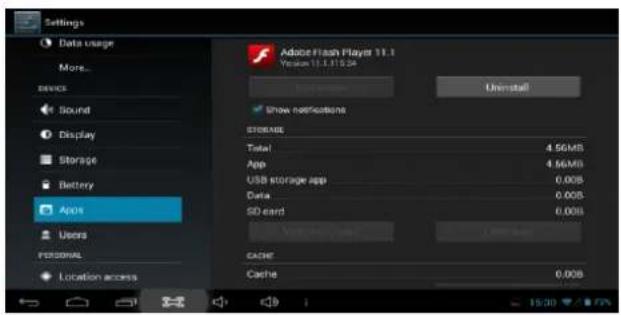

Click Apps application settings interface. You can see all application details and uninstall programs completely.

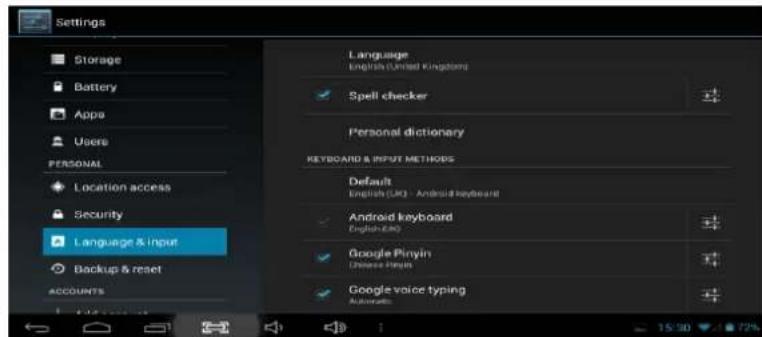

LANGUAGE & INPUT

Click to set native language.

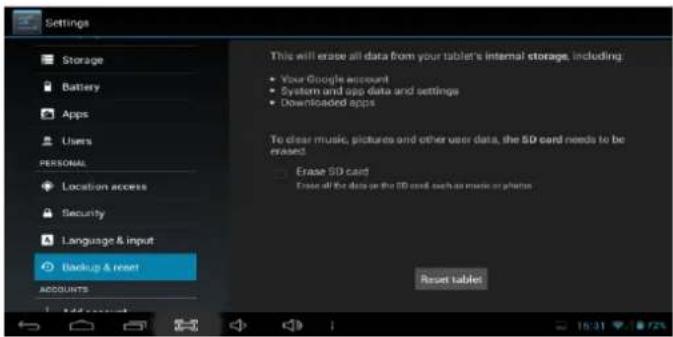

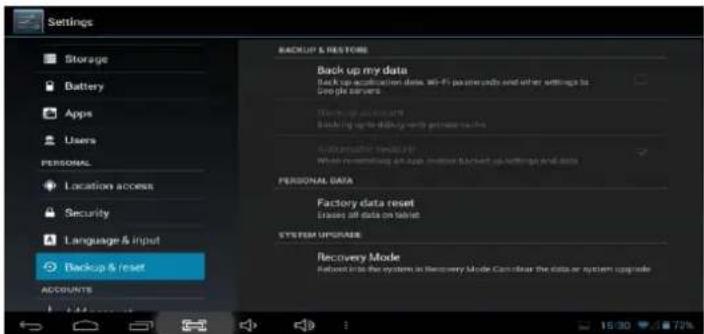

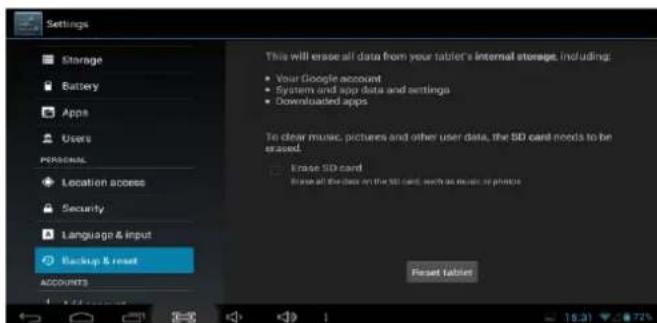

BACKUP & RESET

Click

Backup & reset

tablet:

Note: All applications are installed by user will be disappeared.

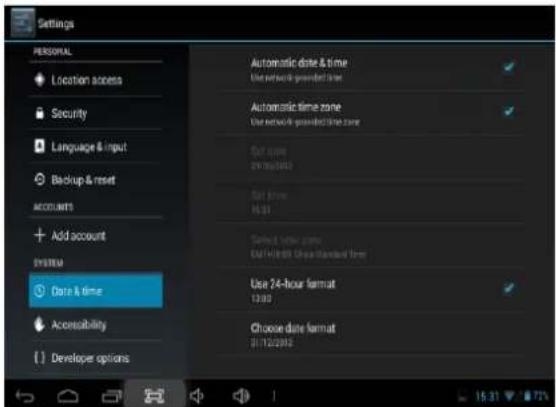

DATE & TIME

Click Date & time to set date and time:

Automatic date & time Use network-provided time

Automatic time zone Use network-provided time zone

Set date 5/9/2012

Set time 06:24

Select time zone GMT+00:00, GMT+00:00

Obtain the time automatically

Obtain the time zone automatically

Set current date

Set current time

Select time zone for your location

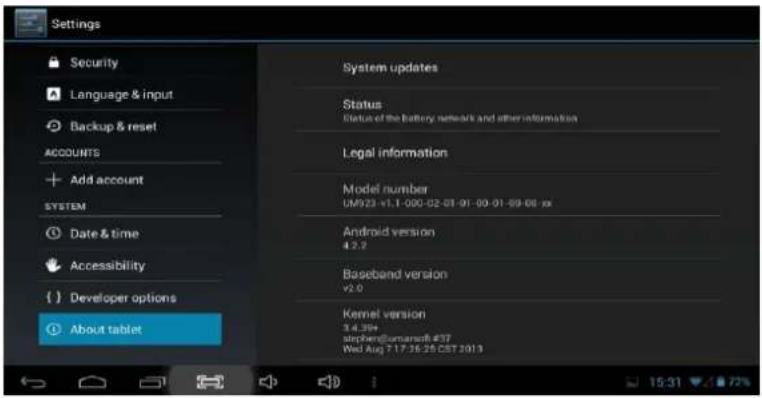

About tablet

You can check the Tablet detail information:

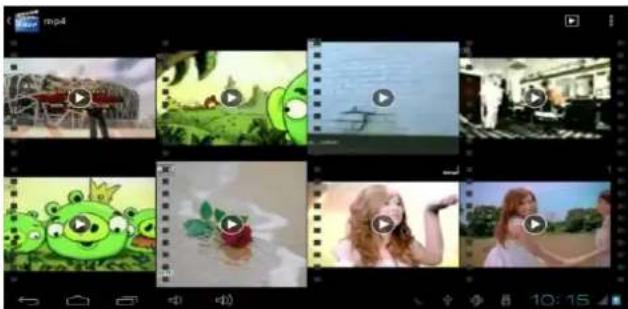

HD PLAYER

Click to browse picture and video:

Collage of nine video thumbnails showing different scenes and content, including animals, a frog, and people in various settings (no text or symbols visible)

Note: It needs some time to load all files at first time. Press one file 2S for more advanced operation.

If you want to browse the file from TF card, please make sure

Storage

Enable media scanning on extsd

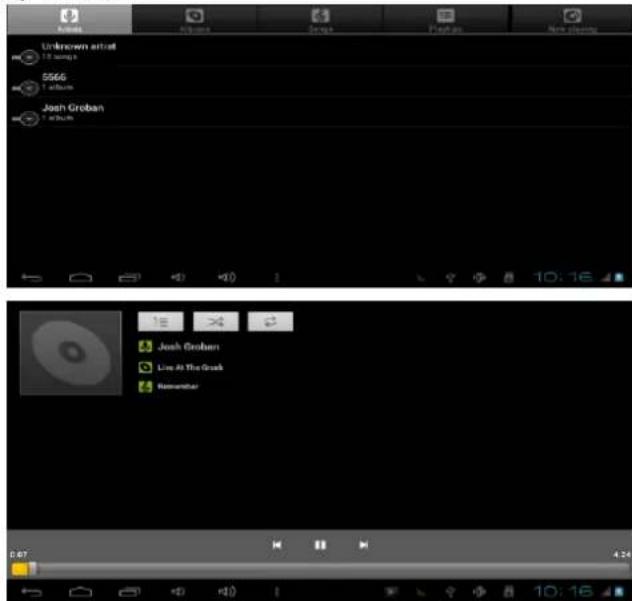

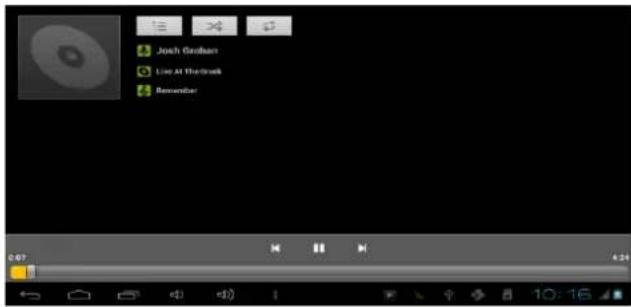

MUSIC

Click

n to play music:

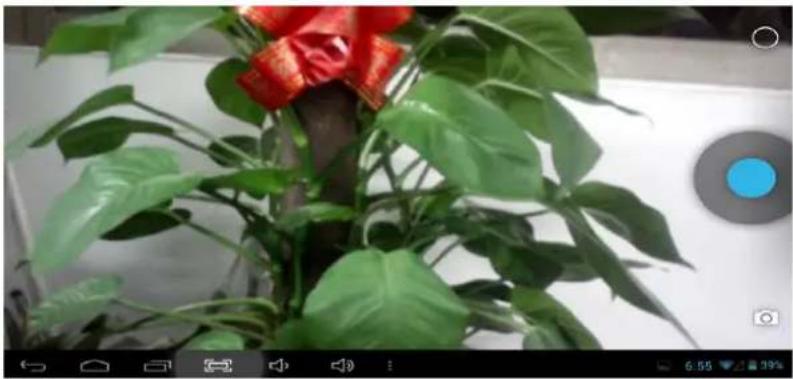

CAMERAS

Click

hto camera interface:

Potted green plant with red decorative elements, displayed in a photo editing interface (no text or symbols on the plant itself)

Take photo

Click this icon you would find

all window

Switch camera/video recorder

Click this icon you would find

Switch front and rear

camera

Exposure

Camera setting

Different mode

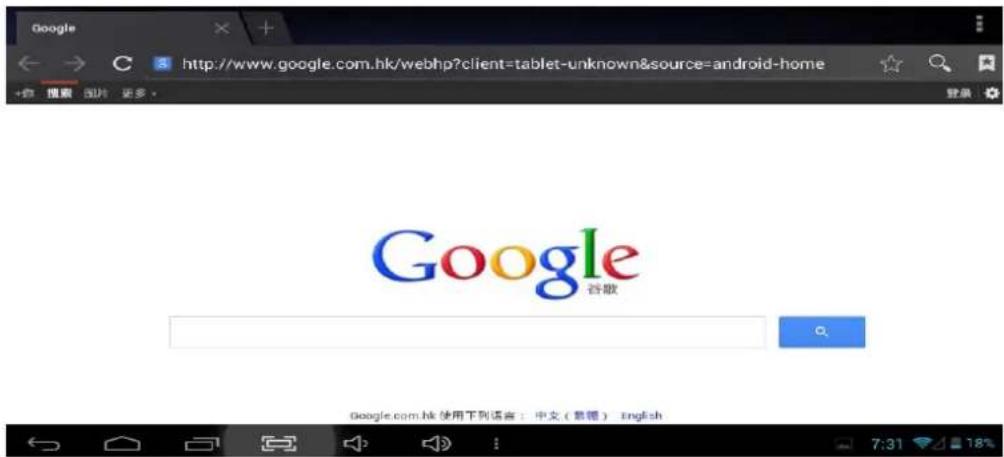

BROWSER

Click to browse web page:

Make sure the internet is connected.

"Features can change without notice"

Imported: I.R.P., S.L.

DECLARATION OF CONFORMITY

I.R.P., SL declare under our responsibility that the equipment meets the requirements indicated in the following directives:

EMC DIRECTIVES

ETSI EN 301 489-1 V1.9.2 (2011)

ETSI EN 301 489-17 V2.1.1 (2009)

ETSI EN 300328 V1.7.1: 2006

EN 62479: 2010

EN60950-1:2006+A11:2009+A1:2010+A12:2011

Description of apparatus:

BRIGMTON Model BTPC-907DC

Movile Internet Device

Importer: I.R.P., SL

Address: Avenida Santa Clara de Cuba 5, 41007, Sevilla.
