Product Type	Car Radio / CD Receiver
Brand	Philips
Model	CID3680
Dimensions	1-DIN (approx. 178 x 50 x 155 mm)
Weight	Approx. 1.2 kg
Power Supply	12V DC (negative ground)
Maximum Power Output	4 x 50W (peak)
Radio Bands	FM, AM (MW/LW)
Preset Stations	30 (18 FM + 12 AM)
CD Playback	CD, CD-R, CD-RW
Audio Formats	MP3, WMA (on CD or USB)
USB Port	1 x USB 2.0 (front)
Auxiliary Input	3.5 mm front AUX
Display	LCD (white backlight)
Remote Control	Included (IR)
Bluetooth	No
Steering Wheel Control Compatible	Yes (via optional adapter)
Equalizer	3-band EQ (presets)
RDS (Radio Data System)	Yes (FM only)
Anti-Theft Code	Yes (user-selectable)
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Fuse protection (10A)
Spare Parts / Repairability	Contact Philips support or authorized service
General Information	User manual available in PDF; 38 pages

Frequently Asked Questions - CID3680 PHILIPS

How do I set the time on my Philips CID3680?

Press and hold the CLK button (or similar) until the hour digits flash. Use the TUNE+/- knob to adjust hours, press again for minutes, and adjust. Press CLK again to confirm.

Why is the CD not playing?

Ensure the disc is inserted label-side up and is not scratched or dirty. Try a standard CD-R. If still no playback, check for condensation or a mechanical error.

How do I store radio stations?

Tune to the desired station, then press and hold one of the preset buttons (1-6) for about 2 seconds until the display confirms storage.

Can I connect my phone via Bluetooth?

No, the Philips CID3680 does not support Bluetooth. Use the front AUX input with a 3.5mm cable or play music from a USB drive.

What is the maximum USB drive capacity supported?

The device supports USB drives up to 32GB formatted in FAT32. Larger drives may not be recognized.

How do I reset the unit?

Press the RESET button located on the front panel (often behind the faceplate). Use a pen or paperclip. This restores factory settings.

The device shows 'CODE' – what does it mean?

The anti-theft code is required after power disconnection. Enter the code using preset buttons. If you lost the code, check your manual or contact Philips.

How do I adjust the sound?

Press the SOUND button repeatedly to cycle through Bass, Treble, Balance, Fader. Use the volume knob to adjust each setting.

What should I do if the radio does not turn on?

Check the car's fuse for the radio (usually 10A). Ensure wiring harness is correctly connected. Try a known-working unit to rule out vehicle issues.

Can I control the radio with my steering wheel buttons?

Yes, if your car supports wired remote controls. You need an optional adapter (e.g., Axxess or PAC) specific to your vehicle. Connection instructions are in the manual.

USER MANUAL CID3680 PHILIPS

Register your product and get support at

www.philips.com/welcome

PHILIPS MUTE VOL TUNE DISC Radio SDHC USB Bluetooth ® 2:38 WED Feb 18, 2009 Navi Camera AUX 1 AUX 2 Settings AV-IN

EN User manual

Contents

1 Important 4

Safety 4

Notice 4

Introduction 5

What's in the box 5

Overview of the main unit 6

2 Get started 8

Install the car audio 8

Turn on 11

Adjust screen 12

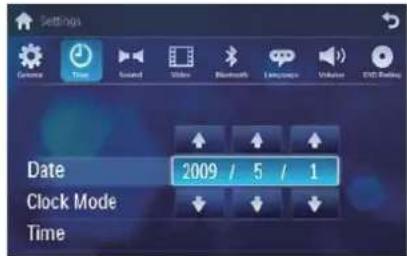

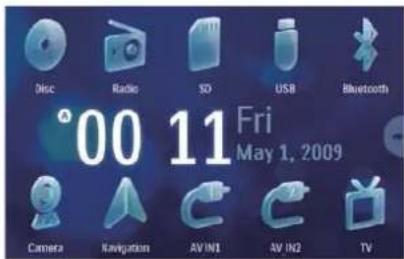

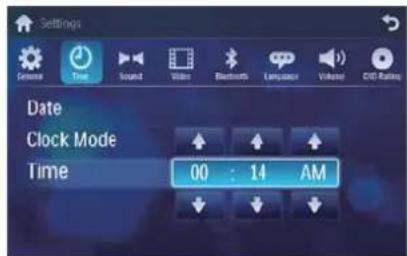

Set date and time 12

3 Use map 13

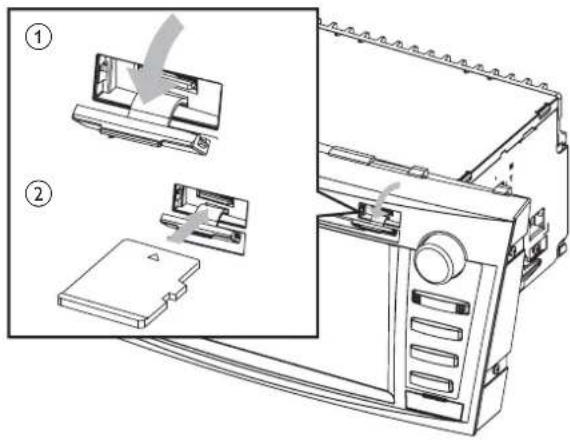

Upgrade the map 13

4 Listen to radio 14

Tune to a radio station 14

Store radio stations in memory 15

Tune to a preset station 15

5 Play 16

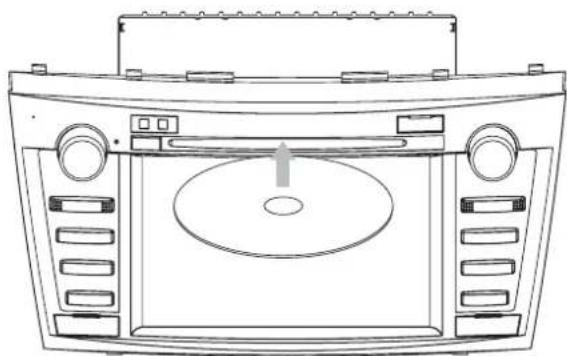

Load discs 16

Connect USB device 16

Insert SD/MMC card 17

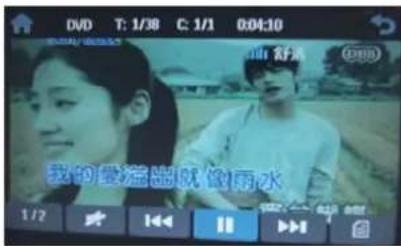

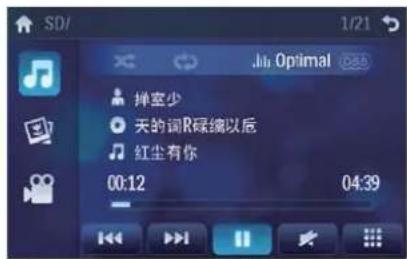

Play/Pause 17

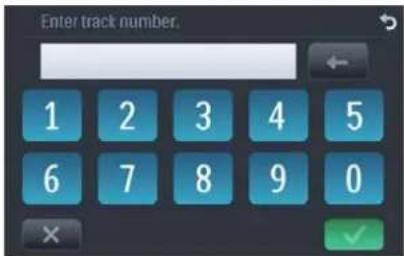

Search for a folder 17

Search within a title/folder 18

Repeat 18

Repeat a section 19

Random play 19

Select audio language 19

Select audio mode 19

Select subtitle language 20

Rotate pictures 20

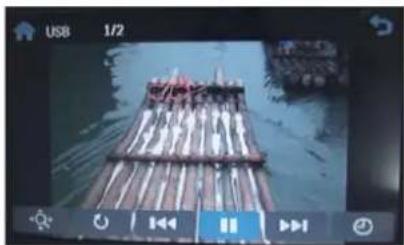

Zoom 20

Select slide show duration 20

6 Play with Bluetooth device 21

Pair the Bluetooth-enabled devices 21

Make a call 21

Receive call 22

Listen to music from Bluetooth device 22

Adjust Bluetooth settings 23

7 Adjust sound 24

Adjust volume 24

Mute 24

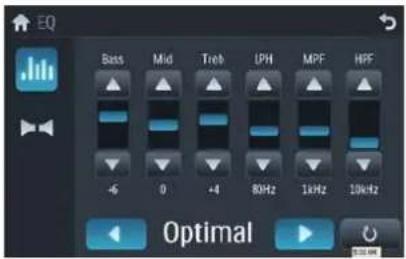

Select preset equalizer 24

Adjust fader/balance 24

Set Dynamic Bass Boost (DBB) 25

8 Adjust settings 26

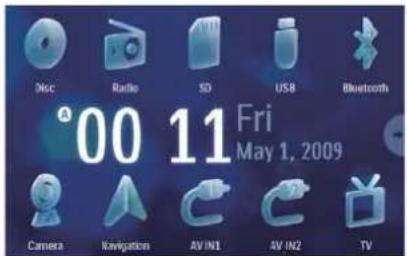

Display system setup menu 26

Adjust general settings 26

Adjust sound settings 27

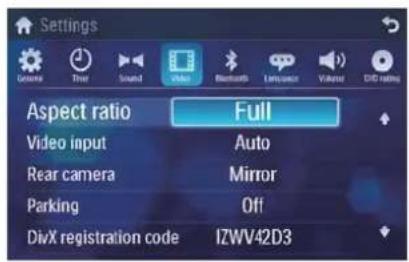

Adjust video settings 27

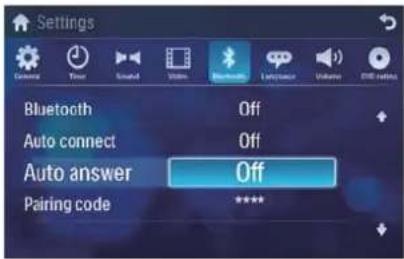

Adjust Bluetooth settings 28

Adjust language settings 29

Adjust volume settings 29

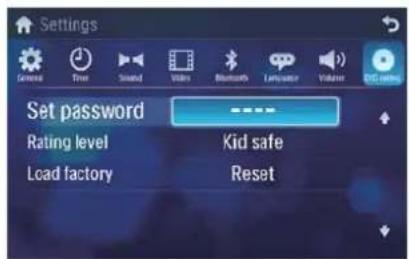

Adjust DVD rating 29

9 Others 31

Listen to other devices 31

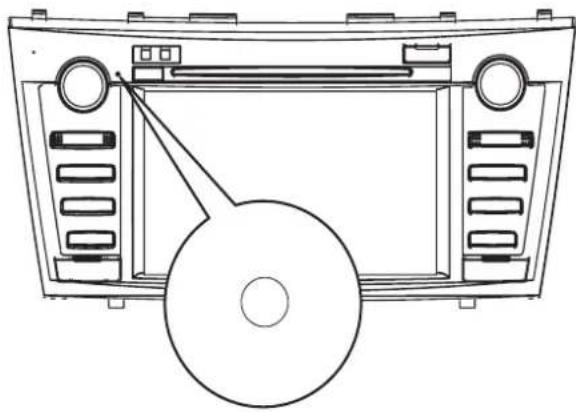

Reset 31

Remove the unit 31

Replace fuse 32

10 Product information 33

11 Troubleshooting 35

About Bluetooth device 35

12 Glossary 37

1 Important

Safety

Read and understand all instructions • before you use the apparatus. If damage is caused by failure to follow instructions, the warranty does not apply.

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

This unit is designed for negative ground • (earth) 12 V DC operation only.

To reduce the risk of traffic accident, do • no watch video during driving.

To ensure safe driving, adjust the volume • to a safe and comfortable level.

Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.

Use only the supplied mounting hardware • for a safe and secure installation.

To avoid short circuit, do not expose the • apparatus, remote control or remote control batteries to rain or water.

Never insert objects into the ventilation • slots or other openings on the apparatus. Never place any objects other than discs • into the disc tray/slot.

• Visible and invisible laser radiation when open. Avoid exposure to beam. Risk of damage to the screen! Never • touch, push, rub or strike the screen with any object.
• Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs. Clean the apparatus with soft, damp • cloth. Never use substances such as alcohol, chemicals or household cleaners on the apparatus.

Notice

Be responsible Respect copyrights

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

"DivX, DivX" Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

Official DivX® Certified product. Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Philips is under license.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Other trademarks and trade names are those of their respective owners.

This apparatus includes this label:

CLASS 1 LASER PRODUCT

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

2008 © Koninklijke Philips Electronics N.V. All rights reserved.

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With the car entertainment system, you can

Quickly found routine through the • navigation system

And you can also enjoy:

Audio/video/JPEG pictures from •

DVD, VCD or CD•

USB devices•

SD/SDHC/MMC cards •

External devices•

• FM or AM (MW) radio

• Audio from Bluetooth-enabled devices

Besides, you can make/receive phone calls with Bluetooth-enabled devices.

What's in the box

Check and identify the contents of your package:

①

Front view line drawing of a car dashboard with front panel, rear panels, and control buttons (no text or symbols)

②

③

5

6

⑦

⑧

⑨

Simple 3D rectangular block diagram with no text or symbols

10

①Main unit

②MZ-TFT/Video out 2 cable

③AV out cable

④ISO wire

⑤AV in cable

⑥GPS antenna

⑦Control/Camera wire

⑧Screen cleaning cloth

⑨Printing material (include User manual, Quick start guide, GPS user manual)

⑩Guarantee card/QC card

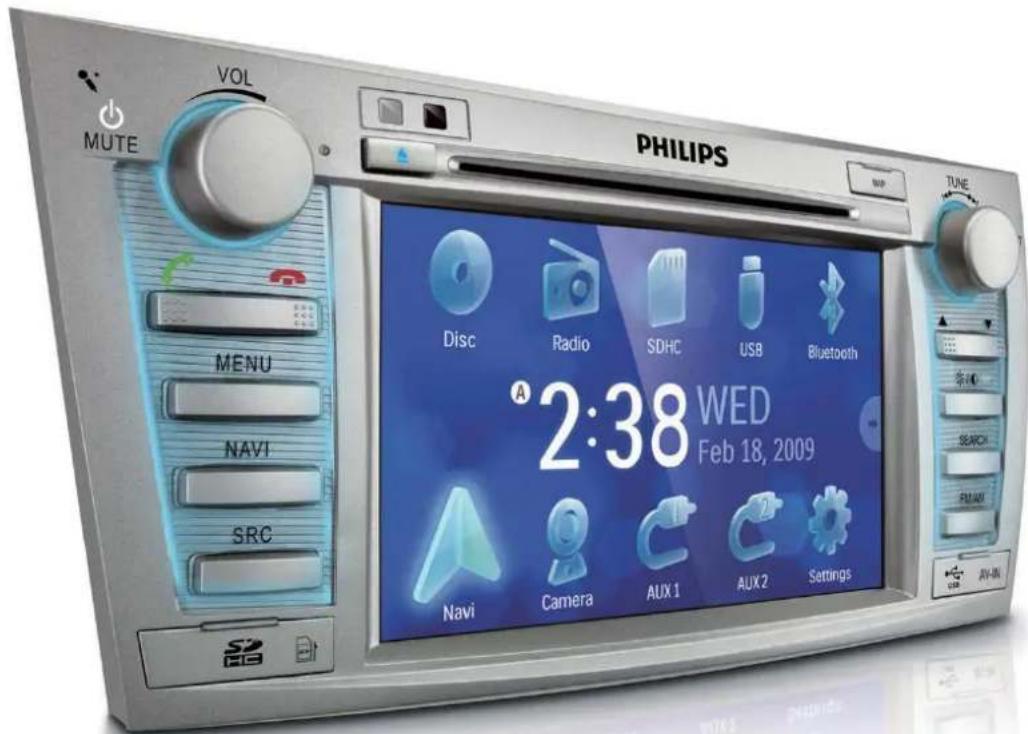

Overview of the main unit

PHILIPS ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉟A ㉟B ㉟C ㉟D ㉟E ㉟F ㉟G ㉟H ㉟I ㉟J ㉟K ㉟L ㉟M ㉟N ㉟O ㉟P ㉟Q ㉟R ㉟S ㉟T ㉟U ㉟V ㉟W ㉟X ㉟Y ㉟Z ㉟A ㉟B ㉟C ㉟D ㉟E ㉟F ㉟G ㉟H ㉟I ㉟J ㉟K ㉟L ㉟M ㉟N ㉟O ㉟P ㉟Q ㉟R ㉟S ㉟T ㉟U ㉟V ㉟W ㉟X ㉟YT ㉟UO

① (Green)

• Answer phone.
• Dial number.

(Red)

- Terminate call.

②MENU

• Return to the home menu.

③NAVI

• Enter the GPS navigation system or exit.

④SRC

- Select source.

⑤SD/SDHC/MMC card slot

6

• Built-in microphone for phone calls.

⑦ ⏻/MUTE/VOL

• Tum the unit on or off.
- Mute or unmute audio.
- Adjust volume.

⑧RESET

Reset the unit when it hangs up.

⑨

Eject disc.

⑩Disc slot
⑪MAP

Open the cover and insert/remove • the GPS map card.

⑫TUNE/ ▶ SELECT

Skip to the previous or next title, • chapter, or track.

Search backward/forward at • different speeds.

Confirm an entry or selection.

Start, pause or resume play.

Display the EO setting interface.

13

Skip to the previous/next option.

Skip to the previous/next folder.

- Move cursor up/down.

⑭DISP/ / ⚙

Adjust screen brightness/contrast/• color.

Turn on/off the screen display. •

Adjust the display aspect ratio. •

⑮SEARCH

Search for specific files.

Change waveband. •

⑯FM/AM

Switch to the FM/AM source.

⑰

USB socket.

⑱AV IN

External equipment audio/video in • socket.

2 Get started

Caution

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence.

Install the car audio

These instructions are for a typical installation. However, if your car has different requirements, make the corresponding adjustment. If you have any questions regarding installation kits, consult your Philips car audio dealer.

Caution

This unit is designed for negative ground • (earth) 12 V DC operation only.
- Always install this unit in the car dashboard. Other locations can be dangerous as the rear of the unit heats up during use.
- To avoid short-circuit: before you connect, ensure that the ignition is off.
- Ensure that you connect the yellow and red power supply leads after all other leads are connected.
- Ensure that all loose leads are insulated with electrical tape.
- Ensure that the leads do not get caught under screws orin parts that will move (e.g. seat rail).
- Ensure that all ground (earth) leads are run to a common ground (earth) point.
- Use only the supplied mounting hardware for a safe and secure installation.
- Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.

Note on the power supply lead (yellow)

When you connect other devices to this system, ensure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

Notes on speaker connection

Never connect speaker wires to the metal body or chassis of the car. Never connect speaker wires with stripes to one another.

Connect wires

Caution

Ensure that all loose leads are insulated with electrical tape.

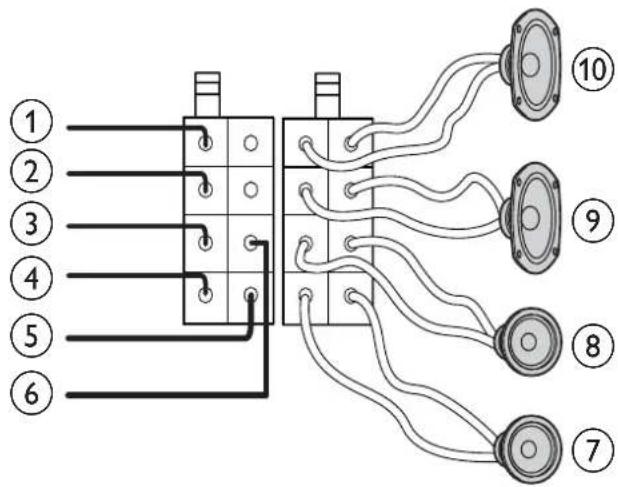

1 Check the car's wiring carefully, then connect them to the two supplied ISO wires.

Diagram showing connections between numbered components in a connector or socket layout, with labeled parts 7 through 10.

Connector Connect to
1 Telephone mute
2 R e d w i r e The +12V which is live in the accessory (ACC) position of the ignition switchIf there is no accessory position, connect to the +12V car battery terminal that is always live. Be sure to connect the black ground (earth) lead to a metal surface of the car first.
3 Orange wire Lumination switch
4 B l a c k w i r e A rFirst connect the black ground (earth) lead, then connect the yellow and red power supply leads.
5 Y e l l o w w i r e which is live at all times.
6 B l u e w i r e The el control lead or power supply lead of the antenna boosterIf there is no electric antenna or antenna booster, or it is manually operated telescopic antenna, it is not necessary to connect this lead.
7 Green and green/black wires	Left speaker (Rear)
8 White and white/black wires	Left speaker (Front)
9 Gray and gray/black wires	Right speaker (Front)
10 Purple and purple/black wires	Right speaker (Rear)

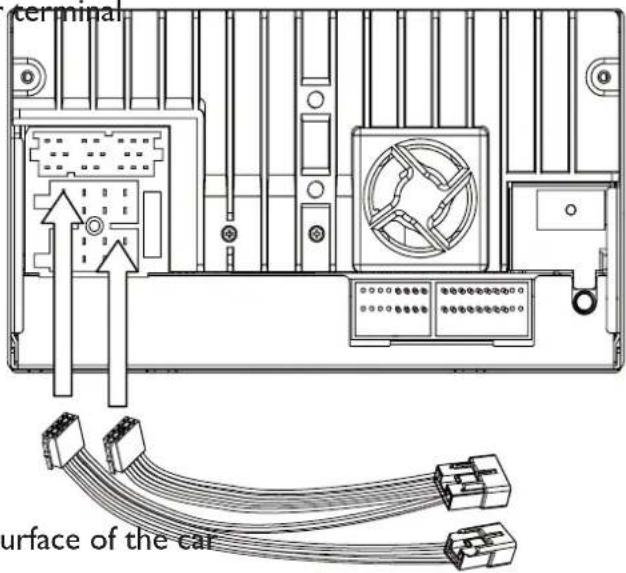

2 Connect the other end of the two ISO connectors to the car audio system.

terminal surface of the car

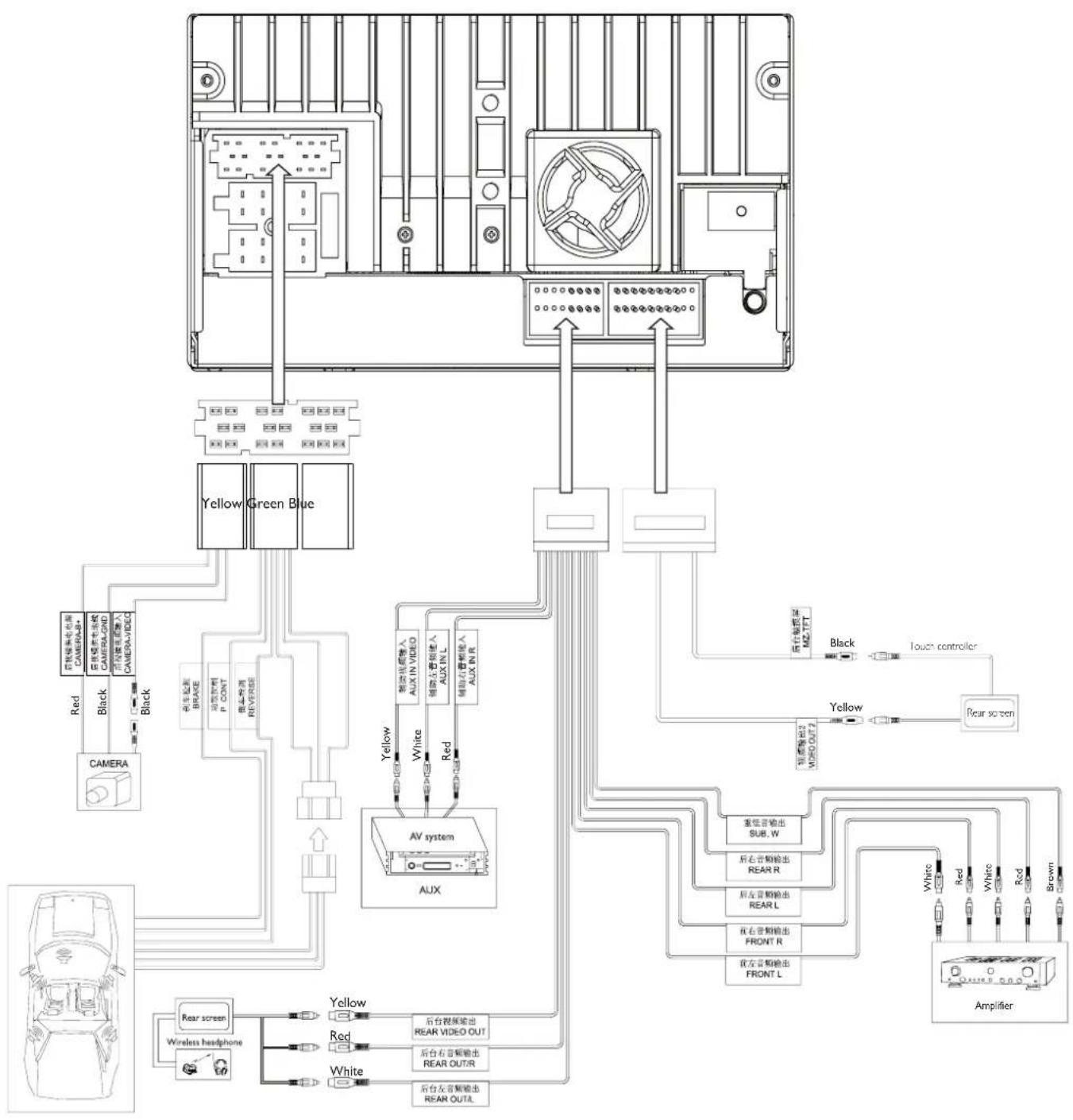

3 If necessary, do the other connections:


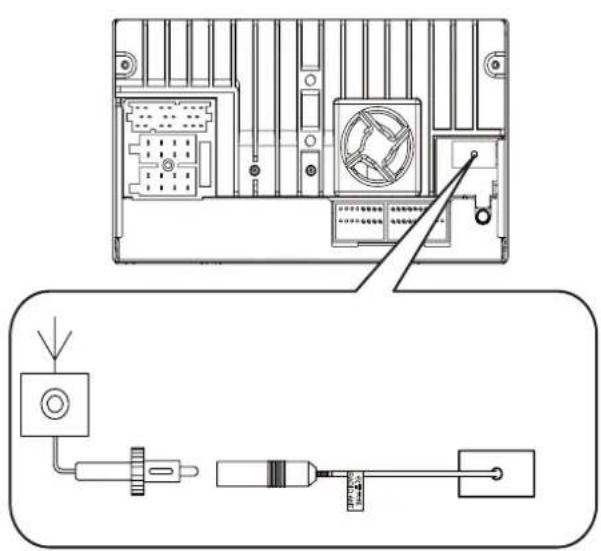

Connect GPS antenna

To receive signal from satellites, connect the supplied GPS antenna to your car and the system.

1 Connect the supplier GPS antenna to the system first.

Technical diagram of an electronic device rear panel with labeled components and a cable connection diagram below.

2 Stick the other end of the GPS antenna to a metal surface of the car.

Connect GPS antenna

If your car has built-in radio antenna, connect it to the radio antenna of the system for better radio signal.

1 Connect the radio antenna to the car antenna.

Technical diagram of an internal device with labeled ports and wiring, showing a connector and cable assembly (no text or symbols present)

2 Stick the other end of the GPS antenna to a surface for signal reception.

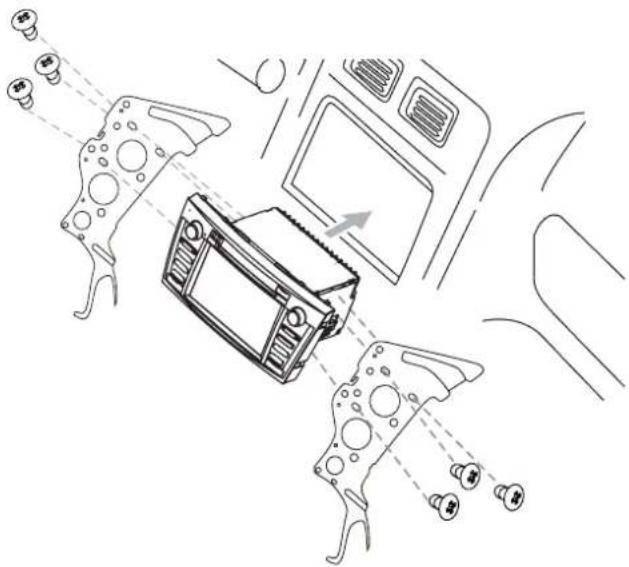

Mount in the dashboard

Note

Check wire connection before you mount the unit into a car.

1 Take off the trim plate of the car.
2 Install the mounting brackets of the car to the unit with screws (supplied by the car manufacturer).
3 Fix the mounting brackets to the car.

Diagram of a car interior showing dashboard and steering wheel components with no text or symbols

4 Attach the trim plate.
5 Reconnect the negative terminal of the car battery.

Turn on

Caution

Risk of road accidents! Never watch video or adjust settings while you drive.

1 Press and hold Ⓓ/ MUTE/VOL to turn on the unit. The available OSD (On-Screen → Display) languages are displayed.

2 Touch a language to select. The OSD language is changed to the → selected language immediately. To turn off the unit, press and hold • ⊕/MUTE/VOL.

Adjust screen

To adjust screen brightness/contrast/color

1 Press DISP/☀/☐ to show the manual.
2 Press or to select an item.
3 Touch / to adjust the value.
4 Press DISP/☀/☐ to confirm.

To turn on/off the screen, press and hold DISP/☀/☐

Set date and time

1 Touch the upper left corner to display main menu.

Disc Radio SD USB Bluetooths 00 11 Fri May 1, 2009 Camera Navigation AV IN1 AV IN2 TV

2 Touch ● in the middle right side of the screen. → The second main menu is displayed.

Demo Settings Rear zone 00 12 Fri May 1, 2009

3 Touch [Settings]. 4 Touch [Time]. → The date/time setup menu is displayed.

Settings Service1 Time Sweaker Video Bluetooth Language Volumen CVS Rating Date 2009/5/1 Clock Mode 24Hr Time 00:13

Set date

1 Touch [Date].
2 Touch on the displayed date information. A submenu is displayed.

Settings Camera Time Sound Video Bluetooth Language Volume Erase Rating Date 2009 / 5 / 1 Clock Mode Time

3 Touch ♠ or ▼ to set year, month and day. Set clock mode

1 Touch [Clock mode].

Settings Date 2009/5/1 Clock Mode 12Hr Time 00:14 AM

2 Touch on [12Hr] or [24Hr] to select clock mode.

Set time

1 Touch [Time].
2 Touch on the displayed time. A submenu is displayed.

Settings Date Clock Mode Time 00 : 14 AM

3 Touch or to set hour and minute.

Tip

When date/time is set, touch first and then touch to return to main menu.

3 Use map

Note

You may need to upgrade the map before using it (see "Upgrade the map" section)

1 Touch the upper left corner to display home menu.
2 Touch [Navigation]. The navigation menu is displayed in a few seconds.

3 Refer to the map manual (in Chinese) to operate the navigation tool.

- You can press NAVI to enter/exit the navigation system.

Upgrade the map

1 Turn off the car audio system.
2 Press the map card until you hear a click sound.
3 Take out the card and bring it to the authorized service center for upgrade.

Technical diagram showing two views of a device with labeled components, including a close-up view and assembly steps.

4 Insert the upgraded map card back into the map card slot.
5 Turn on the car audio. The map upgrades in a few minutes.

4 Listen to radio

Tune to a radio station

1 Touch the upper left corner to display home menu.
2 Touch [Radio]. Band and frequency information is ↩ displayed.

Radio Jabi Optimal 87.50 MHz FM 01 02 03 04 05 06 87.50 90.10 98.10 106.10 107.90 102.90

3 Touch on FM or AM to select band:

• FM band options: FM1, FM2, FM3
• AM band options: AM1, AM2

4 Briefly touch ◀ or ▶ to tune to a radio station by step.

Touch • or ▶ for over 1 seconds to tune to a radio station automatically.

Tune by frequency

1 Touch. 目

Options Goto Save Radio Range Distance Search

2 Touch [Goto].
3 Touch FM or AM to select band.

4 Touch the numbers to enter frequency.

Enter Freq FM: MHz 1 2 3 4 5 6 7 8 9 0 FM ×

Touch •← to clear the last entered number. Touch •× to clear all the entered numbers.

5 Touch to confirm.

The radio station is broadcast.

Select radio range

Before you start to search for radio stations, you can select radio range.

1 Touch. 目
2 Touch [Radio range] to toggle tuner sensitivity from normal to high sensitivity.

• [Distance]: Only stations with strong signals can be broadcast.
- [Local]: Stations with strong and weak signals can be broadcast.

Options Goto Save Radio Range Distance Search

Store radio stations in memory

You can store up to 6 stations in each band.

Store stations manually

1 Tune to the station.
2 Touch. 目
3 Touch [Save].
4 Touch one of the channels 01 to 06 to save the select band.

Save 000.00 MHz FM 01 02 03 04 05 06 875 90.1 98.1 106.1 107.9 102.9 Back

Store stations automatically

You can search for a station with intro search, which broadcasts a 10-second preview of each detected radio station.

1 Select band.

2 Touch. 目

3 Touch [Search].

Auto search starts. The six strongest stations of the selected band are saved in preset channels 1-6 automatically.

Tune to a preset station

1 Touch [Radio].
2 Select band.
3 Touch one of the preset channels (01 to 06) to select a preset station.

Radio JBL Optimal 87.50 MHz FM 01 02 03 04 05 06 87.50 90.10 98.10 106.10 107.90 102.90

5 Play

Load discs

You can play video, audio or images stored on the following discs:

DVD video, DVD-R, DVD-RW•

VCD•

Audio CD, CD-R, CD-RW•

Note

Ensure that the disc contains playable content.

1 Insert the disc into the disc slot with label side facing up.

Play starts automatically.

Line drawing of a car front panel with CD/DVD unit and control knobs (no text or symbols)

→ To remove the disc, press the▲ button.

When the disc is ejected, the unit switches to the previous source, if connected. Otherwise, the unit switches to [Radio] mode automatically.

Connect USB device

Note

Ensure that the device contains playable content.

1 Open the USB door.

Technical line drawing of a device front panel with internal components and a close-up view of the internal structure (no text or symbols)

2 Insert your USB device to the USB socket.

Play starts automatically.

Technical line drawing of a device with an inset showing internal components (no text or symbols)

Remove the USB device

1 Press SRC to switch to another source.
2 Remove the USB device.

Insert SD/MMC card

Note

• Ensure that the device contains playable content.
• The unit supports SDHC card.

1 Open the SD/MMC card cover.
2 Insert the SD/MMC card into the SD/MMC card slot.

→ Play starts automatically.

Diagram showing a device with labeled components and a close-up of its internal structure, likely illustrating a mechanical or electronic assembly.

Remove the SD/MMC card

1 Press SRC to switch to another source.
2 Press the card until you hear a click sound.

→ The card is now disengaged.

3 Remove the SD or MMC card.

Play/Pause

1 Once a disc, USB or SD/MMC card is inserted, play starts automatically.

For DVD movie, if a menu appears, press TUNE/ SELECT to start play.

2 To pause, touch . "To resume play, touch " again.

Tip

- You can also press TUNE/▶II SELECT repeatedly to pause/resume play.

Search for a folder

For video files

1 Touch to return to playlist menu.
2 Touch to display all available video file folders.

USB/ 1 M2U00192 1/1

3 Touch a folder, then touch or to select a file.
4 Touch to start play.

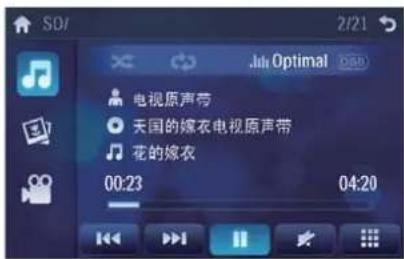

For audio files

1 Touch to return to playlist menu.
2 Touch to display all available audio folders.

3 Touch a folder, then touch or to select a file.

4 Touch to start play.

For picture files

1 Touch to return to playlist menu.
2 Touch 📋 to display all available picture folders.
3 Touch a folder, then touch or to select a picture.
4 Touch to view the picture.

Search within a title/folder

Search by step

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch ♠ or ⬆ to skip to the previous or next chapter/track.

Direct search

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch .\$ → The search screen is displayed.

Enter track number. 1 2 3 4 5 6 7 8 9 0 × ✓

For video files, touch ☑ first, then touch

3 Touch the numbers to enter chapter/file number, then touch √.

To clear the previous input, touch ←. To clear all input, touch ✗.

Repeat

During play, you can select different repeat play modes.

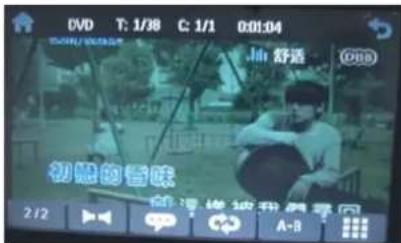

For DVD/VCD movie disc:

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

DVD T: 1/38 C: 1/1 0:04:10 我的爱兰岛就像雨水

2 Touch to display the 2nd menu.

DVD T: 1/38 C: 1/1 00:04 初步的香味 A-B

3 Touch to select:

• [Repeat chapter]: play the current chapter repeatedly.
• [Repeat title]: play all chapters in the title repeatedly.
• [Repeat off]: cancel repeat play.

For VCD karaoke or audio CD:

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch to select:

• [Repeat]: play the current track repeatedly.
• [Repeat off]: cancel repeat play.

For MP3/WMA files:

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch to select:

• [Repeat]: play the current track repeatedly.
• [Repeat folder]: play all the tracks in the current folder repeatedly.
• [Repeat off]: cancel repeat play.

Repeat a section

You can repeat a specific section of video file (repeat A-B).

1 During play, touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch to display the 2nd menu, if necessary.
3 Touch repeatedly to mark:

• [Repeat A-]: the start of the section to repeat.
• [Repeat A-B]: the end of the section to repeat.

The selected section plays repeatedly. •

4 To exit A-B repeat mode, touch A-B repeatedly until [Repeat A-B off] is displayed.

Random play

You can play audio tracks/files in random order.

1 During play, touch repeatedly to turn random play on or off.

• ✗ is highlighted : start random play.
• × turns gray: cancel random play.

Select audio language

For video discs that contain two or more audio channels.

1 During play, touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch to display the 2nd menu.
3 Touch repeatedly.

The audio channel information is ↗ displayed on the upper line of the screen.

Select audio mode

When you play VCDs, you can select an audio mode (R/L/Stereo).

1 During play, touch anywhere except for the upper left corner to display menu on the screen.
2 Touch repeatedly until the audio mode is selected.

Select subtitle language

For DVD or DivX discs that contain two or more subtitle languages.

1 During play, touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch to display the 2nd menu
3 Touch repeatedly to select a language. The selected language is displayed!

Rotate pictures

1 When you view pictures, touch anywhere except for the upper left corner to display menu on the screen, if necessary.

Wooden floating platform with fish and fisherman, displayed in a video player interface (no readable text or symbols)

2 Touch repeatedly to rotate the picture.

Zoom

You can zoom in pictures for a close view.

1 During view pictures, touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch repeatedly to zoom in the picture.

Aerial view of a floating wooden pier or floating platform with white fish-like structures, situated in water (no visible text or symbols)

3 Touch ♠, ♦, ◀ or ▶ to pan through the enlarged picture.

Select slide show duration

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch repeatedly to select:

• Fast: 3 seconds
  • Normal: 5 seconds
• Slow: 8 seconds

6 Play with Bluetooth device

You can make or receive phone calls with Bluetooth-enabled phones through the unit. You can also listen to music from a Bluetooth-enabled device.

Pair the Bluetooth-enabled devices

To connect your Bluetooth device to the unit, you need to pair the device to the unit. Pairing needs only to be done once.

You can pair up to eight devices.

Note

The operational range between this unit and a Bluetooth device is approximately 10 meters (30 feet).
- Before you connect a Bluetooth device to this unit, familiarize yourself with the Bluetooth capabilities of the device.
- Compatibility with all Bluetooth devices is not guaranteed.
- Any obstacle between this unit and a Bluetooth device can reduce the operational range.
- Keep this unit away from any other electronic device that may cause interference.

1 Turn on the Bluetooth function on the device.
2 Search for Bluetooth device with the device.
3 Select "CID3680" in the pairing list.

4 Enter default password "0000".

If pairing succeeds. phone call record is displayed.

English

Bluetooth Options Bluetooth On Auto Connect On Auto Answer On Pairing Code **** Phone Book Sync

Disconnect Bluetooth devices

1 To disconnect one device, touch (red).
→ (green) is displayed.

Tip

The device will also be disconnected when the device is moved beyond the operational range.

• If you want to reconnect the device to the unit, place it within the operational range.
• If you do not want to reconnect the device to the unit automatically, touch ☑[Auto connect], then select [Off]. For details, see the "Adjust Bluetooth settings" section.

Make a call

1 Pair the phone with the unit.
2 Touch the upper left corner to display the home menu.
3 Touch [Bluetooth]. The Bluetooth menu is displayed.

Bluetooth / No paired device 海海 NX200

4 Touch ♠ or ▼ to select the paired phone, then touch ⏻.

5 Touch or to search for phone number from the following list:

Options Bluetooth On Auto Connect On Auto Answer On Pairing Code ***** Phone Book Sync

• [Missed calls]
• [Received calls]
• [Dialed calls]
• [Phone book]
• [Sim phone book]
• [Local phone book]

Or touch ⚪ to dial number directly, then touch ⬇ to dial.

Receive call

By default, all incoming calls are received automatically.

1 If there is incoming call, [Incoming call...] flashes on the screen. Speak into the Bluetooth microphone.

Bluetooth / Nokia5000 13888886666 Incoming call_ 00:00:00

2 When conversation ends, touch (red) to terminate the call.

Tip

- You can select to receive calls manually by set [Auto answer] to [Off] status.

Switch phone call to the mobile

If you do not want your passenger to hear your incoming call, you can switch the call to the mobile.

1 During talking, touch . The voice is transferred from the unit's loudspeaker to the mobile phone.

Listen to music from Bluetooth device

If the connected Bluetooth device supports Advanced Audio Distribution Profile (A2DP), you can listen to the music stored on the device through the unit. If the device also supports Audio Video Remote Control Profile (AVRCP) profile, you can use the control on the unit or its remote control to play music stored on the device.

1 Pair the phone with the unit.
2 Touch the upper left corner to return to home menu.
3 Touch [Bluetooth]. The Bluetooth menu is displayed.

4 Start play music via device. • If your device support AVRCP.

1 Touch.

Bluetooth / No paired device K790c

2 Touch to start play.

Adjust Bluetooth settings

You can change below Bluetooth settings:

• [Bluetooth]: to turn on or off "Bluetooth" function
  • [Auto connect]: to turn on or off "Auto connect" function
  • [Auto answer]: to turn on or off "Auto answer" function
  • [Pairing code]: to set paring code
  • [Phone Book Sync]: to synchronize phone book

1 In Bluetooth menu, touch . ☐

The option menu is displayed.

BlueGolf / No pairs 海海 NX200 Options Bluetooth On Auto Connect On Auto Answer On Pairing Code ***** Phone Book Sync

2 Touch on the selected option to change the setting.

Tip

You can also adjust Bluetooth settings in the • "Settings" menu.

7 Adjust sound

Adjust volume

1 Tum /MUTE/VOL button clockwise to increase volume.
2 Turn ⏻/MUTE/VOL button anti-clockwise to reduce volume.

Mute

1 During play, press Ⓓ/ MUTE/VOL. • To turn the sound back on, press Ⓓ/ MUTE/VOL again.

Tip

- You can also turn off sound by touching 🏠 on the screen.

Select preset equalizer

You can select preset equalizer:

• [User]
  • [Techno]
  • [Rock]
  • [Classic]
  • [Jazz]
  • [Optimal]
  • [Flat]
  • [Pop]

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch . . . → The current Equalizer setting is displayed.

EQ Bass Mid Treb LPH MPF HPF -6 0 +4 8kHz 1kHz 10kHz Optimal

3 Touch or to select an EQ.
4 Touch ▲ or ▼ to adjust below settings: • [Bass]bass range: -14 to +14. • [Mid]middle range: -14 to +14. • [Treb]treble range: -14 to +14. • [LPH] low pass filter range: 60, 80, 100, 200. • [MPF]middle pass filter range: 500, 1K, 1.5K, 2.5K. • [HPF]high pass filter range: 10K, 12.5K, 15K, 17.5K.

5 Touch to restore the above settings into default settings.

6 Press to exit.

Adjust fader/balance

You can also adjust the front and rear speaker balance, the left and right speaker balance, and subwoofer settings.

Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

1 Touch . .
2 Touch
Below options are displayed:

EQ Fade: 0 balance: 0 F L R R Sub +24

3 Touch ▲ or ▼ to select subwoofer volume.

• [Sub] subwoofer volume: 0 to 24.

4 Touch F, R, L, or R to adjust fader/balance value.

• [Fade]fader range: +24 to -24. (F = front speaker, R = rear speaker)

• [Balance] balance range: -24 to +24. (L = left speaker, R = right speaker)

5 Touch to exit.

Set Dynamic Bass Boost (DBB)

1 Touch 📄 toggle between the settings.

• [DBB] on: The DBB icon is illuminated.

- [DBB] off (default): The DBB icon is gray.

8 Adjust settings

Display system setup menu

1 Touch the upper left corner to display main menu.

Disc Radio SD USB Bluetooth 00 11 Fri May 1, 2009 Camera Navigation AV IN1 AV IN2 TV

2 Touch in the middle right side of the screen. → The second main menu is displayed.

Demo Settings Real zone °00 12 Fri May 1, 2009

3 Touch [Settings]. → The settings menu is displayed.

Tip

- When the setup adjustment is completed, touch ➕ first and then touch ➕ to return to main menu.

Adjust general settings

1 Touch [General], if necessary.

Settings Radio region China Radio range Local Blackout off Key color Blue Beep On

2 Touch ♦ or ▼ to highlight a setting.

3 Touch on the option to display/select an option.

General settings	Options Description
[Radio region]	[USA], [S.Amer-1], [Arabia], [China], [S.Amer-2], [Europe], [Korea], [OIRT]	Select one that matches your location.
[Radio range]	[Local] Only stations with strong signals can be broadcast.
	[Distance] Stations with strong and weak signals can be broadcast.
[Blackout] [off] Never turn on the screen saver.
	[10s] Turn on the screen saver automatically 10 seconds after last operation.
	[20s] Turn on the screen saver automatically 20 seconds after last operation.
[Auto dimmer]	[On] Turn on the screen dim automatically 5 seconds after last operation.
	[Off] Never turn the screen dim.
[Key color] [Red] Button backlight turns red.
	[Blue]	Button backlight turns blue.
[Beep]	[On]	Turn on the beep sound. Each time you press a button, the unit beeps.
	[Off]	Turn off the beep sound.
[Calibration]		Calibrate the touch screen.

4 Press to exit.

Adjust sound settings

1 Touch [Sound].

Settings Sub woofer Off Sub woofer filter 120Hz DBB Off DRC Off

2 Touch an option repeatedly to select:

Sound settings	Options Description
[Sub woofer]	[On] Turn on the subwoofer.
	[Off] Turn off the subwoofer.
[Sub woofer filter]	[80Hz] Select subwoofer filter criteria.
	[120Hz]
	[160Hz]
[DBB] [On] The Dynamic Bass Boost (DBB) function is on.
	[Off] The DBB function is off.
[DRC] [On] Makes loud sound level softer and soft sound level louder so that you can watch the DVD movies at a low volume, without disturbing others
	[Off] The DRC function is off.

3 Press to exit.

Adjust video settings

1 Touch [Video].

Settings Options True Sound Video Bluetooth Language Video DIO ratings Aspect ratio Full Video input Auto Rear camera Mirror Parking Off DivX registration code IZWV42D3

2 Touch an option repeatedly to select:

Video settings	Options Description
[Aspect ratio]	[Full] For widescreen display.
	[Normal] For normal display.
[Video input]	[Auto] The correct format is set automatically. Select this option if you are not sure which format should be selected.
	[NTSC] Used in the United States, Canada, Japan, Mexico, the Philippines, South Korea, Taiwan, and some other countries.
	[PAL] Used in China, India, Singapore, the western European countries (except France), Australia, and some other countries.
	[Secam] Used in France, Russia and other countries.
[Rear camera]	[Normal] When you drive in reverse, the rear view is displayed normally.
	[Mirror] When you drive in reverse, the rear view is displayed in mirror.
[Parking] [On]	Disable video view during drive.
	[Off] Enable video view during drive.
[DivX registration code]	View code for DivX registration.

3 Press to exit.

Adjust Bluetooth settings

1 Touch [Bluetooth].

Settings Bluetooth Off Auto connect Off Auto answer Off Pairing code ****

2 Touch an option repeatedly to select:

Bluetooth settings	Options Description
[Bluetooth]	[On] Turn on the Bluetooth function.
	[Off] Turn off the Bluetooth function.
[Auto connect]	[On] If the pre-paired device is within the effective range, the unit re-connects to pre-paired device automatically.
	[Off] Need to re-connect manually.
[Auto answer]	[On] Answer paired phone call automatically.
	[Off] Answer phone call manually.
[Pairing code]	View code for pairing the unit with other Bluetooth devices.

3 Press to exit.

Adjust language settings

1 Touch [Language].

Settings OSD DVD audio DVD subtitle Disc menu English 简体中文 简体中文 简体中文

2 Touch an option repeatedly to select:

Language Settings
[OSD] [English] Select on-screen-display language.
	[简体中文]
	[繁体中文]
[DVD audio]	[English] Select DVD audio language. Options available are depends on DVD disc.
	[简体中文]
	[繁体中文]
[DVD subtitle]	[English] Select DVD subtitle language. Options available are depends on DVD disc.
	[简体中文]
	[繁体中文]
	[Off] Turn off subtitle language display.
[Disc menu]	[English] Select DVD menu language. Options available are depends on DVD disc.
	[简体中文]
	[繁体中文]

3 Press to exit.

Adjust volume settings

You can set different volume for different modes.

1 Touch [Volume].

The volume setting sub-menu is ↩ displayed.

Settings DVD 6 USB 6 SDHC 6 Radio 6 Bluetooth 6

2 Touch on a source.

• [DVD]
• [USB]
• [SDHC]
• [Radio]
- [Bluetooth]
• [AV-IN1]
• [AV-IN2]
• [CDC]
• [TV]
- [Navigation]

3 Touch or to assign value: 0 to 12. When switches to the source, the volume increases automatically.

4 Press to exit.

Adjust DVD rating

1 Touch [DVD rating].

Settings Set password Rating level Load factory Kid safe Reset

2 Touch an option repeatedly to select:

DVD rating	Options	Description
[Set password]		Set password to restrict the play of discs. The default password is 0000.
[Rating level]	[Kid safe]	Acceptable for children.
	[G]	Acceptable for general viewers.
	[PG]	Parental guidance suggested.
	[PG-13]	Unsuitable for children under age 13.
	[PG-R]	Recommend parents to restrict children under 17 to view.
	[R]	Restricted. Recommend parent to guide children under 17 to view.
	[NC-17]	Unsuitable for children under age 17.
	[Adult]	Acceptable for adults only.
[Load factory]		Restore to default settings.

3 Press to exit.

9 Others

Listen to other devices

You can connect an external audio/video device to the unit.

1 Connect the car audio to the device with the supplied AV cable.

AV IN

2 Touch the upper left corner to display the main menu.
3 Touch [AV-IN1].
4 Operated the connected the device (see the instructions manual of the device).

Tip

If you connected the system to other audio device through the REAR OUT L/R connector (see "Connect wires" section), touch [AV-IN2] to listen to that device.

Reset

When the unit hangs up, you can reset it.

1 Press RESET with a ball-point pen or similar tool.

Technical line drawing of a car front panel with a circular disc component (no text or symbols)

Tip

When the unit is reset, all the settings remain unchanged.

Remove the unit

To repair, replace fuse, or replace the unit with another car audio, remove it from the dashboard.

1 Take off the trim plate.

Line drawing of a car dashboard with control panel and buttons, showing no text or symbols

1 Pull the unit out from the dashboard.
2 Screw off the screws on the mounting brackets and the unit.

Replace fuse

If there is no power, the fuse may be damaged and need to be replaced.

1 Take out the unit from dashboard.
2 Check the electric connection.
3 Buy a fuse that matches the voltage of the damaged fuse (15A)
4 Replace the fuse.

If the fuse gets damaged immediately after it has been replaced, there may be an internal malfunction. In such case, consult your Philips dealer.

10 Product information

Note

Product information is subject to change • without prior notice.

General

Power supply 12 V DC (11 V - 16 V), negative ground
Fuse	15 A
Suitable speaker impedance	4 - 8 Ω
Maximum power output	50 W x 4 channels
Continuous power output	24 W x 4 channels (4Ω 10% T.H.D.)
Pre-Amp output voltage	2.0 V (CD play mode; 1 kHz, 0 dB, 10 k Ω load)
Subwoofer output voltage	2.0 V (CD play mode, 61 Hz, 0 dB, 10 k Ω load)
Aux-in level	≥500 mV
Dimensions(W x H x D)
- Panel	294 x 146 x 40 mm
- Body	178 x 145 x 100 mm
Weight (main unit)	2.4 kg

Disc player

System	DVD / CD audio / MP3 system
Frequency response	20 Hz - 20k Hz
Signal/noise ratio	>75dB
Total harmonic distortion	Less than 1%
Channel separation	>55dB
Video signal format	NTSC only
Video output 1 +/- 0.2V

Tuner

Frequency range - FM 87.5 - 108.0 MHz (Europe)
Frequency range - AM (MW)	522 - 1620 KHz (Europe)
Usable sensitivity - FM 5 uV
Usable sensitivity - AM (MW)	50 uV

LCD

Screen size 7 inches (16:9)

Display resolution 800 x 480 dots

Contrast ratio 300

Brightness 350 cd/m2

Bluetooth

Communication system	Bluetooth Standard version 2.0
Output Bluetooth Standard Power Class 2
Maximum communication range	Line of sight approx. 8m
Frequency band	2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Compatible Bluetooth profiles	Hands-Free Profile (HFP)Handset Profile (HSP)Advanced Audio Distribution Profile (A2DP)Audio Video Remote Control Profile (AVRCP)
Supported codecsReceive Transmit	SBC (Sub Band Codec)SBC (Sub Band Codec)

Compatible USB devices:

USB flash memory (USB 2.0 or •

USB1.1)

USB flash players (USB 2.0 or •

USB1.1)

memory cards (SD / MMC / SDHC)•

Supported formats:

USB or memory file format: •

FAT16, FAT32

MP3 bit rate (data rate): 32-320 Kbps • and variable bit rate WMA v9 or earlier•

• Directory nesting up to a maximum of 8 levels
• Number of albums/ folders: maximum 99
• Number of tracks/titles: maximum 999
• ID3 tag v2.0 or later
• File name in Unicode UTF8 (maximum length: 128 bytes)

Unsupported formats:

• Empty albums: an empty album is an album that does not contain MP3/WMA files, and is not be shown in the display.
- Unsupported file formats are skipped. For example, Word documents (.doc) or MP3 files with extension .dlf are ignored and not played.
• AAC, WAV, PCM audio files
• DRM protected WMA files (.wav, .m4a, .m4p, .mp4, .aac)
• WMA files in Lossless format

Supported MP3 disc format:

• ISO9660, Joliet
• Maximum title number: 512 (depending on file name length) Maximum album number: 255•
• Supported sampling frequencies: 32 kHz, 44.1kHz, 48 kHz
• Supported Bit-rates: 32-320 Kbps and variable bit rate

Supported video formats:

DVD•

Divx Home theater•

MP4•

Xvid•

Note

To ensure a better playback, bit rate of • 4.5 Mbps is recommended.

11 Troubleshooting

Warning

- Never remove the casing of this apparatus.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.

No power

• Car engine has not been started. Start the car engine.
- Connections is incorrect.
- Fuse has been damaged. Replace fuse. (see 'Replace fuse' on page 33)

No sound

• Volume is too low. Adjust volume.
• Speaker connections is incorrect.

Disc does not play

• Disc is upside down. Ensure the printed side is upwards.
  • Disc is dirty. Clean the disc with a clean, soft, lint-free cloth. Wipe the disc outwards from the center.
• Disc is defective. Try another disc. incompatible disc is used. Try another disc. Disc rating exceeds the restrict setting. Change the rating settings to lower one.
  • Disc region code is not compatible with the unit. Use disc with proper region code.

No image

- Parking brake wire connection is incorrect. Check the parking wiring.

Image flashes or distorted

• Video DVD settings do not match with the DVD. Adjust video DVD settings.
• Video connection is improper. Check the connections.

Noise in broadcasts.

Signals are too weak. Select other •

stations with stronger signals.

Check the connection of the car antenna.

Change broadcast from stereo to mono.

Preset stations lost.

Battery cable is not correctly connected.

Connect the battery cable to the terminal that is always live.

Fuse is broken

The Fuse type is incorrect. Replace it with • a 15A fuse.

Speaker wire or power wire is grounded.

Check the connections.

Display show ERR-12

USB/SD/MMC data error. Check the USB • device or SD/MMC card.

About Bluetooth device

Music playback is unavailable on the system even after successful Bluetooth connection.

The device cannot be used with the • system to play music.

The audio quality is poor after connection with a Bluetooth-enabled device.

The Bluetooth reception is poor. Move the device closer to the system or remove any obstacle between the device and the system.

Cannot connect with the system.

The device does not support the profiles • required for the system.

The Bluetooth function of the device is • not enabled. Refer to the user manual of the device for how to enable the function.

• The system is not in the pairing mode.
- The system is already connected with another Bluetooth-enabled device. Disconnect that device or all other connected devices and then try again.

The paired mobile phone connects and disconnects constantly.

The Bluetooth reception is poor. Move • the mobile phone closer to the system or remove any obstacle between the mobile phone and the system.

Some mobile phones may connect and • disconnect constantly when you make or end calls. This does not indicate any malfunction of the system.

For some mobile phones, the Bluetooth • connection may be deactivated automatically as a power-saving feature.

This does not indicate any malfunction of the system.

12 Glossary

B

Bite rate

The max data transfer through the USB port.

Bluetooth

Bluetooth® is a short-rang wireless protocol that is meant to allow mobile devices to share information and applications without the worry of cables or interface incompatibilities. The name refers to a Viking King who unified Denmark. Operate at 2.4GHz. For more information, see www.bluetooth.com.

M

MMC

MultimediaCard. A type of memory card with a flash memory.

MP3

A file format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

R

Region code

A system that allows discs to be played only in the region designated. This unit only plays discs that have compatible region codes. You can find the region code of your unit on the product label. Some discs are compatible with more than one region (or ALL regions.)

S

SD

Secure Digital. A type of memory card with a flash memory.

SDHC

Secure Digital High Capacity (SDHC) is a type of flash memory card based on the SDA 2.00 specification. The SDA 2.00 specification enables SD cards to reach higher capacities from 4GB to 32GB, and growing.

W

WMA (Windows Media Audio)

An audio format owned by Microsoft, is a part of Microsoft Windows Media technology. Includes Microsoft Digital Rights Management tools, Windows Media Video encoding technology, and Windows Media Audio encoding technology.

部件名称Name of the Part	有毒有害物质或元素Hazardous/toxic Substance
	铅(Pb, Lead)	汞(Hg, Mercury)	镉(Cd, cadmium)	六价铬(Chromium 6+)	多溴联苯(PBB)	多溴二苯醚(PBDE)
Housing外壳	O	O		O	O
DVD/CD loader DVD/CD 光盒	X	O		O	O
LCD Panel液晶面板	X	X		O	O
Loudspeakers喇叭单元	O	O		O	O
PWBs电路板组件	X	O		O	O
Accessories (Remote control & cables)附件(遥控器,电源线,连接线)	X	O		O	O
Batteries in Remote Control (ZnC)遥控器电池	X	O		O	O

O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363 - 2006 标准规定的限量要求以下。
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363 - 2006.
X: 表示该有毒有害物质至少在该部的某一均质材料中的含量超出 SJ/T11363 - 2006 标准规定的限量要求。
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363 – 2006.

环保使用期限 Environmental Protection Use Period

This logo refers to the period (10 years) during which the toxic or hazardous substances or elements contained in electronic information products will not leak or mutate so that the use of these [substances or elements] will not result in any severe environmental pollution, any bodily injury or damage to any assets.

PHILIPS
