CID3288 - Car Radio PHILIPS - Free user manual and instructions

Product Type	Car Radio
Brand	Philips
Model	CID3288
Dimensions (Approx.)	178 x 50 x 100 mm (1-DIN)
Weight (Approx.)	0.8 kg
Power Supply	12V DC (negative ground)
Max Power Output	4 x 50 Watts
Radio Bands	FM, AM
Playback Media	CD, CD-R/RW, MP3, WMA
Connectivity	USB, AUX input, Bluetooth
Display	LCD screen with backlight
Audio Features	EQ presets, Bass/Treble control, Loudness
Remote Control	Included
Steering Wheel Control	Compatible (adapter required)
Clock	Yes (RDS controlled)
Safety Features	Fuse protection (15A)
Maintenance	Clean with a soft dry cloth; avoid liquids
Spare Parts	Contact Philips dealer or authorized service center
Repair Information	Refer to user manual or certified technician
Included Accessories	Mounting sleeve, trim ring, wiring harness, extraction keys

Frequently Asked Questions - CID3288 PHILIPS

How do I install the Philips CID3288 car radio?

First, disconnect the car battery. Then remove the old radio, connect the wiring harness (matched to your car's ISO connectors), slide the radio into the mounting sleeve, and secure the trim ring. Finally, reconnect the battery and test.

How do I set the clock on the CID3288?

Press the CLK button (or MENU) until the hour flashes, then rotate the volume knob to adjust. Press again to set minutes, and rotate to adjust. Press CLK to confirm.

Can I connect my phone via Bluetooth?

Yes. Enable Bluetooth on your phone, search for 'CID3288' (or similar), pair using PIN 0000 or 1234, and then you can stream music and make hands-free calls.

What should I do if the radio has no power?

Check the car's fuse box for the audio fuse (usually 15A). Also verify the wiring connections are secure. If the fuse is blown, replace it with the same rating.

How do I reset the CID3288 to factory settings?

Press and hold the RST button (or a combination like MENU + 2) for 5 seconds. Alternatively, remove the faceplate and press the reset hole with a paperclip.

What audio formats are supported?

The radio supports MP3 and WMA files from CD, USB, or Bluetooth. For USB, use FAT32 format and files up to 320 kbps.

How do I clean the radio safely?

Use a soft, dry cloth to wipe the front panel and display. Do not use any liquids, sprays, or abrasive cleaners, as they can damage the electronics.

Can I adjust the sound settings?

Yes. Press the SEL or MENU button to cycle through options like Bass, Treble, Balance, and Fader. Rotate the volume knob to adjust each setting.

What is the fuse rating for the CID3288?

The radio uses a 15A blade fuse (ATO type) located on the rear chassis or in line with the power wire. Always replace with the same rating.

Where can I find the user manual?

You can download the manual for free from notice-facile.com or the Philips support page. Search for 'CID3288 user manual' to get the PDF.

USER MANUAL CID3288 PHILIPS

Register your product and get support at

www.philips.com/welcome

CID3288

PHILIPS VOL MENU NAV AV-IN USB DISP TUNE Disc Radio SDHC USB Bluetooth A 2:38 WED Feb 18, 2009 Navigation Camera AUX 1 AUX 2 Settings

EN User manual 3

ZH-CN 用户手册

33

PHILIPS

Contents

1 Important 4

Safety 4

Notice 4

2 Your in-car entertainment system 5

Introduction 5

What's in the box 6

Overview of the main unit 7

3 Get started 8

Install the car audio 8

Turn on 10

Set date and time 11

Adjust screen 11

4 Use map 12

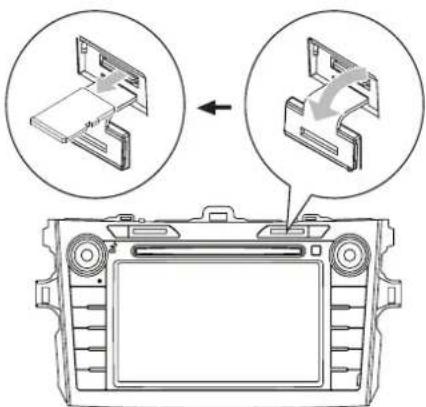

Upgrade the map 12

5 Listen to radio 13

Tune to a radio station 13

Store radio stations in memory 13

Tune to a preset station 14

6 Play 14

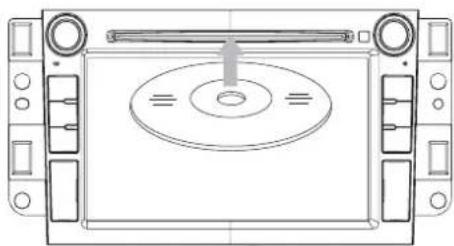

Load discs 14

Connect USB device 15

Play/Pause 15

Search for a folder 15

Search within a title/folder 16

Repeat 16

Repeat a section 17

Random play 17

Select audio language 17

Select audio mode 17

Select subtitle language 17

Rotate pictures 18

Zoom 18

Select slide show duration 18

7 Play with Bluetooth device 18

Pair the Bluetooth-enabled devices 18

Make a call 19

Receive call 19

Listen to music from Bluetooth device 20

Adjust Bluetooth settings 20

8 Adjust sound 21

Adjust volume 21

Mute 21

Select preset equalizer 21

Adjut fader/balance 21

Set Dynamic Bass Boost (DBB) 22

9 Adjust settings 22

Display system setup menu 22

Adjust general settings 22

Adjust sound settings 24

Adjust video settings 24

Adjust Bluetooth settings 25

Adjust language settings 25

Adjust volume settings 26

Adjust DVD rating 26

10 Others 27

Listen to other devices 27

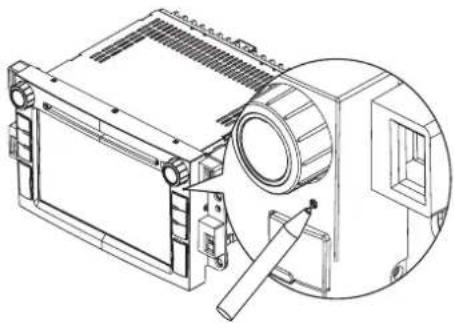

Reset 28

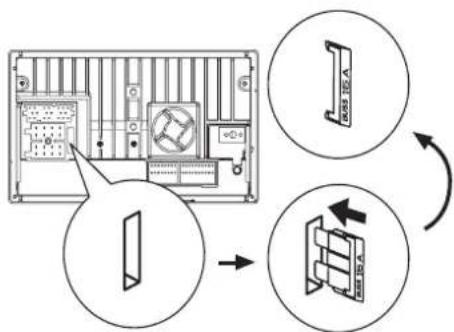

Replace fuse 28

11 Product information 29

General 29

Disc player 29

Radio 29

LCD 29

Bluetooth 30

12 Troubleshooting 31

About Bluetooth device 31

13 Glossary 32

1 Important

Safety

Read and understand all instructions • before you use the apparatus. If damage is caused by failure to follow instructions, the warranty does not apply.

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

This unit is designed for negative ground • (earth) 12 V DC operation only.

To reduce the risk of traffic accident, do no watch video during driving.

To ensure safe driving, adjust the volume to a safe and comfortable level.

Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.

Use only the supplied mounting hardware • for a safe and secure installation.

To avoid short circuit, do not expose the • apparatus to rain or water.

Never insert objects into the ventilation • slots or other openings on the apparatus.

Never place any objects other than discs • into the disc tray/slot.

Visible and invisible laser radiation when open. Avoid exposure to beam.

Risk of damage to the screen! Never • touch, push, rub or strike the screen with any object.

Never use solvents such as benzene, • thinner, cleaners available commercially, or anti-static sprays intended for discs.

Clean the apparatus with soft, damp • cloth. Never use substances such as alcohol, chemicals or household cleaners on the apparatus.

Notice

Be responsible Respect copyrights

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

"DivX, DivX" Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

Official DivX® Certified product. Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Philips is under license.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Other trademarks and trade names are those of their respective owners.

This apparatus includes this label:

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

2010 © Koninklijke Philips Electronics N.V. All rights reserved.

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

2 Your in-car entertainment system

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With the car entertainment system, you can

Quickly found routine through the • navigation system

And you can also enjoy:

Audio/video/JPEG pictures from•

DVD, VCD or CD•

USB devices•

External devices•

FM or AM (MW) radio•

Audio from Bluetooth-enabled devices• Besides, you can make/receive phone calls with Bluetooth-enabled devices.

What's in the box

Check and identify the contents of your package:

①

②

③

④

⑤

6

⑦

⑧

⑨

10

⑪

①Main unit
②Power connector
③Control/camera cable
④AV OUT cable
⑤CMMB connector
⑥AV IN cable
⑦GPS antenna
⑧Screw
⑨Buffer
⑩Cleaning cloth
⑪ Printing material (include User manual, Quick start guide)

Overview of the main unit

PHILIPS VOUT SELECT TUNG MENU NAVI AV-IN USB 13 ① ② ③ ④ ⑤ ⑥ ⑦ 8 DOOLRY MENU DVD ONION

English

①Disc slot
②TUNE/ ▶II SELECT

Tune for radio station.

Skip to the previous or next title, • chapter, or track.

Confirm an entry or selection.

• Start, pause or resume play.

③RESET

- Reset the unit when it hangs up.

④

- Eject disc.

⑤FM/AM

• Switch to the FM/AM source.

⑥DISP/

• Adjust screen brightness.
• Turn on/off the screen display.

⑦Map card slot

⑧

Open the cover to insert USB device.

⑨AV IN

External equipment audio/video in • socket.

⑩

Answer phone call.

⑪NAVI

Enter the GPS navigation system or • exit.

⑫MENU
Return to the home menu.
⑬Built-in microphone
⑭VOL/ ①/MUTE

Adjust volume.

Turn the unit on or off.

Turn mute on or off.

3 Get started

Caution

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence.

Install the car audio

These instructions are for a typical installation. However, if your car has different requirements, make the corresponding adjustment. If you have any questions regarding installation kits, consult your Philips car audio dealer.

Caution

This unit is designed for negative ground (earth) 12 V DC operation only.

• Always install this unit in the car dashboard. Other locations can be dangerous as the rear of the unit heats up during use.
  • To avoid short-circuit: before you connect, ensure that the ignition is off.
• Ensure that you connect the yellow and red power supply leads after all other leads are connected.
• Ensure that all loose leads are insulated with electrical tape.
• Ensure that the leads do not get caught under screws on parts that will move (e.g. seat rail).
• Ensure that all ground (earth) leads are run to a common ground (earth) point.
• Use only the supplied mounting hardware for a safe and secure installation.
• Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.

Note on the power supply lead (yellow)

When you connect other devices to this system, ensure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

Notes on speaker connection

Never connect speaker wires to the metal body or chassis of the car.

Never connect speaker wires with stripes • to one another.

Mount in the dashboard

Note

Check wire connection before you mount the unit into a car.

- If preset radio stations are lost when the ignition key is turned OFF and then back ON, reconnect the red leads crosswise to the yellow ones.

1 If the car does not have an on-board drive or navigation computer, disconnect the negative terminal of the car battery. If you disconnect the car battery in a car that has an on-board drive or navigation computer, the computer may lost its memory. If the car battery is not disconnected, to avoid short-circuit, ensure that bare wires do not touch each other.

2 Take out the original car audio and keep the screws.
3 Mount the screw and buffer (supplied).

Technical line drawing of a mechanical assembly with no visible text or symbols

4 Connect wires (see "Connect wires" section).

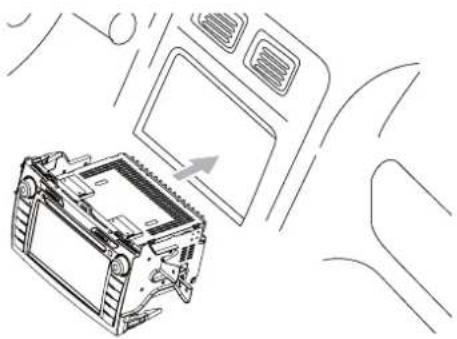

5 Slide the unit into the dashboard until a click sound is heard.

Line drawing of a device inside a car dashboard with no visible text or symbols

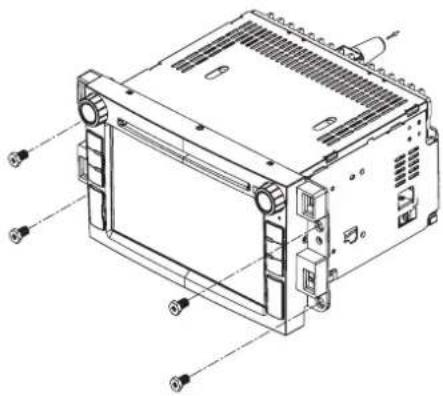

6 Fix the unit onto the dashboard with screws.

Technical line drawing of a server rack unit with mounting ports and ventilation slots (no text or labels)

7 Reconnect the negative terminal of the car battery.

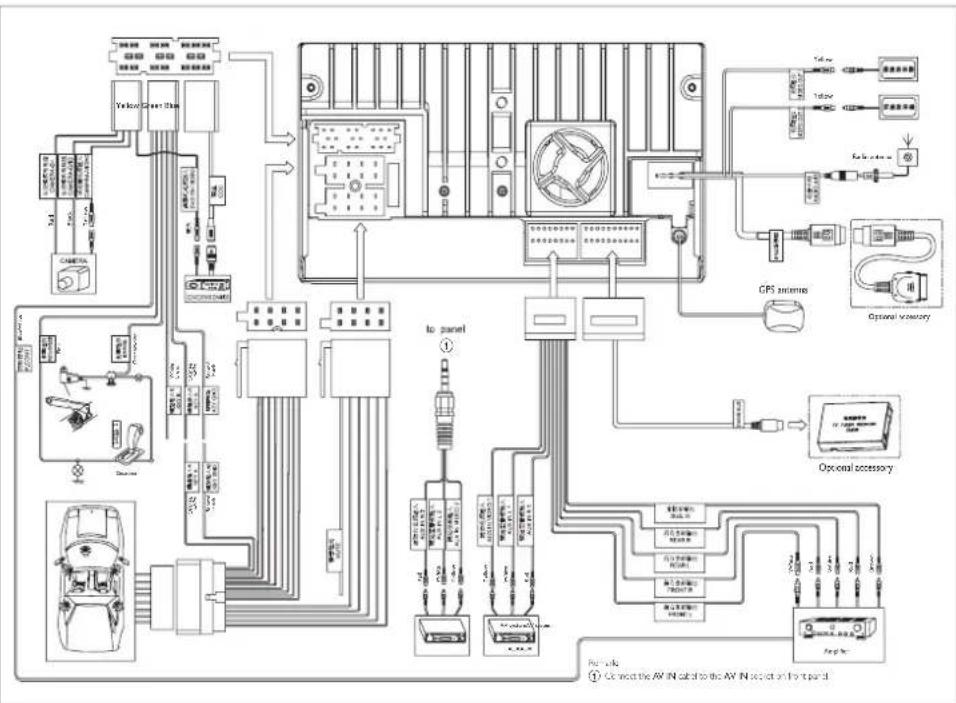

Connect wires

Caution

Ensure that all loose leads are insulated with electrical tape.

1 Check the car's wiring carefully, then do the other connections:

Turn on

Caution

Risk of road accidents! Never watch video or adjust settings while you drive.

1 Press to turn on the unit.

The available OSD (On-Screen → Display) languages are displayed.

2 Touch a language to select.

The OSD language is changed to the selected language immediately.

To turn off the unit, press Ⓞ for 3 seconds.

Set date and time

1 Touch the upper left corner to display main menu.

00:02 SAT 2009-08-01

- If necessary, touch ⬆ in the middle right side of the screen to display the 2nd screen.

2 Touch [Settings].

3 Touch [Time]. → The date/time setup menu is displayed.

Settings Date 2009/5/1 Clock Mode 24hr Time 00:13

Set date

1 Touch [Date].
2 Touch on the displayed date information. A submenu is displayed.

Settings Date 2009 / 5 / 1 Clock Mode Time

3 Touch ♠ or ♦ to set year, month and day.

Set clock mode

1 Touch [Time mode].

Date 2009/5/1 Clock Mode 12Hr Time 00:14 AM

2 Touch on 12H or 24H to select clock mode.

Set time

1 Touch [Time].
2 Touch on the displayed time. A submenu is displayed.

Settings Date Clock Mode Time 00 : 14 AM

3 Touch ♦ or ♦ to set hour and minute.

Tip

When date/time is set, touch ↩ to return to main menu.

Adjust screen

To turn off the screen

1 Press DISP for over 2 seconds
The screen is turned off.
To turn on the screen, press → DISP.

To adjust screen brightness

1 Press DISP.
Brightness bar is displayed.

2 Rotate TUNE/▶II SELECT to adjust the value.

4 Use map

Note

You may need to upgrade the map before using it (see "Upgrade the map" section)

1 Touch the upper left corner to display home menu.
2 Touch [Navigation]. The navigation menu is displayed in a few seconds.

3 Refer to the map manual (in Chinese) to operate the navigation tool.

Mobile map interface screenshot showing navigation and location markers in Chinese

Tip

- You can press NAVI to enter/exit the navigation system.

Upgrade the map

1 Tum off the car audio system.
2 Open the MAP card cover.
3 Press the map card until you hear a click sound.
4 Take out the card and bring it to the authorized service center for upgrade.

Diagram showing car dashboard with two circular insets illustrating device components and a directional arrow indicating rotation or change.

5 Insert the upgraded map card back into the map card slot.
6 Tum on the car audio. The map upgrades in a few minutes.

5 Listen to radio

Tune to a radio station

1 Touch the upper left corner to display home menu.
2 Touch [Radio]. Band and frequency information is ↩ displayed.

Jia Optimal 87.50 MHz F/U 8750 96.10 98.10 106.10 107.50 102.90

3 Touch on FM or AM to select band: FM band options: • FM1, FM2, FM3

• AM band options: AM1, AM2

4 Briefly touch ◀ or ▶ to tune to a radio station by step.

Touch ◀ or ▶ for over 1 seconds to tune to a radio station automatically.

Tune by frequency

1 Touch FM or AM to select band.
2 Touch，百

Go to Save Radio Range: Distance Search

3 Touch [Goto].

4 Touch the numbers to enter frequency.

Enter Freq FM: MHz 1 2 3 4 5 6 7 8 9 0 FM X

Touch •← to clear the last entered number.

Touch • ✗ to clear all the entered numbers.

5 Touch to confirm.

The radio station is broadcast.

Select radio range

Before you start to search for radio stations, you can select radio range.

1 Touch.
2 Touch [Radio range] to toggle tuner sensitivity from normal to high sensitivity.

• [Distance]: Only stations with strong signals can be broadcast.
• [Local]: Stations with strong and weak signals can be broadcast.

Goto Save Radio Range Search

Store radio stations in memory

You can store up to 6 stations in each band.

Store stations manually

1 Tune to the station.

2
Touch
3 Touch [Save].
4 Touch one of the channels 01 to 06 to save the select band.

000.00 MHz F12 01 02 03 04 05 06 87.5 90.1 98.1 106.1 107.9 102.9 Back

Store stations automatically

You can search for a station with intro search, which broadcasts a 10-second preview of each detected radio station.

1 Select band.
2 Touch .回
3 Touch [Search].

Auto search starts. The six strongest stations of the selected band are saved in preset channels 1-6 automatically.

Tune to a preset station

1 Touch [Radio].
2 Select band.
3 Touch one of the preset channels (01 to 06) to select a preset station.

CD Jia Optimal 87.50 MHz FM 8750 96.10 98.10 106.10 107.90 102.90

6 Play

Load discs

You can play video, audio or images stored on the following discs:

DVD video, DVD-R, DVD-RW•

VCD·

Audio CD, CD-R, CD-RW•

Note

Ensure that the disc contains playable content.

You can play DVD discs with the following region codes:

DVD region code Country

China

1 Insert the disc into the disc slot with label side facing up.

Play starts automatically.

Technical line drawing of a CD or DVD disc assembly with front and back views (no text or symbols)

To remove the disc, press the▲button.

When the disc is ejected, the unit switches to the previous source, if connected. Otherwise, the unit switches to [Radio] mode automatically.

Connect USB device

Note

Ensure that the device contains playable • content.

1 Open the USB door.
2 Insert the USB device to the USB socket. Play starts automatically.

Technical line drawing of a server rack unit with ventilation grilles and mounting brackets (no text or symbols)

①

②

Note

To remove the USB device, switch to disc, radio or other source first.

Play/Pause

1 Once a disc or USB device is inserted, play starts automatically.

For DVD movie, if a menu appears, press to start play.

2 To pause, touch .

To resume play, touch ▶ again.

Search for a folder

For video files

1 Touch to return to playlist menu.
2 Touch to display all available video file folders.

USBV 1 M2U00192

3 Touch a folder, then touch ♠ or ♦ to select a file.
4 Touch to start play.

For audio files

1 Touch to return to playlist menu.
2 Touch to display all available audio folders.

S37 2/11 Jia Optimal 电视原声带 天眼的嫁衣电视原声带 花的嫁衣 00:23 04:20

3 Touch a folder, then touch ♦ or ▼ to select a file.
4 Touch to start play.

For picture files

1 Touch to return to playlist menu.
2 Touch to display all available picture folders.

3 Touch a folder, then touch ♦ or ♦ to select a picture.
4 Touch to view the picture.

Search within a title/folder

Search by step

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch ♦ or ♦ to skip to the previous or next chapter/track.

Direct search

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch.

The search screen is displayed.

Enter back number: 1 2 3 4 5 6 7 8 9 0 × √

For video files, touch □first, then touch ■.

3 Touch the numbers to enter chapter/file number, then touch √.

• To clear the previous input, touch ←.
• To clear all input, touch ✗.

Repeat

During play, you can select different repeat play modes.

For DVD/VCD movie disc:

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

• [Repeat chapter]: play the current chapter repeatedly.
• [Repeat title]: play all chapters in the title repeatedly.
• [Repeat all]: play the disc repeatedly.
• [Repeat off]: cancel repeat play.

For VCD karaoke:

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch to select:

• [Repeat one]: play the current track repeatedly.

• [Repeat all]: play all tracks repeatedly.

• [Repeat off]: cancel repeat play.

For audio CD:

Touch to select:

• 1: play the current track repeatedly.
• : play all tracks repeatedly.
- OFF: cancel repeat play.

For MP3/WMA files:

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch to select:

• 1: play the current track repeatedly.
• Folder: play all the tracks in the current folder repeatedly.
  • ; play all tracks repeatedly.
• OFF: cancel repeat play.

Repeat a section

You can repeat a specific section of video file (repeat A-B).

1 During play, touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch to display the 2nd menu, if necessary.
3 Touch reA Btedly to mark:

• [Repeat A-]: the start of the section to repeat.

• [Repeat A-B]: the end of the section to repeat.

The selected section plays repeatedly.

4 To exit A-B repeat mode, touch A-B repeatedly until [Repeat A-B off] is displayed.

Random play

You can play audio tracks/files in random order.

1 During play, touch repeatedly to turn random play on or off.

• ∞ is highlighted: start random play.
• × tums gray: cancel random play.

Select audio language

For video discs that contain two or more audio channels.

1 During play, touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch to display the 2nd menu.
3 Touch repeatedly. The audio channel information is ↩ displayed on the upper line of the screen.

Select audio mode

When you play VCDs, you can select an audio mode (R/L/Stereo).

1 During play, touch anywhere except for the upper left corner to display menu on the screen.
2 Touch repeatedly until the audio mode is selected.

Select subtitle language

For DVD or DivX discs that contain two or more subtitle languages.

1 During play, touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch to display the 2nd menu
3 Touch repeatedly to select a language. The selected language is displayed.

Rotate pictures

1 When you view pictures, touch anywhere except for the upper left corner to display menu on the screen, if necessary.

Aerial view of a floating platform or floating structure on water, captured in a video player interface (no visible text or symbols on the structure itself)

2 Touch repeatedly to rotate the picture.

Zoom

You can zoom in pictures for a close view.

1 During view pictures, touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch repeatedly to zoom in the picture.

Aerial view of a floating platform or floating structure on water, captured in a video player interface (no visible text or symbols)

3 Touch ♦, ↓, ◀ or ▶ to pan through the enlarged picture.

Select slide show duration

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch repeatedly to select:

• Fast: 3 seconds
  • Normal: 5 seconds
• Slow: 8 seconds

7 Play with Bluetooth device

You can make or receive phone calls with Bluetooth-enabled phones through the unit. You can also listen to music from a Bluetooth-enabled device.

Pair the Bluetooth-enabled devices

To connect your Bluetooth device to the unit, you need to pair the device to the unit. Pairing needs only to be done once. You can pair up to eight devices.

Note

The operational range between this unit and a Bluetooth device is approximately 10 meters (30 feet).

• Before you connect a Bluetooth device to this unit, familiarize yourself with the Bluetooth capabilities of the device.
• Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between this unit and a Bluetooth device can reduce the operational range.
• Keep this unit away from any other electronic device that may cause interference.
  • Turn on the Bluetooth function on the device.

1 Search for Bluetooth device with the device.
2 Select "CID3288" in the pairing list.
3 Enter default password "0000". if pairing succeeds. phone call record is ↩ displayed.

Options Bluetooth On Auto Connect On Auto Answer On Pairing Code ---- Phone Book Sync

Disconnect Bluetooth devices

1 To disconnect one device, touch (red).
→ (green) is displayed.

Tip

The device will also be disconnected when the device is moved beyond the operational range.

• If you want to reconnect the device to the unit, place it within the operational range.
• If you do not want to reconnect the device to the unit automatically, touch 📋 [Auto connect], then select [Off]. For details, see the "Adjust Bluetooth settings" section.

Make a call

1 Pair the phone with the unit.
2 Touch the upper left corner to display the home menu.
3 Touch [Bluetooth]. The Bluetooth menu is displayed.

Bluetooth / 50 paired devices 海通 NX200

4 Touch ♠ or ⬆ to select the paired phone, then touch 🔍.
5 Touch ♦ or ♦ to search for phone number from the following list:

Options Bluetooth Auto Connect On Auto Answer On Pairing Code **** Phone Book Sync

• [Missed calls]
• [Received calls]
• [Dialed calls]
• [Phone book]
• [Sim phone book]
• [Local phone book]

Or touch ⚠ to dial number directly, then touch ⭕ to dial.

Receive call

By default, all incoming calls are received automatically.

1 If there is incoming call, [Incoming call...] flashes on the screen. Speak into the Bluetooth microphone.

Bluetooth / Noise 5008 1388885666 Incoming call.. 00:00:00

2 When conversation ends, touch (nd) to terminate the call.

Tip

You can select to receive calls manually by set • [Auto answer] to [Off] status.

Switch phone call to the mobile

If you do not want your passenger to hear your incoming call, you can switch the call to the mobile.

1 During talking, touch. The voice is transferred from the unit's loudspeaker to the mobile phone.

Listen to music from Bluetooth device

If the connected Bluetooth device supports Advanced Audio Distribution Profile (A2DP), you can listen to the music stored on the device through the unit. If the device also supports Audio Video Remote Control Profile (AVRCP) profile, you can use the control on the unit to play music stored on the device.

1 Pair the phone with the unit.
2 Touch the upper left corner to return to home menu.

3 Touch [Bluetooth]. The Bluetooth menu is displayed.

4 Start play music via device.

If your device support AVRCP.

1 Touch.

K790c

2 Touch to start play.

Adjust Bluetooth settings

You can change below Bluetooth settings:

• [Bluetooth]: to turn on or off "Bluetooth" function
  • [Auto connect]: to turn on or off "Auto connect" function
  • [Auto answer]: to turn on or off "Auto answer" function
  • [Pairing code]: to set paring code
  • [Phone Book Sync]: to synchronize phone book

1 In Bluetooth menu, touch . The option menu is displayed.

Options NX200 Bluetooth Auto Connect On Auto Answer On Pairing Code **** Phone Book Sync

2 Touch on the selected option to change the setting.

You can also adjust Bluetooth settings in the "Settings" menu.

8 Adjust sound

Adjust volume

1 Tum ☐ clockwise to increase volume. Tum • ① anti-clockwise to reduce volume.

Mute

1 During play, press Ⓞ

• To turn the sound back on, press ① again.

Tip

- You can also turn off sound by touching 📂 on the screen.

Select preset equalizer

You can select preset equalizer:

• [User]
  • [Techno]
  • [Rock]
  • [Classic]
  • [Jazz]
  • [Optimal]
  • [Flat]
  • [Pop]

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch . .

The current Equalizer setting is displayed.

EQ bars M4L TrkB LPM MPF RPF -6 0 +4 80Hz 26Hz 36Hz Optimal

3 Touch or to select an EQ.

4 Touch ▲ or ▼ to adjust below settings:

• [Bass] bass range: -14 to +14.
• [Mid] middle range: -14 to +14.
• [Treb] treble range: -14 to +14.
• [LPH] low pass filter range: 60, 80, 100, 200.
• [MPF] middle pass filter range: 500, 1K, 1.5K, 2.5K.
• [HPF] high pass filter range: 10K, 12.5K, 15K, 17.5K.

5 Touch to restore the above settings into default settings.

6 Press to exit.

Adjut fader/balance

You can also adjust the front and rear speaker balance, the left and right speaker balance, and subwoofer settings.

Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

1 Touch . .th
2 Touch

Below options are displayed:→

Fate 8 Deluxe 4 F L R R Sub +1

3 Touch ▲ or ▼ to select subwoofer volume.

• [Sub] subwoofer volume: 0 to 24.

4 Touch F, R, L, or R to adjust fader/balance value.

• [Fade]fader range: +24 to -24. (F = front speaker, R = rear speaker)
• [Balance] balance range: -24 to +24. (L = left speaker, R = right speaker)

5 Touch to exit.

Set Dynamic Bass Boost (DBB)

1 Touch 📄 toggle between the settings.

• [DBB] on: The DBB icon is illuminated.
- [DBB] off (default): The DBB icon is gray.

9 Adjust settings

Display system setup menu

1 Touch the upper left corner to display main menu.

00:02 SAT 2009-08-01 SNC Camera AV_861 AV_862 Settings

2 Touch [Settings]. The settings menu is displayed.

Adjust general settings

1 Touch [General], if necessary.

Settings Radio region China Radio range Local Blackout off Key color Blue Beep On

2 Touch ♦ or ♦ to highlight a setting.
3 Touch on the option to display/select an option.

General settings	Options Description
[Radio region]	[USA], [S.Amer-1], [Arabia], [China], [S.Amer-2], [Europe], [Korea], [OIRT]	Select one that matches your location.
[Radio range]	[Local] Only stations with strong signals can be broadcast.
	[Distance]	Stations with strong and weak signals can be broadcast.
[Blackout]	[off]	Never turn on the screen saver.
	[10s]	Turn on the screen saver automatically 10 seconds after last operation.
	[20s]	Turn on the screen saver automatically 20 seconds after last operation.
[Dimmer Mode]	[Night]	Select this mode at night.
	[Dusk] Select this mode at dusk.
	[Normal]	Set screen dimmer to normal mode.
	[Bright]	Select this mode in bright environment.
[Key color]	[Orange]	Button backlight turns orange.
	[Blue] Button backlight turns blue.

General settings	Options Description
[Beep] [On]	Tum on the beep sound. Each time you press a button, the unit beeps.
	[Off] Turn off the beep sound.
[WallPaper]	[Blue] Turn background color to blue.
	[Black] Turn background color to black.
	[F1] Select the F1 picture as background.
	[User] Select a picture as wall paper.
[Calibration]	[Start] Calibrate the touch screen.
[GPS Setup]	[Start] Search for GPS system.

4 Press to exit.

Adjust general settings

You can change the screen background by using one built-in picture or your picture.

1 To use your picture as wallpaper, convert the picture into .bmp format and make sure it is in 800 x 480 pixel resolution first, then save the picture onto the map card, and then insert the map card into MAP slot.
2 Touch [Settings] > [General].
3 Touch ♦ or ♦ to highlight [WallPaper].
4 Touch ♦ or ♦ to select an option.

• [Blue]: Turn background color to blue.
• [Black]: Turn background color to black.
• [F1]: Select the F1 picture as background.
• [User]: Choose a picture as wallpaper.

5 If [User] is selected, a new window is displayed. Press or select a picture from the • list. Or
6 Touch [Scan SD] > to select a picture from the map card. The background picture is changed.
7 Press to exit.

Note

- Only picture saved in 800 x 480 pixel (resolution) and in .bmp format can be used as wallpaper.

Adjust sound settings

1 Touch [Sound].

Settings Sub woofer Off Sub woofer filter 120Hz DBB Off DBC Off

2 Touch an option repeatedly to select:

Sound settings	Options Description
[Sub woofer]	[On]	Turn on the subwoofer.
	[Off]	Turn off the subwoofer.
[Sub woofer filter]	[80Hz]	Select subwoofer filter criteria.
	[120Hz]
	[160Hz]
[DBB]	[On]	The Dynamic Bass Boost (DBB) function is on.
	[Off]	The DBB function is off.

Sound Settings	Options	Description
	settings
[DRC]	[On]	Makes loud sound level softer and soft sound level louder so that you can watch the DVD movies at a low volume, without disturbing others
[Off]		The DRC function is off.

3 Press to exit.

Adjust video settings

1 Touch [Video].

Settings Aspect ratio Full Video input Auto Rear camera Mirror Parking Off Divl registration code IZWV2D3

2 Touch an option repeatedly to select:

Video settings	Options Description
[Aspect ratio]	[Full] For widescreen display.
	[Normal] For normal display.
[Video input]	[Auto] The correct format is set automatically. Select this option if you are not sure which format should be selected.
	[NTSC] Used in the United States, Canada, Japan, Mexico, the Philippines, South Korea, Taiwan, and some other countries.
	[PAL] Used in China, India, Singapore, the western European countries (except France), Australia, and some other countries.
[Rear camera]	[Normal] When you drive in reverse, the rear view is displayed normally.
	[Mirror] When you drive in reverse, the rear view is displayed in mirror.
[Parking] [On]	Disable video view during drive.
	[Off] Enable video view during drive.
[DivX registration code]	View code for DivX registration.

3 Press to exit.

Adjust Bluetooth settings

1 Touch [Bluetooth].

Settings Bluetooth Off Auto connect Off Auto answer Off Pairing code ****

2 Touch an option repeatedly to select:

Bluetooth settings	Options Description
[Bluetooth]	[On] Turn on the Bluetooth function.
	[Off] Turn off the Bluetooth function.
[Auto connect]	[On] If the pre-paired device is within the effective range, the unit re-connects to pre-paired device automatically.
	[Off] Need to re-connect manually.
[Auto answer]	[On] Answer paired phone call automatically.
	[Off] Answer phone call manually.
[Pairing code]	Set code for pairing the unit with other Bluetooth devices.

3 Press to exit.

Adjust language settings

1 Touch [Language].

Settings OSD English DVD audio 简体中文 DVD subtitle 简体中文 Disc menu 简体中文

2 Touch an option repeatedly to select:

Language settings	Options Description
[OSD] [English] Select on-screen-display language.
	[简体中文]
	[繁体中文]
[DVD audio]	[English]	Select DVD audio language. Options available are depends on DVD disc.
	[简体中文]
	[繁体中文]
[DVD subtitle]	[English]	Select DVD subtitle language. Options available are depends on DVD disc.
	[简体中文]
	[繁体中文]
	[Off]	Turn off subtitle language display.
[Disc menu]	[English]	Select DVD menu language. Options available are depends on DVD disc.
	[简体中文]
	[繁体中文]

3 Press to exit.

Adjust volume settings

You can set different volume for different modes.

1 Touch [Volume].

The volume setting sub-menu is → displayed.

Settings DVD USB SDHC Radio Bluetooth 6

2 Touch on a source.

• [DVD]/[USB]/SD CMMB•
• [Radio]
• [Bluetooth]
• [AV-IN1]
• [AV-IN2]

3 Touch ♦ or ♦ to assign value: 0 to 12. When switches to the source, the → volume increases automatically.

4 Press to exit.

Adjust DVD rating

1 Touch [DVD rating].

Settings Set password Rating level Load factory ---- Kid safe Reset

2 Touch an option repeatedly to select:

DVD rating Options Description
[Set password]		Set password to restrict the play of discs. The default password is 0000.
[Rating level]	[Kid safe]	Acceptable for children.
	[G] Acceptable for general viewers.
	[PG] Parental guidance suggested.
	[PG-13] Unsuitable for children under age 13.
	[PG-R] Recommend parents to restrict children under 17 to view.
	[R] Restricted. Recommend parent to guide children under 17 to view.
	[NC-17] Unsuitable for children under age 17.
	[Adult] Acceptable for adults only.
[Load factory]		Restore to default settings.

3 Press → no exit.

10 Others

Listen to other devices

You can connect an external audio/video device to the unit.

1 Connect the car audio to the device with the supplied AV cable.

Technical line drawing of a mechanical device with mounting brackets and a stand (no text or symbols)

Diagram showing two types of electrical connectors: a switch and a plug, both without any text or symbols.

2 Touch the upper left corner to display the main menu.
3 Touch [AV-IN1].
4 Operated the connected the device (see the instructions manual of the device).

If you connected the system to other audio device through the REAR OUT L/R connector (see "Connect wires" section), touch [AV-IN2] to listen to that device.

Reset

When the unit hangs up, you can reset it.

1 Press RESET with a ball-point pen or similar tool.

Technical line drawing of a mechanical device with internal components and a circular inset view (no text or symbols)

Tip

When the unit is reset, all the settings remain unchanged.

If the fuse gets damaged immediately after it has been replaced, there may be an internal malfunction. In such case, consult your Philips dealer.

Replace fuse

If there is no power, the fuse may be damaged and need to be replaced.

1 Take out the unit from dashboard.
2 Check the electric connection.
3 Buy a fuse that matches the voltage of the damaged fuse (15A)
4 Replace the fuse.

11 Product information

Note

- Product information is subject to change without prior notice.

General

Power supply 12 V DC (11 V - 16 V), negative ground
Fuse	15 A
Suitable speaker impedance	4 - 8 Ω
Maximum power output	50 W x 4 channels
Continuous power output	24 W x 4 channels (4Ω 10% T.H.D.)
Pre-Amp output voltage	2.0 V (CD play mode; 1 kHz, 0 dB, 10 kΩ load)
Subwoofer output voltage	2.0 V (CD play mode, 61 Hz, 0 dB, 10 kΩ load)
Aux-in level	≥500 mV
Dimensions (W x H x D) (main unit)	178 x 100 x 160 mm
Weight (main unit)	2.5 kg
Operating temperature range	-20°C to 70 °C

Disc player

System DVD / CD audio /MP3 system
Frequency response 20 Hz - 20k Hz
Signal/noise ratio >75dB
Total harmonic distortion	Less than 1%
Channel separation >55dB
Video signal format NTSC only
Video output 1 +/- 0.2V

Radio

Frequency range - FM 87.5 - 108.0 MHz
Frequency range - AM (MW)	522 - 1620 KHz
Usable sensitivity - FM 5 uV
Usable sensitivity - AM (MW)	50 uV

LCD

Screen size 7 inches (16:9)
Display resolution 800 x 480 dots
Contrast ratio 600
Brightness	400 cd/m2

Bluetooth

Communication system	Bluetooth Standard version 2.0
Output	Bluetooth Standard Power Class 2
Maximum communication range	Line of sight approx. 8m
Frequency band	2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Compatible Bluetooth profiles	Hands-Free Profile (HFP)Handset Profile (HSP)Advanced Audio Distribution Profile (A2DP)Audio Video Remote Control Profile (AVRCP)
Supported codecs
Receive	SBC (Sub Band Codec)
Transmit	SBC (Sub Band Codec)

Compatible USB devices:

• USB flash memory (USB 2.0 or USB1.1)
• USB flash players (USB 2.0 or USB1.1)
• memory cards (SD / MMC / SDHC)

Supported formats:

• USB or memory file format: FAT16, FAT32
• MP3 bit rate (data rate): 32-320 Kbps and variable bit rate
• WMA v9 or earlier
• Directory nesting up to a maximum of 8 levels
• Number of albums/ folders: maximum 99
• Number of tracks/titles: maximum 999
• ID3 tag v2.0 or later
- File name in Unicode UTF8 (maximum length: 128 bytes)

Unsupported formats:

• Empty albums: an empty album is an album that does not contain MP3/WMA files, and is not be shown in the display.

Unsupported file formats are skipped. For example, Word documents (.doc) or MP3 files with extension .dlf are ignored and not played.

AAC, WAV, PCM audio files

DRM protected WMA files (.wav, .m4a, •.m4p, .mp4, .aac)

WMA files in Lossless format•

Supported MP3 disc format:

ISO9660, Joliet•

Maximum title number: 512 (depending • on file name length)

Maximum album number: 255•

Supported sampling frequencies: 32 kHz, • 44.1 kHz, 48 kHz

Supported Bit-rates: 32-320 Kbps and variable bit rate

Supported video formats:

DVD•

Divx Home theater•

MP4•

Xvid•

Note

To ensure a better playback, bit rate of 4.5 Mbps is recommended.

12 Troubleshooting

Warning

Never remove the casing of this apparatus.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.

No power

• Car engine has not been started. Start the car engine.
- Connections is incorrect.
• Fuse has been damaged. Replace fuse.

No sound

• Volume is too low. Adjust volume.
• Speaker connections is incorrect.

Disc does not play

• Disc is upside down. Ensure the printed side is upwards.
• Disc is dirty. Clean the disc with a clean, soft, lint-free cloth. Wipe the disc outwards from the center.
• Disc is defective. Try another disc.
- incompatible disc is used. Try another disc. Disc rating exceeds the restrict setting. Change the rating settings to lower one.
• Disc region code is not compatible with the unit. Use disc with proper region code.

No image

• Parking brake wire connection is incorrect. Check the parking wiring.

Image flashes or distorted

• Video DVD settings do not match with the DVD. Adjust video DVD settings.
• Video connection is improper. Check the connections.

Noise in broadcasts.

Signals are too weak. Select other stations with stronger signals.
Check the connection of the car antenna.
Change broadcast from stereo to mono.

Preset stations lost.

Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.

Fuse is broken

The Fuse type is incorrect. Replace it with a 15A fuse. Speaker wire or power wire is grounded. Check the connections.

Display show ERR-12

USB data error. Check the USB device.

About Bluetooth device

Music playback is unavailable on the system even after successful Bluetooth connection.

The device cannot be used with the • system to play music.

The audio quality is poor after connection with a Bluetooth-enabled device.

The Bluetooth reception is poor. Move the device closer to the system or remove any obstacle between the device and the system.

Cannot connect with the system.

The device does not support the profiles • required for the system.

The Bluetooth function of the device is • not enabled. Refer to the user manual of the device for how to enable the function. The system is not in the pairing mode. • The system is already connected with • another Bluetooth-enabled device. Disconnect that device or all other connected devices and then try again.

The paired mobile phone connects and disconnects constantly.

The Bluetooth reception is poor. Move • the mobile phone closer to the system or remove any obstacle between the mobile phone and the system.

Some mobile phones may connect and • disconnect constantly when you make or end calls. This does not indicate any malfunction of the system.

For some mobile phones, the Bluetooth • connection may be deactivated automatically as a power-saving feature.

This does not indicate any malfunction of the system.

13 Glossary

B

Bite rate

The max data transfer through the USB port.

Bluetooth

Bluetooth® is a short-rang wireless protocol that is meant to allow mobile devices to share information and applications without the worry of cables or interface incompatibilities.

The name refers to a Viking King who unified Denmark. Operate at 2.4GHz. For more information, see www.bluetooth.com.

M

MP3

A file format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

R

Region code

A system that allows discs to be played only in the region designated. This unit only plays discs that have compatible region codes. You can find the region code of your unit on the product label. Some discs are compatible with more than one region (or ALL regions.)

W

WMA (Windows Media Audio)

An audio format owned by Microsoft, is a part of Microsoft Windows Media technology. Includes Microsoft Digital Rights Management tools, Windows Media Video encoding technology, and Windows Media Audio encoding technology.

部件名称Name of the Parts	有毒有害物质或元素Hazardous/toxic Substance
	铅(Pb, Lead)	汞(Hg, Mercury)	镉(Cd, cadmium)	六价铬(Chromium 6+)	多溴联苯(PBB)	多溴二苯醚(PBDE)
Housing外壳	O	O		O	O
DVD/CD loader DVD/CD 光盒	X	O		O	O
LCD Panel液晶面板	X	X		O	O
Loudspeakers喇叭单元	O	O		O	O
PWBs电路板组件	X	O		O	O
Accessories (Remote control & cables)附件(遥控器,电源线,连接线)	X	O		O	O

O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363 - 2006.

X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363 – 2006.

环保使用期限 Environmental Protection Use Period

This logo refers to the period (10 years) during which the toxic or hazardous substances or elements contained in electronic information products will not leak or mutate so that the use of these [substances or elements] will not result in any severe environmental pollution, any bodily injury or damage to any assets.

All rights reserved.

Document order number: CID3288_93_UM_V1.0
