USER MANUAL CID3280 PHILIPS

Register your product and get support at

www.philips.com/welcome

CID3280

2 Your car audio system 5

Introduction 5

What's in the box 6

Overview of the main unit 7

3 Get started 8

Install the car audio 8

Turn on 10

Set date and time 10

Adjust screen 11

4 Use map 12

Upgrade the map 12

5 Listen to radio 13

Tune to a radio station 13

Store radio stations in memory 13

Tune to a preset station 14

6 Play 14

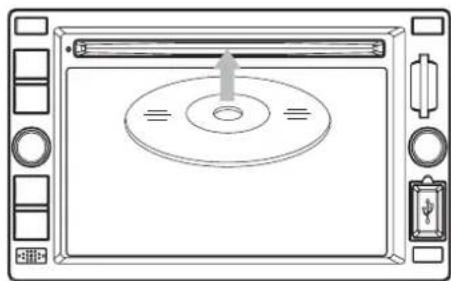

Load discs 14

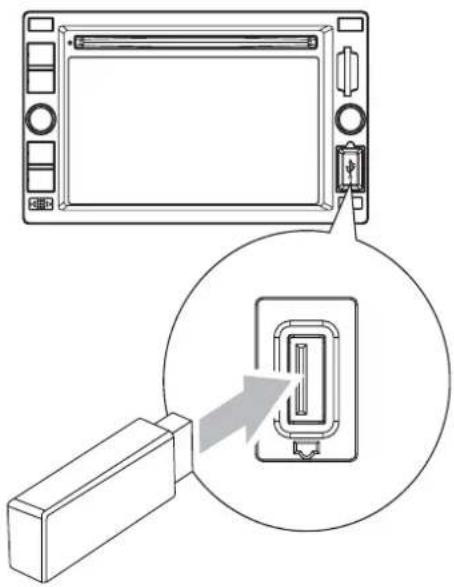

Connect USB device 15

Play/Pause 15

Search for a folder 15

Search within a title/folder 16

Repeat 16

Repeat a section 17

Random play 17

Select audio language 17

Select audio mode 17

Select subtitle language 18

Rotate pictures 18

Zoom 18

Select slide show duration 18

7 Play with Bluetooth device 19

Pair the Bluetooth-enabled devices 19

Make a call 19

Receive call 20

Listen to music from Bluetooth device 20

Adjust Bluetooth settings 21

8 Adjust sound 21

Adjust volume 21

Mute 21

Select preset equalizer 21

Adjut fader/balance 22

Set Dynamic Bass Boost (DBB) 22

9 Adjust settings 23

Display system setup menu 23

Adjust general settings 23

Adjust sound settings 24

Adjust video settings 24

Adjust Bluetooth settings 25

Adjust language settings 26

Adjust volume settings 26

Adjust DVD rating 26

10 Others 27

Reset 27

Remove the unit 27

Replace fuse 28

11 Product information 28

12 Troubleshooting 30

About Bluetooth device 31

13 Glossary 32

1 Important

Safety

Read and understand all instructions • before you use the apparatus. If damage is caused by failure to follow instructions, the warranty does not apply.

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

This unit is designed for negative ground • (earth) 12 V DC operation only.

To reduce the risk of traffic accident, do no watch video during driving.

To ensure safe driving, adjust the volume to a safe and comfortable level.

Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.

Use only the supplied mounting hardware • for a safe and secure installation.

To avoid short circuit, do not expose the • apparatus to rain or water.

Never insert objects into the ventilation • slots or other openings on the apparatus.

Never place any objects other than discs • into the disc tray/slot.

Visible and invisible laser radiation when open. Avoid exposure to beam.

Risk of damage to the screen! Never • touch, push, rub or strike the screen with any object.

Never use solvents such as benzene, • thinner, cleaners available commercially, or anti-static sprays intended for discs.

Clean the apparatus with soft, damp • cloth. Never use substances such as alcohol, chemicals or household cleaners on the apparatus.

Notice

Be responsible Respect copyrights

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

"DivX, DivX" Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

Official DivX® Certified product. Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Philips is under license.

DOLBY. DIGITAL

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Other trademarks and trade names are those of their respective owners.

This apparatus includes this label:

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment. 2010 © Koninklijke Philips Electronics N.V. All rights reserved.

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

2 Your car audio system

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With the car entertainment system, you can

Quickly found routine through the navigation system

And you can also enjoy:

Audio/video/JPEG pictures from•

DVD, VCD or CD•

USB devices•

External devices•

FM or AM (MW) radio•

Audio from Bluetooth-enabled devices•

Besides, you can make/receive phone calls with Bluetooth-enabled devices.

What's in the box

Check and identify the contents of your package:

①

②

③

④

⑤

⑥

⑦

⑧

⑨

10

①Main unit
②Trim plate
③Power cable
④AV out cable
⑤CMMB cable
⑥Audio cable
⑦I/O wire
⑧GPS antenna
⑨Screen cleaning cloth
⑩ Printing material (include User manual, Quick start guide)

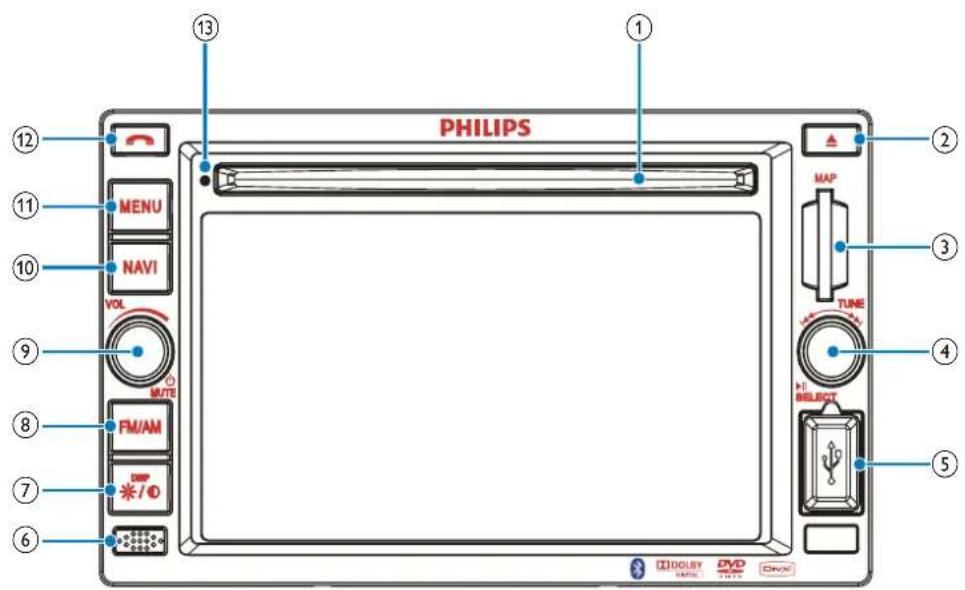

Overview of the main unit

PHILIPS ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ MENU NAVI VOL MUTE FM/AM */0 DOLBY DVD TUNE SELECT

English

①Disc slot

②

- Eject disc

③MAP

- Open the cover and insert/remove the GPS map card.

④TUNE/ ▶II SELECT

- Skip to the previous or next title, chapter, or track.

• Search backward/forward at different speeds.

• Confirm an entry or selection.

• Start, pause or resume play.

⑤

- USB socket

⑥Built-in microphone

⑦DISP/

- Adjust screen brightness/contrast/color.

Turn on/off the screen display. • Adjust the display aspect ratio. •

⑧FM/AM

Switch to the FM/AM source.

⑨VOL ①/MUTE

Adjust volume. Tum the unit on or off. Turn mute on or off.

⑩NAVI

Enter the GPS navigation system or • exit.

⑪MENU

Return to the home menu.

⑫

Answer phone. Dial number.

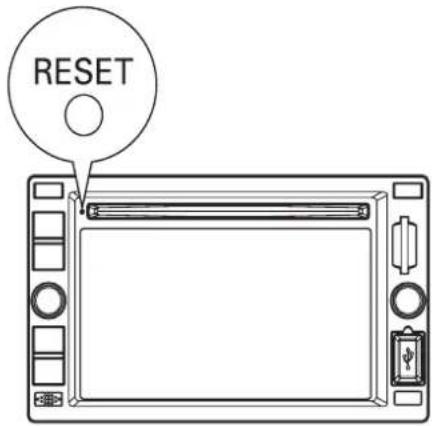

⑬RESET

Reset the unit when it hangs up.

3 Get started

Caution

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence.

Install the car audio

These instructions are for a typical installation. However, if your car has different requirements, make the corresponding adjustment. If you have any questions regarding installation kits, consult your Philips car audio dealer.

Caution

This unit is designed for negative ground • (earth) 12 V DC operation only.

• Always install this unit in the car dashboard. Other locations can be dangerous as the rear of the unit heats up during use.
  • To avoid short-circuit: before you connect, ensure that the ignition is off.
• Ensure that you connect the yellow and red power supply leads after all other leads are connected.
• Ensure that all loose leads are insulated with electrical tape.
• Ensure that the leads do not get caught under screws orin parts that will move (e.g. seat rail).
• Ensure that all ground (earth) leads are run to a common ground (earth) point.
• Use only the supplied mounting hardware for a safe and secure installation.
• Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.

Note on the power supply lead (yellow)

When you connect other devices to this system, ensure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

Notes on speaker connection

Never connect speaker wires to the metal body or chassis of the car.

Never connect speaker wires with stripes • to one another.

Connect wires

Caution

Ensure that all loose leads are insulated with electrical tape.

1 Check the car's wiring carefully, then do the other connections:

English
1. If the solution is the normal group means that ① to group ② (if then consensus PCONTR is ④ is ⑤) 2. Otherwise correct the speaker was a group ⑦ to group ⑧

Mount in the dashboard

Note

Check wire connection before you mount the unit into a car.

- If preset radio stations are lost when the ignition key is turned OFF and then back ON, reconnect the red leads crosswise to the yellow ones.

1 If the car does not have an on-board drive or navigation computer, disconnect the negative terminal of the car battery.

If you disconnect the car battery in • a car that has an on-board drive or navigation computer, the computer may lost its memory.

If the car battery is not disconnected, to avoid short-circuit, ensure that bare wires do not touch each other.

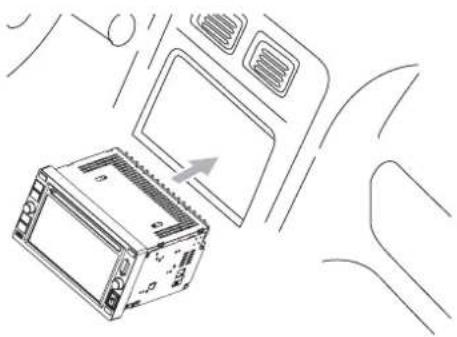

2 Slide the unit into the dashboard until a click sound is heard.

Line drawing of a device inside a car with an open door and ventilation grilles (no text or symbols)

3 Attach the trim plate.

Technical line drawing of a car front panel and its internal components, showing no text or symbols.

4 Reconnect the negative terminal of the car battery.

Turn on

Caution

Risk of road accidents! Never watch video or adjust settings while you drive.

1 Press

to turn on the unit.

The available OSD (On-Screen Display) → languages are displayed.

2 Touch a language to select.

The OSD language is changed to the selected language immediately.

To turn off the unit, press Ⓞ for 3 seconds.

Set date and time

1 Touch the upper left corner to display main menu.

Chu USB Radio Navigation Bluetooth 00:02 SAT 2009-08-01 SWC Camera AV_IN1 AV_IN2 Settings

If necessary, touch ◀ in the middle right side of the screen to display the 2nd screen.

2 Touch [Settings].

3 Touch [Time].

The date/time setup menu is displayed.

Settings Date 2009/5/1 Clock Mode 24hr Time 00:13

Set date

1 Touch [Date].
2 Touch on the displayed date information. A submenu is displayed.→

Settings Date 2009 / 5 / 1 Clock Mode Time

3 Touch ♦ or ♦ to set year, month and day.

Set clock mode

1 Touch [Clock mode].

Settings Date: 2009/5/1 Clock Mode 12Hr Time 00:14 AM

2 Touch on [12Hr] or [24Hr] to select clock mode.

Set time

1 Touch [Time].
2 Touch on the displayed time. A submenu is displayed.

Settings Date Clock Mode Time 00 : 14 AM

3 Touch ♦ or ♦ to set hour and minute.

When date/time is set, touch ⬆ to return to main menu.

Adjust screen

To adjust screen brightness/contrast/color

1 Press DISP/ / ⚙
2 Press or to select an item.
3 Touch / to adjust the value.
4 Press DISP/☀/☐ to confirm.

To turn on/off the screen, press and hold DISP/○/○.

4 Use map

Note

You may need to upgrade the map before using it (see "Upgrade the map" section)

1 Touch the upper left corner to display home menu.
2 Touch [Navigation]. The navigation menu is displayed in a → few seconds.

3 Refer to the map manual (in Chinese) to operate the navigation tool.

Mobile app screenshot showing a map interface with Chinese labels and location markers

Tip

- You can press NAVI to enter/exit the navigation system.

Upgrade the map

1 Turn off the car audio system.
2 Press the map card until you hear a click sound.
3 Take out the card and bring it to the authorized service center for upgrade.

Diagram of a device with a screen and control panel, showing an open door mechanism (no text or symbols present)

4 Insert the upgraded map card back into the map card slot.
5 Tum on the car audio. The map upgrades in a few minutes.

5 Listen to radio

Tune to a radio station

1 Touch the upper left corner to display home menu.
2 Touch [Radio]. Band and frequency information is ↩ displayed.

Radio CD Jia Optimal 87.50 MHz F/M 8750 96.10 98.10 106.10 107.90 102.90

3 Touch on FM or AM to select band: FM band options: • FM1, FM2, FM3 • AM band options: AM1, AM2
4 Briefly touch ◀ or ▶ to tune to a radio station by step. Touch •◀ or ▶ for over 1 seconds to tune to a radio station automatically.

Tune by frequency

1 Touch FM or AM to select band.
2 Touch，盲

Go to Save Radio Range Distance Search

3 Touch [Goto].

4 Touch the numbers to enter frequency.

Enter Freq FM: .... MHz 1 2 3 4 5 6 7 8 9 0 FM X

Touch •← to clear the last entered number. Touch •× to clear all the entered numbers.

5 Touch to confirm. The radio station is broadcast.

Select radio range

Before you start to search for radio stations, you can select radio range.

1 Touch.
2 Touch [Radio range] to toggle tuner sensitivity from normal to high sensitivity.

• [Distance]: Only stations with strong signals can be broadcast.
• [Local]: Stations with strong and weak signals can be broadcast.

Goto Save Radio Range Search

Store radio stations in memory

You can store up to 6 stations in each band.

Store stations manually

1 Tune to the station.
2 Touch.

3 Touch [Save].
4 Touch one of the channels 01 to 06 to save the select band.

000.00 DATE: 1998 Time: 1998 Date: 2000 Time: 2002 Date: 2004 Time: 2006 Date: 2008 Time: 2010 Date: 2012 Time: 2014 Date: 2016 Time: 2018 Date: 2020 Time: 2022 Date: 2024 Time: 2026 Date: 2028 Time: 2030 Date: 2032 Time: 2034 Date: 2036 Time: 2038 Date: 2040 Time: 2042 Date: 2044 Time: 2046 Date: 2048 Time: 2050 Date: 2052 Time: 2054 Date: 2056 Time: 2058 Date: 2060 Time: 2062 Date: 2064 Time: 2066 Date: 2068 Time: 2070 Date: 2072 Time: 2074 Date: 2076 Time: 2078 Date: 2080 Time: 2082 Date: 2084 Time: 2086 Date: 2088 Time: 2090 Date: 2092 Time: 2094 Date: 2096 Time: 2098 Date: 2100 Time: 2102 Date: 2104 Time: 2106 Date: 2108 Time: 2110 Date: 2112 Time: 2114 Date: 2116 Time: 2118 Date: 2120 Time: 2122 Date: 2124 Time: 2126 Date: 2128 Time: 2130 Date: 2132 Time: 2134 Date: 2136 Time: 2138 Date: 2140 Time: 2142 Date: 2144 Time: 2146 Date: 2148 Time: 2150 Date: 2152 Time: 2154 Date: 2156 Time: 2158 Date: 2160 Time: 2162 Date: 2164 Time: 2166 Date: 2168 Time: 2170 Date: 2172 Time: 2174 Date: 2176 Time: 2178 Date: 2180 Time: 2182 Date: 2184 Time: 2186 Date: 2188 Time: 2190 Date: 2192 Time: 2194 Date: 2196 Time: 2198 Date: 2200

Store stations automatically

You can search for a station with intro search, which broadcasts a 10-second preview of each detected radio station.

1 Select band.
2 Touch .盲
3 Touch [Search].

Auto search starts. The six strongest stations of the selected band are saved in preset channels 1-6 automatically.

Tune to a preset station

1 Touch [Radio].
2 Select band.
3 Touch one of the preset channels (01 to 06) to select a preset station.

Radio CD Jet Optimal 87.50 MHz FM Jia 8750 96.10 98.10 106.10 107.90 102.90

6 Play

Load discs

You can play video, audio or images stored on the following discs:

DVD video, DVD-R, DVD-RW•

VCD•

Audio CD, CD-R, CD-RW•

Note

Ensure that the disc contains playable content.

You can play DVD discs with the following region codes:

DVD region code Country

China

1 Insert the disc into the disc slot with label side facing up.

Play starts automatically.

Diagram of a CD or DVD disc with an arrow indicating direction, no text or symbols present

To remove the disc, press the button.

When the disc is ejected, the unit switches to the previous source, if connected. Otherwise, the unit switches to [Radio] mode automatically.

Connect USB device

Note

Ensure that the device contains playable • content.

1 Open the USB door.
2 Insert the USB device to the USB socket. Play starts automatically.

Diagram showing a device with an attached port and a close-up of its internal component (no text or symbols present)

Note

To remove the USB device, switch to disc, radio or other source first.

Play/Pause

1 Once a disc or USB device is inserted, play starts automatically.

For DVD movie, if a menu appears, press to start play.

2 To pause, touch . "To resume play, touch " again.

Search for a folder

For video files

1 Touch to return to playlist menu.
2 Touch to display all available video file folders.

USB/ 1 M2U00192

3 Touch a folder, then touch ♦ or ♦ to select a file.
4 Touch to start play.

For audio files

1 Touch to return to playlist menu.
2 Touch to display all available audio folders.

3 Touch a folder, then touch or to select a file.
4 Touch to start play.

For picture files

1 Touch to return to playlist menu.
2 Touch to display all available picture folders.
3 Touch a folder, then touch ♠ or ♦ to select a picture.
4 Touch to view the picture.

Search within a title/folder

Search by step

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch ♦ or ♦ to skip to the previous or next chapter/track.

Direct search

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch.

The search screen is displayed.

Enter track number. 1 2 3 4 5 6 7 8 9 0 X ✓

For video files, touch ➕ first, then touch 🌐

3 Touch the numbers to enter chapter/file number, then touch √. To clear the previous input, touch ←. To clear all input, touch ✗.

Repeat

During play, you can select different repeat play modes.

For DVD/VCD movie disc:

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

• [Repeat chapter]: play the current chapter repeatedly.
• [Repeat title]: play all chapters in the title repeatedly.
• [Repeat off]: cancel repeat play.

For VCD karaoke or audio CD:

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch to select:

• [Repeat]: play the current track repeatedly.
• [Repeat off]: cancel repeat play.

For MP3/WMA files:

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch to select:

• [Repeat]: play the current track repeatedly.
• [Repeat folder]: play all the tracks in the current folder repeatedly.
• [Repeat off]: cancel repeat play.

Repeat a section

You can repeat a specific section of video file (repeat A-B).

1 During play, touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch to display the 2nd menu, if necessary.

3 Touch repeatedly to mark:

• [Repeat A-]: the start of the section to repeat.
• [Repeat A-B]: the end of the section to repeat.
The selected section plays repeatedly.

4 To exit A-B repeat mode, touch repeatedly until [Repeat A-B off] is displayed.

Random play

You can play audio tracks/files in random order.

1 During play, touch repeatedly to turn random play on or off.
• ∞ is highlighted: start random play.
• × turns gray: cancel random play.

Select audio language

For video discs that contain two or more audio channels.

1 During play, touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch to display the 2nd menu.
3 Touch repeatedly. The audio channel information is ↓ displayed on the upper line of the screen.

Select audio mode

When you play VCDs, you can select an audio mode (R/L/Stereo).

1 During play, touch anywhere except for the upper left corner to display menu on the screen.
2 Touch repeatedly until the audio mode is selected.

Select subtitle language

For DVD or DivX discs that contain two or more subtitle languages.

1 During play, touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch to display the 2nd menu
3 Touch repeatedly to select a language. The selected language is displayed!

Rotate pictures

1 When you view pictures, touch anywhere except for the upper left corner to display menu on the screen, if necessary.

Aerial view of a floating platform or floating structure on water, captured in a digital interface (no visible text or symbols)

2 Touch repeatedly to rotate the picture.

Zoom

You can zoom in pictures for a close view.

1 During view pictures, touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch repeatedly to zoom in the picture.

Aerial view of a floating platform or floating structure in water, captured via a smartphone interface (no visible text or symbols on the structure itself)

3 Touch ♠, ♦, ◀ or ▶ to pan through the enlarged picture.

Select slide show duration

1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.
2 Touch repeatedly to select:

- Fast: 3 seconds

• Normal: 5 seconds

- Slow: 8 seconds

7 Play with Bluetooth device

You can make or receive phone calls with Bluetooth-enabled phones through the unit. You can also listen to music from a Bluetooth-enabled device.

Pair the Bluetooth-enabled devices

To connect your Bluetooth device to the unit, you need to pair the device to the unit. Pairing needs only to be done once. You can pair up to eight devices.

Note

The operational range between this unit and a Bluetooth device is approximately 10 meters (30 feet).
- Before you connect a Bluetooth device to this unit, familiarize yourself with the Bluetooth capabilities of the device.
- Compatibility with all Bluetooth devices is not guaranteed.
- Any obstacle between this unit and a Bluetooth device can reduce the operational range.
- Keep this unit away from any other electronic device that may cause interference.
• Turn on the Bluetooth function on the device.

1 Search for Bluetooth device with the device.
2 Select "CID3280" in the pairing list.
3 Enter default password "0000". if pairing succeeds. phone call record is ↩ displayed.

NX200 Bluetooth Auto Connect On Auto Answer On Pairing Code ****** Phone Book Sync

Disconnect Bluetooth devices

1 To disconnect one device, touch (green) is displayed.

Tip

The device will also be disconnected when the device is moved beyond the operational range.

• If you want to reconnect the device to the unit, place it within the operational range.
• If you do not want to reconnect the device to the unit automatically, touch 📄 [Auto connect], then select [Off]. For details, see the "Adjust Bluetooth settings" section.

Make a call

1 Pair the phone with the unit.
2 Touch the upper left corner to display the home menu.
3 Touch [Bluetooth]. The Bluetooth menu is displayed.

海海 NX200

4 Touch ♦ or ♦ to select the paired phone, then touch ⬤.

5

Touch ♠ or ♦ to search for phone number from the following list:

Options Bluetooth Auto Connect On Auto Answer On Pairing Code Phone Book Sync

• [Missed calls]
• [Received calls]
• [Dialed calls]
• [Phone book]
• [Sim phone book]
• [Local phone book]

Or touch ■ to dial number directly, then touch

to dial.

Receive call

By default, all incoming calls are received automatically.

1 If there is incoming call, [Incoming call...] flashes on the screen. Speak into the Bluetooth microphone.

Bluetooth / Nokia 5008 1388886666 Incoming call... 00:00:00

2

When conversation ends, touch 📄 to terminate the call.

Tip

You can select to receive calls manually by set • [Auto answer] to [Off] status.

Switch phone call to the mobile

If you do not want your passenger to hear your incoming call, you can switch the call to the mobile.

1 During talking, touch .

The voice is transferred from the unit's loudspeaker to the mobile phone.

Listen to music from Bluetooth device

If the connected Bluetooth device supports Advanced Audio Distribution Profile (A2DP), you can listen to the music stored on the device through the unit. If the device also supports Audio Video Remote Control Profile (AVRCP) profile, you can use the control on the unit to play music stored on the device.

1 Pair the phone with the unit.
2 Touch the upper left corner to return to home menu.
3 Touch [Bluetooth]

The Bluetooth menu is displayed.

4 Start play music via device.

If your device support AVRCP.

1 Touch.

K790c

2 Touch to start play.

Adjust Bluetooth settings

You can change below Bluetooth settings:

• [Bluetooth]: to turn on or off "Bluetooth" function
  • [Auto connect]: to turn on or off "Auto connect" function
  • [Auto answer]: to turn on or off "Auto answer" function
  • [Pairing code]: to set paring code
  • [Phone Book Sync]: to synchronize phone book

1 In Bluetooth menu, touch . The option menu is displayed.

Options Bluetooth Auto Connect On Auto Answer On Pairing Code **** Phone Book Sync

2 Touch on the selected option to change the setting.

Tip

You can also adjust Bluetooth settings in the • "Settings" menu.

8 Adjust sound

Adjust volume

1 Tum clockwise to increase volume. Tum • anti-clockwise to reduce volume.

Mute

1 During play, press ① To turn the sound back on, press ② again.

Tip

You can also turn off sound by touching ★ on the screen.

Select preset equalizer

You can select preset equalizer:

• [User]
  • [Techno]
  • [Rock]
  • [Classic]
  • [Jazz]
  • [Optimal]
  • [Flat]
  • [Pop]
  1 Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2 Touch .

The current Equalizer setting is displayed.

Sens Mud Odds LPR MFF MFY -6 B -4 MHz 1kHz 3kHz Optimal

3 Touch or to select an EQ.

4 Touch ▲ or ▼ to adjust below settings:

• [Bass]bass range: -14 to +14.
• [Mid]middle range: -14 to +14.
• [Treb]treble range: -14 to +14.
• [LPH] low pass filter range: 60, 80, 100, 200.
• [MPF]middle pass filter range: 500, 1K, 1.5K, 2.5K.
• [HPF]high pass filter range: 10K, 12.5K, 15K, 17.5K.

5 Touch to restore the above settings into default settings.

6 Press to exit.

Adjut fader/balance

You can also adjust the front and rear speaker balance, the left and right speaker balance, and subwoofer settings.

Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

1 Touch .
2 Touch

Below options are displayed:

EQ Fate 5 Balance 5 Sub L R R +4

3 Touch ▲ or ▼ to select subwoofer volume.

• [Sub] subwoofer volume: 0 to 24.

4 Touch F, R, L, or R to adjust fader/balance value.

• [Fade]fader range: +24 to -24. (F = front speaker, R = rear speaker)
• [Balance] balance range: -24 to +24. (L = left speaker, R = right speaker)

5 Touch to exit.

Set Dynamic Bass Boost (DBB)

1 Touch 📄 toggle between the settings.

• [DBB] on: The DBB icon is illuminated.
- [DBB] off (default): The DBB icon is gray.

9 Adjust settings

Display system setup menu

1 Touch the upper left corner to display main menu.

00 11 Fri May 1, 2009

2 Touch [Settings]. The settings menu is displayed.

Adjust general settings

1 Touch [General], if necessary.

Settings Radio region China Radio range Local Blackout off Key color Blue Beep On

2 Touch ♦ or ♦ to highlight a setting.

3 Touch on the option to display/select an option.

General settings	Options Description
[Radio region]	[USA], [S.Amer-1], [Arabia], [China], [S.Amer-2], [Europe], [Korea], [OIRT]	Select one that matches your location.
[Radio range]	[Local] Only stations with strong signals can be broadcast.
	[Distance] Stations with strong and weak signals can be broadcast.
[Blackout]	[off] Never turn on the screen saver.
	[10s] Turn on the screen saver automatically 10 seconds after last operation.
	[20s] Tum on the screen saver automatically 20 seconds after last operation.
[Auto dimmer]	[On] Turn on the screen dim automatically 5 seconds after last operation.
	[Off] Never turn the screen dim.
[Key color]	[Red] Button backlight turns red.
	[Blue] Button backlight turns blue.

General settings	Options Description
[Beep] [On]	Tum on the beep sound.Each time you press a button, the unit beeps.
	[Off] Tum off the beep sound.
[WallPaper] [Blue]	Turn background color to blue.
[Black]	Turn background color to black.
[Red]	Turn background color to red.
[F1]	Select F1 picture as wall paper.
[Calibration]	Calibrate the touch screen.

4 Press to exit.

Adjust sound settings

1 Touch [Sound].

Settings Sub woofer Off Subwoofer filter 120Hz D8B Off DRC Off

2 Touch an option repeatedly to select:

Sound settings	Options Description
[Sub woofer]	[On] Turn on the subwoofer.
	[Off] Turn off the subwoofer.
[Sub woofer filter]	[80Hz] Select subwoofer filter criteria.
	[120Hz]
	[160Hz]
[DBB] [On] The Dynamic Bass Boost (DBB) function is on.
	[Off] The DBB function is off.
[DRC] [On] Makes loud sound level softer and soft sound level louder so that you can watch the DVD movies at a low volume, without disturbing others
	[Off] The DRC function is off.

3 Press to exit.

Adjust video settings

1 Touch [Video].

Settings Aspect ratio Full Video input Auto Rear camera Mirror Parking Off DivX registration code IZWV42D3

2 Touch an option repeatedly to select:

Video settings	Options Description
[Aspect ratio]	[Full] For widescreen display.
	[Normal] For normal display.
[Video input]	[Auto] The correct format is set automatically. Select this option if you are not sure which format should be selected.
	[NTSC] Used in the United States, Canada, Japan, Mexico, the Philippines, South Korea, Taiwan, and some other countries.
	[PAL] Used in China, India, Singapore, the western European countries (except France), Australia, and some other countries.
	[Secam] Used in France, Russia and other countries.
[Rear camera]	[Normal] When you drive in reverse, the rear view is displayed normally.
	[Mirror] When you drive in reverse, the rear view is displayed in mirror.
[Parking]	[On] Disable video view during drive.
	[Off] Enable video view during drive.
[DivX registration code]	View code for DivX registration.

3 Press to exit.

Adjust Bluetooth settings

1 Touch [Bluetooth].

Settings Bluetooth Off Auto connect Off Auto answer Off Pairing code **** * * * *

2 Touch an option repeatedly to select:

Bluetooth settings	Options Description
[Bluetooth]	[On] Turn on the Bluetooth function.
	[Off] Turn off the Bluetooth function.
[Auto connect]	[On] If the pre-paired device is within the effective range, the unit re-connects to pre-paired device automatically.
	[Off] Need to re-connect manually.
[Auto answer]	[On] Answer paired phone call automatically.
	[Off] Answer phone call manually.
[Pairing code]	View code for pairing the unit with other Bluetooth devices.

3 Press to exit.

Adjust language settings

1 Touch [Language].

Settings OSD English DVD audio 简体中文 DVD subtitle 简体中文 Disc menu 简体中文

2 Touch an option repeatedly to select:

Language settings	Options Description
[OSD] [English]	Select on-screen-display language.
	[简体中文]
	[繁体中文]
[DVD audio]	[English] Select DVD audio language. Options available are depends on DVD disc.
	[简体中文]
	[繁体中文]
[DVD subtitle]	[English] Select DVD subtitle language. Options available are depends on DVD disc.
	[简体中文]
	[繁体中文]
	[Off] Turn off subtitle language display.
[Disc menu]	[English] Select DVD menu language. Options available are depends on DVD disc.
	[简体中文]
	[繁体中文]

3 Press to exit.

Adjust volume settings

You can set different volume for different modes.

1 Touch [Volume]. The volume setting sub-menu is → displayed.

Settings DVD USB SDHC Radio Bluetooth 6

2 Touch on a source.

• [DVD]
• [USB]
• [SDHC]
• [Radio]
- [Bluetooth]
• [AV-IN1]
• [AV-IN2]
• [CDC]
• [TV]
• [Navigation]

3 Touch ♦ or ♦ to assign value: 0 to 12. When switches to the source, the → volume increases automatically.

4 Press to exit.

Adjust DVD rating

1 Touch [DVD rating].

Set password Rating level Load factory ---- Kid safe Reset

2 Touch an option repeatedly to select:

DVD rating Options Description
[Set password]	Set password to restrict the play of discs. The default password is 0000.
[Rating level]	[Kid safe] Acceptable for children.
	[G] Acceptable for general viewers.
	[PG] Parental guidance suggested.
	[PG-13] Unsuitable for children under age 13.
	[PG-R] Recommend parents to restrict children under 17 to view.
	[R] Restricted. Recommend parent to guide children under 17 to view.
	[NC-17] Unsuitable for children under age 17.
	[Adult] Acceptable for adults only.
[Load factory]	Restore to default settings.

3 Press → to exit.

10 Others

Reset

When the unit hangs up, you can reset it.

1 Press RESET with a ball-point pen or similar tool.

RESET

When the unit is reset, all the settings remain unchanged.

Remove the unit

To repair, replace fuse, or replace the unit with another car audio, remove it from the dashboard.

1 Take off the trim plate.
2 Screw off the four (4) screws on the left/right side of the unit.
3 Pull the unit out from the dashboard.

Technical line drawing of a car front panel and its top-down view, showing internal components and airflow direction (no text or symbols)

Replace fuse

If there is no power, the fuse may be damaged and need to be replaced.

1 Take out the unit from dashboard.
2 Check the electric connection.
3 Buy a fuse that matches the voltage of the damaged fuse (15A).
4 Replace the fuse.

If the fuse gets damaged immediately after it has been replaced, there may be an internal malfunction. In such case, consult your Philips dealer.

11 Product information

Note

Product information is subject to change without prior notice.

General

Power supply 12 V DC (11 V - 16 V), negative ground
Fuse 15 A
Suitable speaker impedance	4 - 8 Ω
Maximum power output	50 W x 4 channels
Continuous power output	24 W x 4 channels (4Ω 10% T.H.D.)
Pre-Amp output voltage	2.0 V (CD play mode; 1 kHz, 0 dB, 10 kΩ load)
Subwoofer output voltage	2.0 V (CD play mode, 61 Hz, 0 dB, 10 kΩ load)
Aux-in level	≥500 mV
Dimensions (W x H x D)	178 x 100 x 160 mm
Weight (main unit) 2.5 kg

Disc player

System DVD / CD audio /MP3 system
Frequency response 20 Hz - 20k Hz
Signal/noise ratio >75dB
Total harmonic distortion	Less than 1%
Channel separation >55dB
Video signal format NTSC only
Video output 1 +/- 0.2V

Tuner

Frequency range - FM	87.5 - 108.0 MHz(Europe)
Frequency range - AM (MW)	522 - 1620 KHz(Europe)
Usable sensitivity - FM	5 uV
Usable sensitivity - AM (MW)	50 uV

LCD

Screen size	6.5 inches (16:9)
Display resolution	800 x 480 dots
Contrast ratio	300
Brightness	350 cd/m2

Bluetooth

Communication system	Bluetooth Standard version 2.0
Output	Bluetooth Standard Power Class 2
Maximum communication range	Line of sight approx. 8m
Frequency band	2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Compatible Bluetooth profiles	Hands-Free Profile (HFP)Handset Profile (HSP)Advanced Audio Distribution Profile (A2DP)Audio Video Remote Control Profile (AVRCP)
Supported codecs
Receive	SBC (Sub Band Codec)
Transmit	SBC (Sub Band Codec)

Compatible USB devices:

USB flash memory (USB 2.0 or •

USB1.1)

USB flash players (USB 2.0 or •

USB1.1)

memory cards (SD / MMC / SDHC)

Supported formats:

USB or memory file format: FAT16, FAT32

MP3 bit rate (data rate): 32-320 Kbps and variable bit rate

WMA v9 or earlier•

Directory nesting up to a maximum of • 8 levels

Number of albums/ folders: maximum 99•

Number of tracks/titles: maximum 999• ID3 tag v2.0 or later•

File name in Unicode UTF8 (maximum • length: 128 bytes)

Unsupported formats:

Empty albums: an empty album is an • album that does not contain MP3/WMA files, and is not be shown in the display.

• Unsupported file formats are skipped. For example, Word documents (.doc) or MP3 files with extension .dlf are ignored and not played.
  • AAC, WAV, PCM audio files
• DRM protected WMA files (.wav, .m4a, .m4p, .mp4, .aac)
  • WMA files in Lossless format

Supported MP3 disc format:

• ISO9660, Joliet
• Maximum title number: 512 (depending on file name length)
Maximum album number: 255•
• Supported sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz
• Supported Bit-rates: 32-320 Kbps and variable bit rate

Supported video formats:

• DVD
• Divx Home theater
• MP4
• Xvid

Note

To ensure a better playback, bit rate of 4.5 Mbps is recommended.

12 Troubleshooting

Warning

Never remove the casing of this apparatus.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.

No power

Car engine has not been started. Start • the car engine.

Connections is incorrect.

Fuse has been damaged. Replace fuse.

No sound

Volume is too low. Adjust volume. Speaker connections is incorrect.

Disc does not play

Disc is upside down. Ensure the printed side is upwards.

• Disc is dirty. Clean the disc with a clean, soft, lint-free cloth. Wipe the disc outwards from the center.
• Disc is defective. Try another disc.
• incompatible disc is used. Try another disc.
• Disc rating exceeds the restrict setting. Change the rating settings to lower one.
- Disc region code is not compatible with the unit. Use disc with proper region code.

No image

- Parking brake wire connection is incorrect. Check the parking wiring.

Image flashes or distorted

Video DVD settings do not match with • the DVD. Adjust video DVD settings. Video connection is improper. Check the • connections.

Noise in broadcasts

Signals are too weak. Select other • stations with stronger signals. Check the connection of the car antenna.• Change broadcast from stereo to mono.•

Preset stations lost

Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.

Fuse is broken

The Fuse type is incorrect. Replace it with a 15A fuse. Speaker wire or power wire is grounded. Check the connections.

Display show ERR-12

USB data error. Check the USB device.

About Bluetooth device

Music playback is unavailable on the system even after successful Bluetooth connection.

The device cannot be used with the • system to play music.

The audio quality is poor after connection with a Bluetooth-enabled device.

The Bluetooth reception is poor. Move • the device closer to the system or remove any obstacle between the device and the system.

Cannot connect with the system.

The device does not support the profiles • required for the system.

The Bluetooth function of the device is • not enabled. Refer to the user manual of the device for how to enable the function.

• The system is not in the pairing mode.

The system is already connected with • another Bluetooth-enabled device. Disconnect that device or all other connected devices and then try again.

The paired mobile phone connects and disconnects constantly.

The Bluetooth reception is poor. Move • the mobile phone closer to the system or remove any obstacle between the mobile phone and the system.

Some mobile phones may connect and • disconnect constantly when you make or end calls. This does not indicate any malfunction of the system.

For some mobile phones, the Bluetooth • connection may be deactivated automatically as a power-saving feature.

This does not indicate any malfunction of the system.

13 Glossary

B

Bite rate

The max data transfer through the USB port.

Bluetooth

Bluetooth® is a short-rang wireless protocol that is meant to allow mobile devices to share information and applications without the worry of cables or interface incompatibilities. The name refers to a Viking King who unified Denmark. Operate at 2.4GHz. For more information, see www.bluetooth.com.

M

MP3

A file format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

R

Region code

A system that allows discs to be played only in the region designated. This unit only plays discs that have compatible region codes. You can find the region code of your unit on the product label. Some discs are compatible with more than one region (or ALL regions.)

W

WMA (Windows Media Audio)

An audio format owned by Microsoft, is a part of Microsoft Windows Media technology. Includes Microsoft Digital Rights Management tools, Windows Media Video encoding technology, and Windows Media Audio encoding technology.
