USER MANUAL BPA-4071-A BRIGMTON

1: USB
2: Botón USB

1. Important Safety instructions
2. Function overview
3. Basic operation
4. About battery
5. Main menu
6. Music mode
7. Record mode
8. System mode
9. USB disk function
10. Encrypt disk function
11. Upgrading
12. Troubleshooting
13. Specification
14. Support Micro-SD card function

1. Important Safety Instructions

The manual contains important safety instructions and information of the device's proper usage. Make sure to read carefully and understand all the instructions to avoid accidents.

• Please do not expose the device in the extreme temperature (above 40°C), especially in cars with window closed during summer.
• Please do not store it in the humid or dirty area.
• Please avoid the device falling and bumping strongly.
• Please do not turn up the volume of the earphones too high while using it. If you feel ringing in your ears stop using the device or turn the volume down.
• Please do not disassemble the device by yourself and do not wipe the surface of device with alcohol or benzene or thinners.
• Please do not use the device in areas where electronic devices are prohibited.
• It is not suggested to use the device when you are driving or walking in the street.

2. Function overview

• LCD Display
• Integrated Micro-SD card, support capacity up to 8GB
• Plays MP3, WMA music format file
• Built in Li-ion battery
• Built in digital voice recording function
• Product Dimension: 85 x 28 x 13.2 MM

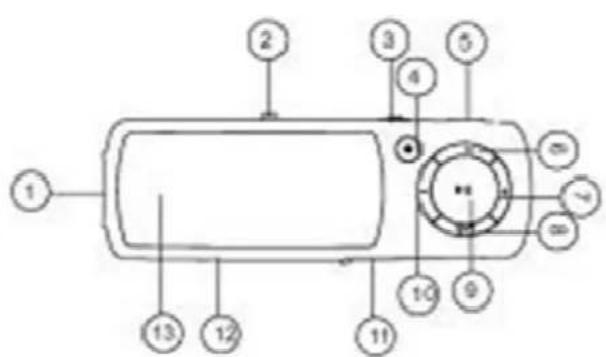

1: USB
2: USB Push the knob

3: Power ON/OFF
4: REC
5: Earphone jack
6: Mode
7: Next
8: V/T
9: Play / Pause
10: Previous
11: Micro SD card slot
12: MIC
13: LCD Display

3. Basic Operation

Power on/Power Off:

Push the button to "ON" position to turn on the device.

Long press >|| button for 3 seconds to turn off the device, then push the button to "OFF" position.

Remarks: "ON /OFF" position is for you to power on/off completely the battery

Power off:

a. In music mode: press [>||] (play/stop) button for one second, the music will stop, long press [>||] (play/stop) button for three seconds, the player will be turned off.
b. In other modes: long press [>||] (play/stop) button for three seconds, the player will be turned off.
c. When battery power is low, system will automatically power off.

Adjusting the volume in music mode, and voice mode, press [VOL] button will enter to volume adjustment interface. Pressing [>>|] button or [|<<] button will increase/decrease the volume one step. Long press [>>|] button or [|<<] button will increase/decrease continuously.

Notice: Do not turn up the volume too high when you put on the earphones, otherwise your hearing will be injured.

4. About Battery

The player adopts a built-in Li-polymer battery with large capacity.

If battery power is low, the screen will display "low power" then will automatically power off.

Recharge your battery by connecting to PC via USB.

The screen displays battery icon and impulse when recharging battery. The icon will indicate full when completely recharged.

The battery will be full when charged continuously for 4 hours (the first two times will take 10hrs).

The running time of battery depends on high or low of volume, playing files format, button operation, etc.

The user can set [power off setting] to save power.

5. Main menu

Press [MENU] button to enter into subsidiary menu: press [|<<] button or [>>|] button to select.

Save setting: hold [MENU] button to save and exit from menu.

✿ Music mode: playing music ( for more details, refers to "playing music")
Record mode: recording voice ( for more details, refers to "recording voice")
System mode: edit system ( for more details, refers to following "system setting" )

6. Music mode

Play/Stop Play: In music mode, connect the earphone to the player, then press PLAY/STOP [>||] button to play or stop.
Select music: Pressing [>>|] button briefly will move to the next songs. Holding [|<<] button will move to the previous songs.
Music mode menu: In music play mode, pressing [MENU] button will enter sub-menu. press [|<<]

button or [>>|] button to select the mode, then press [MENU] button to confirm selection: Repeat, Equalizer, Replay. Replay times. Replay gap, Exit

✿ Repeat mode: press [I<<] button and [>>I] button to select repeat mode. Normal; Repeat One; Folder; Repeat Folder; Repeat All; random; intro.
♦ Equalizer mode: JAZZ, CLASSIC, ROCK, POP, NORMAL, SOFT, DBB
Tempo rate: press [I<<] button and [>>I] button to select tempo rate. Moving to positive direction will fast tempo rate and moving to negative direction will slow tempo rate. The digit "0" means normal tempo rate.
✿ Replay: A-B repeat, when "A" in the icon 📄 blinks, swing [>||] to confirm start point, swing [NEXT] as "B" point. The player will replay from A to B according to the setting in the replay times.
✿ Replay times: In music play menu, press [I<<] button or [>>I] button to select replay time. Then press [MENU] button to confirm. Set how many times the A-B point replay Maximum is 10 times (1-10).
✿ Replay gap, set replay time gap between every replay.
- Lyric display: User can download lyrics from website and save them in the player with the same name of music.

Notice: The player displays lyric name as the same as the MP3 file name. For example, music file name is "song.mp3" and LRC file name must be "song.lrc", they should also be in the same folder.

7. Record mode

In player main menu, press [MENU] button to confirm selecting record mode,

B. Press the front Red Button to start/stop recording. Press M button to save and exit.

Notice:

1) For fine recording, please record in quiet background.
2) Please do not talk before recording and start recording in 5\~6 seconds.
3) Make sure battery power and disk memory are sufficient.
4) The player support 99 voice recording files storage in each directory. If the screen displays "out of space", which indicates the current directory has already saved 99 voice recording files, the user need to change to a new directory.
5) During recording, only front Red Button and [MENU] button can be effective.

8. System mode

Press [I<<] button or [>>I] button to select [system], then press [MENU] button briefly to edit.

System Time	Press [MENU] to edit recording time. Swing [NEXT] button and the digit of year will increase; swing [VOL+] button to edit next digit, push [PRE] or [NEXT] button to adjust the digit. Press [MENU] to confirm the setting
LCD set	Always light10 Sec20 Sec30 Sec
Language	Simple Chinese, English, Trad Chinese, Japanese, French, German, Italian, Dutch, Portuguese, Spanish, Swedish, Czech, Denmark, Polish etc.
Power off	Off time: set self-power off time when the player is stopped and no button is pressed. The time unit is seconds. 0 means set off the function.Sleep time: set self-power off time after last key pressed, regardless of whether the player is active or stopped. The time unit is minutes.
Memory info.	Check the memory size and the remaining memory
Firmware version	Display the player's firmware version
Firmware upgrade	Firmware can be upgraded via connection to PC
Exit Exit from the sub-menu

9. USB disk function

5) The player can be a large mobile storage device, supports 1GB/2GB/4GB/8GB memory
6) Above windows 98 no driver is required, plug and play to the computer
7) The player supports USB bus-powered and begins to charge when connecting to PC.
8) When connected to a computer, the screen will indicate three different modes while operating:

	data downloading suspending mode
data uploading

10. Encrypt disk function

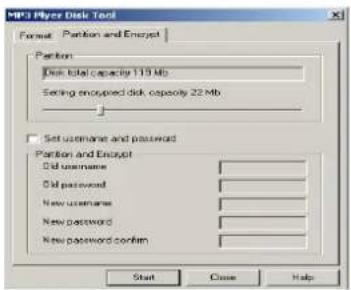

User can use the software to set partitions for USB disk. One is normal disk, the other is encrypted disk. (User can see two disk icons in computer. WINDOWS 2K need install SP4, otherwise, user only see one disk icon and selecting [normal only] or [encrypt only] from [online mode] of [system setting]. Encrypted disk would hide all private data, others cannot access data without password.

Notice:

1) Data in encrypted disk cannot be readable in the player.
2) It is necessary for encrypted disk to input user name and password when connecting to computer.
3) Setting partitions will erase data, please backup data in advance. Combining disks would also erase data.
4) Please do not lose username and password. Otherwise, you cannot access encrypted disk. You can combine disks to cancel encrypted disk at risk of damaging data in encrypted one.

11. Upgrading

Use update tool installed in your computer to update and repair the damaged driver.

5) Connect player to the computer
6) Run the software: Start----program----MP3 Player Utilities ---- MP3 Player Upgrade Tool, click [choose new version firmware] button.

7) Select the new firmware driver (from the installation CD or from the website of the supplier). Click [start] button to begin upgrading.
8) When upgrading is successful, the display will indicate successfully upgraded Find the icon of removable disk in [my computer]. Click the right button of mouse to select [format]. In formatting interface, select FAT system in [file system], then click [start] button to format disk. Notice: formatting disk would erase all the data and please backup data before formatting.

12. Troubleshooting

If the player couldn't play properly, please use trouble-shooting guide to help you.

Symptom Solution
The player cannot work	Please check the voltage of batteryMake sure the power button is onPlease check if volume is set to "0" or not and make sure that earphones are connected properly.Damaged music data will make noise in some extent; make sure there are files in the player.choose right FAT file system in dialogue when formatting disk.
The player cannot upload /download files; no disk icon in computer	Please check USB cable is correctly connected.Please properly re-install CD driver if under Win 98
The player cannot record	Please check if memory is sufficient.Please check the battery voltage.
Strange characters are displayed	Please check if the correct language is selected.
FM radio signal is not clear	Readjust the position between player and earphone; earphone can be used as antenna receive the signal

If you had other difficulties in warranty period, please feel free contact our company to help you solve the problem.

13. Specification

Item Specification
Dual color LCD screen 128X64 pixel
Operating language	Simplified Chinese, English, traditional Chinese, Japanese, French, German, Italian, Dutch, Portuguese, and Spanish etc.
Transferring data rate	USB2.0 (writing 1000K Byte/s, writing 750K Byte/s)
File formats supported	Music: MP1, MP2, MP3, WMA, WAVRecord: WAV
FM frequency 87MHz—108MHz
The max output power (L) 10mW	+(R) 10mW (320hm)
Built-in memory 4GB
Power 3.7 V Li-polymer battery
Operating temperature	-5°C ~ 40°C
Operating System	WINSE/ME/2K/XP,Mac OS 10,Linux2.4.2(Only WIN98 needs the CD driver)
Accessories	User Manual, 2 Earphones

14. Support Micro-SD card function

Plug and pull Micro-SD Card :

Plug : Connect Micro-SD Card to the device by inserting the card at its observe side to the socket of device, thus the MP4 player can play the files in the Micro-SD Card.

Pull: Push Micro-SD Card, thus Micro-SD Card will rebound a little. Then it's available to take it out.

"Features can be changed without notice"
