USER MANUAL H-CDM8036 HYUNDAI

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents 2

Important safeguards....3

Installation/ Connections....4

Panel controls 9

General operations 12

Digital tuner operations....15

CD/ SD/ MMC/ USB operations....19

MP3 overview 23

Bluetooth (hands-free) operations....25

Anti-theft system....35

Handling discs....35

Cleaning....36

Troubleshooting guide....37

Specification....38

Important safeguards

  • Read carefully through this manual to familiarize yourself with this high-quality sound system.
  • Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
  • When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
    • DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
  • Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
  • If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
    • DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
  • Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
  • Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the system.
  • The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please confirm it before installation.
  • Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
  • Do not install the detachable panel before connecting the wire.

Installation/ Connections

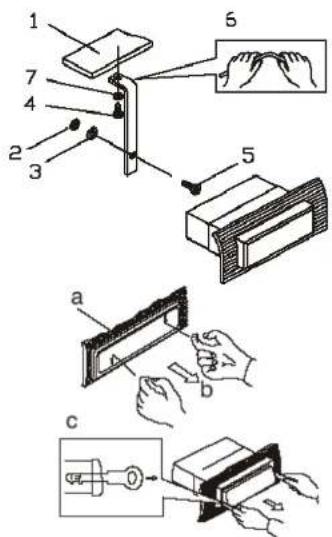

Din front-mount (method 1)

• After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure the holder in place.
- Insert fingers into the groove in the front of frame and remove it.
- Insert the levers supplied with the unit to the grooves at both sides. The unit can be installed or removed from the dashboard.

  1. Dashboard
  2. Nut (5mm)
  3. Spring washer
  4. Screw (5 x 25mm)
  5. Screw
  6. Strap
  7. Plain washer

HYUNDAI H-CDM8036 - Din front-mount (method 1) - 1

text_image Technical diagram showing three labeled components: a rectangular block, a magnified view of a tool interacting with it, and a separate 3D block.

HYUNDAI H-CDM8036 - Din front-mount (method 1) - 2

text_image Technical diagram illustrating a hand tool application with labeled parts and steps for cleaning or assembly.

Removing the unit

a. Frame
b. Insert fingers into the groove in the front of frame and pull out to remove the frame. (When reattaching the frame, point the side with a groove down wards and attach it.)
c. Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click. Pulling the levers makes it possible to remove the unit from the dashboard.

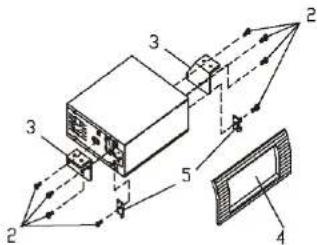

Din rear-mount (method 2)

Installation using the screw holes at both sides of the unit.

  1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each side. Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket.
  2. Screw.
  3. Factory radio mounting bracket.
  4. Dashboard or Console.
  5. Hook (Remove this parts).

HYUNDAI H-CDM8036 - Din rear-mount (method 2) - 1

HYUNDAI H-CDM8036 - Din rear-mount (method 2) - 2

text_image Technical diagram of an electronic device with labeled components and directional arrows indicating flow or movement.

Note: The mounting box, outer trim ring, and the half-sleeve are not used for this method of installation.

HYUNDAI H-CDM8036 - Din rear-mount (method 2) - 3

Detachable control panel

Detaching the control panel

  1. Press the OPEN button on the front panel. The panel will go down (pic. 1).
  2. Push the panel to the left and then pull it towards you (pic. 2).

HYUNDAI H-CDM8036 - Detaching the control panel - 1

natural_image Two technical line drawings of rectangular electronic components with internal mechanisms (no text or symbols)

Pic. 1 Pic. 2

Attaching the control panel

  1. Insert the left side of the control panel into the main unit (pic. 3).

Note: the control panel must be attached into the T-Joint.

  1. Press the right side of the control panel until a "click" sound is heard.

  2. Close the panel.

Caution:

DO NOT insert the control panel from the right side. It can damage the control panel.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not

to drop it or subject it to strong shocks.

The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

HYUNDAI H-CDM8036 - Note: - 1
Pic. 3

Electrical connections
HYUNDAI H-CDM8036 - Note: - 2

Caution: Do not interchange the connection of the wiring!
For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit.

Using the ISO Connector

HYUNDAI H-CDM8036 - Using the ISO Connector - 1

  1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

  2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

  3. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the color code table below for speaker and power cable connections.

LocationFunction
Connector A Connector B
1Rear
2 Rear Right(-)---Violet/Black stripe
3Front
4 Battery 12V (+)/yellow Front Right(-)---Grey/Black Stripe
5 Power Antenna/blue Front Left(+)---White
6 Front Left((-)---White/Black Stripe
7ACC+/redRear
8 Ground/blackRear Left(-)---Green/Black Stripe

Right(+)---Violet

Right(+)---Grey

Left(+)---Green

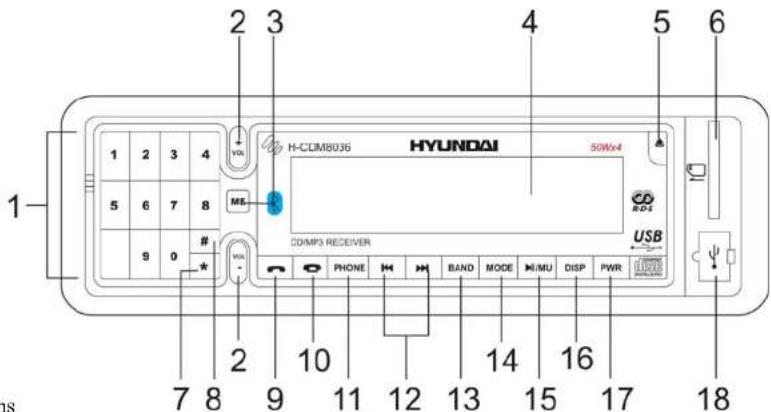

Panel controls

HYUNDAI H-CDM8036 - Panel controls - 1

text_image 1 2 3 4 5 6 H-CLIM8U36 HYUNDAI 50Wx4 ME COMP3 RECEIVER USB VOL VOL PHONE BAND MODE MI/MU DISP PWR 7 8 9 10 11 12 13 14 15 16 17 18

  1. Numeric buttons

  2. VOL+/- buttons

Press them to increase or decrease the volume level.

  1. ME button

Press it to open the menu or confirm setting.

  1. LCD display

  2. OPEN button

Press it to flip down the panel.

  1. SD/MMC card slot

  2. * button

  3. button

  4. button

HYUNDAI H-CDM8036 - Panel controls - 2

Press it to answer a call.

  1. button

Press it to end a call or exit setting.

  1. PHONE button

  2. ◀◀/▶▶ buttons

In Disc mode press the buttons shortly to go to previous/next track. Press and hold them to start fast backward/ forward rewind. In Radio mode press the buttons shortly to search the stations manually. Press and hold for 2 seconds to start searching the stations automatically.

  1. BAND button

In Radio mode press it repeatedly to select your desired radio band.

  1. MODE button

Press it to select the mode: TUNER => DISC => USB => SD/MMC.

  1. PLAY/PAUSE / MU button

In Disc mode press it to play or pause the playback.

In Bluetooth mode press it to cut down the volume. Press again to resume.

  1. DISP button

Press the DISP button to show the current time on the display.

  1. PWR button

Press it to turn the power on/off.

  1. USB socket

Inner panel

Press the OPEN button on the front panel to flip it down.

  1. EJECT button
  2. RESET button
  3. Disc slot

Note: Pressing the RESET button will erase the clock setting and stored stations.

Panel status indicator lights up when you slide the panel down; flashes when you remove the panel.

HYUNDAI H-CDM8036 - Inner panel - 1

text_image Diagram of an electronic device showing labeled components including a drive, ports, and a switch.

General operations

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit.

Press OPEN button on the panel to open the panel and press the RESET button with thin hard object to restore the unit to the original factory settings.

Power button

Press any button to turn the unit on. Press the PWR button shortly to turn off the unit but the electronic clock.

Note: After the unit is off, the volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status which you set.

Volume control

Press the VOL+/- buttons to increase or decrease the volume level.

Mode setting

Press the MODE button repeatedly to enter the mode: TUNER => DISC (if CD is in the devise) => USB (if USB card is in the devise) => SD/MMC (if SD/MMC card is in the devise).

Clock setting

  1. Press ME button and then VOL- repeatedly until Clock appears on the display.
  2. Press ME button. Hour will start blinking.
  3. Press VOL+/- buttons to adjust hour.
  4. Press ME button. Minute will start blinking.

  5. Press VOL+/- buttons to adjust minute.

  6. Press ME to save setting.

  7. Press 📞 button to exit the setting. Press it and hold for 2 seconds to return to normal mode.
  8. Press the DISP button to show the clock on the display.

Setting the audio characteristics

  1. Press ME button and then VOL- repeatedly until Audio appears on the display.
  2. Press ME to enter the Audio settings mode.
  3. Press VOL+/- buttons to select the setting: BASS => TREBLE => FADER => BALANCE => EQUALIZER => LOUDNESS => SPOKEN MENU => BEEP.
  4. Press VOL+/- to adjust each setting.
  5. Press ME to save setting.
  6. Press 📞 button to exit the setting. Press it and hold for 2 seconds to return to normal mode.

• Equalizer: press VOL+/- to select the desired mode: Classic, Pop, Rock, Flat.
- Loudness mode: press VOL+/- to select the desired mode: ON or OFF.
- Spoken menu: press VOL+/- to set the system's voice spoken volume level.
- Beep mode: press VOL+/- to select the desired mode: ON or OFF.

- BEEP OFF: disable audible beep tone when any function is accessed.

- BEEP ON: enable audible beep tone.

Display settings

  1. Press ME button and then VOL- repeatedly until Display appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the setting: CONTRAST => VIEW => COLOR.
  4. Press ME button to enter the setting mode.

  5. Press VOL+/- buttons to adjust the setting.

  6. Press ME to save setting.

  7. Press 📞 button to exit the setting. Press it and hold for 2 seconds to return to normal mode.

Language setting

  1. Press ME button and then VOL- repeatedly until Language appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the language.
  4. Press ME to save language selected.
  5. Press 📞 button to exit the setting. Press it and hold for 2 seconds to return to normal mode.

Digital tuner operations

Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.

Band selection

Press the MODE button to select TUNER.

Press BAND once or more to select: FM1, FM2, FM3, FM4 (OIRT), AM1, AM2.

Manual/ automatic tuning

- Manual tuning: press and hold the ◀/▶ buttons for 2 seconds to enter the manual search mode. Press the ◀/▶ buttons shortly to tune the stations manually down/up.

- Automatic tuning: press the ◀/▶ buttons to start the automatic search down/up. It will play when finds the station.

Programming tuner stations

You can store up to a total of 36 radio stations in the memory (24 FM, 12 AM), manually or automatically.

- To store a station:

- Select a band (if needed)

- Select a station

- Hold a numeric button (1-6) you want store the station for at least 2 seconds.

• To recall a station:

- Select a band (if needed)

- Press a numeric button (1-6) briefly to recall the stored station

Auto memory store

  1. Press ME button and then VOL- repeatedly until Tuner appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the Search setting.
  4. Press ME to enter the Search mode.
  5. Press VOL+/- buttons to select the Auto-store setting.
  6. Press ME to start auto storing. The radio will automatically store 6 stations to the 6 preset memories of the current band.

Auto search RDS program types

  1. Press ME button and then VOL- repeatedly until Tuner appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the Search setting.
  4. Press ME to enter the Search mode.
  5. Press VOL+/- buttons to select the By type setting.
  6. Press ME to enter the mode.
  7. Press VOL+/- buttons to select the program type.
  8. Press ME to start the selected program search.

Tuner sensibility

  1. Press ME button and then VOL- repeatedly until Tuner appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the Tuner sensibility setting.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the mode: LOCAL => DISTANT.

  6. Press ME to save setting.

  7. Press 📞 button to exit the setting. Press it and hold for 2 seconds to return to normal mode.

RDS options

  1. Press ME button and then VOL- repeatedly until Tuner appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the RDS option: RDS scan => Traffic alert => Region => Mask => Retune.
  4. Press ME to enter the option setting mode.
  5. Press VOL+/- buttons to select the setting.
  6. Press ME to save settings.

- RDS scan: select the desired mode: ON or OFF. The RDS program alternative frequency will be automatically searched and received. After turning on, if the RDS signal is weak or even no signal, the unit will search another frequency with this RDS program.

- Traffic alert: to determine what action will the radio take if the newly tuned station does not receive TP (Transport Program) information for 5 seconds. Select the desired mode: ALARM and SEEK.

  • SEEK: when newly tuned station does not receive TP information for 5 seconds, the radio retunes to next station which has not the same station (PI – Program Information) as the last station, but has the TP information. When TP information gets lost at the current station for retune time which is set by RETUNE SHORT (60 seconds) or RETUNE LONG (90 seconds), the radio starts to retune to next same PI station. When same PI station does not catch in 1 cyclic search, the radio retunes to next station with TP information.
  • ALARM: during searching the radio does not retune but the double beep sound (alarm) is output.

• Region: select the desired mode: REGION ON and REGION OFF.

  • REGION ON: PI code will be searched during AF searching.
  • REGION OFF: PI code and covered area will not be searched.

- Mask: select the desired mode: MASK DPI or MASK ALL.

- MASK DPI: masked only the AF which has different PI.

- MASK ALL: masked the AF which has different PI and any other interfering non PI station which having the same transmitting frequency.

- Retune: to determine the initial time of automatic TA search. select the desired mode: RETUNE LONG and RETUNE SHORT.

- RETUNE LONG: 90 seconds.

- RETUNE SHORT: 30 seconds.

Note: Retune mode is active for SEEK mode only.

Stereo/ Mono mode

  1. Press ME button and then VOL- repeatedly until Tuner appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the Stereo-Mono setting.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the mode: STEREO => MONO.
  6. Press ME to save setting.
  7. Press 📞 button to exit the setting. Press it and hold for 2 seconds to return to normal mode.

CD/ SD/ MMC/ USB operations

Discs for playback

This unit can play disc types: CD/CD-R/-RW.

Compatible with formats: MP3/CDDA.

Loading a disc

  1. Turn the power on.
  2. Press the OPEN button on the panel.
  3. Insert the disc with the printed side facing upward into the slot.
  4. Press EJECT button on the inner side to eject the disc.

Inserting the SD/ MMC card/ USB device

Insert the MMC/ SD card or USB device into MMC/ SD slot or USB socket. Then the playing mode will be changed into MMC/ SD or USB mode automatically.

The first card/ USB device track playback will start.

Note: When MMC/ SD card and USB device are both inserted into their compartment or socket, the playing mode will be changed into the mode of the latter one.

USB/SD/MMC notes:

USB functions (flash memory type) MP3 music play.

  1. SD/MMC card support.
  2. USB flash memory 2in1 (SD/MMC) support.
  3. FAT 12/ FAT 16/ FAT 32 is possible

- FAT 12/16 (dir: 200 support, file:500 support),

- FAT 32 (dir: 200 support, file:500 support).

  1. Filename: 32 byte/ Dir name: 32byte.

  2. Tag (id3tag ver2.0)

- Title/ Artist/ Album: 32 byte support.

  1. Multi card reader not support.

  2. USB 2.0 support.

Note:

USB format supports 2.0.

Capacity: 8 MB \~ 1 GB.

SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: 8 MB \~ 1 GB.

MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc.

Capacity: 16 MB \~ 1 GB.

Playing/ pausing

When the disc/ card/ USB device has been already loaded the playback of the first track starts automatically (you can enter any of these modes by pressing the MODE button).

To ensure good system performance, wait until the unit finishes reading the disc information before proceeding.

Press the PLAY/PAUSE / MU button to start playback.

During playback press it to pause the playback. Press again to resume.

Playing the previous/ next track

  1. During playback press the ◀ button to go to the beginning of the current track. Press again to go to previous track.

  2. During playback press the ▶ button to go to the next track.

Fast forward and backward playback

  1. Press and hold the ◀/▶ buttons to fast the playing in backward or forward direction.

  2. Release the button when the desired location is found.

Entering the track number

Press the numeric buttons to enter the desired track number.

To enter 2- or 3-digit number press the 1^st figure in the number, then - the 2^nd etc.

For example to enter track number 45 press 4, then press 5.

Repeat playback

  1. Press ME button and then VOL- repeatedly until CD/MP3/FLASH appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the Repeat mode.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the mode: ALL (repeat all tracks on the disc) => ONE (repeat current track).
  6. Press ME to save setting.
  7. Press 📞 button to exit the setting. Press it and hold for 2 seconds to return to normal mode.

Random playback

  1. Press ME button and then VOL- repeatedly until CD/MP3/FLASH appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the Random mode.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the mode: ACTIVATED => DEACTIVATED.
  6. Press ME to save setting.
  7. Press 📞 button to exit the setting. Press it and hold for 2 seconds to return to normal mode.

Search function (for MP3 files only)

  1. Press ME button and then VOL- repeatedly until CD/MP3/FLASH appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the Search mode.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the mode: INTELLIGENT => EXPLORER.
  6. Press ME to enter the mode.
  7. Press 📞 button to exit the setting. Press it and hold for 2 seconds to return to normal mode.

- Intelligent mode (by 1 ^st character of the track name): enter the mode. Press the VOL+/- buttons to enter the 1 ^st character of the desired track name. Press ME to start searching. After the search is finished the songs list with desired character will appear. Press VOL+/- buttons to select the desired track. Press ME to start playing.

- Explorer mode (by directories): enter the mode. The unit display will the list of tracks in the folder. Press the VOL+/- buttons to select the desired track. Press ME to start its playback.

To browse the other files in other folders press the 📞 button. The unit will list all folders on the disc.

Electronic shock protection

You can set the ESP seconds for CD playback for uninterrupted listening.

  1. Press ME button and then VOL- repeatedly until CD/MP3/FLASH appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the ESP mode.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the mode: ESP 10 S => ESP 40 S.
  6. Press ME to save the setting.
  7. Press 📞 button to exit the setting. Press it and hold for 2 seconds to return to normal mode.

Playing the multi-session disc

You can set the unit to play the multi-session discs or not.

  1. Press ME button and then VOL- repeatedly until CD/MP3/FLASH appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the Multi-session mode.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the mode: ACTIVATED => DEACTIVATED.
  6. Press ME to save the setting.
  7. Press 📞 button to exit the setting. Press it and hold for 2 seconds to return to normal mode.

MP3 overview

Notes on MP3:

  • MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
    • This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs.
  • The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • The unit can not read an MP3 file that has a file extension other than “.mp3”.
  • If you play a non-MP3 file that has the “.mp3” extension, you may hear some noise.
  • In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
    • Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 256.
  • The unit may not play tracks in the order of Track numbers.
    • The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
  • When playing a disc of 8 kbps or “VBR”, the elapsed playing time in the display window will not be correct and also the intro play may not function properly. “VBR”: Variable Bit Rate.

Notes on creating your own CD-R or CD-RW containing MP3 files:

- To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.

- DO NOT store more than 256 MP3 files per disc.

- For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

- When CD-R disc is used, playback is possible only for discs, which have been finalized.

• Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.

- You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.

- With some CD-R or CD-RW media, data may not be properly written depending on its manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.

- Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required.

• Note that the unit may not play Tracks in the order that you wrote them to the disc.

Bluetooth (hands-free) operations

Caution: Because of many kinds of bluetooth mobile phones type and handling method, this unit may cause some kind of malfunction or hang up. If such condition occurs, simply open and close the front panel, or press RESET button, the head unit will operate normally again.

Important:

There is a special method of performing pairing Bluetooth device with some cellular phone models.

Please go to Bluetooth => Settings => Advance Settings => Pair with phone, and check if your phone is in the lists. If it is in the lists, select your phone model and press VOL+/- button.

A “Pair your phone” message appears on the screen. Follow “How to perform pairing” to complete the process.

How to perform pairing

Before you can dial out from the car stereo, you must first perform PAIRING. Pairing is a procedure used to connect 2 Bluetooth devices together.

Turn on the Bluetooth feature of your phone.

  1. Perform a search for available Bluetooth devices. "RCM 728BT" should appear on your lists of devices found.
  2. Add "RCM 728BT" device. Enter "1234" if prompted for passkey.
  3. A Bluetooth logo will appear on the upper right corner of the car unit indicating proper pairing. Press PHONE button and the Bluetooth device name of the cellular phone will display on the screen.
  4. For some phone models, the unit will auto perform synchronization. It will synchronize the phone book entries as well as the call entries of your phone into the unit. "Synchronizing" will display on the screen.

HYUNDAI H-CDM8036 - How to perform pairing - 1

Note:

  • “RCM 728BT” is the Bluetooth device name of the car stereo.
  • If the unit does not perform auto synchronization after paring, your have to do this step manually. Please refer to your phone's user manual on how to send Phonebook entries via Bluetooth.
    • Refer to your cellular user manual for the proper procedures of pairing Bluetooth devices.

Answering / Hanging up

To answer a call, press the 📞 button. Once you have finished your conversation, press the 🔔 to hang up.

Discreet mode

During a call, press the button to switch the conversation over to the phone. Press the button again to return the call to hands-free mode. This feature is only available on phones with a Hands-free profile.

Synchronizing the phone's phonebook

With some Bluetooth phones, the phonebook is automatically synchronized in the kit's memory. If your phone does not support automatic synchronization, you can also use the Object Push feature on your phone to send contacts from your phone to the car stereo by Bluetooth. When synchronizing the phonebook, the Bluetooth icon scrolls over the screen.

Making calls

Making calls using the car stereo interface

You can make calls directly from the car stereo. Before you make calls, make sure that the devices are properly paired and connected.

  1. Press PHONE button.
  2. Enter the phone number via the keypad and press 📞 to dial out. Press 🔔 to make corrections when entering numbers.
  3. Press to end call.

Making calls using voice command (without keyboard)

Before using this feature, make sure phone and car stereo is connected and you have set the contact's voice command. Please refer to "Voice recognition".

  1. Press and the radio or CD is muted. You will hear a beep. Say the contact's name after the beep and if necessary, specify home, work or office (if available).

  2. Press to end call.

Making calls using voice command (with keywords)

Once you have recorded the names, keywords and magic word "phone", you can call a contact as follows:

  1. Activate Phone voice command keyword. You need to record Phone voice command first before you can activate. To activate, go to: Bluetooth => Voice cmds => keywords => Phone => Activate.

  2. Press PLAY/PAUSE / MU and the radio or CD is muted. You will hear a beep.

  3. Say: Phone... (Beep)... Anna... (Beep)... Home... and the car stereo automatically dials Anna's home number. Similarly, if Anna calls you, you will hear "Anna". Press button to answer the call. Press to end.

Making calls using phone book

Phone Book contains all the contacts stored in your cellular phone. Use this feature to browse for contacts and make calls.

  1. Press ME button and then VOL- repeatedly until Bluetooth appears on the display.

  2. Press ME button to enter.

  3. Press VOL+/- buttons to select the Phone book mode.

  4. Press ME to enter the mode.

  5. Press VOL+/- buttons to select the 1 ^st letter of the contact you are looking for.

  6. Press ME to save the setting.

  7. Press VOL+/- buttons to select the number.

  8. Press to start calling.

  9. Press to end call.

Calls (missed, received, calls made)

After synchronizing, the unit have all the missed, received and calls made entries of the phone. Use this feature to check the numbers and make calls from it.

  1. Press ME button and then VOL- repeatedly until Bluetooth appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the Calls mode.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the setting: Missed calls => Received calls => Calls made.
  6. Press ME to save the setting. You will see all the entries for the selected feature.
  7. Press VOL+/- buttons to select the number.
  8. Press 📞 to start calling.
  9. Press to end call.

Voice recognition

You can make calls using the car stereo's voice recognition feature. To do so, contacts must be memorized in the kit's memory. You must have first recorded the keywords: home, work, office, and so on, as well as the magic word "phone".

Assigning voice recognition to contacts

  1. Press ME button and then VOL- repeatedly until Bluetooth appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the Voice cmds mode.
  4. Press ME to enter the mode.
  5. Select Phone book.
  6. Press ME to enter.

  7. Press VOL+/- buttons to select the first letter of the contact to assign a voice keyword to.

  8. Press ME to save the setting. After the beep tone, say the contact name clearly. Press ME to say the voice command again. You have to record it twice.

  9. Press VOL+/- buttons to select the number.
  10. Press and hold for 2 seconds the -button to exit.

Assigning keywords

  1. Press ME button and then VOL- repeatedly until Bluetooth appears on the display.
  2. Press ME button to enter.
  3. Press VOL+/- buttons to select the Voice cmds mode.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select Keywords.
  6. Press ME to enter.
  7. Press VOL+/- buttons to select a field to assign a voice keyword to.
  8. Press ME to save the setting.
  9. After the beep tone, say the contact name clearly.
  10. Press ME to say the voice command again. You have to record it twice.
  11. Do steps 4-5 for all fields.
  12. Press the button to exit.

Note: When recording the keywords and magic word, park your vehicle in a quiet place with the windows closed and the heater/air conditioner off. This is necessary to obtain a higher recognition rate.

Paired devices

Connect paired devices

You can connect to an already paired Bluetooth device from your car stereo.

  1. Press ME button and then VOL- repeatedly until Bluetooth appears on the display.
  2. Press ME button to enter.
  3. Press VOL- to select Settings.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the Paired devices mode.
  6. Press ME to enter the mode.
  7. Press VOL+/- buttons to select the device you want to connect.
  8. Press ME to save the setting.
  9. Select Connect and press ME. "Connecting" will display on the screen.
  10. Press and hold for 2 seconds the button to exit.

Disconnect paired devices

  1. You can disconnect to an already paired Bluetooth device from your car stereo.
  2. Press ME button and then VOL- repeatedly until Bluetooth appears on the display.
  3. Press ME button to enter.
  4. Press VOL- to select Settings.
  5. Press ME to enter the mode.
  6. Press VOL+/- buttons to select the Paired devices mode.
  7. Press ME to enter the mode.
  8. Press VOL+/- buttons to select the device you want to disconnect.
  9. Press ME to save the setting.
  10. Select Disconnect and press ME. "Disconnected" will display on the screen.
  11. Press and hold for 2 seconds the button to exit.

Delete paired devices

You can delete successfully paired Bluetooth devices from your car stereo.

  1. Press ME button and then VOL- repeatedly until Bluetooth appears on the display.
  2. Press ME button to enter.
  3. Press VOL- to select Settings.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the Paired devices mode.
  6. Press ME to enter the mode.
  7. Press VOL+/- buttons to select the device you want to delete.
  8. Press ME to save the setting.
  9. A delete confirmation will display.
  10. Press to confirm.
  11. Press and hold for 2 seconds the button to exit.

Volume settings

User can set the volume level for ringtone, telephone and microphone.

  1. Press ME button and then VOL- repeatedly until Bluetooth appears on the display.
  2. Press ME button to enter.
  3. Press VOL- to select Settings.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the Volume mode.
  6. Press ME to enter the mode.

  7. Press VOL+/- buttons to select the mode: RINGTONE => TELEPHONE => MICROPHONE.

  8. Ringtone - ring tone volume.

  9. Telephone – conversation volume.

  10. Microphone - microphone volume.

  11. Press VOL+/- buttons to adjust volume level.

  12. Press and hold for 2 seconds the button to exit.

Automatic answer

If there is an incoming call, you can set the car stereo to automatic take the calls without pressing any button.

  1. Press ME button and then VOL- repeatedly until Bluetooth appears on the display.

  2. Press ME button to enter.

  3. Press VOL- to select Settings.

  4. Press ME to enter the mode.

  5. Press VOL+/- buttons to select the Automatic answer mode.

  6. Press ME to enter the mode.

  7. Select Activate to turn on automatic answer, Deactivate to turn off.

  8. Press ME to confirm

  9. Press and hold for 2 seconds the button to exit.

Working with contacts

Sorting contacts

You can set the order of the phone book according to First/Lastname or Last/Firstname.

  1. Press ME button and then VOL- repeatedly until Bluetooth appears on the display.
  2. Press ME button to enter.
  3. Press VOL- to select Settings.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the Advanced settings mode.
  6. Press ME to enter the mode.
  7. Select Sort order.

  8. Press ME to enter.

  9. Select First/Lastname or Last/Firstname.

  10. Press ME to confirm.

  11. Press and hold for 2 seconds the button to exit.

Deleting contacts

  1. Press ME button and then VOL- repeatedly until Bluetooth appears on the display.
  2. Press ME button to enter.
  3. Press VOL- to select Settings.
  4. Press ME to enter the mode.
  5. Press VOL+/- buttons to select the Advanced settings mode.
  6. Press ME to enter the mode.
  7. Select Delete contact.
  8. Press ME to enter.
  9. Select One by one or All.
  10. Press ME to confirm.
  11. Press and hold for 2 seconds the button to exit.

Bluetooth software update

The Bluetooth software of this unit needs to be updated from time to time in order to improve performance and reliability.

Note: You will need a Bluetooth enabled PC/Laptop or PC/Laptop equipped with Bluetooth dongle in order to perform update.

How to update bluetooth software

  1. Navigate the car audio's menu to BLUETOOTH => SETTINGS => INFORMATION, to check firmware version of the unit to see if an update is needed or not. Take note of the firmware version.
  2. Using computer with internet access, open HYPERLINK "http://www.car-bluetooth.com/WELCOME/" (WELCOME must be in CAPITAL LETTER) and select Download link. The latest firmware version will be listed. If your Bluetooth firmware version is older than the site listed version, you will need an update. Proceed to step 3.
  3. Make sure your PC/Laptop supports Bluetooth connectivity. Using your PC Bluetooth software, pair your PC/Laptop or Dongle with the head unit using passkey 1234.
  4. Navigate the car audio's menu to BLUETOOTH => SETTINGS => ADVANCE SETTINGS => SOFTWARE UPDATE and select ACTIVATE.
  5. Navigate the car audio's menu to Bluetooth->Settings->Paired Devices and select the Bluetooth dongle name then press CONNECT.
  6. Download both the Flash update wizard and the Firmware. If the firmware file is zipped, unzip to a folder.
  7. Install and run the Flash Update Wizard. Follow UPDATE PROCEDURE => BY BLUETOOTH => USE MS STACK guide on the website on proper update procedures.

Anti-theft system

Remove the panel

  1. Press PWR button to switch off the power of the unit.
  2. Press OPEN button to flip down the panel.
  3. Push the panel to the left and then pull it towards you.
  4. Put it to the special box and take it with you.

Remove the unit

  1. Remove the panel and the trim plate.
  2. Insert both T-Keys into hole on the front of the set until they lock.
  3. Pull out the unit.

Handling discs

  • Dirty, scratched or warped discs may cause skip ping or noise.
  • Handle the disc only by the edges. To keep clean do not touch its surface.
  • Discs should be stored in their cases after use to avoid scratches.
  • Do not expose discs to direct sunlight, high humidity, high temperature or dust.
  • Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).
  • Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.
    • DO NOT touch the unlabeled side. DO NOT attach any seal, label or data protection sheet to either side of a disc.

HYUNDAI H-CDM8036 - Handling discs - 1

Cleaning

Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight

motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

HYUNDAI H-CDM8036 - Cleaning discs - 1

HYUNDAI H-CDM8036 - Cleaning discs - 2

Troubleshooting guide

SymptomCauseSolution
GeneralNo powerThe car ignition is not on.The fuse is blown.If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.Replace the fuse.
DiscDisc cannot be loaded.Presence of disc inside the player.Remove the disc in the player then put a new upward.
Disc cannot be read. Inserting the disc in upside down.Compact disc is extremely dirty or defective.Temperature inside the car is too high.Insert the compact disc with the label facing upward.Clean the disc or try to play a new one.Cool off until the ambient temperature returns to normal.
No sound Volume is in minimum.Wiring is not properly connected.Adjust volume to a desired level.Check wiring connection.
The operation keys do not work.The built-in microcomputer is not operating properly due to noise.Front panel is not properly fix into its place.Press the RESET button.Reinstall the front panel.
Sound skips. The installation angle is more than 30 degrees.The disc is extremely dirty or defective.Adjust the installation angle to less than 30 degrees.Clean the compact disc/try to play a new one.
The radio does not work, the radio station automatic selection does not work.The antenna cable is not connected the signals are too weak.Insert the antenna cable firmly select a station manually.

Specification

General
Power supply12 V DC
Current consumption max. 15 A
Maximum power output 50 W x 4 channels
Dimensions (L x W x H) 178 x 165 x 50 mm
Working temperature range-10°C - +60°C
ESP 40 sec for Audio-CD, 120 sec for MP3
FM Stereo Radio
Frequency range65 – 74 / 87.5 - 108.0 MHz
Usable sensitivity 2.8 μV
Preset memory stations 24
MW and LW section
Frequency range522 kHz - 1620 kHz
Preset memory stations12
Audio specification
Maximum output2 Vrms (+/- 3 dB)
Frequency response20 Hz - 20 KHz
S/N ratio(A-vtd)>60 dB
DSP sound effectClassic, Rock, Pop, Flat
Linc out
OutputCD max 2000 mV

Specifications are subject to change without notice. Mass and dimension are approximate.

text_image Labeled diagram of a mechanical or electrical component with numbered parts and an inset showing a hand gesture.

Снятие магнитолы

text_image Technical diagram showing electrical connections and component layout with numbered parts

Примечание:

natural_image Two isometric diagrams of rectangular electronic components with internal mechanisms, no text or symbols present.
natural_image Diagram showing two electrical components connected by wires, with arrows indicating connection direction (no text or symbols present)
text_image Diagram of an electronic device showing labeled components including a drive, ports, and a scroll arrow indicating rotation or movement.

Основные операции

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HYUNDAI

Model : H-CDM8036

Category : Car Radio
