USER MANUAL H-CMD7083 HYUNDAI

HYUNOGI OPEN OPEN DVD R21

DVD/MP3/CD RECEIVER Instruction manual

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents....2

Important safeguards.... 3

Installation/Connections....4

Accessories....9

Controls description....10

General operations....13

Radio operations....15

Discs operations....19

Notes on MP3 and WMA 24

System setup....26

Anti-theft system....29

Cleaning....30

Troubleshooting guide....31

Specification 32

Important safeguards

• Read carefully through the manual to familiarize yours with this high-quality sound system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do not attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
• Do not use the unit in places where it can be exposed to water, moisture and dust.
• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
  • Do not open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Let a qualified technician check the system.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please confirm it before installation.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
• Do not install the detachable panel before connecting the wire.

Installation/Connections

First complete the electrical connections, and then check them for correctness. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed.

Before installing the unit, please remove two screws on the top.

Before the installation

1. Remove the old unit from the dashboard.

- Remove the outer trim frame.

- Insert the keys supplied with the unit into both sides of the unit as shown in figure below until they click. Pull to remove the old unit from the dashboard. Do not disconnect wires at this time!

1. Mark polarity of the speaker wires.

Marking the polarity of the speaker wires will make it easier to connect the existing speakers to your unit. Consult wiring diagram of existing head unit before disconnecting any wires. If you are not positive of the polarity of the existing wires from the speakers to the head unit, install new wires.

• While the old unit is playing, disconnect the wires from one speaker.

• Take a length of masking tape and fold it around the wire so it forms a flag.

- On the masking tape mark the polarity of the speaker wires (+ & -), as well as left or right, and front or rear.

• Repeat this procedure for all of the speakers.

• Mark the power, ground, and any other wires also.

Installation method A

• After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure the holder in place.
• Insert fingers into the groove in the front of frame and remove it.
• Insert the levers supplied with the unit to the grooves at both sides. The unit can be installed or removed from the dashboard.

Installation way (method 2)

Installation using the screw holes at both sides of the unit.

1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each side.

Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket.

1. Screw
2. Factory radio mounting bracket.
3. Dashboard or Console.
4. Hook (Remove this part).

Note: The mounting box, outer trim ring, and the Half-sleeve are not used for this method of installation.

Detachable control panel

Detaching the control panel

1. Press the OPEN button on the front panel. The panel will go down (pic. 1).

2. Push the panel to the left and then pull it towards you (pic. 2).

Attaching the control panel

1. Insert the left side of the control panel into the main unit (pic. 3).
   Note: the control panel must be attached into the T-Joint.
2. Press the right side of the control panel until a "click" sound is heard.
3. Close the panel.

Fig. 1

Pc.2

Caution:

DO NOT insert the control panel from the right side. It can damage the control panel.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks.

The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Pc.1

Note: If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

Electrical connections

Speaker wiring notes

Follow the above wiring diagram to install the head unit with new or existing speakers.

• This unit is designed for use with four (4) speakers with an impedance between 4 Ohms to 8 Ohms.
• An impedance load of less than 4 Ohms could damage the unit.
- Never bridge or combine the speaker wire outputs. When not using four speakers, use electrical tape to tape the ends of the unused speaker outputs to prevent a short circuit.
- Never ground the negative speaker terminals to chassis ground.

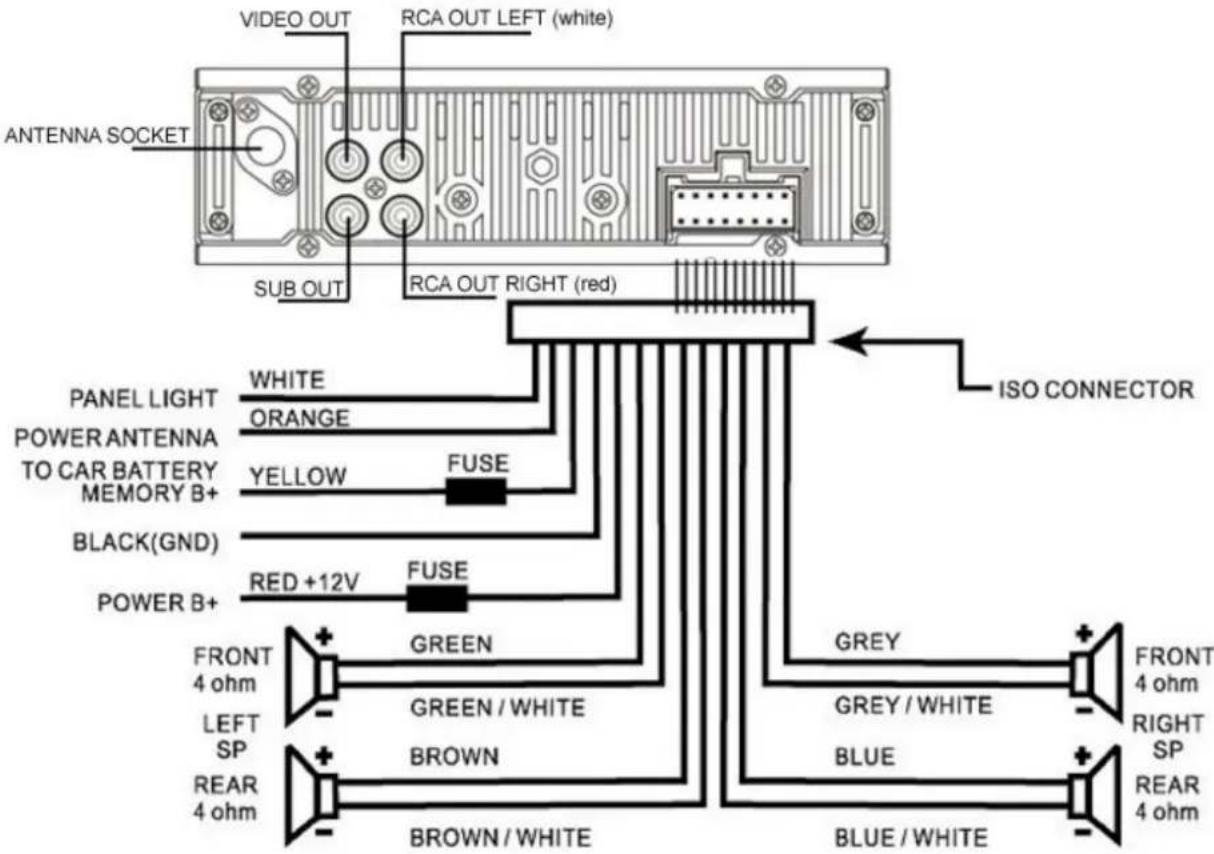

Connection diagram:

VIDEO OUT RCA OUT LEFT (white) ANTENNA SOCKET SUB OUT RCA OUT RIGHT (red) PANEL LIGHT WHITE ORANGE POWER ANTENNA TO CAR BATTERY MEMORY B+ YELLOW FUSE BLACK(GND) RED +12V FUSE POWER B+ FRONT 4 ohm GREEN GREEN / WHITE LEFT SP BROWN REAR 4 ohm BROWN / WHITE GREY GREY / WHITE BLUE BLUE / WHITE ISO CONNECTOR FRONT 4 ohm RIGHT SP REAR 4 ohm

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

Location FUNCTION
	Connector A Connector B
1 Rear Right(+)---Blue
2 Rear Right(-)---Blue/White Stripe
3 Front Right(+)---Grey
4 Battery 12V (+)/yellow Front Right(-)---Grey/White Stripe
5 Auto Antenna/Orange Front Left(+)---Green
6	Panel light/White	Front Left((-)---Green/White Stripe
7	ACC+/red	Rear Left(+)---Brown
8	Ground/black	Rear Left(-)---Brown/White Stripe

Accessories

1. Receiver 1 pc
2. Remote controller 1 pc
3. Carrying case 1 pc
4. ISO connector 1 pc
5. Mounting parts:

Hexagon nut M5 T (3.5 mm) 1 pc

Mounting box (0.6 mm) 1 pc

Left key (1.0 mm) 1 pc

Right key (1.0 mm) 1 pc

Metal bar (0.8 mm) 1 pc

Plain washer (5 mm) 1 pc

Outer trim ring 1 pc

Spring washer (5 mm) 2 pcs

Screw (5X5 mm) 4 pcs

Screw (5X25 mm) 1 pc

Screw M5 (5X29.3 mm) 1 pc

1. Customer information 1 pc
2. Warranty card 1 pc
3. Instruction manual 1 pc

Controls description

Front panel

1. PTY/CLK button

2. 1/LEFT/OSD button

3. MUTE button

4. 2/RIGHT/RPT button

5. TA button

6. 3/UP/INT button

7. 4/DOWN/RDM button

8. 5/STOP button

9. 6/SET/PAU button

10. IR sensor

11. AUX in

12. USB socket

13. SD/MMC socket

14. OPEN button

15. Display

16. APS button

17. POWER button

18. BND/NP/SUB button

19. MODE button

20. VOL knob/SEL button

21. AF button

22. PREV/NEXT buttons

21 20 19 18 17 16 15 14 13 HYUNDAI OPEN SOW x 4 DVRX DVD MUT TA MOD BND HP SUB APS 2 ◆ OSD 3 ◆ INT 4 ◆ ROM 5 ◆ STOP 6 ◆ SEER/PAU IR SD ALDX 1 2 3 4 5 6 7 8 9 10 11 12

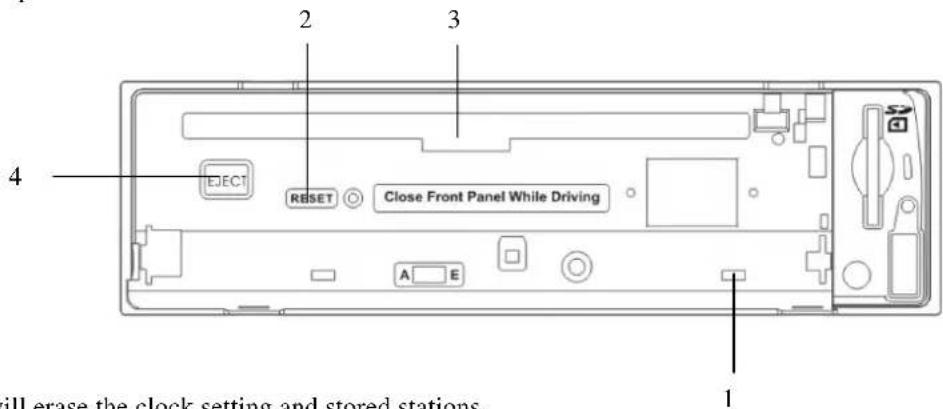

Back of the front panel

Press the OPEN button to open the panel.

1. LED indicator
2. RESET button (hole)
3. Disc slot
4. EJECT button

2 3 4 EJECT RESET Close Front Panel While Driving A E 1 Will erase the clock setting and stored stations.

Note: Pressing the RESET hole will erase the clock setting and stored stations.

Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.

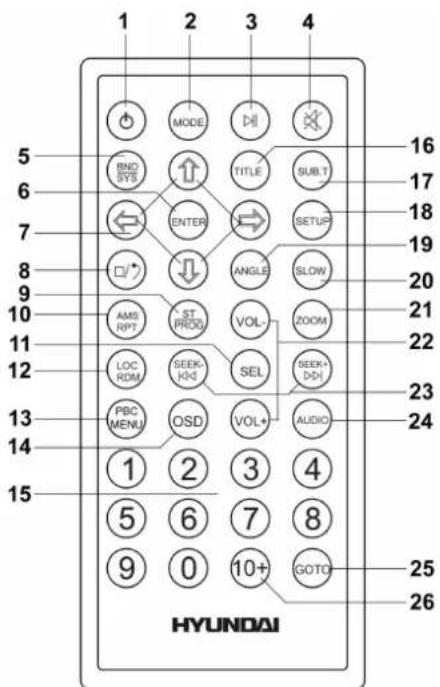

Remote control

1. POWER button

2. MODE button

3. PLAY/PAUSE button

4. MUTE button

5. BND/SYS button

6. ENTER button

7. UP/DOWN/LEFT/RIGHT cursor buttons

8. STOP/REVERSE button

9. ST/PROG button

10. AMS/RPT button

11. SEL button

12. LOC/RDM button

13. PBC/MENU button

14. OSD button

15. Digit buttons

16. TITLE button

17. SUB-T button

18. SETUP button

19. ANGLE button 23. SEEK-/SEEK+ / PREV/NEXT buttons

20. SLOW button 24. AUDIO button

21. ZOOM button 25. GOTO button

22. VOL-/VOL+ buttons 26. 10+ button

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 MODE TITLE SUB.T ENTER ANGLE SLOW AMS RPT ST PROD. VOL- ZOOM LOC RDM SEEK- KD SEL SEEK+ DDH PBC MENU OSD VOL+ AUDIO 1 2 3 4 5 6 7 8 9 0 10+ GOTO HYUNDAI 16 17 18 19 20 21 22 23 24 25 26

Changing the battery

Press the catch and at the same time pull out the battery tray. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control.

General operations

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit.

Press OPEN button and remove the panel, then press the RESET button to restore the unit to the original factory settings.

Power button

Press any button to turn the unit on. Press the POWER button to switch the unit off.

Note: After the unit is off, the clock, volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status you set.

Volume adjustment

Rotate VOL knob on the panel clockwise or press VOL+ button on the RC to increase the volume level; rotate anticlockwise or press VOL- button to decrease the volume level.

Mute function

Press the MUTE button to cancel the sound. Press again to resume.

Mode selecting

Press the MOD button on the front panel or MODE button on RC repeatedly to select the mode: RADIO => DISC (the type of disc inserted) => USB (if any is inserted) => CARD (the type of card inserted).

Subwoofer control

Press and hold the BAND/NP/SUB button on the panel to turn the Subwoofer output ON. An external amplifier is required to operate a subwoofer.

Sound settings

Press SEL button shortly and repeatedly to select the mode: VOL => BAS => TRE => BAL => FAD => LOUD => LOC => ST => EQ => COLOR 1. Rotate the VOL knob or use VOL +/- buttons to adjust each mode.

• VOLUME: 00, 02, 38, 39
• BASS/TREBLE: -7, -6, ..., 0, +1, +2, ... +6, +7
• BALANCE: 7L, 6L.....L=R, 1R.....7R
• FADER: 7R, 6R..... R=F, 1F..... 7F
- LOUD: ON/OFF
LOC LOC ON, LOC OFF (DX).
• ST: STEREO, MONO
• EQ: CLASS, POP, ROCK, FLAT, OFF
• COLOR: COLOR1, COLOR2 (to select the needed backlight color).

Note: In each mode, the waiting time is about 5 seconds, and the waiting time is over, it returns to the last display mode of radio or disc playback mode.

Clock display and adjustment

1. Press and hold the PTY/CLK button on the panel to show the time on the display.
2. Press and hold it, the hour will blink.
3. Rotate the VOL knob on the panel to adjust the hour.
4. Press briefly the SEL button again, the minute will blink.
5. Rotate the VOL knob on the panel to adjust minutes.
6. Press the PTY/CLK button to confirm it.

Radio operations

Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.

Band select

Press BAND/NP/SUB button on the front panel or BND/SYS button on RC repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1, AM2.

AutoManual tuning

- Manual tuning: Press briefly the SEEK-/+ buttons on the RC or press briefly PREV/NEXT buttons on the panel to select a station downward or upward step by step.

- Automatic tuning: Press and hold for 2 seconds the SEEK-/+ buttons on the RC press and hold for 2 seconds PREV/NEXT buttons on the panel, the automatic search will start. It will play when finds the station.

Programming tuner stations

You can store up to a total of 30 radio stations in the memory (18 FM, 12 AM), manually or automatically.

To store a station:

• Select a band (if needed)
- Select a station by SEEK-/+ on the RC or PREV/NEXT buttons on the panel.
- Hold a Preset button (1-6), which you want store the station for at least 2 seconds.

To recall a station:

• Select a band (if needed)
- Press a Preset button (1-6) briefly to recall the stored station

APS (Auto memory store/Preset scan) function

- Preset scan: press APS button on the panel or AMS button on the RC to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds. To stop preset scan, press this button again. To listen to saved station press 1-6 buttons.

- Auto memory store: press APS button on the panel for more than 2 seconds to enter auto store mode. The radio will automatically store the 6 strongest available stations to the 6 preset memories of the current band. To stop auto store, press this button again.

Stereo/Mono mode

Press the ST/PROG button on the RC to select Stereo or Mono.

OR press the SEL button until ST is selected, rotate VOL knob to select Stereo or Mono.

Local/Distance control

Press the LOC/RDM button on the RC to select LOC ON or LOC OFF mode.

Or press the SEL button until LOC is selected, rotate the VOL knob to select LOC ON or LOC OFF mode. Local and distance reception setting can facilitate the radio reception, depending on the location in which the radio is being used.

AF (Alternative Frequencies) function

Press the AF button on the panel to select AF ON or AF OFF.

When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength.

PS (Program Service name): the name of station will be display instead of frequency.

If RDS service is not available in your area, turn off the AF mode. Default setting is ON.

TA (Traffic Alarm) function

Press the TA button on the panel to select TA ON or TA OFF.

In TA mode traffic program will be automatically searched, until the program is received. When traffic announcement is received the unit will temporarily switch to the tuner mode (regardless of the current mode) and begin broadcasting the announcement. After the traffic announcement is over, it will return to the previous mode and volume level.

PTY (Program Type)

1. Press PTY/CLK button on the panel to activate the PTY function. The previous PTY type is shown.

2. Press PTY/CLK once again to enter the MUSIC type or press twice to enter the SPEECH type, then use buttons 1 - 6 to select the desired program type (see the following table).

Button Number	Music group	Speech group
1	Pop, Rock	News, Affairs, Info
2	Easy, Light	Sport, Educate, Drama
3	Classics	Culture, Science, Varied
4	Jazz, Country	Weather, Finance, Children
5	Nation, Oldies	Social, Religion, Phone IN
6	Folk	Travel, Leisure, Document

1. When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

2. If there are no keys entered for 2 seconds, previously selected PTY is searched. During 1 loop, if desired PTY is not found, NO PTY is flashed, then return to previous normal radio and PTY word disappears.

3. Press PTY button for the 3^rd time to switch the PTY function off.

Press SEL button for 2 seconds to enter the menu mode. Press it repeatedly to choose the needed item: TA SEEK/ALARM => RETUNE L/S => MASK DPI/ALL.

• TA (Traffic Announcement) mode

To determine what action will the radio take if the newly tuned station does not receive TP (Transport Program) information for 5 seconds. Rotate the VOL knob to select the desired mode: TA ALARM and TA SEEK.

- TA SEEK

When newly tuned station does not receive TP information for 5 seconds, the radio retunes to next station which has not the same station (PI - Program Information) as the last station, but has the TP information. When TP information gets lost at the current station for return time which is set by RETUNE SHORT (30 seconds) or RETUNE LONG (90 seconds), the radio starts to return to next same PI station. When same PI station does not catch in 1 cyclic search, the radio retunes to next station with TP information.

TA ALARM

During searching the radio does not return but the double beep sound (alarm) is output.

• RETUNE mode

To determine the initial time of automatic TA (Traffic Announcement) search. There are 2 modes: RETUNE L and RETUNE L.

- RETUNE L: 90 seconds.

- RETUNE S: 30 seconds. Note: Retune mode is active for TA SEEK mode only.

- MASK mode

During AF search, PI stations and non-RDS (Radio Data Station) stations with strong signal will be masked, in the latter case, the non-RDS stations may cause interference, resulting the real AF to be masked due to the misjudgment of the radio under interference. Rotate the VOL knob to select the desired mode: MASK DPI and MASK ALL.

- MASKDPI

To mask only the AF with different PI.

- MASK ALL

To mask both PI and strong signal non-RDS station.

Discs operations

Disc glossary

PBC (Playback Control)

PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.

Title

The title is the important part of DVD disc. The memory volume of the disc is rather big, that makes possible to record several films on one disc. For example, if a disc contains three films, they may be divided into Title 1, Title 2 and Title 3. You can easy use the functions of looking-for.

Chapter

A tide can be divided into several blocks, so that every block can be operated as a unit, the unit is called chapter. The chapter contains a unit at least.

Track

It is the biggest component of VCD. Generally, every song of karaoke disc is a track.

Discs for playback

• This unit can play disc types: CD-R/-RW/DVD±R/±RW.

- Compatible with formats: DVD/ DVD±R/ DVCD/SVCD/VCD/CDDA/MP3/WMA/CD/Picture-CD/Photo-CD/CD-R/CD-RW/JPEG/DivX(4.0/5.0)/MPEG4.

• The following file types are supported:

Audio files: MP3 (*.mp3)

WMA (*.wma)

Video files: MP4 (*avi, DIVX3.11/4.0/5.0/6.0 and XVID)

MPEG 2(*.vob)

MPEG 1(*.dat)

Picture file: JPEG (*.jpg)

• ISO 9660 or ISO 9660 + Joliet format - Max. 30 characters

• Max. Track number is 448

• Max. nested directory is 8 levels
• The max. album number is 99
• The max. length of each track is 99 minutes 59 seconds
• Supported sampling frequency for MP3 disc: 8 KHz – 48 KHz (44.1 KHz preferably)
• Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably).
- Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.
• Open session discs are NOT supported.

USB/SD/MMC notes

USB functions (flash memory type) MP3 music play.

1. SD/MMC card support, 2in1 (SD/MMC) support

2. USB flash memory.

3. FAT 12/FAT 16/FAT 32 is possible

FAT 12/16 (dir: 200 support, file: 500 support).

FAT 32 (dir: 200 support, file: 500 support).

1. Filename: 32 byte/Dir name: 32 byte.

2. Tag (id3tag ver2.0)

Title/ Artist/ Album: 32 byte support.

1. Multi card reader not support.

2. USB 2.0 support.

Note:

USB format supports 2.0.

Capacity: 8 MB - 1 GB.

SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: 8 MB -

1 GB.

MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc.

Capacity: 16 MB - 1 GB.

Inserting the SD/MMC card/USB device

Insert the MMC/SD card or USB device into MMC/SD compartment or USB socket. Then the playing mode will be changed into MMC/SD or USB mode automatically. The first card/USB device track playback will start.

Note: When MMC/SD card and USB device are both inserted into their compartment or socket, the playing mode will be changed into the mode of the later one.

Playing/pausing

- When the disc has been already loaded press the PLAY/PAUSE button on the RC to start playback.

• To ensure good system performance, wait until the unit finishes reading the disc information before proceeding.

- Press and hold for 2 seconds the SET/PAU button on the panel or press shortly the PLAY/PAUSE on the RC to pause the playback. Press again to resume the playback.

Stop playback

During playback press the STOP button to stop playback.

Playing the previous/next track

During playback press PREV button on the RC or on the panel to play the previous track.

Press NEXT button on the RC or on the panel to play the next track.

Scanning forward and backward

Press and hold PREV or NEXT button on the RC or on the panel to fast the playing in backward or forward direction. Release the button when the desired location is found.

Slow playback (for DVD/VCD)

During DVD/CD playback press SLOW button on the RC to execute the SLOW function. With each consecutive pressing of the SLOW button, the playback speed decreases: X1/2 => X1/3 => X1/4 => X1/5 => X1/6 => X1/7 => Normal.

During slow forward, press the PLAY/PAUSE button to resume normal playback.

Repeat playback

Press and hold for 2 seconds the RPT button on the front panel or press shortly AMS/RPT button on the RC to rep current track playback. Press again time to cancel.

Random playback

Press and hold for 2 seconds the RDM button on the front panel or press shortly LOC/RDM button on the RC to switch random playing. Press again time to cancel.

Intro playback

You can play the beginning of every track for 10 seconds in sequence. Press and hold for 2 seconds INT button on the panel to start intro play. Press again to cancel.

On-screen display

Press and hold for 2 seconds OSD button on the panel or shortly press OSD on the RC. The display will show the current track/title/ total amount of tracks/titles, current chapter/ total amount of chapters, disc playback time elapsed.

Changing size

Press ZOOM button on RC. The picture will be enlarged accordingly: X2, X3, X4, 1/2, 1/3, 1/4, OFF.

Selecting the audio language (for DVD only)

Press AUDIO button on RC or press the SEL button to select AUDIO and then rotate the VOL knob to select the audio language (if DVD disc supports several audio languages).

Changing angle (for DVD only)

If DVD disc supports multi-angle playback, press ANGLE button on RC to play images in different camera angles. If discs doesn't support multi-angle playback, this function will not work. If no operation within 1 second, angle description will disappear.

Selecting the subtitle (for DVD only)

1. Press the SUB-T button on RC repeatedly to select the subtitle.
2. Press ENTER to confirm.

Title playing (for DVD only)

• Press TITLE button on the RC to activate the disc title list on the screen.
- Press the cursor buttons on the RC to select the desired title or press the number buttons to insert the desired number directly.
- Press ENTER button or PLAY/PAUSE button to confirm the selected item and start playing.

PBC (Playback Control) function (for VCD only)

If you insert a VCD with PBC, playback starts from the beginning of the 1st track automatically.

1. Press PBC/MENU button on the RC to activate PBC menu on screen during playback.
2. If the menu consists a list of titles, you can select a desired one using the cursor buttons on the RC or digit buttons.
3. The VCD starts playing the selected title automatically or press ENTER button to confirm the selected track for playback.
4. Press PBC/MENU again to exit menu.

GOTO function

During the playback press GOTO button on the RC to enter the search mode. Use the digital buttons and cursor buttons to input the desired track/chapter number or time. Press ENTER to start its playing.

Program playing

During playback press ST/PROG button on the RC to open the program menu. Press the cursor buttons and number buttons to set the sequence of playback.

TV type select (for DVD/VCD)

Press BND/NP/SUB button on the panel to select the TV type: NTSC => PAL => PAL60 => AUTO.

Notes on MP3 and WMA

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs.
- The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
- The unit can not read an MP3 file that has a file extension other than " .mp3".
- If you play a non-MP3 file that has the "mp3" extension, you may hear some noise.
- In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
• Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 256.
• The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
- When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.
- The unit supports the playback of WMA files. The playback of ID3 tags for WMA format is not guaranteed, it depends on versions and availability of Cyrillic alphabet.
- WMA (Windows Media Audio) – music data compression format, created by Microsoft Corporation. This format uses coding algorithm for compression of initial audio-record, greatly decreasing the file size, but, saving the good sound quality even when the bit rate is low (for example, 64 Kbit/s).
• Remember that the unit may not play the tracks in order they are written on disc.

Notes on creating your own CD-Rs or CD-RWs containing MP3 files

• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.
  • DO NOT store more than 256 MP3 files per disc.
• For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).
• When CD-R disc is used, playback is possible only for discs, which have been finalized.
  • Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
• You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
• With some CD-R or CD-RW media, data may not be properly written depending on their manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.
  • Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required.
  • Note that the unit may not play Tracks in the order that you wrote them to the disc.

System setup

Press SETUP button on the RC to display setup screen, use LEFT/RIGHT cursor buttons and ENTER button to select the desired setup page: System, Language, Audio, Video, Speaker, Digital.

System setup

TV system

Select the TV system in the setting menu (NTSC, PAL, PAL-M, PAL-N, AUTO).

Screen saver

The screen saver appears if disc stops for more than 3 minutes.

Original setting: On.

TV type

Select TV type to watch wide screen movies.

4:3 PS: For 4:3 TV, left and right edges will be cut.

4:3 LB: For 4:3 TV, black bars will appear on top and bottom.

16:9: For 16:9 wide screen TV.

Password

Original password is 0000.

Rating

The rating of the disc is from 1 to 8:

I(KID SAFE) with the most limits when playing.

8 (ADULT) with the least limits when playing.

Original setting: 8.

Note: The rating can be selected only under the password unlocked status, and the limits can be worked only under the password locked status.

Default

If this item is selected, the unit will return to original setting.

SYSTEM SETUP

TV SYSTEM

SCREEN SAVER

TV TYPE

PASSWORD

RATING

DEFAULT

Language setup

OSD language

Select the language to be used for the on-screen display.

Audio language

Select the language to be used for the audio. You can select a preferred audio from those included on the DVD video disk. (The screen on your player may have difference with the screen shown here)

Subtitle language

Select the language to be used for the Subtitles. You can select a preferred subtitle from those included in the DVD Video disk.

(The screen on your player may have difference with the screen shown here)

Menu language

Select the language to be used for the Menu. You can select a preferred audio from those included on the DVD. (The screen on your player may have difference with the screen shown here.)

LANGUAGE SETUP

OSD LANGUAGE

AUDIO LANG

SUBTITLE LANG

MENU LANG

Audio setup

Audio output

Select digital output format.

SPDIF/OFF: There is no signal output from coaxial or optical output.

SPDIF/RAW: When the unit is connected with the amplifier by coaxial or optical connector, please select this mode.

SPDIF/PCM: When the unit is connected with the two-channel digital stereo amplifier, please select this mode.

Key. Select key up/down according to your preference.

AUDIO SETUP

AUDIO OUT KEY

Video setup

Set a parameter with UP/DOWN cursor buttons: Brightness, Contrast, Hue, Saturation, Sharpness.

VIDEO SETUP

BRIGHTNESS

CONTRAST

HUE

SATURATION

SHARPNESS

Speaker setup

Downmix

LT/RT: The audio out is Left and Right channels format even if the original sound is 5.1 CH format.

Stereo: The audio out format is stereo even if the original sound is 5.1 CH format.

Vss: The audio out is virtual surround sounds (only for 5.1 CH player).

SPEAKER SETUP

DOWNMIX

Digital setup

Output mode

Select the output mode:

LINE OUT: Compress the input signal. The volume is small.

RF REMOD: The volume is large.

Dynamic range

When you select the compressed mode as "line out", select it to adjust the compression proportion and get the different compressed effect. When select FULL, the audio signal is minimum; when select OFF, the audio signal is maximum.

Dual mono: Select the audio channel from STEREO, MONO L, MONO R and MIX MONO.

DIGITAL SETUP

OP MODE

DYNAMIC RANGE

DUAL MONO

Anti-theft system

Remove the panel

1. Press POWER button to switch off the power of the unit.
2. Press OPEN button to flip down the panel.
3. Push the panel to the left and then pull it towards you.
4. Put it to the special box and take it with you.

Remove the unit

1. Remove the panel and the trim plate.
2. Insert both T-Keys into hole on the front of the set until they lock.
3. Pull out the unit.

Cleaning

Discs holding

• Dirty, scratched or warped discs may cause skip ping or noise.
- Handle the disc only by the edges. To keep clean do not touch its surface.
• Discs should be stored in their cases after use to avoid scratches.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
- Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).
- Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.
• DO NOT attach any seal, label or data protection sheet to either side of a disc.
- Cleaning.

Discs cleaning

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzene, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth and then wipe clean.

Troubleshooting guide

Symptom Cause Solution
No power The car ignition is not on.	The fuse is blown.	If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.Replace the fuse.
Disc cannot be loaded.	Presence of disc inside the player.	Remove the disc in the player then put a new upward.
Disc cannot be read. Inserting the disc in upside down.	Compact disc is extremely dirty or defective.Temperature inside the car is too high.	Insert the compact disc with the label facing upward.Clean the disc or try to play a new one.Cool off until the ambient temperature returns to normal.
No sound Volume is in minimum.Wiring is not properly connected.	Adjust volume to a desired level.Check wiring connection.
The buttons do not work.	The built-in microcomputer is not operating properly due to noise.Front panel is not properly fix into its place.	Press the power button for about 10 seconds to reset the unit
Sound skips. The installation angle is more than 30 degrees.The disc is extremely dirty or defective.	Adjust the installation angle to less than 30 degrees.Clean the compact disc/try to play a new one.
The radio does not work, the radio station automatic selection does not work.	The antenna cable is not connected the signals are too weak.	Insert the antenna cable firmly select a station manually.

Specification

General
Power supply:	12V DC
Current consumption/Fuse:	10A & 1A
Maximum power output:	50Wx4 channels
Dimensions (W x H x D)	178 x 51 x 178 mm
Working temperature range:	-20°C - +60°C
FM Stereo Radio
Frequency range:	87.5 - 108.0 MHz
Usable sensitivity	3 uV
I.F. Frequency:	10.7 MHz
AM Section
Frequency range:	522 kHz-1620 kHz
Disc player
Formats:	DVD/SVCD/VCD/MP4/MP3/WMACD/HDCD/DVDAudio/MPEG4/DivX/Picture-CD/Photo-CD/CD-R/CD-RW/DVD±R/JPEG
Video System/ Audio System	Standard NTSC/PAL / 24 bit/96 KHz
Loading System	Auto Loading
Mounting Angle	0 to +/-30
Video Specification
Video System	16.9 and 4:3
Video Output level	1.0Vp-p 75 ohms
Horizontal Resolution	500
Audio Specification
Maximum Output	2Vrms(+/-3dB)
Frequency Response	20 to 20KHz

S/N Ratio (A-vtd)/Separation 60dB/50dB
Line out
Output: CD max 1000 mV

Specifications are subject to change without notice. Dimensions are approximate.

Technical diagram showing exploded view of a device with labeled components and assembly steps

Способ установки Б

2 3 4 RESET Close Front Panel While Driving A B 1
