USER MANUAL Popular SK251-10 Cylinda
COOKER HOOD POPULAR
SK251-10, SK261-10, SK271-10
SK252-10, SK262-10, SK272-10
Cylinda
år efter år

BRUKSANVISNING
Safety Instructions ......6
Instructions for use...... 8
Servicing and warranty......9
Electrical installation 10
Installation.... 11
Adjusting air flow 13
Fig.1
A. Spjällfunktion
B. Belysning
www.cylinda.se/service
Please read this installation and user guide carefully before installing and using the product, paying special attention to the safety instructions.
Keep the instructions for reference or for the next owner.
Disconnect the product from the power supply prior to cleaning or maintenance.
§ The diversion of exhaust air must be carried out in accordance with instructions issued by the appropriate authority.
§ Exhaust air must not be directed into flues that are used for fumes from items such as gas, wood or oil-burning stoves or fireplaces.

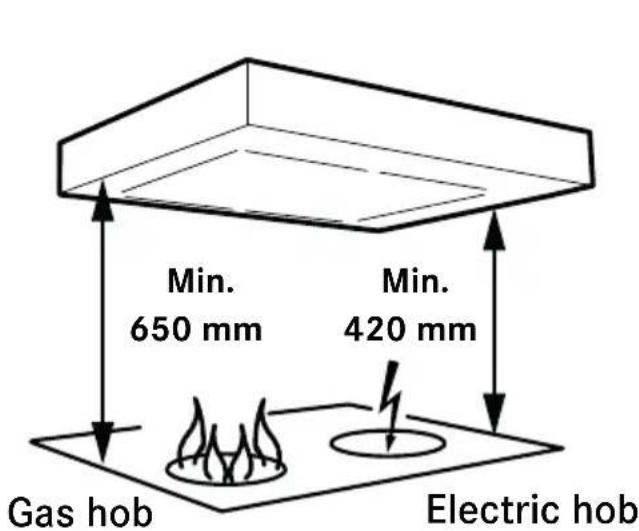

§ The distance between the stove and the product must be at least 42 cm. For gas hob, the distance should be increased to 65 cm. Adjust accordingly if the stove manufacturer recommends a higher mounting height.
§ For safety reasons, the installation and replacement of cables or other types of connectors should only be carried out by a qualified professional.
§ You must not flambé food underneath the product.
§ If the product is to be used at the same time as products that use energy sources other than electricity, i.e., gas hobs, gas, wood or oil-burning stoves or fireplaces, etc, the room must have an adequate supply of air.
§ The product may be used by children from 8 years of age and persons with mental, sensory or physical impairment, or a lack of experience and knowledge, provided they are given information about how the product is to be used.
§ Children should not be allowed to play with the product. Children must not undertake cleaning or maintenance of the product unsupervised.
§ Accessible parts of the product may become hot when food is being prepared.
§ A fire is more likely to spread if the product is not cleaned as frequently as indicated.
Attention!
The developer or proprietor is responsible for ensuring installation is carried out correctly and complies with the applicable building regulations.
GENERAL INFORMATION
The product features LED lighting (6.5 W), aluminium filters and the Easy Clean system.
FUNCTIONS

A
Fig. 1
A. Damper
B. Lighting
Open the damper while cooking. The damper is closed automatically after max. 60 minutes or when the knob is turned to 0.
It is a good idea to have the damper open short while before and after cooking to prevent cooking smells spreading into the room.
CARE AND MAINTENANCE
Cleaning the filter
The cooker hood should be cleaned with a damp cloth and washing-up liquid. With normal usage, the filters must be cleaned at least every other month. Clean more often after intensive use.


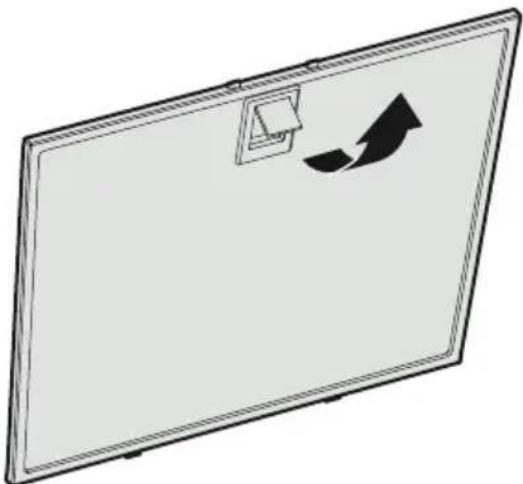

Remove the grease filter by opening the snap retainer, Fig. 2.
Handle the filter carefully, taking care not to bend it.
Soak the filter in a solution of warm water and washing-up liquid. The filter can also be washed in a dishwasher.
Refit the grease filter after cleaning, making sure it snaps firmly into place.
Cleaning other parts
The inside of the cooker hood and the damper must be cleaned at least twice a year. The damper must be thoroughly cleaned in both its open and closed position using a damp cloth and washing-up liquid. Handle the damper carefully.
TROUBLESHOOTING
Check that the fuse is intact. Go through all the functions to check what is not working. Start by disconnecting the product from the power supply and switching it on again. Check that the connector is not bent or twisted at the connection point.
SERVICING

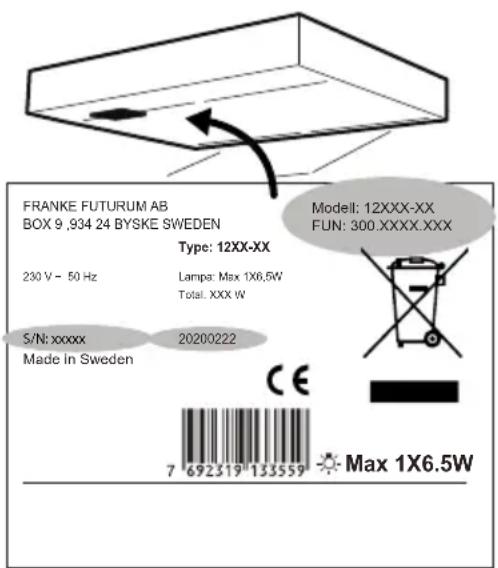

Fig. 3
Before contacting servicing, check the product label and note down the FUN number, S/N number and manufacturing date of the product.
The product label is located on the left side, underneath the filter/bottom plate.
Contakt Cylinda Service
tel. +46 0771-25 25 00 or visit:
www.cylinda.se/service
They can help you fix the problem or refer you to the nearest service agent for fast and effective service.
The product is covered by the relevant AP-PLiA provisions.
ENVIRONMENTAL INFORMATION
The main raw materials used in the product are:
- Metals: stainless sheet metal, galvanised sheet metal, zinc, aluminium
- Plastics: polypropylene, polyamide, polycarbonate, polybutylene terephthalate (PBT)
- Glass
All components comply with the RoHS Directive.
PACKAGING AND PRODUCT RECYCLING
The packaging should be deposited at your nearest recycling point.

The symbol means that the product must not be treated as household waste. It should instead be taken to a collection point for the recycling of electrical and electronic components. By ensuring that the product is dealt with in the correct manner, you are helping to prevent the adverse environmental and health effects that could arise if the product was disposed of as regular waste. For further information on recycling, contact your local authority or waste disposal service, or the store where you purchased your product.
ELEKTRISK INSTALLATION
SÄHKÖASENNUS
ELEKTRISK INSTALLASJON ELECTRICAL INSTALLATION
Electrical connection for 230 V\~ earthed.
The product is supplied with a cable and earthed plug for connection to an earthed socket. The socket should be accessible after installation is complete. The junction box or wall socket must be accessible after installation is complete. If the connector is damaged, it must be replaced with an equivalent special cable from the manufacturer or their service agent.

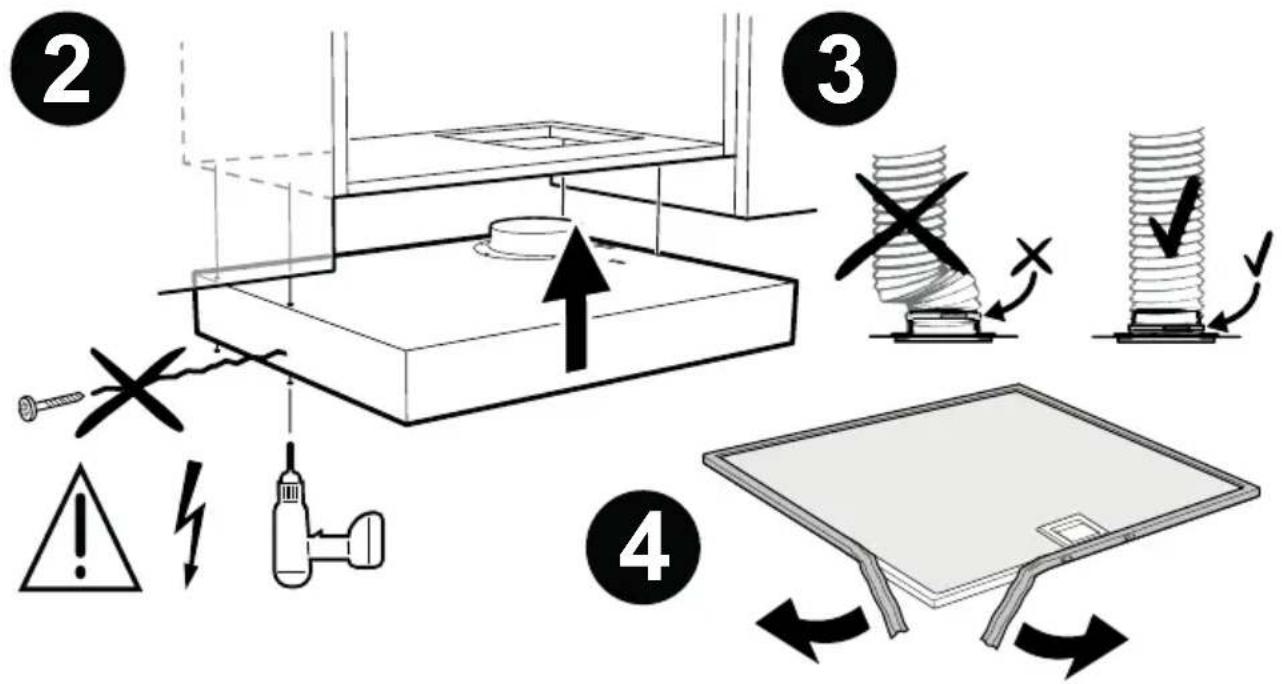

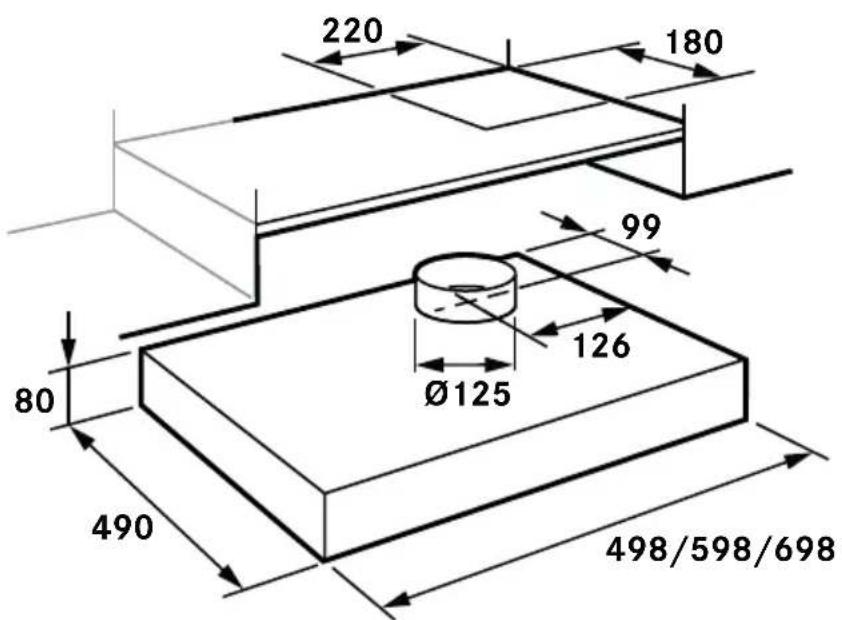

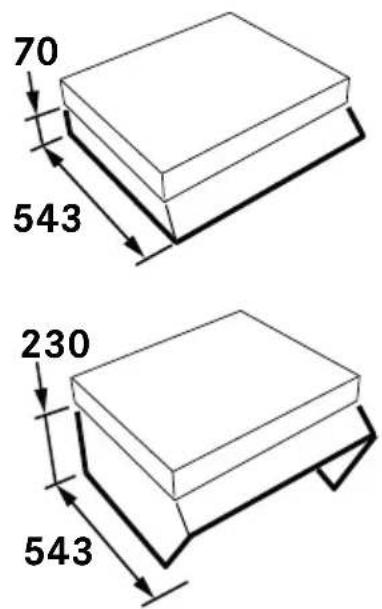

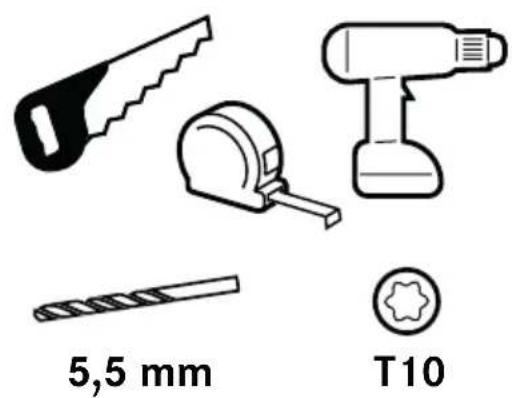

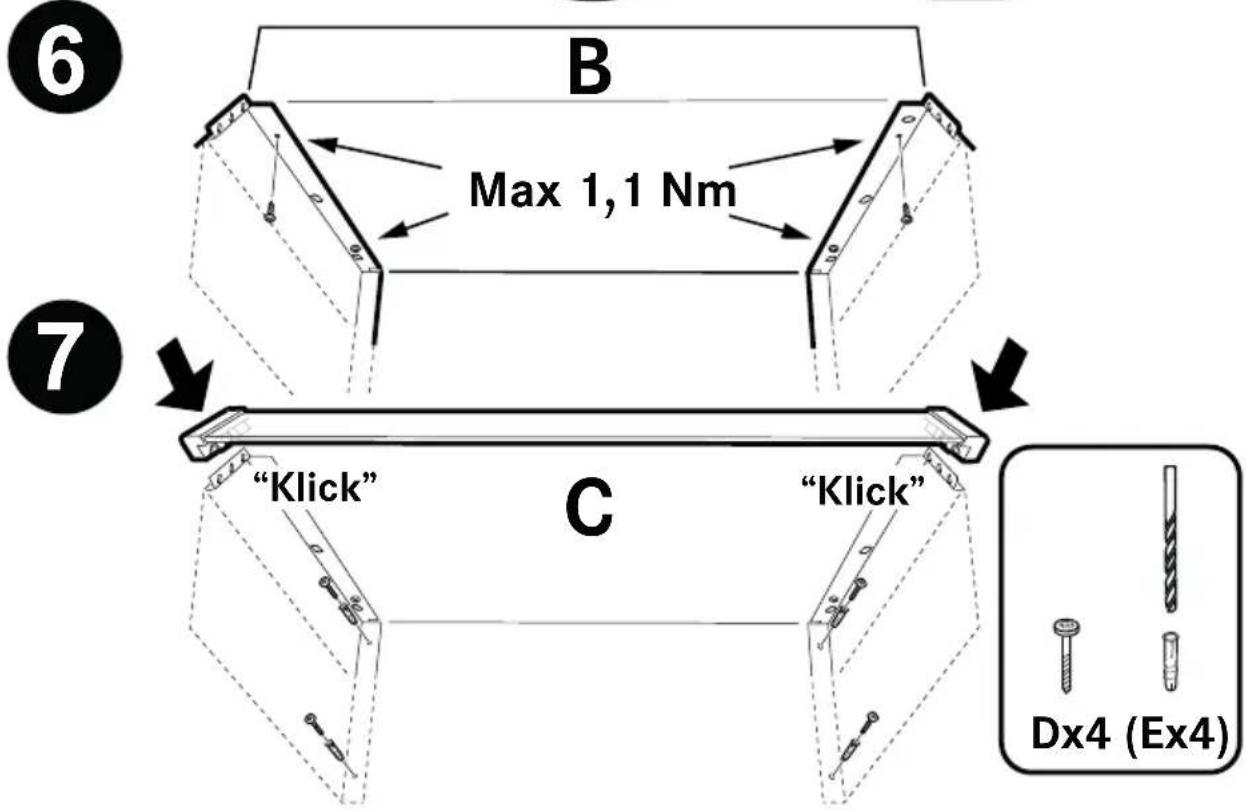

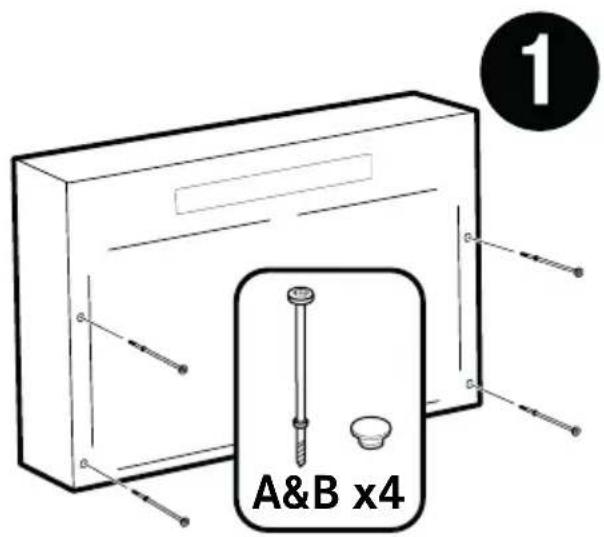

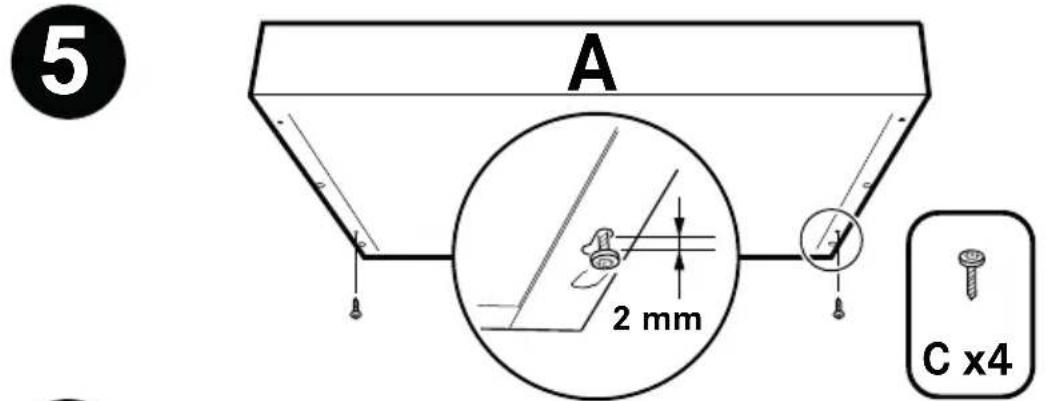

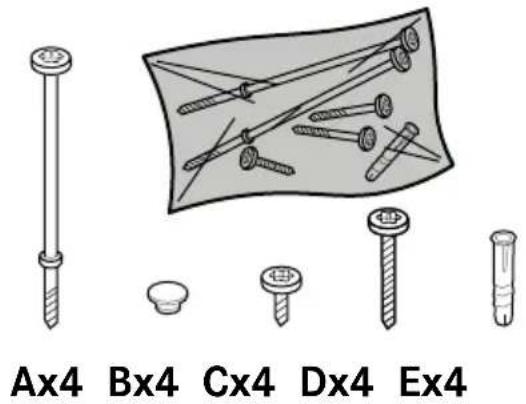

INSTALLATION
INSTALLASJON

ASENNUS
INSTALLATION








JUSTERING AF LUFTMÆNGDE
TILPASNING AV LUFTSTR∅MMEN
ILMAVIRTAUKSEN SÄÄTÖ
ADJUSTING AIR FLOW
EN Note! Damper adjustment or speed changes must be carried out by a qualified professional.
Adjusting damper: Basic ventilation is set by moving the sliding damper. The damper becomes accessible for adjustment by removing the grease filter.

SV Grundflöde

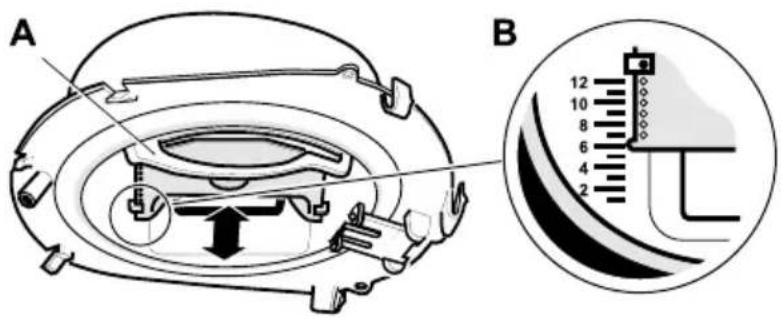

Basic ventilation is set by moving the sliding damper A to the desired position according to marking B (see diagram).

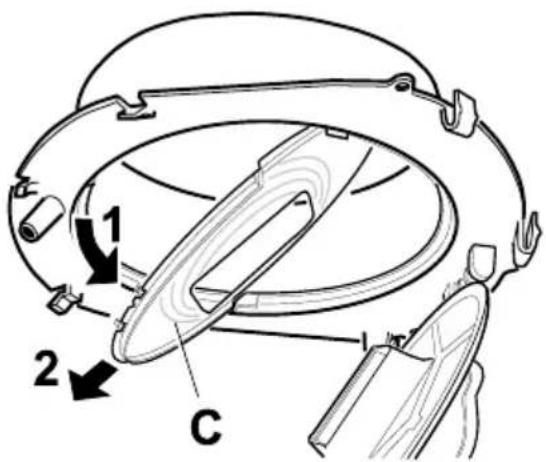

EN Forced flow Open the damper and pull out the reducing washer C.

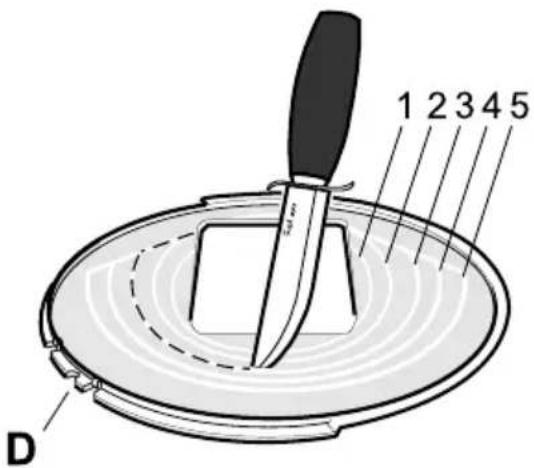

EN Adjust forced ventilation by cutting out a suitable number of rings from the reducing washer. (See diagram.) Make sure that the guide groove D is correctly positioned when refitting the washer.

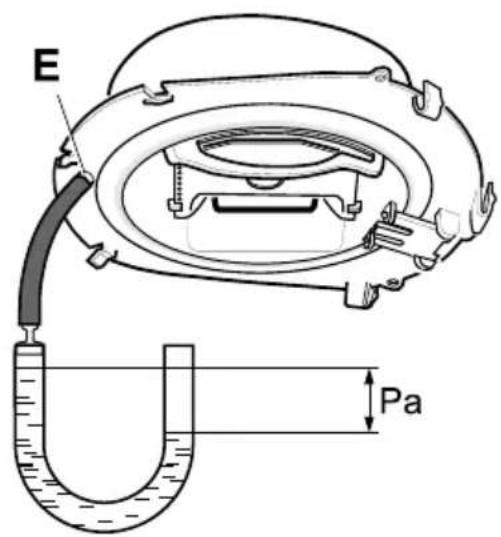

EN Measuring pressure drop The pressure drop is measured by fi tting the hose on the measuring port E at the front edge of the coupling.

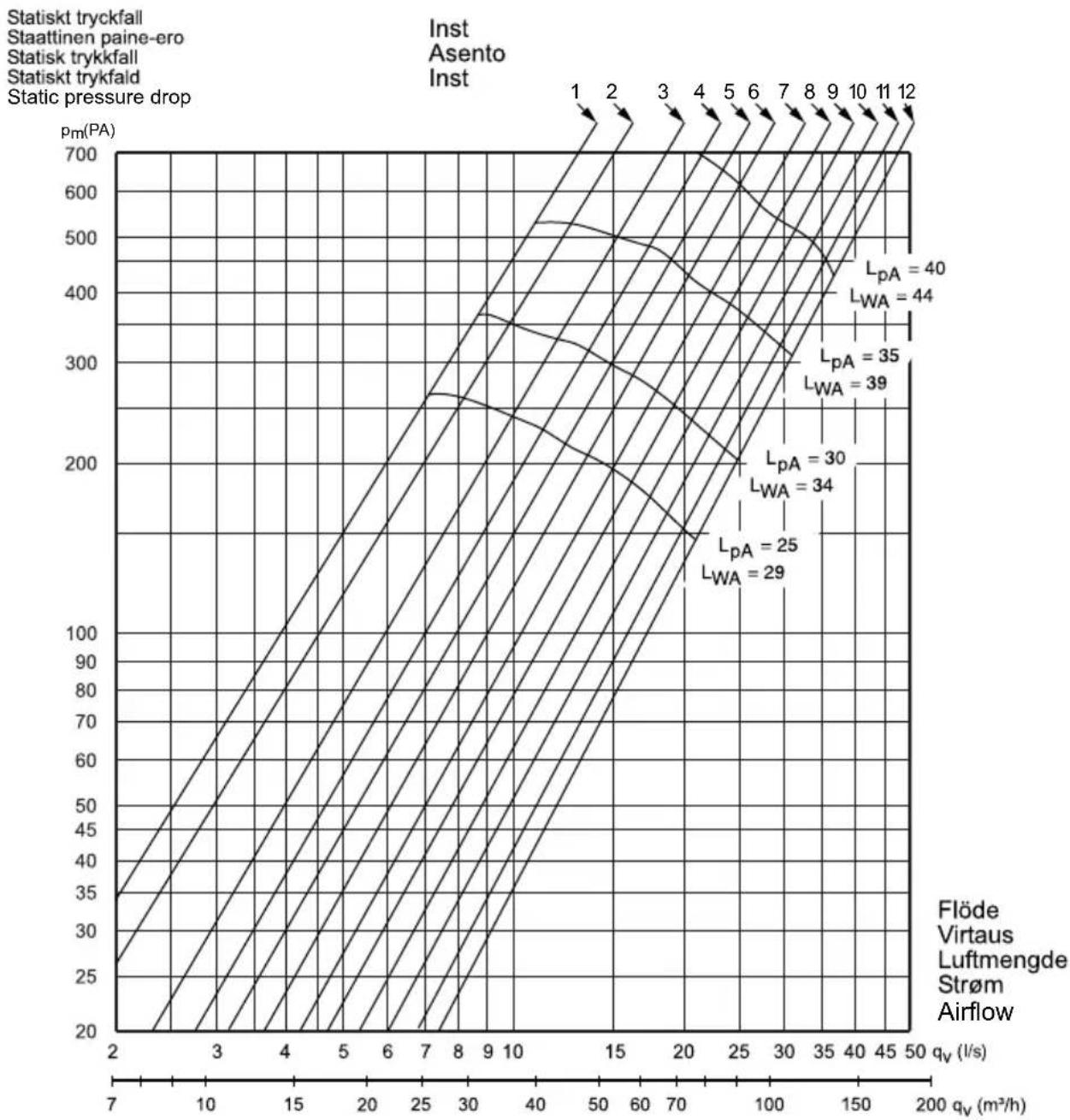

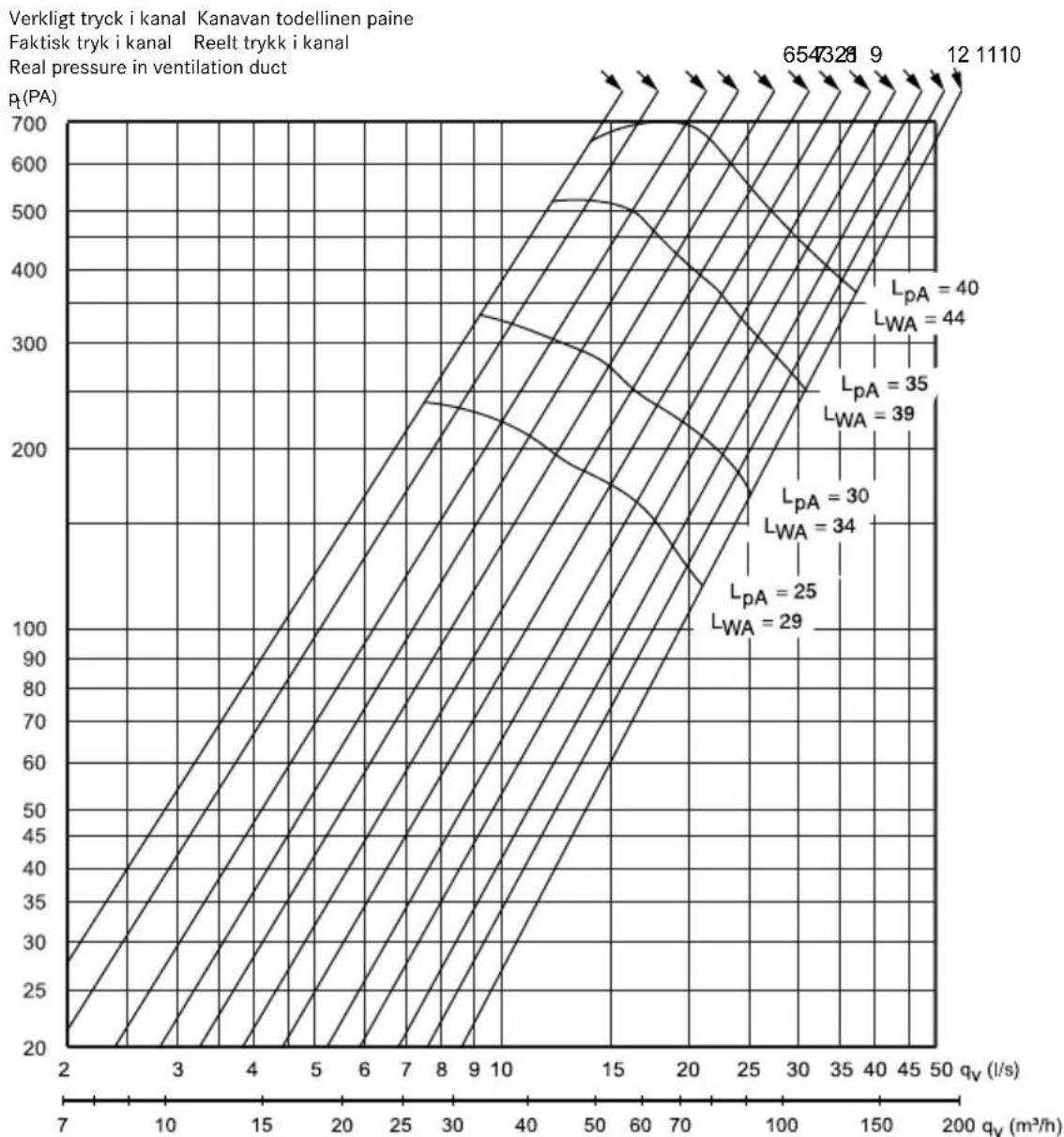

GRUNDFLÖDE PERUSTUULETUS BASIC VENTILATION GRUNDVENTILATION GRUNNVENTILASJON
Injusteringsdiagram Säätökaavio Adjusting diagram Indreguleringsdiagram Innreguleringsdiagram

line
| Flow Rate (qv) | Static Pressure Drop (pm) | LpA | LWA | | -------------- | ------------------------- | --- | --- | | 1 | ~200 | 40 | 44 | | 2 | ~300 | 35 | 39 | | 3 | ~400 | 30 | 34 | | 4 | ~500 | 25 | 29 | | 5 | ~600 | | | | 6 | ~700 | | | | 7 | ~800 | | | | 8 | ~900 | | | | 9 | ~1000 | | | | 10 | ~1100 | | | | 15 | ~1500 | | | | 20 | ~2000 | | | | 25 | ~2500 | | | | 30 | ~3000 | | | | 35 | ~3500 | | | | 40 | ~4000 | | | | 45 | ~4500 | | | | 50 | ~5000 | | |L_pA = Den A-vägda ljudtrycksnivån vid 10 m^2 Sabin L WA = Den A-vägda ljudeffektnivån relativt 1 pW
Äänenpainetaso 10 m² Sabin Aänen suhteellinen tehotaso 1pW
Den A-vegde lydtrykknivå ved 10 m² Sabin Den A-vegde lydeffektnivå relativt 1 pW
Den A-vegtor lydtryksniveau ved 10 m² Sabin Den A-vegtor lydeffektniveau relativt 1 pW
The A-measured sound pressure level at 10 m² Sabin The A-measured sound pressure level relatively 1pW
| K-faktor/ K-kerroin/ K-factor Q = k * P | K1 | K2 | K3 | K4 | K5 | K6 | K7 | K8 | K9 | K10 | K11 | K12 |
| 0,46 | 0,54 | 0,65 | 0,77 | 0,86 | 0,96 | 1,10 | 1,21 | 1,34 | 1,46 | 1,62 | 1,77 |
Fig. 1

line
| LpA | LWA | | --- | --- | | 25 | 29 | | 30 | 34 | | 35 | 39 | | 40 | 44 | | 45 | 65 | | 65 | 73 | | 73 | 9 | | 9 | 12 |Fig.2

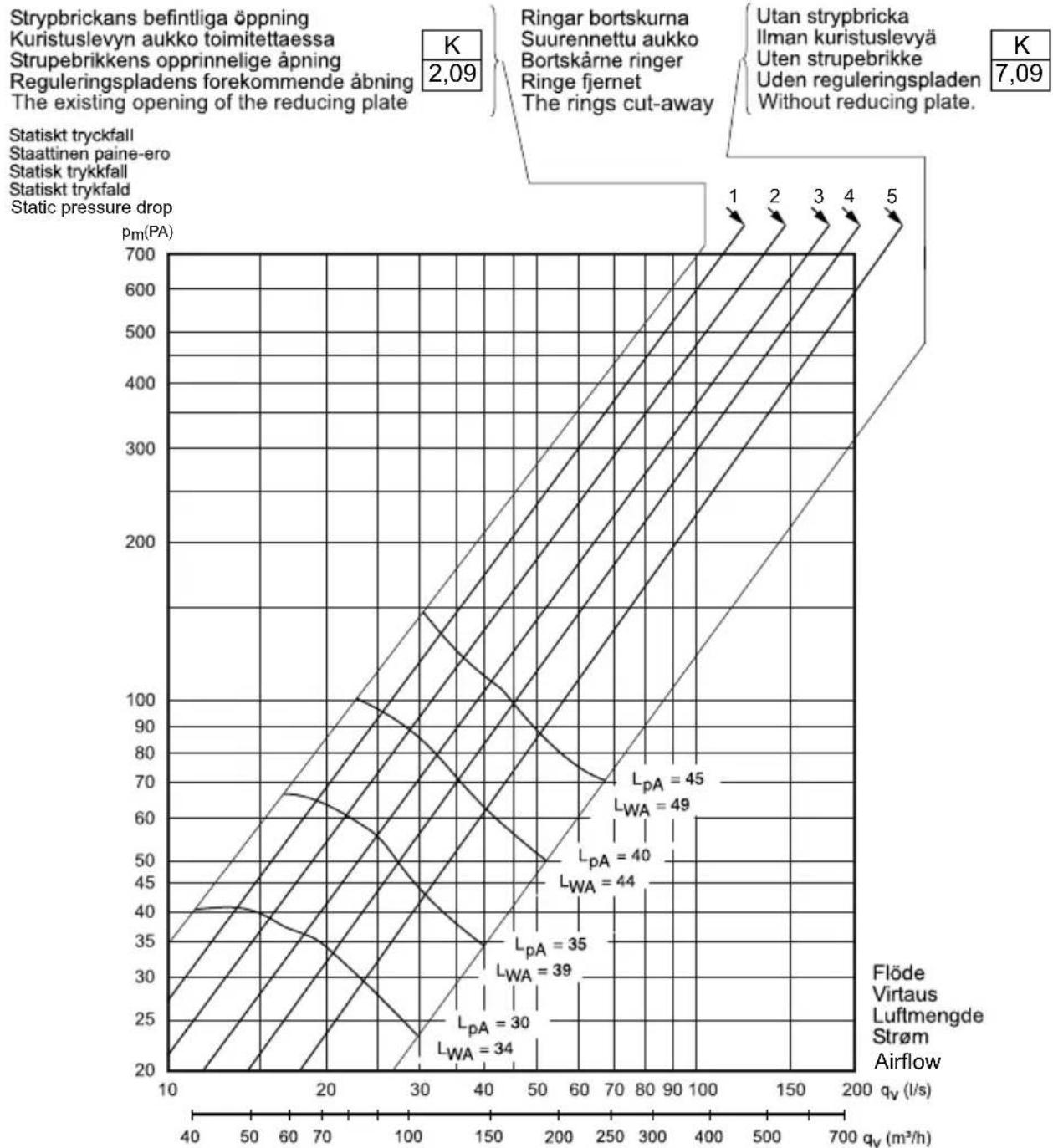

FORCERINGSFLÖDE TEHOSTETTU TUULETUS FORCED VENTILATION FORCERET VENTILATION FORSERT VENTILASJON
Injusteringsdiagram Säätökaavio Adjusting diagram Indreguleringsdiagram Innreguleringsdiagram

line
| Parameter | Value | | --------- | ----- | | K | 2.09 | | Statisk tryckfall | - | | Stattinen paine-ero | - | | Statisk trykkfall | - | | Statisk trykfald | - | | Static pressure drop | - | | LpA | 45 | | LWA | 49 | | LpA | 40 | | LWA | 44 | | LpA | 35 | | LWA | 39 | | LpA | 30 | | LWA | 34 |LpA = Den A-vägda ljudtrycksnivån vid 10 m² Sabin
Äänenpainetaso 10 m² Sabin
Den A-vegde lydtrykknivå ved 10 m² Sabin
Den A-vegtor lydtryksniveau ved 10 m² Sabin
The A-measured sound pressure level at 10 m² Sabin
L WA = Den A-vägda ljudeffektnivån relativt 1 pW
Äänen suhteellinen tehotaso 1pW
Den A-vegde lydeffektnivå relativt 1 pW
Den A-vegtor lydeffektniveau relativt 1 pW
The A-measured sound pressure level relatively 1pW
| K-faktor/K-kerroin/K-factor Q = k × P | K1 | K2 | K3 | K4 | K5 | ||
| 2,37 | 2,82 | 3,35 | 3,96 | 4,76 |
Fig.3
FORCERINGSFLÖDE TEHOSTETTU TUULETUS FORCED VENTILATION FORCERET VENTILATION FORCERET VENTILASJON
line
| LpA | LWA | | --- | --- | | 30 | 34 | | 35 | 39 | | 40 | 44 | | 45 | 49 |Fig.4
