SOLO SF160RFA - Range hood Cylinda - Free user manual and instructions
Find the device manual for free SOLO SF160RFA Cylinda in PDF.
| Product Type | Range Hood |
| Brand | Cylinda |
| Model | SOLO SF160RFA |
| Color | Stainless Steel |
| Body Material | Stainless Steel |
| Dimensions (W x D x H) | 600 x 500 x 150 mm (approx.) |
| Weight | 10 kg (approx.) |
| Power Supply | 220-240 V ~ 50 Hz |
| Rated Power | 220 W |
| Motor Power | 200 W |
| Fan Speeds | 3 |
| Max Airflow | 600 m³/h |
| Noise Level | 55 dB(A) (max) |
| Lighting | LED, 2 x 3 W |
| Filter Type | Aluminum Grease Filter |
| Charcoal Filter | Optional (for recirculation) |
| Exhaust Outlet Diameter | 150 mm |
| Control Type | Push Buttons |
| Installation Type | Wall-mounted |
| Energy Class | A |
| Grease Filter Efficiency | Class B |
| Airflow Efficiency | Class A |
| Safety | Overheat Protection |
Frequently Asked Questions - SOLO SF160RFA Cylinda
User questions about SOLO SF160RFA Cylinda
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Range hood in PDF format for free! Find your manual SOLO SF160RFA - Cylinda and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SOLO SF160RFA by Cylinda.
USER MANUAL SOLO SF160RFA Cylinda
COOKER HOOD SOLO
SF150A, SF160A, SF170A
SF160RFA
Cylinda
år efter år

BRUKSANVISNING
Safety Instructions 8
Instructions for use.... 10
Service and warranty.... 13
Electrical installation 14
Installation.... 15
Fig.4
Fig.8
www.cylinda.se/service
Please read this installation and user guide carefully before installing and using the product, paying special attention to the safety instructions.
Keep the instructions for reference or for the next owner.
Disconnect the product from the power supply prior to cleaning or maintenance.
§ The diversion of exhaust air must be carried out in accordance with instructions issued by the appropriate authority.
§ Exhaust air must not be directed into flues that are used for fumes from items such as gas, wood or oil-burning stoves or fireplaces.

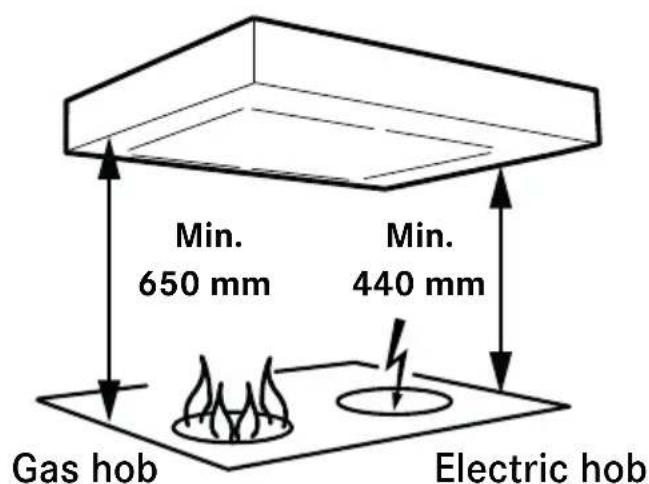

§ The distance between the stove and the product must be at least 44 cm. For gas hobs, the distance should be increased to 65 cm. Adjust accordingly if the stove manufacturer recommends a higher mounting height. N.B. If the product has a stove alarm or stove guard, it must not be mounted over a gas hob. See separate instructions.
§ You must not flambé food underneath the product.
§ For safety reasons, the installation and replacement of cables or other types of connectors should only be carried out by a qualified professional.
§ If the product is to be used at the same time as products that use energy sources other than electricity, i.e., gas hobs, gas, wood or oil-burning stoves or fireplaces, etc, the room must have an adequate supply of air.
§ The product may be used by children from 8 years of age and persons with mental, sensory or physical impairment, or a lack of experience and knowledge, provided they are given information about how the product is to be used.
§ Children should not be allowed to play with the product. Children must not undertake cleaning or maintenance of the product unsupervised.
§ Accessible parts of the product may become hot when food is being prepared.
§ A fire is more likely to spread if the product is not cleaned as frequently as indicated.
N.B. The developer or proprietor is responsible for ensuring installation is carried out correctly and complies with the applicable building regulations.
GENERAL INFORMATION
The product features LED lighting (6.5 W), aluminium filters, an EC motor and the Easy Clean system.
FUNCTIONS

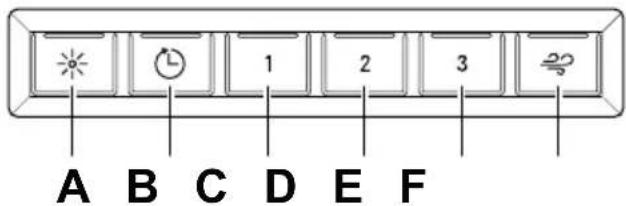

Fig. 1
A. Lighting
B. Ventilation mode. The fan runs at low speed for 60 minutes.
C. Speed 1.
D. Speed 2.
E. Speed 3.
F. 1. Intensive mode. The fan runs at maximum speed for 7 minutes and then reverts to speed 3.
- Filter guard. If the filter guard is activated (see Programming below), the LED will flash when the filter needs to be cleaned. After cleaning, press and hold button F for 2 seconds to reset the system.
Turning on the cooker hood before you start to cook prevents cooking smells spreading into the room. Adjust the speed of the cooker hood depending on the type of food you are preparing. If possible, allow the cooker hood to run at a low speed for few minutes after you've finished cooking. You may also wish to run the cooker hood on the low setting when the oven is in use or after using the dishwasher.
The product is fitted with a filter guard. To activate/deactivate the filter guard, see below.
Programming
-
Start programming: press and hold buttons A and B for 3 seconds so that they both flash 3 times. Programming mode will then be active for 30 seconds.
-
Select function: press the button for the selected function to activate/deactivate the function.
| Button Functions | |
| F Filter guard |
The LED on the button lights up when the function is activated.
- To save a programme: press and hold buttons A and B for 3 seconds. Buttons A and B will flash twice to show that the programme has been saved.
Attention!
If the product has a stove alarm or stove guard, see separate instructions.
CARE AND MAINTENANCE
Cleaning the filter
The cooker hood should be cleaned with a damp cloth and washing-up liquid. With normal usage, the filters must be cleaned at least every other month. Clean more often after intensive use.


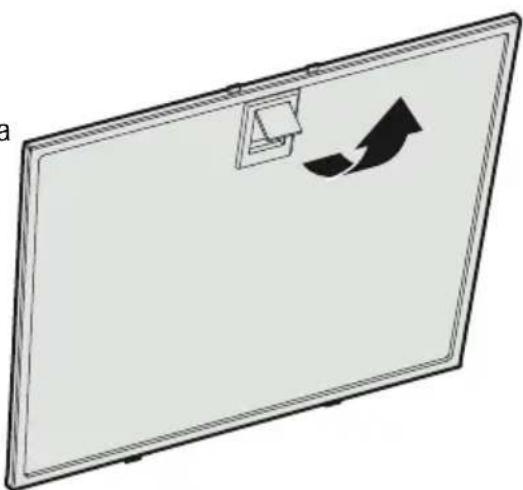

Simple line drawing of a blank rectangular panel with a small inset showing an arrow and a square (no text or symbols)Fig. 2
Remove the grease filter by opening the snap retainer, Fig. 2.
Handle the filter carefully, taking care not to bend it.
Soak the filter in a solution of warm water and washing-up liquid. The filter can also be washed in a dishwasher.
Refit the grease filter after cleaning, making sure it snaps firmly into place.
Cleaning other parts
The interior of the cooker hood and removable parts should be cleaned at least twice a year.


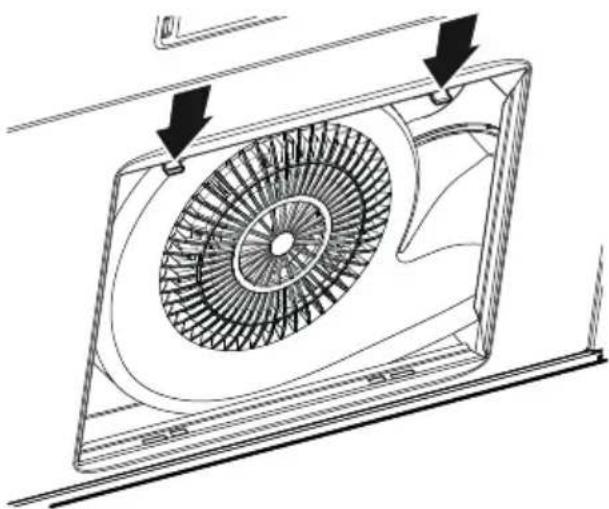

Technical line drawing of a fan assembly with mounting brackets and internal blades (no text or symbols)Fig. 3
Remove the bottom plate by pushing the snap retainers in the direction of the arrows. Fig. 3

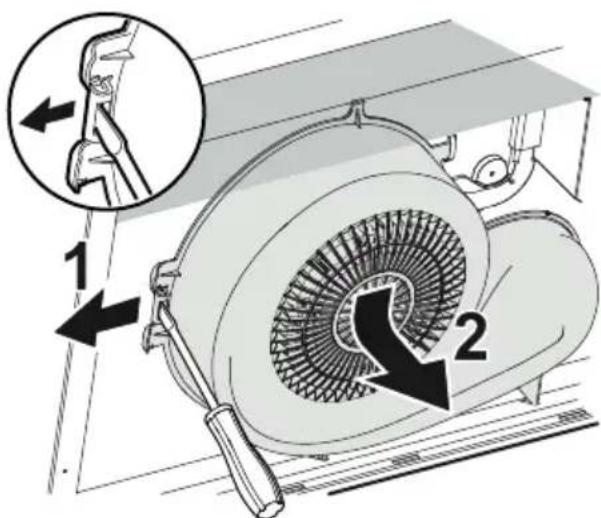

Fig. 4
Release the blower by bending the snap retainer outwards in the direction of the arrow (1) and pushing the blower away from you and down (2), Fig. 4.


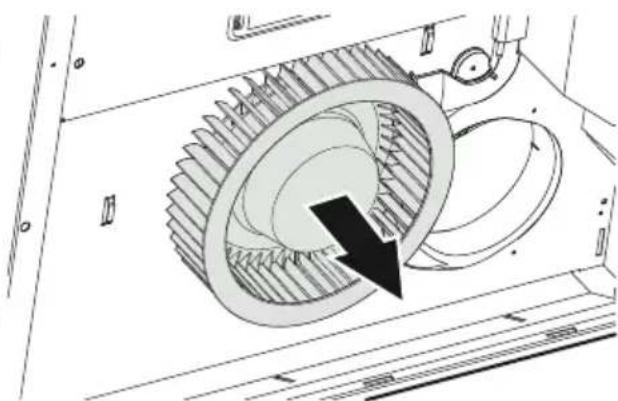

Technical diagram of a gear assembly with internal components and a black arrow indicating direction (no text or labels)Fig. 5
Release the impeller by pulling in the direction of the arrow, Fig. 5
Clean the bottom plate, blower and impeller using warm water and washing-up liquid.
The blower and impeller can also be washed in a dishwasher. After washing and drying, assemble the parts in reverse order.


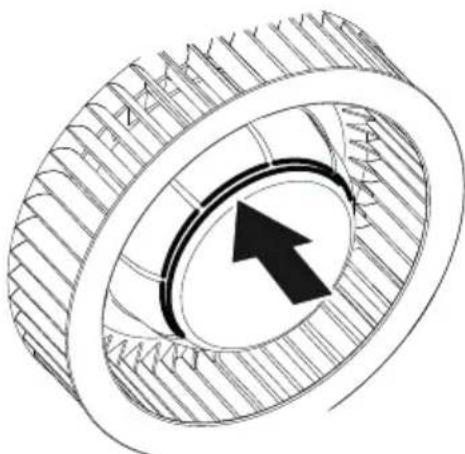

Technical line drawing of a mechanical gear or cam component with a black arrow indicating direction (no text or symbols)Fig. 6
Refit the impeller. Make sure that it is level in the groove on the motor.

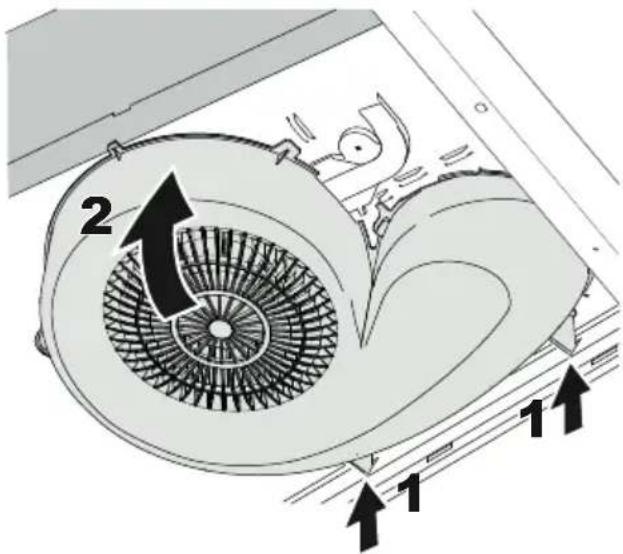

Fig. 7
Refit the blower by inserting the supports in the rear of the hood (1). Bend up the blower (2). Fig. 7

Fig. 8

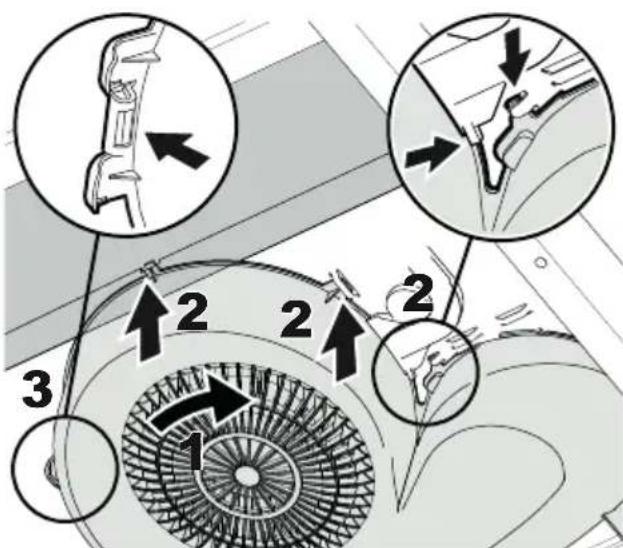

Make sure all the snap retainers fit onto the cooker hood lugs. Twist the blower (1) into the lugs (2). Press the blower's snap retainer back into the lug (3). Fig. 8
Attention!
Check that the parts snap firmly into place.
TROUBLESHOOTING
Check that the fuse is intact. Go through all the functions to check what is not working. Start by disconnecting the product from the power supply and switching it on again. Check that the connector is not bent or twisted at the connection point.
Attention!
If the product has a stove alarm or stove guard, use the separate instructions for troubleshooting.
SERVICING

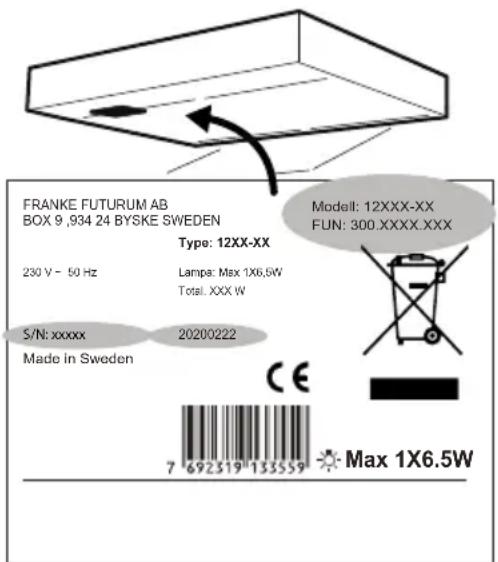

Fig. 9
Before contacting servicing, check the product label and note down the FUN number, S/N number and manufacturing date of the product.
The product label is located on the left side, underneath the filter/bottom plate.
Contakt Cylinda Service
tel. +46 0771-25 25 00 or visit:
www.cylinda.se/service
They can help you fix the problem or refer you to the nearest service agent for fast and effective service.
The product is covered by the relevant AP-PLiA provisions.
ENVIRONMENTAL INFORMATION
The main raw materials used in the product are:
- Metals: stainless sheet metal, galvanised sheet metal, zinc, aluminium
- Plastics: polypropylene, polyamide, polycarbonate, polybutylene terephthalate (PBT)
- Glass
All components comply with the RoHS Directive.
PACKAGING AND PRODUCT RECYCLING
The packaging should be deposited at your nearest recycling point.

The symbol means that the product must not be treated as household waste. It should instead be taken to a collection point for the recycling of electrical and electronic components. By ensuring that the product is dealt with in the correct manner, you are helping to prevent the adverse environmental and health effects that could arise if the product was disposed of as regular waste. For further information on recycling, contact your local authority or waste disposal service, or the store where you purchased your product.
ECO-DESIGN DIRECTIVE
The product has been tested in accordance with and meets the ecodesign requirements of European Regulation 66/2014.
ELEKTRISK INSTALLATION
SÄHKÖASENNUS
ELEKTRISK INSTALLASJON ELECTRICAL INSTALLATION
Electrical connection for 230 V\~ earthed.
The product is supplied with a cable and earthed plug for connection to an earthed socket. The socket should be accessible after installation is complete. The junction box or wall socket must be accessible after installation is complete. If the connector is damaged, it must be replaced with an equivalent special cable from the manufacturer or their service agent.

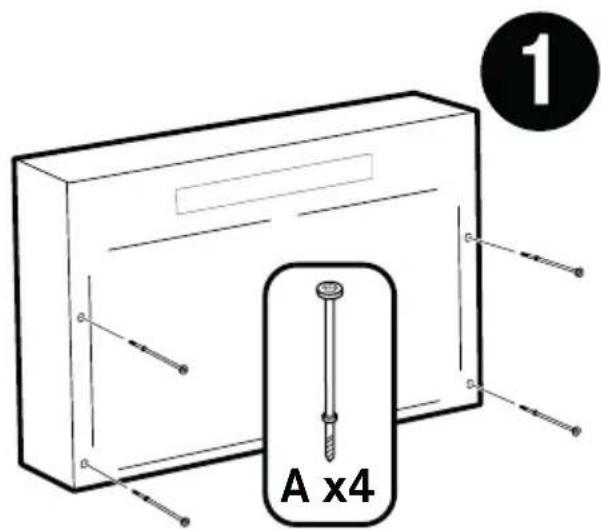

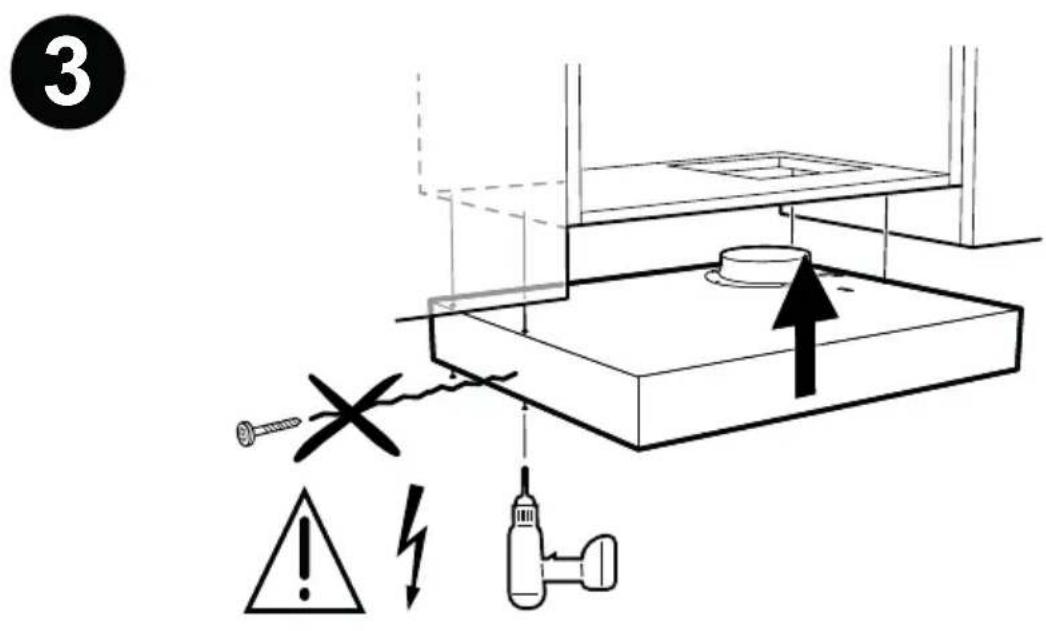

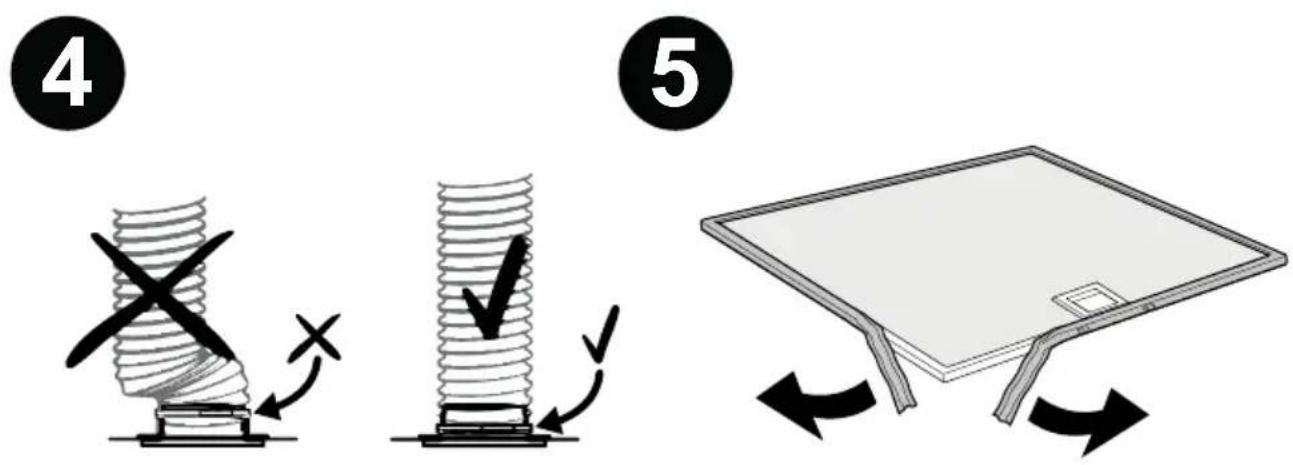

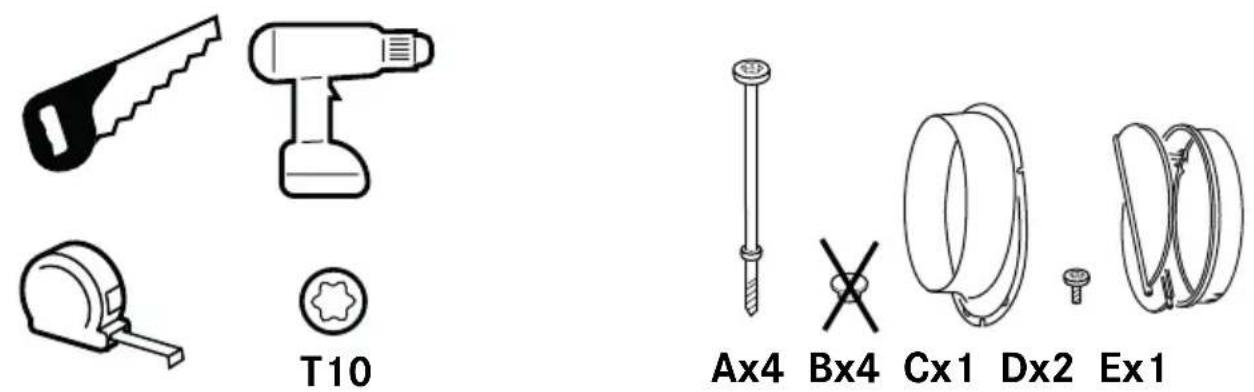

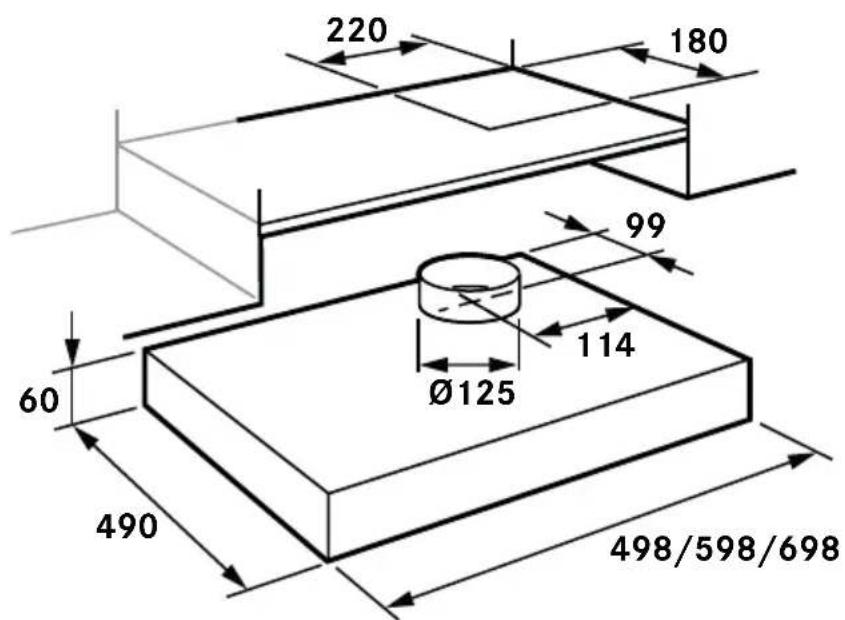

INSTALLATION
INSTALLASJON





FRANKE
SAFETY
SYSTEM

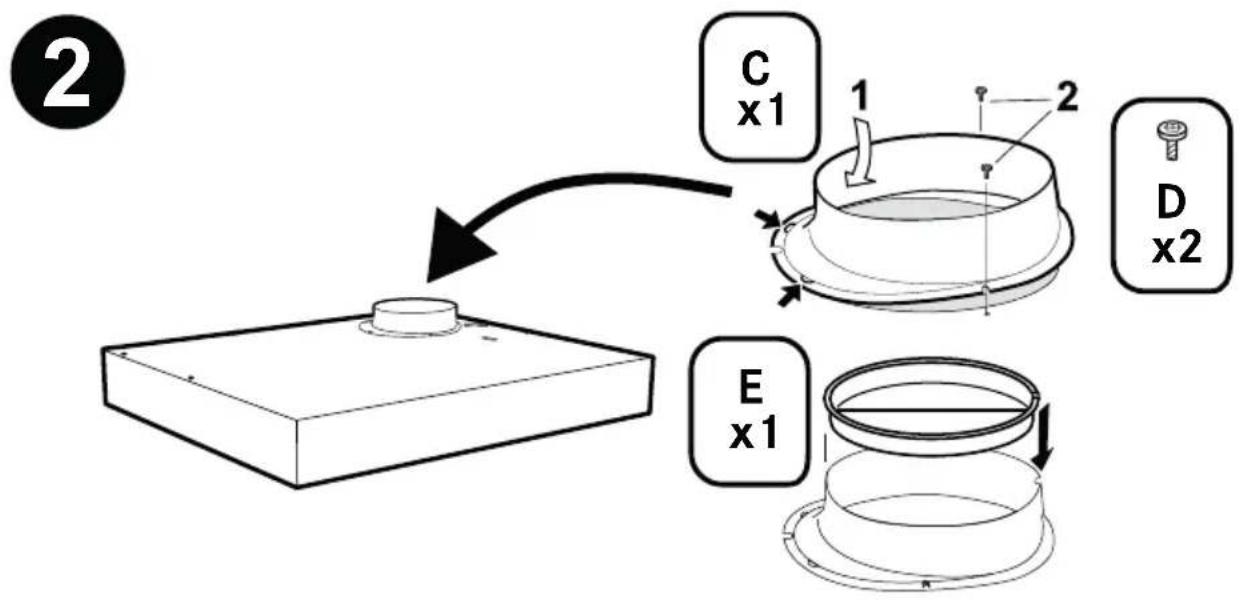



Service
Vi har service i hela Sverige/ Nationwide service in Sweden
Besök www.cylinda.se / Visit www.cylinda.se
Ring 0771-25 25 00 (endast lokaltaxa) / Call 0771-25 25 00
Uppge / Declare
Maskintyp / Model code
Serienummer / Serial number
Inköpsdatum / Purchase date
Problembeskrivning / Problem description
