USER MANUAL Nikolina 2.0 Havsö

Exterior view of a modern Havsö blender with clear glass casing and control knob (no text or symbols on the device itself)

Nikolina 2.0

BLENDER

Svenska

Specifications....19

Other information....19

SÄKERHETSFÖRESKRIFTER

Fig 3. Fig 4. Fig 5.

ANVÄNDNING

Recept

Line drawing of a kettle with internal components and a separate inset showing a lid and fan (no text or symbols)

Read this instruction manual carefully before use and save it for future reference. If you follow these instructions, your appliance will provide you with years of good service.

• Before you connect the appliance: Ensure that the voltage rating on the type plate corresponds to your mains voltage (type plate is located on the bottom of the product).
• To reduce the risk of electric shock: Do not remove the cover. There are no user serviceable parts inside. Refer servicing to qualified service personnel.
• Repairs to electrical appliances shall always be performed by qualified personnel. Improper repairs may place the user and the equipment at serious risk.
• Do not operate the appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way. Doing so may cause electric shock/personal injuries and property damage may occur.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified people to avoid a hazard.
• Do not remove the appliance from the mains power supply by pulling the cord, pull the plug. Otherwise damage to the cord and appliance may occur.
• Do not push objects into any openings as damage to the equipment and/or electric shock may occur.
• Do not use the appliance for anything other than its intended use.
• Do not immerse the product in water or any other liquid.
• Always unplug the appliance after use and before any cleaning or maintenance.
• Do not place the appliance near heat emitting appliances or in direct sunlight.
• Do not use the appliance outdoors.
• The equipment is not intended for use by people (including children) with reduced physical, sensory or mental capabilities,

SAFETY PRECAUTIONS

or lack of experience or knowledge. They should be given appropriate supervision and instructions to use the equipment by a person responsible for their safety.

• Never leave the appliance within reach of children. The product is not a toy! Close supervision is required when using the appliance near children.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
• Switch off the appliance before changing accessories or approaching parts which move in use.
• Avoid contact with moving parts. Keep hands, clothing, as well as spatulas and other utensils away from blades during operation to reduce the risk of injury to people, and/or damage to the blender.
• To reduce the risk of injury, never place blade assembly on motor unit without the jar properly attached.
• When removing the blender from the motor unit, wait until the blades have completely stopped.
• Always operate blender with cover in place.
• Always use the appliance on a secure, dry level surface.

Protection against electric shock: Class II

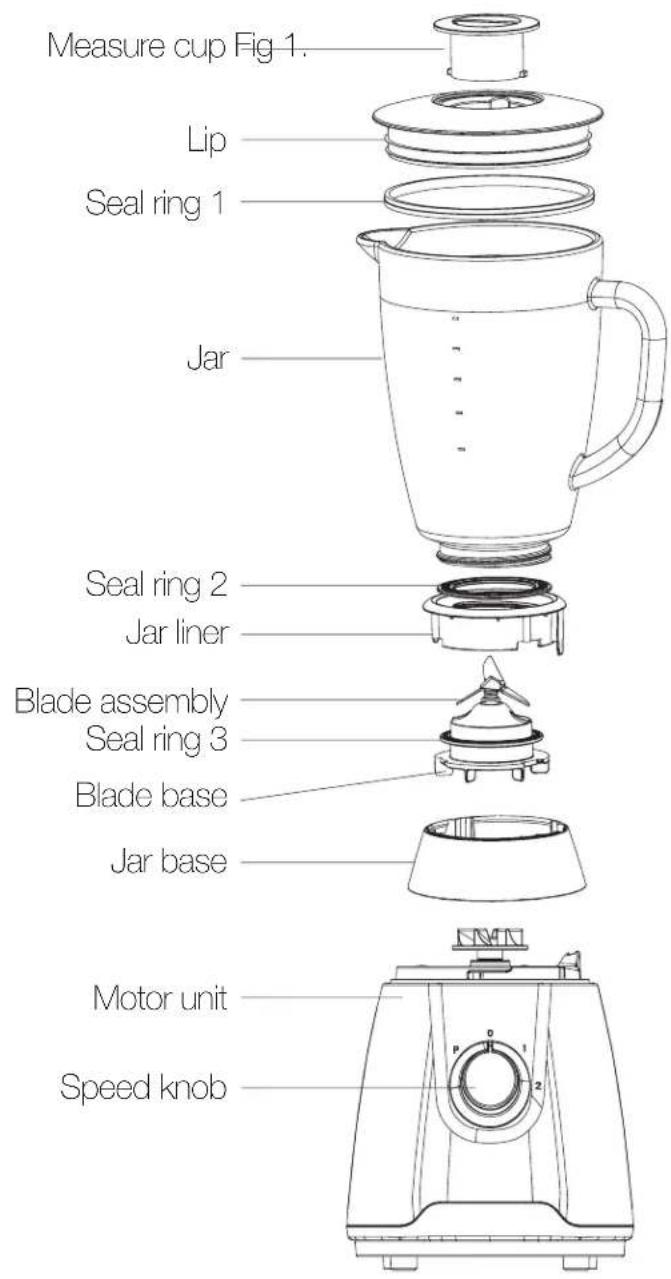

PRODUCT OVERVIEW

Measure cup Fig 1. Lip Seal ring 1 Jar Seal ring 2 Jar liner Blade assembly Seal ring 3 Blade base Jar base Motor unit Speed knob

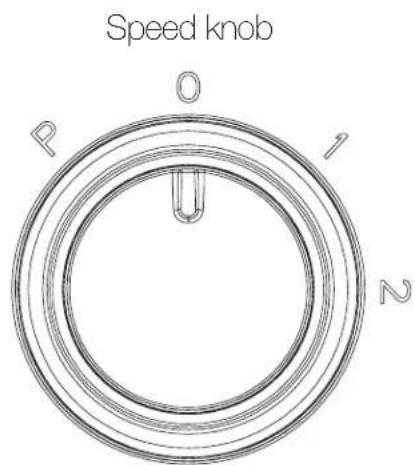

Speed knob P O 1 N

Fig 2.

OPERATION

Before initial use

1. Before first use, unpack the appliance and place all parts on a horizontal surface.

2. The jar assembly (including the measure cup, lid, seal ring 1, jar, seal ring 2, blade assembly and jar base) has already been assembled into the motor unit. Disassemble to wash all detachable parts except the motor unit. Refer to the latter chapter maintenance.

3. Once all pieces have been cleaned and dry thoroughly, reassemble.

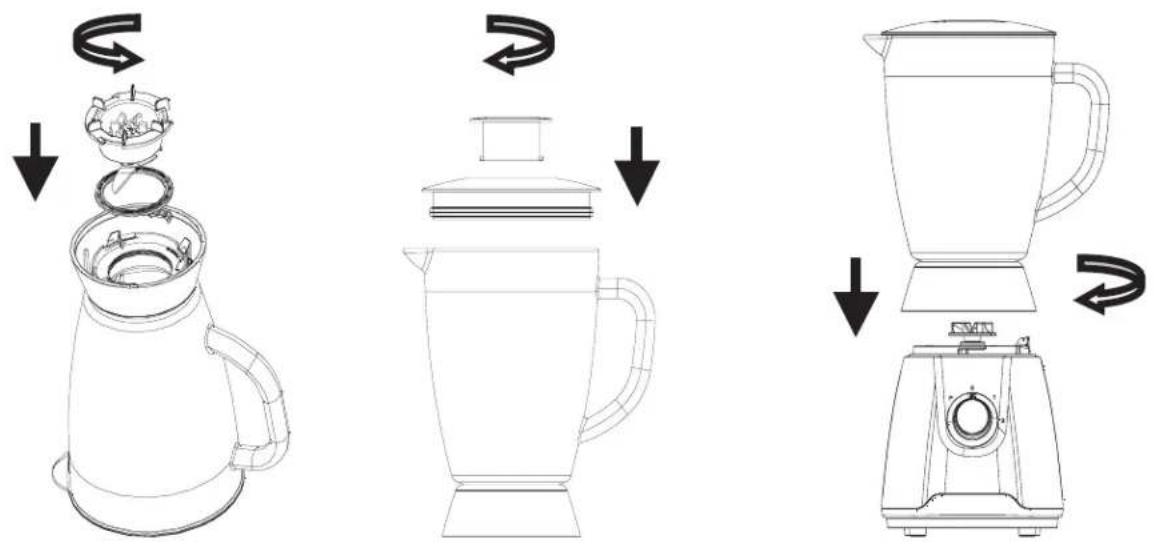

4. Invert the jar onto a level surface, holding the jar handle, put the the seal ring 2 and blade assembly onto the jar base bottom and secure the blade assembly by turning it anti-clockwise until tight (see fig. 3).

5. Reposition the jar assembly with its opening upwards. Wrap the seal ring 1 around the lid bottom and put the lid onto the jar assembly. Place the measure cup exactly into the lid by fitting the small projection on the both sides of the cup into the slots of the lid and turning the cup clockwise until tight (see fig. 4).

6. Finally, place the assembled jar onto the motor unit by aligning the strip on the assembled jar bottom (see fig. 5).

Caution: Jar and jar base is now secure. Do not try to twist the jar and jar base onto motor unit.

Fig 3. Fig 4. Fig 5.

OPERATION

Recipe

Food type	Spec.	Weight	Speed
Carrot (apple, pear etc.)	Cut into 15 x 15 x 15 mm	Carrot: 400 g Water: 600 g	High speed

How to use

1. Peeled or cored the fruit or vegetables and then cut it into small dices.
2. Place the food to be blended into the jar (see fig. 6). Usually, certain amount of purified water has to be added to facilitate the smooth running of appliance. The proportion of the food and water is 2:3. The amount of mixture should not exceed the max level as indicated on the jar.
   Note: Never use boiling liquids or run the appliance empty.
3. Put the lid on the jar. Be sure the measuring cup is in place.
4. Plug the power cord into a standard wall outlet.
5. Turn the speed knob to the appropriate speed setting for your task.
6. For quick or delicate blending tasks, turn the speed knob to P position and hold for a few seconds and then release, the knob will reset to 0 position automatically. Operate several times until the consistency you want is obtained.
7. If you want to add ingredients while the blender is working, remove the measuring cup and place through the lid opening (see fig. 7).
8. When crushing ice or hard food, keep one hand firmly on the lid.
9. When the consistency you desire is obtained, turn the knob to 0 position.

Note:

• For each use, the consecutive operation time should not exceed 3 minutes. At least 10 minutes rest time must be maintained between two continuous cycles, let the unit cool to room temperature before performing next operation cycle.
• If you want to stop the machine during operation, turn the knob to 0 position.

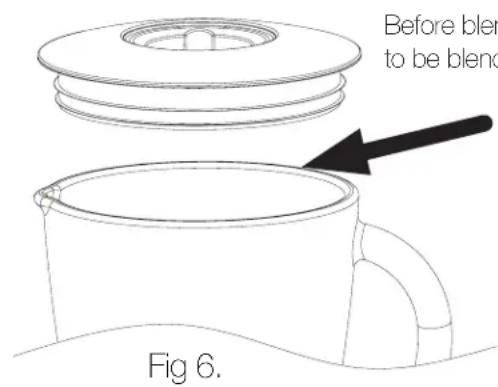

Before blend to be blend Fig 6.

Before blending, add food to be blended into the jar.

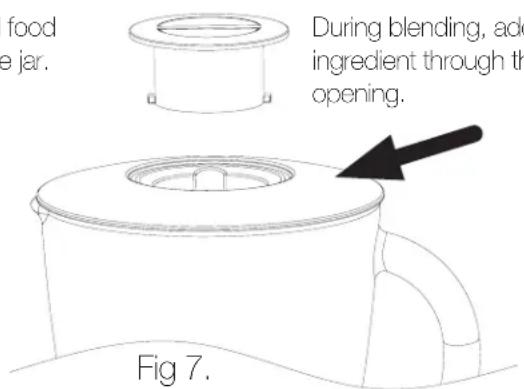

food e jar. During blending, add ingredient through the opening. Fig 7.

During blending, add the ingredient through the lid opening.

OPERATION

Important operating tips

1. For best circulation of food that are to be blended with some liquid, pour the liquid into the jar first, then add solids.
2. Some of the tasks that cannot be performed efficiently with a blender are: Beating egg whites, whipping cream, mashing potatoes, grinding meat, mixing dough, extracting juice from fruit and vegetables.
3. The following items should never be placed in the unit as they may cause damage: Bones, large pieces of solid, frozen food, or tough foods such as turnips.
4. To crush ice, add up to 6 ice cubes. If more ice is needed, remove the cup and add cubes one by one through the lid opening.

MAINTENANCE

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Before cleaning, unplug the blender.
2. Always wash immediately after use for easier cleaning. Don't let food dry on the jar assembly as this will make cleaning difficult.
3. Pour a little warm soapy water into the jar and turn the knob to P position for a few seconds. And then empty the jar.

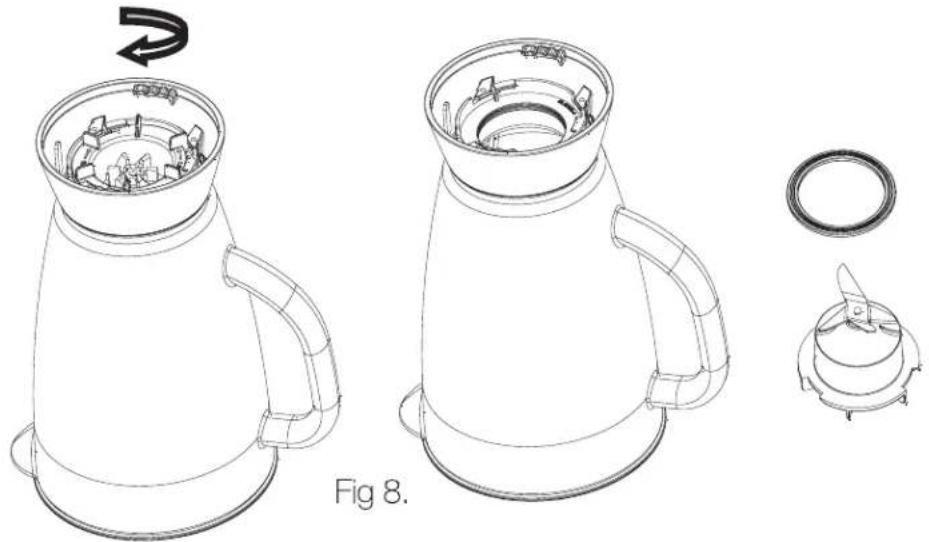

4. Dismantle all detachable parts. Lift the jar assembly off the motor unit. Detach the blade assembly by turning it clockwise from the jar base bottom, and remove the seal ring 2 and blade assembly (see fig.8). In addition, detach the jar cover seal ring 1 from the jar cover.

Technical line drawing of a kettle with internal components and a separate inset showing the lid and base (no text or symbols)

1. Rinse the measure cup, lid, seal ring 1, jar, seal ring 2 and blade assembly by hands or in a dishwasher and then dry. They are dishwasher safe components, but the temperature setting shall not exceed 70°.
2. Brush the blade clean using warm soapy water, then rinse thoroughly under the tap. Don't touch the sharp blades, handle carefully. Don't immerse the blade assembly in water. Leave to dry upside down away from children.
3. Wipe the motor unit with a damp cloth and dry thoroughly. Remove the stubborn spots by rubbing with non-abrasive cleaner. If liquids spill into the motor unit; first unplug the unit, then wipe with a damp cloth and dry thoroughly.

Caution!

1. Do not immerse the motor unit in liquid to prevent the risk of electric shock.
2. Do not use rough scouring pads or cleansers on parts or finish.
3. Do not place any parts of this unit into dishwasher for cleaning.
   This unit is not available for dishwasher.

SPECIFICATIONS

Model number Nikolina 2.0
Power supply AC 220-240 V, 50 Hz
Effect 500 W
Capacity 1.5 liter

OTHER INFORMATION

Environment

This symbol on the product or in the instructions means that the electrical and electronic equipment must be disposed of separately from other household waste when it does not work anymore.

The EU has separate waste collection systems, contact your local dealer or authority for more information.

This symbol on the products packaging means that the material is recyclable.

Law and safety

This product has been manufactured according to current regulations for electromagnetic fields (EMF), which means that it is safe to use if used according to safety instructions. The product is manufactured according to current regulations within the EU legislation, limiting the use of hazardous substances in electrical and electronic equipment.

Reservations

We reserve the right to correct any typographical errors, and reserve the right to make ongoing changes and improvements to the product and related materials.

HAVSÖ

Made in P.R.C by Bergsala SDA AB

P.O. Box 10204, 434 23 Kungsbacka, Sweden
