USER MANUAL Linn 1.0 Havsö

White HAVSO toaster with four built-in slices on top, no visible text or symbols on the device itself.

Liu 1.0

TOASTER

Svenska

Specifications....14

Other information....15

SÄKERHETSFÖRESKRIFTER

Technical diagram of a toaster with numbered parts for identification

ANVÄNDNING

Read this instruction manual carefully before use and save it for future reference. If you follow these instructions, your appliance will provide you with years of good service.

• Before you connect the appliance: Ensure that the voltage rating on the type plate corresponds to your mains voltage (type plate is located on the bottom of the product).

• To reduce the risk of electric shock: Do not remove the cover. There are no user serviceable parts inside. Refer servicing to qualified service personnel.

• Repairs to electrical appliances shall always be performed by qualified personnel. Improper repairs may place the user and the equipment at serious risk.

• Do not operate the appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way. Doing so may cause electric shock/personal injuries and property damage may occur.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified people to avoid a hazard.
• Do not remove the appliance from the mains power supply by pulling the cord, pull the plug. Otherwise damage to the cord and appliance may occur.
• Do not use the appliance for anything other than its intended use.
• Do not immerse the product in water or any other liquid.
• Always unplug the appliance after use and before any cleaning or maintenance.
• Do not place the appliance near heat emitting appliances or in direct sunlight.
• Do not use the appliance outdoors.
• The appliance is not intended to be operated by an external timer or separate remote control system.
• This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been

SAFETY PRECAUTIONS

given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Warning: If you toast small bread slices (less than 85 mm length), you must pay attention to the risk of burns when removing slices.

• Warning: Surfaces, other than the functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with caution. Touch the appliance in surfaces that are intended for touching and use heat protection a if you need to touch other surfaces that may be hot. Areas which are not intended for grip must be given time to cool.

• Oversized food, metal foil or utensils must not be inserted in the toaster as they may cause fire or electric shock.

• Bread may burn so the toaster must not be used near or below curtains or other combustible materials, and must be watched.
• Don't attempt to dislodge food when the toaster is in operation.
• Ensure to remove bread carefully - to avoid injuries.
• Remove all protective wrappings prior to toasting.
• If toaster starts to smoke, press the stop button (cancel) to stop toasting immediately.
• Avoid toasting food with runny and flammable ingredients such as butter.
• Never attempt to remove bread that is jammed in the slots without unplugging the toaster from the electrical outlet first. Be sure not to damage the internal mechanism or heating elements when removing bread.
• The bread slot is made for toasting regular bread slices. Irregular bread slices shall be toasted on the toasting rack.
• In order to achieve uniform color, we recommend that you should wait minimum 30 seconds between each toasting so the color control can reset automatically.

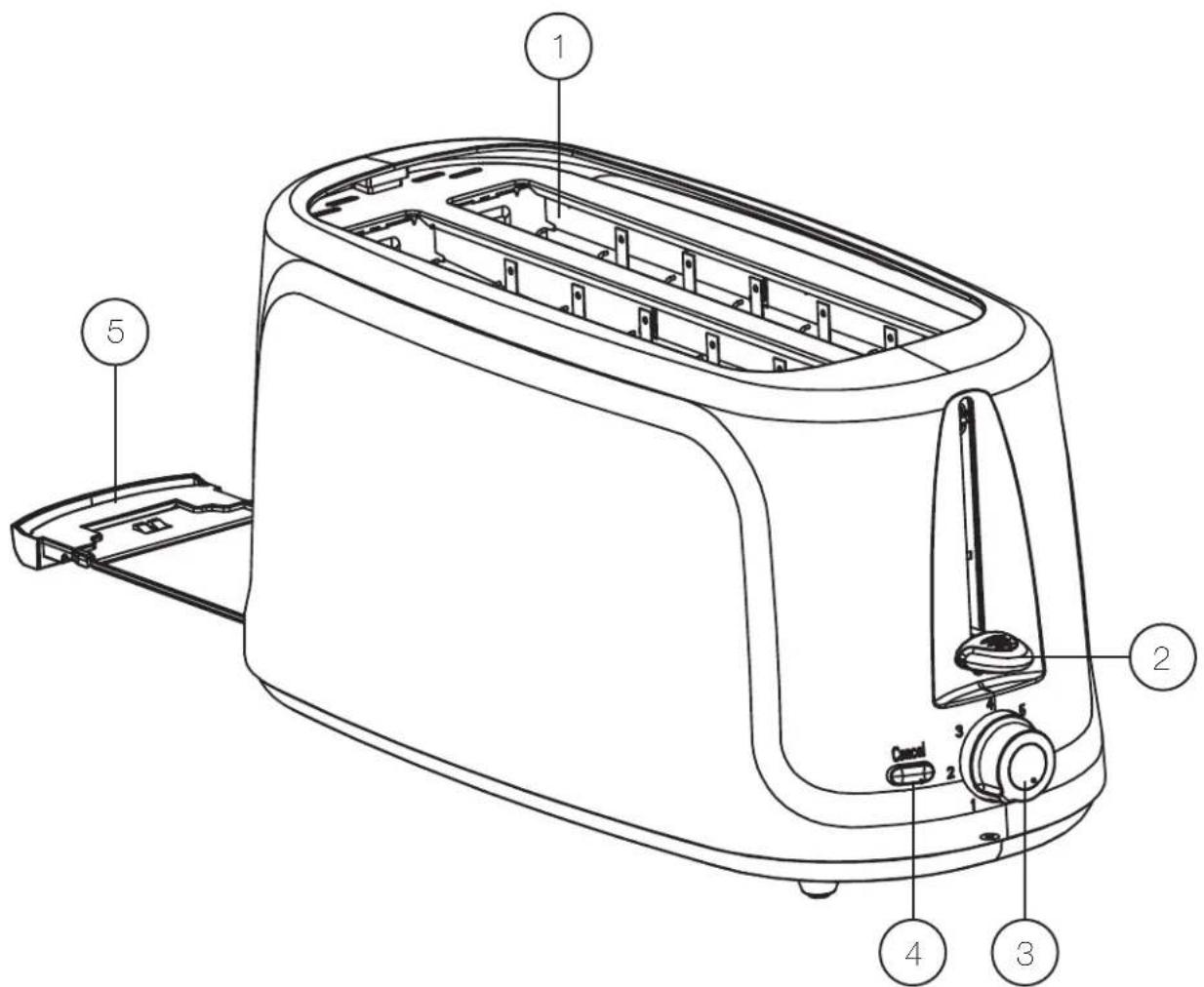

PRODUCT OVERVIEW

1. Toasting slots
2. Toasting lever
3. Knob for toasting setting (1-7)
4. Stop button (cancel)
5. Crumb tray

Technical diagram of a toaster with numbered parts for identification

OPERATION

Before first use

There might be oil and other residues left in the toaster and its heating elements from the manufacturing process of the product. This may lead to odour at the first use. This is normal and will disappear after some use. Before you start toasting bread for the first time, we recommend that you run the toaster without any bread for one time. Then let the toaster cool down completely before you start using it with bread.

Using your toaster

1. Place bread inside the toasting slots.
2. Connect the power cable to an electrical outlet.
3. Adjust the knob to a desired setting. There are seven settings to choose from. The lowest (1) is for light toasted bread and the highest (7) is for dark toasted bread.

Note: The toasting colour for one slice is darker than for two slices in the same setting. If toasting continuously, the colour of the last toasted bread will appear a bit darker than the bread that was toasted before.

1. Press the toasting lever until it locks and the toaster starts toasting.

Note: The toasting lever can only be locked when the appliance is connected to an electrical outlet.

1. When the bread is done, the lever will automatically slide up. You may manually raise the lever a little bit more to easy remove the bread slices without burn oneself.

Note: You may also observe the toasting colour during the toasting. If you are satisfied with the colour, you may press the stop button to stop the toasting. Never lift the appliance toasting lever to stop the toasting.

MAINTENANCE

Cleaning and maintenance

– Unplug the appliance and allow it to cool before any cleaning or maintenance.
- Wipe the outside with soft dry cloth. Never use metal polish as it may damage the surfaces of the product.
- Pull out the crumb tray at the bottom of toaster and remove the crumbs. If the toaster is used frequently, bread crumbs should be removed at least once a week. Make sure that the crumb tray is properly assembled before you use the toaster again.
- When the toaster is not in use or stored for a long period of time, the power cord shall be wound under the bottom of toaster.

SPECIFICATIONS

Model number Linn 1.0
Power supply AC 220-240 V, 50 Hz
Effect 1250 - 1450 W

OTHER INFORMATION

Environment

This symbol on the product or in the instructions means that the electrical and electronic equipment must be disposed of separately from other household waste when it does not work anymore.

The EU has separate waste collection systems, contact your local dealer or authority for more information.

This symbol on the products packaging means that the material is recyclable.

Law and safety

This product has been manufactured according to current regulations for electromagnetic fields (EMF), which means that it is safe to use if used according to safety instructions. The product is manufactured according to current regulations within the EU legislation, limiting the use of hazardous substances in electrical and electronic equipment.

Reservations

We reserve the right to correct any typographical errors, and reserve the right to make ongoing changes and improvements to the product and related materials.

HAVSÖ

Made in P.R.C

Imported by Bergsala SDA AB

P.O. Box 10204

434 23 Kungsbacka, Sweden
