Product type	All-in-one desktop computer
Brand	Apple
Model	iMac 24-inch
Display	24-inch 4.5K Retina display (4480 x 2520 pixels)
Processor	Apple M1 (or M3 depending on version)
Memory (RAM)	8 GB (configurable up to 16 GB)
Storage	256 GB SSD (configurable up to 2 TB)
Connectivity	Wi-Fi 6 (802.11ax), Bluetooth 5.0, 2 Thunderbolt / USB 4 ports
Dimensions (with stand)	Height: 46.1 cm, Width: 54.7 cm, Depth: 14.7 cm
Weight (with stand)	4.46 kg
Power	143 W power adapter, 2 m power cable
Operating system	macOS (preinstalled version)
Main features	Video calls with 1080p camera, high-fidelity speakers, studio-quality three-microphone array
Care and cleaning	Clean with a soft, non-abrasive cloth. Avoid liquids.
Security	Kensington lock, FileVault encryption, lockable screen
Spare parts and repairability	Repairs by Apple or authorized service provider. VESA mount adapter available as an option.
General information	User manual available online as PDF

Frequently Asked Questions - IMAC 24 INCH APPLE

How to install the VESA mount adapter on my 24-inch iMac?

Follow the steps in the manual: turn off the iMac, unplug the cables, unlock the latch with the access card, remove the stand, attach the collar, then the mount adapter using the provided screws and bolts.

What are the components of the VESA mount adapter kit?

The kit contains a mount adapter, a collar, one screw, two bolts, a hex key, a Torx key, and an access card.

Can I use an object other than the access card to unlock the latch?

No, it is important to use only the provided access card. Using another object could cause injury or damage the iMac.

How do I know if the latch is unlocked?

Insert the access card at a slight upward angle into the opening above the stand. It should insert about two centimeters. If it inserts further, you missed the latch.

What to do if the access card is lost?

Go to www.apple.com/support/imac/diy/vesa to purchase a replacement access card.

How to attach the mount adapter after removing the stand?

Align the hole in the collar with the pin on the back, attach the collar with the 8 Torx screws, then place the mount adapter on top and secure it with the screw and two bolts.

Can I reuse the original stand later?

Yes, keep the original stand and screws. You can reinstall it by following the reverse instructions.

What maximum weight can the VESA adapter support?

The adapter must be used with a VESA mount capable of supporting the weight of the 24-inch iMac, which is approximately 4.46 kg.

How to attach the iMac to a wall mount?

After installing the mount adapter, follow the instructions provided with your VESA-compliant mounting solution to attach it to the iMac.

What precautions to take during installation?

Turn off the iMac and unplug all cables. Handle the screen with care, use a soft cloth on a flat surface, and hold the iMac until the stand is locked.

USER MANUAL IMAC 24 INCH APPLE

iMac 24-inch VESA Mount Adapter

With the VESA Mount Adapter installed, you can use your 24-inch iMac with a variety of VESA-compliant mounting solutions, such as articulating arms or wall mounts. Use the adapter only with a VESA mount that can support the weight of your 24-inch iMac.

Your VESA Mount Adapter Kit contains:

• A mount adapter
  A flange
  1 screw
  2 bolts
  A hex tool
• A TORX tool
  An access card

You'll also need a soft cloth and a flat work surface.

Installing the VESA Mount Adapter on Your 24-inch iMac

Follow these instructions to install the mount adapter on the back of your 24-inch iMac. You can then attach your iMac to a VESA-compliant mounting solution.

To install the mount adapter:

1 Turn off your iMac and disconnect the power cord and all cables.

2 Turn your iMac so that the back is facing you, and then rotate the top forward until it won't go any further.

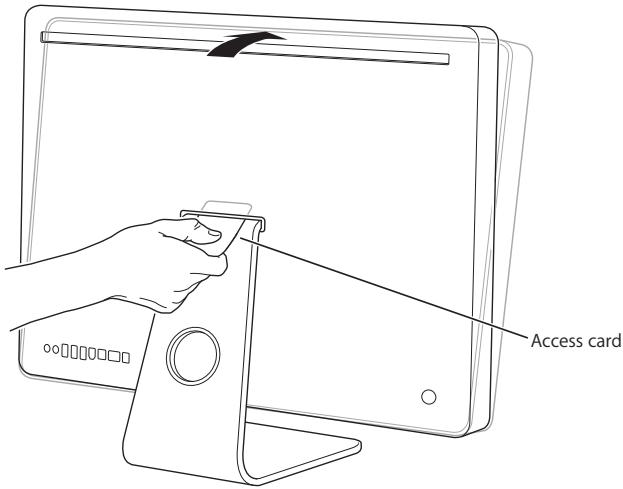

3 Release the latch by inserting the access card in the space directly above the top of the stand.

The access card should go into the space at a slight upward angle for about 3/4 of an inch. If it goes in farther, you've missed the latch, so try again.

Important: Use only the access card provided with the kit for this step. Use of any other object or instrument could result in personal injury, and damage to your iMac. If your access card has become lost or damaged, go to www.apple.com/support/imac/diy/vesa to purchase a replacement access card.

4 Rotate your iMac forward another 10 degrees until the 8 screws on top of the stand are visible and the stand is locked in place.

Important: Keep your iMac upright until the stand is locked in place.

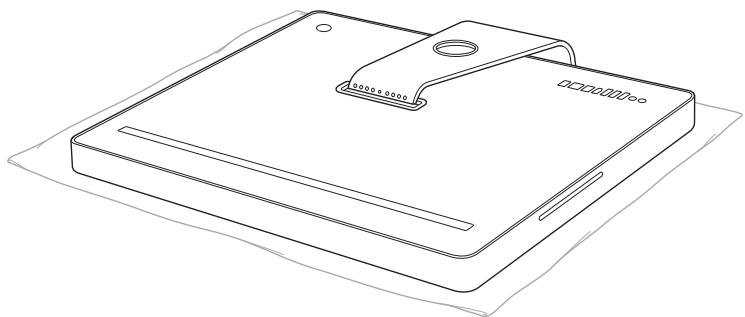

5 Hold the sides of your iMac and carefully lay it down so that the screen is resting on a soft towel or cloth on a flat surface and the stand hangs over the edge of your work surface.

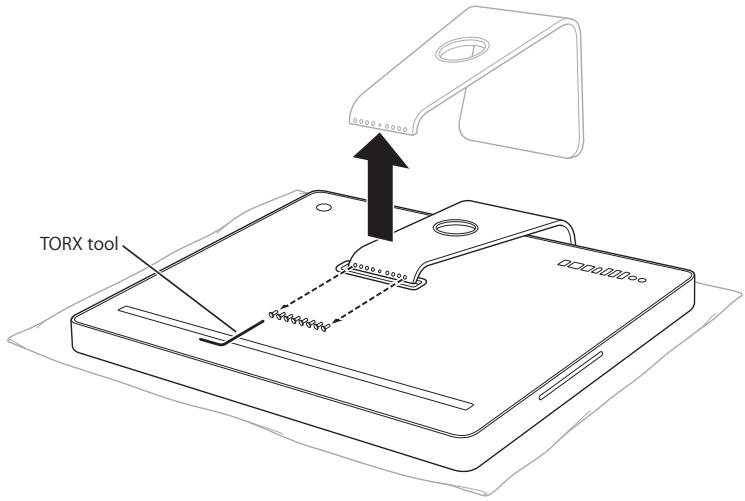

6 Use the TORX tool to remove the 8 screws that attach the stand to the back of your iMac. You'll need these screws to attach the flange to your iMac, so set them aside.

TORX tool

Hex tool

7 Remove the stand and put it in a safe place in case you want to reattach it.

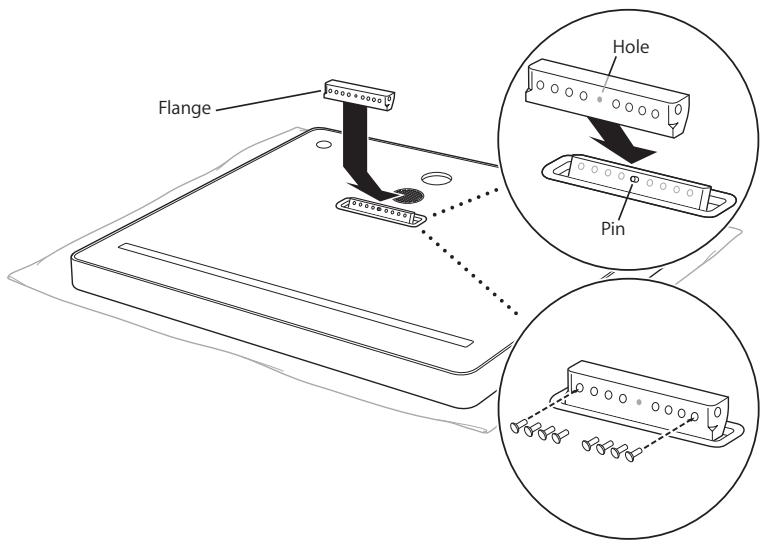

8 Align the hole in the flange with the pin on the back of your iMac, and then use the TORX tool and the 8 screws you removed from the stand to attach the flange.

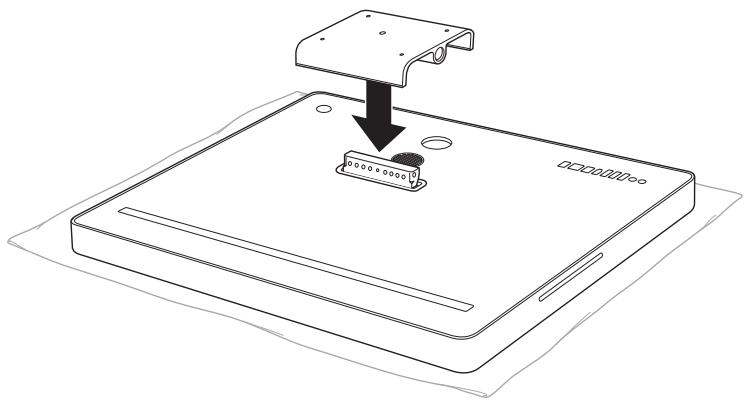

9 Place the mount adapter over the flange.

Important: Keep the flange in the locked position while you attach the mount adapter.

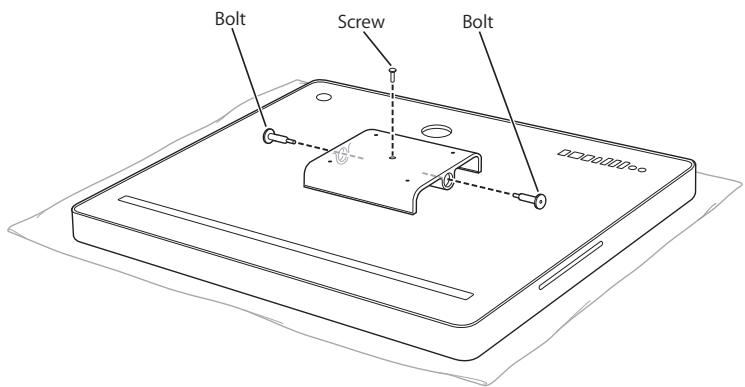

10 Use the TORX tool to screw the screw into the top of the mount adapter, and then use the hex tool and the two bolts to attach the mount adapter to the back of your iMac.

11 Follow the instructions included with the VESA-compliant mounting solution to attach it to your 24-inch iMac.
12 Connect the power cord and cables to your iMac.

iMac 24-inch VESA Mount Adapter
