Product Type	Freestanding Electric Cooker with Ceramic Hob and Oven
Brand	Cylinda
Model	S 4262 KVB
Overall Dimensions (W x H x D)	598 x 900 x 600 mm
Oven Power	3100 W
Grill Power	2000 W
Hob Power	6500 W (total 9600 W)
Hob Zones	4 zones: front left 2300W (210 mm), back left 1200W (145 mm), front right 1200W (145 mm), back right 1800W (180 mm)
Oven Functions	Top heat, bottom heat, top+bottom heat, fan, fan+ring, fan+bottom heat, fan+intensive grill, grill, intensive grill, interior light
Oven Temperature Range	Up to 250°C (top+bottom heat)
Child Lock	Function knob child lock and door child safety lock
Anti-Tip Device	Included, must be mounted
Residual Heat Indicators	Yes, for each hob zone
Cleaning Methods	Steam clean (25 min at 50°C), removable oven door, removable side rails
Oven Door	Removable, with inner glass panel removable for cleaning
Oven Lighting	Interior light; lamp replacement: 25 W oven bulb
Accessories Included	2 baking trays, 1 roasting pan, 1 grill rack, anti-tip device
Storage Drawer	Yes, with safety stop
Power Supply	230 V, 25 A fuse
Installation	Must be level; electrical connection by qualified installer
Energy Saving Tips	Use correct pan size, use lids, turn off slightly early

Frequently Asked Questions - S 4262 KVB Cylinda

How do I activate the child lock on the oven function knob?

Turn the oven function knob anticlockwise to the lock symbol. The oven and hob cannot be activated when the knob is in this position. To unlock, press the knob and turn it to '0' or another function.

How do I clean the ceramic hob?

Use a damp cloth with mild washing-up liquid. Burnt-on dirt can be scraped off with a scraper. For a protective finish, use a special ceramic hob polish. Avoid steel wool or abrasive powders.

How do I replace the oven lamp?

Disconnect the appliance from the power supply. Remove the broken bulb and replace it with a new 25 W oven bulb.

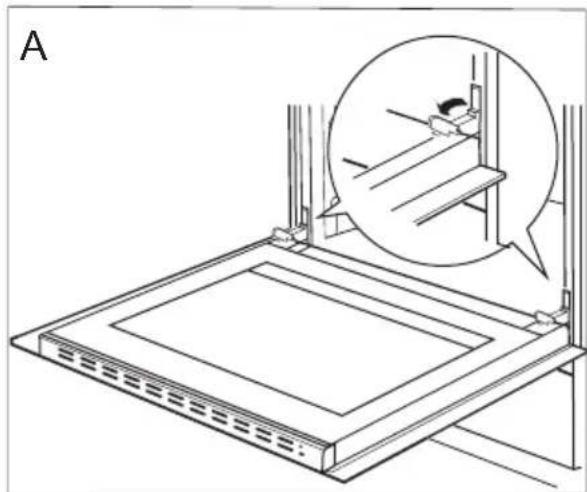

How do I remove the oven door for cleaning?

Open the door and pull up the safety device in the hinge. Push the door slightly, lift it up, and pull it out. To refit, reverse the process, ensuring the hinge cut-out is placed correctly on the grip, and pull down the safety device.

What oven functions are available?

Functions include: top heat, bottom heat, top+bottom heat, fan, fan+ring, fan+bottom heat, fan+intensive grill, grill, intensive grill, and interior light.

How do I use the steam cleaning function?

Place a bowl with 0.25 L water at the bottom of the oven. Close the door, set oven to 50°C with bottom heating function, and heat for approx. 30 minutes. Then open the door, wipe dry with a cloth, and clean with warm water and washing-up liquid.

What accessories are included with the S 4262 KVB?

The appliance comes with two baking trays, one roasting pan, one grill rack, and an anti-tip device.

How do I install the anti-tip device?

Refer to the diagram in the manual. The anti-tip device must be mounted to prevent tipping. If tiles only cover part of the rear wall, distance the device by the equivalent thickness.

What should I do if the ceramic hob cracks?

Immediately disconnect the appliance from the power supply by unplugging or removing fuses. Do not use the hob until repaired.

Can I use aluminium foil in the oven?

No, do not put aluminium foil on the bottom or walls of the oven. It can damage the enamel and affect heat distribution.

USER MANUAL S 4262 KVB Cylinda

Four empty circles arranged in a 2x2 grid with one circle highlighted by a crosshair symbol (no text or labels)

Three mechanical components with arrows indicating rotation or assembly (no text or symbols)

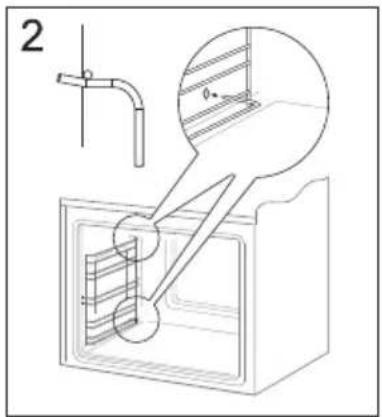

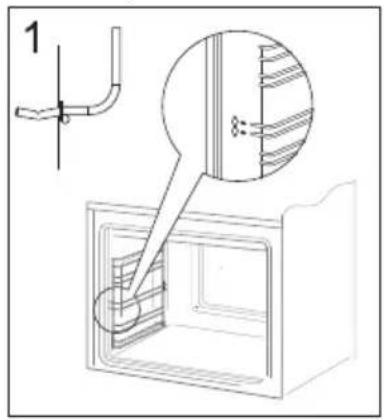

Ugnsfalsar

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a rectangular electronic component with mounting brackets and a separate panel labeled C (no text or symbols on the component itself)

Pure mechanical diagram showing a curved component with an arrow indicating motion, no text or symbols present

Pure mechanical diagram showing a curved pipe or pipe passing through a rectangular component with an arrow indicating direction (no text or symbols)

Pure mechanical diagram showing a curved component with directional arrows, no text or symbols present

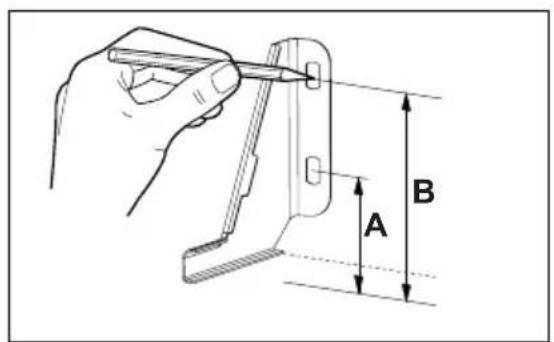

A=104 mm; B=147 mm

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Technical diagram of a vehicle chassis frame with mounting brackets and directional arrows indicating movement (no text or symbols)

Diagram of a kitchen appliance with red directional arrows indicating movement or force (no text or symbols)

Important!

Read the entire manual carefully before using the appliance for the first time. You will learn how to use the appliance it and look after it properly from the start.

Read the entire manual carefully before using the appliance for the first time. You will learn how to use the appliance it and look after it properly from the start!

Table of contents

page

Safety advice....21

Before using the appliance for the first time ....23

Facts about ceramic hobs ....24

The oven and its functions....25

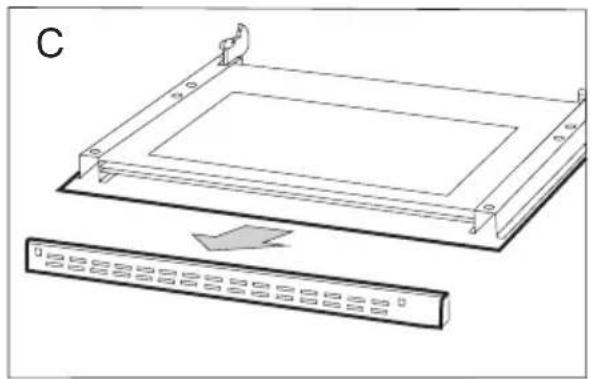

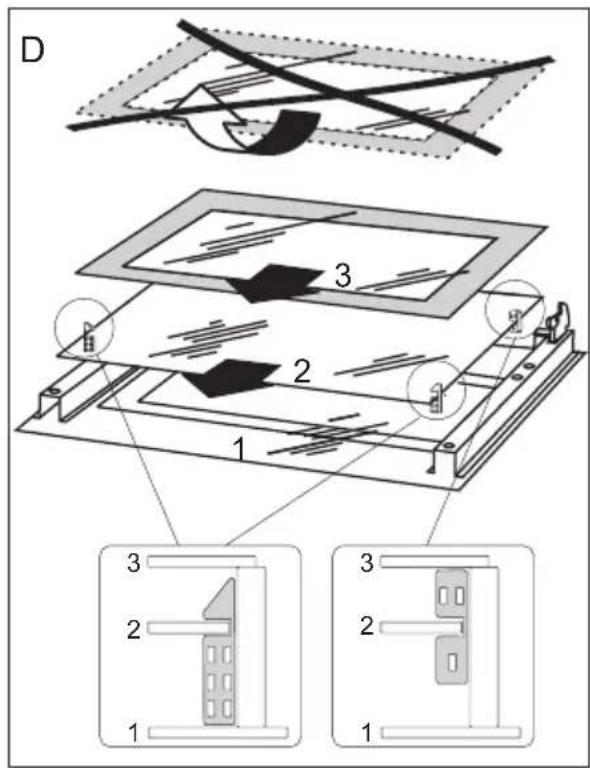

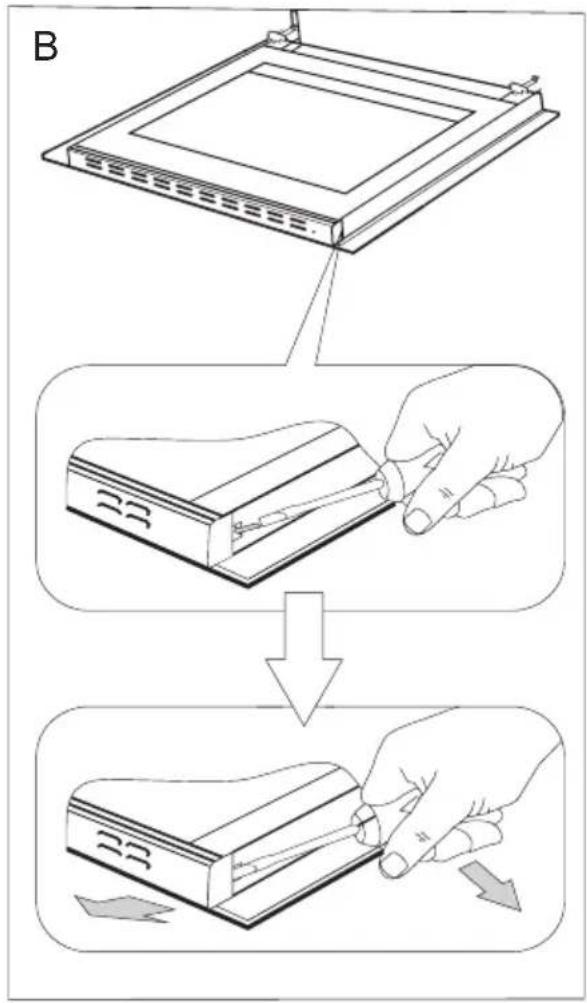

Cleaning the oven door....32

Technical data....35

Mounting the overturning prevention bracket....36

NOTE

Electrical connection must be made by a properly certified, qualified installer.

The appliance is intended for household use only. Incorrect use carries the risk of injury.

Disposing of used products

When the product is no longer required, it must not be disposed of as normal waste, but should be handed over to an organisation that recycles electrical and electronic products. There is a symbol on the product, user instructions or packaging that shows that the product should be recycled when it is no longer required.

Materials used to manufacture the product can be recycled as indicated. Recycling the materials used to make the product that you no longer require helps to protect the environment.

Contact your local authority to find out where the recycling organisations are in your area.

Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Warning: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Warning: Danger of fire: do not store items on the cooking surfaces.

Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

GUIDELINES CONCERNING THE SAFETY OF USE

Note. Electrical connection must be made by a properly certified, qualified installer.

The appliance is intended for household use only. Incorrect use carries the risk of injury.

The oven is very hot while in use and for some time after it has been switched off.

When the oven is in use, some parts will become hot.

Warning: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

You should not use steam cleaning devices to clean the appliance.

Installation

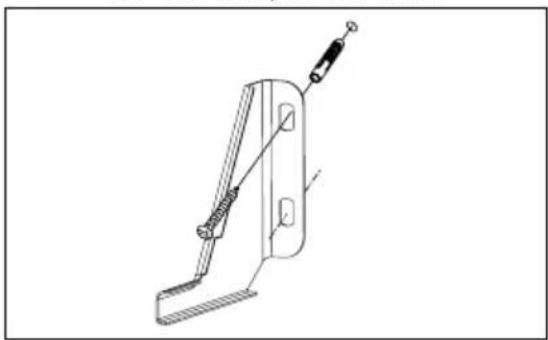

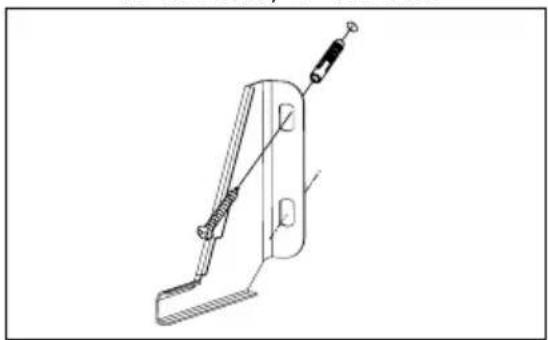

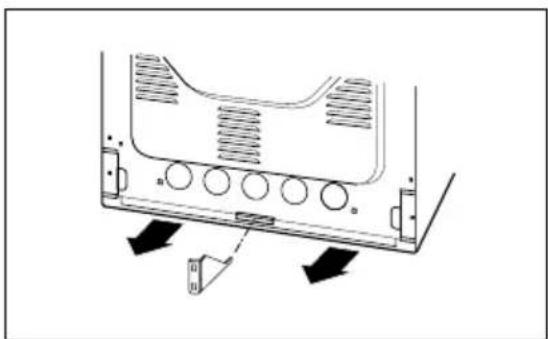

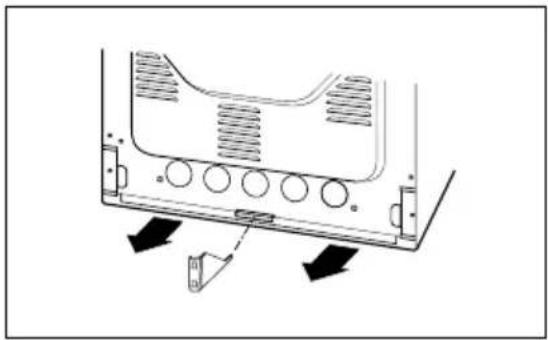

Fit the anti-tip device (page 36)

The anti-tip device prevents the appliance from tipping over. For example, a child should not be able to climb on the oven door and tip the appliance over. If there are young children in the house, a hob guard should also be fitted.

NOTE Remember that the anti-tip device is disabled when you pull the appliance forwards, e.g. for cleaning. Supervise children carefully to avoid accidents.

NOTE

Subject to technical alterations.

See the instructions on page 36 for how to fit the anti-tip device.

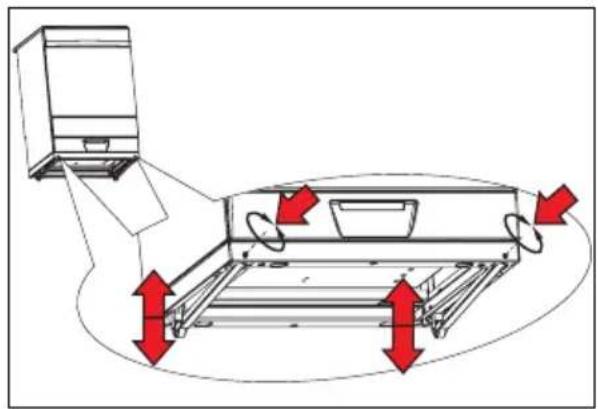

The appliance must be level.

This is important for frying results as well as baking. Pull out the plate storage drawer to access the screws in the four adjustable feet. Use a spirit level or frying pan filled with water to check.

Further adjustment may be required after some time as the flooring may settle.

Before using the appliance

Clean the appliance using a damp cloth, possibly with some soap or mild washing-up liquid. Rinse and dry thoroughly. After cleaning, heat the oven with top and bottom heater to 250^ C for approx. 30 minutes. The smell produced by heating the oven is harmless but still you should ventilate.

Use energy wisely

Use pans that are the right size for the cooking zones. It is better to use a slightly larger pan than a pan that does not cover the cooking zone.

Put the lids on saucepans and pots to save energy. It is also recommended that you switch off the cooking zone slightly in advance and let the dish continue to cook using the residual heat.

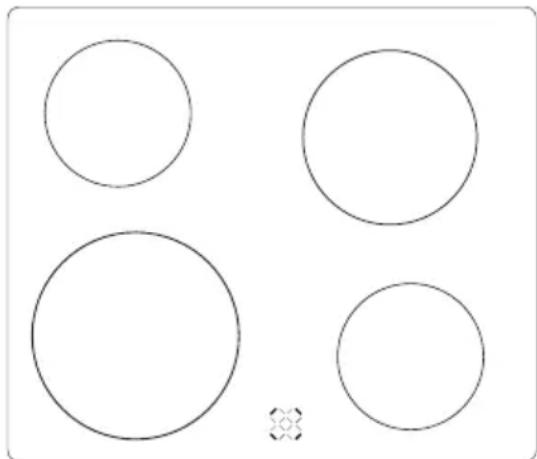

Facts about ceramic hobs

Zones:

Front left 2300W, 210 mm diameter Back left 1200W, 145 mm diameter Front right 1200W, 145 mm diameter Back right 1800W, 180 mm diameter

Residual heat indicators

The four residual heat indicators are located between the cooking zones and the front of the hob and indicate the respective cooking zone.

These warning indicators light up when the surface is too hot to touch. The indicators light up even when the zones are turned off.

Note: always be careful when the hob has recently been in use, even if the indicator is not lit.

Maintenance

Clean the hob using a damp cloth and some washing-up liquid. Burnt on dirt can be scraped off using a scraper. After cleaning, the hob can be polished using a special product for ceramic hobs, which is available in stores. This gives a fine finish and gives the hob a protective surface.

Do not clean with: steel wool, abrasive scouring powder or anything else that can scratch.

Four simple circles arranged in a 2x2 grid with one circle highlighted by a cross symbol (no text or labels)

Pots and frying pans

Use pans that are the right size for the cooking zones.

It is better to use a slightly larger pan than a pan that does not cover the cooking zone. Make sure the bottom of the pan is clean and flat. A pan with an uneven bottom can make the contact between the pan and ceramic hob so poor that the overheating protection for the zone is triggered and the cooking time becomes unnecessarily long.

Put the lids on saucepans and pots to save energy. It is also recommended that you turn off the zone slightly in advance and let the dish continue to cook using the remaining heat.

You cannot use pots with plastic handles in the oven.

Warnings

• Do not put anything on the hob when it is hot.
• Do not store heavy or sharp objects which may fall down above the hob. If a crack appears, the power supply to the hob must be cut off by unplugging the appliance or removing the fuses.
• Plastic and sugar or sugary spillages, e.g. jam, juice or toffee, must be removed immediately using a scraper while the hob is warm. If it becomes burnt on, the hob can be seriously damaged.
• Some aluminium pots and pans leave a silvery mark on the hob, this can be removed using detergent and a scraper.
• Do not drag pans with rough bottoms across the hob. This can cause scratches.

The oven and its functions

The symbols on the oven function knob have the following meaning:

Interior lighting

When the knob is turned to this position, the interior oven lighting is lit.

Fan and ring heater on

When this function is activated, the fan on the rear wall of the oven starts.

This provides constant and even air circulation inside the oven.

This heating method has the following benefits:

• The oven heats up faster and there is no need to preheat it
- Two levels can be used at the same time
- Meat dishes lose less fat and juices during heating, which improves the flavour
• The oven does not get as dirty

You must use the temperature settings together with the fan function.

Important! If the fan function is switched on when the temperature knob is set to zero, only the fan is activated. This setting can be used to cool dishes or the oven.

Fan and bottom heating switched on

This knob setting activates both the fan and the bottom heating element. The oven is then heated from the bottom. Suitable e.g. for pizza and pies.

Important! If the temperature knob is set to zero, the cooling setting is used.

Fan and intensive grill on

The grill plus top heat and fan run at the same time. This reduces the grill time and improves the flavour.

Grill on

This setting activates the grill.

Intensive grill (grill plus top heat)

The food is grilled and heated from above at the same time. In this way, the temperature is higher at the top of the oven, making the roasted food darker in colour. A practical setting for grilling thick items

Top heating on

Highest temperature 200°C.

Bottom heating on

Highest temperature 200°C.

Top and bottom heating switched on.

Highest temperature 250^ C. If the knob is set to this position, the oven heats up normally.

Temperature knob

The oven temperature is controlled by the temperature knob on the control panel, indicated by the symbol ^ C. The oven stops heating up when you turn the knob to zero.

Always follow the advice given in the recipe for the food you are baking/cooking.

Lock

The oven is equipped with a child lock.

• Activate Child Lock. Turn the oven function knob - anti-clockwise.
  The oven and hob cannot be activated when the function knob is in this position.
• Unlock. Press the function knob and turn it to "0" or another function.

Light indicators

Two light indicators indicate that the oven has been activated – a yellow and a red indicator. When the yellow light indicator lights up, it means the oven operates. When the red light indicator goes out, it means the oven has reached the set temperature. If a recipe for a dish recommends that the dish is placed in a heated oven, do not put it in the oven until the red light indicator has gone out. During baking, the red light indicator will light up and go out intermittently (maintaining the temperature in the oven). The yellow light indicator can also light up when the knob is in the "Oven lighting" position.

Baking

Wait until the oven reaches the right temperature (light indicator turns off) before placing the baking in the oven.

Right baking time

Follow the instructions in the recipe. Be extra careful the first few times you use your new appliance to bake, the appliance may heat somewhat faster than your previous appliance.

Cooking

Follow the advice in the recipe. If it is a dish you have made many times before you should be extra careful the first few times you make it in your new appliance.

Grilling

Follow the advice in the recipe. Place the food on the grill and slide the grill rack into the top position in the oven. Push the roasting pan into the position below to collect any dripping fat.

Do not put aluminium foil on the bottom or walls of the oven.

The heat does not radiate properly, so there is a risk of damaging the enamel in the oven.

Storage drawer for accessories

You can store the roasting pan, baking trays, grill rack and other accessories in the drawer. There is a safety device that stops the drawer being pulled out too far accidentally.

If you want to pull out the drawer completely, e.g. to clean, pull it out until you reach the safety device and then lift up the front and pull it out completely.

You put the drawer back in the reverse order. Make sure it is in the right tracks on the sides.

Baking

● Tables 1 and 1A are recommended for baking.
- The baking parameters are given for 3 different types of heat: conventional heating (top and bottom heating element), fan Function, top heating element + fan.

Roasting meat

● Table 2 is recommended for roasting meat.

The roasting parameters are given for conventional heating and for fan.

● The recommended parameters for meat, fish and toast are compiled in table 3.
● The recommended parameters for roasting with fan are compiled in table 4.

TABLE 1: Pastries

Pastries	Top and bottom heating element		Fan assisted heating		Top/bottom heating element		Baking time [min.]
	Oven setting	Temperature [°C]	Oven setting	Temperature [°C]	Oven setting	Temperature [°C]
Baking in a baking pan
Sponge cake	2	170-180	2	150-170	2	150-170	60-80
Sponge cake	2	160-180	2	150-170	2	150-170	65-80
Flan case	2-3	170-180	2-3	160-170	2-3	160-170	20-30
Soft sponge	2	170-180					30-40
Shortcrust pastry flat with fruit			2-3	160-180	2-3	160-180	60-70
Cheesecake (on shortcrust pastry base)			2	140-150	2	140-160	60-90
Yeast cake	2	160-180	2	150-170	2	150-170	40-60
Bread (e.g. granary)	2	210-220	2	180-200	2	180-200	50-60
Baking on baking trays
Shortcrust pastry flat with fruit	3	170-180	3	160-170	3	160-170	35-60
Fruitcake (yeast or baking powder)			3	160-170	3	160-170	30-50
Hundreds and thousands cake	3	160-170	3	150-170	3	150-160	30-40
Jelly roll	2	180-200					10-15
Pizza (thin base)	3	220-240			3	200-220	10-15
Pizza (thick base)	2	190-210			3	180-200	30-50
Small pastries/cakes
Small pastries/cakes	3	170-180	3	150-160	3	150-160	10-25
2	-plates	--	1+3	140-150	--	--	25-35
Puff pastry	3	180-190	3	170-190	3	170-180	18-25
Meringue	3	90-110			2	90-110	80-90
Profiteroles			2	170-190	2	170-190	35-45

Buns

75 g yeast

150 g margarine

500 ml milk (whole milk)

12 teaspoon salt

135 g sugar

Cardamom

900 g flour

Crumble the yeast and mix it with some of the milk. Melt the margarine and pour in the rest of the milk. Mix all the ingredients until you have a smooth dough.

Let the dough rise for 15 min in the bowl. Shape it into small balls and put them in moulds. Let them rise for 30–40 min on the tray. Glaze with beaten egg and sprinkle with granulated sugar.

Bake at 160-180°C top and bottom heating elements for 30-40 min, or 150-170°C fan for 30-40 min.

Muffins

approx. 20 pcs.

1 juicy sponge cake or 1 rich sponge cake with grated lemon rind 60–90 g raisins or currants

Oven temperature:

top and bottom heating elements 180-190°C

or fan 160-170°C

Baking time 10-20 min

Switch on the oven. Make the cake mixture according to one of the suggestions, adding grated lemon rind in both cases. Mix in raisins of currants.

Put muffin cases/paper cases on a tray.

Put the mixture in the cases, e.g. using a spoon.

Bake in the centre of the oven for 10-20 min.

Swiss roll

3 eggs

135 g sugar

120 g flour

1 teaspoon baking po- wder

1 tablespoon water

Filling:

280 g stewed fruit or jam or 1 portion of chocolate butter icing

Baking time 10-15 min

Makes 20-24 slices. Oven temperature, top and bottom heating elements 180-200°C

Easy to mix, quick to cook and roll up. Can be filled with e.g. slightly sweetened stewed apple, raspberry jam or chocolate butter icing. Switch on the oven in good time. Cover a tray with greaseproof paper or baking paper. Beat the egg and the sugar. Mix the flour and backing powder and stir it in carefully, together with the water. Spread out the dough on the paper in an even layer. Bake in the centre of the oven, 10-15 min with the top and bottom heating elements at 180-200°C.Sprinkle some sugar on the cake and tip it onto a piece of greaseproof paper. Brush with some cold water and remove the paper the cake was baked on. Spread on a thin layer of stewed fruit or jam and roll up. Or let the cake cool under a damp piece of greaseproof paper, spread with chocolate butter icing and roll it up.

TIPS: Cut the Swiss roll into approx. 3 cm slices, top with whipped cream and fruit or berries and serve for dessert.

TABLE 1A: Pastries

Pastries	Top and bottom heating element		Fan assisted heating		Baking time min.
	Oven setting	Temperature [°C]	Oven setting	Temperature [°C]
Buns	3	160-180	3	150-170	30-40
Muffins	3	180-190	3	160-170	10-20
Jelly roll	3	180-200	-	-	10-15

TABLE 2: Roasting meat

Meat dish	Oven setting from below		Temperature °C		Roasting time* min.
	Fan assisted heating	Conventional oven	Fan assisted heating	Conventional oven
Beef					approx. 1 cm: 12-15
Roast beef or fillet preheated oven pink (medium) preheated oven well done		3		250	15-25
		3		250	25-30
		3		210-230	120-140
Roast	2	2	160-180	200-220
Pork
Roast	2	2	160-180	200-210	90-140
Ham	2	2	160-180	200-210	60-90
Fillet		3		210-230	25-30
Veal	2	2	160-170	200-210	90-120
Lamb	2	2	160-180	200-220	100-120
Venison	2	2	175-180	200-220	100-120
Poultry
Chicken	2	2	170-180	220-250	50-80
Goose (approx. 2 kg)	2	2	160-180	190-200	150-180
Fish	2	2	175-180	210-220	40-55

*Recommendations in table 2 apply to a 1 kg meat portion.
Roasting large cuts of meat is preferable, but the cooking time for each additional 1kg is 30–40 min extra. Turn the cut of meat halfway through the cooking time.
Important: only use ovenproof dishes.

TABLE 3: Grill

Dish	Oven setting from the bottom	Temperature [°C]	Cooking time [min.]
			One side The	other side
Pork chop	4	250	8-10	6-8
Minced pork	3	250	10-12	6-8
Kebab	4	250	7-8	6-7
Sausages	4	250	8-10	6-8
Roast beef (approx. 1kg)	3	250	12-15	10-12
Veal chop	4	250	8-10	6-8
Roast veal	4	250	6-8	5-6
Lamb chop	4	250	8-10	6-8
Half chicken (approx. 500 g)	3	250	25-30	20-25
Fillet of fish	4	250	6-7	5-6
Trout (approx. 200 – 250g)	3	250	5-8	5-7
Toast	4	250	2-3	2-3

TABLE 4: Fan + grill

Dish	Weight [kg]	Oven setting from below	Temperature [°C]	Roasting time [min.]
Roast pork	1.0	2	170-190	80-100
	1.5	2	170-190	100-120
	2.0	2	170-190	120-140
Lamb	2.0	2	170-190	90-110
Roast beef	1.0	2	200-220	30-40
Chicken	1.0	2	180-200	50-60
Duck	2.0	1-2	170-190	85-90
Goose	3.0	1	140-160	110-130
Turkey	2.0	2	180-200	110-130
	3.0	1-2	160-180	150-180

During roasting, baste the meat with gravy or warm salty water several times.

Cleaning the oven door

Correct and regular oven cleaning and maintenance prolongs its service life.

Regular maintenance

The user must ensure the following:

- Keep the oven and its surroundings clean.

Important! Make sure the oven is turned off and all knobs are turned to "0". Cleaning must not start until the oven is cold.

Replacing the lamp in the oven

Turn off at the main switch or remove the fuses as the power supply to the oven must be cut off before the lamp is replaced. Remove the broken bulb and replace it with a new (25 W oven bulb).

Three-step diagram showing a threaded component being rotated, then tilted, and finally rotating (no text or symbols)

Oven fittings

The oven is equipped with removable side rails. To remove them for cleaning, pull the handle at the front and then pull out the rail and remove it from the rear fixture. After cleaning the rails, put them in the openings in the oven and push down the fixture.

Steam cleaning Steam Clean

Place a bowl containing 0.25 litres water at the bottom of the oven and close the oven door. Set the oven to 50°C and turn the function knob to "bottom heating" ☐ Heat the oven for approx. 30 min. Then open the oven door, dry the oven using a cloth or sponge and then clean the oven using warm water with washing-up liquid.

Remove the oven door

To access the interior of the oven for cleaning, you can remove the oven door. To do this, open the door and pull up the safety device found in the hinge (Fig. A). Then push the door slightly, lift it up and pull it out. To fit the door of the oven, do this in the reverse order. When replacing the door, make sure the cut-out part of the hinge is placed correctly on the hinge's grip. After replacing the door, you must pull down the safety device. If you do not pull it down, the hinges may be damaged when you try to close the door.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Pulling up safety devices for the hinge

Remove the inner panel

1. Use an ordinary screwdriver to remove the upper door slat from the door and carefully loosen the sides (Fig. B).
2. Carefully remove the door slat (fig. B, C)

Technical line drawing of a rectangular electronic component with mounting brackets and a separate panel labeled C (no text or symbols on the component itself)

1. You can then remove the glass panel (Fig. D). After cleaning, repeat the procedure in the reverse order.

Important! Do not force the upper slat in on both sides of the door at the same time. In order to correctly fit the top door slat, first put the left end of the slat on the door and then press the right end in until you hear a "click". Then press the left end in until you hear a "click".

Child safety lock

Oven door features a child safety lock device that prevents children from opening of the door. The appliance is supplied by the manufacturer with the door safety lock device engaged. The child safety lock device can be operated as shown below.

- Engage child safety lock function — turn anticlockwise until you hear a click.

Diagram showing a mechanical component with an arrow indicating rotation or force direction (no text or symbols present)

- Release the child safety lock temporarily — turn clockwise until you feel resistance, the lock is released temporarily and you can open the door. The child safety lock is re-engaged once you close the door.

Pure diagram of a mechanical component with an arrow indicating direction, no text or symbols present

● Disengage child safety lock function — turn clockwise until you hear a click.

Pure mechanical diagram showing a curved component with an arrow indicating direction, no text or symbols present

If the active child safety lock device does not lock the oven door, it is possible that you accidentally, eg during cleaning, reset the hook to locking position.

To restore the correct operation of the child safety lock device, disengage the lock by turning the knob clockwise until you feel resistance. You will hear a click.

The child safety lock device will operate normally when you lock the door.

Care of enamel hob and plates

Protect the hob against discolouring by wiping it after each use. Avoid abrasive detergents. Use ordinary washing-up liquid or soap. If you want to polish it, use window cleaner.

Technical data

Dimensions

Width 598 mm

Height 900 mm

Depth 600 mm

Equipment

2 baking trays

1 roasting pan

1 grill rack

1 anti-tip device

Power

Hob 6500 W

Oven 3100 W

Grill 2000 W

Total 9600 W

Information for the installer

The appliance is designed to be connected to 230 V power supply. It must be protected with a 25 A fuse. Before connecting the appliance to the power supply, make sure that the parameters of the socket match the information on the rating plate on the back right of the oven. There is also a picture of the rating plate in this manual. The appliance is equipped with a connection cable with plug.

Mounting the anti-tip device

A=104 mm; B=147 mm

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Technical diagram of a vehicle chassis frame with mounting brackets and directional arrows indicating movement (no text or symbols)

If the tiles etc. only cover the top part of the rear wall, the anti-tip device must be distanced by the equivalent thickness.

Adjust the height of the appliance

Diagram of a kitchen appliance with red directional arrows indicating airflow or movement (no text or symbols)

IO-CFS-0324 / 8067868

(rev. 02.2017)
