USER MANUAL TWSLEEV201 AEG-ELECTROLUX

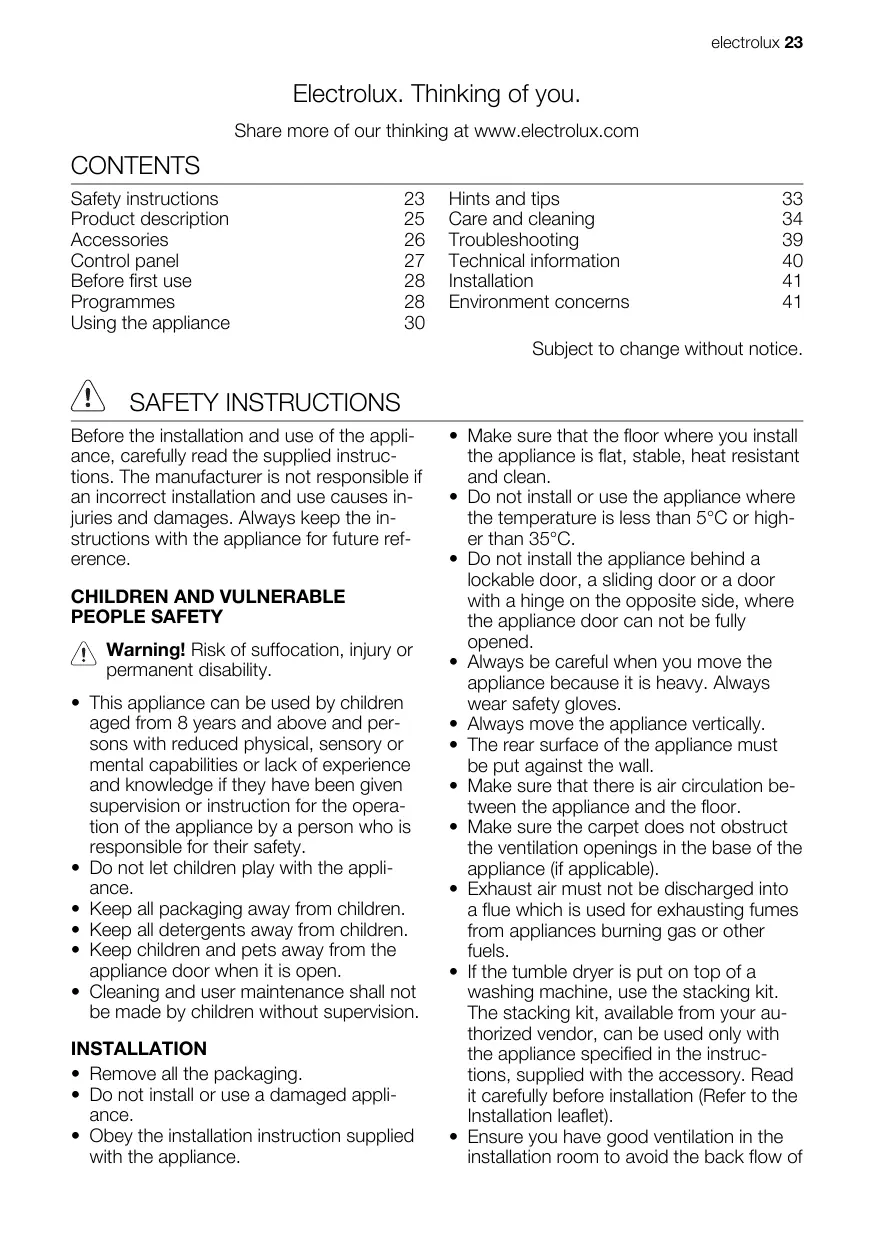

electrolux 23 Electrolux. Thinking of you. Share more of our thinking at www.electrolux.com CONTENTS Safety instructions 23 Hints and tips 33 Product description 25 Care and cleaning 34 Accessories 26 Troubleshooting 39 Control panel 27 Technical information 40 Before first use 28 Installation at Programmes 28 Environment concerns ai Using the appliance 30

AN SAFETY INSTRUCTIONS

Subject to change without notice. Before the installation and use of the appli- ance, carefully read the supplied instruc- tions. The manufacturer is not responsible if an incorrect installation and use causes in- juries and damages. Always keep the in- structions with the appliance for future ref- erence.

CHILDREN AND VULNERABLE

PEOPLE SAFETY À Warning! Risk of suffocation, injury or permanent disability. + This appliance can be used by children aged from 8 years and above and per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction for the opera- tion of the appliance by a person who is responsible for their safety. Do not let children play with the appli- ance. Keep all packaging away from children. Keep all detergents away from children. Keep children and pets away from the appliance door when it is open. Cleaning and user maintenance shall not be made by children without supervision. INSTALLATION + Remove all the packaging. + Do not install or use a damaged appli- ance. + Obey the installation instruction supplied with the appliance. Make sure that the floor where you install the appliance is flat, stable, heat resistant and clean. Do not install or use the appliance where the temperature is less than 5°C or high- er than 35°C. Do not install the appliance behind a lockable door, a sliding door or a door With a hinge on the opposite side, where the appliance door can not be fully opened. Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Always move the appliance vertically. The rear surface of the appliance must be put against the wall. Make sure that there is air circulation be- tween the appliance and the floor. Make sure the carpet does not obstruct the ventilation openings in the base of the appliance (if applicable). Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. If the tumble dryer is put on top of a washing machine, use the stacking kit. The stacking kit, available from your au- thorized vendor, can be used only with the appliance specified in the instruc- tions, supplied with the accessory. Read it carefully before installation (Refer to the Installation leaflet). + Ensure you have good ventilation in the installation room to avoid the back flow of

24 electrolux gases into the room from appliances burning other fuels, including open fires. + The appliance can be installed as free- standing or below the kitchen counter with correct space (Refer to the Installa- tion leaflet). When the appliance is put in its perma- nent position, check if it is fully level with the aid of a spirit level. If it is not, adjust the feet until it is. Electrical connection À Warning! Risk of fire and electrical shock. + The appliance must be earthed. + Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. + Always use a correctly installed shock- proof socket. Do not use multi-plug adapters and ex- tension cables. Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre. Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. Do not touch the mains cable or the mains plug with wet hands. This appliance complies with the E.E.C. Directives. USE Warning! Risk of fire, explosion, electric shock or damage to the appliance + Use this appliance in a household only. + Do not change the specification of this appliance. + The final part of the drying cycle occurs without heat (cool down cycle) to ensure that the items will not be damaged. If you stop the appliance before the end ofthe drying cycle, immediately remove and spread out all items, so that the heat can dissipate. If you use fabric softener or similar prod- ucts, obey the instructions on the pack- aging. Do not run the appliance without a filter. Clean the lint filter before or after each use. Wipe away lint that has accumulated around the appliance. Do not dry the damaged items which contain padding or fillings. Do not dry items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads.. Before drying items that have been in contact with substances such as cooking oil, acetone, alcohol , petrol, kerosene, spot removers, turpentine, waxes and wax removers, wash them in hot water with an extra amount of detergent. Do not dry items in the appliance if indus- trial chemicals have been used for clean- ing. Make sure that no gas lighters or match- es have been left in the pockets of the clothing. Only dry fabrics which are applicable to dry in the tumble dryer. Follow the in- structions on the fabric label. Do not dry not washed items in the appli- ance. If you have washed your laundry with a stain remover start an extra rinse cycle before you start the dryer. Do not drink or prepare food with the condensed water. It can cause health problems to people and pets. Do not sit or stand on the open door. Obey the maximum load volume of 8 kg {refer to the “Programme chart” chapter). Do not dry dripping wet clothes in the tumble dryer.

À Warning! Risk of injury or damage to the appliance. + Before maintenance, deactivate the ap- pliance and disconnect the mains plug from the mains socket.

+ Do not use water spray and steam to clean the appliance. + Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. INTERNAL LIGHT VAN Warning! Risk of injury. Visible LED radiation, do not look di- rectly into the beam. (à) The type of light bulb or halogen lamp used for this appliance, is only for household appliances. Do not use it for house lighting. To replace the internal light, contact the Service. DISPOSAL f\ Warning! Risk of injury or suffocation. fl g Jury PRODUCT DESCRIPTION electrolux 25 + Disconnect the appliance from the mains Supply. + Cut off the mains cable and discard it. + Remove the door catch to prevent chil- dren and pets to get closed in the appli- ance. Compressor Warning! Risk of damage of the appliance. + The compressor and its system in the tumble dryer is filed with the special agent which is free from fluoro-chloro-hy- drocarbons. This system must stay tight. The damage of the system can cause a leakage. Water container Control panel El un ont Load door (reversible) Primary filter

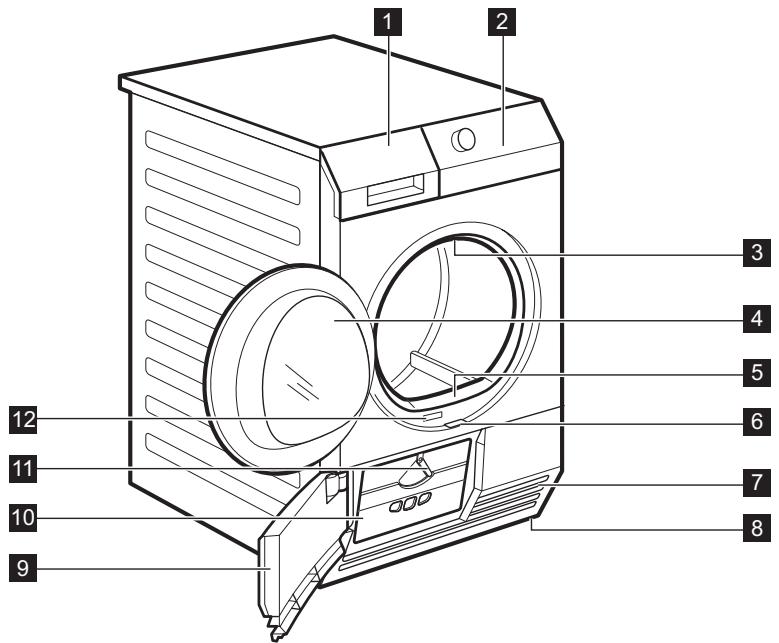

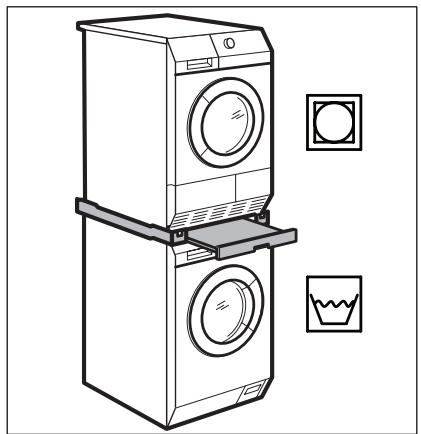

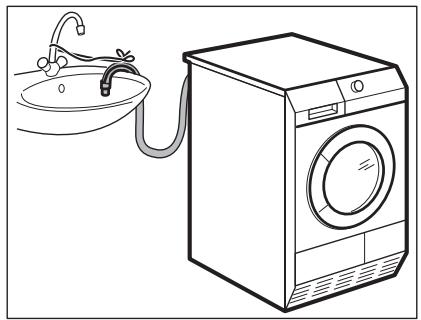

26 electrolux Sliding button to open the heat ex- changer door [7 BAMENS Adjustable feet Heat exchanger door ACCESSORIES Heat exchanger filters cover Lock knob Rating plate STACKING KIT Accessory name: SKP11, STAB, STA9 Available from your authorized vendor. Stacking kit can be used only with the washing machines specified in the leaflet. See the leaflet attached. Read carefully the instructions supplied with the accessory. DRAINING KIT Accessory name: DK11. It is available from your authorized vendor (can be attached to some types of the tum- ble dryers) The accessory for through draining of the condensed water into a basin, siphon, gully, etc. After the installation, the water contain er is drained automatically. The water con- tainer must stay in the appliance. The installed hose must be on the height from minimum of 50 cm to maximum of 1 m from floor level. The hose cannot be in loop. Decrease the length of the hose if necessary. Read carefully the instructions supplied with the accessory.

PEDESTAL WITH THE DRAWER

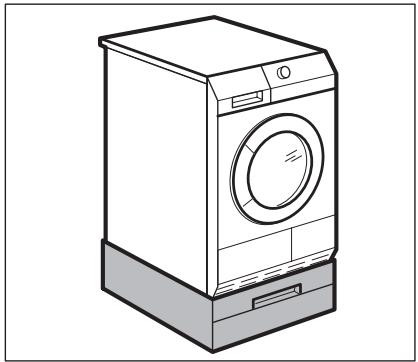

Accessory name: PDSTP10. It is available from your authorized vendor. To put the appliance higher at the level which helps to easy load and remove the laundry. The drawer can be used for laundry storage e.g. : towels, cleaning products and more. Read carefully the instructions supplied with the accessory.

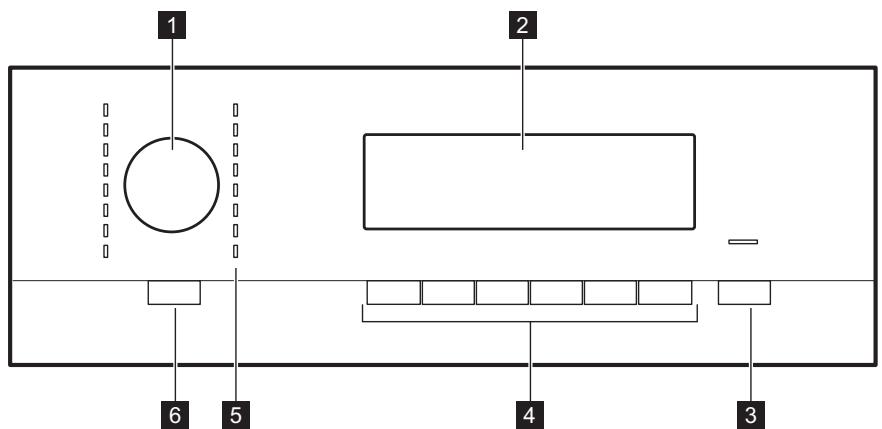

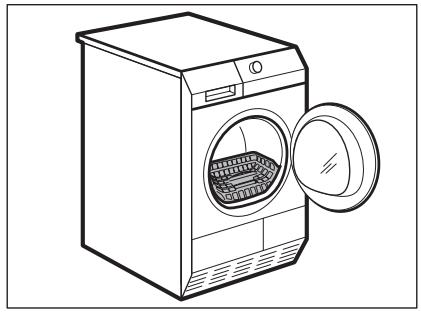

DRYING RACK Accessory name: RA5, RA6, RA11, RA12 CONTROL PANEL electrolux 27 It is available from your authorized vendor (can be attached to some types of the tum- ble dryers). Do the check with the vendor or on the web site if the accessory is compaiti- ble with your appliance. Drying rack accessory let to dry safely in the tumble dryer: + sport shoes + wool + soft toys + lingerie Read carefully the instructions supplied with the accessory. The programme dial [2 | The display E The Start/Pause push button The function push buttons DISPLAY E The programme indicators E re 07/0f O push button with the Auto Off function min | ©

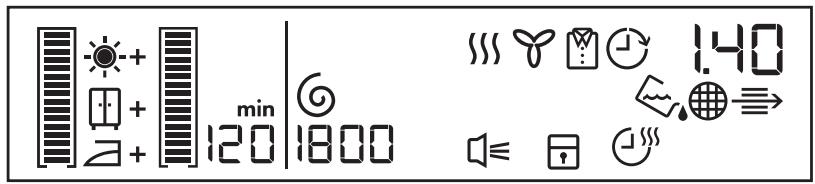

28 electrolux Îs-Ës anti-crease time: default, interval (80 min. - 120 min.) ©B00-1800 initial laundry centrifugation (800 — 1800 rpm) — default d= buzzer activated EG child lock activated oO] time drying function activated & drain the water container indicator FE) clean the primary fier indicator = clean the heat exchanger filters indicator fl drying cycle phase indicator Y cooling cycle phase indicator ® crease guard cycle phase indicator @ delay start activated

Clean the tumble dryer drum with a moist It is because of start of the compressor that cloth or set a short programme (e.g. 30 mi- is normal for compressor powered applian- nutes time programme) with the load of ces such: refrigerators, freezers . moist cloths. At the beginning of drying cycle (8-5 min.) there could be a slightly higher sound level. PROGRAMMES Load Programmes | Extra Dry (Ex- tratrocken) 8kg Cupboard Dry (Schranktrock- 8kg en) 2 Iron Dry (Bügel- trocken) 2) 8kg Cr Available | Fabric e functions | mark Gottons (Baumweolle) alexept GO To dy cotton pieces of clothing. Drying level: Time Dry- extra dry. ing Geit- wah)} alexcept GO To dry cotton pieces of clothing. Drying level: Time Dry- cupboard dry. ing Geit- wah)} alexept GO To dy cotton pieces of clothing. Drying level: Time Dry- applicable to iron. ing Geit- wahi)

electrolux 29 oad ible ES EEE To gentiy dry cotton pieces of clothing witntne <lexcpt EjQ Programmes Extra Silent (Ex- A Time Dry- 8kg … noise decreased to the minimum The pro- T False) gramme can be used at night. TEE To dry leisure clothing such as jeans, sweat- EEE GO Jeans 8kg shirts of different material thicknesses (e.g. at meer [O] the neck, cuffs and seams). g Wal) alexcept GC Antcrease €J Duvets Dau- | 54 T0 dry single or double duvet and pilows (win ee d nen) feather, down or synthetic filinge). ÉD ing (eit- wah)) aiexcept GO To dry laundy with the time set by the user. The DryPUS £3 Time (Zeitprog- gg ‘time value must be related to the load. To dry (Trocken+) ramm) 9 one item or small quantities of the laundry we and Spun recommend to use short times. at RPM (U/ Min.) . all except nec 3k9 To dy cotton and syntheti fabrics, uses low Time Dry- 8e 9 temperature. ing Geit- tra Kurz) pie Synthetics (Mischgewebe) all except [e] O EteDyEc g5kg T° dysmihelic pieces ofclothing. Dryngleve: | TmeDy- Ej tratrocken) 8 KO extra dry. ing Geit- wah)) alexept GO Cupboard Dry 7 To dry synthetic pieces of clothing. Drying level: Time Dry- Soranktock- 36k9 Cppoard dry. ing Geit- [e] en) wah)} all except [eo] O Iron Dry (Büge 55 kg T° dr symihelic pieces of clothing. Dryinglewe: | TmeDry- Cj trocken) $K9 applicable to iron. ing Geit- wah)) To dry easy care fabrics such shirts and blou- [eo] 1kg Ses: for minimum roning effort. The results can | alexcæpt €j Easy Iron (or 8 be different for to the different types of fabric Time Dry- (Lechtbüge) | Se ndits finish. Put fabrice in the tumble dryer ing Geit- straight. After the cycle, immediately remove wah)) dried fabrics and put on a cloths hanger.

30 electrolux Programmes oad Available ES EEE all except To dry outdoor pieces of clothing, technical, PRE _. 2kg POS. Pile fabrics, waterproof and breathable Ut and 9 jackets, shell jacket teamed with a removable Time Dry. fleece or inner insulation. Mn Bee wah)) alexept GO Microfber (Mik- 249 TO Giy sportswear, hin andight fabrics, micro- TimeDny- Cj rofaser) 9 fiber, polyester, which are not ironed. ing Zeit- wah)) all except Anticrease . . Knitter- Silk/Lingerie To dry silk/lingerie with warm air and gente ( (Seide) 1K9 Movement. ES ing Geit- Wah) To dry the cloths made of wool . The cloths be- come soft and cosy. We recommend to remove the cloths immediately after the programme end. The default wool drying cycle of this tumble dry- ing machine has been tested and approved by The Woolmark Company. The cycle is suitable to dry wool garments which are labelled "hand Dry PIuS wash" provided that the garments are washediin (Trocken a Wooïmark endorsed hand washing cycle and +), Buzzer tumble dried according to the instructions issued Hegre) , by the manufacturer. (M11 29). Time Dry- HSE) To increase or to decrease the level of the re- ing Geit- maining moisture of the laundry you can use the wahl) 9, function Dry Plus (Trocken+) . Delay Start Geitvor- wahl) WOOLMARK APPAREL CARE

1) maximal weight of dry clothes

2) For test instiutes onfy:

To make a performance test use the standard programmes which are specified in the EN 61121 document. Ifis necessary lo correct the remaining moisture level of the laundry, adjust the programme with the Dry Plus (Trocken +) function . You must clean the heat exchanger filters after each 3 cycles.

3) Onÿy with the drying rack — see chapter ACCESSORIES

PREPARING THE LAUNDRY dryer. Do the check of the fabric mark on the clothes. Important! Dry only the laundry applicable to dry in the tumble dryer. Make sure if the laundry is applicable to dry in the tumble

ESS O Applicable to dry in the tumble dryer ü Applicable to dry in the tumble dryer at standard temperature lo] Applicable to dry in the tumble dryer at decreased temperature & Not applicable to dry in the tumble dryer Gorectiy prepare the laundry: + close zips, button up duvet covers and attach loose ties or ribbons (e.g. ribbons of aprons) - laundry can tangle make sure the pockets are empty - re- move metal items (paper clips, safety pins, etc.). turn items with 2 fabric layers inside out (e.g. cotton lined anoraks, the cotton fab- ric layer must be external). Dy only: + _cotton and linen with Cottons (Baum- wolle) programmes synthetic and mixtures with Synthetic (Mischgewebe) programmes separately the strong coloured textiles and the light coloured textiles - colours can bleed cotton jersey and knitwear only with the applicable programmes - items can Shrink Important! Do not put more laundry than the maximum load which is 8 kg.

1. Pullthe appliance door

2. Load loosely the laundry.

3. Close the appliance door.

Caution! Do not lock the laundry in between the appliance door and rubber seal.

SWITCHING ON THE APPLIANCE

Push the On/Off (D button to activate or to deactivate the appliance. When the appli- ance is on, some indications come in to the view on the display. electrolux 31

To decrease the energy consumption, the Auto Off function deactivates automatically the appliance: + ifthe Start/Pause button was not pushed in the time of 5 minutes. + after 5 minutes from the programme end. Push the Auto Off button to activate the ap- pliance. SETTING À PROGRAMME NI7/

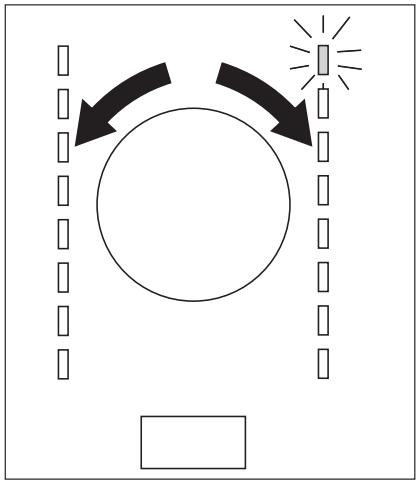

Use the programme dial to set the pro- gramme. The possible time to complete the programme come into view on the display. () The drying time you see is related to the load of 5 kg for cotton and jeans programmes. For the other pro- grammes the drying time is related to the recommended loads. The drying time of the cotton and jeans pro- grammes with the load more than 5 kg is longer. SPECIAL FUNCTIONS Together with the programme you can set 1 or more special functions. To activate or deactivate the function push the applicable push button.

CE D D When the function is activated the applica- ble symbol comes into the view on the dis- play. THE DRY PLUS (TROCKEN+) FUNCTION This function helps to get the laundry more dried. There are 3 possible selections: minimum - the default selection which is re- lated to the programme. moderate — the selection to get the more dried laundry. maximum — the selection to get the much more dried laundry. THE ANTICREASE (KNITTERSCHUTZ) FUNCTION Extends of 30, 60, 90 or 120 minutes the standard anticrease phase (30 minutes) at the end of the drying cycle. This function prevents the laundry from creases. The laundry can be removed during the anti- crease phase. THE SPUN AT RPM (U/MIN.) FUNCTION This function helps to set the best condition to dry the laundry. If you know the initial spin speed when you washed you can use this function. Higher spin speed causes that the laundry contains less water.

THE BUZZER (SIGNAL) FUNCTION

When the buzzer function is activated you can hear the buzzer at the:

• cycleend + anti-crease phase start and end + cycle interruption The buzzer function is by default always on. You can use this function to activate or de- activate the sound. THE TIME DRYING (ZEITWAHL) FUNCTION Operates only with the Time programme. Lets the user to set special time of drying programme from minimum 10 min. to maxi- mum of 2 hours (in 10 min. steps). THE DELAY START (ZEITVORWAHL) FUNCTION (à) Let to delay the start of a drying pro- gramme from minimum of 30 minutes to maximum of 20 hours.

1. Set the drying programme and func-

ton again and again until the necessary time of the delay come into the view on the display (e.g. 2 hf the programme has to start after 12 hours.)

3. To activate the Delay Start (Zeitvorwahl)

function, push the Start/Pause button. The time to start decreases on the dis- play.

The child lock can be set to prevent the children to play with the appliance. The child lock function locks all push buttons and the programme dial (this function does not lock Auto/Off button). To activate the child lock function push the Dry Plus (Trocken+) and Anticrease (Knitterschutz) buttons at the same time until the symbol Æ come into view on the display. To deac- tivate push again the above buttons until the symbol go out of view. You can activate the child lock function: + before you push the Start/Pause button - the appliance cannot start + after you push the Start/Pause button - all the push buttons and the programme dial are deactivated

To activate the programme push the button as on the illustration. The LED above the button illuminates in red colour.

To change a programme, push the (D) On/ Off button to deactivate appliance. Push the D On/Of to activate the appliance and then set the programme again.

When the drying cycle is completed, the { symbol flashes on the display. If the Buzzer (Signal) function is on, an acoustic signal sounds intermittently for one minute. To remove the laundry:

1. Push the Auto/Off button for 2 seconds

to deactivate the appliance.

2. Open the appliance door.

3. Remove the laundry.

4. Close the appliance door.

Important! After each drying cycle: + clean the filter +_drain the water container (See chapter CARE AND CLEANING.) ECOLOGICAL HINTS Do not use fabric softener to wash and then dry. In the tumble dryer laundry be- comes soft automatically. Use the condensate as distilled water, e.g. for steam ironing. If it is necessary clean the condensate before (e.g. with a coffee filter) to remove possible small pieces of fluff. Always keep the airflow slots on the bot- tom of the appliance clear. Use the load volumes which are specified in the programmes chapter. Make sure that is good airflow in the ap- pliance installation position. Clean the primary filter after each drying cycle. Clean the heat exchanger filters when the applicable indicator comes into the view on the control panel. Spin good the laundry before drying.

CONDUCTIVITY Water hardness can be different for differ- ent locations. Water hardness has an effect on the water conductivity and the operation ofthe conductivity sensor in the appliance. If you know the value of the water conduc- tivity you can adjust the sensor to dry with the better results. To change the sensor conductivity: 1... Turn the programme dial to available programme.

2. Push at the same time 2 buttons (see

the illustration). Hold down until one of the symbols come into view on the dis- play: - C0

3. Push the button again and again until

4. To memorise the setting push at the

same time 2 buttons as are specified in the point 2.

WATER CONTAINER FULL —

INDICATION By defauit the indication &,, is always on. It comes into the view at the end of the cycle or when the water container is full. When you use an external equipment to drain the container, the indication can be off.

2. Push at the same time 2 buttons (see

the illustration) and hold down until you see the correct setting:

CE D EP D D — the indication &, is off and the indi- cator _ _{ comes into the view — the indication &, is permanentiy off — the indication &, is on and the indi- cator _ __ | comesinto the view — the indication &, is activated

CLEANING THE PRIMARY FILTER

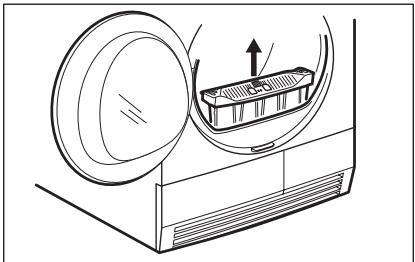

At the end of each cycle the indicator (clean the primary filter) is on to tell you that the primary filter must be cleaned. To clean the primary filter: (&) The filter colects the fluff. The fluff oc- curs while the cloths are dried in the tumble dryer.

À Caution! Do not operate the tumble dryer without the primary filter or with damaged or blocked filter. Important! Clean the primary filter after each drying cycle. Clogged filter increases the cycle time and causes higher energy consumption.

DRAINING THE CONDENSED WATER

CONTAINER Drain the condensed water container after each drying cycle. electrolux 35

4. Use a moist hand to clean the filter.

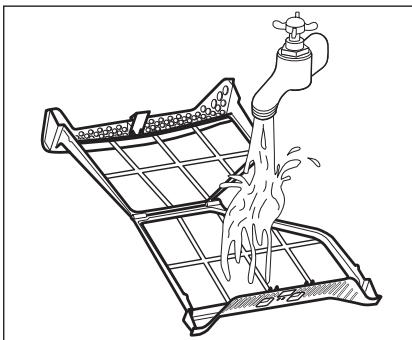

5. If necessary clean the filter with warm

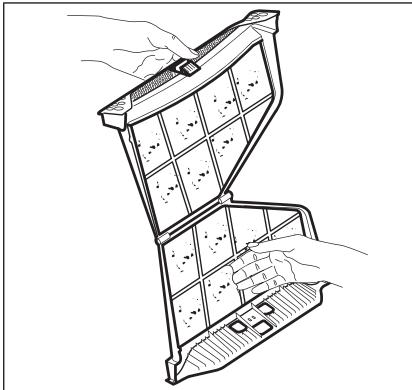

water using a brush. Close the filter.

6. Remove fluff from the filter socket. For

this a vacuum cleaner can be used.

7. Put the filter inside the filter socket.

If the condensed water container is full, the programme breaks off automatically and the indicator &, drain the condensed water container is on. To continue the pro- gramme, drain the condensed water con- tainer and press the start button. [&) To drain the condensed water contain- er automatically you can install draining accessory (see chapter: ACCESSO- RIES)

36 electrolux To drain the condensed water container:

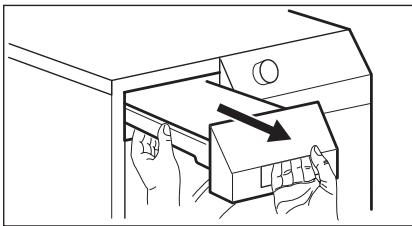

1. Pullthe condensed water container

and keep it in horizontal position.

2. Move the plastic connection out and

drain the condensed water container into a sink or equivalent receptacle.

3. Move plastic connection in and install

water container. À Warning! Risk of poisoning. The CLEANING THE HEAT EXCHANGER condensed water is not applicable to FILTERS drink or to prepare food. If the indicator => clean the heat ex- The condensed water can be used as Changer filters is on, the filters must be distiled water, e.g. for steam ironing. If Cleaned. necessary filter the condensed water The frequency to clean the filters is related e.g. with a coffee filter) to remove pos- {© the laundiy type and its quantity. sible residue and small pieces of flutf.… 1 you dry with the maximum load, clean the filters after each 3 cycles. To clean the filters: Open the loading door.

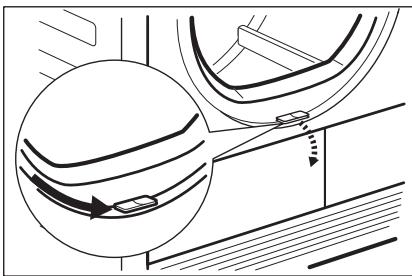

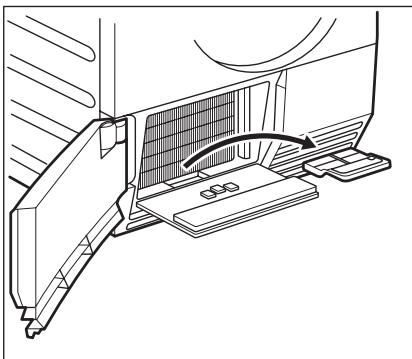

2. Move the release button on the bottom

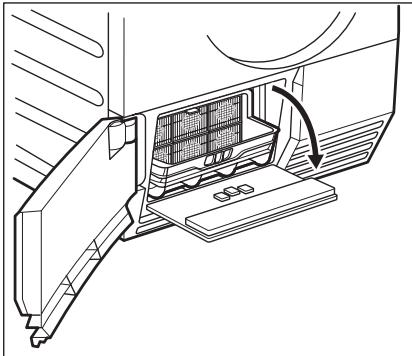

of the door opening and open the heat exchanger door.

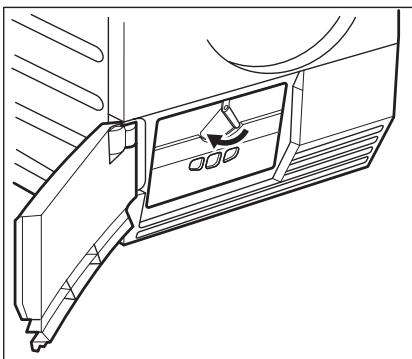

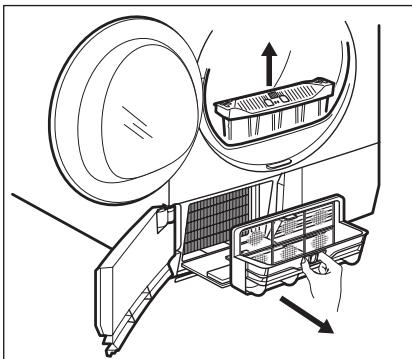

3. Turn the blockage to unlock the heat

4. Lower the heat exchanger filters cover.

5. Lift the primary filter. Hold the heat ex-

changer filter and pull it out from the bottom compartment.

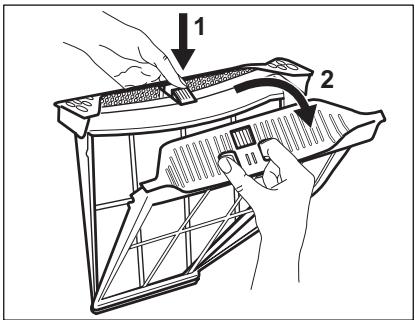

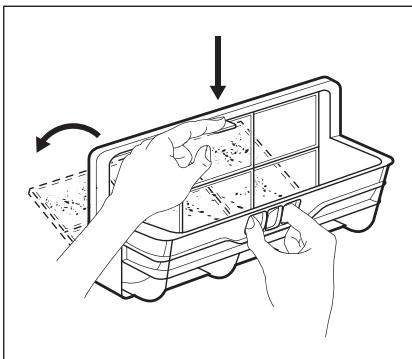

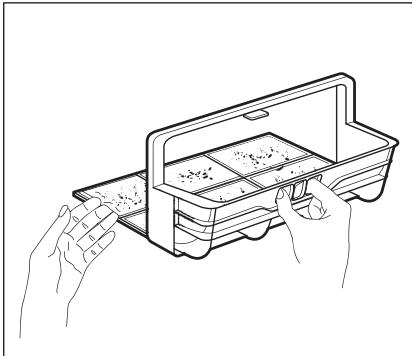

6. Push the hook to open the filter.

38 electrolux VAN Caution! Do not operate the tumble dryer when the heat exchanger filters are blocked with fluff. This could cause

Use a moist hand to clean the filter. lf necessary clean the filter with warm water using a brush. Close the filter. Clean the small filter from the base If necessary, one time for each 6 months, remove the fluff from the heat exchanger compartment. You can use a vacuum cleaner. Put the small filter and heat exchanger filter back. Close the heat exchanger cover. Lock the blockage until it snaps. Close the heat exchanger filters cover. Close the heat exchanger door. Put the primary filter. the damage to the tumble dryer. This also increases energy consumption.

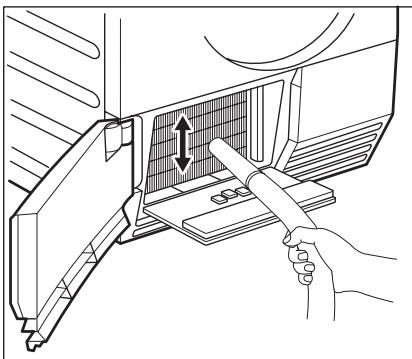

Do not use sharp objects to clean the heat exchanger compartment. Do not operate the tumble dryer with- out the filters.

/\ Warning! Disconnect the appliance before you clean it. Use a standard neutral soap detergent to clean the inner surface of the drum and drum ribs. Dry the cleaned surfaces with a soft cloth. TROUBLESHOOTING electrolux 39 Caution! Do not use abrasive materials or steel wool to clean the drum.

CLEANING THE CONTROL PANEL AND

HOUSING Use a standard neutral soap detergent to clean the control panel and housing. Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth. {\ Caution! Do not use furniture cleaning agents or cleaning agents which can cause corrosion to clean the appliance. TROUBLESHOOTING Problem‘) Possible cause The tumble dryer is not connected to Connect in at mains socket. Check fuse in fuse box (domestic installation). Close the loading door. mains supply. The tumble The loading door is opened. dryer does The Auto/Off button was not pushed. not operate. Unsatisfactory. drying results. The Start/Pause button was not push- ed. The appliance is in the standby mode. Incorrect programme selection. The filter is clogged. The Dry Plus function was in minimum mode. The condenser is clogged. Too high volume of the load. The airflow gril is clogged. Dirt on the inner surface of the drum. Too high water hardness. The door The filter not locked in the position. does not The laundtry is locked between the door close. and the seal You try to change the programme or the function after the start of the cycle. Err (Erron on > the display." The function you try to activate is not applicable with the selected pro- gramme. No drum light Defective drum light. Push the Auto/Off button. Push the Start/Pause button. Push the Auto/Off button. Do the selection of the applicable pro- gramme. 2) Clean the filter. % Change the Dry Plus function to the moderate or maximum mode. Clean the condenser. $) Obey the maximum load volume. Clean the airflow gril in the bottom of the appliance. Clean the inner surface of the drum. Set applicable water hardness‘). Put the fier in the correct position. Put the load correctly in the drum. Turn the tumble dryer off and on. Make the new selection. Turn the tumble dryer off and on. Make the new selection. Contact the service centre to replace the drum light.

40 electrolux Gepang ne 1e me o end is calualed on ne De. me auomai procedure — ti i not onthe dis fiS of the volume and dampness fe {ke applance malfunction. cu laundry Programme . Drain the water containerf), push the inactive. WMovasrenEREr(sUl Start/Pause button. Do the selection of time programme. The time value must be related to the Too small laundry volume. load. To dry one item or small quantities Drying cycle of the laundry we recommend to use 100 short. short times. ; Do the selection of time programme or LEE oo higher drying level (e.g. Extra Dry ) The filter is clogged. Clean the fiter. Dnirg cycle 120 igh volume of the loed. Obey the maximum load volume. too long © Thelaundhy not spun suicienty. Spin correctiy the laundry. Very high room temperature - this is not the appliance malfunction. If possible, lower the room temperature.

1) Ifthere is an error message on the display (e.g. E51): Turn the tumble dryer off and on. Make a selection of the

3) see CARE AND CLEANING chapter

4) see section WATER HARDNESS in HINTS AND TIPS chapter

5) Note: After maximum 5 hours the drying cycle ends automatically (see Drying cycle complete section)

height x width x depth drum volume maximum depth with the load door opened maximum width with the load door opened adjustable height the appliance weight maximum load volume voltage frequency necessary fuse total power energy efficiency class: energy consumption kWh/cycle 1) annual energy consumption?) type of use 850 x 600 x 600 mm (maximal 640 mm) ti8l 1090 mm 950 mm 850 mm (+ 15 mm - feet regulation) 55 kg 8kg 230 V 50 Hz

1) 8kg of cotton, centrifuged at 1000 rpm with reference to EN 61121

2) The sum of approximate energy consumption to dy:

160 kg of the cotton laundry with cupboard dry programme + 280 kg with iron dry programme + 160 Kg of synthetic laundry with cupboard ary programme. This is approximate consumption for the 4 person household which correctiy use the tumble dryer. INSTALLATION UNPACKING A\ Caution! Before use all parts of the transport pack- aging must be removed. To remove the polystyrene blockages:

1. Open the load door.

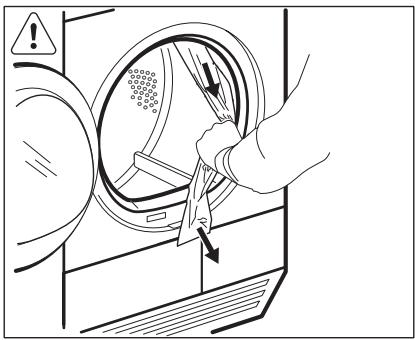

2. Pull plastic hose with the polystyrene

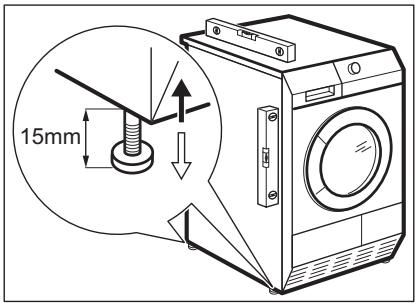

blockages out from the drum. ble dryer. To do that adjust the feet (see picture). ENVIRONMENT CONCERNS It is possible to adjust the height of the tum-

INSTALLATION UNDER A COUNTER

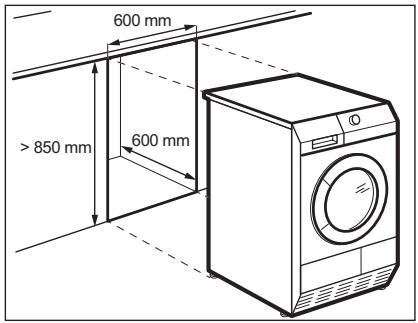

The appliance can be installed as free- standing or below the kitchen counter with correct space (see picture).

The load door can be installed by the user in the opposite side. It can help to easily put and remove the laundry or if there is a limit to install the appliance. (see separate leaf- let). The symbol E on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate

42 electrolux collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. PACKAGING MATERIALS Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it.
