USER MANUAL T96685IH AEG-ELECTROLUX

49 USING THE APPLIANCE

56 CARE AND CLEANING

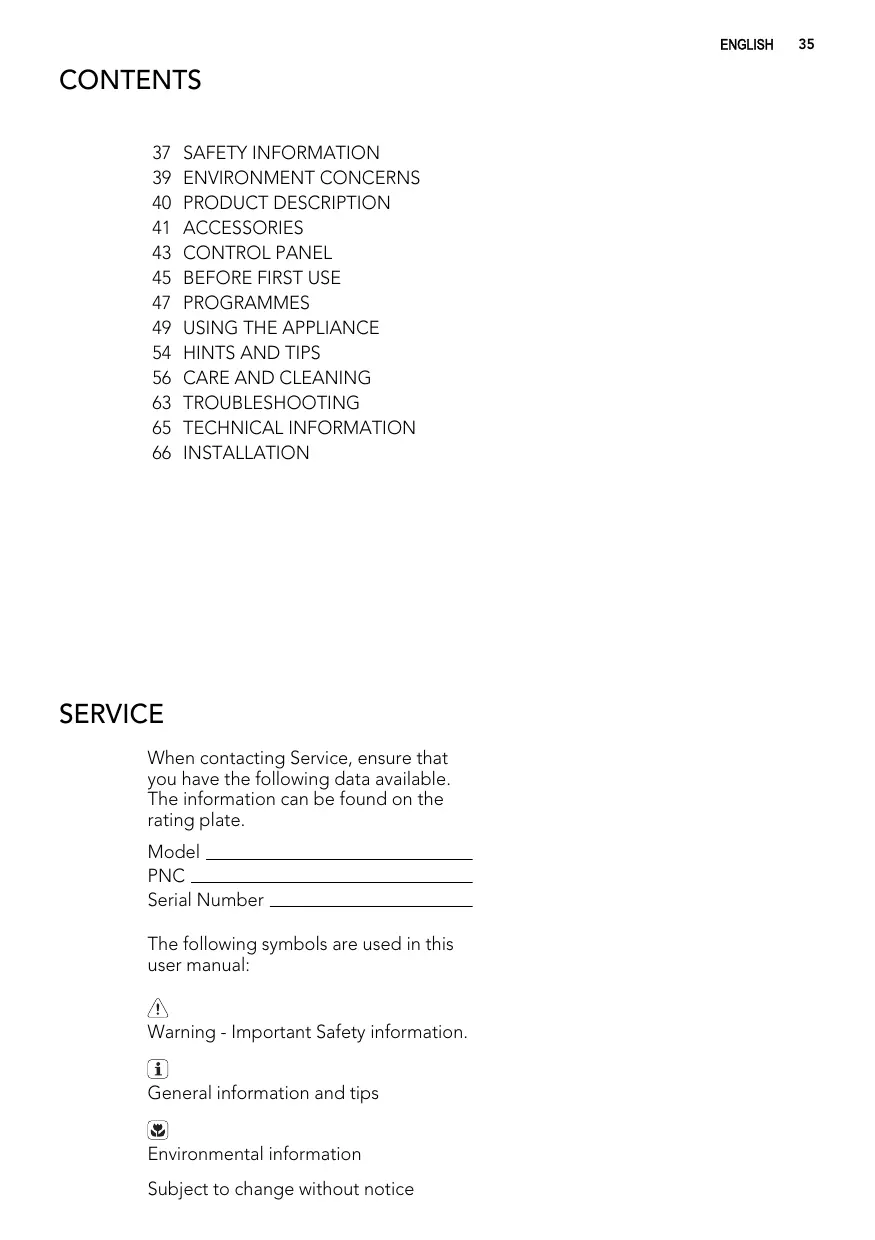

63 TROUBLESHOOTING 65 TECHNICAL INFORMATION 66 INSTALLATION SERVICE When contacting Service, ensure that you have the following data available The information can be found on the rating plate. Model PNC Serial Number The following symbols are used in this user manual

General information and tips Environmental information Subject to change without notice

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you'll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags. SE IBIE Visit the webshop at: wuw.aeg.com/shop VISIT OUR WEBSITE FOR: - Products - Brochures - User manuals - Trouble shooter - Service information WWW.aeg.com

/\ SAFETY INFORMATION In the interest of your safety and to ensure the correct use, before instal- ling and first using the appliance, read this user manual carefully, in- cluding its hints and warnings. To avoid unnecessary mistakes and acci- dents, it is important to ensure that all people using the apl thoroughly familiar with its operation and safety features. Save these in- structions and make sure that they remain with the appliance if it is moved or sold, so that everyone us- ing it through its life will be properly informed on appliance use and safe- ty. - Read the instruction manual be- fore the appliance use GENERAL SAFETY It is dangerous to alter the specifica- tions or attempt to modify this prod- uct in any way. This appliance is not intended for use by persons (including children) with reduced physical and sensory condi- tions or lack of experience and knowledge, unless they have been given supervision or instruction con- cerning use of the appliance by a person responsible for their safety. Make sure that small children and pets do not climb inside the drum. To avoid this, please check into the drum before using. Any objects such as coins, safety pins, nails, screws, stones or any oth- er hard, sharp material can cause ex- tensive damage and must not be placed into the machine Items such as foam rubber (latex foam), shower caps, waterproof tex- tiles (ifthere is no special drying pro- gramme), rubber backed articles and clothes or pillows fitted with foam rubber pads must not be dried in the tumble dryer. ENGLISH 37 Make sure that there is access to the mains plug after the installation. Always unplug the appliance after use, cleaning and maintenance. Under no circumstances should you attempt to repair the machine your- self. Repairs carried out by inexper- ienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts Items that have been soiled with sub- stances such as cooking oil acetone, petrol, kerosene, spot removers, tur- pentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer. Danger of explosion: Never tumble dry items that have been in contact With inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like). As these substances are volatile, they could cause an explo- sion. Only tumble dry items washed with water. Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tum- ble dryer. K you have washed your laundry with stain remover you must execute an extra rinse cycle before loading your tumble dryer. Please make sure that no gas lighters or matches have accidentally been left in pockets of garments incase they are loaded into appliance The condensed water is not applica- ble to drink or to prepare food. It can cause health problems to people and pets. Do not seat or lean on the load door. The appliance can tilt.

WARNING! + Risk of fire! To prevent from the risk of self combustion do not stop a tumble dryer before the end of the dry- ing cycle unless all items are quickly removed and spread out so that the heat is dissi- pated. Lint must not be allowed to accumulate around the tum- ble dryer.

Risk of electric shock! Do not spray down the appliance with jets of wa- ter. The final part of a tumble dryer cycle occurs without heat (cool down cy- cle ) to ensure that the items are left at a temperature that ensures that items will not be damaged The tumble dryer is not to be used if industrial chemicals have been used for cleaning. Ensure you have good ventilation in the installation room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires INSTALLATION This appliance is heavy. Be careful when you move the appliance. When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre All packaging must be removed be- fore use. Dangerous damage can oc- cur to the product and to property if this is not adhered to. See relevant section in the user manual Each electrical work necessary to in- stall this appliance must be done by a qualified electrician or competent person The rear surface of the appliance must be put against the wall If the appliance is installed on the carpet or equivalent, adjust the feet. Air must flow freely below the appli- ance After the appliance installation, check that it is not squeeze or stay on the electrical supply cable Ifthe tumble dryer is put on top of a washing machine, it is mandatory to use the stacking kit (optional acces- sory - see chapter: "ACCESSORIES") USE This appliance is for domestic use only. It must not be used for other functions . Only dry fabrics which are applicable to dry in the tumble dryer. Follow the instructions on each piece of clothing label. Do not dry not washed items in the tumble dryer. Do not put more load than recom- mended. Obey the maximum load volume. See the related chapter in the user manual. Clothes which are dripping wet must not be put in the tumble dryer. Garments which have been in contact with volatile petroleum products should not be machine dried. If vola- tile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the appliance Do not use the tumble dryer if the power supply cable, the control pan- el, the working surface or the base are damaged so that the inside of the tumble dryer is accessible. Fabric softener or equivalent prod- ucts must be used as specified by the fabric softener manufacture. Risk of fire! Do not dry the damaged items which contain padding or fil- lings (pillows, jackets, duvets, etc.). The padding or fillings can get out and cause the fire.

CHILD SAFETY + This machine is not intended for use by young children or infirm persons without supervision + Children often do not recognise the hazards associated with electrical ap- pliances. Children should be super- vised to ensure that they do not play with the appliance. WARNING! + Danger of suffocation! The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - Keep them out of children's reach (@) ENVIRONMENT CONCERNS PACKAGING MATERIALS Recycle the materials with the symbol €. Put the packaging in applicable containers to recycle it. The symbol À on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic ENGLISH 39 + Keep all detergents in a safe place out of children's reach. + Make sure that children or pets do not climb inside the drum.

DISCARD THE APPLIANCE

+ Disconnect the mains plug from the mains socket. Cut off the mains cable and discard

Discard the door catch. This prevents children or pets to be closed in the appliance. There is a risk of suffoca- tion equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

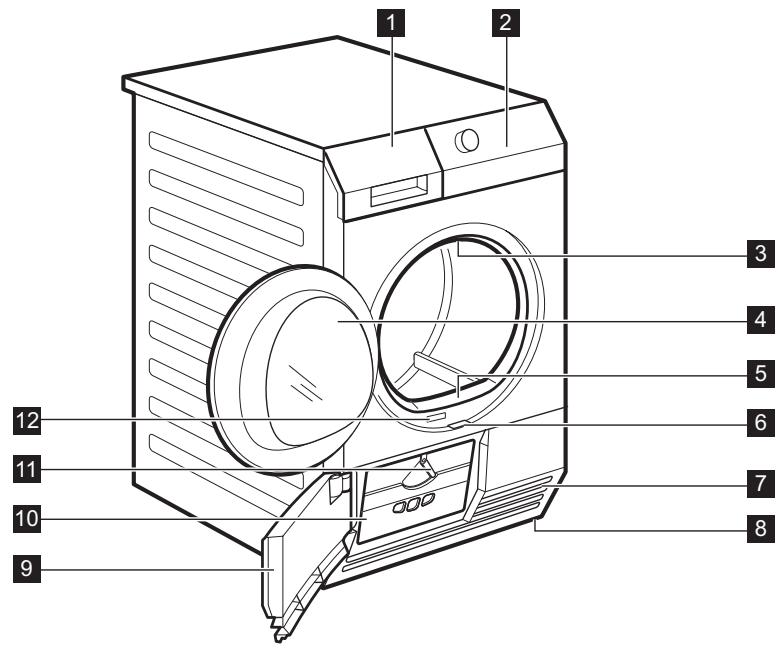

PRODUCT DESCRIPTION Eater container Bi coroiparel Eu ont Load door (reversible) Be fer MA Sliding button to open the heat ex- changer door Airflow slots Ads ect Heat exchanger door EM Heat exchanger filters cover Lock knob Rating plate

ENGLISH 41 ACCESSORIES STACKING KIT 1 m from floor level. The hose cannot be in loop. lf possible decrease the length of the hose Read carefully the instructions supplied with the kit.

PEDESTAL WITH THE DRAWER

Product name: SKP11 Available from your authorized dealer. Stacking kit can be used only with the washing machines specified in the leaf- let. See leaflet attached. Read carefully the instructions supplied with the kit. Product name: PDSTP10. Available from your authorized dealer. DRAINING KIT To put the appliance higher at the level which helps to easy load and remove the laundry The drawer can be use for laundry stor- age e.g. : towels, cleaning products and more. Read carefully the instructions supplied with the accessory. DRYING RACK Product name: DK11. Available from your authorized dealer (can be attached to some types of the tumble dryers) Installation kit for through draining of the condensed water into a basin, si- phon, gully, etc. After installation the water container is drained automatical- ly. The water container must stay in the appliance installed hose must be on the height from minimum of 50 cm to maximum of

Available from your authorized dealer (can be attached to some types of the tumble dryers) Drying rack accessory let to dry safely in the tumble dryer: + sport shoes + wool + soft toys + lingerie Read carefully the instructions supplied with the kit.

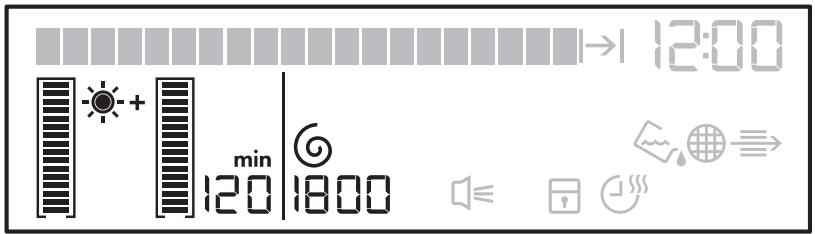

ENGLISH 43 CONTROL PANEL un "n EPoccmme ciel Push button On/Off(D with Auto BA Touch panel with display Off function El Programme indicators TOUCH PANEL Extra Stil Extra Silence | Goheugen Mémoire 1 || Seheugen 2 Mémoire 2 IDrogen Plus| Are | T/Min | Zoemer | Droog Somar | | Start/Pauxe Séchager | ;, À Essorage | Alarme | Minuterie | Départ Départ/Pause As alternative for the buttons to set the (à) For accurate selection touch the function you must touch the area with center point of the area be- the function name. Each area between tween the vertical marks. Do not the vertical marks senses the user fin- wear gloves when you touch the ger. panel to set the function. Make sure the panel is always clean and dry.

ENGLISH 45 Symbol Description &, drain the water container indicator & clean the main filter indicator 2 clean the heat exchanger filters indicator de buzzer activated E child lock activated (O1 time drying function activated

Clean the tumble dryer drum with a moist cloth or set a short programme (e.g. 30 minutes time programme) with the load of moist cloths. AN CAUTION! The compressor and its system in the tumble dryer is filled with the special agent which is free from fluoro-chloro- hydrocarbons. This system must stay tight. The damage of the system can cause the leakage and damage of the appliance At the beginning of drying cycle (3-5 min.) there could be a slightlÿ higher sound level. It is because of start of the compressor that is normal for compres- sor powered appliances such: refrigera- tors, freezers . LANGUAGE The first time you activate the appliance the default language comes into the view on the display. You can confirm it or set the different language from avail- able languages. To set the different language:

1. Turn the programme dial to set

the Start/Pause function. You can change the language each time you want. To set the different language:

1. Touch at the same time 2 functions

(see the illustration) and hold down until you see the language name on the display

2. Turn the programme dial to set the

the Start/Pause function. CLOCK The first time you activate the appliance the default time comes into the view on

the display. You can confirm it or set the different time. To set the different time:

1. Turn the programme dial to set the

3. Turn the programme dial to set the

the Start/Pause function You can change the time each time you want. To set the different time:

1. Touch at the same time 2 functions

(see the illustration) and hold down until you see the hour digit starts to flash. Tijd 1200 Le (Rss

2. Turn the programme dial to set the

4. Turn the programme dial to set the

Pro- Load Bree Available Fabric grammes 1) RCE functions mark allexcept OO . Time Dryin PEUR To dry cotton and synthetic fab (Droogtjd} (o EDR Ag à low t ture and Extra Si- Extra Kort) rics, uses low tempera : lent (Extra St) Synthetics (Synthetica) Extra Dry To drythickormultilayeredfab- allexcept GO (Extra 3,5kg rics, e. g. pullovers, bedding, table Time Drying Qj Droog) linen. (Droogtid) To dry thin fabrics which are not ir- Curslberre oned eg. easy care shirts, table el! e*Cept olo Dry (Kast 35kg à lime Drying 2 inen, baby clothes, socks, lingerie Dicogiid) droog) with bones or wires. roogit allexcept OO Time Drying © Iron Dry 35ka To drythin fabrics which are also (Droogtid) (Strikdroog) *° to beironed, e.g. knitwear, shirts. end Extra Si- lent (Extra St) To dry easy care fabries such shirts Jo] and blouses; for minimum ironing _allexcept € 1kg Sort. The results can be different Time Drying Easy lron (or for to the different types of fabrice (Droogtijd) (Strijkvrij) shirts) andits finish. Put fabrics in the and Extra Si- tumble dryer straight. After the cy- lent (Extra cle, immediately remove dried St) fabrics and put on a cloths hanger. all except To dry outdoor pieces of clothing, Anticrease Active Wear technical, sports, pile fabrics, wa- (Anti-kreuk), (Sport Inten- 2kg terproof and breathable jackets, Time Drying sief) shell jacket teamed with a remova- (Droogtijd), ble fleece or inner insulation Extra Silent (Extra Stil) allexcept OO Sports To dry sportswear, thin and light que Durs © (Sportkled- 2kg fabrics, microfiber, polyester, res) À and Extra Si- ing) which are not ironed lent (Extra Stil)

ENGLISH 49 Pro- Load RE Available Fabric grammes 1) RES functions mark all except Anticrease (Anti-kreuk) Silk/Lingerie . and Time Gide/Lnge 1kg Taay agit with warm air Drying rie) and gentle movement (Droogtid) and Extra Si- lent (Extra Stil) To dry the cloths made of wool . The cloths become soft and cosy. We recommend to remove the cloths immediately after the pro- gramme end. The wool drying cycle of this tum- ble drying machine has been tes- RES ted and approved by The Wool- plug Bu. mark Company. The cycle is suita- er (Zoem. Wool (Wol) ble to dry wool garments which en. Time ps Tkg are labelled ‘hand wash" provi- Drying ded that the garments are washed (Droogtid) in a Woolmark endorsed hand

washing cycle and tumble dried à , Dei according to the instructions is- art (Star- tuitstel) sued by the manufacturer. (M1129) To increase or to decrease the lev- el of the remaining moisture of the laundry you can use the function Dry Plus (Drogen Plus)

1) maximal weight of dry clothes

2) For test institutes only:

To make à performance test use the standard programmes which are specified in the EN 61121 document. If is necessary to correct the remaining moisture level of the laundry, adjust the programme with the Dry Plus (Drogen Plus) function

3) Only with the drying rack — see chapter ACCESSORIES

Fabric_ Property mark Dry only the laundry applicable to dry in the tumble dryer. Make sure if the laundry is applicable to dry in the tumble dryer. Do the check of the fabric mark on the clothes.

Fabric Property mark [eo] Applicable to dry in the tum- ble dryer at decreased tem- perature & Not applicable to dry in the tumble dryer Correctly prepare the laundry close zips, button up duvet covers and attach loose ties or ribbons (e.g ribbons of aprons) - laundry can tan- gle make sure the pockets are empty - remove metal items (paper clips, safety pins, etc.). turn items with 2 fabric layers inside out (e.g. cotton lined anoraks, the cotton fabric layer must be external). Dry only cotton and linen with Cottons (Ka- toen) programmes synthetic and mixtures with Synthetic (Synthetica) programmes separately the strong coloured tex- tiles and the light coloured textiles - colours can bleed cotton jersey and knitwear only with the applicable programmes - items can shrink AN Do not put more laundry than the maximum load which is 8kg

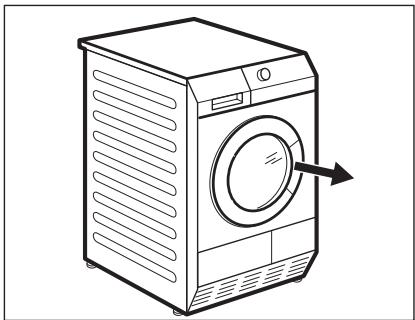

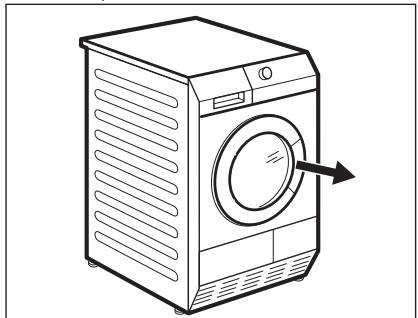

1. Pullthe appliance door

2. Load loosely the laundry

3. Close the appliance door.

AN CAUTION! Do not lock the laundry in be- tween the appliance door and rubber seal.

APPLIANCE Push the On/Off(D button to activate or to deactivate the appliance. When the appliance is on, some indications come in to the view on the display.

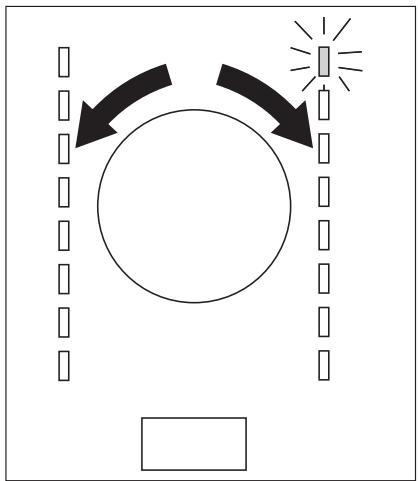

To decrease the energy consumption, the Auto Off function deactivates auto- matically the appliance: +_ifthe Start/Pause button was not pushed in the time of 5 minutes. + after 5 minutes from the programme end Push the Auto Off button to activate the appliance. SETTING À PROGRAMME NI7

SOS Dane ee Use the programme dial to set the pro- gramme. The possible time to com- plete the programme come into view on the display

The drying time you see is rela- ted to the load of 5 kg for cot- ton and jeans programmes. For the other programmes the dry- ing time is related to the recom- mended loads. The drying time of the cotton and jeans pro- grammes with the load more than 5 kg is longer SPECIAL FUNCTIONS Together with the programme you can set 1 or more special functions. To activate or deactivate the function touch the applicable function name. When the function is activated the ap- plicable symbol comes into the view on the display

THE DRY PLUS (DROGEN

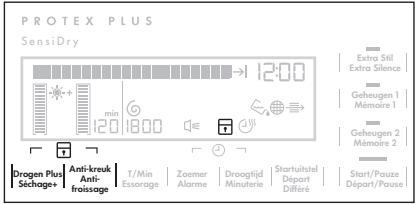

PLUS) FUNCTION This function helps to get the laundry more dried. There are 3 possible selec- tions: minimum - the default selection which is related to the programme. moderate — the selection to get the more dried laundky. maximum — the selection to get the much more dried laundry. THE SPUN AT RPM (T/MIN) FUNCTION This function helps to set the best con- dition to dry the laundry. If you know the initial spin speed when you washed you can use this function. Higher spin speed causes that the laundry contains less water. ENGLISH 51

THE ANTICREASE (ANTI-

KREUK) FUNCTION Extends of 30, 60, 90 or 120 minutes the standard anticrease phase (30 minutes) at the end of the drying cycle. This function prevents the laundry from creases. The laundry can be removed during the anticrease phase. THE BUZZER (ZOEMER) FUNCTION When the buzzer function is activated you can hear the buzzer at the: + cycle end + anti-crease phase start and end + cycle interruption The buzzer function is by default always on. You can use this function to activate or deactivate the sound.

(DROOGTIJD) FUNCTION Operates only with the Time (Tijd) pro- gramme. Lets the user to set special time of drying programme from mini- mum 10 min. to maximum of 2 hours (in 10 min. steps).

(STARTUITSTEL) FUNCTION ti) Let to delay the start of a drying programme from minimum of 30 minutes to maximum of 20 hours.

1. Setthe drying programme and

button again and again until the necessary time of the delay come into the view on the display (e.g. 12 Hiifthe programme has to start af- ter 12 hours.)

STIL) FUNCTION This function use special procedure to dry the laundry and decreases the noise to the minimum.

The child lock can be set to prevent the children to play with the appliance. The child lock function locks all functions and the programme dial (this function does not lock (M) On/Off button). To ac- tivate the child lock function touch the Dry Plus (Drogen Plus) and Anticrease (Anti-kreuk) function surfaces at the same time. When the function is active the symbol ff comes into view on the display To deactivate touch again the above function surfaces until the symbol go out of view. You can activate the child lock function: + before you touch the Start/Pause function - the appliance cannot start + after you touch the Start/Pause func- tion - all the push buttons and the programme dial are deactivated

USER SELECTION MEMORY

(GEHEUGEN) 1-2 Each programme set initially can be memorised in the appliance memory and used after. You can do your config- uration and than memorise in the appli- ance memory under 2 positions: Mem- ory (Geheugen) 1 and Memory (Geheu- gen) 2. To memorise your configuration

1. Set the programme and available

or 2 for some seconds. The sound and the message on the display confirm that the configuration is memorised. To activate your memorised configura- tion

1. Activate the appliance

2. Do the selection of the Memory

(Geheugen) 1 or 2 STARTING À PROGRAMME To activate the programme touch the Start/Pause function surface as on the illustration. The LED above starts to illu- minate permanently in red colour. CHANGE À PROGRAMME To change a programme, push the D On/Off button to deactivate appliance. Push the D On/Offto activate the ap- pliance and then set the programme again

AT THE END OF PROGRAMME

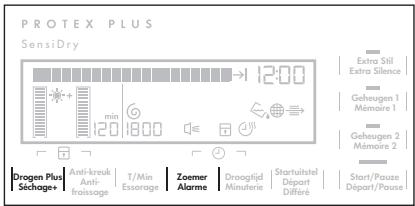

When the drying cycle is completed, the Ü symbol flashes on the display. If the Buzzer (Zoemer) function is on, an acoustic signal sounds intermittently for one minute. To remove the laundry:

1. Push the Auto/Off button for 2 sec-

onds to deactivate the appliance Open the appliance door. Remove the laundry.

4. Close the appliance door.

ENGLISH 53 ÂÀ After each drying cycle: + drain the water container (See chapter CARE AND CLEANING.) + clean the filter

ECOLOGICAL HINTS + Do not use fabric softener to wash and then dry. In the tumble dryer laundry becomes soft automatically. Use the condensate as distilled wa- ter, e.g. for steam ironing. If necessa- ry clean the condensate before (e.g with a coffee filter) to remove possi- ble small pieces of fluff. Always keep the airflow slots on the bottom of the appliance clear. Use the load volumes specified in the programmes chapter. Make sure that is good airflow in the appliance installation position. Clean the filter after each drying cy- cle. Spin good the laundry before drying

AVERAGE LAUNDRY WEIGHTS

operation of the conductivity sensor in the appliance. you know the value of the water conductivity you can adjust the sensor to dry with the better results. To change the sensor conductivity

2. Touch at the same time 2 functions

(see the illustration). Hold down until one of the symbols come into view on the display: — CL low conductivity <300 uS/em — [Üz= moderate conductivity 300-600 1S/cm — [OZ high conductivity >600 uS/em

3. Touch the Start/Pause again and

again until you set necessary level bathrobe 1200 g quilt cover 700 g man's work shirt 600 g man's pyjamas 500 g sheet 500 g tablecloth 250 g man's shirt 200 g night dress 200 g pillow case 200 g towelling towel 200 g blouse 100 g ladies’ briefs 100 g men's underpants 100 g napkin 100 g tea cloth 100 g

CONDUCTIVITY Water hardness can be different for dif- ferent locations. Water hardness has an effect on the water conductivity and the

4. To memorise the setting touch at

the same time 2 functions as are specified in the point 2.

WATER CONTAINER FULL —

INDICATION By default the indication &,, is always on. lt comes into the view at the end of the cycle or when the water container is full. When you use an extemal equip- ment to drain the container, the indica- tion can be off. To activate or deactivate the indication

Turn the programme dial to availa- ble programme Touch at the same time 2 functions (see the illustration) ENGLISH 55 and hold down until you see the correct setting: — the indication &, is off and the indicator _ _{] comes into the view — the indication &, is per- manently off — the indication &, is on and the indicator _ _ | comesintothe view— the indication &, is acti- vated

CLEANING THE PRIMARY

FILTER Atthe end of each cycle the indicator € (clean the primary filter) is on to tell you that the primary filter must be cleaned. The filter collects the fluff. The fluff occurs while the cloths are died in the tumble dryer. To clean the primary filter:

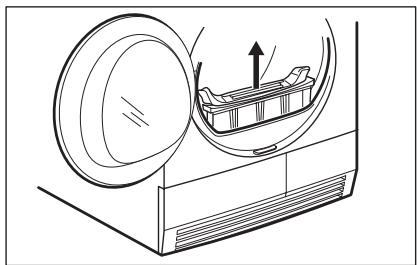

Open the door. Pull the filter. Open the filter.

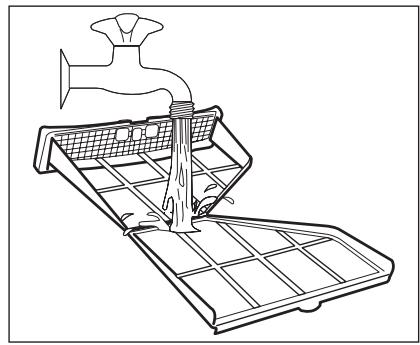

ENGLISH 57 Use a moist hand to clean the filter. If necessary clean the filter with warm water using a brush. Close the filter. Remove fluff from the filter socket. For this a vacuum cleaner can be used. Put the filter inside the filter socket. CAUTION! Do not operate the tumble dry- er without the primary filter or with damaged or blocked filter. Clean the primary filter after each drying cycle. Clogged filter increases the cycle time and causes higher energy consump- tion

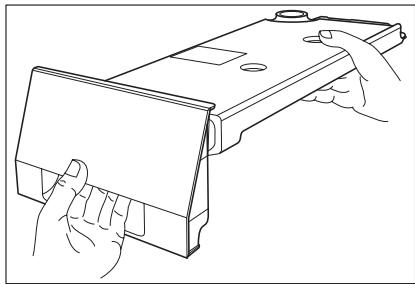

CONTAINER Drain the water container after each drying cycle. Ifthe water container is full, the pro- gramme breaks off automatically and the indicator &, drain the water con- tainer is on. To continue the pro- gramme, drain the water container and press the start button. To drain the water container au- tomatically you can install drain- ing accessory (see chapter: AC- CESSORIES)

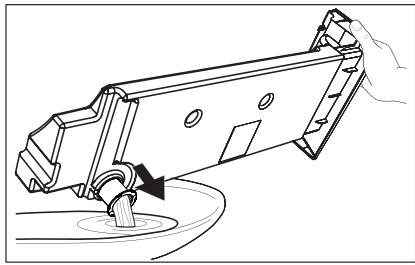

To drain the water container: Pull the water container. Move the water container in hori- zontal position. Move the plastic connection out and drain the water container into a sink or equivalent receptacle Move plastic connection in and in- stall water container. WARNING! Risk of poisoning. The con- densed water is not applicable to drink or to prepare food. The condensed water can be used as distilled water, e.g. for steam ironing. lf necessary filter the condensed water (e.g. with a coffee filter) to remove possible residue and small pieces of fluff.

EXCHANGER FILTERS Ifthe indicator => clean the heat ex- changer filters is on, the filters must be cleaned.

ENGLISH 59 To clean the filters:

1. Open the loading door.

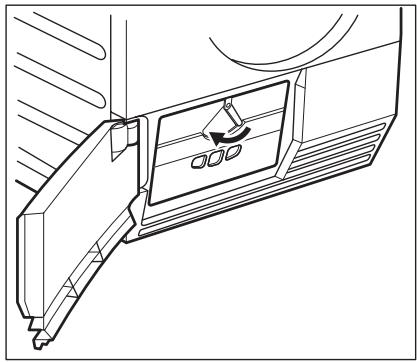

2. Move the release button on the

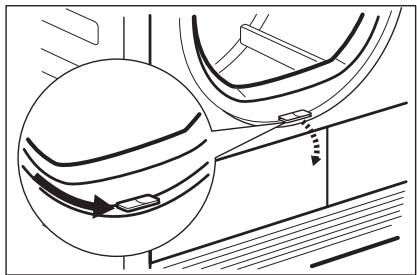

bottom of the door opening and open the heat exchanger door.

3. Turn the blockage to unlock the

heat exchanger cover.

4. Lower the heat exchanger filters

Lift the primary filter. Hold the heat exchanger filter and pull it out from the bottom compartment. Push the hook to open the filter. Use a moist hand to clean the filter. If necessary clean the filter with warm water using a brush. Close the filter.

8. Clean the small filter from the base

9. Inecessary, one time for each 6

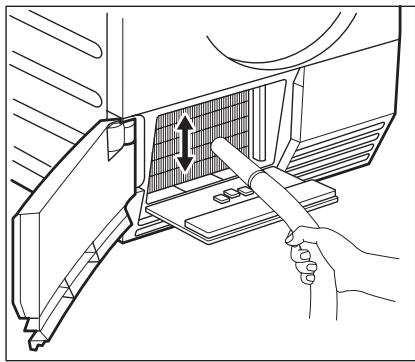

months, remove the fluff from the heat exchanger compartment. You can use a vacuum cleaner.

10. Put the small filter and heat ex-

11. Close the heat exchanger cover.

12. Lock the blockage until it snaps.

13. Close the heat exchanger filters

14. Close the heat exchanger door.

15. Putthe primary filter.

CAUTION! Do not operate the tumble dry- er when the heat exchanger fil ters are blocked with fluff. This could cause the damage to the tumble dryer. This also increases energy consumption. Do not use sharp objects to clean the heat exchanger com- partment Do not operate the tumble dry- er without the filters.

WARNING! Disconnect the appliance be- fore you clean it. Use a standard neutral soap detergent to clean the inner surface of the drum and drum ribs. Dry the cleaned surfaces with a soft cloth. CAUTION! Do not use abrasive materials or steel wool to clean the drum.

Use a standard neutral soap detergent to clean the control panel and housing, Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth CAUTION! Do not use furniture cleaning agents or cleaning agents which can cause corrosion to clean the appliance.

TROUBLESHOOTING TROUBLESHOOTING ENGLISH 63 Problem!) Possible cause Remedy The tumble dryer does not operate. The tumble dryer is not connec- ted to mains supply. Connect in at mains socket. Check fuse in fuse box (domes- tic installation) The loading door is opened Close the loading door. The D On/Offbutton was not pushed Push the (D On/Off button: The Start/Pause function was not activated Activate the Start/Pause func- tion. The appliance is in the stand-by mode. Push the (D On/Off button. Incorrect programme selection. Do the selection of the applica- ble programme. 2) The filter is logged. Clean the filter. 3) The Dry Plus function was in minimum mode. Change the Dry Plus function to the moderate or maximum mode ee The condenser is cloggedi Clean the condenser. 3) results Too high volume of the load. Obey the maximum load vol- . Clean the airflow grill in the bot- The airflow grill is clogged TS MS Dirt on the inner surface ofthe Clean the inner surface of the drum. drum Too high water hardness. Set applicable water hardness4). The d The filter not locked in the posi- Put the filter in the correct posi- 8 GIE tion. tion. does not close. The laundtry is locked between Putthe load correctly in the the door and the seal drum Noyiopencenepre Turn the tumble dryer off and gramme or the function after Make th lecti Err(Erron the startofthe cyde on. Make the new selection on the dis- Re funct - play The function you ty to activate Ti, she tumble dryer off and is not applicable with the selec- Make th lecti ETES ennE on. Make the new selection No drum a Contact the service centre to re- light Béesie cliente place the drum light.

Problem!) Possible cause Remedy Abnormall} The time to end is calculated on - elapsing the basis of the volume and The automatic procedure — this time on the d f the laund is not the appliance malfunction. dieser lampness of the laundiry. RCGENIRE The water container is full. Drain the water container”), 2c inactive. tivate the Start/Pause function Do the selection of time pro- Too small laundry volume. gramme Drying cycle iso dire. Do the selection of time pro- The laundry is too diy. gramme or higher drying level (e.g. Extra Dry) The filter is logged. Clean the filter Too high volume ofthe load. DPey the maximum load velr Drying cycle ci x 5 RE) 25 je laundry notspun suficient- Shin correct the laundhy. Very high room temperature - this is not the appliance mal- function If possible, lower the room tem- perature. Ithere is an error message on the display (e.g. E51 ): Turn the tumble dryer off and on Make a selection of the new programme. Activate the Start/Pause function. Does not operate? - contact the service centre and give the error code.

2) follow the programme description — see PROGRAMMES chapter

3) see CARE AND CLEANING chapter

4 see section WATER HARDNESS in HINTS AND TIPS chapter

5) Note: After maximum 5 hours the drying cycle ends automatically (see Drying cycle

This appliance has an internal lamp that comes on when you open the door and goes off when the door is closed. WARNING! Do not look directly into the beam of the lamp. To replace the internal lamp, contact the service centre. Disconnect the mains plug from the mains socket before the re- placement of the internal lamp.

height x width x depth 850 x 600 x 600 mm (maximal 640 mm) drum volume 1181 maximum depth with the load door 1090 mm opened maximum width with the load door opened 950 mm adjustable height 850 mm (+ 15 mm - feet regulation) the appliance weight 56 kg maximum load volume 8kg voltage 230V frequency 50 Hz necessary fuse 4A total power 900 W energy efficiency class A energy consumption kWh/cycle 1) 1,85 kWh annual energy consumption 103,4 kWh type of use Domestic permitted ambient temperature + 5°C to + 35°C 1 8 kg of cotton, centrifuged at 1000 rpm with reference to EN 61121

INSTALLATION APPLIANCE POSITIONING The tumble dryer must be installed in a clean position, where dirt does not collect. Aïr must flow freely around the appli- ance. Make sure that the front airflow slots in the bottom of the appliance are not blocked To keep vibration and noise at the minimum, when the tumble dryer op- erates, it must be put on a stable and flat surface When the appliance is put in its per- manent position, check if is fully level with the aid of a spirit level. If it is not, adjust the feet until it is. Do not remove the feet. Do not de- crease the floor clearance through thick carpets, bar of wood or equiva- lent. This can increase the heat which can cause interference with the oper- ation of the appliance. ÂÀ + The temperature of the hot air which occurs in the tumble dryer can increase to 60 °C. The appliance must not be in- stalled on the floor which is not resistant to high tempera- tures. When the tumble dryer oper- ates, the room temperature must not be lower than +5 °C and higher than +35 °C. This can cause unwanted effect on the performance of the appli- ance. If it is necessary to move the appliance, it must be moved vertically. The appliance must not be in- stalled behind a lockable door, a sliding door, a door with a hinge on the opposite side to that of the appliance in such a way that a full open- ing of the tumble dryer is re- stricted. UNPACKING AN CAUTION! Before use all parts of the transport packaging must be removed To remove the polystyrene blockages

1. Open the load door.

2. Pull plastic hose with the polystyr-

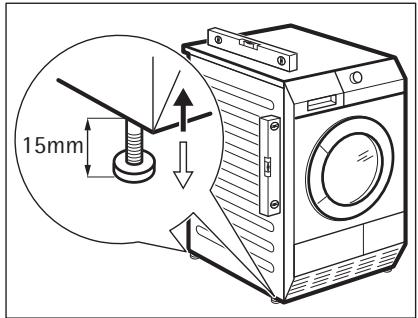

ene blockages out from the drum. It is possible to adjust the height of the tumble dryer. To do that adjust the feet (see picture).

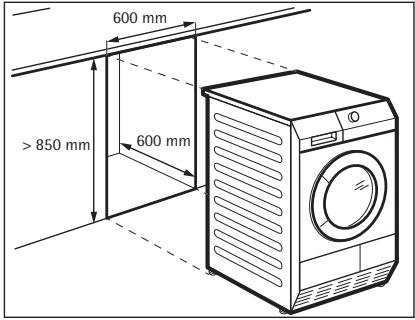

COUNTER The appliance can be installed as free- standing or below the kitchen counter with correct space (see picture).

THE LOAD DOOR REVERSAL

The load door can be installed by the user in the opposite side. It can help to easily put and remove the laundry or if there is a limit to install the appliance. (see separate leaflet). ENGLISH 67 ELECTRICAL CONNECTION + Connect the machine to an earthed socket, in accordance with current wiring regulations. Make sure that the electrical data on the rating plate agrees with the pow- er supply. Always use a correctly installed shockproof socket. Do not use multiple plugs and exten- sion cables. There is a risk of fire. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre. Make sure not to squash or cause damage to the mains plug and cable behind the appliance Do not pull the mains cable to dis- connect the appliance. Always pull the mains plug, The plug must be dry.
