USER MANUAL T65273AC AEG-ELECTROLUX

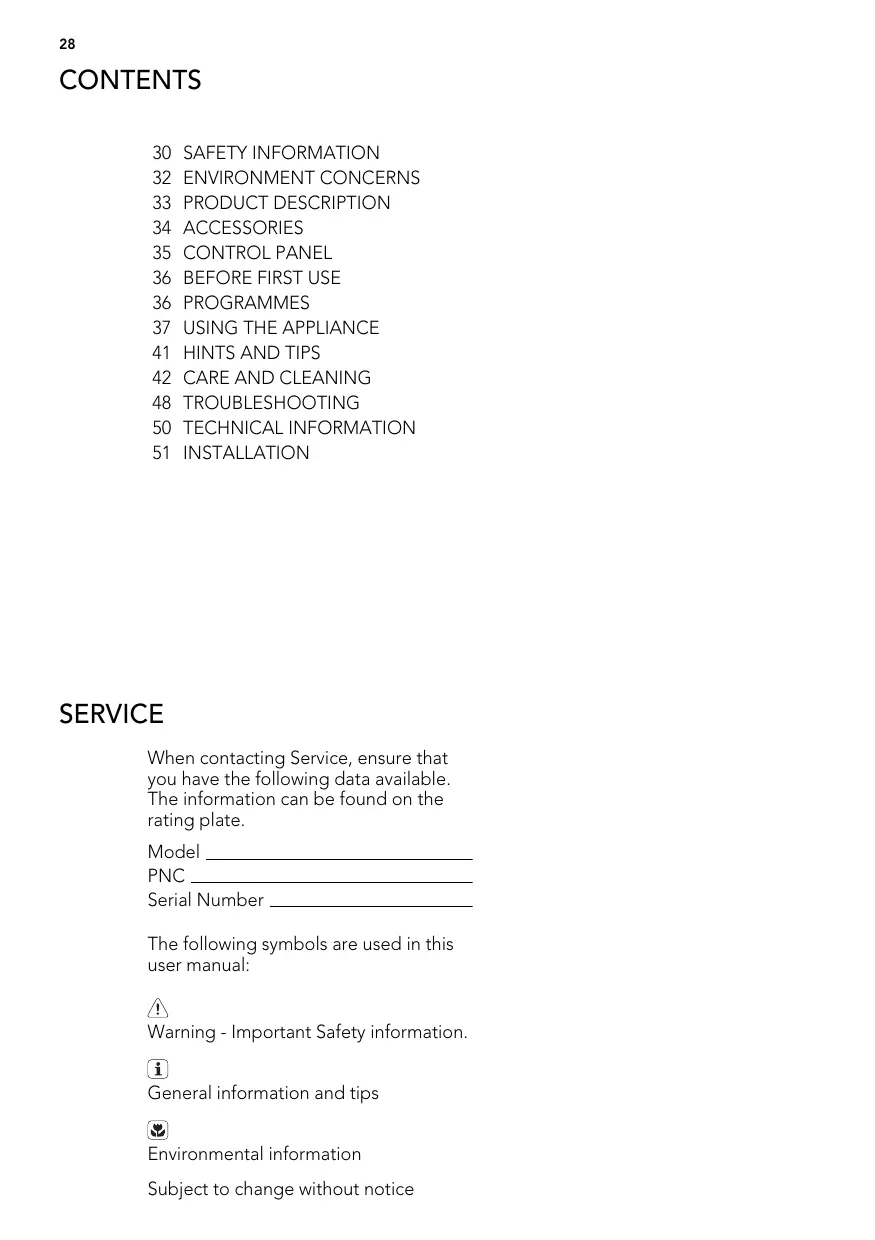

37 USING THE APPLIANCE

42 CARE AND CLEANING

48 TROUBLESHOOTING 50 TECHNICAL INFORMATION 51 INSTALLATION SERVICE When contacting Service, ensure that you have the following data available The information can be found on the rating plate. Model PNC Serial Number The following symbols are used in this user manual

General information and tips Environmental information Subject to change without notice

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you'll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags. SE IBIE Visit the webshop at: wuw.aeg.com/shop VISIT OUR WEBSITE FOR: - Products - Brochures - User manuals - Trouble shooter - Service information WWW.aeg.com

/\ SAFETY INFORMATION In the interest of your safety and to ensure the correct use, before instal- ling and first using the appliance, read this user manual carefully, in- cluding its hints and warnings. To avoid unnecessary mistakes and acci- dents, it is important to ensure that all people using the apl thoroughly familiar with its operation and safety features. Save these in- structions and make sure that they remain with the appliance if it is moved or sold, so that everyone us- ing it through its life will be properly informed on appliance use and safe- ty. - Read the instruction manual be- fore the appliance use GENERAL SAFETY It is dangerous to alter the specifica- tions or attempt to modify this prod- uct in any way. This appliance is not intended for use by persons (including children) with reduced physical and sensory condi- tions or lack of experience and knowledge, unless they have been given supervision or instruction con- cerning use of the appliance by a person responsible for their safety. Make sure that small children and pets do not climb inside the drum. To avoid this, please check into the drum before using. Any objects such as coins, safety pins, nails, screws, stones or any oth- er hard, sharp material can cause ex- tensive damage and must not be placed into the machine Items such as foam rubber (latex foam), shower caps, waterproof tex- tiles (ifthere is no special drying pro- gramme), rubber backed articles and clothes or pillows fitted with foam rubber pads must not be dried in the tumble dryer. Make sure that there is access to the mains plug after the installation. Always unplug the appliance after use, cleaning and maintenance. Under no circumstances should you attempt to repair the machine your- self. Repairs carried out by inexper- ienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts Items that have been soiled with sub- stances such as cooking oil acetone, petrol, kerosene, spot removers, tur- pentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer. Danger of explosion: Never tumble dry items that have been in contact With inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like). As these substances are volatile, they could cause an explo- sion. Only tumble dry items washed with water. Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tum- ble dryer. K you have washed your laundry with stain remover you must execute an extra rinse cycle before loading your tumble dryer. Please make sure that no gas lighters or matches have accidentally been left in pockets of garments incase they are loaded into appliance The condensed water is not applica- ble to drink or to prepare food. It can cause health problems to people and pets. Do not seat or lean on the load door. The appliance can tilt.

WARNING! + Risk of fire! To prevent from the risk of self combustion do not stop a tumble dryer before the end of the dry- ing cycle unless all items are quickly removed and spread out so that the heat is dissi- pated. Lint must not be allowed to accumulate around the tum- ble dryer.

Risk of electric shock! Do not spray down the appliance with jets of wa- ter. The final part of a tumble dryer cycle occurs without heat (cool down cy- cle ) to ensure that the items are left at a temperature that ensures that items will not be damaged The tumble dryer is not to be used if industrial chemicals have been used for cleaning. Ensure you have good ventilation in the installation room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires INSTALLATION This appliance is heavy. Be careful when you move the appliance. When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre All packaging must be removed be- fore use. Dangerous damage can oc- cur to the product and to property if this is not adhered to. See relevant section in the user manual Each electrical work necessary to in- stall this appliance must be done by a qualified electrician or competent person The rear surface of the appliance must be put against the wall If the appliance is installed on the carpet or equivalent, adjust the feet. ENGLISH 31 Air must flow freely below the appli- ance After the appliance installation, check that it is not squeeze or stay on the electrical supply cable Ifthe tumble dryer is put on top of a washing machine, it is mandatory to use the stacking kit (optional acces- sory - see chapter: "ACCESSORIES") USE This appliance is for domestic use only. It must not be used for other functions . Only dry fabrics which are applicable to dry in the tumble dryer. Follow the instructions on each piece of clothing label. Do not dry not washed items in the tumble dryer. Do not put more load than recom- mended. Obey the maximum load volume. See the related chapter in the user manual. Clothes which are dripping wet must not be put in the tumble dryer. Garments which have been in contact with volatile petroleum products should not be machine dried. If vola- tile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the appliance Do not use the tumble dryer if the power supply cable, the control pan- el, the working surface or the base are damaged so that the inside of the tumble dryer is accessible. Fabric softener or equivalent prod- ucts must be used as specified by the fabric softener manufacture. Risk of fire! Do not dry the damaged items which contain padding or fil- lings (pillows, jackets, duvets, etc.). The padding or fillings can get out and cause the fire.

CHILD SAFETY + This machine is not intended for use by young children or infirm persons without supervision + Children often do not recognise the hazards associated with electrical ap- pliances. Children should be super- vised to ensure that they do not play with the appliance. WARNING! + Danger of suffocation! The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - Keep them out of children's reach (@) ENVIRONMENT CONCERNS PACKAGING MATERIALS Recycle the materials with the symbol €. Put the packaging in applicable containers to recycle it. The symbol À on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic + Keep all detergents in a safe place out of children's reach. + Make sure that children or pets do not climb inside the drum.

DISCARD THE APPLIANCE

+ Disconnect the mains plug from the mains socket. Cut off the mains cable and discard

Discard the door catch. This prevents children or pets to be closed in the appliance. There is a risk of suffoca- tion equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

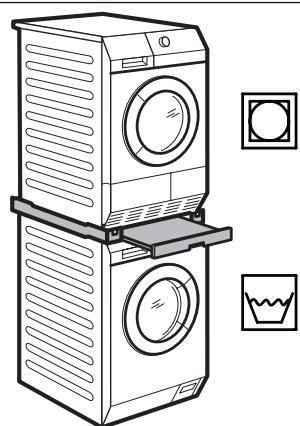

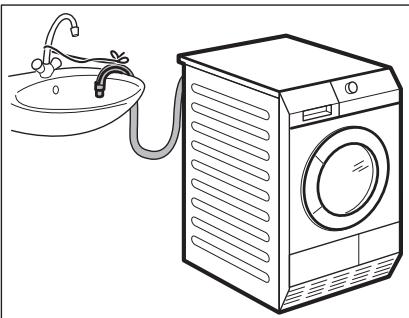

ACCESSORIES STACKING KIT Product name: SKP11 Available from your authorized dealer. Stacking kit can be used only with the washing machines specified in the leaf- let. See leaflet attached. Read carefully the instructions supplied with the kit. DRAINING KIT Product name: DK11. Available from your authorized dealer (can be attached to some types of the tumble dryers) Installation kit for through draining of the condensed water into a basin, si- phon, gully, etc. After installation the water container is drained automatical- ly. The water container must stay in the appliance. installed hose must be on the height from minimum of 50 cm to maximum of 1 m from floor level. The hose cannot be in loop. lf possible decrease the length of the hose Read carefully the instructions supplied with the kit.

PEDESTAL WITH THE DRAWER

Product name: PDSTP10. Available from your authorized dealer. To put the appliance higher at the level which helps to easy load and remove the laundry The drawer can be use for laundry stor- age e.g. : towels, cleaning products and more. Read carefully the instructions supplied with the accessory.

Clean the tumble dryer drum with a moist cloth or set a short programme (e.g. 30 minutes time programme) with the load of moist cloths. PROGRAMMES Pro- 1 - Available Fabric grammes Load!) REFRES functions mark Cottons (Katoen) RDV 44 To diycottonpieces of clothing 0 [@Je] Droog) Sd Drying level: extra dry. nes 7 kg T® dy cotton pieces of clothing x 80 me Drying level: cupboard dry. End 7 kg T® dry cotton pieces of clothing su 80 droog) 2 Drying level: applicable to iron. - To diy leisure clothing such as Lure jeans, sweat-shirts of different ma- î 80 E j s<ecr 3 terialthicknesses (e.g. at the neck, 3 g cuffs and seams). Bed Linen To dry bed linen such as: single oo] (Bedden- 3kg and double sheet, pillowcase, bed all le) goed) spread . To diy single or double duvet and O0 Giless 3kg _ pillows (ith feather, don or sn | 2*%Pt, à (Kissens) thetic fillings). Anticrease Delicate B : (Fine Wes) 3kg To dry delicate fabrics. all3) ge Synthetics (Synthetica) Extra Dry To dy thick or multi-layered fab- Jo] (Extra 3,5kg ris, e. g. pullovers, bedding, table all le) Droog) linen. Cupboard To dy thin fabrics which are notir- Jo] Dry (Kast- 35k oned, e.g. easy care shirts, table all O dog 2 7? 9 linen, baby clothes, socks, lingerie roog) with bones or wires. En 3,5kg T° dry thin fabrics which are also to 0 ae droog) be ironed, e.g. knitwear, shirts.

ENGLISH 37 Pro- 1 q Available Fabric grammes Loadl) ReTtEs functions mark To dy easy care fabrics such shirts fo] and blouses; for minimum ironing O 1kg fort. The results can be different Easy lron ( % forto the different types of fabric 1® (Strijkvrij) chirte) and its finish. Put fabrics in the a tumble dryer straight. After the cy- cle, immediately remove dried fab- rics and put on a cloths hanger. Sportswear To dry sportswear, thin fabrics, mi- (Sportkled- 2kg crofiber, polyester, which are not all ing) ironed . Time programme to dry individual feJe] Evrin 3k9 items of laundky. ad De kg ire programme to dry individuel m ao items of laundry.

1) Maximal weight of dry clothes

2 For test institutes only: To make à performance test use the standard programmes which are specified in the EN 61121 document.

Dry only the laundry applicable to dry in the tumble dryer. Make sure if the laundry is applicable to dry in the tumble dryer. Do the check of the fabric mark on the clothes. Fabric Property mark O Applicable to dry in the tum- ble dryer O Applicable to dry in the tum- ble dryer at standard tem- perature [eo] Applicable to dry in the tum- ble dryer at decreased tem- perature & Not applicable to dry in the tumble dryer Correctly prepare the laundry + close zips, button up duvet covers and attach loose ties or ribbons (e.g. ribbons of aprons) - laundry can tan- gle make sure the pockets are empty - remove metal items (paper clips, safety pins, etc.). turn items with 2 fabric layers inside out (e.g. cotton lined anoraks, the cotton fabric layer must be external) Dry only. + cotton and linen with Cottons (Ka- toen) programmes + synthetic and mixtures with Synthetic (Synthetica) programmes + separately the strong coloured tex- tiles and the light coloured textiles - colours can bleed + _cotton jersey and knitwear only with the applicable programmes - items can shrink

Do not put more laundry than the maximum load which is 7kg.

SETTING À PROGRAMME Pull the appliance door Load loosely the laundry Close the appliance door. AN CAUTION! Do not lock the laundry in be- tween the appliance door and rubber seal.

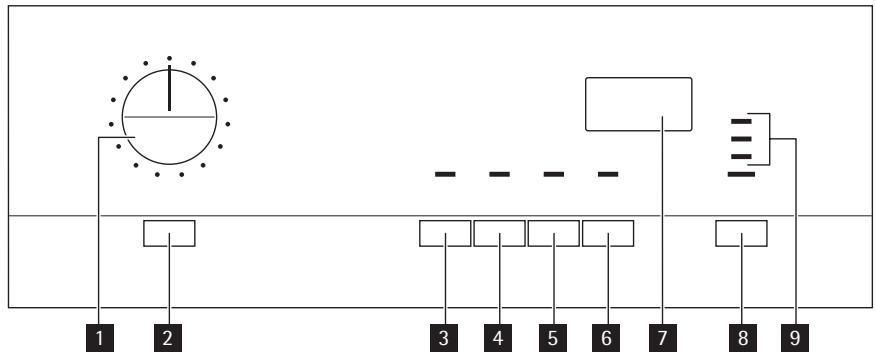

APPLIANCE Push the On/Off (Aan/Uit) button to ac- tivate or to deactivate the appliance. When the appliance is on, some indica- tions come in to the view on the dis- play.

AUTO STANDBY FUNCTION

To decrease the energy consumption, the automatic standby function deacti- vates the appliance: ifthe Start/Pause (Start/Pauze) but- ton was not pushed in the time of 5 minutes. after 5 minutes from the programme end. Push the On/Off (Aan/Uit) button to ac- tivate the appliance.

Use the programme dial to set the pro- gramme. The possible time to com- plete the programme come into view on the display

The drying time you see is rela- ted to the load of 5 kg for cot- ton and jeans programmes. For the other programmes the dry- ing time is related to the recom- mended loads. The drying time of the cotton and jeans pro- grammes with the load more than 5 kg is longer. SPECIAL FUNCTIONS Together with the programme you can set 1 or more special functions. To activate or deactivate the function push the applicable push button. ee = When the function is activated the LED above the push button comes into the view. THE DELICATE (BEHOEDZAAM) FUNCTION To dry more lightly the sensitive and temperature sensitive textiles (e.g. acrylic, viscose). For fabrics with the symbol € on the fabric label. Pro- gramme operates with decreased heat.

THE BUZZER (ZOEMER) FUNCTION When the buzzer function is activated you can hear the buzzer at the « cycle end + anti-crease phase start and end cycle interruption The buzzer function is by default always on. You can use this function to activate or deactivate the sound.

THE ANTICREASE (ANTI-

KREUK) FUNCTION Extend anti-crease phase (30 minutes) at the end of the drying cycle to 90 mi- nutes. This function prevents laundry from creases. Laundry can be removed during the anti-crease phase.

(STARTUITSTEL) FUNCTION Gi) Let to delay the start of a drying programme from minimum of 30 minutes to maximum of 20 hours.

1. Setthe drying programme and

button again and again until the necessary time of the delay come into the view on the display (e.g. 12 Hifthe programme has to start af- ter 12 hours.)

The child lock can be set to prevent the children to play with the appliance. The child lock function locks all push but- tons and the programme dial (this func- tion does not lock On/Off (Aan/Uit) but- ton). To activate the child lock function push the Delay Start (Startuitstel) and Anticrease (Anti-kreuk) buttons at the same time until the symbol 5 come in- to view on the display. To deactivate push again the above buttons until the symbol go out of view. You can activate the child lock function + before you push the Start/Pause (Start/Pauze) button - the appliance cannot start after you push the Start/Pause (Start/ Pauze) button - all the push buttons and the programme dial are deacti- vated

When the drying cycle is completed, the [ symbol flashes on the display. If the Buzzer (Zoemer) function is on, an acoustic signal sounds intermittently for one minute. To remove the laundry:

1. Push the On/Off (Aan/Uit) button

for 2 seconds to deactivate the ap- pliance Open the appliance door Remove the laundry.

4. Close the appliance door.

+ drain the water container (See chapter CARE AND CLEANING.)

ECOLOGICAL HINTS + Do not use fabric softener to wash and then dry. In the tumble dryer laundry becomes soft automatically. Use the condensate as distilled wa- ter, e.g. for steam ironing. If necessa- ry clean the condensate before (e.g with a coffee filter) to remove possi- ble small pieces of fluff. Always keep the airflow slots on the bottom of the appliance clear. Use the load volumes specified in the programmes chapter. Make sure that is good airflow in the appliance installation position. Clean the filter after each drying cy- cle. Spin good the laundry before drying

CONDUCTIVITY Water hardness can be different for dif- ferent locations. Water hardness has an effect on the water conductivity and the ENGLISH 41 operation of the conductivity sensor in the appliance. you know the value of the water conductivity you can adjust the sensor to dry with the better results. To change the sensor conductivity

2. Push at the same time the Delicate

(Behoedzaam) and Anticrease (An- ti-kreuk) buttons and hold down until one of the these symbols go into view on the display: — [O2 low conductivity <300 uS/em — [Üz= moderate conductivity 300-600 1S/cm — [OZ high conductivity >600 uS/em

3. Push the Start Pause button again

and again until you set necessary level

4. To memorise setting push at the

same time the Delicate (Behoed- zaam) and Anticrease (Anti-kreuk) buttons.

INDICATION By default the indication LED is always on. lt comes into the view at the end of the cycle or when the water container is full. When you use an external equip- ment to drain the container, the LED can be off. To activate or deactivate the indication

2. Push at the same time the Delicate

(Behoedzaam) and Delay Start (Startuitstel) buttons and hold down until you see the correct set- ting: — the LED is off and the symbol _ _Ü goes into the view - The LED is permanently off — the LED is on and the symbol À goes into the view - The LED is activated

Atthe end of each cycle the filter LED is on to tell you that the filter must be cleaned. The filter collects the fluff. The fluff occurs while the cloths are dried in the tumble dryer. To clean the filter:

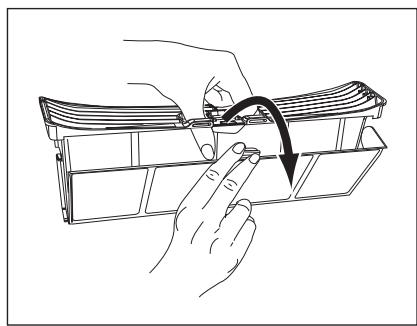

4. Use a moist hand to clean the filter.

5. Ifnecessary clean the filter with

warm water using a brush. Close the filter.

6. Remove fluff from the filter socket.

For this a vacuum cleaner can be used.

7. Put the filter inside the filter socket

ÂÀ CAUTION! If the water container is full, the pro- Do not operate the tumble dry- gramme breaks off automatically and er without the filter or with dam- the drain container LED is on. To con- aged or blocked filter. tinue the programme, drain the water container and press the start button. /\ este filter after each drying cycle. Clogged filter increases To drain the water container au- the cycle time and causes higher tomaticall you can install drain- energy consumption. ing accessory (see chapter: AC- CESSORIES)

CONTAINER Drain the water container after each drying cycle.

To drain the water container:

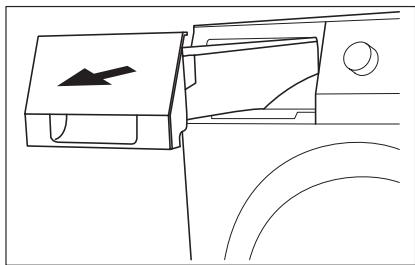

1. Pull the water container.

2. Move the water container in hori-

3. Move the plastic connection out

and drain the water container into a sink or equivalent receptacle

4. Move plastic connection in and in-

stall water container. WARNING! Risk of poisoning. The con- densed water is not applicable to drink or to prepare food. The condensed water can be used as distilled water, e.g. for steam ironing. lf necessary filter the condensed water (e.g. with a coffee filter) to remove possible residue and small pieces of fluff.

CLEANING THE CONDENSER

Ifthe condenserLED is on, the con- denser must be cleaned.

ENGLISH 45 To clean the condenser:

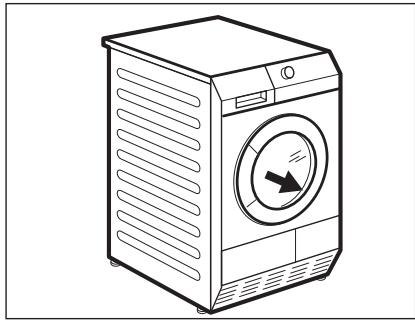

Open the loading door Move the release button on the bottom of the door opening and open the condenser door. Turn the 2 blockages to unlock the condenser lid. Lower the condenser lid.

5. Catch the handle and pull the con-

denser out from the bottom com- partment. Move condenser hori- zontally to do not spill remaining water.

6. Clean the condenser in vertical po-

sition over a basin or paddling Rinse through with a hand shower.

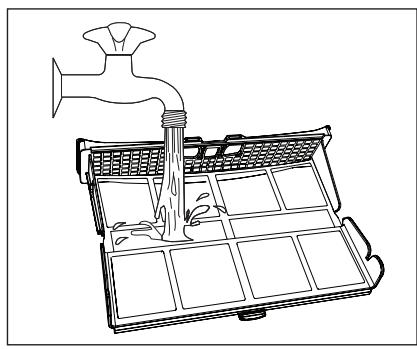

7. Clean the condenser filter. Rinse

through with a hand shower.

10. Lock the 2 blockages until they

11. Close the condenser door.

CAUTION! Do not operate the tumble dry- er when the condenser is blocked with fluff. This could cause the damage to the tum- ble dryer. This also increases en- ergy consumption. Do not use sharp objects to clean the condenser. The dam- aged condenser could cause leaks. Do not operate the tumble dry- er without the condenser.

WARNING! Disconnect the appliance be- fore you clean it. Use a standard neutral soap detergent to clean the inner surface of the drum ENGLISH 47 and drum ribs. Dry the cleaned surfaces with a soft cloth. CAUTION! Do not use abrasive materials or steel wool to clean the drum.

CLEANING THE CONTROL

Use a standard neutral soap detergent to clean the control panel and housing. Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth. AN CAUTION! Do not use furniture cleaning agents or cleaning agents which can cause corrosion to clean the appliance.

TROUBLESHOOTING TROUBLESHOOTING Problemi) Possible cause Remedy The tumble dryer does not operate. The tumble dryer is not connec- ted to mains supply. Connect in at mains socket. Check fuse in fuse box (domes- tic installation) The loading door is opened Close the loading door. The On/Off button was not pushed Push the On/Off button. The Start/Pause button was not pushed Push the Start/Pause button. The appliance is in the standby mode. Push the On/Off button. Incorrect programme selection. Do the selection of the applica- ble programme. 2) The filter is logged. Clean the filter. 3) The condenser is cloggedl Clean the condenser. 3) Unsatisfac- . Obey the maximum load vol ion doing Too high volume ofthe load. HE results : Clean the airflow grill in the bot- The airflow grill is logged tom of the appliance Dirt on the inner surface ofthe Clean the inner surface of the drum. drum Too high water hardness. Set applicable water hardness’). The filter not locked in the posi- Put the filter in the correct posi- The door tion tion. does not close. The laundtry is locked between Putthe load correctly in the the door and the seal drum Noyiopencenepre Turn the tumble dryer off and gramme or the function after Make th lecti Er (Erron) the start ofthe cycle 9n- Var ne new se ection on the dis- The functi nn e function you try to activate play Bacs applicable ce theselee. Tumthe tumble dryer off and on. Make the new selection. ted programme. Abnormaly The time to ends calculated on - elapsing the basis of the volume and The automatic procedure — this time on the dampness of the laundr is not the appliance malfunction. display. P ÿ Programme he water container is full Drain the water container), inactive. push the Start/Pause button.

To small laundry volume. ENGLISH 49 Do the selection of time pro- gramme. Drying cycle too or. Do the selection of time pro- The laundhy is too much dried. gramme or higher drying level (e.g. Extra Dry) The filteris clogged. Clean the filter. Too high volume ofthe load. Obey the maximum load vol- Drying cycle = Dong 3 LD Teundry noEspun Sue Sn corectly the laundo. Very high room temperature - this is not the appliance mal- function. If possible, lower the room tem- perature. ŸIfthere is an error message on the display (e.g. E51): Tum the tumble dryer off and on Make a selection of the new programme. Push the Start/Pause button. Does not operate? - contact the service centre and give the error code.

] follow the programme description — see PROGRAMMES chapter

3) see CARE AND CLEANING chapter

5) Note: After maximum 5 hours the drying cycle ends automatically (see Drying cycle

height x width x depth 850 x 600 x 600 mm mm (maximal 640 mm) drum volume 1181 maximum depth with the load door 1090 mm opened maximum width with the load door 950 mm opened adjustable height 850 mm (+ 15 mm - feet regulation) the appliance weight A1kg maximum load volume 7kg voltage 230V frequency 50 Hz necessary fuse 16A total power 2800 W energy efficiency class B energy consumption kWh/cycle 1) 3,92 kWh annual energy consumption 284,1 kWh type of use Domestic permitted ambient temperature + 5°C to + 35°C 1)7 kg of cotton, centrifuged at 1000 rpm with reference to EN 61121

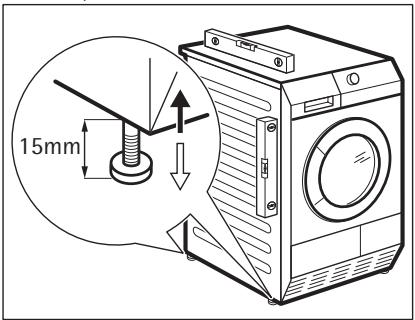

INSTALLATION APPLIANCE POSITIONING The tumble dryer must be installed in a clean position, where dirt does not collect. Aïr must flow freely around the appli- ance. Make sure that the front airflow slots in the bottom of the appliance are not blocked To keep vibration and noise at the minimum, when the tumble dryer op- erates, it must be put on a stable and flat surface When the appliance is put in its per- manent position, check if is fully level with the aid of a spirit level. If it is not, adjust the feet until it is. Do not remove the feet. Do not de- crease the floor clearance through thick carpets, bar of wood or equiva- lent. This can increase the heat which can cause interference with the oper- ation of the appliance.

+ The temperature of the hot air which occurs in the tumble dryer can increase to 60 °C. The appliance must not be in- stalled on the floor which is not resistant to high tempera- tures. When the tumble dryer oper- ates, the room temperature must not be lower than +5 °C and higher than +35 °C. This can cause unwanted effect on the performance of the appli- ance. If it is necessary to move the appliance, it must be moved vertically. The appliance must not be in- stalled behind a lockable door, a sliding door, a door with a hinge on the opposite side to that of the appliance in such a way that a full open- ing of the tumble dryer is re- stricted. ENGLISH 51 It is possible to adjust the height of the tumble dryer. To do that adjust the feet (see picture). UNPACKING AN CAUTION! Before use all parts of the transport packaging must be removed To remove the polystyrene blockages

1. Open the load door.

2. Pull 2 plastic hoses with the poly-

styrene blockages out from the drum.

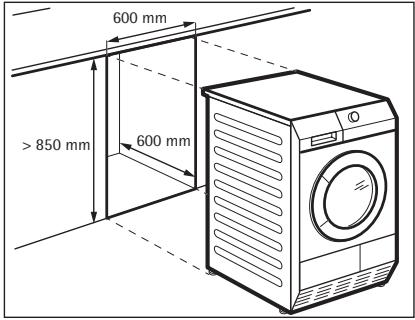

COUNTER The appliance can be installed as free- standing or below the kitchen counter with correct space (see picture).

THE LOAD DOOR REVERSAL

The load door can be installed by the user in the opposite side. It can help to easily put and remove the laundry or if there is a limit to install the appliance. (see separate leaflet). ELECTRICAL CONNECTION + Connect the machine to an earthed socket, in accordance with current wiring regulations. Make sure that the electrical data on the rating plate agrees with the pow- er supply. Always use a correctly installed shockproof socket. Do not use multiple plugs and exten- sion cables. There is a risk of fire. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre. Make sure not to squash or cause damage to the mains plug and cable behind the appliance Do not pull the mains cable to dis- connect the appliance. Always pull the mains plug, The plug must be dry.
